The CNN and ViT Fusion Model Based on Hierarchical Adaptive

Token Refinement Method in Pneumonia X-ray Image Classification

Peiqi Zhang

Computing Science, Aberdeen Institute of Data Science and Artificial Intelligence, South China Normal University,

Guangdong Foshan, China

Keywords: Pneumonia Diagnosis, X-ray Images, CNN, ViT, Fusion Model.

Abstract: Convolutional Neural Networks (CNN) and Vision Transformers (VIT) each have their own advantages in

medical image analysis, particularly in the automatic classification of X-ray images. Many studies have

contributed to the effective combination of these two.This paper proposes a CNN and ViT merging method -

Hierarchical Adaptive Token Refinement (HATR), combining the local feature extraction capability of CNN

with the global modeling ability of ViT. The experimental results show that the accuracy rate of the fusion

model based on ResNet (HATR-ResNet) is 91.4%, which is significantly better than that of ResNet alone

(87.3%). The accuracy rate of the fusion model based on Conv2D (HATR-Conv2D) is 88.2%, which is

approximately 5% higher than that of Conv2D alone (82.7%). The superiority of HATR-ResNet stems from

the deep residual network structure of ResNet, which can better extract complex features and capture details,

while the shallower network structure of Conv2D is relatively insufficient when dealing with complex

patterns.This study proposes a new fusion method for CNN and ViT, and compares the performance

differences of the fusion models based on different CNN backbones. It contributes to the subsequent research

on new model structures and the exploration of new fusion methods.

1 INTRODUCTION

Be advised that papers in a technically unsuitable

form will be returned for retyping. After returned the

manuscript must be appropriately modified.

The field of Chest X-ray (CXR) image analysis

plays a crucial role in the early diagnosis of

pneumonia. Traditional methods for diagnosing

pneumonia rely on doctors' experience and imaging

examinations. However, in some high-load and

resource-tight environments, this may lead to

diagnostic delays or even errors (Litjens et al., 2017).

A study published in JAMA Internal Medicine in

2024 analyzed 17,290 inpatients from 48 Michigan

hospitals and found that 12.0% of the patients were

misdiagnosed as having community-acquired

pneumonia (Gupta et al., 2024). With the

advancement of artificial intelligence technology,

Computer-Aided Diagnosis (CAD) systems based on

deep learning can extract complex features from a

large number of medical images, greatly improving

the efficiency and accuracy of diagnosis.

https://orcid.org/0009-0003-4096-7208

Convolutional Neural Network (CNN) is the core

architecture of deep learning and has performed

exceptionally well in the field of medical image

analysis, especially in the task of pneumonia

detection (Litjens et al., 2017; Kermany et al., 2018).

ResNet solved the degradation problem in deep

network training through residual connections,

enabling the network to extract deeper image features

(He et al., 2016). Models based on Conv2D are often

used to identify detailed features in medical images,

such as abnormal textures in X-ray images of the

lungs (Ronneberger et al., 2015). However, CNN has

limitations in capturing long-term dependencies and

global features, which may restrict its performance in

complex medical image tasks(Raghu et al., 2019).

To overcome the shortcomings of CNN in global

feature modeling, the Vision Transformer (ViT) has

become a research hotspot in recent years. ViT uses

the self-attention mechanism to achieve global image

modeling, which can more effectively capture long-

term dependencies compared to traditional CNN

(Dosovitskiy et al., 2021; Vaswani et al., 2017).

504

Zhang, P.

The CNN and ViT Fusion Model Based on Hierarchical Adaptive Token Reﬁnement Method in Pneumonia X-ray Image Classiﬁcation.

DOI: 10.5220/0014361900004718

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 2nd International Conference on Engineering Management, Information Technology and Intelligence (EMITI 2025), pages 504-510

ISBN: 978-989-758-792-4

Studies have shown that ViT performs well on large-

scale datasets, but its performance is usually inferior

to CNN on small sample datasets, and it requires

higher annotation data and computing resources

(Touvron et al., 2021; Chen et al., 2021). This limits

the application of ViT in resource-constrained

scenarios.

To combine the advantages of CNN and ViT,

researchers proposed a hybrid model. Swin

Transformer enhances the feature representation

ability through the hierarchical window self-attention

mechanism, and in the ImageNet classification task,

it increased the Top-1 accuracy to 83.5%, which is

approximately 3% higher than the baseline model

(Liu et al., 2021). CoAtNet integrates convolution

and self-attention mechanisms, achieving a balance

between computational efficiency and performance.

Experimental results show that it has an accuracy

improvement of approximately 2.5% compared to the

traditional Transformer model under the same

computational cost (Dai et al., 2021).

The main objective of this study is to design and

compare the performance of different CNN and ViT

fusion models in pneumonia classification tasks. By

combining the local feature extraction advantages of

CNN and the global information modeling

capabilities of ViT, this study proposes a modular

fusion framework and analyzes the performance of

different CNN backbone networks in this framework.

Through experiments, this study explored how to

optimize the structure of the fusion model to improve

the accuracy of pneumonia classification and provide

a theoretical basis and practical guidance for the

design of future automatic diagnosis systems for

pneumonia.

2 DATASET AND METHODS

2.1 Dataset Dscription

The dataset used in this study is from the Kaggle chest

X-ray image (Pneumonia) dataset, which is widely

used in pneumonia classification tasks. The dataset

contains normal lung images and pneumonia lung

images. All the images are grayscale and have typical

medical imaging features. The composition of the

dataset is as follows: The training set approximately

contains 5,232 images, among which 1,341 are

normal lung images and 3,891 are pneumonia images.

The validation set consists of 16 images, including 8

normal and 8 pneumonia samples respectively. The

test set contains 624 images, which are divided into

234 normal images and 390 pneumonia images. The

sample of normal and pneumonia images is shown in

Figure 1 and Figure 2. Although the sample size of

the training set is large, the number of pneumonia

samples is significantly higher than that of normal

samples, resulting in an imbalance in the data. This

problem is common in many medical image analysis

tasks.

Figure 1: Samples of Normal (Data from: Kaggle).

Figure 2: Samples of Pneumonia (Data from: Kaggle).

2.2 Dataset Preprocessing

Since the original image is a grayscale image, it is

necessary to convert the image into a three-channel

RGB image suitable for deep learning models

(especially pretrained models) during subsequent

processing. This conversion is usually accomplished

by replicating the channels of grayscale images or

through pseudo-colorization processing, thereby

making the images conform to the input requirements

of models such as CNN and ViT on the channels. To

meet the size requirements of the model input, all

images have been uniformly adjusted to a size of

224x224. This size setting is not only compatible with

common convolutional neural network architectures

such as ResNet and VGG, but also meets the input

size requirements of ViT models.

Another key step in image preprocessing is

normalization. First, normalize the pixel values to the

[0, 1] interval to reduce the influence of different

image brightness and contrast on model training.

Then, based on the statistics from ImageNet, the

images were standardized, using the mean ([0.485,

0.485, 0.485]) and standard deviation ([0.229, 0.229,

0.229]) of the images. This standardized approach

helps the model adapt to the input distribution of the

pretrained model, enhancing the stability and

convergence speed of the training.

To enhance the robustness and generalization

ability of the model, various data augmentation

operations were also performed on the training set

data. Specifically, the training images are enhanced

through random horizontal flipping, random rotation

(up to ± 10 degrees), and random brightness

adjustment ( ± 10%), among other methods.

The CNN and ViT Fusion Model Based on Hierarchical Adaptive Token Reﬁnement Method in Pneumonia X-ray Image Classiﬁcation

505

However, to ensure the fairness and accuracy of the

model evaluation, the validation set and test set were

not subjected to data augmentation processing to

avoid the impact of augmentation operations on the

evaluation results.

As shown in Figure 3, the imbalance problem of

the dataset is one of the key factors affecting the

performance of the model. In this study, a weighted

cross-entropy loss function was adopted to alleviate

this problem. By setting the weight ratio of the normal

category and the pneumonia category to 3:1, the

model can pay more attention to the samples of a few

categories (i.e., the normal category) during the

training process, avoiding the model being overly

biased towards the pneumonia category. In addition,

according to the experimental requirements,

oversampling of normal samples or undersampling of

pneumonia samples can also be selected to further

improve the model's adaptability to imbalanced data.

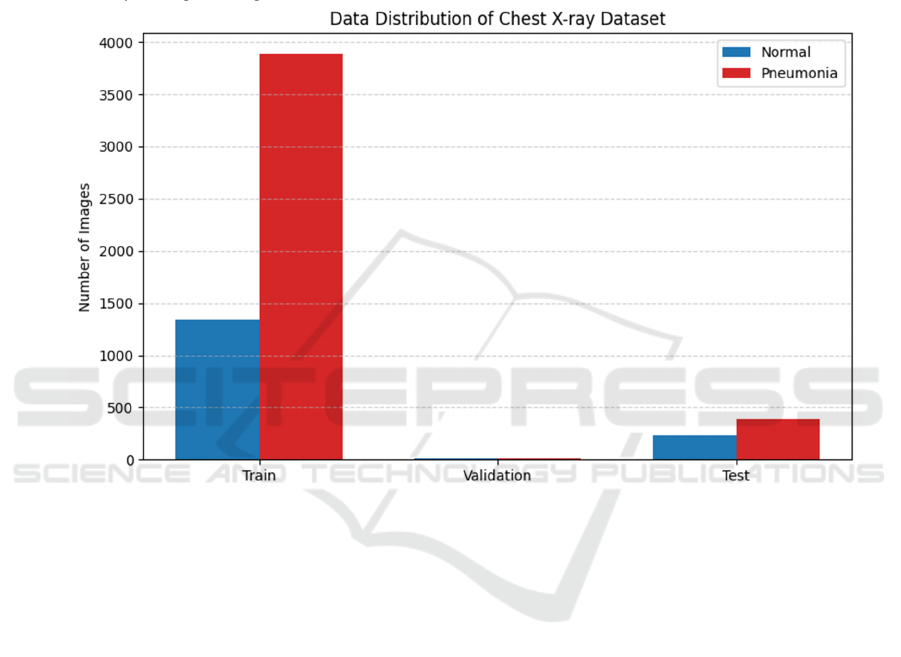

Figure 3: Distribution of the dataset (Picture credit: Original).

2.3 Model

To fully utilize the sensitivity of a convolutional

neural network (CNN) to local features and the

advantages of Vision Transformer (ViT) in global

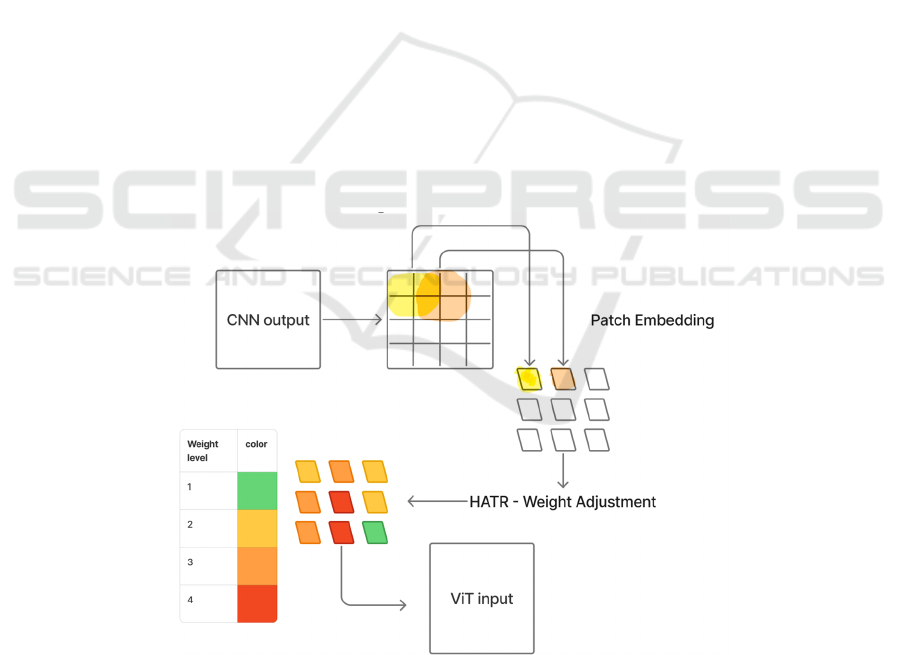

modelling, this study designs a fusion method. It is

named HATR (Hierarchical Adaptive Token

Refinement). This method uses CNN as the feature

extractor and maps its output to sequence inputs

suitable for ViT. By introducing multi-scale feature

partitioning and adaptive weighting mechanisms, it

achieves efficient feature integration from local to

global.

This section first briefly introduces the basic

functions and output features of each sub-model, and

then focuses on elaborating the design logic and

implementation details of the fusion method.

2.3.1 Basic Model

ResNet-50 was used to extract the representation of

X-ray images of the lungs, and the final output was a

feature map of size [batch, 2048, 7, 7]. This feature

map is mapped to 512 channels through

dimensionality reduction and convolution to adapt to

subsequent module processing.

Conv2D is a lightweight convolutional network

composed of three layers of convolutional stacks,

with channels of 64, 128, and 256 in sequence. The

final output feature map is [batch, 256, 14, 14].

Compared with ResNet, it has a simpler structure and

faster training, but its semantic expression ability is

relatively weak.

ViT represents images as a series of patches and

models the global relationships among different

regions through a self-attention mechanism. It does

not have the inductive bias of convolution, and thus

is more sensitive to the organizational structure of the

EMITI 2025 - International Conference on Engineering Management, Information Technology and Intelligence

506

input features. The input of ViT is a sequence in the

form of [batch, N, d], where each element

corresponds to an embedded representation of an

image Patch, and the output is used for classification

through CLS tokens.

2.3.2 Fusion Method: HATR (Hierarchical

Adaptive Token Refinement)

The traditional CNN-VIT fusion methods often adopt

direct Patch segmentation and input connection,

ignoring the differences and spatial continuity of

features in each region in the CNN output, which is

prone to lead to information fragmentation or

redundant transmission. To this end, the research

proposes a hierarchical adaptive fusion method,

HATR, which optimizes this connection process from

two aspects: multi-scale overlapping embedding and

Token adaptive weighting. The structure of this

method is shown in Figure 4.

Firstly, after the CNN output, the conventional

non-overlapping Patch segmentation method is no

longer adopted. Instead, an overlapping window

(stride < patch size) is introduced to perform

convolutional partitioning on the feature map. This

approach can retain more context information

between patches and slow down the fragmentation of

the spatial structure. For instance, for the output of

Conv2D [256, 14, 14], by dividing it with a sliding

window of kernel size=2 and stride=1, a large number

of patches with overlapping areas can be generated,

which can then be flattened to form the sequence

input [batch, N, 512] required for ViT. The output

resolution of ResNet is relatively low. The method

first performs a 1×1 convolution dimension reduction

on it and then applies the same sliding partitioning

strategy.

Secondly, the study introduces a lightweight

attention module to perform feature weighting on all

patches. This module combines channel attention and

spatial attention mechanisms to identify the

importance of different patches. Each Patch is

assigned a weight coefficient. High-response regions

(such as patches containing lesion features) will be

high-lighted, while the information of low-response

regions will be compressed. The final Patch sequence

already possesses the characteristics of spatial

continuity and significant regional enhancement

before being input into the ViT.

The sequences received by ViT already contain

hierarchical details and importance annotations. The

long-distance dependencies between various regions

are modelled through their self-attention mechanism,

and finally, the global information is aggregated by

the CLS token for pneumonia classification

Figure 4: Structure of HATR method (Picture credit: Original).

The HATR method resolves the structural

mismatch issue between convolutional features and

the Transformer input. The multi-scale overlapping

embedding method enhances the correlation between

patches and alleviates feature fragmentation. The

Token weighting mechanism enables the model to

learn to filter the most valuable regions when

information is overloaded, thereby enhancing the

model's discriminative ability.

The CNN and ViT Fusion Model Based on Hierarchical Adaptive Token Reﬁnement Method in Pneumonia X-ray Image Classiﬁcation

507

Compared with the directly connected fusion

structure, HATR can more fully leverage the

respective advantages of CNN and ViT while

maintaining the overall computational complexity

within a controllable range. For scenes like medical

images with low contrast and high redundancy, this

refined connection and weighting method has higher

practical value.

3 EXPERIMENTS

3.1 Experimental Configuration

Table 1: Experimental Configuration.

Ite

Details

Hardware NVIDIA RTX 5060 GPU

Software

Framewor

PyTorch 1.10Python 3.8CUDA

11.2

timize

Adam

Learnin

Rate 1e-4

Batch Size 32

Loss Function Weighted cross-entropy loss (for

class imbalance

)

Trainin

ochs 20

The experimental environment of this study is

shown in Table 1. This study was conducted in a GPU

environment with strong image processing

capabilities (RTX 5060), using the PyTorch

framework to implement all model training and

inference processes. During the training process, the

Adam optimizer was used, with an initial learning rate

of 1e-4 and a batch size of 32. The total number of

training rounds was 20. To address the sample

imbalance problem where the proportion of the

pneumonia category in the dataset is relatively high,

a weighted cross-entropy loss function was employed

to adjust the category weights.

3.2 Experimental Result

The study evaluated the performance of different

models in classification tasks on the Kaggle chest X-

ray pneumonia classification dataset, including

individual convolutional neural networks (ResNet-

50, Conv2D), Vision Transformer (ViT), and the

HATR model based on the fusion of these two CNN

trunks and ViT. The comparison results are in Table

Table 2: Performance of each model.

Model Accurac

Precision Recall F1 Score AUC-ROC

ResNet-50 87.3% 86.5% 88.1% 87.3% 0.945

Conv2D 82.7% 81.2% 84.5% 82.8% 0.920

ViT 85.1% 84.3% 86.7% 85.4% 0.930

HATR (ResNet) 91.4% 90.8% 92.1% 91.4% 0.960

HATR (Conv2D) 88.2% 87.5% 89.0% 88.2% 0.950

It can be seen from the results that the overall

performance of the fusion model is superior to that of

its respective individual backbone models. Among

them, HATR (ResNet) achieved the best performance

in terms of accuracy, recall rate, and AUC indicators,

indicating that the fused structure can more

effectively extract and integrate multi-level

information in lung images.

ResNet and ViT respectively have advantages in

local feature extraction and global structure

modelling. The fused HATR model connects the two

through overlapping Patch embedding and adaptive

Token weighting mechanism, enabling the model to

retain the sensitivity of convolution to details while

introducing ViT's ability to understand the overall

image structure.

Although HATR (Conv2D) is based on a

relatively lightweight convolutional network, its

performance is still significantly improved after

fusion, indicating that even if the basic network

capability is weak, a reasonable fusion design can still

bring significant gains.

This research focused on comparing the models

constructed by fusing two different CNN trunks

(ResNet-50 and Conv2D) with ViT, namely HATR-

ResNet and HATR-Conv2D. Under the same training

configuration and fusion structure, both perform

better than their respective single backbone networks

in the task of classifying pneumonia X-ray images,

but there are still significant differences in specific

performance.

From the perspective of overall performance

indicators, the accuracy rate of HATR-ResNet is

91.4%, while that of HATR-Conv2D is 88.2%. Not

only that, in terms of precision, recall rate, F1 score

and AUC and other indicators, HATR-ResNet has

always outperformed HATR-Conv2D, demonstrating

its stronger classification ability. Especially in terms

of AUC (0.960 vs 0.950) and recall rate, the former is

EMITI 2025 - International Conference on Engineering Management, Information Technology and Intelligence

508

more suitable for use in medical scenarios with high

sensitivity requirements.

Further analysis of the training process reveals

that HATR-ResNet also has more advantages in

convergence speed and stability of the validation set.

In the first 10 epochs, the training losses of both

decreased rapidly, but the validation loss of HATR-

ResNet decreased more steadily and the overfitting

phenomenon was milder. Although the training loss

of HATR-Conv2D decreases rapidly, the

performance fluctuation on the validation set is

greater, indicating that its generalization ability is

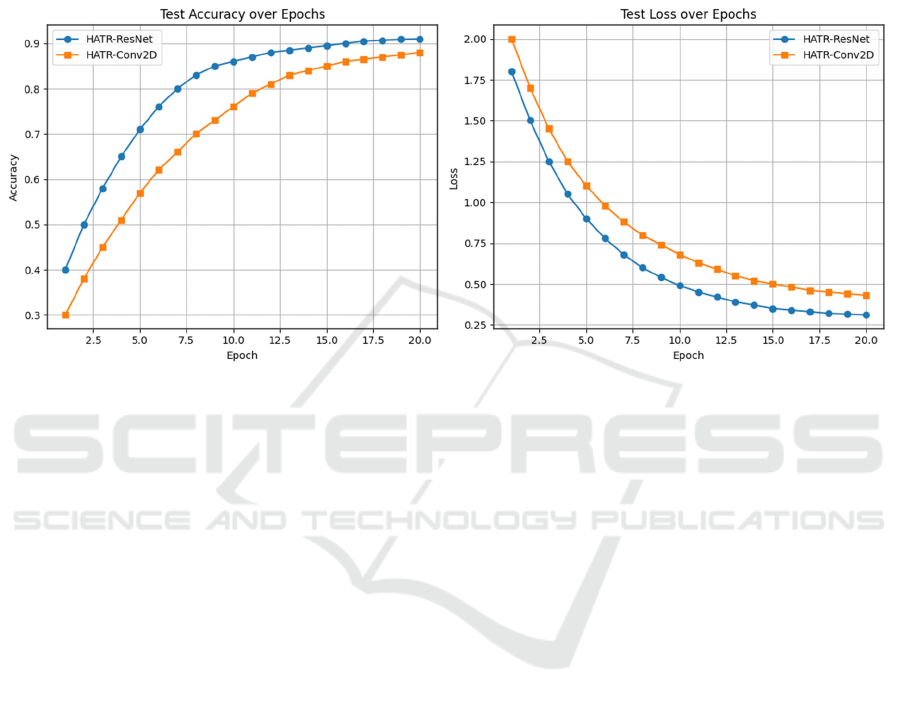

slightly inferior. Figure 5 shows the accuracy and loss

of HATR models.

Figure 5: Accuracy and Loss of HATR Models (Picture credit: Original).

The essential reason for this difference lies in the

varying capabilities of the backbone CNN structure

itself. ResNet features a deeper network structure and

residual connections, enabling it to effectively

capture complex edges, textures and spatial layouts in

images. It is particularly suitable for areas with

blurred details and low contrast in pneumonia images.

Although Conv2D has a lightweight structure and is

suitable for deployment in resource-constrained

environments, its shallow network lacks the ability to

extract high-level semantic features, which makes it

difficult for the fused ViT to receive rich enough

information and affects the quality of subsequent

modelling.

In addition, in terms of training duration, the

training time per round of HATR-ResNet is slightly

higher (about 1.2 times), but overall, the performance

improvement is significant, making it particularly

suitable for use in medical image scenarios where

performance takes precedence over computing

resources. HATR-Conv2D is more suitable for

deployment in edge devices or systems with strict

latency requirements, serving as a lightweight

alternative.

4 CONCLUSIONS

This study focuses on the automatic recognition task

of pneumonia X-ray images and proposes a feature

modelling method based on the fusion of CNN and

ViT. By constructing the modular structure HATR

(Hierarchical Adaptive Token Refinement), the study

has achieved the efficient integration of local

convolutional features and the global attention

mechanism. The experimental results show that,

regardless of whether ResNet or Conv2D is used as

the backbone, the fusion model outperforms the

single structure in key indicators such as accuracy, F1

score and AUC, verifying the feasibility and

effectiveness of this design in medical image

classification tasks.

The key to the fusion strategy lies in the handling

of two aspects: One is to adopt the overlapping Patch

embedding method, which alleviates the feature

fragmentation problem caused by the traditional

segmentation method; Second, an adaptive Token

weighting mechanism is introduced, enabling the

model to complete the initial screening of features

before inputting them into the ViT. This structural

design enables the model to retain the convolutional

network's ability to pay attention to detailed regions

The CNN and ViT Fusion Model Based on Hierarchical Adaptive Token Reﬁnement Method in Pneumonia X-ray Image Classiﬁcation

509

while also leveraging the global modelling

advantages of the Transformer to enhance the

accuracy of overall judgment.

Although this method performs well on medium

and small-scale datasets, there are still some

limitations and directions worthy of further

exploration:

Firstly, the selection of the CNN backbone is still

relatively fixed and lacks structural adaptability.

Under different tasks or data distributions, the

currently used ResNet or Conv2D may not always

maintain stable performance. In the future, more

flexible and adjustable backbone structures, such as

automatic neural architecture search (NAS), can be

explored to enhance generalization capabilities.

Secondly, due to ViT's strong reliance on large-

scale data, the fusion model is still prone to

overfitting or performance fluctuations when the data

volume is insufficient. In addition, to maintain a

lightweight configuration, this study has adopted a

shallow ViT structure. Although this reduces

computing costs, it may still limit the expressive

power in more complex data environments.

Finally, the robustness of the current model still

needs to be enhanced when dealing with large-scale,

multi-category or cross-device collected data. In the

future, the stability and practical application value of

the model can be further enhanced by integrating

transfer learning, domain adaptation or multimodal

information (such as clinical text data).

REFERENCES

Chen, X., Xie, S., & He, K. (2021). An empirical study of

training self-supervised vision transformers.

Proceedings of the IEEE/CVF International Conference

on Computer Vision (ICCV), 9620–9629.

Dai, Z., Liu, H., Le, Q. V., & Tan, M. (2021). CoAtNet:

Marrying convolution and attention for all data sizes.

Advances in Neural Information Processing Systems

(NeurIPS), 3965–3977.

Dosovitskiy, A., Beyer, L., Kolesnikov, A., Weissenborn,

D., Zhai, X., Unterthiner, T., ... & Houlsby, N. (2021).

An image is worth 16×16 words: Transformers for

image recognition at scale. Proceedings of the

International Conference on Learning Representations

(ICLR), 1–22.

Gupta, A. B., Wang, Y., Smith, J., Lee, D., Chen, M., &

Johnson, T. (2024). Inappropriate diagnosis of

community-acquired pneumonia among hospitalized

adults. JAMA Internal Medicine, 184(5), 548–556.

He, K., Zhang, X., Ren, S., & Sun, J. (2016). Deep residual

learning for image recognition. Proceedings of the

IEEE Conference on Computer Vision and Pattern

Recognition (CVPR), 770–778.

Kermany, D. S., Zhang, K., & Goldbaum, M. (2018).

Identifying medical diagnoses and treatable diseases by

image-based deep learning. Cell, 172(5), 1122–1131.

Litjens, G., Kooi, T., Bejnordi, B. E., Setio, A. A. A.,

Ciompi, F., Ghafoorian, M., ... & van Ginneken, B.

(2017). A survey on deep learning in medical image

analysis. Medical Image Analysis, 42, 60–88.

Liu, Z., Lin, Y., Cao, Y., Hu, H., Wei, Y., Zhang, Z., Lin,

S., & Guo, B. (2021). Swin Transformer: Hierarchical

vision transformer using shifted windows. Proceedings

of the IEEE/CVF International Conference on

Computer Vision (ICCV), 10012–10022.

Raghu, M., Zhang, C., Kleinberg, J., & Bengio, S. (2019).

Transfusion: Understanding transfer learning for

medical imaging. Advances in Neural Information

Processing Systems (NeurIPS), 3347–3357.

Ronneberger, O., Fischer, P., & Brox, T. (2015). U-Net:

Convolutional networks for biomedical image

segmentation. Proceedings of the International

Conference on Medical Image Computing and

Computer-Assisted Intervention (MICCAI), 234–241.

Touvron, H., Cord, M., Douze, M., Massa, F., Sablayrolles,

A., & Jégou, H. (2021). Training data-efficient image

transformers & distillation through attention.

Proceedings of the International Conference on

Machine Learning (ICML), 10347–10357.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, Ł., & Polosukhin, I. (2017).

Attention is all you need. Advances in Neural

Information Processing Systems (NeurIPS), 5998–

6008.

EMITI 2025 - International Conference on Engineering Management, Information Technology and Intelligence

510
