Design Secure Authentication Methods to Prevent Unauthorized

Access to Critical Systems and Networks

Tharun D, V. Madhu Sudhan

, C. Hemalatha and Abirami G

Department of Computer Science & Engineering, Sathyabama University, Chennai, Tamil Nadu, India

Keywords: Network Security, Machine Learning (ML), Intrusion Detection, Stacking Classifier, UNSW-NB15 Dataset,

Cyber Threats.

Abstract: As cyber threats become increasingly more complex, securing the communication of network communication

is a major challenge. One of the reasons for that is that traditional security measures are not able to adjust with

constantly changing attack tactics, thus, it is necessary to incorporate ML driven approaches to improve network

security. In this research study, we examine the efficiency of different ML model for handling malicious

activities in network traffic employing UNSW-NB15 dataset. NS-LR, NS-SVM, NS-KNN, NS-MLP, NS-

GBM and a Stacking Classifier is applied for comparison with each other. A complete feature correlation

analysis and multiple class classification is conducted to evaluate the model performances with a aid of metrics

as accuracy and AUC-ROC. The conducted results show Stacking Classifier’s superiority over other models

with near perfect accuracy that determines it as a good choice for real time network intrusion detection systems.

In contrast, MLPs limited the classification performance and led to additional training needed. This work

demonstrates the feasibility of application of ML driven schemes for the protection of contemporary networks

against highly sophisticated cyber attacks. The inclusion of adversarial learning techniques and the integration

with explainable AI (XAI) towards real time deployment will then be taken as future work.

1 INTRODUCTION

On present days, cyber threats have become so

sophisticated that there is always threat to network

security. The traditional security mechanisms

including rule-based firewall and intrusion detection

based on signatures are unable to cope with emerging

attack pattern. At the same time, both cybercriminal

techniques are getting increasingly more complex, and

it has never been more important to have intelligent,

adaptable security solutions than today.

ML has risen as a potentially hopeful method to assist

in increasing the network security by identifying and

countering the malicious incidents in real time. Unlike

conventional methods, ML models are capable of

learning patterns in network traffic data, and making

highly effective at discovering known as well as

unknown threats. In this study, using ML-based

classification models, the ability of them to

differentiate between normal and hateful traffic on

network protocols is evaluated.

We compare a few ML models using the UNSW-

NB15 dataset, that is a set of diverse types of cyber

attacks, including L NS-LR, NS-SVM, NS-KNN, NS-

MLP, NS-GBM and Stacking Classifier. Finally, the

models are assessed with standard performance.

The foremost intent of this research entails to figure

out the maximum promising ML model for network

IDS and enhancing safekeeping with advanced

classification techniques. We found that Stacking

Classifier always outperforms other models on

accuracy and detection rate. This confirms the good

potential of the ensemble learning techniques for the

implementation of robust real-time threat detection

systems.

Previous works in this area could turn their

attention to incorporating Explainable AI (XAI)

technologies to improve interpretability, developing

model efficiency for practical deployment, and also

discovering ways to resist evolving cyber threats using

adversarial learning. The work presented in this paper

expands the emerging set of research on AI driven

network security to show ML’s radicalizing influence

in preserving online infrastructure.

D., T., Sudhan, V. M., Hemalatha, C. and G., A.

Design Secure Authentication Methods to Prevent Unauthorized Access to Critical Systems and Networks.

DOI: 10.5220/0013908700004919

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Research and Development in Information, Communication, and Computing Technologies (ICRDICCT‘25 2025) - Volume 4, pages

95-100

ISBN: 978-989-758-777-1

2 LITERATURE REVIEW

In the first place Liu, Tang and Qin analyze

authentication challenges in software defined optical

access networks where optical line terminals and

optical network units are critically growing and it

requires stronger security measures. In order to address

these concerns, the authors propose a trivial two-way

confirmation (LTWA) plan that makes use of the

cryptographically generated tackle algorithm in

conjunction with the confusion generated speak to

algorithm. This approach provides secure end to end

communication and stops attackers from forging

authentication messages, proving their capacity of

minimizing the risk of security in the optical networks.

In his et al, the secure access in the distributed

power networks for IoT hub equipment is discussed to

practice the security deficiency from the aspect of

restricted resources of IoT device’s. They suggest a

simple two-way authentication approach using the SM

algorithm with the help of digital signature and Diffie

Hellman protocol. This approach they find to be

effective at mitigating such network attacks as

eavesdropping and tampering and thus suitable for real

world IoT security applications.

In the IoT environment, Sharma and Babbar

analyze the Increased threat of Android malware in the

IoT environment and explore the use of ML algorithms

for detecting malware. Afterwards, their study is

compared different model and is able to conclude that

Decision Tree classifier gives the best accuracy of 95%

in detecting the malicious applications. However, the

study proposes that ML based models can be used as

security boosted method of IoT devices to fend off

malware attacks.

Further on the work of machine malware detection

with deep learning, Zhang, Zou and Zhu use DNN for

Android malware detection. In this paper, they

combine static behavioral feature extraction with

dynamic behavioral analysis in order to improve

classification accuracy. The study surpasses existing

nonparametric machine learning such as LR and SVMs

when using RNNs to detect malware patterns.

In a graph neural network (GNN) for malware

detection, Wang et al introduce his approach. In their

method, they embed call graphs of applications into a

deep neural network (DNN) to represent relationship

between calls. Traditional ML based classifier are

strongly outperformed by our model, which reaches an

accuracy of 97.7%. Results show that GNNs are

effective in detecting malicious behaviors through the

structural network analysis.

Pagan and Elleithy propose a multi layer security

approach to tackling the threat of ransomware.

Proactive defense in their framework includes

firewalls, DNS/Web filtering, email security, backups

and employee training. Traditional antivirus solutions

are shown to have shortcomings in the study which

suggest that more successful ways of avoiding

ransomware secure from the first layer of defense.

A Fuzzy Learning Network for energetic movable

Malware Detection was proposed by Martinelli, and

Santone. Given their model combines fuzzy logic and

deep neural networks, they are able to achieve high

accuracy detection of zero-day threats. As an emphasis

on the dynamic nature of the malware attacks, this

research focuses on the field of hybrid AI techniques.

Mercaldo and Santone consider image-based

malware detection with a deep-neuro-fuzzy model in

another work. They evaluate over 20,000 real world

malware samples and achieve 93.5% accuracy using

the image-based classification approach achieving a

promise of the potential of image-based classification

in cybersecurity.

The work by Rohith and Kaur gives a complete

review of malware detection and prevention

techniques, including signature-based systems and

machine learning based antivirus systems. Their

research outlines the challenges associated with

maintaining the momentum when new malware is

continuously developing, and injects input about the

need for adaptive forms of cybersecurity.

In this context, Mercaldo and Santone propose a

proper post checking method for malware relations

classification. They take to reduce redundant

comparisons and provide a maliciousness metric that

aids in increases in the efficiency of malware detection

systems.

3 METHODOLOGY

A machine learning based network traffic analysis is

proposed to implement the above malware detection

system to classify the network traffic as either benign

or malignant. The methodology involves various

arguable stages such as data gathering, data processing,

feature selection, train model, evaluate and finally

deployment. This structured approach provides an

ability for a scalable and efficient intrusion detection

system that can-do real time threat identification.

In the first step, data is collected using UNSW-

NB15 dataset as the main dataset. There are both

normal and malicious network traffic data in this

dataset. Fuzzers, Backdoors, Probabilistic Denial-of-

Service, Exploits, Reconnaissance, and Worms are

included as attack types in it, which provides an

ICRDICCT‘25 2025 - INTERNATIONAL CONFERENCE ON RESEARCH AND DEVELOPMENT IN INFORMATION,

COMMUNICATION, AND COMPUTING TECHNOLOGIES

effective means for the evaluation of intrusion

detection models.

The data is then preprocessed before the dataset is

collected as such increase the model efficiency. Data

cleaning which involve removing missing values and

duplicate entries to reduce influence of inconsistencies

is what it means. Non-numeric ie protocol types and

connection states are encoded into a number for the

categorical data. Also, normalization is performed to

eliminate the effect of size differences in features and

prevent some of the features from being overly

influential in determining model prediction. Then,

correlation analysis is used to remove less significant

attributes to reduce computational complexity but

select only the most significant attributes.

The model training and evaluation phase includes

the choice of a group of machine learning algorithms

to be ensured robust for malware detection. And

trained and assessed are the following models:

• Baseline Classifier for Binary Classification

tasks is Logistic Regression. Since it is simple,

it is well suited for initial analysis.

• Then I discuss K-Nearest Neighbors (KNN) for

classifiying network traffic into known classes

based on already observed instances. It is very

useful for recognizing malwared variants that

have similar behavior.

• An example of deep learning model is Multi

Layer Perceptron (MLP) network for learning

complex patterns such as network traffic which

also can help us to detect the previously unseen

malware threats.

• One used for its capability to work well with

high dimensional data and set up optimal

decision boundaries for malware classification

is SVC.

• GBC is a cooperative learning model that

consists of an elegant mechanism to

sequentially correct the instances misclassified

by its preceding classifier.

Figure 1: Distribution of attack categories in the training

datasetz..

Contrary to the primitive neural network models that

we used in this project (in the ‘Application’ section),

each model is hyperparameter tuned using approaches

like Grid Search to enhance the performance. The

dataset is split into 80% train data and 20% test data to

fairly evaluate the model’s ability to simplify. The

effectiveness of the proposed models is evaluated using

key metrics to detect malware. Figure 1 show the

Distribution of attack categories in the training

datasets.

Then the best performing model is integrated into a

Flask-based web application to be used for real time

malware detection. In the deployment phase, the

network traffic is monitored, and the system classifies

the packets as either normal or malicious, at all times.

It offers the Flask interface and gives ability to the

network administrators to visualize threats detected

and also take some security steps in the interactive

dashboard. It also comprises a threat management

module, to allow users to block or further investigate

suspect traffic.

While the system was accurate, it has a few

challenges, some of which include cases of adversarial

attack, whereby attackers attempt to circumvent

detection by changing their attack patterns. To solve

this, future improvements will utilize adversarial

learning techniques to enhance the models’ robustness

levels. Further, combining Explainable AI (XAI) will

help explaining how predictions are made, which will

give the cybersecurity professionals more transparency

in the model decision making process. Federated

Learning will be also implemented to empower

distributed malware detection with a set of distributed

organizations collaboratively training models without

revealing data.

4 RESULTS

Different classification models were evaluated with

respect to their ability of classifying malicious network

activity. After test on UNSW-NB15 dataset, the

performance in terms of classification accuracy and

linear discriminant between normal and abnormal

traffic of each model is measured.

4.1 Accuracy Comparison of Different

Models

Figure 2 compares the overall precision of the various

classification models. The outcome show that stacking

classifiers are better than any other models tested, and

achieved the highest accuracy. The stacking classifier

utilises multiple models, whereby their predictions are

Design Secure Authentication Methods to Prevent Unauthorized Access to Critical Systems and Networks

aggregately predicted in order to improve on

robustness. On the other hand, the traditional models

such as NS-LR, NS-SVM, and NS-KNN perform well

except for a slight fall behind with the predictive

performance. While the MLP and NS-GBM come out

with relatively lower accuracy, it also points out that

there is still a place to do the feature engineering and

hyperparameter optimization.

Figure 2: Accuracy Comparison of Different Models.

4.2 Data Distribution Analysis

For a better understanding of the dataset

characteristics, a pie diagram presentation the

particular circulation of standard and irregular labels is

presented in Figure 3. In this the dataset is imbalanced;

traffic which is normal constitutes 75.99 while the

abnormal traffic constitutes 24.01. As indicated by this

imbalance, it is necessary to use algorithms that

generalize well across types of attack and are not

biased towards the majority class.

Figure 3: Chart of Standard and Irregular Label.

In particular, Figure 4 expands on this by showing the

multi-class distribution of attack categories in the

dataset, where one can observe that the dataset contains

several attack types such as backdoors, fuzzers,

reconnaissance, exploits, DoS, worms, and generic

attacks. Normal traffic represents the greatest part of

all (48.66%), while backdoor attacks are 24.01% and

fuzzers 19.94%. Most of the other attack types are

fairly rare.

Figure 4: Chart of multi-class labels.

4.3 Feature Correlation Analysis

Interdependencies among the network traffic attributes

are understandable by feature correlation. Figures 5

and 6 present correlation matrices for dual and multi-

class labels, respectively. The different features can

influence each other on the heatmap indicating how

each of them may have contributed to attack

classification.

• The binary correlation matrix (Figure 5)

shows some strong correlation between

certain traffic parameters indicating that there

are some features that can tell more about

attack behavior.

• This analysis is then furthered by expanding

across multiple attack categories using the

multi-class correlation matrix (Figure 6).

Figure 5: Binary Correlation Matrix.

ICRDICCT‘25 2025 - INTERNATIONAL CONFERENCE ON RESEARCH AND DEVELOPMENT IN INFORMATION,

COMMUNICATION, AND COMPUTING TECHNOLOGIES

Figure 6: Label Correlation Matrix.

4.4 Model Performance Analysis

Different visualization methods are used to evaluate

predictive performance of various classification

models.

Logistic Regression Multi Class (Figure 7) Since NS-

LR is a linear model, it is not easy to model curve like

relationships. While it compares quite well relatively

speaking, it’s still less accurate than one of the

ensemble learning techniques.

Figure 7: NS-LR Multi-Class Classification.

Linear NS-SVM Multi-Class Classification (Figure 8)

While SVM is powerful in high-dimensional spaces, its

effectiveness on the processed dataset is rather

moderate. Although it accomplishes classification of

some attack types, it is not adaptable for other nuances

of attacks

Figure 8: Linear NS-SVM Multi-Class Classification.

NS-KNN Multi-Class Classification (Figure 9) NS-

KNN is computationally feasible when attacking data

that has significant similarities being computed but is

computationally expensive and infeasible when it runs

in a large dataset.

Figure 9: NS-KNN Multi-Class Classification.

NS-MLP Multi-Class Classification (Figure 10)

However, the MLP model has its limitations in

predicting the network traffic attacks which could be

due to over fitting or poor hyperparameter tuning. This

means that the model does not generalize well, where

the predicted values stayed nearly flat.

Figure 10: NS-MLP Multi-Class Classification.

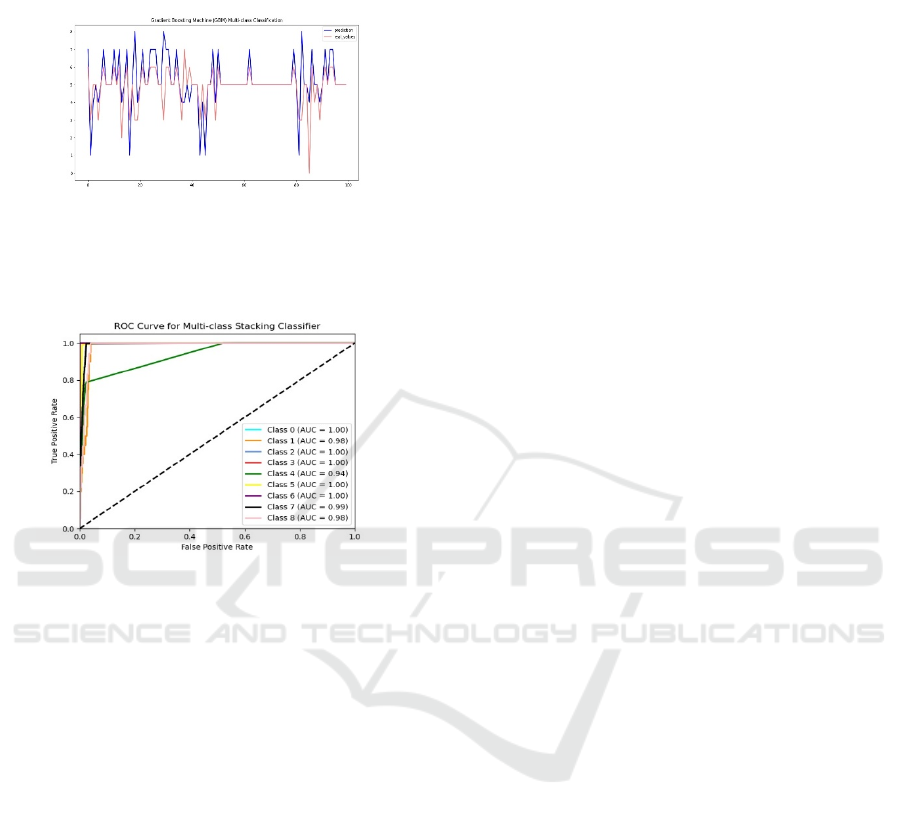

NS-GBM Multi-Class Classification (Figure 11).

Iterative learning is performed in order to reduce

GBM’s bias and variance, and thus leading to

Design Secure Authentication Methods to Prevent Unauthorized Access to Critical Systems and Networks

improved performance. The prediction plot is

fluctuating which means the model is refining itself

while in classification.

Figure 11: NS-GBM Multi-Class Classification.

ROC Curve for Multi-Class Stacking Classifier (Figure

12)

Figure 12: ROC Curve for Multi-Class Stacking Classifier.

Our results show that stacking classifier gives the best

performance in the ROC curve with high AUC across

domains of multiple attack categories. This model

succeeds in differentiating among numerous types of

malicious activities with values from 0.94 to 1.00.

5 CONCLUSION

Driven by the incredible increase of cyber threats, ML

based IDS has the desire of providing a robust tool for

detection of malicious behaviors. While this study

focuse on maximizing the performance of a variety of

multiple classification models to detect malicious

network activity on UNSW-NB15 dataset. There are a

number of key insights that resulted from extensive

evaluation and performance analysis. Amongst all, the

stacking classifier gave the highest accuracy when

combined with the predictions of multiple classifiers

unlike the traditional machine algorithms. According

to the ROC curve, the stacking method comes close to

1.0 of AUC and can distinguish between normal and

abnormal traffic with great precision. Models like the

Logistic Regression and SVM also performed

moderately, but MLP for its part never was good at

predicting stably and required more tuning of the

hyperparameters.

REFERENCES

T. Liu, Y. Tang, and P. Qin, “Security authentication based

on generated address algorithm for software-defined

optical communication network,” IEEE Access, vol. 7,

pp. 142673–142684, 2019.

B. He, B. Zhang, L. Zhang, Z. Xi, Y. Fang, and Y. Wang,

“A lightweight IoT terminal authentication method

based on the SM algorithm,” IEEE Transactions on

Industrial Informatics, vol. 20, no. 1, pp. 112–125, 2024.

S. Sharma and H. Babbar, “An analysis of Android malware

and IoT attack detection with machine learning,”

Journal of Cyber Security and Mobility, vol. 12, no. 2,

pp. 87–102, 2023.

J. Zhang, F. Zou, and J. Zhu, “Android malware detection

based on deep learning,” IEEE communication on

Information Forensics and Security, vol. 14, no. 5, pp.

1120–1132, 2018.

R. Wang, J. Zheng, Z. Shi, and Y. Tan, “Detecting malware

using graph embedding and DNN,” Neural Networks

and Applications, vol. 29, no. 15, pp. 233–245, 2025.

R. Pagán and K. Elleithy, “A multi-layered defense

approach to safeguard against ransomware,” IEEE

Internet of Things Journal, vol. 8, no. 9, pp. 7545–7558,

2021.

F. Mercaldo, F. Martinelli, and A. Santone, “Fuzzy deep

learning network for dynamic mobile malware

detection,” Expert Systems with Applications, vol. 203,

no. 3, pp. 115005, 2023.

F. Mercaldo and A. Santone, “Image-based malware

detection through a deep neuro-fuzzy model,” IEEE

Transactions on Dependable and Secure Computing,

vol. 20, no. 1, pp. 202–214, 2023.

Rohith and G. Kaur, “A comprehensive study on malware

detection and prevention techniques used by anti-virus,”

Journal of Computer Security Research, vol. 15, no. 3,

pp. 121–137, 2021.

F. Mercaldo and A. Santone, “Formal equivalence checking

for mobile malware detection and family classification,”

IEEE Transactions on Software Engineering, vol. 48,

no. 6, pp. 1253–1264, 2022.

ICRDICCT‘25 2025 - INTERNATIONAL CONFERENCE ON RESEARCH AND DEVELOPMENT IN INFORMATION,

COMMUNICATION, AND COMPUTING TECHNOLOGIES

100
