Paper-Based Health Records: A Case Study on the Digitization of

Handwritten Clinical Records

Vincenza Carchiolo

, Michele Malgeri

and Lorenzo Spadaro Sapari

Dipartimento di Ingegneria Elettrica Elettronica e Informatica Universit

a di Catania, Catania, Italy

Keywords:

Health Management, OCR, Application.

Abstract:

This paper presents a case study focused on the application of handwriting recognition to digitize historical

clinical records containing signiﬁcant handwritten content. The primary objective is to assess the feasibility

of using commercial OCR technologies—in particular, Microsoft Azure’s handwriting recognition API—for

processing health documents. The study aims to determine whether these tools can support the extraction

of meaningful clinical information, not only by recognizing individual characters but also by leveraging the

structural layout of documents, such as forms, to infer semantic content.

Our methodology includes empirical evaluation of OCR output on real-world patient records, alongside a

qualitative analysis of common recognition errors. In addition, we review relevant approaches from the liter-

ature, highlighting recent advances in deep learning for document understanding. The ﬁndings indicate that

general-purpose OCR systems are currently insufﬁcient for reliable clinical data extraction in such contexts,

primarily due to the complexity and variability of handwritten medical records. However, the results also

suggest that structural cues present in form-based documents could be harnessed—through tailored AI-based

techniques—to signiﬁcantly improve recognition and downstream information retrieval.

1 INTRODUCTION

In recent years, healthcare systems have undergone

an accelerated digital transformation, with the goal

of improving data accessibility, interoperability, and

analytical capabilities. However, despite the pro-

liferation of Electronic Health Record (EHR) sys-

tems, a signiﬁcant portion of clinical information re-

mains trapped in non-digitized formats. These in-

clude scanned paper records, printed reports, hand-

written notes, and administrative forms. The pres-

ence of such unstructured data limits the potential

of modern healthcare information systems to pro-

vide timely and data-driven insights. The problem

is particularly severe in hospital settings, where doc-

umentation practices often vary across departments

and time periods. Clinical records are typically long

and detailed, encompassing a wide range of infor-

mation from patient demographics to complex di-

agnostic descriptions, therapeutic plans, and proce-

dural notes. These documents frequently include a

combination of printed and handwritten text, non-

https://orcid.org/0000-0002-1671-840X

https://orcid.org/0000-0002-9279-3129

standardized layouts, medical jargon, and institution-

speciﬁc abbreviations. The lack of uniformity not

only hinders human readability but also poses signiﬁ-

cant challenges for automated processing. Within the

European Union, efforts are being made to harmo-

nize the healthcare data landscape. Initiatives such

as the European Health Data Space (EHDS), ofﬁ-

cially launched in 2025, promote secure cross-border

data exchange and aim to facilitate the secondary use

of health data for research and innovation. Stan-

dards such as HL7’s Clinical Document Architec-

ture (CDA) and Fast Healthcare Interoperability Re-

sources (FHIR) are increasingly adopted to enable in-

teroperability between systems. Nonetheless, a large

portion of legacy documents predates these standards

and exists only in paper or scanned format, making

them inaccessible to modern digital workﬂows.

To bridge this gap, Optical Character Recognition

(OCR) is still a foundational technology, also taking

into account the chance to integrate AI algorithms to

enhance the ability to recognize more contents. OCR

enables the automatic conversion of scanned images

or PDF documents into machine-readable text, allow-

ing historical and unstructured records to become ac-

cessible for further analysis. However, applying OCR

244

Carchiolo, V., Malgeri, M. and Sapari, L. S.

Paper-Based Health Records: A Case Study on the Digitization of Handwritten Clinical Records.

DOI: 10.5220/0013853900003985

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Web Information Systems and Technologies (WEBIST 2025), pages 244-251

ISBN: 978-989-758-772-6; ISSN: 2184-3252

in the healthcare domain is far from trivial. Clinical

documents differ signiﬁcantly from standard printed

text in terms of complexity, content density, and vari-

ability. Handwriting recognition remains particularly

difﬁcult, especially when combined with poor scan

quality or domain-speciﬁc terminology. Additionally,

the presence of tables, multiple columns, and mixed

formatting adds another layer of complexity for OCR

systems to handle.

In this work, we present a case study focused on

the extraction of structured information from com-

plex clinical documents using a pipeline based on

Microsoft Azure Document Intelligence (Microsoft,

2025), part of the more general Microsoft Azure Cog-

nitive Services (Microsoft, na). The proposed so-

lution integrates multiple tools from the Microsoft

ecosystem, including the Read OCR API for text ex-

traction, the Layout API for document structure anal-

ysis, and custom modules for medical entity recogni-

tion and normalization. These tools are orchestrated

in a modular workﬂow designed to cope with hetero-

geneous document types, allowing for preprocessing,

layout-aware recognition, and post-OCR analysis.

The pipeline was applied to a dataset of anonymized

Italian clinical records collected from a hospital en-

vironment. These documents reﬂect the typical di-

versity of healthcare records: they include admis-

sion reports, discharge summaries, and intraopera-

tive notes—many of which contain mixed handwrit-

ten and typed sections. The evaluation focused both

on the quality of text recognition (e.g., character er-

ror rates, text segmentation) and on the ability to ex-

tract key information such as patient identiﬁers, di-

agnoses, and timestamps. Beyond digitization, a key

contribution of this work lies in positioning OCR as

a critical enabling step for advanced data analysis.

Once clinical text has been extracted, it can serve

as input for a wide range of artiﬁcial intelligence

(AI) applications, such as natural language process-

ing (NLP), named entity recognition (NER), tempo-

ral reasoning, and predictive modeling (Carchiolo and

Malgeri, 2025). In particular, the ability to transform

unstructured clinical narratives into structured data

opens the door to more sophisticated tools for clini-

cal decision support, cohort identiﬁcation, risk strat-

iﬁcation, and automated report summarization. Al-

though OCR alone does not solve the full problem

of semantic understanding, it provides the essential

ﬁrst layer of machine interpretability. The combina-

tion of OCR and AI-driven post-processing can help

unlock the latent value stored in years of handwritten

or non-standard documentation, contributing to the

broader goal of modernizing healthcare information

systems and improving data-driven patient care. In

summary, this study offers a realistic and scalable ap-

proach to document digitization in clinical contexts

using Microsoft-based OCR technologies. It illus-

trates both the current potential and the limitations

of applying these tools in real-world hospital settings,

and lays the groundwork for future integration with

AI-powered healthcare analytics pipelines.

The remainder of this paper is organized as fol-

lows: Section 2 describes the health records and the

related standards, if any. Section 3 details the OCR

pipeline, including the tools and methods adopted for

preprocessing, recognition, and post-processing. Sec-

tion 4 presents our proposal giving details about ar-

chitecture models and whatever has been studied and

section 5 discusses the ﬁndings. Finally, Section 6

concludes the paper and outlines directions for future

work.

2 ABOUT CLINICAL RECORDS

In the European Union, health records are central doc-

uments for both healthcare delivery and medico-legal

accountability. While there is no binding European

regulation that imposes a uniform structure or con-

tent for health records across all member states, mul-

tiple initiatives and technical standards have been in-

troduced to promote interoperability, data quality, and

security. The most signiﬁcant initiative in this re-

gard is the European Health Data Space (EHDS),

proposed by the European Commission in 2022 and

ofﬁcially entered into force in March 2025 (Euro-

pean Commission, 2025b). Its goal is to facilitate

the secure exchange and use of health data across

the EU, including electronic health records (EHRS),

while respecting patient privacy and national health-

care governance structures. Technical interoperabil-

ity efforts are also supported by the eHealth Net-

work, a voluntary collaboration between EU coun-

tries, which has produced common speciﬁcations for

cross-border health data exchange, particularly in the

form of “Patient Summaries” and “ePrescriptions”

(European Commission, 2025a). At the technical

level, several international standards developed by

Health Level Seven International (HL7) have been

increasingly adopted across Europe. These include

the Clinical Document Architecture (CDA), used to

deﬁne the structure of clinical documents such as dis-

charge summaries, and in a more recent version (HL7

FHIR) includes Fast Healthcare Interoperability Re-

sources (FHIR), the standard that facilitates the ex-

change of healthcare information across systems us-

ing modern web technologies (Bender and Sartipi,

2013). Among these, FHIR has emerged as the pre-

Paper-Based Health Records: A Case Study on the Digitization of Handwritten Clinical Records

245

ferred standard for modern EHR systems due to its

compatibility with RESTful APIs. The EHDS ini-

tiative aims to unify FHIR standards across member

states, targeting 80% adoption by 2026 (Willis, 2025).

This initiative underscores the EU’s commitment to

enhancing healthcare interoperability, improving pa-

tient care, and facilitating data-driven research and in-

novation.

Despite these harmonization efforts, each coun-

try retains signiﬁcant autonomy in determining the

mandatory content and structure of health records. In

Italy, for example, the clinical record is recognized as

both a medical and legal document that accompanies

the entire hospitalization episode and documents the

diagnostic and therapeutic process in a traceable and

continuous manner. It is compiled and maintained

primarily by the attending physician, in compliance

with various legal, ethical, and procedural standards.

A legal foundation for the clinical record can be

found in a combination of sources. The Decree of

August 5, 1977 (Ministero della Sanit

a, 1977), re-

quires that private healthcare institutions compile a

medical record for each hospitalized patient, contain-

ing full personal data, initial and ﬁnal diagnoses, fam-

ily and personal medical history, objective exami-

nations, laboratory and specialist tests, therapy, out-

comes, and post-treatment status. These records must

be signed by the treating physician and archived by

the healthcare facility. The Ministry of Health Guide-

lines of June 17, 1992, concerning the management of

hospital discharge forms (Scheda di Dimissione Os-

pedaliera), describe the clinical record as an individ-

ual information tool that documents all relevant de-

mographic and clinical data related to a single episode

of hospitalization, from admission to discharge, ef-

fectively representing the patient’s entire stay in the

hospital. Ethical obligations are further codiﬁed in

the 2014 Italian Code of Medical Ethics, where Ar-

ticle 26 speciﬁes that the clinical record must be

compiled with completeness, clarity, diligence, and

in a timely manner (Federazione Nazionale Ordine

Medici Chirurghi ed Odontoiatri, 2014). It must

record both objective and subjective clinical data, de-

tails of diagnostic and therapeutic procedures, in-

formed consent or dissent—including for sensitive

data processing—and any advance care planning, par-

ticularly for patients with progressive illnesses. The

ethical code also mandates the traceability of all en-

tries and corrections, underscoring the importance of

documentation integrity. Italian jurisprudence rein-

forces this view by deﬁning the clinical record as a

diagnostic-therapeutic diary in which all information

of medical and legal relevance must be accurately

recorded. This includes the patient’s personal and

medical history, diagnostic evaluations, treatments

administered, clinical evolution, outcomes, and any

lasting consequences of the illness.

Structurally, a typical Italian hospital-based health

record includes: Administrative and demographic in-

formation (such as patient ID, hospital unit, date

and mode of admission), admission diagnosis and

presenting complaints, medical and nursing notes (a

chronological log of observations, decisions, and care

delivered), diagnostic results (including laboratory

tests and imaging reports), specialist consultations

and interdisciplinary opinions, pharmacological and

therapeutic prescriptions, surgical and anesthesiol-

ogy documentation (when applicable), informed con-

sent forms and ethical disclosures, sheda di Dimis-

sione Ospedaliera (SDO)

, which uses the ICD-9-

CM (World Health Organization, 2025) standard for

coding health conditions, mainly in speciﬁcation of

Chronic and/or relevant pathologies of the patient

and coded representation of all known pathologies in

progress at the time of ﬁlling out the document, and

discharge summary (ﬁnal diagnosis, summary of care,

and follow-up recommendations).

The Fascicolo Sanitario Elettronico (FSE), Italy’s

national digital health record platform, has further

standardized the collection and availability of this in-

formation. As part of the European interoperability

effort, the FSE is being progressively integrated with

HL7 FHIR standards to support secure, structured,

and cross-provider data sharing, as reported in (Agen-

zia nazionale per i servizi sanitari regionali, 2023).

3 OCR AND INFORMATION

EXTRACTION

In the healthcare domain, legacy documents often

exist in scanned or handwritten formats, including

printed reports, PDF ﬁles, and clinical notes, often

handwritten. In (White-Dzuro et al., 2021) highlight

the practical difﬁculties faced during the COVID-19

pandemic, when large volumes of handwritten forms

and non-standardized clinical records had to be pro-

cessed rapidly. Their ﬁndings show that even modern

OCR systems struggle with the low quality of input

scans, domain-speciﬁc abbreviations, and the lack of

consistent formatting. In (Wang et al., 2023), the au-

thors examine various deep learning-based algorithms

for text detection and recognition, providing insights

into their methodologies and applications.

”Hospital Discharge Summary”: This form is an ofﬁ-

cial medical document issued by a hospital at the time of a

patient’s discharge.

WEBIST 2025 - 21st International Conference on Web Information Systems and Technologies

246

Given these challenges, modern OCR plat-

forms—such as Google Cloud Vision (Google Cloud

Platform, 2016), Amazon Textract (Amazon Web Ser-

vices, 2019), and Microsoft OCR’s Azure Cogni-

tive Services (Microsoft, na) have incorporated AI-

based modules to enhance the detection of text re-

gions, interpretation of complex layout structures, and

recognition accuracy across diverse document types.

Google Cloud Vision offers broad support for multi-

lingual OCR and layout detection; Amazon Textract

emphasizes structured data extraction, including ta-

bles and forms; while Azure OCR integrates seam-

lessly with other cognitive APIs for enhanced docu-

ment analysis. While these platforms mark a signif-

icant advancement in general-purpose OCR, they of-

ten struggle with domain-speciﬁc applications—such

as extracting clinically relevant content from elec-

tronic health records (EHRs), pathology reports, or

discharge summaries—where specialized tools tai-

lored to the medical domain can provide more ac-

curate and context-aware results. One example of

said specialized tools is the DEXTER system (Nand-

hinee et al., 2022) which presents a complete pipeline

for extracting tabular content from electronic medi-

cal records. By combining deep learning-based table

detection with conventional vision techniques for cell

segmentation it achieves great results on real-world

medical datasets. In a more recent study, the authors

of (Li et al., 2024) proposed a deep learning-based

OCR pipeline speciﬁcally designed for scanned labo-

ratory reports. Their system integrates advanced mod-

els such as Detection Transformer (DETR) R18 for

table detection and an encoder-dual-decoder (EDD)

architecture for table recognition. The study also em-

phasizes the challenges posed by document noise,

handwritten notes, and diverse table formats com-

monly found in medical records—issues that general-

purpose OCR tools often fail to address.

4 WHAT WE DID

Retrieving medical records is often a complex task

for patients due to fragmentation across systems

and inconsistent formats. This section presents the

core contribution of this work and it introduces

the architecture and implementation details of the

proposed system, which aims to extract structured

information from medical reports containing both

printed and handwritten text. The system leverages

a custom-trained OCR model and a large language

model(Carchiolo et al., 2026)to support accurate and

efﬁcient retrieval of documents based on user in-

put, this enables patients to access their own medical

records with minimal effort.

4.1 System Architecture

The proposed system adopts an OCR-based pipeline

designed to process anonymized medical reports con-

taining both printed and handwritten text. The goal

is to extract structured information from these doc-

uments and enable retrieval through user interaction.

The OCR component is implemented using Microsoft

Azure Document Intelligence (Microsoft, 2025), a

cloud-based service that allows for custom model

training tailored to speciﬁc document layouts. The in-

formation gathered from the OCR component is then

leveraged by an LLM, namely Mixtral 8x7B (Jiang

et al., 2024), to guide the user in the retrieval of the

medical report he’s looking for. The interaction with

the user is carried out through a web-based conver-

sational interface, where the language model dynam-

ically adapts its queries based on the user’s previous

answers. If multiple reports match the provided crite-

ria, the model reﬁnes the search by asking additional,

targeted questions. The high-level workﬂow of the

system comprises the following steps:

(a) Medical reports are fetched from the relevant

medical database and processed by the custom

OCR model.

(b) Extracted key-value pairs are used to build a struc-

tured index for each report.

ural language requests via a brief conversational

exchange. This assists the user in ﬁltering the

desired report(s) from potentially many available

documents.

(d) The system uses the criteria derived from the in-

terpreted user request to search the structured in-

dices and identify matching reports.

(e) Once some matches are found, the system pro-

vides direct links to the corresponding documents.

This process is designed to operate entirely in the

cloud. User login and authentication are handled

through SPID (Sistema Pubblico di Identit

a Digitale),

the Italian digital identity system (AgID, 2020). This

allows patients to securely access the system via au-

thorized medical platforms, such as the ones provided

by hospital companies. By leveraging SPID, the sys-

tem obtains the necessary personal information to per-

form a precise query on the medical database, retrieve

all the user’s reports for indexing, and subsequently

facilitate secure access.

Paper-Based Health Records: A Case Study on the Digitization of Handwritten Clinical Records

247

4.2 Model Training

Recognizing the need to handle speciﬁc structural nu-

ances present in the medical reports, a custom OCR

model was developed rather than relying solely on

a generic pre-trained solution. Although the reports

generally adhered to a common template regarding

the approximate placement of information, signiﬁcant

variations existed between documents. For instance,

the same logical ﬁeld (such as the hospital unit) might

appear as printed text in one report and as handwrit-

ten text in another, albeit typically within the same

region of the page. The resulting model is capable of

identifying key clinical data ﬁelds across the page, ef-

fectively processing regions containing both printed

and handwritten text, irrespective of these minor in-

consistencies.

To train and evaluate this custom OCR model, a

dedicated dataset was meticulously gathered and pre-

pared. A corpus of sixteen medical reports, was col-

lected from different units of the general hospital in

Catania. Crucially, prior to any processing, all docu-

ments underwent a rigorous anonymization procedure

to remove any patient’s personal information (such

as names, addresses, ﬁscal codes) and any other po-

tentially identifying information. This step was per-

formed in strict compliance with Europe’s General

Data Protection Regulation (GDPR) (Proton Tech-

nologies AG (GDPR.EU), 2018) requirements, en-

suring patient privacy was paramount. After having

anonymized the entire dataset, it was split into dis-

tinct sets for training and testing, a standard 60/40

split ratio was applied: 10 documents were allocated

for the training set and the 6 remaining for the test-

ing set. Then, a detailed annotation phase was un-

dertaken, using the Microsoft Document Intelligence

Studio UI, to label the regions of interest within each

document. This phase consisted of deﬁning precise

bounding boxes around each target key ﬁeld and nam-

ing such ﬁeld.

From these documents, the following information

can be extracted:

• Name and City of the Hospital that produced the

report

• Patient’s residence

• Date of admission and discharge from the hospital

• Diagnosis of admission and discharge of the pa-

tient.

The OCR system returns information in the form

of key-value pairs, such as the ones represented in ta-

ble 1. The output of the OCR phase is a structured dic-

tionary that represents the essential metadata of each

medical report.

Table 1: Output sample.

Key Value

hospital Azienda Ospedaliera ...

city Catania

residence Palermo

admission date 01/01/2025

discharge date 01/01/2025

admission diagnosis Pneumonia

discharge diagnosis Pneumonia

Unlike other systems that rely on separate pars-

ing modules or NER (Named Entity Recognition)

pipelines to interpret and extract data from raw OCR

text such as the ones in (Rasmussen et al., 2012),(Tan

et al., 2022) and (Karthikeyan et al., 2022), the pro-

posed approach beneﬁts from the native structured

output of the custom OCR model. Since key-value

data is extracted directly, no additional parsing or in-

formation extraction steps are required. This archi-

tecture reduces processing complexity and improves

response time. Moreover, the structured format facili-

tates accurate comparison with user input, improving

the overall effectiveness of the retrieval process.

4.3 Effect of OCR Limitations on the

System

While the proposed system demonstrates high per-

formance on documents following the trained layout,

several limitations and assumptions constrain its gen-

eralization capabilities. The custom OCR model was

trained on a set of medical reports with a ﬁxed lay-

out, however due to the absence of standardized for-

matting among medical institutions, supporting addi-

tional report types would likely require dedicated re-

training.

The recognition of handwritten text remains

highly dependent on the legibility of the handwriting

itself. In favorable cases, the model achieved a Word

Error Rate (WER) of 0% and a Character Error Rate

(CER) as low as 2%. Importantly, no ﬁelds were con-

sistently more error-prone than others, indicating uni-

form performance across the page. In cases where a

ﬁeld is missing or illegible, the system logs the corre-

sponding key in the structured index with the place-

holder value ”not found”. This mechanism ensures

that downstream processes, namely comparison and

retrieval, can proceed without exceptions or crashes

due to missing ﬁelds. Scalability of the solution was

not tested extensively due to resource constraints; the

experimental evaluation was limited to a dataset of 16

reports. While the approach is expected to scale lin-

early with the number of documents, further experi-

mentation on larger datasets is needed to validate this

assumption.

WEBIST 2025 - 21st International Conference on Web Information Systems and Technologies

248

Current latency for user interaction, including

OCR inference and response generation via the Mix-

tral 8x7B model, ranges from 5 to 15 seconds, which

is acceptable for interactive use. Finally, data pri-

vacy is a critical consideration, particularly in med-

ical applications. Microsoft Azure’s documentation

speciﬁes that ﬁles processed through Document In-

telligence are temporarily stored on their servers for

up to seven days, presumably for caching and perfor-

mance optimization.

5 TESTING

The testing phase was designed to evaluate the per-

formance of the OCR component in extracting struc-

tured information from medical documents contain-

ing both printed and handwritten text. The source ma-

terial consisted of full medical records, each spanning

several hundred pages and originating from the same

healthcare institution, all anonymized to preserve pa-

tient conﬁdentiality. For the purpose of both training

and evaluation, only the ﬁrst page of each report was

used, as it consistently contains the key administra-

tive and clinical ﬁelds targeted by the system (e.g.,

hospital name, admission date, diagnosis, admission

unit). This approach allowed the creation of a rep-

resentative and manageable dataset without compro-

mising the diversity of layout and content necessary

for robust model evaluation. The OCR engine em-

ployed was a custom-trained model developed using

Microsoft Azure Document Intelligence. Its output is

a hashmap of key-value pairs representing the struc-

tured ﬁelds extracted from the page, eliminating the

need for additional post-processing.

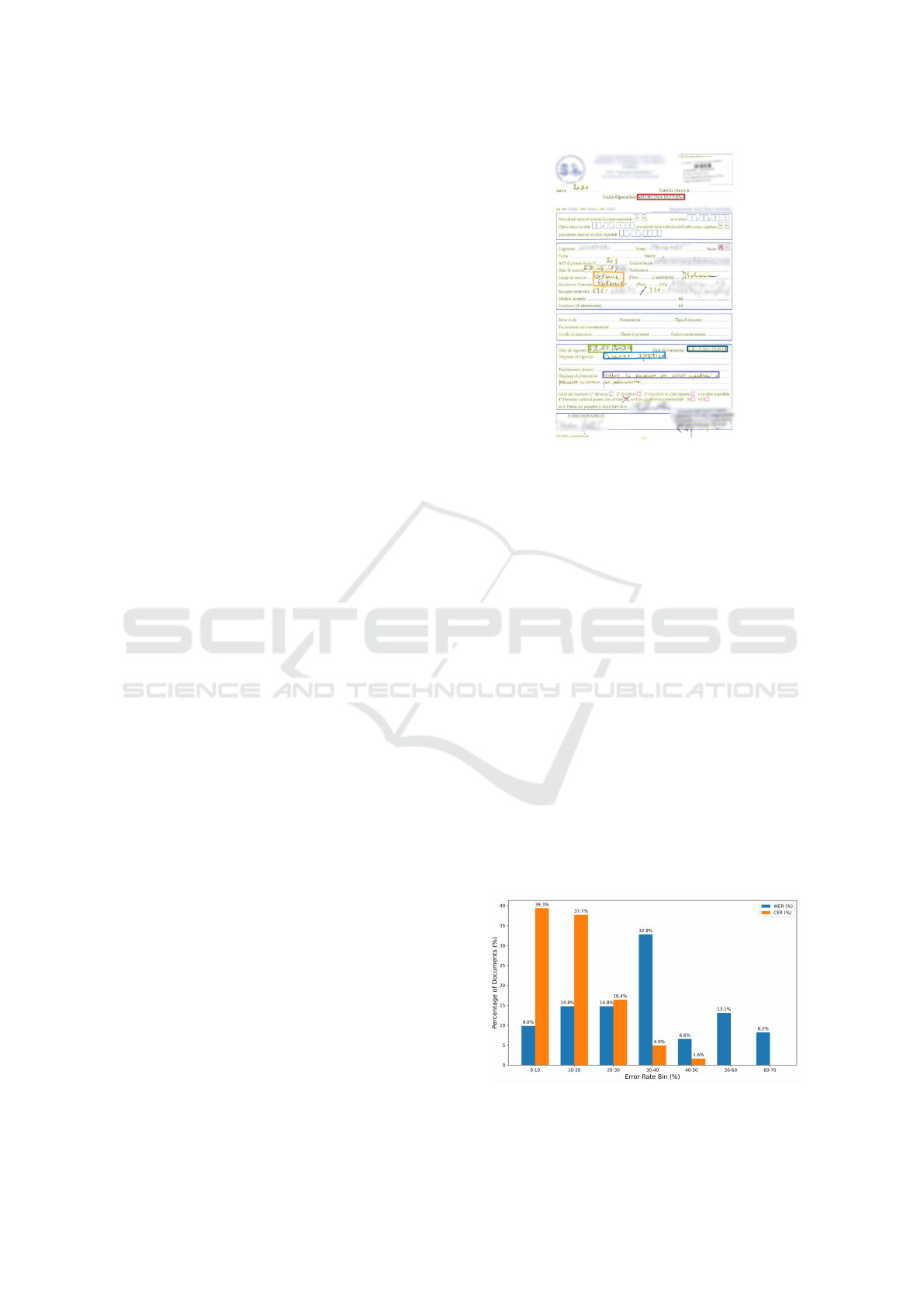

To complement the quantitative evaluation, Fig-

ure 1 presents a visual example of the OCR system’s

output on one of the test documents. The ﬁgure shows

the scanned page overlaid with bounding boxes corre-

sponding to the detected key-value pairs extracted by

the custom model. Each bounding box encloses ei-

ther a ﬁeld label or its associated value, indicating the

model’s interpretation of the document structure.

The image illustrates the mixed nature of the con-

tent, which includes both machine-printed and hand-

written entries. Printed ﬁelds like the document

header are generally recognized with high accuracy.

Conversely, handwritten content, particularly in the

ﬁelds “Diagnosi di ingresso” (admission diagnosis)

and “Diagnosi di dimissione” (discharge diagnosis),

presents more variability due to inconsistent hand-

writing styles and legibility. These challenges are

manifested in the error rates discussed later in this

section.

Figure 1: OCR result with bounding boxes showing ex-

tracted ﬁelds from a test medical report.

Evaluation focused on the accuracy of text recog-

nition. Given the presence of both machine-printed

and handwritten content, two standard metrics were

adopted: Character Error Rate (CER) and Word Er-

ror Rate (WER). These were computed using the Ji-

Wer Python library for each test document and then

averaged. This allowed quantiﬁcation of both ﬁne-

grained errors (e.g., character-level substitutions) and

larger semantic discrepancies (e.g., missing or mis-

interpreted words). The test set comprised 51 rep-

resentative documents. Figure 2 illustrates the dis-

tribution of recognition errors across the document

set. Speciﬁcally, it presents the percentage of doc-

uments grouped by error rate intervals of 10%, using

both Character Error Rate (CER) and Word Error Rate

(WER) as evaluation metrics. This binning approach

enables a clearer understanding of how frequently dif-

ferent levels of error occur, highlighting the preva-

lence and severity of recognition issues within the

dataset. The results show a wide range in recognition

performance, primarily due to differences in hand-

writing legibility. In documents where printed text

Figure 2: WER and CER. The ﬁgure highlight the error

percentage vs the error classes.

Paper-Based Health Records: A Case Study on the Digitization of Handwritten Clinical Records

249

dominated error rates yielded a WER of 10.00% and a

CER 1.23%. Conversely, other documents saw WERs

exceeding 60%. Nevertheless, the average values of

WER, that is 37.43% and CER, 14.27%, reﬂect an

acceptable baseline for mixed-content recognition in

a real-world setting. Can be observed that the higher

error values are primarily attributable to the variabil-

ity in the handwriting of the document authors, which

introduces signiﬁcant inconsistencies in the graphi-

cal representation of characters. Furthermore, a mi-

nor portion of the discrepancies could stem from dif-

ferences in document layout compared to those used

during the training phase, suggesting that model gen-

eralization to previously unseen document structures

remains an area for improvement.

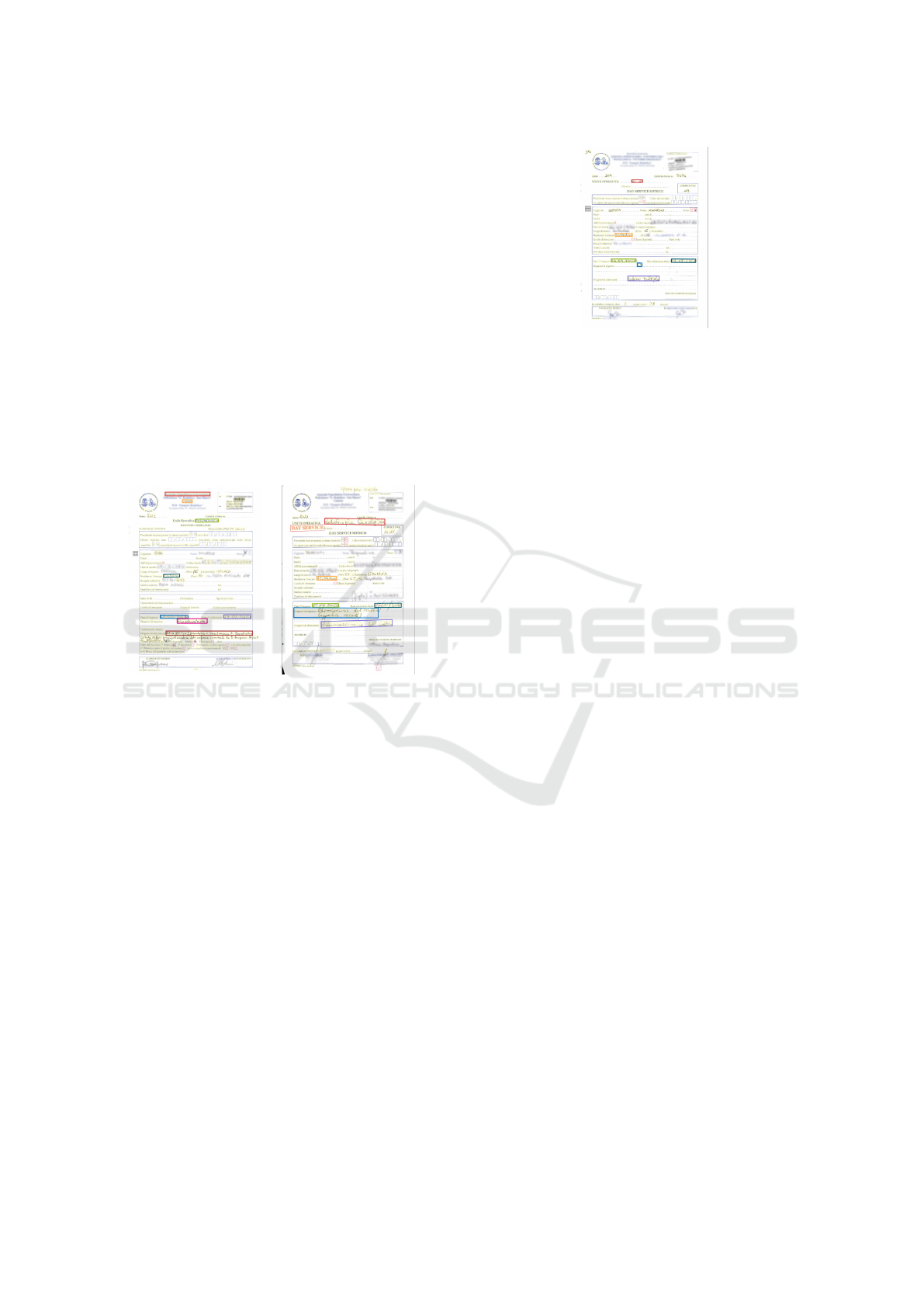

This is exempliﬁed in Figure 3a, which shows the

OCR results for the worst-performing case among the

51 documents tested. Figure 3b exempliﬁes the chal-

(a) (b)

Figure 3: OCR results for worst performing (left) and hand-

writing problems.

lenges posed by poor handwriting in document recog-

nition. In this case, the model failed to accurately

extract the dimission diagnosis ﬁeld (highlighted by

the brown bounding box), resulting in a Word Error

Rate (WER) of 67.57% and a Character Error Rate

(CER) of 22.04%. Despite correctly locating all target

ﬁelds, the model still produced a WER of 66.67% and

a CER of 19.44%, underscoring the signiﬁcant impact

of handwriting legibility on recognition performance.

Figure 4 shows the document that achieved the

best results, with a WER of 10.00% and a CER of

1.23%. The model successfully extracted all target

ﬁelds, and due to the clarity of both the document

and handwriting, only minor character-level misinter-

pretations were observed. Such calligraphic hetero-

geneity poses a substantial obstacle for automated text

recognition systems, reducing model accuracy even

with robust training.

In all test cases, the system successfully returned

structured output. On average, the processing time

for each document was under ﬁve seconds using the

Figure 4: OCR result of document #8.

Azure cloud infrastructure. While no local engine

was benchmarked for comparison, the cloud-based

setup enabled rapid iteration and ensured scalability.

Finally, end-to-end tests conﬁrmed that the chatbot-

assisted retrieval system correctly identiﬁed the in-

tended medical record when the user input matched

the ﬁelds extracted by the OCR module. Final val-

idation was performed by the user through a binary

conﬁrmation (“yes” or “no”), reinforcing the system’s

effectiveness under realistic usage conditions.

6 CONCLUSIONS

This study investigated the effectiveness of a com-

mercial OCR solution, speciﬁcally Microsoft Azure’s

handwriting recognition, in processing real-world

clinical records that include substantial handwritten

content. The goal was to evaluate whether exist-

ing general-purpose OCR technologies are suitable

for extracting meaningful and structured information

from historical patient documentation. The method-

ology combined both quantitative metrics and manual

inspection to assess recognition quality and semantic

coherence in the output.

The results indicate that current off-the-shelf OCR

systems, while offering basic recognition capabilities,

often fail to provide sufﬁcient accuracy for down-

stream processing, particularly in highly domain-

speciﬁc and variable contexts like handwritten med-

ical forms. Issues such as fragmented recognition,

loss of document structure, and confusion in domain-

speciﬁc terminology were recurrent.

In parallel, the paper reviewed state-of-the-art ap-

proaches and recent research in form understanding

and handwriting recognition, which suggest that hy-

brid and AI-enhanced techniques—such as the inte-

gration of contextual models, semantic parsing, or

domain-speciﬁc post-processing—could offer signiﬁ-

cant improvements over current commercial tools.

Ultimately, this case study underscores the need

for accurate and robust OCR technologies as a foun-

WEBIST 2025 - 21st International Conference on Web Information Systems and Technologies

250

dational component in any pipeline that aims to lever-

age artiﬁcial intelligence for clinical document anal-

ysis. Without reliable text extraction, the potential of

AI to derive insights from vast volumes of archived

handwritten data remains largely untapped. Future

work should explore the integration of domain-trained

models, active learning strategies, and multimodal

document representations to improve recognition ac-

curacy and usability in medical and archival settings.

REFERENCES

Agenzia nazionale per i servizi sanitari region-

ali (2023). Piattaforma di telemedicina e

FSE. https://www.agenas.gov.it/comunicazione/

primo-piano/2090-piattaforma-telemedicina-fse.

Accessed 8-May-2025].

AgID (2020). Sistema pubblico di identit

a digitale. https:

//www.spid.gov.it. Accessed 17-April-2025.

Amazon Web Services (2019). Amazon Textract – Fully

Managed ML for Text and Data Extraction. https:

//docs.aws.amazon.com/textract/. General Availabil-

ity announced November 28, 2018; service available

from May 2019, accessed on 2025-05-15.

Bender, D. and Sartipi, K. (2013). HL7 FHIR: An agile

and RESTful approach to healthcare information ex-

change. In Proceedings of the 26th IEEE Interna-

tional Symposium on Computer-Based Medical Sys-

tems, pages 326–331.

Carchiolo, V. and Malgeri, M. (2025). Trends, challenges,

and applications of large language models in health-

care: A bibliometric and scoping review. Future In-

ternet, 17(2).

Carchiolo, V., Malgeri, M., and Sapari, L. S. (2026). A con-

versational agent for handling health report inquiries.

Communications in Computer and Information Sci-

ence, 2518 CCIS:202 – 211.

European Commission (2025a). eHealth network. https:

//health.ec.europa.eu/ehealth-digital-health-and-care/

digital-health-and-care/eu-cooperation/

ehealth-network. Accessed 07-May-2025.

European Commission (2025b). European health

data space regulation (EHDS). https:

//health.ec.europa.eu/ehealth-digital-health-and-care/

european-health-data-space-regulation-ehds. Ac-

cessed: 2025-05-07.

Federazione Nazionale Ordine Medici Chirurghi ed Odon-

toiatri (2014). Nuovo codice di deontologia

medica. https://www.health-management.it/codice\

dentologico/cdm\ 03\ 25\ 26.htm.

Google Cloud Platform (2016). Google Cloud Vision API.

https://cloud.google.com/vision. Accessed: 2025-05-

15.

Jiang, A. Q., Sablayrolles, A., Roux, A., Mensch, A.,

Savary, B., Bamford, C., Chaplot, D. S., de las Casas,

D., Hanna, E. B., Bressand, F., Lengyel, G., Bour, G.,

Lample, G., Lavaud, L. R., Saulnier, L., Lachaux, M.-

A., Stock, P., Subramanian, S., Yang, S., Antoniak, S.,

Scao, T. L., Gervet, T., Lavril, T., Wang, T., Lacroix,

T., and Sayed, W. E. (2024). Mixtral of experts.

Karthikeyan, S., de Herrera, A. G. S., Doctor, F., and Mirza,

A. (2022). An OCR post-correction approach using

deep learning for processing medical reports. IEEE

Transactions on Circuits and Systems for Video Tech-

nology, 32(5):2574–2581.

Li, Y., Wei, Q., Chen, X., Li, J., Tao, C., and Xu, H. (2024).

Improving tabular data extraction in scanned labora-

tory reports using deep learning models. Journal of

Biomedical Informatics, 159:104735.

Microsoft (2025). What is azure AI document intelligence?

https://learn.microsoft.com/en-us/azure/ai-services/

document-intelligence/overview?view=doc-intel-4.0.

0”. Accessed 1-April-2025.

Microsoft (n.a.). Azure cognitive services —

computer vision ocr documentation. https:

//learn.microsoft.com/en-us/azure/cognitive-services/

computer-vision/concept-recognizing-text. Ac-

cessed: 2025-05-15.

Ministero della Sanit

a (1977). Determinazione dei requisiti

tecnici sulle case di cura private. http://architettura.it/

notes/ns\ nazionale/anno\ 70-79/D.M.5-8-77.html.

Nandhinee, P., Harinath, K., Koushik, S., Anil, G., and Su-

darsun, S. (2022). DEXTER: An end-to-end system to

extract table contents from electronic medical health

documents. arXiv preprint arXiv:2207.06823. Avail-

able at: https://arxiv.org/abs/2207.06823.

Proton Technologies AG (GDPR.EU) (2018). General data

protection regulation (GDPR). https://gdpr.eu/tag/

gdpr. Accessed 17-April-2025.

Rasmussen, L. V., Peissig, P. L., McCarty, C. A., and Star-

ren, J. (2012). Development of an optical character

recognition pipeline for handwritten form ﬁelds from

an electronic health record. Journal of the American

Medical Informatics Association, 19(e1):e90–e95.

Tan, Y. F., Connie, T., Goh, M. K. O., and Teoh, A. B. J.

(2022). A pipeline approach to context-aware hand-

written text recognition. Applied Sciences, 12(4).

Wang, X.-F., He, Z.-H., Wang, K., Wang, Y.-F., Zou, L.,

and Wu, Z.-Z. (2023). A survey of text detection and

recognition algorithms based on deep learning tech-

nology. Neurocomputing, 556:126702.

White-Dzuro, C. G., Schultz, J. D., Ye, C., Coco, J. R.,

Myers, J. M., Shackelford, C., Rosenbloom, S. T.,

and Fabbri, D. (2021). Extracting medical informa-

tion from paper COVID-19 assessment forms. Applied

Clinical Informatics, 12(1):170–178.

Willis, N. (2025). IFHIR adoption statistics in 2025: A

global overview. https://www.linuxactionshow.com/

fhir-adoption-statistics-in-2025-a-global-overview.

Accessed 8-May-2025].

World Health Organization (2025). International sta-

tistical classiﬁcation of diseases and related health

problems (ICD). https://www.who.int/classiﬁcations/

classiﬁcation-of-diseases. Accessed 8-May-2025.

Paper-Based Health Records: A Case Study on the Digitization of Handwritten Clinical Records

251
