Improving Assistive Technologies Using EEG Headsets

David Ivas¸cu

and Isabela Dr

amnesc

Department of Computer Science, West University of Timis¸oara, Romania

Keywords:

EEG Headset, P300, Unity, Whisper, Speech-to-Text.

Abstract:

Brain computer interfaces (BCI) have gained increasing attention in recent years due to the improved afford-

ability and usability of electroencephalogram headsets (EEG). These headsets paired with the right software

make computers usable without a physical input such as the traditional mouse and keyboard, creating new

opportunities for users with motor impairments. In this paper, we present the design and development of an

assistive application that employs an EEG headset (Unicorn Hybrid Black) as the main control interface for

user interaction. The system integrates a launcher style interface that contains multiple accessible functions,

allowing users to interact with software environments exclusively through EEG–based commands. This work

aims to advance digital accessibility and promote independence for people who cannot rely on conventional

input devices. By outlining a practical approach for integrating EEG headsets into everyday computer use,

this paper contributes to the ongoing development of assistive technologies.

1 INTRODUCTION

Electroencephalography (EEG) is a method used to

record the electrical activity of the brain using elec-

trodes placed on the scalp. This method has been used

for decades in the medical ﬁeld to detect certain brain

conditions by analyzing the electrical activity graph.

But this technology is not relevant only in the medical

ﬁeld, the brainwave data can be used for brain com-

puter interfaces (BCI), essentially using the headsets

an input method for computer based systems such as:

robotic limbs, smart home systems, graphical user in-

terfaces. BCI’s are often used for assistive systems

meant for people with motor disabilities by replac-

ing the traditional mouse and keyboard input with the

EEG headset input, thus removing the need for phys-

ical interaction with the computer.

This technology still has not been widely adopted

for assistive systems due to its experimental nature

and sometimes complex setup processes. More vigor-

ous testing and optimizations should be done on these

headsets and the algorithms running on them to en-

sure that we can get the best performance and accu-

racy out of the existing hardware.

The aim of this paper is to highlight the poten-

tial of EEG based BCI systems in improving assis-

tive technologies and to experiment with the existing

https://orcid.org/0009-0003-8777-7989

https://orcid.org/0000-0003-4686-2864

hardware and EEG headsets by creating a Unity inter-

face with multiple features which is controlled using

the g.tec Unicorn Hybrid Black EEG headset.

2 RELATED WORK

EEG Powered Robotic Devices for Mobility Aid.

Recent studies have demonstrated that EEG headset

can enable BCI for controlling robotic systems, rang-

ing from wheelchairs to exoskeletons. (Swee, Sim

Kok et al., 2016) describe in detail the process of

building an EEG wheelchair. For the EEG headset,

Emotiv EPOC was chosen due to its good signal cap-

turing capabilities and the SDK that handles data ac-

quisition and processing. After the wheelchair was

fully built, it was tested and the results presented by

the authors were favorable with good accuracy. On

the other hand, there were no safety features imple-

mented.

(Tang et al., 2018) present a more advanced EEG

controlled wheelchair with multiple safety features

included. It is equipped with multiple sensors to en-

sure a reliable way of mapping the environment. The

wheelchair uses a you only look once algorithm to se-

lect a target, which is the destination, then through a

P300 paradigm BCI, the user can conﬁrm the destina-

tion. The authors have conducted tests on this system

by simulating real life scenarios. The tests concluded

362

Iva¸scu, D. and Dr

amnesc, I.

Improving Assistive Technologies Using EEG Headsets.

DOI: 10.5220/0013788400003982

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 22nd International Conference on Informatics in Control, Automation and Robotics (ICINCO 2025) - Volume 1, pages 362-368

ISBN: 978-989-758-770-2; ISSN: 2184-2809

that the smart wheelchair works as intended and EEG

powered BCIs have potential if implemented prop-

erly.

Because safety is a serious matter when talking

about autonomous mobility devices, it is important to

implement robust safety layers to ensure that the sys-

tem does not have many points of failure. This topic

was addressed in (Tariq et al., 2018), where the au-

thors have reviewed many related work and concluded

that, even if EEG based BCI controlled robotic sys-

tems can achieve good results in the accuracy depart-

ment, the safety features still lack development and

the systems are not yet deployable without supervi-

sion. The general idea behind EEG controlled mo-

bility aid robotic devices is that they present potential

with proper software implementation, but need thor-

ough testing and development for better safety proto-

cols in order to be deployed autonomously.

EEG Controlled Robotic Hands. Robotic hands

were created to research the possibility of restoring

movement or studying the possibility of motor cor-

tex EEG data acquisition to restore hand movement.

(Kline and Desai, 2014) present the process of EEG

data acquisition with the purpose to be used on a

robotic hand. When collecting the data with the head-

set, the participants were shown a series of left and

right arrow, having to raise the hand that matches

the arrow direction. After acquisition was realized,

the data was ﬁltered and processed, then tested on a

robotic hand. A similar approach was used in (Kasim

et al., 2017), where the authors describe the develop-

ing process of a real time EEG controlled hand. The

hand has two functions: open and closed. Each state

was mapped to a speciﬁc action. If the user of the

headset looks to the right, the hand opens and if the

user smiles the hand closes. Even if the complexity of

the robotic hand movement is limited, it is possible to

map certain brain signals to actions.

Robotic hands have also been tested as assistive

devices for individuals recovering from stroke related

impairments. In these cases, damage to certain brain

areas may limit the reliability of the signals captured

by the EEG headset. (Fok et al., 2011) propose a spe-

cialized algorithm designed to identify alternative re-

gions from the brain that display motor activity. By

using the headset with the algorithm, they success-

fully enabled control of a robotic hand orthosis.

One of the limitations presented in all the cited

works is the sensitivity of the EEG capturing device

to artifacts. Physical movement of headset user can

greatly affect the quality of the signal, as well as elec-

tromagnetic interference from other devices. Despite

these limitations, EEG controlled robotic hands show

potential for the future.

EEG Controlled Applications. A wide range of

EEG based applications have been developed to

demonstrate the potential of BCIs in real world sce-

narios. A number of studies have experimented with

EEG controlled applications on different platforms.

These applications are usually designed to help indi-

viduals with physical impairments by enabling them

to interact with digital devices without the need of

traditional input methods such as keyboard and mice.

For example, (Rus

anu et al., 2020) developed an EEG

controlled chat application. The application connects

a laptop instance and a smartphone instance. The lap-

top instance is meant to be used by the headset wearer

and it features prefabricated messages that can be sent

to the smartphone by selecting it using blinks. From

the smartphone, messages are sent normally using a

keyboard.

(Mugler et al., 2010) have created a web browser

that is controllable using EEG BCI. The browser uses

the P300 paradigm, so the user has to focus of ﬂash-

ing object in order to control the browser or spell

words. The user interface was created to be minimal

and intuitive, in order to facilitate the use with an EEG

headset. The authors have tested the accuracy of the

EEG headset on healthy volunteers as well as indi-

viduals with amyotrophic lateral screlosis (ALS). The

recorded accuracy was about 90 percent for healthy

individuals and 73 percent for the ALS patients.

A more advanced application presented in (He

et al., 2017) integrates a speller, a web browser, an

e-mail client and a ﬁle explorer. The application is

controlled by a hybrid BCI that combines both elec-

troencephalographic (EEG) and electrooculographic

(EOG) signals. EEG is used for horizontal movement

of the cursor and EOG is used for selecting items or

moving the cursor on a vertical axis. Using these

methods, the users are able to navigate through all the

included applications. EEG based BCIs have shown

signiﬁcant promise as an alternative input method for

computer interaction, especially when integrated with

other assistive technologies and applications devel-

oped with the aim to bypass certain limitations of this

emerging technology.

Compared to the system described by (He et al.,

2017), our application offers a more reﬁned and user

friendly interface that improves the overall user expe-

rience. Additionally, our text input method is based

on Whisper, an AI-based speech-to-text model, mak-

ing text entry faster and more accurate.

Improving Assistive Technologies Using EEG Headsets

363

3 METHODOLOGY

3.1 The Headset and Setup

The EEG headset used is the g.tec Unicorn Hybrid

Black headset. It has eight channels for the elec-

trodes, the placement is optimized for motor imagery

and for P300 paradigm, representing the right choice

for BCI implementation in Unity. The electrodes are

hybrid, meaning that they can be used with or without

gel. Using gel on an electrode facilitates conductiv-

ity, so it provides a cleaner more reliable signal while

having the downside of long setup and cleaning time.

Using dry electrodes, without conductive gel, results

in lower accuracy but requires signiﬁcantly less setup

time. This trade-off can be beneﬁcial in contexts

where precision is not critical, such as preliminary

functionality testing with the headset.

Connecting the headset requires a proprietary ap-

plication named Unicorn Suite Hybrid Black (g.tec,

2019) which is compatible with Windows 10 and 11.

The headset connects to the application through Blue-

tooth using the provided wireless dongle. For the best

connection it is recommended to temporarily disable

the drivers of the integrated Bluetooth adapter before

inserting into the computer the dongle provided by

g.tec. Use with a generic Bluetooth adapter is pos-

sible, but not recommended due to the low accuracy.

After connecting you can install the Unity SDK pack-

age from the main page. More detailed installation

instructions can be found at (g.tec, 2024).

3.2 The Application

The application developed for this paper is a launcher

style interface built around the g.tec Unicorn Hybrid

Black EEG headset, see Figure 1. This interface con-

tains multiple features such as: a calculator, a web

browser with speech-to-text capabilities, an AI chat-

bot interface and a ﬁle viewer. All these features are

usable with the help of the EEG headset. Each but-

ton from the application is paired with a white circle

that starts ﬂashing when the selection process begins.

A button can be selected by focusing on it’s respec-

tive ﬂashing element. Figure 2 illustrates the applica-

tion page with the function icons and the white circles

which are the ﬂashing elements.

The application was built using Unity 2022.3.60f1

(Technologies, 2005) with a 2D project setup. Each

screen was created using a canvas set to 1920x1080

resolution. Switching screens is done by changing

the coordinates of the camera. This multiple can-

vas approach was used in favor of switching scenes

to ensure a stable integration with the Unicorn Hy-

Figure 1: g.tec Unicorn Hybrid Black headset.

Figure 2: Application Page.

brid Hybrid Black EEG headset. This design choice

ensures data persistence because switching scenes

causes problems with data continuity.

To evaluate the effectiveness of the g.tec Unicorn

Hybrid Black EEG headset integration, a basic calcu-

lator app with simple buttons and controls was cre-

ated, as shown in Figure 3. It uses a script to execute

simple mathematical operations. Each button has a

ﬂashing object bound to it in order to ensure headset

compatibility. Due to the large number of buttons, it

is not possible to have all buttons ﬂashing at the same

time. To select a button, it is necessary to ﬁrst select

the column of that button, then select the button. This

limitation is due to the SDK, which allows a maxi-

mum of ﬁfteen ﬂashing objects and the calculator has

seventeen buttons. A dynamic button approach which

would disable the elements that do not make sense

ICINCO 2025 - 22nd International Conference on Informatics in Control, Automation and Robotics

364

Figure 3: Calculator Page.

to be selected was considered, but even with such an

approach, at some point the number of selectable but-

tons would be greater than the supported value.

The ﬁle viewer page consists of a vertical scroll

view that is populated with buttons representing the

ﬁles from the default photos folder as illustrated in

Figure 4.

Figure 4: FileViewer.

This layout allows users to visually browse avail-

able content. Navigation is realized with the help of

directional buttons (up and down) and a select but-

ton. The ﬁrst highlighted item is always in the mid-

dle, making the distance from the starting point to the

ﬁrst ﬁle and the last ﬁle the same. Selecting a ﬁle of

supported type (currently .png, .jpeg, .jpg) opens it in

a full screen view as shown in Figure 5.

Figure 5: Fullscreen View.

In this mode, directional navigation buttons are

available, allowing sequential browsing through the

images. Closing this view takes the user back into

folder view. The system allows navigation into sub-

directories, enabling hierarchical ﬁle structure explo-

ration. Going back to the parent folder is facilitated

by a up one folder button.

The functionality part of the ﬁle viewer was

implemented using two main scripts: SimpleFile-

Browser and UINavigationSimulator. The ﬁle load-

ing is done using SimpleFileBrowser script by ac-

cessing the directory speciﬁed by the user. If no di-

rectory is provided, it defaults to the user’s image

folder. Prior to populating the scroll view with ﬁle

buttons, all previously generated ﬁle buttons are re-

moved from the FileBrowser scroll view, to prevent

duplication and ensure no residual items are left. Dis-

playing a supported ﬁle type in fullscreen works by

calling Unity’s getTexture request to dynamically ren-

der the image. The UINavigationSimulator manages

highlighting and navigation in the scroll view, simu-

lating up, down or enter keystrokes.

For the speech to text functionality, the whis-

per.unity package (Macoron, 2023) was used. It is

a Unity3D binding for whisper.cpp (ggml.org, 2022),

making OpenAI’s (OpenAI, 2022) automatic speech

recognition model usable in Unity. This is a model

that runs locally on the user’s machine with no inter-

net connection required to function. To set up this

model in the project, an empty object named Whisper

was created then loaded with the WhisperManager

script. From this script one can select which model

to run the speech-to-text and tweak other parameters

from it such as: language, translation, toggle GPU us-

age and change advanced model settings such as the

sampling method. The model chosen for this project

is ggml-tiny. It is the default model from the package,

but it provides a good performance. GPU compute is

turned on to ensure fast processing and the sampling

strategy is greedy sampling. For microphone access,

it was necessary to create an empty object that was

loaded with the MicrophoneRecord script that is pro-

vided in the package. This script captures audio input

from the user’s microphone that is meant to be given

later to the model. A MicrophoneManagerScript is

used to take the output from MicrophoneRecord and

give it to the Whisper model to process.

The AI chatbot functionality, see Figure 6, was

implemented using the Groq API which was cho-

sen for the straightforward code integration, favorable

rate limits and diverse AI model selection. The con-

nection to the API servers was realized using a script

named AiChatScript which manages the communica-

tion with the Groq servers by connecting to the ap-

propriate endpoint. It also handles the transmission

Improving Assistive Technologies Using EEG Headsets

365

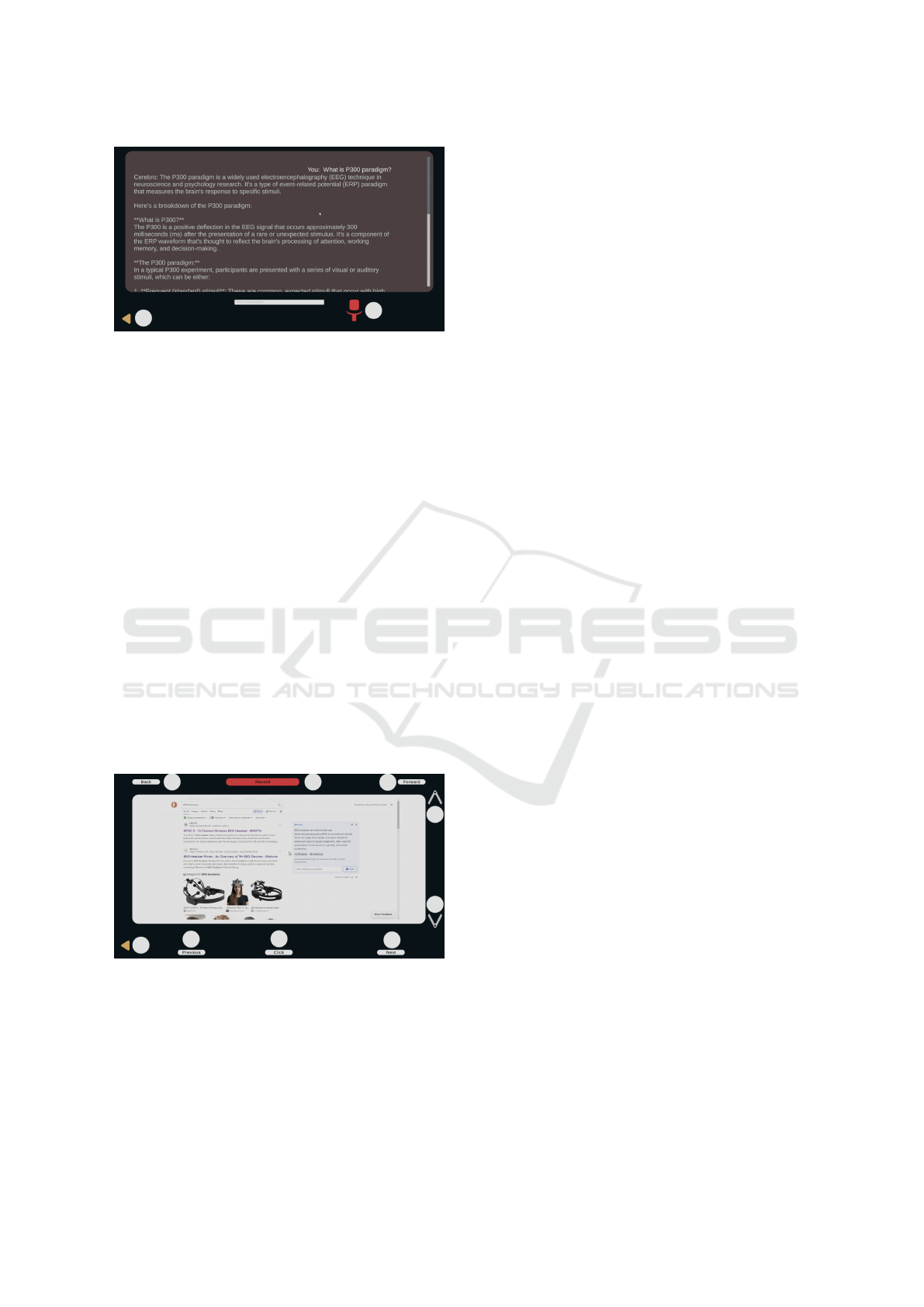

Figure 6: AI chatbot.

of user prompts and it processes responses from the

server which are then sent to ChatUI script. This

script manages the UI part from the AiChat screen

canvas by taking the user inputs and server responses

from AiChatScript and displaying them in an orga-

nized scroll view. The chosen AI model was llama-

3.3-70b-versatile. It was selected because it offers

low latency, ensuring fast responses and high perfor-

mance. The used user prompt input method is the

same AI speech-to-text model used for the browser

search feature.

Unity does not have native support for web brows-

ing. In order to overcome this limitation, we inte-

grated the UnityWebBrowser package developed by

Voltstro.com (Voltstro-Studios, 2023). This package

embeds a Chromium based browser within the Unity

environment which supports JavaScript injection, al-

lowing programmatic control of web elements. The

interaction with the browser (see Figure 7) can be

done through traditional input methods like a mouse

and keyboard or with the ﬂashing elements that are

controlled by JavaScript driven commands.

Figure 7: Browser Page.

Each interactive button from the interface con-

trols the browser by injecting speciﬁc JavaScript func-

tions, enabling actions such as: scrolling, highlight-

ing clickable elements, simulating click events on the

highlighted item and navigating back and forward

through the pages. Text input for search is facili-

tated using an AI based speech-to-text model, offering

hands free interaction and supporting accessibility.

3.3 Integrating EEG Headset Control

The headset integration was done by using the Uni-

corn Hybrid Black Unity SDK. The BCI selection

works by ﬂashing items on the screen at different in-

tervals, the user selects an item by looking at it. Ac-

cording to the P300 paradigm, when a person sees

a meaningful stimulus, after about 300 milliseconds

there is a signiﬁcant peak in brain activity which is de-

tected by the headset. Knowing when the brain activ-

ity peak happened it is possible to detect which item

ﬂash triggered it, thus knowing the item the user was

looking at. This is a core functionality of Unicorn

Hybrid Black speller SDK. The whole application is

based around this SDK and implements ﬂashing ob-

jects that are used for the EEG headset selection pro-

cess.

The ﬁrst step in using the headset is the calibra-

tion, after the user presses the start button, the page

changes to the training or calibration page, where the

user is prompted to select the headset intended for use

and tweak frequency settings. After that, the user spe-

ciﬁc calibration starts. If necessary, retraining is pos-

sible until the desired accuracy is obtained. The cal-

ibration has to be done every time the user starts the

application.

Because the ﬂashing objects cannot be put in

a canvas and have to be Worldspace objects, each

screen which is essentially a canvas was assigned an

empty object that acts as a container for the ﬂashing

objects intended to be used for that screen. These ob-

jects are assigned a transform, a sprite renderer and a

ButtonTrigger script which binds the object to the but-

ton it is meant to activate. The ﬂash object conversion

happens in the FlashObjectManager script through

the PopulateFlashObjects function which takes all the

children objects of a container and creates a list of

objects to be used as placeholders for the ﬂash ob-

jects. Then using the newly created list, it populates

the Application Object ﬁelds of the ERPFlashCon-

troller script. Before each change, the objects from

the previous screen are cleared from the placeholder

list as well as the ApplicationObject list to ensure that

only the objects from the current screen are in the list.

When the controller detects a selection, it returns

the ClassID of the selected element, using this Clas-

sID we can call the TriggerButton function from the

chosen object which then calls the OnClick methods

assigned to the linked button. The whole BCI imple-

mentation works like a module that adds a new input

method for the application.

ICINCO 2025 - 22nd International Conference on Informatics in Control, Automation and Robotics

366

3.4 Final Touches

To assure a better reliability of the P300 paradigm de-

tection, some items that were too close were reposi-

tioned so that they would not interfere with each other.

Other parts of the UI have been modiﬁed to have a

more modern look. Fixed some bugs related with the

selection script, sometimes causing multiple simulta-

neous actions being run, thus making the UI unusable.

The full implementation code can be

found at: https://github.com/AiRobo-UVT/

EEG-headsets-application.

4 EXPERIMENTS AND RESULTS

After the application was completed, its functionality

has been evaluated using the Unicorn Hybrid Black

Headset across various scenarios.

First, the application was tested under suboptimal

conditions. Meaning no gel was used and the envi-

ronment was not clear of electromagnetic interference

and distractions, but the provided Bluetooth dongle

was used. In this scenario, the results were unsatis-

factory, with the selection accuracy being very low,

comparable with random item selection.

In the next testing stage, conductive gel was ap-

plied to the electrodes, which has signiﬁcantly im-

proved the accuracy and made the selection process

usable, even though some occasional selection errors

still occurred.

The highest selection accuracy was achieved when

the headset was used with conductive gel in a con-

trolled environment with minimal electromagnetic in-

terference, selection errors were still present at times,

but the occurrences were rare.

Another method used to improve accuracy in-

volved extending the training duration and adjusting

the ﬂash object parameters, such as ﬂash duration. In

general, longer training sessions resulted in higher se-

lection accuracy and reduced selection times.

It was observed that making a short sound in your

mind every time the target object ﬂashes contributed

to improving the selection accuracy.

A demo of the application is here https://

youtu.be/_HrQQcw5aYk.

5 CONCLUSIONS AND FUTURE

WORK

5.1 Conclusions

Electroencephalogram (EEG) based brain computer

interfaces (BCI) represent a promising and increas-

ingly relevant technology that is very important for

the future of human computer interaction by enabling

control without the need of physical input. Despite

their potential, EEG headsets remain sensitive to elec-

trical noise and artifacts generated by muscle activity.

For optimal signal quality, users are advised to oper-

ate the headset in an environment with low interfer-

ence and minimal distractions.

The integration of EEG BCI control into soft-

ware applications is slowly becoming more accessi-

ble. This is demonstrated by platforms such as g.tec’s

Unicorn Hybrid Black Unity SDK, which offers ro-

bust functionality and integration of their EEG head-

sets into Unity. However, the closed source nature

of the program and the licensing costs might limit its

adoption.

The developed launcher application successfully

includes EEG headset input capabilities alongside

speech-to-text functionality. When using the launcher

with a headset that has wet electrodes and the bundled

dongle, the selection performance is satisfactory. All

the included features can be used without the need of

physical input.

For now, EEG BCI input functions more reliably

when paired with other non physical input methods

such as speech-to-text, eye trackers and motion track-

ers. As it was discovered when setting up the BCI

features of the application, a higher number of ﬂash-

ing objects could introduce problems in the interface

by decreasing the accuracy or even making use im-

possible. It is not yet feasible to use EEG input to

navigate applications with dense elements.

5.2 Future Work

Future work will focus on developing a more intuitive

user interface and implementing smart objects that ac-

tivate when the system predicts user intent.

Furthermore, an open machine learning–based

EEG data processing framework should be designed

for ﬂashing item selection, enabling more granular

control.

Further experiments with the current setup are

also required to obtain more reliable results and a

more accurate assessment of system performance.

Improving Assistive Technologies Using EEG Headsets

367

ACKNOWLEDGMENTS

This work is co-funded by the European Union

through the Erasmus+ project AiRobo: Artiﬁcial

Intelligence-based Robotics, 2023-1-RO01-KA220-

HED-000152418.

REFERENCES

Fok, S., Schwartz, R., Wronkiewicz, M., Holmes, C.,

Zhang, J., Somers, T., Bundy, D., and Leuthardt, E.

(2011). An EEG-based brain computer interface for

rehabilitation and restoration of hand control follow-

ing stroke using ipsilateral cortical physiology. In

2011 Annual International Conference of the IEEE

Engineering in Medicine and Biology Society, pages

6277–6280.

ggml.org (2022). Whisper.cpp. https://github.com/ggml-

org/whisper.cpp.

g.tec, u. (2019). Unicorn suite hybrid black.

https://github.com/unicorn-bi/Unicorn-Suite-Hybrid-

Black.

g.tec, u. (2024). Unicorn hybrid black unity inter-

face. https://github.com/unicorn-bi/Unicorn-Hybrid-

Black-Unity-Interface.

He, S., Gu, Z., and Li, Y. (2017). A hybrid BCI web browser

based on EEG and EOG signals. volume 2017, pages

1006–1009.

Kasim, M. A. A., Low, C. Y., Ayub, M. A., Zakaria, N.

A. C., Salleh, M. H. M., Johar, K., and Hamli, H.

(2017). User-Friendly LabVIEW GUI for Prosthetic

Hand Control Using Emotiv EEG Headset. Procedia

Computer Science, 105:276–281. 2016 IEEE Inter-

national Symposium on Robotics and Intelligent Sen-

sors, IRIS 2016, 17-20 December 2016, Tokyo, Japan.

Kline, A. and Desai, J. (2014). SIMULINK® based robotic

hand control using Emotiv™ EEG headset. In 2014

40th Annual Northeast Bioengineering Conference

(NEBEC), pages 1–2.

Macoron (2023). whisper.unity.

https://github.com/Macoron/whisper.unity.

Mugler, E. M., Ruf, C. A., Halder, S., Bensch, M., and

Kubler, A. (2010). Design and Implementation of a

P300-Based Brain-Computer Interface for Controlling

an Internet Browser. IEEE Transactions on Neural

Systems and Rehabilitation Engineering, 18(6):599–

609.

OpenAI (2022). Whisper.

https://github.com/openai/whisper.

Rus

anu, O. A., Cristea, L., and Luculescu, M. C. (2020).

LabVIEW and Android BCI Chat App Controlled

By Voluntary Eye-Blinks Using NeuroSky Mindwave

Mobile EEG Headset. In 2020 International Confer-

ence on e-Health and Bioengineering (EHB), pages

1–4.

Swee, Sim Kok, Teck Kiang, Kho Desmond, and You, Lim

Zheng (2016). EEG Controlled Wheelchair. MATEC

Web of Conferences, 51:02011.

Tang, J., Liu, Y., Hu, D., and Zhou, Z. (2018). Towards

BCI-actuated smart wheelchair system. BioMedical

Engineering OnLine, 17(1):111.

Tariq, M., Trivailo, P. M., and Simic, M. (2018).

EEG-Based BCI Control Schemes for Lower-Limb

Assistive-Robots. Frontiers in Human Neuroscience,

Volume 12 - 2018.

Technologies, U. (2005). Unity. https://unity.com/.

Voltstro-Studios (2023). Unityweb-

browser. https://github.com/Voltstro-

Studios/UnityWebBrowser.

ICINCO 2025 - 22nd International Conference on Informatics in Control, Automation and Robotics

368
