Extending Federated Data Platforms in the Cloud Continuum

for Manufacturing and Intralogistics

Krista M

asniemi

1 a

, Teemu Toroi

2 b

and David H

astbacka

1 c

Computing Sciences, Faculty of Information Technology and Communication Sciences, Tampere University,

33100 Tampere, Finland

Department of Computer Science, School of Science, Aalto University, 02150 Espoo, Finland

ﬁ ﬁ

Keywords:

Federated Data Platforms, Data Spaces, Cloud Continuum, Service Placement, Edge Deployment,

On-premise.

Abstract:

Federated data platforms (FDPs), or data spaces, are frameworks that facilitate data sharing between diverse

data sources and stakeholders. FDPs are critical enablers in the 2020 European Data Strategy where industrial

data is a strategic investment area. Industrial use cases can involve high data volumes and velocity despite

operating in resource-constrained environments. FDPs have been proven in inter-company data exchanges and

are typically implemented on scalable cloud platforms. This study explores the possibility of extending FDPs

in the cloud continuum (CC) by examining how the technical requirements of FDP building blocks align with

the drivers, characteristics, and enablers of CC layers. The study introduces an analysis framework for ﬁnding

the optimal placement of building blocks along CC. It also shows that transferring FDP components connected

to high data volumes closer to the edge can make FDPs more effective and better suited for manufacturing and

intralogistics use cases. The study concludes that there is an architectural ﬁt between FDP functionalities and

the characteristics of the CC, and suggests that FDP usability and performance should be studied empirically.

1 INTRODUCTION

Data is a strategic resource for the optimization of

manufacturing operations and the creation of new

products and services (Gelhaar et al., 2021) (Richter

and Slowinski, 2019). Data must ﬂow between dif-

ferent systems and stakeholders to enable new data-

driven innovations and operative efﬁciency (Rajput

and Singh, 2019) (Suleiman et al., 2022).

Transferring data between manufacturing systems

is not feasible in several use cases due to large data

volumes, latency requirements, transfer costs, com-

munication bandwidth limitations, or security consid-

erations (Alkhabbas et al., 2020) (Sousa et al., 2022).

Cloud continuum (CC) can be used alleviate data

transfer challenges via deployment of applications

and other resources close to data sources and users

(Al-Dulaimy et al., 2024) (Cardellini et al., 2025).

Placement and scheduling of computing along the CC

remain focal architectural and practitioner questions

(Jansen et al., 2023) (Salaht et al., 2020).

https://orcid.org/0009-0008-6627-7156

https://orcid.org/0009-0005-1617-9943

https://orcid.org/0000-0001-8442-1248

Federated data platforms (FDPs) are frameworks

that facilitate the sharing, integration, and manage-

ment of data between a diverse network of data

sources and stakeholders (Curry et al., 2022) (Otto

et al., 2022). FDPs are at the core of the European

data strategy, where industrial data sharing is a strate-

gic investment area (European Commission, 2020)

(European Commission, 2024). Early FDP research

focuses on technical, legal and organizational charac-

teristics (Otto et al., 2016) (Otto et al., 2022), whereas

business models and value creation are emerging FDP

research themes (Ammann and Hess, 2025) (Jussen

et al., 2024). To the best of our knowledge, there is

no research addressing how FDPs can be extended in

CC and how their components should be placed, i.e.

on-premise or as edge deployments.

To address this research gap, our research ques-

tions are:

1. How can federated data platforms extend along

the cloud continuum?

2. What speciﬁc requirements and implications do

manufacturing and intralogistics have for the de-

ployment of FDPs along cloud continuum?

Mätäsniemi, K., Toroi, T. and Hästbacka, D.

Extending Federated Data Platforms in the Cloud Continuum for Manufacturing and Intralogistics.

DOI: 10.5220/0013732100004000

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2025) - Volume 2: KEOD and KMIS, pages

417-427

ISBN: 978-989-758-769-6; ISSN: 2184-3228

417

We answer the research questions by designing

a framework for evaluating architectural ﬁt between

FDP building blocks and CC layers, and analyzing

the speciﬁc requirements of manufacturing and intral-

ogistics for FDP deployment. Both the framework

and its application are novel contributions with prac-

titioner impacts.

This paper is structured as follows. Section 2

presents the background and existing literature on

FDPs, the cloud continuum and the service placement

problem. Section 3 introduces the formulated eval-

uation framework. Section 4 maps FDP along the

CC. Section 5 presents application considerations for

manufacturing and intralogistics. Section 6 provides

a discussion before conclusions in section 7.

2 THEORETICAL BACKGROUND

2.1 Federated Data Platforms

Federated data platforms are technical, legal, and or-

ganizational frameworks that facilitate the sharing,

integration, and management of data between a di-

verse network of data sources and stakeholders (Otto

et al., 2016). They provide conceptual, organiza-

tional, and technological building blocks for data

ecosystems, where stakeholders collaborate via fed-

erated data storages (Otto et al., 2022).

As discussed in (Otto, 2022) and (Otto et al.,

2022), federation means that FDP architecture and

ownership are not centralized but shared by partici-

pating actors. Actual data transfers are bilateral and

do not require data duplication; instead, data is ac-

cessed from its original location. All data in an FDP

is cataloged with the FDP operator, and access to it is

provided in a decentralized way. The data remain at

the source, where each data provider decides to host

it. Data is accessed and provided to other participat-

ing actors through data connectors. Figure 1 provides

a schematic overview of FDP actors and data ﬂows.

Figure 1: Overview of FDP participant roles participant

roles and dataﬂows in a FDP. Adapted and simpliﬁed from

(Otto, 2022).

Other key characteristics of FDPs are data

sovereignty, interoperability, and scalability (Jarke

et al., 2019) (Otto et al., 2022). As discussed by (Jarke

et al., 2019), data sovereignty means that data remains

under the control of the data provider, who decides

who has access to it, for what purpose, and under what

conditions their data can be utilized. Sovereignty

is enforceable through data contracts attached to the

data offering.

FDP frameworks are developed, standardized, and

promoted in industry organizations such as the In-

ternational Data Spaces Association (IDSA), Gaia-X,

and the Data Spaces Support Centre (DSSC). DSSC

is the most relevant organization for this study, with

their Data Spaces Blueprint that deﬁnes the busi-

ness, organizational, and technical building blocks for

FDPs (Data Spaces Support Center, 2024).

2.2 Cloud Continuum

CC is a systems-level paradigm related to extending

scalable computation, data storage, and other capa-

bilities towards the edge and endpoints of the net-

work (Moreschini et al., 2022) (Bonomi et al., 2014).

Key capabilities extended from the cloud towards the

edge are computation, storage, application control

and communication between network nodes - both

horizontally within a network layer and vertically be-

tween network layers (Byers and Swanson, 2017).

Industry 4.0, cyber-physical systems and the In-

ternet of Things (IoT) have been major drivers for

CC with heterogeneous connected actuators, sensors,

and devices producing massive amounts of data with

high velocity in industrial contexts (Suleiman et al.,

2022) (Lasi et al., 2014). Transferring all that data to

the cloud is impractical due to incurred costs, limi-

tations of the communication bandwidth, low latency

requirements, and security considerations (Alkhabbas

et al., 2020) (Sousa et al., 2022). CC solves these

challenges by enabling the deployment of applica-

tions and other resources close to data sources and

users (Cardellini et al., 2025) (Jansen et al., 2023).

There are multiple drivers for extending capabilities

closer to edge and endpoints of computing networks.

This study categorizes these drivers into business,

functional, and security and privacy domains based

on earlier research as depicted in Table 1.

Research in CC has been active, and multiple

complementary concepts have emerged, such as Edge

Computing, Fog Computing, Fog-to-Cloud Comput-

ing, Mobile Cloud Computing, Multi-Access Edge

Computing, Mist Computing, and the Cloud-to-Thing

Continuum (Al-Dulaimy et al., 2024) (Antonini et al.,

2019) (

Cili

c et al., 2021) (Masip-Bruin et al., 2016)

KMIS 2025 - 17th International Conference on Knowledge Management and Information Systems

418

Table 1: Drivers for cloud continuum utilization.

Category Drivers References

Business Cost efﬁciency

Operational reliability and resilience

Energy efﬁciency

(Alkhabbas et al., 2020) (Bellavista et al., 2019)

(Cardellini et al., 2025) (Di Martino et al., 2023)

(Masip-Bruin et al., 2016) (Moreschini et al., 2022)

(Salaht et al., 2020) (Santos et al., 2021) (Sousa et al.,

2022) (Trakadas et al., 2022)

Functional End-to-end performance scalability

Low latency requirements

High data volumes and velocities

Communications (bandwidth efﬁciency)

Interoperability with endpoints and data formats

Mobility

(Ahearne et al., 2023) (Alkhabbas et al., 2020) (Bar-

bosa et al., 2025) (Bellavista et al., 2019) (Cardellini

et al., 2025) (Di Martino et al., 2023) (Jansen et al.,

2023) (Kimovski et al., 2021) (Masip-Bruin et al.,

2016) (Moreschini et al., 2022) (Salaht et al., 2020)

(Santos et al., 2021) (Sousa et al., 2022) (Trakadas

et al., 2022)

Security Guarantee privacy

Avoid or limiti transfer of sensitive data

Reduce risk surface

(Ahearne et al., 2023) (Alkhabbas et al., 2020)

(Cardellini et al., 2025) (Di Martino et al., 2023)

(Jansen et al., 2023) (Moreschini et al., 2022) (Santos

et al., 2021) (Sousa et al., 2022) (Trakadas et al., 2022)

(Salaht et al., 2020) (Yousefpour et al., 2019). Cor-

respondingly, several related architecture proposals

have been published where with 3-8 logical contin-

uum layers. The proposals describe logic, architec-

ture, and procedures how computing, storage, control,

and networking capabilities can be organized and dis-

tributed along the CC layers; and how applications

can be dynamically redistributed. The logical separa-

tion into different layers enables architects and devel-

opers to consider the continuum as a uniﬁed comput-

ing model. It helps overcome the limitations of tiered

architectures and supports moving applications closer

to data sources and end users (Cardellini et al., 2025)

(Jansen et al., 2023).

2.3 Service Placement Problem

The Service Placement Problem (SPP), also referred

to as the Application Placement Problem (Xiao et al.,

2012) or the Function Placement Problem (Jonas

et al., 2019), deﬁnes a mapping pattern for how ap-

plication components are assigned to an infrastruc-

ture, along with a methodology for how tasks are di-

vided and scheduled across those components (Salaht

et al., 2020). Application workloads can be dis-

tributed along the infrastructure and leverage the ca-

pabilities of each infrastructure layer (Jansen et al.,

2023). When the data storage, compute, and com-

munication capabilities of each network element are

taken into account, applications can reside close to

the data, and signiﬁcant latency and network con-

gestion issues can be avoided—as large amounts of

data are not transferred between network layers but

are instead processed in nodes close to data sources

(Farhadi et al., 2021) (Poularakis et al., 2020).

The placement pattern can be static or dynamic,

with continuous reallocation and scheduling of re-

sources to achieve a single objective or multiple in-

terdependent objectives simultaneously (Brogi et al.,

2020). The optimization objectives discussed in re-

cent SPP research include both functional and non-

functional requirements, such as total consumption

of network resources (CPU cycles, memory space,

data storage, network bandwidth), energy consump-

tion, quality of service (maximum delay, task com-

pletion rate and time, service disruption rate), end-

user mobility, total costs (application deployment and

operations), minimizing data transfer to the cloud,

and revenues enabled by the network (Farhadi et al.,

2021) (Kasi et al., 2020) (Natesha and Guddeti, 2021)

(Ram

ırez et al., 2017). It is worth noting that many of

these requirements align with the business and func-

tional drivers of cloud continuum utilization summa-

rized earlier in Table 1. However, security is not em-

phasized in most SPP studies, despite being a criti-

cal non-functional requirement—particularly regard-

ing the handling and transfer of sensitive and conﬁ-

dential data (Salaht et al., 2020).

For the purposes of this study, it is important to

acknowledge that dynamic SPP is a non-trivial prob-

lem, even though our focus is limited to deﬁning a

static mapping pattern for FDP components along the

main CC layers. We do not take a position on data

placement options (e.g., (Du et al., 2020) (Shen et al.,

2024)) but assume that data is expected to reside close

to its source unless there are explicit reasons to trans-

fer it to fog or cloud repositories. This assumption

aligns with the design principles of FDPs. By keeping

data close to its sources, we avoid problems related to

the synchronization of distributed data (Gilbert and

Lynch, 2002) (Pandey and Pandey, 2020).

Extending Federated Data Platforms in the Cloud Continuum for Manufacturing and Intralogistics

419

3 ANALYSIS FRAMEWORK

3.1 Characteristics of Cloud

Continuum Levels

For the purposes of this study, the CC is divided into

three layers. This allows the evaluation of the ar-

chitectural ﬁt while maintaining a manageable level

of complexity. Adopting and modifying the models

from (Jansen et al., 2023) and (Salaht et al., 2020), we

select the layers cloud, fog, and edge as our analysis

baseline. Each layer has its own set of characteristics

that present both beneﬁts and challenges for applica-

tion deployments. These beneﬁts and challenges are

summarized in Table 2.

The authors of (Chiang and Zhang, 2016) describe

the cloud as a small number of very large data cen-

ters that offer a centralized environment for comput-

ing, control, and data storage. Data centers are op-

erated by large companies and maintained by techni-

cal expert teams ensuring high operational reliability

and the security of their services. When the majority

of security aspects are the responsibility of the cloud

service provider, deploying a system in the cloud en-

hances the overall security of the system and reduces

the security-related risk borne by the system provider

or owner (Alkhabbas et al., 2020). However, a cloud-

centric approach presents two major limitations re-

garding system privacy and reliability (Antonini et al.,

2019). Firstly, sensitive data should not be transmit-

ted or processed in remote systems due to increased

cybersecurity risks. Secondly, securing the reliability

of the system requires an always-on Internet connec-

tion, which can be difﬁcult on mobile devices.

In addition to security and reliability, cloud

infrastructure provides scalable and extensive com-

putational resources and storage capabilities to enable

high performance processing and resource-intensive

applications, such as deep learning (Jansen et al.,

2023). IoT applications create major challenges

for cloud-centric systems due to the high volumes

of data and the increased number of connected

devices. Transferring large amounts of data to the

cloud for processing has a high bandwidth demand

and consumes energy (Alkhabbas et al., 2020).

Moreover, the billing models of cloud services are

typically based on the number of transactions with

the cloud, making continuous streaming of data to

the cloud costly (Antonini et al., 2019). Lastly, the

geographical distance between devices and the cloud

introduces delays in communication which makes

cloud-centric systems unsuitable to latency-sensitive

applications (Barbosa et al., 2025).

Fog acts as an intermediate layer between the

cloud and end devices, bringing computing, control,

storage, and networking functions closer to the data

sources (Chiang and Zhang, 2016). It can consist

of multiple hierarchical edge clusters, ranging from

resource-constrained devices to micro data centers

(Jansen et al., 2023), and networking entities, such as

access points, gateways, and routers (Antonini et al.,

2019). Containing diverse and heterogeneous devices

with varying capabilities, fog creates new opportu-

nities for system design to achieve better trade-offs

between local and global data processing as well as

distributed and centralized architectures (Chiang and

Zhang, 2016).

Chiang and Zhang (Chiang and Zhang, 2016) state

that the most fundamental question for fog comput-

ing is on where, when, and how to distribute system

functions along the continuum. Closer proximity to

data sources and end devices helps to meet the re-

quirements of low latency, reduced bandwidth, and

privacy guarantees enhancing the overall system efﬁ-

ciency and performance (Antonini et al., 2019). The

authors of (Chiang and Zhang, 2016) also discuss the

security tradeoffs of fog architectures. On the one

hand, fog nodes can improve security by providing

security functions, such as access control or encryp-

tion, for privacy-sensitive data before it leaves the

edge. On the other hand, the operating environment

is more vulnerable and resources to protect the system

are more limited compared to the cloud.

Edge consists of decentralized, heterogeneous,

and possibly mobile devices that typically have lim-

ited compute and storage resources (Jansen et al.,

2023). The deployment of systems on the edge

plays a key role in IoT solutions, and enable build-

ing complex cost-efﬁcient applications with low la-

tency (Antonini et al., 2019). Additionally, edge de-

ployments can work reliably without an Internet con-

nection (Alkhabbas et al., 2020) and preserve privacy

(Jansen et al., 2023) making them suitable especially

for autonomous vehicles and healthcare.

Although the edge addresses challenges inherent

to the cloud, such as bandwidth limitations, increased

latency, and high energy consumption, it introduces a

new set of challenges that emerge during system de-

velopment and maintenance. Developing and main-

taining edge systems requires specialized expertise

and skills from engineers (Alkhabbas et al., 2020).

Moreover, the edge environment lacks standardized

guidelines and foundational infrastructure services

typical to the cloud (Jansen et al., 2023).

KMIS 2025 - 17th International Conference on Knowledge Management and Information Systems

420

Table 2: The beneﬁts and challenges of CC layers summarized.

Beneﬁts Challenges

Cloud Security and reliability

Scalability of resources

High processing power

Standardized environment

Always-on connection required

Geographical distance

Delay and latency

High transaction costs

High energy consumption

Fog Tradeoff between local and global

Centralization/decentralization

Privacy guarantees

Varying capabilities

Heterogeneity of infrastructure

May require technical skills

High initial costs

Edge Privacy guarantees

Low latency

Energy efﬁcient

Enables distribution

Autonomy and control

High initial costs

Constrained resources

Vulnerable operation environment

Heterogeneity of infrastructure

Requires technical skills

3.2 Requirements of Data Platform

Building Blocks

Data Spaces Support Centre (Data Spaces Support

Center, 2024) provides a blueprint for data spaces in-

cluding building blocks that divide platform capabil-

ities into manageable clusters. We utilized the tech-

nical building blocks to evaluate the architectural ﬁt

between FDPs and CC. The building blocks contain

the core functionality of FDPs.

• Data models enables the publishing, browsing,

managing, and storing of shared dictionaries to fa-

cilitate semantic interoperability.

• Data exchange establishes mechanisms for the

transmission of data according to the agreed pro-

tocol.

• Provenance and traceability provide capabilities

for tracking data, its sharing, and usage for com-

pliance purposes.

• Identity and attestation management enables

platform actors to present, verify, store, and ex-

change attestations in a secure and self-sovereign

manner.

• Trust framework provides criteria for platform

actors, processes, and technical means for their

validation and veriﬁcation, and accredited trust

sources.

• Access and usage policies enforcement estab-

lishes mechanisms to govern data management by

implementing and enforcing policies for data ac-

cess and usage.

• Data, services and offering descriptions pro-

vides tools for the creation, evaluation and main-

tenance of high-quality metadata to facilitate dis-

covery, interoperability and usability.

• Publication and discovery enables dynamic

transactions that bring together data/service

providers and potential customers.

• Value creation services provide guidelines to de-

ﬁne the technical infrastructure of services and set

up technical conditions to ensure all value cre-

ation services have proper management, perfor-

mance, scalability, monitoring and maintenance.

We derived relevant requirements from the build-

ing block descriptions to shape architectural deci-

sions. Table 3 highlights the most relevant high level

requirements for each building block. The high-

lighted requirements do not constitute an exhaustive

list and should be interpreted as indicative rather than

comprehensive. Nevertheless, they emphasize the

most essential aspects relevant to placement decisions

for each building block. In the other words, all listed

requirements can be relevant for a building block, but

the idea is to highlight only the ones that drive the

placement decision. The requirements are the follow-

ing.

• Scalability of storage and compute capacity en-

sure the extendability of a service and processing

of high data volumes.

• Consistency and manageability refer to the abil-

ity of a service to maintain data synchronized

across the platform.

• Security and privacy to protect actors and their

business secrets.

• Reliability refers to the availability and fault re-

silience of a service that is closely related to busi-

ness operations.

• Low latency enables real-time applications and

reﬂects minimal cumulative transaction delays.

• Low transaction costs keep services with contin-

uous transactions and high data volumes afford-

able.

Extending Federated Data Platforms in the Cloud Continuum for Manufacturing and Intralogistics

421

• Adaptability refers to the ability of a service to

accommodate the diverse technologies employed

by different system components.

• Performance refers to the requirement for efﬁ-

cient operation without the need for particularly

low latency, as the service is not used continu-

ously.

• Sovereignty emphasizes an individual’s auton-

omy and ability to retain control over its data.

4 FEDERATED DATA

PLATFORMS ON THE CLOUD

CONTINUUM

By analyzing and comparing the requirements of FDP

building blocks to the characteristics of CC layers, we

were able to provide architectural guidelines for the

service placement problem. Figure 2 summarizes the

ﬁndings and indicates the optimal placements for each

building block along the CC.

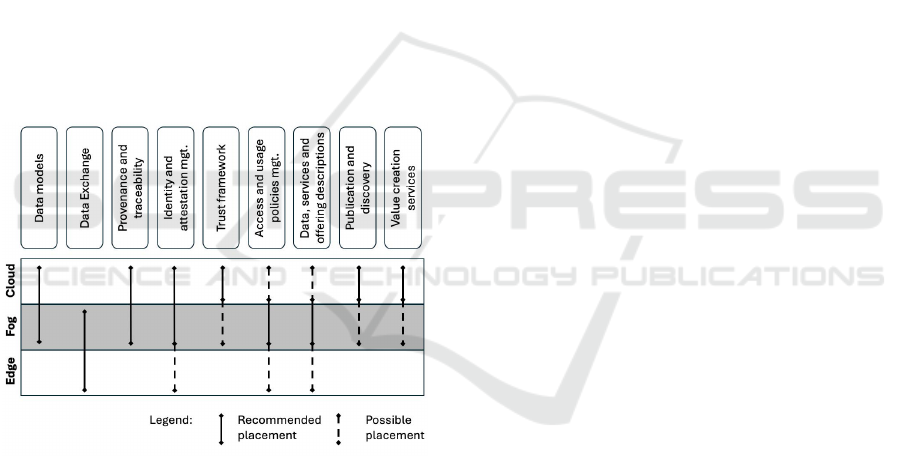

Figure 2: Building block placements.

We recommend that Data models building block

be placed on the cloud or the higher levels of fog. All

entities should be able to access and refer to the same

set of data models, and thus a centralized service is

preferred. Centralization will also ease the manage-

ment of models, reducing duplicates and overlap. The

number of data models to be stored will depend on the

application, but it can be assumed that the number will

remain bounded in every case. The functions related

to this building block are not time-critical or require

continuous transactions.Thus, deploying the service

at the edge is not justiﬁed and may increase the com-

plexity and cumulative costs of the system, as well as

lead to divergence of models.

Data exchange building block beneﬁts from de-

ployment near the edge, as it provides functions en-

abling and supporting the actual exchange and sharing

of data. Routing data through a centralized service

can help to address interoperability challenges and

provide a single point of access to all available data

on the platform. However, a centralized cloud ser-

vice is not suitable for cases involving low latency re-

quirements, high data volumes, or sensitive data. Fog,

on the other hand, can host such services by reducing

high transaction costs and improving the overall per-

formance. However, a centralized service creates a

single point of failure that poses a signiﬁcant risk to

the operation of the system. Decentralized deploy-

ment approach at the edge or near edge can help min-

imize such risks and reduce cumulative latency impli-

cations as well as energy consumption. However, it

increases the complexity of the system due to hetero-

geneous transfer protocols and adds local administra-

tive burden regarding access and usage control.

Provenance and traceability functions are recom-

mended to be deployed in the cloud or fog. A central-

ized cloud service or a predominantly centralized fog

service can provide global transparency while guar-

anteeing the scalability and manageability of the plat-

form. Global view and control over the devices in-

volved ease the tracking. However, storing records

related to the processes in remote systems can cause

increased privacy risks as they may reveal business

critical or otherwise sensitive information. The edge

can offer a secure and privacy-preserving solution, but

otherwise we do not see any signiﬁcant beneﬁts in that

option.

Identity and attestation management can beneﬁt

from a distributed approach across the CC. Identity

and attestation management building block ensures

the integrity and reliability of information related to

participating entities and their identity on the plat-

form (Data Spaces Support Center, 2024). Such ser-

vices are usually implemented centrally and beneﬁt

from the existence of a central registry. This building

block does not include time-critical functions or large

amounts of data transfers. However, identity data re-

quires secure storage and transfer which are more fea-

sible near the edge. Moreover, a service deployed

closer to the edge in a more decentralized way can

emphasize the principle of federation by which enti-

ties maintain strong autonomy and control over their

data.

We recommend Trust framework be deployed in

the cloud. The functions of the building block do

not have strict latency requirements, not store highly

sensitive data, and not require continuous transactions

with other services. This indicates that deployment at

KMIS 2025 - 17th International Conference on Knowledge Management and Information Systems

422

Table 3: The requirements of technical building blocks.

Scalability

Consistency and manageability

Security and privacy

Reliability

Low latency

Low transaction costs

Adaptability

Performance

Sovereignty

Data models x x x

Data exchange x x x x x

Provenance and traceability x x x

Identity and attestation management x x x x x

Trust framework x x x

Access and usage control enforcement x x x x

Data, services, and offering descriptions x x x x

Publication and discovery x x x x

Value creation services x x x x

the edge does not bring any signiﬁcant beneﬁts, but

can introduce unwanted complexity to the system. A

cloud-based solution, on the other hand, can provide

better control and transparency and ensure uniform

criteria as well as scalability. Fog layers closer to the

cloud offer similar beneﬁts as the cloud, making them

a viable alternative.

Access and usage policy enforcement includes

functionalities that can beneﬁt both, cloud and edge,

thus making fog an optimal option. This building

block provides functionality to specify and manage

policies and track compliance (Data Spaces Support

Center, 2024). There are various types of policies:

some apply across the platform, while others are

highly speciﬁc to data products. On one hand, poli-

cies operationalize legal data sharing contracts be-

tween involved parties, and therefore it is logical for

the functionality to reside at the same level where

such contracts are established. On the other hand,

compliance tracking is tightly related to data transfer

and usage processes that likely take place at the edge.

However, deploying the full functionality at the edge

can add signiﬁcant administrative load. Utilizing fog

enables a semi-centralized approach that reduces ad-

ministrative burden while keeping the control close to

the entities.

Fog serves as a good compromise for Data, ser-

vices, and offering description building block. This

building block offers tools for metadata management,

validation and version control (Data Spaces Support

Center, 2024). Metadata management drives the ser-

vice placement decisions closer to the edge, whereas

validation and version control functionalities can ben-

eﬁt more from deployment on fog or cloud levels. The

edge offers full visibility to the actual data enabling

quick response to changes. Moreover, metadata man-

agement close to the corresponding entity reinforces

its autonomy and control. In contrast, a cloud-based

solution could provide secure and reliable storage ca-

pabilities for version control and ensure the interop-

erability of descriptions through a centralized vali-

dation service. Considering this, fog can serve as a

good compromise if the functionalities of the build-

ing block are intended to be kept centralized rather

than distributed along the CC.

Publication and discovery building block beneﬁts

most from a centralized cloud-based solution. From

the perspective of system management and scalability,

a centralized cloud deployed meets the requirements

in many cases. It facilitates the discovery of available

offerings and ensures scalability for large amounts

of offerings. Moreover, this building block does not

contain any time-critical functions or require continu-

ous transactions that would drive placement decision

closer to the edge. Privacy, however, is an aspect that

could justify deploying the service on the fog. Dis-

tributing the functionality closer to the edge can cre-

ate unnecessary processing that will reduce the over-

all performance of the system. It can also limit the

ability of entities to establish new provider-customer

relationships on the platform.

There is a strong tendency for value creation ser-

vices to align with and utilize cloud capabilities. This

building block provides support for the deﬁnition,

provision, delivery, and utilization of services, which

aim to create value out of data, such as visualization

Extending Federated Data Platforms in the Cloud Continuum for Manufacturing and Intralogistics

423

and analytics, data quality services, additional secu-

rity functions, and monitoring (Data Spaces Support

Center, 2024). The support services has to be easily

accessible, and they do not create continuous transac-

tions or require low latencies. Thus, a centralized ser-

vice deployed in the cloud or fog is optimal. The ac-

tual value creation services themselves may have spe-

ciﬁc requirements. Based on our experience, many of

these kinds of supporting services beneﬁt from the ca-

pabilities offered by the cloud. However, the speciﬁc

requirements of each case must be carefully consid-

ered when deployment environments are evaluated.

5 APPLICATION IN

MANUFACTURING AND

INTRALOGISTICS

First, manufacturing and intralogistics systems need

to serve the manufacturing process by monitoring and

controlling the production and asset ﬂow in real time.

This is the primary functional requirement for service

placement. Using fog and edge computing can in-

crease quality of service (less delay, higher task com-

pletion ratio), improve efﬁciency (less network con-

gestion, lower costs in data transfer and cloud com-

puting), and improve process and personnel security

as data is not transferred to cloud for analysis and de-

cision making (Jansen et al., 2023) (Natesha and Gud-

deti, 2021).

Second, mobility likely plays a smaller role in per-

formance of the FDP than in many other cloud com-

puting deployments. Reversing the logic of (Ram

ırez

et al., 2017), the movement and movement patterns

happen in a limited and controlled production envi-

ronment, and the end user data and service requests

can be standardized which can reduce system volatil-

ity considerably. The controlled nature of the oper-

ating environment does not impose signiﬁcant con-

straints or challenges on the use of cloud services.

Third, power consumption is another character-

istic affecting the performance of CC deployments

(Ram

ırez et al., 2017). As manufacturing and intralo-

gistics systems are connected to physical manufactur-

ing and transport processes, the power consumption

of ICT systems can be considered to be marginal com-

pared to those of actual production processes, when

the alternative costs could be poor production perfor-

mance or quality.

Fourth, manufacturing and intralogistic applica-

tions can complicate deployment with their large

scale and heterogeneity of IoT devices, sensors and

actuators (Salaht et al., 2020). Geographical distri-

bution does not come into play with manufacturing

and intralogistics scenarios as one production facil-

ity typically can be considered to operate in their own

fog layer, access cloud services only when needed. A

single fog service placement problem is considerable

simpler (Ram

ırez et al., 2017).

Finally, even though manufacturing and intralo-

gistics scenarios can be simple in some aspects, it is

still challenging to determine where and when to de-

ploy each of the computing tasks to meet all func-

tional and non-functional requirements and to op-

timize for several interdependent parameters (Brogi

et al., 2020). Therefore, more detailed application-

speciﬁc requirements must be identiﬁed through addi-

tional research methods before deﬁning service place-

ments.

6 DISCUSSION

The results show that federated data platforms ben-

eﬁt from the CC. Most of the building blocks rep-

resent functionalities for which a centralized cloud

deployment is preferred due to reduced system com-

plexity and increased scalability. However, we iden-

tiﬁed two cases where key functionalities can beneﬁt

signiﬁcantly from edge deployment.

Firstly, some building blocks require stronger pri-

vacy protection. In such cases, centralized services

can be hosted at the fog layer, preventing highly sen-

sitive data from being transferred to remote systems.

Furthermore, hosting the services closer to the edge

facilitates data sovereignty which is one of the key

design principles for FDPs discussed by Jarke et al.

(2019). However, the placement decision comes with

trade-offs, as the responsibility for security metrics

shifts from a cloud provider to IoT engineers, as noted

by Alkhabbas et al. (2020). While industrial appli-

cation environments are typically well-secured, this

shift demands additional skills and expertise from or-

ganizations.

Secondly, the only building block beneﬁting from

a fully distributed deployment at the edge is Data ex-

change, especially in applications involving high vol-

umes of data, such as manufacturing and intralogis-

tics. Processing high volumes of data in the cloud can

compromise real-time decision making and reliable

operation that are essential for industrial applications

(Ahearne et al., 2023) (Jansen et al., 2023). Beyond

performance considerations, the costs of data trans-

fer also justiﬁes deploying the service at the edge, as

highlighted by Alkhabbas et al. (2020).

The presented analysis framework and the results

help practitioners evaluate different service placement

KMIS 2025 - 17th International Conference on Knowledge Management and Information Systems

424

options, thus facilitating the design of future federated

data platforms. The framework can also be utilized

when assessing the architectural designs of existing

systems. The proposed service placements and the

analysis provide a clearer understanding of the bene-

ﬁts of different design choices and emphasize the ad-

vantages of service deployment across the CC.

The methodological choices impose limitations on

this study. Firstly, this study is only based on a theory

and practical implications of proposed service place-

ments have not been tested. This can affect the relia-

bility of the results in practice. Secondly, the levels of

the CC are not as clearly deﬁned in reality as the pro-

posed framework suggests. Modern edge nodes can

be capable in terms of storage capacity and processing

power, enabling them to host services with substantial

resource requirements. Lastly, the considered require-

ments of each platform building block are based on a

short general description and the assumptions of its

functionality. These assumptions reduce the accuracy

of the proposed service placement recommendations.

To enhance the accuracy, both application speciﬁc re-

quirements and the capabilities of the available hard-

ware should be taken into consideration.

This study is the ﬁrst step towards evaluation of

the beneﬁts, challenges and applicability of place-

ment of FDPs along the CC. While we see the logi-

cal ﬁt of FDP components with the characteristics of

cloud continuum layers, we do not take into account

the restrictions of underlying infrastructure nodes and

communication network. Future research should fo-

cus on validating the recommended service place-

ments by applying the framework across a variety of

industrial use cases. Alternatively, these placements

and their implications can be further analyzed with

simulations and algorithmic analysis. Secondarily,

our analysis is not yet addressing the dynamic alloca-

tion and reallocation of compute tasks which is a core

beneﬁt of cloud continuum. Deﬁning a method and

algorithms for dynamic placement of FDP building

blocks and scheduling tasks is an unexplored research

area. Further studies can evaluate different allocation

strategies by measuring metrics, such as latency, en-

ergy efﬁciency, and cost, across various workloads.

Furthermore, the impacts of data placement options

can be further explored, i.e. how deliberate placement

of data in edge or fog nodes impacts the system per-

formance.

7 CONCLUSION

Data sharing between different systems and stake-

holders enables signiﬁcant economic beneﬁts to or-

ganizations. Federated data platforms facilitate the

sharing, integration, and management of data between

diverse data sources and stakeholders. However, the

deployment of FDPs in a centralized cloud introduces

challenges in application areas, such as manufactur-

ing, that produce a large volume of data in resource-

constrained environments with low latency require-

ments. To address this challenge, we studied architec-

tural ﬁt between FDPs and the CC to deploy platform

services closer to data sources and users.

We designed and applied an analysis framework

for evaluating the architectural ﬁt. The framework is

based on the characteristics of different CC levels and

the identiﬁed requirements of FDP building blocks

described by Data Spaces Support Centre. The re-

sults show that deploying services directly connected

to high volumes of data closer to the edge can im-

prove overall performance and efﬁciency of a system.

In contrast, some of the services are centralized by

their nature and the similar placement decision could

increase complexity making the system hard to man-

age.

ACKNOWLEDGEMENTS

This research has been funded by Business Finland

research project Twinﬂow.

REFERENCES

Ahearne, S., Khalid, A., Ron, M., and Burget, P. (2023).

An ai factory digital twin deployed within a high per-

formance edge architecture. In 2023 IEEE 31st In-

ternational Conference on Network Protocols (ICNP),

pages 1–6. IEEE.

Al-Dulaimy, A., Jansen, M., Johansson, B., Trivedi, A., Io-

sup, A., Ashjaei, M., Galletta, A., Kimovski, D., Pro-

dan, R., Tserpes, K., et al. (2024). The computing

continuum: From iot to the cloud. Internet of Things,

27:101272.

Alkhabbas, F., Spalazzese, R., Cerioli, M., Leotta, M., and

Reggio, G. (2020). On the deployment of iot systems:

An industrial survey. In 2020 IEEE International Con-

ference on Software Architecture Companion (ICSA-

C), pages 17–24. IEEE.

Ammann, J. and Hess, T. (2025). To sell, to donate, or to

barter? value creation and capture through business

model types in decentralized data ecosystems. Elec-

tronic Markets, 35(1):1–22.

Antonini, M., Vecchio, M., and Antonelli, F. (2019). Fog

computing architectures: A reference for practition-

ers. IEEE Internet of Things Magazine, 2(3):19–25.

Barbosa, V., Sabino, A., Lima, L. N., Brito, C., Feitosa, L.,

Pereira, P., Maciel, P., Nguyen, T. A., and Silva, F. A.

Extending Federated Data Platforms in the Cloud Continuum for Manufacturing and Intralogistics

425

(2025). Performance evaluation of iot-based indus-

trial automation using edge, fog, and cloud architec-

tures. Journal of Network and Systems Management,

33(1):1–25.

Bellavista, P., Foschini, L., Ghiselli, N., and Reale, A.

(2019). Mqtt-based middleware for container support

in fog computing environments. In 2019 IEEE Sym-

posium on Computers and Communications (ISCC),

pages 1–7. IEEE.

Bonomi, F., Milito, R., Natarajan, P., and Zhu, J. (2014).

Fog computing: A platform for internet of things and

analytics. Big data and internet of things: A roadmap

for smart environments, pages 169–186.

Brogi, A., Forti, S., Guerrero, C., and Lera, I. (2020). How

to place your apps in the fog: State of the art and

open challenges. Software: Practice and Experience,

50(5):719–740.

Byers, C. and Swanson, R. (2017). Openfog consor-

tium openfog reference architecture for fog comput-

ing. OpenFog Consortium Archit. Working Group,

Fremont, CA, USA, Tech. Rep. OPFRA001.

Cardellini, V., Dazzi, P., Mencagli, G., Nardelli, M., and

Torquati, M. (2025). Scalable compute continuum.

Chiang, M. and Zhang, T. (2016). Fog and iot: An overview

of research opportunities. IEEE Internet of things

journal, 3(6):854–864.

Cili

c, I.,

Zarko, I. P., and Ku

sek, M. (2021). Towards service

orchestration for the cloud-to-thing continuum. In

2021 6th International Conference on Smart and Sus-

tainable Technologies (SpliTech), pages 01–07. IEEE.

Curry, E., Scerri, S., and Tuikka, T. (2022). Data spaces:

design, deployment and future directions. Springer

Nature.

Data Spaces Support Center (2024). Data

spaces blueprint v2.0 - home. https://dssc.

eu/space/BVE2/1071251457/Data+Spaces+

Blueprint+v2.0+-+Home, Last accessed on 2025-04-

30.

Di Martino, B., Pezzullo, G. J., and Beggiato, C. (2023).

Towards optimized design and deployment of a mili-

tary supply chain on federated cloud continuum sup-

ported by simulation-based performance evaluation.

In 2023 IEEE International Workshop on Technolo-

gies for Defense and Security (TechDefense), pages

423–428. IEEE.

Du, X., Tang, S., Lu, Z., Wet, J., Gai, K., and Hung, P. C.

(2020). A novel data placement strategy for data-

sharing scientiﬁc workﬂows in heterogeneous edge-

cloud computing environments. In 2020 IEEE Inter-

national Conference on Web Services (ICWS), pages

498–507. IEEE.

European Commission (2020). A european strategy for

data: communication from the commission to the

european parliament, the council, the european

economic and social committee and the committee of

the regions. https://commission.europa.eu/strategy-

and-policy/priorities-2019-2024/europe-ﬁt-digital-

age/european-data-strategy-en, Last accessed on

2024-11-30.

European Commission (2024). Common european

data spaces. https://digital-strategy.ec.europa.

eu/en/policies/data-spaces, Last accessed on

2024-11-24.

Farhadi, V., Mehmeti, F., He, T., La Porta, T. F., Kham-

froush, H., Wang, S., Chan, K. S., and Poularakis, K.

(2021). Service placement and request scheduling for

data-intensive applications in edge clouds. IEEE/ACM

Transactions on Networking, 29(2):779–792.

Gelhaar, J., Groß, T., and Otto, B. (2021). A taxonomy for

data ecosystems. In Hawaii International Conference

on System Sciences (HICSS) 2021.

Gilbert, S. and Lynch, N. (2002). Brewer’s conjecture

and the feasibility of consistent, available, partition-

tolerant web services. Acm Sigact News, 33(2):51–59.

Jansen, M., Al-Dulaimy, A., Papadopoulos, A. V., Trivedi,

A., and Iosup, A. (2023). The spec-rg reference

architecture for the compute continuum. In 2023

IEEE/ACM 23rd International Symposium on Cluster,

Cloud and Internet Computing (CCGrid), pages 469–

484. IEEE.

Jarke, M., Otto, B., and Ram, S. (2019). Data sovereignty

and data space ecosystems.

Jonas, E., Schleier-Smith, J., Sreekanti, V., Tsai, C.-C.,

Khandelwal, A., Pu, Q., Shankar, V., Carreira, J.,

Krauth, K., Yadwadkar, N., et al. (2019). Cloud pro-

gramming simpliﬁed: A berkeley view on serverless

computing. arXiv preprint arXiv:1902.03383.

Jussen, I., Fassnacht, M., Schweihoff, J. C., and M

oller, F.

(2024). Reaching for the stars: Exploring value con-

stellations in inter-organizational data sharing. ECIS

2024 Proceedings. 3.

Kasi, S. K., Kasi, M. K., Ali, K., Raza, M., Afzal, H., Lase-

bae, A., Naeem, B., Ul Islam, S., and Rodrigues, J. J.

(2020). Heuristic edge server placement in industrial

internet of things and cellular networks. IEEE Internet

of Things Journal, 8(13):10308–10317.

Kimovski, D., Math

a, R., Hammer, J., Mehran, N., Hell-

wagner, H., and Prodan, R. (2021). Cloud, fog, or

edge: Where to compute? IEEE Internet Computing,

25(4):30–36.

Lasi, H., Fettke, P., Kemper, H.-G., Feld, T., and Hoffmann,

M. (2014). Industry 4.0. Business & information sys-

tems engineering, 6:239–242.

Masip-Bruin, X., Mar

ın-Tordera, E., Tashakor, G., Jukan,

A., and Ren, G.-J. (2016). Foggy clouds and cloudy

fogs: a real need for coordinated management of fog-

to-cloud computing systems. IEEE Wireless Commu-

nications, 23(5):120–128.

Moreschini, S., Pecorelli, F., Li, X., Naz, S., H

astbacka, D.,

and Taibi, D. (2022). Cloud continuum: The deﬁni-

tion. IEEE Access, 10:131876–131886.

Natesha, B. and Guddeti, R. M. R. (2021). Adopting

elitism-based genetic algorithm for minimizing multi-

objective problems of iot service placement in fog

computing environment. Journal of Network and

Computer Applications, 178:102972.

Otto, B. (2022). A federated infrastructure for european

data spaces. Communications of the ACM, 65(4):44–

45.

KMIS 2025 - 17th International Conference on Knowledge Management and Information Systems

426

Otto, B., J

urjens, J., Schon, J., Auer, S., Menz, N., Wen-

zel, S., and Cirullies, J. (2016). Industrial data space.

digital souvereignity over data.

Otto, B., Ten Hompel, M., and Wrobel, S. (2022). Design-

ing data spaces: The ecosystem approach to competi-

tive advantage. Springer Nature.

Pandey, A. K. and Pandey, R. (2020). Inﬂuence of cap theo-

rem on big data analysis. Int. J. Inform. Technol.(IJIT),

6(6).

Poularakis, K., Llorca, J., Tulino, A. M., Taylor, I., and Tas-

siulas, L. (2020). Service placement and request rout-

ing in mec networks with storage, computation, and

communication constraints. IEEE/ACM Transactions

on Networking, 28(3):1047–1060.

Rajput, S. and Singh, S. P. (2019). Connecting circular

economy and industry 4.0. International Journal of

Information Management, 49:98–113.

Ram

ırez, W., Masip-Bruin, X., Marin-Tordera, E., Souza,

V. B. C., Jukan, A., Ren, G.-J., and de Dios, O. G.

(2017). Evaluating the beneﬁts of combined and con-

tinuous fog-to-cloud architectures. Computer Com-

munications, 113:43–52.

Richter, H. and Slowinski, P. R. (2019). The data sharing

economy: on the emergence of new intermediaries.

IIC-International Review of Intellectual Property and

Competition Law, 50:4–29.

Salaht, F. A., Desprez, F., and Lebre, A. (2020). An

overview of service placement problem in fog and

edge computing. ACM Computing Surveys (CSUR),

53(3):1–35.

Santos, J., Wauters, T., Volckaert, B., and De Turck, F.

(2021). Towards low-latency service delivery in a con-

tinuum of virtual resources: State-of-the-art and re-

search directions. IEEE Communications Surveys &

Tutorials, 23(4):2557–2589.

Shen, Z., Liu, B., and Dou, W. (2024). An effective

data placement strategy for iiot applications. Con-

currency and Computation: Practice and Experience,

36(10):e7977.

Sousa, R., Nogueira, L., Rodrigues, F., and Pinho, L. M.

(2022). Global resource management in the elastic

architecture. In 2022 IEEE 5th International Con-

ference on Industrial Cyber-Physical Systems (ICPS),

pages 01–06. IEEE.

Suleiman, Z., Shaikholla, S., Dikhanbayeva, D., Shehab, E.,

and Turkyilmaz, A. (2022). Industry 4.0: Clustering

of concepts and characteristics. Cogent Engineering,

9(1):2034264.

Trakadas, P., Masip-Bruin, X., Facca, F. M., Spantideas,

S. T., Giannopoulos, A. E., Kapsalis, N. C., Martins,

R., Bosani, E., Ramon, J., Prats, R. G., et al. (2022). A

reference architecture for cloud–edge meta-operating

systems enabling cross-domain, data-intensive, ml-

assisted applications: Architectural overview and key

concepts. Sensors, 22(22):9003.

Xiao, Z., Song, W., and Chen, Q. (2012). Dynamic resource

allocation using virtual machines for cloud computing

environment. IEEE transactions on parallel and dis-

tributed systems, 24(6):1107–1117.

Yousefpour, A., Fung, C., Nguyen, T., Kadiyala, K., Jalali,

F., Niakanlahiji, A., Kong, J., and Jue, J. P. (2019).

All one needs to know about fog computing and re-

lated edge computing paradigms: A complete survey.

Journal of Systems Architecture, 98:289–330.

Extending Federated Data Platforms in the Cloud Continuum for Manufacturing and Intralogistics

427
