Research on Mapreduce Framework Based on Serverless Computing

Shuheng Zhou

School of Economics and Management, Harbin Institute of Technology, Weihai, Shandong, 264209, China

Keywords: Big Data, Parallel Computing, MapReduce, Serverless Computing.

Abstract: As an important framework for handling big data, MapReduce has the ability to simplify complex computing

tasks by means of parallel computing. However, the conventional MapReduce framework suffers from issues

like high resource consumption and limited real-time capabilities. Fortunately, serverless computing has the

advantage of automatic expansion and shrinking, fast power-up, low latency, and high efficiency of resource

utilization, providing methods to improve such drawbacks. Therefore, this study tries to improve the behavior

of the MapReduce framework through serverless computing. This study successfully implements the “word

count” function of the adjusted framework through the ALiYun serverless computing platform and compares

its performance with that of conventional MapReduce. In accordance with the experimental results, despite

occupying more space, serverless computing evidently cuts function execution time, effectively improving

the efficiency of the framework. Specifically, the adjusted framework works 19. 42 times faster than

conventional MapReduce. Research has shown that improving the MapReduce framework through serverless

computing can significantly improve computing efficiency, especially in terms of processing speed,

demonstrating the potential of serverless computing in big data processing.

1 INTRODUCTION

In contemporary times, big data featuring great

volume, great variety, and great velocity has become

a main focus of many research domains of data

analysis work (Diwakar & Abdul, 2018).

To cope with massive amounts of data, the

MapReduce programming framework is invented.

Minocha&Singh (2016) pointed out that MapReduce

can slice complex computing tasks into simple ones

by parallel computing, thus improving efficiency. For

example, the average time consumption of a

distributed cloud-computing text classifier based on

MapReduce is 88. 55s, apparently lower than that of

means (137. 38s) and that of naive Bayes (130. 23s)

(Jiang, 2021). However, the object for conventional

MapReduce tends to be offline and static, posing

restrictions in terms of the real-time capability of the

framework while consuming much time and space for

maintenance (He, 2021). To overcome such

challenges, serverless computing has provided an

innovative strategy. Researchers have tried

combining big data processing with serverless

computing to cut down the cost and complexity of big

data processing(Yang et al.,2022).

https://orcid.org/0009-0007-5245-2593

Besides, Cai et al. (2024) proposed SPSC, a

stream processing framework based on serverless

computing platforms. The SPSC framework has

improved the problem of poor resource utilization and

high latency through discretized processing and

automatic adjustment of computing power (saving 10.

8% of the cost on average, compared to Ali Flink).

Therefore, if taking advantage of serverless

computing’s ability to scale up and down

automatically, MapReduce can also perform more

efficiently and flexibly in data processing tasks.

This study has implemented a word count based

on Function Computing (FC) and Object Storage

Service (OSS), slicing text data and counting the

frequency of each word. Then, it made the

comparison of time and space taken by each Map

function and Reduce function, thus looking into how

parallel computing based on serverless computing

affects the efficiency of MapReduce.

Zhou, S.

Research on Mapreduce Framework Based on Serverless Computing.

DOI: 10.5220/0013679900004670

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 2nd International Conference on Data Science and Engineering (ICDSE 2025), pages 133-136

ISBN: 978-989-758-765-8

133

2 RESEARCH METHOD

2.1 Theoretical Basis

The theoretical basis of this study mainly consists of

Serverless computing and MapReduce.

Serverless computing, a cloud computing

paradigm abstracting server management, allows

developers to focus on coding instead of the

underlying infrastructure (Toosi et al., 2025). In the

meantime, serverless computing has the advantage of

pay-as-you-use, automatic control of scale, and ease

of maintenance(Che,2022). By shortening working

time and cutting down the cost, this change in the

programming paradigm has brought about changes in

methods of application development(Puliafito et al.,

2024).

MapReduce is a programming model and a

framework for processing massive data, which

contains two main functions, Map and Reduce. After

the whole data is put into the map function, some

<key, value> pairs are generated for further

processing. Then, the reduce function will capture

<key, value> pairs with the same keys, combining

their values and generating the final result (Minocha

& Singh, 2016).

2.2 Experiment

MapReduce framework based on serverless

computing platform (taking wordcount as an example)

2.2.1 Choice of Data

The data for this experiment comes from English

Novel Net (novel. tingroom. com). This website has

collected 5663 common English novels and

biographies, the content of which shows great

authority and is of heavy value in terms of education

and research.

This study has downloaded two novels as

different datasets (Jane Eyre for dataset1 and The

Adventures of Tom Sawyer for dataset2), and the data

amount of dataset1 (1051kB) is far greater than that

of dataset2 (479kB).

2.2.2 Design

A. Overall Design

Fig. 1 illustrates the architecture of MapReduce.

Algorithm. 1 is the pseudo-code for the Map function

of word count based on MapReduce. Through FC and

OSS provided by Aliyun, this study develops web

functions in a serverless environment, implementing

MapReduce distributed computing to text data

previously stored in the OSS database. Moreover, this

study employs the idea of serial simulation of

parallelism, inferring the optimal time cost of parallel

computing (In a case where the overload brought by

communication is not taken into account) by the

maximum time consumption of the workers.

Algorithm 1: Pseudocode for wordcount based on MapReduce (Tang et al.,2024).

Algorithm 1

Map Function

Input: document

Map Function Process:

for each word in document:

emit (word, 1)//Emit each word along with the number 1 as a key-value pair

Reduce Function Input: list of key-value pairs (word, count)

Reduce Function Process:

sum=0

for each count in list of counts:

sum+=count//Sum all the counts for each word

emit (word, sum) //Emit the word and its total count

ICDSE 2025 - The International Conference on Data Science and Engineering

134

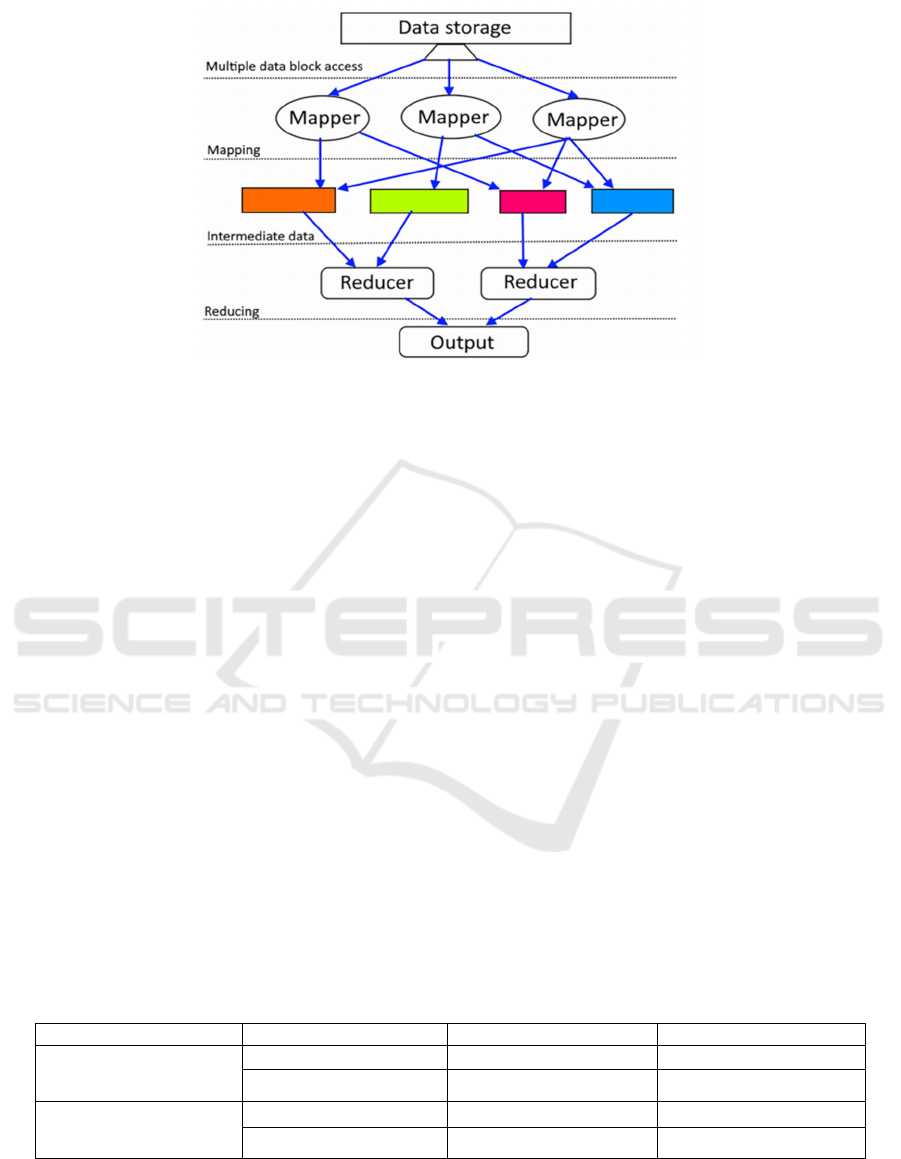

Figure 1: Architecture of MapReduce (Shukla, Alim, 2018).

B. Map Design

In the map part, workers carry out tasks as below.

1. Using the SDK of Aliyun OSS and provided

parameters (Access Key ID, Secret, Endpoint, and

Bucketname), extract target text data for processing

from the designated storage bucket.

2. Split the input data into a list of words and count

the number of occurrences for each word.

3. Create a text file for each word. Name the file

as the word itself, and the content of the file is the

corresponding number of occurrences.

4. Write these to the specified bucket. If a file with

the same name already exists in the bucket, the

content of the txt file (word occurrence counts) will

be summed.

C. Reduce Design

In the reduced part, workers carry out tasks as below.

1. extract data produced by map functions from

the designated storage bucket. And use a dictionary to

record these <key, value> pairs.

2. Transform the dictionary into json file and write

it into the bucket.

By adjusting the “Prefix” parameter, each reducer

processes a designated part of the data. For instance,

some workers can especially handle words starting

with “A”. In this way, it implements parallel

computing. This part also compares the efficiency of

parallel computing performed by 26 workers and that

of serial computing performed by 1 worker.

3 RESULTS

In terms of validity, parallel computing and serial

computing perform equally. Both parallel computing

and serial computing can generate correct <key, value>

pairs in the map part and write the proper json file into

the designated bucket.

However, parallel computing and serial

computing vary greatly in time and space overload.

Time overload is labeled by execution time, in other

words, time consumed for execution of the business

code of a function, not including time taken for

preparation of function computing platform and code

packages.

Space overload means the maximum of the space

occupied in the executive process. Table 1 and Table

2 compare performances of different computing

methods in dataset1 and dataset2, respectively.

Table 1: Performances of different computing methods in dataset1

Framewor

Computing Metho

Execution Time Space overloa

Map Parallel 26s763ms 1960. 42MB

Serial 8min25s307ms 208. 25MB

Reduce Parallel 21s294ms 1200. 68MB

Serial 6min4s311ms 60. 19MB

The performances of functions show the same tendency in both datasets. Parallel computing always consumes

less time than serial computing. While in terms of space overload, parallel computing consumes more.

Research on Mapreduce Framework Based on Serverless Computing

135

Table 2: Performances of different computing methods in dataset2

Framework Computing Method Execution Time Space overload

Map

Parallel 15s676ms 1744. 05MB

Serial 3min3s860ms 106. 25MB

Reduce

Parallel 6s241ms 1573. 60MB

Serial 1min40s903ms 51. 94MB

4 DISCUSSION

This study expatiates a frame of MapReduce based on

a serverless platform and uses it to count word

occurrences in 2 datasets. Taking advantage of cloud

computing and cloud storage, the study addresses the

problem that MapReduce is a local operation instead

of an online operation, allowing MapReduce to

process online data and improving its real-time

capability.

Besides, this study compares performances of

parallel computing and serial computing based on the

MapReduce framework, successfully confirming that

parallel computing contributes to carrying out

computing tasks that are massive and complex.

The shortcomings are as follows. First, the

number of objects in a bucket is far more than that one

line of code can extract (1000). Therefore, in the

serial computing task, repeated traversal are made,

bringing extra time and space overload. Second, Grag

(2021) proposes that to use MapReduce,

programmers’ manual work to divide an algorithm

into Maps and Reductions is unavoidable. This

problem has not been addressed in this study. Third,

Grag (2021) also notes that MapReduce is weak in

processing large sets of graphs. In future works, we

will try to optimize the framework of Pregel proposed

by Google.

5 CONCLUSIONS

This study successfully implements the word count

application of MapReduce based on a serverless

platform. Besides, the efficiencies of parallel

computing and serial computing are compared and

analyzed in this study. The result indicates that

MapReduce based on serverless computing can

evidently cut down time overloads. Parallel trades off

space for time, performing efficiently in data

processing.

However, the study also shows that MapReduce

does not do well when taking convenience into

account. To implement a set of MapReduce jobs,

complicated scripts are always unavoidable. Thus,

while MapReduce remains a powerful tool for big

data processing, its adoption may be hindered by the

complexity involved in setting up and managing

MapReduce jobs, suggesting a need for further

research into simplifying these processes or exploring

alternative technologies that offer a better balance

between performance and convenience.

REFERENCES

Adel, N.T., Javadi, B., Iosup, A., Smirni, E. and Dustdar,

S., 2025. Serverless computing for next-generation

application development. Future Generation Computer

Systems, 107573-107573.

Che, Y., 2022. Serverless computing. Computer and

Network, 1, pp. 36–37.

Garg, U., 2021. Data analytic models that redress the

limitations of MapReduce. International Journal of

Web-Based Learning and Teaching Technologies

(IJWLTT), 6, pp. 1–15.

He, B., 2021. Big data computation analysis based on

MapReduce. Computer Programming Techniques and

Maintenance, 12, pp. 97–100.

Jiang, Q., 2021. Distributed cloud computing data mining

methods based on MapReduce. Journal of Jingdezhen

College, 6, pp. 106–108+128.

Puliafito, C., Rana, O., Bittencourt, F.L., et al., 2024.

Serverless computing in the cloud-to-edge continuum.

Future Generation Computer Systems, 161514-517.

Minocha, S. and Singh, H., 2016. MapReduce technique:

Review and SWOT analysis. International Journal of

Engineering Research, 6, pp. 531–533.

Shukla, D. and Alim, A., 2018. A review on big data:

Views, categories and aspects. International Journal of

Computer Applications, 18, pp. 34–42.

Tang, J., Du, W. and Zhou, Y., 2024. Application of the

MapReduce model in large-scale data parallel mining.

Intelligent IoT Technology, 2, pp. 38–42.

Yang, B., Zhao, S. and Liu, F., 2022. Research on serverless

computing technology: A review. Computer

Engineering and Science, 4, pp. 611–619.

Zinuo, C., Zebin, C., Xinglei, C., Ruhui, M., Haibing, G.

and Rajkumar, B., 2024. SPSC: Stream processing

framework atop serverless computing for industrial big

data. IEEE Transactions on Cybernetics.

ICDSE 2025 - The International Conference on Data Science and Engineering

136
