Towards Transparent AI in Medical Imaging: Fracture Detection in

Hand Radiographs with Grad-CAM Insights

Mustafa Juzer Fatehi, Siddharath Malavalli Nagesh, Mandalam Akshit Rao, Stellin John George,

J. Angel Arul Jothi

and Elakkiya Rajasekar

Department of Computer Science, Birla Institute of Technology and Science, Pilani, Dubai Campus,

Dubai International Academic City, Dubai, U.A.E.

Keywords:

Deep Learning (DL), YOLO, Faster R-CNN, Explainable Artiﬁcial Intelligence (XAI), Grad-CAM, Fracture

Detection.

Abstract:

Timely and accurate detection of bone fractures in hand radiographs, particularly in ﬁngers and wrists re-

mains a critical challenge in clinical diagnostics due to anatomical complexity and subtle fracture patterns.

This study presents an explainable AI framework for automatic fracture detection using a single-shot detec-

tion framework-YOLOv5 Medium (YOLOv5m) model, optimized through targeted preprocessing and inter-

pretability techniques. A dedicated preprocessing pipeline is used to enhance fracture visibility and reduce

irrelevant noise. This includes key steps like histogram equalization, Gaussian ﬁltering, Laplacian ﬁltering,

and intensity normalization. To foster clinical trust and transparency, we integrate Gradient-weighted Class

Activation Mapping (Grad-CAM) to visualize regions of interest inﬂuencing the model’s predictions. Trained

on a curated dataset of over 9,000 annotated X-ray images, YOLOv5m achieved outstanding performance,

with a mean Average Precision mAP@50 of 95.87% and an inference speed of 690 ms, making it suitable for

real-time diagnostic support. This work demonstrates the potential of AI-assisted systems not only to improve

fracture diagnosis but also to bridge the trust gap in clinical deployment through transparent decision-making

support.

1 INTRODUCTION

Finger and wrist fractures represent a signiﬁcant por-

tion of the 178 million global bone fractures annually,

posing diagnostic challenges due to their subtle and

varied presentation in X-ray imaging Wu et al. (2021).

Undetected or misdiagnosed fractures can lead to

long-term complications, underscoring the need for

accurate and timely diagnosis. While X-ray imag-

ing remains the gold standard for fracture detection,

manual interpretation is time-intensive and prone to

variability among clinicians Valali et al. (2023). This

work aims to address these limitations by leveraging

artiﬁcial intelligence (AI) to improve fracture detec-

tion and localization, ultimately reducing diagnostic

time, easing the burden on medical staff, and improv-

ing patient outcomes.

There are various difﬁculties in using AI to de-

tect fractures. The scarcity of high-quality annotated

https://orcid.org/0000-0002-1773-8779

https://orcid.org/0000-0002-2257-0640

data, which is necessary for building reliable mod-

els, is one of the main challenges. Furthermore, frac-

tures can happen in a variety of places along the bone

and have a wide range of orientations, which makes

it challenging to create a universal detection model.

Overlapping structures in X-ray images add to the

complexity and can make fractures harder to see and

make detection less accurate. Moreover, different pa-

tients present unique anatomical variations, adding to

the difﬁculty of creating models that can generalize

across diverse populations. Addressing these chal-

lenges is crucial for developing reliable AI models

capable of improving diagnostic accuracy and consis-

tency in clinical settings.

This study explores the use of deep learning (DL)

techniques for detecting and localizing bone frac-

tures in X-ray images, with a focus on ﬁnger joint

and wrist fractures captured from diverse perspec-

tives. By leveraging a dataset of over 9,000 im-

ages, signiﬁcantly larger and more comprehensive

than those used in prior studies, we address critical

Fatehi, M. J., Nagesh, S. M., Rao, M. A., George, S. J., Jothi, J. A. A. and Rajasekar, E.

Towards Transparent AI in Medical Imaging: Fracture Detection in Hand Radiographs with Grad-CAM Insights.

DOI: 10.5220/0013676200004000

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2025) - Volume 1: KDIR, pages 39-48

limitations in existing research related to dataset di-

versity and size. We ﬁnetuned the YOLOv5 Medium

(YOLOv5m) model. It is a single stage object detec-

tion model known for its balance of speed, accuracy,

and lightweight architecture-on this dataset and ex-

tended the detection pipeline to incorporate explain-

ability via Grad-CAM, modifying the model’s ﬁnal

layers to enable attention-based visualization of pre-

dicted regions.

Our evaluation examines the model’s perfor-

mance across multiple fracture types within the same

anatomical region, assessing both detection accuracy

and generalizability. By offering a robust evaluation

framework, our research contributes to the develop-

ment of more reliable, effective and transparent auto-

mated diagnostic systems, paving the way for future

advancements in fracture detection and medical imag-

ing.

This paper is organized into seven sections. Sec-

tion 1 provides an overview of the research problem

and objectives. Section 2 situates the study within ex-

isting literature. The Section 3 outlines the data used,

followed by the Methodology in Section 4 which de-

tails the proposed approach. System Requirements

and Evaluation Metrics are speciﬁed in Section 5. The

Section 6 discusses the ﬁndings, and the Conclusion

section highlights key insights and future directions.

2 RELATED WORK

In recent years, the application of machine learn-

ing (ML) and DL techniques have signiﬁcantly ad-

vanced the ﬁeld of automated bone fracture detec-

tion (Ahmed and Hawezi, 2023). Zhang et al.

(2021) proposed a traditional ML pipeline involving

grayscale conversion, Gaussian ﬁltering, adaptive his-

togram equalization, Canny edge detection, and Gray-

Level Co-occurrence Matrix (GLCM)-based feature

extraction, with classiﬁcation using models like Sup-

port Vector Machine (SVM) achieving up to 92% ac-

curacy. Addressing annotation ambiguity, a point-

based annotation with “Window Loss,” was intro-

duced achieving an Area Under the Receiver Operat-

ing Characteristic curve (AUROC) of 0.983 and Free-

Response Receiver Operating Characteristic (FROC)

of 89.6%, outperforming standard detectors.

Building on traditional ML, several studies

demonstrated the superior capability of DL models

in capturing complex patterns. Karanam et al. (2021)

emphasized the effectiveness of Convolutional Neural

Networks (CNN) for hierarchical feature learning, es-

pecially in large datasets. Ghosh et al. (2024) further

improved accuracy (97%) by applying anatomical

feature enhancement before feeding the images into

CNNs. Lee et al. (2020) proposed a meta-learning-

based encoder-decoder using GoogLeNet, utilizing

shared latent representation for improved classiﬁca-

tion across modalities.

Hybrid and transfer learning strategies have also

shown signiﬁcant promise. Khatik and Kadam (2022)

and Warin et al. (2023) explored the use of pretrained

models such as ResNet and Faster R-CNN, integrat-

ing transfer learning and data augmentation to en-

hance performance. Meena and Roy (2022) demon-

strated the integration of real-time DL models like

ResNet, VGGNet, and U-Net, achieving high accu-

racy for wrist and hip fractures while highlighting

challenges such as class imbalance and rare case de-

tection.

Fracture localization has become increasingly im-

portant. Ma (2021) proposed a two-stage framework

combining Faster R-CNN with a Crack-Sensitive

CNN (CrackNet) for detecting and classifying spe-

ciﬁc bone regions. Similar detection-reﬁnement

pipelines were explored by Abbas et al. (2020) and

Su et al. (2023), reporting mAP scores around 60%.

One-shot detectors such as the YOLO fam-

ily have gained substantial traction for their speed

and efﬁciency. Zou and Arshad (2024) demon-

strated YOLO’s effectiveness over two-stage detec-

tors. Ju and Cai (2023) showcased YOLOv8’s per-

formance, achieving a mAP of 0.638 using multi-

scale feature fusion.Morita et al. (2024) conﬁrmed

YOLOv8’s superiority over SSD after extended train-

ing. The YOLOv7-ATT model by Zou and Arshad

(2024), with an attention mechanism, achieved 86.2%

mAP on the FracAtlas dataset by focusing on sub-

tle fracture-speciﬁc cues. Moon et al. (2022) used

YOLOX-S for nasal bone fractures, achieving 100%

sensitivity and 69.8% precision, thereby easing diag-

nostic burden for specialists.

Beyond YOLO, other architectures have been

tested. AFFNet, as proposed by Nguyen et al. (2024),

improved upon ResNet-50 while integrating activa-

tion maps to visualize important regions. While Reti-

naNet lagged behind with approximately 76% accu-

racy, Yadav et al. (2022) introduced SFNet—using

multi-scale fusion and edge detection—to achieve

99.12% accuracy, 100% precision, and 98% recall,

outperforming U-Net, YOLOv4, and R-CNN. In ad-

dition, Beyraghi et al. (2023) explored microwave

imaging as a novel, radiation-free method for fracture

detection using S-parameter data and deep neural net-

works, achieving high classiﬁcation accuracy and low

regression error.

Parallel to the advancements in detection architec-

tures, the role of XAI has grown critical in ensuring

KDIR 2025 - 17th International Conference on Knowledge Discovery and Information Retrieval

model transparency and trust. Borys et al. (2023) cat-

egorized saliency-based XAI methods such as Grad-

CAM, LIME, SHAP, and Occlusion into perturbation-

based and backpropagation-based techniques, outlin-

ing their respective strengths and limitations in medi-

cal image analysis. They also addressed the practical

challenges in deploying XAI, emphasizing variabil-

ity in heatmap-based visual attributions across meth-

ods. Their study called for a standardized, multi-

dimensional evaluation framework to assess XAI reli-

ability and alignment with clinical decision-making,

reinforcing the synergy between accurate detection

and explainable outputs. Volkov and Averkin (2023)

further examined XAI’s domain-speciﬁc applications,

noting Grad-CAM’s success in radiology, derma-

tology, and histopathology, particularly in detecting

COVID-19 pneumonia, brain tumors, and skin le-

sions. They advocated for clinician-centered design

and proposed integrating XAI with fuzzy logic to en-

hance diagnostic support in real-world clinical work-

ﬂows.

3 DATASET DESCRIPTION

The Bone Fracture Detection Dataset (Phanan, 2024)

used in this work contains about 9,585 X-ray images

of ﬁnger and wrist fractures, encompassing diverse

orientations and imaging conditions, including top-

down and lateral views. The dataset is split into train-

ing (70%), validation (20%), and testing (10%) sub-

sets.

Images of fractured bones are annotated using

bounding boxes to highlight the fracture areas as ob-

served in Figure 1. These annotations follow the

YOLO format, which includes the class label and

normalized coordinates of the bounding boxes (cen-

ter, width, and height) relative to the image size.

The images, provided as 640 × 640 pixel JPEGs,

are readily compatible with standard computer vi-

sion frameworks and preprocessing pipelines. The

dataset also includes images featuring multiple frac-

tures within the same frame, enabling the detection

of cases with more than one fracture simultaneously.

Focused speciﬁcally on ﬁnger and wrist fractures, this

dataset offers a rich collection of clinically relevant

images that enable rigorous evaluation and compari-

son of automated fracture detection approaches.

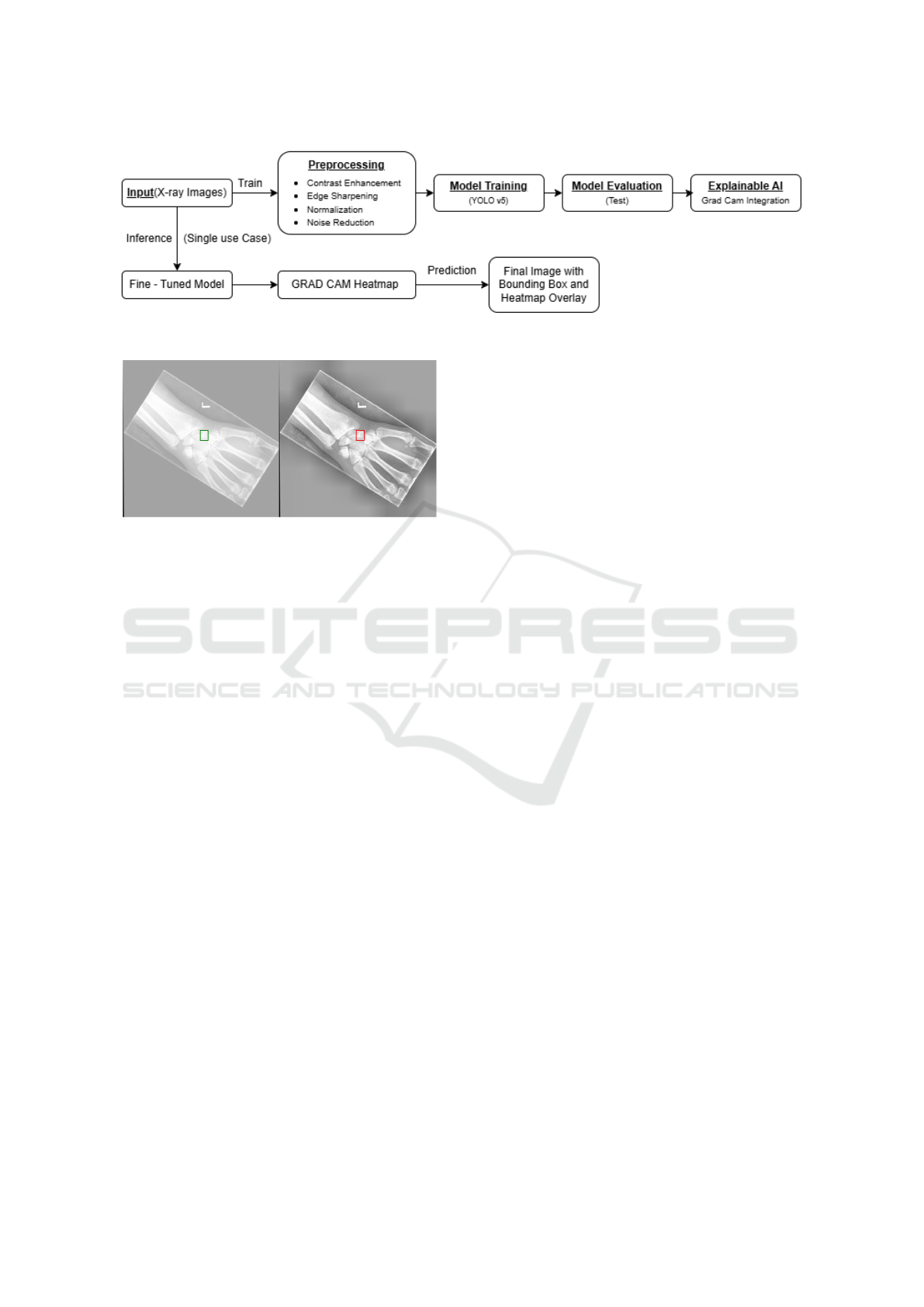

4 METHODOLOGY

The methodology for bone fracture detection in this

paper is structured into ﬁve key stages: data collec-

Figure 1: X ray images with ground truth boxes.

tion, preprocessing, model implementation, training,

evaluation, and testing. These stages are designed to

comprehensively address the challenges of accurate

fracture detection, from processing the dataset to as-

sessing the performance of ﬁne-tuned models.

The core of this study centers on the implementa-

tion and optimization of the YOLOv5m model for ac-

curate detection and localization of ﬁnger bone frac-

tures. Leveraging pretrained Common Objects in

Context (COCO) weights, the model was ﬁne-tuned

on a specialized dataset of annotated hand X-rays to

adapt to the nuanced patterns of bone injuries. The

YOLOv5m architecture was selected for its balance

of speed, accuracy, and efﬁciency, making it ideal for

real-time clinical integration. To contextualize its per-

formance, a comparative evaluation with other detec-

tion frameworks including single-stage variants like

YOLOv8 and YOLOv11, as well as the two-stage

Faster R-CNN was conducted. These comparisons,

while secondary, provided insights into the trade-offs

between speed, precision, and model complexity. An

overview of the end-to-end workﬂow, including data

preparation, model training, and evaluation, is illus-

trated in Figure 2.

The following subsections provide a detailed dis-

cussion of each stage, outlining the speciﬁc tech-

niques and strategies employed.

4.1 Data Preprocessing

The images were preprocessed to transform them into

a format optimized for object detection models, mak-

ing it easier to identify fractures accurately. The pre-

processing pipeline focused on enhancing subtle fea-

tures, such as minute fractures and overlapping struc-

Towards Transparent AI in Medical Imaging: Fracture Detection in Hand Radiographs with Grad-CAM Insights

Figure 2: Flowchart Illustrating the Training Process and Single-Image Inference Outcomes

Figure 3: Comparison of Before (left) and After (right) pre-

processing.

tures, which often pose challenges for accurate detec-

tion.

The preprocessing steps included Contrast En-

hancement, Noise Reduction, Edge Sharpening, and

Image Normalization. Contrast enhancement was

achieved using histogram equalization, which im-

proved the visibility of bone structures by increasing

the dynamic range of pixel intensity values. This tech-

nique enhanced the contrast-to-noise ratio (CNR), en-

abling clearer differentiation between fracture lines

and surrounding bone. Noise reduction was per-

formed using a Gaussian ﬁlter to suppress high-

frequency noise introduced by imaging equipment or

environmental factors. This step preserved essential

spatial details critical for identifying ﬁne bone struc-

tures, such as trabecular patterns, while improving

overall image clarity. To address inherent blurriness

caused by the ﬁnite size of X-ray focal spots, edge

sharpening was implemented using a Laplacian ﬁl-

ter. This step enhanced bone boundaries and fracture

lines, enabling the detection model to focus on criti-

cal features for accurate identiﬁcation. Finally, image

normalization was applied to standardize pixel inten-

sity values to a range of [0, 1], ensuring consistent

input to the detection models and reducing variability

across images.

As observed in Figure 3, focusing on preprocess-

ing techniques tailored to the requirements of bone

fracture detection ensured that the input data was op-

timized for object detection, providing a solid foun-

dation for training and evaluating advanced models.

4.2 Object Detection Model and Its

Applicability

To effectively detect fractures in hand X-ray images,

this study employs YOLOv5m. Building upon a ro-

bust preprocessing pipeline that enhances contrast, re-

duces noise, and sharpens critical edges, YOLOv5m

[28] was selected due to its proven ability to perform

well in tasks involving small and irregularly shaped

objects: characteristics common in bone fractures.

Interestingly, while a range of models including

other YOLO variants and two-stage detectors such

as Faster R-CNN were brieﬂy explored, YOLOv5m

consistently outperformed them in both mean Aver-

age Precision (mAP) and inference speed. This un-

expected lead in performance is likely attributed to

its efﬁcient use of anchor-based detection, optimized

feature aggregation through the Spatial Pyramid Pool-

ing (SPP) block, and its strong inductive bias toward

learning small object patterns, which aligns well with

the fracture detection task.

4.2.1 YOLOv5 Medium: Architecture and

Suitability

YOLOv5m utilizes an anchor-based detection mech-

anism and a Spatial Pyramid Pooling (SPP) module,

which allows the model to aggregate spatial informa-

tion across multiple scales. This design is particularly

effective in detecting fractures that vary in size, shape,

and intensity. The model’s backbone is optimized for

extracting deep spatial features, while the head simul-

taneously predicts bounding boxes and class proba-

bilities, enabling fast and reliable inference.

The anchor boxes were ﬁne-tuned during training

to adapt to the dimensions speciﬁc to fractures in hand

radiographs. YOLOv5m’s modular design and efﬁ-

cient convolutional layers allowed it to retain struc-

tural nuances in the X-ray images, improving its abil-

ity to generalize across varying fracture presentations.

KDIR 2025 - 17th International Conference on Knowledge Discovery and Information Retrieval

Figure 4: Yolov5m prediction vs Ground Truth.

4.3 Training and Validation

YOLOv5m was trained for 100 epochs using pre-

trained COCO weights as initialization. This trans-

fer learning approach allowed the model to converge

faster while beneﬁting from prior knowledge of gen-

eral object features. Training employed a batch size of

16 and a starting learning rate of 0.01 with momentum

set at 0.937, adhering to YOLOv5’s recommended de-

faults to ensure training stability and reproducibility.

To improve the model’s robustness and gener-

alization capability, several data augmentation tech-

niques were employed. Horizontal ﬂipping simulated

anatomical variations in hand orientation, while Ran-

dAugment introduced random variations in brightness

and contrast to mimic real-world X-ray acquisition

inconsistencies. Mosaic augmentation, a technique

where four images are combined into one was used

during the initial 10 epochs to diversify object context

and improve detection under cluttered scenarios. This

augmentation was phased out in later epochs to allow

for more focused learning on fracture-speciﬁc fea-

tures.Validation was conducted after each epoch using

a holdout validation set, evaluating mAP, classiﬁca-

tion accuracy, and localization precision. YOLOv5m

demonstrated consistent performance gains with each

augmentation step, converging steadily toward op-

timal detection capability. Its ﬁnal performance

reached a mAP@50 of 95.87% with an inference

time of 690 ms per image, proving its suitability for

real-time clinical applications. By tailoring the train-

ing process speciﬁcally for YOLOv5m and integrat-

ing domain-speciﬁc preprocessing and augmentation

techniques, the model was optimized to detect even

the most subtle and overlapping fractures with high

conﬁdence and speed.

4.4 Model Testing

The testing phase aimed to evaluate the generalizabil-

ity and performance of the trained model on unseen

data. During testing, the model generated predic-

tions in the form of bounding boxes and conﬁdence

scores. These outputs were evaluated against their

corresponding ground truth annotations using stan-

dard object detection and localization metrics, which

are described in detail in Section 5.

Sample outputs were also manually visualized

to verify the correctness of the predicted bounding

boxes against the ground truth annotations. Figure 4

presents example outputs, demonstrating the overlap

between predicted and actual fracture regions, provid-

ing a qualitative check of the model’s performance.

4.5 Visualizing Model Decisions Using

Grad-CAM

To enhance the interpretability of the YOLOv5-based

fracture detection pipeline and foster clinician trust,

Grad-CAM was integrated into the inference pro-

cess of the model. Grad-CAM generates class-

discriminative heatmaps that visually highlight the re-

gions in an image most inﬂuential to a model’s deci-

sion, offering intuitive insights into its reasoning.

Unlike explainability methods such as LIME,

SHAP, or Integrated Gradients which are primarily

designed for structured data or classiﬁcation tasks,

Grad-CAM is well-suited for spatial vision tasks like

object detection. Its ability to localize important fea-

tures makes it especially valuable in medical imaging,

where understanding the spatial rationale behind pre-

dictions is crucial.

To apply Grad-CAM within the YOLOv5 archi-

tecture, the inference pipeline was modiﬁed to ex-

tract gradient information from the ﬁnal convolutional

block before the detection head. Gradients were com-

puted with respect to the conﬁdence scores of high-

conﬁdence bounding boxes post non-max suppres-

sion. The resulting heatmaps were normalized and

superimposed on the original X-ray images, providing

visual explanations for the predictions of the model.

This approach allowed to conﬁrm that the model

consistently focused on clinically relevant features

such as cortical disruptions, fracture lines, or trabec-

ular misalignments while avoiding irrelevant regions

like overlapping soft tissues or background noise.

These visualizations not only validated true positives

Towards Transparent AI in Medical Imaging: Fracture Detection in Hand Radiographs with Grad-CAM Insights

but also provided insight into false negatives, particu-

larly in subtle or ambiguous cases.

By bridging the gap between AI predictions and

clinical reasoning, Grad-CAM signiﬁcantly enhanced

the transparency of the system. It empowered clin-

icians to audit and cross-validate the model’s deci-

sions, promoting trust and supporting the safe inte-

gration of AI into real-world diagnostic workﬂows.

Overall, this integration reafﬁrmed YOLOv5’s robust-

ness for high-stakes medical imaging and demon-

strated Grad-CAM’s potential as a valuable diagnostic

companion tool.

Figure 5 presents the XAI results, showcasing the

key image regions that inﬂuenced the model’s diag-

nostic decisions.

5 IMPLEMENTATION AND

EVALUATION METRICS

The training of all models was performed over 100

epochs using an NVIDIA RTX A4500 GPU. The soft-

ware environment comprised of a Windows operating

system, with code development and execution carried

out in Visual Studio Code. Key libraries, including

PyTorch and Torchvision, were utilized for model im-

plementation and dataset processing. CUDA was em-

ployed to accelerate computations on the GPU, while

Matplotlib was used for visualizing results and gen-

erating performance graphs, facilitating clear and in-

sightful analysis.

For inference evaluation, the trained models were

tested on an Intel Core i5 processor. Inference time

was used as an additional evaluation metric to assess

the real-time applicability of the models. This setup

provides a reliable and efﬁcient framework for con-

ducting experiments, by ensuring a stable training and

evaluation environment.

The performance of all models was evaluated us-

ing standard object detection metrics, including mean

Average Precision (mAP) and Intersection over Union

(IoU). In bone fracture detection, mAP@50 measures

how well the model identiﬁes fractures when there is

at least 50% IoU between the predicted and ground

truth bounding boxes. This metric focuses on whether

the model can reliably highlight fracture regions, even

with some localization error. A high mAP@50 means

the model is good at ﬁnding most fractures. It is given

by (1)

mAP@50 =

∑

c=1

(50) (1)

whHere, C is the number of object classes, c de-

note a speciﬁc object class, and AP

(50) represent the

Figure 5: Grad-CAM highlights regions inﬂuencing pre-

dictions, with red areas showing key focus around the

metacarpal (top) and fracture site near the thumb (bottom).

Average Precision for the class c at an IoU threshold

of 50%.

mAP@50:95 provides a stricter and more compre-

hensive evaluation, as it considers detection perfor-

mance across multiple IoU thresholds (from 50% to

95% overlap). This is calculated by (2)

mAP@50 : 95 =

T · C

∑

t=1

∑

c=1

(t) (2)

where T denote the number of IoU thresholds (e.g.,

[0.50, 0.55, ..., 0.95] in steps of 0.05), and AP

(t) rep-

resents the Average Precision for the class c at the IoU

threshold t. A higher mAP@50:95 indicates that the

KDIR 2025 - 17th International Conference on Knowledge Discovery and Information Retrieval

model not only identiﬁes the fractures but also accu-

rately localizes their boundaries with minimal error.

IoU measures the accuracy of the bounding box

localization. It evaluates how much of the predicted

bounding box overlaps with the actual fracture area

and is given by (3). A higher IoU score means the

model is capturing the fracture’s shape and size more

accurately. This is vital for ensuring that subtle or

small fractures are not missed or mislocalized. The

IoU accuracy in this work has been computed at 50%

intersection minimum threshold to maintain object

detection quality while increasing tolerance for minor

localization errors.

IoU =

Area o f Overlap

Area o f U nion

(3)

The number of parameters across the models were

analyzed to assess the computational complexity and

efﬁciency. This evaluation provides insights into the

trade-offs between model size and performance. By

comparing parameter counts, it is easy to determine

which models offer a balance between accuracy and

resource requirements.

6 RESULTS AND DISCUSSION

The model testing results as seen in Table 1 pro-

vide important insights into the performance of vari-

ous object detection models for bone fracture detec-

tion. Among all the models, YOLOv5m emerged

as the best performer, achieving the highest mAP50

(95.87%), mAP50:95 (61.70%), and IOU50 (78.12%)

while maintaining a reasonable inference speed of

690 ms. This demonstrates that YOLOv5m effec-

tively balances accuracy, computational efﬁciency,

and generalization, making it the most suitable model

for this application. Its performance suggests that

its architecture with spatial pyramid pooling strategy

is well-aligned with the dataset’s characteristics. As

a result of multi-scale feature representation, it en-

ables the model to capture both ﬁne-grained details

and broader contextual information, resulting in pre-

cise detection and localization of fractures without ex-

cessive computational overhead.

A clear trend also observed across the medium-

sized models (YOLOv5m, YOLOv8 Medium

(YOLOv8m), and YOLOv11 Medium (YOLOv11m))

is their consistent superiority in accuracy compared

to both their smaller and larger counterparts. The

performance trend across epochs is visualized in

Figure 6, which shows how mAP@50 evolves during

training. Figure 7 further illustrates the trend by

comparing model performance (mAP@50:95) at dif-

ferent epochs. The results reinforces that YOLOv5m

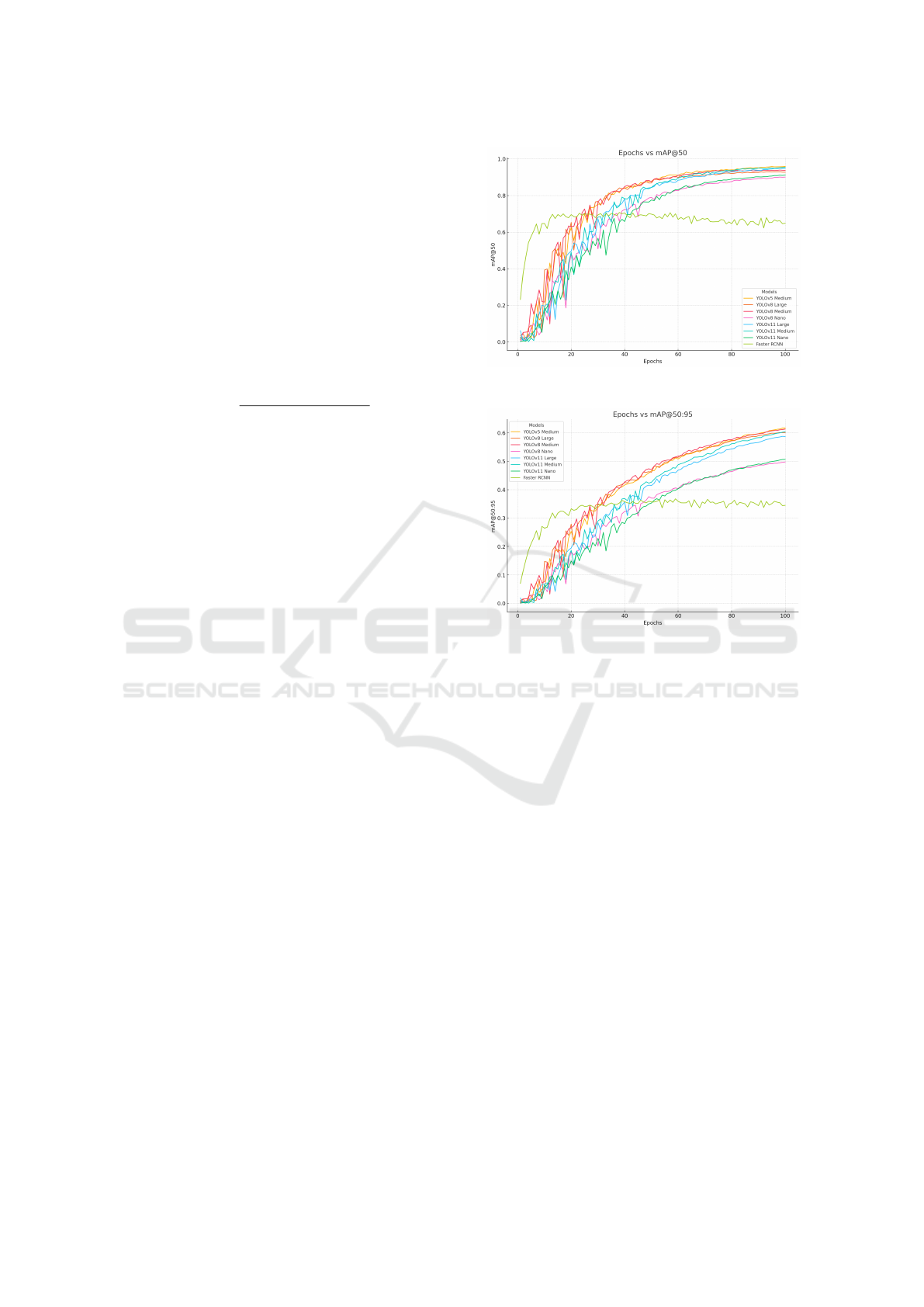

Figure 6: Epochs vs mAP@50 for all models.

Figure 7: Epochs vs mAP@50:95 for all models.

not only converges faster, but also achieves the best

trade-off between accuracy and speed. Medium-sized

models have enough parameters to capture complex

features in the dataset without the risk of overﬁtting,

which is often observed in larger models. On the

other hand, smaller models, such as YOLOv8 Nano

(YOLOv8n) and YOLOv11 Nano (YOLOv11n),

excel in inference speed (166 ms and 180 ms, respec-

tively) but compromise signiﬁcantly on accuracy,

particularly at higher IoU thresholds. This makes

nano models well-suited for applications reliant on

central server processing, where speed is prioritized,

with a modest tradeoff in precision and accuracy.

Interestingly, the larger models, including

YOLOv8 Large and YOLOv11 Large, underperform

compared to the medium models. Their lower

mAP@50:95 values indicate that these models may

suffer from overﬁtting due to their higher parameter

counts (43.7M and 25.34M, respectively). Larger

models typically require more extensive training data

and longer training times to generalize effectively,

which might not have been sufﬁciently addressed

in this study. Moreover, their higher inference

times (1,451 ms and 998 ms) further reduce their

practicality for time-sensitive applications.

Towards Transparent AI in Medical Imaging: Fracture Detection in Hand Radiographs with Grad-CAM Insights

Table 1: Model Performance Comparison.

Model mAP@50 (%) mAP@50:95 (%) IOU50 (%) Inference Speed (ms) Num Parameters

YOLOv5 Medium 95.87 61.70 78.12 690 ms 21.2M

YOLOv8 Nano 90.07 49.75 67.87 166 ms 3.2M

YOLOv8 Medium 93.37 61.35 77.06 712 ms 25.9M

YOLOv8 Large 92.76 60.16 76.51 1,451 ms 43.7M

YOLOv11 Nano 91.18 50.66 68.59 180 ms 2.62M

YOLOv11 Medium 95.40 60.39 76.51 768 ms 20.09M

YOLOv11 Large 94.91 58.73 75.54 998 ms 25.34M

Faster R-CNN 70.32 36.17 17.51 3,151 ms 41.2M

Faster R-CNN, despite being a well-known two-

stage object detection model, performs poorly across

all metrics, with an mAP@50 of 70.32% and a par-

ticularly low IOU50 of 17.51%. Its inference time

of 3,151 ms is signiﬁcantly slower than all YOLO

models, highlighting its computational inefﬁciency

for this task. The architecture of Faster R-CNN likely

struggles to adapt to the dataset’s requirements, as it

relies on generating region proposals in the ﬁrst stage,

which can be less effective for subtle or small fea-

tures like bone fractures. Additionally, its large pa-

rameter count (41.2M) increases the risk of overﬁt-

ting, especially if the training data is not diverse or

large enough. The relationship between mAP values

and the number of epochs is illustrated in Figures 6

and 7, offering further insights into the learning pat-

terns and supporting similar conclusions.

In summary, the results emphasize the importance

of selecting a model that aligns with the speciﬁc

requirements of the application. While YOLOv5m

proves to be the most effective for bone fracture detec-

tion due to its balance of accuracy and speed, smaller

models like YOLOv8n offer exceptional speed at the

cost of precision, and larger models require more ex-

tensive optimization to perform well. Faster R-CNN,

meanwhile, demonstrates signiﬁcant limitations for

this speciﬁc task, underlining the need for efﬁcient,

single-stage architectures like YOLO when dealing

with datasets of this nature.

Furthermore, the incorporation of XAI through

Grad-CAM signiﬁcantly enhanced the transparency

of our fracture detection pipeline by visually high-

lighting regions that inﬂuenced model predictions.

Figure 8 presents the combined output of YOLOv5m

predictions and Grad-CAM visualizations, clearly

demonstrating that the highlighted regions align well

with the annotated fracture areas, thereby validating

the model’s interpretability and attention to clinically

relevant features. Grad-CAM was applied to the ﬁ-

nal convolutional layers of the YOLO-based mod-

els, enabling the identiﬁcation of class-discriminative

regions that overlapped meaningfully with predicted

bounding boxes. This helped not only in de-

tecting fractures but also in localizing them accu-

Figure 8: Combined output of YOLOv5m and Grad-CAM

visualizations.

rately by highlighting potential cracks or fractures.

To quantitatively assess the alignment between the

YOLO-generated bounding boxes and the Grad-CAM

heatmaps, we employed the Pointing Game Accuracy

metric. This metric evaluates whether the maximum

activation point from the Grad-CAM heatmap falls

within the ground truth bounding box; a successful

hit indicates agreement between the model’s attention

and the annotated region. Our results showed a high

pointing game accuracy above 85 percent, demon-

strating that the regions the model focused on for

decision-making were clinically relevant. As illus-

trated in Figure 9, the overlap between the Grad-CAM

heatmaps and the predicted bounding boxes is clearly

visible and aligns well with the actual fracture sites.

We further veriﬁed this behavior across multiple im-

ages, consistently observing similar localization qual-

ity, which conﬁrms the robustness and reliability of

our XAI integration. This synergy between detection

and interpretability not only validates the model’s per-

formance but also reinforces its suitability for real-

KDIR 2025 - 17th International Conference on Knowledge Discovery and Information Retrieval

Figure 9: Grad-CAM visualization doesn’t align with the

micro fractures.

world clinical deployment.

In some instances, the Grad-CAM heatmaps did

not align with the YOLO bounding boxes. Upon in-

vestigation, two primary factors were identiﬁed. First,

many of the fractures were microfractures, which the

model was unable to detect. Second, shadows in the

X-rays or overlapping bone structures obscured the

fracture sites, preventing the model from perform-

ing effectively. This ﬁnding calls for future work to

develop enhanced imaging preprocessing techniques

and more robust model architectures that can reliably

detect microfractures and compensate for shadows or

overlapping anatomical features.

7 CONCLUSION

This study evaluates object detection models for de-

tecting ﬁnger fractures in X-ray images. By pre-

processing images to enhance anatomical details and

training several state-of-the-art models, we assessed

their performance in fracture detection and localiza-

tion.

Single-stage detectors, especially those using spa-

tial pyramid pooling for feature aggregation, con-

sistently outperformed two-stage models. Notably,

YOLOv5 surpassed newer models like YOLOv8 and

YOLOv11, indicating that its architecture may be bet-

ter suited for the speciﬁc features present in ﬁnger

fractures. Lightweight models like YOLO-Nano also

performed well despite having fewer parameters, sug-

gesting that smaller models can be effective when ap-

plied to narrowly deﬁned tasks.

In contrast, Faster R-CNN, typically strong in

general object detection, underperformed in this task.

Its lower generalizability in this context reinforces

the need for architecture-speciﬁc tuning when dealing

with medical imagery. Our YOLOv5 based approach

achieved a detection accuracy of 95.8%, slightly

higher than the 95.1% reported by RoboFlow’s frac-

ture model on comparable datasets. These results are

signiﬁcantly higher than the sub 70% accuracy com-

monly observed in broader fracture datasets, under-

scoring the beneﬁts of task-speciﬁc optimization.

To enhance interpretability, we integrated Grad-

CAM with the YOLOv5 model, achieving a pointing

game accuracy of over 85%. The resulting heatmaps

reliably highlighted fracture regions, providing vi-

sual insight into model decisions and improving trans-

parency, an essential factor in medical AI applica-

tions.

This work demonstrates that carefully tuned ob-

ject detection models, particularly single-stage detec-

tors with spatial pooling mechanisms, can effectively

handle specialized medical tasks. It also highlights

the role of lightweight models and explainability tools

in building clinically relevant AI systems.

For future work, we propose transitioning from

detection to semantic segmentation of fractures. This

would allow pixel-level mapping of fracture morphol-

ogy, offering more detailed characterization, which is

critical for surgical planning and outcome prediction.

Integration of these models into clinical decision sup-

port systems could further streamline workﬂows and

enhance diagnostic precision.

REFERENCES

Abbas, W. et al. (2020). Lower leg bone fracture detection

and classiﬁcation using faster rcnn for x-rays images.

IEEE Xplore.

Ahmed and Hawezi (2023). Detection of bone fracture

based on machine learning techniques. Measurement

Sensors, 27:100723.

Beyraghi, S. et al. (2023). Microwave bone fracture diag-

nosis using deep neural network. Scientiﬁc Reports,

13(1).

Borys, K. et al. (2023). Explainable ai in medical imag-

ing: An overview for clinical practitioners – saliency-

based xai approaches. European Journal of Radiol-

ogy, 162:110787.

Ghosh, S. et al. (2024). Automated bone fracture detection

in x-ray imaging to improve orthopaedic diagnostics

in healthcare. Procedia Computer Science, 233:832–

840.

Ju, R.-Y. and Cai, W. (2023). Fracture detection in pe-

diatric wrist trauma x-ray images using yolov8 algo-

rithm. Scientiﬁc Reports, 13(1):20077.

Towards Transparent AI in Medical Imaging: Fracture Detection in Hand Radiographs with Grad-CAM Insights

Karanam, S. R. et al. (2021). A systematic review on ap-

proach and analysis of bone fracture classiﬁcation.

Materials Today: Proceedings.

Khatik, N. I. and Kadam, N. S. (2022). A systematic review

of bone fracture detection models using convolutional

neural network approach. Journal of Pharmaceutical

Negative Results, pages 153–158.

Lee, C. et al. (2020). Classiﬁcation of femur fracture in

pelvic x-ray images using meta-learned deep neural

network. Scientiﬁc Reports, 10(1).

Ma, Y. (2021). Bone fracture detection through the two-

stage system of crack-sensitive convolutional neu-

ral network. Informatics in Medicine Unlocked,

22:100452.

Meena, T. and Roy, S. (2022). Bone fracture detection using

deep supervised learning from radiological images: A

paradigm shift. Diagnostics, 12(10):2420.

Moon, G. et al. (2022). Computer aided facial bone fracture

diagnosis (ca-fbfd) system based on object detection

model. IEEE Access, 10:79061–79070.

Morita, D. et al. (2024). Automatic detection of midfacial

fractures in facial bone ct images using deep learning-

based object detection models. Journal of Stomatol-

ogy, Oral and Maxillofacial Surgery/Journal of Stom-

atology Oral & Maxillofacial Surgery, pages 101914–

101914.

Nguyen, H. H. et al. (2024). Affnet - a deep convolutional

neural network for the detection of atypical femur

fractures from anteriorposterior radiographs. Bone,

187:117215.

Phanan (2024). bonefracturedetection v1 dataset. Open

Source Dataset, Roboﬂow Universe. Retrieved from

https://universe.roboﬂow.com/phanan/bonefracture

detection v1.

Su, Z. et al. (2023). Skeletal fracture detection with

deep learning: A comprehensive review. Diagnostics,

13(20):3245.

Valali et al. (2023). Bone fracture detection and classiﬁ-

cation using deep learning models on x-ray images.

Diagnostics, 15(3):271.

Volkov, E. N. and Averkin, A. N. (2023). Explainable arti-

ﬁcial intelligence in medical image analysis: State of

the art and prospects. In Proc. 2023 XXVI Int. Conf. on

Soft Computing and Measurements (SCM), Dubna,

Russia, pages 133–137.

Warin, K., Limprasert, W., Suebnukarn, S., Paipongna,

T., Jantana, P., and Vicharueang, S. (2023). Max-

illofacial fracture detection and classiﬁcation in com-

puted tomography images using convolutional neural

network-based models. Scientiﬁc Reports, 13(1).

Wu, A. et al. (2021). Global, regional, and national bur-

den of bone fractures in 204 countries and territo-

ries, 1990–2019: a systematic analysis from the global

burden of disease study 2019. The Lancet Healthy

Longevity, 2(9):e580–e592.

Yadav, D. P., Sharma, A., Athithan, S., Bhola, A., Sharma,

B., and Dhaou, I. B. (2022). Hybrid sfnet model for

bone fracture detection and classiﬁcation using ml/dl.

Sensors, 22(15):5823.

Zhang, X. et al. (2021). Window loss for bone fracture de-

tection and localization in x-ray images with point-

based annotation. In Proceedings of the AAAI Confer-

ence on Artiﬁcial Intelligence, volume 35, pages 724–

732.

Zou, J. and Arshad, M. R. (2024). Detection of whole body

bone fractures based on improved yolov7. Biomedical

Signal Processing and Control, 91:105995–105995.

KDIR 2025 - 17th International Conference on Knowledge Discovery and Information Retrieval
