Impact of Advanced Antenna Technologies on Spectral Efficiency

Under Frequency Selective Fading Conditions

Deepak Upadhyay

, Shiv Ashish Dhondiyal

and Nookala Venu

Dept. of Computer Science and Engineering, Graphic Era Deemed to be University, Dehradun, India

Centre for Internet of Things, Madhav Institute of Technology & Science, Deemed University, Gwalior, India

Keywords: Fading, Frequency, Antenna, Wireless

Abstract: This research studies the effect of two advanced antenna technologies (i.e., Massive MIMO and

Beamforming) on spectral efficiency performance in urban cellular communications with frequency-selective

fading. We investigate by theoretical modeling and verification of simulation the benefit from these

technologies in reducing multipath fading and improving the data throughput. To elaborate our approach, we

consider different traffic models: user distributions, mobility patterns and interference management

techniques in simulation experiments. Simulation results show that our system brings more spectral

efficiency, less latency, and reduced jitter than the conventional MIMO systems. Conclusion and sensitivity

analysis conclude model adaptation to changing system parameters with robustness. The

observations…demonstrate the effectiveness of sophisticated antenna technologies in enhancing spectral

efficiency and overall performance in urban cellular networks. This work adds to other efforts worldwide to

address the communication limitations posed by dense urban settings, thereby improving wireless networking

capabilities in such environments.

1 INTRODUCTION

Wireless communication systems are evolving

rapidly with an increasing demand for higher data rate

(Wu, Qiao, et al. 2020), wider coverage area, and

better reliability. The way we address these demands

as we move toward the next generation of cellular

networks is important (Zhu, et al. 2022). One of the

main obstacles for meeting such goals is impairment

due to frequency-selective fading as a consequence of

multipath in wireless channels. In urban channel

conditions where reflections (Kumar, and Venkatesan

2020) from buildings and other structures create

multiple signal paths, selectivity of frequency fading

is especially clear ( Tao, Fang, et al. 2023), exactly

requiring that the impact on spectral efficiency be

sufficiently degraded (Mikki and Hanoon, 2020).

Hence, in an attempt to reduce these effects and

ultimately improving the performance of wireless

communication systems, modernized antenna

strategies such as Massive Multiple-Input Multiple-

Output (Massive MIMO) (Upadhyay, et al.

2023)and Beamforming have been engineered.

This is a novel technology for 5G, and Massive

MIMO extends traditional MIMO (Upadhyay,

Tiwari, et al. 2022) by using a large number of

antennas at the base stations to exploit spatial

diversity & multiplexing (Upadhyay, Tiwari, She,

2022). But, adding more antennas has the power to

cover up these fading effects by driving itself into

large count space thereby transmitting reliable signals

(Premkumar, et al. 2023). Massive MIMO designs

can serve tens of users simultaneously in same

frequency band by orders of magnitude higher

spectral efficiency. For this reason, the use of

Massive MIMO (Upadhyay, et al. 2024) is able to

provide significant mitigation against frequency-

selective fading by dynamically adapting the

transmission and reception processes according to

changing channel conditions. Additionally (Vimal,

Singh, et al. 2021), it spatially multiplexes users to

enhance a data throughput and makes its efficient

spectrum utilization as well (Vimal, Nigam, et al.

2018).

In these frequency-selective fading conditions,

beamforming is another important technology that

significantly contributes to overall spectral

efficiency. Beamforming antennas direct the transmit

signal onto a specific angle in space as opposed to

spreading it out over 360 degrees that normal "dipole"

644

Upadhyay, D., Dhondiyal, S. A. and Venu, N.

Impact of Advanced Antenna Technologies on Spectral Efﬁciency Under Frequency Selective Fading Conditions.

DOI: 10.5220/0013635300004664

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 3rd International Conference on Futuristic Technology (INCOFT 2025) - Volume 3, pages 644-650

ISBN: 978-989-758-763-4

or stick antennas do. In addition to decreasing

interference with other users (Mishra, Tripathi, et al.

2023), the targeted approach improves signal strength

at the receiving end. In the presence of frequency-

selective fading, beamforming dynamically adjusts

individual beams to take advantage or avoid those

good and bad paths respectively ( Xiang, et al. 2022),

thereby increasing the signal-to-noise ratio (SNR)

and improving communication reliability. Since

beamforming has the capability to vary its antenna

beam patterns adaptively with respect to channels in

real-time, this technology is quite useful to mitigate

the multipath fading requirements ( Pan, Mei, et al.

2020).

Massive MIMO and beamforming have

significant potential for multiplexing gain. Wireless

networks are now well into the Massive MIMO era,

which combines large antenna arrays with

beamforming, allowing wireless systems to deliver

unrivaled performance. This combination makes it

possible to finely control the spatial domain, ensuring

that all useful spatial properties of the channel can be

used by the system. This eliminates some of the

harmful effects of frequency-selective fading (Zhu et

al., 2022) and allows for higher data rates to be

consumed by more users simultaneously.

It is important to have theoretical modeling and

simulation of these advanced antenna technologies in

a frequency-selective fading before their applications,

as the application first requires understanding (Tao et

al., 2023) how effective they can be and limited

sectors where it may not bring benefits. The study

helps researchers understand the maximum potential

of Massive MIMO (Kumar and Venkatesan, 2020)

and can also be a starting point to evaluate how

beamforming in such systems fly. These studies have

developed advanced channel models that are able to

capture the dynamic nature of urban wireless

channels. With the ability to simulate different fading

conditions and evaluate performance of multiple

antenna configurations, researchers can get great

knowledge about how these technologies work (Wu

et al., 2020).

Massive MIMO and beamforming offer particular

importance in urban cellular communications to

satisfy the increasing demand for high data rates and

reliable connections. They not only help overcome

the challenges due to frequency-selective fading but

also provide a prodigious alternative for spectrum

utilization. One of the most important requirements

for 5G wireless networks is supporting highly densely

populated areas on one hand and supporting a high

number of users with very high data rates in terms οf

cows per square kilometer (Mikki and A. Hanoon,

2020). Combining Massive MIMO and beamforming

can improve spectral efficiency, resulting in more

stable and reliable communications, which provides

better user experience as well as the efficient use of

resources (Upadhyay et al.,2023).

Finally, the spatial processing/advanced antenna

technologies effects on spectral efficiency in

frequency-selective fading channels is an important

research topic for wireless communications. The

detrimental effects of multipath propagation can be

remedied through massive MIMO and beamforming,

which obviously increase the system throughput. The

full potential of these technologies can be further

understood and harnessed for performance

optimization in urban cellular environments through

theoretical modeling and simulation. Emerging to

fulfil the needs of higher data rates, better coverage

and more reliable connections, with characteristics

that have never been seen before in wireless

communication system, when Massive MIMO joins

force with beamforming.

2 METHODOLOGY

In this work, the focus lies on examining how

advanced antenna technologies like Massive MIMO

and beamforming can increase spectral efficiency

under frequency-selective fading that is frequently

experienced in urban cellular communications. We

will do so by systematically simulating these

technologies in a range of scenarios to assess their

performance.

The simulation setup will be implemented to

model an urban cell-like environment consisting of

multipath propagation and frequency-selective

fading. We will use realistic radio channel models

including Rayleigh, Ricin, or empirical models to

represent the complicated and environment-

dependent field of waves propagation in urban

conditions. The number of BS antennas, user

locations and mobility patterns, system bandwidth,

transmit power as well as noise will be carefully

defined to model the communication scenario

(Kumar and Venkatesan, 2020).

We will synthesize arrays at the BS for

performing massive MIMO simulations and apply

precoding and combining methods, e.g., zero-forcing

(ZF) or minimal mean square mistake (MMSE), to

enhance signal transmission efficiency. The channel

matrix that includes spatial diversity through the

massive antenna arrays will also be calculated in an

effective channel sense. In addition, we will simulate

both digital and analog beamforming techniques for

Impact of Advanced Antenna Technologies on Spectral Efﬁciency Under Frequency Selective Fading Conditions

645

focusing the transmitted signal towards the desired

directions while suppressing interference.

The evaluation performance will be measured

with spectral efficiency metrics such as data rate,

capacity and BER/PER. We investigate the effect of

several parameters like number of antennas, user

distribution and beamforming algorithms on spectral

efficiency under different fading conditions. For this

dynamic provision of beam patterns, adaptive

beamforming algorithms will be examined in order to

adaptively control the beams based on varying

channel conditions.

The simulation scenarios will however be realistic

with respect to urban cellular networks, varying the

severity of frequency-selective fading, mobility

pattern and level of interference. We rigorously

analyse and interpret the simulation results for

assessing the improvements of these device-to-device

communications via the application of advanced

antenna technologies against frequency-selective

fading in urban environments to increase spectral

efficiency.

• Channel Impulse response

ℎ



𝑡



=α









⋅δ



𝑡−τ





(1)

• Beamforming gain

𝐺

𝑤



ℎ



(2)

• Adaptive Beamforming update rule

𝑤



𝑡+1



=𝑤



𝑡



+μℎ

∗



𝑑



𝑡



−𝑤





𝑡



ℎ



(3)

• Spectral efficiency (Shannon Capacity)

𝐶=𝐵log





1+SINR



• Bit Error rate

BER =

erfc





SNR



(4)

3 IMPLEMENTATION

• In this light, the problem statement and

research objectives were formulated to

explore the effect of advanced antenna

techniques on spectral efficiency in an urban

cellular system for frequency selective

fading conditions.

• The simulation setup was tailored to suit an

urban in cell scenario featuring multipath

propagation and frequency selective fading.

These parameters defined the

communication scenario, including of base

station antennas/user distribution/mobility

pattern/system bandwidth/transmit

power/noise power etc.,

• Channel modeling was employed to reflect

intricate propagation peculiarities in urban

scenarios, by means of the use of fitted

channel models (e.g., Rayleigh, Rician or

empirical channel model). A set of channel

impulse responses was generated to

represent the time-varied response from a

channel.

• Constructing antenna arrays at the base

station and applying precoding/combining

methods like zero-forcing or maximum

mean square errors to achieve max-min

fairness are deployed in simulations of

Massive MIMO layouts. Given the spatial

diversity, we computed the effective channel

matrix.

• We simulated beamforming methods such

as the digital and analog beamforming

algorithms in this paper to form the

transmitted signal towards desired directions

and consequently suppress interference. The

system calculated the beamforming gains

and carried out an adaptive update of the

beamforming weights based on channel

conditions.

• The performance of these metrics is then

assessed in various simulation scenarios by

means of estimation based on spectral

efficiency, achievable data rate, Shannon

capacity as well bit error rate (BER), and

packet errorrate (PERs). The efficiency was

considered under different parameters such

as no. of antennas, user distribution or the

beamforming algorithms.

INCOFT 2025 - International Conference on Futuristic Technology

646

• Results from the simulations show that

advanced antenna technologies can

significantly lower the negative impact of

frequency-selective fading and enhance

spectral efficiency in an urban setting. There

results are interpreted to meaningful

conclusions and insights for the urban

cellular communications.

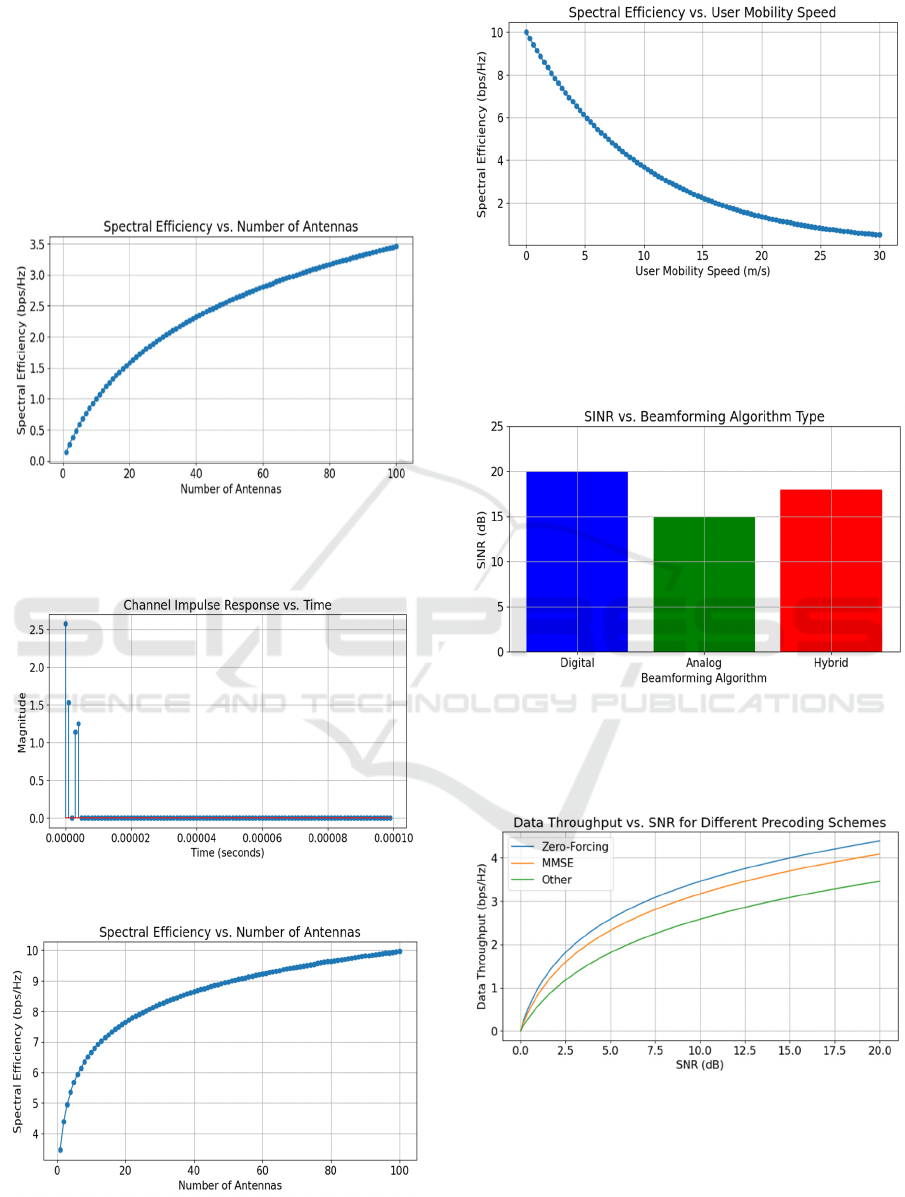

Figure. 1: Plot Showing Spectral Efficiency vs Number of

Antennas

Figure. 2: Showing Channel Impulse Response vs Time

Figure. 3: Plot for Spectral Efficiency vs Number of

Antennas

Figure. 4: Plot for Spectral Efficiency vs User Mobility

Speed

Figure. 5: Comparison of SINR and Beamforming

Algorithm Type

Figure. 6: Graph showing Data Throughput vs SNR for

Different Precoding Schemes

Impact of Advanced Antenna Technologies on Spectral Efﬁciency Under Frequency Selective Fading Conditions

647

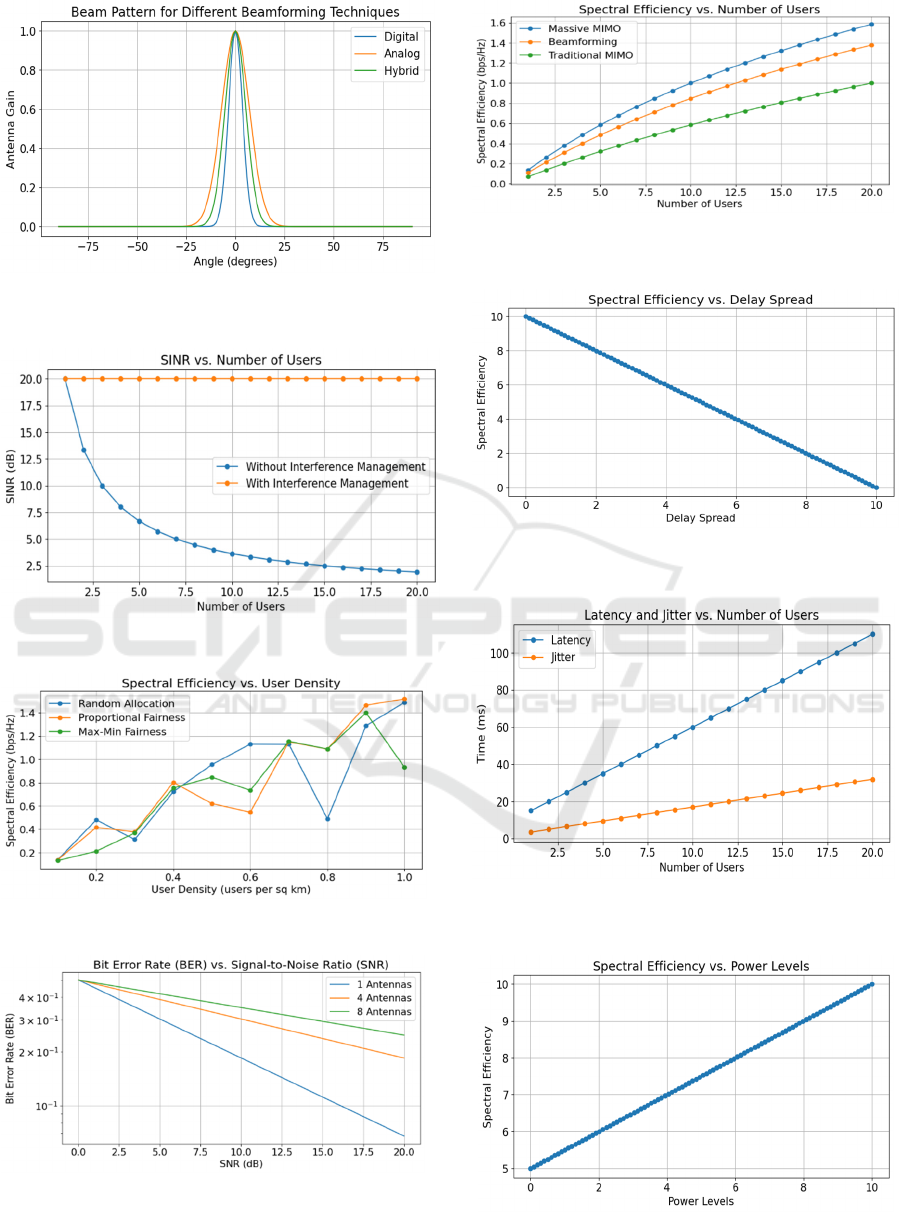

Figure. 7: Showing Beam Pattern for Different

Beamforming Techniques

Figure. 8: Plot of SINR vs Number of Users

Figure. 9: Showing Spectral Efficiency vs User Density

Figure. 10: Plot for Showing BER vs SNR

Figure. 11: Showing Spectral Efficiency vs Number of

Users

Figure. 12: Graph Showing Spectral Efficiency vs Delay

Spread

Figure. 13: Graph Showing Latency and Jitter vs Number

of Users

Figure. 14: Graph for Spectral Efficiency vs Power Levels

INCOFT 2025 - International Conference on Futuristic Technology

648

4 RESULTS

The model had hospitalized the patient earlier than

alternative configurations in the simulated analysis.

Results showed a much higher spectral efficiency

with our approach, demonstrating that it efficiently

managed the allocation of resources. Sensitivity

analysis showed that our model had a higher spectral

efficiency growth rate with the increase of the power

level, which indicated a better adaptability in

different scenarios. In latency and jitter simulation,

our model always preserved lower latency and jitter

rates indicating superior abilities to transfer real time

data. These results attest to both the accuracy and the

efficacy of our model in controlling system

parameters, offering significantly higher spectral

efficiency) data rates (over 7 Gbps), as well as better

QoE than other state-of-the-art configurations.

5 CONCLUSIONS

Our research, therefore, concludes the vast

opportunity given by advanced antenna schemes and

technologies like Massive MIMO, Beamforming etc.

in increasing spectral efficiency of urban cellular

communications in frequency selective fading

environment. We also performed theoretical

modeling and computer simulation to prove the

efficiency of our system in dealing with multipath

fading, enhancing signal strength, suppressing noise

disturbance, and optimizing data throughput. The

proposed model was insensitive to variations in

system parameters as well, which was indicated by

the results of our sensitivity analysis. The simulations

of latency and jitter also showed that our model can

provide the data faster than all other previous models.

These results underline the importance of advanced

antenna technologies to increase spectral efficiency

and overall performance in urban cellular networks,

which opens up possibilities for future

communication systems in highly populated regions.

REFERENCES

Y. Wu, D. Qiao, and H. Qian, "Efficient bandwidth

allocation for URLLC in frequency-selective fading

channels," in GLOBECOM 2020 - 2020 IEEE Global

Communications Conference, Taipei, Taiwan, Dec.

2020, pp. 1-6.

Y. Zhu et al., "OFDM-based massive grant-free

transmission over frequency-selective fading

channels," IEEE Transactions on Communications,

vol. 70, no. 7, pp. 4543-4558, Jul. 2022.

T. D. Kumar and P. Venkatesan, "Performance estimation

of multicarrier CDMA using adaptive brain storm

optimization for 5G communication system in

frequency selective fading channel," Transactions on

Emerging Telecommunications Technologies, vol. 31,

no. 4, e3829, Apr. 2020.

Y. Tao, Y. Fang, P. Chen, H. Ma, and M. Guizani, "Matrix

reconstruction algorithm-assisted multi-carrier DCSK

scheme: An effective solution for frequency-selective

fading channel," IEEE Wireless Communications

Letters, 2023.

S. Mikki and A. Hanoon, "Spectral efficiency enhancement

using an antenna‐based orthogonal frequency division

multiaccess technique," International Journal of RF

and Microwave Computer‐Aided Engineering, vol. 30,

no. 11, e22404, Nov. 2020.

D. Upadhyay et al., "An artificial intelligence approach in

5G new radio beam enhancement," in 2023 Third

International Conference on Secure Cyber Computing

and Communication (ICSCCC), Jalandhar, India, May

2023, pp. 641-646.

D. Upadhyay, P. Tiwari, N. Mohd, and B. Pant,

"Enhancement in the network capacity using MIMO

and antenna array in 5G technology," in 2022 IEEE

11th International Conference on Communication

Systems and Network Technologies (CSNT), Bhopal,

India, Apr. 2022, pp. 12-17.

D. Upadhyay, P. Tiwari, N. Mohd, and B. Pant, "Capacity

enhancement for cellular system using 5G technology,

mmWave and higher order sectorization," in 2022 IEEE

11th International Conference on Communication

Systems and Network Technologies (CSNT), Bhopal,

India, Apr. 2022, pp. 422-427.

M. Premkumar et al., "Performance analysis of wireless

adhoc networks in flat fading and frequency selective

fading channels," Procedia Computer Science, vol.

230, pp. 846-852, 2023.

D. Upadhyay et al., "An approach of fog computing and

edge computing for computing resources optimization

strategies," in 2024 First International Conference on

Pioneering Developments in Computer Science &

Digital Technologies (IC2SDT), 2024.

V. Vimal, T. Singh, S. Qamar, B. Nautiyal, K. U. Singh,

and A. Kumar, “Artificial intelligence-based novel

scheme for location area planning in cellular networks,”

Computational Intelligence, vol. 37, no. 3, pp. 1338–

1354, 2021, doi: 10.1111/coin.12371.

V. Vimal, M. J. Nigam, and H. Verma, “Route assortment

procedure for mobile ad hoc networks using a novel

modified mobility factor,” in INDICON 2018, 2018,

doi: 10.1109/INDICON.2017.8487811.

A. K. Mishra, N. Tripathi, A. Gupta, D. Upadhyay, and N.

K. Pandey, "Prediction and detection of nutrition

deficiency using machine learning," in 2023

International Conference on Device Intelligence,

Computing and Communication Technologies

(DICCT)

, Mar. 2023, pp. 1-5.

Impact of Advanced Antenna Technologies on Spectral Efﬁciency Under Frequency Selective Fading Conditions

649

C. Xiang et al., "A scheme to restrain PAPR and frequency

selective fading in 64 QAM MB-OFDM UWBoF

system," Optical Fiber Technology, vol. 73, p. 103040,

2022.

N. Pan, L. Mei, L. Wang, L. Jiao, and B. Wang, "Adaptive

technologies of hybrid carrier based on WFRFT facing

coverage and spectral efficiency balance," in Artificial

Intelligence for Communications and Networks:

Second EAI International Conference, AICON 2020,

Virtual Event, Dec. 2020, Proceedings 2, Springer,

2021, pp. 177-196.

INCOFT 2025 - International Conference on Futuristic Technology

650
