Next-Generation Flexible Memristor Devices for Sensing and

Computing, Storage Applications

T. Vasudeva Reddy

, Pinnamaneni Likhitha

, V Sreelatha Reddy

, M. Dharani Devi

Arunkumar Madupu

and M S S Bhargava

Dept. of ECE. B V Raju Institute of Technology, Narsapur, Medak (dist), Telangana, India

Dept of ECE, Malla Reddy Engineering College Maisammaguda, Hyderabad, India

EIE Dept., CVR College of Engineering Ibrahimpatnam, Hyderabad, India

Dept. of ECE, M. Kumarasamy College of Engineering, Thalavapalayam, Karur, T.N, India

Dept. of ECE, Malla Reddy College of Engineering and Technology, Hyderabad, India

Keywords: Memristor, Memory Resistor, Xeromorphic Computing, Non-Volatile Memory, Analog Circuits, Artificial

Intelligence, Spintronics, Ferroelectric Materials.

Abstract: Conventional computing systems, rooted in the von Neumann architecture, grapple with inherent limitations,

including substantial power consumption and constrained data processing capabilities. As Moore's Law

approaches its physical limits, scaling-driven performance enhancements become increasingly formidable.

Memristor have emerged as a promising paradigm shift, Provides advanced computing capabilities while

significantly lowering power usage. Interestingly, the creation of flexible Memristor has emerged as a pivotal

advancement. a pivotal research direction, particularly in the realm of wearable electronics, where they can

enable intelligent, high- capacity, and efficient systems for everyday applications. This review provides a

comprehensive examination of recent advances in flexible Memristor, encompassing their operating

mechanisms, characteristic materials, and representative applications. Furthermore, we discuss potential

research trajectories and challenges that will shape the future of this field.

1 INTRODUCTION

Traditional computing systems, built on the von

Neumann architecture, encounter significant

challenges related to power consumption and data

processing efficiency. Memristors present a

promising alternative, paving the way for high-

performance computing with exceptionally low

power requirements. Among these, flexible

Memristor stand out as a vital area of research,

offering transformative potential for wearable

technology. Future advancements will likely center

on material innovation, device integration, and

nanostructured materials, facilitating the creation of

intelligent systems with self-learning abilities. Such

developments could redefine computing and

electronics in areas like signal processing, robotics,

and human-computer interaction, particularly as

artificial intelligence (AI) and the Internet of Things

(IoT) continue to expand rapidly necessitates

revolutionary advancements in computing capacity

(Wang, et al. , 2021). Conventional computing

architectures, however, face significant hurdles,

including energy inefficiency and von Neumann

bottleneck (Chua, 1971), (Strukov, et al. , 2008). This

limitation necessitates innovative solutions to

overcome the constraints of traditional computing

(Yang, et al. , 2019), (Wang, et al. , 2019). Memristive

devices, leveraging in-memory computing, offer a

promising solution (Chua, et al. , 2020), (Kim, et al. ,

2020). Memristors, pioneered by Leon Chua in 1971

(Yang, et al. , 2020), with their non-linear, two-

terminal memory characteristics and adjustable

resistance, these devices have become essential

elements in advanced computing and sensing

technologies. (Wang, et al. , 2020), (Chua, et al. ,

2019).

Recent developments have yielded flexible

Memristor, boasting conformability, stretch ability,

and bendability (Strukov, et al. , 2020), (Kim, et al. ,

2020). These characteristics make them ideal for

applications in wearable technology, electronic skin,

Vasudeva Reddy, T., Likhitha, P., Reddy, V. S., Devi, M. D., Madupu, A. and Bhargava, M. S. S.

Next-Generation Flexible Memristor Devices for Sensing and Computing, Storage Applications.

DOI: 10.5220/0013617300004664

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 3rd International Conference on Futuristic Technology (INCOFT 2025) - Volume 3, pages 377-386

ISBN: 978-989-758-763-4

377

flexible robotics, and implantable medical devices.

(Yang, et al. , 2020), (Wang, et al. , 2020). Flexible

memristors enable edge computing, enhancing

computing efficiency, reducing energy consumption,

and mitigating transmission delays (Chua, et al. ,

2020), (Strukov, et al. , 2020).Flexible memristors

exhibit numerous benefits, including power

efficiency, scalability, adaptability, high computing

capacity, and low power consumption (Kim, et al. ,

2020), (Yang, et al. , 2020). Despite progress,

challenges persist in materials innovation, scalable

fabrication techniques, and device integration and

packaging(Wang, et al. , 2020), (Chua, et al. , 2020).

Addressing these challenges will unlock the potential

of flexible Memristor in advanced computing and

sensing applications (Strukov, et al. , 2020), (Kim, et

al. , 2020).

The integration of flexible Memristor into

wearable electronics enables real-time processing,

ultra-fast data transmission rates, and high reliability

(Yang, et al. , 2020). This integration of technologies

holds significant potential across multiple domains,

such as healthcare, medical devices, robotics, and

human-machine interactions. As research continues

to advance, flexible memristors are poised to

revolutionize next-generation computing and sensing

systems. The future of flexible memristors holds

immense promise, with potential applications in

artificial intelligence, IoT devices, and neural

networks. However, realizing this potential requires

overcoming the challenges of materials innovation,

scalable fabrication, and device integration. As the

field continues to evolve, flexible memristors will

play an increasingly vital role in shaping the future of

computing and sensing technologies (Yang, et al. ,

2020).

2. MATERIALS & MECHANISM

Flexible memristors are typically integrated by

constructing crossbar arrays on diverse flexible

substrates. This design involves the perpendicular

arrangement of top and bottom electrodes, with a

functional layer positioned between them, creating

individual memristor units at each intersection.

Common electrode materials for these devices

include metals like silver, copper, nickel, platinum,

gold, and titanium nitride. Additionally, indium tin

oxide stands out as an effective electrode choice for

applications demanding optical transparency,

especially when implemented on flexible substrates.

The functional layer materials employed in

flexible memristors vary significantly, depending on

the underlying operating mechanisms. Transition

metal oxides, chalcogenide materials, organic

materials, and 2D materials are among the diverse

materials used, enabling distinct memristive

behaviors tailored to specific applications. By

carefully selecting electrode and functional layer

materials, researchers can optimize flexible

memristor performance for various applications,

including wearable electronics, artificial skin, and

soft robotics. This flexibility in material selection and

design enables the development of flexible

memristors with enhanced performance, paving the

way for innovative applications in emerging

technologies. Graphical abstract of the materials,

structural design, performance and applications are

showed in the figure 1: Memristor and mechanism

with applications are showed in Figure 2.

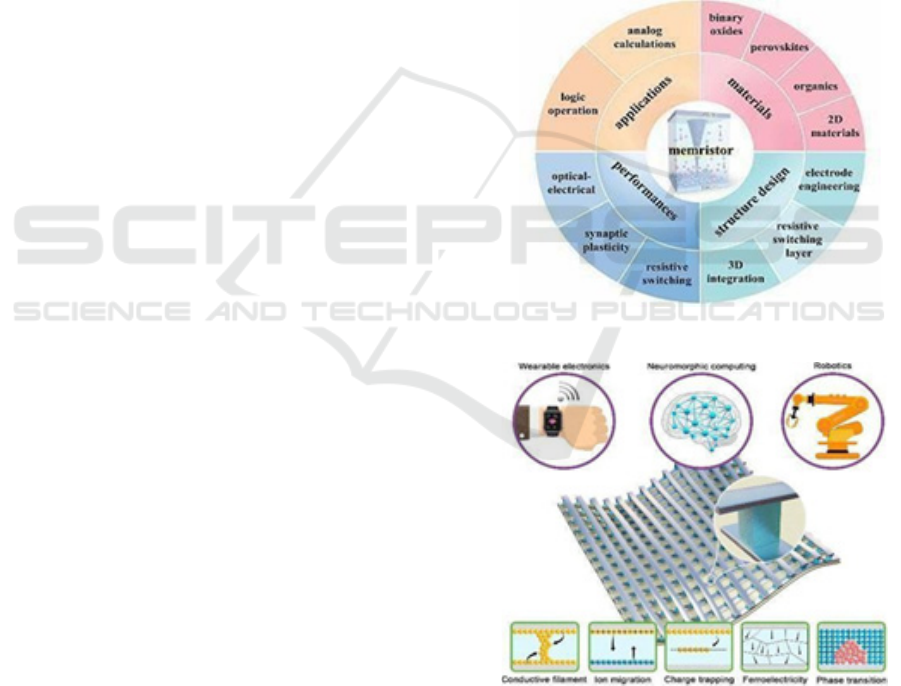

Figure 1: Memristor and overview

Figure 2: Flexible electronics mechanism & Applications

2.1 Resistance Switching Mechanisms

in Flexible Memristors

Flexible memristors exhibit resistance switching

mechanisms analogous to conventional memristors,

INCOFT 2025 - International Conference on Futuristic Technology

378

categorizable into five primary types: conductive

filament (Wang et al., 2021), ion migration (Chua,

1971), charge trapping (Strukov et al., 2008), Ferro

electricity (Yang et al., 2019), and phase transition

(Wang et al., 2019) (Fig. 1). Electrical signals

predominantly trigger resistance switching (Chua et

al., 2020), Light- activated memristors have also been

documented (Kim et al., 2020; Yang et al., 2020;

Wang et al., 2020; Chua et al., 2019), opening up

possibilities in various sectors of optoelectronic

computational and sensing applications. Materials

used for various Mechanisms & Device Performance

Table 1 provides an overview of recently developed

flexible memristors (Strukov et al., 2020; Kim et al.

2020; Yang et al., 2020; Wang et al., 2020; Chua et

al., 2020). The majority of these devices are digital

memristors featuring binary resistance states

(Strukov et al., 2020), making them ideal for data

storage and Boolean logic operations. Nonetheless,

flexible memristors with multilevel and analog

resistance states have also been introduced (Kim et

al., 2020; Yang et al., 2020; Wang et al., 2020),

showing promise for use in xeromorphic computing

systems.

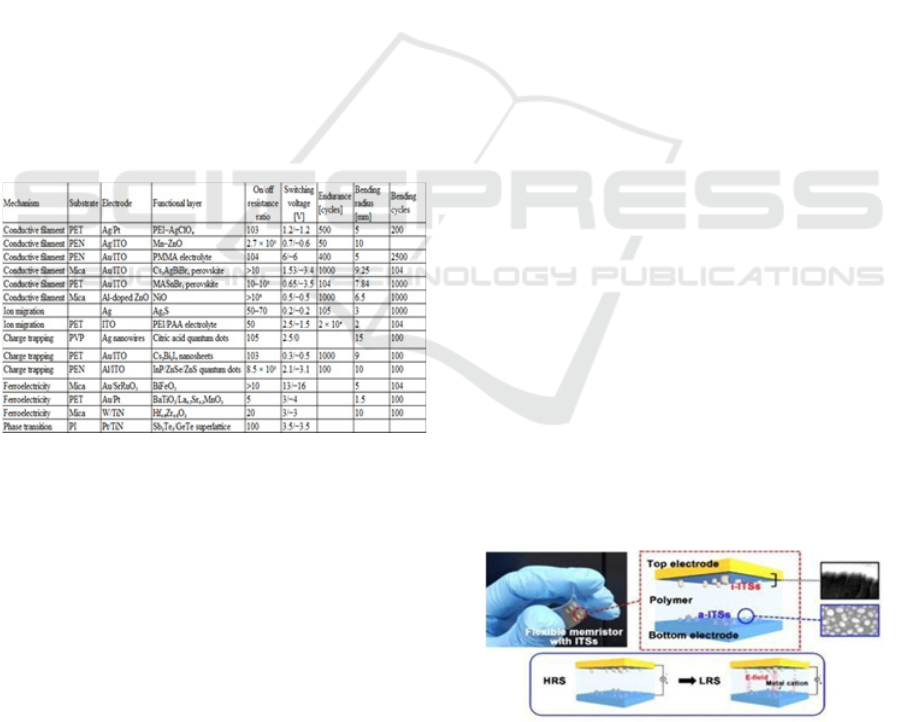

Table 1: Mechanisms, materials, and performance.

2.2 Switching Behaviors: Unipolar and

Bipolar

Memristors demonstrate two main types of switching

behavior: unipolar and bipolar. Unipolar switching,

influenced by the thermal impact and variation in

ions. (Chua et al., 2020), is not affected by the polarity

of the applied voltage. These devices are well-suited

for applications that require simple binary switching

for data storage, binary computing (Strukov et al.,

2020).

On the other hand, bipolar memristors has a

feature of changing the resistance or variation that

depends on the voltage polarity. (Kim et al., 2020). A

positive voltage can switch the device to a low

resistance state (LRS), while a negative voltage may

return it to a high resistance state (HRS), (Yang et

al.,2020). Mechanism of sensitive to the electric field

is depends on bipolar switching (Yang et al.,2020),

this making these devices particularly suitable for

neuromorphic computing and programmable logic

applications. Conductive Filament-Based Resistance

Switching in Flexible Memristors Resistance

switching driven by conductive filament formation is

a common mechanism in flexible memristors. This

process creates a conductive path within the

functional layer when a voltage bias is applied.

Electrochemical metallization is a typical method for

filament formation, where active metals such as

silver, copper, and nickel function as anodes, while

noble metals like platinum, gold, titanium nitride, and

indium tin oxide serve as cathodes. The filament

formation begins with the application of a positive

voltage that starts oxide reaction at anode interface.

Under the electric field presence, metal ions are

released and move toward the cathode.

Where they are reduced by electrons or anions.

These reduced metal ions accumulate and form

conductive filaments between the electrodes, causing

the memristor to switch from a high resistance state

(HRS) to a low resistance state (LRS). Conversely,

applying a negative voltage causes the filament to

break through a reverse reaction, returning the

memristor to the HRS.

A variety of materials can serve as the functional

layer for filament formation in memristors, including

metal oxides, polymers, and 2D materials. The

valence change process, which can trigger filament

formation, is commonly observed in metal oxides like

hafnium oxide, tantalum oxide, and zinc oxide. This

phenomenon is also seen in perovskites and 2D

materials, where filament formation can be induced

by light. The filamentary memristor mechanism

results in digital behaviour, characterized by abrupt

resistance changes. Once formed, the filaments

generally exhibit strong stability at room temperature,

along with high retention and durability, as shown in

Figure 3.

Figure 3: Structural mechanism of Materials

However, achieving multilevel and analog-type

devices remains challenging due to difficulties in

Next-Generation Flexible Memristor Devices for Sensing and Computing, Storage Applications

379

manipulating filament growth and rupture. Moreover,

stochastic filament formation can compromise device

uniformity and stability. Further research is needed to

address these challenges and optimize the

performance of conductive filament-based flexible

memristors.

2.3 Ion Migration Based Flexible

Electronics

Ion migration-based memristors have garnered

attention for their potential to surpass filamentary

memristors in terms of switching speed, energy

efficiency, and reliability. By eliminating the need for

conductive filament formation, these devices reduce

variability across cycles and individual units. The

switching mechanism in ion migration-based

memristors involves redox reactions at the electrode

interface, which helps maintain consistent

performance by promoting a uniform distribution of

ions. While this technology shows great promise, the

underlying mechanisms are not yet fully understood

and require further study. Notable progress has been

made, such as the development of a fully inorganic

flexible memristor with an Ag/Ag2S/HfO2/Ag

layered structure, which demonstrated a significant

reduction in energy consumption compared to

filamentary devices. Additionally, a bilayer flexible

memristor utilizing poly(acrylic acid) (PAA) and

polyethyleneimine (PEI) polyelectrolytes has been

developed, with resistance switching driven by the

formation and dissolution of an ionic double layer at

the PAA/PEI interface under varying voltage biases

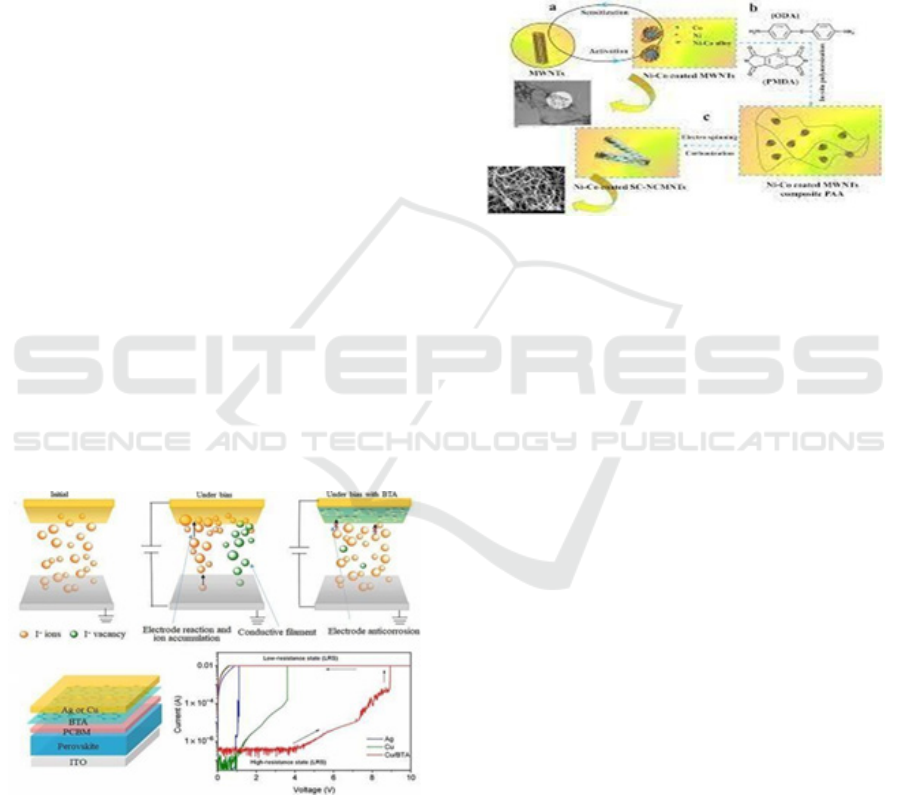

Figure 4: Perovskite-based RRAM devices

During the setting process, polyanion ions

migrated toward the electrode surface, while cations

from the PEI chain moved into the PAA layer. This

movement caused the collapse of the ionic double

layer, leading to a transition of the RRAM device to

a low resistance state, as illustrated in Figure 4.

2.4 Charge Trapping Mechanism Based

Flexible Electronics

Flexible memristors has a charge-trapping mechanism

that is frequently observed in nanostructured materials

that contain numerous defects acting as charge-

trapping sites. At first, these trapping sites are

unoccupied, corresponding to the memristor's high

resistance state (HRS). The Ohmic conduction is the

process, with thermally generated free carriers serving

as the main charge carriers, as illustrated in Figure 5

Figure 5 : Charge Trapping Mechanism

As the applied positive voltage bias increases,

electrons or vacancies are injected into the trapping

centers. Gradually, the number of injected charge

carriers surpasses the thermally generated ones,

causing the space-charge-limited current (SCLC) to

become the dominant mechanism for charge

injection. Once all traps are filled, charge carriers can

move freely through the functional layer, switching

the memristor to a low resistance state (LRS).

Applying a negative voltage bias reverses this

process, emptying the trapping centers and returning

the memristor to its high resistance state (HRS). The

charge trapping mechanism often works in tandem

with the conductive filament mechanism, as SCLC

helps facilitate ion migration and filament formation.

This interaction allows for the creation of memristors

with distinct properties. The charge-trapping

mechanism is also relevant for light-driven

memristors, where an electric field across the

electrodes generates electron-hole pairs in the

functional layer when exposed to light. In some

heterojunction-based memristors, the light- induced

migration and trapping of charge carriers can alter the

energy band alignment, offering an alternative

method for resistance switching. Since the device

resistance is controlled by the concentration of

trapped charge carriers and can be precisely adjusted,

it becomes easier to achieve multilevel and analog-

type memristors compared to those based on

conductive filament mechanisms.

INCOFT 2025 - International Conference on Futuristic Technology

380

2.5 Ferroelectricity Based Flexible

Electronics

Ferroelectric materials, initially used in ferroelectric

random-access memory, have emerged as promising

candidates for flexible memristors due to their

exceptional stability, fast switching speeds, and low

power consumption. The resistance-switching

behaviour of these memristors is closely tied to the

electric polarization of the ferroelectric material,

which is influenced by the applied electric field.

These materials naturally exhibit spontaneous

polarization even without an external field. As the

applied field increases, the polarization grows

nonlinearly until saturation is reached. When the field

is removed, some polarization remains. Reversing the

field direction changes the polarization, leading to a

negative saturation. The polarization behavior of

ferroelectric materials is influenced not only by the

present electric field but also by its previous states,

creating a hysteresis loop that enables memory

functionality, as shown in Figure 4 for in-memory

computing.

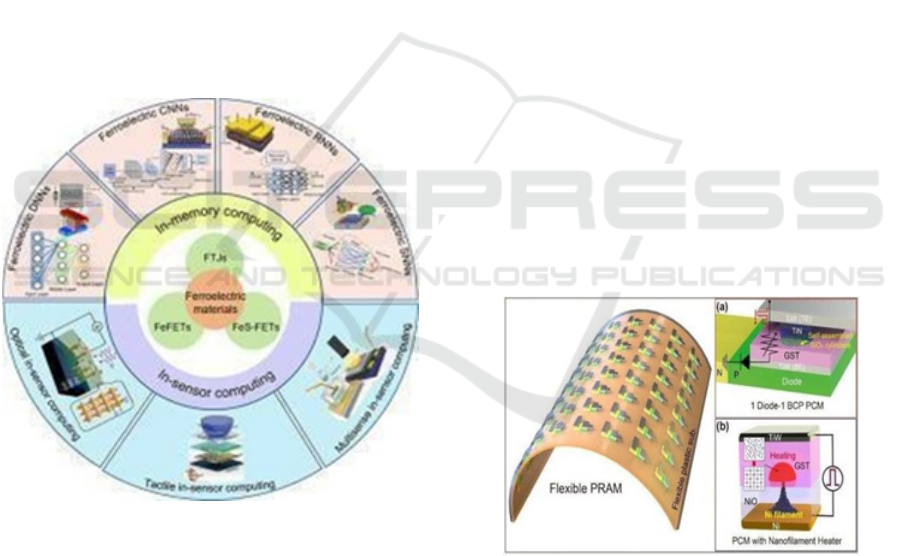

Figure 6: Ferroelectric materials for in memory computing

The polarization-switching process in ferroelectric

materials involves the reorganization of ferroelectric

domains through mechanisms like domain

nucleation, domain wall movement, and domain

switching. In thin ferroelectric layers placed between

two electrodes, electron tunnelling can induce

polarization switching, a phenomenon central to the

functioning of ferroelectric tunnel junctions. This

mechanism enables faster switching speeds and lower

energy consumption. Ferroelectric memristors

outperform filament- based memristors due to the

precise control of electric polarization.

The dynamic changes in ferroelectric domains allow

for multilevel and continuous resistance modulation

between the low resistance state (LRS) and high

resistance state (HRS). Additionally, ferroelectric

memristors offer high switching speeds, low power

consumption, and excellent scalability for

integration. However, the rigidity of many

ferroelectric materials presents a challenge for

achieving flexibility. Researchers have investigated

flexible ferroelectric materials, such as BiFeO3,

BaTiO3, and Hf0.5Zr0.5O2, but further research is

needed to identify additional flexible ferroelectric

materials.

2.6 Phase transition based Flexible

electronics

Phase transition memristors have become a well-

established memory technology, offering significant

advantages over filamentary memristors in terms of

speed, stability, consistency, and durability. Their

resistance-switching mechanism is based on the

partial crystallization and amorphization of phase-

change materials. When a high current is applied, the

device switches to a high resistance state (HRS) by

partially melting and rapidly cooling the phase-

change material, which results in an amorphous

structure. In contrast, applying a lower current causes

nucleation and crystallization within the amorphous

region, returning the device to a low resistance state

(LRS). The switching speed is strongly influenced by

the rate of crystallization.

Figure 7: Phase transition memristors & its functions

For instance, Khan et al. developed a flexible

phase-change memory device using a low-

temperature fabrication technique, which involved

integrating a super lattice phase- change material onto

a flexible polyimide (PI) substrate. This device

showcased the ability for multilevel resistance

switching and achieved a notably low reset current

density. Two fabrication methods have been

explored: direct sputtering of phase-change materials

onto flexible substrates at low temperatures, and a

Next-Generation Flexible Memristor Devices for Sensing and Computing, Storage Applications

381

physical lift-off process, where the phase-change

material is initially deposited on a rigid substrate and

later transferred to a flexible one. Recent studies have

focused on overcoming the challenges faced by phase

transition memristors. Researchers have examined

alternative materials and novel fabrication

approaches to improve device performance and

expand their applicability in flexible electronics.

Further investigation into phase transition memristors

is vital to fully realize their potential in flexible

applications. The functionalities and mechanisms of

phase transition memristors are shown in Figure 7.

2.7 Materials Used in Flexible

Electronics

2.7.1 Flexible Substrate

Flexible substrates are critical for ensuring the

mechanical flexibility, user comfort, and essential

functionalities of wearable electronics. Serving as a

protective interface between the human body and

electronic devices, they safeguard both the devices

and interconnects from mechanical stress and

environmental factors. When selecting substrates, it

is crucial to assess attributes such as dielectric

properties, thermal and chemical stability, surface

smoothness, interface adhesion.

Table 2: Comparative analysis of different mechanism

Mechanism Switch

ing

Spee

Endura

nce

Power

Consum

tion

Scalabi

lity

Flexibi

lity

Conductiv e

Filament-

Based

Fast

(ns-μs)

High

(>10^6)

Low

(μW)

Good

Excelle

Ion

Migration-

Based

Mediu

(μs-

ms)

Mediu m

(10^3-

10^6)

Medium

(mW)

Fair

Good

Charge

Trapping-

Base

Slow

(ms-s)

Low

(<10^3)

High

(mW)

Poor Fair

Ferroelectr

icity-

Base

Fast

(ns-μs)

High

(>10^6)

Low

(μW)

Good Excellent

Phase

Transition-

Based

Mediu

(μs-

ms)

Mediu m

(10^3-

10^6)

Medium

(mW)

Fair

Good

2.7.2 Polymer Substrates

Polymeric substrates have attracted considerable

interest for their exceptional mechanical flexibility,

versatility, lightweight nature, and cost-effectiveness.

Commonly used polymer substrates in flexible

memristor applications include polyethylene

terephthalate (PET), polyethylene naphthalate (PEN),

polydimethylsiloxane (PDMS), and polyimide (PI).

Each of these materials offers distinct benefits,

including superior stability, low gas permeability, and

high optical transparency, making them ideal for a

wide range of flexible electronic applications.

2.7.3 Inorganic Substrates

Muscovite mica has emerged as a highly valued

inorganic substrate for flexible electronics due to its

atomically smooth surface and outstanding thermal

stability, which enable the fabrication of a wide range

of materials. The absence of dangling bonds on the

mica surface minimizes issues related to lattice and

thermal mismatches, enhancing its suitability for

advanced electronic application.

2.7.3 Porous Substrates

Porous substrates, encompassing both fiber-based

and non- fiber-based types, offer considerable

potential for flexible electronics. These materials are

distinguished by their low density, expansive specific

surface area, remarkable deformability, high

durability, and enhanced chemical reactivity. The

extensive interfacial area and numerous bonding sites

in porous substrates bolster interfacial adhesion,

thereby improving the overall performance and

reliability of the devices.

2.7.4 Fiber-Based Memristors

Ground-breaking integration method for flexible

memristors has been introduced that eliminates the

need for flexible substrates. Fiber-based memristors

are engineered as woven textiles featuring integrated

crossbar structures. This innovative design

streamlines the manufacturing process, lowers

production costs, and offers superior breathability and

flexibility. These textiles can be seamlessly

incorporated with other wearable electronics,

facilitating the development of multifunctional smart

textile systems.

2.8 Functional Layers for Memristors

The performance of memristors is strongly

determined by the functional layer, with critical

factors such as the switching mechanism, material

selection, and layer thickness playing pivotal roles.

While minimizing the layer thickness and device size

INCOFT 2025 - International Conference on Futuristic Technology

382

can enhance switching speed and reduce switching

voltage, it may also result in decreased switching

endurance, higher static power consumption, and

increased variability in device performance.

2.8.1 Organic Materials

Organic materials are ideal for flexible memristors

due to their intrinsic mechanical flexibility, ease of

fabrication, and cost- effectiveness. These materials

are commonly employed in memristors that operate

based on conductive filament and ion migration

mechanisms. For optimal filament formation and a

high resistance switching ratio, organic functional

layers must exhibit excellent ion conductivity and

dielectric properties. However, their sensitivity to

environmental factors such as humidity and oxygen

can alter the material composition, potentially

compromising the device's durability.

2.8.2 Metal Oxides

Metal oxides were among the earliest materials

employed in filamentary memristors that function

based on the migration of cations or anions. As

functional layers, they provide high stability, low

operating energy, scalability in cell size, and excellent

compatibility with CMOS technology. Transition-

metal oxides, including ZnO, TaOx, HfOx, TiO2,

SnO2, and Al2O3, have been extensively researched.

These materials can be fabricated using

straightforward, cost-effective techniques such as

radiofrequency magnetron sputtering, sol-gel

processes, and hydrothermal methods.

2.8.3 Perovskites

Halide perovskites have gained considerable

attention in the field of memristor applications due to

their remarkable ion conductivity, tunable bandgap,

and cost-effective fabrication methods. These

materials are

Figure 8: Properties of different types of substrates used in

Flexible memristors

Widely utilized in charge trapping and filamentary

memristors. Perovskites can be synthesized using

low-cost, solution-based techniques, making them

ideal for large-scale production and scalable for

flexible memristor devices. Furthermore, 2D

materials such as graphene, MXene, 2D perovskites,

and transition metal dichalcogenides (TMDs) have

emerged as promising candidates for improving

device performance. These materials are known for

their superior conductivity, high carrier mobility,

robust mechanical properties, stability, and tunable

features, offering potential for enhanced device

stability, extended lifespan, and reduced energy

consumption.

2.8.4 Quantum Dot Mechanism

Quantum dots are semiconductor nanocrystals that

exhibit unique optical and electronic properties owing

to their diminutive size. They provide an impressive

on/off resistance ratio, fast switching speeds, and low

switching power, making them ideal for energy-

efficient applications. These quantum dots can be

synthesized using affordable, solution-based methods

that function at room temperature and under ambient

pressure, offering a cost-effective approach to

production.

Table 3: Comparive analysis of Functional based models

Functional

Layer

Applications

Advantages

Organic

Materials

OLED

displays, organic

hotovoltaic, flexible

electronics

Low cost, high

flexibility, easy

processing

Metal

Oxides

Transparent

electrodes, thin- film

transistors, gas

sensors

High transparency,

high conductivity,

chemical stability

Perovskites

Solar cells, LEDs,

lasers

High power conversion

efficiency, high

luminescence

efficiency, low cost

Materials

Electronics,

optoelectronics,

energy storage

High carrier mobility,

high thermal

conductivity, high

mechanical stren

Quantum

Dots

Displays, lighting, bio

imaging

High color purity, high

luminescence,

efficiency,

h stabilit

Flexible electronics, such as flexible memristors,

have transformed how devices interact with the

human body, delivering a seamless and comfortable

Next-Generation Flexible Memristor Devices for Sensing and Computing, Storage Applications

383

experience. Their exceptional flexibility and ability to

conform to various shapes help minimize motion

artifacts and mechanical mismatches, improving data

quality. By integrating flexible memristors with other

flexible components, it is possible to create

multifunctional devices that offer outstanding

computing performance and energy efficiency. These

innovations find applications in smart textiles,

healthcare devices, soft robotics, and human-machine

interfaces.

3 DESIGN AND MODELLING OF

MEMRISTORS BASED ON

APPLICATIONS

Memristor bases Inverter designs:

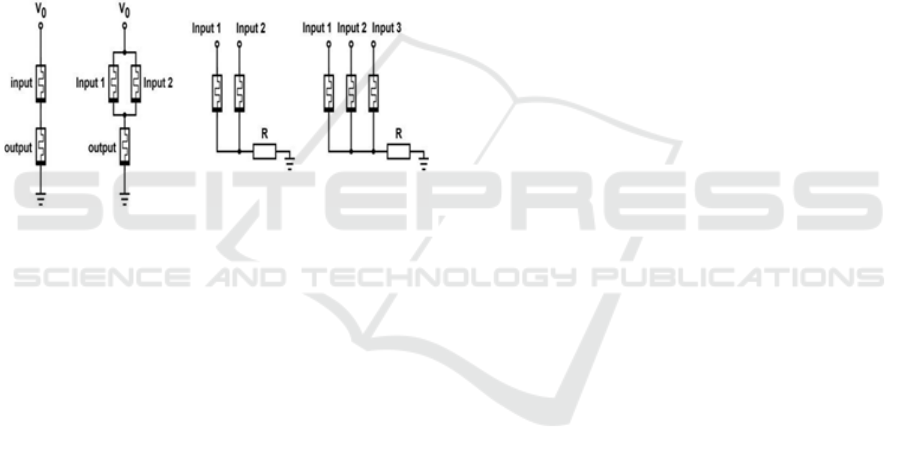

Figure 9: Basic design of memristor for the different logic

gates Memristor-Based Neuromorphic computing Systems:

Memristor-based neuromorphic computing

systems are revolutionizing artificial intelligence by

drawing inspiration from the synaptic plasticity of the

human brain, with the aim of replicating its efficiency

and adaptability in processing information.

Memristors, also known as memory resistors, are

two-terminal devices that establish a relationship

between charge and flux linkage. To emulate synaptic

plasticity, memristors must exhibit key attributes

such as multilevel and analog resistance states,

Memristors offer a high on/off resistance ratio,

excellent linearity, I-V symmetry, and low power

consumption, making them ideal for use in logic

circuits within in-memory computing systems. These

characteristics enable the development of advanced

computational architectures. Researchers have

already demonstrated the potential of memristor-

based logic circuits by creating fundamental logic

gates, including NOT, NOR, FALSE, material

implication (IMP), and NAND.

Neuromorphic computing, which emulates the

structure of the human brain, represents a promising

approach for efficiently processing large volumes of

data with minimal power consumption. Memristors

are particularly well-suited for neuromorphic

systems, as they can simulate synaptic weights and be

modulated by input signals. Advances in memristor-

based neuromorphic computing hold the potential to

revolutionize artificial intelligence and machine

learning. By mimicking synaptic plasticity and

enabling parallel processing, these systems offer a

more efficient and adaptive computational model. As

research progresses, future developments will likely

focus on scaling up memristor- based systems,

improving their properties, and exploring new

materials and technologies.

Revolutionizing Sensing Systems with Flexible

Memristors

The advent of flexible memristors has catalyzed

significant advancements in sensing systems. When

integrated with various sensors and electronic

components, these systems offer immense potential

for applications across wearable electronics. Flexible

memristors are pivotal in the development of artificial

systems designed to replicate human sensory

functions such as touch, vision, and smell. For

instance, artificial skin systems that combine pressure

sensor arrays with flexible memristor arrays can

detect tactile sensations and process data in real time,

effectively simulating the human sense of touch.

Advancements in Sensing Systems: The

integration of flexible memristors with sensors and

electronic components has resulted in substantial

progress in sensing technologies. These advanced

systems are capable of processing visual, auditory,

and olfactory data in real-time, closely emulating

human sensory perception. This innovation has

profound implications for applications in

environmental monitoring, healthcare, and robotics.

Key Advantages of Flexible Memristors: Flexible

memristors offer a range of advantages, including

enhanced flexibility, low power consumption, high

sensitivity, and real-time data processing capabilities.

Their seamless integration with sensors and

electronic components enhances their versatility,

making them suitable for a broad spectrum of

applications.

Future Outlook: The future of flexible memristors

in sensing technologies appears exceptionally

promising. Ongoing research is focused on

identifying new materials and advancing

technologies to enhance the performance and

efficiency of these devices. Moreover, researchers are

exploring innovative applications in fields such as

artificial intelligence and machine learning. Impact

on Industries: The integration of flexible memristors

into sensing systems has the potential to revolutionize

INCOFT 2025 - International Conference on Futuristic Technology

384

industries such as healthcare, robotics, and

environmental monitoring. By enabling real- time

data collection and processing, these memristors can

significantly improve the accuracy and efficiency of

sensing systems, ultimately leading to better decision-

making and enhanced outcomes.

4 CONCLUSION

The advent of flexible memristors has opened new

avenues for significant advancements in sensing

systems, with the potential to revolutionize industries

such as wearable electronics, healthcare, robotics, and

human-machine interfaces. A key attribute of flexible

memristors is their ability to conform to non-planar

surfaces, enabling the development of flexible,

wearable sensing systems that can be seamlessly

integrated into a wide array of devices. Furthermore,

their low power consumption makes them ideal for

battery-operated applications.

In wearable electronics, flexible memristors hold

the promise of transforming health monitoring by

facilitating the detection of vital signs of human body.

This capability allows individuals to actively manage

their health and wellness while making informed

lifestyle choices.

In healthcare, flexible memristor-based sensors

enable real-time monitoring of patient conditions,

such as tracking biomarkers like blood glucose levels.

These devices can provide valuable, personalized

feedback to healthcare professionals, enhancing

patient care and improving clinical outcomes.

In robotics, the integration of flexible memristors

can enhance a robot’s ability to autonomously sense

and respond to its environment. This advancement

could lead to more intelligent robots capable of

interacting with their surroundings in real-time.

Looking to the future, the potential of flexible

memristors remains bright, with ongoing research

focused on discovering new materials and enhancing

their performance. As technology progresses, further

innovative applications are expected, bringing

transformative improvements to various sectors.

In conclusion, the emergence of flexible

memristors marks a significant breakthrough in the

development of advanced sensing systems. With their

unique attributes, these devices are poised to make a

lasting impact across multiple industries, enhancing

both functionality and efficiency in a wide range of

applications.

5 FUTURE DIRECTIONS

The future of flexible memristors holds immense

promise, with a wealth of untapped research

opportunities awaiting exploration. A primary focus

of ongoing research is the development of novel

materials that can elevate the performance of flexible

memristors. This includes the creation of materials

offering enhanced sensitivity, reduced power

consumption, and improved durability. For flexible

memristor technology to transition from research to

commercialization, scalable manufacturing processes

must be established to produce high-quality devices

with consistent properties. Such advancements would

facilitate mass production, making flexible

memristors more accessible and affordable for a wide

array of applications.

Another critical avenue of research involves

device integration and packaging. To fully exploit the

potential of flexible memristors, new methods are

needed to integrate them seamlessly with other

electronic components. This includes the design of

compact, flexible enclosures that protect the devices

from environmental stress while preserving their

functionality.

A particularly exciting research direction is the

application of flexible memristors in AIML domain.

By leveraging the unique properties of flexible

memristors, researchers can develop innovative

solutions for neuromorphic computing, deep

learning, and other AI-related domains.

The potential of flexible memristors in wearable

electronics and healthcare is also considerable.

Developing flexible, memristor-based sensing

systems for health monitoring could provide

transformative solutions for enhancing personal well-

being. These sensors could monitor vital signs, detect

diseases, and offer real-time, personalized feedback.

To unlock the full potential of flexible

memristors, it is imperative to address the challenges

associated with their development and integration.

This includes enhancing their performance,

reliability, and scalability, while simultaneously

pioneering novel applications that capitalize on their

unique features.

Through continued exploration of these research

directions and by overcoming existing obstacles,

ground-breaking solutions can be developed that will

revolutionize industries and elevate the quality of life.

The future of flexible memristors is undoubtedly

bright, and the impact they will have in the years to

come will be both transformative and exciting.

In conclusion, the future of flexible memristors

holds vast promise. By advancing material science,

Next-Generation Flexible Memristor Devices for Sensing and Computing, Storage Applications

385

fabrication techniques, and packaging solutions, we

can unlock their full potential and create innovative

applications that will reshape industries and improve

human lives.

REFERENCES

Wang et al., 2021."Artificial intelligence and IoT: A

review," Journal of Intelligent Information Systems.

Chua, 1971."Memristor The missing circuit element," IEEE

Transactions on Circuit Theory,

Strukov et al., 2008."The missing memristor found,"

Nature,

Yang et al., 2019."Memristive devices for computing and

sensing," Nature Electronics,

Wang et al., 2019. "Memristor-based neural networks for

computing and sensing," IEEE Transactions on Neural

Networks and Learning Systems,

Chua et al., 2020 "Memristor-based synaptic devices for

neuromorphic computing," IEEE Transactions on

Electron Devices,

Kim et al., 2020. "Flexible memristors for wearable

electronics," Advanced Materials,

Yang et al., 2020."Memristive devices for edge

computing," IEEE Transactions on Emerging Topics in

Computing.

Wang et al., 2020. "Low-power memristor-based neural

networks," IEEE Journal on Emerging and Selected

Topics in Circuits and Systems,

Chua et al., 2019."Handbook of Memristor Networks,"

Springer.

Strukov et al., 2020. "Memristor-based analog-to-digital

conversion," IEEE Transactions on Circuits and

Systems.

Kim et al. 2020. "Memristor-based synaptic plasticity,"

IEEE Transactions on Neural Networks and Learning

Systems.

Yang et al., 2020 "Flexible memristor-based sensors,"

Sensors and Actuators. IEEE Transactions on

Biomedical Circuits and Systems.

Wang et al., 2020."Wearable electronics based on flexible

memristors" IEEE Transactions on Biomedical Circuits

and Systems.

Chua et al., 2020."Memristor-based logic gates," IEEE

Transactions on Very Large Scale Integration (VLSI)

Systems.

Strukov et al., 2020. "Memristor-based neuromorphic

computing," Springer Nature Communications.

Kim et al., 2020. "Memristor-based analog computing,"

IEEE Transactions on Emerging Topics in Computing,

Yang et al., 2020."Flexible memristor-based memory,"

IEEE Transactions on Electron Devices.

Wang et al., 2020."Memristor-based neural n etworks for

image processing," IEEE Transactions on Image

Processing.

Chua et al., 2020. "Memristor-based chaotic systems,"

IEEE Transactions on Circuits and Systems".

Strukov et al., 2020. "Memristor-based non-volatile

memory, " IEEE Transactions on Electron Devices,

Kim et al., 2020. "Flexible memristor-based sensors for

biomedical applications," IEEE Transactions on

Biomedical Engineering.

Yang et al.,2020 "Memristor-based neural networks for

natural language processing" IEEE/ACM Transactions

on Audio, Speech, and Language Processing,

INCOFT 2025 - International Conference on Futuristic Technology

386
