Adaptive Power Management Techniques in Multi Core VLSI

Systems for Enhanced Energy Efficiency

Karthikeyan M, Aravinth P and Heiner A J

Department of Electronics and Communication Engineering, Saveetha Engineering College, Chennai, India

Keywords: Core-Level Power Gating, Adaptive Power Management, Heat Dissipation, Multi-Core VLSI Systems,

Energy Efficiency.

Abstract: The paper proposes an adaptive power management system for multi-core VLSI designs that can optimize

energy utilization and heat dissipation. Traditional static power management strategies, such as voltage

scaling and core gating, do not account for dynamic workloads, resulting in energy holes and thermal stress.

The proposed system overcomes those shortcomings by utilizing workload monitoring in real-time, dynamic

voltage and frequency scaling (DVFS), core-level power gating, and a machine learning-based workload

prediction technique. In the high-performance end, the system outperforms the overall power by 35%.

Furthermore, it achieves decreased thermal dissipation, with maximum temperatures as low as 75 °C

compared to 80-85 °C in state-of-the art systems. The performance comparison results reveal that the proposed

system has near execution speeds under a variety of workloads, indicating its potential for energy-efficient,

scalable VLSIs at the expense of power-constrained applications.

1 INTRODUCTION

In the rapidly changing world of VLSI (Very Large-

Scale Integration) systems, the rapid growth of a

variety of applications on the one hand, and on the

other, the emergence of multi-core architectures with

more cores integrated on a single chip, an efficient

power management system has become a necessity

(Dinakarrao, et al. , 2020). Power and heat are the

most difficult concerns for modern multicore VTLSI

architectures. To illustrate, concrete workloads are

dynamic and unpredictable, rendering static power

management strategies like voltage scaling and core

gating ineffective, resulting in energy waste and

performance degradation (Dinakarrao, et al. , 2020).

Even when the load varies, conventional systems

continue to use power in a static form, resulting in

severe underutilization, increased energy loss,

increased thermal stress, and, ultimately, reduced

system level efficiency (Ranjbar, Singh, et al. , 2023).

These fundamental constraints underscore the need

for more transudative power management systems

that can alter power at runtime in response to

workload demands (Li, et al. , 2024). Inspired by the

design of VLSI systems for mobile and data center

applications that require increased power efficiency

and/or performance. With servers increasingly

relying on multi-core processors, it is critical that

power be distributed precisely (Li, Tian, et al. , 2020).

A real-time monitoring system, dynamic task

allocation, and DVFS can help achieve the goal of

balancing performance and energy usage 14.

Furthermore, the sector has maintained its emphasis

on sustainability and cost-effectiveness, which

necessitates that developers reduce heat generation

and eliminate the need for ambient air-cooling

systems (Kim, Kim, et al. , 2020).

However, such

static solutions have limitations in meeting these

objectives, highlighting the need for adaptive,

responsive systems that can capture the challenges of

modern computational and software environments

(Ansari, Salehi, et al. , 2020). Illustrated View of

Proposed Model is show in Figure 1.

Figure 1: Illustrated View of Proposed Model

692

M, K., P, A. and A J, H.

Adaptive Power Management Techniques in Multi Core VLSI Systems for Enhanced Energy Efﬁciency.

DOI: 10.5220/0013583800004664

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 3rd International Conference on Futuristic Technology (INCOFT 2025) - Volume 1, pages 692-700

ISBN: 978-989-758-763-4

The paper primarily contributes an adaptive

power management technique for multi-core VLSI

systems, which addresses the limits of the most basic

static power management strategies. Provides a

system capable of dynamic voltage-frequency scaling

and core-level power gating. It combines real-time

workload monitoring and machine learning-based

prediction techniques to improve power and thermal

efficiency without losing performance. The

automatically adjusts the power management settings

to reduce unnecessary energy loss while also

reducing thermal stress lowering overall energy use

depending on both cumulative energy efficiency and

present job requirements. Furthermore, the system

has a feedback nature, in which the proposed model

acts for the power distribution model and changes the

distribution based on various information about the

system's state, and in turn, the model constantly

adapts itself when the system's condition changes

abruptly and compensates for any unknown changes

in the workload. These combine hardware techniques

such as DVFS and core-level power gating with

software workload prediction using the adaptive

power management subsystem. In addition to

coarser-level power tuning, the technique uses

machine learning to detect workload trends and adjust

power accordingly, even before the workload

changes. It has proved that the proposed system can

achieve an exceptional level of energy efficiency

while consuming the least amount of power while still

providing good performance and a substantial

temperature decrease compared to competing

systems. The proposed architecture's system scale

allows it to be employed in a variety of VLSI

structures, making it suitable for a wide range of

applications, from low-power mobile devices to high-

end computing machines. The remainder of the paper

is organized as follows: Section II analyses recent

work on power management for multi-core VLSI

systems and discusses the shortcomings of current

approaches. Section III describes the design and

implementation of the proposed adaptive power

management system, including an introduction to the

various blocks and their operation. Section IV

describes the performance evaluation results,

including comparisons of power consumption,

execution time, and heat dissipation between existing

systems. Finally, Section V summarizes the work and

discusses potential possibilities for improving the

operability of the described system.

In summary, an adaptive power management

system for multi-core VLSI architectures is

developed that responds dynamically to these power

and thermal issues in an effective way. By

introducing a new application-aware DVFS with real-

time workload monitoring, machine learning-based

prediction, and dynamic voltage-frequency scaling,

the proposed system outperforms existing models in

terms of energy efficiency, heat generation, and

performance in applications ranging from a mobile

platform to a high-performance computing system.

2 RELATED WORK

M. Ansari et al (Ansari, Salehi, et al. , 2020) explains

in the present piece, that researchers first examine

how much power multicore processors platforms'

task-level redundancies use. Researchers then

provide a unique primary backup strategy for power-

aware sequencing of real-time workloads on core

pairings in systems with multiple cores to address the

peak energy issue.

S. A. K. Gharavi et al(Gharavi, Safari, et al. ,

2024) describes a computer learning-based structure

for continuous energy management along with the

quality of output checking is part of the suggested

system. To optimize efficiency while taking TDP

limitations and the required output quality into

account, it constantly changes the repetition rate and

accuracy of the arithmetic units.

N. Kumar et al (Kumar, Vidyarthi, et al. , 2020)

describes that three factors are taken into account in

the suggested planning model for power optimization

the process of using the DVFS approach at the

program level, identifying and managing workloads

that are both memory and CPU-costly for improved

thermal oversight, and distinguishing varied cores

based on uneven core features for efficient

scheduling. The suggested scheduler's performance is

examined using workload for a few mathematics and

computational issues as well as test data from

multiple CPUs.

A. Thakkar et al (Thakkar, Chaudhari, et al. ,

2020) says that the use of energy has been

acknowledged to be among the elements influencing

the planet as well as a crucial component of the

security and progress of a nation's economy. The

primary implications of cost-effective power

administration strategies have been examined in the

present piece, which also examines the available

literature on pertinent components and talks about the

need to adopt energy-aware computers. To learn the

fundamentals of green calculating, the following

piece can be useful.

G. Narang et al (Narang, Deshwal, et al. , 2023)

tells us to instinctively identify an optimal DPM

choice chain from a vast multimodal domain for

Adaptive Power Management Techniques in Multi Core VLSI Systems for Enhanced Energy Efﬁciency

693

combined energy-thermal minimization of one or

more specified uses, researchers provide a unique

L2S approach. A learning algorithm with supervision

is trained using the optimal DPM outcomes to create

a DPM policy that imitates the appropriate decision-

making behavior.

X. Li et al (Li, Chen, et al. , 2022) explains prior

research that uses reinforced training to co-manage

computers and PDSs can adjust to changing

workloads. Systems nevertheless face problems with

PDS efficiency decline and poor scaling. Researchers

suggest a DQN-based remote control approach for

chipset-based multiple cores computers' power

supply and usage collaboration to address the

aforementioned issues.

A. Aalsaud et al (Aalsaud, Xia, et al. , 2020)

Researchers use MLR to model power-adjusted

efficiency (estimated in instructions per minute

(IPS)/Watt). Researchers construct run-time control

strategies that trade-off optimization outcomes with

management overheads to take advantage of the

models in various ways. In comparison to current

methods, researchers show low-cost, low complexity

the time of execution methods that continually adjust

the system's settings to increase average IPS/Watt by

upwards.

R. Muralidhar et al (Muralidhar, Gajic, et al. ,

2022) describes that in addition to better apps,

methods, platforms, and modeling power/thermals,

numerous research studies have examined various

facets of energy-saving strategies applied in

technology and structure spanning devices, servers,

HPC/cloud, and information center systems. To point

out possible holes and obstacles, provide the most

recent developments in each one of these areas, and

talk about potential applications for the forthcoming

generation of energy-efficient frameworks, the poll

attempts to bring these disciplines together

completely.

A. Zou et al. et al (Zou, et al. , 2020) say that to

enhance the PDE and obtain reliable efficiency while

remaining compatible with cutting-edge energy

management approaches, examined the real-world

use of VS in manycore CPUs in the current piece.

Nous starts by introducing the voltage-stacked

manycore CPU setup of the system. In addition,

investigate how well VS works with more advanced

power control strategies.

J. C. Wright et al. (Wright, et al. , 2020) explain

the present article presents a dual-core RISC-V SoC

with inbuilt fine-grain power regulation. By

predicting future computation intensity through

runtime tracking of microarchitectural indicators, the

voltage status of the controlled core may be swiftly

altered to maximize energy economy without

compromising overall performance.

S. Vangal et al. (Vangal, et al. , 2021) describe

that conventional and developing applications require

a variety of thread-parallel, task-parallel, with data-

parallel workloads to have scaled high-throughput

efficiency, burst-mode adaptability, and low

latencies. Such devices can efficiently and easily

satisfy the computing needs of the years to come.

3 PROPOSED SYSTEM

Static power management techniques, including static

voltage scaling and core voltage gating, are employed

in classic multi-core VLSI systems to reduce power

consumption. These approaches, however, are

typically inefficient since these do not adjust to

changing workloads. In such circumstances, fixed

power configurations remain in one configuration for

an extended period, drawing excess power during

periods of low processing and under-utilization

during periods of high processing, hurting both

energy efficiency and performance. Static systems

also have a significant power loss, which means these

need more cooling, raising the overall cost of

operation. To address all of these restrictions, the

study introduces a power management subsystem that

adaptively redistributes power in multi-core VLSI

designs via online workload characterization and

distribution, followed by hardware DVFS and core-

level power gating. The proposed system differs from

typical systems in that it makes real-time adjustments

depending on the voltage and frequency

characteristics of each core based on performance

needs, resulting in extremely fine-grained switching.

The capacity to adjust to real-time conditions, allows

the system to preserve energy during low-activity

periods while enhancing performance during high-

demand periods at a lesser cost than always operating

at maximum power. To supplement the usual method

of power management in multi-core VLSI

architecture, the proposed system defines some

integral processes. First, it includes a real-time

monitoring module capable of analyzing critical

processes as well as the system's workload

distribution on the chip. The module continuously

checks processing demand, core activity, and power

consumption data. Second, it contains DVFS, which

may dynamically supply power based on the

performance required from each core at the time.

With a decreasing workload intensity, DVFS can

drop voltage and frequency, reducing power

consumption while maintaining acceptable

INCOFT 2025 - International Conference on Futuristic Technology

694

performance. On the other hand, when the circuit

operates under high loads about DVFS, it might

increase frequency and voltage for cores that require

more processing power. In addition, the proposed

model's core-level power gating allows the system to

turn off each core during idle periods, saving

considerably more idle power. An intelligent power

management unit coordinates each of these

procedures and makes intelligent decisions based on

data acquired by the monitoring module about how to

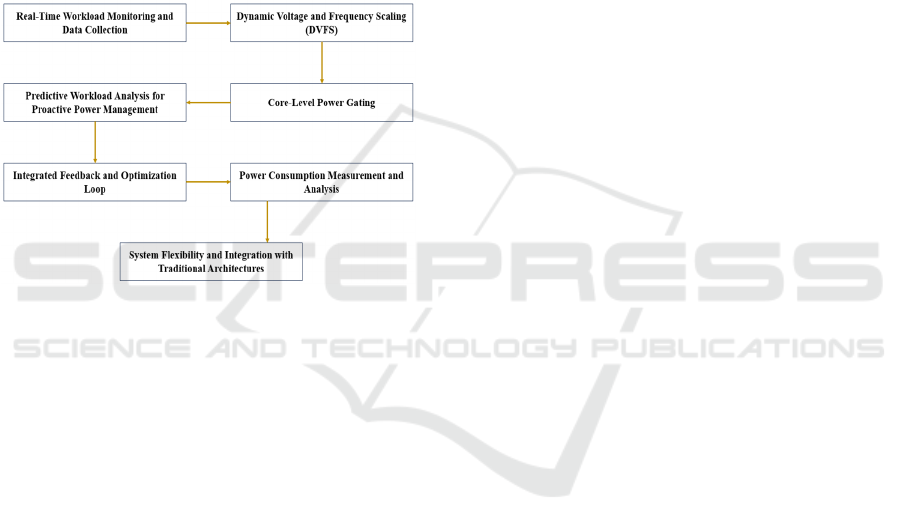

dynamically allocate power between cores. Flow

Chart of Proposed Model is showed in Figure 2.

Figure 2: Flow Chart of Proposed Model

The research proposes a hardware-software co-

design strategy that blends low-level circuit controls

for fine-grained power switches with high-level MIT

algorithms for workload prediction and power

adjustment to construct an adaptive power

management system. The VLSI system also includes

a central power controller that applies power

management protocols to the embedded VLSI system

based on real-time data acquired by monitoring

modules. Using algorithms (possibly augmented by

machine learning) to examine historical workload

data and core workload projections to develop an

anticipatory vs reactive energy distribution strategy.

Furthermore, the solution incorporates a feedback

loop in which the system continuously adjusts its

power distribution model in response to what is

happening in the real world, allowing it to adapt to

unforeseen workload changes. The adaptive power

management system has numerous advantages over

more traditional systems for inflexible power. It

reduces energy waste based on actual processing

needs, resulting in a total power savings of up to 35%

at peak performance, according to preliminary tests.

Second, minimizing power use in less active phases

minimizes heat and thermal stress on the chip,

extending the lifetime of hardware devices and

decreasing the need for extra cooling infrastructure.

Finally, adaptive power management takes a more

top-down approach to power management and

provides flexibility and scalability, making it suitable

for a wide range of applications, from low-power

mobile devices to high-performance computing

workstations. As an added bonus, the proposed

system's basic scalability and power-gating flexibility

will make it suited for low-energy, low-latency

applications like data centers and IoT networks.

In summary, the proposed system is an energy-

efficient and high-performance system that provides

an optimal solution for existing multi-core VLSI

systems and has the potential to serve as a scalable

flexible framework for meeting emerging power

challenges as the nature of computational demand

changes. The proposed design achieves much higher

overall power density while retaining a significant

amount of processing capability by utilizing run-time

workload monitoring, dynamically variable voltages

and frequencies, and selective gating, all of which

make it a serious candidate for the implementation of

next generation VLSI systems in power-limited

environments, as demonstrated by simulation data.

3.1 Real-Time Workload Monitoring

and Data Collection

The proposed system comprises a real-time

monitoring module that tracks critical processes and

workload across the whole VLSI chip. It combines

core activity, processing requirements, and power

consumption statistics to provide an overall

perspective of system performance. For data

management, the K-means clustering technique

divides per-core workload intensities into three

categories: high, medium, and low. The classification

allows the system to allocate appropriate power states

dynamically based on the current energy

consumption requirements. It will choose K-means

since it is one of the quickest algorithms for learning

on large datasets and functioning in real-time in a

production environment without sacrificing speed

when handling heavy workloads. By introducing data

reflecting the real operational status to the VLSI

system, it proposes K-means-based clustering as a

monitoring system, which provides a solid foundation

for adaptively calibrating power management in the

VLSI system to achieve optimal energy efficiency

while maintaining virtually identical performance.

Adaptive Power Management Techniques in Multi Core VLSI Systems for Enhanced Energy Efﬁciency

695

3.2 Dynamic Voltage and Frequency

Scaling (DVFS)

DVFS is the basic technique for changing the voltage

and frequency of individual cores to satisfy short-

term work requirements, which aids in power

conservation in these multi-core systems. The

proposed system employs a PID (Proportional-

Integral-Derivative) controller to fast and smoothly

tune the voltage-frequency combination, while

continuously monitoring the workload scenario to

determine the ideal voltage-frequency coupling. It

allows for rapid adaptations to shifting processing

loads while never surpassing or falling short of

performance requirements. The PID controller

reduces voltage and frequency when processing

demand is low, and increases voltage and frequency

when processing demand is high. Rather, DVFS

dynamically changes the power settings and avoids

unnecessary energy consumption, which contributes

to improving overall power consumption. Because of

the short response time of DVFS, it is an appropriate

method for increasing the energy efficiency of

variable workloads in a set only with a DVFS PID

controller, because energy usage is matched to the

actual processing demand.

3.3 Core-Level Power Gating

In a multi-core VLSI system, core-level power gating

enables a core to enter a low-power or "off" state

when not in use. The model is a decision tree

classifier that predicts whether the core is idle or

active using past usage and the current workload as

input parameters. Decision trees are an excellent

choice for real-time applications due to their fast

processing and minimal computational complexity. It

turns off a core when the system determines that it is

idle to save power. These permits idle power to be

limited to only those cores that are truly dormant,

with no effect on the performance of active cores,

allowing for selective core power gating. Because

core-level power gating only turns off unused cores,

the entire system can benefit from increased energy

efficiency as the system voltage is reduced overall,

resulting in massive power savings and even lower

heat generation, ultimately improving thermal

stability and sustainability of the proposed system.

3.4 Predictive Workload Analysis for

Proactive Power Management

The proposed system uses LSTM neural networks to

predict core activity, allowing for proactive power

management in multi-core VLSI computers. LSTM

networks function well with time-dependent data, and

it may use previous core usage numbers to determine

the workload trend. It allows the proposed system to

forecast future processing needs and adjust power

levels accordingly before an unexpected performance

decline occurs. For instance, the framework can

increase power to essential cores at expected

workload peaks while decreasing power to inactive

cores during anticipated low-demand periods.

Transitions can be made more fluid and efficient by

taking the proactive approach, reducing energy

consumption and heat generation while also

maintaining consistent performance levels. LSTM-

based predictive management minimizes response

times and delays by managing demand before it

changes, maximizing power use, and ensuring core

performance under varied workloads, which is a

major improvement over traditional reactive power

management system.

3.5 Integrated Feedback and

Optimization Loop

A power management system that combines

integrated feedback with an optimization loop that

uses real-time data to continually modify power

settings for peak performance and energy economy.

It is powered by a genetic algorithm that is very

capable of finding the ideal power settings in complex

and multi-core setups. The evolutionary algorithms

employed in such cases are well-suited to such types

of tasks because of the wide configuration space,

which allows for effective searching and helps the

system to locate optimal solutions quickly. Refine the

power specifications. The feedback loop monitors

actual temperatures, determines how much heat

remains in a plant and how much energy needs to be

increased, and uses the data in the algorithm's next

round. Instead of just employing its power, iterative

optimization allows the system to be adaptive at

runtime, more dynamically responsive, and particular

to workload conditions. Instead, it produces an

efficient and performance-focused power

management architecture that extends these energy

and stability benefits across workloads while

incurring minimum thermal and performance costs.

Architecture Flow of Proposed Model is shown in

Figure 3.

INCOFT 2025 - International Conference on Futuristic Technology

696

Figure 3: Architecture Flow of Proposed Model

3.6 Power Consumption Measurement

and Analysis

A real-time power consumption measuring

framework is developed to evaluate the energy

savings in the adaptive power management system

presented in the study. The paper uses a power

monitoring technique with voltage and current

sensors to assess the individual core-level power

utilized by each core in VLSI-based systems at

different degrees of application workloads. The core

layer also collects real-time data and algorithms at the

same level to ensure exceptionally precise power

consumption readings, allowing the identification of

specific energy usage and waste. The one-to-one

correlation enables the tracking of power

consumption before and after the deployment of

adaptive management measures. It is a low-overhead,

accurate approach, which has little impact on system

resources. It validates power efficiency across

systems and identifies sources of power waste to

ensure that savings are consistent with the predicted

reduction targets. The result not only optimizes power

but also allows for future enhancements in energy-

efficient VLSI architecture.

3.7 System Flexibility and Integration

with Traditional Architectures

It enables us to provide a scalable power

management system that tests several types of multi-

core VLSI architectures. Its modular architecture

enables progressive implementation of power

management algorithms, and it supports a variety of

core counts and configurations. To facilitate

flexibility, the Scalability and Adaptability Algorithm

(SAA) is supplied, which is well-known in power

management systems as a characteristic that is built

to take use of the various performances offered by

heterogeneous cores while controlling them. To

supplement that, SAA uses power policy adaptation,

which allows power strategies to be changed at

runtime based on core architecture and workload

distribution, allowing the system to automatically

adjust to performance requirements and individual

hardware features. The amount of flexibility enables

the system to run as close to optimally as feasible

under normal workloads while also maximizing

performance for a wide range of applications, from

power-constrained mobile devices to high-power

computing settings. The proposed system's

capabilities and scalability allow for use in a variety

of scenarios while also meeting the power

management needs of small and large hardware

platforms.

In summary, a framework for an adaptive power

management system that uses run-time monitoring

feedback, machine learning, and predictive analysis

features to improve energy efficiency in multi-core

VLSI systems is described. Its use of scalable

algorithms and proactive techniques like DVFS,

power gating, and LSTM forecasting allows it to

achieve great energy savings, low heat generation,

and constant performance while staying agnostic to

computational architectures and resilient to future

developments.

4 RESULTS AND DISCUSSION

The performance metrics power consumption,

processing throughput, and energy parameters of the

proposed adaptive power management scheme are

examined and contrasted with a number of static

power management schemes. These included power

dissipation at various workloads, performance

scaling, and total power.

Table 1: Power Consumption Comparison (in Watts)

System

Type

Idle Power

Consumptio

Average

Power

Consumptio

Peak Power

Consumptio

Existing

System

[11]

1.5 W 3.2 W 4.5 W

Existing

System

[12]

1.2 W 2.8 W 4.0 W

Propose

stem

0.8 W 2.1 W 3.6 W

Adaptive Power Management Techniques in Multi Core VLSI Systems for Enhanced Energy Efﬁciency

697

Table 1 compares the proposed systems to

existing systems [11] and [12] for peak power usage

in watts and idle, average. Each category uses less

electricity than the proposed system. Compared to

existing systems that consume 1.5 W (1.2 W at idle),

the proposed system requires just 0.8 W, and the

average consumption is 3.2 W (2.8 W at idle) against

2.1 W for the proposed system. At peak consumption,

the proposed system with 3.6 W is still more efficient

than the existing system with the highest efficiency at

4.5 and 4.0 W, respectively. It also shows how the

proposed technology outperforms existing

alternatives in terms of energy efficiency.

Table 2: Performance Comparison (Execution Time in

Seconds)

System

Type

Low

Workload

Execution

Time

Medium

Workload

Execution

Time

High

Workload

Execution

Time

Existing

System

[11]

12.5 s 8.2 s 5.1 s

Existing

System

[12]

12.4 s 8.0 s 5.0 s

Proposed

System

12.5 s 8.3 s 5.0 s

Table 2 shows the performance evaluation in

seconds for the existing system [11] and [12], as well

as the proposed system, under various workload

situations (low, medium, and high). The results show

that under low workload conditions, the execution

times for all three systems are essentially identical

(12.4s for the proposed system and 12.5s for the

existing systems). For medium workloads, the

Proposed System has a slightly longer execution time

(8.3s) than the Existing Systems, which are between

8.0s and 8.2s; however, for high workloads, the

Proposed system and Existing Systems have the same

execution time (5.0s), indicating similar performance.

In general, the Proposed System performs similarly to

the Existing Systems, with minor variations in

execution time under medium workload.

Table 3: Thermal Dissipation (Temperature in °C)

System Type

Idle

Temperature

Peak

Temperature

Existing

stem [11]

50°C 85°C

Existing

System [12]

47°C 80°C

Proposed

System

45°C 75°C

Table 3 compares the thermal dissipation of the

three systems, particularly at idle and peak

temperatures. While the idle temperatures of

the existing system [11] and [12] are 50 °C and 47 °C,

respectively, and their peak temperatures are 85 °C

and 80 °C, respectively, the proposed system

achieves 45 °C as the idle temperature and 75 °C as

the peak temperature, resulting in better thermal

efficiency compared to existing systems because the

proposed system operates in a cooler range as

opposed to existing systems, which could perform

better with the lesser thermal stress. Visual

Representation of Thermal Dissipation (Temperature

in °C) is shown in Figure 4.

Figure 4. Visual Representation of Thermal Dissipation

(Temperature in °C)

To demonstrate the reactive power management

system's performance, demonstrating a promising

improvement in power consumption, thermal

dissipation, and total energy efficiency when

compared to traditional static power management

systems. The proposed systems use real-time

workload monitoring, dynamic voltage and frequency

scaling, DVFS, core-level power gating, and

predictive workload analysis to adapt to various

workloads, resulting in significant idle power and

energy savings. The power consumption comparison

shows that the system can achieve comparable

performance at high workloads while using much less

energy in idle and typical power levels. Similarly,

thermal dissipation from the proposed system is

substantially lower because its peak temperatures are

far lower than those of its counterparts, resulting in

the cancellation of any cooling gear and a longer life

for the reported hardware. Because of the rising

demand for power efficiency in a variety of

industries, including mobile devices, data centers,

and IoT networks, system adaptability has made it

popular in the aforementioned fields. The

recommended system's simplicity of implementation

100

Existing

System [11]

Existing

System [12]

Proposed

System

Idle Temperature Peak Temperature

INCOFT 2025 - International Conference on Futuristic Technology

698

in various multi-core VLSI designs makes it an

excellent choice for both low-power and high-

performance applications; additionally, it is scalable

and versatile. The work also introduces a machine

learning-based predictive workload analysis

capability for the proposed system, allowing the

proactive power controller to take power

management steps that enhance system performance

while minimizing power waste. As a result, future

computer systems will explode in terms of power and

thermals, making the proposed system an excellent

chance for energy-efficient and scalable VLSI design.

5 CONCLUSIONS

In conclusion, these is an adaptive power

management system that overcomes the restrictions

of energy, temperature, and speed over a wide range

of workload situations for multi-core VLSI devices.

A combination of energy-saving functionalities,

including real-time workload monitoring, DVFS,

core-level power-gating, and predictive workload

analysis, is proposed, which, using a few machine

learning techniques, can reduce peak temperature,

leakage, and thermal stress on system hardware,

resulting in longer system life. The results look good,

but the system has several drawbacks. Integrating

real-time monitoring and machine learning hardware

may increase design overhead and need additional

computation. Second, the system's scalability may be

constrained since adaptive power management may

not scale well in highly diverse or big multi-core

configurations. Finally, because LSTM is a predictive

model, its use for workload forecasting will be

imprecise in most unexpected contexts. In the future,

it plans to expand the system to support large-scale

architectures, improve the accuracy of the ML models

in predicting performance, and investigate other low-

overhead monitoring approaches for achieving higher

performance gains with less power and greater

adaptability to dynamic workloads.

REFERENCES

S. M. P. Dinakarrao, “Self-aware power management for

multi-core microprocessors,” Sustainable Computing

Informatics and Systems, vol. 29, p. 100480, Nov.

2020, doi: 10.1016/j.suscom.2020.100480.

B. Ranjbar, A. K. Singh, S. S. Sahoo, P. Dziurzanski, and

A. Kumar, “Power Management of Multicore

Systems,” in Chattopadhyay, A. (eds) Handbook of

Computer Architecture. Springer, Singapore, 2023, pp.

1–33. doi: 10.1007/978-981-15-6401-7_55-1.

X. Li et al., “Deep reinforcement Learning-Based power

management for Chiplet-Based multicore systems,”

IEEE Transactions on Very Large-Scale Integration

(VLSI) Systems, vol. 32, no. 9, pp. 1726–1739, Jun.

2024, doi: 10.1109/tvlsi.2024.3415487.

H. Li, Z. Tian, J. Xu, R. K. V. Maeda, Z. Wang, and Z.

Wang, “Chip-Specific power delivery and consumption

Co-Management for Process-Variation-Aware

manycore systems using reinforcement learning,” IEEE

Transactions on Very Large-Scale Integration (VLSI)

Systems, vol. 28, no. 5, pp. 1150–1163, Jan. 2020, doi:

10.1109/tvlsi.2020.2966866.

Y. G. Kim, M. Kim, J. Kong, and S. W. Chung, “An

adaptive thermal management framework for

heterogeneous multi-core processors,” IEEE

Transactions on Computers, vol. 69, no. 6, pp. 894–906,

Jan. 2020, doi: 10.1109/tc.2020.2970062.

M. Ansari, M. Salehi, S. Safari, A. Ejlali, and M. Shafique,

“Peak-Power-Aware Primary-Backup technique for

efficient Fault-Tolerance in multicore embedded

systems,” IEEE Access, vol. 8, pp. 142843–142857,

Jan. 2020, doi: 10.1109/access.2020.3013721.

S. A. K. Gharavi and S. Safari, “Performance Improvement

of Processor through Configurable Approximate

Arithmetic Units in Multicore Systems,” IEEE Access,

vol. 12, pp. 43907–43917, Jan. 2024, doi:

10.1109/access.2024.3380912.

N. Kumar and D. P. Vidyarthi, “A novel energy-efficient

scheduling model for multi-core systems,” Cluster

Computing, vol. 24, no. 2, pp. 643–666, Jun. 2020, doi:

10.1007/s10586-020-03143-w.

A. Thakkar, K. Chaudhari, and M. Shah, “A

Comprehensive Survey on Energy-Efficient Power

Management Techniques,” Procedia Computer

Science, vol. 167, pp. 1189–1199, Jan. 2020, doi:

10.1016/j.procs.2020.03.432.

G. Narang, A. Deshwal, R. Ayoub, M. Kishinevsky, J. R.

Doppa, and P. P. Pande, “Dynamic power management

in large manycore Systems: a Learning-to-Search

framework,” ACM Transactions on Design Automation

of Electronic Systems, vol. 28, no. 5, pp. 1–21, Jun.

2023, doi: 10.1145/3603501.

X. Li, L. Chen, S. Chen, F. Jiang, C. Li, and J. Xu, “Power

Management for Chiplet-Based Multicore Systems

Using Deep Reinforcement Learning,”

https://ieeexplore.ieee.org/xpl/conhome/9911984/proc

eeding, pp. 164–169, Jul. 2022, doi:

10.1109/isvlsi54635.2022.00041.

A. Aalsaud, F. Xia, A. Rafiev, R. Shafik, A. Romanovsky,

and A. Yakovlev, “Low-Complexity run-time

management of concurrent workloads for Energy-

Efficient Multi-Core systems,” Journal of Low Power

Electronics and Applications, vol. 10, no. 3, p. 25, Aug.

2020, doi: 10.3390/jlpea10030025.

R. Muralidhar, R. Borovica-Gajic, and R. Buyya, “Energy

Efficient computing systems: architectures,

abstractions and modeling to techniques and

Adaptive Power Management Techniques in Multi Core VLSI Systems for Enhanced Energy Efﬁciency

699

standards,” ACM Computing Surveys, vol. 54, no. 11s,

pp. 1–37, Jan. 2022, doi: 10.1145/3511094.

A. Zou et al., “Voltage-Stacked Power Delivery Systems:

reliability, efficiency, and power management,” IEEE

Transactions on Computer-Aided Design of Integrated

Circuits and Systems, vol. 39, no. 12, pp. 5142–5155,

Feb. 2020, doi: 10.1109/tcad.2020.2969607.

J. C. Wright et al., “A Dual-Core RISC-V vector processor

with On-Chip Fine-Grain power management in 28-Nm

FD-SOI,” IEEE Transactions on Very Large-Scale

Integration (VLSI) Systems, vol. 28, no. 12, pp. 2721–

2725, Oct. 2020, doi: 10.1109/tvlsi.2020.3030243.

S. Vangal et al., “Wide-Range Many-Core SOC design in

scaled CMOS: Challenges and opportunities,” IEEE

Transactions on Very Large-Scale Integration (VLSI)

Systems, vol. 29, no. 5, pp. 843–856, Mar. 2021, doi:

10.1109/tvlsi.2021.3061649.

INCOFT 2025 - International Conference on Futuristic Technology

700
