Grammarinator Meets LibFuzzer:

A Structure-Aware In-Process Approach

Ren

ata Hodov

and

Akos Kiss

Department of Software Engineering, University of Szeged,

Arp

ad t

er 2, Szeged, Hungary

Keywords:

Fuzzing, Grammar-Based, Coverage-Guided, In-Process, Grammarinator, LibFuzzer.

Abstract:

Fuzzing involves generating a large number of inputs and running them through a target application to detect

unusual behavior. Modern general-purpose guided fuzzers are effective at testing various programs, but their

lack of structure awareness makes it difﬁcult for them to induce unexpected behavior beyond the parser. Con-

versely, structure-aware fuzzers can generate well-formed inputs but are often unguided, preventing them from

leveraging feedback mechanisms. In this paper, we introduce a guided structure-aware fuzzer that integrates

Grammarinator, a structure-aware but unguided fuzzer, with LibFuzzer, a guided but structure-unaware fuzzer.

Our approach enables effective testing of applications with minimal setup, requiring only an input format de-

scription in the form of a grammar. Our evaluation on a JavaScript engine demonstrates that the proposed

fuzzer achieves higher code coverage and discovers more unique bugs compared to its two predecessors.

1 INTRODUCTION

In our increasingly fast-paced world, software sup-

ports every aspect of our lives, from our cars to

our TVs, medical instruments, and even smart tooth-

brushes. This means writing a lot of new code and

even more tests. At least, that would be the case in an

ideal world. However, keeping up with this volume

of code with high-quality test suites is very challeng-

ing. It is common practice to write tests that check the

expected behavior of programs, but tests for handling

unexpected behavior are much rarer. Yet, or precisely

because of this, improper handling of unexpected in-

puts can be a perfect attack vector for a malicious

user. Writing negative tests, however, is not an easy

task, as it is much simpler to list the cases where the

program should work than to enumerate all the faulty

possibilities it should handle correctly. Therefore, it

is not surprising that an automatic approach to nega-

tive testing, known as random testing or fuzzing, has

emerged (Miller et al., 1990; Miller, 2008).

The essence of fuzzing is to generate a large num-

ber of inputs that are run through the tested appli-

cation while monitoring its execution. If something

unusual is detected, it is saved as a potential bug

to be validated by a human tester. Unusual behav-

https://orcid.org/0000-0002-5072-4774

https://orcid.org/0000-0003-3077-7075

ior could be a crash, an unusually long runtime, or

an output deemed incorrect (if an oracle is avail-

able during monitoring). Nowadays, there are many

types of fuzzers available, but among them, general-

purpose guided fuzzers are particularly popular (e.g.,

AFL (Zalewski, nd) and its variants (B

ohme et al.,

2016; Lemieux and Sen, 2018; Lemieux et al., 2018;

Atlidakis et al., 2020; Pham et al., 2021; Fioraldi

et al., 2020), or LibFuzzer (LLVM Project, nd)) be-

cause a single well-written fuzzer can test hundreds

of programs effectively, ﬁnding many bugs. These

fuzzers are based on simplicity and speed: starting

from a seed corpus (in the extreme case, perhaps even

from an empty one), they generate new tests by mak-

ing minimal byte-level changes to the elements of the

corpus, while prioritizing those elements that have al-

ready proven useful based on certain metrics. While

these fuzzers do ﬁnd many bugs, most of those bugs

are parser-related because such simple mutators of-

ten corrupt the structure of the input, rarely driving

deeper code sections beyond the parser.

Targeted fuzzers offer a solution to this prob-

lem by providing automated testing for speciﬁc

input formats (e.g., CSmith (Yang et al., 2011),

GrayC (Even-Mendoza et al., 2023), Domato (Fratric,

nd), Echidna (Grieco et al., 2020), jsfunfuzz (Mozilla

Corporation, nd), or IFuzzer (Veggalam et al.,

2016)). These are effective for one given format,

but not for other targets. To mitigate this prob-

178

Hodován, R. and Kiss, Á.

Grammarinator Meets LibFuzzer: A Structure-Aware In-Process Approach.

DOI: 10.5220/0013571500003964

In Proceedings of the 20th International Conference on Software Technologies (ICSOFT 2025), pages 178-189

ISBN: 978-989-758-757-3; ISSN: 2184-2833

lem, there are fuzzers that, with the help of an in-

put format description—which can be a grammar, an

IDL deﬁnition, an XML schema, or a completely

custom format—can generate structure-aware tests

through generation or mutation (e.g., Grammarina-

tor (Hodov

an et al., 2018), LangFuzz (Holler et al.,

2012), Dharma (Diehl, 2015), Peach (GitLab B.V.,

nd), or Skyﬁre (Wang et al., 2017)), making them us-

able for multiple input formats with relatively little

effort. However, most of these are not guided, thus

missing out on very useful feedback information.

The solution may lie in guided, structure-aware

fuzzers, which enable a single fuzzer to generate or

mutate tests for any application in a guided man-

ner, requiring only a format description. Examples

of such fuzzers include Nautilus (Aschermann et al.,

2019), Superion (Wang et al., 2019), and libprotobuf-

mutator (Google Inc., nd); and the tool presented in

this work.

In this paper, we present a new tool result-

ing from the integration of Grammarinator and Lib-

Fuzzer, which combines their strengths while mitigat-

ing their weaknesses. During the design of the inte-

gration, we ensured that existing functionalities were

preserved, and we also introduced new features in-

spired by the two components. The new tool can work

with and mutate a seed corpus like its predecessors,

but it can also generate completely new tests or parts

thereof based on a grammar. Thanks to the popular-

ity of ANTLR4, hundreds of grammars are available

online (Parr, 2013), removing or reducing the effort

needed for writing grammars. The new tool can ap-

ply structure-aware mutations to the input but also has

access to the tried and tested mutators of LibFuzzer.

Moreover, since Grammarinator offers numerous cus-

tomization points, those can be utilized to deﬁne logic

that is beyond the expressive power of grammars.

The rest of this paper is organized as follows: In

Section 2, we give an overview of the two tools our

work is based on, i.e., Grammarinator and LibFuzzer.

In Section 3, we list the challenges we have faced dur-

ing their integration and present our solution. In Sec-

tion 4, we present the scope and results of the evalu-

ation of the new tool. In Section 5, we overview the

related works from the literature, and ﬁnally, in Sec-

tion 6, we conclude our paper.

2 BACKGROUND

2.1 LibFuzzer

LibFuzzer (LLVM Project, nd) is an efﬁcient

coverage-guided in-process fuzzing engine integrated

with LLVM. It is a general-purpose fuzzer, which is

applicable to any input format. It is based on a genetic

algorithm that, in each iteration, selects a test from

its corpus, mutates it, and then runs the resulting test

with the fuzz target. Thanks to its integration with the

compiler, the fuzz target is instrumented during com-

pilation so it can monitor the parts of the code covered

by the test during execution. If this indicates the dis-

covery of new code sections, the test is deemed useful

and added to the corpus for further testing. Although

fuzzing can start with an empty corpus, the quality

of the corpus signiﬁcantly affects the efﬁciency of the

fuzzing process. A high-quality initial corpus is nec-

essary because LibFuzzer generates new tests using

very simple mutations, making it challenging to cre-

ate tests that match a complex input format starting

from an empty corpus. However, these simple muta-

tions make LibFuzzer applicable to any input format

and allow for the rapid generation of new tests, which

is a critical requirement for effective fuzzing.

Currently, LibFuzzer has 13 built-in mutators and

2 extension points that allow for user-deﬁned custom

mutators, which are summarized in Table 1. With one

exception, all mutators operate on a single corpus el-

ement, making changes to it. These mutations are

typically applied at randomly chosen positions in the

input: they delete, insert, repeat, or rearrange bytes.

They move randomly selected chunks of the test case

to different locations. They insert strings from a man-

ually speciﬁed or automatically collected dictionary.

Or, they alter numeric values. The only mutation that

works with two corpus elements simultaneously is the

cross-over mutation, which randomly selects one or

more chunks from the donor element and inserts them

into random positions in the host element or replaces

random parts of it.

As can be seen, these mutations can gener-

ate new tests very quickly because—with minimal

exceptions—they do not attempt to interpret the in-

put; they just work at random positions. The sole ex-

ception is the mutation of numbers, where the input

is scanned once, and positions containing digits are

recorded.

This simplicity, generality, and speed are both the

strengths and weaknesses of LibFuzzer. It can test ap-

plications with any input format out-of-the-box, but

since most of the generated tests are syntactically in-

correct, they primarily drive and test only the parsers

of the applications being tested. In the case of more

complex programs, however, this only scratches the

surface of the codebase, leading to a demand for

structure-aware mutators years ago.

Grammarinator Meets LibFuzzer: A Structure-Aware In-Process Approach

179

Table 1: LibFuzzer Mutators and Their Descriptions.

Mutator Description

Erase Bytes Delete bytes at randomly chosen positions from the input.

Insert Byte Insert a single byte at a randomly chosen position in the input.

Insert Repeated Bytes Insert a sequence of repeated bytes at a randomly chosen position in the input.

Change Byte Change a byte at a randomly chosen position in the input.

Change Bit Change a bit at a randomly chosen position in the input.

Shufﬂe Bytes Shufﬂe bytes in a randomly chosen segment of the input.

Change ASCII Int Change an ASCII integer at a randomly chosen position in the input.

Change Bin Int Change a binary integer at a randomly chosen position in the input.

Copy Part Copy a randomly chosen chunk of the input to another position within the same input.

Cross-Over Copy a randomly chosen chunk from the donor element and insert it into a random position or

replace a randomly chosen chunk in the host element.

Manual Dict Insert strings from a manually speciﬁed dictionary.

Persistent Auto Dict Insert strings from an automatically collected dictionary.

CMP Insert strings from recent compares.

Custom Mutator Apply custom user-deﬁned mutations on the input.

Custom Cross-Over Apply custom user-deﬁned cross-over mutations on the input.

2.2 Grammarinator

Grammarinator (Hodov

an et al., 2018) is a structure-

aware test generation tool that produces tests in

a black-box manner without any feedback, using

ANTLR4-format grammar descriptions. This format

was designed for the popular ANTLR parser genera-

tor tool (Parr, 2013), which has developed a signiﬁ-

cant ecosystem over the years. The grammar format

essentially describes extended context-free grammars

but includes many additional features, such as actions

embedded in the grammar, predicates, special wild-

cards, etc. Due to its popularity, there are currently

more than 300 publicly available grammars in the of-

ﬁcial grammar repository

To avoid the labor-intensive task of writing gram-

mars for a proprietary format, Grammarinator chose

the ANTLR4 grammar format as the model for its

test generator. In the ﬁrst step, it processes the cho-

sen grammar and then creates a Python test genera-

tion code from it. This generator can later be used

to produce any number of tests. The generated code

traverses the grammar and through a series of ran-

dom decisions, selects between alternatives and de-

cides how many times to repeat quantiﬁed subexpres-

sions. The result of the generation is a tree much

like parse trees, where each internal node represents

a grammar rule and each leaf node represents a to-

ken. This resulting tree is then processed by a serial-

izer, which combines the leaf nodes—while possibly

applying further formatting, at least inserting spaces

between the leaves—to produce the ﬁnal test.

In addition to generating grammar-conforming

https://github.com/antlr/grammars-v4

tests, Grammarinator can create mutants from exist-

ing tests. It supports two types of mutation opera-

tors: it can either regenerate a randomly chosen sub-

tree according to the grammar rule corresponding to

the subtree’s root, or it can swap nodes of the same

type (i.e., belonging to the same grammar rule) be-

tween two tests. Mutations are typically performed

on elements of a tree corpus (called a population in

Grammarinator’s terminology). Such populations can

either be generated by Grammarinator itself or created

from existing tests using a test-to-tree conversion util-

ity that is part of the Grammarinator toolchain (utiliz-

ing ANTLR4, parsing the tests with the same gram-

mar that is used for generation, and converting the

parse trees to the tree representation of Grammarina-

tor). It is important to note that the selection of trees

to mutate is entirely random, without any guidance.

The reason for this is that Grammarinator is purely a

test generator; it does not have an integrated fuzzing

harness, so it cannot run tests or collect feedback on

its own.

Beyond the core functionality described above,

Grammarinator supports several customization fea-

tures, such as subclassing generator classes, deﬁn-

ing model classes to control alternative selection and

quantiﬁcation, deﬁning listeners, inserting inline code

and predicates into the grammar, post-processing the

generated trees with transformers, supporting custom

serializers, and more. These features are discussed in

detail in the original paper and the online documenta-

tion of the project (Hodov

an et al., 2018).

ICSOFT 2025 - 20th International Conference on Software Technologies

180

3 INTEGRATING

GRAMMARINATOR AND

LIBFUZZER

3.1 Challenges and Solutions

Recognizing the strengths and weaknesses of Gram-

marinator (good for structured inputs, but lacks guid-

ance) and LibFuzzer (good at guidance, but struggles

with heavily structured input formats), the need arose

to combine the two tools to create a more efﬁcient

fuzzer that keeps the best of both. In the follow-

ing, we will cover the necessary steps for integration,

the challenges encountered, and the resulting devel-

opments

Technically, the integration is made possible by

the two extension points of LibFuzzer: the custom

mutator and cross-over operations. If these two are

deﬁned, then they override the built-in mutators of

LibFuzzer. Thus, we had a way to let LibFuzzer man-

age the corpus, guide the fuzzing, and channel the se-

lected test cases to Grammarinator for structure-aware

mutation.

The ﬁrst challenge to overcome was that Gram-

marinator generated fuzzers in Python, while Lib-

Fuzzer primarily expects the custom operators to be

implemented in compiled languages, e.g., C/C++.

(Although we are aware that LibFuzzer is not lim-

ited to testing applications written in C or C++, and

can be applied to targets in languages such as Python,

Java, Rust, or Go through various wrappers, C and

C++ are the most common. Therefore, we focus on

these as the target languages.) As executing the fuzzer

in a Python interpreter within the custom operators

did not seem to be optimal performance-wise, we ex-

tended Grammarinator to generate C++ fuzzers. This

not only involved generating code from the grammar

in the statically typed C++ instead of the dynamically

typed Python language but also porting the runtime

library necessary for the execution of the generated

fuzzers.

With the C++ port in place, we could call Gram-

marinator’s subtree-regenerating or -replacing func-

tionalities from the custom mutator and cross-over

implementations. However, Grammarintor works

with trees, while LibFuzzer, being of general pur-

pose, treats all test cases as simple arrays of bytes.

In a na

ıve integration, this would require the test-to-

tree conversion (i.e., parsing) of inputs every time the

generation of a new test case is requested. (And,

once Grammarinator mutated the tree, the serializa-

All source code is available at https://github.com/

renatahodovan/grammarinator.

tion of the tree to the original format will also be nec-

essary: both because the fuzz target expects it that

way, and because LibFuzzer needs to store the test

cases it deems interesting.) Unfortunately, continu-

ously parsing the test cases over and over again would

slow down fuzzing unacceptably, making such a na

ıve

approach useless in practice.

As an answer to this second challenge, we have

moved parsing from fuzzing-time to preprocessing-

time. I.e., we required the test corpus to be in tree

form by the time fuzzing starts. Fortunately, the

tree-to-test conversion utility of the Grammarinator

toolchain covered this requirement. However, this

change moves the task of tree serialization from the

mutator to the fuzz target. This means that there is a

small development/maintenance price to pay for bet-

ter performance as the fuzz target needs to be ex-

tended with the tree-to-test conversion logic. How-

ever, in the best case, this can be as simple as adding

an extra compile ﬂag to the fuzz target’s compilation

command to inject (include) the necessary code.

It must be noted that the trees that Grammarinator

works with are data structures in memory, while the

trees stored in ﬁles in the corpus and handled by Lib-

Fuzzer are some encoded forms of those data struc-

tures. Thus, there is a need for some decoding and

encoding of trees when working with a tree corpus,

but—if an appropriate codec is used—its overhead

is by orders of magnitude smaller than that of com-

plete parsing. The Python runtime library of Gram-

marinator already had a pickle-based tree codec, but

that approach was not portable to C++. Therefore,

we have implemented a FlatBuffers

-based codec for

C++ (and also for Python, which had the fortunate

side effect that the same tree corpus could be used by

both the Python and C++-based Grammarinator).

Although tree decoding is much faster than pars-

ing, the construction of the data structures in mem-

ory still costs time and should be avoided if possible,

which posed our third challenge. To address this, we

have introduced a single-element cache where the en-

coded tree representation is the key and its in-memory

data structure is the associated value. Whenever a

mutation or a cross-over generates a new test case—

i.e., a tree—its encoded form along with the tree itself

is put into the cache. Then, if LibFuzzer passes the

encoded tree to the fuzz target for testing, the corre-

sponding tree is retrieved from the cache. Moreover,

since LibFuzzer typically applies multiple mutations

to the same test case in a sequence, querying the cache

as the ﬁrst step of mutation is also beneﬁcial.

An overview of the above-described approach is

shown in Figure 1. The diagram displays some com-

https://github.com/google/ﬂatbuffers

Grammarinator Meets LibFuzzer: A Structure-Aware In-Process Approach

181

########

###############

#########

######

###########

#########

###########

#######

##############

Test corpus Tree corpus

LLVMFuzzerCustomMutator/CrossOver LLVMTestOneInputTree cache

parse

and

encode

and

put in cache

decode

fetch from cache

decode

fetch from cache

########

###############

#########

###########

#######

################

####

###########

serialize

Grammarinator

regenerate rule, replace node (cross-over), delete quantified subtree,

replicate quantified subtree, shuffle quantified subtrees, swap nodes,

insert quantified subtree, hoist rule, insert quantified subtree (cross-over),

delete random subtree, hoist random rule, LLVMFuzzerMutate

original implementation of

LLVMTestOneInput

LibFuzzer

select

cov

Figure 1: An overview of the integration of Grammarinator into LibFuzzer.

ponents using the API function names as deﬁned

by LibFuzzer. I.e., LLVMFuzzerCustomMutator and

LLVMFuzzerCustomCrossOver are the functions that

implement the custom mutator and cross-over ex-

tension points, respectively, while LLVMFuzzerTe-

stOneInput is the mandatory fuzz target that calls the

code being tested.

3.2 Structure-aware (and

Structure-unaware) Mutators

The main motivation for the integration of Gram-

marinator and LibFuzzer was to create a technique

that has the best features of both tools. We have

realized that although the built-in mutators of Lib-

Fuzzer cannot comply with input format restrictions,

the ideas behind them can be useful for structure-

aware mutations as well. It turned out that the two

existing mutation operators of Grammarinator (i.e.,

the regeneration of a subtree and the swapping of

two compatible subtrees between trees) covered only

a subset of these ideas. For example, while Lib-

Fuzzer’s Erase Bytes mutator deletes a randomly se-

lected byte sequence from a random position of the

input, there could be a structure-aware mutator that

deletes subtrees—but only if the grammar deﬁned

them as optional. Similarly, while the Insert Byte

and Copy Part mutators insert and replace randomly

selected input segments at random positions, respec-

tively, their structure-aware counterparts could per-

form those operations on subtrees—again, according

to the rules of the grammar. Therefore, we have ex-

tended Grammarinator with several new mutators in-

spired by the operators of LibFuzzer.

To know which subtree can be deleted or where

can a further subtree be inserted, it is necessary to

have information about which parts of the tree orig-

inate from quantiﬁed expressions (?, *, or +) of the

grammar and what the lower and upper bounds of

the quantiﬁers are. Similarly, to change a decision

made at an alternation (|), it is necessary to have in-

formation about which parts of the tree originate from

which alternative of which alternation. When gener-

ating a completely new test case with Grammarina-

tor, this information can be added to the tree relatively

easily. However, when building the trees from exist-

ing test cases using ANTLR4, the parse trees lack this

information. Thus, in addition to extending the inter-

nal representation of Grammarinator to store and im-

proving the fuzzer to generate this information, we

have also enhanced the test-to-tree conversion util-

ity to recreate this information when parsing is per-

formed. This way, all structure-aware mutators could

be applied both to trees newly generated and to those

converted from existing tests.

The implemented structure-aware mutators are

listed in Table 2 along with the LibFuzzer mutators

ICSOFT 2025 - 20th International Conference on Software Technologies

182

Table 2: Structure-aware Grammarinator Mutators and Their LibFuzzer Counterparts.

Grammarinator Mutator Description LibFuzzer Counterpart(s)

Regenerate Rule Regenerate a subtree based on the grammar rule associ-

ated with the root of the subtree.

Change ASCII Int, Change

Bin Int, Manual Dict

Replace Node (Cross-Over) Replace a subtree with another subtree that has a root of

the same type and is from a different tree.

Cross-Over

Delete Quantiﬁed Subtree Delete a subtree that corresponds to a quantiﬁed expres-

sion (?, *, or +) in the grammar.

Erase Bytes

Replicate Quantiﬁed Sub-

tree

Duplicate a subtree that corresponds to a quantiﬁed ex-

pression (* or +) in the grammar.

Insert Repeated Bytes

Shufﬂe Quantiﬁed Subtrees Randomly shufﬂe the subtrees that correspond to a quan-

tiﬁed expression (* or +) in the grammar.

Shufﬂe Bytes

Swap Nodes Swap two subtrees that have roots of the same type. no direct counterpart

Insert Quantiﬁed Subtree Insert a copy of a subtree that corresponds to a quantiﬁed

expression (?, *, or +) between other subtrees that corre-

spond to the same quantiﬁed expression.

Insert Byte, Copy Part

Hoist Rule Lift a subtree up in the tree hierarchy to replace an ances-

tor that corresponds to the same grammar rule.

no direct counterpart

Insert Quantiﬁed Subtree

(Cross-Over)

Insert a subtree that corresponds to a quantiﬁed expres-

sion (?, *, or +) between other subtrees of another tree

that correspond to the same quantiﬁed expression.

Cross-Over

Table 3: Structure-unaware Grammarinator Mutators and Their Structure-aware Counterparts.

Structure-unaware

Mutator

Description Structure-aware

Counterpart

Delete Random Subtree Delete a random subtree. Delete Quantiﬁed Subtree

Hoist Random Rule Lift a subtree up in the tree hierarchy to replace any of its

ancestors.

Hoist Rule

LLVMFuzzer Mutate Call the original mutator implemention of LibFuzzer on

a token node.

no direct counterpart

that are most similar to their logic. The ﬁrst two rows

in the table are the original two mutators of Grammar-

inator, while the rest are those inspired by LibFuzzer.

While we expect the new structure-aware muta-

tors to reach beyond the parser logic of the tested

code more easily, we do not want to lose the ability

to test the parser either. Therefore, we have created

additional tree-based but structure-unaware mutators.

These operators are similar to some structure-aware

mutators with the important difference that when se-

lecting which part of the tree to apply them on, fewer

or no constraints are adhered to. (Moreover, since the

built-in mutators of LibFuzzer are also accessible, one

of the structure-unaware mutators is to invoke them

on leaf nodes, i.e., tokens.) The list of implemented

structure-unaware mutators is given in Table 3.

4 EVALUATION

4.1 Setup

In our evaluation, we wanted to compare the inte-

gration of Grammarinator and LibFuzzer to its two

main building blocks, i.e., to the unguided Gram-

marinator and the structure-unaware LibFuzzer. For

LibFuzzer, we used a custom build of LLVM (and

clang) version c4a00be08aa1, extended with a PC

dump functionality at exit. This extension enabled

the comparison of the coverage metrics reported by

LibFuzzer across different fuzzers. For Grammarina-

tor, our work was based on version 23.7.post140 (git

revision 68b0350). To get comparable statistics, we

have invoked even the unguided Grammarinator from

the LibFuzzer framework by implementing the cus-

tom mutator extension point of LibFuzzer in such a

way that no matter what input was selected by Lib-

Fuzzer for mutation, it was discarded and Grammar-

inator always generated a completely new test case.

(The initial corpus was still loaded, though, to ensure

Grammarinator Meets LibFuzzer: A Structure-Aware In-Process Approach

183

that all fuzzing sessions start with the same baseline

statistics.)

In the evaluation, we used two common statistics

as the basis of the comparison: coverage and feature

count metrics as reported by LibFuzzer. In this con-

text, coverage refers to edge coverage, while feature

count is a combined metric computed by LibFuzzer,

which includes edge counters, value proﬁles, indirect

caller/callee pairs, and more (LLVM Project, nd). In

addition, we disclose the number and type of bugs

found. Finally, we also report the speed of fuzzing,

more precisely, the number of inputs generated dur-

ing a fuzzing session.

For the evaluation, we looked for a JavaScript en-

gine as our target because the language makes for a

complex and structured-enough input format, and a

full execution engine ensures that there are deeper

parts for the fuzzer to reach than the parser logic. We

expect such targets to be best ﬁt for a Grammarinator-

LibFuzzer integration. (For non-structured input for-

mats or targets consisting of a parser only, Lib-

Fuzzer’s simple and fast mutators are likely to be

more effective. Moreover, the time invested in so-

phisticated computationally intensive tree mutations

is more likely to pay off on a computationally inten-

sive target.) Thus, we have selected JerryScript (JS

Foundation et al., nd) as the target (at v3.0.0 release,

git revision 50200152), a JavaScript engine written in

C of cca. 166k LOC. The project already includes a

LibFuzzer target (i.e., LLVMFuzzerTestOneInput im-

plementation for JavaScript execution) and has been

fuzz-tested for several years.

Since Grammarinator needs a grammar for

fuzzing, we have downloaded the JavaScript grammar

available from the ANTLRv4 grammar repository

To enhance its usefulness for fuzzing, we have made

three small modiﬁcations to the grammar. First, since

every test case should yield consistent results even if

the corpus changes, there should be no dependencies

between the elements of the corpus. The import state-

ments of the JavaScript language go against this direc-

tive, therefore we have disabled their generation. Sec-

ond, we have also disabled the generation of hashtag

lines as they are but unstructured comment lines from

the perspective of the grammar (and useless for the

target, too). Third, we have also extended the gram-

mar, namely by explicitly listing the names of built-in

classes and functions supported by JerryScript as al-

ternatives to the identiﬁer tokens. (To ensure a fair

comparison, we also created a so-called dictionary of

these identiﬁers and the literals of the lexer for Lib-

Fuzzer to use during fuzzing (LLVM Project, nd).)

https://github.com/antlr/grammars-v4/tree/master/

javascript/javascript

A grammar is mandatory for Grammarinator to

work, but it can take optional parameters as well to

inﬂuence its behavior (Hodov

an et al., 2018). The

JavaScript grammar is highly recursive, therefore we

have limited the depth of the trees to 25 to avoid gen-

erating overly deep trees or running into inﬁnite recur-

sion. We have also limited the maximum number of

generated tokens to 500 to restrict not only the depth

but also the width of the generated trees.

When using Grammarinator-based approaches,

we observed that some generated JavaScript inputs

contained inﬁnite loops. Since these constructs are

syntactically and semantically valid, their execution

correctly continues indeﬁnitely. While this behav-

ior is expected, it causes the fuzzing process to stall

whenever such inputs are executed. In contrast, Lib-

Fuzzer’s native byte-level mutations rarely resulted

in inﬁnite loops, as a mutation would need to mod-

ify loop-related bytes in a way that remains syntacti-

cally valid while also causing unbounded execution—

an unlikely combination. To address this, we run Lib-

Fuzzer with the fork mode enabled (-fork=1) and limit

the test execution time to one second (-timeout=1).

Moreover, we also instruct LibFuzzer to not halt

fuzzing if any issue is found (-ignore timeouts=1 -

ignore crashes=1 -ignore ooms=1). This conﬁgura-

tion ensures that the fuzzing target runs in a separate

child process, allowing it to crash, timeout, or exhaust

memory without affecting the main LibFuzzer pro-

cess. By preventing repeated restarts and redundant

corpus reloading, fork mode enables a more stable

and efﬁcient fuzzing session.

4.2 Results

In the evaluation, we ran all three fuzzers (the un-

guided Grammarinator, the structure-unaware Lib-

Fuzzer, and the Grammarinator-LibFuzzer integra-

tion) for one day, ﬁve runs each, all using fork mode 1.

The fork mode 1 simulates a single process envi-

ronment since the tests run in a single child process

without parallelization, but it helps avoid the problem

with timeout-inducing inputs discussed in the previ-

ous subsection. We used the same initial corpus for

all three fuzzers, the only difference being the format

of the elements in the corpus: the Grammarinator-

LibFuzzer integration used a corpus of trees converted

from the original tests in a preprocessing step as dis-

cussed in Section 3. During fuzzing, we recorded

the change in the coverage and feature count met-

rics for each run of each fuzzer and plotted them,

as shown in Figure 2. As visible from the charts,

the unguided Grammarinator performed the worst and

showed close to no improvement in the second half

ICSOFT 2025 - 20th International Conference on Software Technologies

184

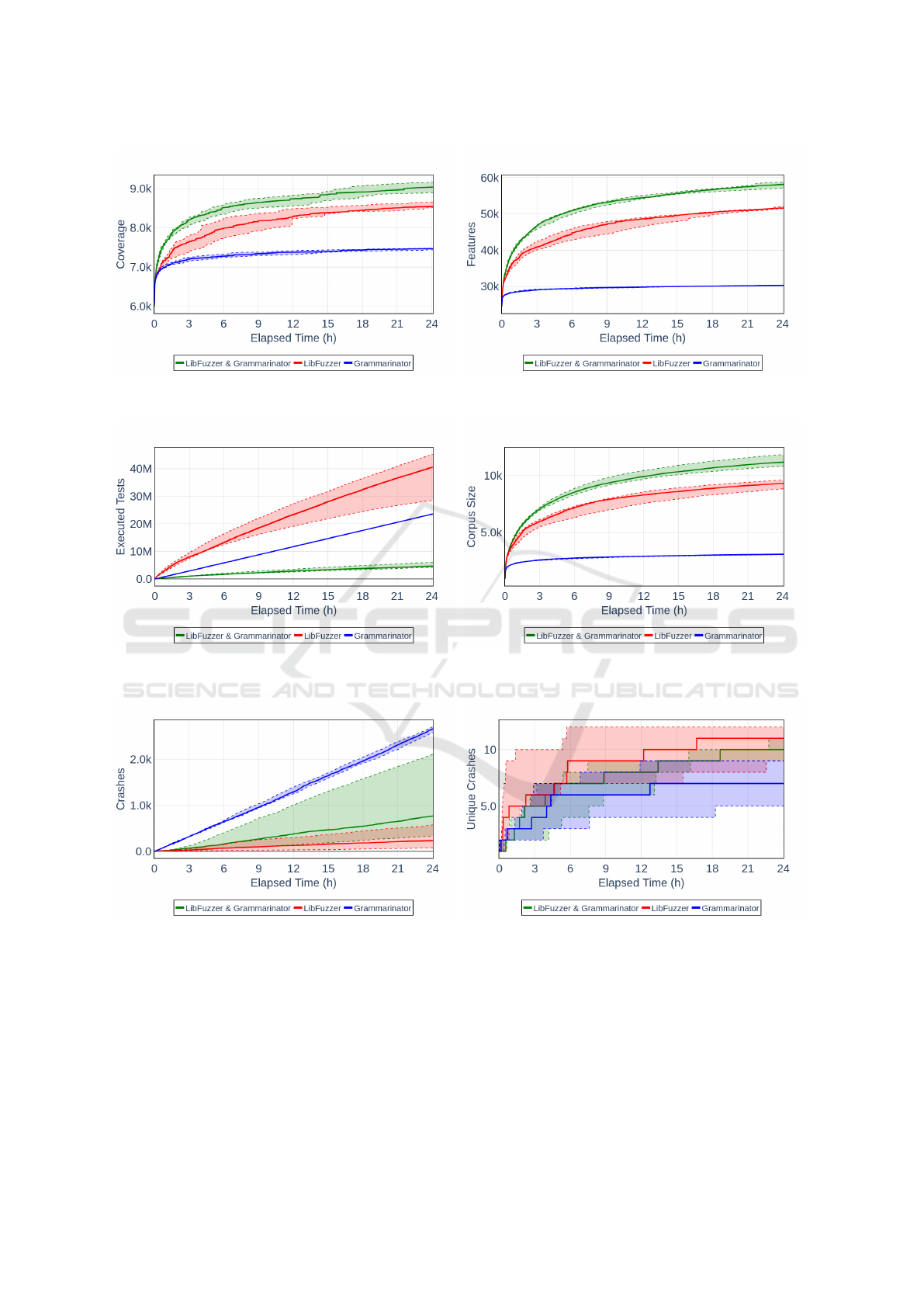

Figure 2: Change of coverage and features over time while fuzzing JerryScript for 24 hours. (Dashed lines show minimum

and maximum values, while solid lines show the median of ﬁve runs.)

Figure 3: Number of executed tests and change of corpus size over time while fuzzing JerryScript for 24 hours. (Dashed lines

show minimum and maximum values, while solid lines show the median of ﬁve runs.)

Figure 4: Number of all triggered and unique crashes over time while fuzzing JerryScript for 24 hours. (Dashed lines show

minimum and maximum values, while solid lines show the median of ﬁve runs.)

of the evaluation, failing to discover new edges or

features. In contrast, both LibFuzzer and Grammar-

inator guided by LibFuzzer continued to show steady

increases in both coverage and feature count, with

the guided Grammarinator achieving a faster increase

than the structure-unaware LibFuzzer.

Figure 3 shows that LibFuzzer tested the most in-

puts in 24 hours, up to 11 times more than the guided

Grammarinator and almost 2 times more than the un-

guided Grammarinator. The speed of LibFuzzer is not

surprising, as it does not interpret the input byte ar-

ray, and its mutations are very simple and fast oper-

ations. Additionally, it is further accelerated by the

fact that most of the test cases it generates are quickly

Grammarinator Meets LibFuzzer: A Structure-Aware In-Process Approach

185

Figure 5: Number of covered edges and unique crashes after fuzzing JerryScript for 24 hours. (Results combined from ﬁve

runs.).

Table 4: Statistics of Fuzzing JerryScript for 24 Hours (Minimum and Maximum Values of Five Runs).

Metric Grammarinator LibFuzzer LibFuzzer & Grammarinator

Input Corpus 1,142 1,142 1,142

Output Corpus 3,269–3,312 9,067–9,853 11,065–12,085

Executed Tests 23.4M–23.5M 28.5M–45.1M 4.1M–6.0M

Crashes 2,578–2,703 78–588 336–2,108

Unique Crashes 5–9 9–12 9–11

all runs combined 10 16 20

Timeouts 1,680–1,781 44–179 5,805–9,574

Coverage 7,441–7,484 8,516–8,658 8,901–9,166

Features 30,250–30,343 51,486–52,083 57,102–58,763

discarded due to parser syntax errors, meaning that

actual JavaScript execution occurs only rarely. The

slowness of the Grammarinator-based fuzzers, espe-

cially that of the guided Grammarinator, might seem

surprising but is explained by both the more so-

phisticated mutation strategies and the higher num-

ber of timeout-inducing inputs. The Grammarinator-

LibFuzzer integration generated 32–217 times more

test cases containing inﬁnite loops than LibFuzzer,

causing signiﬁcantly more executions to be termi-

nated due to timeouts. While non-timeout test cases

can be executed at a rate of hundreds or thousands per

second, a single timeout consumed an entire second,

signiﬁcantly reducing the overall fuzzing throughput.

On the other hand, Figure 3 also shows that, although

slower, the guided Grammarinator generated the most

useful or interesting tests, both in absolute and rela-

tive terms, since the size of the corpus (containing the

generated tests considered worthwhile keeping) sur-

passes the other two fuzzers during the entire evalua-

tion period.

When evaluating fuzzers, the number of found

bugs is an important aspect. Figure 4 shows the num-

ber of crashes triggered during the 24-hour measure-

ment period. The ﬁgure shows that the unguided

Grammarinator crashed JerryScript more than 2,500

times, but it is also visible that a large number of

the crashes were duplicates. The guided fuzzers,

although triggering crashes less often, found more

unique bugs.

Figure 5 presents the results from a slightly dif-

ferent perspective. We have combined and visualized

both the edges covered and unique bugs found during

all ﬁve runs for each fuzzer. The diagrams show that

all fuzzers could cover edges and ﬁnd bugs that none

of the others could, but it was the Grammarinator-

LibFuzzer integration that found the highest number

of edges and unique bugs exclusively. It was also

the Grammarinator-LibFuzzer integration that cov-

ered the most edges and found the most unique bugs

in total during the ﬁve runs.

In Table 4, we summarize the results shown in the

ICSOFT 2025 - 20th International Conference on Software Technologies

186

aforementioned ﬁgures. In the most important met-

rics, Grammarinator guided by LibFuzzer performed

very well: it generated the most of the useful test

cases, achieved the highest coverage, and found most

of the unique bugs (when combining all ﬁve runs of

the evaluation).

5 RELATED WORK

The ﬁeld of fuzzing has undergone tremendous de-

velopment in its over 30-year history, and this pace of

progress is accelerating. Its literature became huge.

While we mentioned some of the relevant papers in

Section 1, due to page limits, we will now focus

speciﬁcally on the three approaches most closely re-

lated to our work: Superion (Wang et al., 2019),

Nautilus (Aschermann et al., 2019) and libprotobuf-

mutator (Google Inc., nd). All approaches select el-

ements from a corpus, run them through an instru-

mented target to collect coverage feedback, and then

either add the test to the corpus or discard it based on

the result. However, upon closer inspection, despite

the similarities, they differ in several key points. In

the following, these differences will be enumerated.

Superion is a self-contained, ANTLR grammar-

based coverage-guided fuzzer framework built on

AFL, which replaces AFL’s mutators with its own

solutions. It deﬁnes three new mutators: two of

them are grammar-based, and one operates on byte

sequences. The byte sequence-based mutator uses a

simple heuristic to ﬁnd token boundaries in the test,

then creates new tests by replacing these with ele-

ments from the dictionary. The grammar-based mu-

tators start by parsing, then randomly delete or swap

parts of the inputs that belong to contiguos parts of the

parse trees. These swaps and deletions, however, oc-

cur at random tree nodes without checking whether

the grammar allows these operations. Grammar-

based input generation is also not an option.

Nautilus is also a self-contained grammar-based

coverage-guided fuzzer framework that is based on

AFL and uses its own grammar format. Although

the original publication had a transformer to convert

any ANTLR grammar into the expected format, this

support was discontinued shortly thereafter

. This

forces users to manually write the necessary gram-

mars, in contrast to Grammarinator, which utilizes

the ANTLR4 grammar format and thus has out-of-

the-box access to hundreds of grammars. Because

of its own grammar format, Nautilus cannot build a

seed corpus from existing tests, relying solely on tests

https://github.com/nautilus-fuzz/nautilus/issues/1

generated by itself, which loses valuable inputs. In

contrast, our approach can both start with an empty

corpus and convert existing tests to a seed tree cor-

pus. Regarding mutators, there is some overlap be-

tween Nautilus and our tool. Both can regenerate

subtrees according to the grammar, swap subtrees of

the same type between corpus elements, and include

a transformation similar to hosting. Both approaches

also call back to the base system’s structure-unaware

mutations: Nautilus applies AFL mutations to se-

rialized subtrees, while Grammarinator applies Lib-

Fuzzer mutations to leaf nodes. But, in addition to the

common mutations, Nautilus has three unique muta-

tors, while Grammarinator has nine more.

The third related solution is the structure-

aware fuzzing approach based on libprotobuf-

mutator (Google Inc., nd). Libprotobuf-mutator was

originally developed for targets that expect input in

the Protocol Buffer format. Protocol Buffers is a

language- and platform-neutral mechanism for seri-

alizing structured data, primarily used as a commu-

nication protocol. It has an interface deﬁnition lan-

guage (IDL) that deﬁnes the expected input structure,

which the target application can use for encoding or

decoding data. Libprotobuf-mutator performs muta-

tions on structured data described by such interfaces

and also has integration with LibFuzzer. The main

similarity with our work is its ability to fuzz even

such structured data formats that do not directly use

Protocol Buffers. This can be achieved by deﬁning

the logical structure of the input format using Proto-

col Buffers’ IDL. Based on this, libprotobuf-mutator

can perform the generation or mutation of inputs in

Protocol Buffer format, and then a hand-written con-

verter can convert those inputs to the target format.

While both Grammarinator and libprotobuf-mutator

work with their respective internal representations en-

coded in trees and require a decoding step (the serial-

izer for Grammarinator, the converter for libprotobuf-

mutator) before testing the input, the main differ-

ence is that Grammarinator works with a widely used

grammar format that has descriptions for numerous

input formats, but libprotobuf-mutator often requires

the writing of an IDL. Additionally, writing the

converter needs further manual work. Furthermore,

libprotobuf-mutator has the same drawback as Nau-

tilus, i.e., it cannot parse existing tests to build a seed

corpus.

6 CONCLUSIONS

In this paper, we introduced the integration of

the originally unguided Grammarinator with the

Grammarinator Meets LibFuzzer: A Structure-Aware In-Process Approach

187

structure-unaware LibFuzzer, resulting in a guided,

structure-aware in-process fuzzer. We outlined the

key challenges encountered during this integration

and detailed the most effective solutions we devel-

oped. Beyond the integration, we proposed and

implemented a set of structure-aware and structure-

unaware mutators to enhance the new fuzzer’s capa-

bilities.

To evaluate the effectiveness of our approach,

we conducted experiments using the JerryScript

JavaScript engine as the target. Our results show that

the Grammarinator-LibFuzzer integration achieved

higher coverage and feature count than either of

its predecessors. During the experiments, 29 bugs

were discovered in total, with 20 detected by the

Grammarinator-LibFuzzer integration and 8 exclu-

sively found by this new fuzzer.

Encouraged by these promising results, we plan to

continue this line of research by seeking answers to

several open questions: How does input format com-

plexity impact fuzzing efﬁciency? Which mutators

contribute most to new coverage and feature discov-

eries, and how does their effectiveness change over

time? How does the guided Grammarinator compare

to other guided structure-aware fuzzers in terms of

performance and capabilities? How would integrat-

ing Grammarinator with other guided fuzzing frame-

works impact its efﬁciency? To explore these ques-

tions, we aim to conduct a larger-scale evaluation

across a wider range of input formats, fuzz targets,

baseline fuzzers, and guided fuzzing harnesses.

ACKNOWLEDGEMENTS

This research was supported by project no. TKP2021-

NVA-09. Project no. TKP2021-NVA-09 has been im-

plemented with the support provided by the Ministry

of Culture and Innovation of Hungary from the Na-

tional Research, Development and Innovation Fund,

ﬁnanced under the TKP2021-NVA funding scheme.

REFERENCES

Aschermann, C., Frassetto, T., Holz, T., Jauernig, P.,

Sadeghi, A.-R., and Teuchert, D. (2019). Nau-

tilus: Fishing for deep bugs with grammars. In

Proceedings of the Network and Distributed Systems

Security (NDSS) Symposium 2019. Internet Society.

doi:10.14722/ndss.2019.23412.

Atlidakis, V., Geambasu, R., Godefroid, P., Polishchuk,

M., and Ray, B. (2020). Pythia: Grammar-based

fuzzing of REST APIs with coverage-guided feed-

back and learning-based mutations. arXiv preprint.

arXiv:2005.11498 doi:10.48550/arXiv.2005.11498.

ohme, M., Pham, V.-T., and Roychoudhury, A.

(2016). Coverage-based greybox fuzzing as

Markov chain. In Proceedings of the 2016 ACM

SIGSAC Conference on Computer and Communica-

tions Security (CCS ’16), pages 1032–1043. ACM.

doi:10.1145/2976749.2978428.

Diehl, C. (2015). Dharma. https://blog.mozilla.org/

security/2015/06/29/dharma/.

Even-Mendoza, K., Sharma, A., Donaldson, A. F., and

Cadar, C. (2023). GrayC: Greybox fuzzing of com-

pilers and analysers for C. In Proceedings of the 32nd

ACM SIGSOFT International Symposium on Software

Testing and Analysis (ISSTA 2023), pages 1219–1231.

ACM. doi:10.1145/3597926.3598130.

Fioraldi, A., Maier, D., Eißfeldt, H., and Heuse, M. (2020).

AFL++: Combining incremental steps of fuzzing re-

search. In 14th USENIX Workshop on Offensive Tech-

nologies (WOOT 20). USENIX Association.

Fratric, I. (n.d.). Domato, a DOM fuzzer. https://github.

com/googleprojectzero/domato.

GitLab B.V. (n.d.). GitLab protocol fuzzer community edi-

tion. https://gitlab.com/gitlab-org/security-products/

protocol-fuzzer-ce.

Google Inc. (n.d.). libprotobuf-mutator. https://github.com/

google/libprotobuf-mutator.

Grieco, G., Song, W., Cygan, A., Feist, J., and Groce, A.

(2020). Echidna: effective, usable, and fast fuzzing

for smart contracts. In Proceedings of the 29th ACM

SIGSOFT International Symposium on Software Test-

ing and Analysis (ISSTA 2020), pages 557–560. ACM.

doi:10.1145/3395363.3404366.

Hodov

an, R., Kiss,

A., and Gyim

othy, T. (2018). Gram-

marinator: A grammar-based open source fuzzer. In

Proceedings of the 9th ACM SIGSOFT International

Workshop on Automating Test Case Design, Selec-

tion, and Evaluation (A-TEST 2018), pages 45–48.

ACM. doi:10.1145/3278186.3278193 https://github.

com/renatahodovan/grammarinator.

Holler, C., Herzig, K., and Zeller, A. (2012). Fuzzing with

code fragments. In 21st USENIX Security Symposium

(USENIX Security 12), pages 445–458. USENIX As-

sociation.

JS Foundation et al. (n.d.). JerryScript. https://www.

jerryscript.net.

Lemieux, C., Padhye, R., Sen, K., and Song, D. (2018).

PerfFuzz: Automatically generating pathological in-

puts. In Proceedings of the 27th ACM SIG-

SOFT International Symposium on Software Testing

and Analysis (ISSTA 2018), pages 254–265. ACM.

doi:10.1145/3213846.3213874.

Lemieux, C. and Sen, K. (2018). FairFuzz: a tar-

geted mutation strategy for increasing greybox fuzz

testing coverage. In Proceedings of the 33rd

ACM/IEEE International Conference on Automated

Software Engineering (ASE ’18), pages 475–485.

ACM. doi:10.1145/3238147.3238176.

LLVM Project (n.d.). libFuzzer – a library for coverage-

ICSOFT 2025 - 20th International Conference on Software Technologies

188

guided fuzz testing. https://llvm.org/docs/LibFuzzer.

html.

Miller, B. (2008). Foreword for fuzz testing book. https:

//pages.cs.wisc.edu/

∼

bart/fuzz/Foreword1.html.

Miller, B. P., Fredriksen, L., and So, B. (1990). An

empirical study of the reliability of UNIX utili-

ties. Communications of the ACM, 33(12):32–44.

doi:10.1145/96267.96279.

Mozilla Corporation (n.d.). funfuzz. https://github.com/

MozillaSecurity/funfuzz/.

Parr, T. (2013). The Deﬁnitive ANTLR 4 Reference. The

Pragmatic Programmers. https://www.antlr.org.

Pham, V.-T., B

ohme, M., Santosa, A. E., C

aciulescu,

A. R., and Roychoudhury, A. (2021). Smart greybox

fuzzing. IEEE Transactions on Software Engineering,

47(9):1980–1997. doi:10.1109/TSE.2019.2941681.

Veggalam, S., Rawat, S., Haller, I., and Bos, H. (2016).

IFuzzer: An evolutionary interpreter fuzzer using ge-

netic programming. In Computer Security – ESORICS

2016 – 21st European Symposium on Research in

Computer Security, Heraklion, Greece, September 26-

30, 2016, Proceedings, Part I, volume 9878 of Lecture

Notes in Computer Science (LNCS), pages 581–601.

Springer. doi:10.1007/978-3-319-45744-4 29.

Wang, J., Chen, B., Wei, L., and Liu, Y. (2017). Sky-

ﬁre: Data-driven seed generation for fuzzing. In

Proceedings of the 2017 IEEE Symposium on Se-

curity and Privacy (SP), pages 579–594. IEEE.

doi:10.1109/SP.2017.23.

Wang, J., Chen, B., Wei, L., and Liu, Y. (2019). Su-

perion: Grammar-aware greybox fuzzing. In 2019

IEEE/ACM 41st International Conference on Soft-

ware Engineering (ICSE), pages 724–735. IEEE.

doi:10.1109/ICSE.2019.00081.

Yang, X., Chen, Y., Eide, E., and Regehr, J. (2011).

Finding and understanding bugs in C compilers. In

Proceedings of the 32nd ACM SIGPLAN Confer-

ence on Programming Language Design and Im-

plementation (PLDI ’11), pages 283–294. ACM.

doi:10.1145/1993498.1993532.

Zalewski, M. (n.d.). American fuzzy lop. https://lcamtuf.

coredump.cx/aﬂ/.

Grammarinator Meets LibFuzzer: A Structure-Aware In-Process Approach

189
