Cypher by Example: A Visual Query Language for Graph Databases

Kornelije Rabuzin

, Maja Cerjan

and Martina Šestak

Department of Theoretical and Applied Foundations of Information Sciences, University of Zagreb,

Faculty of Organization and Informatics, Pavlinska 2, 42000 Varaždin, Croatia

Information Systems Laboratory, University of Maribor Faculty of Electrical Engineeing and Computer Science,

Koroška cesta 46, 2000 Maribor, Slovenia

Keywords: The Graph Databases, NoSQL, Query by Example, Cypher, Query Languages.

Abstract: Considering the increasing connectivity in data exchange between applications and devices, modern IT

systems need a storage solution capable of handling connections and patterns between entities. Graph

databases emerged as a potential solution in the past decade. Since graph database query language

standardization is ongoing, users interact with graph databases using query languages like Cypher or Gremlin,

supported by modern Graph Database Management Systems (GDBMSs). Despite well-documented syntax,

users with little knowledge of graph databases face a steep learning curve before writing queries on their own

data. This limits interest in implementing graph databases due to the lack of a visual tool for maintenance. To

address this, the paper introduces Cypher by Example, a visual graph query language with an interface and

query patterns for interacting with the database. It presents the basic elements of this query language and

demonstrates its usefulness in two use cases.

1 INTRODUCTION

The rising connection of data across modern IT

systems has made graph databases a popular solution

since they allow first-class relationship entities for

effective pattern-based analysis such as fraud

detection¹. The main obstacle to increased use

remains the absence of a standard query language

similar to SQL. OpenCypher and GSQL and PGQL

and G-CORE make attempts to create a Graph Query

Language (GQL) standard

but the standard remains

in development.

Until a standard Graph Query Language (GQL)

emerges users of graph databases depend on

languages like Cypher and Gremlin which major

Graph Database Management Systems (GDBMSs)

support. Despite its SQL-like declarative syntax

Cypher experiences widespread adoption yet

developers need to overcome a steep learning curve.

Different researchers have developed alternative

https://orcid.org/0000-0002-0247-669X

https://orcid.org/0009-0003-8825-6050

https://orcid.org/0000-0001-7054-4925

More information available at https://www.gqlstandards.

org

query methods which reduce the learning burden of

syntax through their implementation.

The visual querying system known as Query by

Example (QBE) was originally designed for

relational database use. The developers of SQL built

the language to be user-friendly yet the system

became too complicated for average users. Microsoft

Access and other database systems employed QBE as

a query building tool to create visual interfaces for

database interactions.

Based on the QBE visual querying method we

suggest Cypher by Example (CBE) as a visual

language for graph databases. The system transforms

user input queries into Cypher syntax while enabling

users to build graph queries through its graphical

interface.

The main contributions of this paper are:

- Cypher by Example (CBE) presents a visual

query language for graph database operations;

518

Rabuzin, K., Cerjan, M., Šestak and M.

Cypher by Example: A Visual Query Language for Graph Databases.

DOI: 10.5220/0013565400003967

In Proceedings of the 14th International Conference on Data Science, Technology and Applications (DATA 2025), pages 518-525

ISBN: 978-989-758-758-0; ISSN: 2184-285X

- The system architecture of CBE includes its

design as well as graph query pattern

implementation;

- A user-friendly graphical user interface (GUI)

enables users to formulate visual graph

queries;

- CBE usability is tested through data insertion

and retrieval case studies.

The paper follows this organization: Section 2

provides an overview of visual query systems that are

relevant to the topic. The paper provides background

information about relational and graph database

querying in Section 3. Section 4 describes the CBE

language. Section 5 showcases CBE implementation

through practical applications. The paper ends with

future work and discussion in Section 6.

2 RELATED WORK

Researchers have proposed various database query

systems together with Visual Query Systems (VQSs).

The paper investigates query formulation since this

continues to be the primary difficulty for unskilled

graph database users.

Three research directions for visual query

formulation were identified by Bhowmick Choi and

Li (2017) as the edge-at-a-time method of adding

single edges at a time and the pattern-at-a-time

method of dragging subgraphs and the Query by

Example (QBE) method of using example data for

query formulation. The Query by Example (QBE)

approach functions as the fundamental basis for the

Cypher by Example (CBE) language we propose.

Pabon et al. (2019) presented GraphTQL as a

VQS system that enables filtering operations and

schema transformation. GraphTQL enhances query

formulation but it offers fewer operators than CBE

does because it provides extensive query

functionality.

AutoG represents a visual query auto-completion

framework that Yi along with Choi and Bhowmick

and Xu (2016) created. The system includes three

main components which are a user interface for input

and server-side data indexing and query suggestion

functionality. AutoG makes usability better but the

system fails to demonstrate the process of converting

visual queries into executable Cypher queries.

DAVINCI represents a visual interface which

Zhang and his team (2015) developed for

constructing subgraph queries. The system extracts

patterns from existing graph data before offering the

extracted subgraph patterns for user selection.

VISAGE represents a system that Pienta et al. (2016,

2017) developed for pattern-based querying along

with wildcards and logical operators and GUI-based

query construction through a complete client-server

system.

Bhowmick, Choi, and Zhou (2013) developed the

VOGUE framework by integrating query formulation

directly with processing through action-aware

indexing which reduces system delays.

Jin et al. (2011) developed GBLENDER as a

system which refreshes query results in real-time

while users construct queries. GBLENDER creates

index structures for subgraph elements to execute

query matches through interactive GUI-based

operations.

Sharma (2020) presents a hybrid method by

showing how GQL syntax enables SQL query

translation into graph queries. The early-stage

research demonstrates the requirement for an SQL-

like graph database query language standard.

The majority of systems focus on visual query

formulation yet they restrict their approach to

property graph-specific QBE-like methods. Our

proposed CBE language targets this specific gap

which remains unaddressed.

3 RELATION AND GRAPH

DATABASES: SQL, QBE AND

CYPHER

Relational databases dominate the market as the

leading data management technology since their

inception. The Query by Example (QBE) language

joins SQL as one of the main methods for database

querying operations. Zloof (1977) defines QBE as "a

high-level database management language which

offers a uniform and simple method to query, modify,

create and manage relational databases." The system

focuses on making query construction accessible to

users who do not understand database principles or

syntax.

Through visual tools QBE creates interfaces that

follow the user's cognitive patterns during the query

process. The system divides database components

into two groups: constant elements derived from the

database structure and remain unalterable (such as

table names and column names) and example

elements that users modify to specify their search

criteria (such as particular column values). The

interface structure enables users to illustrate their

desired outcomes while the system creates the

corresponding query syntax.

Cypher by Example: A Visual Query Language for Graph Databases

519

Relational databases can be queried by using the

Query by Example (QBE) language which functions

as a SQL alternative to simplify database interactions.

Users can create queries in QBE by adding example

values to construct their queries instead of writing

SQL syntax.

Microsoft Access demonstrates this approach.

Users can obtain course information with their

prerequisites by creating multiple copies of the

"courses" table during visual query construction to

specify required attributes. This approach eliminates

the requirement for intricate SQL syntax involving

multiple joins because Figure 1 demonstrates this

process.

The process of building a QBE query for courses and

their prerequisites reaches its second level (Figure 1.)

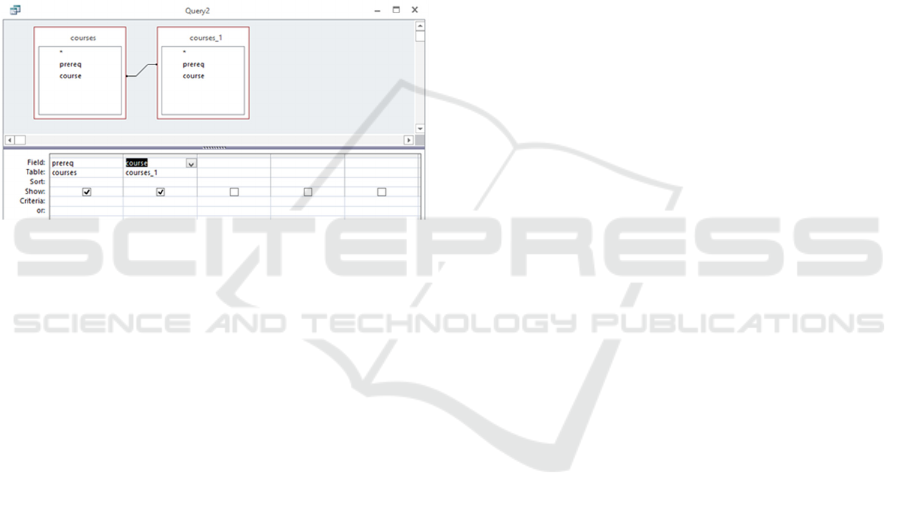

Figure 1: Query formulation for courses and their

prerequisites in QBE – the second hierarchy level.

SQL syntax becomes excessively difficult for

untrained users to manage as query complexity

reaches deeper course hierarchy levels. Recursive

queries or nested joins are often required. QBE retains

its easy-to-use nature because users can increase the

number of visible elements without needing to

modify SQL syntax manually. Unstructured and

semi-structured data sources including application

logs and IoT outputs have increased in popularity thus

making fixed-schema databases impractical during

recent years. The market transition toward NoSQL

technologies occurred because of graph databases

which provide flexible schemas through alternative

query languages.

The property graph data model serves as the core

data model in graph databases which provide both

structure and adaptability in data representation.

Angles (2018) defines a property graph formally

through the tuple PG=(N,E,η,λ,ν), where:

- N ⊆ O represents a finite set of objects called

nodes;

- E ⊆ O represents a finite set of objects called

edges;

- η : E → N ×N is a total function that assigns an

ordered pair of nodes to each edge;

- λ : N ∪E → P(L) is a partial function that

assigns a finite set of labels to each node or

edge object;

- ν : (N ∪ E) × K → V is a partial function that

assigns a value to a property of a node or edge

object

A property graph contains nodes and edges that

both receive labels and optional key-value properties

which describe their features.

The property graph schema, as described by

Angles (2018), is a formal construct used to define

valid structures within a property graph. It is

represented as a tuple PG

= (L

,β,δ

)

, where:

- L

∈ L is a finite set of labels representing node

types;

- LE

∈

L is a finite set of labels representing

edge types, where LN∩LE =

∅

;

- β : (LN

∪

LE)×P → T is a partial function that

defines the properties for node and edge types,

and the data types of the corresponding values;

- δ : (LN,LN) → SET+(TE) is a partial function

that defines the edge types allowed between a

given pair of node types.

This model serves as the basis for graph modelling

yet maintains flexibility through the absence of rigid

structural constraints that relational schemas enforce.

Šestak et al. (2021) introduce advanced features

including integrity constraints and validation rules

that this schema enables through extensions. Most

graph databases enable users to interact with property

graphs through query languages that include Cypher

and Gremlin. The declarative syntax of Cypher

enables users who understand SQL to easily use this

language for graph queries. GQL is expected to

become the future standardized Graph Query

Language which will be based on Cypher. The

procedural nature of Gremlin makes it suitable for

detailed graph traversal operations but it demands

advanced knowledge of the domain. Rabuzin,

Maleković and Šestak (2016) have introduced a QBE-

like method for using Gremlin. The research

demonstrates our visual query interface through

Cypher. Our Cypher by Example (CBE) system

enables users to create graph queries through visual

methods instead of manual Cypher query writing and

automatically converts these queries into Cypher

syntax. This method enables easier learning while

maintaining the complete power of graph querying

capabilities.

DATA 2025 - 14th International Conference on Data Science, Technology and Applications

520

4 CYPHER BY EXAMPLE

In this section, we propose and describe the Cypher

by Example visual query language for graph

databases. We describe the system architecture of

CBE followed by a visual syntax of the CBE language

and supported operators, as well as how those

operators map to the underlying Cypher queries to be

executed within a graph database.

4.1 System Architecture of the CBE

Language

The Cypher by Example (CBE) system implements a

client-server system which includes graphical user

interface components on the client side and server

components that interact with the Neo4j graph

database. The client contains a data-driven Graphical

User Interface (GUI) which enables users to both

create and display queries as shown in Figure 2.

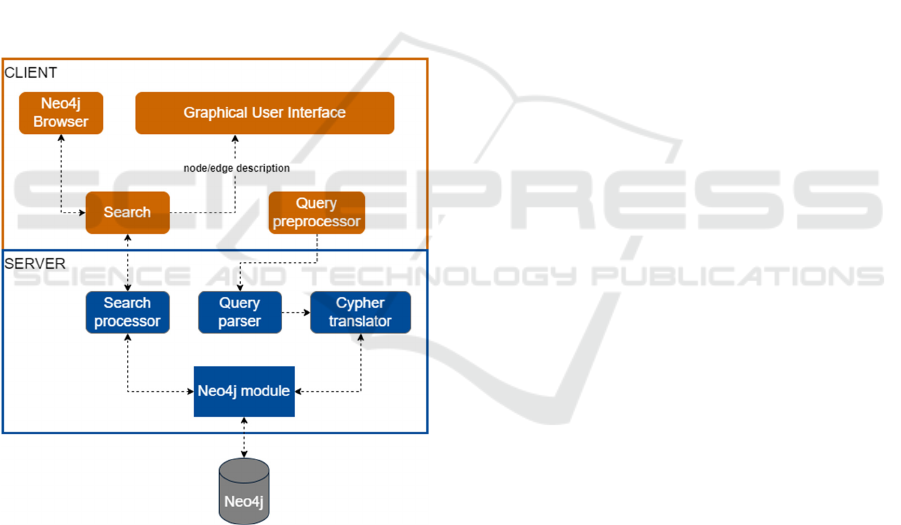

Figure 2: System architecture of the CBE language.

The Search module retrieves graph database

metadata (node and edge labels and properties) which

allows the GUI to update its interface dynamically.

The Query Preprocessor transforms the user's visual

query into a structured JSON object before sending it

to the server for parsing.

The Search Processor component on the server

retrieves metadata by running basic Cypher MATCH

queries against the Neo4j database. The Query Parser

takes user-generated JSON queries before sending

them to the Cypher Translator for conversion into

executable Cypher syntax. The Neo4j Module

executes the final query through the Neo4jClient

library for.NET. The GUI displays results after the

architecture receives them from the database

execution.

The system used ASP.NET for web application

development with Neo4j v3.5 as the database

platform and the following sections will provide

additional implementation details.

4.2 Supported Graph Query Patterns

in the CBE Language

The CBE language enables users to execute basic

visual query patterns which directly translate to

Cypher queries. Users can use these patterns to

perform data insertion and updates and data retrieval

operations on graph databases through the interface

without needing to write code. The query process

begins with retrieving node labels and edge types and

properties which then fills the visual interface for

additional query development.

Retrieve Node/Edge Metadata

This pattern retrieves the graph structure which

includes node and edge labels together with their

properties before enabling any additional patterns.

Users choose their preferred label through a

dropdown selection which reveals properties for

modification or filtering in a table.

MATCH p=(n)-[e]-()

RETURN DISTINCT LABELS(n) AS

node_labels,

PROPERTIES(n) AS node_properties,

TYPE(e) AS edge_types, PROPERTIES(e) AS

edge_properties

Insert/Update Nodes and Edges

The system enables users to perform both node and

edge insertions as well as updates for single nodes or

entire paths that include edges. The system enables

users to enter properties in any order because it does

not enforce a predefined schema structure. The

Cypher MERGE command serves both node and edge

insertions to maintain data consistency and prevent

duplicate entries.

Example for a single node:

MERGE (n:NodeLabel {property_name:

"value"}) RETURN n

Query Nodes and Edges

Users can use these patterns to retrieve graph

elements through adaptable retrieval criteria. Users

Cypher by Example: A Visual Query Language for Graph Databases

521

can perform the following operations in both

scenarios:

- Set filter conditions (e.g., =, <, >),

- Include/exclude properties from the result,

- Sort results, and

- Limit the number of returned records.

Example for querying a node:

MATCH (n:NodeLabel)

WHERE n.property_name = "value"

RETURN n.property_name

ORDER BY n.property_name ASC

LIMIT 10

For path queries between nodes:

MATCH (n1:NodeLabel)-[e1:EdgeType]-

>(n2:NodeLabel)

WHERE n1.property_name = "value"

RETURN n1, e1, n2

ORDER BY n1.property_name

LIMIT 10

The fundamental graph query patterns described here

serve as the foundation for complex graph operations

which receive detailed explanation through practical

examples in the following section.

5 CASE STUDY

In this section, we demonstrate the usefulness and the

applicability of the proposed CBE language on two

use cases, which both include the application of graph

query patterns explained in Section 4.2. For the case

study, we prepared a sample graph database

containing data about users, books and their authors,

as well as users’ book borrowings. Throughout the

use cases, we showcase the usage of the CBE

graphical interface when adding data to and retrieving

data from the Neo4j graph database.

5.1 Overview of the CBE Prototype

Interface

Before showcasing the implementation of selected

graph query patterns in practical use cases, we

provide a brief overview of the CBE GUI elements,

which the user uses to visually formulate graph

database queries. The architecture of the CBE

language presented in Section 4.1 was implemented

as a web application consisting of client- and server-

side modules. A simplified overview of the main

elements of the CBE GUI is depicted in Figure 3.

The interface consists of three major segments:

1. Graph query patterns list - a menu with listed

supported graph query patterns for query

formulation;

2. Query formulation editor - a surface, which can

be used to add new graph elements (nodes or

edges) to the query path. Once added to the

editor, the user selects the node label or edge

type from a dropdown list available for each

element;

3. Query parametrization table - a table, that the

user fills to parametrize the query by using

different options to adjust specific node or edge

property values (Show, Sort, Criteria or Limit).

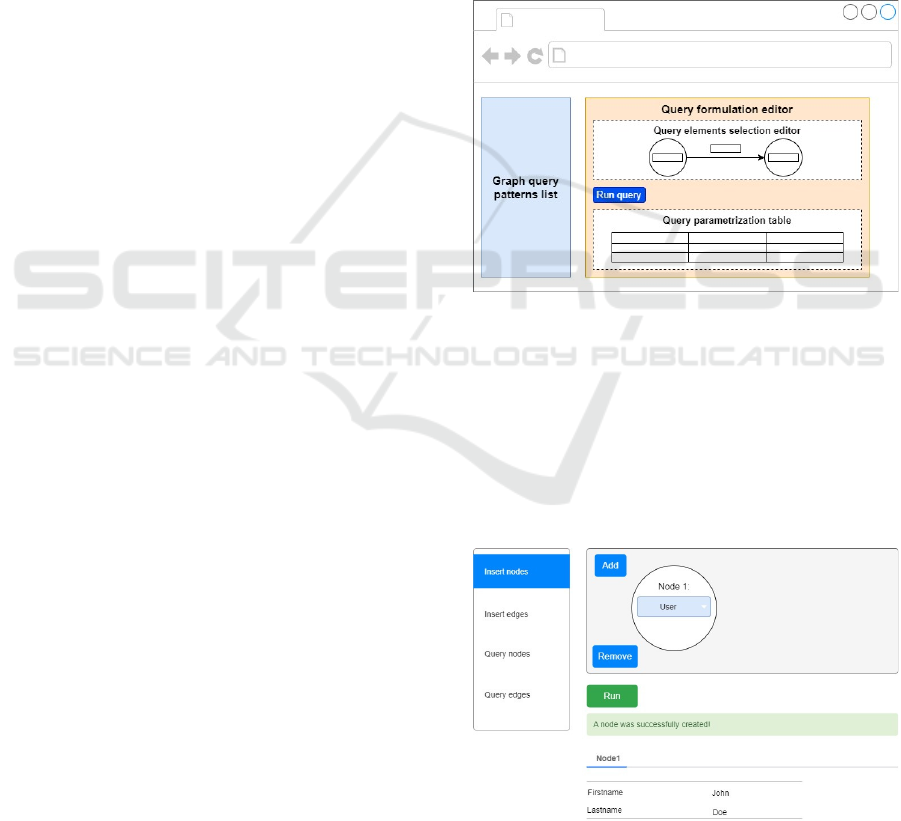

Figure 3: A mockup overview of the CBE GUI elements.

5.2 Use Case 1: Creating Nodes and

Edges

The first use case demonstrates how to use the CBE

language to insert a node and an edge into the graph

database.

To create a new User node, the user selects the

desired node label from a dropdown list (Figure 4).

Figure 4: An example of inserting a User node into the

database via the CBE interface.

DATA 2025 - 14th International Conference on Data Science, Technology and Applications

522

The Retrieve node metadata pattern then

populates the table with available properties. After

entering values for fields like Firstname and

Lastname, the user executes the query.

On the backend, the Neo4j module—built using

the Neo4jClient library for .NET—translates the

user's input into a Cypher MERGE query and

executes it against the database.

Next, to create a WROTE relationship between

two nodes (e.g., Author and Book), the user adds both

node types and the edge type to the query editor

(Figure 5).

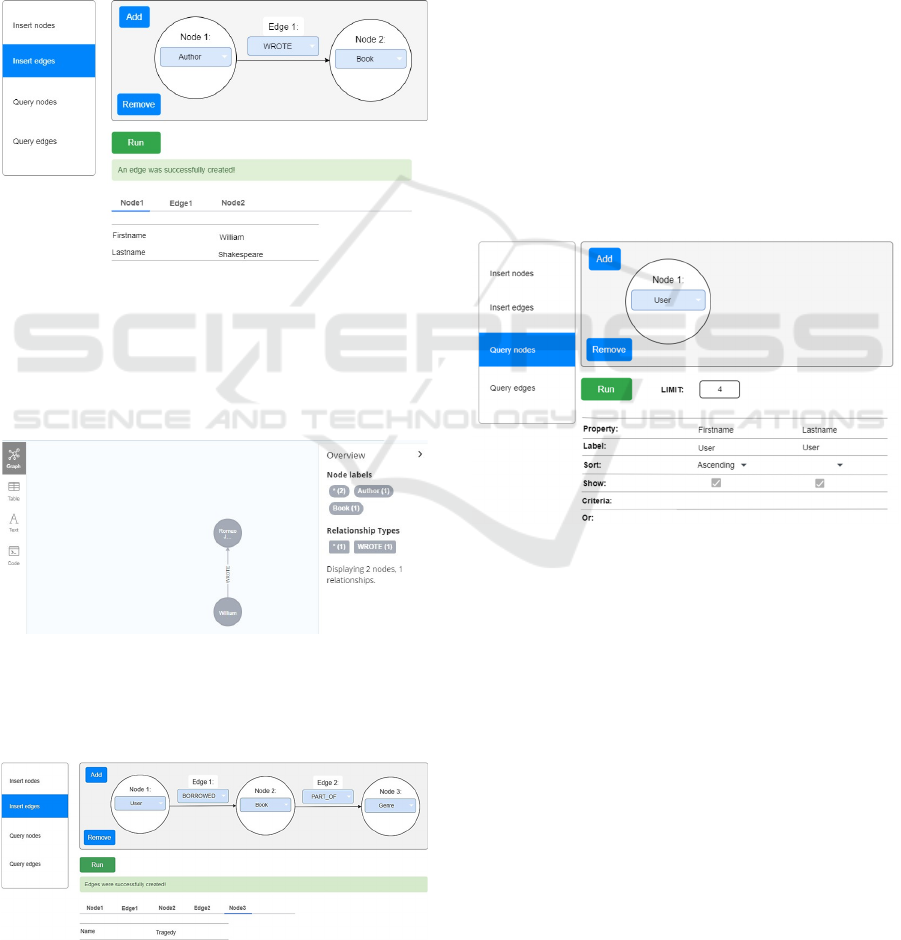

Figure 5: An example of adding a WROTE edge between

two nodes.

After setting relevant properties (e.g., author name,

book title), the query is executed. If either node

doesn't exist, it is created alongside the connecting

edge (Figure 6).

Figure 6: A new WROTE edge is added into the database.

The interface also allows adding more than one edge

in a single interaction, enabling the creation of full

graph paths between multiple nodes (Figure 7).

Figure 7: An example of the two edges into the database.

These examples confirm that the CBE interface

enables intuitive insertion of both nodes and

relationships in the graph database through a visual

workflow.

5.3 Use Case 2: Querying Nodes and

Edges

After inserting nodes and edges into the database the

CBE interface can be used to query the data visually

following the QBE philosophy. Users will specify

example values of the elements they wish to retrieve

and will also set display parameters, sorting, filtering

and result limits. In order to demonstrate the "Query

a single node" pattern, assume that the user wants to

retrieve User nodes. First, the user chooses the User

label in the query editor. Then, the Retrieve

node/edge metadata pattern populates the table with

the properties that are available. The user chooses to

display the Firstname and Lastname properties, sorts

the Firstname property in ascending order, sets a

result limit of 4, and then runs the query (Figure 8).

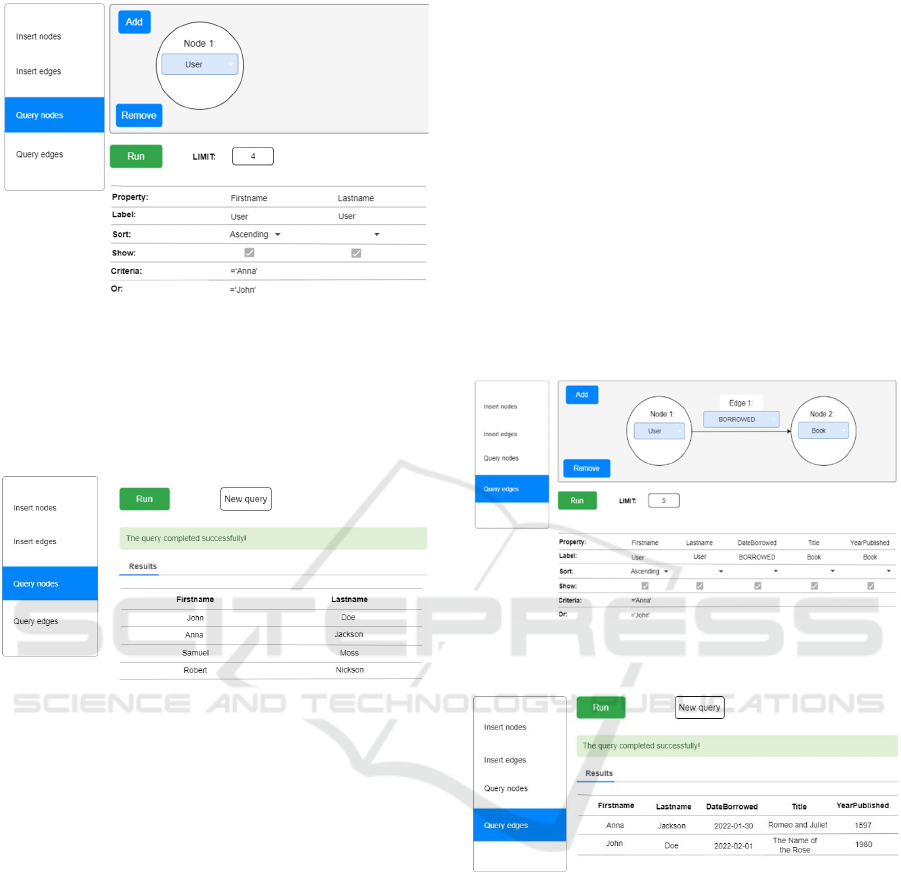

Figure 8: An example formulation of a query on a single

node.

The interface generates the following Cypher query:

IEnumerable<User> result =

Neo4jDb.Instance.Client.Cypher

.Match("(u:User)")

.Return(u => u.As<User>())

.OrderBy("u.Firstname")

.Limit(4)

.Results.ToList<User>();

The result is a table of four users, sorted and filtered

according to the parameters (Figure 9).

Cypher by Example: A Visual Query Language for Graph Databases

523

Figure 9: The results of the query for retrieving for users

from the database.

Further, the user can specify filter criteria. For

example, to return users with the first name "Anna"

or "John", values are entered in the Criteria and Or

fields of the Firstname row (Figure 10).

Figure 10: An example formulation of a query on a single

node with filtering criteria.

This adjusts the query as follows:

IEnumerable<User> result =

Neo4jDb.Instance.Client.Cypher

.Match("(u:User)")

.Where((User u) => u.Firstname ==

"Anna")

.OrWhere((User u) => u.Firstname ==

"John")

.Return(u => u.As<User>())

.OrderBy("u.Firstname")

.Limit(4)

.Results.ToList<User>();

The edge querying pattern works similarly. For

instance, to get users who borrowed books, the user

will choose the User, Book, and BORROWED labels

in the query editor. The metadata query will fill in the

properties for each element. The user will apply filters

to Firstname, choose display options for both nodes

and the edge (e.g., Date borrowed), and also choose

to limit results to 5. The corresponding query is:

IEnumerable<Object> result =

Neo4jDb.Instance.Client.Cypher

.Match("(user:User)-[r:BORROWED]-

>(book:Book)")

.Where((User user) => user.Firstname

== "Anna")

.OrWhere((User user) => user.Firstname

== "John")

.Return((user, book, r) => new {

User = user.As<User>(),

Book = book.As<Book>(),

R = r.As<BORROWED>()

})

.OrderBy("user.Firstname")

.Limit(5)

.Results.ToList<Object>();

The result displays users and their corresponding

borrowings (Figure 12), and the full formulation

process is illustrated in Figure 11.

Figure 11: An example formulation of a query on an edge

between two nodes.

Figure 12: The results of the query for retrieving book

borrowings from users named "John" or "Anna".

These examples show that the CBE interface allows

users to visually formulate both node and edge

queries in the same way as QBE, with real-time

Cypher translation and execution against the graph

database.

6 CONCLUSION

In this paper, a novel Cypher by Example (CBE)

visual graph querying language was proposed. The

proposed language follows the design principles of

the Query by Example (QBE) language approach,

DATA 2025 - 14th International Conference on Data Science, Technology and Applications

524

which has already been used for years as an

alternative graphical query language for relational

databases. The strong point of the QBE approach is

its ability to present inexperienced users with a clear

and simple graphical interface for query formulation,

thus eliminating the need for a deep understanding of

the underlying query language syntax. Our proposed

CBE language follows the same thought, and

provides a visual graph querying interface for graph

database practitioners with little or no knowledge of

the Cypher query language syntax or the graph

database technology in general. However, unlike

other visual graph querying approaches introduced so

far, the CBE language follows the QBE design

principles strictly, and allows users to adjust graph

query parameters in more detail. We described the

system architecture of the proposed CBE language,

and discussed the currently supported graph query

patterns, which can be used to formulate queries via

the CBE language interface. Furthermore, we

performed a case study on two use cases to

demonstrate the usability of the proposed CBE

language for inserting and querying nodes and edges

in graph databases. As part of our future work, we

plan to extend the list of supported graph query

patterns to more complex graph structures such as

subgraphs as well as other operators for managing

different graph database structures (e.g. adding new

node labels and edge types, deleting nodes/edges,

creating indexes, triggers, stored procedures, etc.).

We will also continue our work on improving the

visual interface by integrating an appropriate auto-

complete framework to additionally simplify the

query formulation process for the user.

ACKNOWLEDGMENTS

This work was funded by the Slovenian Research Agency

(Research Core Funding No. P2-0057).

REFERENCES

Angles, R. (2018). The Property Graph Database Model. In

Proceedings of AMW 2018.

Bhowmick, S. S., & Choi, B. (2022). Data-driven visual

query interfaces for graphs: Past, present, and (near)

future. In Proceedings of the 2022 International

Conference on Management of Data (pp. 2441–2447).

ACM.

Bhowmick, S. S., Choi, B., & Li, C. (2017). Graph querying

meets HCI: State of the art and future directions. In

Proceedings of the 2017 ACM International

Conference on Management of Data (pp. 1731–1736).

ACM.

Bhowmick, S. S., Choi, B., & Zhou, S. (2013). Vogue:

Towards a visual interaction-aware graph query

processing framework. In Proceedings of CIDR 2013.

Jin, C., Bhowmick, S. S., Xiao, X., Choi, B., & Zhou, S.

(2011). Gblender: Visual subgraph query formulation

meets query processing. In Proceedings of the 2011

ACM SIGMOD International Conference on

Management of Data (pp. 1327–1330). ACM.

Pabon, M. C., Millan, M., Roncancio, C., & Collazos, C. A.

(2019). Graphtql: A visual query system for graph

databases. Journal of Computer Languages, 51, 97–

111.

Pienta, R., Hohman, F., Tamersoy, A., Endert, A., Navathe,

S., Tong, H., & Chau, D. H. (2017). Visual graph query

construction and refinement. In Proceedings of the

2017 ACM International Conference on Management

of Data (pp. 1587–1590). ACM.

Pienta, R., Tamersoy, A., Endert, A., Navathe, S., Tong, H.,

& Chau, D. H. (2016). Visage: Interactive visual graph

querying. In Proceedings of the International Working

Conference on Advanced Visual Interfaces (pp. 272–

279). ACM.

Rabuzin, K., Maleković, M., & Sestak, M. (2016). Gremlin

by example. In Proceedings of the International

Conference on Advances in Big Data Analytics (pp.

144–149).

Robinson, I., Webber, J., & Eifrem, E. (2015). Graph

databases: New opportunities for connected data.

O’Reilly Media, Inc.

Sestak, M., Heričko, M., Družovec, T. W., & Turkanović,

M. (2021). Applying k-vertex cardinality constraints on

a neo4j graph database. Future Generation Computer

Systems, 115, 459–474.

Sharma, C. (2020). Flux: From SQL to GQL query

translation tool. In Proceedings of the 2020 35th

IEEE/ACM International Conference on Automated

Software Engineering (ASE) (pp. 1379–1381). IEEE.

Yi, P., Choi, B., Bhowmick, S. S., & Xu, J. (2016). Autog:

A visual query autocompletion framework for graph

databases. Proceedings of the VLDB Endowment,

9(13), 1505–1508.

Zhang, J., Bhowmick, S. S., Nguyen, H. H., Choi, B., &

Zhu, F. (2015). Davinci: Data-driven visual interface

construction for subgraph search in graph databases. In

Proceedings of the 2015 IEEE 31st International

Conference on Data Engineering (pp. 1500–1503).

IEEE.

Zloof, M. M. (1977). Query-by-example: A data base

language. IBM Systems Journal, 16(4), 324–343.

Cypher by Example: A Visual Query Language for Graph Databases

525
