Modeling and Simulating IoT Infrastructures

Philipp Zech

1 a

, Karthik Vaidhyanathan

2 b

, Likhith Kanigolla

2 c

, Luca Rahm

and Ruth Breu

1 d

Department of Computer Science, University of Innsbruck, Technikerstrasse 21a, Innsbruck, Austria

Software Engineering Research Center, IIIT Hyderabad, Gachibowli, India

Keywords:

Domain-Speciﬁc Modeling, Model-Driven Development, DEVS, Model-Driven Simulation, Model-to-Text

Generation.

Abstract:

Effective management and optimization of urban infrastructures necessitates scalable and accessible simula-

tion frameworks. Modern BIM-based solutions present a promising avenue for novel construction projects;

however, these solutions are often inapplicable to the extensive array of legacy infrastructures developed prior

to the establishment of BIM as a construction standard. Commensurate with this, we present a new model-

driven simulation approach for urban infrastructures that (i) utilizes a novel domain-speciﬁc modeling lan-

guage (DSML) to represent both structural and behavioral characteristics of these infrastructures and (ii) em-

ploys the Discrete Event System Speciﬁcation (DEVS) formalism for simulation purposes. Reframing urban

infrastructures as IoT-based, event-driven systems facilitates efﬁcient, hierarchical simulations of complex

dynamic environments, including resource management and water networks. Simulation artifacts produced

from the DSML through model-to-text generation are executed within the DEVS simulation framework. We

validate our approach through a case study conducted at IIIT Hyderabad’s Smart City Living Lab, illustrating

its capacity to identify optimization opportunities within urban infrastructures.

1 INTRODUCTION

Urban and civil infrastructures consume over two-

thirds of the world’s energy (International Energy As-

sociation, 2021). This has led to the rise of smart

infrastructures (Snoonian, 2003), i.e., urban infras-

tructures equipped with numerous IoT devices for im-

proved monitoring and more timely reaction w.r.t. op-

timizing, e.g., the operational footprint (King and

Perry, 2017). However, this only solves one part of

the problem. The situation is more critical if taking a

closer look at the large stock of legacy infrastructures.

According to the EU’s Energy Performance of Build-

ing’s Directive, 35 million building units are to be ren-

ovated to achieve higher resource efﬁciency (Coun-

cil of European Union, 2024). Similarly, with the

ECO Niwas Samhita 2018, India is also pushing novel

building codes to improve buildings’ and infrastruc-

tures’ operational performance (Bureau of Energy Ef-

ﬁciency, Govt. of India, 2018). To even come close to

achieving these ambitious goals, accessible, efﬁcient

https://orcid.org/0000-0002-4952-4337

https://orcid.org/0000-0003-2317-6175

https://orcid.org/0000-0001-7093-4341

and scalable solutions for the identiﬁcation of quick

optimization potentials of legacy infrastructures are

much-needed. Modeling and simulation provide an

efﬁcient remedy.

Over the last decades, Building Information Mod-

eling (BIM) has emerged as a new, de-facto stan-

dardized workﬂow for digital planning, design, con-

struction, and operation in the architecture, engineer-

ing, and construction (AEC) industry (Marketsand-

Markets, 2024). This increased adoption naturally

has led to the exploration of BIM-based simulations

which became feasible as to a collaborative process

that integrates digital representations of an infrastruc-

ture’s physical and functional characteristics to sup-

port its design, construction, and operation (Eastman

et al., 2011; Di Biccari et al., 2022). However, in the

event of legacy infrastructures, as to the recency of

BIM, such models largely do not exist thus rendering

BIM-based simulations infeasible.

In light of the above, we identify a paramount

demand for accessible, efﬁcient and scalable solu-

tions for the identiﬁcation of quick optimization po-

tentials of legacy infrastructures that does not capital-

ize on BIM. By reframing an infrastructure as a dis-

crete event system (Lu and Olofsson, 2014) we even-

Zech, P., Vaidhyanathan, K., Kanigolla, L., Rahm, L. and Breu, R.

Modeling and Simulating IoT Infrastructures.

DOI: 10.5220/0013557400003970

In Proceedings of the 15th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2025), pages 93-105

ISBN: 978-989-758-759-7; ISSN: 2184-2841

tually arrive at a feasible and efﬁcient representation,

e.g., in terms of its embedded IoT devices, which can

be leveraged for discrete event simulation (Agalianos

et al., 2020) using the DEVS formalism (Zeigler,

2000). This then directly yields the central research

questions investigated in our work, viz.

• RQ1. How can we efﬁciently model infrastruc-

tures by their embedded IoT devices to simulate

and understand their operational behavior?

• RQ2. How can DEVS be leveraged for model-

driven, discrete event-based simulations of con-

nected IoT infrastructures for the identiﬁcation of

quick optimization potentials?

Commensurate with the above, in this paper, we

present a novel domain-speciﬁc modeling language

(DSML) for modeling infrastructures at the IoT layer.

This allows for capturing both structural and op-

erational behavior aspects in a accessible and efﬁ-

cient way without the need for a BIM model. From

the resulting DSML-based models, we generate run-

time artifacts as Python code which are then ex-

ecuted in the Python PDEVS simulation environ-

ment (Van Tendeloo and Vangheluwe, 2016). This re-

sults in an efﬁcient, model-driven workﬂow that cap-

italizes on model-based tool integration (Kapsammer

et al., 2006) for accessible model-driven simulation

of infrastructures for the identiﬁcation of quick op-

timization potentials. We evaluate our proposal in a

Living Lab at the IIIT Hyderabad in India.

2 BACKGROUND AND

RESEARCH PROBLEM

To reduce the global resource footprint of infrastruc-

tures, efﬁcient and scalable solutions for the fast iden-

tiﬁcation of optimization potentials in legacy infras-

tructures are necessary. Unfortunately however, mod-

ern BIM-based simulations of legacy infrastructures

usually are not feasible as to various reasons:

• Data Acquisition and Model Creation: Legacy

infrastructures often lack up-to-date or accurate

documentation, making it difﬁcult to gather nec-

essary data for BIM. Technologies like laser scan-

ning (LiDAR) or photogrammetry are often used

to capture data, but this can be time-consuming

and costly and only reconstructs an infrastruc-

ture’s hull (e.g., a visual 3D model of an infras-

tructure’s manifestation) (Volk et al., 2014).

• Complexity of Building Forms: Legacy infrastruc-

tures often feature non-standard geometries or ir-

regular forms that are difﬁcult to capture and rep-

resent in modern BIM software, which is typically

optimized for contemporary designs with regular

shapes (Baik et al., 2014).

• Material Degradation and Unknown Conditions:

Legacy infrastructures often experience material

degradation or undocumented changes over time,

such as renovations or repairs, which compli-

cate the process of creating accurate BIM models

without comprehensive manual examination (Fai

et al., 2011).

• Interoperability of Data: Many legacy infrastruc-

tures only have outdated records in non-digital

formats (e.g., paper blueprints or 2D CAD draw-

ings), which are difﬁcult to translate into BIM

models without extensive effort. Ensuring in-

teroperability between these formats and BIM

software adds to the complexity (Murphy et al.,

2013).

• Cost and Skill Requirements: The cost of apply-

ing BIM to legacy infrastructures is often high

due to the need for advanced scanning tools and

specialized expertise to interpret the data and

translate it into a usable BIM model. The re-

turn on investment is uncertain, particularly for

non-commercial projects like historic preserva-

tion (Becerik-Gerber et al., 2012).

• Heritage Conservation Concerns: When BIM

is applied to historically signiﬁcant buildings, it

may conﬂict with heritage conservation princi-

ples, which prioritize maintaining the building’s

original condition. BIM’s focus on efﬁciency and

standardization can clash with these values (Dore

and Murphy, 2012).

Commensurate with this, we thus look for feasible

approaches elsewhere, mainly in the ﬁeld of DEVS

by following the idea of reframing an infrastructure

as an event-driven system, where state changes occur

at discrete points in time in response to events to en-

able efﬁcient and hierarchical simulation of complex

dynamic systems, e.g., infrastructures (Zeigler, 2000;

Lu and Olofsson, 2014; Agalianos et al., 2020).

2.1 Infrastructures as DEVS-Based

Simulations

We rely on the fundamental assumption of being able

to represent an infrastructure as a DEVS system. Fol-

lowing Lu and Olofsson (2014), a building can be

treated as a DEVS system by modeling its compo-

nents (e.g., sensors and actuators) as atomic models

with discrete states that change in response to speciﬁc

events, such as occupancy detection or temperature

ﬂuctuations. These components can be organized hi-

erarchically to represent an IoT infrastructure, with

SIMULTECH 2025 - 15th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

subsystems (for rooms or ﬂoors) interacting through

a coupled model that simulates coordinated responses

to events, such as adjusting lighting and HVAC when

occupants enter a room. DEVS manages time-driven

events efﬁciently, simulating both scheduled opera-

tions (e.g., daily heating routines) and unpredictable

occurrences (e.g., sudden temperature drops or water

contamination). Such an approach enables real-time

simulations of dynamic behaviors like energy use or

water demand, providing a comprehensive model of

infrastructure operations.

Albataineh and Jarrah (2021) developed a DEVS-

based framework to evaluate smart home IoT systems,

where device scheduling simulations provide action-

able recommendations to optimize resource use. Sim-

ilarly, Antoine-Santoni et al. (2007) applied DEVS

formalism to model wireless sensor networks for en-

vironmental monitoring, particularly in wildﬁre de-

tection, showcasing the modular capacity of DEVS

in managing complex environmental interactions. Es-

teban et al. (2023)proposed an early warning sys-

tem for harmful algal blooms, using DEVS within an

IoT architecture to integrate layered simulation and

validation stages for real-time monitoring and data

processing. Mittal and Martin (2013a) introduced

the DEVS Uniﬁed Process (DUNIP) for netcentric

systems, aligning DEVS with model-driven systems

engineering (MDSE) to integrate Service-Oriented

Architecture (SOA) and Event-Driven Architecture

(EDA), enhancing interoperability for large-scale sys-

tems.

Expanding on IoT applications within DEVS, Al-

bataineh and Jarrah (2019) further explored smart

home device management by simulating behaviors

and interactions among monitoring and control de-

vices. Their DEVS-based IoT management system

improves device deployment efﬁciency and allows

simulation of scenarios involving power consumption

and cost, providing insights for optimal smart home

conﬁguration.

Fazel and Wainer (2023) investigated model-

based development for the IoT, focusing on a DEVS-

based methodology to streamline IoT application life

cycle management through abstraction and reusabil-

ity. Their work emphasizes the importance of network

protocols like MQTT for data transmission, imple-

menting DEVS-based MQTT models to ensure qual-

ity of service (QoS) and reliability in connected sys-

tems, which are critical for real-time and distributed

IoT applications in complex environments like health-

care and industrial settings.

Lastly, Im et al. (2021) introduced methods to sim-

ulate mobile IoT systems using DEVS, overcoming

challenges associated with simulating dynamic IoT

nodes. Their approach incorporates hierarchical parti-

tioning and a novel event-driven technique to manage

node mobility, signiﬁcantly reducing simulation time

while maintaining model accuracy. This advancement

is especially relevant for applications where IoT de-

vices are mobile, such as in smart city or vehicular

networks, addressing scalability and efﬁciency con-

cerns inherent in large-scale, mobile IoT systems.

Together, these works underscore the versatility

of DEVS in modeling, simulation, and optimization

for connected, dynamic systems across smart infras-

tructure applications. However, these works also

demonstrate that so far the application of model-

driven engineering for simulation engineering to

reduce the complexity in capturing an infrastruc-

ture’s structure and interactions has not been suf-

ﬁciently explored. Speciﬁcally, despite employing

a model-based methodology, model-driven engineer-

ing’s full potential by automation, consistency, valida-

tion & veriﬁcation, simulation generation, and tool in-

tegration for faster, scalable development and adapt-

ability to changing system requirements or manifes-

tations remains largely unrealized (Domingo et al.,

2020; Cetinkaya et al., 2011; Mittal and Martin,

2013b; Zeigler et al., 2018).

2.2 Case Study: Smart City Living Lab

at IIIT Hyderabad

In the following we discuss the ideas from Section 2.1

in the context of our running case study, i.e., the

simulation of connected infrastructures in the context

of the Smart City Living Lab at the IIIT Hyderabad

and its implications for the successful application of

DEVS, alongside a brief primer on DEVS.

The Smart City Living Lab at

at IIIT Hyder-

abad’s Smart City Research Center is an advanced ur-

ban innovation ecosystem, created with support from

MEITY (Government of India), the Telangana gov-

ernment, EBTC, and Amsterdam Innovation Arena.

Spanning a 70-acre smart campus, it incorporates a

distributed IoT infrastructure comprising sensors, ac-

tuators, and data systems to address critical urban

challenges like air quality monitoring, energy efﬁ-

ciency, weather forecasting, water management, and

adaptive smart infrastructure. The lab serves as a real-

time testbed for developing and deploying scalable

smart city solutions in a live environment, housing

over 4,000 residents, research labs, and more than 22

research centers - six of which are directly focused on

smart cities.

In our study, the Living Lab offers a rich set of

https://smartcitylivinglab.iiit.ac.in

Modeling and Simulating IoT Infrastructures

real-world scenarios (cf. Section 2.4) in a connected

infrastructure, which we aim to model and simulate

in part using our proposed formalisms. By compar-

ing real system data with the simulation results, we

can assess the accuracy and reliability of our mod-

els. This comparison enables us to determine if the

models effectively represent the underlying system

structure and dynamics with sufﬁcient detail, ensur-

ing that the simulations provide a trustworthy basis

for informed decision-making. The Living Lab’s real-

world testing and data collection, particularly in the

areas of smart energy, water management, and urban

infrastructure, offer valuable insights into the ﬁdelity

of our models.

2.3 A Brief Primer on DEVS

An atomic DEVS model is deﬁned as

aDEV S = ⟨S, ta, δ

int

, X, δ

ext

, Y, λ⟩ (1)

with S denoting the set of admissible, sequential

states, ta the time advance function, δ

int

the internal

transition function, X the set of admissible, external

inputs, δ

ext

the external transition function for captur-

ing external inﬂuences, Y the set of admissible (exter-

nal) outputs, and λ the output function for mapping

internal states onto the output set. The time base T is

continuous, e.g., T = R.

To capture interaction among different systems

(cf. devices, or atomic models), DEVS further deﬁnes

a coupled model as

cDEV S =

⟨X

sel f

, Y

sel f

, D, {M

}, {I

}, {Z

i, j

}, select⟩ (2)

with X

sel f

the set of allowed external inputs and Y

sel f

the set of allowed (external) outputs. D denotes the

set of unique component references (names), {M

}

denotes the coupled components with each M

denot-

ing an aDEV S model (cf. Equation 1), I

the set of

inﬂuencees of a component M

, i.e., the components

inﬂuenced by i ∈ D, thereby specifying the coupling

network structure. The set {Z

i, j

} denotes the output-

to-input translation functions to map the output from

one component i ∈ D to the input of another j ∈ D.

Finally, select speciﬁes a tie-breaking between simul-

taneous events by choosing a unique component from

any non-empty subset E ∈ D where E corresponds to

the set of all components having a state transition si-

multaneously. A more extensive treatment is available

from Zeigler (2000).

2.4 Case Study Description

An IoT-driven system has been deployed to optimize

water resource management and device monitoring

in the Living Lab at IIIT Hyderabad. The aim is

to ensure sustainable and efﬁcient urban water us-

age while maintaining infrastructure responsiveness.

The deployed solution seamlessly combines sensors,

controllers, and a central gateway (oneM2M (Gezer

and Ta¸skın, 2016)) for real-time data exchange and

automated responses among connected components

(cf. Figure 1).

At its core, the system uses interconnected nodes

to monitor water quality, ﬂow, and levels, while also

enabling device control and energy tracking. Esp32

controllers collect data such as pH, turbidity, temper-

ature, water levels, ﬂow rates, and pressure, trans-

mitting this information via HTTP/HTTPS through

the oneM2M communication layer for provisioning

this data to downstream applications. Designed for

interoperability and scalability, this system not only

addresses immediate urban water challenges but also

lays a robust foundation for integrating additional IoT

capabilities in the future.

This scenario is valuable to our work as it high-

lights a single node within a connected infrastructure

(e.g., the Living Lab), composed of interlinked sub-

components like sensors and actuators. These com-

ponents communicate either directly or through the

oneM2M layer. The modular design supports easy

adaptation to other applications by exchanging com-

ponents. Moreover, the scenario exempliﬁes the mod-

ular and hierarchical structure of such systems. Con-

sequently, by adopting a modular and hierarchical

modeling approach that allows to capture such struc-

tures, our proposed solution readily achieves scalabil-

ity in model size.

2.5 Challenges and Contributions

Commensurate with our discussions so far and in light

of the research questions from Section 1, we identify

the following challenges, viz.:

1. How to model infrastructures at the IoT-device

level?

2. How to model operational behavior of such infras-

tructure?

3. How to generate a DEVS simulation from the in-

frastructure model?

Aligned with these, we deliver the following contri-

butions:

1. A DSML for modeling both

• infrastructures as connected IoT networks, and

• their accompanying operational behavior for

DEVS-based simulation.

SIMULTECH 2025 - 15th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

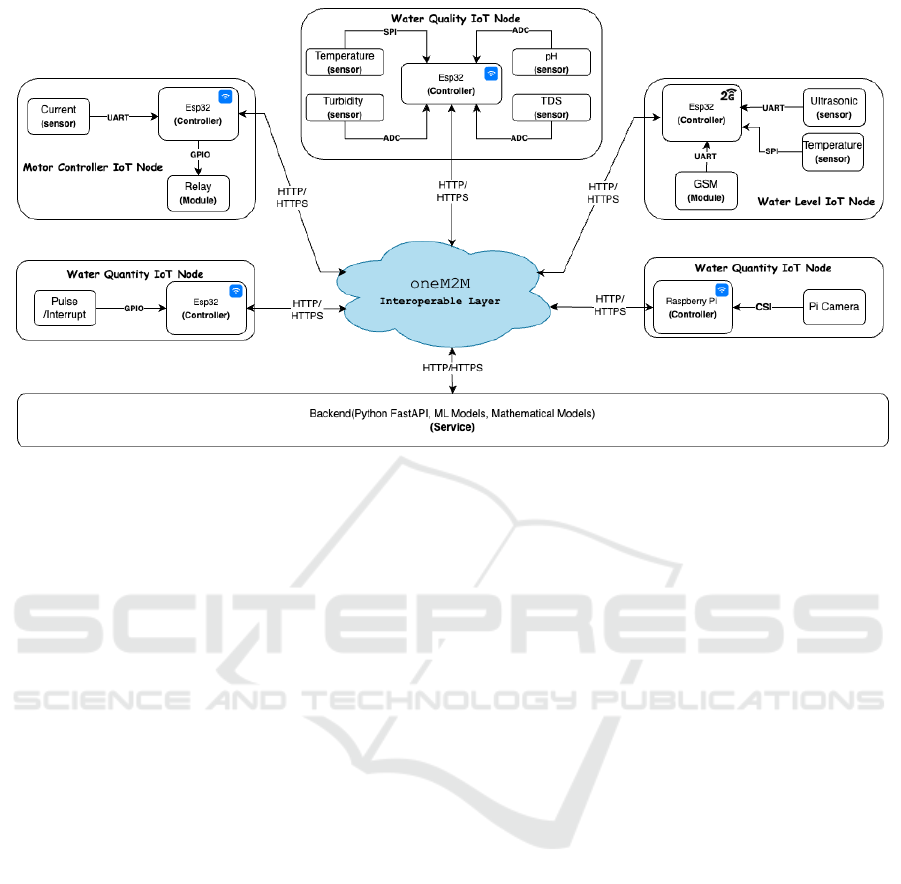

Data flow of sensors along with communication protocols:

This data flow diagram current implementation of IoT nodes. The system is centered around

the oneM2M interoperable layer, which facilitates communication between different IoT

nodes using HTTP/HTTPS protocols.

• Water Quality IoT Node collects sensor data (e.g., pH, turbidity, TDS) using an

Esp32 controller and transmits this information through the oneM2M layer.

• Water Level IoT Node measures water levels and temperature via sensors connected

to an Esp32 controller, which communicates over UART/SPI and GSM.

• Motor Controller IoT Node uses a current sensor and relay module connected to an

Esp32 controller to manage motor operations.

• Water Quantity IoT Node uses pulse and interrupt signals (with Esp32) to track

water quantity, while a Raspberry Pi with a Pi camera can provide visual data.

All sensor data flows through the oneM2M layer to the backend, where FastAPI processes it

using machine learning models and mathematical algorithms. The processed data is stored in

a PostgreSQL database via a psycopg2 driver. A React.js frontend interfaces with the

backend, while Grafana is used for data visualization, integrated using an iframe

Figure 1: Water quality control scenario: The diagram illustrates the data ﬂow between IoT nodes, communication protocols

(HTTP/HTTPS), and the oneM2M gateway, which enables seamless interoperability. Sensor data from nodes measuring water

quality, levels, ﬂow, and device status is transmitted to a centralized back-end for processing and visualization, forming the

backbone of the water management infrastructure.

2. Model-2-text code generators for emitting both

aDEV S and cDEV S models (and accompany-

ing boilerplate code) for simulation using Python

PDEVS (Van Tendeloo and Vangheluwe, 2016).

3 MODEL-DRIVEN SIMULATION

OF CONNECTED

INFRASTRUCTURES

Our work leverages earlier results by Albataineh and

Jarrah (2019, 2021), Im et al. (2021), Esteban et al.

(2023), and Fazel and Wainer (2023) who introduced

the conceptual foundations on simulating IoT devices

using DEVS. Our work builds atop their results by in-

troducing a DSML for modeling IoT devices and their

infrastructure topology for the subsequent automated

generation of executable Python PDEVS simulations.

In the following we outline our modeling infrastruc-

ture, the metamodel of our DSML for modeling con-

nected IoT infrastructures, and ﬁnally elaborate on the

model-2-text generation of executable DEVS simula-

tions using Python PDEVS.

Scope: The modeling methodology covers the mod-

eling of infrastructures at the IoT-level which includes

the deﬁnition of devices and their connections. In ad-

dition, operational behavior and environmental prop-

erties like transmission delay or the frequency of sen-

sors readings is also included as part of the modeling

process.

Modeling Languages: Eclipse Xtext (Bettini, 2016)

is used for metamodelling, i.e., deﬁning the abstract

and concrete syntax of our DSML. This yields the

necessary tooling for modeling and later code gen-

eration as an Eclipse plugin (d’Anjou, 2005). Code

generation is done using Eclipse Xtend (Bettini, 2016;

Birken, 2014).

Runtime Infrastructure: Python PDEVS (Van Ten-

deloo and Vangheluwe, 2016) is leveraged for run-

ning DEVS simulations. The relevant artifacts, i.e.,

executable Python code yield from an Xtend-based

model-2-text generator (cf. Section 3.3).

3.1 A DSML for Modeling Connected

IoT Infrastructures

The metamodel outlined in Figure 2 delineates a

detailed schema that governs the interaction and

functionality of diverse devices (as to space restric-

tions, enum types such as LinkType or DataType

are not shown). At the core of this model is the

CommunicationLink, which functions as a conduit

enabling uninterrupted communication between de-

vices. Each instance of CommunicationLink is char-

acterized by several essential attributes: an id, which

serves as a unique string identiﬁer representing the

speciﬁc link instance (inherited from Linkable, see

below); a protocol that describes the communication

methodology – options include HTTPS, UART, among

Modeling and Simulating IoT Infrastructures

Linkable

id: string

CommunicationLink

protocol: LinkType

dataType: DataType

Node

uuid: string

DataGateway

delay: int

priority: int

Device

priority: int

Sensor

type:SensorType

Module

Controller

type: ControllerType

hosts

DelayRange

min: Int

max: Int

source destination

internalLinks

Action

id: string

TriggeredAction CyclicAction

Frequency

value: int

unit: FrequencyUnit

Figure 2: Metamodel for modeling connected IoT infras-

tructures. As to space restriction, enum types are not shown.

others; a dataType, which speciﬁes the nature of the

data being transmitted (e.g., Boolean values, ﬂoating-

point numbers).

Complementary to the CommunicationLink, the

metamodel incorporates a Linkable entity, which

denotes any device that possesses the capability to

interface via the CommunicationLink. This entity

facilitates the heterogeneous integration of devices,

thereby ensuring effective communication among var-

ious components within the ecosystem. The meta-

model encompasses a variety of SensorType entities,

such as PH, TURBIDITY, TEMPERATURE, among others,

each speciﬁcally designed to monitor distinct envi-

ronmental conditions that are essential for effective

building management. Simultaneously, Controller

entities, including ESP32 and RASPBERRY_PI, repre-

sent the computational architecture that governs these

sensors, thereby enabling real-time data processing

and decision-making capabilities. Our DSML avoids

the need for a dedicated actuator entity by capturing

actionable behavior inside Devices (see below).

To facilitate precise regulation of the operations

conducted by the devices, the DSML integrates

Frequency, which models the temporal intervals for

the execution of actions or the monitoring of tasks.

Units may encompass HERTZ, SECONDS, MINUTES,

among others, facilitating the system’s adaptation to

diverse operational requirements.

The DataGateway possesses the capability to

manage various data types, including BOOL and

FLOAT,thereby offering ﬂexibility in the administra-

tion of diverse device outputs. The interoperability

is further enhanced by attributes such as priority,

which determines the urgency of actions; delay,

which speciﬁes the latency prior to executing an ac-

tion. In practice, this DataGateway can be realized by

various implementations, e.g., a data store or an ex-

ternal API to forward data to an external consumer.

As such external actors however are not the core fo-

cus of our work, the DataGateway is implemented as

a simple data store (cf. Section 4.2).

Alongside these fundamental components, the

model delineates a range of actions that devices

are capable of executing, which are classiﬁed un-

der the TriggeredAction and CyclicAction en-

tities. Each action is subject to conﬁguration

through parameters including min and max thresholds,

postingFrequency, and a distinct id. Collectively,

this facilitates precise regulation of operational be-

havior, guaranteeing that devices react appropriately

to both internal and external inputs and directives.

Observe that the DataGateway does not inherit

from Device as the former is not intended to be a part

of the latter, i.e., DataGateways exist outside Nodes.

Our metamodel establishes a comprehensive

framework for the representation and management of

IoT devices within smart building environments. This

facilitates organized communication, promotes inter-

operability among various devices, and permits adap-

tive response mechanisms customized to the speciﬁc

requirements and functionalities of interconnected

systems. Consequently, the model facilitates the pri-

mary objective of developing intelligent, responsive

environments that improve operational efﬁciency and

user experience.

3.2 Modeling Steps

The modeling procedure for connected IoT infrastruc-

tures for DEVS simulations comprises ﬁve steps:

(1) Deﬁning IoT devices in the model, including

their types (e.g., sensors, actuators, or controllers) and

conﬁgurations, (2) Establishing device connections

and conﬁgurations, (3) Specifying operational behav-

ior and properties, (4) Code generation, and (5) Vali-

dation and testing. Crucially, the below steps need to

be followed in order.

(1) Deﬁning IoT Devices. To begin, IoT devices

(e.g., sensors or controllers) are modeled through the

utilization of the provided language constructs (e.g.,

Sensor or Controller) as deﬁned in by metamodel

(cf. Figure 2). This includes the deﬁnition of rele-

vant devices properties for later generating complete

simulation artifacts (see (3) below). Listing 1, among

SIMULTECH 2025 - 15th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

others, shows devices as modeled as part of the sce-

nario from Figure 1.

(2) Establishing Device Connections. Moving on

from modeling the IoT devices, the second step in-

volves creating a topology by connecting the var-

ious modeled devices with each other using the

CommunicationLink construct. This results in the

establishment of a connected infrastructure for sub-

sequent simulation and analysis. As for devices, this

also comprises the modeling of connection proper-

ties, i.e., the underlying Protocol or a Delay. List-

ing 1, among others, shows various modeled connec-

tions between modeled devices as part of implement-

ing the scenario from Figure 1.

(3) Specifying Operational Behavior and Proper-

ties. This step focuses on establishing parameters

that can inﬂuence the behavior of IoT devices, in-

cluding factors such as transmission delays or sen-

sor reading frequencies. By carefully deﬁning these

properties, users are empowered to simulate diverse

scenarios that closely mirror real-world conditions,

thereby improving the realism and reliability of the

resulting simulations (cf. Listing 1 where we model

the postFrequency for nodes).

(4) Code Generation. With the model fully estab-

lished, in the next step, executable simulation arti-

facts are generated for Python PDEVS. Aside from

generating the necessary aDEV S and cDEV S models

(cf. Equations 1 and 2) this also comprises the gen-

eration of relevant boilerplate code for running sim-

ulations (cf. Listing 2) or Generators (Van Tende-

loo and Vangheluwe, 2016) for a sensor to actually

send values during simulation (cf. Figure 4). Ob-

serve that at this point, relevant conﬁguration data

from modeled entities is leveraged, e.g., a node’s

Frequency in the ta function of a its corresponding

aDEV S model. Section 3.3 further elaborates on our

underlying model-2-text generator.

(5) Validation and Testing. The ﬁnal step entails val-

idating the generated model to conﬁrm that it accu-

rately reﬂects the intended system and that the gen-

erated code performs as expected (cf. Section 4.2).

Preliminary simulations can be conducted to evalu-

ate the model’s ﬁdelity in comparison to real-world

data or established benchmarks. Should any dis-

crepancies arise during this testing phase, they can

prompt iterative reﬁnements in device deﬁnitions or

connection parameters, thereby fostering continuous

improvement and optimization of the model. The

model-driven nature of our approach naturally facil-

itates such iterative development (cf. IterSPEC (Zei-

gler, 2000)).

node waterQuantityNodeCam { 1

sensor cameraWQ type CAMERA priority 1 2

controller raspiWQ type RASPBERRY_PI priority 3 3

postFrequency 300 SECONDS 5

link SPI from cameraWQ -> raspiWQ { 7

delay [1..12] 8

datatype CAMERA 9

} 10

priority 3 11

} 12

node waterQuantityNodePulse { 14

sensor pulseWQ type PULSE priority 1 15

controller espWQP type ESP32 priority 3 16

postFrequency 300 SECONDS 18

link SPI from pulseWQ -> espWQP { 20

delay [1..12] 21

datatype PULSE 22

} 23

priority 3 24

} 25

Listing 1: Model of the WaterQuantityNodeCam and

WaterQuantityNodePulse from Figure 1.

model = MyModel() 1

sim - Simulator(model) 2

sim. simulate() 3

Listing 2: Python PDEVS boilerplate code for running a

simulation, which is also generated as part of our model-2-

text code generation.

3.3 Code Generation

Our model-2-text code generator plays a pivotal role

in ensuring that the user-deﬁned models are accu-

rately represented in the simulation environment. The

algorithm consists of various stages, each aimed at

translating speciﬁc elements of the DSML into exe-

cutable code.

As shown in Algorithm 1, for generating and

aDEV S simulation model for a node, our algorithm

begins by deﬁning a state class for the node, which is

named with the node’s name. Within this state class,

a dictionary named data_aggregated is initialized to

maintain a node’s state.

Following this, an instance of an AtomicDEVS

class is established for the node itself, featuring a

constructor that sets relevant properties such as the

node’s name and pin conﬁguration. This constructor

also creates an instance of the state class deﬁned ear-

lier and keeps track of the last execution time via an

Modeling and Simulating IoT Infrastructures

Algorithm 1: Compile Node.

Input: Node node with links, frequency, and priority

Output: Atomic DEVS model

1 Initialize nodeLinks (list) and distinctLinkTypes (set) from node.links;

33 Compute postFrequency from node.freqValue and node.freqUnit;

55 Determine knownController based on node.controller type;

6 Generate Class NodeState deﬁnition:

88 Initialize data_aggregated (empty) and set next_internal_time with randomness around postFrequency;

9 Generate Class Node (AtomicDEVS) deﬁnition:

10 Initialize (name, pinout):

11 Set state (NodeState), timeLast (0.0), pins (pinout);

12 Create input ports for distinctLinkTypes;

13 Deﬁne output port and set node priority;

14 Generate Function timeAdvance():

15 Return time until next event if data exists, else INFINITY;

16 Generate Function extTransition(inputs):

17 Update state with received inputs if matching links exist;

18 Update timeLast to next_internal_time;

19 Generate Function intTransition():

20 Increment next_internal_time and update timeLast;

21 Generate Function outputFunc():

22 If data exists, package with timestamp, send via output, and clear state;

1 class PulseWQ(AtomicDEVS):

2 def __init__(self, data_generator):

3 super().__init__('pulseWQ')

4 self.inport = self.addInPort("in_port")

5 self.outport = self.addOutPort("outport")

6 self.state = {'PULSE': 0}

7 self.priority = 1

8 self.gen = data_generator

10 def intTransition(self):

11 self.state['PULSE'] = self.gen.value('pulse')

12 return self.state

14 def extTransition(self, inputs):

15 return self.state

17 def outputFnc(self):

18 return {self.outport: self.state['PULSE']}

20 def timeAdvance(self):

21 return 1.0

23 def __lt__(self, other):

24 return self.priority < other.priority

Listing 3: Generated atomic DEVS model for the pulse

sensor from Listing 1.

internal variable called timeLast. In addition, this

constructor dynamically generates input ports for dif-

ferent link types that the node will manage.

The primary functionalities of a Node are deﬁned

in several methods as required by the DEVS formal-

class DataGenerator: 1

def __init__(self, 2

mode='random', 3

config='generator/sensors_config.json', 4

csv_file=None): 5

if mode == 'csv' and csv_file is None: 6

raise ValueError('CSV mode: Invalid CSV file') 7

elif mode == 'csv': 8

self.generator = CSVDataGenerator(csv_file) 9

elif mode == 'random': 10

self.generator = RandomDataGenerator(config) 11

else: 12

raise ValueError(f"Unsupported mode: {mode}") 13

def value(self, sensor_name): 15

return self.generator.generate_value(sensor_name) 16

def pulse_value(self, sensor_name): 18

return self.generator.pulse_value(sensor_name) 19

def camera_value(self, name): 21

return self.generator.camera_value(sensor_name) 22

Listing 4: Generated Generator for the pulse sensor model

from Figure 3.

ism (cf. Section 2):

• timeAdvance determines the duration until the

next internal transition, returning INFINITY if

there is no aggregated data.

• extTransition oversees external transitions trig-

gered by inputs, executing speciﬁc logic upon re-

SIMULTECH 2025 - 15th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

100

ceiving data from a designated controller.

• intTransition updates the internal state accord-

ing to the current conditions of the node and in-

crements the next_internal_time.

• outputFunc formats the output data to be sent,

which includes a timestamp and the data that has

been aggregated.

Generation for other entities (e.g.,

CommunicationLink or DataGateway) follows

the same procedure, i.e., a template-based ap-

proach where modeled entities are expanded into

executable aDEV S models. The full algorithm of

our code generator is available for download from

https://doi.org/10.5281/zenodo.15172097. Figures 3

and 4 show examples of generated and readily exe-

cutable Python PDEVS code utilizing the generator

from Figure 4 on the model from in Listing 1.

Omitted in Algorithm 1 due to spatial constraints,

our code generator additionally produces the cDEV S

model to ultimately simulate all the nodes depicted in

Figure 1 (see Section 4).

By relying on Eclipse Xtend and our translation

algorithm, we ensure efﬁcient and scalable generation

of simulation models, facilitating rapid prototyping

and analysis of connected IoT infrastructures. This

streamlined approach signiﬁcantly reduces the com-

plexity traditionally associated with model develop-

ment, thereby enhancing usability for researchers and

practitioners alike by facilitating the efﬁcient genera-

tion of simulation-ready code but also supports quick

modiﬁcations and testing based on the deﬁned model.

4 RESULTS AND DISCUSSION

In the following, we discuss (i) the modeling of the

scenario from Figure 1 (cf. Section 4.1), (ii) run-

ning simulations of the modeled scenario (cf. Sec-

tion 4.2), and (iii) the results retrieved from the sim-

ulation (cf. Section 4.3) with the developed model

in Figure 1. We conclude this section with a discus-

sion of our results (cf. Section 4.4).

Our primary focus is on (a) ensuring complete-

ness and correctness in relation to the guiding sce-

nario, (b) assessing the engineering effort needed to

develop working simulations within our proposal, and

adopting end users. Accordingly, we will not pro-

vide an in-depth analysis of our DSML which will be

evaluated as part of future work using the Technology

Acceptance Model (Davis et al., 1989).

4.1 Modeling the Living Lab

We have modeled the scenario from Figure 1 follow-

ing the steps outlined in Section 3.2. Consequently,

the modeling process followed a structured approach

to develop a simulation-ready representation of the

scenario’s IoT infrastructure. This involved deﬁning

components, establishing interactions, and generating

executable DEVS simulation artifacts in four steps:

1. Deﬁning IoT Devices: Key IoT components, in-

cluding sensors (water quality, temperature, ﬂow),

controllers (ESP32, Raspberry Pi), and actuators,

were modeled with properties like data type, com-

munication protocol, priority, and data transmis-

sion frequency (cf. Lst. Listing 1). The oneM2M

component is modeled by the DataGateway as a

simple data sink.

2. Establishing Device Connections: Device inter-

actions were deﬁned using CommunicationLink,

representing protocols such as HTTP, SPI, and

UART. Each connection included parameters like

transmission delay and data type to reﬂect real-

time data exchange (cf. Lst. Listing 1).

3. Specifying Operational Behavior and Properties:

Sensor reading frequencies, transmission delays,

and environmental conditions were incorporated

to ensure realistic behavior. For example, a water

quality sensor transmitting data every 300 seconds

was modeled with corresponding frequency and

latency (cf. Lst. Listing 1).

4. Code Generation: Our model-to-text generator

(cf. Section 3.3) generated Python PDEVS sim-

ulation artifacts, including aDEV S and cDEV S

models, and accompanying Generators. A 75-line

input model produced 740 lines of Python PDEVS

code. Scaling the model resulted in a sublinear

increase in code generation time, conﬁrming ef-

ﬁciency (cf. Table 1). In addition, these results

also show the high expressiveness of our proposed

DSML by capturing and abstracting away tedious

low-level details during simulation modeling.

As to space restrictions, we cannot show the complete

model for the scenarios from Listing 1; however, it is

available from our artifact.

Our structured modeling approach enables the

rapid transformation of a conceptual IoT infrastruc-

ture into a functional simulation. Using domain-

speciﬁc modeling and automated code generation sig-

niﬁcantly reduces complexity and manual effort in

setting up large-scale simulations. In addition, as

shown by the data from Table 1, our proposed DSML

offers a high-level of expressivity by effectively ab-

Modeling and Simulating IoT Infrastructures

101

Table 1: Performance evaluation of the code generator.

Generation time is averaged over three runs. Our results

show that our proposal achieves scalability in model size by

being able to handle substantially large models. Baseline

refers to the scenario from Figure 1, i.e., the number of en-

tities modeled therein; consequently, 2x implies double the

entities, 4x four times the entities, etc.

Factor Input LoC Generated LoC Time (ms)

Baseline 75 740 1452

2× 145 1330 1494

4× 285 2510 1553

8× 565 4870 1652

32× 2245 19030 2160

Input LoC: Lines of "code" in the input model; Generated LoC: generated

number of lines of code

stracting away low-level modeling details in simula-

tion engineering.

4.2 Simulating the Living Lab

The simulation setup utilized real-world sensor data

collected over 12 months (available from our arti-

fact) to train a distributed lognormal model (Crow

and Shimizu, 1987), which served as the basis for

synthetic data generation. The goal was to validate

the accuracy of the modeled infrastructure and as-

sess its performance under different conditions. The

trained lognormal distribution produced simulated

sensor values that were tested in real-time scenarios,

enabling direct comparison with live measurements.

The generated DEVS models were executed using

Python PDEVS, following a structured workﬂow:

1. Initialization of the simulation environment with

the Living Lab’s IoT components.

2. Execution of time-stepped simulations to model

sensor data collection, device interactions, and

real-time responses.

3. Comparison of simulated outputs with real-world

measurements to ensure model ﬁdelity.

The simulation successfully reproduced observed

behaviors, such as water quality and water ﬂow rate

ﬂuctuations and automated actuator responses. The

results validated through repeated observations and

closely matched real-world data, conﬁrm the model’s

reliability. For example, Figure 3 shows a comparison

of real-world water quality and water ﬂow rate read-

ings compared to data collected during simulation. As

clearly visible from Figure 3, our simulations are able

to reproduce real-world behavior accurately.

The simulation validated the accuracy and efﬁ-

ciency of the developed model (cf. Section 4.1). By

replicating real-world behaviors and supporting sce-

nario testing, our proposal provides a valuable tool for

Figure 3: Comparison of real and simulated data for Com-

pensated TDS and Flowrate. The graph shows 1,000 data

points, reﬂecting both real and simulated values across mul-

tiple observation cycles.

optimizing IoT-based infrastructure operations. Ob-

serve that this validations comprises step 5 of our

modeling methodology (cf. Section 3.2).

4.3 Results

The simulation ﬁdelity of our approach was evaluated

by analyzing its ability to replicate the actual data of

the water quality network. Key metrics such as Mean

Absolute Error (MAE) and Root Mean Square Er-

ror (RMSE) are used to evaluate alignment between

simulated outputs and observed values. As we can

observe from Figure 3, for compensated TDS, the

MAE value is 29.83844 denoting a reasonable simu-

lation ﬁdelity, while for Flow Rate, the MAE value

is 1.686508 denoting a high simulation ﬁdelity for

the generated data. This is further reinforced by the

RMSE score of 37.09545 for Compensated TDS and

2.204044 for Flow Rate between the actual values and

simulated values. There are instances where the simu-

lated values deviate from actual values, particularly in

situations when there is variation in steady-state ﬂow.

This can be potentially improved by improving the

granularity of modeling and simulation but this is be-

yond the scope of this work.

Overall, as can be seen, the results demonstrate

SIMULTECH 2025 - 15th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

102

Table 2: Summary of simulation results.

Metric Compensated TDS Flow Rate

MAE 29.83844 1.686508

RMSE 37.09545 2.204044

a strong correlation between simulated data and ob-

served values, capturing key features such as water

ﬂow, water quality rate, etc. Table 2 summarizes the

simulation results.

4.4 Discussion

Our study introduced a novel DSML and a model-

driven approach leveraging the DEVS formalism to

simulate IoT infrastructures. Through the Smart City

Living Lab case study, we validated the effectiveness

of our approach in accurately modeling, simulating,

and analyzing operational behaviors of connected in-

frastructures. The results support our research ques-

tions while offering insights into both the capabilities

and limitations of our proposal.

In response to RQ1, we demonstrated how con-

nected infrastructures can be efﬁciently modeled at

the IoT-device level using our DSML. By encapsu-

lating both structural and operational aspects, our lan-

guage facilitates a systematic representation of infras-

tructure dynamics without relying on the availability

of BIM models. The modeling process—spanning de-

vice deﬁnitions, communication links, and behavioral

properties—proved adaptable and expressive, captur-

ing complex dependencies within the IoT ecosys-

tem. The automated model-to-text code generation

further reduced manual effort, accelerating the tran-

sition from conceptual models to executable simula-

tions.

Regarding RQ2, our results afﬁrm that DEVS is a

suitable foundation for model-driven, discrete event-

based simulations of connected IoT infrastructures.

By utilizing Python PDEVS, we achieved an efﬁcient

simulation environment capable of handling large-

scale infrastructures. The comparison between real-

world data and simulated outputs exhibited a reason-

able degree of ﬁdelity, particularly for ﬂow rate and

water quality metrics. This suggests that our DEVS-

based approach can deliver actionable insights for op-

timizing resource management and infrastructure per-

formance.

Our model-driven workﬂow proved to be both

scalable and adaptable. The ability to generate com-

plex simulation artifacts from concise, high-level

speciﬁcations enhances both productivity and model

accuracy. Performance measurements demonstrated

that the code generation scales sublinear with model

complexity, making our approach viable for larger in-

frastructures. Furthermore, the structured method-

ology supports iterative reﬁnement and validation, a

critical feature for real-world applications.

Nevertheless, certain limitations persist. The

granularity of our models, while sufﬁcient for our

case study, may not capture more intricate physical

phenomena or emergent behaviors in highly dynamic

environments. Additionally, while the DSML ab-

stracts much of the modeling complexity, the reliance

on accurate input data remains a bottleneck for gen-

eralization. It should be emphasized, however, that

this does not affect the ﬁdelity of a simulation as evi-

denced by the results (cf. Section 4.2 and Section 4.3),

but rather pertains to the correctness of a simulation in

general, speciﬁcally how closely it mirrors the under-

lying real-world event. Future work should explore

advanced modeling constructs for representing envi-

ronmental factors and heterogeneous sensor behav-

iors.

While the simulation accurately replicated real-

world behaviors, discrepancies observed in Figure

3 between simulated and actual data underscore the

need for further reﬁnement. These variations may

stem from model assumptions or limitations in captur-

ing the full complexity of real-world dynamics, sug-

gesting potential areas for improvement in future iter-

ations. To address these discrepancies, we plan to in-

corporate additional validation metrics and sensitivity

analyses, ensuring a more robust assessment of model

ﬁdelity.

Furthermore, comparative evaluations with exist-

ing simulation frameworks will be conducted to high-

light the unique advantages of our approach, par-

ticularly in terms of scalability and ease of integra-

tion. Looking ahead, we aim to explore the broader

applicability of our framework beyond urban water

management, potentially extending it to smart en-

ergy grids and intelligent transportation systems. This

expansion will not only validate the ﬂexibility and

adaptability of our approach but also contribute to the

development of more efﬁcient and responsive urban

environments.

4.4.1 Practical Implications

The ﬁndings of our work hold signiﬁcant practical

implications for the management and optimization of

urban infrastructures. By providing a model-driven

simulation framework that does not rely on BIM, we

offer a viable solution for legacy systems that often

lack such advanced modeling tools. The capacity to

simulate infrastructures at the IoT-level allows urban

planners, engineers, and decision-makers to visual-

ize complex interactions within urban environments

and identify areas for optimization in real-time. This

Modeling and Simulating IoT Infrastructures

103

could enable more informed resource allocation, im-

proved resource efﬁciency, and enhanced responsive-

ness to operational challenges. Additionally, the use

of our DSML facilitates quick adjustments and testing

of various scenarios without the extensive time and la-

bor often associated with conventional modeling ap-

proaches. Ultimately, this research contributes to the

development of smart cities by equipping stakehold-

ers with more effective tools for responding to urban

challenges, paving the way for sustainable develop-

ment and improved quality of life in urban areas.

5 CONCLUSIONS

This paper presented a novel DSML and a model-

driven simulation approach for IoT infrastructures us-

ing the DEVS formalism. We successfully applied

this methodology to a real-world Smart City Living

Lab, showcasing its ability to capture and simulate

operational behaviors. Our ﬁndings underscore the

value of a model-driven approach in enabling rapid

prototyping, iterative validation, and detailed scenario

analysis.

The primary contributions of this work are: (i)

a DSML tailored for modeling both structural and

operational aspects of connected infrastructures, (ii)

an automated model-to-text generator for producing

Python PDEVS artifacts, and (iii) an empirical valida-

tion through an IoT-driven water management system.

These contributions collectively advance the state of

the art in IoT infrastructure modeling and simulation,

particularly for legacy systems where traditional BIM

approaches are infeasible.

While promising, several avenues remain for fu-

ture exploration. First, enhancing the DSML to cap-

ture more nuanced operational behaviors—such as

user interactions, environmental variability, and mate-

rial degradation—would improve model ﬁdelity. An-

other critical direction involves extending the scope

of our methodology to additional domains beyond ur-

ban water management, including smart energy grids

and intelligent transportation systems. In addition, in-

corporating adaptive simulation techniques and paral-

lelized execution could signiﬁcantly enhance scalabil-

ity and simulation responsiveness. Lastly, a compre-

hensive user-centered evaluation of the DSML’s us-

ability and its acceptance is required to understand its

broader applicability.

In conclusion, our DSML and DEVS-based

framework provide a robust foundation for simulating

connected infrastructures. While further research is

needed to address scalability and ﬁdelity challenges,

our work offers a promising path toward more ef-

ﬁcient and accurate modeling of complex, intercon-

nected urban systems.

ACKNOWLEDGMENTS

This research was partly supported by Ministry of

Electronics and Information Technology (MeitY),

Govt. of India under grant no. 3070665 (2020) as part

of Smart City Living lab project and is sustained by

corporate funding.

REFERENCES

Agalianos, K., Ponis, S., Aretoulaki, E., Plakas, G., and

Efthymiou, O. (2020). Discrete event simulation and

digital twins: review and challenges for logistics. Pro-

cedia Manufacturing, 51:1636–1641.

Albataineh, M. and Jarrah, M. (2019). DEVS-Based

IoT Management System for Modeling and Explor-

ing Smart Home Devices. In 2019 Sixth International

Conference on Internet of Things: Systems, Manage-

ment and Security (IOTSMS), pages 73–78. IEEE.

Albataineh, M. and Jarrah, M. (2021). DEVS-IoT: per-

formance evaluation of smart home devices network.

Multimedia Tools and Applications, 80(11):16857–

16885.

Antoine-Santoni, T., Santucci, J. F., De Gentili, E., and

Costa, B. (2007). Modelling & simulation oriented

components of wireless sensor network using DEVS

formalism. In Proceedings of the 2007 Spring Simu-

lation Multiconference - Volume 2, page 299–306. So-

ciety for Computer Simulation International.

Baik, A., Alitany, A., Boehm, J., and Robson, S. (2014).

Jeddah Historical Building Information Modelling"

JHBIM"–Object Library. International Society for

Photogrammetry and Remote Sensing (ISPRS).

Becerik-Gerber, B., Jazizadeh, F., Li, N., and Calis, G.

(2012). Application areas and data requirements for

BIM-enabled facilities management. Journal of con-

struction engineering and management, 138(3):431–

442.

Bettini, L. (2016). Implementing domain-speciﬁc languages

with Xtext and Xtend. Packt Publishing Ltd.

Birken, K. (2014). Building code generators for dsls using a

partial evaluator for the xtend language. In Leveraging

Applications of Formal Methods, Veriﬁcation and Val-

idation. Technologies for Mastering Change: 6th In-

ternational Symposium, ISoLA 2014, Imperial, Corfu,

Greece, October 8-11, 2014, Proceedings, Part I 6,

pages 407–424. Springer.

Bureau of Energy Efﬁciency, Govt. of India (2018). Eco

Niwas Samhita. urlhttps://www.beepindia.org/eco-

niwassamhita/.

Cetinkaya, D., Verbraeck, A., and Seck, M. D. (2011).

Mdd4ms: a model driven development framework for

modeling and simulation. In Proceedings of the 2011

SIMULTECH 2025 - 15th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

104

summer computer simulation conference, pages 113–

121.

Council of European Union (2024). Council directive

(EU) no. 1275/2024. https://energy.ec.europa.eu/

topics/energy-efﬁciency/energy-efﬁcient-buildings/

energy-performance-buildings-directive_en.

Crow, E. L. and Shimizu, K. (1987). Lognormal distribu-

tions. Marcel Dekker New York.

d’Anjou, J. (2005). The Java developer’s guide to Eclipse.

Addison-Wesley Professional.

Davis, F. D. et al. (1989). Technology acceptance model:

Tam. Al-Suqri, MN, Al-Auﬁ, AS: Information Seeking

Behavior and Technology Adoption, 205(219):5.

Di Biccari, C., Calcerano, F., D’Ufﬁzi, F., Esposito, A.,

Campari, M., and Gigliarelli, E. (2022). Building in-

formation modeling and building performance simu-

lation interoperability: State-of-the-art and trends in

current literature. Advanced Engineering Informatics,

54:101753.

Domingo, Á., Echeverría, J., Pastor, O., and Cetina, C.

(2020). Evaluating the beneﬁts of model-driven de-

velopment: empirical evaluation paper. In Advanced

Information Systems Engineering: 32nd International

Conference, CAiSE 2020, Grenoble, France, June 8–

12, 2020, Proceedings 32, pages 353–367. Springer.

Dore, C. and Murphy, M. (2012). Integration of Historic

Building Information Modeling (HBIM) and 3D GIS

for recording and managing cultural heritage sites. In

2012 18th International conference on virtual systems

and multimedia, pages 369–376. IEEE.

Eastman, C., Teicholz, P., Sacks, R., and Liston, K. (2011).

BIM handbook: A guide to building information mod-

eling for owners, managers, designers, engineers and

contractors.

Esteban, S., Risco-Martín, J. L., Chacon, J., Besada-Portas,

E., and Andrade, G. A. (2023). Project Simulation,

Validation and Deployment with DEVS. IoT Frame-

work for Blooms Monitoring and Alert. In 2023 Win-

ter Simulation Conference (WSC), pages 2603–2614.

IEEE.

Fai, S., Graham, K., Duckworth, T., Wood, N., and Attar,

R. (2011). Building information modelling and her-

itage documentation. In Proceedings of the 23rd Inter-

national Symposium, International Scientiﬁc Commit-

tee for Documentation of Cultural Heritage (CIPA),

Prague, Czech Republic, pages 12–16.

Fazel, I. A. and Wainer, G. (2023). A DEVS-Based Method-

ology for Simulation and Model-Driven Development

of IoT. In International Conference on Simulation

Tools and Techniques, pages 3–17. Springer.

Gezer, C. and Ta¸skın, E. (2016). An overview of onem2m

standard. In 2016 24th signal processing and commu-

nication application conference (SIU), pages 1705–

1708. IEEE.

Im, J. H., Oh, H.-R., and Seong, Y. R. (2021). Simulation

of a Mobile IoT System Using the DEVS Formalism.

Journal of Information Processing Systems, 17(1):28–

36.

International Energy Association (2021). Global Energy

Review 2021.

Kapsammer, E., Reiter, T., and Schwinger, W. (2006).

Model-based tool integration-state of the art and fu-

ture perspectives. In Proceedings of the 3rd In-

ternational Conference on Cybernetics and Informa-

tion Technologies, Systems and Applications (CITSA

2006).

King, J. and Perry, C. (2017). Smart buildings: Using smart

technology to save energy in existing buildings. Amer-

cian Council for an Energy-Efﬁcient Economy Wash-

ington, DC, USA.

Lu, W. and Olofsson, T. (2014). Building information

modeling and discrete event simulation: Towards an

integrated framework. Automation in construction,

44:73–83.

MarketsandMarkets (2024). Building Information Model-

ing (BIM) Market – Global Forecast to 2029. Ac-

cessed: 2025-02-02.

Mittal, S. and Martin, J. L. R. (2013a). Model-driven

systems engineering for netcentric system of systems

with DEVS uniﬁed process. In 2013 Winter Simula-

tions Conference (WSC), pages 1140–1151. IEEE.

Mittal, S. and Martin, J. L. R. (2013b). Model-driven

systems engineering for netcentric system of systems

with devs uniﬁed process. In 2013 Winter Simulations

Conference (WSC), pages 1140–1151. IEEE.

Murphy, M., McGovern, E., and Pavia, S. (2013). Historic

Building Information Modelling–Adding intelligence

to laser and image based surveys of European classical

architecture. ISPRS journal of photogrammetry and

remote sensing, 76:89–102.

Snoonian, D. (2003). Smart buildings. IEEE spectrum,

40(8):18–23.

Van Tendeloo, Y. and Vangheluwe, H. (2016). An overview

of PythonPDEVS. JDF, 2016:59–66.

Volk, R., Stengel, J., and Schultmann, F. (2014). Build-

ing Information Modeling (BIM) for existing build-

ings—Literature review and future needs. Automation

in construction, 38:109–127.

Zeigler, B. P. (2000). Theory of modeling and simulation.

Academic Press google schola, 2:1779–1785.

Zeigler, B. P., Mittal, S., and Traore, M. K. (2018). Mbse

with/out simulation: State of the art and way forward.

Systems, 6(4):40.

Modeling and Simulating IoT Infrastructures

105
