COTTAGE: Supporting Threat Analysis for Security Novices with

Auto-Generated Attack Defense Trees

Keita Yamamoto

, Masaki Oya

, Masaki Hashimoto

2 a

, Haruhiko Kaiya

3 b

and Takao Okubo

1 c

Graduate School of Information Security, Institute of Information Security, Yokohama, Japan

Faculty of Engineering and Design, Kagawa University, Takamatsu, Japan

Faculty of Informatics Department of Computer Science, Kanagawa University, Yokohama, Japan

Keywords:

Information Security, Threat Modeling, Attack Trees, Attack Defense Trees, CVE, CWE.

Abstract:

In software and system development, threat analysis, especially scenario analysis to analyze the steps of an

attack, requires a high degree of expertise and long hours of work, which is becoming more and more difﬁcult

in short development time, such as Agile and DevOps. In addition, the increased demand for systems has

created the need for people without enough security expertise to perform threat analysis. In this paper, we

developed COTTAGE, a tool that automatically generates Attack Defense Trees (ADTrees) from CAPEC and

CWE knowledge bases and supports the creation of ADTrees that can be used for tree generation by those

conducting the analysis. Our evaluation with six security novices demonstrated that COTTAGE enabled par-

ticipants to perform threat analysis comparable to expert analysis within 30 minutes, whereas experts typically

required approximately two days. The case study in a DevOps environment further conﬁrmed COTTAGE’s

effectiveness in supporting iterative security analysis through automatically generated reference trees.

1 INTRODUCTION

With cyber attacks increasing by 38% globally in

2023 alone (Check Point Research, 2023), security

threats are becoming more sophisticated and frequent

as digital environments expand. The concept of Se-

curity by Design—considering security during prod-

uct planning and design stages to reduce modiﬁca-

tion costs and ensure safety—has become an essential

paradigm in modern system development (Ross et al.,

2016; Lipner, 2004; OWASP Foundation, 2023; Ku-

mar and Goyal, 2020). To effectively implement Se-

curity by Design, detailed threat analysis must be con-

ducted early in the development lifecycle to identify

potential security vulnerabilities before they become

difﬁcult to address.

However, the rapid evolution of software develop-

ment methodologies has created a fundamental con-

tradiction. While Agile and DevOps approaches ac-

celerate development cycles to meet business de-

mands, the time available for comprehensive security

analysis is compressed. This contradiction is partic-

https://orcid.org/0000-0001-5596-282X

https://orcid.org/0000-0001-9816-8001

https://orcid.org/0000-0002-4490-1420

ularly challenging amid an expanding security skills

gap, with an estimated shortage of approximately 3.4

million cybersecurity professionals worldwide (ISC

2022). As a result, non-security specialists who lack

sufﬁcient expertise to identify complex attack vec-

tors are increasingly responsible for conducting threat

analysis.

In this context, threat analysis of information sys-

tems has become an essential methodology for real-

izing Security by Design, serving as a comprehensive

security assessment process that includes identifying

potential attacks and considering countermeasures.

While there are various threat analysis methods, At-

tack Defense Trees (ADT) are particularly effective as

they can hierarchically structure and visualize attack

scenarios and defense strategies. However, conduct-

ing detailed threat analysis, including ADT, requires

specialized knowledge of attack methods and vulnera-

bilities as well as signiﬁcant time investment, making

its implementation increasingly difﬁcult in modern

development environments where security experts are

scarce and development cycles are becoming shorter.

This difﬁculty in implementing threat analysis ap-

pears as a common limitation in existing threat mod-

eling approaches. Manual threat analysis requires

specialized knowledge and signiﬁcant time invest-

132

Yamamoto, K., Oya, M., Hashimoto, M., Kaiya, H. and Okubo, T.

COTTAGE: Supporting Threat Analysis for Security Novices with Auto-Generated Attack Defense Trees.

DOI: 10.5220/0013556600003964

In Proceedings of the 20th International Conference on Software Technologies (ICSOFT 2025), pages 132-142

ISBN: 978-989-758-757-3; ISSN: 2184-2833

ment, making it incompatible with shortened devel-

opment schedules(Myrbakken and Colomo-Palacios,

2017). Automated tools often lack contextual aware-

ness, generating generic results that require expert

interpretation. Furthermore, while knowledge bases

such as CAPEC and CWE contain valuable attack pat-

tern information, security novices still ﬁnd it difﬁcult

to leverage them effectively.

To address these challenges, we propose COT-

TAGE (Collaborative Tool of Threat Analysis Gazes

at Enemies). COTTAGE is an Attack Defense Trees

(ADTrees) (Kordy et al., 2013) generation and man-

agement tool speciﬁcally designed to bridge the ex-

pertise gap in threat analysis. COTTAGE leverages

existing security knowledge bases to auto-generate

reusable tree patterns, allowing non-specialists to efﬁ-

ciently analyze and customize system-speciﬁc threats.

The main contributions of this research are as fol-

lows:

• We propose and implement COTTAGE, a tool that

automatically generates referenceable ADTrees

from knowledge bases and supports users in

creating them, demonstrating superior efﬁciency

and analysis accuracy compared to existing tools

through empirical evaluation.

• We design a threat analysis approach speciﬁcally

tailored for DevOps environments that require ac-

celerated security assessments without compro-

mising completeness.

• Through user surveys and case studies, we verify

that security novices can use COTTAGE to per-

form effective threat analysis and generate results

comparable to those created by security experts in

signiﬁcantly less time.

The structure of this paper is as follows. Section 2

provides an overview of related research on threat

analysis efﬁciency, knowledge base utilization, threat

analysis challenges in DevOps, and existing threat

analysis tools. Section 3 explains the design philoso-

phy and implementation details of the proposed COT-

TAGE tool, including the reference tree generation

methods from CAPEC and CWE. Section 4 presents

an evaluation by experiment participants and com-

pares their results with those of security experts. Sec-

tion 5 veriﬁes the effectiveness of the tool through a

case study in a DevOps environment. Finally, Section

6 discusses the ﬁndings, signiﬁcance, and limitations

of our research.

2 RELATED RESEARCH

With the rise of cybersecurity threats, the impor-

tance of threat analysis in system development has

increased. However, traditional threat analysis meth-

ods require high expertise and substantial time in-

vestments, making them challenging to implement in

rapid development cycles such as Agile and DevOps.

To bridge this gap, various approaches for more efﬁ-

cient threat analysis and knowledge reuse have been

researched. This chapter provides an overview of re-

lated research that forms the foundation of our work.

2.1 Streamlining Threat Analysis

Researchers have proposed several methods to make

threat analysis more efﬁcient. Ivanova et al. (Ivanova

et al., 2015) proposed a system model that can be for-

mally transformed into attack trees. Additionally, Au-

dinot et al. (Audinot et al., 2018) suggested calculat-

ing the costs to attackers during the attack tree genera-

tion process, allowing analysts to focus only on high-

probability scenarios.

Several studies have explored the pattern-based

reuse of attack tree subtrees. Moore et al. (Moore

et al., 2001) proposed ﬁnding and abstracting reusable

attack patterns from completed attack trees. However,

these approaches all require manual processes, and

keeping pattern components updated with the latest

threat trends creates a signiﬁcant burden for practi-

tioners.

2.2 Knowledge Base Utilization in

Threat Analysis

Techniques for leveraging attack pattern databases

such as CAPEC (MITRE Corporation, 2023a) in

threat modeling have also been researched. Li et al.

(Li et al., 2016) developed a model connecting at-

tack patterns with attacker goals and created inference

rules to automatically select attack patterns in con-

text, reducing the burden on security analysts select-

ing from CAPEC. However, the model still requires

manual updates whenever CAPEC is revised, creat-

ing an ongoing maintenance challenge.

Regainia et al. (Regainia and Salva, 2017) pro-

posed linking CAPEC, Common Weakness Enumer-

ation (CWE) (MITRE Corporation, 2023b), and secu-

rity patterns to help software designers select appro-

priate security patterns more efﬁciently. This proposal

also lacks full automation and requires partial manual

implementation.

COTTAGE: Supporting Threat Analysis for Security Novices with Auto-Generated Attack Defense Trees

133

2.3 Security in DevOps

Kumar et al. proposed an integrated security model

(ADOC) that integrates development, security, and

operations through security management automation.

While their research has similar aims to ours, the pro-

posed ADOC remains a conceptual workﬂow model

that requires more concrete modeling for practical im-

plementation (Kumar and Goyal, 2020). Mohan et

al. proposed automation of the deployment process in

DevSecOps (Mohan et al., 2018). Casola et al. pro-

posed a methodology for integrating security into De-

vOps using a Security-by-Design approach (Casola

et al., 2020), but there is little mention of the rela-

tionship between operations and development neces-

sary for solving our research problem, or of making

threat analysis more efﬁcient. Gennari-Cartuan and

Goya proposed a security framework applying De-

vSecOps (Carturan and Goya, 2019), while Lee et

al. researched implementing DevSecOps across dif-

ferent groups (Lee, 2018). These studies do not ad-

dress the conﬂict between rapid development and se-

curity requirements, or the collaboration between op-

erations and development. Diaz et al. proposed a se-

curity monitoring infrastructure for continuous feed-

back from operations to development (D

ıaz et al.,

2019). Their research can be utilized in the section

of our research that involves detecting threats and

anomalies from log traces (application logs). Rahman

et al. addressed the problem of insufﬁcient security in

Agile, but their approach attempts to solve it by in-

tegrating security experience and skills of personnel

(Rahman and Williams, 2016).

2.4 Our Previous Research and the

Position of This Study

As direct predecessors to this research, we have

worked on several aspects of security threat analy-

sis. Okubo et al. (Okubo and Kaiya, 2022) addressed

the contradictory requirements between rapid devel-

opment in DevOps and comprehensive security analy-

sis by proposing an ADTrees-based analysis method.

This method used anomalies detected in the opera-

tional phase as starting points and leveraged knowl-

edge bases like CAPEC and CWE to efﬁciently iden-

tify related vulnerabilities and attack methods. While

case studies demonstrated the effectiveness of this ap-

proach, the need for practical tool implementation and

empirical evaluation was also identiﬁed.

To facilitate the use of attack pattern knowledge,

Oya et al. (Masaki Oya and Okubo, 2025) devel-

oped ”FRAT,” a framework for automatically classi-

fying CAPEC attack patterns into Attack Trees, and

”RATTATA,” a tool that supports the creation of At-

tack Trees by reusing these trees and previously cre-

ated trees. While these tools contributed to more efﬁ-

cient threat analysis, evaluation revealed several chal-

lenges:

1. The information derived from automatically clas-

siﬁed trees was limited, requiring more compre-

hensive information provision

2. The search functionality only supported English

attack pattern names, making it difﬁcult to use for

non-English speakers

3. There was insufﬁcient support for continuous

threat analysis in iterative development environ-

ments like DevOps

Beyond our prior research, Kordy et al. (Kordy

et al., ) developed and published a tool for generat-

ing ADTrees, but updates ceased in 2015, making it

unable to incorporate recent threat information.

This research aims to comprehensively address

these challenges through COTTAGE (Collaborative

Tool of Threat Analysis Gazes at Enemies), an Attack

Defense Trees creation tool. COTTAGE builds upon

our previous work, enabling even those with limited

security expertise to perform high-quality threat anal-

ysis in short timeframes.

3 PROPOSED METHOD

COTTAGE enhances the automatic generation of

ADTrees by utilizing not only the CAPEC attack pat-

tern knowledge base from our previous research but

also the CWE vulnerability knowledge base. CAPEC

and CWE contain cross-references—documenting

vulnerabilities exploited by each attack pattern and

attack patterns that can arise from each vulnera-

bility—enabling more comprehensive threat analysis

when integrated.

As shown in Figure 1, we have implemented three

types of referenceable tree structures in COTTAGE:

1. CAPEC Reference Trees - placing attack pattern

names at the top with prerequisites and mitiga-

tions below

2. CWE Reference Trees - placing vulnerability

names at the top with mitigations below

3. CAPEC-CWE Integrated Trees - combining at-

tack patterns with related vulnerability informa-

tion

This approach is particularly valuable in DevOps en-

vironments where, as demonstrated in our previous

research (Okubo and Kaiya, 2022), operations teams

ICSOFT 2025 - 20th International Conference on Software Technologies

134

need to investigate detected attacks using CAPEC to

discover potential vulnerabilities or examine identi-

ﬁed vulnerabilities to understand possible attack pat-

terns. Additionally, multilingual support makes secu-

rity knowledge accessible to practitioners worldwide.

The following sections detail the automatic gener-

ation process for each type of reference tree in COT-

TAGE.

3.1 CAPEC Reference Tree Creation

Process

The procedure for creating referenceable Attack De-

fense Trees from CAPEC follows these steps:

1. Download the latest attack pattern information

from CAPEC in XML format.

2. Extract ”Name,” ”Description,” ”Prerequisites,”

and ”Mitigations” text from each attack pattern.

3. Split the ”Prerequisites” text so that each condi-

tion appears in a separate statement.

4. Translate the text.

5. Create nodes using the translated ”Name,” ”Pre-

requisites,” and ”Mitigations.”

6. Set ”Name” as the parent node and connect all

”Prerequisites” and ”Mitigations” as child nodes

with AND connections.

7. Include ”Description” as supplementary informa-

tion.

Unlike Oya’s research (Masaki Oya and Okubo,

2025), our approach does not classify ”Prerequisites”

into ”attack subjects” (enemy actions) and ”attack tar-

gets” (our system state).

Below is an example of converting ”CWE-1007:

Insufﬁcient Visual Distinction of Homoglyphs Pre-

sented to User” into a tree component. The results

after translation in step 4 are as follows:

• Name: Insufﬁcient Visual Distinction of Homo-

glyphs Presented to User

• Description: This product displays information or

identiﬁers to a user, but the display mechanism

does not make it easy for the user to distinguish

between visually similar or identical glyphs (ho-

moglyphs), which may cause the user to misinter-

pret a glyph and perform an unintended, insecure

action.

• Mitigation 1:

Implementation

Use a browser that displays Punycode for IDNs

in the URL and status bars, or which color codes

various scripts in URLs.

Due to the dangers of homoglyph attacks, several

browsers now protect against these attacks by us-

ing Punycode.

• Mitigation 2:

Implementation

Use an email client with strict ﬁlters that prevents

messages with mixed character sets from entering

the user’s inbox.

Some email clients like Google’s Gmail prevent

the use of non-Latin characters in email addresses

or links within emails.

Finally, as shown in Figure 1, the vulnerability

name ”Name” is placed at the top, with ”Poten-

tial Mitigations” arranged underneath to create the

CAPEC reference tree.

3.2 CWE Reference Tree Creation

Process

The procedure for creating referenceable Attack De-

fense Trees from CWE follows these steps:

1. Download the latest vulnerability information

from the CWE site in XML format.

2. Extract ”Name,” ”Description,” and ”Poten-

tial Mitigations” text from each vulnerability.

3. Summarize ”Potential Mitigations” text if it is too

lengthy.

4. Translate the text.

5. Create nodes using the translated ”Name” and

”Potential Mitigations.”

6. Set ”Name” as the parent node and connect all

”Potential Mitigations” as child nodes with AND

connections.

7. Include ”Description” as supplementary informa-

tion.

Below is an example of converting ”CWE-1007:

Insufﬁcient Visual Distinction of Homoglyphs Pre-

sented to User” into a tree component.

Step 2 extraction results in the following texts.

The vulnerability name ”Name” is taken from the

Name attribute of the Weakness tag, ”Descrip-

tion” is taken directly from the text, and ”Poten-

tial Mitigations” consists of individual ”Mitigation”

entries, each containing a ”Phase” indicating when in

development the mitigation can be applied and a ”De-

scription” of the speciﬁc countermeasure. For read-

ability, we decompose ”Potential Mitigations” by in-

dividual ”Mitigation” entries.

• Name: Insufﬁcient Visual Distinction of Homo-

glyphs Presented to User

COTTAGE: Supporting Threat Analysis for Security Novices with Auto-Generated Attack Defense Trees

135

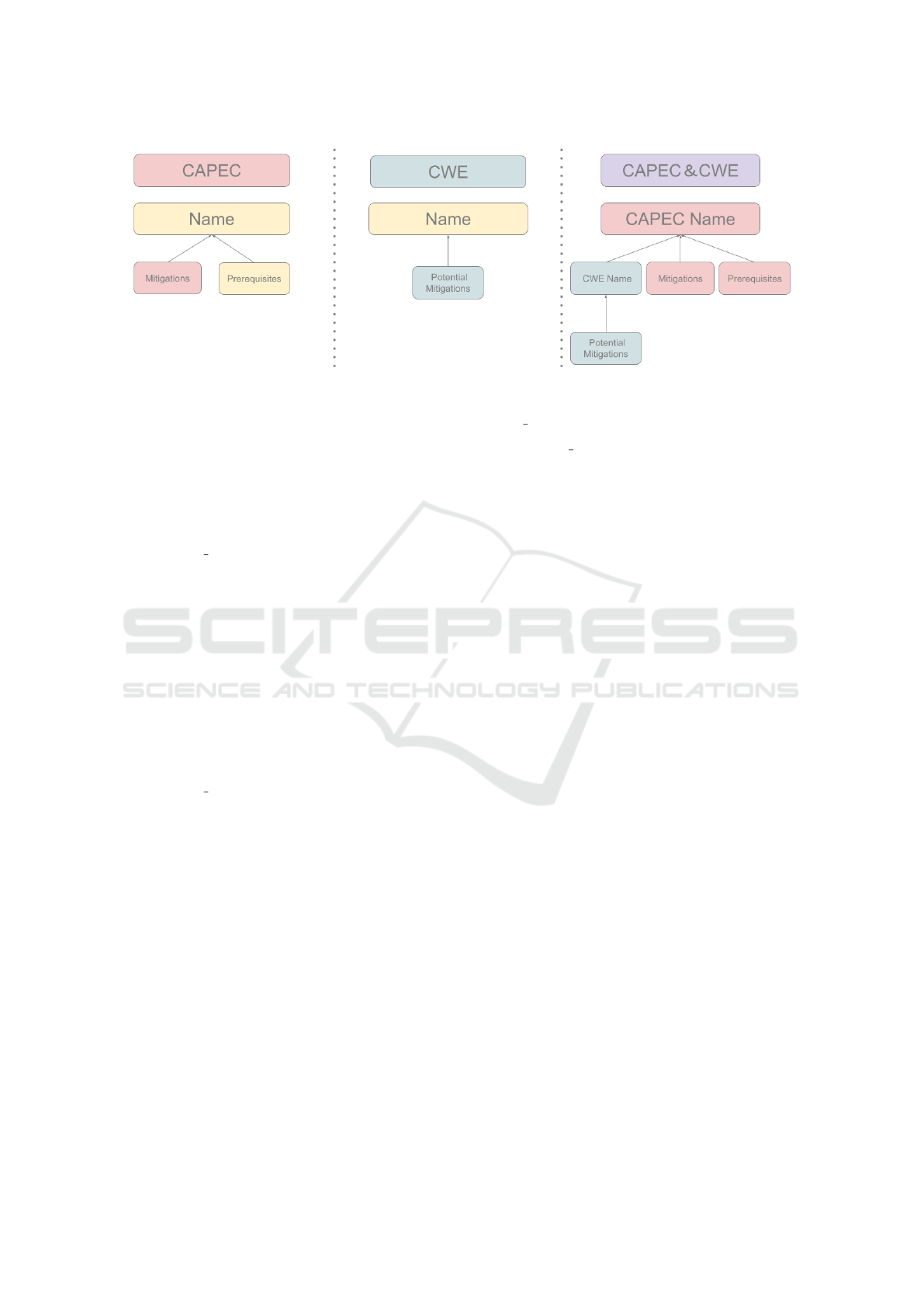

Figure 1: Conceptual Architecture of Referenceable Tree Structures in COTTAGE.

• Description: The product displays information or

identiﬁers to a user, but the display mechanism

does not make it easy for the user to distinguish

between visually similar or identical glyphs (ho-

moglyphs), which may cause the user to misinter-

pret a glyph and perform an unintended, insecure

action.

• Mitigation No.1:

Implementation

Use a browser that displays Punycode for IDNs in

the URL and status bars, or which color code var-

ious scripts in URLs.

Due to the prominence of homoglyph attacks,

several browsers now help safeguard against this

attack via the use of Punycode. For example,

Mozilla Firefox and Google Chrome will display

IDNs as Punycode if top-level domains do not

restrict which characters can be used in domain

names or if labels mix scripts for different lan-

guages.

• Mitigation No.2:

Implementation

Use an email client that has strict ﬁlters and pre-

vents messages that mix character sets to end up

in a user’s inbox.

Certain email clients such as Google’s GMail

prevent the use of non-Latin characters in email

addresses or in links contained within emails.

This helps prevent homoglyph attacks by ﬂagging

these emails and redirecting them to a user’s spam

folder.

In step 3, we summarize ”Mitigation” texts that are

excessively long, as CWE entries often contain de-

tailed explanations that could affect the readability of

the entire tree. We use a document summarization

library to shorten texts while preserving their mean-

ing. Our guideline is to summarize texts with more

than 250 characters (excluding spaces) to under 250

characters. Below is an example of summarizing Mit-

igation No.1:

• Mitigation No.1 original text (character count ex-

cluding spaces):

Implementation(14 characters)

Use a browser that displays Punycode for IDNs in

the URL and status bars, or which color code var-

ious scripts in URLs.(97 characters)

Due to the prominence of homoglyph attacks,

several browsers now help safeguard against this

attack via the use of Punycode. For example,

Mozilla Firefox and Google Chrome will display

IDNs as Punycode if top-level domains do not

restrict which characters can be used in domain

names or if labels mix scripts for different lan-

guages.(280 characters)

In this case, ”Due to the prom. . . ” is summarized.

• After summarization (character count):

”Implementation” and ”Use a browser. . . ” remain

unchanged

Due to the prominence of homoglyph attacks, sev-

eral browsers now help safeguard against this at-

tack via the use of Punycode.(105 characters)

Step 4 involves translating each text into the target

language.

Finally, steps 5 and 6 arrange the attack pattern

name ”Name,” prerequisites ”Prerequisites,” and mit-

igations ”Mitigations” as shown in Figure 1, with

”Name” at the apex and ”Prerequisites” and ”Mitiga-

tions” placed in parallel.

Unlike Oya’s research (Masaki Oya and Okubo,

2025), we do not classify ”Prerequisites” into ”attack

subjects” (enemy actions) and ”attack targets” (our

system state). We decided to include attack targets

in the tree, considering that information about imple-

mented rules and mechanisms and what has been im-

plemented is important for threat analysis.

ICSOFT 2025 - 20th International Conference on Software Technologies

136

3.3 Tree Integration

The CAPEC-CWE integrated trees are created based

on information extracted in Sections 3.2 and 3.1. The

speciﬁc procedure is as follows:

1. Extract related attack pattern IDs (”Related At-

tack Patterns”) from the CWE XML ﬁle.

2. Aggregate by the extracted attack pattern IDs.

3. Connect CWE reference trees associated with the

attack pattern IDs to the trees created in Section

3.1 using AND connections.

4 EVALUATION

This chapter discusses the evaluation of the proposed

COTTAGE tool. We ﬁrst explain the evaluation de-

sign and methodology, followed by quantitative and

qualitative evaluation results.

4.1 Evaluation Design and Methodology

To evaluate the effectiveness of COTTAGE, we con-

ducted an experiment with six students from the Insti-

tute of Information Security. Participants were asked

to perform threat analysis tasks under the following

three conditions:

1. Using only the tree creation functionality of COT-

TAGE with a general search engine (Search+UI)

2. Using FRAT&RATTATA

3. Using COTTAGE

To compare analysis results, we speciﬁed three threat

types as top nodes for the threat analysis trees: ”im-

personation,” ”denial of service,” and ”personal in-

formation leakage.” The tools, threats to be analyzed,

and the order of use were varied for each participant

to minimize bias.

For the target system, we selected a require-

ments deﬁnition document for a microchip registra-

tion web application procured by a Japanese govern-

ment agency (Ministry of the Environment of Japan,

2023). This document was chosen because it included

use cases and was relatively easy to understand in

terms of system speciﬁcations.

Each participant was given 30 minutes to perform

threat analysis, and we evaluated both the number

of nodes in the created ADTrees and the qualitative

aspects of the analysis. We also compared the par-

ticipants’ results with ADTrees created by a security

expert without using COTTAGE to verify the differ-

ences between novices and experts.

4.2 Quantitative Evaluation Results

Table 1 shows the aggregated number of nodes cre-

ated with each tool. Participants A and C created

a large number of nodes when using COTTAGE, as

they efﬁciently utilized the citation feature, resulting

in a high total number of trees.

Table 1: Comparison of total number of nodes.

ID Search+UI FRAT&RATTATA COTTAGE

A 27 38 162

B 33 18 38

C 24 8 130

D 10 22 41

E 20 23 29

F 24 14 16

For statistical analysis of the collected data, we

ﬁrst performed the Shapiro-Wilk test, which con-

ﬁrmed that the data followed a normal distribution.

However, the Bartlett test did not conﬁrm homogene-

ity of variance. Although analysis of variance did

not show statistically signiﬁcant differences, with a p-

value of approximately 0.056, we performed Tukey’s

multiple comparison test to compare the tools. The

results showed that COTTAGE had a p-value of ap-

proximately 0.08 compared to FRAT&RATTATA and

about 0.1 compared to Search+UI. Despite the small

sample size, these low values suggest that COTTAGE

is superior as a threat analysis creation tool.

Table 2 compares the number of trees created by

participants for each threat type with those created

by a security expert who did not use COTTAGE. For

convenience, IDs in the table are deﬁned as 1 for the

analysis result with the highest number of trees and

2 for the one with fewer trees. The security expert’s

(Pro) trees omitted recurring parts, but apart from par-

ticipants who heavily utilized citation, there was no

signiﬁcant difference in numbers. It is noteworthy

that while the security expert spent approximately two

days creating the trees, participants completed their

analysis within a 30-minute time limit. This suggests

that COTTAGE signiﬁcantly contributes to the rapid

identiﬁcation of threats.

Table 2: Comparison of node counts by threat type.

ID Impersonation Info. Theft DoS

1 162 130 29

2 41 38 16

Pro 56 49 13

COTTAGE: Supporting Threat Analysis for Security Novices with Auto-Generated Attack Defense Trees

137

4.3 Qualitative Evaluation Results

Qualitative comparison of the analysis content for

each threat type revealed interesting patterns.

For ”impersonation,” participants’ trees identiﬁed

voice phishing as a threat, which was overlooked in

the expert’s analysis. This indicates that knowledge

base-derived reference trees can help prevent over-

sight of speciﬁc threat scenarios.

For ”information theft,” there were many com-

monalities in technical threats such as SQL injection

between participant and expert analyses. However,

internal threats such as embedding malicious code

during development were not derived in the partici-

pants’ analyses. This may be attributed to the con-

tent of the knowledge base or the participants’ secu-

rity awareness.

For ”denial of service,” mitigation methods such

as implementing load balancing mechanisms were

largely consistent. However, threats such as session

hijacking and service denial through malware infec-

tion, which were derived in the expert’s analysis, were

not identiﬁed in the participants’ analyses using COT-

TAGE. The causes of these differences require further

investigation.

In post-experiment surveys and interviews, par-

ticipants provided positive feedback regarding COT-

TAGE’s usability and efﬁciency. Several mentioned

that the knowledge base citation feature helped pro-

mote learning and understanding for beginners. On

the other hand, some challenges were also identiﬁed,

such as difﬁculty in selecting appropriate results when

search results were too numerous.

5 PRACTICAL APPLICATIONS

AND EFFECTIVENESS

VALIDATION

This chapter describes a case study that veriﬁes the

effectiveness of COTTAGE in a DevOps environment

as a practical application example, and discusses its

potential for use in professional settings.

5.1 Applying COTTAGE in DevOps

Environments

To verify whether COTTAGE functions effectively in

DevOps environments, we reproduced and evaluated

a case study previously conducted by Okubo et al.

(Okubo and Kaiya, 2022).

The veriﬁcation items for this case study were the

following two points:

1. Can reference trees support ADTrees analysis?

2. Is COTTAGE effective in DevOps environments,

and are there any challenges?

In the research by Okubo et al. (Okubo and Kaiya,

2022), a document sharing system for sharing drafts

of entrance examination questions in a university un-

dergraduate program was used as a case study, and

analysis using misuse cases and ADTrees was pro-

posed. In our research, we implemented ﬁve of the

seven situations from that case study:

• Dev1 (Development): A simple implementation

where the developer assumes the system will only

be used on a secure campus network. Anyone

can upload and download manuscripts without

personal identiﬁcation or authentication, although

operation logs are recorded.

• Ops1 (Operation): Log analysis reveals that, con-

trary to assumptions, the system is being accessed

from off-campus networks and operated during

nighttime and outside business hours. Issues aris-

ing from this deviation from assumptions are dis-

covered. Therefore, threat analysis is conducted,

and new requirements for system access are iden-

tiﬁed for the developers. Threats such as imper-

sonation and information leakage are identiﬁed.

• Dev2 (Development): Development is carried out

based on Ops1 requirements. Countermeasures

are implemented against the identiﬁed threats, in-

cluding login functionality with personal veriﬁca-

tion and authentication based on two roles (pro-

fessors and staff), logout functionality, and com-

munication path encryption.

• Ops2 (Operation): Logs indicate that professor

accounts are being used by multiple users, each

accessing from different locations (access points).

Also, when a user logs in once and then does not

perform any operations for hours or days, the ses-

sion enters a paused state, but after this paused

state continues for a certain period, the same user

begins operating again.

• Dev3 (Development): Similarly, development is

carried out to meet the requirements from Ops2.

The developer introduces session timeout to mit-

igate the threat of session hijacking using replay

techniques. A function for updating user pass-

words from the system is added.

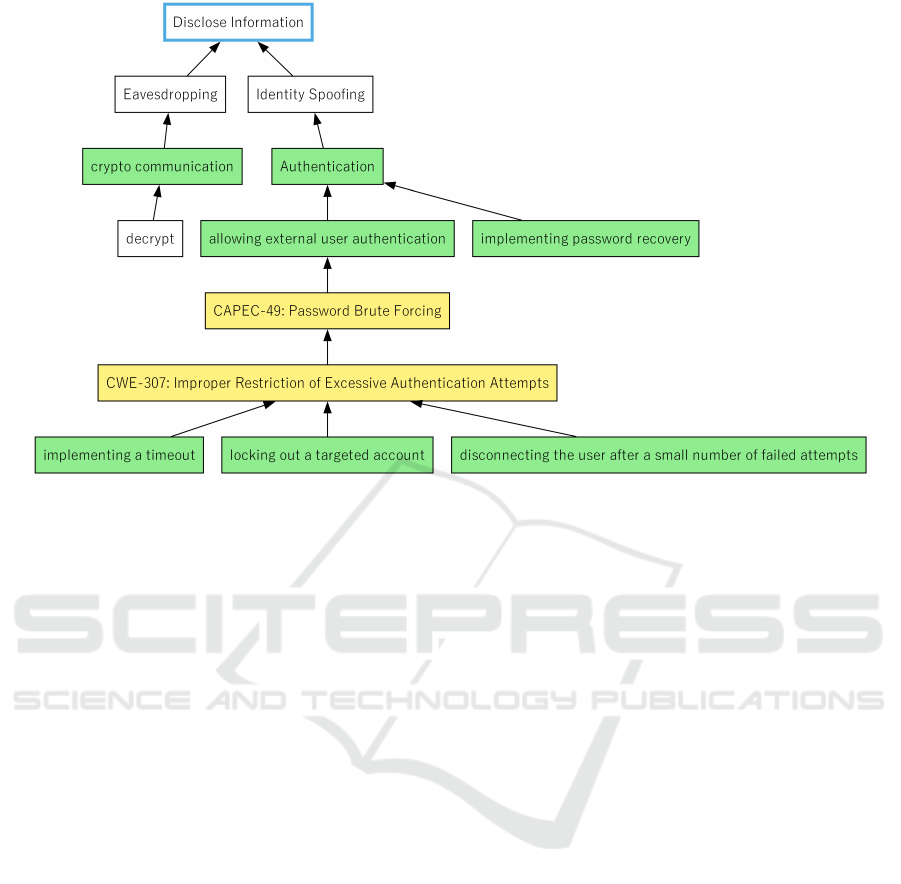

Figure 2 shows the ADTrees created by Okubo et

al. (Okubo and Kaiya, 2022) reproduced using COT-

TAGE.

ICSOFT 2025 - 20th International Conference on Software Technologies

138

Figure 2: ADTrees created by Okubo et al. in their case study.

5.2 Practical Effectiveness

The trees created in this case study did not exactly

match those in (Okubo and Kaiya, 2022), but they

were able to derive effective mitigation strategies such

as multi-factor authentication, password recovery im-

plementation, and encrypted communication. There-

fore, we can evaluate that reference trees can effec-

tively support the creation of ADTrees.

In the research by Okubo et al. (Okubo and Kaiya,

2022), they expected to reduce the effort of threat

analysis by constructing ADTrees from logs gener-

ated during operation and taking the difference from

the previous trees. This expectation was conﬁrmed

in the interaction between Ops2 and Dev3, where if

the operations team could identify vulnerabilities that

occurred in Ops2 and add them to the tree, the devel-

opment team could compare with previously created

trees to identify new features and potential attacks,

and consider effective mitigation strategies.

A noteworthy point is that in this case study, even

when creating trees by searching from COTTAGE’s

reference trees using given terms and avoiding unfa-

miliar terms in the results, a certain level of security

could be ensured. This indicates that the tool con-

tributes to the efﬁciency of tree creation.

From these evaluation results, we conclude that

COTTAGE is particularly effective in DevOps envi-

ronments. In the rapid and iterative development cy-

cles characteristic of DevOps, COTTAGE provides

practical value in the following ways:

1. It enables efﬁcient identiﬁcation of related attack

patterns based on vulnerabilities and anomalies

discovered in the operation phase

2. It allows for efﬁcient consideration of new threats

and countermeasures based on ADTrees created

in previous development cycles

3. It enables appropriate threat analysis using knowl-

edge bases even for team members with insufﬁ-

cient security knowledge

It was also suggested that COTTAGE could be an ef-

fective tool in development methodologies other than

DevOps, particularly in development teams lacking

security experts or in situations requiring threat anal-

ysis in a short period.

6 DISCUSSION

This chapter discusses the insights and signiﬁcance

obtained through the development and evaluation of

COTTAGE, its limitations and challenges, and future

research directions.

6.1 Key Findings and Signiﬁcance

This research proposed and implemented the Attack

Defense Trees creation tool COTTAGE with the aim

of overcoming the weaknesses of FRAT and RAT-

TATA, accommodating a wider range of development

COTTAGE: Supporting Threat Analysis for Security Novices with Auto-Generated Attack Defense Trees

139

methodologies, and creating a more user-friendly tool

for beginners. We achieved the following results:

• Support for DevOps

• Expansion of knowledge bases for reference trees

• Improvement of reference tree searchability

• Development and release of an ADTrees creation

tool (COTTAGE)

Regarding DevOps support, we added CWE to the

searchable knowledge bases, allowing operations

teams to identify vulnerabilities and developers to

search for anticipated attack patterns using CAPEC

reference trees. This reduced the time required to cre-

ate ADTrees and enabled even beginners to perform

threat analysis in DevOps environments.

For knowledge base expansion, we newly added

the CWE vulnerability knowledge base. In the au-

tomatic classiﬁcation framework (FRAT) created by

Oya, 58.1% of reference trees contained only attack

pattern names. Our improvements allow users to ob-

tain additional information from reference trees for all

but 56 attack patterns (approximately 10% of the total

549 patterns) that lack both ”Prerequisites” and ”Mit-

igations.”

Regarding search improvement, we enhanced the

tool’s searchability by enabling searches from mul-

tilingual pattern names and descriptions, rather than

only from English attack pattern names.

Additionally, to help beginners easily perform

ADTrees threat analysis, COTTAGE uses reference

trees created from knowledge bases without classify-

ing mitigations and prerequisites using Bayesian clas-

siﬁers as in FRAT. As a result, the speed of automatic

reference tree generation was signiﬁcantly improved

from approximately 1 hour with FRAT to about 30

seconds with COTTAGE in the same environment.

These achievements have demonstrated that COT-

TAGE is a valuable tool that enables security novices

to efﬁciently perform high-quality threat analysis,

particularly in rapid development environments such

as DevOps.

6.2 Limitations and Challenges

Through the evaluation and veriﬁcation of COT-

TAGE, several limitations and challenges were also

identiﬁed.

In post-survey interviews, some participants men-

tioned that the search results for attack patterns were

too numerous. This may have highlighted the difﬁ-

culty in determining what poses a threat to their sys-

tem and what should be applied, now that more pat-

terns can be cited from knowledge bases.

There was also feedback about wanting to stan-

dardize the abstraction level of reference trees. We

believe this could be addressed with minor modi-

ﬁcations to COTTAGE by displaying search results

categorized by abstraction level, allowing users to

use high-abstraction reference trees in basic design

and low-abstraction reference trees in detailed design

stages, without modifying the knowledge bases.

A technical challenge is that COTTAGE retrieves

text from knowledge base XML ﬁles, but encounters

issues extracting text from tabs with standalone mean-

ings, as shown by the red line in Figure 3.

In the current implementation, this problem is re-

solved by visually identifying the two attack patterns

where this issue occurs and removing the failing parts

before generating the attack patterns. However, this

approach cannot accommodate a larger number of

registered attack patterns. This is partly an issue with

the library being used, but there is a need to mod-

ify the system to retrieve text from CSV format ﬁles

instead for more accurate text extraction. However,

CSV format ﬁles lack information needed for text ap-

pearance, such as ul tags for bullet points, so imple-

mentation decisions must be made between prioritiz-

ing information accuracy or appearance.

7 CONCLUSION

7.1 Summary of Contributions

In this research, we developed ”COTTAGE,” a tool

that enables even security novices to perform effec-

tive threat analysis in modern software environments

where rapid development cycles are required. COT-

TAGE integrates two major security knowledge bases,

CAPEC and CWE, to support the creation of Attack

Defense Trees (ADTrees).

The main contributions of this research can be

summarized in the following three points:

• We proposed and implemented COTTAGE, which

automatically generates referenceable ADTrees

from knowledge bases, and demonstrated its su-

periority in efﬁciency and analysis accuracy com-

pared to existing tools through empirical evalua-

tion.

• We designed a threat analysis approach specif-

ically tailored for DevOps environments, and

demonstrated its effectiveness through case stud-

ies.

• Through user surveys, we veriﬁed that security

novices can perform high-quality threat analysis

in a short time.

ICSOFT 2025 - 20th International Conference on Software Technologies

140

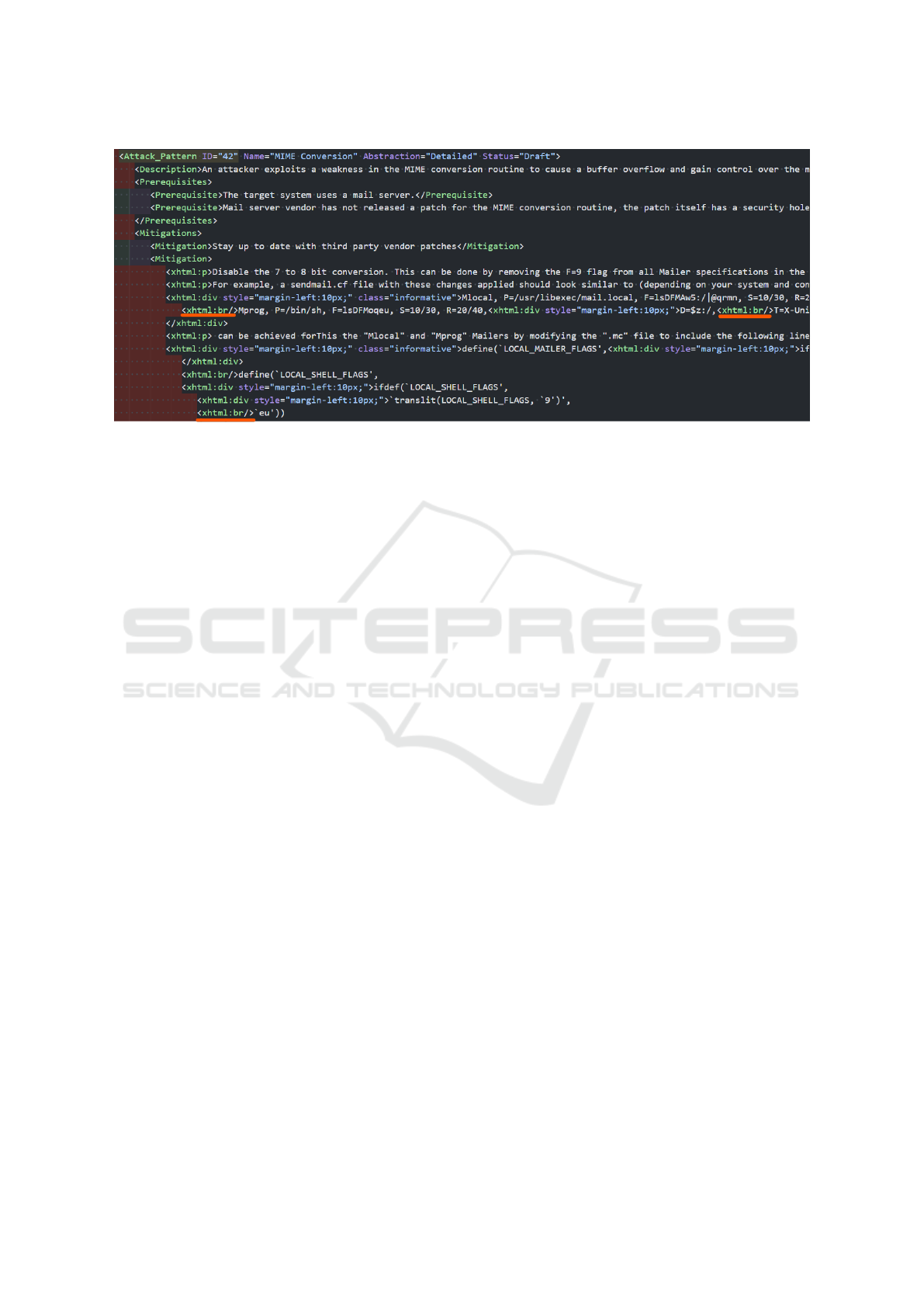

Figure 3: Example of failure in extracting text from attack pattern information (part of attack pattern ID: 42).

From the results of our evaluation experiments and

case studies, it became clear that COTTAGE provides

practical value, especially in environments lacking se-

curity experts and in rapid development cycles. By

addressing the challenges detailed in Chapter 6 and

pursuing the future research directions outlined be-

low, COTTAGE is expected to evolve further and con-

tribute to secure system development.

7.2 Future Research Directions

Based on the challenges identiﬁed in this research and

the results of practical applications, we suggest the

following future research directions.

First, functionality extensions for optimizing

search results could be implemented. Features such

as displaying search results categorized by abstraction

level and ﬁltering based on system context would help

users efﬁciently select appropriate reference trees.

Second, implementing management functions for

tree reference history from previous development cy-

cles could further improve analysis consistency and

efﬁciency. This is particularly important in DevOps

environments, where development and operation cy-

cles rotate rapidly, making efﬁcient reference to and

utilization of past analysis results essential.

Third, integration with Large Language Models

(LLMs) shows promise for improving the accuracy

of automatic tree generation and enhancement. Us-

ing LLMs could enable more appropriate attack pat-

tern recommendations from natural language threat

descriptions and contextual mitigation proposals.

Furthermore, automation of continuous updates

and expansion of knowledge bases is an important re-

search challenge. Since CAPEC and CWE are up-

dated periodically, a mechanism to automatically re-

ﬂect these updates in COTTAGE’s reference trees is

necessary.

Through these future research directions, COT-

TAGE can evolve into a more user-friendly and effec-

tive threat analysis tool, further enhancing its value

as a practical solution to the real-world challenge of

security expert shortages in the industry.

ACKNOWLEDGEMENT

We acknowledge the use of Claude AI assistant (An-

thropic) for English translation of this paper. This

work was supported by JSPS KAKENHI Grant Num-

ber 21K11895.

REFERENCES

Audinot, M., Pinchinat, S., and Kordy, B. (2018). Guided

Design of Attack Trees: A System-Based Approach.

In 2018 IEEE 31st Computer Security Foundations

Symposium (CSF), pages 61–75.

Carturan, S. B. O. G. and Goya, D. H. (2019). A systems-

of-systems security framework for requirements def-

inition in cloud environment. In Proceedings of the

13th European Conference on Software Architecture -

Volume 2, ECSA ’19, page 235–240, New York, NY,

USA. Association for Computing Machinery.

Casola, V., De Benedictis, A., Rak, M., and Villano, U.

(2020). A novel security-by-design methodology:

Modeling and assessing security by slas with a quan-

titative approach. Journal of Systems and Software,

163:110537.

Check Point Research (2023). 2023 mid-year security re-

port. Technical report, Check Point Software Tech-

nologies Ltd.

ıaz, J., P

erez, J. E., Lopez-Pe

na, M. A., Mena, G. A., and

Yag

ue, A. (2019). Self-service cybersecurity monitor-

COTTAGE: Supporting Threat Analysis for Security Novices with Auto-Generated Attack Defense Trees

141

ing as enabler for devsecops. IEEE Access, 7:100283–

100295.

ISC

(2022). 2022 cybersecurity workforce study. Techni-

cal report, International Information System Security

Certiﬁcation Consortium.

Ivanova, M. G., Probst, C. W., Hansen, R. R., and

Kamm

uller, F. (2015). Transforming Graphical Sys-

tem Models to Graphical Attack Models. In GraM-

Sec@CSF.

Kordy, B., Kordy, P., Mauw, S., and Schweitzer, P. Adtool:

Security analysis with attack-defense trees. Online.

Last updated: 2015, Accessed: 2025-03-01.

Kordy, B., Kordy, P., Mauw, S., and Schweitzer, P. (2013).

Adtool: security analysis with attack–defense trees.

In Quantitative Evaluation of Systems: 10th Inter-

national Conference, QEST 2013, Buenos Aires, Ar-

gentina, August 27-30, 2013. Proceedings 10, pages

173–176. Springer.

Kumar, R. and Goyal, R. (2020). Modeling continuous se-

curity: A conceptual model for automated devsecops

using open-source software over cloud (adoc). Com-

puters & Security, 97:101967.

Lee, J. S. (2018). The devsecops and agency theory. In 2018

IEEE International Symposium on Software Relia-

bility Engineering Workshops (ISSREW), pages 243–

244.

Li, T., Paja, E., Mylopoulos, J., Horkoff, J., and Beck-

ers, K. (2016). Security attack analysis using attack

patterns. In 2016 IEEE Tenth International Confer-

ence on Research Challenges in Information Science

(RCIS), pages 1–13.

Lipner, S. (2004). The Trustworthy Computing Security

Development Lifecycle. In Proceedings of the 20th

Annual Computer Security Applications Conference,

ACSAC ’04, pages 2–13, Washington, DC, USA.

IEEE Computer Society.

Masaki Oya, Keita Yamamoto, M. H. and Okubo, T. (2025).

Reusable attack tree patterns using common attack

pattern enumeration and classiﬁcation. In 9th Inter-

national Conference on Cryptography, Security and

Privacy, Okinawa, Japan.

Ministry of the Environment of Japan (2023). Require-

ments deﬁnition document for microchip registration

web application. Online. Published: 2022-06-01, Ac-

cessed: 2025-03-01.

MITRE Corporation (2023a). Common attack pattern enu-

meration and classiﬁcation (capec). Online. Accessed:

2025-03-01.

MITRE Corporation (2023b). Common weakness enumer-

ation (cwe). Online. Accessed: 2025-03-01.

Mohan, V., ben Othmane, L., and Kres, A. (2018). Bp:

Security concerns and best practices for automation

of software deployment processes: An industrial case

study. In 2018 IEEE Cybersecurity Development

(SecDev), pages 21–28.

Moore, A., Ellison, R., and Linger, R. (2001). Attack

Modeling for Information Security and Survivabil-

ity. Technical Report CMU/SEI-2001-TN-001, Soft-

ware Engineering Institute, Carnegie Mellon Univer-

sity, Pittsburgh, PA.

Myrbakken, H. and Colomo-Palacios, R. (2017). Devsec-

ops: A multivocal literature review. In Mas, A.,

Mesquida, A., O’Connor, R. V., Rout, T., and Dorling,

A., editors, Software Process Improvement and Ca-

pability Determination, pages 17–29, Cham. Springer

International Publishing.

Okubo, T. and Kaiya, H. (2022). Efﬁcient secure devops us-

ing process mining and attack defense trees. Procedia

Computer Science, 207:446–455.

OWASP Foundation (2023). Security by design principles.

OWASP Wiki. Accessed: 2025-02-20.

Rahman, A. A. U. and Williams, L. (2016). Software secu-

rity in devops: Synthesizing practitioners’ perceptions

and practices. In 2016 IEEE/ACM International Work-

shop on Continuous Software Evolution and Delivery

(CSED), pages 70–76.

Regainia, L. and Salva, S. (2017). A methodology of secu-

rity pattern classiﬁcation and of Attack-Defense Tree

generation. In 3nd International Conference on In-

formation Systems Security and Privacy {(ICISSP}

2017, Porto, Portugal, France.

Ross, R., McEvilley, M., and Oren, J. C. (2016). Systems

security engineering: Considerations for a multidis-

ciplinary approach in the engineering of trustworthy

secure systems. Technical Report NIST Special Publi-

cation 800-160 Vol. 1, National Institute of Standards

and Technology. Includes updates as of March 21,

2018.

ICSOFT 2025 - 20th International Conference on Software Technologies

142
