Evasive IPv6 Covert Channels: Design, Machine Learning Detection, and

Explainable AI Evaluation

Viet Anh Phan

and Jan Jerabek

Faculty of Electrical Engineering and Communication, Brno University of Technology,

Technicka 3082/12, Brno, Czech Republic

Keywords:

IPv6, Covert Channel, Dataset, Machine Learning, Intrusion Detection, Explainable AI.

Abstract:

Adopting a dual approach, this paper presents a framework that integrates two complementary components:

CovertGen6, a novel tool for generating realistic IPv6 covert channel attack packets, and a framework of

detection system based on multiple machine learning models. CovertGen6 outperforms existing tools by

producing diverse, evasive attack scenarios that are captured by Wireshark and converted into CSV datasets

for analysis. These authentic datasets are then used to train and evaluate machine learning models for detecting

IPv6 covert channels, with the Random Forest classiﬁer achieving a binary classiﬁcation AuC of 0.985 and

a multi-label classiﬁcation F1-score of 90.3%. Additionally, the explainable AI technique is incorporated to

transparently interpret model decisions and pinpoint the speciﬁc header ﬁelds used for covert injections. This

dual approach bridges the gap between theoretical research and practical network security, laying a robust

foundation for intrusion detection systems in IPv6 networks.

1 INTRODUCTION

The introduction of IPv6 has brought about new fea-

tures (Shiranzaei and Khan, 2018). This also includes

new challenges in network security, notably the emer-

gence of covert channels that enable malicious actors

to embed hidden communications within legitimate

trafﬁc. These IPv6 covert channels pose a signiﬁcant

threat as they can evade traditional intrusion detec-

tion systems by exploiting unused or under-monitored

protocol ﬁelds. Prior research has made important

strides in this domain; for instance, Zhao and Wang

(Zhao and Wang, 2020) introduced a blind network

steganalysis model based on convolutional neural net-

works, demonstrating high detection accuracy in IPv6

environments. Similarly, Dua et al. (Dua et al., 2022)

developed DICCh-D, which utilizes deep neural net-

works to detect IPv6-based covert channels, thereby

highlighting the potential of machine learning in ad-

dressing these sophisticated threats.

Despite these promising developments, existing

methodologies often rely on oversimpliﬁed datasets

that fail to capture the complexity and diversity of

real-world covert communication scenarios. More-

https://orcid.org/0009-0003-1787-8063

https://orcid.org/0000-0001-9487-5024

over, many of these approaches focus solely on max-

imizing detection accuracy without providing trans-

parency into the model’s decision-making process.

Addressing these gaps, this paper introduces a novel

tool called CovertGen6

for designing and generating

diverse, evasive IPv6 covert channel packets that re-

alistically mimic potential attack scenarios. The gen-

erated network trafﬁc is captured by Wireshark, then

transformed into CSV datasets and used to train a

suite of machine learning models, achieving approx-

imately 0.985 of AuC for binary classiﬁcation and

around 90.3% of F1-score for multi-label classiﬁca-

tion.

A key contribution of our work is the integration

of explainable AI (XAI) techniques. These methods

not only enhance the transparency of our detection

models by interpreting their decisions but also iden-

tify the speciﬁc IPv6 header ﬁelds exploited for covert

injection. Such interpretability is essential for foster-

ing trust among network administrators and for en-

abling more informed and rapid responses to security

threats.

By combining realistic data generation with robust

machine learning detection and in-depth XAI eval-

uation, our framework bridges the critical gap be-

https://github.com/vafekt/CovertGen6.git

666

Phan, V. A. and Jerabek, J.

Evasive IPv6 Covert Channels: Design, Machine Learning Detection, and Explainable AI Evaluation.

DOI: 10.5220/0013556100003979

In Proceedings of the 22nd International Conference on Security and Cryptography (SECRYPT 2025), pages 666-675

ISBN: 978-989-758-760-3; ISSN: 2184-7711

tween theoretical research and practical network se-

curity applications. This approach lays the foundation

for more robust and adaptive intrusion detection sys-

tems, which are vital to safeguarding IPv6 networks.

2 RELATED WORKS

This section reviews literature on IPv6 covert chan-

nels, covering design methodologies that inspire our

tool CovertGen6 and detection techniques that inform

our integrated approach.

2.1 Covert Channel Designs in IPv6

The design of IPv6 covert channels in Mavani et

al. (Mavani and Ragha, 2014) and Mazurczyk et al.

(Mazurczyk et al., 2019) leverages the ﬂexibility of

IPv6 protocol ﬁelds and extension headers to embed

hidden data. Mavani et al. focused on exploiting

the Destination Options Extension Header, a feature

allowing optional processing by destination nodes.

They manipulated this header by embedding covert

data in two ways: (1) deﬁning custom, unrecognized

options (e.g., reserved or vendor-speciﬁc codes) that

evade standard validation, and (2) abusing the PadN

option by inserting nonzero padding bytes, which typ-

ically serve alignment purposes but can encode secret

information.

Mazurczyk et al. expanded this scope by evalu-

ating six distinct data-hiding techniques in real-world

IPv6 deployments. Their methods included abusing

ﬁelds like the Flow Label, which typically ensures

packet sequencing but can be repurposed to encode

covert bits, and the Trafﬁc Class ﬁeld for timing-

based steganography. They also exploited extension

headers (e.g., Fragment, Hop-by-Hop) by embed-

ding data in rarely monitored ﬁelds or manipulating

fragmentation offsets. For instance, covert channels

were established by altering the Flow Label’s pseudo-

random values to encode messages or embedding data

in unused bits of extension headers.

In practice, such covert channels manifest as

seemingly ordinary IPv6 trafﬁc. For example, a

packet with a Destination Options Extension Header

might appear standard but include a custom option

type (e.g., a proprietary code point) carrying en-

crypted data, or a Flow Label ﬁeld might exhibit

nonrandom patterns that encode a hidden message.

Mazurczyk et al. emphasized the challenges in detec-

tion, as these channels exploit IPv6’s inherent com-

plexity and the limited scrutiny of newer protocol fea-

tures in security tools. Their work underscores the

need for advanced detection frameworks, such as ma-

chine learning models or protocol-aware wardens, to

identify anomalies in header ﬁelds and trafﬁc behav-

ior.

2.2 Detection Approaches

Wang et al. (Wang et al., 2022) introduced CC-Guard,

an IPv6 covert channel detection method based on

ﬁeld matching. Their approach involves extracting

speciﬁc header ﬁelds from IPv6 packets and com-

paring them against predeﬁned normal patterns using

a deterministic decision automaton. Although CC-

Guard achieves high detection accuracy by pinpoint-

ing deviations in ﬁelds like Trafﬁc Class and Flow La-

bel, the exhaustive pattern matching process results in

a time-consuming analysis that may hinder real-time

applicability.

Danyang Zhao and colleagues (Zhao and Wang,

2020) developed BNS-CNN, a blind network ste-

ganalysis model based on convolutional neural net-

works speciﬁcally tailored for IPv6 networks. Their

method involves generating a dataset of 24,000 pack-

ets by embedding covert data into the IPv6 source ad-

dress, Hop Limit ﬁeld, and TCP ISN. The CNN auto-

matically extracts relevant features from this dataset

to detect covert channels with high accuracy. How-

ever, the dataset’s narrow focus on only a few covert

channel types limits the model’s generalizability to

other types of covert communications.

Arti Dua and co-authors (Dua et al., 2022) pro-

posed DICCh-D, which employs a deep neural net-

work (DNN) to detect IPv6-based covert channels.

Their approach leverages the pcapStego tool (Zup-

pelli and Caviglione, 2021) to generate covert chan-

nels by modifying ﬁelds such as Flow Label, Traf-

ﬁc Class, and Hop Limit. While this method demon-

strates the potential of DNNs for efﬁcient detection,

its reliance on pcapStego conﬁnes the dataset to only

these speciﬁc ﬁeld modiﬁcations, thereby limiting its

ability to detect covert channels exploiting other parts

of the IPv6 header.

This review shows that while early works effec-

tively highlighted various covert channel designs in

IPv6, detection methods have evolved from exhaus-

tive statistical analyses, as seen in CC-Guard, to more

efﬁcient machine learning techniques in DICCh-D.

However, the limited scope of the datasets used in

these machine learning approaches remains a critical

drawback, underscoring the need for frameworks that

can generate a broader range of covert channel sce-

narios and support more robust detection strategies.

Evasive IPv6 Covert Channels: Design, Machine Learning Detection, and Explainable AI Evaluation

667

3 COVERTGEN6: A NETWORK

TOOL FOR IPV6 COVERT

CHANNEL COMMUNICATION

3.1 Software Architecture

Before presenting the methodology, we introduce

CovertGen6, a custom-developed command-line tool

for covert data transmission over IPv6 networks.

Implemented in Python, it enables embedding data

within various IPv6 header ﬁelds to establish covert

channels that bypass traditional detection mecha-

nisms. CovertGen6 supports multiple covert chan-

nel types, encryption methods, and transport proto-

cols, offering ﬂexibility in constructing and transmit-

ting covert packets. The main components of Covert-

Gen6 are depicted in Figure 1.

Command-line

input

Configuration

Management

File Processing

& Encryption

Data

segmentation

Packet

generation

Packet

transmission

Packet sniffing

User

Exit

Protocols

construction

Figure 1: Software architecture of CovertGen6.

As shown in Figure 1, the user ﬁrst enters the pa-

rameter as a command-line input, with its usage ex-

plained later in the next section. Once all parame-

ters are provided, the process moves on to the next

module. In this phase, Conﬁguration Management

validates the inserted parameters. The tool veriﬁes the

existence of the speciﬁed network interface, input ﬁle,

and cryptographic parameters, ensuring all required

inputs are correctly formatted.

Once validated, the tool moves into Protocol

Construction. This module determines how the

packet frame is built based on the selected protocol

(IPv6, ICMPv6, UDP, or TCP). The tool structures

packet headers accordingly to ensure proper network

transmission.

Simultaneously, File Processing & Encryption

prepare the data for insertion into IPv6 packets. The

selected ﬁle is read in binary format, and if encryption

is enabled, it is processed using AES-CBC or DES-

CBC encryption (based on the user’s preference). The

encryption key can either be user-deﬁned or automat-

ically generated. The encrypted data is then encoded

for insertion into IPv6 header ﬁelds.

The method of Data Segmentation depends on

the selected covert channel type:

• For Trafﬁc Class, Flow Label, Next Header, and

Hop Limit: Each 1-byte segment of encrypted

data is embedded into the respective ﬁeld of a sin-

gle IPv6 packet. These ﬁelds have limited size,

making them suitable for small-scale covert trans-

mission.

• For IPv6 Extension Headers (Hop-by-Hop, Des-

tination Option, Routing Header, Fragment

Header): Data is divided into 256-byte blocks

and embedded within Unknown Options of these

headers. If the remaining data is less than 256

bytes, zero-padding is applied to maintain block

consistency.

This segmentation process ensures that the data

is correctly structured within IPv6 packets, avoid-

ing corruption or detection by simple header integrity

checks.

With the covert data embedded, Packet Genera-

tion constructs the ﬁnal IPv6 packets. These packets

follow the structure deﬁned in the protocol construc-

tion phase, incorporating the chosen protocol, encryp-

tion method, and covert channel technique.

Once generated, the packets are sent via Packet

Transmission, using raw socket operations to inject

them directly into the network interface. The tool

ensures proper sequencing of packets, maintaining a

structured covert communication ﬂow.

In parallel, CovertGen6 includes a Packet Sniff-

ing module that monitors network trafﬁc for re-

sponses from the covert receiver. If the receiver

acknowledges the packets, the tool logs response

metadata, including source and destination addresses,

timestamps, and protocol details. This feature en-

ables users to verify whether covert packets success-

fully bypassed Intrusion Detection System (IDS) or

ﬁrewall defenses between the sender and receiver.

By analyzing responses, the tool helps assess net-

work security risks and reﬁne covert channel strate-

gies to improve stealth and reliability.

3.2 Usage

The tool is executed with the following inserted pa-

rameters:

python3 covert_channel.py [interface] [options]

• Interface: The network interface to use from the

sender. Manually speciﬁed or automatically re-

solved.

• Source and Destination MAC/IP Addresses (-

smac/-dmac and -sip/-dip): Manually speciﬁed

or automatically resolved.

• Covert Channel Type (-t): Currently, only one

option may be used at a time; data must be embed-

ded exclusively in one of the following options:

– Trafﬁc Class (TC)

SECRYPT 2025 - 22nd International Conference on Security and Cryptography

668

– Flow Label (FL)

– Next Header (NH)

– Hop Limit (HL)

– Hop-by-Hop (HBH)

– Routing Header (RH)

– Destination Option (DO)

– Fragment Header (FH)

• Input File (-i): The ﬁle to be transmitted covertly.

• Encryption (-a): Data can be encrypted using

AES-CBC or DES-CBC, with an optional user-

provided encryption key.

• Protocol (-p): Users may select one of the fol-

lowing protocols for packet construction: IPv6,

ICMPv6, UDP, or TCP. For ICMPv6, an Echo

Request packet (used for ping) is employed. For

TCP, a TCP SYN packet is used, which is ideal for

carrying the user’s message to the target. In every

case, the hidden data remains unaffected since the

chosen protocol merely serves as a carrier, ensur-

ing that the packets appear as legitimate, normal

trafﬁc.

• Key (-k): The key to encrypt the ﬁle using the de-

ﬁned algorithm (automatically generated if skip-

ping).

4 COMPARISON OF CovertGen6

WITH EXISTING IPv6 COVERT

CHANNEL TOOLS

To evaluate the advantages of CovertGen6, we com-

pare it with existing tools, including pcapStego

THC-IPv6

, IPv6CC

, and IPv6teal

. Table 1

highlights key differences in supported covert chan-

nel types, encryption capabilities, and protocol com-

patibility.

Table 1: Comparison of IPv6 Covert Channel Tools.

pcapStego THC-IPv6 IPv6CC IPv6teal CovertGen6

IPv6 Covert channel types 3 1 3 1 5

Encryption allowed ✗ ✓ ✗ ✗ ✓

Encryption algorithms ✗ Blowﬁsh ✗ ✗ AES-CBC, DES-CBC

ICMPv6 protocol applied ✓ ✓ ✗ ✓ ✓

UDP protocol applied ✗ ✗ ✗ ✗ ✓

TCP protocol applied ✗ ✗ ✗ ✗ ✓

CovertGen6 outperforms existing IPv6 covert

channel tools in multiple aspects. Unlike pcapStego,

IPv6CC, and IPv6teal, which support only a limited

number of covert channel types, CovertGen6 extends

https://github.com/Ocram95/pcap injector.git

https://github.com/vanhauser-thc/thc-ipv6.git

https://github.com/Ocram95/IPv6CC SoftwareX.git

https://github.com/christophetd/IPv6teal.git

its capability to ﬁve different covert channel types

(Trafﬁc Class, Flow Label, Hop Limit, Next Header

and Extension Headers), providing greater ﬂexibility

in data transmission. Furthermore, while some tools

such as THC-IPv6 allow encryption, they are lim-

ited to a single algorithm (Blowﬁsh). CovertGen6 en-

hances security by offering AES-CBC and DES-CBC

encryption options, signiﬁcantly increasing resistance

against IDS and ﬁrewalls. Additionally, CovertGen6

is the only tool that supports covert data transmission

over UDP and TCP, whereas other tools primarily rely

on ICMPv6. This extended protocol support allows

CovertGen6 to operate in more diverse network envi-

ronments, making it a superior choice for covert com-

munication research and practical applications. By in-

tegrating these advanced features, CovertGen6 sets a

new benchmark for IPv6 covert channel tools.

5 METHODOLOGY

This section details the proposed framework for de-

signing, generating, and detecting IPv6 covert chan-

nels, and is organized into ﬁve main phases: Traf-

ﬁc Collection and Packet Generation (5.1), Dataset

Creation: PCAP to CSV Conversion (5.2), Data Pre-

processing (5.3), Machine Learning–Based Detec-

tion and Evaluation (5.4) and Explainable AI–Based

Model Validation (5.5), as described in Figure 2.

The proposed methodology provides a structured

approach to detecting IPv6 covert channels using ma-

chine learning. It begins with trafﬁc collection and

packet generation, where covert IPv6 (attack) trafﬁc

is sent using our designed tool called CovertGen6 and

captured by snifﬁng tools (Wireshark, in this case).

The collected PCAP ﬁles are then processed by ex-

tracting essential ﬁelds, converting them into CSV

format with modiﬁed features. In the data prepro-

cessing phase, irrelevant features are removed, miss-

ing values handled, categorical data encoded, and

the dataset is split into training and testing sets with

proper normalization. Machine learning models from

four main categories, including Gradient Boosting,

Neural Network, Ensemble Learning and Probabilis-

tic Classiﬁer are then trained and evaluated based on

accuracy, precision, recall, F1-score, and AuC met-

rics. Finally, XAI using SHAP is applied to interpret

model decisions, highlighting the most inﬂuential fea-

tures in covert channel detection. This methodology

ensures an effective, data-driven approach for identi-

fying hidden communications within IPv6 networks,

enhancing security through AI-driven detection and

explainability.

Evasive IPv6 Covert Channels: Design, Machine Learning Detection, and Explainable AI Evaluation

669

CovertGen6

Normal Traffic

Covert sender

Design and send IPv6 covert channels

Supported header fields:

- Traffic Class, Flow Label, Next Header,

Hop Limit, Extension Header (Hop-by-Hop,

Routing, Destination Option, Fragment

Header)

Protocols: IPv6, ICMPv6, TCP, UDP

Encryption options: AES-CBC, DES-CBC

File insertion for payload & response

verification

pcap files

Sniffing and storing packets

Tabular csv files

Converting

Dataset

- Binary classification: Benign Traffic, Attack.

- Multilabel classification: Benign Traffic, Traffic

Class, Flow Label, Next Header, Hop Limit,

Extension Header.

Preprocessing

Data cleaning

Data splitting:

- Training set

- Testing set

Normalization

Classification with ML models

Models

- CatBoost

- TabNet

- Random Forest

- Naïve Bayes

Prediction:

- Binary classification

- Multilabel classification

Metrics:

- AuC

- Accuracy

- Precision

- Recall

- F1-score

- Training time

Network scenario

Explanable AI with SHAP analysis

Most efficient model

Conclusion

Figure 2: Framework of proposed methodology for IPv6 Covert Channel design, detection and evaluation.

5.1 Trafﬁc Collection and Packet

Generation

In the depicted scenario (Figure 3), CovertGen6 oper-

ates on the covert sender’s side, transmitting various

types of covert channel packets to the covert receiver.

To ensure a realistic dataset, benign trafﬁc is collected

by allowing normal network communication between

the sender and other hosts. This background trafﬁc is

captured concurrently with the covert channel attacks,

ensuring a comprehensive dataset containing both le-

gitimate and malicious activities.

Covert receiver

Covert Channel Attack

Covert sender

Benign Traffic

Figure 3: Network Scenario Utilizing CovertGen6 for At-

tack Trafﬁc Extraction and Benign Trafﬁc Monitoring.

All network trafﬁc, including both benign and

covert channel attack packets, is captured and stored

using Wireshark in the form of PCAP ﬁles. These

ﬁles serve as the dataset for evaluating classiﬁca-

tion approaches. We analyze the packet distribution

in two scenarios: multi-label classiﬁcation, where

each covert channel type is treated as a distinct class,

and binary classiﬁcation, where all attack types are

grouped into a single category.

5.2 Dataset Creation: PCAP to CSV

Conversion

Our dataset is created by capturing network trafﬁc

with Wireshark into PCAP ﬁles, which include both

benign and covert channel attack packets. We con-

vert these PCAP ﬁles to CSV format, where each row

corresponds to a packet with features extracted from

its headers. These features are essential for machine

learning models to identify IPv6 covert channels.

Several existing approaches have attempted to ex-

tract features from PCAP ﬁles for similar purposes,

but they have notable drawbacks. Wang et al. (Wang

et al., 2022) focused on standard IPv6 header ﬁelds

such as Flow Label, Trafﬁc Class, and Hop Limit,

but their method does not adequately handle pack-

ets with extension headers, treating them the same

as those without. This is problematic for detecting

covert channels that exploit extension headers. An-

other method by Zhao et al. (Zhao and Wang, 2020)

constructs a two-dimensional matrix from IP, TCP,

and UDP headers, but when multiple extension head-

ers are present, it leads to excessive zero-padding, re-

sulting in sparse matrices that can degrade model per-

formance.

In contrast, our approach extracts a wide range

of features from both the main IPv6 header and its

extension headers. Key features include Version,

Trafﬁc Class, Flow Label, Next Header, Hop Limit,

Source and Destination Addresses, as well as spe-

ciﬁc ﬁelds from extension headers like Destination

Options, Hop-By-Hop Options, Routing Header, and

Fragment Header. Additionally, we extract transport

layer information such as source and destination ports

for UDP and TCP, and payload-related ﬁelds. For

each packet, if a particular feature is present, its value

SECRYPT 2025 - 22nd International Conference on Security and Cryptography

670

is recorded; otherwise, it is set to zero. This compre-

hensive feature set allows us to capture the nuances of

IPv6 covert channel attacks effectively.

The extracted features are organized into a CSV

where each row represents a packet. Figure 4 shows

the sample distribution for multi-label classiﬁcation

of different attack types. For binary classiﬁcation, all

attacks are labeled as Attack.

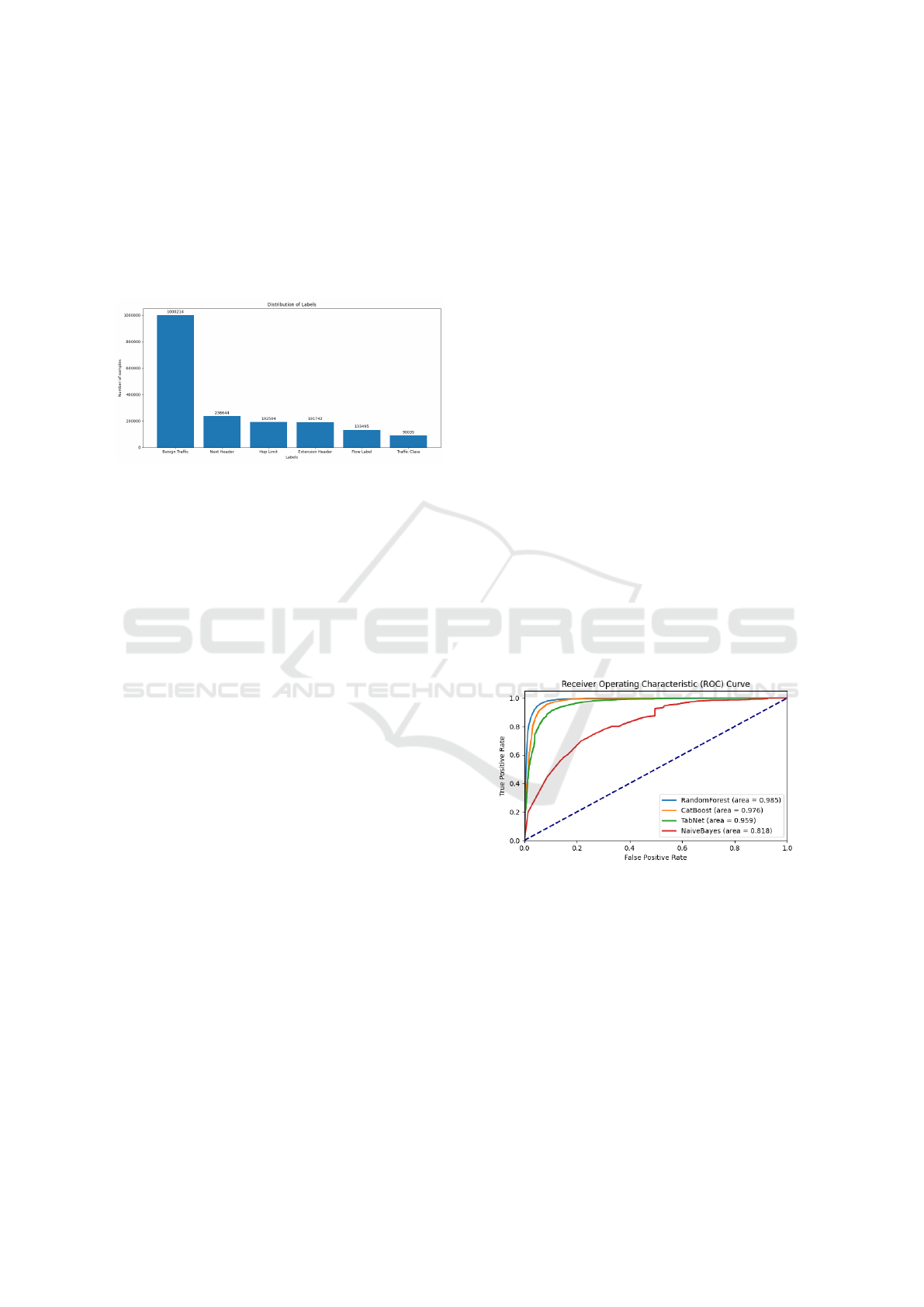

Figure 4: Samples distribution for the case of multi-label

classiﬁcation.

5.3 Data Preprocessing

In this phase, we reﬁne our dataset to enhance the

performance and generalization of our machine learn-

ing models. First, we clean the dataset by eliminating

rows containing non-numerical values. This ensures

that our data is both consistent and representative of

unique network ﬂows. After cleaning, the dataset is

split into training and testing subsets using a widely

accepted 70/30 ratio, providing a balanced approach

for model training and validation.

Normalization is then applied to the numerical

features to ensure uniformity in scale. We use

two common normalization techniques: the Stan-

dard Scaler and the Min-Max Scaler. The Standard

Scaler transforms each feature to have a zero mean

and unit variance, which is particularly useful when

the data follows a Gaussian distribution. In contrast,

the Min-Max Scaler rescales features to a speciﬁed

range (typically [0, 1]), preserving the relationships

among the original data values while compressing the

scale. These normalization methods help prevent fea-

tures with larger numerical ranges from dominating

the model training process.

Following these steps, the dataset is fully prepared

and ready for input into our machine learning models.

5.4 Machine Learning–Based Detection

and Evaluation

In our approach, we leverage four distinct categories

of machine learning models to detect IPv6 covert

channels, each bringing unique strengths and limi-

tations to the task. The models under consideration

include Gradient Boosting (CatBoost), Neural Net-

works (TabNet), Ensemble Learning (Random For-

est), and a Probabilistic Classiﬁer (Naive Bayes).

For binary classiﬁcation, we evaluate model per-

formance using the Area Under the Receiver Operat-

ing Characteristic Curve (AuC), a robust metric that

provides an aggregate measure of performance across

all classiﬁcation thresholds by effectively capturing

the trade-off between true positive and false positive

rates. In contrast, for multi-label classiﬁcation, we

employ accuracy, F1-score, recall, and precision to

obtain detailed insights into the performance on indi-

vidual classes. Additionally, training time is recorded

as a metric in both cases, allowing for a comprehen-

sive comparison of each model’s efﬁciency and over-

all suitability.

5.4.1 Binary Classiﬁcation

After training and testing using different models, the

ROC curves for each model are shown in Figure 5.

The AuC values indicate the effectiveness of each

classiﬁer in distinguishing between classes:

• Random Forest: AuC = 0.985

• CatBoost: AuC = 0.976

• TabNet: AuC = 0.959

• Naive Bayes: AuC = 0.818

Figure 5: ROC Curve Comparison for Binary Classiﬁca-

tion.

From these results, it is evident that Random For-

est and CatBoost outperform the other models in clas-

siﬁcation performance, with AuC values very close to

1. TabNet follows with slightly lower accuracy, while

Naive Bayes shows the weakest performance due to

its assumption of feature independence.

Besides classiﬁcation performance, training time

is a crucial metric, particularly for real-time detection

scenarios. The recorded training times for each model

are as follows:

Evasive IPv6 Covert Channels: Design, Machine Learning Detection, and Explainable AI Evaluation

671

• CatBoost: 1.042 seconds

• TabNet: 76.241 seconds

• Random Forest: 5.371 seconds

• Naive Bayes: 0.824 seconds

The results indicate that CatBoost provides a near-

optimal balance between high classiﬁcation perfor-

mance and fast training time, making it a strong can-

didate for practical deployment. Random Forest also

performs well but requires slightly longer training

time. TabNet, because of its deep learning architec-

ture, shows a signiﬁcantly higher computational cost

(76.241 seconds), which may not be suitable for time-

sensitive applications. Naive Bayes, while the fastest,

demonstrates the weakest classiﬁcation performance.

5.4.2 Multi-Label Classiﬁcation

Table 2 summarizes the performance of the eval-

uated models on the multi-label classiﬁcation task.

The metrics include Accuracy, Precision, Recall, F1-

score, and Training Time (seconds).

Table 2: Multi-label Classiﬁcation Results.

Metric CatBoost TabNet Random Forest Naive Bayes

Accuracy 0.812 0.782 0.902 0.420

Precision 0.815 0.780 0.910 0.675

Recall 0.805 0.784 0.896 0.400

F1-score 0.810 0.782 0.903 0.520

Training Time (s) 1.195 110.234 5.845 0.034

The Random Forest classiﬁer achieves the highest

overall performance, with an accuracy, precision, re-

call, and F1-score of approximately 0.903, which sub-

stantially exceeds the results of the other models. Al-

though Naive Bayes offers an extremely short training

time, its low accuracy and F1-score make it unsuit-

able for practical deployment. CatBoost demonstrates

competitive performance, yet its results remain infe-

rior to those of Random Forest, and TabNet, despite

its deep learning approach, suffers from signiﬁcantly

higher training time and lower performance metrics.

Consequently, after comparing both binary and

multi-label classiﬁcation results, Random Forest

emerges as the most efﬁcient model for the detection

of IPv6 covert channels.

5.5 Explainable AI–Based Model

Validation

The Random Forest algorithm demonstrated superior

performance in both binary and multi-label classiﬁca-

tion tasks for detecting IPv6 covert channel attacks,

achieving high accuracy and robustness. To validate

its reliability and interpretability, SHAP analysis is

employed both binary and multi-label classiﬁcation.

This approach deciphers the model’s decision logic

by quantifying feature contributions, ensuring trans-

parency in a domain where explainability is critical

for trust and actionable insights.

As can be seen in Figure 6, the Random Forest

model for binary classiﬁcation identiﬁes Hop Limit

(relative importance: almost 0.4) as the top feature

aligns with its exploitation patterns in IPv6 covert

channels. In benign trafﬁc, the Hop Limit ﬁeld fol-

lows predictable decrement patterns as packets tra-

verse routers. However, frequent or anomalous varia-

tions in this ﬁeld within a single communication ses-

sion are statistically rare in legitimate trafﬁc. Covert

channel attacks often manipulate this ﬁeld to encode

data or evade detection (e.g., maintaining static values

or cycling through speciﬁc ranges), creating a distinct

ﬁngerprint.

Next Header ranks second, despite its prevalence

across packet types. While this ﬁeld naturally varies

in legitimate trafﬁc (e.g., indicating TCP, UDP, or ex-

tension headers), its importance in detection arises

from attackers’ use of non-standard or sequential

header types (e.g., chaining Fragment, Destination

Options, or Routing headers) to embed covert pay-

loads. However, its lower discriminative power com-

pared to Hop Limit reﬂects its inherent variability in

both benign and malicious trafﬁc, reducing its unique-

ness as an attack marker.

Flow Label and Trafﬁc Class show moderate im-

portance. While these ﬁelds are occasionally re-

purposed in attacks (e.g., Flow Label manipulation

to mimic legitimate ﬂows), their standardized use

in QoS prioritization limits their anomaly potential.

Lower-ranked features like Destination Option NH

and ICMPv6 Data are less impactful, as their exploita-

tion requires specialized attack logic (e.g., abusing

ICMPv6 for tunneling).

Figure 6: Feature Importance for Binary Classiﬁcation.

SECRYPT 2025 - 22nd International Conference on Security and Cryptography

672

For the multi-label classiﬁcation (depicted in Fig-

ure 7), Next Header emerges as the top feature (almost

0.3) in multi-label classiﬁcation, as different attack

subtypes (e.g., Trafﬁc Class vs. Extension Header

attacks) require distinct protocol conﬁgurations. For

example:

• Extension Header-based attacks (e.g., Destination

Options abuse) directly alter Next Header values

to chain non-standard headers.

• Trafﬁc Class attacks manipulate QoS bits but

retain standard Next Header values (e.g., UD-

P/TCP).

This necessitates Next Header as a primary dis-

criminator. Hop Limit retains importance but to a

lesser degree than in binary classiﬁcation, as its ma-

nipulation is common across multiple attack subtypes,

reducing its speciﬁcity. Flow Label and Destination

Options for IPv6 gain relative importance for distin-

guishing attacks that modify ﬂow-state metadata or

embed payloads in extension headers.

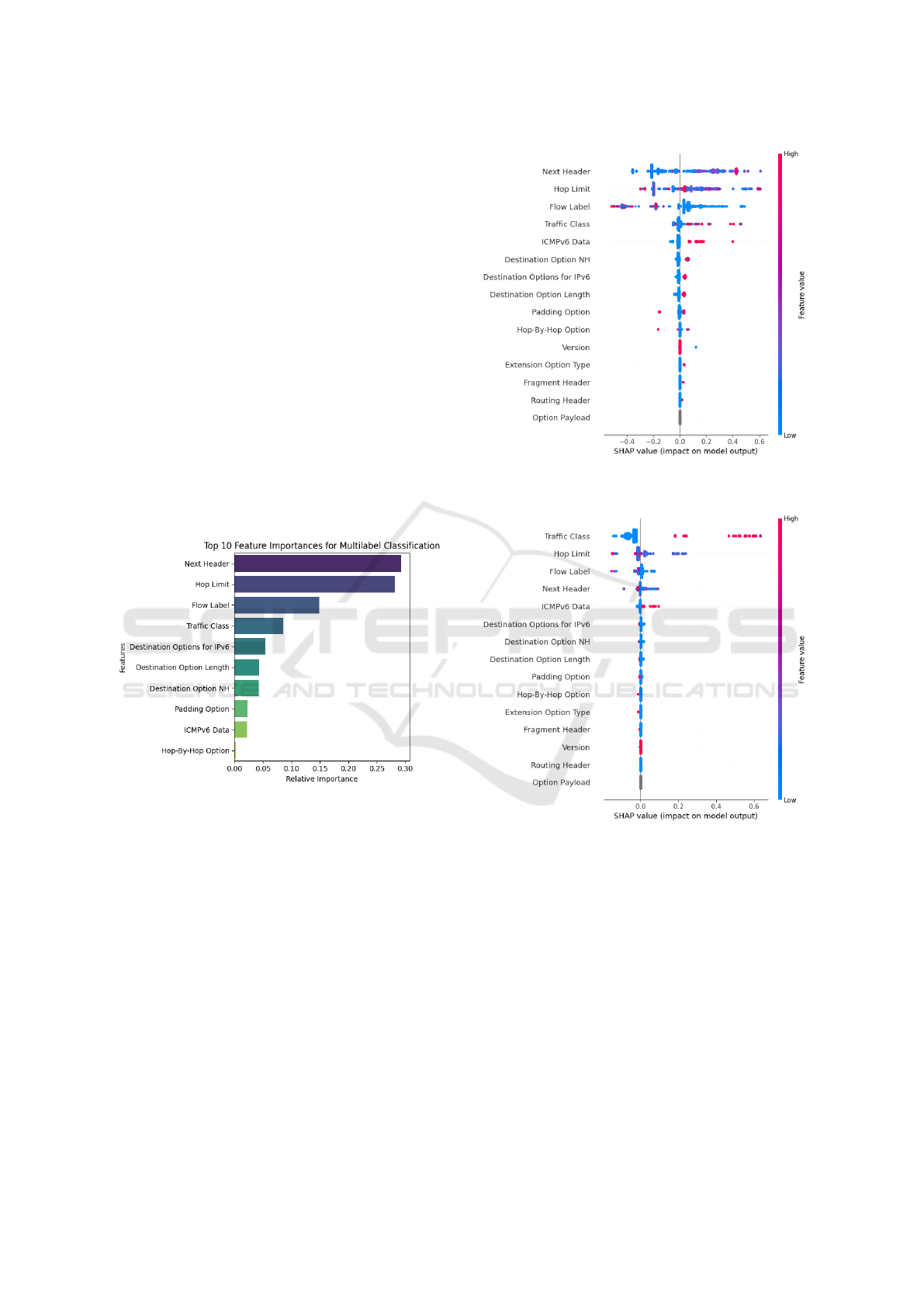

Figure 7: Feature Importance for multi-label Classiﬁcation.

Next, the SHAP summary plot reveals critical

insights into the Random Forest model’s decision

logic for binary classiﬁcation (through Figure 8).

The model demonstrates strong logical ﬁdelity to

IPv6 covert channel mechanics. Its reliance on Next

Header and Hop Limit, which are most frequently

manipulated in this dataset, reﬂects domain-aware

feature prioritization. The suppression of Version

(SHAP: ±0.02) and Option Payload (SHAP: ±0.03)

aligns with their irrelevance to header-based attacks.

However, the muted impact of Fragment Header sug-

gests potential blind spots in detecting fragmentation-

based covert channels, warranting dataset augmenta-

tion. Overall, for the case of binary classiﬁcation, this

SHAP analysis validates the model’s efﬁcacy in de-

tecting header manipulation patterns while exposing

limitations in payload-based attack detection. Feature

Figure 8: SHAP Summary Plot of Attack class for Binary

Classiﬁcation.

Figure 9: SHAP Summary Plot of Trafﬁc Class for multi-

label Classiﬁcation.

importance hierarchy directly mirrors IPv6 protocol

abuse trends, conﬁrming the model’s operational rel-

evance.

In multi-label classiﬁcation, the SHAP analysis

reveals assessment below:

• When detecting a Trafﬁc Class attack (refer to

Figure 9), the Trafﬁc Class feature exhibits the

highest impact, with a SHAP magnitude exceed-

ing 0.6, reinforcing its role as the primary de-

terminant of the model’s output. Other features,

such as Hop Limit and Flow Label, rank second

in terms of contribution to detection. However,

their inﬂuence is more balanced and moderate, as

Evasive IPv6 Covert Channels: Design, Machine Learning Detection, and Explainable AI Evaluation

673

Figure 10: SHAP Summary Plot of Flow Label for multi-

label Classiﬁcation.

Figure 11: SHAP Summary Plot of Hop Limit for multi-

label Classiﬁcation.

their positive and negative SHAP magnitudes are

approximately equal.

• When detecting Flow Label attack (through Fig-

ure 10), Flow Label dominates (SHAP magni-

tude: 0.6), with secondary contributions from Hop

Limit (0.3) and Next Header (0.2). This aligns

with Flow Label manipulation tactics that pair al-

tered ﬂow identiﬁers with header modiﬁcations to

mimic legitimate trafﬁc. The model effectively

isolates Flow Label-speciﬁc anomalies but shows

minor overreliance on Trafﬁc Class (0.2), a less

speciﬁc feature.

Figure 12: SHAP Summary Plot of Next Header for multi-

label Classiﬁcation.

Figure 13: SHAP Summary Plot of Extension Headers for

multi-label Classiﬁcation.

• When detecting Hop Limit attack (through Fig-

ure 11), Hop Limit exhibits the highest impact

(SHAP magnitude: 0.6), consistent with its role

as a session-level ﬁngerprint. Supporting fea-

tures like Next Header and Flow Label indi-

cate the model contextualizes HL anomalies with

protocol-chain deviations. The narrow SHAP

spread for Hop Limit (0.4–0.6) conﬁrms robust

discrimination of Hop Limit manipulation from

benign trafﬁc.

• When detecting Next Header attack (through

Figure 12), Next Header drives predictions

(SHAP magnitude: over 0.5), particularly for

non-standard values. Secondary features like

SECRYPT 2025 - 22nd International Conference on Security and Cryptography

674

Hop Limit (0.35) and Destination Option Neaxt

Header for IPv6 (0.2) reﬂect attacks combin-

ing header-chain manipulation with session-level

anomalies. The model excels at detecting Next

Header-based evasion but shows reduced sensitiv-

ity to Routing Header (SHAP: 0.05), a legacy at-

tack vector.

• When detecting Extension Header attack (through

Figure 13), the model prioritizes Destination Op-

tions for IPv6, Destination Option Length, and

Destination Option Next Header (SHAP magni-

tude: 0.25 to over 0.3) for Extension Header de-

tection. These features directly reﬂect payload

embedding in extension headers, such as padding

ﬁelds or option overloading. The strong correla-

tion conﬁrms the model’s precision in detecting

header-structure anomalies, though limited im-

pact from Fragment Header (SHAP: 0.05) sug-

gests gaps in fragmentation-based attack detec-

tion.

The SHAP analysis validates the model’s effec-

tiveness in detecting IPv6 covert channel attacks

across both binary and multi-label classiﬁcation tasks.

The binary classiﬁer reliably distinguishes mali-

cious trafﬁc by prioritizing protocol-layer anoma-

lies in header ﬁelds rarely altered in benign trafﬁc.

For multi-label classiﬁcation, the model adapts to

subtype-speciﬁc patterns, leveraging distinct feature

hierarchies to differentiate attack vectors. Minor over-

laps in feature inﬂuence for edge cases suggest tar-

geted reﬁnements, but the model demonstrates robust

alignment with IPv6 attack mechanics, conﬁrming its

practical utility for real-world deployment.

6 CONCLUSION AND FUTURE

WORK

This paper introduced a dual approach for detecting

IPv6 covert channels, combining CovertGen6, a novel

attack dataset generator, with machine learning-based

detection. CovertGen6 enhances dataset realism by

generating ﬁve covert channel types, which are cap-

tured and processed for model training. The proposed

detection system, leveraging multiple machine learn-

ing models, achieved high classiﬁcation performance,

with the Random Forest classiﬁer obtaining an AuC

of 0.985 in binary classiﬁcation and an F1-score of

90.3% in multi-label classiﬁcation. Furthermore, XAI

method provided transparent insights into model deci-

sions, identifying critical IPv6 header ﬁelds exploited

in covert communications.

Future work will focus on expanding the scope of

IPv6 covert channels by exploring additional exten-

sion headers, IPv6 ﬂags, and other unexplored ﬁelds

for covert transmissions. Additionally, we aim to

reﬁne feature selection methodologies to align with

newly discovered covert channel types, ensuring a

more adaptive and precise detection framework.

ACKNOWLEDGEMENTS

This work is supported by Ministry of the Interior of

the Czech Republic under Grant VK01030019.

REFERENCES

Dua, A., Jindal, V., and Bedi, P. (2022). Dicch-d: Detect-

ing ipv6-based covert channels using dnn. Commu-

nications in Computer and Information Science, 1670

CCIS:42 – 53.

Mavani, M. and Ragha, L. (2014). Covert channel in

ipv6 destination option extension header. In 2014

International Conference on Circuits, Systems, Com-

munication and Information Technology Applications

(CSCITA), pages 219–224.

Mazurczyk, W., Pow

ojski, K., and Caviglione, L. (2019).

Ipv6 covert channels in the wild.

Shiranzaei, A. and Khan, R. Z. (2018). Ipv6 security is-

sues—a systematic review. Advances in Intelligent

Systems and Computing, 638:41 – 49.

Wang, J., Zhang, L., Li, Z., Guo, Y., Cheng, L., and Du, W.

(2022). Cc-guard: An ipv6 covert channel detection

method based on ﬁeld matching. page 1416 – 1421.

Zhao, D. and Wang, K. (2020). Bns-cnn: A blind network

steganalysis model based on convolutional neural net-

work in ipv6 network. Lecture Notes in Computer

Science (including subseries Lecture Notes in Artiﬁ-

cial Intelligence and Lecture Notes in Bioinformatics),

12022 LNCS:365 – 373.

Zuppelli, M. and Caviglione, L. (2021). Pcapstego: A tool

for generating trafﬁc traces for experimenting with

network covert channels.

Evasive IPv6 Covert Channels: Design, Machine Learning Detection, and Explainable AI Evaluation

675
