Post-Quantum Digital Signature Algorithms on IoT: Evaluating

Performance on LoRa ESP32 Microcontroller

Mads Villum Nielsen

, Magnus Raagaard Kjeldsen

, Togu Turnip

and Birger Andersen

Technical University of Denmark, Copenhagen, Denmark

Keywords: Post-Quantum Cryptography, Digital Signature, Resource-Constrained Devices, Internet of Things.

Abstract: As quantum computing continues to develop, traditional cryptographic schemes face increasing threats from

quantum attacks, driving the need for post-quantum cryptographic (PQC) algorithms. This study evaluates

the feasibility of PQC algorithms with higher NIST security level parameters on a resource-constrained IoT

device, the LoRa ESP32 microcontroller. We benchmarked the performance of CRYSTALS-Dilithium, Falcon,

SPHINCS

across multiple NIST levels, measuring latency, memory usage and discussing parameter sizes.

Additionally, we examined the communication overhead introduced by transmitting the larger-than-usual

digital signatures over a wireless network. Our findings reveal significant performance disparities between

the tested algorithms, with Dilithium demonstrating the fastest execution and Falcon balancing speed and

memory efficiency – even at higher NIST security levels. In contrast, SPHINCS

proved impractically slow

for IoT applications. This research investigates practical considerations and challenges of deploying PQC

digital signature algorithms on IoT devices.

1 INTRODUCTION

As quantum computing technology matures, it will

pose a greater threat to today’s cryptographic

schemes. Quantum computers have the potential to

break widely used public-key encryption systems,

such as RSA, which play a crucial role in secure

communication on the internet (Bhatia and

Ramkumar, 2020). These cryptographic algorithms

rely on mathematical problems, such as integer

factorization, that are computationally challenging

for classical computers, but it has been shown that

some of the algorithms can be solved efficiently by

quantum computers by using algorithms like Shor’s

algorithm (Shor, 1997).

In addressing this threat, the National Institute of

Standardization and Technology (NIST) has been

leading to find candidates for quantum-resistant

cryptographic schemes in 2017. In 2022, a selection

of several promising algorithms was made (NIST,

2022). Among these, NIST selected three digital

https://orcid.org/0009-0001-2240-3578

https://orcid.org/0009-0006-6971-6885

https://orcid.org/0000-0002-8269-0572

https://orcid.org/0000-0003-1402-0355

signature schemes: CRYSTALS-Dilithium, Falcon

and SPHINCS

(Shajahan, et al., 2024).

While the security of these algorithms has been

analysed, some of their performance metrics on

resource-constrained devices such as Internet of

Things (IoT) microcontrollers remains underexplored

(Liu et al., 2024). IoT devices often have limited

computational power, memory or might run on

batteries with limited energy capacity, which can

present a challenge for the implementation of post-

quantum cryptographic (PQC) algorithms (Tan et al.,

2022). The IoT is rapidly expanding, with billions of

devices deployed for various applications, such as

smart homes, healthcare, agriculture and even critical

infrastructure (Mansoor et al., 2025). A key property

of IoT devices is their ability to handle data and

communicate over insecure networks. Many of these

applications require handling and communication of

sensitive data, and failing to implement quantum-

resistant cryptographic schemes leaves them

vulnerable to attackers. IoT devices are often

deployed in environments where they are expected to

592

Nielsen, M. V., Kjeldsen, M. R., Turnip, T. and Andersen, B.

Post-Quantum Digital Signature Algorithms on IoT: Evaluating Performance on LoRa ESP32 Microcontroller.

DOI: 10.5220/0013508400003979

In Proceedings of the 22nd International Conference on Security and Cryptography (SECRYPT 2025), pages 592-600

ISBN: 978-989-758-760-3; ISSN: 2184-7711

operate for prolonged periods of time without

frequent updates or replacement. This makes these

devices particularly susceptible to future quantum

threats (Cheng et al., 2017). Ensuring that the PQC

algorithms can be implemented on IoT devices is

crucial to their future-proofing, especially as society

gets increasingly more dependent on such devices.

While PQC algorithms are being standardized and

tested extensively, the feasibility of implementing

algorithms with parameters corresponding to higher

NIST security levels on resource-constrained IoT

devices remains less explored. The more secure PQC

algorithms can pose a challenge by being more

computationally intensive and requiring more

memory to operate. The main contributions of this

paper are summarized as follows:

1. Evaluation of PQC Digital Signature at Higher

NIST security level on IoT hardware: We evaluate

the computational performance and memory

requirements of CRYSTALS-Dilithium, Falcon,

and SPHINCS+ algorithms at high NIST security

levels on the ESP32 IoT microcontroller.

2. Assessment of practical communication

overhead: We empirically analyze the latency

overhead introduced by wirelessly transmitting

large PQC digital signatures, providing insights

into the realistic feasibility and impact of

deploying PQC digital signature algorithms in

bandwidth-limited IoT scenarios.

2 RELATED WORK

Recent studies have investigated the performance of

PQC on embedded and resource-constrained devices,

with a particular focus on digital signature

algorithms. Halak et al. (2024) conducted an

evaluation of PQC schemes on constrained hardware,

employing a testbed to assess latency, memory

consumption, and energy dissipation. Their findings

highlighted Dilithium2 as a computationally efficient

scheme while deeming SPHINCS+ impractical for

IoT applications due to its high resource demands.

However, their study primarily focused on TLS

handshakes and did not include an analysis of Falcon

or higher NIST security level schemes such as

Dilithium3, Dilithium5, or SPHINCS+256-f, leaving

gaps in the understanding of PQC feasibility at

increased security levels.

Similarly, Vidaković and Miličević (2023)

examined the performance of Dilithium, Falcon, and

SPHINCS+ on an ARM Cortex M4 microcontroller,

considering their applicability in resource-

constrained environments. While this study provided

valuable insights, it did not extend the analysis to

higher NIST security levels for Dilithium or

SPHINCS+, thus leaving the question of what scheme

is best suitable for resource-constrained devices on

higher NIST security levels. In addition to these

investigations, other works, Fitzgibbon and Ottaviani

(2024), have assessed PQC performance in

constrained settings. While these studies contribute to

understanding PQC implementation challenges, they

predominantly focus on lower security levels and do

not comprehensively address the feasibility of higher

NIST security level digital signature schemes in

resource-constrained environments.

Fournaris et al. (2023) and Kannwischer et al.

(2024) examined memory usage, runtime efficiency,

and energy performance of NIST PQC candidates on

resource-constrained microcontrollers. Both studies

identified Dilithium as advantageous due to its

balanced performance compared to Falcon and

SPHINCS+, which exhibited higher complexity and

resource demands. However, neither study

comprehensively investigated higher NIST security

levels nor explicitly evaluated widely-used IoT

platforms such as ESP32 microcontrollers,

highlighting important gaps for future research.

As part of its standardization efforts, NIST has

introduced two distinct standards for post-quantum

digital signature algorithms. The Module-Lattice-

Based Digital Signature Standard (NIST, 2024a)

defines a set of lattice-based digital signature

schemes, including Falcon and Dilithium. Dilithium

is based on the Module Learning with Errors

(MLWE) problem, a structured variant of the

Learning with Errors (LWE) problem, whereas

Falcon relies on the Short Integer Solution (SIS)

problem over NTRU lattices. Additionally, NIST has

standardized a Stateless Hash-Based Digital

Signature Standard (NIST, 2024b), which includes

the SPHINCS+ algorithm. This scheme relies on the

computational hardness of finding collisions in hash

functions and is distinguished by its stateless nature,

meaning that it does not require maintaining an

internal state during the signing. While SPHINCS+

offers strong security assurances, its computational

overhead remains a challenge for resource-

constrained environments (Opiłka, et al., 2024).

Despite these ongoing standardization efforts and

recent studies, there remains a research gap regarding

the performance and applicability of higher security

level PQC digital signature algorithms in constrained

environments. Additionally, evaluations on ESP32

microcontrollers remain limited. Thus, further

research addressing these gaps is essential to clarify

Post-Quantum Digital Signature Algorithms on IoT: Evaluating Performance on LoRa ESP32 Microcontroller

593

the practicality of higher-security PQC algorithms in

constrained environments.

3 EXPERIMENTAL SETUP

To benchmark the performance of the selected post-

quantum cryptographic signature algorithms, we

implemented the algorithms on the ESP32

microcontroller. The SPHINCS

scheme has two

variants: a fast variant with a large signature size, and

a slower variant but with a smaller signature

size. Our attention was directed towards the fast

variant, given its greater computational practicality

for the ESP32 microcontroller. Table 1 summarizes

PQC digital signature algorithms and their NIST

security levels, ranging from Level I for basic security

to Level V for the highest security.

Table 1: Algorithms and their NIST Security levels

orithms NIST Securit

Level

Falcon512 I

SPHINCS

128-f I

SPHINCS

192-f III

Dilithium3 III

Dilithium5 V

Falcon1024 V

SPHINCS

256-f V

First, the algorithms were executed locally on the

microcontroller. Subsequently, the algorithms that

seemed practical were tested over Wi-Fi. Here our

aim was to test whether the large signature sizes

created by the algorithms would introduce additional

latency during communication, that may make the

algorithms infeasible. This approach simulates real-

life scenarios.

The figure 1 illustrates a testbed setup where a

LoRa ESP32 IoT device communicates with an

unconstrained device via a router, enabling wireless

interactions for performance benchmarking or data

exchange. When the algorithms were tested locally on

the microcontroller, the unconstrained device would

log the output of the program, using the USB

connection. When the wireless communication was

tested, the unconstrained device measured the round-

trip time of signing requests made to the

microcontroller using a socket connection.

https://github.com/PQClean/PQClean.

Figure 1: Test bed measuring latency and memory usage of

PQC algorithms when communicating with a resource-

constrained device.

3.1 Implementation

The implementation of each algorithm was obtained

from the PQClean

library (Kannwischer et al., 2022),

a collection of reference implementations for NIST-

standardized PQC algorithms. The complete source

code used in this study is available on GitHub

. All

algorithms were implemented on an ESP32

microcontroller, with the specifications detailed in

Table 2.

Table 2: Specifications of the ESP32 microcontroller.

Parameter Description

Model LoRa ESP32

Processo

Xtensa dual-core 32-

it LX7

Clock S

240MHz

SRAM 512KB

PSRAM 2MB

Flash 4MB

When benchmarking PQC digital signatures on

the ESP32, SRAM handles real-time computations

and temporary data, PSRAM stores large keys and

signatures when SRAM is insufficient, and Flash

Memory holds the algorithms but is too slow for

execution. These three memories work together to run

and evaluate PQC performance, though resource

limits may influence execution.

3.2 Measurements

Multiple performance metrics were captured for each

algorithm. The time-related metrics were measured

using the high-resolution microsecond timer

available on the ESP32 platform. For measuring the

memory usage, the minimum free heap was measured

https://github.com/madsvnielsen/ESP32-PQSignature-

Test

SECRYPT 2025 - 22nd International Conference on Security and Cryptography

594

and subtracted from the allocated heap to measure

how much dynamically allocated memory was

required. The stack size was kept constant across all

implementations to ensure constant measurement

conditions. In total, the following data points were

captured for all algorithms as shown in Table 3.

Table 3: Metrics measured for each algorithm.

Latency Memory Param. sizes

Key Sign Verify Heap usage pk sk sig

The parameters and heap usage are constant and

do not vary between different executions. However,

the execution times would vary so each operation was

repeated multiple times, and the mean values were

calculated. This approach ensured that any anomalies

or outliers were minimized, providing a more reliable

comparison of the algorithms’ performance.

Afterwards, we aimed to measure the communication

overhead for each algorithm. For this setup, an

unconstrained device and the ESP32 microcontroller

was connected to the same local internet over Wi-Fi.

The microcontroller listens on a port, and once a

packet is received it signs the packet body and replies

with the signature. This experiment is meant to

investigate the communication overhead introduced

by the algorithms.

Following this methodology, we aimed to

evaluate the computational feasibility of running the

PQC algorithms on resource-constrained IoT devices

and provide insights into their efficiency and resource

demands.

4 RESULTS AND DISCUSSION

In this section, a discussion of the measured metrics

of the SPHINCS

, Dilithium and Falcon algorithms

with different parameters will be compared and

discussed. The comparisons include computation

time, heap usage and the practical implications of the

public key sizes, secret key sizes and signature sizes.

Furthermore, the communication overhead of the

digital signatures is investigated.

4.1 Parameter Analysis

To evaluate the feasibility of the post-quantum

algorithms, we analysed the cryptographic

parameters of each algorithm. These parameters are

the public key (pk) size, secret key (sk) size and

signature (sig) size.

The public key is distributed to verify digital

signatures. A smaller pk size minimizes

communication overhead, making the algorithm more

suitable for IoT devices with limited bandwidth. The

secret key is stored solely on the signing device and

never shared. Therefore, the sk size only impacts the

memory requirements for the device. The signature

size is the resulting output of the signing process. This

is transmitted to the recipient for verification. A

smaller signature size decreases communication cost

and latency. On devices with limited bandwidth, this

is also a crucial consideration. The algorithms and

their respective parameter values are summarized in

Table 4.

Table 4: Parameter sizes for the different algorithms.

Algorithm

pk size

(bytes)

sk size

(bytes)

sig size

(bytes)

Falcon512 897 1281 752

Falcon1024 1793 2305 1462

Dilithium2 1312 2560 2420

Dilithium3 1952 4032 3309

Dilithium5 2592 4896 4627

SPHINCS+-128-f 32 64 17088

SPHINCS+-192-f 48 96 35664

SPHINCS+-256-f 64 128 49856

There is a noticeable difference between the

parameter sizes for the different algorithms. The

SPHINCS

scheme has an exceptionally small pk and

sk size, but a large signature size. The large signature

could pose a significant challenge for IoT devices

with limited bandwidth and memory. The Falcon

scheme offers relatively small pk and sig sizes,

making it more ideal for real-time communication

based on the parameter sizes. Noticeably, the

Falcon1024 has surprisingly small parameter sizes,

considering that it is a NIST security level 5

algorithm. The Dilithium parameters are all larger

than the Falcon512 scheme, but still with a small

signature size. A comparison of the parameter sizes

can be seen in Figure 2.

Analysis of parameter sizes demonstrates that the

Dilithium and Falcon schemes reveal advantages

over the SPHINCS+ scheme, especially at higher

NIST security levels, with Falcon1024 being a

significant highlight. Dilithium and Falcon, having to

their comparatively smaller key and signature sizes,

are promising candidates for PQC implementations

on resource-constrained IoT devices, provided their

computational feasibility and memory efficiency are

suitable.

Post-Quantum Digital Signature Algorithms on IoT: Evaluating Performance on LoRa ESP32 Microcontroller

595

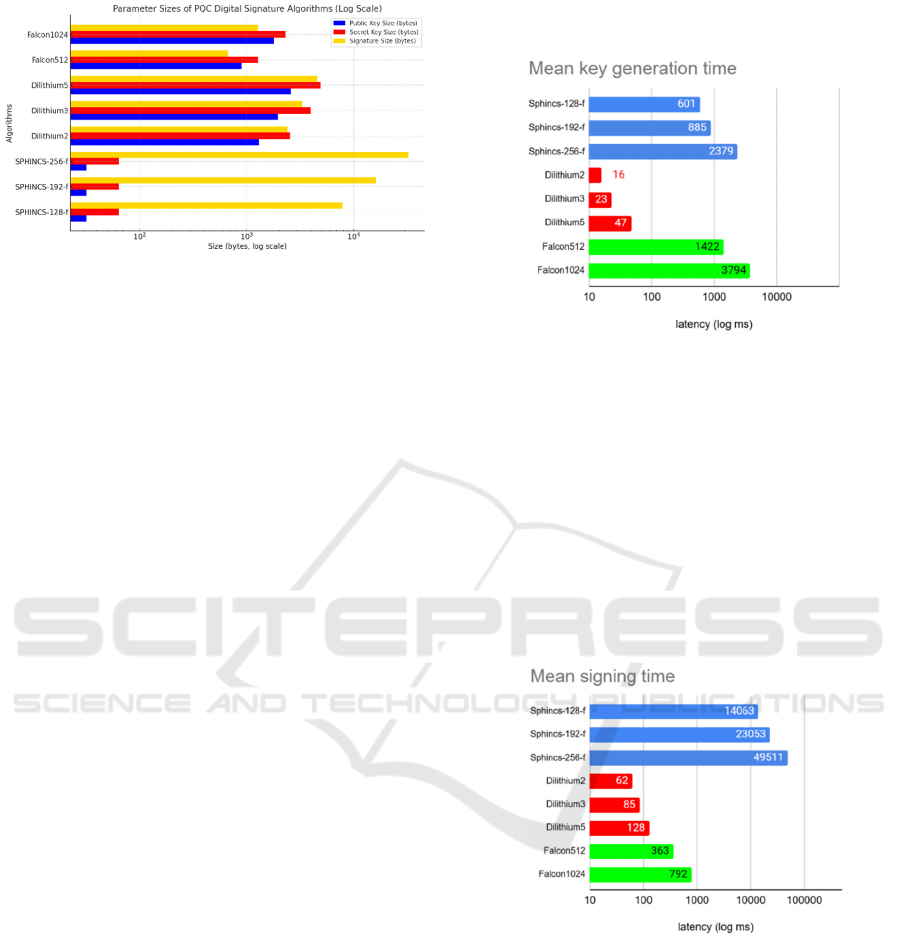

Figure 2: Comparison of parameter sizes showing that

SPHINCS

scheme has the smallest public and secret key

size but with a very large signature size.

4.2 Latency Analysis

This part summarizes the findings from the time

required for the three fundamental cryptographic

operations of digital signatures: key generation,

signing, and verification.

4.2.1 Key Generation

Key generation is the initial phase of the

cryptographic protocols, where the public and secret

keys are generated. Generating the random seeds

required for the key generation, we used the platform-

specific method esp_fill_random. The timing was

measured in microseconds using the high-resolution

timer offered by the ESP-platform. Specifically, the

method esp_timer_get_time was used. The

algorithms used for key generations vary significantly

between the algorithms.

To show the different latencies based on key

generation, signing and verification we had to use a

logarithmic scale, as there was a large difference in

latency between the PQC algorithms. The mean of all

time measurements was calculated to accurately

measure the latency. It is worth noting that the sample

sizes for the SPHINCS

algorithms are smaller, as

doing many operations was time-consuming due to

the latency of the algorithm. The latencies are plotted

and compared in Figure 3.

During key generation, we see Dilithium being by

far the fastest scheme, whilst Falcon is significantly

slower and SPHINCS

being in between. As

expected, all algorithms get slower, the higher the

security level it has. More accurately, the typical key

generation for Falcon1024 is 80 times slower than

Dilithium5 even though they have the same NIST

security level. To generate one key pair, it takes

Falcon1024 nearly 4 seconds. Whilst SPHINCS

faster than Falcon it still takes nearly a second to

generate a key pair and this is only on the security

level 2.

Figure 3: Mean key generation times in ms using a

logarithmic scale showing Dilithium as the fastest scheme

with SPHINCS

being an order of magnitude slower and

Falcon nearly two orders of magnitude slower.

4.2.2 Signing

In this section, the signing latency of each algorithm

will be evaluated. The signing latency is the measured

time it takes to produce a digital signature for a fixed-

length message of 14 bytes. A logarithmic scale is

used due to significant latency differences. A

comparison of the measurements can be seen in

Figure 4.

Figure 4: Mean signing times in ms using a logarithmic

scale showing Dilithium as the fastest scheme and

SPHINCS

being more than 200 times slower.

For the signing times, we can see that SPHINCS

is now the slowest algorithm. With it taking as much

as 49,5 seconds for SPHINCS

-256-f to sign a

message, the measurements indicates that SPHINCS

is not usable on IoT devices, as most use cases would

require a much smaller signing time. Falcon and

Dilithium perform reasonably well. When comparing

NIST level 5 schemes, Falcon1024 and Dilithium5,

Dilithium5 clearly outperforms in signing latency.

SECRYPT 2025 - 22nd International Conference on Security and Cryptography

596

4.2.3 Verification

The verification process is responsible for verifying

the authenticity of a given signature. As well as in the

signing tests, the verification step was timed. The

verification times are important, as verifications are

done relatively often. Depending on the use case,

either signing or verification may have a greater

impact on the overall performance. The logarithmic

scale was used for comparison. The results are seen

in Figure 5.

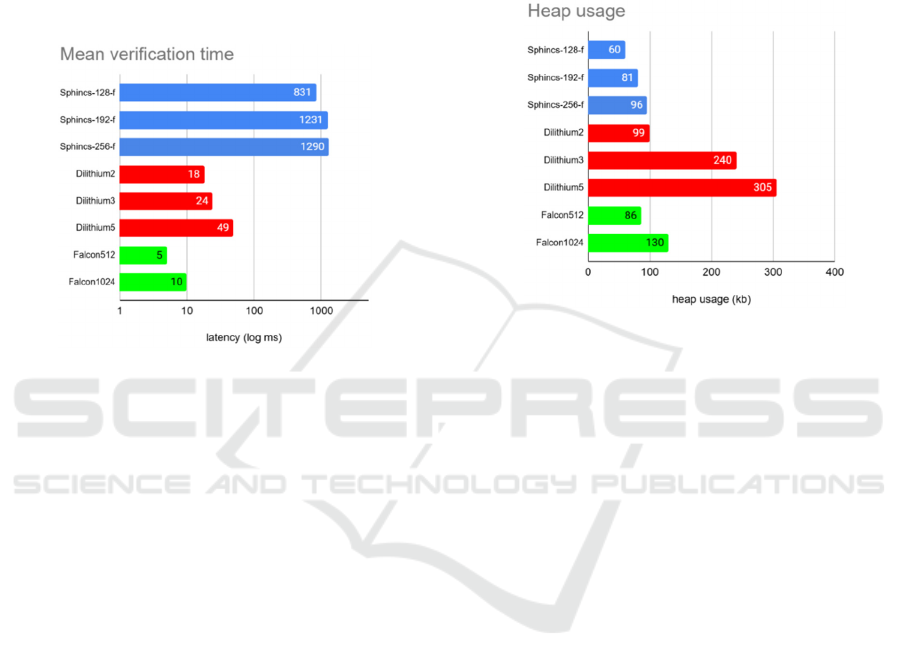

Figure 5: Mean verification times in ms using a logarithmic

scale showing Falcon as the fastest scheme with Dilithium

taking twice as long and SPHINCS

being more than 100

times slower.

For the verification times, Falcon is now the

fastest. SPHINCS

is still the slowest but for

verification, it is much less pronounced. Unlike the

other parts of the process, all these latencies are

arguably fast enough for many use cases. The

verification latency is important, as signatures are

required to be checked frequently when receiving

packets.

4.4 Memory Analysis

We measured the heap usage by logging the allocated

heap and the minimum free heap available. Using

these numbers, we inferred the heap memory usage.

We measured Dilithium5 to be the most memory-

intensive of all the algorithms. There is a trade-off

with Dilithium being the fastest algorithm but also

requiring the most amount of memory. Despite the

large signature size for the SPHINCS

scheme, it

was

the most memory-efficient scheme.

The figure 6 reveals that SPHINCS+ is the most

memory-efficient PQC digital signature algorithm,

with SPHINCS-128-f requiring just 60 kB of heap

space, and even its highest-security variant,

SPHINCS-256-f, using only 96 kB, making it ideal for

resource-constrained environments. In contrast,

Dilithium exhibits a sharp rise in memory usage at

higher security levels, with Dilithium5 demanding

305 kB, which is significantly higher than other

algorithms. Falcon strikes a balance, with Falcon512

and Falcon1024 requiring 86 kB and 130 kB,

respectively, offering a more alternative compared to

high-security Dilithium variants.

Figure 6: Heap usage measured in KB showing Dilithium

as using the most memory whilst SPHINCS

and Falcon

being roughly equal and using half the amount of KB.

4.5 Round-Trip Latency for Signing

via Wi-Fi

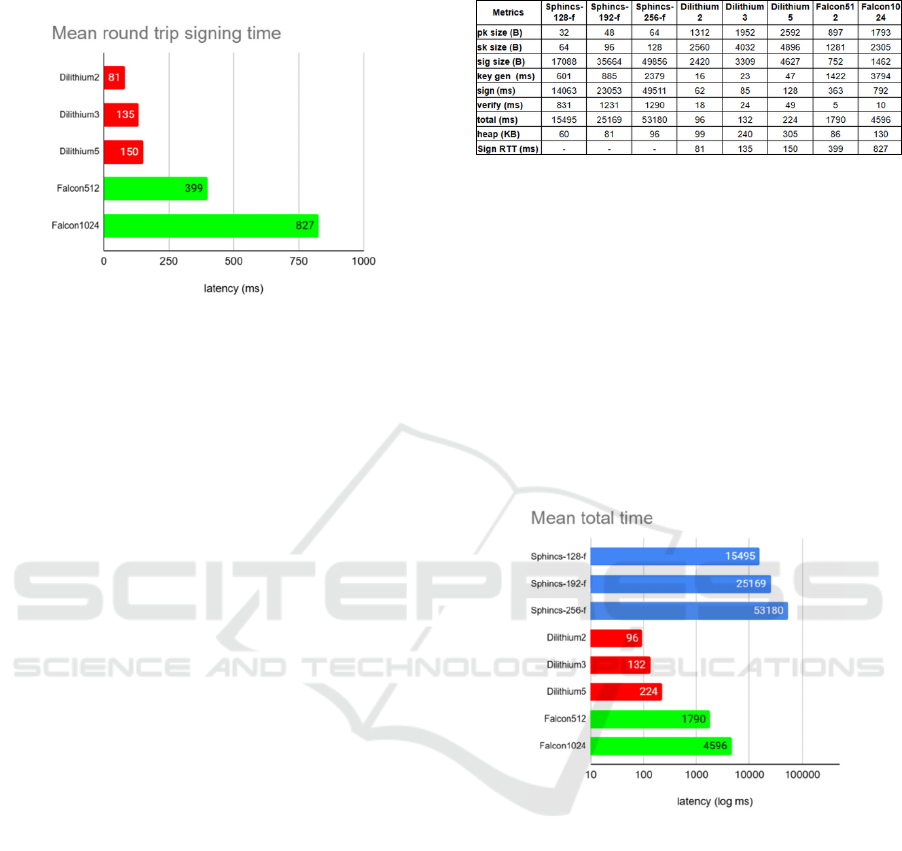

In the second stage of testing, we want to test the real-

time performance of the promising PQC algorithms.

This was done to test whether the large signature sizes

could introduce additional latency during

communication. We decided to test all versions of

Dilithium and Falcon over Wi-Fi. SPHINCS

latency

was too high, so we decided that it was unnecessary

to do any further testing.

The microcontroller would listen on port 8000,

and upon receiving a message, it would sign the

message with a pre-computed key and reply with the

signature. As in the previous test, we evaluated the

latency using the different parameters corresponding

to the different NIST security levels. An

unconstrained device measures the round-trip time to

investigate the latency and the introduced

communication overhead. While sending a message

to a microcontroller to get it signed may not be a

common use case, it reflects other real-world

scenarios reasonably well. In such cases, the request

would be sent to the controller, the requested data

signed, and both the digital signature and data

returned to the user. This experiment evaluates the

difference in overhead of the signing process for the

Post-Quantum Digital Signature Algorithms on IoT: Evaluating Performance on LoRa ESP32 Microcontroller

597

different algorithms. A linear scale was used for

comparison. The results are seen in Figure 7.

Figure 7: Mean round trip signing times in ms using a linear

scale showing Dilithium as the fastest scheme and Falcon

being five times slower.

There is not a significant difference in latency

compared to the local test. For Dilithium the latency

is only increased by around 19 to 50 millisecond and

a 35% average increase. For Falcon we see about the

same increase in latency around 35 ms. This test

demonstrates that the additional latency caused by

transmitting large signature sizes over Wi-Fi is both

constant and minimal, allowing the speed of the

algorithms to remain consistent.

4.6 Comparison of the Implemented

Algorithms

Based on Table 5, the security level of Dilithium5 is

the highest possible whilst also being faster than any

version of SPHINCS

and Falcon. This makes

Dilithium more desirable as it maintains speed whilst

not compromising security. However, if your device

has less memory than an ESP32 microcontroller,

Falcon may be the more suitable algorithm. Falcon is

slower, but in turn, it has both smaller parameter sizes

and heap usage.

Adding all the timings together from the tests

done locally over a USB connection, we can clearly

see that SPHINCS

is significantly the lowest,

followed by Falcon, which remains considerably

slower than the fastest algorithm, Dilithium. Whilst

SPHINCS

shows minimal memory consumption, it

demonstrates low overall performance. Because of

the latency of SPHINCS

, it does not seem suitable

for use on a resource-limited IoT device. Its security

level is lower, and the key generation and verification

latency is so significant, that the delay would be

unacceptable for any use case.

Table 5: Summary of all metrics.

These findings align with another study that found

a very significant difference in latency between the

algorithms. As with our experiments, Dilithium was

faster in key generation and signing, Falcon fastest at

verification and SPHINCS

orders of significantly

slower (Vidaković & Miličević, 2023). However,

another study found that during a TLS handshake,

SPHINCS

had a significantly larger heap usage

compared to the Dilithium scheme (Halak et al.,

2024). But this study measured that SPHINCS

has

very low memory usage. Our methodology when

dealing with the issue of limited stack size and the

difference in scenarios may have contributed to the

observed discrepancies.

Figure 8: Total mean times in ms using a logarithmic scale

showing Dilithium being the overall fastest scheme Falcon

as the second and SPHINCS

as the slowest with it taking

nearly 200 times longer than Dilithium.

From our experiment's results, using Dilithium or

Falcon is desirable, as they both are fast enough to be

run on an IoT device. Dilithium outperforms Falcon

due to its structured lattice approach, reducing

computational overhead. Falcon, while efficient,

requires floating-point operations, making it slower

on ESP32’s integer-based architecture. Furthermore,

our experiment indicates that running high NIST

security level PQC algorithms is feasible even on

resource-constrained IoT devices.

SECRYPT 2025 - 22nd International Conference on Security and Cryptography

598

4.7 Challenges and Limitations

During our experiments, we encountered some

constraints that influenced our results. Firstly, we

were unable to run the algorithms without

dynamically allocating some data on the heap. Our

attempts to increase the stack size were unsuccessful,

which meant that certain memory allocations could

not be properly standardized across all algorithms.

For all the tests, the stacks were constant at 8.192

words (32.768 bytes). We would consistently allocate

the keys and signatures on the heap, but there would

still be insufficient stack memory. To solve that, we

inspected the key generation, verification and signing

methods to identify variables with significant

memory consumption. These variables were modified

to utilize dynamic memory allocation. This

introduced a minor inconsistency in the memory

measurements, making the comparisons less

accurate, as the different schemes may have been

allocated slightly more heap memory than necessary.

To improve this metric, an accurate measure of the

used stack memory would have to be conducted.

These inconsistencies mainly affected the memory

usage metrics rather than the timing results and still

provide insight into the memory requirements of the

algorithms.

For the timing metrics, most measurements were

reasonably accurate. The SPHINCS

algorithm

timings are slightly less so due to fewer

measurements being made because of the longer

runtime. Despite this, the observed variance for the

SPHINCS

timings was small enough to confidently

conclude that it is significantly slower than the other

alternatives. The limited flash memory of the device

made it difficult to easily set up a test environment for

signing larger files, constraining our ability to assess

performance of varying input sizes.

5 CONCLUSION

In this study, we evaluated the NIST-selected PQC

algorithms on a resource-constrained IoT device, the

LoRa ESP32. Our tests covered algorithms with

different NIST security levels to identify if high NIST

security levels for such devices were feasible. We

measured the latency and memory usage for each

algorithm. The algorithms that could be run locally

without excessive latency or memory usage was then

subsequently tested over Wi-Fi. Our finding indicates

that all version of the SPHINCS

scheme was too

slow to be practical for any use case on resource

constrained devices. Consequently, it was decided to

exclude it from tests over Wi-Fi and using it on a

resource constrained IoT devices does not seem

practical. From the second test it was shown that the

latency introduced from communicating over Wi-Fi

is insignificant, regardless of the choice of algorithm.

Conclusively, running PQC schemes on resource-

constrained IoT devices seem feasible, even when

using larger parameter sizes for increased security.

Specifically, Dilithium5 and Falcon1024 are good

candidates for schemes with high security even on

resource-constrained devices.

There are several areas for future work, that would

be significant and interesting to explore. Firstly,

evaluating PQC signature transmission over

LoRaWAN on the ESP32 microcontroller would

focus on latency and power consumption.

Furthermore, testing a specific scenario and

measuring more metrics, such as the stack memory

and energy dissipation, would create a more complete

picture of real-world use cases.

REFERENCES

Bhatia, V., Ramkumar, K. R. (2020). An efficient quantum

computing technique for cracking RSA using Shor’s

algorithm. 2020 IEEE 5

International Conference on

Computing Communication and Automation (ICCCA),

Greater Noida, India, 89–94. https://doi.org/10.1109/

ICCCA49541.2020.9250806

Cheng, C., Lu, R., Petzoldt, A., and Takagi, T. (2017).

Securing the Internet of Things in a quantum world.

IEEE Communications Magazine, 55(2), 116–120.

https://doi.org/10.1109/MCOM.2017.1600522CM

Fitzgibbon, G. Ottaviani, C. (2024). Constrained device

performance benchmarking with the implementation of

post-quantum cryptography. Cryptography, 8(2), 21.

https://doi.org/10.3390/cryptography8020021

Fournaris, A. P., Tasopoulos, G., Brohet, M., and

Regazzoni, F. (2023). Running Longer To Slim Down:

Post-Quantum Cryptography on Memory-Constrained

Devices. 2023 IEEE International Conference on

Omni-layer Intelligent Systems (COINS), Berlin,

Germany, pp. 1-6. https://doi.org/10.1109/COINS

57856.2023.10189268

Halak, B., Gibson, T., Henley, M., Botea, C., Heath, B., and

Khan, S. (2024). Evaluation of performance, energy,

and computation costs of quantum-attack resilient

encryption algorithms for embedded devices. Applied

Sciences.https://doi.org/10.1109/ACCESS.2024.33507

Kannwischer, M. J., Schwabe, P., Stebila, D., and Wiggers,

T. (2022). Improving software quality in cryptography

standardization projects. In Security Standardization

Research – EuroS&P Workshops 2022.

Kannwischer, M. J., Krausz, M., Petri R., and Yang S.Y.

(2024). pqm4: Benchmarking NIST Additional Post-

Post-Quantum Digital Signature Algorithms on IoT: Evaluating Performance on LoRa ESP32 Microcontroller

599

Quantum Signature Schemes on Microcontrollers.

Cryptology ePrint Archive, Paper 2024/112.

https://eprint.iacr.org/2024/112

Liu, T., Ramachandran, G., and Jurdak, R. (2024). Post-

quantum cryptography for Internet of Things: A survey

on performance and optimization. arXiv.

https://arxiv.org/abs/2401.17538

Mansoor, K., Afzal, M., Iqbal, W. et al. (2025). Securing

the future: exploring post-quantum cryptography for

authentication and user privacy in IoT devices. Cluster

Comput 28, 93. https://doi.org/10.1007/s10586-024-

04799-4

National Institute of Standards and Technology (NIST).

(2022). Selected algorithms. Retrieved January 19,

2025, from https://csrc.nist.gov/projects/post-quantum-

cryptography/selected-algorithms-2022

National Institute of Standards and Technology (NIST).

(2024). Module-Lattice-Based Digital Signature

Standard (FIPS PUB 204). Retrieved January 23, 2025,

from https://doi.org/10.6028/NIST.FIPS.204

National Institute of Standards and Technology (NIST).

(2024). Stateless Hash-Based Digital Signature

Standard (FIPS PUB 205). Retrieved January 23, 2025,

from https://doi.org/10.6028/NIST.FIPS.205

Opiłka, F., Niemiec, M., Gagliardi, M., and Kourtis, M. A.

(2024). Performance analysis of post-quantum

cryptography algorithms for digital signature. Applied

Sciences, 14(12), 4994. https://doi.org/10.3390/

app14124994

Shajahan, R., Jain, K., and Krishnan, P. (2024). A Survey

on NIST 3rd Round Post Quantum Digital Signature

Algorithms," 2024 5th International Conference on

Mobile Computing and Sustainable Informatics

(ICMCSI), Lalitpur, Nepal, pp. 132-140.

https://doi.org/10.1109/ICMCSI61536.2024.00027

Shor, P. W. (1997). Polynomial-Time Algorithms for Prime

Factorization and Discrete Logarithms on a Quantum

Computer. SIAM Journal on Computing, 26(5):1484–

1509.

Tan, T.G., Szalachowski, P. and Zhou, J. (2022).

Challenges of post-quantum digital signing in real-

world applications: a survey. Int. J. Inf. Secur. 21, 937–

952. https://doi.org/10.1007/s10207-022-00587-6

Vidaković, M., Miličević, K. (2023). Performance and

applicability of post-quantum digital signature

algorithms in resource-constrained environments.

Algorithms, 16(11), 518. https://doi.org/10.3390/

a16110518

SECRYPT 2025 - 22nd International Conference on Security and Cryptography

600
