Automated Quality Model Management Using Semantic Technologies

Reinhold Pl

osch

1 a

, Florian Ernst

and Matthias Saft

Business Informatics-Software Engineering, Johannes Kepler University Linz, Austria

Siemens AG - Foundational Technologies, Garching, Germany

Keywords:

Quality Models, Semantic Quality Models, Quality Model Tailoring, Query-Based Quality Model Tailoring,

AI Based Metric Classiﬁcation.

Abstract:

The starting point for this paper and service for the query-based generation of quality models was the require-

ment to be able to manage software quality models dynamically, as detailed domain knowledge is usually

required for this task. We present new approaches regarding the query-based generation of software quality

models and the creation of proﬁles for quality analyses using the code quality tool SonarQube. Furthermore,

our support for the automatic assignment of software quality rules to entries of a hierarchical quality model

simpliﬁes the maintenance of the models with the help of machine learning models and large language models

(HMCN and SciBERT in our case). The resulting ﬁndings were evaluated for their practical suitability using

expert interviews. The results are promising and show that semantic management of quality models could help

spreading the use of quality models, as it considerably reduces the maintenance effort.

1 INTRODUCTION

Software quality models (QMs) are typically used

for examining, improving and forecasting the over-

all quality of a software product (Deissenboeck et al.,

2009; Wagner et al., 2015; Wagner et al., 2012a).

There is no universal guideline for deﬁning such mod-

els. The ISO/IEC 25010 provides a ﬁxed structure,

while the Quamoco meta-model (Wagner et al., 2015;

Wagner et al., 2012a) offers a more ﬂexible approach

that addresses the standard’s limitations.

However, as (Wagner et al., 2012a) state, most

of the concepts provided by ISO/IEC 25010 are not

objective enough to be measurable and to assess the

actual quality of a software product. Furthermore,

the ISO/IEC 25010 does not state how the individual

quality properties should be assessed and how the re-

sults of these measurements should be aggregated to

get a ﬁnal result (Wagner et al., 2012a). The Quamoco

meta-model has been selected and, therefore, all fur-

ther steps are going to be performed using this speciﬁc

QM.

As large QMs are difﬁcult to maintain due to the

required knowledge of the model’s speciﬁc applica-

tion domain, a tool for effortless tailoring to support

the QM expert is needed. The models we developed

and that are applied for embedded system develop-

https://orcid.org/0000-0002-4659-2385

ment typically contain 1000+ metrics and rules. With

our approach, a QM expert should be able to automat-

ically generate new quality models based on already

stored QMs, considering the speciﬁc quality require-

ments of a project.

As a novelty of our approach, we do not only con-

sider metrics and rules as provided by SonarQube,

but also so-called dynamic project related data, which

can be seen as usages of certain metrics within a pre-

deﬁned set of projects in SonarQube. This data is

called dynamic as it changes relatively fast compared

to more static-like data in SonarQube-like metrics and

rules. Examples of these dynamic data would be the

number of rule violations in relation to all rules of the

same type of severeness, the number of violations per

100 lines of code, and the won’t ﬁx and false positive

rate. Additionally, the relevancy of a metric or rule

could be measured by looking at a ﬁxing factor, to

identify whether violations of this metric are increas-

ing, decreasing or relatively steady.

Furthermore, it should also be feasible to generate

so-called Quality proﬁles for SonarQube based on the

aspects described above. A quality proﬁle can be seen

as a collection of metrics and rules which are grouped

into a proﬁle. These proﬁles are then associated with

projects.

In order to be able to answer these queries for QM

tailoring, the static-like, dynamic and QM-related

Plösch, R., Ernst, F. and Saft, M.

Automated Quality Model Management Using Semantic Technologies.

DOI: 10.5220/0013502900003964

In Proceedings of the 20th International Conference on Software Technologies (ICSOFT 2025), pages 223-232

ISBN: 978-989-758-757-3; ISSN: 2184-2833

223

data need to be stored to answer queries fast. It was

decided that QM-related aspects should also be stored

in RDF along with other software quality aspects.

With new SonarQube updates and new plugins for

new languages, the number of new rules and metrics

which need to be assigned manually to an already-

existent QM increases. Therefore, a machine-learning

(ML) model should be used for the automatic clas-

siﬁcation of these new metrics into the hierarchical

structure of a QM. Furthermore, the developed soft-

ware component should also be able to manage the

ML model and semi-automatically re-train the model

if necessary.

Based on this context, the following RQs were de-

ﬁned:

• RQ 1: How suitable are query-based quality

model tools for tailoring and generating software

quality models?

• RQ 2: Is the automatic categorization of soft-

ware metrics based on machine learning algo-

rithms suitable?

– RQ 2.1: How suitable are machine learning al-

gorithms according to typical evaluation met-

rics based on the available data?

– RQ 2.2: How suitable is the automatic catego-

rization from a quality model expert’s view?

RQ 1 and RQ 2.2 will be assessed by using survey

guided interviews of software quality model experts

with a resulting analysis. For RQ 2.1, an experiment

of ML models that are found alongside the hierarchi-

cal text classiﬁcation is going to be performed and

evaluated.

The reminder of this paper is structured as fol-

lows. First, relevant literature regarding this topic is

reviewed in Section 2. Afterwards, the concepts be-

hind the proposed tailoring approach are described in

detail in Section 3. Section 4 provides an overview

of the QM tailoring service’s components. Similar to

the previous section, Section 5, highlights the ML ser-

vice’s core modules. Both service approaches are then

reviewed and evaluated in Section 6. Finally, Sec-

tion 7 concludes this paper.

2 RELATED WORK

Pressman (Pressman, 2010) gives the following work-

ing deﬁnition for software quality: ”An effective soft-

ware process applied in a manner that creates a useful

product that provides measurable value for those who

produce it and those who use it.” (Pressman, 2010, p.

400).

(Pressman, 2010) also summarizes other software

quality concepts. For example, (Garvin, 1987) devel-

oped a multidimensional approach regarding quality

in general, and according to (Pressman, 2010), these

eight dimensions are also capable of analyzing soft-

ware quality. The dimensions are performance qual-

ity, feature quality, reliability, conformance, durabil-

ity, serviceability, aesthetics and perceptions. One

problem with these dimensions is that most of them

can only be measured subjectively. The ”hard” fac-

tors – measurable factors – can also be divided into

two sets, namely into factors that can be directly (e.g.,

software defects) or indirectly (e.g., usability) mea-

sured (Pressman, 2010).

McCall (McCall et al., 1977) groups factors into

product activities, namely product revision (change

of a product), product transition (adaption to new do-

mains), and product operation (the operation) (Mc-

Call et al., 1977). E.g., within the activity product

revision, which is related to software changes, the fac-

tors with the corresponding questions are as follows:

maintainability (Is the software ﬁxable?), ﬂexibility

(Is the software changeable?) and testability (Is the

software testable?) (McCall et al., 1977). Again, one

drawback of using these factors is that, according to

(Pressman, 2010), most of the proposed factors can

only be assessed indirectly.

Nevertheless, these factors provide a solid base for

evaluating the quality of a software product (Press-

man, 2010). In software QMs, per deﬁnition, these

software quality attributes are typically brought into a

hierarchical order. This decomposition has no univer-

sal meta-model, so it is performed without any pattern

on these quality attributes (Deissenboeck et al., 2009).

Therefore, according to (Deissenboeck et al., 2009),

any further decompositions on large models are dif-

ﬁcult to understand and might lead to repetition, as

quality attributes might overlap.

While there is still ongoing work in how to struc-

ture the abstract term Software Quality, there are no

approaches known from the scientiﬁc literature that

support systematic tailoring of quality models to the

quality requirements of a software project.

3 QUALITY MODEL TAILORING

CONCEPTS

In this section we describe how we relate the quality

model concepts to semantic models and we describe

in more details which static and dynamic data can be

used for quality model tailoring.

ICSOFT 2025 - 20th International Conference on Software Technologies

224

3.1 QMs and Knowledge Graphs

QMs represent important knowledge on software

quality and knowledge graphs are used for represent-

ing them in a semantic way (see Figure 1 and Fig-

ure 2). The ﬁrst part of the knowledge graph contains

information about the quality model hierarchies. The

resource that represents a QM is called QualityModel.

For each QM, an identiﬁer and several hierarchies are

stored. Each hierarchy that belongs to a QM, repre-

sented through the class QualityModelHierarchy, also

consists of an identiﬁer and property that connects the

hierarchy to its root element through the property hi-

erarchyId. An entry of a QM hierarchy in which no

distinction between leaf and inner nodes is made, is

deﬁned by the class HierarchyItem, which can also

contain zero or more hierarchy items that are the par-

ticular node’s child nodes. Additionally, with each

QM hierarchy item, a name, a description, and an

identiﬁer is stored. Besides these directly attached lit-

erals, connections to the classes QualityProperty, En-

tity, Rule, and Impact exist.

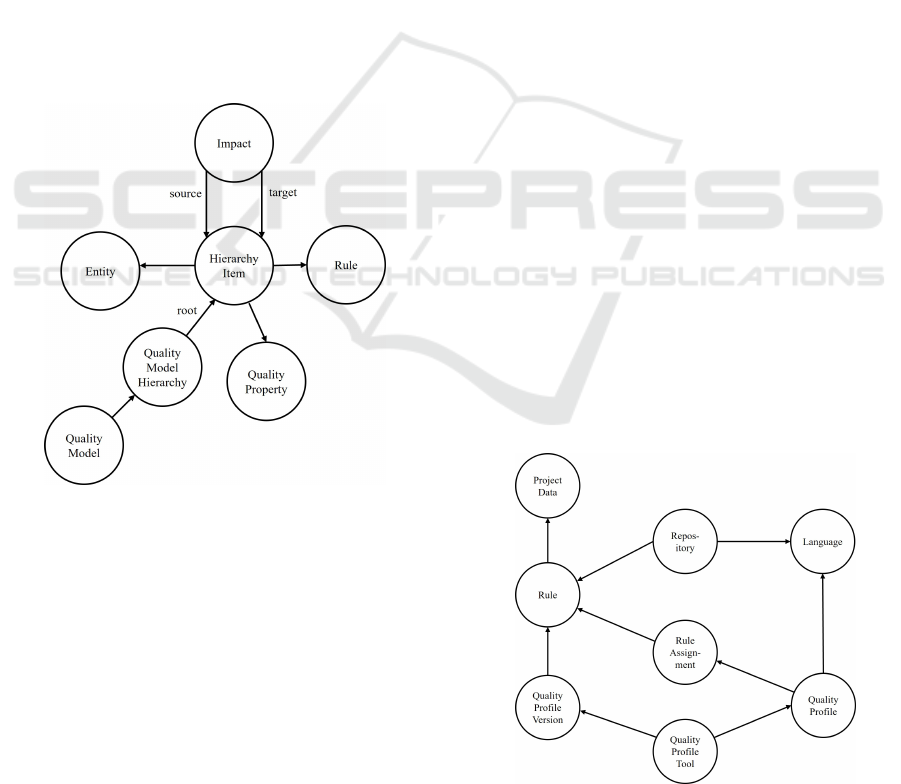

Figure 1: Fragment of the knowledge graph for QMs show-

ing the model-related relationships.

A quality property expressed by the class Quali-

tyProperty contains a property name combined with

a value and optional a so-called extra property which

provides additional information for a quality property

like coverage, importance, trustworthiness, and effort.

The next class represents an entity and is also

named after it. In the original Quamoco QM, each

factor has an associated entity that describes a certain

fragment of a software product or a resource involved

during its lifetime (Wagner et al., 2012b). Examples

for entities are class, interface, or method. In the data

model, the name of an entity is associated with the

rdfs:label property. Optionally, it is possible to con-

nect each hierarchy item with various rules expressed

with the Rule class.

Impacts are represented by their eponymous class.

Each impact denotes an impact of one hierarchy’s en-

try into another hierarchy. The connection is made

via a source and a target property that both reference

hierarchy items. As an example, the factor complex-

ity@Class typically has a negative impact on the qual-

ity factor maintainability. Technically, an impact’s

effect is stored as a number which might either be -

1 (negative), 0 (no effect), or 1 (positive). Addition-

ally, each impact has also an optional description. The

overview of the mentioned resources and their rela-

tionships are shown in Figure 1.

3.2 Static Data

In this paper, static data refers to rule-related data for

rules that do not regularly change. In contrast, dy-

namic data, described in the next section, contains in-

formation about the usage of rules in actual projects

with their related issues over time. As already men-

tioned before, metrics and rules are central elements

of static data. SonarQube (depending on the conﬁgu-

ration) provides e.g. 1.000+ metrics and rules for the

programming language Java.

It should be noted that in RDFS, it is not possible

to enforce that, e.g., each rule must have an associated

SonarQube repository. Nevertheless, with Shapes

Constraint Language (SHACL) shapes (Knublauch

and Kontokostas, 2017), it is possible to validate

knowledge graphs and hence, to ensure that the con-

straint mentioned above is fulﬁlled. Otherwise, the

knowledge graph is not valid. Additionally, SHACL

also provides so-called SHACL rules (Knublauch

et al., 2017) that are used for inferencing new triples

Figure 2: Fragment of the knowledge graph for QMs show-

ing the rule related connections of static and dynamic data.

Automated Quality Model Management Using Semantic Technologies

225

from the provided data.

Besides the repository, a rule is also associated

with various quality proﬁles using the RuleAssign-

ment class. However, not every rule must be asso-

ciated with a quality proﬁle. Furthermore, a severity

and rule type is set in every rule assignment, which

overwrites the default severity and rule type from a

rule’s default values. A class of type QualityProﬁle-

Tool is used to represent the rules’ source tool. Qual-

ity proﬁles are a concept of SonarQube and might,

therefore, not be available in other tools, which is also

the case for repositories. Each quality proﬁle and also

each repository is associated with a certain language

class that represents the corresponding programming

language of both types.

A version of a software quality tool is described

with the class QualityProﬁleVersion, which is associ-

ated with a quality proﬁle tool and contains references

to those rules that are available in the speciﬁc ver-

sion. Rules are represented through the eponymous

classes. For each individual rule, an identiﬁer, a de-

fault severity, tags, a default rule type, default and ac-

tual remediation costs, an HTML description, a sta-

tus, the name, and the creation time are stored. The

remediation costs are represented using one class of

the remediation cost’s hierarchy that is modeled us-

ing multiple inheritance. The base class Remediation-

Costs contains a time unit representing the unit of the

remediation cost’s time. Remediation costs can either

be a single constant, represented by the ConstantRe-

mediationCosts class. This linear function only con-

sists of a coefﬁcient (class LinearRemediationCosts),

or ﬁnally, a combination of both types, i.e., a linear

function with an offset provided by a constant (class

LinearRemediationCostsWithOffset).

3.3 Dynamic Data

The idea behind the dynamic aspects is to collect us-

age data of rules’ issues in projects within SonarQube

which then can be further used for tailoring QMs. One

example could be to exclude rules where the ratio of

related issues that are marked as won’t ﬁx to the total

number of issues of the corresponding rule is larger

than x%. This could make sense as it is an indica-

tor that the related rule is not suitable for a speciﬁc

application domain.

These measures are stored in a time series

database, and the latest values are persisted in the

RDF storage to imitate a materialized view and to

speed up querying. Together with a software quality

expert from academia, the following dynamic aspects

were identiﬁed:

• Open issues in total and as a ratio with all issues

of the same severity

• Total number of issues that are marked as won’t

ﬁx and as a ratio based on the total number of is-

sues of the speciﬁc metric

• Total number of issues that are marked as false

positive and as a ratio based on the total number

of issues of the speciﬁc metric

• Usages of a rule as absolute value and as ratio

based on the pre-conﬁgured list of projects that

should be taken into consideration

• Issues per 100 lines of code (LOC)

• Fixing factor, which indicates whether the number

of open issues is increasing, decreasing, or steady

For each deﬁned metric, the operators <, >, <=,

>=, ==, and ! = are supported. As mentioned, these

measures are calculated for every rule available in

SonarQube. In the conﬁguration section of this ser-

vice, it is possible to deﬁne several project sets that

will be used for calculating the previously deﬁned

measures. This makes sense, as quality managers

want to use the data of similar projects for tailoring

of the QMs.

The class ProjectData represents a current dy-

namic aspect entry for a single project set identiﬁed

by the data property projectDataIdx, i.e., an entity

is created for every rule and project set combination.

This property is simply the project index set from this

service’s conﬁguration part. All other properties (the

absolute value or ratio) are computed beforehand and

stored in the entity of class ProjectData.

3.4 Quality Proﬁle Generation and Rule

Export

In this section, the process of generating quality

proﬁles which can further be directly imported into

SonarQube without any additional changes is ex-

plained. Moreover, the export of rules is also pre-

sented. Both operations are performed using the ser-

vice’s REST interface.

Currently, the possible query parameters for the

rule export are entries of a quality model, i.e., hier-

archy items including their child items on which cer-

tain rules are associated can be used, including the

entity tag separated by the @ tag, so if no tag is used,

all hierarchy items regardless their corresponding en-

tity will be taken into consideration. The next query

parameter ﬁlters according to a given list of severity

types on which the rules should be ﬁltered. Next, it is

possible also to exclude rules by their corresponding

identiﬁer.

ICSOFT 2025 - 20th International Conference on Software Technologies

226

Additional, so-called extra values can be attached

with the — sign. It is also possible to include

more quality properties, separated by a comma. The

following query parameter allows the rule selection

by one or several quality proﬁle tools, presented in

the format tool name:tool version. It should be

noted that the tool version is optional in this context.

A comma again separates the different tools. Next,

it is possible to ﬁlter rules by a provided program-

ming language. Finally, the last query parameter al-

lows users to ﬁlter rules by a quality proﬁle’s name.

All of the mentioned query parameters are optional.

Hence, if no parameter is deﬁned, all rules will be

used.

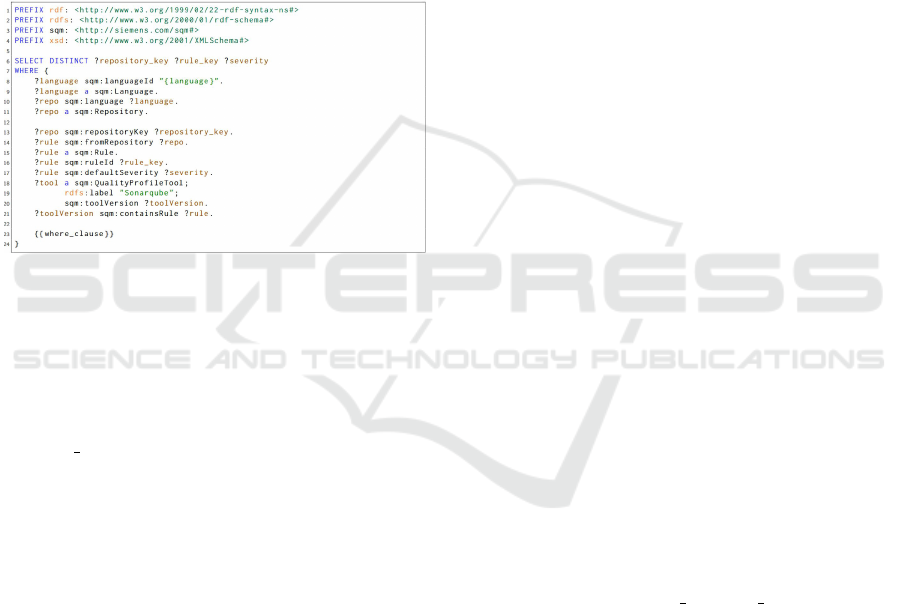

Figure 3: Query fragment for exporting quality proﬁles

from the knowledge graph.

The rules’ query is based on the SPARQL frag-

ment presented in ﬁgure 3. This query selects the

repository keys and the rule identiﬁers of all rules

that match the WHERE clause. Before the query

is issued to the SPARQL endpoint, the placeholder

{{where clause}} is replaced with the dynamically

built query part that is based on the query parame-

ters presented before. This allows the query to be

built dynamically and to allow the variation of param-

eters. After the query is issued to the server and the re-

sult has been received, the given tuples are converted

into the data transfer object class RuleExportEntry,

which is then serialized into the corresponding JSON

format using the pydantic library, which is included

in FastAPI.

Based on this general rule query model, typical

tasks like generating a new quality proﬁle or gener-

ating a new quality model can be executed automati-

cally. This allows to regenerate these quality proﬁles

or quality models after changes of a SonarQube in-

stallation on the ﬂy. Changes to the installation could

result in new or changed metrics and rules.

4 QUALITY MODEL TAILORING

SERVICE

The quality model tailoring service imports software

quality rules from SonarQube and quality models

from Quamoco XML ﬁles. Besides the incremen-

tal import part, the service also supports the required

query-based rule, quality proﬁle, and quality model

export features as described in the previous section. In

the following paragraphs, selected modules and com-

ponents are described.

SQMDB Manager Component: The Software

Quality Model Database manager component, which

is represented through a regular Python class, is used

to separate the business logic from the REST interface

by abstracting all operations that are callable from the

REST interface.

Repository Module: The repository module cur-

rently only consists of the RDFRepository class. It

could be argued that within this module, also all dy-

namic aspects-related storage classes should be lo-

cated. Nevertheless, as the InfluxDBStorage is only

used within the dynamic aspects importer, it was de-

cided that it should be placed within the dynamic as-

pects module.

Import Module: The import module contains

various components for importing quality rules from

different sources; currently SonarQube and cppcheck

are supported. Additionally, this module also contains

classes for importing quality model hierarchies. Cur-

rently, the hierarchy import from Quamoco XML ﬁles

is supported.

Export Module: Within the export mod-

ule, Python functions containing the correspond-

ing logic are grouped into adequate components re-

spectively Python ﬁles, namely QuamviewExporter,

RuleExporter and SonarQubeExporter. Each

component computes the result classes of the

particular export use case. For example, the

SonarQubeExporter consists of a single Python

function, called export quality profile whose

output is an XML document containing the quality

proﬁle, which can then be imported into a SonarQube

instance without any additional modiﬁcation.

Dynamic Aspects Module: The dynamic aspects

module contains a base class for storages of dynamic

aspects and a Python ﬁle containing all relevant model

classes that correspond to dynamic data besides the

DynamicAspectsImporter and InfluxDBStorage

components. Within the DynamicAspectsImporter,

the data from the conﬁgured SonarQube instance is

queried, transformed, and ﬁnally stored in the corre-

sponding storage.

Automated Quality Model Management Using Semantic Technologies

227

5 MACHINE LEARNING

SERVICE

The machine learning service is a separate Python-

based service that assigns rules to corresponding QM

hierarchy entries. The source of the rules does not

matter, as only a unique identiﬁer of a rule, its name,

and description is transferred to this service using

the provided REST API. Currently, this service sup-

ports the Multi-label Classiﬁcation Network (HMCN)

(Wehrmann et al., 2018) and the SciBERT model

(Beltagy et al., 2019).

Database Module: As the imported or predicted

rules need to get persisted, a SQLite DB has been

chosen as a simple local database for tabular data.

The database module contains the base class for

all database operations, namely BaseDAL. Currently,

only a data access layer for the SQLite database,

namely SQLDAL, is implemented. However, in the fu-

ture, if a new data storage is needed, only the abstract

base class BaseDAL needs to get extended. In this

module, also an importer is implemented, which pro-

vides helper functions for importing training and test

data from pandas’ data frames.

Model Module: The module for the models con-

tains two major components, namely the classiﬁer

component, which contains all classiﬁers that were

implemented for this service, and the dataset com-

ponent, which contains a PyTorch-based dataset to-

gether with helper functions that are needed for the

training process as well as for the construction of the

dataset that is used for prediction.

The basic functionality of a classiﬁer is imple-

mented in the abstract base class BaseClassifier,

which also contains data classes for the interim re-

sults. Each classiﬁer that should be supported in

this service has to implement this abstract base class,

which is later used in the dependency injection part

to map the actual implementation to this abstract base

class. As mentioned before, a SciBERT and HMCN

implementation are supported in this service.

Conﬁguration Component: The classes for the

environment-conﬁg serialization package are imple-

mented in the conﬁguration component.

With the help of the ModelType enum, the user is

able to choose between the HMCN and the SciBERT

model. For each of these two model types, a sepa-

rate class is created. The serialization library allows

to have nested conﬁguration classes while only hav-

ing environment variables with ﬂat values. This fea-

ture is used as follows: the root class Config captures

the model type, which is the enum mentioned before.

Additionally, the conﬁguration classes for both mod-

els are included using a group from the environ pack-

age. Both model conﬁgurations are marked as op-

tional, whilst the enum class is set to mandatory and

selects which model should be used in this service.

Migration Component: The migration compo-

nent contains the code that is needed in order to per-

form the database migrations using alembic. There-

fore, this component mainly consists of two parts that

are required by the library, namely, the versions which

represent the actual migrations and the environment

conﬁguration that can be used to ﬁne-tune the migra-

tion process. This command creates, based on the de-

ﬁned sqlalchemy models, the corresponding migra-

tions to create and alter the database tables accord-

ingly. In addition, it is also possible to downgrade a

migration.

Routing Component: Within the routing compo-

nent, all routes for the web API are deﬁned. These

routes are then used in FastAPI to provide the cor-

responding REST interface. Each route is again an-

notated with an API version which is currently set to

1. It was decided to use API versioning to provide

better backward compatibility in the future when this

service is used in production. To decouple the web

interface from the actual implementations, the depen-

dency injection library pythondi is used.

Preprocessing Component: The prepro-

cessing component consists of two prepro-

cessing services, one for SciBERT named

BERTPreprocessingService and the class

PreprocessingService for the HMCN model.

Both services extend the abstract base class

BasePreprocessingService, which acts like an in-

terface and is used in the dependency injection library

for binding the correct preprocessing service based on

the model used according to the service’s conﬁgura-

tion.

The BERTPreprocessingService uses the class

BertTokenizerFast from the transformers library

to prepare the input text into the format that is re-

quired from BERT, whilst the preprocessing service

for the HMCN model uses a ”classical” preprocess-

ing pipeline starting with the tokenization and the re-

moval of stop words, i.e., words that often occur and

do not deliver any useful information, then followed

by a simple preprocessing pipeline provided by the

natural language library gensim. Then, the words

are lemmatized using the wordnet lemmatizer from

the NLTK library. Finally, the individual tokens are

mapped to the corresponding indices of the word em-

bedding matrix.

Main component: The main component is the

main entry point of this service and ﬁrst loads the con-

ﬁguration and, based on the provided conﬁguration,

the ﬁnal ML model. If no model is currently saved,

ICSOFT 2025 - 20th International Conference on Software Technologies

228

the main component will initiate the model learning

process by loading the provided test and training data

from the given CSV ﬁles shipped within this service.

Afterward, the FastAPI library is initialized, and the

corresponding routes are registered.

6 EVALUATION

As mentioned before, in this section, the general pro-

cedure of the evaluation that was performed to eval-

uate the usefulness of both services from a software

quality expert’s viewpoint is elaborated. With regard

to the experience level of each individual software

quality expert, it was ensured that experts with ex-

perience spanning several years from both academia

and industry related software quality products were

selected.

6.1 Questionnaire and Participants

The overall evaluation process consists of two parts,

namely an interactive presentation with the intervie-

wee, which demonstrates the usage of both services

as well as pre-deﬁned use cases, and a questionnaire

that is built upon this presentation which is further

used for the evaluation.

The idea behind this whole process is to provide

the interviewee with an interactive presentation rather

than just offering an explanatory video with the ques-

tionnaire due to the highly abstract topic.

Thus, the interviewee is enabled to ask speciﬁc

questions in real time and possible questions or mis-

understandings can be clariﬁed right away. In general,

the interviewee is asked to rate the usefulness of cer-

tain parameters and use cases according to a Likert

scale. Additionally, for almost each question group,

the interviewee is also provided with a free text ﬁeld

where additional information can be submitted.

The questionnaire starts with general questions,

such as the interviewee’s age, years of experience in

software development, the industry of their current

job and the size of their company. The next part is the

general RDF data model that was developed, which

consists of the software quality rules, the dynamic

data entries and the software QMs.

Here, the interviewees are asked to rank the suit-

ability of this data model with respect to completeness

and adequacy of the distinct data items with the pos-

sibility to optionally enter additional remarks to the

data model. After this part, the possible query param-

eters for the rule and quality proﬁle export are shown,

followed by the use cases for the rule and quality pro-

ﬁle export. The next section covers the QM tailoring

part, starting with the possible query parameters fol-

lowed by the corresponding use cases.

Since the use cases of both prototypical services

are rather abstract and the future users of these ser-

vices belong to a small group of software engineers

that are specialised in software quality engineering,

this evaluation’s participants were selected accord-

ingly. Eight software quality experts participated in

the ﬁnal evaluation. Some more detail on the study

population will be given in the next section.

6.2 Interview Results

In this section, the rule and quality proﬁle-related

items of the questionnaire are explained.

The parameters of the rule and quality proﬁle ex-

port are split into three categories that are displayed

in Figure 4, Figure 5 and Figure 6.

The ﬁrst category shows the importance of the pa-

rameters that are supported in the rule exporting pro-

cess. Then, in the second category, results regarding

the quality proﬁle export parameters are evaluated.

Afterwards, the importance of each dynamic aspect

is presented in the last category.

In the following sections, the individual parame-

ters are presented together with their explanation and

the ﬁnal results, starting with the rule export parame-

ters.

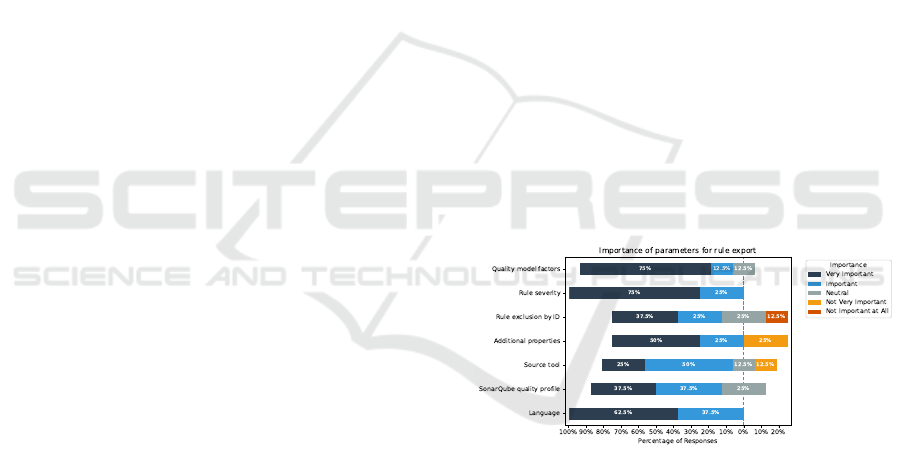

Figure 4: Importance of parameters for rule export.

As depicted in Figure 4, the ﬁrst parameter is used

to ﬁlter rules according to their associated factors of

the QM, which are separated by a comma. In general,

almost all responses rate this parameter as very im-

portant or important. The next parameter represents

the severity of a rule. Here, it is also possible to ﬁlter

with multiple severity levels, which are separated by

a comma. As before, 75% of the responses rate this

parameter as very important and the rest as important.

In contrast to these two parameters, only 37.5%

of responses rate the rule exclusion by ID, where

rules can explicitly be excluded by their given ID as

very important and 25% as important. Nevertheless,

12.5% rate this feature as not important at all.

Automated Quality Model Management Using Semantic Technologies

229

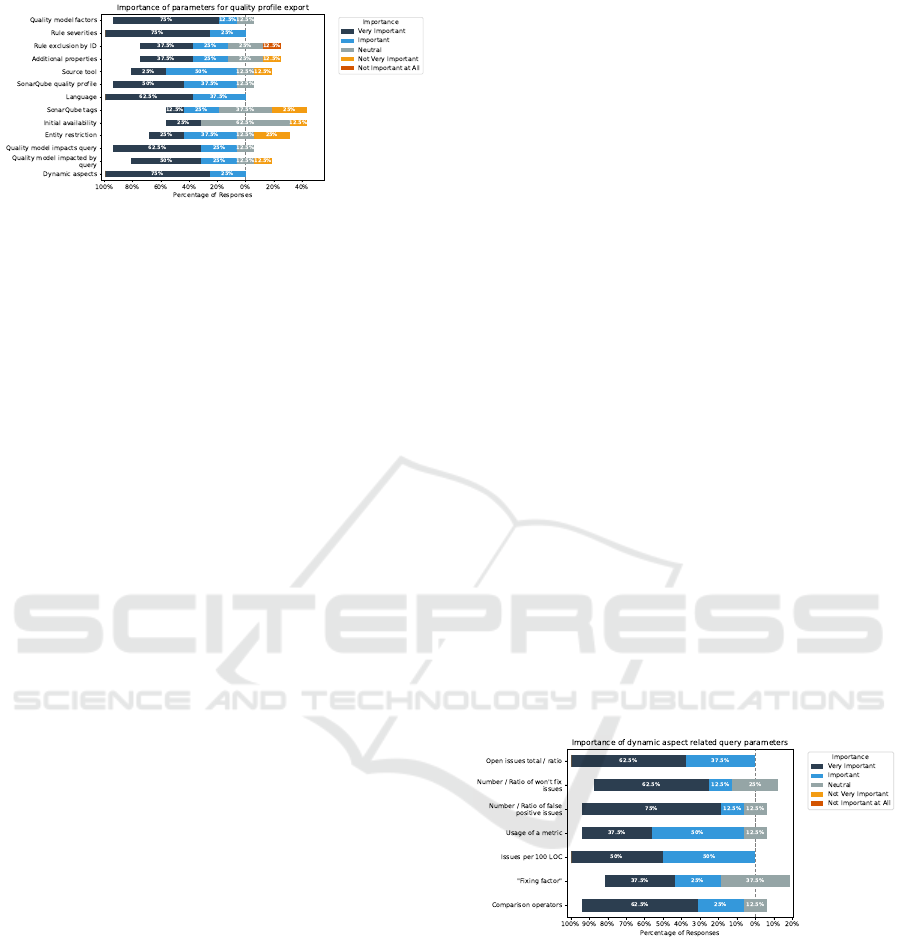

Figure 5: Importance of parameters for quality proﬁle ex-

port.

Regarding the additional properties that are the re-

mainder of the Quamoco QMs, 75% of the intervie-

wees rated the importance as very important or impor-

tant. The rest, 2 participants, rated this feature as not

very important. For the source tool, i.e. the tool from

which the rules are imported, it is possible to indicate

several tools together with an explicit version.

The tools are again separated with a comma, and

the version number is separated with a ”:” after the

corresponding tool’s name. E.g., the tool Sonar-

Qube with version 10 would be as follows: ”Sonar-

Qube:10”. However, 50% rated this parameter as im-

portant and 25% as very important. One participant

rated this parameter as neutral or as not very impor-

tant in each case.

The penultimate rule export parameter is the

source quality proﬁle from SonarQube which allows

to user to specify a quality proﬁle from which the cor-

responding rules should be exported. Here, 37.5%

each rated this export parameter as very important or

important. The rest rated the importance as neutral.

The last parameter, the programming language of

the rule, is used to restrict the rules to certain pro-

gramming languages. All participants rated this pa-

rameter as very important or important. To summa-

rize, all provided parameters were rated mostly posi-

tively by the interviewees.

In Figure 5, the parameters for exporting quality

proﬁles for SonarQube are shown. As the ﬁrst seven

parameters are the same and their results are roughly

the same, they are skipped in this part of the question-

naire’s evaluation.

The ﬁrst new parameter is the possibility to ﬁlter

rules for quality proﬁles using tags that are provided

by SonarQube. Again, a comma is used to separate

these values. 37% of the participants rated this pa-

rameter positive. The exact number rated this param-

eter as neutral and 25% as not very important. For the

initial availability, which is used to ﬁlter rules by the

date they were added in SonarQube, only 25% rated

this feature as very important. More than 50%, how-

ever, rated this neutral, and one person rated it as not

very important.

The entity restriction which allows the user of this

service to restrict rules by their associated QM en-

tries’ entity type like @Source Code, @Statement,

etc. This feature was rated positively by 62.5% of the

responses. One interviewee rated it as neutral, and the

rest, 25%, as not very important. The next parameter

is the QM impacts query which is used to select rules

where an associated QM entry impacts another QM

entry.

It is also possible to ﬁlter according to the type

of impact, which is either positive (+) or negative (-).

The plus sign can also be omitted and is used inter-

nally as default when no sign is provided. 62.5% of

the responses rated this parameter as very important

and 25% as important. The rest, 25%, rated it as neu-

tral.

For the next parameter, which is the inverse of

the QM impacts query, namely the QM impacted by

query, the responses are almost the same with the ex-

ception that 50% rated it as very important and one

interviewee as not very important. The parameter list

for the export of quality proﬁles is concluded by the

dynamic aspects whose detailed query options are ex-

plained and evaluated in the next paragraph. Three

out of four recipients rated the usage of dynamic as-

pects for quality proﬁle export as very important, and

the remainder as important.

To summarise the overall importance of the pa-

rameters, almost all provided parameters were cat-

egorised as very important or important except for

SonarQube tags and the initial availability of rules.

Figure 6: Importance of dynamic aspect related query pa-

rameters.

In total, six dynamic aspects were implemented

and evaluated together with the provided query op-

erators using the questionnaire, with the results dis-

played in Figure 6. The ﬁrst dynamic aspect is the

number of open issues as an absolute value, respec-

tively as a ratio to the number of open issues with the

same severity. Here, all participants rated the query

option positively, with 62.5% as very important and

the rest as important.

Next, the total number of issues marked as won’t

ﬁx and the ratio variant with the absolute number of

ICSOFT 2025 - 20th International Conference on Software Technologies

230

issues marked as won’t ﬁx compared to the total num-

ber of the corresponding rule’s open issues. Most of

the interviewees ranked this query parameter as very

important or important. However, 25% ranked it as

neutral.

The next parameter is almost the same as before;

nevertheless, focusing on the total number of issues

marked as false positives and again as a ratio. 75%

rated this parameter as very important; in each case,

one interviewee ranked it as important and neutral.

Whilst previous parameters focus on the number

and types of issues of a certain rule, the next param-

eter focuses on the usage of a rule in a list of pre-

deﬁned projects. A usage of 60 % would mean that a

certain rule is used in 60% of pre-deﬁned projects.

Additionally, it is also possible to deﬁne multiple

project lists. Almost all interviewees rated this param-

eter positively with 37.5% as very important, 50% as

important and one result rated as neutral. In the next

dynamic aspect, the number of issues per 100 lines

of code (LOC) is used to identify rules where the ra-

tio of open issues per 100 LOC matches the provided

query criteria. All interviewees rated this aspect as

very important respectively important with an equal

share. The last aspect is called ”Fixing factor” and

denotes whether the number of open issues is cur-

rently rising, steady or declining. With 62.5% of the

interviewees ﬁnding this aspect as important and 25

% as important, it is mostly rated positively. Never-

theless, 37.5 % rated it as neutral. The ﬁnal question

was about the provided comparison operators, namely

<, >, <=, >=, ! = and ==. Here, 62.5% rated these

as very important and 25 % as important. For the rest,

one interviewee rated it as neutral.

To summarize the evaluation of the dynamic as-

pects: overall, the aspects are rated mostly without

any exception as very important and important with-

out any responses rating any aspect respectively the

comparison operators as unimportant.

In this last section of the interview results, the re-

sults regarding the suitability of the automatic rule

association using the proposed ML service are eval-

uated. For the evaluation, the best-performing model,

the SciBERT model, was chosen.

All three evaluation measures, precision, recall

and the f1-score were presented to provide the inter-

viewees with the same background information. Ad-

ditionally, the classiﬁcation process’s best and worst

performing target classes were shown to give the in-

terviewees an intuition of a typical task the ML model

will perform. Overall, 37.5% each ranked the suit-

ability as highly suitable and neutral. 25% rated it as

suitable, as shown in Figure 7.

However, during the interviews, a great interest

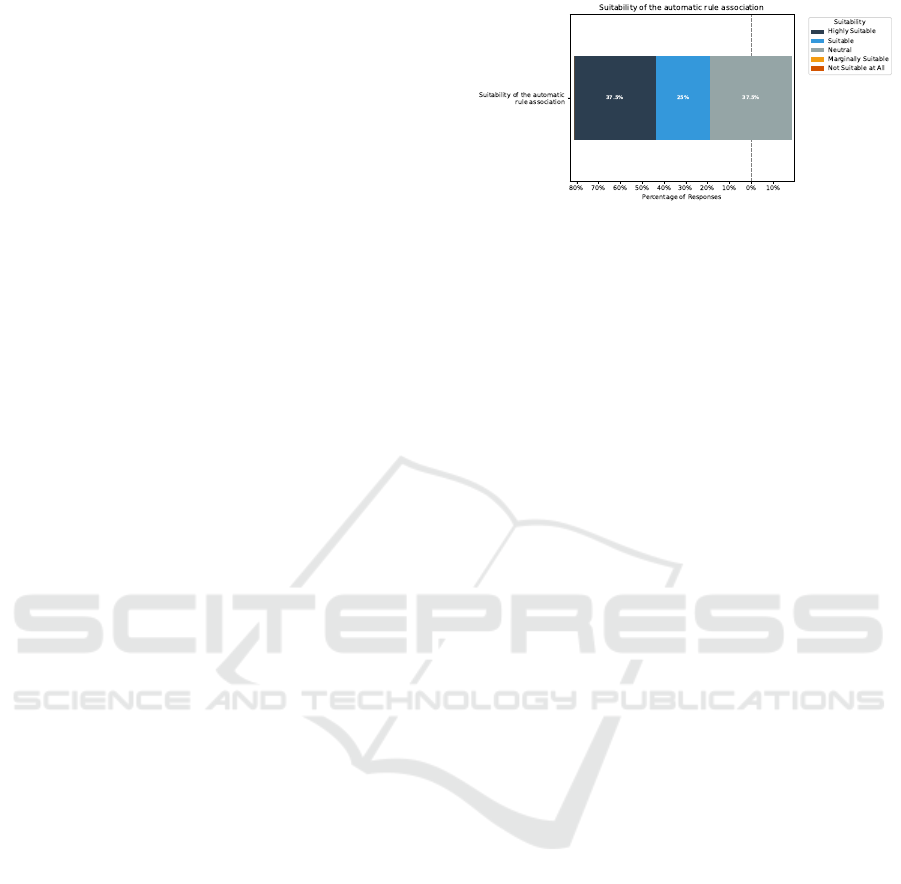

Figure 7: Suitability of the automatic rule association.

in the possible usage of this approach was shown.

Nevertheless, real-world application is still missing

and needs further evaluation to see how such a model

would perform on real data in the future.

6.3 Threats to Validity

The statistical conclusion validity can not be analysed

since no statistical hypothesis testing was performed

to answer the research questions. No threats regarding

the proposed groups by (Shadish et al., 2002) could

be found for the internal validity. However, regard-

ing the construct validity, it could be argued that a

threat regarding the so-called inadequate explication

of constructs by (Shadish et al., 2002) might occur

since there could be a differentiation between the use

cases and parameters presented and the actual useful-

ness of this service.

Nevertheless, the participants expressed the use-

fulness of both services both textually using the free

text options and verbally during the interviews. Re-

garding the external validity of these experiments, a

possible threat would be concerning the interaction of

the observed relationship with the setting, i.e., does

the effect change when the setting changes, which

would be, in the case of this study, the participants. As

the questionnaire was specially designed for software

quality experts, this threat is minimised since this is

also the target group. The threat is also minimised

by choosing software quality experts from different

backgrounds, i.e. various industries and academia and

various experience levels.

7 CONCLUSION AND FUTURE

WORK

The research questions RQ 1 and RQ 2.2 were an-

swered using the questionnaire. Regarding the suit-

ability of query-based QM, which was asked in RQ

1, the experts ranked the proposed use cases of the

QM tailoring tool as mostly important, with no use

case being entirely ranked as unimportant. Therefore,

Automated Quality Model Management Using Semantic Technologies

231

the developed approach, which uses a service for tai-

loring QMs and exporting quality proﬁles for Sonar-

Qube, can be considered suitable.

Regarding RQ 2.2 where the suitability of the au-

tomatic rule association of rules to QMs from a soft-

ware quality expert’s perspective should be examined,

the questionnaire’s results and the verbal feedback

from the interviewees indicate that a fully automatic

rule association would not be acceptable. This is due

to the fact that some interviewees work in highly reg-

ulated environments where misclassiﬁcations must be

avoided at all costs. However, the interviewees agreed

that this ML service would be appropriate for generat-

ing an initial draft, which would then require explicit

review by a software quality engineer.

To summarise the overall results of the evaluation,

with some exceptions the participants of the survey

rated almost all use-cases of the QM tailoring and

quality proﬁle export service as useful, as expected.

In addition, the participants showed great interest in

the concept of the dynamic aspects where dynamic

project-related data from SonarQube is used to tailor

QMs and generate issue-speciﬁc quality proﬁles for

SonarQube which are used for further analysis.

Special interest was shown regarding the ”ﬁxing

factor”. It was suggested to use this metric to de-

velop a trafﬁc light system in a QM viewer respec-

tively editor where those trafﬁc lights indicate on

sub-hierarchies of the corresponding QM whether the

number of open issues is currently rising, declining or

steady.

For the automatic rule classiﬁcation using the

adapted and ﬁne-tuned ML model from the litera-

ture research and the experiments, the participants of

this evaluation where sceptical regarding the usage in

a fully-automated real world scenario due to the re-

stricted environment as a participant remarked. How-

ever, the participants overall agreed that it would be

beneﬁcial to the software quality management pro-

cess, if the ML service is not used totally automatic

but rather in a semi-automatic way, i.e., the classiﬁca-

tion results of this service are not used as a ﬁnal clas-

siﬁcation. Instead, these results are used as a sugges-

tion for the software quality expert who then marks

the classiﬁcation manually.

Future work based on both developed services

could include more practical evaluation and usage on

real world projects in the context of larger companies.

Especially for the ML service, the classiﬁcation in a

real world setting needs to be evaluated further.

REFERENCES

Beltagy, I., Lo, K., and Cohan, A. (2019). SciBERT: A Pre-

trained Language Model for Scientiﬁc Text. In Pro-

ceedings of the 2019 Conference on Empirical Meth-

ods in Natural Language Processing and the 9th Inter-

national Joint Conference on Natural Language Pro-

cessing (EMNLP-IJCNLP), pages 3615–3620, Hong

Kong, China. Association for Computational Linguis-

tics.

Deissenboeck, F., Juergens, E., Lochmann, K., and Wagner,

S. (2009). Software quality models: Purposes, usage

scenarios and requirements. In 2009 ICSE Workshop

on Software Quality, pages 9–14.

Garvin, D. A. (1987). Competing on the Eight Dimensions

of Quality. Harvard Business Review. Section: Con-

sumer behavior.

Knublauch, H., Allemang, D., and Steyskal, S. (2017).

SHACL Advanced Features.

Knublauch, H. and Kontokostas, D. (2017). Shapes Con-

straint Language (SHACL).

McCall, J. A., Richards, P. K., and Walters, G. F. (1977).

Factors in software quality. volume i. concepts and

deﬁnitions of software quality. Technical report,

GENERAL ELECTRIC CO SUNNYVALE CA.

Pressman, R. S. (2010). Software engineering: a practi-

tioner’s approach. McGraw-Hill Higher Education,

New York, 7th ed edition.

Shadish, W. R., Cook, T. D., and Campbell, D. T. (2002).

Experimental and quasi-experimental designs for gen-

eralized causal inference. Experimental and quasi-

experimental designs for generalized causal infer-

ence., pages xxi, 623–xxi, 623. Place: Boston, MA,

US Publisher: Houghton, Mifﬂin and Company.

Wagner, S., Goeb, A., Heinemann, L., Kl

as, M., Lampa-

sona, C., Lochmann, K., Mayr, A., Pl

osch, R., Seidl,

A., Streit, J., and Trendowicz, A. (2015). Oper-

ationalised product quality models and assessment:

The quamoco approach. Information and Software

Technology, 62:101–123.

Wagner, S., Lochmann, K., Heinemann, L., Kl

as, M., Tren-

dowicz, A., Pl

osch, R., Seidi, A., Goeb, A., and Streit,

J. (2012a). The quamoco product quality modelling

and assessment approach. In 2012 34th International

Conference on Software Engineering (ICSE), pages

1133–1142.

Wagner, S., Lochmann, K., Winter, S., Deissenb

ock, E. J.,

Herrmansd

orfer, M., Heinemann, L., Kl

as, M., Tren-

dowicz, A., Heidrich, J., Pl

osch, R., G

ob, A., K

orner,

C., Schoder, K., Streit, J., and Schubert, C. (2012b).

The quamoco quality meta-model. Report.

Wehrmann, J., Cerri, R., and Barros, R. (2018). Hierarchi-

cal Multi-Label Classiﬁcation Networks. In Dy, J. and

Krause, A., editors, Proceedings of the 35th Interna-

tional Conference on Machine Learning, volume 80

of Proceedings of Machine Learning Research, pages

5075–5084. PMLR.

ICSOFT 2025 - 20th International Conference on Software Technologies

232
