Bridging IFML and Elm Applications via a Normalized Systems

Expander

Jan Slifka

and Robert Pergl

Faculty of Information Technology, Czech Technical University in Prague, Th

akurova 9, 160 00 Prague 6, Czech Republic

ﬁ

Keywords:

Normalized Systems Theory, Interaction Flow Modeling Language (IFML), Model-Driven Code Generation.

Abstract:

Web front-end applications are essential for delivering smooth user experiences across a multitude of platforms

and devices. However, these applications often face difﬁculties maintaining long-term evolvability as user

demands and stakeholder expectations continue to shift. In this paper, we propose using the Interaction Flow

Modeling Language (IFML) to design applications and then generating source code in Elm, a statically typed,

pure functional programming language tailored for web frontends. By applying Normalized Systems Theory,

we aim to ensure long-lasting stability in two key ways: ﬁrst, by deﬁning how the resulting source code should

align with the theory’s principles; second, by employing expanders to generate code and incorporating a

harvesting mechanism that allows custom modiﬁcations to the generated source without losing the connection

to the original model. We demonstrate the practical application of our approach by designing an application

using IFML models, introducing custom code, and regenerating the application from an updated model while

preserving those customizations. Our contribution is a novel methodology that integrates IFML, Elm, and

Normalized Systems Theory to improve the stability and maintainability of web front-end applications.

1 INTRODUCTION

In today’s digital landscape, web front-end applica-

tions are an integral part of the ecosystem, enabling

interactive and engaging user experiences on multi-

ple platforms. However, their maintenance and scal-

ability often become signiﬁcant challenges as they

become more complex. User expectations evolve

rapidly, and the effort required to keep up with

these changes can lead to cumbersome code manage-

ment. Over time, the difﬁculty of integrating new

features or adapting to shifting requirements can re-

quire extensive revisions or even complete code over-

hauls (Dvo

ak & Pergl, 2022).

We propose using Interaction Flow Modeling

Language (Brambilla & Fraternali, 2015) models to

design applications and then generate source code in

Elm (Czaplicki, 2020), a statically typed, pure func-

tional programming language tailored for web front-

ends. However, this approach extends beyond a sim-

ple code generator. By applying Normalized Systems

Theory, our objective is to ensure long-term stability

in two key ways: ﬁrst, by deﬁning how the result-

https://orcid.org/0000-0002-4941-0575

https://orcid.org/0000-0003-2980-4400

ing source code should align with the theory’s prin-

ciples; second, by leveraging expanders to generate

code and incorporating a harvesting mechanism that

allows custom modiﬁcations in the generated source

without losing the connection to the original model.

2 METHODOLOGY

Our methodology is grounded in design sci-

ence (Hevner et al., 2004). First, in Section 1, we

investigate the problem domain and identify the is-

sues we aim to address – this forms the awareness

cycle. Next, in Section 3, we explore potential ap-

proaches by leveraging Normalized Systems and re-

lated research, marking the suggestion cycle. In Sec-

tion 4, we then engage in a series of design cycles,

incrementally improving the transformation process

from IFML to Elm to develop a functional solution.

In Section 5, we enter the evaluation cycle, demon-

strating how our solution operates in practice. Finally,

in Section 6, we summarize our contributions.

Slifka, J. and Pergl, R.

Bridging IFML and Elm Applications via a Normalized Systems Expander.

DOI: 10.5220/0013470800003964

In Proceedings of the 20th International Conference on Software Technologies (ICSOFT 2025), pages 63-74

ISBN: 978-989-758-757-3; ISSN: 2184-2833

3 BACKGROUND

In this section, we examine the concept of Normal-

ized Systems and their use of expanders to generate

software applications from structured speciﬁcations.

Next, we explore the Interaction Flow Modeling Lan-

guage (IFML), a modeling language for user inter-

faces, and Elm, a programming language and frame-

work for developing web front-end applications, as

we aim to integrate these within the framework of

Normalized Systems. Finally, we review related work

on this topic to provide context and highlight the nov-

elty of our approach.

3.1 Normalized Systems

Normalized Systems (NS) theory (Mannaert et al.,

2016) offers general guidelines, grounded in rigor-

ous mathematical proofs, for constructing evolvable

systems. It applies software engineering principles,

such as separation of concerns and data version trans-

parency, to create a highly modular structure. Al-

though applicable across various domains, its most

signiﬁcant impact is in software engineering. The

so-called NS expanders are employed to generate en-

terprise information systems from speciﬁcations, en-

suring that the resulting systems adhere to NS The-

ory (Oorts et al., 2014).

3.1.1 Normalized Systems Theory

Normalized Systems Theory (NST) deﬁnes system

structures to ensure evolvability by advocating the

creation of ﬁne-grained modules. Evolvability is-

sues often stem from tightly coupled components with

numerous dependencies, where a small change in

one module triggers widespread modiﬁcations in oth-

ers, commonly referred to as combinatorial effects.

These effects become more pronounced as the system

grows. NST aims to eliminate or control these effects

by adhering to the following principles:

• Separation of Concerns: This involves dividing

a program into distinct sections, each addressing

a speciﬁc concern. Each component should have

a single purpose and only one reason for modiﬁ-

cation. Examples include multi-tier architecture,

separation of cross-cutting concerns, and the use

of messaging or integration buses.

• Data Version Transparency: Data entities ex-

changed with action entities must exhibit version

transparency, ensuring that updates to data enti-

ties do not affect the actions using them, thereby

eliminating combinatorial effects.

• Action Version Transparency: Action entities

invoked by other actions must also exhibit version

transparency, ensuring updates to actions do not

impact dependent actions, further mitigating com-

binatorial effects.

• Separation of States: Interactions between ac-

tion entities must maintain statefulness, necessi-

tating a stateful workﬂow system. Stateless syn-

chronous pipelines are not allowed.

3.1.2 Normalized Elements and Expanders

NST emphasizes a ﬁne-grained modular structure to

eliminate combinatorial effects. During the transfor-

mation of functional requirements into software prim-

itives, distinct software elements are deﬁned. For in-

formation systems, the following elements have been

identiﬁed:

• Data elements for data variables and structures,

• Task elements for instructions and functions,

• Flow elements for control ﬂow and orchestration,

• Connector elements for input/output commands,

• Trigger elements for periodic, clock-like controls.

In principle, any software program can be imple-

mented using these elements by deﬁning an element

for each fundamental primitive – data, instructions,

functions, and input/output commands.

NS expanders are tools designed to generate soft-

ware elements based on requirements and other spec-

iﬁcations, such as templates for target technologies.

The output is a complete, ready-to-use enterprise ap-

plication composed of ﬁne-grained, modular software

elements. However, not all aspects of the application

can be generated automatically; some manual work is

required. To accommodate this, the generated code

includes anchors where custom code can be injected.

When requirements change, the application can be

regenerated. Before regeneration, the expander col-

lects the custom code from the anchor points (a pro-

cess known as harvesting) and reinserts it into the

newly generated application code. The rejuvenation

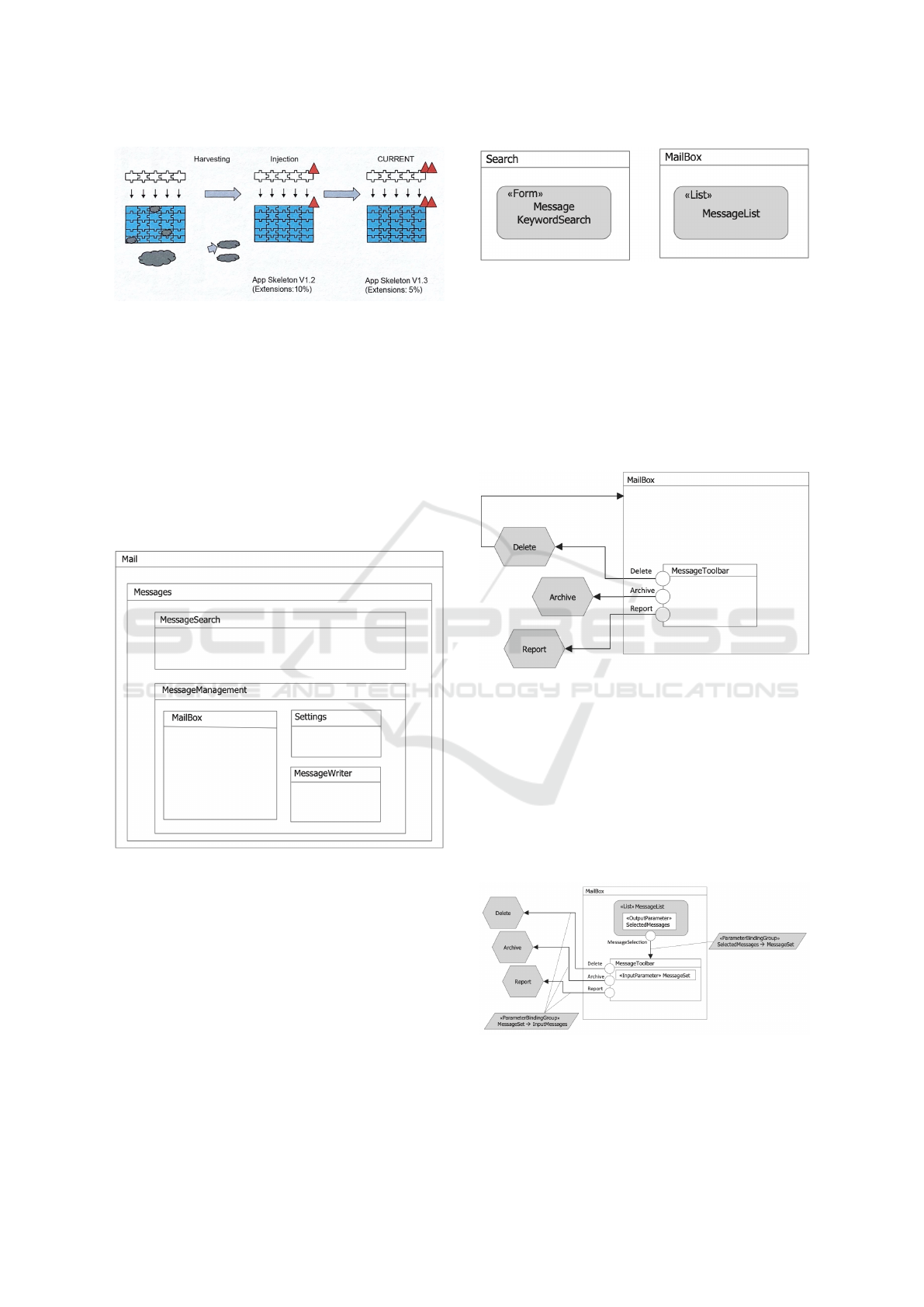

process for NS applications is depicted in Figure 1.

3.2 Interaction Flow Modeling

Language (IFML)

The Interaction Flow Modeling Language (IFML)

(Brambilla & Fraternali, 2015) is a platform-

independent modeling language designed to specify

the content, user interactions, and behavior of front-

end applications. It enables the modeling of front-

end applications irrespective of the target technology

ICSOFT 2025 - 20th International Conference on Software Technologies

Figure 1: The rejuvenation of NS software (Mannaert et al.,

2016).

or platform, addressing multiple aspects of front-end

application design.

Composition of the View. IFML deﬁnes the visual-

ization units composing the view, their organization,

and whether they are displayed simultaneously or mu-

tually exclusively. Each diagram includes one or more

top-level ViewContainers, which may contain internal

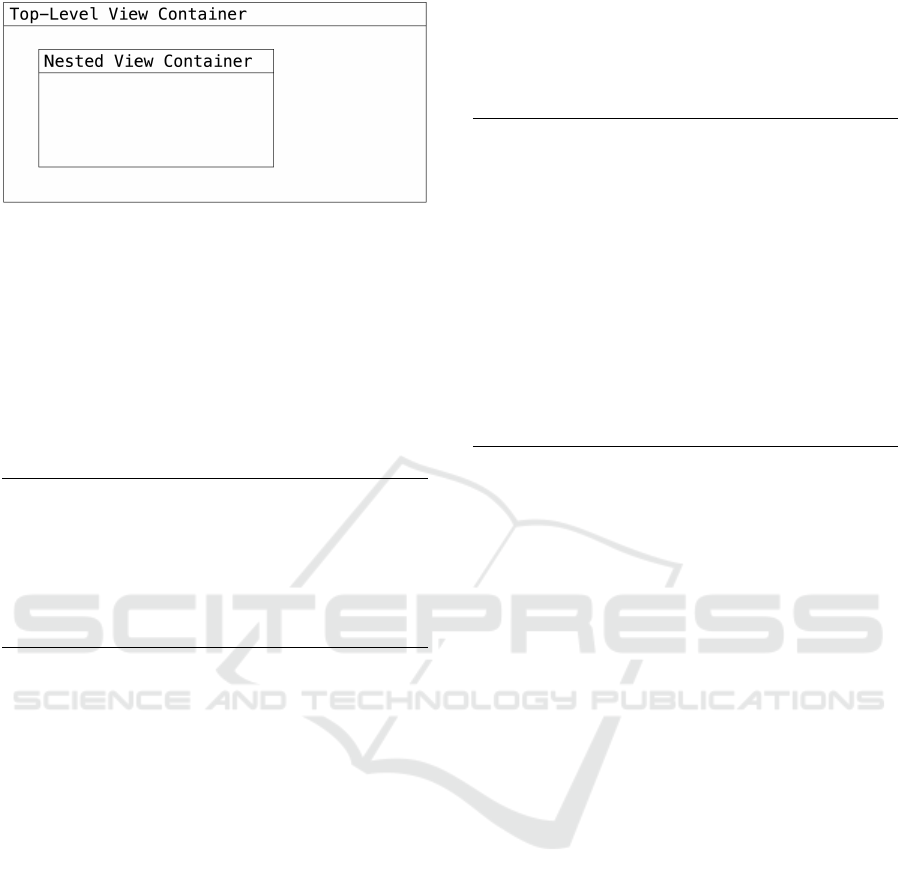

containers, forming a hierarchy. An example of con-

tainer composition is shown in Figure 2.

Figure 2: Example of IFML view containers and their com-

position (Brambilla & Fraternali, 2015).

Content of the View. IFML speciﬁes the content

elements, including data displayed to the user, input

elements, and user-provided data. ViewComponents

are used to present content (e.g., a list of elements)

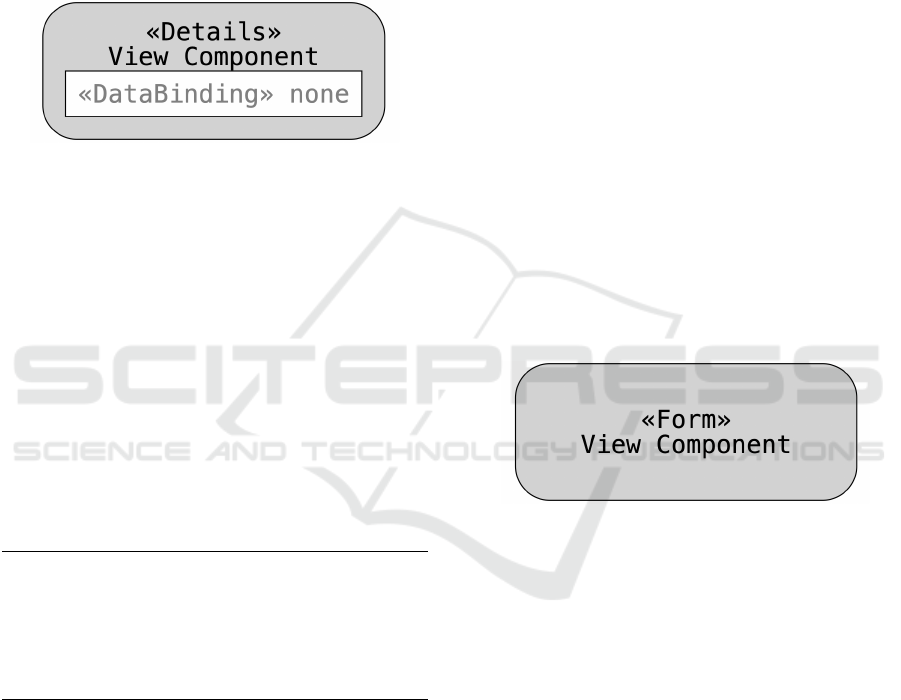

or to capture input data (e.g., a form). These compo-

nents are placed within view containers. An example

of various view components is shown in Figure 3.

Events. IFML models also deﬁne interaction events

and the business components triggered by them.

Events can be associated with ViewContainers or

Figure 3: Example of different IFML view components

within view containers (Brambilla & Fraternali, 2015).

ViewComponents that support user interaction. The

effects of events are represented by the interac-

tion ﬂow, which links the events to the correspond-

ing ViewContainers or ViewComponents, indicating

changes in the user interface state. An event may

also trigger an action executed before the user inter-

face state is updated. An example of events related to

actions is shown in Figure 4.

Figure 4: Example of events triggering business actions

(Brambilla & Fraternali, 2015).

Parameter Binding. In the previous example, no

speciﬁcation was provided regarding the object on

which the action should operate. Dependencies be-

tween inputs and outputs of view elements within the

interaction ﬂow, or between view elements and ac-

tions, can be deﬁned using parameter bindings. Ex-

amples of parameter bindings are shown in Figure 5.

Figure 5: Example of IFML parameter bindings (Brambilla

& Fraternali, 2015).

Bridging IFML and Elm Applications via a Normalized Systems Expander

3.2.1 IFML Design Principles

IFML adheres to several design principles to balance

the representation of complex front-end applications

with usability and clarity:

• Conciseness: Minimize the number of diagrams

needed to describe the user interface. With

IFML’s visual syntax, a single diagram sufﬁces

for the front-end model.

• Inference from the Context: IFML uses infer-

ence rules to deduce information from existing

model elements, reducing the need for redundant

input by modelers.

• Extensibility: IFML provides a core set of con-

cepts for capturing interactions, which can be ex-

tended to accommodate speciﬁc use cases, such as

new interface components or event types.

• Implementability: The importance of tooling–

IFML supports representations such as XMI to en-

able model transformations and code generation.

• Not everything in the model: IFML focuses on

semantics, deliberately omitting aspects such as

presentation details. Other essential but periph-

eral aspects, such as those described in UML class

diagrams, are delegated to external models.

Our goal is to leverage IFML to describe user in-

terface requirements, providing a structured and de-

tailed speciﬁcation that can be utilized as input for

the expander. By employing IFML, we aim to en-

sure that the deﬁned requirements are both precise

and platform-independent, facilitating the generation

of modular and evolvable software elements in align-

ment with the principles of NST.

3.3 Elm

Elm (Czaplicki, 2020) is a statically typed, pure

functional programming language recognized for its

strong compile-time error detection. By compiling

Elm code into JavaScript for browser execution, its

compiler eliminates many common runtime errors

typically associated with JavaScript. This approach

improves application reliability and facilitates safe

refactoring by offering clear, compiler-driven guid-

ance to maintain functionality.

The high-level architecture of Elm, referred to as

The Elm Architecture (TEA), is illustrated in Fig-

ure 6. Notably, everything in Elm is either a data type

or a function. The architecture is composed of these

primary components:

• Model: Represents the application’s core data

structure, deﬁned as a data type.

• View: A function that maps the model to a virtual

HTML structure, which the Elm renders into the

actual HTML. The view also handles user interac-

tions by translating them into messages.

• Update: A function that updates the model in re-

sponse to received messages. It takes the current

model and a message as input, producing an up-

dated model as output. It can create commands to

execute side effects, such as HTTP requests.

• Subscriptions: A function for handling events

not directly linked to user interactions, such as

timers or interactions with external JavaScript.

The Elm runtime invokes the update function in

several scenarios: when handling messages from the

view, processing the outcomes of commands (e.g.,

HTTP responses), or responding to subscriptions.

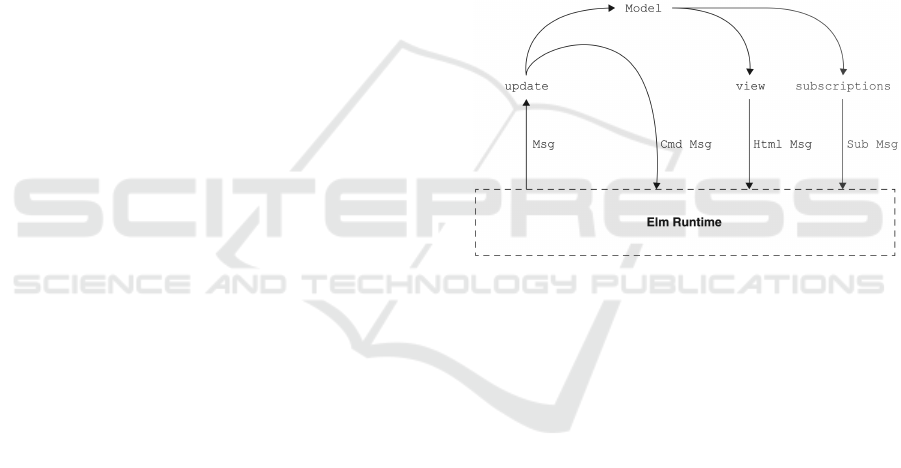

Figure 6: The Elm Architecture (Feldman, 2020).

Although Elm’s architecture provides clarity and

structure, the language retains ﬂexibility in coding ap-

proaches. Numerous Elm patterns (Porto et al., 2024)

have been introduced to enhance code quality and

maintainability. By leveraging the Elm language and

adopting appropriate patterns, we aim to generate Elm

code as the output of the NS Expander, ensuring that

the resulting code aligns with best practices for ro-

bustness and scalability.

3.4 Related Work

NST has been applied in various domains, such

as building evolvable software (Oorts et al., 2014),

developing design systems (Slifka & Pergl, 2020),

and even improving document evolvability (Knaisl

& Pergl, 2022). We extend this framework to focus

speciﬁcally on web front-ends, employing Elm and

IFML models as our foundation.

The challenge of generating software from mod-

els is not new and has been explored in several con-

texts, including domain-speciﬁc modeling (Kelly &

Tolvanen, 2008), code scaffolding (Inayatullah et al.,

ICSOFT 2025 - 20th International Conference on Software Technologies

2019), and the generation of front-end code from

UML (Brisolara et al., 2008). There are other ap-

proaches, such as Naked Objects (NO) (Pawson &

Matthews, 2001), generating UIs directly from the

domain model for rapid development. Addition-

ally, IFML has been used to create CRUD applica-

tions (Rodriguez-Echeverria et al., 2019) and to gen-

erate Android UI components (Fatima et al., 2019).

Our approach stands out due to its integration of

IFML and Elm, supported by NST and its expander

framework. Unlike traditional code-generation meth-

ods, which typically result in a one-way process

where modiﬁcations to the generated code break the

model’s connection, our approach employs a harvest-

ing mechanism from NS. This allows developers to

safely regenerate code from updated models while

preserving custom code modiﬁcations, ensuring the

system remains ﬂexible and evolvable.

The Generation Gap pattern (Vlissides, 1998) pro-

motes the separation of generated and handwritten

code by placing them in different classes using in-

heritance. While NST adopts the principle of sepa-

ration, it achieves extensibility through well-deﬁned

insertion points within the generated code, rather than

relying on inheritance. This aligns well with our ap-

proach, as we employ Elm—a purely functional lan-

guage that does not support object-oriented inheri-

tance.

4 OUR APPROACH

An overview of our approach is illustrated in Figure 7.

The process begins with an IFML Model as an input.

To enable subsequent components to interact with the

model, we implement a Model Parser, to be used in

the stage, which involves a Generator, a component

responsible for creating the resulting Elm application

from the parsed model.

As detailed in Section 3.1.2, not all aspects of the

application can always be generated directly from the

model. In such cases, manual customizations may be

necessary. To address this, we introduce a Harvester,

which extracts these customizations before generating

the next version of the application. The Generator

then re-inserts these customizations into their appro-

priate locations in the newly generated code.

In the following subsections, we provide a de-

tailed exploration of each step and explain the func-

tionality of the individual components in practice.

Our implementation is developed using the Python

programming language, with the Jinja2 templating li-

brary employed for template-based code generation.

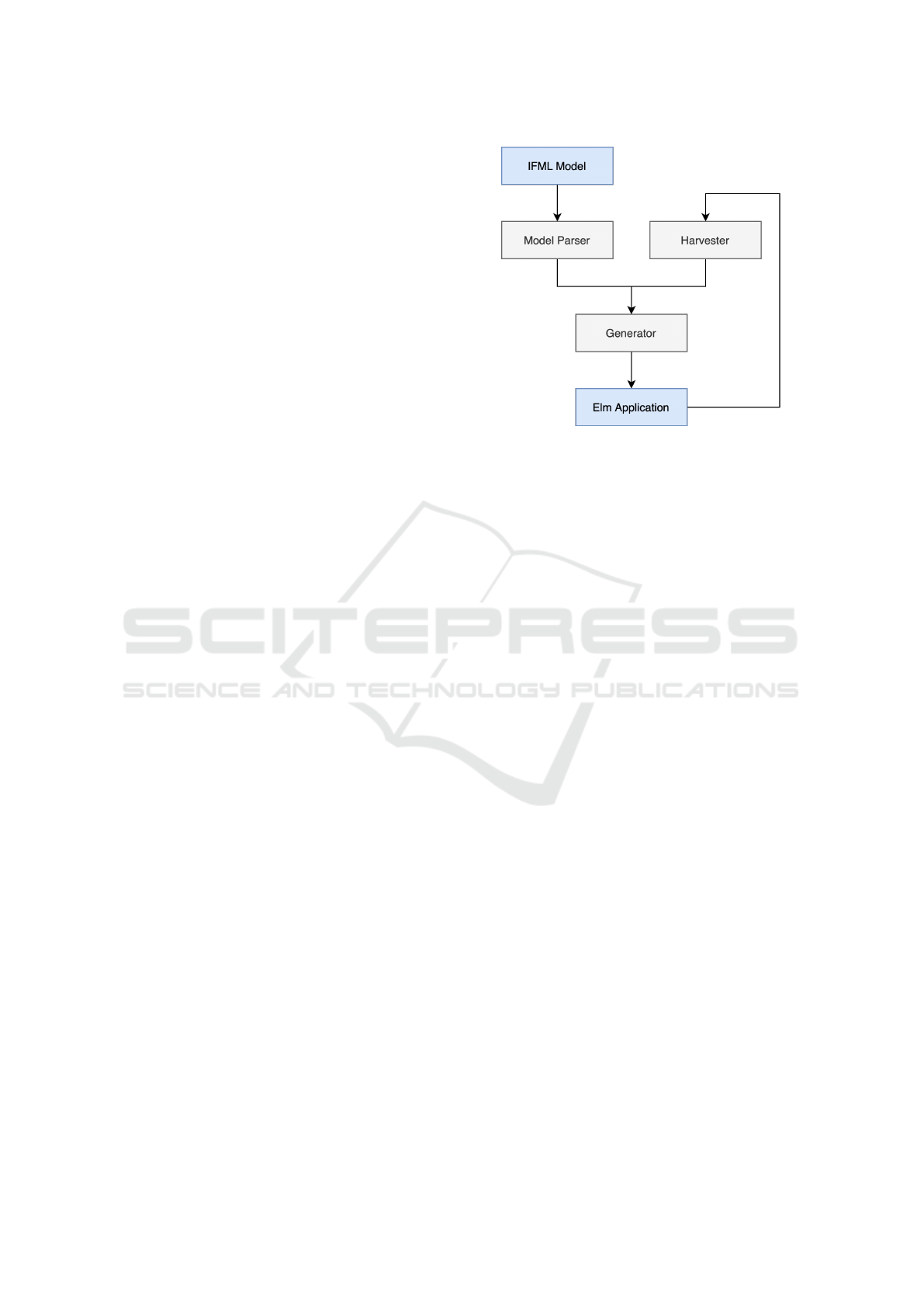

Figure 7: Overview of our approach.

4.1 Parsing and Interpreting the IFML

Model

To begin, we require IFML models for the appli-

cations we intend to expand. For this purpose,

we chose to use the online IFML editor, IFML-

Edit.org (Bernaschina, 2020). One key advantage of

this tool is that it stores models in a JSON format,

which is easy to read and process programmatically.

The JSON representation includes all IFML enti-

ties and their relationships. These are parsed into cor-

responding Python structures, which are subsequently

supplied to Jinja2 templates to facilitate the genera-

tion of Elm code.

4.2 Mapping IFML Components to Elm

Application Structures

In this section, we will examine the IFML compo-

nents in detail and outline our approach to transform-

ing them into software primitives in Elm.

4.2.1 View Components

View Components in IFML are designed to either

present content (e.g., in a list view) or capture user

input (e.g., through forms). Since these components

are both encapsulated and stateful – for instance, they

may load data to display or maintain a selected state

in a list – we implement them using the Nested TEA

pattern (Porto et al., 2024).

The Nested TEA pattern is commonly employed

as applications grow larger, enabling the separation of

individual parts into dedicated modules. This aligns

with the separation of concerns design principle in

NST, as outlined in Section 3.1.1. Each module in the

Elm architecture (described in Section 3.3) is created

Bridging IFML and Elm Applications via a Normalized Systems Expander

for the component to focus on its speciﬁc concerns,

such as fetching and displaying list of items from an

API. These modules are then integrated into the main

application at the corresponding components.

The source code below illustrates the structure of a

child module implemented using the Nested TEA pat-

tern for the components. Notably, the Config type is

utilized to manage global application conﬁgurations,

such as the API URL and other shared settings. Im-

plementation details and additional module imports

are omitted for brevity.

module Components.Component exposing (..)

import ...

type alias Model = { ... }

type Msg = ...

init : Config -> ( Model, Cmd Msg )

init = ...

update : Config -> Msg -> Model -> (Model,

Cmd Msg),→

update ...

view : Model -> Html Msg

view = ...

The following source code demonstrates how

component types are integrated into the app module.

The speciﬁc model and message types of the compo-

nents are encapsulated within the app module’s model

and message types and are appropriately managed

within the update and view functions.

module App exposing (..)

import Components.Component as

Component,→

type alias Model =

{ config : Config

, ...

, componentModel : Component.Model

}

type Msg

= ComponentMsg Component.Msg

By adopting this modular approach, we can

clearly delineate the responsibilities of each compo-

nent, ensuring that the main application logic remains

manageable and does not become overly complex. In

the following subsections, we delve into individual

view components and their speciﬁc implementations.

4.2.2 List

The List component in IFML is designed to display a

collection of items, with its notation illustrated in Fig-

ure 8. This component has several speciﬁc properties.

First, it requires deﬁning the data binding – specifying

the data collection from which the items are sourced

and the ﬁelds to be displayed in the list. Additionally,

the List component includes a selection event that can

be linked to other components, such as a Details com-

ponent, to display the details of the selected item.

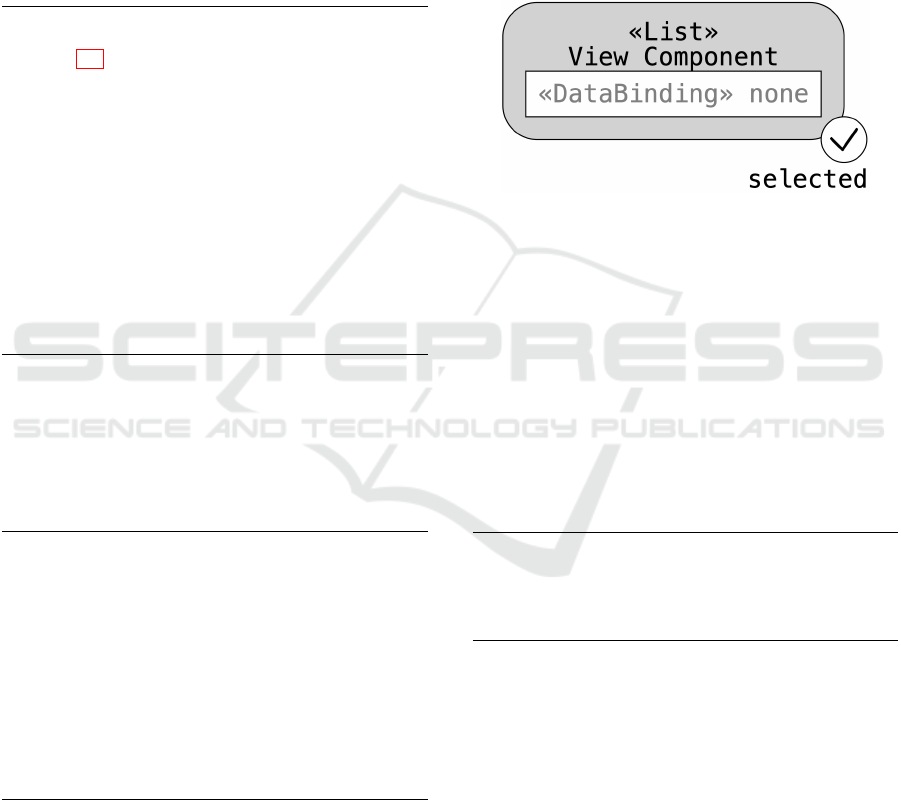

Figure 8: IFML View Component List.

In the generated Elm source, in addition to the

common component structure introduced earlier, the

List component requires additional elements. Specif-

ically, two properties are added to the model: the list

of items and the selected item ID. The list of items is

deﬁned as ActionResult (List a), where a repre-

sents the speciﬁc data entity deﬁned by its ﬁelds (dis-

cussed further in a this section).

Since the items are fetched from an API,

ActionResult is a custom type designed to represent

the data retrieved from the API and its possible states.

This type is deﬁned using the following constructors:

type ActionResult a

= Unset

| Loading

| Success a

| Error String

Each state represents a different phase of the API

call, allowing the UI to respond accordingly:

• Unset: The request has not been initiated.

• Loading: The request has been sent, and the ap-

plication is awaiting a response.

• Success: The request was completed successfully,

and the data has been retrieved from the API.

• Error: The request failed, and an error message

is available.

The selected item uses the Maybe type to allow for

the possibility of no selected item.

Other parts of the List component module are up-

dated according to these model additions. The init

ICSOFT 2025 - 20th International Conference on Software Technologies

function initializes the new ﬁelds, setting the items

to the Loading state, and generates a command for

an API request based on the collection deﬁned in the

IFML model. Additionally, the model includes new

messages to handle the completion of the item re-

trieval and to manage item selection within the list.

The update function needs additional complex-

ity to handle interactions deﬁned in the IFML model.

For example, a list selection event can be connected

to other components, such as displaying details when

an item is selected. Consequently, when an item is

selected, the component must also transmit this infor-

mation if a selection event is connected.

To achieve this, we utilize the Translator pat-

tern (Porto et al., 2024), which makes the child mod-

ule generic and capable of producing parent mes-

sages. As a result, the update function is designed to

accept an additional argument – a custom type called

UpdateConfig. The implementation of this approach

is outlined in the following source code:

type alias UpdateConfig msg =

{ wrapMsg : Msg -> msg

, onSelect : Maybe (String -> Cmd msg)

}

update : UpdateConfig msg -> Msg -> Model

-> ( Model, Cmd msg ),→

update cfg msg model = ...

The UpdateConfig contains two key compo-

nents. First, it includes a function to wrap module-

speciﬁc messages (Msg type) into a generic msg type.

Second, it provides an optional function that accepts

the item ID and produces a generic command.

Within the update function, when an item is se-

lected and this optional function is deﬁned, the func-

tion generates a command to transmit the selection in-

formation to the corresponding details module. This

mechanism ensures communication between the List

component and other connected components.

The view function dynamically renders content

based on the current state of the ActionResult. It

displays a loader while data is being fetched, and sub-

sequently shows either an error message if the request

fails or the retrieved data presented in a table.

In addition to the component module, we gener-

ate a new data type representing the data displayed in

the list. This data type is created based on the ﬁeld

conﬁguration of the IFML component and is placed

in its own Elm module, along with a corresponding

decoder. In Elm, JSON data from an API cannot

be used directly; it must ﬁrst be decoded into the

expected type, providing an additional layer of type

safety. Below is an example of such a generated data

type and its associated decoder:

type alias MailList =

{ id : String

, subject : String

}

decoder : Decoder MailList

decoder =

D.succeed MailList

|> D.required "id" D.string

|> D.required "subject" D.string

Finally, the newly generated component is inte-

grated into the main application. In addition to the

common structures required to incorporate it into the

main application’s model, view, and update functions,

additional elements are generated to support the com-

ponent’s update conﬁguration. If a selection event is

deﬁned, a corresponding message and a handler func-

tion are generated. The handler ensures the selection

event is processed by updating the relevant compo-

nent in the application.

For instance, if a selection event is deﬁned, an ad-

ditional constructor for the application’s Msg type is

generated. The name of this constructor is derived

from the event name speciﬁed in the IFML model:

type Msg

...

| SelectedMsg String

Next, a handler function is generated within the

application module to connect the selection event

with the corresponding details component. This func-

tion ensures that when an item is selected, the relevant

details component is updated accordingly. Below is

an example of such a handler:

handleSelectedMsg : String -> Model

-> ( Model, Cmd Msg )

handleSelectedMsg id model =

let

( newMailModel, cmd ) =

Mail.update model.config

(Mail.selectItemMsg id)

model.mailModel

( { model | mailModel = newMailModel }

, Cmd.map MailMsg cmd

)

In this example, the handler updates the

details component named Mail by using its

selectedItemMsg message. The details com-

ponent then responds by fetching the relevant data

and displaying it. This process will be examined in

greater detail in the next section.

Bridging IFML and Elm Applications via a Normalized Systems Expander

4.2.3 Details

The Details component in IFML is used to display the

details of a speciﬁc entity. Its key properties include

the data collection from which the displayed entity is

sourced and the ﬁelds of that entity to be presented.

Typically, the Details component is linked to the se-

lection event of a List component to determine which

speciﬁc entity should be displayed. The notation for

the Details component is shown in Figure 9.

Figure 9: IFML View Component Details.

The generated Elm source code for the Details

component includes additional elements beyond the

standard component structure. Speciﬁcally, an addi-

tional ﬁeld, item, is added to the model. This ﬁeld is

of type ActionResult a, where ActionResult (in-

troduced earlier) represents the state of the data, and

a is the speciﬁc type of the entity to be displayed.

The item is fetched from the API, but the request is

not initiated until the component receives a selection

message. As a result, the initial state of item in the

model is set to Unset.

To handle selection, a custom Msg constructor is

deﬁned, along with a wrapper function exposed from

the module. This allows the parent module to send se-

lection messages to the Details component efﬁciently:

type Msg

= SelectItem String

...

selectItemMsg : String -> Msg

selectItemMsg id =

SelectItem id

To maintain encapsulation and adhere to the sep-

aration of concerns design principle, we do not ex-

pose the constructors of the Msg type outside of the

module. Instead, we provide an additional function,

selectItemMsg, which acts as a wrapper for the spe-

ciﬁc constructor we need to use externally. This ap-

proach ensures that only the intended functionality is

accessible from outside the component module.

The update function’s signature remains un-

changed for this component, as it does not need to

produce messages for the parent module. The func-

tion handles two scenarios: ﬁrst, when an item is se-

lected, it initiates an API request to fetch the data of

the selected item; and second, it processes the result

of the API request, updating the component accord-

ingly.

The view function dynamically renders content

based on the ActionResult in the component’s

model. It displays an empty state when the status is

Unset, a loader while awaiting the request’s result,

and either the fetched data or an error message once

the request is completed.

When the Details component is connected to a se-

lection event, its selectedItemMsg is invoked with

information about the selected item in the parent mod-

ule. This triggers the Details component’s update

function, which retrieves the corresponding data from

the API and displays it.

Additionally, a new data type module is generated,

along with its decoder, to represent the data displayed

in the Details component. This is implemented in the

same manner as for the List component.

4.2.4 Form

The Form component is designed to capture user in-

put, with its notation illustrated in Figure 10. Its con-

ﬁguration speciﬁes the ﬁelds to be included in the

form for data collection.

Figure 10: IFML View Component Form.

The generated Elm source code for the Form com-

ponent includes additional ﬁelds in its model, derived

from the conﬁguration speciﬁed in the IFML model.

It also introduces new messages for handling form in-

puts and displays the form within the view function.

However, due to space constraints, we do not explore

the Form component in greater detail in this paper.

4.2.5 View Container

View containers organize multiple components into

cohesive application screens. These containers can be

nested to create a hierarchical structure of views, as

shown in Figure 11.

One of the top-level containers can be designated

as the Default view, which serves as the initial ap-

plication screen. Top-level containers can also be la-

beled as Landmark, indicating that they should be ac-

cessible from anywhere within the application, such

as through a navigation menu. Nested containers may

ICSOFT 2025 - 20th International Conference on Software Technologies

Figure 11: IFML View Container.

be marked as XOR, signifying that only one of these

containers will be displayed at a time.

In the generated Elm code, view containers are im-

plemented as functions that are invoked from the main

application’s view function. Each container function

renders an HTML div element to house its compo-

nents, and those components are mapped to their cor-

responding application messages. Below is an exam-

ple of such a container:

viewMails : Model -> Html Msg

viewMails model =

Html.div []

[ Html.map MailListMsg <|

MailList.view model.mailListModel

, Html.map MailMsg <|

Mail.view model.mailModel

]

The view function takes the application model as

input, enabling it to pass the relevant component mod-

els to the nested component view functions.

4.3 Establishing Backend Integration

This study focuses on the frontend application, leav-

ing backend implementation out of scope. To support

the frontend, we use json-server (Typicode, 2023), a

tool that enables the creation of a fully functional fake

REST API from a JSON ﬁle. By deﬁning a JSON ﬁle

with the necessary collections derived from our IFML

model, json-server generates a complete API that can

be utilized by the frontend application.

On the client side, we conﬁgure the API URL for

json-server and make requests from the application as

needed, such as fetching items for the list view.

4.4 Harvesting and Reinjecting Custom

Code for System Evolution

We recognize that not all code can be generated, and

some manual customizations may be required. To

address this, we ﬁrst deﬁne speciﬁc locations within

the generated application where developers can insert

their custom code. These insertion points are marked

by special comments generated by the code genera-

tor. Below is an example of such comments within a

function for rendering a container view:

viewMails : Model -> Html Msg

viewMails model =

Html.div

[-- <customization Mails-attributes>

-- </customization>

]

[ Html.nothing

-- <customization Mails-before>

-- </customization>

, Html.map MailListMsg <|

MailList.view model.mailListModel

, Html.map MailMsg <|

Mail.view model.mailModel

-- <customization Mails-after>

-- </customization>

]

We use Html.nothing as the initial element for

syntax purposes. This approach allows each subse-

quent line of customization to begin with a leading

comma, ensuring the code functions correctly regard-

less of whether customizations are included.

The view container provides three locations for in-

serting custom code. First, we can add custom at-

tributes, such as a CSS class for styling. Second, we

can include elements before the components deﬁned

by the IFML model. Third, we can add additional

components after the existing ones.

When the application is regenerated in the future

with an updated IFML model, the harvester ﬁrst ex-

tracts all customizations placed between the special

comments. After the new version of the application

is generated, these customizations are reinserted into

their original locations, ensuring that previously writ-

ten custom code is not lost. However, some manual

updates may be necessary if changes in the model lead

to modiﬁcations in the generated code. In some cases,

customizations may become obsolete – for example,

if a component that was customized is completely re-

moved.

This same approach – using special comments

to mark customizations, followed by harvesting and

reinserting the code snippets – is applied to all other

generated components and modules. If additional

customization points are identiﬁed in the future, the

templates can be extended to include these special

comments in new locations, further enhancing the

ﬂexibility and functionality of our solution.

Bridging IFML and Elm Applications via a Normalized Systems Expander

5 DEMONSTRATION

In this section, we evaluate our solution by build-

ing an application model in the IFML editor, expand-

ing it, and introducing customizations to demonstrate

its practical application. The focus is on an email-

reading application. To begin, we set up a json-server,

returning items with the following structure:

{

"id": 1,

"subject": "Meeting Reminder",

"body": "Don’t forget about the meeting at

3 PM.",,→

"from": "alice@example.com",

}

We begin with an IFML model consisting of a de-

fault container that wraps the entire application and

a list component for emails. This list is conﬁgured to

reference the mails collection, displaying the from and

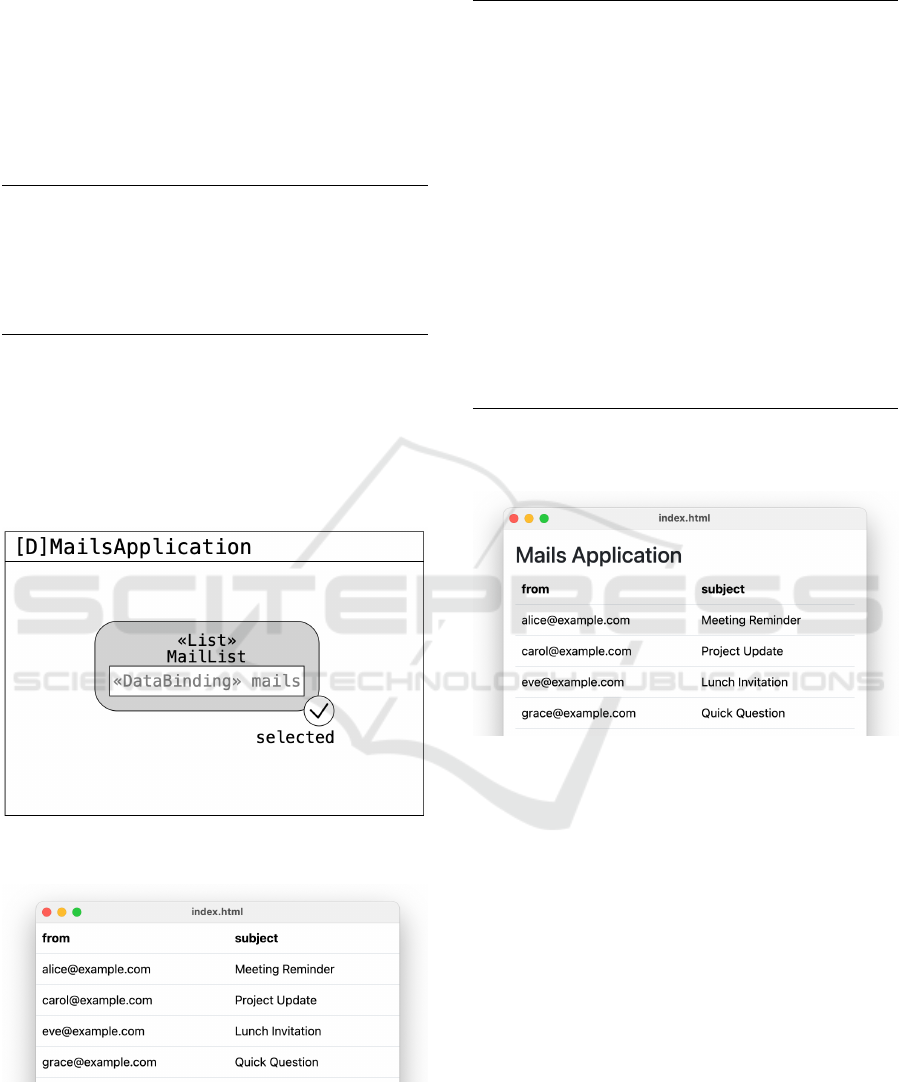

subject ﬁelds. The initial model is depicted in Fig-

ure 12, while the generated application’s initial ver-

sion is shown in Figure 13.

Figure 12: Default IFML model for our application.

Figure 13: Generated application showing a list of emails.

In the next step, we introduce customizations.

First, we add padding by specifying a CSS class in

the customization block for attributes. Next, we add

a heading to the application. The resulting code with

these customizations is shown below:

viewMailsApplication : Model -> Html Msg

viewMailsApplication model =

Html.div

[-- <customization

MailsApplication-attributes>,→

Attributes.class "p-3"

-- </customization>

]

[ Html.nothing

-- <customization

MailsApplication-before>,→

, Html.h1 []

[ Html.text "Mails Application" ]

-- </customization>

, Html.map MailListMsg <|

MailList.view model.mailListModel,→

-- <customization

MailsApplication-after>,→

-- </customization>

]

The updated application, reﬂecting these changes,

is shown in Figure 14.

Figure 14: Generated application with custom code.

The next step is updating our IFML model by

adding a Details view component to display the se-

lected email’s details. This component is conﬁgured

to use the same collection as the list (mails) and is set

to display the from and subject ﬁelds, as well as the

email’s body. The previously created list’s selection

event is then connected to this new Details component

to ensure the selected list item appears in the detail

view. This updated model is illustrated in Figure 15.

Next, we regenerate the application, a process in

which the harvester ﬁrst collects the previously added

customizations. It then generates the new application

from the updated model and reinserts the customiza-

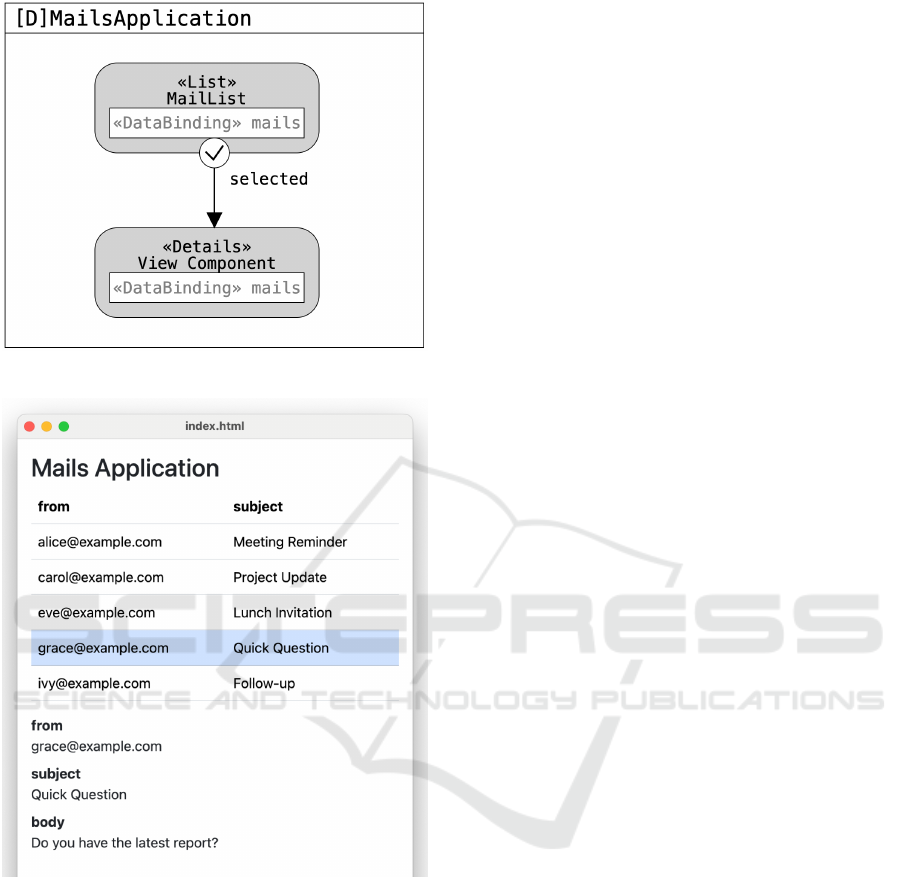

tions. The resulting application is shown in Figure 16.

The title and customized padding remain intact, and

now we can select an email from the list to view its

details, including the body content.

In this section, we illustrated the end-to-end pro-

cess of creating an IFML model, using our expander

to generate the corresponding application source

ICSOFT 2025 - 20th International Conference on Software Technologies

Figure 15: Default IFML model for our application.

Figure 16: Generated application with custom code.

code, and then customizing the application as needed.

We demonstrated how our approach allows develop-

ers to enhance and reﬁne the application, introducing

customizations to tailor it to speciﬁc requirements.

Crucially, we showed that even when the underlying

IFML model evolves, a new version of the application

can be generated without losing these customizations.

The harvester’s ability to identify, extract, and reinte-

grate the developer’s custom code ensures that the ap-

plication remains consistent, ﬂexible, and maintain-

able across iterative development cycles.

6 CONCLUSIONS

In this paper, we focused on integrating IFML and

Elm, leveraging the principles of NS to ensure long-

term evolvability for the resulting applications. We

developed a model parser capable of interpreting the

IFML model and preparing it for further processing.

Additionally, we designed and implemented a code

generator that produces Elm code consistent with the

stable software design theorems outlined in (Man-

naert et al., 2016). Beyond generating code, our ap-

proach also establishes clearly deﬁned locations for

custom modiﬁcations. These customizations are har-

vested and reinjected when regenerating the applica-

tion from an updated version of the model, preserving

the adaptability and maintainability of the system.

The primary advantages of our approach com-

pared to traditional code generators include:

• Code generation that adheres to the stability de-

sign theorems of NS, ensuring long-term main-

tainability and evolvability.

• Integration of a harvesting process that sup-

ports custom code injections without breaking

the model’s integrity, enabling tailored solutions

while preserving the model’s connection to the

generated code.

In Section 5, we illustrated the practical applica-

tion of our solution by designing an application using

IFML models, introducing custom code, and regen-

erating the application from an updated model while

preserving those customizations.

Although our current approach uses the Elm pro-

gramming language, it can be adapted to other lan-

guages as well. This would involve deﬁning a new

mapping from IFML components to the structures of

the target language and framework, along with imple-

menting a corresponding expander. The overall pro-

cedure, however, would remain largely unchanged.

6.1 Limitations

Our expanders currently do not cover all IFML fea-

tures. We have implemented core functionality, but

certain elements remain for future development.

Our approach is not a universal solution. While it

offers a compelling method for generating web fron-

tend applications from IFML models, it may not be

appropriate for all scenarios. For instance, situa-

tions requiring highly specialized or unconventional

user interfaces, or those that depend heavily on non-

standard workﬂows, might not beneﬁt as much from

this model-driven approach.

IFML comprises a core and extensible exten-

sions, enabling the addition of custom components

Bridging IFML and Elm Applications via a Normalized Systems Expander

as needed. The same applies to expanders—once a

transformation method and implementation are de-

ﬁned, they can be used as well. Thus, these limita-

tions are, to some extent, addressable.

6.2 Future Work

The foundation established in this paper paves the

way for several promising future improvements. One

compelling direction would be integrating this solu-

tion with established design systems, ideally guided

by the same principles of evolvability. For instance,

approaches like those explored in (Slifka & Pergl,

2020) could be adapted to ensure that both the appli-

cation’s behavior and appearance evolve seamlessly.

By aligning the visual elements with the principles

of NS, it becomes possible to achieve a more cohe-

sive and maintainable interface that evolves in tandem

with underlying functionality.

An area for further enhancement is the support

for cross-cutting concerns common in production sys-

tems, such as authentication. Given the absence of

specialized IFML constructs for these functionalities,

they must be implemented at the Elm level, poten-

tially through standardized patterns or dedicated mod-

ules to ensure proper integration.

ACKNOWLEDGEMENTS

This research was supported by grant No.

LM2023055 of the Ministry of Education, Youth and

Sports of Czech Republic. It was conducted as part

of our work at NSLab, CTU in Prague.

REFERENCES

Bernaschina, C. (2020). IFMLEdit.org. http://editor.

ifmledit.org. [Accessed: 2019-08-22].

Brambilla, M. & Fraternali, P. (2015). Interaction Flow

Modeling Language: Model-Driven UI Engineering

of Web and Mobile Apps with IFML. Amsterdam:

Morgan Kaufmann/Elsevier.

Brisolara, L. B., Oliveira, M. F. S., Redin, R., Lamb, L. C.,

Carro, L., & Wagner, F. (2008). Using UML as

front-end for heterogeneous software code generation

strategies. In Proceedings of the Conference on De-

sign, Automation and Test in Europe (pp. 504–509).

Munich Germany: ACM.

Czaplicki, E. (2020). The ELM Architecture. https://guide.

elm-lang.org/architecture/. [Accessed: 2020-08-03].

Dvo

ak, O. & Pergl, R. (2022). Tackling rapid technology

changes by applying enterprise engineering theories.

Science of Computer Programming, 215, 102747.

Fatima, I., Anwar, M. W., Azam, F., Maqbool, B., & Tu-

fail, H. (2019). Extending Interaction Flow Modeling

Language (IFML) for Android User Interface Compo-

nents. In R. Dama

sevi

cius & G. Vasiljevien

e (Eds.),

Information and Software Technologies, volume 1078

(pp. 76–89). Cham: Springer International Publishing.

Feldman, R. (2020). Elm in Action. Shelter Island, NY:

Manning Publications Co.

Hevner, A. R., March, S. T., Park, J., & Ram, S. (2004). De-

sign Science in Information Systems Research. MIS

Quarterly, 28(1), 75–105.

Inayatullah, M., Azam, F., & Anwar, M. W. (2019).

Model-Based Scaffolding Code Generation for Cross-

Platform Applications. In 2019 IEEE 10th Annual In-

formation Technology, Electronics and Mobile Com-

munication Conference (IEMCON) (pp. 1006–1012).

Vancouver, BC, Canada: IEEE.

Kelly, S. & Tolvanen, J.-P. (2008). Domain-Speciﬁc Model-

ing: Enabling Full Code Generation. Hoboken, N.J:

Wiley-Interscience.

Knaisl, V. & Pergl, R. (2022). Improving Document Evolv-

ability Based on Normalized Systems Theory. In A.

Rocha, H. Adeli, G. Dzemyda, & F. Moreira (Eds.),

Information Systems and Technologies, volume 469

(pp. 131–140). Cham: Springer International Publish-

ing.

Mannaert, H., Verelst, J., & Bruyn, P. D. (2016). Normal-

ized Systems Theory from Foundations for Evolvable

Software toward a General Theory for Evolvable De-

sign. Kermt: NSI-Press.

Oorts, G., Huysmans, P., De Bruyn, P., Mannaert, H.,

Verelst, J., & Oost, A. (2014). Building Evolvable

Software Using Normalized Systems Theory: A Case

Study. In 2014 47th Hawaii International Conference

on System Sciences (pp. 4760–4769). Waikoloa, HI:

IEEE.

Pawson, R. & Matthews, R. (2001). Naked objects: A tech-

nique for designing more expressive systems. ACM

SIGPLAN Notices, 36(12), 61–67.

Porto, S., Engels, J., Janiczek, M., Callea, A., & Torun, M.

(2016/2024). Elm Patterns. https://sporto.github.io/

elm-patterns/. [Accessed: 2024-04-10].

Rodriguez-Echeverria, R., Preciado, J. C., Rubio-Largo,

A.,

Conejero, J. M., & Prieto,

A. E. (2019). A Pattern-

Based Development Approach for Interaction Flow

Modeling Language. Scientiﬁc Programming, 2019,

1–15.

Slifka, J. & Pergl, R. (2020). Laying the Foundation for De-

sign System Ontology. In Trends and Innovations in

Information Systems and Technologies, volume 1159

(pp. 778–787). Cham: Springer International Publish-

ing.

Typicode (2023). Json-server. https://github.com/typicode/

json-server. [Accessed: 2025-01-16].

Vlissides, J. (1998). Pattern Hatching: Design Patterns Ap-

plied. The Software Patterns Series. Reading, Mass:

Addison-Wesley.

ICSOFT 2025 - 20th International Conference on Software Technologies
