Enhancing Data Serialization Efﬁciency in REST Services: Migrating

from JSON to Protocol Buffers

Anas Shatnawi

, Adem Bahri, Boubou Thiam Niang

and Benoit Verhaeghe

Berger-Levrault, Mauguio, France

ﬁ

Keywords:

REST Services, Data Serialization, JSON, Protocol Buffers, Software Transformation, Migration.

Abstract:

Data serialization efﬁciency is crucial for optimizing web application performance. JSON is widely used due

to its compatibility with REST services, but its text-based format often introduces performance limitations.

As web applications grow more complex and distributed, the need for more efﬁcient serialization methods

becomes evident. Protocol Buffers (Protobuf) has demonstrated signiﬁcant improvements in reducing payload

size and enhancing serialization/deserialization speed compared to JSON. To improve the performance and

optimize resource utilization of existing web applications, the JSON data serialization approach of their REST

services should be migrated to Protobuf. Existing migration approaches emphasize manual processes, which

can be time-consuming and error-prone. In this paper, we propose a semi-automated approach to migrating the

data serialization of existing REST services from JSON to Protobuf. Our approach refactors existing REST

codebases to use Protobuf. It is evaluated on two web applications. The results show a reduction in payload

size by 60% to 80%, leading to an 80% improvement in response time, a 17% decrease in CPU utilization,

and an 18% reduction in energy consumption, all with no additional memory overhead.

1 INTRODUCTION

Web applications have become essential in our daily

lives. As they exchange data, the efﬁciency of data

serialization (Jang and et al., 2020) plays a critical

role in optimizing their performance. Data serializa-

tion directly affects resource usage, and system re-

sponsiveness (Eugster and et al., 2003). Tradition-

ally, web applications have relied on text-based data

serialization approaches, such as JSON (Crockford,

2006) that is integrated with REST services since the

early 2000s (Fielding, 2000). These approaches have

gained widespread adoption among companies for de-

veloping numerous web applications due to their sim-

plicity and ease of use (Barbaglia and et al., 2017).

Text-based data serialization methods often face

performance challenges, especially when managing

large payloads or complex data structures. The text-

based nature of JSON results in larger data sizes being

exchanged between application services, which in-

creases both parsing and transmission overhead (Fer-

nando, 2022; Kelly, 2022). As applications be-

https://orcid.org/0000-0002-5561-4232

https://orcid.org/0000-0002-8618-1740

https://orcid.org/0000-0002-4588-2698

come more complex and distributed, the demand for

faster and more efﬁcient data serialization approaches

grows (

Stefani

c, 2022; Eugster and et al., 2003), es-

pecially for those requiring real-time processing.

As part of their Google Remote Procedure Call

(gRPC), Google has introduced advanced version of

Protocol Buffers (Protobuf), which provides a com-

pact and efﬁcient binary format for data serialization

(

Stefani

c, 2022). It enhances application performance

by minimizing data size and improving serializa-

tion/deserialization speeds (Lee and Liu, 2022a; Berg

and Mebrahtu Redi, 2023), demonstrating a perfor-

mance advantage over JSON, particularly with large

payloads (Eugster and et al., 2003; Fernando, 2022;

Stefani

c, 2022; Kelly, 2022). Lee et al. (Lee and Liu,

2022a) show that gRPC can outperform REST by up

to 7 and 10 times in data reception and transmission,

respectively, due to Protobuf’s efﬁcient serialization.

Thus, Protobuf presents a robust alternative to JSON

for optimizing performance and resource utilization.

To optimize performance and resource utilization

in existing web applications, migrating the JSON data

serialization of REST services to Protobuf is essen-

tial (

Stefani

c, 2022; Lee and Liu, 2022a; Berg and

Mebrahtu Redi, 2023). Companies face two main

options: a complete application rebuild or a code

Shatnawi, A., Bahri, A., Niang, B. T. and Verhaeghe, B.

Enhancing Data Serialization Efﬁciency in REST Services: Migrating from JSON to Protocol Buffers.

DOI: 10.5220/0013459500003964

In Proceedings of the 20th International Conference on Software Technologies (ICSOFT 2025), pages 193-200

ISBN: 978-989-758-757-3; ISSN: 2184-2833

193

refactoring approach. While a complete rebuild can

be resource-intensive and time-consuming, a migra-

tion approach offers a more manageable alternative

by leveraging the existing codebase. With migration,

we need to address two main questions: how to mi-

grate existing REST services from JSON to Protobuf?

and what are the beneﬁts of this migration? Exist-

ing approaches (

Stefani

c, 2022; Lee and Liu, 2022a;

Berg and Mebrahtu Redi, 2023) emphasize manual

processes, which can be time-consuming and error-

prone. These approaches often lack performance

measurement post-migration, making it challenging

to assess their impact on application efﬁciency. Fur-

thermore, manual migration is typically unsuitable for

industrial applications due to its resource-intensive

nature, limiting scalability and increasing the risk of

errors in larger systems.

In this paper, we propose a semi-automated ap-

proach for migrating the data serialization of exist-

ing REST services from JSON to Protobuf to enhance

their performance. Our approach involves refactor-

ing the codebase of these services to substitute JSON

with Protobuf. We evaluate our approach using two

web applications—one open-source and one indus-

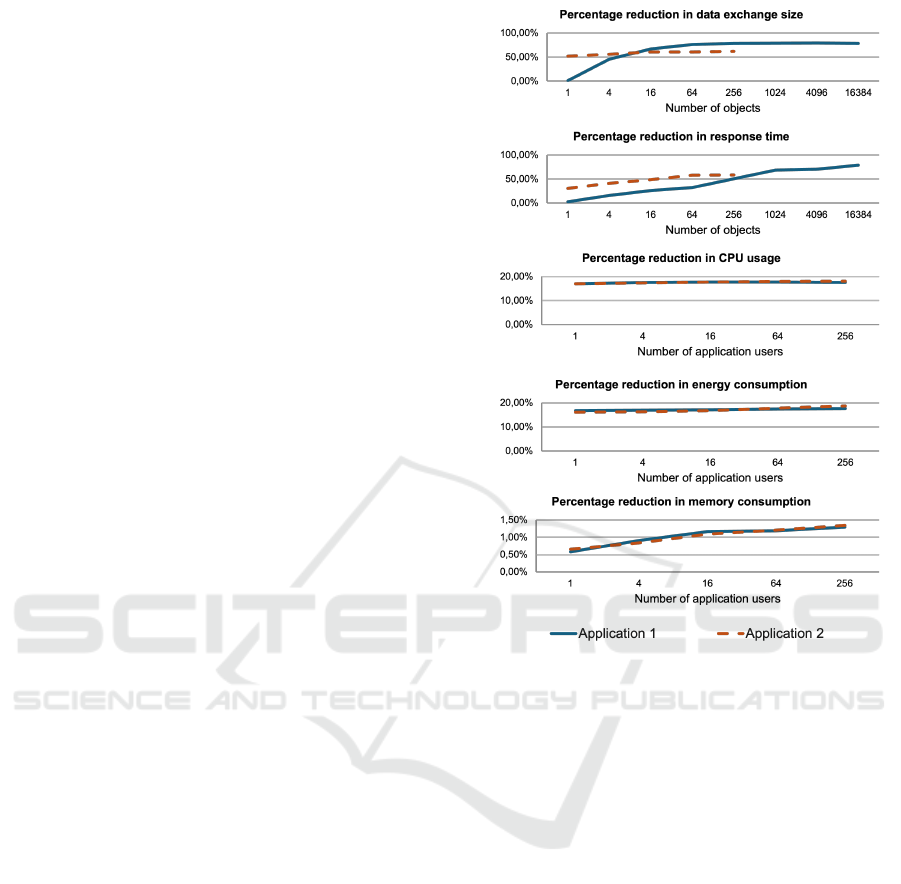

trial—of varying sizes. The results show a 60% to

80% reduction in payload size, leading to an 80% im-

provement in response time, a 17% decrease in CPU

utilization, and an 18% reduction in energy consump-

tion, all without additional memory overhead.

The rest of this paper is organized as follows. Sec-

tion 2 presents the challenges and the proposed ap-

proach. Section 3 details the identiﬁcation of Data

Transfer Objects (DTOs) and the transformation of

their data schema into the Protobuf format. Section 4

explains the generation of Protobuf entities based on

the transformed schema. Section 5 describes how ex-

isting DTOs are refactored to include Protobuf serial-

ization and deserialization methods. In Section 6, we

refactor the REST controllers to replace JSON with

Protobuf. Section 7 presents the evaluation results,

and related work is analyzed in Section 8. Finally,

Section 9 concludes the paper and outlines future re-

search directions.

2 THE PROPOSED APPROACH

2.1 Migration Challenges

Migrating the data serialization of REST services

from JSON to Protobuf is not a straightforward task.

Unlike the migration from JSON to XML, which in

Java and Spring can often be accomplished by sim-

ply modifying a Maven dependency or annotations,

this process involves signiﬁcant refactoring in the ap-

plication codebase (e.g., source code and conﬁgura-

tion ﬁles). For instance, all DTOs must be adapted to

support the Protobuf format and existing REST con-

trollers need to be updated to use the serialization and

deserialization techniques provided by Protobuf.

This task is further complicated by the complexity

of DTO classes. Identifying all DTOs across com-

plex applications, especially in large-scale industrial

systems, presents several challenges. These include

handling nested DTOs, multiple inheritance levels,

and DTOs inherited from external libraries. This pro-

cess demands a detailed analysis of controller meth-

ods, inheritance hierarchies, and associated data mod-

els. Mapping Java data types, including complex

types like List, Set, Map, and enums, to their Proto-

buf equivalents can be non-trivial. Ensuring precision

while handling edge cases (e.g., handling nested or

inherited DTOs) is critical. Reverse engineering large

and intricate data schemas to prepare Protobuf .proto

ﬁles demands thorough validation to ensure that all

relationships and ﬁelds are accurately represented.

Additionally, REST clients must be updated to

properly consume the newly Protobuf-based con-

trollers, ensuring compatibility and seamless commu-

nication. This involves adapting the client-side logic

to serialize and deserialize data in the Protobuf format

instead of JSON. Depending on the programming lan-

guage and framework used by the clients, this may re-

quire integrating Protobuf libraries, generating client-

side Protobuf classes from the .proto ﬁles, and modi-

fying API calls to handle the Protobuf-encoded data.

To facilitate a gradual transition to the new

Protobuf-based REST API, it is advisable to main-

tain both JSON and Protobuf versions of the con-

trollers during the migration phase. This approach

enables clients to incrementally adapt to the Proto-

buf format while continuing to use the existing JSON-

based endpoints. By supporting both formats con-

currently, developers can ensure backward compati-

bility, reduce the risk of service disruptions, and al-

low client-side teams to migrate at their own pace.

Over time, as all clients adopt the Protobuf format, the

JSON-based controllers can be deprecated and even-

tually removed, completing the migration process.

2.2 Migration Process

Our approach introduces a semi-automated process

to migrate REST API data serialization from JSON

to Protobuf. The process, outlined in Figure 1, con-

sists of four main steps: (1) Identify DTOs and re-

verse engineer the data schema into Protobuf format,

(2) Generate Protobuf entities, (3) Refactor DTOs to

ICSOFT 2025 - 20th International Conference on Software Technologies

194

Figure 1: Process for migrating REST from JSON to Protobuf.

include serialization and deserialization methods, and

(4) Refactor REST controllers to use Protobuf.

(1) Identify DTOs and Reverse Engineer Their

Data Schema into Protobuf Format: This step in-

volves analyzing the data exchanged through REST

APIs by identifying the Data Transfer Object (DTO)

(Monday, 2003) classes for each REST endpoint.

These DTOs deﬁne the input parameters and return

objects. The data structure of each DTO is reverse-

engineered to extract its schema, which is crucial

for understanding data organization and transmission

between the API and its clients. This schema is

then translated into the Protobuf format by creating

a .proto ﬁle.

(2) Generate Protobuf Entities: To facilitate

data conversion between Protobuf and Java objects

of the business logic, we generate Protobuf entities

equivalent to the DTOs. This is based on the data

schema recovered in the previous step. These entities

handle the data in the REST/Protobuf services pro-

duced by our approach and the necessary boilerplate

code (Builders) to construct Protobuf instances from

DTO instances and vice versa. Using the Protocol

Buffers Compiler (protoc), the creation of the Proto-

buf entity classes as well as their inner logic is auto-

mated. The compiler reads the .proto ﬁle and gener-

ates the necessary Java classes to manage data struc-

tures, ensuring smooth conversion without manually

writing complex logic.

(3) Refactor DTOs by Adding Methods to Seri-

alize and Deserialize Data: To avoid modifying the

application’s business logic, the internal implemen-

tation of the REST services continue working with

the original DTOs. However, these original DTOs are

not capable of converting to or constructing from Pro-

tobuf instances that are received or sent by a REST

endpoint. Thus, this step aims to refactor existing

DTO classes by adding methods for serialization and

deserialization of data using the generated Protobuf

classes. This integration allows DTOs to efﬁciently

convert data to and from Protobuf instances.

(4) Refactor REST Controllers to use Protobuf:

This step modiﬁes existing REST controllers to han-

dle Protobuf instead of JSON. Rather than completely

replacing the existing controller, a new Protobuf-

based controller is generated. This dual-controller ap-

proach allows both JSON and Protobuf versions to co-

exist during the migration, enabling a gradual transi-

tion without disrupting current REST clients.

3 IDENTIFY DTOS AND

TRANSFORM THEIR DATA

SCHEMA INTO PROTOBUF

In this section, we discuss how to identify the DTOs

within our REST services and convert their data

schema into the Protobuf format. To do so, we ﬁrst

analyze the data models associated with all REST

endpoints across the REST controllers. This involves

scanning each controller’s methods to examine both

the input parameters, which represent the data re-

ceived from the client, and the return types, which

represent the data returned to the client.

Once the DTOs are identiﬁed, we reverse engineer

their data schema to prepare for migration to Proto-

buf. We examine the ﬁelds of each DTO to identify

their Java data types. We also check the inheritance

of each DTO, as their parent classes must be migrated

to Protobuf as well.

To establish a mapping between Java types and

their corresponding Protobuf types, we rely on the

Protobuf documentation (protobuf.dev, 2024). For in-

stance, Java’s primitive types such as int, long, and

boolean directly translate to Protobuf types int32,

int64, and bool, respectively. Complex types like

List and Set in Java are represented as repeated

ﬁelds in Protobuf, while Map is directly mapped us-

ing map<KeyType, ValueType>. Additionally, other

types, including enum, double, ﬂoat, and String, each

have their speciﬁc equivalents in Protobuf.

Based on this mapping, we derive the Protobuf

format from these data schemas by creating a .proto

ﬁle. To do so, we propose an algorithm illustrated

in Figure 2. It begins by creating a new .proto ﬁle

and adding the necessary header information, includ-

ing package details, import statements, and the syn-

tax declaration (e.g., syntax = "proto3"; speciﬁes

the version of Protobuf). Then, it parses a given Java

Enhancing Data Serialization Efﬁciency in REST Services: Migrating from JSON to Protocol Buffers

195

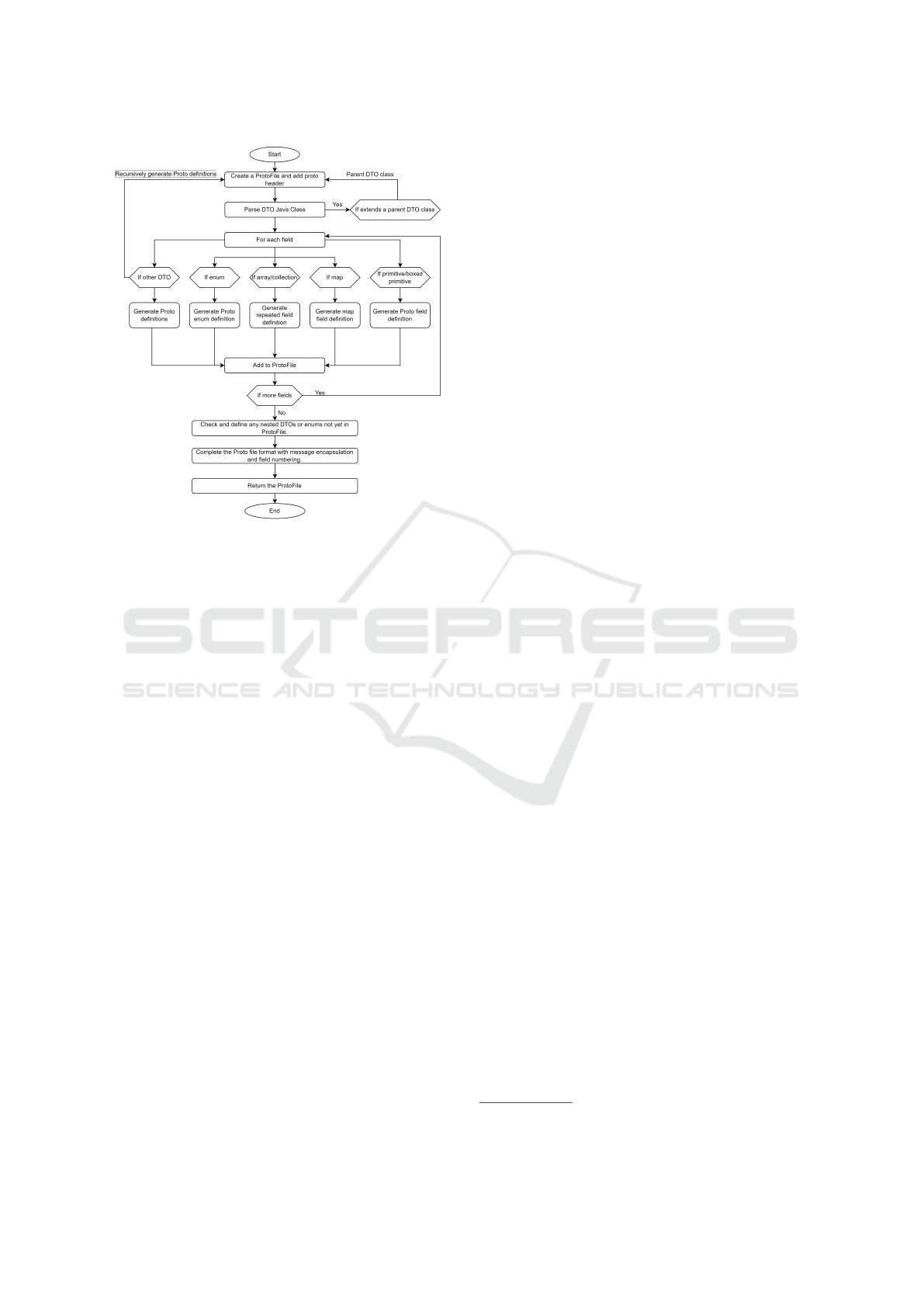

Figure 2: Transformation from DTOs to Protobuf format.

DTO class to extract its ﬁelds and their data types.

If the DTO extends a parent class, it recursively pro-

cesses the parent DTO before continuing with the cur-

rent one. As the algorithm iterates over each ﬁeld,

it determines the ﬁeld type and generates the ap-

propriate Protobuf deﬁnition. If the ﬁeld is another

DTO, the algorithm recursively generates Protobuf

deﬁnitions for the nested DTO. For enums, a corre-

sponding Protobuf enum deﬁnition is created. Arrays

and collections are transformed into repeated ﬁelds,

while maps are generated as map<KeyType, Value-

Type>. For primitive or boxed primitive types, the

algorithm directly generates a Protobuf ﬁeld deﬁni-

tion (e.g., Long to sint64). Each generated ﬁeld is

then added to the .proto ﬁle. Throughout the process,

the algorithm ensures that all referenced nested DTOs

or enums are properly deﬁned in the ProtoFile. After

processing all ﬁelds and conﬁrming message encap-

sulation, the .proto ﬁle is ﬁnalized and returned.

4 GENERATE PROTOBUF

ENTITIES

In this step, we generate Protobuf entities based on

the data schema embedded in the .proto ﬁle generated

in the previous step. To generate these Protobuf en-

tities from .proto, we rely on the Protobuf compiler

(protoc) (gRPC, 2024) provided by Google to gen-

erate Protobuf entities based on a given .proto ﬁle.

This based on three main steps: (1) Add the pro-

toc Plugin: we ensure that the protoc compiler plu-

gin is added to the build conﬁguration of the target

project. For a Maven project, we need to include

the protobuf-maven-plugin

in the pom.xml ﬁle. (2)

Run the protoc Compiler: we execute the build com-

mand to compile the .proto ﬁle and generate the Java

classes. For Maven, use: mvn clean install. This com-

mand triggers the build process, which will compile

the .proto ﬁles and produce the corresponding Java

classes in the target/generated-sources/protobuf di-

rectory. (3) Verify the Output: After running the

build, we ensure that the Java ﬁles have been gener-

ated. These ﬁles include classes for implementing the

Protobuf messages (corresponding to DTOs) deﬁned

in the .proto ﬁle.

This process integrates the protoc compiler into

the build workﬂow, automating the generation of Java

classes from Protobuf deﬁnitions and ensuring that

the application can effectively handle Protobuf data.

5 REFACTOR DTOS BY ADDING

METHODS TO SERIALIZE AND

DESERIALIZE DATA

To refactor the existing DTOs by adding serializa-

tion and deserialization methods in Java, we utilize

the Protobuf entities generated in the previous step.

These methods are responsible for converting Java

objects used in the business logic into Protobuf mes-

sages and vice versa. For each DTO, we add toProto

and fromProto methods, which respectively convert

the DTO object to a Protobuf message and the Proto-

buf message back to a DTO object.

To implement the toProto method, we utilize the

generated Protobuf entities, which include Builder

objects for constructing Protobuf messages. We use

the setter methods of the Builder to ﬁll the Proto-

buf message with values from the corresponding DTO

ﬁelds (e.g., builder.setId(id)). For fromProto method,

we extract each ﬁeld from the received Protobuf in-

stance using its getter methods. With the extracted

values, the method creates a new instance of the DTO

class, ensuring that all data from the Protobuf mes-

sage is accurately transferred to the Java object.

To automate the generation of the toProto() and

fromProto() methods, we propose an algorithm out-

lined in Figure 3. It begins by taking a Protocol

Buffers (.proto) ﬁle as input and using the Protoc

compiler to generate the initial Java classes for the

corresponding Protobuf message types. Once these

classes are generated, an Abstract Syntax Tree (AST)

https://github.com/xolstice/protobuf-maven-plugin

ICSOFT 2025 - 20th International Conference on Software Technologies

196

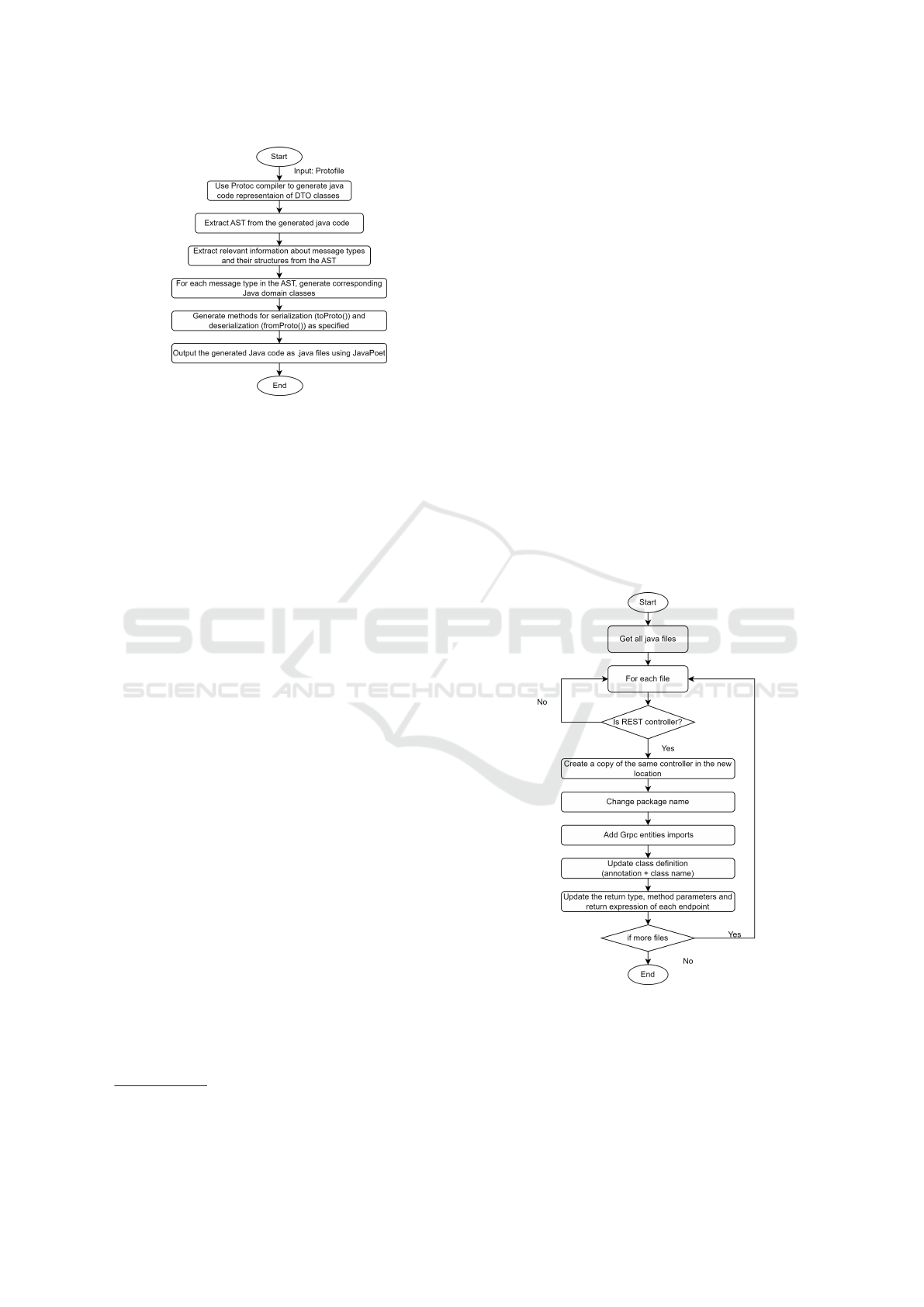

Figure 3: Refactor DTOs by adding methods to serialize

and deserialize data.

is extracted from the Java code. The AST pro-

vides a structured overview of the class hierarchies,

ﬁelds, methods, and data types. We then analyze

this structure to identify the relevant Protobuf mes-

sage types and map them to their respective ﬁelds

within the DTO classes. For each Protobuf message

type, we generate a corresponding Java class, which

includes ﬁelds mapped directly from the .proto ﬁle.

To achieve this, we leverage the JavaPoet library

which programmatically generates the necessary Java

code, producing the ﬁnal .java ﬁles. This automated

approach ensures consistency, reduces manual effort,

and minimizes the potential for errors in the serializa-

tion and deserialization process. We implement this

algorithm in called ProtoGen

that streamlines the in-

tegration of Protobuf with existing Java applications.

6 REFACTOR JSON

CONTROLLER TO PROTOBUF

CONTROLLER

This step modiﬁes existing REST controllers to han-

dle Protobuf messages while keeping the original

JSON-based controllers intact. A new Protobuf-based

controller is generated, allowing both JSON and Pro-

tobuf versions to coexist. This dual-controller ap-

proach enables a gradual migration, ensuring back-

ward compatibility without disrupting current REST

clients. Controller methods are refactored by updat-

ing return types and parameters to use Protobuf mes-

sages, replacing JSON-based data structures. The

toProto() and fromProto() methods ensure efﬁcient

handling of Protobuf requests and responses.

https://github.com/palantir/javapoet

https://github.com/Bahri-Adem/ProtoGen

We propose an algorithm illustrated in Figure 4.

It begins by retrieving all Java ﬁles in the project

directory. Each ﬁle is processed individually to de-

termine if it contains classes annotated with REST

controller annotations, such as @RestController or

@RequestMapping. Once a REST controller is identi-

ﬁed, we create a copy of the class and place it in a new

package designated for Protobuf REST services. The

package declaration in the copied class is updated to

reﬂect its new location. Necessary Protobuf entities

and classes are imported into the copied ﬁle. Next,

the class deﬁnition is modiﬁed by updating its anno-

tation and class name to indicate that it is now a Pro-

tobuf controller. For each endpoint in this controller,

we refactor its Java method as follows. We adjust the

return type to correspond to the appropriate Protobuf

message type. Then, the method parameters are refac-

tored to match the Protobuf request message format.

Additionally, the return expressions are modiﬁed to

incorporate Protobuf-speciﬁc logic for handling re-

quests and responses. This process is repeated for

any other REST controllers present in the project. It’s

worth noting that we do not need to modify the busi-

ness logic of these methods.

Figure 4: Controller converter algorithm.

Enhancing Data Serialization Efﬁciency in REST Services: Migrating from JSON to Protocol Buffers

197

7 EVALUATION

7.1 Evaluation Goal and Methodology

Our approach is evaluated by assessing the efﬁciency

of Protobuf compared to JSON in terms of application

performance. This analysis enables us to quantify the

beneﬁts of adopting Protobuf as a data serialization

approach. To do so, we rely on two web applica-

tions. Application 1 is the PetStore, an open-source

application proposed by Oracle to demonstrate Java

technologies. Application 2 is a large-scale industrial

application from the Berger-Levrault company.

To assess the impact of serialization formats, we

created two controllers for the same application: one

with REST/JSON and the other with REST/Proto-

buf. To collect metrics, we began by identifying

identical workloads to ensure fair comparisons, us-

ing consistent real-world scenarios to ensure that per-

formance differences reﬂect the serialization formats

used. Then, we executed large workload sizes un-

der varied conditions, including concurrent users and

varying data volumes, while functional tests helped

determine appropriate workload sizes for comprehen-

sive data generation. Finally, we continuously collect

performance metrics during workload execution.

Our evaluation is based on ﬁve key metrics: (1)

Data exchange size: The size of data transferred be-

tween clients and servers. It indicates the cost of pars-

ing and transmitting this data. (2) Response time:

The duration from request to response. It is con-

nected to the user experience. (3) CPU usage: The

percentage of processing power consumed during re-

quest handling. It is used to evaluate the system’s ef-

ﬁciency under load. (4) Energy consumption: The

power used during request processing. It is measured

to assess its sustainability. (5) Memory usage: The

amount of memory consumed during request execu-

tion. It is related to resource utilization.

7.2 Results

Figure 5 Illustrates the percentage reduction achieved

with Protobuf compared to JSON in terms of data ex-

change size, response time, CPU usage, energy con-

sumption, and memory usage. The results show that

Protobuf achieves substantial savings, with Applica-

tion 1 experiencing up to an 80% reduction at 16,384

objects (from 1.69 MB to 0.36 MB), and Applica-

tion 2 seeing a 60% reduction at 256 objects (from

2.23 MB to 0.84 MB). This reduction is largely due

to Protobuf’s more compact binary format, which is

optimized for data transmission, unlike JSON’s ver-

bose text-based format. These results indicate that

Figure 5: Results of percentage reduction achieved with

Protobuf compared to JSON.

Protobuf is especially efﬁcient as the number of ob-

jects increases, reducing transmission overhead and

network latency. The consistent reduction in data size

across both applications suggests that Protobuf can be

highly beneﬁcial for systems handling large datasets.

Based on these ﬁndings, adopting Protobuf in data-

intensive applications is recommended, as it can sig-

niﬁcantly improve performance by minimizing data

payload size. For response time, Application 1 ex-

hibits around an 80% reduction (from 2969 MS to 631

MS), while Application 2 shows approximately a 60%

reduction (from 3657 MS to 2141 MS). These results

are due to Protobuf’s more efﬁcient serialization and

deserialization processes compared to JSON, which

involves parsing more complex text structures. The

results indicate that Protobuf signiﬁcantly improves

response times, particularly as the data load increases,

making it a better choice for high-performance appli-

cations. This performance boost suggests that sys-

tems requiring fast, real-time responses can beneﬁt

greatly from switching to Protobuf. Based on these

ﬁndings, adopting Protobuf in latency-sensitive ap-

plications is highly recommended, especially where

large data transfers or frequent interactions are in-

ICSOFT 2025 - 20th International Conference on Software Technologies

198

volved. Concerning the CPU usage, the results show

that Protobuf reduces CPU usage by about 17% in

Application 1 and 18% in Application 2. This reduc-

tion can be attributed to Protobuf which requires sig-

niﬁcantly less processing power for serialization and

deserialization compared to JSON. As a result, Pro-

tobuf’s efﬁciency becomes particularly evident under

high user loads, where it helps reduce CPU strain and

enhances overall system scalability. These ﬁndings

suggest that Protobuf can lead to more efﬁcient re-

source utilization, especially in environments where

CPU resources are limited. For energy consump-

tion, the results illustrate that reduction is around 18%

and 19% for Application 1 and Application 2, respec-

tively. This signiﬁcant energy saving is attributed to

Protobuf’s efﬁciency in data serialization and dese-

rialization processes, which require fewer resources

for parsing and transmitting smaller data. Regarding

memory consumption, the results show that the max-

imum memory reduction observed was around 1.3%

for Application 1 and 1.4% for Application 2 under

heavy user loads. However, this change is negligible,

as we do not have any signiﬁcant impact on memory

usage. This is a good indication that the migration

to Protobuf yields positive results without introducing

any negative effects on memory consumption.

In summary, Protobuf consistently outperforms

JSON across all tested performance metrics, demon-

strating advantages in data size, response time, CPU

usage, and energy consumption, with no additional

memory overhead. This positions Protobuf as a

compelling choice for applications requiring efﬁcient

serialization and deserialization, especially in high-

performance and resource-constrained environments.

7.3 Threats to Validity

Internal Threats. While a controlled testing envi-

ronment is useful for isolating variables, it might not

reﬂect real-world complexities like network latency

or ﬂuctuating system load. Also, simulated work-

loads, although designed to mimic typical user inter-

actions, may not capture the intricacies of live envi-

ronments, which could lead to discrepancies in per-

formance metrics.

External Threats. While Protobuf is supported by

various programming languages, the results obtained

in this study speciﬁcally represent its performance

with Java web applications. However, Java-based

backend applications represent a wide range of in-

dustrial applications. To generalize these ﬁndings for

other languages (e.g., JavaScript), an empirical study

should be conducted.

8 RELATED WORK

Several approaches have been proposed to enhance

the performance of web applications by migrating

to more efﬁcient technologies (Kennedy and Mol-

loy, 2009; Verhaeghe and et al., 2021; Darbord and

et al., 2023; Kaushalya and Perera, 2021; Rabetski

and Schneider, 2013; Lee and Liu, 2022a). While

our approach focuses on migrating the data serial-

ization, they address other aspects of web applica-

tion migration. Some approaches emphasize com-

munication protocol migration, including migration

from RPC to REST (Kennedy and Molloy, 2009),

REST to gRPC (Lee and Liu, 2022b), as well as

RMI to REST (Darbord and et al., 2023). Other

ones migrate the frontend framework including GWT

to Angular (Verhaeghe and et al., 2021), AngularJS

to Web Components (Ronde, 2021), Thymeleaf to

Angular (Eriksson, 2022), and AngularJS to Re-

act (Kaushalya and Perera, 2021). On the archi-

tectural side, attention has been given to migrating

from monolithic architectures to microservice-based

ones. Pinos et al. (Pinos-Figueroa and Le

on-Paredes,

2023) propose a refactoring strategy, while others rec-

ommend layered architecture designs (Zaragoza and

et al., 2022) or automated graph clustering techniques

to decompose monolithic systems using data ﬂow-

driven approaches (Filippone and et al., 2023; Chen

et al., 2017). Other efforts focus on migration to

cloud-native architectures (Balalaie and et al., 2016),

or shifting from on-premises systems to Software as a

Service (SaaS) (Rabetski and Schneider, 2013; Sabiri

and Benabbou, 2015). Although these approaches

contribute to improving web applications, they do not

address the migration of data serialization formats.

Few approaches speciﬁcally target migrating data

serialization from JSON to Protobuf. Most focus

on transitioning from REST to gRPC but overlook a

thorough Protobuf migration. Yunhyeok Lee and Yi

Liu (Lee and Liu, 2022a) propose a manual approach

for migrating REST to gRPC using a simple case

study, but it lacks scalability for larger applications

and does not include performance evaluation. Michal

Stefani

c (

Stefani

c, 2022) offers guidelines for migrat-

ing from REST microservices to gRPC but overlooks

the migration from JSON to Protobuf. Although the

study uses an industrial example, it lacks automa-

tion techniques for streamlining the migration pro-

cess. Additionally, while the study discusses data

exchange size, it does not measure key performance

aspects like response time, memory consumption, or

energy efﬁciency. Berg and Redi (Berg and Me-

brahtu Redi, 2023) focus on analyzing data exchange

size and latency but omit key performance metrics

Enhancing Data Serialization Efﬁciency in REST Services: Migrating from JSON to Protocol Buffers

199

such as CPU usage, memory consumption, and en-

ergy efﬁciency, which are crucial for a comprehen-

sive evaluation. Additionally, their testing relies on a

small example and lacks migration guidelines.

9 CONCLUSION

We propose a semi-automated approach for migrating

the data serialization of existing REST services from

JSON to Protobuf. This aims to optimize the perfor-

mance of existing web applications. We evaluate our

approach using one industrial and one open-source

applications. The results show that both applications

achieve similar levels of performance optimization

and resource utilization reduction. They exhibit a re-

duction in data size of 80% for larger payloads, im-

prove response times by 80%, reduce CPU utilization

by 17%, and decrease energy consumption by 18%,

all without consuming any additional memory. Pro-

tobuf emerges as a strong contender for organizations

looking to optimize their applications’ performance

and responsiveness. Therefore, it is highly recom-

mended to consider Protobuf in scenarios character-

ized by high user concurrency and stringent resource

constraints, as it not only improves performance but

also contributes to more sustainable software.

As a future direction, we plan to extend our

approach by migrating the communication protocol

from REST to gRPC and testing it with a wider range

of web applications. We plan to explore the migration

to Protobuf in frontend applications.

REFERENCES

Balalaie, A. and et al. (2016). Microservices architecture

enables devops: Migration to a cloud-native architec-

ture. Ieee Software, 33(3):42–52.

Barbaglia, G. and et al. (2017). Deﬁnition of rest web ser-

vices with json schema. Software: Practice and Ex-

perience, 47(6):907–920.

Berg, J. and Mebrahtu Redi, D. (2023). Benchmarking the

request throughput of conventional api calls and grpc:

A comparative study of rest and grpc.

Chen, R., Li, S., and Li, Z. (2017). From monolith to mi-

croservices: A dataﬂow-driven approach. In 2017

24th Asia-Paciﬁc Software Engineering Conference

(APSEC), pages 466–475. IEEE.

Crockford, D. (2006). The application/json media type for

javascript object notation (json). Internet Engineering

Task Force IETF Request for Comments.

Darbord, G. and et al. (2023). Migrating the communication

protocol of client–server applications. IEEE Software,

40(4):11–18.

Eriksson, J. (2022). Migration of the user interface of a web

application: from thymeleaf to angular.

Eugster, P. T. and et al. (2003). The many faces of

publish/subscribe. ACM computing surveys (CSUR),

35(2):114–131.

Fernando, R. (2022). Evaluating performance of rest

vs. grpc. https://medium.com/@EmperorRXF/

evaluating-performance-of-rest-vsgrpc-1b8bdf0b22da.

Fielding, R. T. (2000). Architectural styles and the design

of network-based software architectures. University

of California, Irvine.

Filippone, G. and et al. (2023). From monolithic to mi-

croservice architecture: an automated approach based

on graph clustering and combinatorial optimization.

In ICSA, pages 47–57. IEEE.

gRPC (2024). https://grpc.io/docs/protoc-installation/. (ac-

cessed: September 2024).

Jang, J. and et al. (2020). A specialized architecture for

object serialization with applications to big data ana-

lytics. In ISCA, pages 322–334. IEEE.

Kaushalya, T. and Perera, I. (2021). Framework to migrate

angularjs based legacy web application to react com-

ponent architecture. In Moratuwa Engineering Re-

search Conference (MERCon), pages 693–698. IEEE.

Kelly, T. (2022). grpc vs rest: Performance benchmarking.

Journal of Systems Research (JSys).

Kennedy, S. and Molloy, O. (2009). A framework for tran-

sitioning enterprise web services from xml-rpc to rest.

Lee, Y. and Liu, Y. (2022a). Using refactoring to migrate

rest applications to grpc. University of Massachusetts

Dartmouth.

Lee, Y. and Liu, Y. (2022b). Using refactoring to migrate

rest applications to grpc. In ACM Southeast Confer-

ence, pages 219–223.

Monday, P. (2003). Implementing the data transfer object

pattern. In Web Services Patterns: Java™ Platform

Edition, pages 279–295. Springer.

Pinos-Figueroa, B. and Le

on-Paredes, G. (2023). An ap-

proach of a migration process from a legacy web man-

agement system with a monolithic architecture to a

modern microservices-based architecture of a tourism

services company. In CONISOFT, pages 9–17. IEEE.

protobuf.dev (2024). https://protobuf.dev/

programming-guides/proto3/#scalar. (accessed:

Sep/2024)

Rabetski, P. and Schneider, G. (2013). Migration of an on-

premise application to the cloud: Experience report.

In ESOCC, pages 227–241. Springer.

Ronde, S. (2021). Migrating Angular-based web apps to

Web Components-A case study at 30MHz. PhD thesis,

Universiteit van Amsterdam.

Sabiri, K. and Benabbou, F. (2015). Methods migration

from on-premise to cloud. Journal of Computer Engi-

neering, 17(2):58–65.

Verhaeghe, B. and et al. (2021). Migrating gui behavior:

from gwt to angular. In ICSME, pages 495–504. IEEE.

Zaragoza, P. and et al. (2022). Leveraging the layered ar-

chitecture for microservice recovery. In ICSA, pages

135–145. IEEE.

Stefani

c, M. (2022). Developing the guidelines for migra-

tion from restful microservices to grpc. Masaryk Uni-

versity.

ICSOFT 2025 - 20th International Conference on Software Technologies

200
