Effort Estimation of Large-Scale Enterprise Application

Mainframe Migration Projects: A Case Study

Sascha Roth

Lucerne University of Applied Sciences and Arts, School of Computer Science and Information Technology, Switzerland

Keywords: Enterprise Applications, Mainframe, Migration, Legacy Systems, Cost Estimation, Cloud Computing.

Abstract: How do you migrate an enterprise application which has decades old legacy code running on an IBM Z-series

mainframe? What options do you have and how do you estimate the efforts best? In this paper, we present a

model developed during a real-world case study of a migration endeavour of the worldwide warranty system

at a major premium automotive. We present a pragmatic approach taken to ballpark migration efforts which

allows for similar endeavours to estimate migration efforts in a similar fashion.

1 INTRODUCTION

The mainframe did indeed not go anywhere in the last

decade as forecasted by (Barnett, 2005). Yet, it is one

of those systems that you better do not touch:

Changes are delivered (too) late, developers are either

hard to find or hard to onboard, and business never is

happy with what they get for the buck.

Enterprise applications running on mainframes

usually carry decades of history with them (Bhatnagar

et al., 2016). So, it does not surprise that they come

with heavy luggage: technical debts. Even the best

designs eventually become outdated and become

hard(er) to maintain. Due to financial pressure,

technical debt often is not addressed adequately with

refactoring or rearchitecting measures. Despite

software does not age, technical debts hit

organizations regularly (Tom et al., 2013). In short:

mainframe applications are often legacy than an

organization needs to get rid of. A first step toward it

is to plan for a migration to another system. In our

case, the target was set to the AWS cloud. Effort

estimation of software development is a non-trivial

issue (Carbonera et al., 2020).

The remainder of the article is structured as

follows: we briefly give an outline on mainframes and

depict common strategies how to modernize

mainframe applications. We then proceed by

detailing our case study, set the frame conditions for

the case and then outline the solution taken to

estimate the efforts and derive a roadmap. In the

discussion section, we reflect on the approach and

also outline the limitations and risks we see. The

paper concludes with an outlook of the migration and

further initiatives we can think off to help

organizations that are in a similar situation.

2 A (VERY) BRIEF HISTORY OF

MAINFRAME

MODERNIZATION

Mainframe application modernization has been

around for decades. Albeit unwanted, mainframe

applications are not that easy to modernize. While

(Sun & Li, 2013) proposed an approach to estimate

efforts for cloud migrations, they do not account for

the mainframe specific challenges, which mostly is

outdated design, an inadequate data models and other

technical debt accumulated over the decades.

However, several methods and approaches are known

how to modernize the mainframe, with or without its

full replacement.

2.1 Transpilation

Transpilation is one possibility to move from A to B

(Schnappinger & Streit, 2021), or let us say: to

convert the code base from A to B. That is, this

technique takes the sources of one tech stack and

transpiles it into the language of the target tech stack.

In the authors` example, they performed a conversion

at source level from Natural to Java. Our case has a

Roth, S.

Effort Estimation of Large-Scale Enterprise Application Mainframe Migration Projects: A Case Study.

DOI: 10.5220/0013289500003929

In Proceedings of the 27th International Conference on Enterprise Information Systems (ICEIS 2025) - Volume 2, pages 845-850

ISBN: 978-989-758-749-8; ISSN: 2184-4992

845

different source technology and a 1:1 conversion

would not address all issues and challenges the

development teams and users of this application face.

While this case study is a good example for an

application which might not be changed anymore and

its roadmap planned for a sundown scenario in the

near future, our application is heavily used and, after

migration, should strive again like on the first day.

2.2 Screen Scraping

A common technique also discussed during

mainframe application modernizations is so-called

screen scraping (Dörsam et al., 2009). The main idea

is to literally scrape the screen of typically terminal-

based mainframe applications and make them

accessible via newer technologies, e.g. REST APIs.

This technique can be a low-cost alternative if you

want to stay on a mainframe. As we will state in the

next section, this is not the case in our case study.

Further, as the application already has gone through a

partial modernization, its logic is no longer

implemented in COBOL and the likes. Hence, screen

scraping is neither applicable, nor would it help to

retire the mainframe.

2.3 The 7-Rs

The 7Rs were initially 5Rs introduced by Gartner

(Migrating Applications to the Cloud, 2009) and have

been extended by Amazon and now include all

possibilities the authors can think of (About the

Migration Strategies - AWS Prescriptive Guidance,

2024). We briefly summarize the 7Rs as they were

considered and evaluated in our case study as well.

Rehost: Also known as “lift and shift,” this

strategy involves moving applications to the cloud

without making any changes. It’s quick but may not

take full advantage of cloud benefits.

Replatform: This involves making a few cloud

optimizations to achieve some tangible benefits

without changing the core architecture of the

applications.

Repurchase: This strategy involves moving to a

different product, typically a SaaS platform, which

means abandoning the existing application.

Refactor/Re-architect: This involves re-

imagining how the application is architected and

developed, typically using cloud-native features. It’s

the most resource-intensive but can offer the most

benefits.

Retire: Identify assets that are no longer useful

and can be turned off. This can help reduce costs and

complexity.

Retain: Keep applications that are critical to the

business but are not ready to be migrated. This might

be due to complexity, cost, or other factors.

Relocate: Move applications to the cloud without

purchasing new hardware, often using virtualization

technologies.

3 CASE STUDY

We begin our case study with providing an overview

of the context of the application. Our client is in the

automotive industry and a major player of luxury

cars. The system is one of the aftersales systems to

handle warranty and goodwill cases. It features many

interfaces and as it is historically grown, many

stakeholder consume data from the system, either

directly (via interfaces or DB access) or indirectly via

reports and file-based exports. [Permission to

disclose further information about the system and its

context requested, permission may be provided after

review process. Potential artefacts to be shared

include: a capability map, process coverage,

interfaces to other systems and integrations into the

system landscape and datawarehouse and datalake

environment]

3.1 Guardrails

Business applications run in organizations and serve

a certain purpose. They are also embedded in IT

strategies. This builds guardrails for our decision on

why and how to migrate. We briefly outline some key

guardrails.

The organization implemented the scaled-agile

framework (SAFe) and accordingly the teams work in

product increments and sprints.

The mainframe will be retired on December 2026

and prolongation is not possible – we have a fixed

deadline.

A predecessor project already investigated that the

business capabilities and tech stack are future prove,

so entirely replacing the system is out of scope.

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

846

3.2 The Tech Stack

The tech stack of our mainframe application is a

mixture of mainframe tech and modern frameworks

that one would still choose nowadays to design new

enterprise applications.

As programming framework, Java Spring is used

in combination with a DB2 database. What sounds

almost plain vanilla turns out to be a leftover of

refactoring measures that took place almost a decade

ago. The mainframe parts, namely COBOL were

largely removed during that initiative and a state-of-

the-art framework was introduced. As for the UI,

Angular is used.

An earlier analysis revealed that the application as

such is highly customized and fit to the business

needs. Given a) the used tech stack is state-of-the-art

and b) the coverage of the business use cases is quite

specific, our client followed our recommendation to

keep the system and did not evaluate if it can be

replaced by other solutions (software as a service in

particular).

During analysis, one spark that was of our interest

has been the DB2. Why would anyone combine a

Spring application with DB2? It turns out there are a

couple of reasons for that:

High Throughput and Performance: DB2 is

designed to handle large volumes of

transactions efficiently, making it ideal for

high-demand environments. It leverages the

robust processing power of mainframes to

deliver exceptional performance and

throughput.

Scalability: DB2 can scale to meet the needs of

growing businesses. It supports large

databases and can handle significant increases

in data volume without compromising

performance.

Reliability and Availability: Mainframes are known

for their reliability, and DB2 benefits from

this. It offers high availability and disaster

recovery capabilities, ensuring that critical

applications remain operational even in the

event of hardware failures.

Security: DB2 provides advanced security features to

protect sensitive data. This includes

encryption, access controls, and auditing

capabilities, which are essential for industries

that handle confidential information.

Integration and Flexibility: DB2 integrates

seamlessly with various data sources and

applications, providing a flexible environment

for data management. It supports both

traditional and modern workloads, including

cloud and mobile applications.

Advanced Data Management: DB2 includes tools

for database management and optimization,

helping administrators manage and monitor

workloads effectively. This improves

productivity and reduces administrative

efforts.

3.3 Key Indicators to Consider

For the expert estimation, we used several indicators

that ground their number and helped experts to derive

their estimate from known facts.

• Code Lines: the total lines of code of all modules

• JPA Queries: total number of queries that

conform to the JPA specification and hence can

be reused with almost any database out of the

box, provided that database is supported by

spring boot data

• Native Queries: Number of SQL queries that use

native SQL and may include proprietary DB2

functions

• Modules: The number of modules that make up

the application, in our case the spring boot

applications.

• Interfaces (Consuming, Pull, Polling, or

Subscribe): All inbound interfaces that consume

data from an endpoint. Most of the time this is an

endpoint within the corporate network; but also

outside the corporate network.

• Interfaces (Providing, Push, Publish): Interfaces

that provide data to other systems.

• Interfaces that definitely need significant

refactoring due doe technical debt, e.g. specific

flags for use cases have been baked into the

interface.

• Tivoli job nets: number of job networks in Tivoli

• Average steps of a job network in Tivoli

• Developers: FTE of developer resources

currently dedicated to the application

• Business Analysts: FTE of subject matter experts

wrt. the application’s scope

• Number of Tables of all modules

• Average size of a table in million rows

• Largest table in million rows

• Developers with SQL experience in FTE

• Blended rate per team member per day

Effort Estimation of Large-Scale Enterprise Application Mainframe Migration Projects: A Case Study

847

• Number of database triggers

• Number of views in the database

• Number of history tables in the database

• Number of materialized queries in the database

• Total size of database size in (without LOBs)

• Total history size in GB

• Total size of LOBs

• Outgoing traffic from database per week in GB

• Incoming traffic to database per week in GB

• Total rows in database

• Total send rows per week

• Average row size (without LOBs)

• Number of data objects on application layer

4 EFFORT ESTIMATION MODEL

FOR (MAINFRAME)

APPLICATION MIGRATIONS

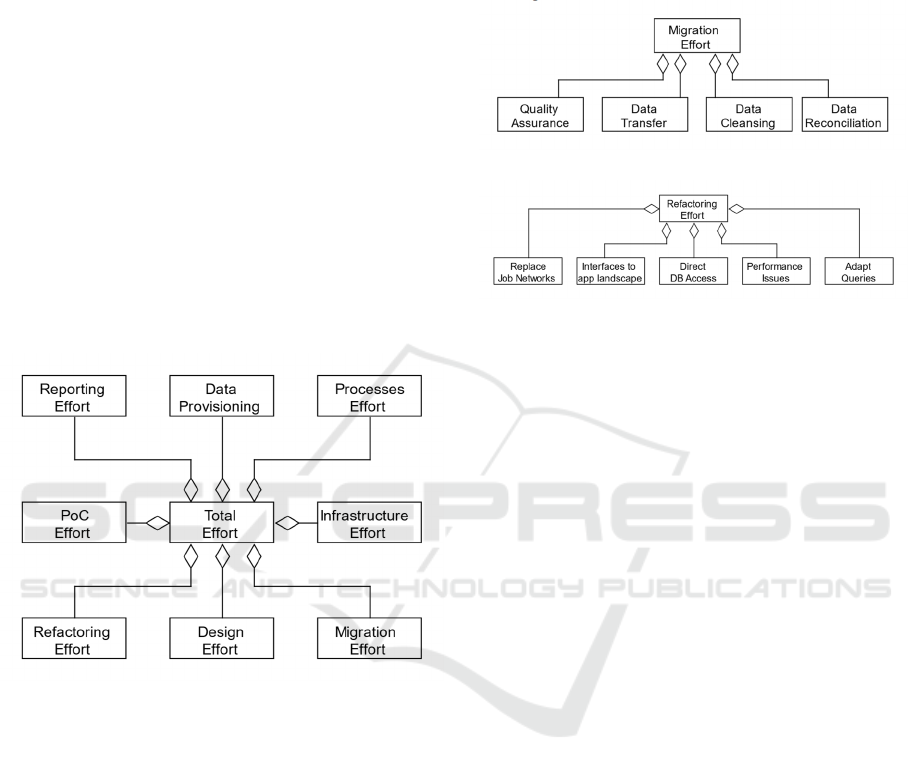

Figure 1: High-Level overview of an effort Estimation

Model for Cloud Mainframe Migrations.

In Figure 1 we illustrate the applied estimation model

as UML diagram. The total effort is modelled as an

aggregation of different efforts. What is depicted as

“Total Effort” is our bottom-up effort estimate that is

derived from expert estimates. Thereby, each

estimate is sufficiently broken down into bits that

experts feel comfortable to provide an estimate for.

Figure 2 illustrates how this has been done for the

class of “Migration Effort” whereas Figure 3 depicts

the break-down for “Refactoring Effort”.

In addition to the break-down into smaller bits

and pieces and to account for learnings and scale

effects during the migration project, an additional

factor for synergies was provided.

The key indicators provided above served to

calculate the effort of each group. Various expert

interviews helped to sharpen the understanding,

whereas the key indicators helped to challenge and

ground the experts’ opinions.

Our goal was to estimate necessary and sheer

unavoidable tasks that need to be performed during

the migration.

Figure 2. Breakdown of migration efforts.

Figure 3: Breakdown of refactoring efforts.

4.1 Agile vs non-Agile Migration

During the project, we also challenged the application

of agile methods for this migration project. Although

our client already implemented SAFe and performs

product increment (PI) plannings, for the migration of

a mainframe, this setup seemed inadequate: Agile

methods are particularly well suited if outcomes are

unclear and/or customer requirements frequently

change. This is not the case in migration projects.

4.2

The

Target Architecture

Mainly guided by the guardrails and the current

architecture of the application, the potential target

tech stack reduces itself to not too many options.

However, these need to be evaluated during PoCs and

one needs to see if timeouts of application logic etc.

will still hold in the cloud with potentially higher

latencies.

Direct database access will no longer be possible

as this (always) was a concerning issue to give

business direct access to a database with even the

query power to perform an unconditional and largely

unrestricted “select *” of many GB- or TB-sized

tables.

4.3

Organizational

Overhead

Most startups are faster in developing applications.

This is mainly due to two reasons: 1) They build

green-field 2) They have less stakeholders which

results in less communication overhead.

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

848

While experts can estimate their own work very

well, we argue that they did not consider for

organizational overhead, such as alignment meetings

or conflicts that arise when discussing data ownership

or alternative designs and redesign of the modules (cf.

also (Henry & Ridene, 2020)). We chose a three-step

approach bringing together the bottom-up perspective

and challenging it with a top-down estimate.

Step 1: We validated the bottom-up number with

experts as previously outlined.

Step 2: We added 5 dimensions of organizational

overhead and estimated percentages of the initial

estimate.

Step 3: We reflected the resulting number with

top-down estimates of a migration, i.e. is it between a

factor 2 to 3 of the annual operations cost.

As a rule of thumb, a top-down estimate for

migration efforts can be derived from the annual

operations cost. A factor 2 can be assumed as

migration cost if the migration is more or less

straightforward. On the other hand, a factor 3 can be

assumed for more complicated setups like a

mainframe migration to the cloud.

In our case study, the bottom-up estimates where

indeed in the range of 2-3 times the annual operations

cost for the mainframe system.

4 CONCLUSIONS & FURTHER

RESEARCH

Mainframe migrations are a true challenge in

practice. Grown over decades, organizations need to

take them into account in enterprise application

landscape planning. Little guidance is given to

organizations how to plan and execute their

mainframe migrations.

In this paper, we presented a practice proven

model for mainframe effort estimation, offering a

structured approach to ballpark the resources required

for mainframe migration initiatives. While the model

is still in its evaluation phase and has not yet

sufficiently been empirically evaluated, it lays a solid

foundation for future research and practical

application.

The proposed model integrates historical system

data and project-specific variables estimated by

experts, aiming to provide a comprehensive

framework for effort estimation. By addressing the

complexities and unique characteristics of mainframe

projects, this model has the potential to enhance

project planning and resource allocation significantly.

Future work will focus on validating the model

through additional empirical studies and real-world

applications. This will involve collecting and

analyzing data from various mainframe projects to

assess the model’s accuracy and reliability.

Additionally, exploring the integration of advanced

statistical techniques and machine learning

algorithms could further refine the model and

improve its predictive capabilities.

As the model undergoes further development and

validation, it holds the potential to become a valuable

tool for project managers and stakeholders, enabling

them to make informed decisions and optimize

resource utilization during mainframe migration

projects.

Further research could focus on implementing a

system that provides various model configurations

and shares best practices with the community.

Maturity of organizations as well as their industry

could play crucial factors in estimating efforts for

mainframe migrations. In some cases, one might

choose to rebuild a new system after all. Models and

systems could help preventing sunk costs and

frustrating journeys for organizations.

REFERENCES

About the migration strategies—AWS Prescriptive

Guidance. (2024). https://docs.aws.amazon.com/pres

criptive-guidance/latest/large-migration-guide/migrati

on-strategies.html

Barnett, G. (2005). The future of the mainframe.

Bhatnagar, M., Shekhar, J., & Kumar, S. (2016). One

Architecture Fits All – IBM Mainframe. GRD

Journals-Global Research and Development Journal

for Engineering, ISSN: 2455-5703, 1, 85–91.

Carbonera, C. E., Farias, K., & Bischoff, V. (2020).

Software development effort estimation: A systematic

mapping study. In IET Software (Vol. 14, Issue 4, pp.

328–344).

Dörsam, M., Gründling, S., Langholz, T., Roth, S., &

Steinbrecht, A. (2009). Integrating a Legacy Terminal

Application into an SOA. Informatiktage 2009 -

Gesellschaft Für Informatik (GI), 95.

Henry, A., & Ridene, Y. (2020). Migrating to

Microservices. In A. Bucchiarone, N. Dragoni, S.

Dustdar, P. Lago, M. Mazzara, V. Rivera, & A.

Sadovykh (Eds.), Microservices: Science and

Engineering (pp. 45–72). Springer International

Publishing. https://doi.org/10.1007/978-3-030-31646-

4_3

Effort Estimation of Large-Scale Enterprise Application Mainframe Migration Projects: A Case Study

849

Migrating Applications to the Cloud: Rehost, Refactor,

Revise, Rebuild, or Replace? (2009). Gartner.

https://www.gartner.com/en/documents/1485116

Schnappinger, M., & Streit, J. (2021). Efficient Platform

Migration of a Mainframe Legacy System Using

Custom Transpilation. 2021 IEEE International

Conference on Software Maintenance and Evolution

(ICSME), 545–554. https://doi.org/10.1109/ICSME52

107.2021.00055

Sun, K., & Li, Y. (2013). Effort Estimation in Cloud

Migration Process. 2013 IEEE Seventh International

Symposium on Service-Oriented System Engineering,

84–91. https://doi.org/10.1109/SOSE.2013.29

Tom, E., Aurum, A., & Vidgen, R. (2013). An exploration

of technical debt. Journal of Systems and Software,

86(6), 1498–1516. https://doi.org/10.1016/j.jss.201

2.12.052

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

850
