Quantum-Resilient IoT: Integrating Hardware-Based Post-Quantum

Cryptography for Robust Device Security

Stephan Spitz

, Alexander Lawall

and Michal Andrzejczak

IU International University of Applied Science, Juri-Gagarin-Ring 152, 99084 Erfurt, Germany

Resquant, Narutowicza 40 / 1, 90-135 Lodz, Poland

Keywords:

Silicon-Integrated Post-Quantum Cryptographic Cores, Applied Post-Quantum Cryptography, Internet of

Things (IoT) Security, Industrial Internet of Things (IIoT) Security.

Abstract:

The evolution of quantum computers necessitates the reevaluation of cryptographic standards, especially

within the Internet of Things (IoT) infrastructures, where long-term security is critical. Current cryptographic

algorithms, such as RSA, are vulnerable to quantum attacks, highlighting the need for post-quantum crypto-

graphic (PQC) solutions. This paper explores the integration of PQC Cores into System-on-a-Chip (SoC) ar-

chitectures to enhance the security of IoT devices. The foundation is a crypto-agile Root-of-Trust (RoT), these

integrated PQC solutions provide robust lifecycle management, secure boot processes, and protection against

quantum-based threats. The paper discusses the architectural considerations for integrating PQC, including se-

cure boot, lifecycle management, and the role of RoT in ensuring device integrity and secure communications.

The research ﬁndings emphasize the importance of PQC in safeguarding IoT infrastructures from emerging

quantum threats and demonstrate how hardware-based PQC implementations offer superior security compared

to software-based counterparts, particularly in the context of side-channel attack mitigation.

1 INTRODUCTION

The evolution of quantum computers will demand

an update of security mechanisms, which are funda-

mental in communication protocols and IT processes.

This is especially valid for mechanisms built on cryp-

tographic primitives (Tiwari et al., 2024). There

exists, for example, the Shor-Algorithm (Skosana,

2021) for the factorization of large primes that solves

the foundational challenge on which the RSA (Rivest

Shamir Adleman) algorithm (Rivest et al., 1978) has

been built. Similarly, currently used asymmetric

ciphers are affected once quantum computers offer

sufﬁcient computing capabilities that are based on

qubits. For breaking the RSA cipher with the Shor-

Algorithm, at least 4000 qubits are required for a

2048-bit key (Roetteler et al., 2017) whereas topi-

cal quantum computers have just surpassed the 1000

qubits (Quantum, 2023). For this reason, RSA ciphers

with 512-bit key length can no longer be considered

secure.

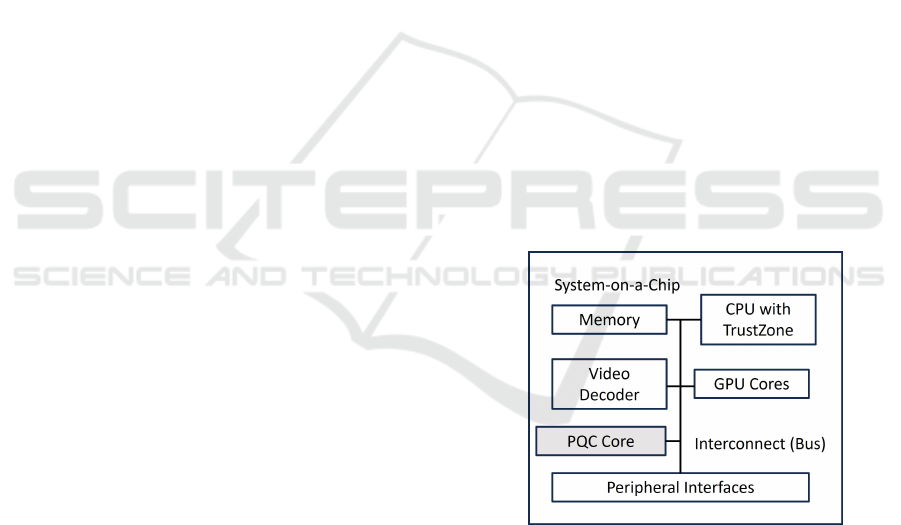

Figure 1: Integration of a Post-Quantum Cryptographic

Core in a System-on-a-Chip.

2 THE TECHNOLOGY STACK

This section describes the foundation for linking se-

curity services on the application level to an inte-

grated Post-Quantum Cryptographic (PQC) Core (Za-

gala and Andrzejczak, 2024) in a System-on-a-Chip

(SoC). A dedicated technology stack is required link-

ing the PQC Core via a processor bus to security ser-

vices running in a TrustZone (Arm, 2018) or another

Spitz, S., Lawall, A. and Andrzejczak, M.

Quantum-Resilient IoT: Integrating Hardware-Based Post-Quantum Cr yptography for Robust Device Security.

DOI: 10.5220/0013091100003899

In Proceedings of the 11th International Conference on Information Systems Security and Privacy (ICISSP 2025) - Volume 2, pages 419-424

ISBN: 978-989-758-735-1; ISSN: 2184-4356

419

Security Enclave on the main CPU, cf. Figure 1.

An integrated PQC Core needs to interact with

secure software that is executed in a protected envi-

ronment such as TrustZone. This ensures that only

a higher privileged and protected process can use the

PQC algorithms and that cryptographic keys are suf-

ﬁciently protected.

2.1 Crypto Support of Secure Services

Concurrency of the security services is necessary be-

cause services executed in the richOS or Real-Time

OS (RTOS) require parallel access to PQC crypto

routines and cryptographic keys (Spitz, 2012). Con-

sequently, the new security subsystem including the

PQC Core must support high bandwidth commu-

nication, multitasking and multithreading. Secure

concurrent communication over the Internet Protocol

(IP), e.g. Transport Layer Security (TLS) demands

the handshake asynchronous encryption and signa-

ture veriﬁcation processes performed in the Secure

OS. Large vendors such as IBM and Google are al-

ready working on PQC-enabled TLS Cipher Suites

(Pursche et al., 2024), (Westerbaan, 2024) in their

products. In contrast, the Internet Engineering Task

Force (IETF) is currently working on standardizing

TLS with hybrid modes (Stebila et al., 2024), where

classical cryptography is used in combination with

post-quantum algorithms.

2.2 Secure Boot

Another important aspect is the PQC Core integration

in the boot process, cf. Figure 2. The SoC-integrated

PQC Core is booted together with the SoC ﬁrmware

before the richOS/RTOS starts execution. This re-

sults in a security-critical dependency of the entire

boot process on the PQC Core. The authenticity of

the ﬁrmware and communication stack must be vali-

dated during the SoC’s Secure Boot process to ensure

that no altered or compromised software or ﬁrmware

is loaded by a potential attacker. Moreover, the veriﬁ-

cation procedure must be reliable and veriﬁed. Thus,

a full hardware implementation (based only on ded-

icated circuits without any program) of PQC algo-

rithms used in Secure Boot for signature veriﬁcation

must be performed. The circuit responsible for this

part is veriﬁed with formal methods in the pre-silicon

stage and is the security foundation for Secure Boot.

The involved keys and code require the following

protection:

• Integrity protection of the PQC public keys for

code integrity veriﬁcation

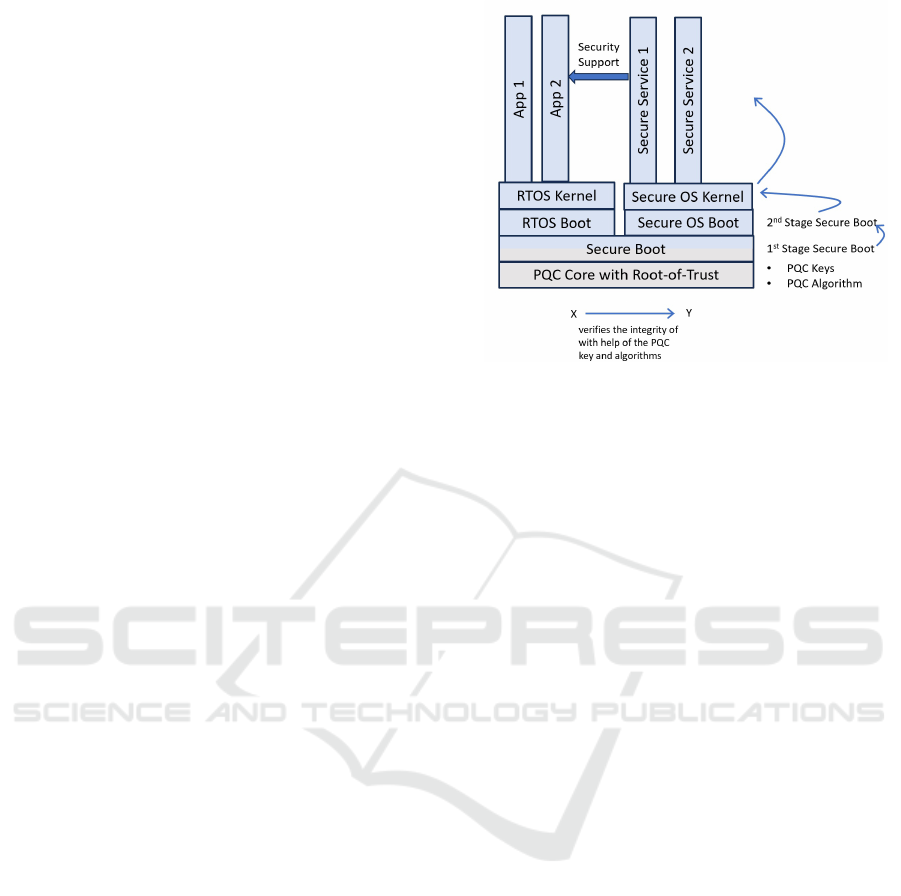

Figure 2: Staged Veriﬁcation during the Boot with the PQC

Core providing the Foundation.

• Integrity protection of the code doing the veriﬁca-

tion, which is part of the ﬁrst stage bootloader

• Monotonic Counters which are used to invalidate

old ﬁrmware and allow updates of the second-

stage bootloader code

The entire SoC must exhibit tamper resistance, with

particular emphasis on the cryptographic core. Sim-

ilar to Smart Card semiconductors, security-critical

components must be safeguarded through active

countermeasures such as metal shielding, scrambled

data buses, or sensors designed to detect attacks.

These requirements introduce signiﬁcant challenges

to chip architecture and standard silicon fabrication

processes.(Arm, 2018). A challenge for PQC is

side-channel protection where additional leakage (e.g.

thermal, timing and power) can be used to compro-

mise used keys. To face this threat, several addi-

tional countermeasures are adopted, slowing down al-

gorithms up to several times (Migliore et al., 2019).

However, hardware implementations of PQC offer

more ways to implement countermeasures compared

to software implementations and are also more efﬁ-

cient. The generic SoC manufacturing processes must

be enhanced to establish the necessary cryptographic

and security infrastructure, particularly for the Secure

Boot mechanism (IAR, 2018). The establishment of

the Root-of-Trust (RoT) serves as the foundational se-

curity element for Secure Boot and all subsequent se-

curity processes, including the deployment and load-

ing of the Secure OS, as well as individualization and

penalization procedures. As personal devices like a

wearable or smartphone get into the hands of users at

a later stage, accounts are personalized in an insecure

environment. The RoT ensures a reliable device iden-

tity and enables attestation services to bootstrap user

identities and user authentication in the ﬁeld.

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

420

3 ARCHITECTURAL CONCEPTS

3.1 Considerations on PQC Integration

SoC-integrated security solutions have an impact on

the whole technology stack, which is built in bare

metal (Spitz and Lawall, 2024). One important aspect

is the reentrance of the PQC Core to support mul-

tiple cryptographic operations on the software layer.

In the operating system, multitasking enables se-

cure encrypted and authenticated asynchronous high-

bandwidth communication (Safe, 2024). There are

different possibilities to connect an IoT device se-

curely to the Internet. The operating system archi-

tecture must account for the integration of the PQC

Core, providing appropriate drivers and protocols to

facilitate its interaction. At higher software layers,

asynchronous communication is managed through a

mailbox mechanism, enabling the exchange of large

volumes of data between security-critical and non-

critical processes within a designated memory space.

Another security-critical piece of functions closely

linked to the PQC Core is system calls, which are

mapped to the cryptographic support in hardware.

The entry point is the OS Kernel which contains

the necessary routines for accessing the PQC Core

e.g. for verifying the integrity of applications that are

scheduled for execution by the OS Kernel. An exam-

ple of such a service is the Samsung TIMA (Trusted

Integrity Management Architecture) (Snyder, 2019)

on Android smartphones. TIMA issues system calls

to the services that are securely executed by the Se-

cure OS running in the TrustZone of the SoC. One

reason for such system calls is the run-time integrity

protection of the OS Kernel itself and security-critical

applications to avoid fraudulent modiﬁcations in the

code, e.g. to bypass rights management. Typically,

the Secure OS is loaded from ﬂash memory in an early

boot stage and initialized with the cryptographic keys

stored in the PQC Core. Especially with Dilithium the

key length of up to 4864 bytes for the private key has

to be considered when storing keys in the secret mem-

ory of the PQC Core. Nevertheless, sufﬁcient ﬂash

memory seems not to be an issue on modern SOCs

whereas the SRAM (i.e. Cortex-M4) reaches in some

cases its limitations during the execution of Dilithium

with these key lengths. Large key sizes can be a chal-

lenge for more constrained devices. Long-term stor-

age techniques for generating keys from master seed

might be applied, but this won’t solve issues with a

lack of MCU’s internal memory. In that case, speciﬁc

implementation techniques or dedicated hardware cir-

cuits should be developed. The main OS Kernel is

booted after the complete security subsystem consist-

ing of the Secure OS, Secure Services and the PQC

Core have been initialized. Thus, attacks on the OS

Kernel can hardly circumvent the Secure OS or tam-

per the PQC Core in hardware. The essential mas-

ter keys, integrity protection and veriﬁcation mech-

anisms are part of the PQC Core because this of-

fers protection in hardware (Zagala and Andrzejczak,

2024).

3.2 Overall SoC Security Architecture

A single PQC Core is insufﬁcient for ensuring the

security of an SoC. Strong hardware-based isolation

mechanisms are crucial, such as Arm TrustZone or a

dedicated secure processor core like the ARC SEM

(Synopsys, 2016). Additionally, security-critical SoC

components, including memory and I/O peripherals,

can be isolated from standard processing elements

and accessed exclusively in a secure execution mode.

Countermeasures against fault injection and side-

channel attacks are essential in any hardware secu-

rity solution. Since generic silicon fabrication pro-

cesses offer limited support for such protections, the

security features embedded in hardware and ﬁrmware

become increasingly critical. Firmware plays a key

role in safeguarding access to the PQC Core with se-

curity boundaries established during platform boot.

Integrity checks must be performed for all low-level

drivers and ﬁrmware components, particularly for the

driver interfacing with the PQC Core. A staged secure

boot process is needed to initialize all secure process-

ing elements before activating standard components,

ensuring that standard operations do not compromise

security settings or access to critical cryptographic

keys and functions.

4 LIFECYCLE MANAGEMENT

OF INTEGRATED SECURITY

SOLUTIONS

4.1 The Role of a Root-of-Trust

A robust RoT, integrated with the PQC Core, serves

as the foundational security anchor for software

lifecycle management and update processes (IAR,

2018). Lifecycle management encompasses the de-

ployment, modiﬁcation, and complete removal of

security-critical code and data, particularly informa-

tion related to device identity and access control roles.

This identity-related data may pertain to the device it-

self or the roles governing access management.

Furthermore, a RoT is essential for establishing a

Quantum-Resilient IoT: Integrating Hardware-Based Post-Quantum Cryptography for Robust Device Security

421

secure communication channel with the device, en-

abling the provisioning of identities even when the

device operates in an untrusted environment. Lever-

aging the RoT, an authenticated and secure channel

can be established, facilitating the secure download

of sensitive data, such as during maintenance opera-

tions, even when the device is already deployed in the

ﬁeld. The RoT provides the cryptographic foundation

required for securely binding the device to an external

trusted entity through a cryptographic handshake. A

RoT can be based on the following asymmetric and

symmetric keys:

• Crypto-Agility with a symmetric master key pre-

seeded for exchange of the asymmetric keys and

algorithms

• XMSS/LMS or SPHINCS+ public key for boot

chain integrity veriﬁcation

• CRYSTALS-Dilithium private key for Remote

Attestation

• CRYSTALS-Dilithium public key for Remote

Authentication. XMSS is best suited for BLOB

updates.

• CRYSTALS-Kyber public key for a secure key

exchange of a temporary symmetric key for Data

Conﬁdentiality

The RoT can be also located outside the PQC Core

in the protected memory of the SoC. The RoT must

be established in a secure process in a secure envi-

ronment. At least, the AES256 (National Institute of

Standards and Technology, 2001) secret must be pre-

seeded with the ﬁrst part of the bootloader. A staged

secure bootloader incorporating the RoT is respon-

sible for the integrity of the whole SoC and all the

software executed on the device. Such a bootloader

is typically organized in a ﬁrst and second stage, cf.

Figure 3.

Figure 3: Key Provisioning for seeding a Root-of-Trust.

The PQC Cores have the necessary capabilities to

protect the PQC master keys and at least one symmet-

ric secret, preferably an AES256 symmetric key. This

symmetric key has to be protected in the best possi-

ble way in the device and the infrastructure for device

management. Furthermore, it should be device indi-

vidual, because it allows the exchange of the other

asymmetric PQC keys in the PQC Core. Lattice-

base cryptography is relatively new in the ﬁeld and

ﬁrst attacks on implementations have already been

discovered(IAR, 2018). Utilizing a symmetric key

allows for the exchange of a compromised key or

a transition from lattice-based algorithms, such as

CRYSTALS-Dilithium or Kyber, to SPHINCS+, a

hash-based asymmetric algorithm. It is worth it to

recap that the public PQC keys just require integrity

protection because this information needs not to be

kept conﬁdential. Private and symmetric keys should

be device individual and highly conﬁdentiality pro-

tected.

4.2 Lifecycle Management Operations

For the secure lifecycle management of an IT system,

the following aspects matter:

• Integrity veriﬁcation including remote identity

proof, cf. (Sundar et al., 2019)

• Protection of the code and data during loading and

runtime, especially protection of the Secure OS,

from fraudulent modiﬁcations cf. (Wang et al.,

2019)

• User and Access Management including the op-

tion to assign individual rights to selected users.

This starts with the establishment of initial user

accounts with the necessary authentication meth-

ods.

• AA-functionality (Authentication/Authorization)

of conﬁguration changes, code updates, especially

security-relevant settings

• Delegation of control to third parties, especially

with the change of ownership

• Secure disabling of single accounts or the com-

plete system e.g. for end-of-life, over-production

control, and grey market prevention

• Initial setup of secure communication channels

for different kinds kind of lifecycle operations, es-

pecially updates or conﬁguration changes

The processes mentioned above contain all the fol-

lowing basic cryptographic routines:

• a) Identiﬁcation of the IoT device

• b) Authorisation of a lifecycle action e.g. software

update

• c) Authentication of a user or even an individual

task

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

422

• d) Ensuring secrecy of code or data in transit and

rest

4.2.1 Identiﬁcation of a System-on-a-Chip

In scenario a), the RoT may include an identity and

a private key, which are securely stored in the PQC

Core during the manufacturing process, as illustrated

in Figure 4. Subsequently, the Secure OS within the

device receives a request to authenticate the device

and attest its identity. This request is accompanied by

a random number which the Secure OS signs using

the private key stored in the RoT. The verifying entity

external to the device can then decrypt the response

utilizing the corresponding public key. The device

successfully demonstrates its identity if the decrypted

result matches the initial random challenge.

Figure 4: Device Identity Veriﬁcation.

4.2.2 Authorisation and Authentication of an

Administrative Action

In scenarios b) and c), the roles are reversed, with the

RoT containing a public key, as depicted in Figure 5.

In this case, the external entity possesses a private key,

enabling it to authorize administrative actions, deploy

code, or perform read/write operations within the Se-

cure OS. The issuer of the administrative action is au-

tomatically identiﬁed in this scenario, as the private

key can be uniquely associated with an individual, le-

gal entity, or IT system. This association is estab-

lished through a Public Key Infrastructure (PKI). It is

important to note that, in this context, the public key

on the device must be protected against modiﬁcations

and unauthorized exchanges, although conﬁdentiality

protection is not a requirement. The RoT must ensure

integrity protection, allowing only the Secure OS on

the device to have read access to this public key.

4.2.3 Conﬁdentiality Protection of Data

Scenario d) necessitates the use of a hybrid encryption

scheme, which combines both symmetric and asym-

Figure 5: Authorisation of Remote Management.

metric encryption methods. This is due to the perfor-

mance limitations of asymmetric algorithms, which

are not well-suited for encrypting large volumes of

data, as illustrated in Figure 6. In this hybrid ap-

proach, a symmetric key is temporarily generated and

transmitted alongside the encrypted data to the de-

vice. The symmetric key itself is further encrypted

using the public key of the device, ensuring its conﬁ-

dentiality during transmission. The Secure OS, which

has access to the device’s private key stored within

the RoT, performs two critical operations: ﬁrst, it de-

crypts the encrypted symmetric key using its private

key, and second, it employs the decrypted symmetric

key to encrypt and decrypt the data. This scenario is

particularly pertinent when transmitting personaliza-

tion data to the device, such as subscriber proﬁles for

integrated SIM cards (ETSI, 2017) or payment cre-

dentials for Integrated Secure Elements (iSEs). The

use of a hybrid encryption scheme enhances secu-

rity while maintaining efﬁciency for scenarios requir-

ing the secure handling of sensitive information. By

leveraging the strengths of both encryption methods,

this approach not only safeguards data conﬁdential-

ity but also ensures that the process remains compu-

tationally feasible, thus enabling seamless operations

in resource-constrained environments.

Figure 6: Conﬁdentiality Protection.

Quantum-Resilient IoT: Integrating Hardware-Based Post-Quantum Cryptography for Robust Device Security

423

5 CONCLUSION

Due to the advances of quantum computers, System-

on-a-Chip manufacturers need to consider designing

a Post-Quantum Cryptographic Core that offers long-

term sustainability for the security of the lifecycle

management of the whole IoT device. It is important

to implement crypto agility with exchangeable PQC

keys and algorithms which can be leveraged to pro-

tect for a long-term all relevant services running on

the IoT device. The PQC Core forms the foundation

of a modern Root-of-Trust which protects the IoT de-

vices against many kinds of attacks. To fully leverage

protection capabilities, it is essential to integrate the

PQC Core across the entire chain, from hardware to

the software services running on the IoT device’s op-

erating system and within the supporting infrastruc-

ture. There should be no weak element in this chain

and integrity veriﬁcation is an important aspect to en-

sure this. Last but not least, PQC is more vulnera-

ble to sophisticated side-channel attacks than the out-

dated classical asymmetric ciphers such as RSA and

ECC. However, recent developments show that it is

possible to implement mechanisms to achieve tamper

resistance also with PQC Cores (Zagala and Andrze-

jczak, 2024).

REFERENCES

Arm (2018). Cortex-m35p a tamper-resistant

cortex-m processor with optional software

isolation using trustzone for armv8-m. In

https://developer.arm.com/products/processors/cortex-

m/cortex-m35p. Arm.

ETSI (2017). iuicc poc group primary plat-

form requirements, approved release.

In https://www.gsma.com/newsroom/wp-

content/uploads/UIC.03 v1.0.pdf. ETSI.

IAR (2018). Building a supply chain of

trust: Understanding secure mastering. In

https://www.iar.com/support/resources/articles/secure-

mastering. IAR.

Migliore, V., G

erard, B., Tibouchi, M., and Fouque, P.-A.

(2019). Masking dilithium. In Deng, R. H., Gauthier-

Uma

na, V., Ochoa, M., and Yung, M., editors, Applied

Cryptography and Network Security, pages 344–362,

Cham. Springer International Publishing.

National Institute of Standards and Technology (2001). Ad-

vanced encryption standard (aes). FIPS Publication

197, U.S. Department of Commerce.

Pursche, M., Puch, N., Peters, S. N., and Heinl, M. P.

(2024). SoK: The engineer’s guide to post-quantum

cryptography for embedded devices. Cryptology

ePrint Archive, Paper 2024/1345.

Quantum, I. (2023). The quantum decade: Ibm’s quantum

roadmap to 2033. Accessed: 2024-08-19.

Rivest, R. L., Shamir, A., and Adleman, L. (1978). A

method for obtaining digital signatures and public-

key cryptosystems. Communications of the ACM,

21(2):120–126.

Roetteler, M., Naehrig, M., Svore, K. M., and Lauter, K.

(2017). Quantum resource estimates for computing el-

liptic curve discrete logarithms. In International Con-

ference on the Theory and Applications of Cryptology

and Information Security (ASIACRYPT 2017), pages

241–270. Springer.

Safe, O. Q. (2024). Tls. In

https://openquantumsafe.org/applications/tls.html.

Resquant.

Skosana, T. (2021). Demonstration of shor’s factoring algo-

rithm for n=21 on ibm quantum processors. In 2021

Scientiﬁc Article number: 16599, pages 1–4. Springer.

Snyder, J. (2019). Samsung trusted boot and trust-

zone integrity management explained. In

”https://insights.samsung.com/2019/09/04/samsung-

trusted-boot-and-trustzone-integrity-management-

explained/”. Samsung.

Spitz, S. (2012). Mobicore® secure os for arm® trustzone®

soc. In https://prezi.com/rgrvv8vv-t4s/mobicore-

secure-os-for-arm-trustzone-soc/. Prezi.

Spitz, S. and Lawall, A. (2024). Silicon-integrated secu-

rity solutions driving iot security. In Proceedings of

the 10th International Conference on Information Sys-

tems Security and Privacy - Volume 1: ICISSP, pages

398–402. INSTICC, SciTePress.

Stebila, D., Fluhrer, S., and Gueron, S. (2024). Hybrid

key exchange in TLS 1.3. Internet-Draft draft-ietf-tls-

hybrid-design-10, Internet Engineering Task Force.

Work in Progress.

Sundar, S., Yellai, P., Sanagapati, S. S. S., Pradhan, P. C.,

et al. (2019). Remote attestation based software in-

tegrity of iot devices. In 2019 IEEE International

Conference on Advanced Networks and Telecommu-

nications Systems (ANTS), pages 1–4. IEEE.

Synopsys (2016). Designware arc sem security processors.

In https://www.synopsys.com/dw/ipdir.php?ds=arc-

sem. Synopsys.

Tiwari, A., Chauhan, R., Joshi, N., Devliyal, S., Aluvala,

S., and Kumar, A. (2024). The quantum threat: Impli-

cations for data security and the rise of post-quantum

cryptography. 2024 IEEE 9th International Confer-

ence for Convergence in Technology (I2CT), pages 1–

Wang, W., Zhang, X., Hao, Q., Zhang, Z., Xu, B., Dong,

H., Xia, T., and Wang, X. (2019). Hardware-enhanced

protection for the runtime data security in embedded

systems. Electronics, 8(1):52.

Westerbaan, B. (2024). The state of the post-quantum inter-

net. Accessed: 2024-09-05.

Zagala, S. and Andrzejczak, M. (2024). Post-Quantum

Cryptography IP Cores.

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

424
