The Study of Orthogonal Gradient Descent in Unlearning Algorithms

Xu He

Computer Science and Technology, Chinese University of Hongkong, Shenzhen, Guangdong, China

Keywords: Federated Learning, Unlearning, Orthogonal Gradient Descent.

Abstract: In today's world, where smartphones and laptops are commonly used for communication, Federated Learning

(FL) has become a key method for training models while keeping data private. This method lets data stay on

the user's device instead of being shared. However, when users decide to leave FL, removing their data from

the model can be difficult and requires a lot of resources, as it usually involves retraining the model. This

paper investigates the application of Orthogonal Gradient Descent (OGD) and Steepest Descent in federated

learning to enhance data removal and comply with the 'right to be forgotten' under GDPR. Employing OGD

minimizes residual data impact, while Steepest Descent facilitates rapid gradient reduction, tested against

algorithms like FedRecovery. Despite increasing computational demands by up to 10%, this approach

significantly boosts unlearning efficiency and retains model performance, proving viable for stringent

unlearning requirements. The study underscores OGD's potential and limitations, such as sensitivity to

learning rate changes and its ineffectiveness when tasks greatly deviate, emphasizing the need for further

research to optimize these methods in practical federated learning scenarios.

1 INTRODUCTION

In today's digital age, nearly everyone uses electronic

devices like phones, computers, and laptops to

communicate, entertain, or work from home. This

prevalence has made federated learning (FL) a viable

model training method. FL is designed to enhance

data privacy while accommodating heterogeneous

data. It operates by keeping data on individual

devices, training models locally, and then sending the

updated models to a central server (Li et al., 2020).

Although this method avoids direct data sharing, it

still raises important information security concerns

about "right to be forgotten" (RTBF). Rooted in

European legislation such as the GDPR, RTBF

empowers individuals to take control of their data.

When participants opt out of federated learning, it

should be possible to do so by removing their own

data from the training model (Liu et al., 2020).

One method to achieve the elimination of

personal data from a federated learning model is

through retraining, which involves having the

remaining participants retrain the model. However,

this approach presents significant challenges, as it not

https://orcid.org/0009-0006-9073-1254

only incurs substantial computational and

communication costs but also increases the burden on

the remaining participants. This added workload can

diminish participations’ willingness to continue

training, ultimately rendering federated learning less

feasible in practical applications. But in the past few

years, an approach called unlearning has been gaining

traction. Consequently, the concept of "unlearning"

has emerged as a valuable solution to address these

challenges, gaining increased research interest and

practical significance.

In existing work, gradient ascent is a simple and

effective method. Currently, several algorithms, such

as FedEraser and FedRecovery, have been developed

for federated learning. FedEraser, for instance, was

tested on four real-world datasets to evaluate its

effectiveness (Liu et al., 2021), while FedRecovery

focuses on "recovering from poisoning attacks" (Cao

et al., 2023). These algorithms use historical gradient

information to modify the model and remove specific

data. FedEraser, for example, subtracts gradient

updates to unlearn data (Liu et al., 2021).

This study aims to identify a more efficient

method for data removal from trained models. By

562

He and X.

The Study of Orthogonal Gradient Descent in Unlearning Algorithms.

DOI: 10.5220/0013528400004619

In Proceedings of the 2nd International Conference on Data Analysis and Machine Learning (DAML 2024), pages 562-568

ISBN: 978-989-758-754-2

combining Orthogonal Gradient Descent (OGD) and

Steepest Descent, this paper seeks to improve

unlearning efficiency. OGD minimizes the impact on

remaining data by projecting the gradient onto an

orthogonal vector, while Steepest Descent ensures the

most rapid decrease in the gradient. This combination

could enhance the unlearning process while

maintaining model performance.

2 METHOD

2.1 Dataset Preparation

The dataset utilized in this research is the MovieLens

1M dataset (GroupLens Research, 2024). This dataset

comprises 1,000,209 ratings from 6,040 users on

3,883 movies, making it a widely recognized

benchmark in the field of recommendation systems.

This dataset is chosen for the study to better explore

the impact of the experimental unlearning algorithm

on user data. Movie preferences often reflect personal

tastes or characteristics, making movie preference

prediction an ideal test case for assessing the

effectiveness of user data removal in the model.

The dataset is divided into three parts: movie data,

rating data, and user data. The movie data includes

the MovieID, Title, and Genres, with the format:

MovieID::Title::Genres. The rating data consists of

UserID, MovieID, Rating, and Timestamp, formatted

as UserID::MovieID::Rating::Timestamp. The user

data includes UserID, Gender, Age, Occupation, and

Zip-code, formatted as UserID::Gender::Age::

Occupation::Zip-code.

The following preprocessing steps are applied to

the dataset:

 For the Gender field, the values 'F' and 'M' are

converted to 0 and 1, respectively;

 The Age field is transformed into ten

continuous categories, ranging from 0 to 9;

 The Genres field, being categorical, is

converted into numerical values. First, a

dictionary mapping each genre to a numerical

code is created. Then, the Genres field for each

movie is converted into a list of numbers, as

some movies belong to multiple genres;

 The Title field is processed similarly to the

Genres field. A dictionary is created to map the

text descriptions to numerical values, and the

title descriptions are converted into numerical

lists. Additionally, the year of release is

removed from the title field;

 Both the Genres and Title fields are padded to

a uniform length to facilitate processing within

neural networks, with empty portions filled

using the numerical code corresponding to

“NA”.

While the dataset is primarily concerned with

ratings, movies can be categorized by genres, which

can be extracted for further analysis about personal

tastes or characteristics, which can be taken as part of

user privacy.

2.2 Unlearning-based Federated

Learning

2.2.1 Designing of the CNN Model

The algorithm in this paper was inspired by the CNN

training method for text data proposed by Denny

Britz (Denny Britz, 2015), and was adapted to the

selection of natural language data sets in the

experiment by the experimenter. Although CNNs are

typically used for image-related tasks, this method is

chosen to better align with the federated learning

framework and code employed in this research (Fu et

al., 2024 and Xu et al., 2023), facilitating prediction

and the analysis of forgetting effectiveness. The

research adheres closely to proven frameworks to

avoid errors in evaluating the feasibility of the

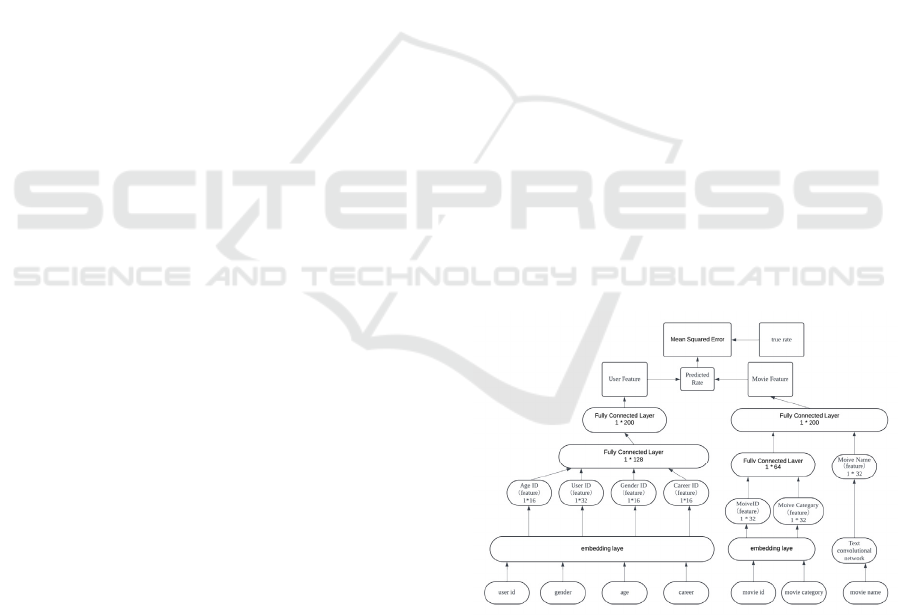

algorithm due to code-related issues. A sample

diagram of the CNN model used in this paper is

shown Figure 1, which includes the basic structure of

the CNN framework.

Figure 1: Designing of the CNN model

(Photo/Picture credit: Original).

The Study of Orthogonal Gradient Descent in Unlearning Algorithms

563

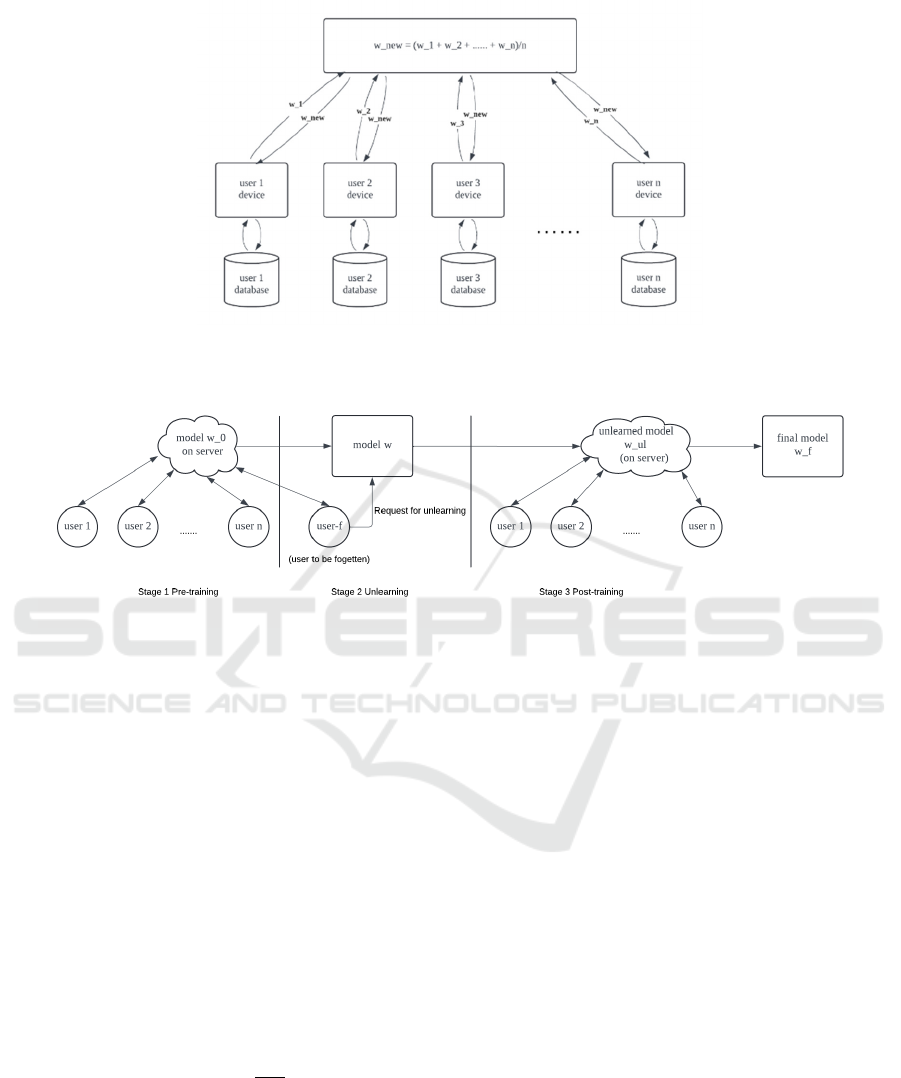

Figure 2: Federal Learning Process (Photo/Picture credit: Original).

Figure 3: Experiment Design (Photo/Picture credit: Original).

2.2.2 Federated Learning Introduction

classic workflow of federated learning (FedAvg) is

depicted in the Figure 2. Initially, users download an

initial model neural network 𝑤 from the server.

Taking a linear regression model as an example,

𝑤_𝑖 represents the local model parameters for the i-th

user after training on their individual data. In this

federated learning setup, each user's device computes

𝑤_𝑖 by updating the global model 𝑤 based on their

local dataset. After local training, the updated model

𝑤_𝑖 is sent back to the server. The server then

aggregates and updates the model, which is sent back

to users for continued training, as shown in the

formula: movies, with the corresponding true ratings

being 𝑅



𝑤_𝑛𝑒𝑤  

𝑤_𝑖

𝑛





(1)

where 𝑛 is the number of users, 𝑤_𝑛𝑒𝑤 is the

updated global model.

The CNN model used in this paper follows a

similar process. Due to limited resources, large-scale

experiments cannot be conducted. Instead, this

experiment simulates the process of different users

training locally by partitioning the dataset and

training the model separately for each user. Based on

the ratings provided by each user in the MovieLens

dataset, this experiment successfully simulates the

local training process. Since the dataset is reliably

collected from MovieLens website users, partitioning

the data by user ID allows to infer that the data

contains each user's personal preferences. This

partitioned dataset is then used to train the CNN

model separately, serving as the foundation for

verifying the experimental results.

2.2.3 Unlearn and Recover

The process described in this paper is divided into

three stages shown in Figure 3. The first stage is pre-

training, where the model is trained as users normally

would on a federated learning platform. The second

stage is unlearning, in which one user is selected as

the opt-out participant, and the unlearning operation

is performed using the FedRecovery algorithm (Cao

et al., 2023). The final stage is model recovery, where

training continues, and the model's subsequent

performance is observed, focusing on the potential

DAML 2024 - International Conference on Data Analysis and Machine Learning

564

improvement in accuracy and whether the forgotten

data can be recovered.

This research focuses specifically on addressing the

issues that arise after performing unlearning in

algorithms such as FedRecovery (Cao et al., 2023),

followed by post-retraining. This paper proposes

replacing the steepest gradient descent method used

in previous algorithms with Orthogonal Gradient

Descent (OGD) (Farajtabar et al., 2020) and further

applying this approach in post-training to observe

whether the OGD algorithm improves the

effectiveness of unlearning. The essence of the OGD

method used in this experiment involves projecting

the gradients from new tasks onto a subspace where

the neural network's output on previous tasks remains

unchanged, while ensuring that the projected gradient

is still useful for learning the new task. Thus, a

complete federated learning process for unlearning is

constructed from beginning training, forgetting data,

and continuing training.

3 RESULTS AND DISCUSSION

3.1 Evaluation Metrics

To demonstrate whether a user's personal data has

been removed, this experiment compares the

performance of three types of users on the model after

unlearning using FedRecovery: User-common (UC),

User-forgotten (UF), and User-unknown (UN), who

did not participate in the training. To reflect

individual user preferences, score predictions are

used to assess whether the model retains user data and

remains usable. Theoretically, UC and UF should

perform better on the model than UN before

unlearning. However, after unlearning, UF and UN

should exhibit similar performance on the model. The

model predicts the ratings 𝑟



(where i ranges from 0

to 9) for 10 movies, with the corresponding true

ratings being 𝑅



Rate Loss =

∑

𝑅



𝑟













(2)

3.2 Performance of Users on the Pre-

trained Model

The experimental results align with expectations. At

this stage, there is no significant difference between

UC and UF shown in Figure 4, and both perform

better on the model compared to UN.

3.3 Effectiveness and Cost of

Unlearning

It can be observed that the model demonstrates a good

unlearning effect for UF after the unlearning process,

aligning with the experimental results described in the

referenced FedRecovery algorithm papers (Cao et al.,

2023). With the number of forgetting rounds

increases, the effect of UF on the model gradually

approaches that of UN as shown in Figure 5.

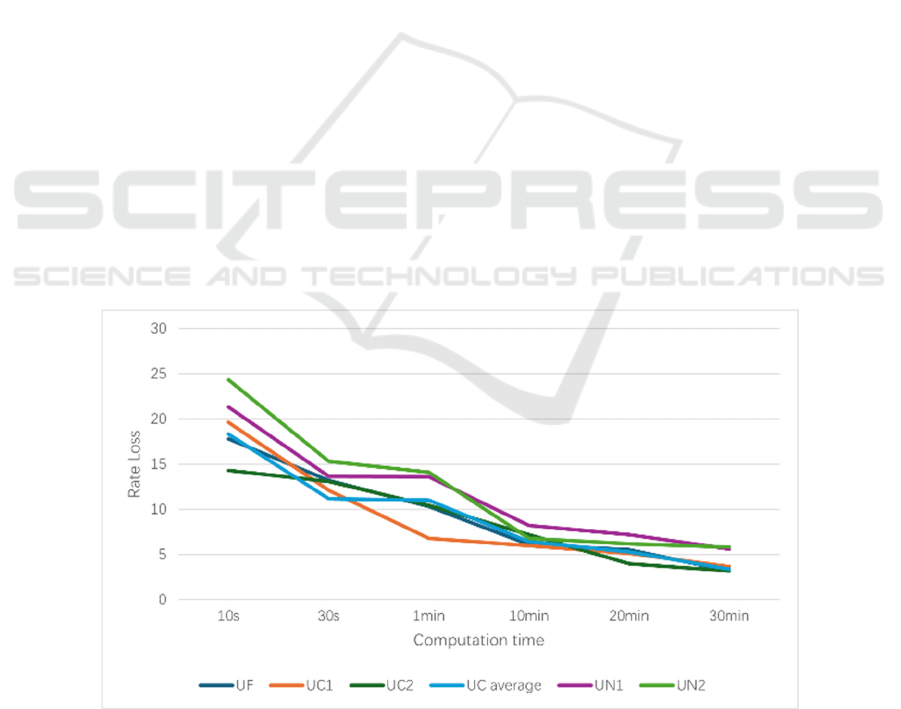

Figure 4: Performance of Users on the Pre-trained Model (Photo/Picture credit: Original).

The Study of Orthogonal Gradient Descent in Unlearning Algorithms

565

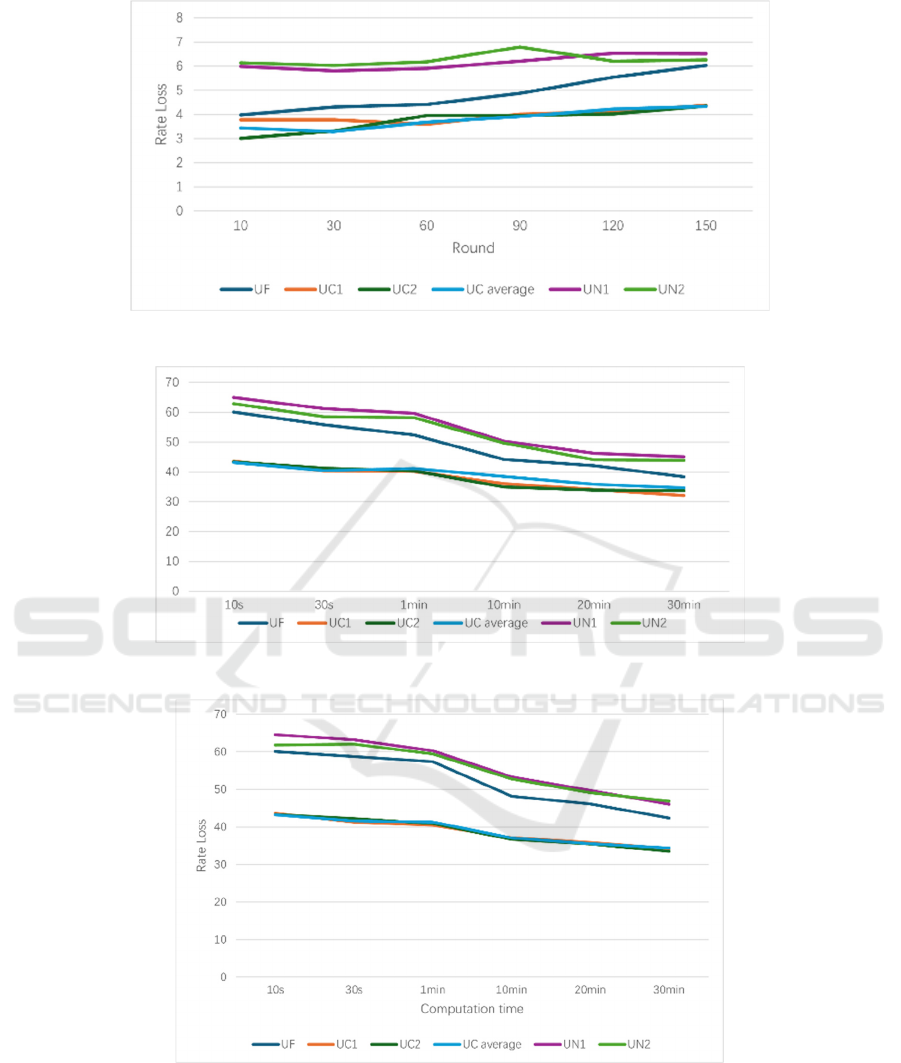

Figure 5: Performance of Users on the Unlearneded Model (Photo/Picture credit: Original).

Figure 6: Performance of Users on Post-trained Original Model (Photo/Picture credit: Original).

Figure 7: Performance of Users on Post-trained OGD Model (Photo/Picture credit: Original).

3.4 Further Observations on Post-

Training After Unlearning

As can be seen in Figure 6, as training progresses, the

UF data gradually recovers when the CNN model is

used for post-training. The phenomenon is

specifically illustrated in Figure 6, where UF's

RateLoss gradually diverges from UN's data and

approaches UC's data. To more clearly observe the

difference in data, multiply the rate loss by a factor of

ten, data are shown in Figure 6 and Figure 7.

DAML 2024 - International Conference on Data Analysis and Machine Learning

566

It can be seen that the use of the OGD algorithm

has mitigated the aforementioned issue, although at

the cost of slightly worse RateLoss performance.

Additionally, UF's data still does not fully align with

UN's data. To further address this issue, the Loss

Function of the CNN model was modified,

incorporating the accuracy of UF into the Loss

Function. The new Loss Function is as follows:

ew loss=Loss  𝛿 ∗ Su

(Loss of all UF)

(3)

where

𝛿 is a hyperparameter, 𝛿0), aiming to

push the model away from UF's data as much as

possible.

However, the results were shown in Figure 8 but

unsatisfactory, as the performance heavily depended

on the setting of the hyperparameter δ, and the

model's generalization ability was compromised as

training progressed. The approach appeared to

deliberately avoid UF's data rather than bringing UF's

performance closer to that of UN, the result is shown

in Figure 8.

As a result, after 30 minutes’ training, UF

becomes even worse than UN when hyperparameters

are too large. At the same time, in a larger pre-training

(UC is set to 500, UF is set to 20, and the Rate Loss

of each UF is included in the Loss Function), this

method will reduce the generality of the model. For

the same training time, the performance of the model

decreases compared to the previous normal training

model, the result can be seen in Figure 9.

Figure 9 illustrates a decline in the performance

of the User-unknown (UN) category compared to

Figure 4, notwithstanding the augmented

participation of users in the training process. This

observation suggests that merely altering the Loss

Function may not effectively enhance the

performance of Orthogonal Gradient Descent (OGD).

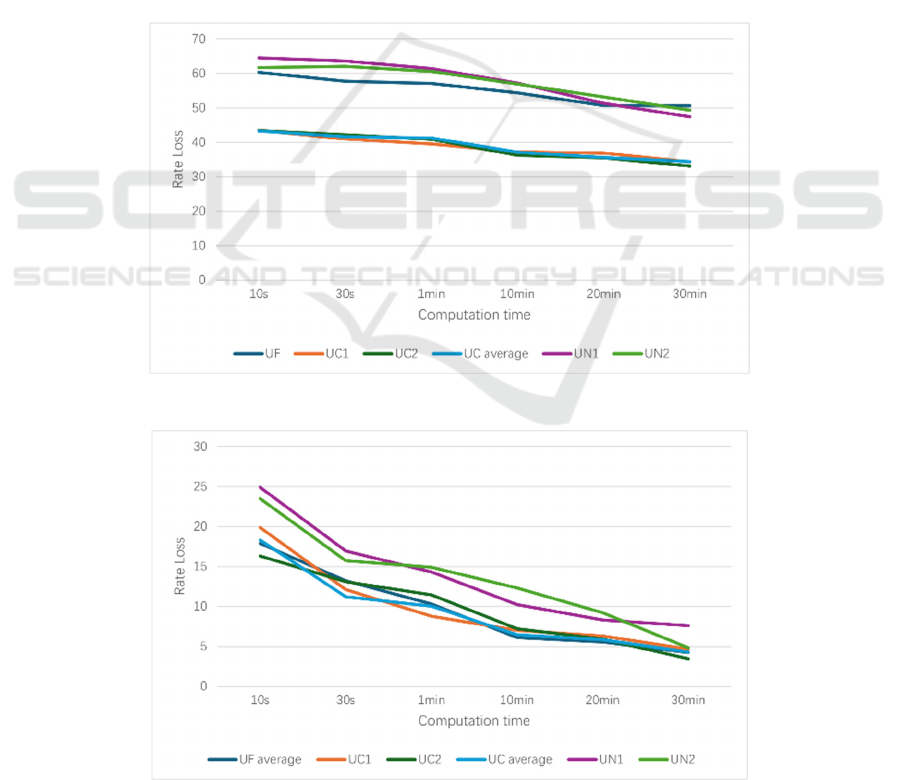

Figure 8: Performance of Users on the Modified OGD Model (Photo/Picture credit: Original).

Figure 9:

Extended Training (Photo/Picture credit: Original).

The Study of Orthogonal Gradient Descent in Unlearning Algorithms

567

Consequently, it is recommended to continue

employing the conventional OGD approach without

modifications to the Loss Function. This approach

aligns with current best practices and ensures the

integrity of the model's performance across varying

user involvements.

3.5 Discussion

The experiments show that OGD does not outperform

SGD in terms of convergence speed. This is an

expected issue, as OGD requires more computation to

find the appropriate gradients. However, OGD does

improve the model's performance during the post-

training process.

The reason may lie in the fact that FedRecovery

relies on differential privacy (as explained in the

underlying principles), which does not entirely

eliminate a user's personal data but instead perturbs it

with noise (Cao et al., 2023).

The modified Loss Function attempts to push the

model away from the user's original data direction,

but this might cause issues with the model's

generalization. Nevertheless, the experiments

confirm OGD's value for unlearning. This is possibly

because OGD inherently seeks to store more optimal

gradient points on the boundary of gradual changes

while providing good approximations for other

points' gradients, preventing the storage of the full

dataset's gradients (Farajtabar et al., 2020).

Consequently, more thorough unlearning appears to

occur for UF during the post-training phase.

4 CONCLUSIONS

This paper completes an evaluation of the use of

Orthogonal Gradient Descent (OGD) in the context of

federated learning and unlearning. The use of OGD

significantly increases computational costs, with

nearly a 10% increase in time required to achieve the

same accuracy on the MovieLens 1M dataset in an

hour’s training process. However, OGD does have its

merits. With adjustments to the hyperparameters,

better performance is expected. In situations where

time and computational resources are abundant and

the need to ensure thorough unlearning of user data is

critical, OGD can enhance the effectiveness of

FedRecovery in unlearning data. Nevertheless, the

application of OGD still faces inherent limitations.

For instance, it fails severely when the task changes

and becomes dissimilar to the previous task (e.g.,

rotating images more than 90 degrees for MNIST),

and it is sensitive to the learning rate. Additionally,

steepest gradient descent can only be used before the

first user requests unlearning; after that, all

subsequent training must rely on OGD, which poses

an unsolved issue, leading to computational

overhead. The researchers hope that better solutions

will emerge in the future to combine OGD with

federated learning more effectively.

REFERENCES

Britz, D. 2015. Understanding convolutional neural

networks for NLP. Denny’s Blog.

https://www.wildml.com/2015/11/understanding-

convolutional-neural-networks-for-nlp/

Cao, X., Yu, L., Xu, Y., & Ma, X. 2023. FedRecover:

Recovering from poisoning attacks in federated

learning using historical information. In 2023 IEEE

Symposium on Security and Privacy (SP) (pp. 1366–

1383). IEEE.

Chengstone. 2017. Movie recommender [Source code].

GitHub.

https://github.com/chengstone/movie_recommender

Farajtabar, M., Azizan, N., Mott, A., & Li, A. 2020.

Orthogonal gradient descent for continual learning. In

Proceedings of the Twenty Third International

Conference on Artificial Intelligence and Statistics,

Proceedings of Machine Learning Research, 108,

3762–3773.

Fu, J., Hong, Y., Ling, X., Wang, L., Ran, X., Sun, Z., &

Cao, Y. 2024. Differentially private federated learning:

A systematic review. arXiv Preprint,

arXiv:2405.08299.

GroupLens Research. 2003. MovieLens 1M dataset.

GroupLens. Retrieved May 23, 2024, from

https://grouplens.org/datasets/movielens/1m/

Hojjat, K. 2018. MNIST dataset. Kaggle. Retrieved May

29, 2024, from

https://www.kaggle.com/datasets/hojjatk/mnist-dataset

Li, T., Sahu, A. K., Talwalkar, A., & Smith, V. 2020.

Federated learning: Challenges, methods, and future

directions. IEEE Signal Processing Magazine, 37(3),

50–60. https://doi.org/10.1109/MSP.2020.2975749

Liu, G., Ma, X., Yang, Y., Wang, C., & Liu, J. 2020.

Federated unlearning. arXiv Preprint,

arXiv:2012.13891.

Liu, G., Ma, X., Yang, Y., Wang, C., & Liu, J. 2021.

FedEraser: Enabling efficient client-level data removal

from federated learning models. In 2021 IEEE/ACM

29th International Symposium on Quality of Service

(IWQOS) (pp. 1–10). IEEE.

Xue, R., Xue, K., Zhu, B., Luo, X., Zhang, T., Sun, Q., &

Lu, J. 2023. Differentially private federated learning

with an adaptive noise mechanism. IEEE Transactions

on Information Forensics and Security.

DAML 2024 - International Conference on Data Analysis and Machine Learning

568
