The Comprehensive Investigation of Federated Learning with Its

Application in the Medical Image Analysis

Wenxiao Zeng

Computer Science, University of Massachusetts Amherst, Amherst, U.S.A.

Keywords: Federated Learning, Medical Image Analysis, Automatic Diagnosis, Data Privacy.

Abstract: Due to the pandemic in 2019 and the causing medical system crush, it has become necessary for the nations

to increase the system capacity of health care services. By combining with machine learning, the newly

developed automatic diagnosis can largely save the manpower and time cost required for the current medical

systems, thus increase their overall efficiencies. The Federated Learning algorithm, based on the background

of rising demand for automatic diagnosis and data privacy, is becoming widely-applied in the medical

diagnosis, especially in the sophisticated medical image analysis. This study overviews the current researches

of the Federated Learning algorithms in the health care system, including the diagnosis prediction of the

Federated Learning-based models towards three specific types of diseases. The study discusses the advantages

of Federated Learning in data privacy and heterogeneous massive data processing by the architecture of its

workflow. On the other hand, its potential drawbacks are the lack of interpretability and applicability, which

can possibly be solved or improved by SHapley Addictive exPlanation (SHAP) algorithm and Dynamic

Weighting Translation Transfer Learning (DTTL) algorithm. Its potential safety issue by data transmission,

however, though being minimized by the decentralized computation architecture of the Federated Learning,

can hardly be fully removed unless the fully distributed algorithm will have developed and replaced its

application in the future.

1 INTRODUCTION

The recent sustain and rapid development of Artificial

Intelligence (AI) has induced its application in

multiple novel environments (Hunt, 2014). On the

other hand, under of the tendency of aging society in

the world’s major industrialized and industrializing

states, and also after experiencing the crisis of

medical resource run caused by the COVID-19

pandemic in 2019, it has become essential for these

states’ governments and medic facilities to seek out a

scheme of enhancing their current medical systems’

efficiency, in response to the pressure leading by the

society’s rising demand for medic treatment.

Naturally, the application of AI algorithms as a type

of medic assistant, aiming for providing prediction

based on medical record data and thus shortening the

time and manpower required for diagnosis, has

deservedly become a popular method for this purpose.

However, its model-training process also raises a

requirement of data privacy to the training algorithms

by both the patients and the facilities who build up the

https://orcid.org/0009-0006-2511-4479

dataset’s servers, in order to avoid the leakage of

sensitive data.

Federated Learning (FL) is a deep-learning

algorithm that involves a local model-training process

in remote devices or data center, then sends the

parameters of locally-trained model to the center

server. Thus, it is able to ensure a certain degree of

privacy since no raw data is sent to the center server,

and also is able to process large-scale and

heterogeneous data (Li et al., 2019).

In the practical application, the characteristic of

the Federated learning algorithm in processing

heterogeneous data makes it adept at the diversity of

medical record data, giving it the potential of assisting

human doctors in disease diagnosis, or even

establishing an automatic analysis system in the near

future. As a common and important type of medical

record data, the medical images in disease diagnosis,

such as ultrasound, X-rays,and Magnetic Resonance

Imaging (MRI), are frequently utilized for the

Federated Learning model for its importance in

532

Zeng and W.

The Comprehensive Investigation of Federated Learning with Its Application in the Medical Image Analysis.

DOI: 10.5220/0013527800004619

In Proceedings of the 2nd International Conference on Data Analysis and Machine Learning (DAML 2024), pages 532-536

ISBN: 978-989-758-754-2

diagnosing many ailments and diseases such as

cancers (Nazir et al., 2023).

The confidentiality endowed by the Federated

learning algorithm, on the other hand, makes it

appropriate for privacy protection in the hospitals,

since it avoids the large and common restriction of

direct access to these image collections by training

the model locally with raw data and sending only the

parameters of the local model to the center server for

the final training (Silva et al., 2023).

Considering the significance of medical images to

disease diagnosis, and the massive potential of

Automatic Medical Image Analysis in improving the

therapeutic outcome and medical system efficiency

by the Federated Learning trained models (Silva et al.,

2023), it is necessary to offer an overview that

summarize the current research and application of

Federated Learning in medical image analysis,

including its practical application cases, contribution,

limitation, challenges, and further potentials in the

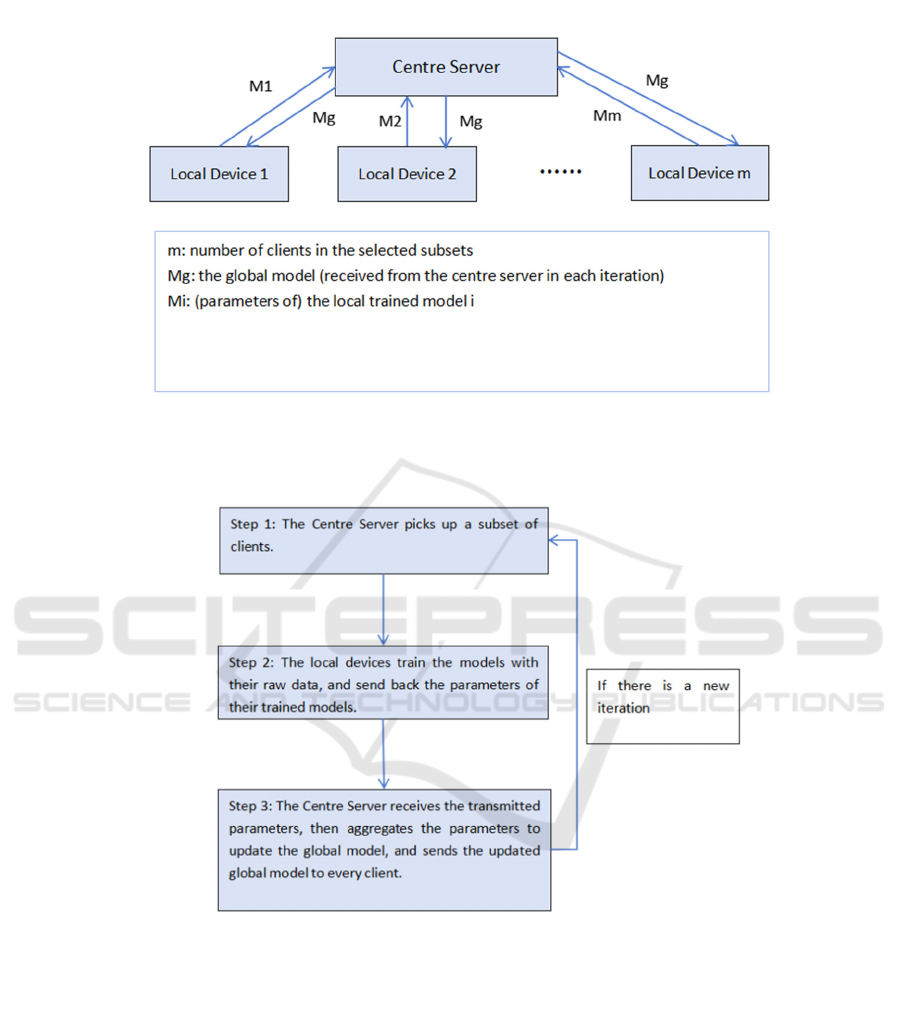

Figure 1: The structure of federated learning (Photo/Picture credit: Original).

Figure 2: The workflow of federated learning (Photo/Picture credit: Original).

The Comprehensive Investigation of Federated Learning with Its Application in the Medical Image Analysis

533

future. In the following sections, the article shall

present them with elaboration.

2 METHOD

2.1 Preliminaries of Federated Learning

The Federated Learning shown in Figure 1 and Figure

2 is able to avoid the two problems, massive

processing and data privacy, by its unique workflow.

In each of its iterations, it selects a subset among its

thousands or millions of clients, computes a local

model in the local device, then sends the parameters

of this locally trained model to the central server for

further aggregation, and finally sends back the

aggregated global model to each client and starts a

new iteration (McMahan et al., 2023). The local

training process keeps raw data stationary in the local

device or service and is not shared by other clients or

transmitted the central server, therefore the Federated

Learning can guarantee the privacy of clients.

Furthermore, the local training process avoids

computation with heterogeneous type of data, since

the data type within the same client device is more

likely to be homogeneous. Meanwhile, the partition

and distribution of model-training procedure into

clients’ local device allows Federated Learning to

dispose of enormous amount of data without being

limited by the number of available worker nodes.

2.2 Federated Learning-Based

Predication in Diagnosis

2.2.1 COVID-19

In the study of Darzi et al, the Federated Learning

methods are utilized for COVID-19 detection (Darzi

et al., 2024). The researchers adopt the datasets from

Public Hospital of Sao Paulo (HSPM), Brezil, and

Tongji Hospital of Wuhan, China, and adopt

Convolutional Neural Networks (CNNs) as the mode

type for their study. As a type of respiratory infection,

the images used for training are chest CT-scans from

both COVID-19 positive and healthy subjects, resized

to 224×224 pixels with interpolation (Darzi et al.,

2024). As a comparative study, the researchers select

five different Federated Learning algorithms—

Centralized Data Sharing (CDS), Federated

Averaging (FedAvg), Federated Stochastic Gradient

Descent (FedSGD), Single Weight Transfer (SWT),

and Stochastic Weight Transfer (STWT)—and

compare their performances under different numbers

of Federated iterations and clients (Darzi et al., 2024).

In addition, the study also provides an insight into the

challenge of catastrophic forgetting, which states the

forgetting of previous information when a learning is

training upon new datasets, calling for a future

method for solving this issue (Darzi et al., 2024).

2.2.2 Brain Tumor

Brain Tumor is an aggregation of abnormal cells

within the brain. As a type of disease that exists in the

most delicate and complex structure of the human

body, it is challenging to diagnose, confirm its

location in which section of the brain, and judge its

characteristic of being benign or malignant. However,

it is crucial for this classification since it determines

the specific therapy required to be taken by the patient,

while this classification in the diagnosis requisites

high accuracy for any error occurring in the diagnosis

and surgeries might cause catastrophic and permanent

brain damage to the patient. The new research by

Albalawi et al aims to develop a new model for the

classification of Brain Tumor by utilizing Federated

Learning in the training procedure (Albalawi et al.,

2024). The researchers adopted the modified VGG16

architecture, a type of CNN model optimized for

brain MRI images, for training the resized 128×128

pixels images in their datasets (Albalawi et al., 2024).

The main objective of this research is to enhance the

accuracy of brain tumor classification, therefore the

dataset is composed of 4 types of MRI images:

Glioma, Meningioma, No Tumor, and Pituitary.

2.2.3 Skin Cancer

As a frequently occurred disease in the environments

of highly intensive direct sunlight or radiation, the

early-stage skin cancers are very likely to be confused

with normal skin inflammation by their similar outer

symptoms, and cause the patients to miss the optimal

treatment period. Therefore, the effective diagnosis of

early skin cancer is critical for the patient’s later

therapy and potential recovery. It is research made by

AlRakhami et al that aims for achieving an automatic

diagnosis of early skin cancer, constructed by the

Federated Learning and through the architecture of

Deep Convolutional Neural Networks (DCNNs)

(AlRakhami et al., 2024). The researchers utilize

three heterogeneous datasets: ISIC 2018 Dataset, PH2

Dataset, and Combined Dataset, for training and

testing the outcomes of model prediction, and thus

compare their effectiveness (AlRakhami et al., 2024).

During the experiments, the researchers would

perform the model training in different centralized or

federated architectures in order to observe the results

of effectiveness in different index of evaluation

metrics (AlRakhami et al., 2024).

DAML 2024 - International Conference on Data Analysis and Machine Learning

534

3 DISCUSSIONS

Admittedly, in past research and experiments the

Federated Learning have presented its superiority in

privacy and heterogeneous data processing and have

maintained a relatively high level of accuracy in most

of its application circumstances. However, its

potential drawbacks and challenges have also been

discovered in these experiments, by either certain

features of the outcome data or the mathematical

structure of its foundational workflow. For some of

the illustrated issues, there has been modification or

expansion for the Federated Learning algorithms

towards their corresponding resolution; for some

others, however, it can only be expected to be solved

through the further development of other deep

learning algorithms.

One of the most common and directly meet

problems is that the models trained by the Federated

Learning algorithms lack interpretability. It is

admittedly that the Federated Learning trained

models can often attain great performance in the

prediction accuracy, but the researchers can hardly

comprehend how and why this is managed to happen

since the complexity of the neural network, the

commonly used architecture for the models trained by

the Federated Learning algorithms, makes it

challenge to be understood by human researchers.

Such drawbacks can be non-problematic in the result-

orientated applications; for instance, it is not very

necessary for human researchers and programmers to

fully understand why and how an image-recognition

model can tell all the cat images from the mixed

image dataset, as long as it has achieved its task by

attaining acceptable accuracy. Nevertheless, the

researches in medic and biology often acquires the

understanding of the mechanism behind the diagnosis,

no matter if it is aimed for adding the credibility for

the diagnosis or provoking further and more subtle

researches towards these newly discovered

mechanism. In this instance, unfortunately, the

Federated Learning algorithm can offer little aid for

the potential further researches.

One possible method in adding more

interpretability to the Federated Learning algorithm is

fusing it with SHapley Addictive exPlanation (SHAP)

algorithm. In the study of Lundberg et al, it is firstly

mentioned that Shapley values can be introduced in

the field of machine learning (Lundberg et al., 2017).

The SHAP algorithm can give out a contribution

value (SHAP value) of each attribution for the

eventual outcome of model prediction accuracy,

which can be both positive for the contribution of

reaching higher model accuracy and negative for the

opposite situation. If the researchers are able to

combine Federated Learning with SHAP, it is

possible for the researchers to achieve model

explainability by analyzing the SHAP values of all

the attributes, considering the fact that there have

been cases of SHAP algorithm being applied

separately in the domain of medical diagnosis.

Another existing drawback of the Federated

Learning that is due to its workflow is the lack of

applicability in all circumstances, a concession made

for its universality. What has caused this issue is the

difference in data distribution between heterogeneous

datasets: the decentralized characteristic of its

training process allows the Federated Learning

algorithm to process datasets with heterogeneous data

types, but the performance of the trained model can

also be impaired by their difference, making the

prediction accuracy of the aggregated model in an

epoch lower than the accuracy of the locally trained

model in the application of that particular dataset.

Some of researchers who have discovered this

phenomenon in their experiments also call it

“forgetting” (Darzi et al., 2024), stating that when

receiving the heterogeneous data from a new dataset

for further training, the model “forgets” some of the

information from the previous old dataset and thus

experience a decrease in its predication accuracy for

the old dataset.

In response to this problem, the solution proposed

by Yu et al in their research is the Dynamic Weighting

Translation Transfer Learning (DTTL), which builds

up a dynamic translation between imbalanced classes

in two domains and minimizes the cross-entropy

between the domains to reduce domain difference

(Yu et al., 2024).

Although frequently being described as a type of

decentralized deep learning algorithm, as a matter of

fact the Federated Learning algorithm is only a type

of partially distributed and coordinated algorithm,

which still requires a centre server as a coordinator

for model updates. Though still safer than the full

centralized algorithm, the remain centralized

architecture of the Federated Learning can lead to

potential safety loopholes, especially in the

transmission from local devices to the centre server.

If being intercepted and decrypted, the parameters of

the locally trained model from a specific dataset are

exposed to the hacker; though it is not the raw data

that is disclosed, the hackers might still be able to

learn the features of data distribution in this dataset

and manage to guess out a portion of the raw data

based on the parameters disclosed.

Unless being replaced by the development of fully

distributed algorithms, this potential safety issue can

always be problematic and hardly be removed, for it

relays on the architecture of Federated Learning’s

workflow. A possible improvement for this issue is

adopting more complex and secure encryption for the

transmission; however, it would surely increase the

The Comprehensive Investigation of Federated Learning with Its Application in the Medical Image Analysis

535

time cost of encryption and decryption during the data

transmission, and thus reduce the time efficiency of

the Federated Learning.

4 CONCLUSIONS

In summary, based on the architecture of its workflow,

the Federated Learning has successfully achieved the

requisites of an automatic diagnosis system used in

the domain of health care services: massive and

heterogeneous data procession, and data privacy. This

study illustrates this architecture, the fundamental

mechanism of Federated Learning, and its

applications in the medical image analysis that serves

for the researches and development of AI diagnosis

towards certain specific diseases. While reviewing

these researches, the study has summarized the

defects of Federated Learning algorithm that has

appeared in the past experiments, the lack of

interpretability and applicability, and also suggested

the theoretical feasible solutions towards each of the

two drawbacks. However, it is also suggested that the

safety issue laying in the data transmission can be

ameliorated but hardly removed by the Federated

Learning’s partially distributed architecture, while

the development of fully distribution algorithms and

their potential replacement of the Federated Learning

algorithms in the future might be the eventual

resolution of this issue.

REFERENCES

Albalawi, E., T.R., M., Thakur, A., et al. 2024. Integrated

approach of federated learning with transfer learning

for classification and diagnosis of brain tumor. BMC

Medical Imaging, 24(1), 110.

AlRakhami, M. S., AlQahtani, S. A., & Alawwad, A. 2024.

Effective skin cancer diagnosis through federated

learning and deep convolutional neural networks.

Applied Artificial Intelligence, 38(1).

Darzi, E., Sijtsema, N. M., & van Ooijen, P. M. A. 2024. A

comparative study of federated learning methods for

COVID-19 detection. Scientific Reports, 14(1).

Hunt, E. B. 2014. Artificial intelligence. Academic Press.

Li, T., Sahu, A. K., Talwalkar, A., & Smith, V. 2019.

Federated learning: Challenges, methods, and future

directions. IEEE Signal Processing Magazine, 37(3),

50-60.

Lundberg, S., & Lee, S. I. 2017. A unified approach to

interpreting model predictions. arXiv preprint

arXiv:1705.07874 [cs.AI].

McMahan, H. B., Moore, E., Ramage, D., Hampson, S., &

Aguera y Arcas, B. 2023. Communication-efficient

learning of deep networks from decentralized data.

arXiv preprint arXiv:1602.05629v4 [cs.LG].

Nazir, S., & Kaleem, M. 2023. Federated learning for

medical image analysis with deep neural networks.

Diagnostics, 13(9).

Silva, F. R. da, Camacho, R., & Tavares, J. M. R. S. 2023.

Federated learning in medical image analysis: A

systematic survey. Electronics, 13(1).

Yu, C., Pei, H., & Sparavigna, A. C. 2024. Dynamic

weighting translation transfer learning for imbalanced

medical image classification. Entropy, 26(5).

DAML 2024 - International Conference on Data Analysis and Machine Learning

536
