Enhanced Byzantine Fault Tolerance with Raft and Multi-Pipeline

HotStuff Using ECC

Shen Li

School of Information Systems Engineering and Management, Harrisburg University of Science and Technology,

Harrisburg, U.S.A.

Keywords: Byzantine Fault Tolerance, Raft-MPH, Elliptic Curve Cryptography, HotStuff.

Abstract: This paper focuses on the challenges in Byzantine Fault Tolerance (BFT) systems, particularly focusing on

the inefficiencies in traditional protocols such as Practical Byzantine Fault Tolerance (PBFT) and the

shortcomings of HotStuff's single-pipeline design. This study introduces a new model called Raft-Multiple

Pipeline HotStuff (Raft-MPH) with Elliptic Curve Cryptography (ECC) to deal with BFT. Additionally, the

Raft-MPH protocol is designed to improve HotStuff's existing framework by leveraging ECC to make

cryptographic operations more efficient. The research shows that this approach significantly decreases

communication overhead while maintaining high throughput and low latency, even in different network

conditions. The Raft-MPH protocol processed up to 160K transactions per second (TPS) on a Local Area

Network (LAN) with latency similar to traditional HotStuff, and it scaled well as the number of replicas

increased. Overall, this work lays a solid foundation for future research on adaptive consensus protocols and

may lead to practical applications in blockchain platforms.

1 INTRODUCTION

Byzantine Fault Tolerance (BFT) has captured

significant attention in distributed systems,

particularly as blockchain technology demands

robust safety and reliability, even when dealing with

malicious nodes. Facing these challenges, researchers

utilize these BFT protocols to ensure smart contract

execution and secure consistent state machine

replication in these networks, maintaining system

integrity even when malicious behaviors are detected.

However, traditional BFT approaches, such as

Practical Byzantine Fault Tolerance (PBFT), struggle

in the large-scale distributed environment due to their

costly view-change processes and high

communication complexity (Bogdanov et.al, 2023).

Introducing more sophisticated protocol, like

HotStuff, handles these challenges by optimizing

consensus phases to reduce forks and achieve linear

communication complexity (Yin et.al, 2018; Niu et.al,

2021). Despite these enhancements, HotStuff’s

single-pipeline architecture introduces new research

gaps, necessitating further exploration. This paper

proposes the Raft-Multiple Pipeline HotStuff (Raft-

https://orcid.org/0009-0008-2726-2728

MPH) model, which combines Raft’s simplicity with

HotStuff’s multiple-pipeline architecture and Elliptic

Curve Cryptography (ECC) to improve performance,

scalability, and fault tolerance.

The field of Byzantine Fault Tolerance has

achieved significant results, with diverse protocols

developed to deal with the inherent issues of

maintaining consensus in distributed systems. PBFT,

one of the most well-known and earliest BFT

protocols, has strong fault tolerance management

capabilities but suffers from quadratic

communication complexity O (n

), making it less

feasible in large-scale distributed systems. The cost

of view changes in PBFT, which grows cubically O

), further undermines its capabilities to handle

scalability issues (Bogdanov et.al, 2023). In response,

HotStuff has been introduced to simplify the

consensus process by decreasing the number of

phases required and achieving linear communication

complexity in steady-state operations. HotStuff’s

approach, which utilizes threshold signatures, has

played a crucial role in minimizing latency and

improving performance (Yin et.al, 2018; Niu et.al,

2021). However, the inherent drawbacks of a single-

Li and S.

Enhanced Byzantine Fault Tolerance with Raft and Multi-Pipeline HotStuff Using ECC.

DOI: 10.5220/0013524400004619

In Proceedings of the 2nd International Conference on Data Analysis and Machine Learning (DAML 2024), pages 379-384

ISBN: 978-989-758-754-2

379

pipeline mechanism limit throughput during heavy

transaction demands. MPH was developed to address

these challenges by allowing concurrent proposal and

voting processes, thereby significantly improving

throughput without introducing delay (Cheng et.al,

2022).

Moreover, integrating Raft with ECC has been

explored to improve encryption efficiency and ease

operational tasks (Lahraoui et.al, 2024; Lara-Nino

et.al, 2018). However, existing solutions still struggle

with single-thread limitations and communication

overhead, particularly in Byzantine fault-prone

environments. This research builds upon these

previous achievements by introducing a hybrid model

that dynamically changes between Raft and MPH

modes, further improving performance and resilience

in distributed systems.

This research aims to develop the Raft-MPH

protocol with ECC to tackle major challenges in BFT

systems, including reducing communication

overhead, enhancing fault tolerance, and improving

scalability. It combines Raft's leader-based system

with MPH's multi-threaded processing to (1) lower

communication complexity and (2) integrate their

advantages for high throughput and fault tolerance (3)

This protocol dynamically adapts based on network

settings and uses ECC for cryptographic efficiency.

This research improves scalability and security in

distributed systems, especially in blockchain, and

paves the way for future work on practical

implementation and optimization of adaptive

consensus protocols.

2 METHODOLOGIES

2.1 Threat Models

The Raft-PBFT model with ECC aims to tackle issues

related to Byzantine fault tolerance and improve

cryptographic efficiency in distributed systems.

However, this model has several vulnerabilities that

could compromise its effectiveness (Figure 1): (1)

Byzantine failures remain a critical concern due to

Raft's leader-based election process combined with

PBFT's view-change mechanism. Malicious nodes

can disrupt the consensus process, which leads to

increased latency and undermines the system's

reliability. (2) Crash-stop failure is another issue

because the model relies on a single pipeline. The

entire system's performance will be severely

impacted if a node fails. This will lead to system-wide

delays. (3) The attackers could exploit a timing

vulnerability caused by dynamic mode switching

between Raft and PBFT modes. This will lead to

instability and compromised consensus (Bogdanov

et.al, 2023).

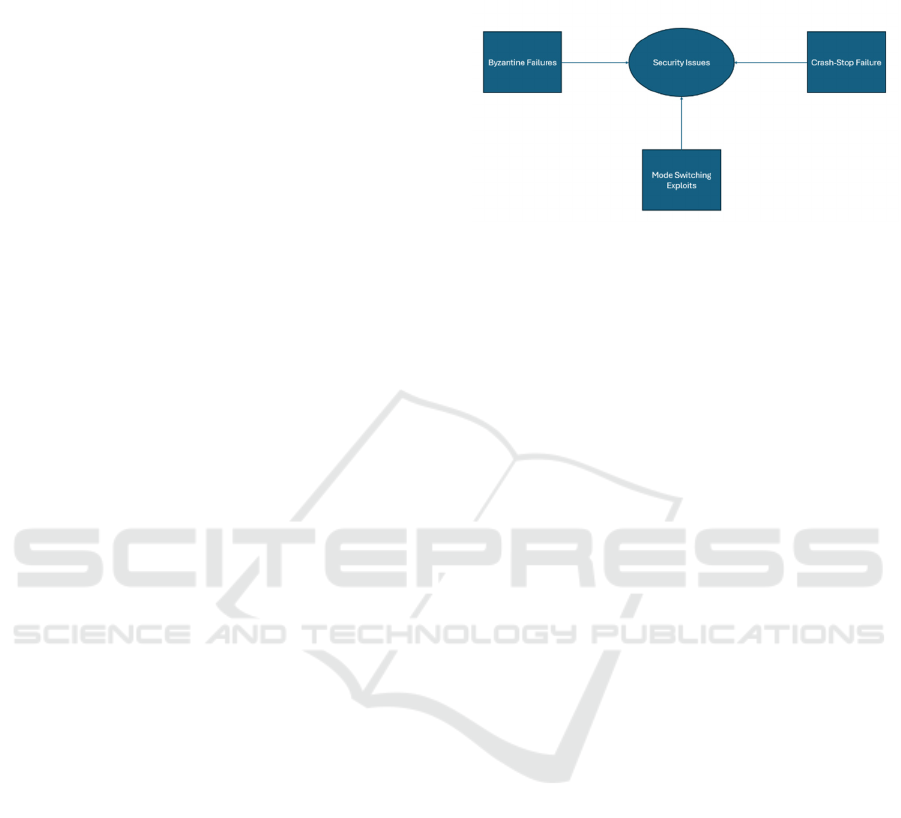

Figure 1: The pipeline of security issues (Picture credit:

Original).

Based on the threat models of the current

approach, this research proposes the Raft-MPH

consensus protocol with ECC, which combines the

principles of Raft and ECC with the Multiple pipeline

approach in HotStuff to improve system performance,

safety, and liveness.

2.2 Methods

2.2.1 Raft

Raft is a consensus algorithm designed for its

simplicity and reliability in managing a replicated log

across a cluster of nodes. It divides the consensus

problem into three components: leader election

(Figure 2), log replication, and safety (Ongaro and

Ousterhout, 2014; Zhan and Huang, 2023). (1) Raft

elects a single server as the leader to manage the log

replication process. If the leader fails, the followers

start an election to elect a new leader. Randomized

election timeouts prevent split votes, which secure

smooth leadership transitions. (2) The leader takes

log entries from clients and broadcasts them to the

followers. Once most followers have received an

entry, it is considered committed and is applied to the

state machine. (3) Raft ensures that all nodes utilize

the same log entries in order, even during failure. The

leader is responsible for dealing with inconsistencies

by correcting the followers' logs. Thus, Raft's strong

leadership, log replication, and consistent consensus

model effectively handle Byzantine failures, crash-

stop failures, and vulnerabilities related to dynamic

mode switching.

DAML 2024 - International Conference on Data Analysis and Machine Learning

380

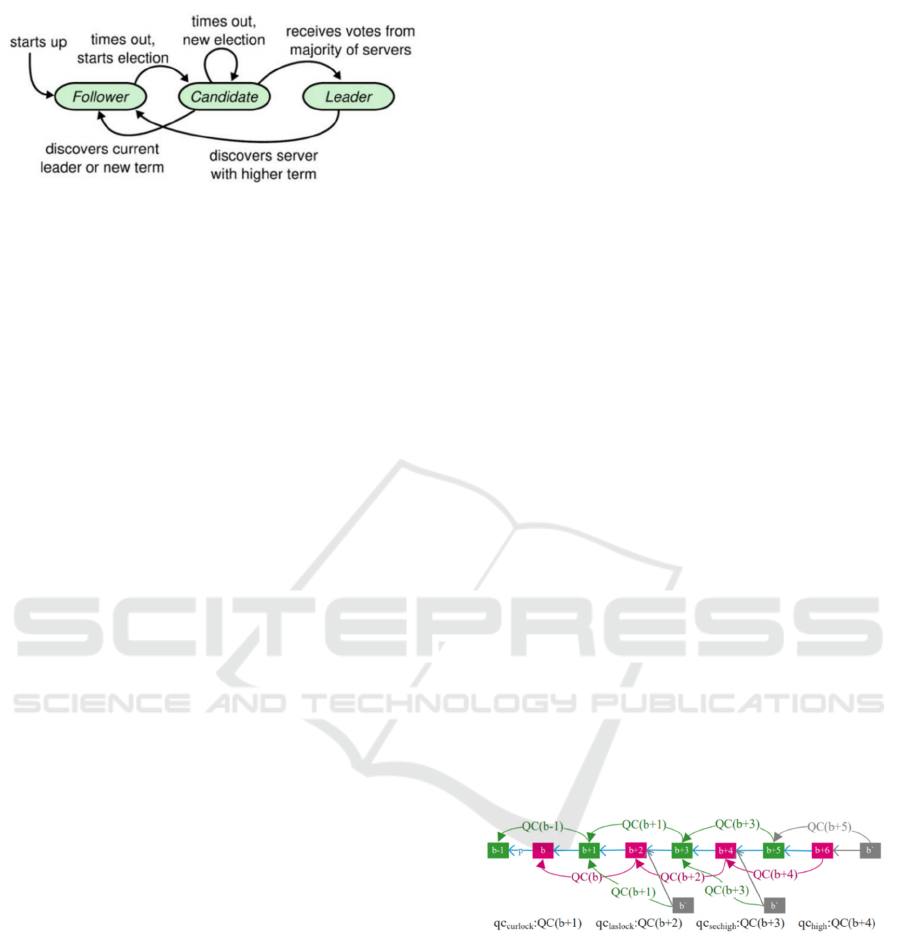

Figure 2: Raft election role replacement process (Picture

credit: Original).

2.2.2 MPH

The MPH is designed to improve performance and

scalability in distributed systems, especially those

vulnerable to Byzantine failures. Unlike the

sequential nature of HotStuff, MPH optimizes the

process by enabling simultaneous proposing and

voting. This optimization decreases the bottleneck

related to single-pipeline methods. MPH can adapt to

real-time network conditions by operating under a

partially synchronous communication model. A

major benefit of MPH is its ability to maintain linear

communication complexity during the normal

operation phase while achieving quadratic

complexity during view changes due to its multi-

pipeline approach. This design enables more blocks

to be proposed and committed in each round,

significantly enhancing throughput without

increasing end-to-end latency. Moreover, MPH's

optimistic responsiveness allows a correct leader to

reach a consensus quickly (Cheng et.al, 2022). This

will improve the protocol's resilience against

Byzantine failures, reduce the impact of node failures,

and simplify leader election processes to prevent

vulnerabilities during mode transitions.

2.2.3 ECC

Compared to traditional algorithms like RSA, ECC

has smaller key sizes. It further secures the system by

offering secure encryption, Digital signatures, and

key exchange. Three characteristics offer more robust

security with lower computational costs: (1) ECC

depends on the elliptic curve equation over a finite

prime field, where security is based on the difficulty

of solving the elliptic curve discrete logarithm

problem (ECDLP). (2) The Elliptic Curve Diffie-

Hellman (ECDH) protocol ensures secure key

exchange over insecure channels. (3) ECC supports

digital signatures via protocols like the Elliptic Curve

Digital Signature Algorithm (ECDSA), securing

message integrity and authenticity (Lahraoui et.al,

2024). Therefore, ECC plays an important role in

mitigating Byzantine failures and reducing delays

from crash-stop failures due to its lightweight design.

It also ensures smooth transitions between Raft and

PBFT modes, which keeps the system stable and

secure.

2.2.4 Raft-MPH with ECC

The Raft-MPH consensus protocol with ECC

operates within a partially synchronous network. The

nodes use a consensus protocol in this system to agree

on the transaction sequence. The system assumes up

to f faulty nodes out of 𝑛, where 𝑛  3𝑓  1 (Cheng

et.al, 2022). The protocol has two phases: Normal

Case Operation and View-Change Operation (Cheng

et.al, 2022). An honest leader is assumed to work

within a synchronous network during Normal Case

Operations. The protocol uses a multi-pipeline

scheme to ensure simultaneous proposals and voting.

ECC improves cryptographic efficiency, making the

system process more transactions smoothly.

However, View-Change Operation is triggered

through timeouts if the system detects a malicious

leader or encounters network asynchrony. This allows

the system to elect a new leader and update the new

view number. Additionally, Raft-MPH supports

parallel proposals and voting across different views,

significantly enhancing throughput. The protocol also

applies a 3-chain commit rule (Figure 3) for safety,

allowing blocks to be committed only as part of a

chain of three consecutive certified blocks with valid

quorum certificates (Cheng et.al, 2022). Combined

with the view-change process, this mechanism

maintains system consistency and progress, even

under hostile conditions.

Figure 3: 3-Chain predicate of MPH (Picture credit:

Original).

The correctness of Raft-MPH with ECC is proven

through eight lemmas that ensure the safety and

liveness of the protocol. (1) Lemma 1 claims that no

two Quorum Certificates (QCs) can have the same

view number, preventing conflicting votes. (2)

Lemma 2 asserts that if two certified blocks share the

same view number, they must be the same. This

prevents conflicting commitments. (3) Lemma 3

secures that a block is committed only if it extends

from a chain of three consecutive certified blocks. (4)

Enhanced Byzantine Fault Tolerance with Raft and Multi-Pipeline HotStuff Using ECC

381

Lemma 4 states that only one block can be certified

in view. (5) Lemma 5 indicates nodes will move to

the next view upon receiving a correct leader's

proposal. (6) Lemma 6 states that all correct nodes

will push opinions monotonically after the Global

Stabilization Time (GST). (7) Lemma 7 ensures

correct leader proposals will be received and voted

on, even in malicious conditions. (8) Lemma 8

guarantees a block will be certified and committed,

preserving liveness and enabling transaction

processing (Yin et.al, 2018; Niu et.al, 2021; Cheng

et.al, 2022).

2.3 Implementation Details

In this project, Java implements the Raft-MPH

protocol. It manages concurrency across multiple

pipelines using Java's built-in concurrency utilities.

This process enables parallel execution of proposals

and votes. Java.net libraries handle networking with

Netty for efficient communication. Implemented

through Bouncy Castle, ECC uses the secp256k1

curve for secure key exchanges and digital signatures.

This protocol also assumes up to f malicious nodes

out of n total nodes (𝑛  3𝑓  1). Java's collections

manage logs and QC, and exception handling and

retry mechanisms secure resilience during Byzantine

and crash-stop failures. Finally, Java's testing

frameworks validate protocol safety and liveness.

3 RESULT AND DISCUSSION

In this chapter, the author evaluates the results of the

Raft-MPH protocol integrated with ECC in a BFT

system. This evaluation focused on three major areas:

(1) throughput and latency performance, (2)

scalability, and (3) fault tolerance under different

network conditions. Research demonstrates how the

proposed Raft-MPH with ECC protocol effectively

reduces communication overhead, improves fault

tolerance, and enhances scalability in distributed

systems.

3.1 Throughput and Latency Analysis

As indicated in Figure 4 and Table 1, the throughput

and latency of Raft-MPH with ECC were tested under

two network settings: Local Area Network (LAN)

and Wide Area Network (WAN). This study used a

block size of 800 transactions, each with a payload of

1024 bytes. The mempool dissemination batch size

was set to 512 KB to ensure efficient transmission.

Figure 4: Throughput (TPS) vs. Latency (ms) for Raft-MPH

with ECC on LAN and WAN (Picture credit: Original).

The results showed that this proposed protocol

maintains low latency while achieving high

throughput under both network conditions.

Specifically, Raft-MPH can process up to 160k

transactions per second (TPS) on a LAN while

maintaining latency similar to HotStuff. However,

due to restricted bandwidth and the challenges of

long-distance transactions, the maximum TPS on a

WAN was limited to 30k, with an increased latency.

The multi-threaded processing in Raft-MPH with

ECC enables efficient bandwidth utilization, resulting

in a substantial enhancement in throughput compared

to traditional protocols like HotStuff and PBFT.

Deploying ECC for cryptographic operations helped

reduce communication overhead, as ECC’s smaller

key sizes and faster computation times enabled more

transactions to be processed within the same time slot.

Thus, with the integration of Raft’s leader-driven

election process with MPH’s multi-threaded

approach, this protocol keeps throughput consistently

high, even as the network scales.

Table 1: Summary of throughput and latency performance metrics.

Network

Environment

Block

Size

Payload Size

(

tes

)

Mempool Dissemination

Batch Size

(

)

Throughput

(

TPS

)

Latency (ms)

LAN 800 1024 512 Up to 160k Comparable to

HotStuff

(

~2s

)

WAN 800 1024 512 Up to 30k Higher than LAN

(~3.5s)

DAML 2024 - International Conference on Data Analysis and Machine Learning

382

Table 2: Scalability metrics for Raft-MPH with ECC.

Number of

Replicas

Maximum Throughput

(TPS) on LAN

Maximum Latency

(ms) on LAN

Maximum Throughput

(TPS) on WAN

Maximum Latency

(ms) on WAN

4 160

~1.5 30

10 150

~2 28

~3.2

22 50

~2 20

~3.3

58 40

~2 10

~3.5

Table 3: Fault tolerance performance metrics for Raft-MPH with ECC.

Number of Faulty

licas

Throughput (TPS) on

LAN

Latency (ms) on

LAN

Throughput (TPS) on

WAN

Latency (ms) on

WAN

0 50

~1.5 20

1 48

~1.8 18

~3.2

2 40

~2 15

~3.4

3 30

~2 10

~3.5

3.2 Scalability

Figure 5 and Table 2 describe the scalability results

of Raft-MPH with ECC when the number of replicas

increases from 4 to 58. The protocol was tested under

the same network environments to maximize

throughput and latency at various scales.

Figure 5: Throughput (TPS) vs. Number of Replicas for

Raft-MPH with ECC (Picture credit: Original).

Research revealed that as more replicas were

added, the throughput of Raft-MPH with ECC scaled

smoothly, achieving 40k TPS on a LAN with 58

replicas while keeping the average latency at 2

milliseconds. This performance is about 60% better

than HotStuff achieves at every scale. Due to Raft-

MPH’s linear communication cost, O(n), with ECC’s

efficient cryptographic operations. Research has

managed to keep latency growth to a minimum as the

system expands. This gives this protocol a clear

advantage over protocols like PBFT, which struggle

with quadratic communication costs, O(𝑛



3.3 Fault Tolerance and View-Change

Performance

Figure 6 and Table 3 present the performance of Raft-

MPH with ECC under fault-tolerant scenarios. This

research tested the protocol with up to 3 faulty

replicas in a 22 replicas setup on a LAN, where the

system dealt with leader failures by performing view-

change operations.

Figure 6: Throughput (TPS) and Latency (ms) vs. Number

of Faulty Replicas for Raft-MPH with ECC (Picture credit:

Original).

The results indicated that Raft-MPH with ECC

outperformed both HotStuff and PBFT, even when

the number of faulty replicas increased. Additionally,

the multi-pipeline mechanism enables the protocol to

maintain higher throughput and lower latency, even

when handling view-change operations. ECC

improves fault tolerance by securing the

communication between replicas, so even if some

replicas fail, the system can quickly elect a new leader

and resume normal operations. Even with 3 faulty

replicas, the maximum latency was measured at 2

milliseconds, and throughput remained at around 30k

TPS. The combination of ECC ensures that the

protocol maintains cryptographic security, preventing

Enhanced Byzantine Fault Tolerance with Raft and Multi-Pipeline HotStuff Using ECC

383

unauthorized access and manipulation of the system,

even during view-change processes.

3.4 Takeaways

The research results reveal that the Raft-MPH

protocol with ECC efficiently handles the major

changes in the BFT system, including decreasing

communication overhead, improving fault tolerance,

and enhancing scalability. This protocol’s ability to

adjust to changing network conditions, along with the

efficiency of ECC, makes it a reliable solution for

modern distributed systems, particularly in

blockchain applications. This research proves that

Raft-MPH with ECC provides enhancement over

traditional consensus protocols. It builds a solid

foundation for further research and practical

implementation in high-performance, secured

distributed systems.

4 CONCLUSIONS

In this research, the author proposed Raft-MPH with

ECC to handle the challenges of performance,

scalability, and BPT consensus mechanisms. This

approach integrates Raft's simplicity with HotStuff's

multi-pipeline architecture and ECC's cryptographic

efficiency. Additionally, research results

demonstrated that Raft-MPH with ECC significantly

reduces communication overhead, enhances

throughput, and improves cryptographic operations

compared to traditional BFT protocols like PBFT and

HotStuff. Future work will translate Raft-MPH with

ECC from theory into practice by developing a robust

implementation framework and integrating it into

blockchain platforms. This includes continuous

improvements in adaptive consensus mechanisms,

applying advanced machine learning models such as

the Adaptive Weighted Attribute Propagation

(AWAP) model, which can dynamically switch

between Raft and MPH modes based on real-time

network environments (Xue et.al, 2021). Moreover,

exploring advanced cryptographic techniques will

ensure the protocol’s reliability and security in

tandem with technological advancements (Salam

et.al, 2024). These efforts will pave the way for Raft-

MPH with ECC to become a practical and efficient

solution for modern distributed systems.

REFERENCES

Bogdanov, A., Shchegoleva, N., Khvatov, V., et al. 2023.

The Combination of P-BFT and RAFT: A New

Approach to Building Networks that Provide

Reliability and Security. International Conference on

Computational Science and Its Applications. Cham:

Springer Nature Switzerland, 2023: 572-583.

Cheng, T., Zhou, W., Yao, S., et al. 2022. Multi-pipeline

HotStuff: A High Performance Consensus for

Permissioned Blockchain. IEEE International

Conference on Trust, Security and Privacy in

Computing and Communications, 1008-1019.

Lahraoui, Y., Lazaar, S., Amal, Y., et al. 2024. Securing

Data Exchange with Elliptic Curve Cryptography: A

Novel Hash-Based Method for Message Mapping and

Integrity Assurance. Cryptography, 8(2), 23.

Lara-Nino, C. A., Diaz-Perez, A., & Morales-Sandoval, M.

(2018). Elliptic curve lightweight cryptography: A

survey. IEEE Access, 6, 72514-72550.

Niu, J., Gai, F., Jalalzai, M.M., et al. 2021. On the

performance of pipelined hotstuff. Conference on

Computer Communications, 1-10.

Ongaro, D., Ousterhout, J., 2014. In search of an

understandable consensus algorithm. USENIX annual

technical conference, 305-319.

Salam, A., Abrar, M., Amin, F., et al. 2024. Securing smart

manufacturing by integrating anomaly detection with

zero-knowledge proofs. IEEE Access.

Xue. S.X., Ji, M.W., Jun, Y.Y., et al. 2021. AWAP:

Adaptive weighted attribute propagation enhanced

community detection model for bitcoin de-

anonymization. Applied Soft Computing, 109, 107507.

Yin, M., Malkhi, D., Reiter, M.K., et al. 2018. HotStuff:

BFT consensus in the lens of blockchain. arXiv preprint:

1803.05069.

Zhan, Z., Huang, R., 2023. Improvement of Hierarchical

Byzantine Fault Tolerance Algorithm in RAFT

Consensus Algorithm Election. Applied Sciences,

13(16), 9125.

DAML 2024 - International Conference on Data Analysis and Machine Learning

384
