Defense Technology of License Plate Recognition System Based on

Regularization and Image Denoising

Haitong Shen

School of Mechanical, Electrical and Information Engineering, Shandong University,

180 Wenhua West Road, Weihai City, Shandong Province, China

Keywords: License Plate Recognition, Regularization, Image Denoising, PGD Attack.

Abstract: The license plate recognition (LPR) system plays an important role in modern traffic, but the existing models

based on deep learning are difficult to deal with in a series of complex situations, including adversarial

example attacks. Based on this, this project deeply studies the defense technology of the LPR system utilizing

image processing techniques, aiming to enhance the LPR system's processing ability in the face of complex

environments, especially adversarial sample attacks. In terms of research methods, this project is based on a

GRU-based sequence model, using regularization and image noise reduction to weaken the sensitivity of the

model to specific perturbed data points and enhance the robustness of the model, so that the accuracy of the

model to identify adversarial samples is improved from 22% to 68%. The experimental results show that the

regularization and image noise reduction method can make the LPR model effectively distinguish the original

license plate from the adversarial samples, and can restore the original information in the image adversarial

samples. There are still some problems in the model, such as partial errors that may occur when trying to

restore the authentic data encoded on the license plate, especially the abbreviation of the province. Further

improvement of the character recognition method can be considered in the future.

1 INTRODUCTION

Traditional license plate detection algorithms usually

rely on specific features such as color, texture, and

shape of the license plate, for example, color feature-

based license plate detection algorithms and texture

feature-based license plate detection algorithms, their

mobility and detection results are poor (Dun, Zhang,

Ye, et al., 2015; Kim, Kim, Kim, 1996; Zhang, Jia,

He, et al., 2006; Yu, Li, Zhang, et al., 2015).

License plate recognition (LPR) models based on

deep learning are an important part of modern

transportation systems, which can be utilizable in a

multitude of contexts such as illegal capturing,

parking lot management, and vehicle trajectory

tracking. They have many advantages such as fast

recognition speed, high accuracy, and portability.

Therefore, it is of great significance to study feasible

defense technology of LPR systems and enhance the

recognition accuracy of license plate systems in

extreme cases to improve the safety of daily travel

and traffic conditions.

https://orcid.org/0009-0001-8321-6215

The deep learning model used in the system

makes it difficult to deal with different types of

license plates and is vulnerable to adversarial

examples. The existing attack methods can interfere

with the LPR model by adding carefully designed

small adversarial perturbations to the normal samples,

and the wrong output will pose a great threat to

privacy security and travel safety in the real world.

Research by Padmasiri et al. shows that most existing

LPR solutions require a large amount of computation

and waiting time, and are difficult to cope with the

work in complex scenarios such as night (Padmasiri,

Shashirangana, Meedeniya, et al., 2022). Deshpande

et al. proposed a small object detection algorithm

trained using real-time high-resolution data that can

detect downsized, slanted, blurred license plate

images (Deshpande, Veena, Ferede, 2022). Gao used

A local tiled convolutional neural network (LTCNN),

and by changing the method of adjusting the weights,

the model was able to recognize the make and model

of the vehicle with 98% accuracy (Gao, Lee, 2016).

However, existing models will find it difficult to

Shen and H.

Defense Technology of License Plate Recognition System Based on Regularization and Image Denoising.

DOI: 10.5220/0013516600004619

In Proceedings of the 2nd International Conference on Data Analysis and Machine Learning (DAML 2024), pages 329-333

ISBN: 978-989-758-754-2

329

maintain the original high accuracy and confidence

when dealing with adversarial samples.

Based on the above investigation and research,

this project will develop a set of feasible defense

techniques against license plate attacks, using

regularization technology to enhance the robustness

of the model, and using image denoising technology

to weaken the adversarial image. This defense

method can enhance the recognition accuracy of the

model in extreme cases, and enable the model to

detect adversarial samples and restore the original

license plate information in the image, to improve the

defense performance of the LPR system.

2 RESEARCH METHODS

2.1 Dataset Selection

The data set in this paper is from the open-source

Chinese urban license plate dataset CCPD2019. The

CCPD2019 dataset was collected by the University of

Science and Technology of China. It contains more

than 250,000 Chinese urban license plate images, and

the recognition results and detection information of

the license plate images are annotated in detail to

facilitate subsequent training. The license plate

photos contained in the dataset involve a variety of

complex environments. Different sub-datasets

include images affected by different environments,

such as rain and snow, fog, tilt, jitter, and blur. This

study uses the proportional probability sampling

method of different sub-datasets. Considering that the

license plate pictures taken in most cases are not

affected by extreme weather, this study mainly uses

the sub-dataset CCPD-Base under CCPD2019, which

contains common license plate pictures under regular

conditions.

2.2 LPR Model

HyperLRP is selected as the LPR model in this paper.

HyperLRP is a lightweight Chinese LPR model

utilizing deep learning techniques, developed by

Beijing Zhiyun View Technology Co., LTD. It has

the advantages of fast recognition speed and high

accuracy and can support the recognition and

detection of a variety of license plates. At the same

time, HyperLRP is vulnerable to adversarial sample

attacks, and it cannot effectively defend against

existing attack algorithms. The model uses a

sequence model based on Gate Recurrent Unit (GRU)

to detect the text in the license plate, which is

modified based on the Optical Character Recognition

(OCR) model. The recognition speed is slow, about

20ms, but the recognition effect is good. The final

average recognition time of the model is less than

100ms, and the accuracy rate is about 95%-97%.

2.3 Attack Methods

In this paper, the Projected Gradient Descent (PGD)

algorithm is used to create adversarial instances to

simulate the process of the attacker adding

disturbances to the license plate. When running the

model, existing license plate image adversarial

samples can also be directly input into the model to

skip the step of adding disturbances. The PGD

algorithm generates adversarial examples by iterating

several times along the gradient direction. Compared

with other attack methods, the PGD algorithm can

constrain the attack into the framework to reduce the

disturbance, with the advantages of a good attack

effect and less added disturbance. Therefore, the

selection of a PGD attack will better reflect the effect

of the defense strategy used in this paper.

2.4 Data Preprocessing

Firstly, a cascade classifier based on the Haar feature

serves the purpose of identifying all instances of

license plates in the image, and then the license plate

image is cropped and normalized to ensure that the

input image of the model has a uniform size, which is

convenient for subsequent recognition and attack.

2.5 Regularization

In this paper, L2 regularization is used to enhance the

robustness of the model by incorporating a

penalization factor into its loss computation to limit

the weight value of the model. On the one hand, it

reduces the fitting degree of the model to the training

samples, which makes the model more difficult to

attack. On the other hand, it reduces the sensitivity of

the model to small perturbations. Adversarial

examples will make it difficult to attack the image

recognition model by adding small perturbations to

the original image. The attacker has to increase the

degree of perturbation so that the naked eye can

recognize the adversarial sample, to achieve the

purpose of defense.

2.6 Image Denoising

Use a median filter for noise reduction. By sorting

each pixel in an image and its neighborhood and

replacing

the value of that pixel with the median

DAML 2024 - International Conference on Data Analysis and Machine Learning

330

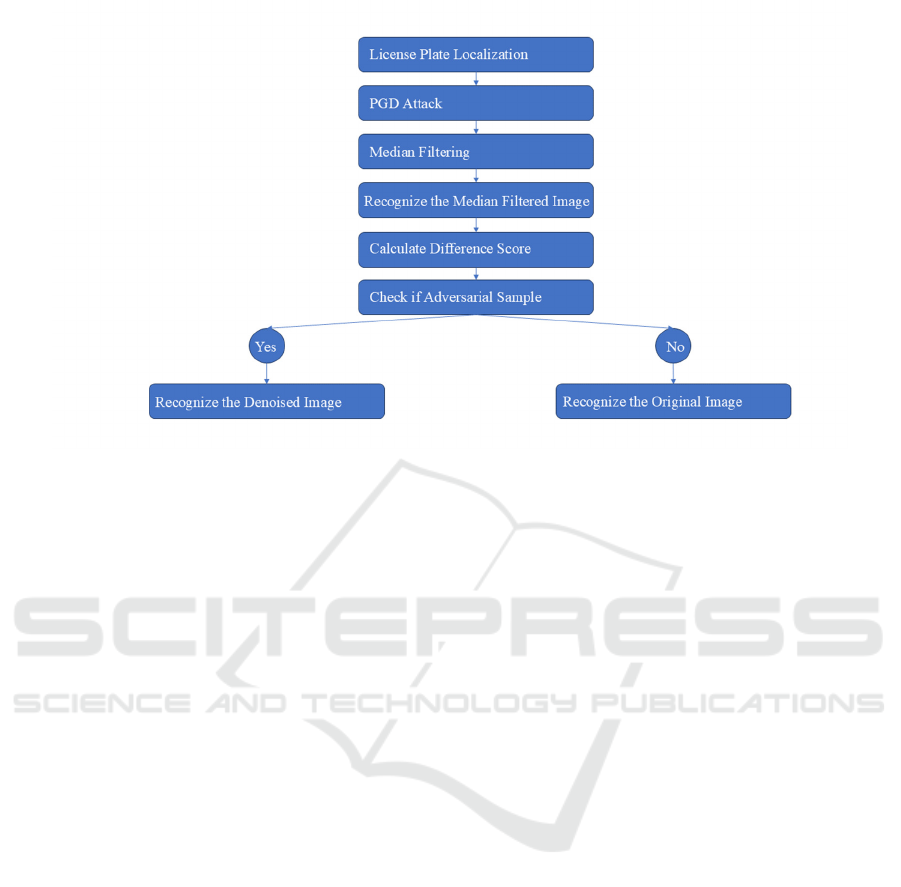

Figure 1: The flow of image recognition algorithm after adding defense (Photo/Picture credit: Original).

value, the median filter can mask out small changes

to some pixels in the image. Compared with noise

reduction methods such as mean filtering and

Gaussian filtering, median filtering is more resistant

to noise, which can significantly reduce the influence

of adversarial samples on the model, and at the same

time better retain the edges and some details of the

image, reducing the difficulty of subsequent

recognition of the original image and the restored

adversarial samples.

3 ALGORITHM DESIGN

The CCPD2019 dataset was used to train the model.

The model's loss function is augmented with L2

regularization to penalize large weights, thereby

simplifying the model and mitigating the risk of

overfitting. The parameters of the model as well as

the regularization coefficient λ are updated by

gradient descent. Finally, the model parameters are

saved.

As shown in Figure 1, firstly, rough positioning is

performed after reading the license plate image to

find out all the license plates in the image. Then fine

positioning is carried out, the license plate is cropped

along the contour and normalized to divide the license

plate into individual characters, which is convenient

for character recognition later.

If the license plate image is the original image, to

simulate the adversarial sample attack, a PGD attack

should be performed on the cropped license plate, and

then the perturbed image should be pasted to the

corresponding position of the original image and the

above steps of license plate location should be

repeated to obtain the cropped license plate image.

If the input image is an adversarial sample, the

step of adding disturbance here can be skipped.

Then, the median value of each point in the 3*3

neighborhood matrix of each sorted point is taken as

the actual pixel value of the point, to ignore the small

changes in some pixels in the image and enhance the

robustness of the model.

The adversarial samples before and after the

median filtering are sent to the LPR model

respectively, and the output tensor of the model is

obtained, where the element is the probability matrix

output by the license plate for each character.

According to this, whether the image has been

subjected to adversarial attacks is determined.

The Euclidean distance between the model and

the probability matrix of each character in the license

plate before and after the median filtering is

calculated, and it is added as the difference degree of

the two tensors. For each character in the license

plate, if the recognition results of the model are

inconsistent before and after the median filtering, an

additional weight 𝜇 is added to the above

dissimilarity.

In Formula (1), 𝐷 is the degree of difference

between probability matrices, that is, the possibility

of the image being attacked. 𝐸(𝑥, 𝑦) returns the

Euclidean distance between two matrices x and y. 𝑝1

is the model's outputted probability matrix for the

Defense Technology of License Plate Recognition System Based on Regularization and Image Denoising

331

original image, 𝑝2 is the model's outputted

probability matrix for the image after median filtering,

and the elements in 𝑝1 and 𝑝2 are the model's

outputted probability matrix for the characters in the

license plate (for example,𝑝1 [0] is the probability

matrix output by the model when recognizing the

abbreviation of the province). 𝜇 is the contribution of

error recognition to matrix dissimilarity, which is set

to 0.5 in this paper. 𝑒(𝑥, 𝑦) determines whether two

arguments are equal and returns 0 if they are identical

or 1 if they are different. 𝑎(𝑥) returns the maximum

value of the matrix 𝑥, and 𝑎(𝑝[𝑛]) is the recognition

result of a character.

𝐷 = ∑𝐸(𝑝1[𝑛], 𝑝2[𝑛]) + 𝜇∑𝑒(𝑎(𝑝1[𝑛]), 𝑎(𝑝2[𝑛]))

(1)

Finally, according to the size of the threshold and

the above difference value, whether the image is an

adversarial sample was determined. If it is, the output

of the model for the median filtered image will be

used as the final recognition result. If not, the output

of the model for the original image is used as the final

recognition result.

4 EXPERIMENTAL RESULTS

AND ANALYSIS

4.1 Experimental Results

As shown in Table 1, after adding defense, the

accuracy of the model in recognizing the original

image is improved, from 77% to 82%, and the

accuracy of recognizing the adversarial sample is

greatly improved, from 22% to 68%. In addition, the

accuracy of the model to determine whether the

image is under attack is 73%, and the recall rate is

69%.

Table 1. Performance Improvement comparison

Metrics Before adding

defenses

After adding

defenses

Original image

accuracy (%)

77 82

Adversarial sample

accuracy (%)

22 68

Model judgment

attack accurac

(

)

- 73

Model-judged attack

recall

(

)

- 69

4.2 Experimental Analysis

According to the experimental results, the accuracy of

identifying adversarial samples is greatly improved

after adding defense, because the regularization

reduces the sensitivity of the model to the change of

pixels in the image, and the median filtering weakens

the adversarial messages in the image. Therefore, for

those adversarial samples that try to complete the

attack with small disturbances, the model will be able

to restore the license plate's original information. The

recognition rate of the original image is slightly

improved because the regularization improves the

robustness of the model.

There are still some problems in the model, it is

difficult for the model to restore some information in

the license plate, especially the abbreviation of the

province and some similar letters. Moussaoui et al.

showed that light intensity and excessive noise can

affect character extraction algorithms, making it

difficult to accurately identify characters (Moussaoui,

Akkad, Benslimane, et al., 2024).

For some images that are difficult to recognize,

especially those affected by the environment, the

model may classify them as adversarial samples;

Similarly, for some adversarial examples with poor

attack effects, the model may think that they have not

been attacked. This may lead to improvements from

the following facts.

According to the study of Liu et al., for some

extreme license plate images, such as the deformation

of the license plate caused by lateral photography, the

image should be corrected before segmentation, such

as the polynomial distortion method and interpolation

method (Liu, Liu, 2000).

Su's research shows that YOLO-based license

plate detection methods have higher accuracy than

HyperLPR and perform better when faced with

adversarial samples (Su, 2021).

In addition, the model used in this paper is based

on a single image, while the LPR scene in practical

applications is often based on video. In the future,

video-like datasets can be considered, such as the

video-based license plate dataset LSV-LP

constructed by wang et al. (Wang, Lu, Zhang, et al.,

2023).

The main province of license plate in the

CCPD2019 dataset is "Anhui", resulting in the

limited transfer capability of the model and the

difficulty in defending against some adversarial

samples with strong adversarial resistance.

DAML 2024 - International Conference on Data Analysis and Machine Learning

332

5 CONCLUSION

In this paper, a sequence model based on GRU is used

to recognize adversarial license plate samples. By

adding regularization and using image noise

reduction technology, the recognition accuracy is

improved from 22% to 68%.

The study shows the feasibility of regularization

and image noise reduction in the field of LPR, but

some errors may occur when trying to restore the

license plate's original information, especially the

abbreviation of the province or municipality. A

possible explanation for this can be obtained from the

following facts.

Firstly, the robustness of the model can be

improved by using the L2 penalty term in the loss

function to limit the range of the parameters and make

them smoother. Gradient regularization on input

pictures that may be adversarial examples can reduce

the sensitivity of the model to some small

perturbations. Image denoising can weaken the

perturbation information in the image adversarial

examples, and preserve the original information in the

image while removing the noise. Secondly, the

adversarial sample may add weak perturbations at

multiple places on the license plate instead of adding

strong perturbations at a small number of pixels,

which cannot be effectively processed by the model.

In the future, it may be considered to correct

extreme images before cropping images, adopt more

effective license plate detection methods, and use

videos as the data set for model training to facilitate

the in-depth study of this issue.

REFERENCES

Deshpande, M., Veena, M.B. and Ferede, A.W., 2022.

Auditory Speech Based Alerting System for Detecting

Dummy Number Plate via Video Processing Data sets.

Computational Intelligence and Neuroscience, 2022,

4423744.

Dun, J., Zhang, S.Y., Ye, X. and Zhang, Y., 2015. Chinese

License Plate Localization in Multi-Lane with Complex

Background Based on Concomitant Colors. IEEE

Intelligent Transportation Systems Magazine, 7, pp. 51-

61.

Gao, Y. and Lee, H.J., 2016. Local Tiled Deep Networks

for Recognition of Vehicle Make and Model. Sensors,

16(2), pp. 226.

Kim, S., Kim, D.W. and Kim, H., 1996. A recognition of

vehicle license plate using a genetic algorithm based

segmentation. Proceedings of the 3rd IEEE

International Conference on Image Processing, 2, pp.

661-664.

Liu, Z.Y. and Liu, Y.J., 2000. Image extraction and

segmentation in license plate recognition (LPR).

Journal of Chinese Information Technology, 14(4), pp.

29-34.

Moussaoui, H., Akkad, N.E., Benslimane, M., El-Shafai,

W., Baihan, A., Hewage, C. and Rathore, R.S., 2024.

Enhancing automated vehicle identification by

integrating YOLO v8 and OCR techniques for high-

precision license plate detection and recognition.

Scientific Reports, 14(1), 14389.

Padmasiri, H., Shashirangana, J., Meedeniya, D., Rana, O.

and Perera, C., 2022. Automated License Plate

Recognition for Resource-Constrained Environments.

Sensors, 22(4), pp. 1434.

Su, Y., 2021. Research and implementation of neural

network attack and defense technology for license plate

recognition. (Doctoral dissertation, Guangzhou

University).

Wang, Q., Lu, X., Zhang, C., Yuan, Y. and Li, X., 2023.

LSV-LP: Large-Scale Video-Based License Plate

Detection and Recognition. IEEE Transactions on

Pattern Analysis and Machine Intelligence, 45(1), pp.

752–767.

Yu, S., Li, B., Zhang, Q., Liu, C. and Meng, M.Q., 2015. A

novel license plate location method based on wavelet

transform and EMD analysis. Pattern Recognition, 48,

pp. 114-125.

Zhang, H., Jia, W., He, X. and Wu, Q., 2006. Learning-

Based License Plate Detection Using Global and Local

Features. 18th International Conference on Pattern

Recognition (ICPR'06), 2, pp. 1102-1105.

Defense Technology of License Plate Recognition System Based on Regularization and Image Denoising

333
