Advances and Analysis in Convolutional Neural Networks: A

Comparative Study of AlexNet and ResNet

Jiawei Chen

School of Computer Engineering, Guangzhou City University of Technology, Guangzhou, China

Keywords: Convolutional Neural Networks, AlexNet, ResNet, Deep Learning.

Abstract: Deep learning, particularly through Convolutional Neural Networks (CNNs), has significantly impacted

various fields and is integral to many aspects of daily life. This study focuses on CNNs, with a specific

emphasis on two foundational models: ImageNet Classification with Deep Convolutional Neural Networks

(AlexNet) and Residual Network (ResNet). CNNs excel in image processing and recognition but require

substantial data for effective training. AlexNet, a pioneer in the deep learning revolution, employs Rectified

Linear Unit (ReLU) activation functions and Dropout techniques to mitigate overfitting but struggles with

irregular and large datasets. On the other hand, ResNet introduces residual connections to address the

vanishing gradient problem, although it still faces challenges related to overfitting. The paper provides a

detailed comparison of CNN principles with traditional Neural Networks (NNs), highlighting the strengths

and weaknesses of AlexNet and ResNet. It also explores the current challenges in deep learning, outlining

potential areas for future research and development. This study offers insights into the evolution of CNN

technologies and suggests directions for overcoming existing limitations and enhancing future advancements.

1 INTRODUCTION

As one of the most trending researched topics in

computer vision and machine learning, biometrics

technology has been widely applied in a variety of

security and identity verification systems owing to the

swift development of information technology and

artificial intelligence. Compared with other biometric

technologies thesis can see in daily life, such as iris

(Nguyen et al., 2024), fingerprint (Kortli et al., 2020),

and voice recognition, facial recognition has

gradually emerged as the top choice result of its

natural, contactless, and convenient features (Liu et

al., 2023). Through analyzing and matching faces

automatically which are based on the unique

characteristics of a living person, this technology can

enhance the user experience as well as improve

significantly security. Utilizing facial recognition

technology has become a common scene in life, such

as in security (Nan et al., 2022; Li et al., 2021),

finance, and safe driving (Jeong and Ko, 2018). It is

significant for researchers who need more study and

development of related technologies in light of the

https://orcid.org/0009-0007-4940-0813

vast potential of facial recognition technology in real-

world applications.

As an organ possessed from birth, human beings

have been identified by using faces almost since

childhood, resulting in humans being talented in

recognizing known faces, but once the number of

faces becomes large and unknown, people's

recognition ability will deteriorate. There are a

number of researchers who have played a significant

role in advancing facial recognition technology over

the past few decades. In order to identify, in its early

stages, facial recognition primarily depended on

extracting a large number of facial characteristic

coordinates and comparing them with stored facial

data in a database (Wang and Deng, 2021). However,

this method would show limitations when facing

complex environmental conditions such as lighting

conditions, posture changes, and dynamic

backgrounds (Beham and Roomi, 2013).

Additionally, the development of sensors has been

shown to be able to obtain two-dimensional and

three-dimensional information at the same time,

leading some researchers to mix the two types of

information into a system that can improve analytical

Chen and J.

Advances and Analysis in Convolutional Neural Networks: A Comparative Study of AlexNet and ResNet.

DOI: 10.5220/0013516400004619

In Proceedings of the 2nd International Conference on Data Analysis and Machine Learning (DAML 2024), pages 317-321

ISBN: 978-989-758-754-2

317

capabilities (Kortli et al., 2020). By the late 20th

century, advancements in computer vision and

computational power paved the way for techniques

that could reduce data dimensionality while retaining

key facial features, greatly enhancing the accuracy of

facial recognition. The 21st century brought with it a

seismic shift in facial recognition thanks to advances

in deep learning and computer vision. Deep learning

models based on Convolutional Neural Network

(CNN) have pushed the boundaries in facial

recognition. Practically, Google's FaceNet,

introduced in 2015, achieved remarkable

performance on multiple public data sets (Qinjun et

al., 2023). In today's era, the advancement and

application of deep learning have not only greatly

enhanced recognition accuracy but demonstrated

exceptional performance in managing complex

scenarios and large-scale data.

The research aims to explore and develop the

fundamental concepts and core technologies of facial

recognition. The primary objective of this study is to

first organize and summarize the concepts and

background of facial recognition technology. It then

proceeds to analyze and discuss the structure and

logic underlying the implementation of core facial

recognition technologies. Furthermore, the study

introduces the strengths and weaknesses of the

methods employed within the internal logic of facial

recognition systems, while also providing insight into

potential future developments in the field.

2 METHODOLOGIES

2.1 Dataset Description

Image processing based on CNNs requires the

collection of a great number of human face pictures

with different angles and expressions for computer

learning. This study reviews the commonly used

datasets in several different papers, including their

sources, quantity, and content. The Operations

Research Laboratory (ORL) dataset provided by

AT&T Laboratories at Cambridge University was

captured between April 1992 and April 1994 (AT et

al., 2017). The dataset consists of 40 different

subjects, with each subject containing 10 images.

Specifically, the images of each subject exhibit

variations in facial brightness and expressions due to

different capture times. The backgrounds of these

images are all black, and they are taken from a front-

facing, upward angle. The thumbnails of all images

are shown in Figure 1. Each image is 92×112 pixels,

with 256 Gray levels per pixel. An enlarged image of

each subject is shown in Figure 2.

Figure 1: The ORL face database (AT et al., 2017).

Figure 2: The set of ten images for on subject (AT et al.,

2017).

2.2 Proposed Approach

The purpose of this study is to examine the evolution

of CNN-based face recognition technology and assess

the benefits and drawbacks of various neural network

approaches (see in Figure 3). Initially, the paper

introduces CNNs, along with two significant variants

includes ImageNet Classification with Deep

Convolutional Neural Networks (AlexNet) and

Residual Network (ResNet), which have achieved

notable advancements in the field. It provides an

overview of CNN fundamentals and highlights how

AlexNet

and ResNet have innovated beyond

DAML 2024 - International Conference on Data Analysis and Machine Learning

318

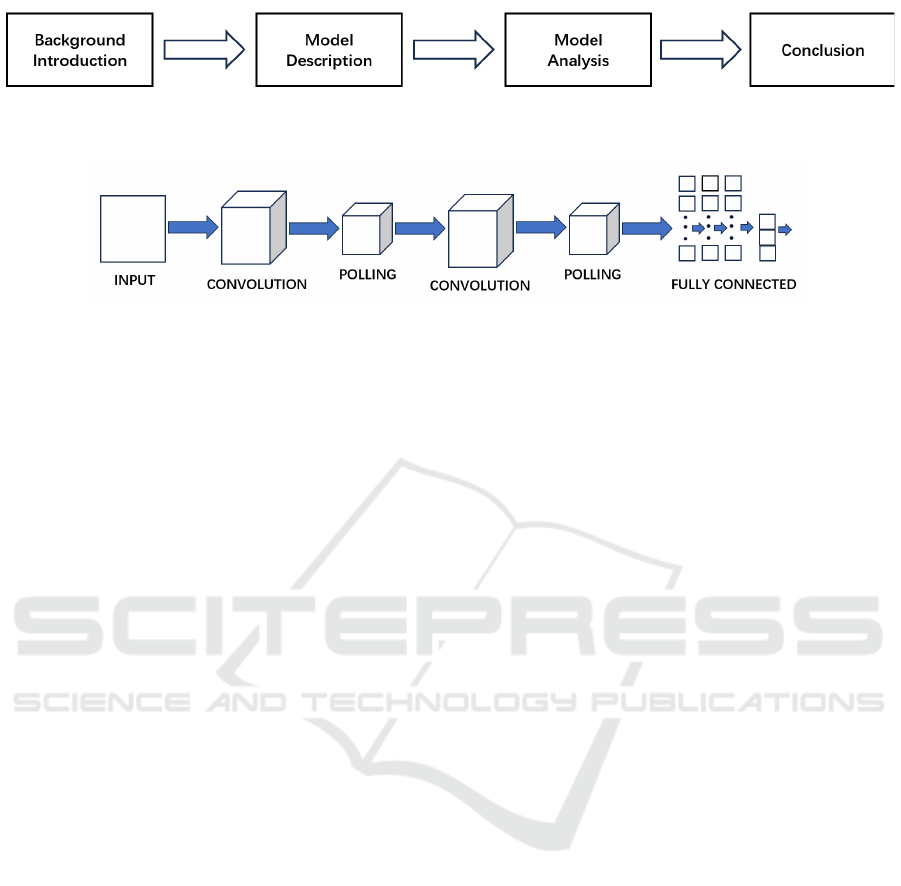

Figure 3: The pipeline of the study (Picture credit: Original).

Figure 4: The structure of CNN (Picture credit: Original).

conventional convolutional neural networks. The

study then analyzes three CNN methodologies,

exploring their respective advantages and limitations.

CNNs have notably addressed challenges such as the

inefficient processing of large image datasets,

incomplete feature extraction, and low recognition

accuracy. AlexNet excels in handling large-scale

datasets but requires substantial computational

resources and extended training times. In contrast,

ResNet overcomes issues like gradient vanishing and

model degradation, although it demands considerable

training data and is susceptible to overfitting. This

comprehensive examination underscores the progress

made in face recognition technology and identifies

potential areas for future research and development.

2.2.1 Introduction of CNN

CNN is a feedforward neural network and a deep-

learning neural network. It mainly consists of three

parts, respectively convolution layer, pooling layer,

and fully connected layer. The convolution layer

plays a crucial role in CNN and is responsible for

executing numerous calculations to extract local

features in the image. During the computation, a

specific convolution kernel, such as a sliding window

with fixed weights, is required, and then multiplies

with the image and is summed to produce a set of

convolved data. After the calculation is completed,

CNN requires a pooling layer to simplify the data.

There are two main types of pooling layers, namely

maximum pooling and average pooling. Figure 4

illustrates the structure. The primary function of the

pooling layer is to perform downsampling and feature

selection for different regions, reducing the number

of features and thus simplifying the model

parameters. This approach may compromise the

integrity of the data but significantly reduces data

complexity, thereby improving processing efficiency.

The role of the fully connected layer is to integrate the

local features extracted by the previous two layers to

form global features. Then, using linear

transformations and activation functions, the global

features are filtered, and the final prediction result is

output.

2.2.2 Introduction of AlexNet

AlexNet is a milestone of CNN in the field of

computer vision, which has attracted people's

attention to the technology of CNN. AlexNet adopts

a deeper network architecture with five convolutional

layers and three fully connected layers, which

significantly improve image classification

performance. In order to improve the problem of

calculation speed, AlexNet uses multiple graphics

processing units (GPU) for training, with each GPU

handling part of the computation, which significantly

speeds up the training process. In addition, AlexNet

used the non-saturating Rectified Linear Unit (ReLU)

function as its activation function, which is simpler to

calculate. The ReLU function can not only

significantly accelerate convergence during training

but also better mitigate the vanishing gradient

problem compared to the traditional Sigmoid

function. AlexNet implemented overlapping pooling,

where the stride (step size) is smaller than the window

size, leading to overlapping regions during the

pooling process. Additionally, AlexNet used data

augmentation and dropout techniques to prevent

overfitting and enhance recognition accuracy.

Dropout refers to randomly removing certain neurons

during training to reduce the dependency between

multiple neurons, thereby improving generalization

and introducing uncertainty. By deepening the

network structure, AlexNet demonstrated the

potential of deep neural networks and triggered a

surge of interest in deep learning.

Advances and Analysis in Convolutional Neural Networks: A Comparative Study of AlexNet and ResNet

319

2.2.3 Introduction of ResNet

ResNet is a deep residual network structure that

utilizes residual modules and residual connections to

build a network. Although increasing the depth of a

neural network can enhance its feature extraction

capabilities, going beyond a certain depth may lead to

issues like vanishing or exploding gradients, which

weaken this ability and make training more difficult,

ultimately reducing accuracy. Additionally,

excessively deep networks are prone to overfitting,

which compromises the model's generalization

performance on new data. It is important to note that

the emergence of this problem is not caused by

overfitting but by the degradation of the deep

network. To solve the network degradation problem,

ResNet introduced the concept of residual learning,

incorporating residual blocks through a shortcut

mechanism that allows the network to learn residual

mappings. This shortcut mechanism is essentially an

identity mapping. There are various designs for

residual blocks for networks of different depths.

Figure 5 shows the basic residual blocks. ResNet

greatly increases the depth of network learning and

solves the challenge of training deep CNN modules.

Furthermore, ResNet has greatly influenced the way

researchers think about deep learning, highlighting

the importance of network depth and architecture in

model performance.

Figure 5: The basic structure of residual blocks (Picture

credit: Original).

3 RESULT AND DISCUSSION

Compared to traditional Neural Networks (NNs),

CNNs offer several key advantages that make them

particularly effective for image processing tasks.

CNNs reduce the number of redundant training

parameters and lower model complexity and the risk

of overfitting by sharing convolutional kernel

parameters. This parameter sharing allows the

network to capture spatial hierarchies while

maintaining efficiency. Their ability to capture local

features in images through strong local perceptual

capabilities allows CNNs to extract detailed

information with high precision. Additionally, the

convolution operation nature means CNNs are

relatively invariant to image translations, enhancing

their robustness in feature extraction. However,

CNNs face limitations in handling irregular or non-

grid-like data, which can be challenging for tasks that

require processing such data structures. Furthermore,

training CNNs, especially on large-scale datasets,

demands significant computational resources and

time. The advent of AlexNet marked a pivotal

moment in deep learning, as it replaced the traditional

Sigmoid activation function with the ReLU, thereby

alleviating the vanishing gradient problem. AlexNet

also implemented Dropout in the fully connected

layers to reduce overfitting and utilized GPUs to

accelerate computations by distributing tasks across

multiple GPUs. As can be seen from Table 1, after

ResNet introduced the residual block and solved the

gradient vanishing problem caused by too many

network layers, the model depth was increased from

8 layers in 2012 to 152 layers in 2015, and the

accuracy rate also increased from 84.6% to 96.43%.

Table 1: Accuracy for ImageNet challenge various models.

Model Year Accuracy (%)

Layers

AlexNet 2012 84.6

VGGNet 2014 92.7

ResNet 2015 96.43

152

ResNet further advanced the field by addressing

issues related to vanishing or exploding gradients in

very deep networks. The introduction of residual

blocks enabled ResNet to maintain high accuracy

despite an increased number of layers. Despite these

advancements, ResNet also demands extensive

training data and computational resources due to its

large number of parameters. Looking ahead, future

research in deep learning will likely focus on

developing methods for efficient model training with

limited data and enhancing the performance and

efficiency of model training. Innovations in this area

will be crucial for advancing CNN technology and

DAML 2024 - International Conference on Data Analysis and Machine Learning

320

expanding its applicability to a broader range of tasks

and datasets.

4 CONCLUSIONS

This paper introduces CNNs and explores two

seminal models: AlexNet and ResNet. CNNs, a type

of feedforward neural network, consist of

convolutional layers, pooling layers, and fully

connected layers, and represent a significant

advancement in deep learning algorithms. AlexNet

pioneered the use of ReLU and Dropout, addressing

the vanishing gradient problem and reducing

overfitting. ResNet further advanced the field by

introducing residual blocks, allowing the effective

training of much deeper networks. The development

of CNNs has led to substantial progress and broad

applications across various fields. However,

challenges remain, such as the need for extensive data

and substantial computational resources for training.

These limitations highlight areas for future research

and technological development. Future work will

focus on exploring more foundational CNN models,

gaining a deeper understanding of their mechanisms,

and addressing their strengths and weaknesses.

Additionally, research will investigate how deep

learning can integrate insights from other fields to

innovate and transform everyday life.

REFERENCES

AT&T., 2017. Database of Faces: ORL face database.

Retreid from: http://cam-orl.co.uk/facedatabase.html.

Beham, M.P., Roomi, S.M.M., 2013. A review of face

recognition methods. International Journal of Pattern

Recognition and Artificial Intelligence, 27(04),

1356005.

Jeong, M., Ko, B.C., 2018. Driver’s facial expression

recognition in real-time for safe driving. Sensors,

18(12), 4270.

Kortli, Y., Jridi, M., Al Falou, A., et al. 2020. Face

recognition systems: A survey. Sensors, 20(2), 342.

Li, Z., Zhang, T., Jing, X., et al. 2021. Facial expression-

based analysis on emotion correlations, hotspots, and

potential occurrence of urban crimes. Alexandria

Engineering Journal, 60(1), 1411-1420.

Liu, F., Chen, D., Wang, F., et al. 2023. Deep learning

based single sample face recognition: a survey.

Artificial Intelligence Review, 56(3), 2723-2748.

Nan, Y., Ju, J., Hua, Q., et al. 2022. A-MobileNet: An

approach of facial expression recognition. Alexandria

Engineering Journal, 61(6), 4435-4444.

Nguyen, K., Proença, H., Alonso-Fernandez, F., 2024.

Deep learning for iris recognition: A survey. ACM

Computing Surveys, 56(9), 1-35.

Qinjun, L., Tianwei, C., Yan, Z., et al. 2023. Facial

Recognition Technology: A Comprehensive Overview.

Academic Journal of Computing & Information

Science, 6(7), 15-26.

Wang, M., Deng, W., 2021. Deep face recognition: A

survey. Neurocomputing, 429, 215-244.

Advances and Analysis in Convolutional Neural Networks: A Comparative Study of AlexNet and ResNet

321
