Comparative Analysis of Two-Stage and One-Stage Object Detection

Models

Yibo Han

School of Artificial Intelligence, South China Normal University, Guangzhou, China

Keywords: Two-Stage Detectors, Object Detection, Real-Time Applications, One-Stage Detectors.

Abstract: The background and basic ideas of object detection are examined in this essay, with a focus on contrasting

one-stage and two-stage detectors. The main goal is to compare and contrast the accuracy and speed of

different object identification methods. The study covers a thorough examination of models including Single

Shot Multi-Box Detector (SSD), You Only Look Once (YOLO), and the Region Convolution Neural Network

(RCNN) series. The study involves preprocessing data from the Pattern Analysis, Statistical modelling and

Computational Learning Visual Object Classes (PASCAL VOC), Image Network (ImageNet), Microsoft

Common Objects in Context (MS COCO), and Open Images datasets, followed by the application and training

of different detection algorithms. Performance metrics, including Mean Average Precision (MAP) and Frames

Per Second (FPS), are used to assess the models. The findings indicate that two-stage detectors, such as Faster

R-CNN, process information more slowly yet achieve better detection accuracy, especially in complex

scenarios. On the other hand, one-stage detectors, such YOLO and SSD, have quicker inference times and are

therefore better suited for real-time applications, but precision is usually lost, particularly when identifying

smaller objects. This study holds significant implications for fields requiring high-performance object

detection, like medical imaging and driverless driving.

1 INTRODUCTION

With the use of associated computer vision and image

processing techniques, object detection is a

particularly promising field of computer technology.

Its main objective is to recognize and process specific

semantics (such as glasses, traffic signals, birds, and

fish) in static images or videos (Jiao et al., 2019). The

distinction between image classification and object

detection is that the former requires the exact location

of recognized objects in addition to their

classification; the latter can be accomplished simply

drawing the bounding boxes around the objects in the

image (Liu et al., 2020). Today, object detection

techniques are employed in many different fields.

Autonomous driving, where helps vehicles identify

and react to obstacles, pedestrians, and traffic signs in

real¬-time (Feng et al., 2020). In traffic safety, these

techniques are used to monitor and analyze traffic

patterns, detect accidents, and improve overall road

safety (Razi et al., 2023). In addition, object

identification in medical imaging can precisely locate

https://orcid.org/0009-0007-0864-6382

the tumor's location on the tissue, which helps in early

diagnosis and treatment planning (Yang and Yu,

2021).

There are now two primary categories of object

detection techniques. One is the conventional

approaches, which depend on conventional machine

learning and features that are manually created (Zou

et al., 2023). Among these are the Histogram of

Oriented Gradients (HOG), Sliding Window Method

(SWM), and Deformable Part Models (DPM) (Zou et

al., 2023). Because deep learning is developing so

quickly, another Convolutional Neural Network

(CNN)-based object detection method has been

gaining popularity (Pathak et al., 2018). One-stage,

two-stage, and anchor-free object detectors are the

three categories into which this technique falls. One-

stage object detectors are quick and ideal for real-time

detection since they can regress and classify directly

on the picture (Zhang et al., 2021). One-step object

detectors include RetinaNet, which enhances the

performance of small or obscured item recognition by

lowering the weights on samples that are easily

Han and Y.

Comparative Analysis of Two-Stage and One-Stage Object Detection Models.

DOI: 10.5220/0013515900004619

In Proceedings of the 2nd International Conference on Data Analysis and Machine Learning (DAML 2024), pages 289-294

ISBN: 978-989-758-754-2

289

observable; You Only Look Once (YOLO), which

directly predicts bounding boxes and categories using

a single neural network; Single Shot MultiBox

Detector (SSD), which detects objects of various

sizes using multiscale feature maps (Carranza-García

et al., 2020). The basic idea behind two-stage object

detectors is to first identify a candidate region, after

which they do bounding box regression and

classification on it. For two-stage object detectors,

there are Region-based Convolutional Neural

Networks (R-CNN), Fast R-CNN, and Faster R-

CNN. R-CNN is computationally intensive despite

having a high accuracy rate because it creates

candidate regions using selective search and then

classifies each region using a CNN (Zhao et al.,

2019). Fast R-CNN, which speeds up detection by

spreading convolutional features over the whole

image and applying region suggestions on the feature

map (Zhao et al., 2019). Faster R-CNN, which

generates candidate areas straight from the feature

map by introducing a Region Proposal Network

(RPN), significantly increases detection speed (Zhao

et al., 2019). Anchor-free object detectors are of two

types, CornerNet, which predicts the object's upper

left and bottom right corners to establish the bounding

box, and CenterNet, which calculates the bounding

box by regressing the height and width and

forecasting the object's center (Tian et al., 2020).

Along with the already mentioned, there are

Detection Transformers (DETR), Multi-task

Learning, and Ensemble methods for object

detection.

Examining deep learning-based object detection

techniques is the primary objective of this work. An

outline of the main ideas and background information

pertaining to object detection is given in the first part.

The second section examines the key technologies

that underpin deep learning-based object detection

and provides a thorough description of the underlying

ideas. An assessment of these technologies'

performance is given in the third section, which also

covers their benefits, drawbacks, and possible future

advancements. The fourth and last section provides a

summary of the research findings as well as

suggestions for the field's future directions.

2 METHODOLOGY

2.1 Dataset Description

The development of object detection and the solving

of several difficult and complicated problems that

come up in this field depend heavily on datasets.

Datasets can provide an abundance of pictures of

different scenes and objects for training various

object detection models to learn to recognize different

objects in an image, where a substantial quantity of

annotated data is essential. At the moment, ImageNet,

Microsoft COCO (MS COCO), Open Images (OI),

Pattern Analysis, Statistical modelling and

ComputAtional Learning Visual Object Classes

(PASCAL VOC), and ImageNet are the primary

datasets utilized in the object detection sector. Table

1 provides a summary of these datasets'

characteristics. A benchmark dataset for object

detection and classification is PASCAL VOC. Deep

learning in vision has advanced thanks in large part to

ImageNet and the ImageNet Large Scale Visual

Recognition Challenge (ILSVRC). ILSVRC has

improved the object detection algorithm

standardization training and evaluation of PASCAL

VOC by a factor greater than ten (Liu et al., 2020).

MS COCO has richer image understanding compared

to ImageNet, which has complex life scenes and some

common objects in nature. The Open Image

Challenge Object Detection (OICOD) belongs to OI,

which is the world's largest item detection dataset that

is available to the public. Unlike ILSVRC and MS

COCO, OICOD only annotates human-identified

positively labelled objects.

Table 1: Popular databases for object recognition (Liu et al., 2020).

Name of dataset Total

ictures

Classifications Picture per

categor

Objects per

icture


dimensions

Started

yea

PASCAL VOC 2012

(Liu et al., 2020)

11, 500 19 300–4090 2.5 470 x 380 2005

ImageNet (Liu et al.,

2020

)

million+

21,841 - 1.5 500 x 400 2009

MS COCO (Liu et al.,

2020)

328,000+ 91 - 7.3 640 x 480 2014

Open Images (Liu et

al., 2020)

9 millions+ 5999+ - 8.3 Various 2017

DAML 2024 - International Conference on Data Analysis and Machine Learning

290

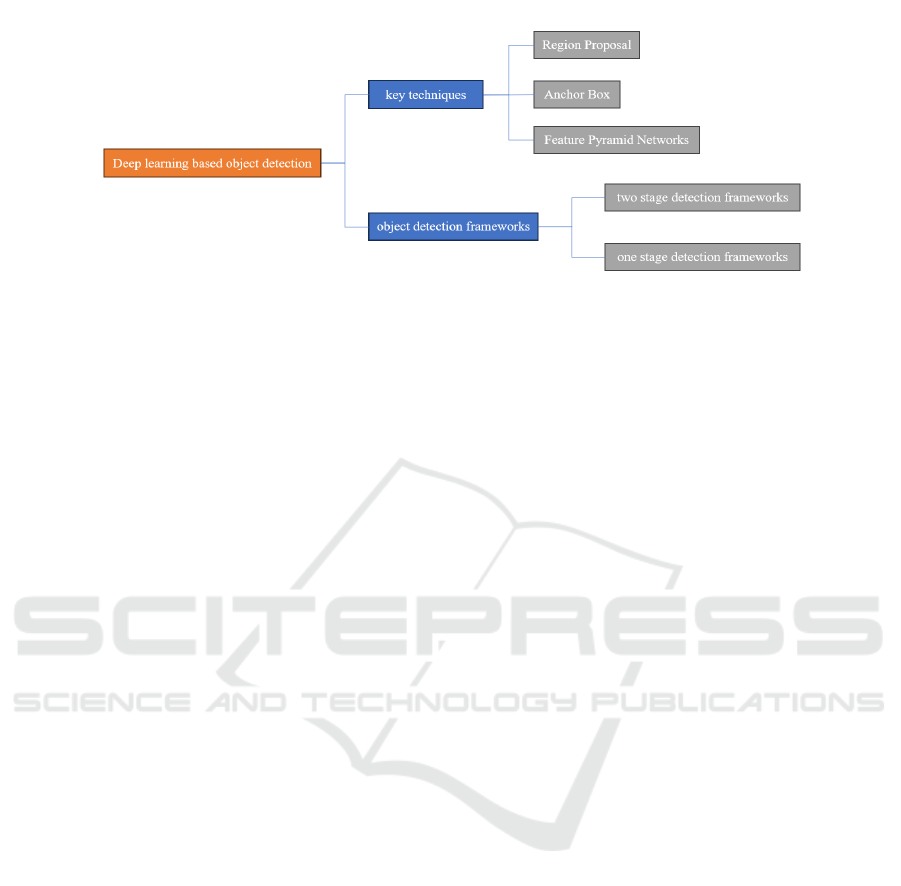

Figure 1: The research overview (Picture credit: Original).

2.2 Proposed Approach

This study's main goal is to investigate deep learning-

based object detection methods in-depth, as shown in

Figure 1. The rapid breakthroughs in deep learning,

particularly in the field of CNN, have resulted in

notable improvements in the performance and

capabilities of object detection systems in recent

years. This paper focuses on key techniques such as

Region Proposal (RP), Anchor Box (AB), and Feature

Pyramid Networks (FPN), providing a detailed

analysis of each. Additionally, the study will look at

the one-stage and two-stage object detection

frameworks, which are the two main types of

frameworks. These are the two primary methods in

object detection; each has unique benefits and works

well in various application contexts. One-stage

frameworks, known for their speed, are often

preferred for real-time detection, while two-stage

frameworks, offering higher accuracy, are typically

used in applications where precision is critical. This

paper will compare and contrast these frameworks,

highlighting their unique contributions and use cases.

2.2.1 Introduction of Basic Technologies

In object detection, three methods are crucial: RP,

AB, and FPN. The primary goal of RP is to produce

candidate regions for object detection, and the

detection's speed and accuracy are directly impacted

by the caliber of the candidate regions. RP adopts two

methods, Selective Search (SS) and RPN. SS creates

candidate boxes by combining areas of an image that

are similar in terms of color, texture, and size. By

merging comparable areas of an image with

characteristics like size, color, and texture, SS creates

candidate frames.

The disadvantages of this method are obvious: the

number of candidate regions generated is large and

the speed is slow. RPN can produce excellent

candidate regions by sliding straight into the feature

map. RPN has the speed advantage over

convolutional neural networks since it shares

computation with them. RP is mainly used in the two

stages detector. AB is the predefined bounding box in

the object detection model, which has different sizes

and box aspects. In the target detection model, AB is

a predetermined bounding box with varying sizes and

aspect ratios. The presence of an object is detected by

placing the bounding box at various locations within

the feature map. This allows the model to function at

different scales and aspect ratios, which improves its

detection performance for objects of different shapes

and sizes. AB is frequently used in conjunction with

one stage detectors like SSD and YOLO. FPN is a

multi-scale feature extraction technique. Because

FPN fuses information at different feature map scales,

FPN not only excels in detecting small objects, but

also efficiently detects large objects. In order to

recognize objects at multiple scales, FPN uses top-

down feature fusion and bottom-up feature extraction

techniques. This allows the model to have a variety of

semantic information at each size. FPN is utilized in

detectors that are one stage or two stages.

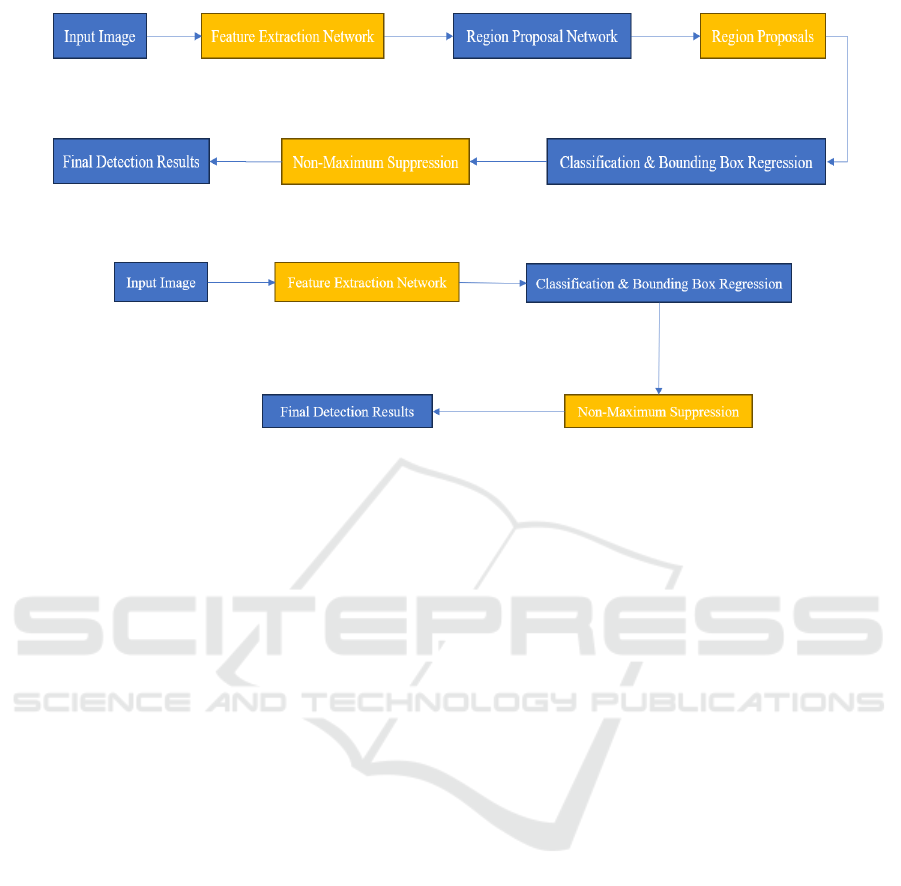

2.2.2 Introduction of Two Stage Detectors

In order for two stage detectors to function, a set of

candidate regions must first be created. These

candidate regions are then the subject of additional

target categorization and exact localization. Its

workflow is divided into two stages. The workflow

diagram of two stage detectors can be referred to

Figure 2. Initially, RPN generates a collection of

candidate regions from the feature map that are most

likely to contain targets. RPN scans over the feature

map by means of a sliding window and predicts the

possible target locations. Two stage detectors further

Comparative Analysis of Two-Stage and One-Stage Object Detection Models

291

Figure 2: Workflow diagram of two stage detectors (Picture credit: Original).

Figure 3: Workflow diagram of one stage detectors (Picture credit: Original).

classify and fine-tune the bounding box of these

regions in the second stage, which is based on the

candidate regions created in the first stage. In order to

extract data from each candidate region and identify

the target class and its specific location within it, this

stage usually employs a classification network-like

design. Dual-stage detectors have high detection

accuracy, especially when dealing with complex

scenes or small objects.

The separation design of the two-stage makes the

model more robust to complex backgrounds and

dense targets. The two stage detectors' classical

model is called Faster R-CNN. It introduces RPN,

which allows region suggestion and detection to share

the feature extraction part, dramatically increasing the

detection speed. Although faster R-CNN strikes a

better balance between speed and accuracy, it is still

slower than one stage detectors.

2.2.3 Introduction of One Stage Detectors

The basic idea behind one stage detectors is to

complete all object detection stages in a single

forward propagation, eliminating the requirement for

an area suggestion stage and accurately predicting the

class and location of the object directly from the

image. The workflow of one stage detectors mainly

consists of feature extraction, detection and

classification. Workflow diagram of one stage

detectors can be referred to Figure 3. Convolutional

neural networks are required for feature extraction in

order to extract the image's features. The model must

produce numerous anchor frames at each location on

the feature map, each with a distinct size and aspect

ratio, in order to perform detection and classification.

The model predicts whether or not these anchor

frames contain targets and performs classification and

positional regression on them. The network structure

of the one stage detectors is simple and easy to train

and deploy.

And since one stage detectors require only one

forward propagation, it is fast. YOLO and SSD are

two devices that are exemplary of one stage detectors.

The YOLO model makes predictions directly on

various image grids, each of which projects a

predetermined number of bounding boxes and

category probabilities. SSD uses multi-scale feature

maps for detection. As a result, it can process objects

of different sizes more efficiently by generating

anchor frames of different sizes from feature maps of

different scales.

3 RESULT AND DISCUSSION

3.1 Result Analysis

As shown in Table 2, the table summarizes the two

stage detectors of the RCNN series, as well as YOLO

and SSD, which belong to the one stage detectors.

RCNN uses SS as the RP, with a fixed input image,

and an accuracy of 58.5% for VOC07 and 53.3% for

VOC12, which is very slow (<0.1 FPS).Fast RCNN

also uses SS, but supports an arbitrary size of the

input

images, the accuracy improves to 70.0%

DAML 2024 - International Conference on Data Analysis and Machine Learning

292

Table 2: An overview of the characteristics and functionality of detection frameworks for general object detection (Liu et al.,

2020).

Name of

detecto

RP Input

Size

VOC2007 outcomes VOC2012 outcomes Speed

(

FPS

)

Two sta

RCNN (Liu et

al., 2020)

SS Fixed 58.5(07) 53.3(12) < 0.1

Fast RCNN

(Liu

et al.,

2020)

SS Random 70.1(VGG) (07+12) 68.5(VGG) (07++12) < 1

Faster RCNN

(Liu

et al.,

2020)

RPN Random 73.3(VGG) (07+12) 70.3(VGG) (07++12) < 5

One stage

YOLO (Liu et

al.,

2020)

- Fixed 66.4(07+12) 57.9(07++12) < 25(VGG)

SSD (Liu et

al.,

2020)

- Fixed 76.8(07+12)

81.5(07+12+CO)

74.9(07++12)

80.0(07++12+CO)

< 60

(VOC07) and 68.4% (VOC12), and is slightly faster

(<1 FPS).Faster RCNN introduces RPN, and the

accuracy further improves to 73.2% (VOC07) and

70.4% (VOC12), and the speed also improves (<5

FPS).YOLO doesn't use RP, and directly performs

the detection on the fixed-size images, which is

substantially faster (<25 FPS) but with slightly lower

accuracy of 66.4% (VOC07) and 57.9%

(VOC12).SSD is similar to YOLO, being the fastest

(<60 FPS) and with accuracy of 76.8% and 74.9% on

VOC07 and VOC12, respectively. The accuracy can

be further improved to 81.5% and 80.0% by including

the COCO dataset. The two stage detectors and the

one stage detectors differ significantly in terms of

speed and accuracy. The main reason for this

difference is that the two stage detectors requires

separate processing of the candidate region. RCNN

series of algorithms are slower but more accurate, and

are suitable for tasks requiring high accuracy.

Because of their speed, YOLO and SSD can complete

real-time detection jobs and attain a greater speed-

accuracy ratio.

3.2 Discussion

Despite their reputation for great accuracy, two-stage

detectors are typically slower. In contrast, one-stage

detectors provide a noticeable speed benefit. For

instance, because Faster R-CNN uses a Region

Proposal Network (RPN) to produce candidate

regions, it performs better than both R-CNN and Fast

R-CNN. However, it is still not as fast as YOLO or

SSD, as two-stage detectors must process each

candidate region individually. Among one-stage

detectors, SSD is more adaptable to complex scenes

than YOLO, largely due to its use of a feature

pyramid network, which improves detection accuracy

across different object scales. Most current object

detection methods involve a trade-off between

accuracy and speed. Future research could focus on

developing algorithms that enhance speed without

compromising accuracy, such as optimized versions

of YOLO or Faster R-CNN. This balance is especially

critical in applications like autonomous driving,

where both high accuracy and fast processing are

required. Increasing the speed of object detection

models without compromising performance can be

achieved through the use of quantization techniques,

hardware acceleration (such as Tensor Processing

Unit (TPU) and Graphic Processing Unit (GPU)), and

better network architectures.

4 CONCLUSIONS

This study offers a thorough examination of the

background and core algorithmic models in object

detection, with a particular emphasis on comparing

two-stage and one- stage detectors. The analysis

shows the trade-offs between various methods: two-

stage detectors, such Faster R-CNN, perform slower

overall but are able to attain higher accuracy thanks

to their region proposal processes. In contrast, speed-

focused one-stage detectors like SSD and YOLO are

more effective but less precise.

These findings are supported by many trials,

which demonstrate that although two-stage detectors

offer more accuracy, they are slower than one-stage

detectors. Bridging the gap between high accuracy

and fast speed will be a crucial focus for future

Comparative Analysis of Two-Stage and One-Stage Object Detection Models

293

research. In the future, network topologies will be

optimized in an effort to better balance efficiency and

precision. Additionally, advancements in hardware,

such as GPUs and TPUs, and techniques like

quantization will be explored to enhance detection

speed without sacrificing performance. Efforts will

also be directed towards improving the robustness of

detectors in diverse real-world conditions, including

varying lighting, occlusions, and cluttered

environments. The project intends to increase object

identification skills by merging these advancements

and making them acceptable for increasingly

demanding and real-time applications.

REFERENCES

Carranza-García, M., Torres-Mateo, J., Lara-Benítez, P., &

García-Gutiérrez, J., 2020. On the performance of one-

stage and two-stage object detectors in autonomous

vehicles using camera data. Remote Sensing, 13(1), 89.

Feng, D., Haase-Schütz, C., Rosenbaum, L., Hertlein, H.,

Glaeser, C., Timm, F., & Dietmayer, K., 2020. Deep

multi-modal object detection and semantic

segmentation for autonomous driving: Datasets,

methods, and challenges. IEEE Transactions on

Intelligent Transportation Systems, 22(3), 1341-1360.

Jiao, L., Zhang, F., Liu, F., Yang, S., Li, L., Feng, Z., & Qu,

R., 2019. A survey of deep learning-based object

detection. IEEE access, 7, 128837-128868.

Liu, L., Ouyang, W., Wang, X., Fieguth, P., Chen, J., Liu,

X., & Pietikäinen, M., 2020. Deep learning for generic

object detection: A survey. International journal of

computer vision, 128, 261-318.

Pathak, A.R., Pandey, M., & Rautaray, S., 2018.

Application of deep learning for object detection.

Procedia computer science, 132, 1706-1717.

Razi, A., Chen, X., Li, H., Wang, H., Russo, B., Chen, Y.,

& Yu, H., 2023. Deep learning serves traffic safety

analysis: A forward‐looking review. IET Intelligent

Transport Systems, 17(1), 22-71.

Tian, Z., Shen, C., Chen, H., & He, T., 2020. FCOS: A

simple and strong anchor-free object detector. IEEE

transactions on pattern analysis and machine

intelligence, 44(4), 1922-1933.

Yang, R., & Yu, Y., 2021. Artificial convolutional neural

network in object detection and semantic segmentation

for medical imaging analysis. Frontiers in oncology, 11,

638182.

Zhang, Y., Li, X., Wang, F., Wei, B., & Li, L., 2021. A

comprehensive review of one-stage networks for object

detection. In 2021 IEEE International Conference on

Signal Processing, Communications and Computing, 1-

Zhao, Z. Q., Zheng, P., Xu, S. T., & Wu, X., 2019. Object

detection with deep learning: A review. IEEE

transactions on neural networks and learning systems,

30(11), 3212-3232.

Zou, Z., Chen, K., Shi, Z., Guo, Y., & Ye, J. 2023. Object

detection in 20 years: A survey. Proceedings of the

IEEE, 111(3), 257-276.

DAML 2024 - International Conference on Data Analysis and Machine Learning

294
