Analysis on Coherent Memory Systems Within AI Training

Workloads

Ziang Zhao

Department of Electrical and Computer Engineering, University of Wisconsin-Madison,

1323 West Dayton Street, Madison, WI, U.S.A.

Keywords: Memory Consistency, Cache Coherence, Artificial Intelligence.

Abstract: Within larger groups of multiprocessors and heterogeneous computing clusters, the problem of data coherence

has been of increasing concern. As the computational devices become increasingly complex, so do the

methods that were being used to ensure the data integrity. With the recent rise in the training requirements of

Artificial intelligence systems, the demand for larger coherent data systems has risen significantly. This paper

aimed to provide an overview and analysis of different data coherence methods and analyze their potential

performance within an AI training workload, and concluded that the Artificial intelligence (AI) training

models would often require memory systems to be efficient over access of training parameters over extended

periods of time and ensure its reliability across the extended training process. The paper would mostly contain

a theoretical analysis of different coherence methods and would aim at providing an upper limit of the

performance of these different methods. Further research regarding the physical implementation of such

coherent systems might be still required.

1 INTRODUCTION

With the recent developments of Artificial

intelligence (AI) systems, especially Large Language

Models (LLMs), the computational platforms

required for the training of these platforms often

require a large number of processors. More

specifically, most modern Large Language Models

use large clusters of Graphical Processing Units

(GPUs) for their training (Dubey et al., 2024). While

the utilization of the large number of clusters allows

a large amount of parallelism within the model to be

exploited (Li et al., 2023), an important aspect during

using these types of has been the importance of

ensuring the data accessed could be consistent across

multiple processing units. Two main concerns are

often associated with consistent data access.

One of the concerns that is often considered is

cache coherence. Cache coherence protocols are

methods that ensure the individual caches can

maintain a correct copy of the data, and are first used

across multiprocessor systems with multiple

Computational Processing Units (CPUs) (Sorin et al.,

2022). Since its first establishment as part of the

https://orcid.org/0009-0004-8047-4851

computing system, its usage has grown dramatically,

both regarding on-chip communication between

multiple connected processor clusters and network

communication of clusters. While enforcing a cache

coherence protocol is often useful in ensuring the

accuracy of data accesses, additional time and

resources are often required for the implementation of

such protocols, which could more often than not lead

to increase memory access time.

Another important consideration must be the

consistency of data access for the specific memory

system. Data consistency protocols ensure that all

memory accesses towards a central memory system

remain in a reasonable sequence, which would help to

ensure that memory access results were reasonable

and expected by the programmers. Even though most

memory systems would often benefit from more

intuitive sequential consistent models, a more relaxed

form of memory consistency structure could more

often than not accelerate relative memory accesses

(Steinke & Nutt, 2004). However, the utilization of

such alternate methods of memory consistency could

often lead to requirements of additional support from

the software, and sometimes an expected erroneous

Zhao and Z.

Analysis on Coherent Memory Systems Within AI Training Workloads.

DOI: 10.5220/0013514800004619

In Proceedings of the 2nd International Conference on Data Analysis and Machine Learning (DAML 2024), pages 227-231

ISBN: 978-989-758-754-2

227

response within the system could require alternate

methods of recovery.

While existing methods for maintaining cache

coherence and data consistency could still be useful

even as future requirements for the training of AI

systems become increasingly complex, the need for

innovative methods for ensuring consistency are still

present. The following sections of the paper would

first provide a brief introduction of different methods

being used for ensuring memory consistency and

coherence across history, and then provide an

analysis of the newer requirements of such a memory

model that has been brought forward through large-

scale AI training. This paper would aim at providing

a general summary of the current methodologies, and

propose a direction for the potential aspects of a new

memory consistency protocol.

2 RELATED WORKS

A coherent memory system has been established as

one of the most important aspects of a memory

system for an extended period of time ever since its

first establishment. The following sections within this

paper evaluate several cache coherence and

consistency systems in chronological system as they

were first established and provide a brief summary on

its usages and potential problems.

2.1 Past coherence and consistency

protocols

A cache coherence protocol is being first established

as a method to ensure the consistency of memory

access across a shared memory multiprocessor, where

each processor cores often utilize its own near-core

caches for data storage. The protocol would ensure

that for each cache that stores the same data at the

same memory address, either it stores the most

recently updated value or an outdated value that

would be invalidated on next access (Al-Waisi &

Agyeman, 2017). Such protocol is often used in order

to maintain a coherent memory system, which

requires that all memory accesses issued by every

processor is arrived in the same order as the processor

and the memory system, and all memory read

operations should return the same value as the last

memory write (Grbic, 2003). For most earlier

coherence protocols, they often adopt a snoop-based

protocol, where each dedicated cache near the core

would need to monitor for any memory accesses to

ensure that all the caches would be able to store the

most recent version of the memory. This kind of

coherence protocols were extremely easy to

implement thank to the shared-bus memory structure

that enables the hardware implementation of such

protocols. An example of such protocol would be the

MSI protocol, where each shared memory cache

block could be in one of the three states available,

namely Modified (M), Shared (S) and Invalid (I),

which is also where the protocol got its name. A cache

line is being held in the Modified state if it is the only

cache that contains the most up-to-date copy, is held

in the Shared state if there are multiple caches

containing the same most up-to-date copy, and

Invalid state if the copy within the cache is outdated.

Figure 1 shows the state transition diagram of the MSI

protocol.

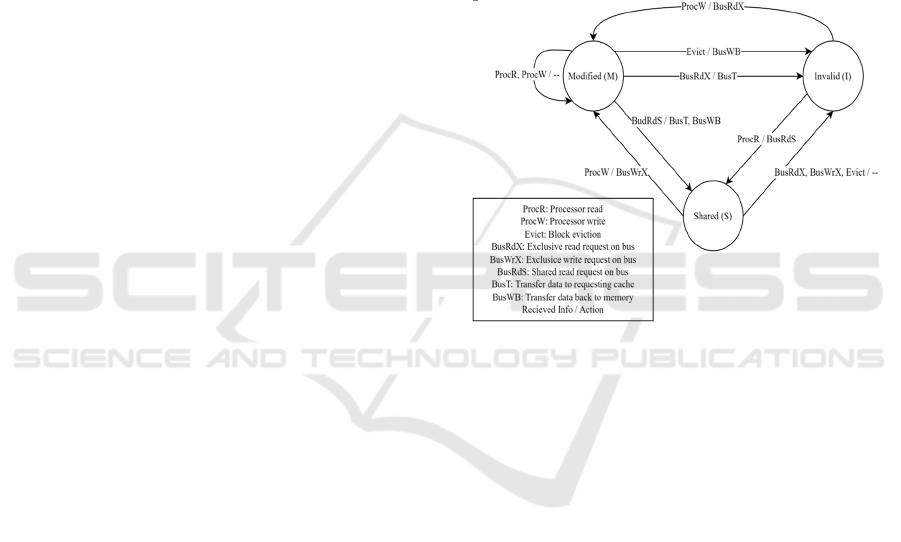

Figure 1: The state transition diagram of the MSI protocol,

outlining the state changes and the bus activities.

(Photo/Picture credit: Original).

In order to maintain the coherent memory system,

additional constraints in terms of the consistency of

the memory would be required to be maintained. The

memory consistency model ensures that all of the

memory accesses would follow a given rule from the

eye of the processor and the programmer by extension.

One of the earliest and the most common form of

memory consistency models would be sequential

consistency (SC), where the memory operations from

all processors are executed in such an order that all

operations from the same core occurs in the same

sequence as both the memory system and the

processor side (Zucker & Baer, 1992). The model has

been of wide usage for most older systems since it has

been the base assumption for most programmers, as it

matches the expected performance of a centralized

shared memory system within a multiprocessor

setting.

DAML 2024 - International Conference on Data Analysis and Machine Learning

228

2.2 Modern Memory Coherent

Methods

As the number of available computational cores

becomes increasingly complex, the general snooping-

based cache coherence protocols ceased to become

efficient. The problem mostly rise from two

limitations, one physical and one theoretical. The

physical limitation of placing multiple caches on the

same communication bus would severely limit the

ability of transfer of broadcasted information across

multiple caches, and the requirement for one cache to

constantly listen to other caches for potential cache

change information led to a great decrease in the

performance of caches. In order to better mitigate the

bandwidth of the shared memory bus, most modern

cache coherence protocols utilize a directory-based

approach for multiple cores, while limiting snooping-

based protocols within smaller cluster of processors.

A directory is often considered to be a centralized

location of storage for the relative information of a

specific cache line across multiple different

processors, and the utilization of these kinds of

structures help to relieve the stress on the shared

memory bus, as it is no longer required for each cache

to continue to monitor for all memory accesses

(Agarwal et al., 1988; Grbic, 2003). The directory

would be able to work by using a map for each cache

line within memory, where each bit of the map

represents where the newest copy of the data for this

cache line is being stored. Figure 2 shows how a

centralized directory system stores information.

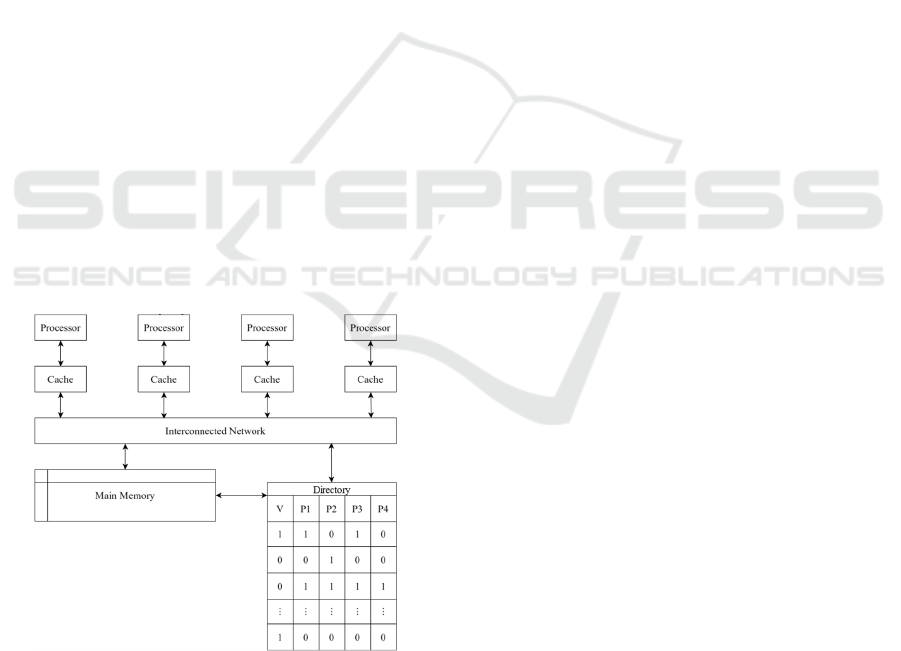

Figure 2: Outline of a centralized directory model, showing

the different aspects of the memory system. (Photo/Picture

credit: Original)

While a centralized directory coherence model

would be able to mitigate the bandwidth requirement

and bandwidth occupation for a snoopy based

coherence models, some more modern systems

decided to utilize a distributed directory model, where

different cache coherence protocols are used in

unison. A very common early way of implementing

cache coherence has been the utilization of a snoopy

based protocol within small CPU clusters, while a

distributed directory model is being used for

communication of coherence within different clusters

(Chaiken et al., 1990; Shieh, 1998). Such

constructions of the main memory are often

considered to be a form of Non-Uniform Memory

Access (NUMA), which is often considered to be an

essential aspect of modern cache coherence design.

In terms of memory consistency, in order to

increase the efficiency of memory accesses and to

enable better support for multiprocessors, the based

assumption of the sequential consistency of the

memory systems is often relaxed, as this could allow

the reordering of certain memory requests, which

could result in an increase in the performance of the

entire system. At the higher level, most contemporary

memory models only require certain order of memory

access to be preserved. For example, the SPARC ISA

required that all processors to support Total Store

Ordering, which would only ensure that all memory

stores would be completed before the next load (The

SPARC Architecture Manual, Version 8, 1992). Such

relaxed models could allow the implementation of a

store buffer, which would allow memory access

requests to be processed more efficiently without

sacrificing the correctness of the programs.

2.3 Consistent Memory in General

Purpose Graphical Processing

Units (GPGPUs)

As graphical processing units are becoming

increasingly capable, more and more general

purposed tasks were often dedicated towards these

processors, given to the rise of general-purpose

graphical processing units (GPGPUs). Such

processors are most notable due to a larger number of

weaker processing cores, which would be able to

allow for a faster execution of parallel computational

tasks, especially matrix operations, which were

traditionally dedicated towards graphical rendering

tasks, hence the name. As the field of machine

learning and deep learning algorithms developed,

which heavily utilized matrix operations during their

training process, the need for ensuring a consistent

memory within GPGPUs was rising. Most GPGPU

do not utilize a hardware transparent consistency

system, though it is very common for some GPUs to

implement a form of temporal coherence system that

Analysis on Coherent Memory Systems Within AI Training Workloads

229

ensures that the data would be available at the shared

line between dedicated cores and across cores at times

of requirement (Singh et al., 2013). While such

processes would add additional overhead towards the

operation of the codes, the performance gains

outweigh the drawbacks of such systems.

3 ANALYSIS OF AI TRAINING

APPLICATIONS

As AI training Models becoming increasingly larger

since the deployment of large language models such

as GPT-3, there has been an increasingly usage of

parallel training models, where a variety of

parallelisms were being utilized within such models

(Li et al., 2023). The training data is often distributed

across multiple GPUs, with the training task itself

also being distributed across the GPUs with the tasks

often pipelined. During the actual training of models,

the training weights would be required to be accessed

multiple times across the training process, while the

training data would often only require more sporadic

accessed. Due to a large amount of data and larger

number of processing units, memory reliability has

also become an important aspect of consideration

within modern systems (Dubey et al., 2024).

Therefore, an outline of the memory consistency

requirements for AI workloads would include a high

support on sporadic temporal locality of the data,

higher storage capacity for accessing of consecutive

weights, and a highly reliable memory to prevent

potential access errors due to the larger memory

network.

3.1 Efficiency Considerations

Given the parallel nature of the GPU, the efficiency

of the memory system during training models would

be essential. While the GPU would often distribute

the data across multiple cores for its calculations, it

would often require to access multiple training

parameters as the models are becoming increasingly

complex (Dubey et al., 2024; Li et al., 2023).

Therefore, the special locality of the memory

workload, given that it has already been exploited by

the parallel structure of the GPU, would be of lesser

importance to be exploited by the processors. The

more important part would be ensuring that the

temporal locality could be exploited in a better

method, probably utilizing a larger cache structure

and finding a balance between caching invalidation

and the utilization of quick memory accesses.

3.2 Reliability Considerations

Since the models were often training for extended

periods of time as a large system, it would be very

likely for memory accesses to fail during its training

process (Dubey et al., 2024). Therefore, the actual

memory consistency model should also be

performing consistently through an extended periods

of time and would require less time for recovery. This

would often be able to be satisfied through the

introduction of error correction codes within the

memory system and a constant self-reporting of faulty

occurrences of memory access failures. A more

axiomatic and well-ordered memory consistent

system could be also utilized to ensure the correctness.

4 DISCUSSIONS

While this paper touches a number of different

memory consistency techniques, including cache

coherence and memory consistency protocols, this

paper would only serve as a theoretical analysis of the

potential impacts and requirements of the memory

system of artificial intelligence training systems.

Further work regarding the physical reality of

implementing such systems on a larger scale and a

more rigorous mathematical analysis would be likely

required for the realization of such novel systems.

Despite these concerns, this paper would be able to

leave a good foundation for future works to be built

upon and help to inspire further research against these

newer models.

5 CONCLUSIONS

This paper briefly outlines the evolution of coherent

memory models, specifically cache coherence and

memory consistency protocols. This paper then goes

on to summarize the requirements that would be

required within an AI training workload, which

would be essential. In summary, memory consistent

systems have come a long way since their first

introduction with theoretical models of multi-core

systems. While these models surely evolved a lot in

terms of their efficiency along the way, the newer

applications, specifically these related to artificial

intelligence, would more often than not require newer

design philosophies that were less performance

focused and more reliability focused. Future memory

models, therefore, should utilize an application-

DAML 2024 - International Conference on Data Analysis and Machine Learning

230

forward approach regarding their designs to better

enable utilization of their efficiencies and structures.

REFERENCES

Agarwal, A., Simoni, R., Hennessy, J., & Horowitz, M.

1988. An evaluation of directory schemes for cache

coherence. ACM SIGARCH Computer Architecture

News, 16(2), 280–298.

Al-Waisi, Z., & Agyeman, M. O. 2017. An overview of on-

chip cache coherence protocols. 2017 Intelligent

Systems Conference (IntelliSys), 304–309.

Chaiken, D., Fields, C., Kurihara, K., & Agarwal, A. 1990.

Directory-based cache coherence in large-scale

multiprocessors. Computer, 23(6), 49–58.

Dubey, A., Jauhri, A., Pandey, A., Kadian, A., Al-Dahle,

A., Letman, A., Mathur, A., Schelten, A., Yang, A., &

Fan, A. 2024. The Llama 3 Herd of Models. arXiv

Preprint arXiv:2407.21783.

Grbic, A. 2003. Assessment of cache coherence protocols

in shared -memory multiprocessors [Ph.D., University

of Toronto (Canada)]. In ProQuest Dissertations and

Theses (305258117). ProQuest Dissertations & Theses

Global.

Li, S., Liu, H., Bian, Z., Fang, J., Huang, H., Liu, Y., Wang,

B., & You, Y. 2023. Colossal-ai: A unified deep

learning system for large-scale parallel training.

Proceedings of the 52nd International Conference on

Parallel Processing, 766–775.

Shieh, K.-Y. G. 1998. A hybrid directory-based cache

coherence protocol for large-scale shared-memory

multiprocessors and its performance evaluation [D.Sc.,

The George Washington University]. In ProQuest

Dissertations and Theses (304443768). ProQuest

Dissertations & Theses Global.

https://ezproxy.library.wisc.edu/login?url=https://ww

w.proquest.com/dissertations-theses/hybrid-directory-

based-cache-coherence-

protocol/docview/304443768/se-2?accountid=465

Singh, I., Shriraman, A., Fung, W. W., O’Connor, M., &

Aamodt, T. M. 2013. Cache coherence for GPU

architectures. 2013 IEEE 19th International

Symposium on High Performance Computer

Architecture (HPCA), 578–590.

Sorin, D., Hill, M., & Wood, D. 2022. A primer on memory

consistency and cache coherence. Springer Nature.

Steinke, R. C., & Nutt, G. J. 2004. A unified theory of

shared memory consistency. Journal of the ACM

(JACM), 51(5), 800–849.

The SPARC Architecture Manual, Version 8 (Version

SAV080SI9308). 1992. https://sparc.org/technical-

documents/

Zucker, R. N., & Baer, J.-L. 1992. A performance study of

memory consistency models. ACM SIGARCH

Computer Architecture News, 20(2), 2–12.

Analysis on Coherent Memory Systems Within AI Training Workloads

231
