Task Scheduling for Heterogeneous Systems Using a Hybrid Deep

Neural Network and Genetic Algorithm Approach

Yutao Han

Cheriton School of Computer Science, University of Waterloo, Waterloo, Ontario, Canada

Keywords: Heterogeneous System, Task Scheduling, Deep Neural Network, Genetic Algorithm.

Abstract: Task scheduling in heterogeneous computing systems is a highly complex and challenging problem due to

the diverse architectures and varying computational capabilities of different hardware resources. Efficiently

allocating tasks to these resources to optimize performance is a significant challenge in such environments.

This study addresses this challenge by combining the deep neural network with the genetic algorithm to create

an efficient task scheduling approach. The research focuses on constructing a deep neural network that

progressively learns from the task scheduling schemes generated by the genetic algorithm, aiming to

accelerate the scheduling process. The method involves using the genetic algorithm to generate initial

scheduling solutions and training a Deep Neural Networks (DNN) to learn from these solutions. The results

show that it is difficult for the network to fully reproduce the performance of genetic algorithm-based

scheduling, but the network significantly reduces the time required to generate effective scheduling plans.

This hybrid model highlights the potential of leveraging machine learning techniques to enhance the

efficiency of task scheduling in heterogeneous computing systems.

1 INTRODUCTION

With the rise of big data, machine learning, and real-

time analytics, the need for higher performance and

specialized processing capabilities has become more

urgent. Traditional CPU-based architectures struggle

with the diverse and intensive workloads these fields

demand (Lee et al., 2010). Heterogeneous computing

systems have emerged to solve these challenges by

integrating different types of processors, such as

GPUs, FPGAs, and specialized accelerators, into a

single system. This approach utilizes the unique

strengths of each processor to significantly improve

performance and efficiency. Since each processor has

its own execution logic and advantages, an

appropriate task scheduling approach among the

different processors becomes critical in

heterogeneous systems to achieve maximum

utilization.

A proper scheduling plan should assign tasks to

different processors/machines effectively which can

minimize the total processing time of all jobs. Due to

the dependencies of tasks in the real world,

scheduling has been proven to be an NP-complete

https://orcid.org/0009-0006-1970-5731

problem (Ullman, 1975). According to the huge

solution space, complex constraints and multi-

objective optimization characteristics, the genetic

algorithm (GA) is suitable for scheduling problems.

Researchers have developed updates for different

procedures of the basic genetic algorithm. The most

intuitive approach to improve is having more

reasonable population initialization and adaptive

parameters for mutation/crossing to increase the

convergence speed (Fang et al., 2020). HGAAP

involves a heuristic algorithm like HEFT to generate

good initial solutions as the population based on the

earliest finish time (Ding et al., 2017). Another

approach is replicating individuals with high fitness

to the next generation to increase the probability of

keeping outstanding genes (Cheng & Xu, 2020).

Besides GA, the list scheduling algorithm is also

famous for heterogeneous computing scheduling.

PSLS further expands the basic list algorithm with a

downward length table (DLT), which is used to

measure the time difference between a task being

affected by its subsequent tasks when it is executed

on any processor (Zhao et al., 2019). The selection of

processors will depend on the DLT, allowing this

Han and Y.

Task Scheduling for Heterogeneous Systems Using a Hybrid Deep Neural Network and Genetic Algorithm Approach.

DOI: 10.5220/0013510800004619

In Proceedings of the 2nd International Conference on Data Analysis and Machine Learning (DAML 2024), pages 137-143

ISBN: 978-989-758-754-2

137

algorithm to consider the global effect when

assigning tasks. An algorithm also enhances task

prioritization by using an improved weight that

considers execution time differences across

processors and incorporates communication costs.

Then selecting processors by a randomized decision

mechanism of balancing local and global

optimizations (AlEbrahim & Ahmad, 2017).

Although the above methods are effective and

efficient, generalization is a big defect for them. The

optimal solutions yielded by applying algorithms on

a specific structure of computing tasks are not helpful

for other different structures. All of them need to be

re-evaluated from the beginning. To improve the

generalization, the artificial neural network (ANN)

based scheduler has been introduced. Based on the

statistics of CPU instructions and threads as

parameters, a lightweight single-layer ANN can be

constructed to predict which processors different

tasks should be assigned to (Gupta et al., 2020).

While ANNs are promising in making quick

decisions based on learned patterns, their training

from scratch can be computationally expensive and

challenging.

This research proposes a hybrid scheduling

approach that combines the deep neural network

(DNN) with GA to leverage the strengths of both

methods. The DNN is trained from scratch initially.

In the early stages, GA plays a critical role in

optimizing task scheduling, and the solutions are then

used to train the DNN. The DNN gradually learns to

predict efficient scheduling strategies based on GA's

feedback. Over time as the DNN becomes more

proficient, the scheduler will more depend on the

DNN to improve the system's overall efficiency and

capability of generalization. The training process of

DNN is similar to supervised learning where is target

is produced by GA. This approach also does not

require a pre-train network.

The main objective of this research is to develop

a robust and efficient task scheduling framework that

can adapt to the dynamic nature of heterogeneous

computing environments. By combining the rapid

decision-making capabilities of DNNs with the

optimization power of GA, this approach aims to

achieve a balance between computational efficiency

and scheduling accuracy. This study will evaluate the

proposed method against traditional scheduling

algorithms to demonstrate its effectiveness in

handling complex, dependent tasks within a

heterogeneous computing system.

2 METHODOLOGY

This methodology addresses task scheduling in

heterogeneous systems using a combination of DNN

and GA. The task scheduling problem is modelled as

a Directed Acyclic Graph (DAG), with tasks assigned

to processors based on computation and

communication costs. The DNN predicts task

allocations through learning from the GA's solution,

while the GA optimizes scheduling plans to minimize

execution time.

2.1 Scheduling Problem Modelling

The task scheduling problem is often modelled as a

Directed Acyclic Graph (DAG), which is used

broadly in research (Ding et al., 2017; Cheng & Xu,

2020; Heydari & Shahhoseini, 2011; Zhao et al.,

2019). Each node in DAG represents a task and the

arrowed edges between nodes indicate the

dependencies of tasks. There are communication

costs for dependent tasks, shown as edge weight in

the graph. The acyclic nature of the graph ensures that

no state is revisited, thus reflecting the progressive

nature of scheduling tasks. When running a task

scheduler on a heterogeneous system consisting of

multiple processors, different tasks will have different

performances on different. This also needs to be

considered.

Due to the above, a heterogeneous system could

be presented by 𝑷, a set of 𝒑 processors where each

one is denoted as 𝒑

𝒊

. A task scheduling problem could

be defined as 𝑮=

(

𝑻,𝑬

)

. 𝑻 is the set of tasks needed

to execute and each task is denoted as 𝒕

𝒊

. There will

be a list of length 𝒑 encoded in each node,

representing the computation cost of the task 𝒕

𝒊

each processor 𝒑

𝒋

. 𝑬 is the set of edges including

weights. Each edge from node 𝒊 to node 𝒋 is denoted

as 𝒆

𝒊𝒋

and its value is the communication cost from

task 𝒕

𝒊

to 𝒕

𝒋

if these two tasks are not executing on the

same processor. The paper assumes the number of

tasks is constant, but the structure of the DAG could

be any. Figure 1 gives an example instance of a

scheduling problem of six tasks on a heterogeneous

system of three processors.

Based on the task scheduling problem, a

scheduling plan could be defined as assigning each

task a processor to execute. The execution order

follows the topological order to satisfy the

dependencies between tasks.

DAML 2024 - International Conference on Data Analysis and Machine Learning

138

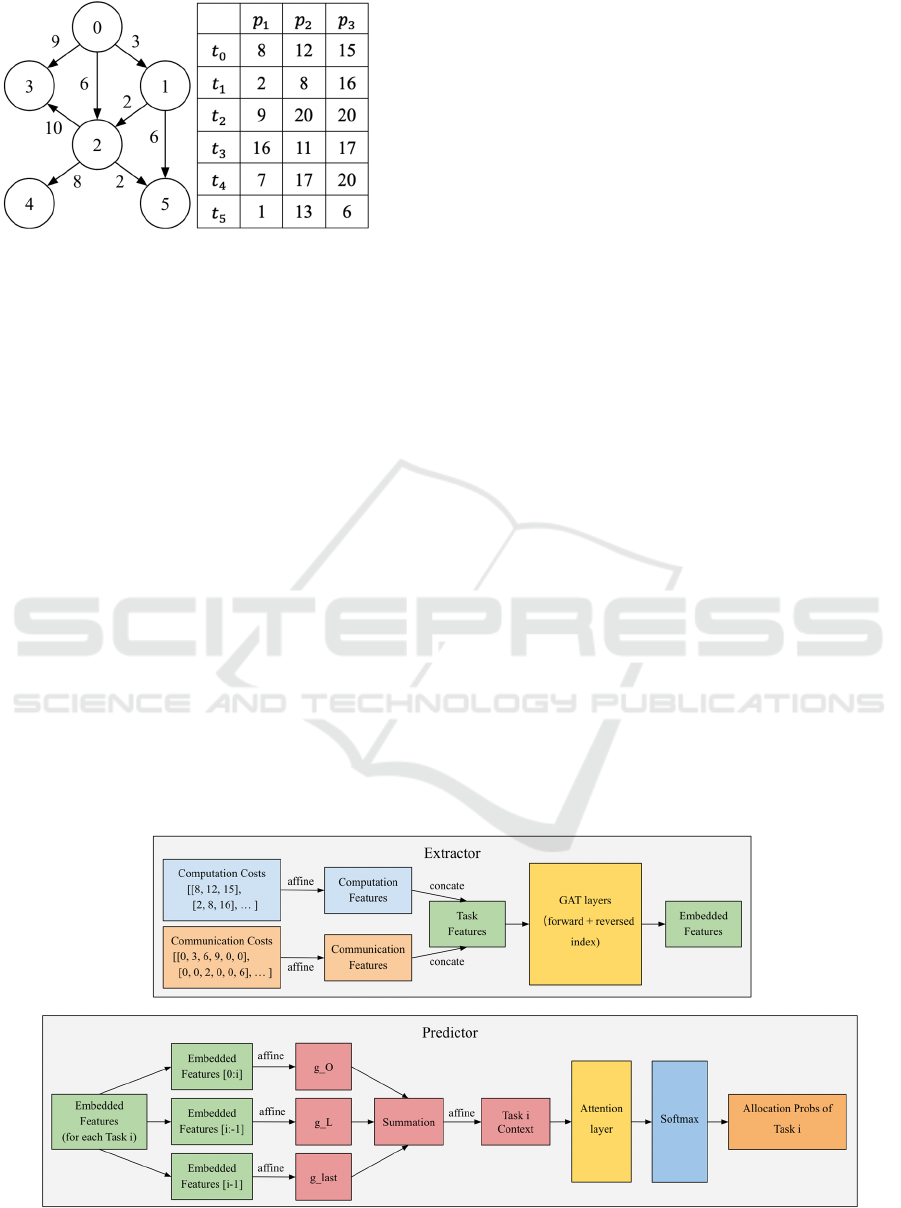

Figure 1: A DAG example with communication costs and

the computation costs for each task on each processor.

(Picture credit : Original)

2.2 Deep Neural Network

In this research, the DNN architecture is inspired by

the encoder-decoder structure with graph attention

network (GAT) and multi-head attention (Lee et al.,

2021). Figure 2 shows the overview of the structure.

The feature extractor layer of the proposed DNN will

receive the computation cost of all tasks on all

processors and the communication cost among tasks.

For tasks that are not the child task of the current one,

simply set the communication cost to 0. There will

be affine operations on two types of costs, concating

the result gives the initial task representation vectors.

The encoder then leverages multiple GAT layers to

encode the task relationships into each task vector.

The final vector representation will be the sum of the

normal GAT result and inversed graph GAT result to

have a better task feature embedding from the given

DAG structure.

The allocation predictor of the DNN will receive

the features of each task from the extractor and use

the attention mechanism to predict the allocation. For

each task, it combines embeddings from previous and

subsequent tasks, along with the last task's

embedding, into a context vector. This context vector

is used to query the embeddings via multi-head

attention. Then the attention output of each task is

passed through the corresponding fully connected

layer to produce logits. With Softmax, the decoder

will finally produce processor allocation probability

for each task as the final output of the network. A

scheduling plan could be derived by taking the

argmax of probabilities as the allocated processor for

each task.

Since the output is probabilities, the scheduling

problem could be treated as a classification problem.

Based on task features, the DNN will predict which

processor (class) should a task be allocated to. The

loss function is the sum of Cross Entropy Loss of each

task prediction. Moreover, to ensure the property of

processors (classes) remain the same, for each input

DAG, the ID numbers of processors are always sorted

by ascending computation costs, which means that,

𝒑



is one with minimum computation cost, 𝒑



is the

one with second minimum computation cost, and so

on.

2.3 Genetic Algorithm

GA is an optimization algorithm that searches for the

optimal solution in the possible solution space by

simulating biological evolution mechanisms. In this

research, the GA is implemented as following. The

algorithm first generates an initial population of

random solutions, where each individual represents a

possible scheduling plan.

Figure 2: Structure of the DNN to predict processor allocation probability of each task

(Picture credit : Original)

Task Scheduling for Heterogeneous Systems Using a Hybrid Deep Neural Network and Genetic Algorithm Approach

139

After the population initialization, tournament is

used for selection. Each tournament will randomly

choose three individuals and only keep the one with

best fitness. Since the goal is finding the best

scheduling plan, this research uses the Makespan as

the fitness of each plan, which could be calculated

with the following formulas:

𝑀𝑎𝑘𝑒𝑆𝑝𝑎𝑛 = 𝑀𝑎𝑥



Execute𝑇𝑖𝑚𝑒

(

𝑝

)

 (1)

𝐸𝑥𝑒𝑐𝑢𝑡𝑒𝑇𝑖𝑚𝑒

(

𝑝

)

=𝑀𝑎𝑥

∈

𝐸𝑛𝑑𝑇𝑖𝑚e

(

𝑡

)

 (2)

𝑆𝑡𝑎𝑟𝑡𝑇𝑖𝑚𝑒

(

𝑡

)

=𝑀𝑎𝑥

∈

(



)

𝐸𝑛𝑑𝑇𝑖𝑚𝑒

(

𝑢

)

+𝐶𝑜𝑚𝑚

(

𝑢,𝑡

)

 (3)

𝐸𝑛𝑑𝑇𝑖𝑚𝑒

(

𝑡

)

=𝑆𝑡𝑎𝑟𝑡𝑇𝑖𝑚𝑒

(

𝑡

)

+𝐶𝑜𝑠𝑡

(

𝑡

)

(4)

𝐶𝑜𝑚𝑚

(

𝑢,𝑡

)

=

𝐶𝑜𝑚𝑚(𝑢,𝑡), 𝑢,𝑡 𝑎𝑟𝑒 𝑒𝑥𝑒𝑐𝑢𝑡𝑒𝑑 𝑜𝑛 𝑎 𝑠𝑎𝑚𝑒 𝑝

0, otherwise

(5)

where 𝒑 represents the processor, 𝒕 ∈ 𝒑 are tasks

that allocated to processor 𝒑 , 𝑪𝒐𝒔𝒕

(

𝒕

)

is the

computation cost of task t on the processor it belongs

to, and 𝑪𝒐𝒎𝒎

(

𝒖,𝒕

)

is the communication cost

between task 𝒖 and its child task 𝒕. Notes that the

communication costs only occur when these two tasks

are executed on different processors. These formulas

show that, Makespan of a scheduling plan is the

greatest execution time of the tasks among all

processors.

In the next step, the algorithm will sequentially

choose two individuals from the selection above to do

crossing and mutation to generate offspring. For

crossing, two individuals will swap cells after a

randomly selected index. Since the cells are always

ordered in tasks’ topological order, therefore the new

offspring will not contain cells with duplicate tasks or

cells with missing tasks. For mutation, the algorithm

will randomly allocate a new processor to the task in

each cell of every individual in the population.

The algorithm also takes advantages from the

method of saving elite individuals (Ding et al., 2017).

The elite group consists of the top 10% of individuals

with the best fitness in the population. After offspring

generation, the new population will be created by

concatenating the elite group and all offspring, and

the best individual in the new population will be

recorded. After running for a specified number of

generations, the algorithm will return the individual

with the best fitness during this period.

2.4 Combination of DNN and GA

At the earlier stage, the scheduling model provided in

this paper mainly depends on GA with long

generation time to product qualitied schedule plan. As

the DNN’s loss and the Makespan difference between

DNN and GA’s scheduling plan converge, the model

can start to use DNN for inference. Depending on the

performance of DNN’s inferred result, the model can

gradually decrease the number of generations or even

eliminate the application of GA to accelerate the

entire scheduling process.

3 RESULT

3.1 Performance of DNN

This research runs through some experiments to

check if the designed network is able to converge and

learn from the GA's scheduling plan. There are three

groups are tested: (20, 3), (50, 5), and (100, 10),

where the first number of each group is the number of

tasks, and the second one is the number of processors.

1500 DAGs are generated randomly for each test

group for training, with range of computation cost

being 1 to 20 and range of communication cost being

1 to 10. There will be only one DAG input for each

epoch to simulate the training process while GA

doing task scheduling in the real world. The

population size is set to 200 for all testing groups, and

the generations are set as 200, 350, 500 iterations for

tasks numbers of 20, 50, and 100 respectively.

Figure 3, 4, 5, 6, 7, and 8 demonstrate the loss

during training process and the Makespan difference

between DNN and GA’s scheduling plan for each test

group. It could be observed that the performance of

the DNN remains the same after around 1000 epochs’

training. Since GA is a heuristic method that explores

solutions through stochastic search, the generated

targets lack a consistent structure or coherent

scheduling rules, which causes the instability of the

DNN's performance. This is the biggest limitation of

the model proposed in this research. Despite the

DAML 2024 - International Conference on Data Analysis and Machine Learning

140

fluctuations observed in both the training loss and

makespan difference, the overall downward trend

demonstrates that the network can capture some

useful patterns from the input data and learn effective

scheduling strategies to a certain extent.

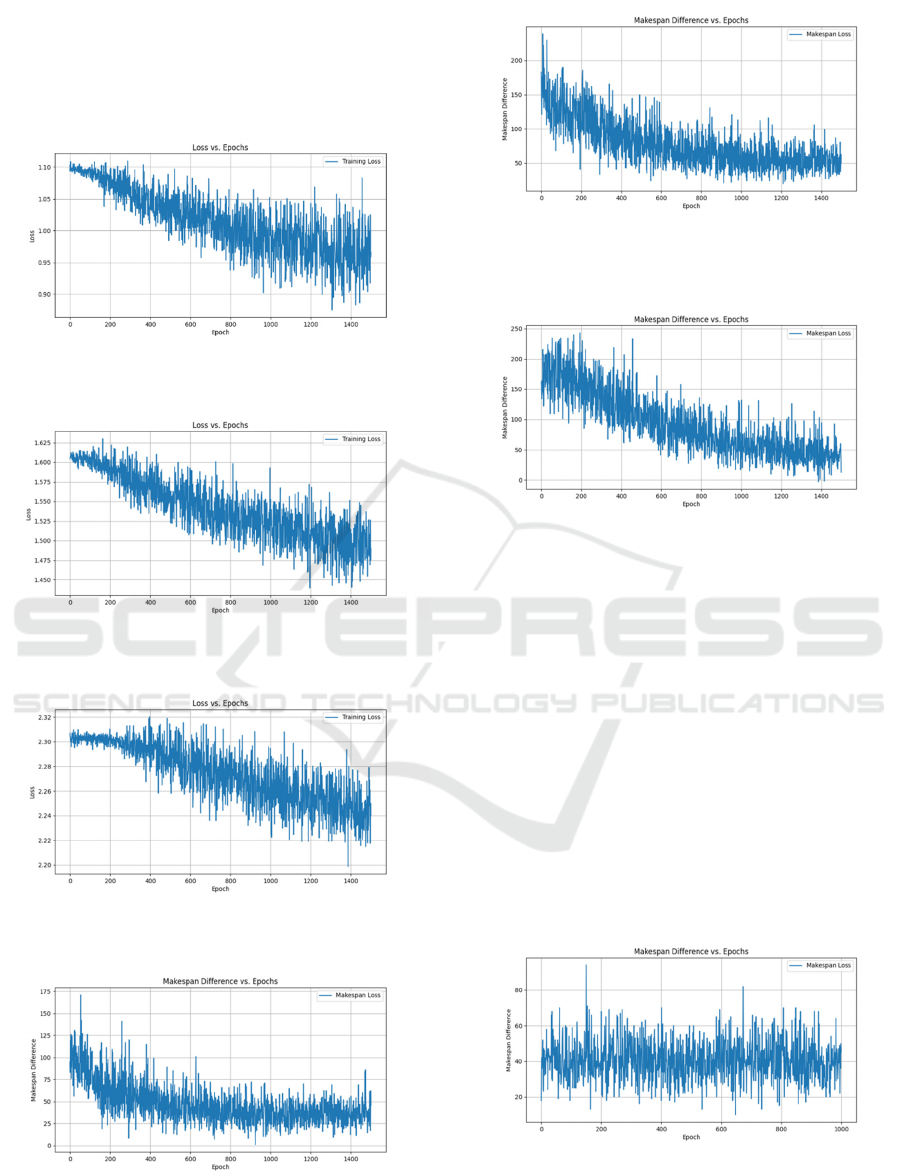

Figure 3: Training loss of test group (20, 3).

(Picture credit : Original)

Figure 4: Training loss of test group (50, 5).

(Picture credit : Original)

Figure 5: Training loss of test group (100, 10).

(Picture credit : Original)

Figure 6: Makespan difference between DNN and GA’s

scheduling plan during training of test group (20, 3).

(Picture credit : Original)

Figure 7: Makespan difference between DNN and GA’s

scheduling plan during training of test group (50, 5).

(Picture credit : Original)

Figure 8: Makespan difference between DNN and GA’s

scheduling plan during training of test group (100, 10).

(Picture credit : Original)

1000 DAGs are also randomly generated for each

task group for evaluation. Figure 9, 10, and 11 shows

the evaluation result. Combined with Figure 6, 7, and

8, it could be derived that test groups (20, 3) and (100,

10) have smaller Makespan difference and better

performance. Group (20, 3) has the minimum number

of tasks, which reduces the complexity of the

scheduling problem. Suboptimal scheduling plans do

not result in significant Makespan differences. For the

group (100, 10), while the problem complexity

increases due to the larger number of tasks, the

availability of more processors does increase in

trainable parameters which allow the network to

capture more patterns.

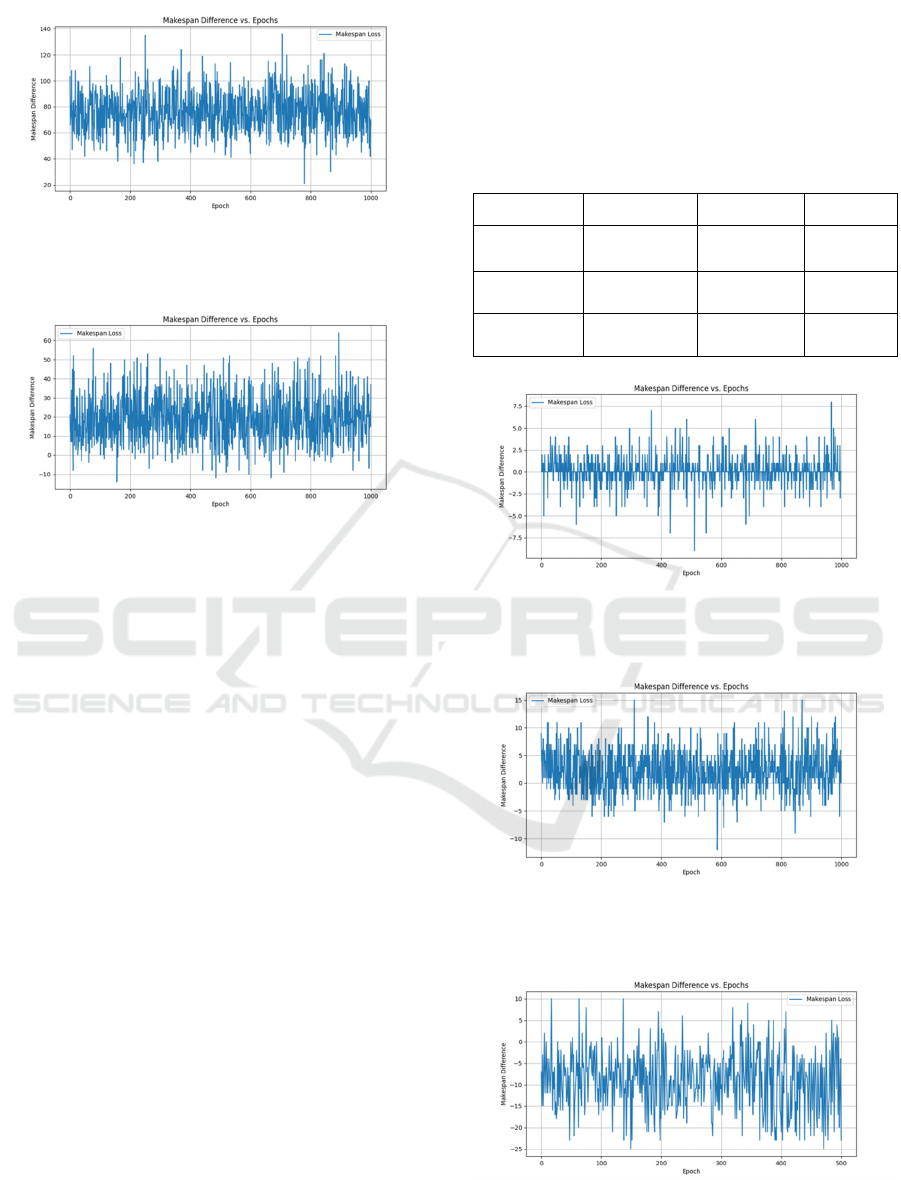

Figure 9: Makespan difference between DNN and GA’s

scheduling plan during evaluation of test group (20, 3).

(Picture credit : Original)

Task Scheduling for Heterogeneous Systems Using a Hybrid Deep Neural Network and Genetic Algorithm Approach

141

Figure 10: Makespan difference between DNN and GA’s

scheduling plan during evaluation of test group (50, 5).

(Picture credit : Original)

Figure 11: Makespan difference between DNN and GA’s

scheduling plan during evaluation of test group (100, 10).

(Picture credit : Original)

3.2 Acceleration of Using DNN

Overall, the scheduling plans generated by the DNN

still show a great Makespan difference compared to

the GA-generated optimal solutions. Therefore, the

model still needs to rely on GA to do further

optimization. However, since the DNN’s output

already has relatively good fitness, the entire

scheduling process could be accelerated by using the

DNN’s output to create the initial population and

reducing the number of generations for GA.

This research also runs experiments to compare

the performance of hybrid and pure GA models. For

the hybrid model, after obtaining outputs from DNN,

half of the initial population used in GA is generated

by mutating DNN’s output, and the second half is

randomly generated. Then running GA based on this

initial population with half the number of generations.

Table 1 shows the time consumption between these

two models. Figure 12, 13, and 14 presents the

Makespan difference between these two models.

Even though GA uses only half the number of

generations in the hybrid model, the resulting

scheduling plans have a minimal Makespan

difference compared to those generated by the pure

GA. The reduction in generations leads to a

significant speedup. The hybrid model is nearly twice

as fast as the pure GA, with the DNN's inference time

being almost negligible. This highlights the efficiency

of using the DNN as a pre-processing step to guide

GA, ultimately reducing the computational burden

while maintaining competitive performance in

scheduling quality.

Table 1: Time consumption between the hybrid and pure

GA model. (Table credict: Original)

Hybrid Pure GA Epochs

Test group

(20, 3)

662.366

seconds

1292.870

seconds

1000

Test group

(

50, 5

)

5125.380

seconds

10274.914

seconds

1000

Test group

(100, 10)

11312.046

seconds

22949.441

seconds

500

Figure 12: Makespan difference between the hybrid and

pure GA’s scheduling plan of test group (20, 3). (Picture

credit : Original)

Figure 13: Makespan difference between the hybrid and

pure GA’s scheduling plan of test group (50, 5). (Picture

credit : Original)

Figure 14: Makespan difference between the hybrid and

pure GA’s scheduling plan of test group (100, 10). (Picture

credit : Original)

DAML 2024 - International Conference on Data Analysis and Machine Learning

142

4 CONCLUSION

This study explores the integration of DNN with GA

for scheduling tasks represented by DAG on multiple

processors. The DNN is trained to predict the

probability of task allocation on processors based on

task computation and communication costs. GA-

generated optimal solutions are the targets. The

experiment results indicate that while the DNN shows

significant fluctuations during training, the overall

trend demonstrates its ability to learn effective

scheduling patterns. Specifically, for test groups with

fewer tasks or more processors, the DNN's

predictions have a noticeable reduction in the

makespan difference compared to the GA targets.

The inherent randomness of GA poses a challenge

to the DNN's learning process. As a result, the DNN

is not yet sufficient to produce optimal scheduling

solutions only. The model utilizes DNN’s output to

initialize GA's population. This approach reduced the

number of GA generations needed to produce a

scheduling plan while maintaining minimal

makespan differences.

The impact of this research lies in the potential to

significantly accelerate scheduling optimization for

complex DAG tasks, reducing the reliance on purely

heuristic methods. Future work could focus on

improving the DNN's generalization abilities by

employing reinforcement learning approaches.

Additionally, further exploration into hybrid methods

could lead to more scalable and efficient solutions for

real-time and large-scale scheduling problems.

REFERENCES

AlEbrahim, S., & Ahmad, I. (2017). Task scheduling for

heterogeneous computing systems. The Journal of

Supercomputing, 73(6), 2313–2338. https://doi.org/

10.1007/s11227-016-1917-2

Cheng, X., & Xu, R. (2020). Research on Task Scheduling

of Heterogeneous Multi-core Processor based on

Replication Genetic algorithm. Proceedings of the 4th

International Conference on Intelligent Information

Processing, 454–460. https://doi.org/10.1145/33780

65.3378151

Deepa, R., Srinivasan, T., Doreen, D., & Miriam, H. (2006).

An Efficient Task Scheduling Technique in

Heterogeneous Systems Using Self-Adaptive

Selection-Based Genetic Algorithm. International

Symposium on Parallel Computing in Electrical

Engineering (PARELEC’06), 343–348. https:

//doi.org/10.1109/PARELEC.2006.14

Ding, S., Wu, J., Xie, G., & Zeng, G. (2017). A Hybrid

Heuristic-Genetic Algorithm with Adaptive Parameters

for Static Task Scheduling in Heterogeneous

Computing System. 2017 IEEE Trustcom

/BigDataSE/ICESS, 761–766. https://doi.org/10.1109

/Trustcom/BigDataSE/ICESS.2017.310

Fang, J., Zhang, J., Lu, S., & Zhao, H. (2020). Exploration

on Task Scheduling Strategy for CPU-GPU

Heterogeneous Computing System. 2020 IEEE

Computer Society Annual Symposium on VLSI

(ISVLSI), 306–311. https://doi.org/10.1109/ISVL

SI49217.2020.00063

Gupta, M., Bhargava, L., & Indu, S. (2020). Artificial

Neural Network based Task Scheduling for

Heterogeneous Systems. 2020 3rd International

Conference on Emerging Technologies in Computer

Engineering: Machine Learning and Internet of Things

(ICETCE), 74–79. https://doi.org/10.1109/ICETC

E48199.2020.9091745

Heydari, F., & Shahhoseini, H. S. (2011). Adaptive

algorithm for task scheduling in the distributed

heterogeneous systems using harmony search. 7th

International Conference on Networked Computing,

11–16. https://ieeexplore.ieee.org/document/6058937

Lee, H., Cho, S., Jang, Y., Lee, J., & Woo, H. (2021). A

Global DAG Task Scheduler Using Deep

Reinforcement Learning and Graph Convolution

Network. IEEE Access, 9, 158548–158561. IEEE

Access. https://doi.org/10.1109/ACCESS.2021.3130

407

Lee, V. W., Kim, C., Chhugani, J., Deisher, M., Kim, D.,

Nguyen, A. D., Satish, N., Smelyanskiy, M.,

Chennupaty, S., Hammarlund, P., Singhal, R., &

Dubey, P. (2010). Debunking the 100X GPU vs. CPU

myth: An evaluation of throughput computing on CPU

and GPU. Proceedings of the 37th Annual International

Symposium on Computer Architecture, 451–460.

https://doi.org/10.1145/1815961.1816021

Ullman, J. D. (1975). NP-complete scheduling problems.

Journal of Computer and System Sciences, 10(3), 384–

393. https://doi.org/10.1016/S0022-0000(75)80008-0

Zhao, Y., Cao, S., & Yan, L. (2019). List Scheduling

Algorithm Based on Pre-Scheduling for Heterogeneous

Computing. 2019 IEEE Intl Conf on Parallel &

Distributed Processing with Applications, Big Data &

Cloud Computing, Sustainable Computing &

Communications, Social Computing & Networking

(ISPA/BDCloud/SocialCom/SustainCom), 588–595.

https://doi.org/10.1109/ISPA-BDCloud-SustainCom-

SocialCom48970.2019.00089

Task Scheduling for Heterogeneous Systems Using a Hybrid Deep Neural Network and Genetic Algorithm Approach

143
