Analysis for Advancements of Optical Character Recognition in

Handwriting Recognition

Yitao Yao

School of International Education, Shanghai Normal University Tianhua College, Shanghai, China

Keywords: Handwriting Recognition, Hidden Markov Models, Convolutional Neural Networks, Recurrent Neural

Networks.

Abstract: In the digital age, despite the widespread use of digital documents, many handwritten documents still need to

be converted into digital formats. Optical Character Recognition (OCR) technology-based handwriting

recognition addresses this need by converting printed or handwritten text into machine-readable form,

improving work efficiency. This paper examines key OCR technologies, including Hidden Markov Models

(HMM), Convolutional Neural Networks (CNN), and Recurrent Neural Networks (RNN) with Long Short-

Term Memory (LSTM). The methodology section discusses how HMMs use probabilistic models to

recognize text in noisy environments, while CNNs automatically extract features from images. RNNs and

LSTMs capture temporal dependencies and context in sequential data, making them effective for recognizing

continuous characters and complex text structures. The paper also explores the combination of CNNs with

LSTMs for end-to-end text recognition, further enhancing OCR capabilities. The discussion highlights the

strengths and limitations of these technologies: HMMs are efficient but limited in expressive power, CNNs

excel in feature extraction but require large datasets, and LSTMs handle long-term dependencies well but are

computationally intensive. Despite advancements, OCR still faces challenges. This paper offers a

comprehensive overview of key models in OCR technology, guiding future research in selecting suitable

models for specific tasks and improving accuracy and efficiency.

1 INTRODUCTION

In the digital age, although digital documents are

widely used, there are still many handwritten

documents that need to be converted into digital

formats. These documents include a large number of

historical records, handwritten notes, contracts, and

invoices. Optical Character Recognition (OCR) is a

technology that converts printed or handwritten

documents into machine-readable text and is

considered an effective tool for improving work

efficiency and achieving systematic document

management.

The early conceptualization of OCR began with

patents submitted by Tausheck and Handel (

Mori,

1992

). These patents laid the foundation for

template/mask matching methods. The earliest OCR

technology emerged in the 1950s and was designed to

recognize printed text. These early systems used

template matching, which involved comparing

https://orcid.org/0009-0007-8685-0186

characters with predefined templates. In the 1960s

and 1970s, OCR technology began to rely on

manually designed feature extraction methods, such

as analyzing the distribution of horizontal and vertical

lines and the contours of character shapes (

Mori,

1992

). While these methods were effective for

recognizing specific fonts, they lacked adaptability to

diverse fonts and handwritten text.

From the 1980s to 2000, OCR systems shifted

from hardware-based implementations to software-

based solutions capable of handling both printed and

handwritten text. During the 1980s, Hidden Markov

Models (HMM) were introduced to OCR, particularly

for handwriting recognition. HMM allowed for the

modeling of sequential data, enabling the processing

of continuous handwritten text. In the 1990s, with

increased computational power, neural networks

began to be used in OCR. Early neural networks, such

as Multilayer Perceptrons (MLP), could learn more

features, improving recognition accuracy. After 2010,

Yao and Y.

Analysis for Advancements of Optical Character Recognition in Handwriting Recognition.

DOI: 10.5220/0013487600004619

In Proceedings of the 2nd International Conference on Data Analysis and Machine Learning (DAML 2024), pages 70-74

ISBN: 978-989-758-754-2

the rise of Convolutional Neural Networks (CNN),

introduced by Yann LeCun in the late 1980s,

revolutionized the OCR field. CNNs use hierarchical

feature extraction to automatically learn rich

character features from data, significantly enhancing

text recognition accuracy (

Memon, 2020

Later, the introduction of Recurrent Neural

Networks (RNN) and Long Short-Term Memory

(LSTM) further advanced OCR. RNNs are primarily

used for processing and recognizing sequential data.

Unlike traditional OCR methods, RNNs capture the

temporal relationships and contextual information

within input data, making them particularly effective

for text recognition, especially handwriting (

Memon,

2020

). LSTM, a special type of RNN used for

processing and predicting sequential data, gained

widespread attention for its ability to address the

gradient vanishing and exploding problems in

traditional RNNs (

Namysl, 2019

). In the OCR field,

LSTM is used to improve text recognition accuracy,

especially for variable-length sequences or when

strong contextual dependencies exist (

Namysl, 2019

The application of LSTM in OCR began around 2015

when many research teams started combining it with

CNNs to form end-to-end text recognition systems.

Google’s Tesseract 4.0 integrated LSTM, further

enhancing its performance in complex text and

multilingual environments. Overall, the introduction

of LSTM has made OCR systems more proficient at

handling complex text structures, contextual

dependencies, and variable-length inputs, marking a

significant shift from traditional handcrafted feature

extraction methods to more intelligent and automated

approaches. The evolution of OCR technology

reflects a transition from traditional feature extraction

to deep learning, and with ongoing improvements in

computing power and algorithms, future OCR

technology will be able to handle increasingly

complex and diverse text scenarios. Due to the rapid

development and significance of OCR technologies,

it is necessary to conduct a comprehensive review in

this domain.

The remainder of the paper is organized as

follows. First, in Section 2, this article will introduce

three key technologies in the history of OCR

development: HMM, CNN, and RNN LSTM. In

Section 3, the advantages and disadvantages of these

technologies as well as the challenges and future

prospects in this field will be analyzed. Finally, this

paper will summarize the whole paper.

2 METHOD

2.1 The Introduction of OCR

Recognition Workflow

The process of extracting text from documents or

images into machine-readable text using OCR

technology involves several key steps (

Karthick,

2019

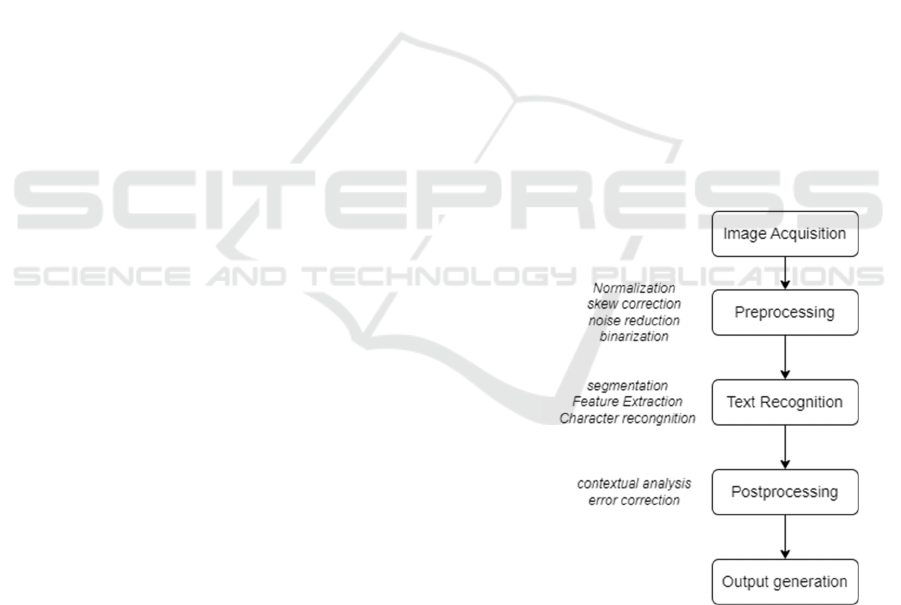

). Figure 1 illustrates the OCR recognition

workflow. The process starts with obtaining the

image containing the handwritten text. This could

range from scanned documents, photographs, or any

image containing textual information. And then the

image is adjusted through normalization, skew

correction, noise reduction and binarization during

preprocessing step. These steps ensure the image is

clear and properly formatted for recognition. After

that, the image is segmented into lines, words and

characters. Old OCR systems may still use pattern

matching to compare the extracted features against

known character templated to recognize the

characters. Modern OCR systems use deep learning

models, like CNN or RNN for accurate character

recognition. Then recognized characters are

assembled into words and sentences, with contextual

analysis and error correction applied to improve

accuracy. Finally, the recognized text is output in the

desired format for further use.

Figure 1: OCR recognition workflow (Photo/Picture credit:

Original).

2.2 HMM

Lawrence et al. pioneered the use of HMMs for tasks

like OCR, especially for recognizing handwritten text

(Rabiner, 1989). HMMs model sequential data by

representing a character sequence as hidden states,

Analysis for Advancements of Optical Character Recognition in Handwriting Recognition

with each state corresponding to a character and

transitions between states indicating the probability

of moving from one character to the next. HMMs rely

on two key principles: state transitions and

observation probabilities. This approach allows

HMMs to handle noisy or unclear text effectively,

making them adaptable to various languages, fonts,

and styles.

Cao et al. (Cao, 2011) demonstrated the use of

HMMs in recognizing mixed handwritten and

typewritten text. The system uses OCR to identify

word boundaries and applies HMMs to classify text

types. By leveraging context and features like image

intensity, HMMs achieve a lower error rate (4.75%)

than older methods, enhancing OCR accuracy and

reliability for mixed-type documents.

2.3 CNN

CNNs are deep learning models specifically designed

for processing and analyzing image data, widely used

in OCR for recognizing both printed and handwritten

text. CNNs enhance recognition accuracy by

automatically extracting features such as edges,

textures, and shapes from images, making them

effective in handling variations like deformations,

rotations, and scaling. The key components of CNNs

include convolutional layers that capture local

features, pooling layers that reduce data size while

preserving essential information, activation functions

like Rectified Linear Unit (ReLU) to learn complex

patterns, and fully connected layers that map these

features to output classes for final text recognition.

This structure allows CNNs to minimize the need for

manual feature engineering and remain robust against

image variations.

In a study by Alrehali et al. (Alrehali, 2020),

CNNs were applied to recognize characters in

historical Arabic manuscripts. The architecture used

multiple convolutional and pooling layers to learn

character shapes and reduce feature sizes, achieving

an accuracy of 88.20% by increasing training

samples. Despite slightly lower performance than

traditional methods, CNNs demonstrated unique

strengths in complex manuscript recognition,

showing potential for future advancements.

2.4 RNN and LSTM

RNNs are designed for processing sequential data,

making them ideal for OCR, particularly in

recognizing handwritten text. Unlike traditional

feedforward networks, RNNs utilize contextual

information from sequences, allowing them to handle

continuous characters and lengthy texts more

effectively. They achieve this by maintaining a

"recurrent" structure, where the current hidden state

is updated at each step based on both the current input

and the previous hidden state. RNNs use the same

weights to handle sequences of varying lengths and

learn temporal dependencies through the

Backpropagation Through Time (BPTT) algorithm.

However, traditional RNNs struggle with long

sequences due to the vanishing gradient problem,

which often necessitates the use of LSTM networks

or Gated Recurrent Units (GRU) to improve their

capacity for modeling long-term dependencies.

LSTM networks are a more advanced type of

RNN specifically designed to address the vanishing

gradient problem encountered in long data sequences.

LSTMs are particularly effective in OCR tasks that

require long-term dependency recognition, such as

handwritten and complex printed text. They employ

memory cells with gating mechanisms to control

information storage, updating, and forgetting, which

helps retain relevant context while filtering out noise.

This adaptability to various OCR scenarios, including

multilingual recognition and document analysis,

enhances both text recognition accuracy and

reliability.

In a study by Jun (Ma, 2024), RNNs and LSTMs

were applied to sequence modeling for handwritten

text recognition. While RNNs could handle

sequential data, they struggled with long sequences.

LSTMs overcame this limitation with gates that

capture long-term dependencies. The study used a

Bidirectional LSTM, which processes data in both

forward and backward directions, improving context

capture for letters and words. By combining CNNs

for feature extraction with LSTMs for sequence

modeling, the hybrid approach reduced the Word

Error Rate (WER) to 12.04% and the Character Error

Rate (CER) to 5.13%, outperforming standalone

CNN models.

Similarly, Su et al. (Su, 2015) employed RNNs

and LSTMs to enhance scene text recognition without

requiring character segmentation. Their method

converted word images into sequential HOG feature

vectors, which were classified using a multi-layer

RNN. By integrating LSTMs with input, forget, and

output gates, the model captured long-term

dependencies effectively. Using Connectionist

Temporal Classification (CTC), the approach aligned

unsegmented input with correct word outputs,

achieving high accuracy rates (up to 92%) on datasets

like ICDAR 2003, ICDAR 2011, and SVT. This

combined RNN-LSTM method proved effective in

recognizing text in complex, real-world conditions,

setting a strong benchmark for future research.

DAML 2024 - International Conference on Data Analysis and Machine Learning

Table 1: advantages and disadvantages of different models.

Model Advanta

es Disadvanta

HMM - Simple and interpretable

- High training efficiency

- Suitable for se

uential data

- Limited expressive power

- Fixed state transitions

CNN - Automatic feature extraction

- Spatial invariance

- Excellent in ima

e and video

rocessin

- Requires large datasets

- High computational cost

RNN - Handles sequential data

- Context memory

- Difficulty in learning long-term

dependencies

- High computational complexit

LSTM - Effectively handles long-term dependencies

- Versatile

- Selective memory

- Complex structure

- Long training time

3 DISCUSSIONS

For the mutual benefit and protection of Authors and

Publishers, it is necessary that Authors provide

formal written Consent to Publish and Transfer of

Consent ensures that the publisher has the Author’s

authorization to publish the Contribution.

The development of OCR technology has evolved

over nearly 80 years, shifting from rule-based

methods to machine learning, particularly deep

learning. This paper explores the applications of

HMM, CNN, RNN, and LSTM in recognizing

handwritten text and compares their strengths and

limitations.

HMM uses probabilistic models for sequential

data, like step-by-step handwritten character

recognition, but struggles with noise, complex

backgrounds, and long-term dependencies. CNNs

automatically learn image features, such as edges and

shapes, and are robust to variations like rotation and

scaling, making them effective for visual data.

However, they handle sequential information poorly

and require large datasets and high training costs.

RNNs are suitable for processing continuous text and

variable-length sequences but suffer from gradient

issues in long sequences, impacting performance.

LSTMs overcome these limitations with gating

mechanisms to capture long-term dependencies,

improving recognition accuracy, but they have a

complex structure and high computational costs.

This Table 1 summarizes the main advantages,

disadvantages of HMM, CNN, RNN, and LSTM in

OCR.

Although OCR technology has significantly

increased efficiency and convenience, it still faces

several challenges and limitations at this stage. First,

current OCR technology struggles with accurately

recognizing handwritten text and complex fonts,

resulting in relatively low accuracy. Additionally, the

output of OCR models can sometimes be difficult to

interpret and verify. For example, when recognition

errors occur, it can be challenging to determine

whether the problem stems from font characteristics,

image quality, or limitations of the model itself. This

lack of sufficient explainability and transparency

restricts the use of OCR in fields that require high

accuracy and strict scrutiny, such as medicine or

finance.

To address these issues, researchers are actively

promoting technological innovations. Deep learning

methods are increasingly being applied in the field of

OCR, particularly in recognizing complex text

patterns. For instance, new techniques like self-

supervised learning and Generative Adversarial

Networks (GANs) are being introduced. Self-

supervised learning enables OCR systems to leverage

unlabeled data for pre-training, enhancing the ability

to recognize handwritten and irregular fonts, while

GANs are used to generate diverse handwriting

samples, improving the model's generalization

capabilities. Additionally, attention mechanisms

(such as Transformer architecture) have shown great

potential in handling complex text structures by more

effectively focusing on key content in images and

reducing interference from background noise.

There are also many new research directions

aimed at improving the explainability and

transparency of OCR technology. For example,

feature visualization techniques, such as Gradient-

weighted Class Activation Mapping (Grad-CAM),

can help analyze how a model responds to different

text regions during the recognition process, thereby

providing a more intuitive understanding of the

model’s decision-making process. Tools like Local

Analysis for Advancements of Optical Character Recognition in Handwriting Recognition

Interpretable Model-agnostic Explanations (LIME)

and SHapley Additive Explanations (SHAP) are also

being used to analyze the impact of various features

on recognition results, enhancing the model’s

interpretability and reliability. These advancements

are expected to make OCR systems more reliable and

widely applicable in practice.

4 CONCLUSIONS

This paper has reviewed the evolution of OCR

technology, from early template matching methods to

advanced machine learning models such as HMM,

CNN, and RNN with LSTM. HMMs provided an

early framework for handling sequential data,

particularly in noisy environments. CNNs

revolutionized the field by enabling automatic feature

extraction from images, improving the recognition of

printed and handwritten text. The introduction of

RNNs and LSTMs allowed for better handling of

sequential dependencies and context, significantly

enhancing text recognition accuracy. Together, these

technologies have broadened the scope of OCR

applications, making it more versatile and effective in

handling complex and diverse text scenarios.

This paper provides valuable overview of key

models used in OCR technology. The analysis can

guide future studies in selecting appropriate models

based on specific OCR tasks and inspire further

exploration to enhance model accuracy and

efficiency. Additionally, the discussion on the latest

technological advancements offers insights into

potential directions for improving OCR systems.

Future research should focus on enhancing model

transparency and interpretability while reducing

computational costs. Continued innovation,

particularly in deep learning and model

explainability, will be essential for advancing OCR's

effectiveness in diverse and complex text

environments.

REFERENCES

Alkawaz, M. H., Seong, C. C., & Razalli, H. 2020,

February. Handwriting detection and recognition

improvements based on hidden markov model and deep

learning. In 2020 16th IEEE International Colloquium

on Signal Processing & Its Applications (CSPA) (pp.

106-110). IEEE.

Alrehali, B., Alsaedi, N., Alahmadi, H., & Abid, N. 2020,

March. Historical Arabic manuscripts text recognition

using convolutional neural network. In 2020 6th

conference on data science and machine learning

applications (CDMA) (pp. 37-42). IEEE.

Cao, H., Prasad, R., & Natarajan, P. 2011, September.

Handwritten and typewritten text identification and

recognition using hidden Markov models. In 2011

International Conference on Document Analysis and

Recognition (pp. 744-748). IEEE.

Karthick, K., Ravindrakumar, K. B., Francis, R., &

Ilankannan, S. 2019. Steps involved in text recognition

and recent research in OCR; a study. International

Journal of Recent Technology and Engineering, 8(1),

2277-3878.

Ma, J. 2024. A Study on a Hybrid CNN-RNN Model for

Handwritten Recognition Based on Deep Learning.

scitepress.org

Memon, J., Sami, M., Khan, R. A., & Uddin, M. 2020.

Handwritten optical character recognition (OCR): A

comprehensive systematic literature review

(SLR). IEEE access, 8, 142642-142668.

Mori, S., Suen, C. Y., & Yamamoto, K. 1992. Historical

review of OCR research and development. Proceedings

of the IEEE, 80(7), 1029-1058.

Namysl, M., & Konya, I. 2019, September. Efficient,

lexicon-free OCR using deep learning. In 2019

international conference on document analysis and

recognition (ICDAR) (pp. 295-301). IEEE.

Nikitha, A., Geetha, J., & JayaLakshmi, D. S. 2020,

November. Handwritten text recognition using deep

learning. In 2020 International Conference on Recent

Trends on Electronics, Information, Communication &

Technology (RTEICT) (pp. 388-392). IEEE.

Rabiner, L. R. 1989. A tutorial on hidden Markov models

and selected applications in speech

recognition. Proceedings of the IEEE, 77(2), 257-286.

Su, B., & Lu, S. 2015. Accurate scene text recognition

based on recurrent neural network. In Computer

Vision–ACCV 2014: 12th Asian Conference on

Computer Vision, Singapore, Singapore, November 1-

5, 2014, Revised Selected Papers, Part I 12 (pp. 35-48).

Springer International Publishing.

DAML 2024 - International Conference on Data Analysis and Machine Learning
