A Tool-Supported Approach for Modelling and Verifying MapReduce

Workflow Using Event B and BPMN2.0

Mayssa Bessifi

, Ahlem Ben Younes

and Leila Ben Ayed

FSEGS, University of Sfax,Tunisia

ENSIT, University of Tunis, Tunisia

ENSI, University of la Manouba, Tunisia

Keywords: Big Data, MapReduce, BPMN2, Event B, Formal Verification, Data Quality Properties, Refinement.

Abstract: Big data techniques are increasingly applied in critical applications (such as health, marketing nuclear

research field, aeronautics field), so it is desirable that a systematic method is developed to ensure the

correctness of these applications. As an aid to designers and developers, we propose a model-driven approach

for the specification and formal verification of MapReduce workflow applications using a semi-formal

language which is BPMN2 to represent MapReduce workflow and the Event B method for analysis. Our

approach starts with the graphical modelling of the MapReduce application as a chain of MapReduce design

patterns using an adapted BPMN2 notation. Then the model is transformed into an equivalent Event B project,

composed by a set of contexts and machines linked by refinement, that can be enriched with a variety of

desirable properties. The approach has been automated using a set of mapping rules implemented in a first

prototype tool. We illustrate our approach with a case study “Fireware” and we verify data quality properties

such as data non-conflict and data completeness.

1 INTRODUCTION

Nowadays, zettabytes of data are generated every

day. This flood of data is accessible in all formats, i.e.

structured, unstructured and semi-structured. The

large volume, the variety and the rising speed of

generation of this huge amount of data give rise to the

term Big Data (S and Ravishankar 2019). In order to

store, process and analyze such data new technologies

and storage mechanism are required. One of the most

successful paradigms is MapReduce. It has been

proposed by google and emerged as the core of

several Big Data frameworks such as Hadoop, spark

and Storm, etc.

Hadoop is developed by Apache Software

Foundation as an open-source framework. It is the

leader implementation of the MapReduce paradigm

to solve big data problems. Hadoop cluster is mainly

composed by two layers: a Hadoop distributed file

system called HDFS (Rehan and Gangodkar 2015)

for storing data and Hadoop MapReduce paradigm

for parallel processing. The Hadoop system is highly

scalable; i.e., it can combine the computing and the

storage power of thousands of computers to stock and

process the massive data in a distributed way.

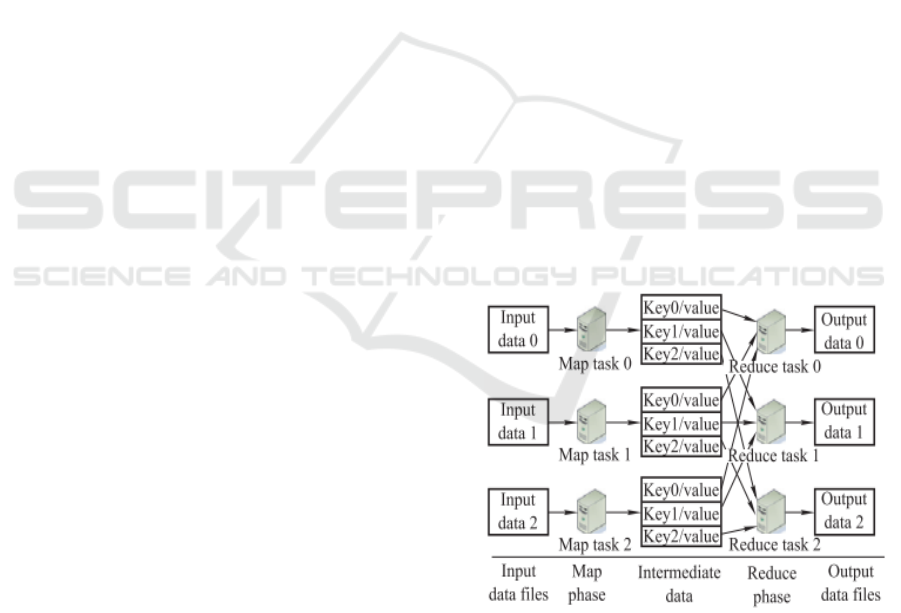

Figure 1: Procedure of a MapReduce job.

As depicted in Figure 1, a MapReduce job is

created in two phases: map and reduce. The map

phase, composed of parallel map tasks, receives raw

data as input and generates a set of key-value pairs.

Any given "key" can be used by several pairs. Then,

the reducer, which can be one or many parallel reduce

504

Bessiﬁ, M., Ben Younes, A. and Ben Ayed, L.

A Tool-Supported Approach for Modelling and Verifying MapReduce Workﬂow Using Event B and BPMN2.0.

DOI: 10.5220/0012861300003753

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Software Technologies (ICSOFT 2024), pages 504-510

ISBN: 978-989-758-706-1; ISSN: 2184-2833

tasks, processes pairs from mappers and aggregates

values with the same key. The output of the reducer

can be written in HDFS or send to another Mapper, in

the case of MapReduce workflow.

A MapReduce workflow processes terabytes of

data through MapReduce jobs connected through

producer-consumer relationships. Each job consists

of one Map phase and one Reduce phase. A phase

includes multiple parallel Map or Reduce tasks.

Although the Hadoop MapReduce framework is

easy to grasp, the development of complex

MapReduce workflow can be a tedious task and

require the collaboration of many developers. The

intervention of different developers raises the

possibility of mistakes and bugs, in the map and

reduce programs, that can interrupt the MapReduce

execution or produce inaccurate output. Also, as

MapReduce applications are like every other

application, from the design phase a set of

requirements are envisaged and need to be verified

from an early stage to reduce the possibilities of

failure or inconsistency. Therefore, we propose in this

paper an approach driven by MapReduce design

patterns, for the modeling and formal verification of

MapReduce workflow using both the standard

BPMN2(Correia and Abreu 2012) and the Event B

method(Abrial 2010).

The objective of the proposed approach is twofold.

First, the approach is developed to help designers to

easily design their MapReduce workflow using the

graphical tool of a well-known and rich standard

which is BPMN, and based on a set of predefined

MapReduce design patterns.

Second, by automatically transformed the

MapReduce workflow to a formal notation, Event B,

the designer can make further analysis and

consequently detect any errors at earlier stage.

The rest of the paper is organized as follows:

section 2 presents related works and our main

contributions. Section 3 presents briefly BPMN and

the Event B method. Section 4 describe the proposed

approach for the specification and verification of

MapReduce workflow. Then a case study is

presented. Finally, section 6 concludes the paper.

2 RELATED WORKS

Although the wide spread of big data applications,

Only 13% of organizations have achieved full-scale

production for their Big Data implementations as

mentioned in the research (Colas et al. 2014) at

Capgemini Consulting. The main reason behind this

problem is the technical difficulty to design and

develop effective big data applications. Hence, in

order to increase the productivity in the development

of Big Data applications, new languages,

methodologies and tools needed to be created for

assisting and guiding developers. In this context, a

number of research are realized(Perez-Palacin et al.

2019)(Bersani et al. 2019)(Lim, Herodotou, and Babu

2012).

In (Chiang et al. 2021), Chiang et al. adopts petri

net to visually model the MapReduce framework in

order to verify its reachability property. The study act

as guidelines for the developer to ovoid common

errors such as when the system can’t find input or

output file.

Another variation of petri nets, Prioritized–Timed

Coloured Petri Nets, is used in (Ruiz, Calleja, and

Cazorla 2015), to evaluate the performance of the

application “SentiStrength” for the Hadoop module in

cloud environments. Simulations are realized by

CPNtools to find out the best performance–cost

agreements in advance.

Zeliu et al. analyses the rationality of MapReduce

workflow by using the Object Petri Net(Hong and

Bae 2000) in (Zeliu et al. 2019). The rationality

criteria are defined by: the absence of a strangler task,

the absence of conflict map and the reasonable

execution time.

In the above cited works, petri net with its

different variation is adopted at the design phase of

MapReduce application. Although, it is a mature

formalism that is widely used , a petri net model can

become very complex(Bessifi, Younes, and Ayed

2022). Also, the use of the model checking technique

as a verification technique pose always the problem

of the growing number of explored states and thus the

time of verification of data intensive applications

such as MapReduce applications.

In (Zhang et al. 2020), a runtime verification

approach at code level is presented. Both Map and

reduce programs are written in MSVL(Wang et al.

2020) language, properties to verify are expressed in

PPTL(Duan et al. 2019) formulas then verified using

the MSVL model checker. Two case studies are

presented to verify several data properties.

In this paper, we propose a model-driven

framework for the specification and verification of

MapReduce workflow to help developer to create a

correct by construction MapReduce application. This

approach combines the power of two different

languages: Event B and BPMN, to provide a

prototype tool that can be used to easily create high

quality applications.

A Tool-Supported Approach for Modelling and Verifying MapReduce Workﬂow Using Event B and BPMN2.0

505

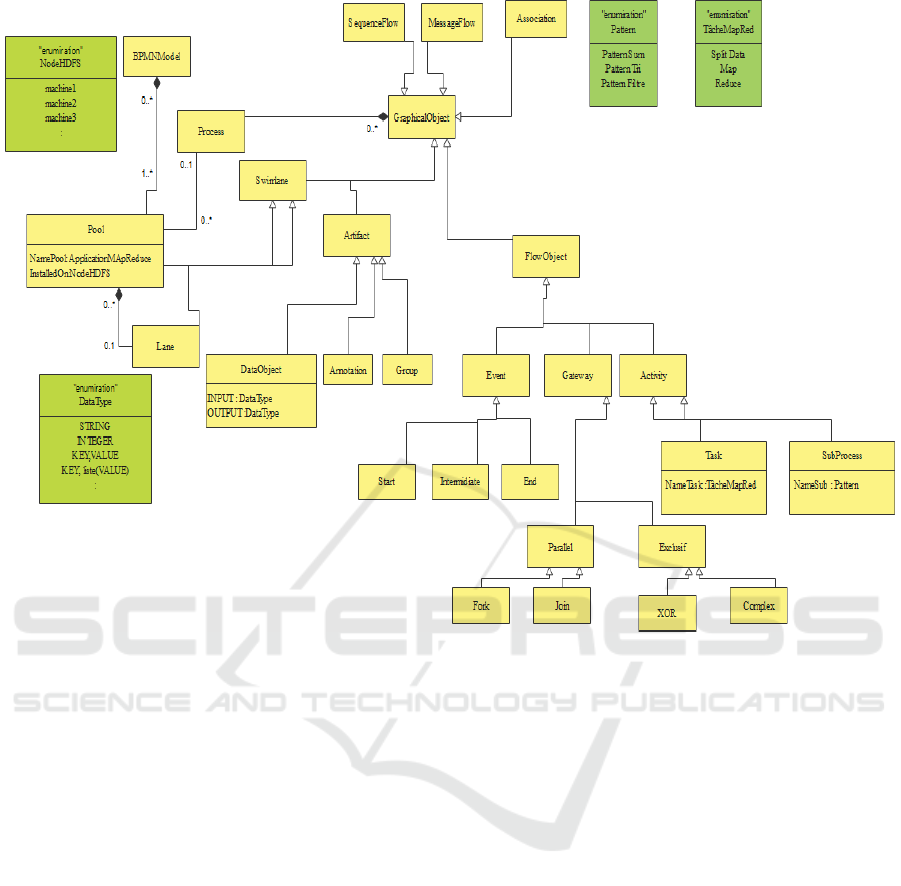

Figure 2: BPMN2.0 meta-model adapted to MapReduce workflow.

The originality of our contribution consists of:

 Reducing designers' efforts due to the use of

BPMN graphical notation to define the proper

MapReduce workflow as a chain of MapReduce

design patterns.

 The automatic meta-model transformation of the

MapReduce workflow to an equivalent formal

description, through a set of mapping rules

implemented using the Kermeta model

transformation language.

 We adopt Event B as our target formal language,

supported by its RODIN tool, because of its

expressivity to model a complex system at

different levels of abstraction thanks to the

refinement concept, and the verification technique

is based on theorem proving which does not suffer

from the explosion number of states.

3 BACKGROUND

3.1 BPMN2.0

The BPMN “Business Process Model and Notation”

is a standard business process model and notation

developed by the Object Management Group. The

main goal of BPMN is to provide an easily to

understand notation that is capable to represent a

semantically complex process.

BPMN2 is a semantically rich modelling

language. While a UML activity diagram has about

20 different modelling constructs, a BPMN2 process

model diagram (the most complex of the 3 available)

has about 100 different modelling constructs,

including 51 event types, 8 types of gateway, 7 types

of data, 4 types of activities, 6 activity markers, 7

types of tasks, 4 types of flows, basins, corridors,

etc(Correia and Abreu 2012).

3.2 Event B Method

Event B is a formal method based on mathematical

foundations (first-order logic and set theory). An

Event B model is built by two types of components:

contexts and machines that respectively represent the

static and dynamic behavior of the model. They are

identified by a unique name and consist of a set of

clauses.

ICSOFT 2024 - 19th International Conference on Software Technologies

506

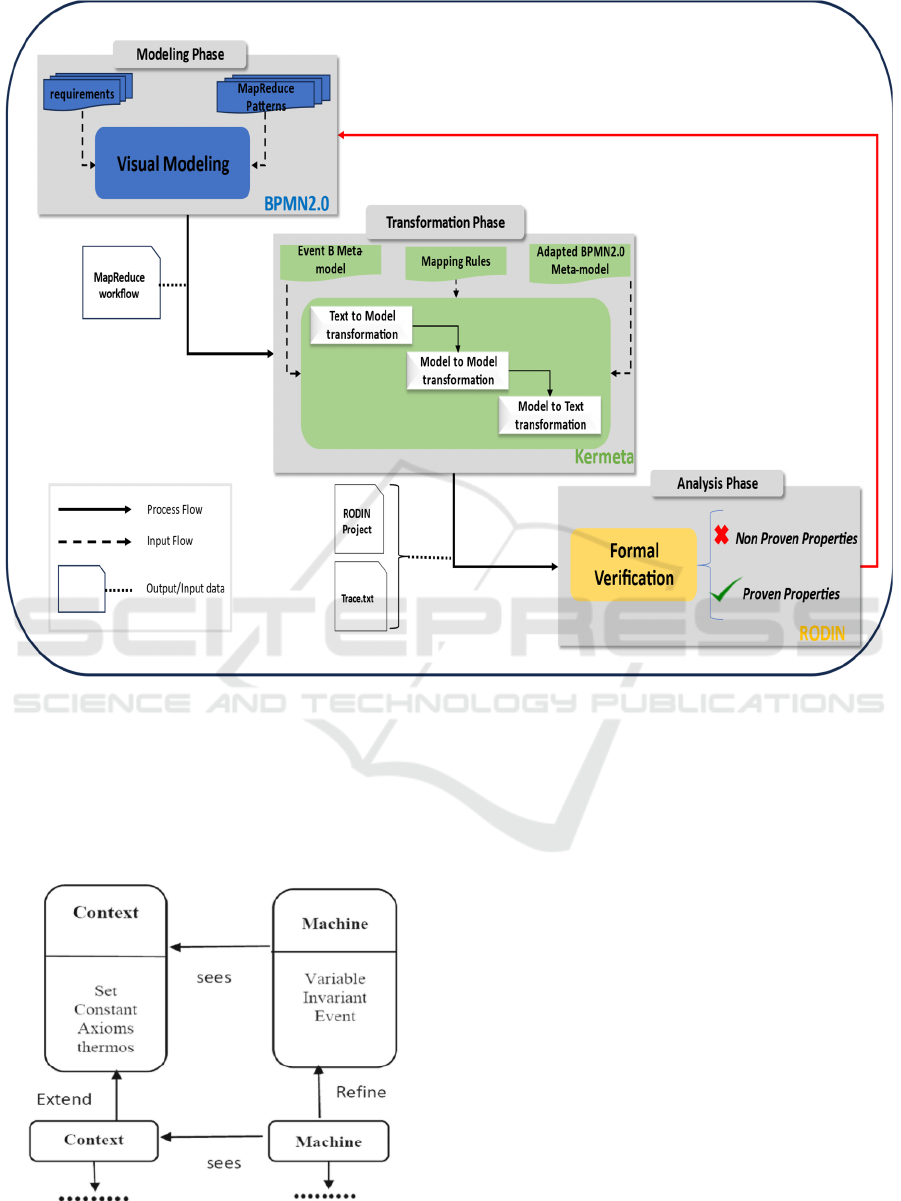

Figure 3: Overview of the proposed approach.

A powerful feature of Event B is the notion of

refinement. The user starts the modelling process

with a very simple abstract model that can be

gradually refined into something that is close to the

implementation of the system.

Figure 4: RODIN Project architecture (Toman et al. 2024).

4 PROPOSED APPROACH

As illustrated in Figure 3, the proposed model-based

approach is based mainly on three major phases. It

begins by designing the MapReduce workflow as a

sequence of MapReduce jobs (each job is a

MapReduce design pattern) using the BPMN tool,

Camunda. After the 1 to the proposed BPMN meta-

model. Second a model-to-model transformation is

executed to generate an Event B model conforms to

the Event B meta-model. Finally, the generated Event

B model is transformed into a RODIN project by the

means of a “Model to Text” transformation.

Once the RODIN project is opened, the designer can

add properties, expressed as predicates in the

different clauses (invariant, guard and theorem). All

typing properties as well as data-related properties,

such as data completeness and data non-conflict, are

automatically generated by the transformation

process.

A Tool-Supported Approach for Modelling and Verifying MapReduce Workﬂow Using Event B and BPMN2.0

507

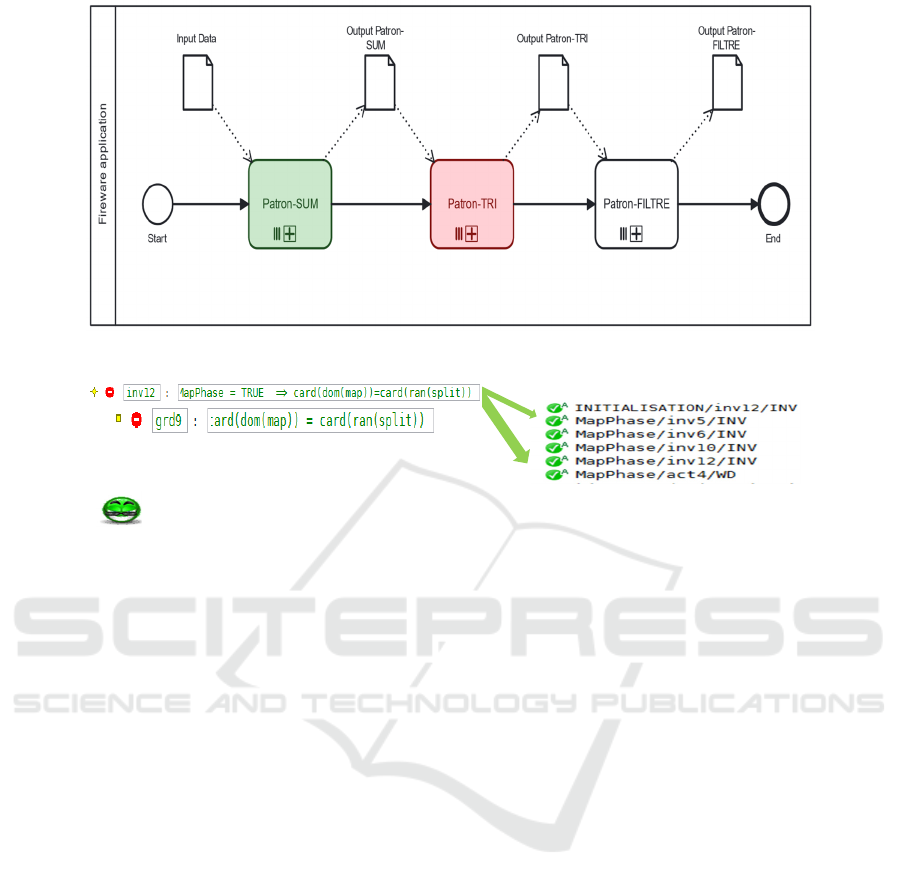

Figure 5: Graphical modelling of a MapReduce "Fireware" application with BPMN2.0.

Figure 6: Data Completeness property.

A set of proof obligations is then generated. If a proof

obligation is not proven, then the designer uses the

trace file generated from the transformation phase to

locate the error in the BPMN specification and fix it.

5 VERIFICATION AND

VALIDATION

Uses Case. The "Fireware" application is the solution

to the "Denial-of-Service" DOS attack problem.

Figure 5 illustrates the MapReduce workflow of the

Fireware application, composed by three patterns:

occurrence calculation pattern, sort pattern and filter

pattern. The first pattern "Occurrence Calculation"

processes a very large log file that contains all the IP

addresses that have accessed a given URL to calculate

the number of hits for each IP address. The list of key-

value pairs produced by this pattern will be sorted in

an array by the following pattern “Sort”. The last

pattern "Filter" will take the sorted array and apply a

filter (maximum number of accesses allowed) on all

key (IP address), value (number of accesses) pairs.

Figure 7 represents the architecture of the Event B

project corresponds to the example in figure 5. Four

machines linked by refinement are created: the first

machine created is the machine named

“MACHINE_APPLICATION” which contains only

the information concerning the control flows of the

"Fireware Application" participant. The second

machine, "MachinePatron1", preserves the previous

machine and contains the information concerning the

control flows of the first sub-Process "Pattern

calculation of occurrence" and its internal

functioning. The third “MachinePatron2” and the

fourth machine “Machine Patron3” contain

information concerning the other two sub-processes

“Sorting Pattern” and “Filtering Pattern”. Each

machine preserves the consistency of its previous one.

Verification and Validation. The most important

interest of the proposed translation of MapReduce

workflow into Event B is to allow the formal

verification of safety properties. We are interested in

verifying data quality properties(Zhang et al. 2020) to

ensure the proper functioning and correctness of our

MapReduce application and they are generated

automatically by the transformation process.

• Data Completeness. It guarantees that all key-

value pairs are processed without missing ones.

For example, figure 6 illustrates the data

completeness property between the two phases

Split Data and Map Phase. It is represented in the

form of an invariant (inv12) and a guard (grd9)

in the machine "MachinePattern1". Ensure that

the input data cardinality of the map task is equal

to the output data cardinality of the split task.

ICSOFT 2024 - 19th International Conference on Software Technologies

508

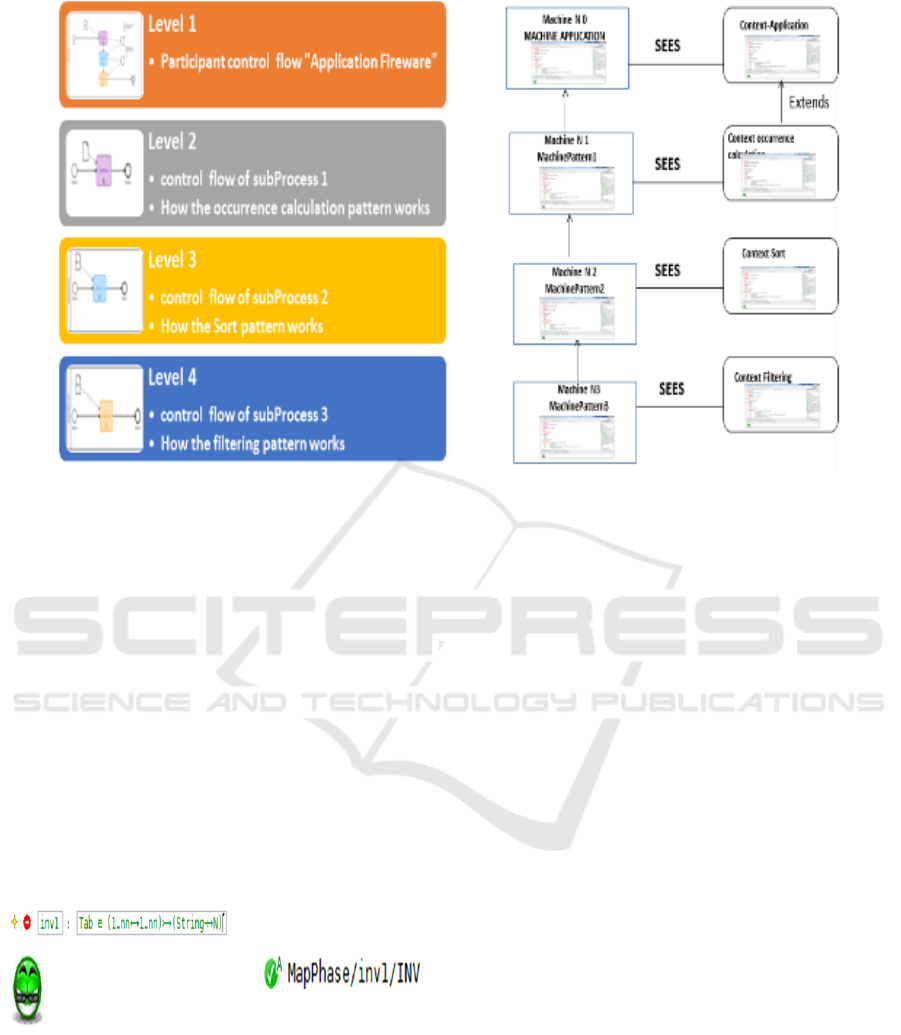

Figure 7: The architecture of the RODIN project of the “firewire” application.

• Data non-conflict. It guarantees the absence of

two key-value pairs with the same key and

different values in any list of key-value pairs

except if they cooperate. This property is

necessary for applications for processing arrays

where we try to avoid the problem of duplicate

values as in our Sort pattern. The Map phase of

the Sort pattern will process the data provided by

the Reducer phase of the occurrence calculation

pattern. It will store the key-value pairs in an

array and therefore the result requires the

absence of the duplications. To do so, the array

must be a bijective function between its domain

and its range. This property is represented in the

invariant inv1 of our machine.

Figure 8: Non-conflict property of the Sort pattern.

6 CONCLUSION

In this paper, a model-driven approach is presented to

ensure the reliability of MapReduce applications. The

user can easily use the Camunda graphical tool of

BPMN to construct his MapReduce workflow by

using a chosen set of MapReduce design patterns. The

graphical model is then transformed automatically to

an Event B project composed by a set of contexts and

machines linked by refinement. The use of refinement

in the proposed approach improve the readability and

enhance the provability of the generated formal

specification. Furthermore, a set of data driven

properties such as data non-conflict and data

completeness are automatically generated by the

transformation process and then verified by the Rodin

prover.

In the future, we plan to integrate more design

patterns in our approach and study the possibility of

combining Model-Checking and Theorem-Proving to

benefit from the advantages of each technique for the

verification of other types of properties such as the

temporal property.

REFERENCES

Abrial, Jean-Raymond. 2010. Modeling in Event-B: System

and Software Engineering. Edited by Cambridge

University Press. 1 edition.

Bersani, Marcello M., Francesco Marconi, Damian A.

Tamburri, Andrea Nodari, and Pooyan Jamshidi. 2019.

“Verifying Big Data Topologies By-Design: A Semi-

Automated Approach.” Journal of Big Data 6 (1).

https://doi.org/10.1186/s40537-019-0199-y.

A Tool-Supported Approach for Modelling and Verifying MapReduce Workﬂow Using Event B and BPMN2.0

509

Bessifi, Mayssa, Ahlem Ben Younes, and Leila Ben Ayed.

2022. “BPMN2EVENTB Supporting Transformation

from BPMN2.0 to Event B Using Kermeta.” In Lecture

Notes in Networks and Systems, 286:247–55.

https://doi.org/10.1007/978-981-16-4016-2_24.

Chiang, Dai Lun, Sheng Kuan Wang, Yu Ying Wang, Yi

Nan Lin, Tsang Yen Hsieh, Cheng Ying Yang, Victor

R.L. Shen, and Hung Wei Ho. 2021. “Modeling and

Analysis of Hadoop MapReduce Systems for Big Data

Using Petri Nets.” Applied Artificial Intelligence 35 (1):

80–104. https://doi.org/10.1080/08839514.2020.18421

11.

Colas, Mathieu, Ingo Finck, Jerome Buvat, Roopa

Nambiar, and Rishi Raj Singh. 2014. “Cracking the

Data Conundrum : How Successful Companies Make

Big Data Operational.” Capgemini Consulting, 17.

https://www.capgemini.com/consulting/wp-content/

uploads/sites/30/2017/07/big_data_pov_03-02-15.pdf

%0Ahttps://www.capgemini-consulting.com/resource-

file-access/resource/pdf/cracking_the_data_conundru

m-big_data_pov_13-1-15_v2.pdf.

Correia, Anacleto, and Fernando Brito e Abreu. 2012.

“Adding Preciseness to BPMN Models.” Procedia

Technology 5: 407–17. https://doi.org/10.1016/j.protcy.

2012.09.045.

Duan, Zhenhua, Cong Tian, Nan Zhang, Qian Ma, and

Hongwei Du. 2019. “Index Set Expressions Can

Represent Temporal Logic Formulas.” Theoretical

Computer Science 788 (November): 21–38.

https://doi.org/10.1016/j.tcs.2018.11.030.

Hong, Jang Eui, and Doo Hwan Bae. 2000. “Software

Modeling and Analysis Using a Hierarchical Object-

Oriented Petri Net.” Information Sciences 130 (1–4):

133–64. https://doi.org/10.1016/S0020-

0255(00)00090-6.

Lim, Harold, Herodotos Herodotou, and Shivnath Babu.

2012. “Stubby:A Transformation-Based Optimizer for

Mapreduce Workflows.” Proceedings of the VLDB

Endowment 5 (11): 1196–1207. https://doi.org/10.

14778/2350229.2350239.

Perez-Palacin, Diego, José Merseguer, José I. Requeno, M.

Guerriero, Elisabetta Di Nitto, and D. A. Tamburri.

2019. “A UML Profile for the Design, Quality

Assessment and Deployment of Data-Intensive

Applications.” Software and Systems Modeling 18 (6): 35

77–3614. https://doi.org/10.1007/s10270-019-00730-3

Rehan, Mohd, and Durgaprasad Gangodkar. 2015. “Hadoop

, MapReduce and HDFS : A Developers Perspective.” In

Procedia Computer Science, 48:45–50. Elsevier.

https://doi.org/10.1016/j.procs.2015.04.108.

Ruiz, M. Carmen, Javier Calleja, and Diego Cazorla. 2015.

“Petri Nets Formalization of Map/Reduce Paradigm to

Optimise the Performance-Cost Tradeoff.” In

Proceedings - 14th IEEE International Conference on

Trust, Security and Privacy in Computing and

Communications, TrustCom 2015, 3:92–99. IEEE.

https://doi.org/10.1109/Trustcom.2015.617.

S, athisha M, and K C Ravishankar. 2019. “Security and

Privacy Issues in Big-Data Hadoop A Review.”

International Journal of Computer Sciences and

Engineering 6 (11): 730–38. https://doi.org/10.

26438/ijcse/v6i11.730738.

Toman, Zinah Hussein, Lazhar Hamel, Sarah Hussein

Toman, Mohamed Graiet, and Dalton Cézane Gomes

Valadares. 2024. “Formal Verification for Security and

Attacks in IoT Physical Layer.” Journal of Reliable

Intelligent Environments 10 (1): 73–91.

https://doi.org/10.1007/s40860-023-00202-y.

Wang, Meng, Cong Tian, Nan Zhang, Zhenhua Duan, and

Chenguang Yao. 2020. “Translating Xd-C Programs to

MSVL Programs.” Theoretical Computer Science 809:

430–65. https://doi.org/10.1016/j.tcs.2019.12.038.

Zeliu, Ding, Guo Deke, Chen Xi, and Chen Jin. 2019.

“MapReduce Rationality Verification Based on Object

Petri Net.” Journal of Systems Engineering and

Electronics 30 (5): 861–74. https://doi.org/10.21629/J

SEE.2019.05.05.

Zhang, Nan, Meng Wang, Zhenhua Duan, and Cong Tian.

2020. “Verifying Properties of MapReduce-Based Big

Data Processing.” IEEE Transactions on Reliability, 1–

18. https://doi.org/10.1109/tr.2020.2999441.

ICSOFT 2024 - 19th International Conference on Software Technologies

510
