Energy and Cost-Aware Real-Time Task Scheduling with

Deadline-Constraints in Fog Computing Environments

Mayssa Trabelsi

a

and Samir Ben Ahmed

b

LIPSIC Laboratory, Faculty of Sciences of Tunis, University of Tunis ElManar, Tunis, Tunisia

Keywords:

Internet of Things (IoT), Fog Computing, Task Scheduling, Real-Time, QoS Optimization.

Abstract:

With the increasing demand for real-time processing for IoT applications, Fog computing becomes a crucial

approach to overcome the limitations of centralized Cloud Computing. Given its decentralized structure, Fog

computing enables faster response time, real-time processing, and reduced latency, making it particularly

suitable for time-sensitive IoT applications. In this paper, we propose a novel approach called the ”Energy-

cost-aware task scheduling with a Deadline-constrained” (ECaTSD) algorithm for real-time task scheduling

in a fog infrastructure. The main objective of the proposed algorithm is to minimize energy consumption

and monetary costs under deadline constraints. The ECaTSD algorithm dynamically allocates incoming tasks

to the most suitable fog nodes in real-time. It selects the fog node that meets deadline requirements with

the least energy consumption and monetary cost in the infrastructure. Moreover, the proposed algorithm has

been simulated using the iFogSim simulator. The algorithm’s performance is evaluated using various criteria,

such as the percentage of IoT tasks successfully meeting deadlines, energy consumption, monetary cost, and

response time compared to other scheduling policies. ECaTSD algorithm shows high efﬁciency in meeting

deadlines (99.58% completion rate) while being energy and cost-efﬁcient.

1 INTRODUCTION

The evolution of smart devices, incorporating com-

munication technologies and advanced processing ca-

pabilities, has given rise to an innovative paradigm

known as the Internet of Things (IoT) (Dabiri et al.,

2022). Projections indicate that the number of IoT de-

vices worldwide may surpass 29 billion by the year

2030 (Vailshery, 2024). As a result, generating a

large volume of real-time data often requires inten-

sive computational processing within strict time con-

straints (Stavrinides and Karatza, 2019) (e.g., Health-

care and trafﬁc monitoring IoT devices and sensors)

(Stavrinides and Karatza, 2019) (Dabiri et al., 2022).

However, due to the computational capability limita-

tions of IoT devices, they ofﬂoad their task requests to

external devices, such as servers (Dabiri et al., 2022).

IoT devices require real-time responses and low la-

tency, making cloud computing less suitable for time-

sensitive IoT tasks. This is primarily due to the high

communication delay between IoT devices and the

cloud servers (Azizi et al., 2022).

a

https://orcid.org/0000-0002-1723-9486

b

https://orcid.org/0000-0002-4642-2108

Fog Computing (FC) has emerged as a new

paradigm, extending the Cloud Computing paradigm

to the edge of the network, near where real-time

IoT data is generated, (Peter, 2015). FC is a dis-

tributed computing paradigm that serves as an inter-

mediary layer between the cloud and IoT devices.

It provides cloud servers’ computational and storage

services closer to the network’s edge (Dabiri et al.,

2022).

The FC paradigm has heterogeneous computa-

tional resources that can be virtualized, similar to

cloud computing (Stavrinides and Karatza, 2019).

Consequently, a Fog Node (FN) can be a Virtual

Machine (VM) (Group et al., 2016). Also, FC in-

volves various devices such as embedded servers, cel-

lular base stations, switches, access points, routers,

gateways, and surveillance cameras. However, the

computational capacity of resources, including pro-

cessing power (CPU), storage, and memory in a fog

layer, is generally limited compared to that in the

cloud (Stavrinides and Karatza, 2019). Therefore,

task scheduling becomes a challenge when choosing

suitable resources while maintaining Quality of Ser-

vice (QoS), considering the diverse characteristics of

each task and the heterogeneity of resources essential

434

Trabelsi, M. and Ben Ahmed, S.

Energy and Cost-Aware Real-Time Task Scheduling with Deadline-Constraints in Fog Computing Environments.

DOI: 10.5220/0012637600003687

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2024), pages 434-441

ISBN: 978-989-758-696-5; ISSN: 2184-4895

Proceedings Copyright © 2024 by SCITEPRESS – Science and Technology Publications, Lda.

for processing time-sensitive tasks in a fog computing

environment (Jamil et al., 2022).

When developing algorithms to address the task

scheduling problem, it is crucial to consider QoS met-

rics such as latency, response time, energy consump-

tion, and cost to optimize performance and satisfy

the timing constraints of IoT applications. The task

scheduling problem comes under NP-Hard problems,

which become more complex with increased sensors

and FNs. (Jamil et al., 2022).

In recent years, many research efforts have pro-

posed scheduling algorithms for optimizing various

performance metrics to achieve high QoS (Sharma

et al., 2023)(Jayasena and Thisarasinghe, 2019)(Xu

et al., 2020)(Dabiri et al., 2022)(Sultan Hajam,

2024)(Hoseiny et al., 2020). The authors in (Sharma

et al., 2023) proposed an approach to address task

scheduling, considering various metrics such as en-

ergy consumption, latency time, cost, and network us-

age. An algorithm based on ant colony optimization is

proposed in (Xu et al., 2020) to solve the task schedul-

ing problem to reduce energy consumption while sat-

isfying the task deadline. The authors in (Jayasena

and Thisarasinghe, 2019) proposed a task scheduling

method in a fog computing environment considering

energy consumption and cost of execution. A sys-

tem model was proposed in (Dabiri et al., 2022) to

address the job scheduling problem, aiming to jointly

minimize the total deadline violation time of IoT jobs

and the system’s energy consumption. The authors in

(Sultan Hajam, 2024) proposed an algorithm to min-

imize the monetary cost while considering the dead-

line requirements and priority of tasks. A real-time

task scheduling algorithm was proposed in (Hoseiny

et al., 2020) to minimize IoT users’ computation costs

and reduce provider violation costs.

This paper presents an online scheduling algo-

rithm called the ”Energy-cost-aware task scheduling

with a Deadline-constrained ” (ECaTSD) algorithm

designed for scheduling real-time tasks in fog infras-

tructure (FI). The ECaTSD algorithm provides multi-

objective optimization of task scheduling to optimize

performance metrics, such as energy consumption,

monetary cost, and the percentage of IoT tasks that

successfully meet their deadline. It is implemented in

the iFogSim simulator (Gupta et al., 2017) and com-

pared with Random, Shortest Execution Time (SET),

Power of Two Choices (Po2C), and Greedy for En-

ergy (GfE) algorithms.

The major contribution of this paper can be sum-

marized as follows.

• A scheduler for dynamically assigning tasks in

each region of a hierarchical FI is developed.

• We formulate the task scheduling problem as

a Mixed Integer Linear Programming (MILP)

model to optimize the FNs’ total energy consump-

tion and cost while meeting the task deadlines.

• We have proposed a dynamic heuristic algorithm

to solve the real-time task scheduling problem to

optimize multiple objective metrics, reducing en-

ergy consumption and minimizing monetary cost

under deadline constraints.

• We have evaluated the performance of the pro-

posed algorithm with the iFogSim compared with

Random, Shortest Execution Time (SET), Power

of Two Choices (Po2C), and Greedy for Energy

(GfE) algorithms.

The remainder of the paper is organized as follows.

Section 2 presents the proposed architecture and prob-

lem formulation. Section 3 describes the proposed al-

gorithm. Finally, we evaluate the proposed solution

in Section 4 and conclude the paper in Section 5.

2 SYSTEM MODEL AND

PROBLEM FORMULATION

This section outlines the proposed approach for real-

time task scheduling in fog computing. The proposed

architecture is presented followed by the formulation

of the problem.

2.1 Proposed Architecture

Many studies highlight the importance of geograph-

ical location for optimizing the performance of IoT

applications (van der Zee and Scholten, 2013) (Naas

et al., 2017). Our architecture is inspired by the work

of (Naas et al., 2017) in which a strategy was pro-

posed to place IoT data on a FI to reduce the overall

latency in large-scale applications. Indeed, the au-

thors introduced a heuristic approach, iFogStorZ, to

minimize the problem-solving time by relying on ge-

ographical location as a partitioning criterion. In this

work, we adopt their solution due to its signiﬁcant re-

duction of the problem-solving time. They opted to

deﬁne Regional Point of Presence (RPOP) (FNs lo-

cated in layer three (FL2) that are illustrated in our

proposed approach (see Fig. 1)) as points of parti-

tioning. Hence, the maximum number of partitions

corresponds to the number of FNs located in layer

three. However, FNs located in layer three can also

be grouped to form a speciﬁc zone. In this paper, we

choose to place a scheduler for each zone.

The architecture of a fog computing infrastructure

consists of three layers: IoT devices layer, fog com-

Energy and Cost-Aware Real-Time Task Scheduling with Deadline-Constraints in Fog Computing Environments

435

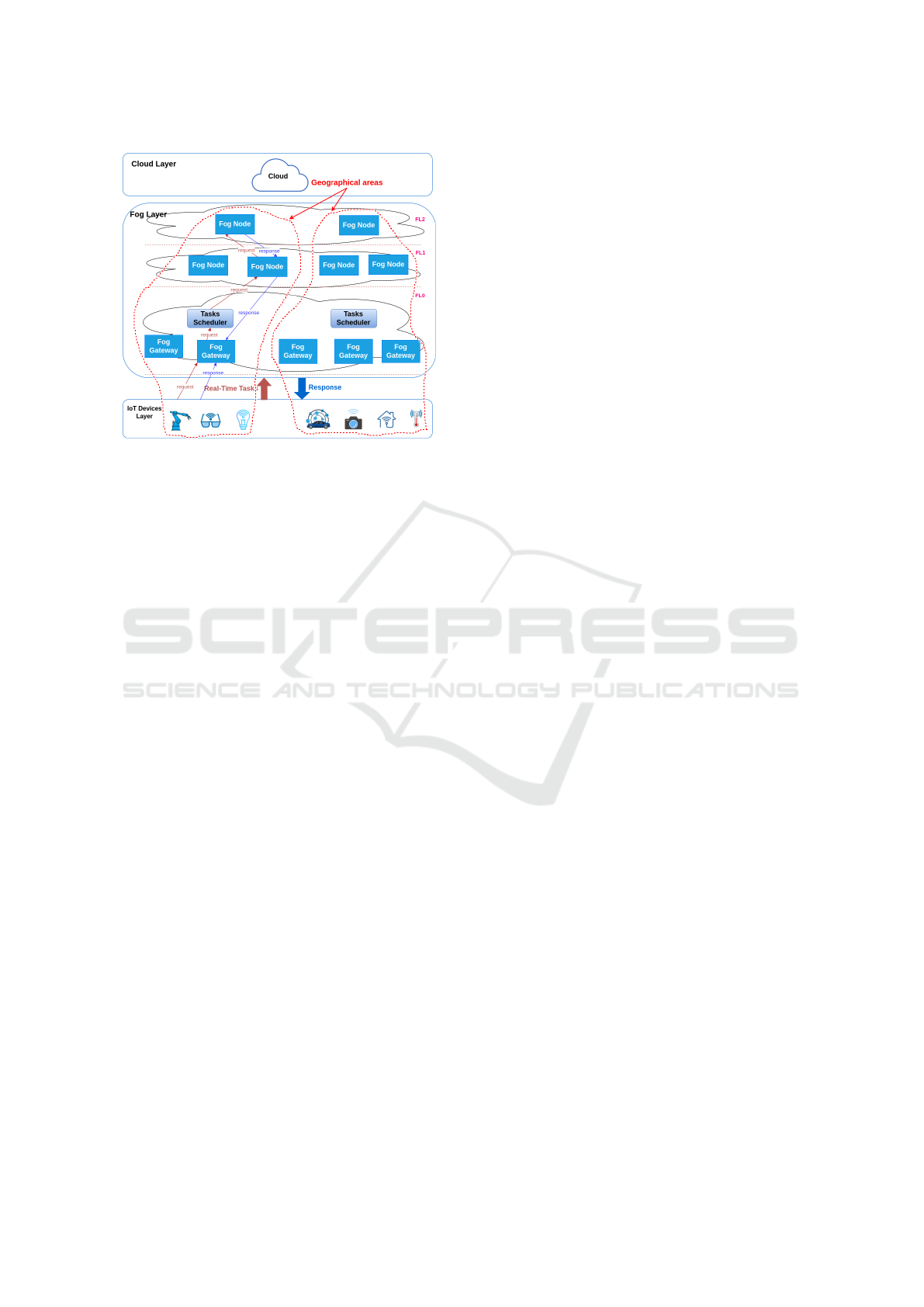

Figure 1: Proposed system architecture.

puting layer, and cloud computing layer, as shown

in Fig.1 (Azizi et al., 2022)(Jamil et al., 2020)(Khan

et al., 2022) .

• First layer (IoT devices): The ﬁrst layer includes a

large number of IoT devices, such as sensors and

actuators. Sensors collect lots of time-sensitive

data from the real world, demanding real-time

processing, and ofﬂoad them through gateways to

appropriate fog/cloud nodes. The outputs of FNs

are sent back as results to actuators, who take nec-

essary actions within a speciﬁed deadline.

• Fog Layer: The fog layer is an intermediary

tier between IoT devices and the cloud layer.

It includes fog gateways, a scheduler, and FNs.

The FNs are responsible for executing IoT tasks.

However, they have limited computing, commu-

nication, and storage capabilities.

• Cloud Layer: The cloud is the top layer of the ar-

chitecture. It is composed of powerful VMs with

high computing power and storage capacity.

2.2 Problem Formulation

In this subsection, we formulate the multi-objectives

problem of assigning real-time tasks in a hierarchical

FI. First, the basic elements and decision variables of

the optimization problem are introduced. Then, the

response time, energy consumption, and cost formu-

las are described.

2.2.1 Basic Elements

Let n independent real-time tasks, denoted as T =

{

T

1

, T

2

, . . . , T

n

}

, submitted by IoT devices to the

fog/cloud layer. Each task T

i

∈ T is characterized by

a set of attributes T

i

=

n

T

length

i

, T

deadline

i

, T

in

i

, T

out

i

o

,

where T

length

i

is the CPU length of task in MI (Mil-

lions of Instructions), T

deadline

i

is the task’s deadline

requirement (in ms - milliseconds), T

in

i

is the input

ﬁle size (in KB - Kilobytes), T

out

i

is the output ﬁle

size (in KB), and N

i

is the network size of the task.

Assume a fog network, denoted as G = (F, L),

which includes several interconnected FNs. In this

context, F =

{

F

1

, F

2

, . . . , F

m

}

represents a set of m

FNs, and L = e

uv

|u, v ∈ F denotes the set of communi-

cation links between nodes in the FI. Each node, rep-

resented as F

j

, has some properties such as the CPU

processing rate (F

cpu

j

) measured in MIPS (MI Per sec-

ond) and the cost of processing per unit of time (C

PT

).

Every link, denoted as e

uv

∈ L, is associated with char-

acteristics including the propagation delay (e

P

u,v

) mea-

sured in ms, the network bandwidth (e

B

u,v

) is measured

in Mbps (Megabytes per second), while its cost (C

Nb

)

is measured in ($) (Dollar).

2.2.2 Decision Variables

Let X

m×n

be the task assignment matrix, where the

binary decision variable x

i, j

means whether the task

T

i

is assigned to a FN F

j

.

x

i, j

=

1, if T

i

is assigned to F

j

( ∀ T

i

∈ T , ∀ F

j

∈ F )

0, Otherwise

(1)

For each task T

i

, we use a binary variable y

uv

i ∈

{0, 1} to indicate whether link e

uv

∈ L is selected for

routing the task T

i

. Thus, we have:

y

i

u,v

=

1, if link e

uv

is chosen for routing T

i

( ∀ u, v ∈ F , ∀ T

i

∈ T )

0, Otherwise

(2)

Finally, we deﬁne a binary variable z

i

∈ {0, 1} to

indicate whether the deadline of task T

i

is met. So, we

have:

z

i

=

(

1, if RT

i, j

≤ T

deadline

i

0, Otherwise

(3)

2.2.3 Response Time

The response time RT

i, j

for a given task T

i

is the time

needed to send the task request from an IoT device

to the destination fog or cloud node and receive the

results back. It includes the total transmission time

T

T

, execution time ET

i, j

, and waiting time W

i, j

in the

queue of node F

j

. The execution time ET

i, j

of a task

T

i

on a FN F

j

is calculated using Eq.4, where T

length

i

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

436

represents the length of the ith task T

i

, and F

cpu

j

de-

notes the CPU processing rate of node F

j

.

ET

i, j

=

T

length

i

F

cpu

j

, ∀i ∈ T, ∀ j ∈ F (4)

To calculate the total transmission time T T

Total

i, j

for task T

i

, it is necessary to consider both the prop-

agation delay PD

i, j

and the transmission time T T

i, j

.

The transmission time T T

i, j

is calculated using Eq.5,

where T

in

i

and T

out

i

representing the sizes of the in-

put and output ﬁles of task T

i

, and e

B

uv

denoting the

bandwidth between two connected nodes F

u

and F

v

.

T T

i, j

=

∑

∀e

u,v

∈L

T

in

i

+ T

out

i

e

B

uv

× y

i

u,v

, ∀i ∈ T (5)

The propagation delay (Buyya et al., 2009) is the

time required for a bit to travel from the source to the

destination (see Eq.6).

PD

i, j

=

∑

∀e

u,v

∈L

(e

P

uv

× y

i

u,v

), ∀i ∈ T (6)

The total transmission time T T

Total

i, j

can be deﬁned

as the sum of the propagation time and transmission

time (see Eq.7).

T T

Total

i, j

= 2 × PD

i, j

+ T T

i, j

, ∀i ∈ T (7)

Waiting time refers to the duration between task

submission and execution, including the time a task

spends acquiring additional resources or waiting for

speciﬁc events (Nikoui et al., 2020). The waiting time

for a task T

k

can be formulated using Eq.8, where T

k

represents any task preceding the task T

i

, whether it is

waiting in the queue or currently running on the node.

W

i, j

=

∑

∀k∈T

∑

∀ j∈F

(ET

k, j

× x

k, j

× x

i, j

), ∀i ∈ T (8)

Therefore, the response time for task T

i

can be for-

mulated (see Eq.9).

RT

i, j

= T T

Total

i, j

+ ET

i, j

+W

i, j

, ∀i ∈ T (9)

We use NT to calculate the number of tasks that

meet their deadlines (see Eq.10).

NT =

∑

∀T

i

∈T

z

i

, ∀i ∈ T (10)

The percentage of IoT tasks meeting the deadline re-

quirement is deﬁned as NT

%

(see Eq.11).

NT

%

=

NT × 100

n

(11)

2.2.4 Energy Consumption

The energy consumed by a Fog device is calcu-

lated in iFogSim, as (Jamil et al., 2020)(Khan et al.,

2022)(Sharma et al., 2023) (see Eq.12).

EC

j

= E

C

+ (T

C

− T

L

) × HP, ∀ j ∈ F (12)

Where E

C

is the current energy consumption, T

C

is the current time, T

L

is the update time of the last

utilization, and HP is the host power in the last uti-

lization.

The total energy consumption is calculated by the

summation of the energy consumed by each FN (see

Eq.13)

E

total

=

∑

∀ j∈F

EC

j

(13)

2.2.5 Cost

The cost represents the overall payment for these re-

source utilization (Nikoui et al., 2020). The costs for

processing, denoted as Cost

E

i, j

, and communication,

Cost

C

i, j

, are described as the following (Yadav et al.,

2022) (Mokni et al., 2023) (Nikoui et al., 2020):

Cost

E

i, j

= ET

i, j

×C

PT

, ∀ j ∈ F, ∀i ∈ T (14)

Cost

C

i, j

= T T

Total

i, j

×C

Nb

, ∀ j ∈ F, ∀i ∈ T (15)

where the C

PT

and C

Nb

represents the cost of pro-

cessing per unit of time price in destination node and

cost of network bandwidth. Hence, the total cost

Cost

i, j

of a task T

i

on a node F

j

is calculated using

Eq.16.

Cost

i, j

= Cost

E

i, j

+Cost

C

i, j

, ∀ j ∈ F, ∀i ∈ T (16)

The total cost is calculated using Eq.17.

Cost

Total

=

n

∑

i=1

m

∑

j=1

Cost

i, j

× x

i, j

(17)

2.2.6 Problem Formulation

We aim to minimize energy consumption and mone-

tary cost while meeting tasks’ deadlines. Therefore,

we formulate our problem mathematically as a multi-

objective optimization problem.

Min : E

Total

+Cost

Total

(18)

With the following constraints:

∑

∀ j∈F

x

i, j

= 1, ∀i ∈ T (19)

x

i, j

, y

i

u,v

, z

i

∈ {0, 1}, ∀i ∈ T, ∀ j ∈ F (20)

RT

i, j

≤ T

deadline

i

, ∀i ∈ T (21)

Energy and Cost-Aware Real-Time Task Scheduling with Deadline-Constraints in Fog Computing Environments

437

Constraint 19 ensures that each task is assigned to

only one FN. Constraint 20 deﬁnes the domain of the

decision variables. Finally, constraint 21 ensures that

the deadline for each task must be met.

The task scheduler selects the appropriate comput-

ing node by assigning each node a QoS score. This

selection process ensures the optimization of QoS pa-

rameters: energy consumption and monetary cost.

The QoS score is formulated using Eq.22.

Score

i, j

= w

E

× EC

j

+ w

C

×Cost

i, j

(22)

Where Score

i, j

represents the QoS score of each

task assigned to a computing node, a lower Score

i, j

value indicates that the FN F

j

is more suitable for ex-

ecuting task T

i

. The sum of the weight factors must

be equal to 1, as expressed in Eq.23.

w

E

+ w

C

= 1 (23)

Where w

E

= 0.5 and w

C

= 0.5 are weight fac-

tors representing the substantial impact of the QoS

parameters: energy consumption and cost in a spec-

iﬁed node, respectively.

3 PROPOSED ALGORITHM

In this section, we propose ECaTSD, an energy-cost-

aware task scheduling with a deadline-constrained, al-

gorithm for solving real-time task scheduling prob-

lems in a fog computing infrastructure.

ECaTSD is a dynamic heuristic scheduling algo-

rithm that depends on the states of system resources

and the arrival of real-time tasks. The algorithm is

in online mode, which processes unpredictable, inde-

pendent tasks as they arrive in real-time without hav-

ing complete knowledge of future inputs. It adapts

and makes decisions based on the information avail-

able from the current system status at each step.

The ECaTSD aims to choose FNs with response

times below the task’s deadline. Within this subset

of nodes satisfying the time constraint, the algorithm

assigns the task to the node with the minimum QoS

score, including energy consumption and cost. The

mathematical model uses the QoS score to choose the

optimal node, as per Eq. (22).

The pseudocode of the proposed algorithm is pre-

sented in Algorithm 1. Algorithm 1 introduces the

proposed ECaTSD algorithm designed to address the

task scheduling problem in a fog environment. The

algorithm takes two inputs: a list of the currently in-

coming real-time tasks List

T

i

and the list of the com-

puting nodes List

F

in its zone.

First, three empty lists are generated: L1, L2, and

L3 (line 1).

Algorithm 1: ECaTSD algorithm.

Data: List

T

i

, List

F

Result: T

i

−→ F

j

1 L1:=

/

0 , L2:=

/

0 , L3:=

/

0 ;

2 sort List

T

i

in ascending order of deadline T

i

;

3 foreach T

i

∈ List

T

i

do

4 L1:=

/

0;

5 foreach F

j

∈ List

F

do

6 calculate RT

i, j

using eq.(9);

7 L1 := L1 ∪ RT

i, j

;

8 end

9 L2:=

/

0 ;

10 foreach RT

i, j

∈ L1 do

11 if RT

i, j

≤ T

deadline

i

then

12 L2 := L2 ∪ F

j

;

13 end

14 end

15 L3:=

/

0 ;

16 if L2 ̸=

/

0 then

17 foreach F

j

∈ L2 do

18 calculate EC

j

using eq.(12);

19 calculate Cost

j

using eq.(16);

20 calculate Score

i, j

using eq.(22);

21 L3 := L3 ∪ Score

i, j

;

22 end

23 allocate T

i

on F

j

∈ L3 with the

minimum Score

i, j

;

24 else

25 allocate T

i

on F

j

∈ L1 with the

minimum RT

i, j

;

26 end

27 end

Next, the set of tasks in List List

T

i

is sorted in

ascending order based on their predeﬁned deadlines

(line 2). For each task, the algorithm attempts to ﬁnd

a suitable FN for the selected task T

i

within the main

loop (lines 3-27). Firstly, the list L1 is reinitialized in-

side the loop (line 4). Subsequently, the second loop

(lines 5-8) calculates the response time of each task

T

i

on each node F

j

and adds them to the List L1. Af-

terwards, the list L2 is reinitialized (line 9), and the

algorithm iterates over the List L1 (line 10), search-

ing among all the FNs to check if a FN F

j

∈ List

F

can

meet the deadline of a task T

i

. If the response time

RT

i, j

on node F

j

is less than the deadline of T

i

, the al-

gorithm adds it to the deadline-satisﬁed List, i.e., L2

(lines 11-13).

The algorithm reinitializes the List L3 (line 15)

and checks if L2 is not empty, meaning at least one FN

can meet the task’s deadline requirement T

i

. At this

point, the algorithm calculates the energy consump-

tion using Eq.12, cost using Eq.16, and QoS score us-

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

438

ing Eq.22 of each FN, which is then added to the list

L3 (lines 17 to 22). Finally, the task T

i

will be allo-

cated to a FN with the least score Score

i, j

in List L3

(line 23). If the List L2 is empty (no node satisﬁes the

task’s deadline), the task will be sent to the FN that

has the least response time RT

i, j

(line 25).

4 EXPERIMENTS AND RESULTS

ANALYSIS

In this section, we discuss the performance of the pro-

posed algorithm. The results are compared with other

strategies, and the simulation settings are presented in

subsection 4.1.

To evaluate the performance of the proposed algo-

rithm, we compare it with other baseline algorithms :

(1) Random, (2) Shortest Execution Time (SET) (Dut-

ton et al., 2008), (3) Power of Two Choices (Po2C)

(Hoseiny et al., 2020), and Greedy for Energy (GfE)

(Xu et al., 2020).

4.1 Simulation Setting

The proposed algorithm was implemented in the

iFogSim simulation tool (Gupta et al., 2017), using

the Eclipse IDE environment (version 2023-09). Sim-

ulation experiments were conducted on a PC Intel

with Core i7-2670 CPU 2.20 GHz, 3.7 GB RAM, and

Ubuntu 20.04.5 LTS.

The simulated infrastructure is modeled based on

the architecture shown in Fig.1. We consider eight

IoT devices. Each device has a sensor with a distinct

periodic frequency Freq

i

, a deadline and one actuator.

The infrastructure consists of eight fog gateways in

Fog Level 0 (FL0), as each sensor is connected to a

fog gateway, four FNs in Fog Level 1 (FL1), two in

Fog Level 2 (FL2), and ﬁnally, one cloud server in the

cloud layer, equipped with processing power ranging

between 1000 and 40000 MIPS. Table 1 provides the

parameter settings of the fog and cloud nodes. Table

2 presents the parameter settings for IoT tasks.

4.2 Results and Discussion

Here, we present the simulation experiments’ results

with the various settings outlined in subsection 4.1.

In real-time task scheduling in a FI, the proposed

algorithm’s performance is evaluated based on the

percentage of IoT tasks that successfully meet their

deadlines NT

%

.

Further, the evaluation considers the average en-

ergy consumption (in MJ) on FNs, the average mon-

etary cost ($) on FNs, the average response time (ms)

Table 1: Parameter settings for computing nodes.

Parameter Value

Rate per MIPS at FN 0.00

Rate per MIPS at Cloud 0.01

Latency from fog to cloud layers (ms) 1200

Latency in fog layer (ms) [50-500]

Latency from device to fog layers (ms) 10

C

PT

on cloud per time unit ($/s) [1- 2]

C

PT

on fog per time unit ($/s) [0.2-0.5]

C

NB

at fog per data unit ($/s) [0.01-0.02]

C

NB

at cloud per data unit ($/s) [0.05-0.01]

Propagation delay between FNs (ms) [1 - 3]

Bandwidth of communication links (Mbps) [100-1000]

Table 2: Characteristics of IoT tasks.

Parameter Range of values

Number of instructions (MI) [80000 - 300000]

Deadline (ms) [2000 - 2500]

Frequency (ms) [50 - 280]

Input ﬁle size (kb) [50000 - 150000]

Output ﬁle size (kb) 3

of IoT devices, and the system’s execution time (in

ms).

x

i, j

in LF1 indicates the percentage of tasks as-

signed to LF1, while x

i, j

in LF2 indicates the percent-

age of tasks assigned to LF2. Table 3 lists the perfor-

mance results of the ECaTSD and other algorithms

concerning deadline constraints and QoS metrics.

The results show that our algorithm ECaTSD ef-

fectively performs real-time task scheduling, meeting

deadlines for 100% of the tasks. This achievement

surpasses the performance of other algorithms. The

GfE strategy attains a success rate of 78%, the SET

strategy reaches 70%, and the Po2C strategy achieves

47.13%. However, the Random algorithm obtains the

lowest percentage at 41.64%.

The Random strategy exhibits higher energy con-

sumption (0.662 × 10

7

(MJ)) on FNs compared to

Po2C (0.608 × 10

7

(MJ)), SET (0.612 × 10

7

(MJ)),

and ECaTSD (0.623 × 10

7

(MJ)) strategies. In con-

trast, the GfE strategy demonstrates the lowest energy

consumption on FNs (0.599 × 10

7

(MJ)). The in-

creased number of assigned tasks x

i, j

to LF2 increases

the monetary cost. The load balancing between FNs

in LF1 and LF2 may explain the minimal average re-

sponse time observed for the ECaTSD algorithm. The

monetary cost includes not only communication be-

tween the source and destination but also the process-

ing of tasks on node F

j

, taking into account the length

of the task.

The proposed algorithm selects FNs that follow

the deadline constraints. As a result, the cost and

energy results are dependent on these nodes. Fig.2

demonstrates the percentage of tasks that have been

Energy and Cost-Aware Real-Time Task Scheduling with Deadline-Constraints in Fog Computing Environments

439

Table 3: QoS parameters’ results of ECaTSD compared to other scheduling algorithms.

Algorithms

Metrics Random SET Po2C GfE ECaTSD

x

i, j

in LF1 (%) 67.33 0 77.8 0 33.91

x

i, j

in LF2 (%) 32.66 100 15.12 100 66.08

NT

%

(%) 41.64 70 47.13 78 100

E

FNs

(MJ) 0.662 * 10

7

0.612 * 10

7

0.608 * 10

7

0.599 * 10

7

0.623 * 10

7

E

Cloud

(MJ) 1.4 * 10

7

1.34 * 10

7

1.342 * 10

7

1.335 * 10

7

1.386 * 10

7

Cost

FNs

($) 7.919 9.6923 7.259 9.0780 6.174

Average Response Time (ms) 1949.625 4570.25 5005.25 4970.25 1805.5

Execution Time (ms) 362 440 368 413 354

assigned successfully and have met their deadlines.

This varies with the number of tasks, and is applica-

ble for all strategies. The SET scheduling algorithm

achieves a 100% task satisfaction rate for up to 200

tasks. Meanwhile, the proposed task assignment ap-

proach achieves a 100% satisfaction rate for up to 400

assigned tasks. Only two tasks fail even when 480

tasks are assigned, resulting in a 99.58% task satis-

faction rate.

80 160 200 400 480

0.000

20.000

40.000

60.000

80.000

100.000

Random

SET

Number of Tasks

Deadline Satisfied Tasks (%)

Po2C

GfE ECaTSD

Figure 2: Percentage of tasks that meet their deadline by

varying task numbers.

Fig.3 shows the average energy consumption of

FNs. The x-axis represents the number of tasks, while

the y-axis shows the total energy consumption in MJ.

As shown, the Random strategy has a higher average

energy consumption compared to other algorithms.

The illustration in Fig.4 shows the variation of

total cost on FNs as the number of tasks changes.

Among the different algorithms, SET appears to be

the most cost-effective as it assigns most tasks to FL1.

On the other hand, the ECaTSD algorithm aims to

balance tasks across layers to meet time constraints,

which leads to an average cost compared to other

algorithms. This approach ultimately increases the

costs.

80 160 200 400 480

0.00000

0.02000

0.04000

0.06000

0.08000

0.10000

Random

SET

Number of Tasks

Total Energy Consumption (MJ)

Po2C GfE

ECaTSD

Figure 3: Total energy consumption by varying task num-

bers.

80 160 200 400 480

0.000

2.000

4.000

6.000

8.000

10.000

12.000

14.000

SET GfEPo2C

Total Cost ($)

ECaTSD

Number of Tasks

Random

Figure 4: Total cost by varying task numbers.

5 CONCLUSION

This paper proposed a Energy-cost-aware task

scheduling with a Deadline-constrained (ECaTSD)

algorithm in Fog Infrastructure. We formulated the

task scheduling problem as multi-objective problem

and solved it using a dynamic heuristic algorithm to

ensure high QoS. ECaTSD aims to allocate the tasks

dynamically and in real-time, on the most suitable

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

440

fog nodes. The algorithm selects all the fog nodes

that satisfy the task’s requirements and then chooses

the node that jointly minimizes the energy consump-

tion and the cost. The proposed algorithm perfor-

mance is evaluated according to the QoS criteria and

compared to other online scheduling policies such as

Random, Shortest Execution Time (SET), Power of

Two Choices (Po2C), and Greedy for Energy (GfE)

algorithms. The results show that ECaTSD has very

encouraging results regarding the percentage of real-

time tasks completed within their deadline, compared

with the other algorithms. In future works, a deep re-

inforcement learning approach could be adopted for

real-time scheduling.

REFERENCES

Azizi, S., Shojafar, M., Abawajy, J., and Buyya, R. (2022).

Deadline-aware and energy-efﬁcient iot task schedul-

ing in fog computing systems: A semi-greedy ap-

proach. J Netw Comput Appl., 201:103333.

Buyya, R., Ranjan, R., and Calheiros, R. N. (2009). Mod-

eling and simulation of scalable cloud computing en-

vironments and the cloudsim toolkit: Challenges and

opportunities. In International conference on high

performance computing & simulation, pages 1–11.

IEEE.

Dabiri, S., Azizi, S., and Abdollahpouri, A. (2022). Opti-

mizing deadline violation time and energy consump-

tion of iot jobs in fog–cloud computing. Neural Com-

puting and Applications, 34(23):21157–21173.

Dutton, R. A., Mao, W., Chen, J., and Watson, W. (2008).

Parallel job scheduling with overhead: A benchmark

study. In International conference on networking, ar-

chitecture, and storage, pages 326–333. IEEE.

Group, O. C. A. W. et al. (2016). Openfog architecture

overview. White Paper OPFWP001, 216:35.

Gupta, H., Vahid Dastjerdi, A., Ghosh, S. K., and Buyya,

R. (2017). ifogsim: A toolkit for modeling and

simulation of resource management techniques in

the internet of things, edge and fog computing en-

vironments. Software: Practice and Experience,

47(9):1275–1296.

Hoseiny, F., Azizi, S., and Dabiri, S. (2020). Using the

power of two choices for real-time task scheduling in

fog-cloud computing. In 4th International Conference

on Smart City, Internet of Things and Applications

(SCIOT), pages 18–23. IEEE.

Jamil, B., Ijaz, H., Shojafar, M., Munir, K., and Buyya, R.

(2022). Resource allocation and task scheduling in fog

computing and internet of everything environments: A

taxonomy, review, and future directions. ACM Com-

puting Surveys (CSUR), 54(11s):1–38.

Jamil, B., Shojafar, M., Ahmed, I., Ullah, A., Munir, K., and

Ijaz, H. (2020). A job scheduling algorithm for delay

and performance optimization in fog computing. Con-

currency and Computation: Practice and Experience,

32(7):e5581.

Jayasena, K. and Thisarasinghe, B. (2019). Optimized task

scheduling on fog computing environment using meta

heuristic algorithms. In IEEE International Confer-

ence on Smart Cloud, pages 53–58. IEEE.

Khan, A., Abbas, A., Khattak, H. A., Rehman, F., Din, I. U.,

and Ali, S. (2022). Effective task scheduling in critical

fog applications. Scientiﬁc Programming, 2022:1–15.

Mokni, M., Yassa, S., Hajlaoui, J. E., Omri, M. N., and

Chelouah, R. (2023). Multi-objective fuzzy approach

to scheduling and ofﬂoading workﬂow tasks in fog–

cloud computing. Simulation Modelling Practice and

Theory, 123:102687.

Naas, M. I., Parvedy, P. R., Boukhobza, J., and Lemarchand,

L. (2017). ifogstor: an iot data placement strategy

for fog infrastructure. In IEEE ICFEC, pages 97–104.

IEEE.

Nikoui, T. S., Balador, A., Rahmani, A. M., and Bakhshi,

Z. (2020). Cost-aware task scheduling in fog-cloud

environment. In CSI/CPSSI International Symposium

on RTEST, pages 1–8. IEEE.

Peter, N. (2015). Fog computing and its real time applica-

tions. Int. J. Emerg. Technol. Adv. Eng, 5(6):266–269.

Sharma, O., Rathee, G., Kerrache, C. A., and Herrera-

Tapia, J. (2023). Two-stage optimal task scheduling

for smart home environment using fog computing in-

frastructures. Applied Sciences, 13(5):2939.

Stavrinides, G. L. and Karatza, H. D. (2019). A hybrid ap-

proach to scheduling real-time iot workﬂows in fog

and cloud environments. Multimedia Tools and Appli-

cations, 78:24639–24655.

Sultan Hajam, S. (2024). Deadline-cost aware task schedul-

ing algorithm in fog computing networks. Inter-

national Journal of Communication Systems, page

e5695.

Vailshery, L. (2023, Accessed: January 11,

2024.). Number of internet of things (iot)

connected devices worldwide from 2019 to

2023, with forecasts from 2022 to 2030.

https://www.statista.com/statistics/1183457/iot-

connected-devices-worldwide/.

van der Zee, E. and Scholten, H. (2013). Application of

geographical concepts and spatial technology to the

internet of things. Research Memorandum, 33.

Xu, J., Sun, X., Zhang, R., Liang, H., and Duan, Q.

(2020). Fog-cloud task scheduling of energy con-

sumption optimisation with deadline consideration.

International Journal of Internet Manufacturing and

Services, 7(4):375–392.

Yadav, A. M., Tripathi, K. N., and Sharma, S. (2022). A

bi-objective task scheduling approach in fog comput-

ing using hybrid ﬁreworks algorithm. The Journal of

Supercomputing, 78(3):4236–4260.

441
