Facilitating User-Centric Model-Based Systems Engineering Using

Generative AI

Elias Bader

, Dominik Vereno

and Christian Neureiter

Josef Ressel Centre for Dependable System-of-Systems Engineering,

Salzburg University of Applied Sciences, Urstein S

ud 1, 5412 Puch/Salzburg, Austria

ﬁ

Keywords:

Large Language Model, GPT, Cyber-Physical Systems, Artiﬁcial Intelligence, UML.

Abstract:

The increasing complexity of cyber-physical systems requires model-based systems engineering (MBSE) in

an effort to sustain a comprehensive oversight. However, broader adaptation of these models requires spe-

cialized knowledge and training. In order to make this process more user-friendly, the concept of user-centric

systems engineering emerged. Artiﬁcial intelligence (AI) could help users overcome beginner hurdles and

leverage their contribution quality. This research investigates the feasibility of a large language model in the

systems engineering context, with a particular emphasis on the identiﬁcation of potential obstacles for similar

tasks. Therefore, a GPT model is trained on a dataset consisting of UML component diagram elements. In

conclusion, the promising results of this research justify utilizing AI in MBSE. Complex relationships be-

tween the UML elements were not only understood, they were also generated using natural-language text.

Problems arise from the extensive nature of the XMI, the context limitation and the unique identiﬁers of the

UML elements. The ﬁne-tuning process enabled the LLM to gain valuable insights into UML modeling while

transferring their base knowledge, which is a promising step toward reducing complexity in MBSE.

1 INTRODUCTION

Cyber-physical systems are becoming increasingly

vital in various sectors. They merge physical pro-

cesses with digital computation, resulting in their

complexity (Lee, 2008). At the same time, the rapid

evolution of artiﬁcial intelligence (AI) presents both

challenges and opportunities. On one hand, data-

driven decision-making makes systems even more

complex. On the other hand, the emergence of gener-

ative AI, such as large language models (LLMs) like

ChatGPT, shows promise in managing difﬁcult engi-

neering tasks.

Model-based systems engineering (MBSE) has

established itself as a key tool in dealing with

the complexity of developing cyber-physical systems

(Neureiter et al., 2020). It focuses on a central digital

model through various engineering stages. However,

its broader adoption is limited by the need for spe-

cialized knowledge in object-oriented development,

(semi-)formal modeling languages (e.g. UML or

SysML), and complex tools. The emerging concept

https://orcid.org/0009-0003-9025-8100

https://orcid.org/0000-0002-7930-6744

https://orcid.org/0000-0001-7509-7597

of user-centric systems engineering (UCSE) aims to

make MBSE more user-friendly. In making MBSE

more accessible, generative AI can be tremendously

helpful: LLMs can support users in constructing for-

mally correct system models using natural-language

prompts. By utilizing the code representation of sys-

tem models, we can beneﬁt from the current progress

of LLMs in the area of code generation. Their in-

creasing proﬁciency enables LLMs to generate, adapt,

complete or reﬁne code and a clear parallel can be

seen in which AI-assisted programming is evolving

in a more user-centric direction (Wong et al., 2023).

These powerful language models can be ﬁne-tuned to

speciﬁc application scenarios, such as MBSE.

Our study aims at AI-enabled, user-friendly

MBSE. We pursue two main objectives:

1. Establishing a proof of concept for generating

UML models from natural-language inputs, uti-

lizing a specialized and ﬁne-tuned LLM.

2. Identifying and addressing the challenges in-

volved in LLM-assisted model generation to

develop a practical and efﬁcient engineering

methodology.

Our approach involves ﬁne-tuning an LLM, specif-

ically GPT, using a dataset of natural-language

Bader, E., Vereno, D. and Neureiter, C.

Facilitating User-Centric Model-Based Systems Engineering Using Generative AI.

DOI: 10.5220/0012623200003645

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 12th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2024), pages 371-377

ISBN: 978-989-758-682-8; ISSN: 2184-4348

371

description and corresponding XMI-encoded UML

models. This research aims to showcase AI’s poten-

tial in making MBSE an accessible tool for dealing

with the complexity of modern CPS.

2 BACKGROUND

This chapter provides an overview of the underlying

concepts that are relevant to this research. First, the

basics of the Uniﬁed Modeling Language (UML) and

the associated XML Metadata Interchange (XMI) for-

mat are described. The focus is then placed on the

general concepts of LLMs, with a particular emphasis

on OpenAI’s GPT models. It also examines how con-

text and ﬁne-tuning processes inﬂuence the behavior

and output of these advanced language models.

2.1 UML and XMI

The UML is a broadly used general-purpose language

for modeling, speciﬁcation, visualization and docu-

mentation of complex systems. UML is characterized

by its use of graphical elements to represent system

structures and behaviors. With the introduction of

UML 2.0 in 2005, the language was further improved

by the addition of the textual notation XMI (XML

Metadata Interchange Format). XMI is a standard

format for interchanging UML Models based on the

Extensible Markup Language (Rupp et al., 2012). A

structured representation of UML models is essential

for interaction with LLMs, thus the use of the XMI

representation is required.

2.1.1 UML Component Diagrams

UML component diagrams fall under the category of

structure diagrams, serving to represent various parts

of a system as components in runtime. These dia-

grams are essential for visualizing the organization

and interactions of different components within a sys-

tem, particularly highlighting how components com-

municate through clearly deﬁned interfaces (Rupp

et al., 2012). Basic understanding of the following

four components is important to follow this research:

• Component: Primary building block, represent-

ing a modular part of a system.

• Port: Points of interaction for a component.

• Exposed Interface: Reference to the interfaces

that a component either provides or requires.

• Interface: Speciﬁcation of the set of operations

or services, that are either provided or required by

a component.

Figure 1 illustrates a typical interaction of these four

elements and serves as a reference implementation

within this research. A component may have multiple

ports with exposed interfaces. A required interface

uses the provided interfaces, and both are realized by

an interface with its deﬁnition.

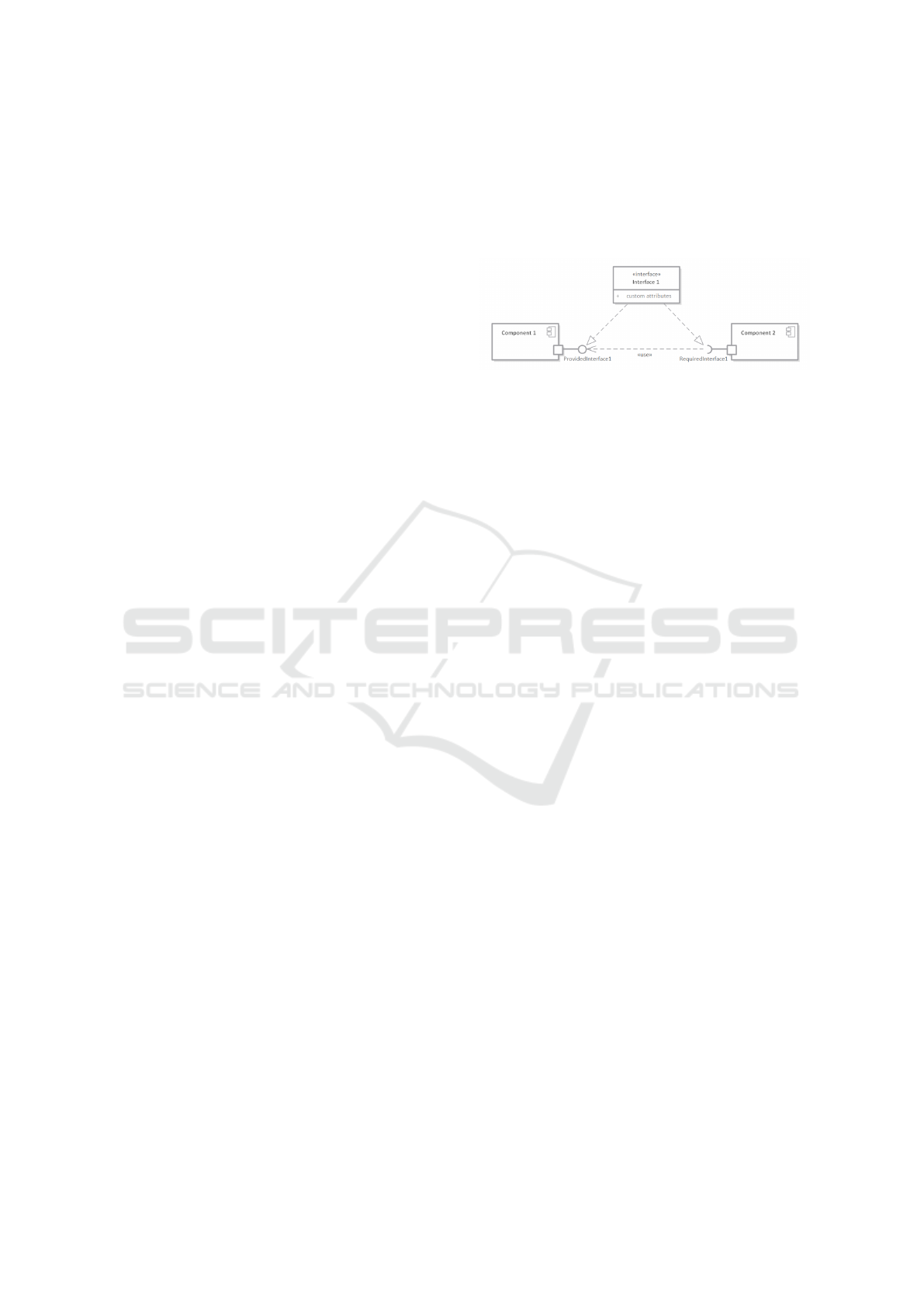

Figure 1: Exemplary interaction between components in

UML component diagrams.

2.2 Large Language Models

Large Language Models are a combination of multi-

ple AI disciplines that mainly inherit from deep learn-

ing and natural language processing (NLP) and are

so-called generative AIs (Amaratunga, 2023). The

fundamental basis of this method is grounded in

stochastics and probabilities, however, there are some

underlying concepts that require further clariﬁcation.

2.2.1 Tokenization

The ﬁrst challenge is to make a natural-language text

machine-readable. This parsing process involves sev-

eral different methods, for this research, only tok-

enization is relevant. Tokenization in NLP is a fun-

damental step in which a text is broken down into

smaller units, known as tokens. These tokens are of-

ten words or sub-words and serve as base elements for

various language processing tasks. This not only re-

duces the complexity of a sentence but also represents

it in a structured format (Amaratunga, 2023).

2.2.2 Transformer-Based Models

Some of the most sophisticated LLMs nowadays are

generative pre-trained transformers (GPTs). GPT

models consist of multiple complex layers and are

able to create an output from an input. The input is

used as context for the generation of the output, but

so is the output. This works because GPTs are so-

called autoregressive models, they generate word af-

ter word. This makes it possible to use the previously

generated text as the additional context for the next

words (Amaratunga, 2023).

An important contribution to the success of

transformer-based models was developed by Ashish

Vaswani et al. with the paper ”Attention Is All You

Need” in 2017. This research presented a signiﬁcant

MBSE-AI Integration 2024 - Workshop on Model-based System Engineering and Artiﬁcial Intelligence

372

milestone in the ﬁeld of natural language processing

by introducing the attention mechanism into the trans-

former model, a new and promising approach that de-

parts from traditional recurrent or convolutional neu-

ral networks. The attention mechanism allows the

encoders and decoders to focus on different parts of

the input sequence by assigning them more weight.

Based on the task of translating a text from English

to German, this transformer-based model was supe-

rior in quality and also required a signiﬁcantly smaller

amount of training time by being more parallelizable

(Vaswani et al., 2017). Consequently, these advance-

ments enabled the GPTs to train on huge datasets to

create LLMs with more general knowledge and un-

derstanding of the concepts in the real world.

2.2.3 Training GPT Models

GPT models belong to the family of LLMs and have

an incredible power of generating natural text due

to their training performance that enabled them to

gain knowledge through huge datasets. This abil-

ity can be further utilized to effectively train pre-

trained models on a speciﬁc topic and transfer the

already-known concepts and patterns to new domains

(Amaratunga, 2023). While the process of ﬁne-tuning

LLMs requires an understanding of algorithms like

back-propagation and gradient descent, vendors like

OpenAI effectively simplify this complexity with an

additional abstraction layer, making the technology

more accessible. By tailoring such models through

ﬁne-tuning, we achieve a higher level of precision

and reliability, by greatly improving their applicabil-

ity and effectiveness on speciﬁc tasks.

2.3 OpenAI’s GPT API

Since its introduction by OpenAI in 2018, the GPT se-

ries of models has evolved, with each iteration labeled

as GPT-n, where n indicates the version number. The

GPT-3.5 model, released in 2022, marked a signiﬁ-

cant advancement with its extensive API supporting

ﬁne-tuning, a key feature in this research. In ﬁne-

tuning, the model receives prompts specifying de-

sired output characteristics, and each interaction con-

tributes to a conversational context, inﬂuencing sub-

sequent responses. A critical aspect of GPT models is

their context size limitation, with the latest GPT-3.5-

turbo-1106 model handling up to 16K tokens.

The interaction architecture between a human and

the LLM is structured so that the model receives a

prompt detailing speciﬁc requirements that its output

must meet. Each prompt and subsequent response

generated by the LLM contributes to a conversational

context that is continuously utilized to produce the

next segment of the response. A notable distinction

among GPT versions is their maximum comprehen-

sible context size, managed internally by a context

window that automatically drops the oldest context

information if the tokens exceed the limit (OpenAI,

2023a). Currently, GPT-3.5-turbo-1106 is the most

recent available model for ﬁne-tuning jobs, and is ca-

pable of handling a context with the size of 16K tokes

(OpenAI, 2023b).

GPT models are ﬁne-tuned with a collection of

JavaScript Object Notation (JSON) Objects in the

JSON Lines format. Each line of this format maps

a system description and a full conversation between

the two personas ”user” and ”assistant”. The dataset

represents example conversations between a user and

with the anticipated response of the LLM (OpenAI,

2023a). During the ﬁne-tuning process, this data set

is used to adjust the parameters of the model so that

the expected responses are reproduced as closely to

the training set as possible.

3 APPROACH

As outlined in Section 1 a user-centered approach to

MBSE could be supported by the utilization of ar-

tiﬁcial intelligence. To achieve the results for this

research, this section deals extensively with the ap-

proach of creating the training dataset, generating

XMI with the trained GPT model and the approach

for evaluating the results.

3.1 Dataset Generation

To conduct the research, UML component diagram el-

ements are utilized. These are structured and straight-

forward elements describing signiﬁcant components

and their interconnections within a system. Repre-

sentative for all UML elements, their XMI representa-

tion is used to generate the ﬁne-tuning dataset for the

GPT model. The dataset consists of 10 different con-

versations between a user and an assistant, where the

user is requesting XMI code from the LLM. The re-

quested code examples are UML component diagram

elements with increasing complexity, organized into

three complexity classes. These classes are designed

to progressively demonstrate more intricate compo-

nent interactions and system architectures based on

the reference implementation in Section 2.1.1:

1. Standalone components and interfaces: The

simplest class involves standalone components,

which may have a port with exposed interfaces

and their realizing interfaces. These examples fo-

cus on individual elements in isolation, providing

Facilitating User-Centric Model-Based Systems Engineering Using Generative AI

373

a fundamental understanding of components and

their XMI structure.

2. Connected components with interfaces: The

second complexity class introduces connected

components, where one component acts as a

provider and/or as receiver of exposed interfaces.

This class focuses on which interactions between

components are permitted and desired, and there-

fore already uses all four elements.

3. Nested components with internal and external

connections: The most complex class features

components within components that have inter-

nal connections and expose ports through multiple

layers. The complex interaction and the numer-

ous dependencies within the XMI are intended to

challenge the training.

Each example is modeled in the systems modeling

tool Enterprise Architect (Systems, 2023) and ex-

ported into the machine-readable XMI format. Given

the extensive amount of information this format con-

tains, it is possible to reduce some data segments in

a pre-processing step without altering the UML ele-

ments. All data in XMI is subordinate to the XML

tags. This makes it possible to delete tags like project

information, styles, diagrams and diagram positions

of the elements directly. Attributes such as the author,

creation- and modiﬁcation times can also be deleted

without hesitation. This completes the XMI code for

integration into a dataset

The JSON Lines format, which is the dataset for-

mat used for the ﬁne-tuning process of GPT models,

expects a conversation between a user and an assis-

tant in each line as a JSON object. In the dataset used

for this research, the user is requesting component di-

agram elements and the assistant responses with XMI

code. Each request consists of multiple English sen-

tences describing the desired components and their in-

teractions. The XMI examples and the user prompts

are then combined accordingly to create a dataset with

10 conversations. Figure 2 visually represents the

data set generation steps applied in this study.

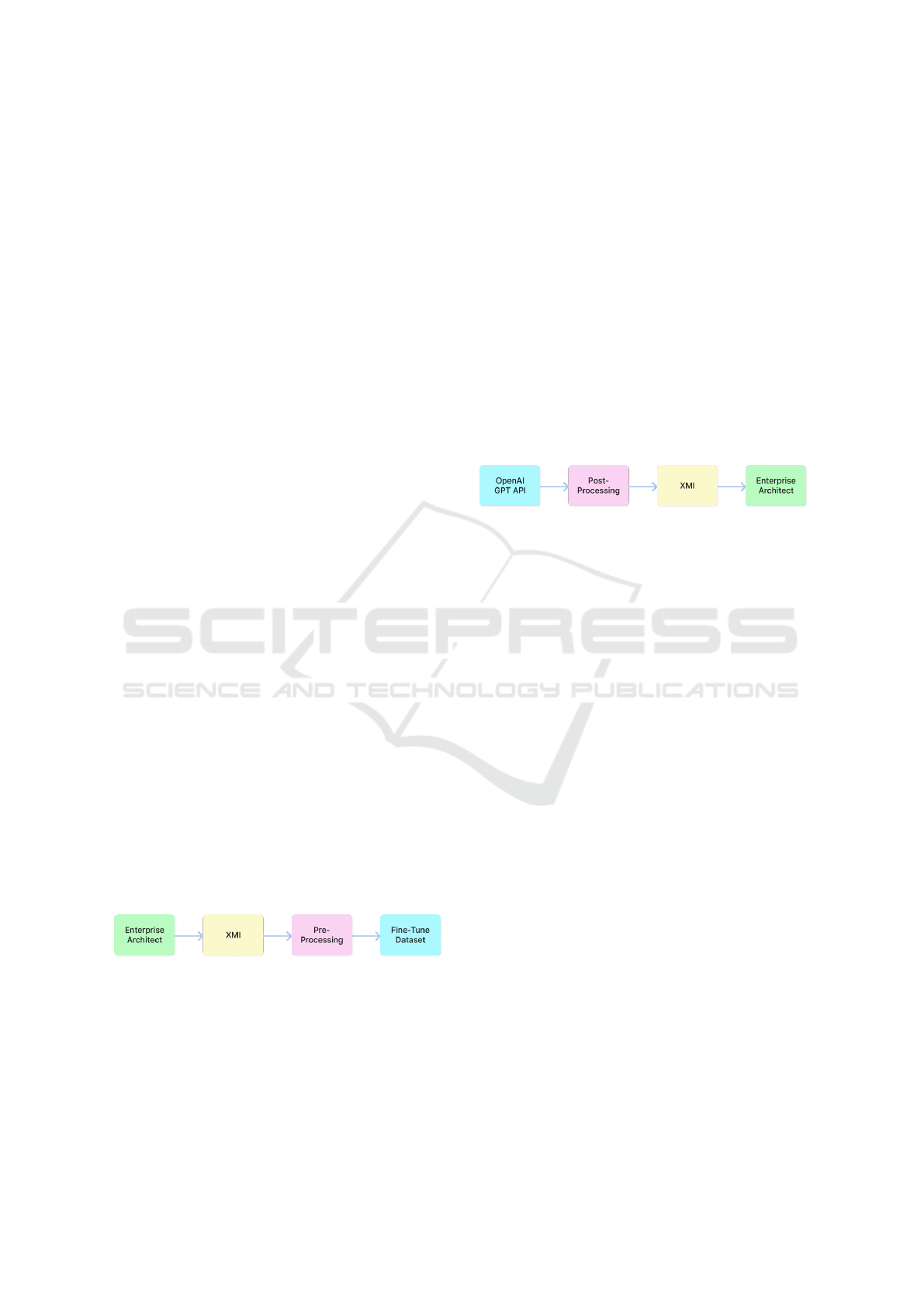

Figure 2: Fine-tuning dataset generation visualized steps.

3.2 XMI Generation and Evaluation

Once the GPT model is trained successfully with the

specially prepared dataset, the model becomes acces-

sible for practical use through the OpenAI API. To

assess the effectiveness of the trained GPT model, we

generate XMI code for the four types of UML ele-

ments covered in the training. This generated code is

then imported into the Enterprise Architect software

for further evaluation. The prompts used for generat-

ing XMI code adhere to speciﬁc criteria to ensure a

robust evaluation:

• No prompts from the training dataset are reused,

to avoid biasing the model’s responses.

• Unique UML models are generated with different

interaction scenarios for each complexity levels.

The XMI code generated by the GPT model often ne-

cessitates post-processing. This involves manual ad-

justments to reﬁne and correct the output, ensuring the

correctness of the XMI code. Figure 3 illustrates the

steps to generate XMI code from GPTs API and im-

port it into Enterprise Architect to visualize the result

for an evaluation.

Figure 3: XMI code generation visualized steps.

The evaluation is exclusively performed through a

human assessment of the generated XMI code and fo-

cuses on two primary criteria: its syntactical correct-

ness and the completeness of elements and relation-

ships as speciﬁed in the request prompt. The analysis

will concentrate then on identifying learned patterns

and obstacles encountered during the generation pro-

cess.

4 REALIZATION

Based on the determined research approach, this sec-

tion describes the realization of the trained GPT

model and the generation of the XMI code. The rele-

vant steps are explained and the results are presented.

4.1 Complexity Classes

The basis for creating the necessary dataset for the

training process is clear and structured data prepara-

tion. Therefore, 10 examples of increasing complex-

ity are modeled, and respective user prompts are for-

mulated according to Section 3.1. Figures 4,5 and 6

represent one complexity class each.

4.2 XMI Pre-Processing

The pre-processing of the XMI includes the removal

of irrelevant XML tags that do not alter the UML ele-

ments. This not only ensures that the GPT model only

MBSE-AI Integration 2024 - Workshop on Model-based System Engineering and Artiﬁcial Intelligence

374

Figure 4: Representative model elements for complexity

class 1.

Figure 5: Representative model elements for complexity

class 2.

Figure 6: Representative model elements for complexity

class 3.

learns the essential relationships, but it also saves a

non-negligible amount of tokens. Using the Python

library ”etree”, it is possible to modify an XML ﬁle

and deleting all tags and attributes described in Sec-

tion 3.1.

With a slightly modiﬁed version of the python

code provided by the OpenAI documentation, it is

possible to count the tokens of a ﬁle for a speciﬁc

GPT model version via the tiktoken python library

(OpenAI, 2023a). Table 1 presents the token and the

rough ﬁle sizes before (Raw) and after (Edited) the

pre-processing step.

Table 1: Complexity level 2 token and ﬁle size comparison

before and after pre-processing.

File State File Size Tokens

Raw 25KB 10.526

Edited 20KB 7.216

As can be seen, the pre-processing achieves a to-

ken saving of about 30%. Nevertheless, even the re-

duced version of this example already occupies over

40% of the maximum context size of 16K Tokens.

4.3 Data Merging and Fine-Tuning

To create the data set for the ﬁne-tuning process, the

cleaned XMI needs to be merged with a natural text.

The following 3 descriptions are the user prompts for

the previously selected examples for the complexity

classes 1–3, it should be noted that the example from

complexity level 3 was created within 2 user prompts

that build up on each other.

• 1 - Two Components. ”Create Component X and

Component Y”

• 2 - Two Connected Componets. ”Create a Com-

ponent for my ’Data Analyser’ service that ex-

poses the interface ’UserBehaviour’. The ’User-

Behaviour’ interface has the attributes ’userID’ as

int and ’behaviour’ as String, and is received by

the ’Frontend’ component.”

• 3 - Two Promts, Nested Components. 1. ”Cre-

ate three components within the parent compo-

nent ’Backend Service’, named ’Service A’, ’Ser-

vice B’, and ’Service C’.” 2. ”Add an inter-

face named ’BackendData’ to ’Service A’ within

’Backend Service’. This interface should be ex-

posed to an external component named ’Frontend

Service’. Include attributes ’dataID’ as int and

’dataValue’ as String in the ’BackendData’ inter-

face. ’Service C” is also reqesting the ’Backend

Service’ from ’Service A’.”

A similar description was created for all other exam-

ples and inserted manually into a JSON Lines ﬁle.

The GPT model was then ﬁne-tuned via OpenAIs on-

line platform.

4.4 XMI Generation

Since the ﬁne-tuned model is now easily accessible

through an API call like in the OpenAI documenta-

tion, the model can be used to generate XMI code for

a validation process. In this part, two exemplary XMI

models are generated, those are intended to be repre-

sentative of the results.

The ﬁrst requesting user prompt: ”Create a com-

ponent named ’Weather Tracker’ with a port element.

Additionally, create an interface named ’Weather-

DataInterface’, which includes the attributes ’temper-

ature’, ’humidity’, and ’windSpeed’” addresses the

complexity class 1.

In the training set is no case for individual compo-

nents where a port exists without an exposed inter-

face, which is realized by an interface. This test is

intended to check that no false assumptions or rela-

tionships have arisen from the training. In Figure 7

the generated XMI code is imported and visualized in

Facilitating User-Centric Model-Based Systems Engineering Using Generative AI

375

Enterprise Architect, no post-processing was needed

and all requested elements and attributes are gener-

ated.

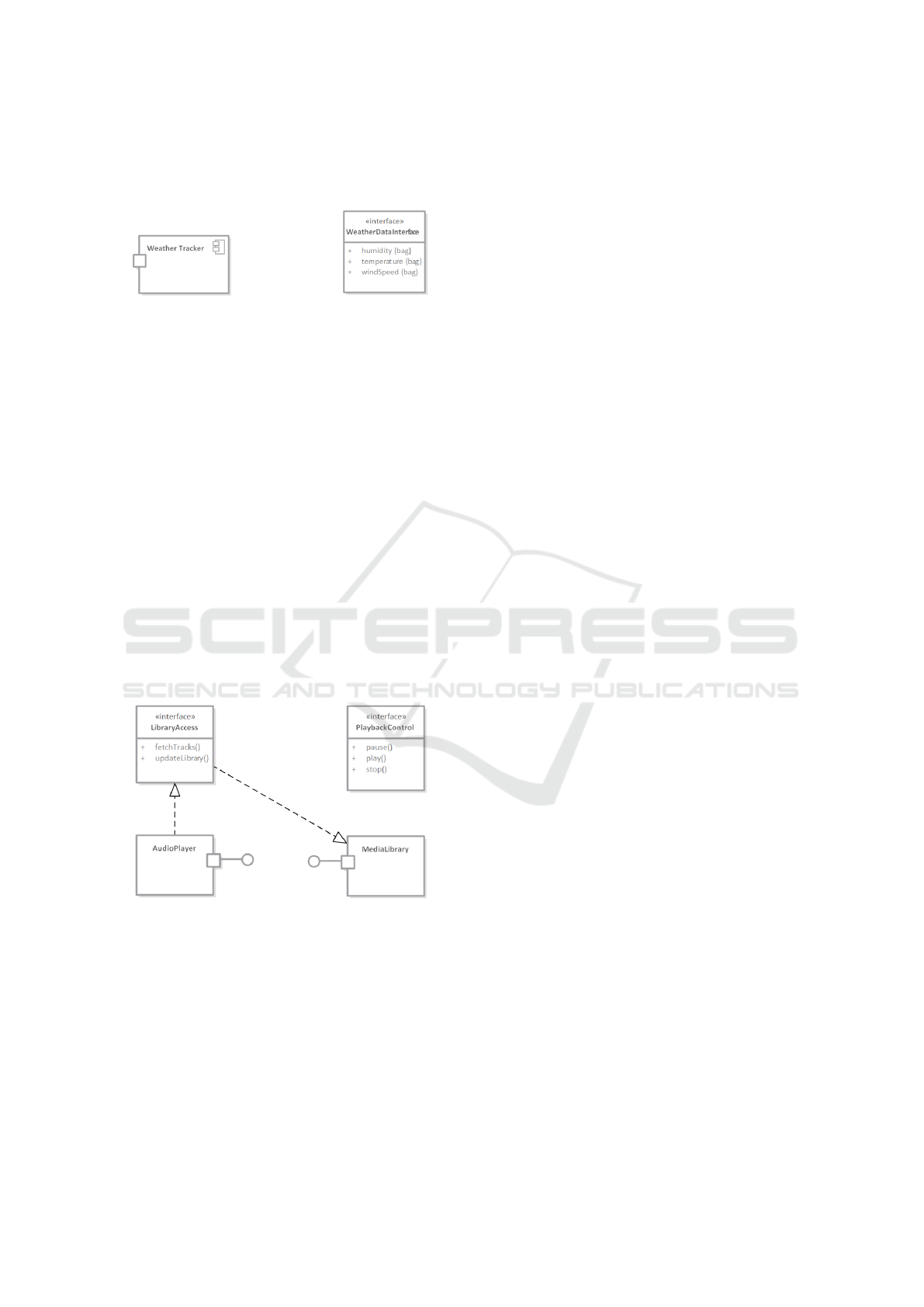

Figure 7: Generated XMI for complexity class 1.

The generation for complexity class 2 focuses on

a mutual dependency between two components, since

there were no similar examples deﬁned in the train-

ing set. The following requesting user prompt gen-

erates the code for Figure 8: ”Generate me two dis-

tinct components: ’Audio Player’ and ’Media Li-

brary’. The ’Audio Player’ should provide an inter-

face called ’PlaybackControl’ with functions such as

’Play’, ’Pause’ and ’Stop’. This interface is used by

the ’Media Library’. Conversely, ’Media Library’

provides an interface called ’LibraryAccess’ with

functions such as ’fetchTracks’ and ’updateLibrary’,

which is used by the ’Audio Player’. ”.

The generation process was interrupted because

the context limit was reached. As a result, the

unﬁnished code had to be corrected by closing all

XML tags before importing into Enterprise Architect.

Therefore, there was no change in the generated ele-

ments, however, the code is not complete and without

human post-processing unusable.

Figure 8: Generated XMI for complexity class 2.

From an objective point of view, 2 ports and 2

exposed interfaces are missing, and both realizations

of the interfaces are wrongly linked. However, the

names of the generated elements and their features

have been generated correctly.

As the context has already been exceeded in com-

plexity class 2, it was not possible to generate more

complex examples that add any value to this research.

5 FINDINGS

This study demonstrates that even with a limited

dataset of 10 examples, the GPT model is capable

of accurately creating UML elements and establishing

correct links in XML code. Notably, the model shows

proﬁciency in understanding the syntactical nuances

of the XMI language. It reliably generates the names

and features of components and interfaces, and cor-

rectly identiﬁes that an exposed interface is always

attached to a port. However, it consistently strug-

gles with realization connections, indicating an area

for further reﬁnement.

The experiment revealed three signiﬁcant obstacles:

1. Extensive data representation: The generality

and extension of the XML code leads to a tex-

tual overhead for the representation of simple in-

formation. This requires the LLM to understand

complex relationships between XML tags that are

linked together throughout the entire context. We

therefore believe that a much larger data set is re-

quired until the patterns are actually recognized.

This complexity raises questions about the efﬁ-

ciency of using the XMI language for such tasks.

2. Context limit: The verbose nature of XML exac-

erbates the issue of context limitations in the GPT-

3.5-turbo model. In scenarios of moderate com-

plexity, the generation quickly approaches its con-

text limit, leading to unreliable outputs or aborted

generations. This limit is roughly exceeded by

generating about 8 elements with small features.

Furthermore, due to the moving context window,

it is not possible to reference past elements in the

course of a conversation. An adaptation of gen-

erated models within a conversation is with this

approach not possible.

3. Challenges with IDs: A critical observation per-

tains to the handling of unique identiﬁers (IDs).

Each XMI element maintains an ID, consisting

of 37 characters and presents a unique challenge

in the context of LLM processing. The concern

is that while the LLM recognizes the pattern of

an ID, we think it does not effectively verify its

uniqueness and generate it using the appropriate

algorithm. Furthermore, false associations dur-

ing the training process could arise. For instance,

the model might incorrectly learn that a port el-

ement always possesses a certain ID pattern, or

inversely, that a particular ID pattern dictates an

element’s behavior. Additionally, the training pro-

cess can inadvertently identify non-existent errors

and thereby impair the model’s learning process.

The LLM’s approach of constantly generating re-

sponses and comparing them against our training

MBSE-AI Integration 2024 - Workshop on Model-based System Engineering and Artiﬁcial Intelligence

376

dataset for weight adjustment becomes inefﬁcient

due to the inherently random nature of IDs.

6 CONCLUSION AND OUTLOOK

The application of AI is becoming increasingly rel-

evant in the design of user-centric MBSE. Not only

could it reduce the inherent workload, it could also

help to overcome beginner hurdles and assist in the

standardized use of modeling languages.

Within this research, a dataset of 10 XMI example

models were created and used to ﬁne-tune a GPT-3.5

model. This trained model was then utilized to gen-

erate UML component elements using a description

in a natural language text. While the model shows

promise in recognizing patterns and relationships in

XML code, signiﬁcant challenges arise with extensive

data representation, context limits, and the handling

of unique IDs. Nevertheless, the results justify using

AI in MBSE.

Looking forward, the release of GPT-4 for ﬁne-

tuning with an expanded context limit of 128K tokens

and additional training data may still ﬁnd XMI’s rep-

resentation of UML elements challenging. To address

both the issues of data bloat and IDs, transitioning to

alternative modeling languages, such as SysML v2,

could be advantageous. SysML v2 not only offers

a more efﬁcient textual representation related to pro-

gramming languages but also incorporates an exten-

sive and expandable graphical notation.

This shift to a simpler, more intuitive language

structure could signiﬁcantly enhance AI’s ability to

model complex systems, opening new approaches

for research and application in user-centric AI-driven

systems engineering.

ACKNOWLEDGEMENTS

The ﬁnancial support by the Austrian Federal Min-

istry for Digital and Economic Affairs and the Na-

tional Foundation for Research, Technology and De-

velopment and the Christian Doppler Research As-

sociation as well as the Federal State of Salzburg is

gratefully acknowledged.

REFERENCES

Amaratunga, T. (2023). Understanding Large Language

Models. Apress.

Lee, E. A. (2008). Cyber physical systems: Design chal-

lenges. In 2008 11th IEEE International Symposium

on Object and Component-Oriented Real-Time Dis-

tributed Computing (ISORC), pages 363–369.

Neureiter, C., Binder, C., and Lastro, G. (2020). Review

on domain speciﬁc systems engineering. In 2020

IEEE International Symposium on Systems Engineer-

ing (ISSE), pages 1–8. IEEE.

OpenAI (2023a). Openai api documentation.

OpenAI (2023b). Openai pricing.

Rupp, C., Queins, S., and die SOPHISTen (2012). UML 2

glasklar. Carl Hanser Verlag GmbH Co KG.

Systems, S. (2023). Sparxsystems enterprise architect.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., and Polosukhin, I.

(2017). Attention is all you need. In Guyon, I., von

Luxburg, U., Bengio, S., Wallach, H. M., Fergus, R.,

Vishwanathan, S. V. N., and Garnett, R., editors, Ad-

vances in Neural Information Processing Systems 30:

Annual Conference on Neural Information Processing

Systems 2017, December 4-9, 2017, Long Beach, CA,

USA, pages 5998–6008.

Wong, M.-F., Guo, S., Hang, C.-N., Ho, S.-W., and Tan,

C.-W. (2023). Natural language generation and un-

derstanding of big code for ai-assisted programming:

A review. Entropy, 25(6).

Facilitating User-Centric Model-Based Systems Engineering Using Generative AI

377
