Smart Homes as Digital Ecosystems: Exploring Privacy in IoT

Contexts

Sally Bagheri

1,2 a

, Andreas Jacobsson

1,2 b

and Paul Davidsson

1,2 c

Department of Computer Science and Media Technology, Malmö University, Sweden

Internet of Things and People Research Center, Malmö University, Sweden

Keywords: Smart Homes, Internet of Things, Privacy, Digital Ecosystems.

Abstract: Although smart homes are tasked with an increasing number of everyday activities to keep users safe, healthy,

and entertained, privacy concerns arise due to the large amount of personal data in flux. Privacy is widely

acknowledged to be contextually dependent, however, the interrelated stakeholders involved in developing

and delivering smart home services – IoT developers, companies, users, and lawmakers, to name a few –

might approach the smart home context differently. This paper considers smart homes as digital ecosystems

to support a contextual analysis of smart home privacy. A conceptual model and an ecosystem ontology are

proposed through design science research methodology to systematize the analyses. Four privacy-oriented

scenarios of surveillance in smart homes are discussed to demonstrate the utility of the digital ecosystem

approach. The concerns pertain to power dynamics among users such as main users, smart home bystanders,

parent-child dynamics, and intimate partner relationships and the responsibility of both companies and public

organizations to ensure privacy and the ethical use of IoT devices over time. Continuous evaluation of the

approach is encouraged to support the complex challenge of ensuring user privacy in smart homes.

1 INTRODUCTION

Internet of things (IoT) devices are increasingly dom-

inating both domestic and public environments for

their continued promises to increase comfort, secu-

rity, and sustainability (Bugeja et al., 2021). Along

with their promises, the use of IoT devices poses sev-

eral challenges related to the large amount of, often

personal, data they typically generate, collect, and

distribute. In public spaces, some level of privacy

might naturally be compromised as the spaces are

considered shared and communal. However, in envi-

ronments generally presumed to be both personal and

private – such as the home – these issues are espe-

cially concerning when it comes to questioning the

expectation of privacy when one is alone. Closing a

front door or being physically separated from the pub-

lic has previously been enough to ensure privacy. Due

to pervasive data collection, this understanding of pri-

vacy is outdated for IoT contexts as the right to be left

alone encompasses all forms of behavioral observation

https://orcid.org/0009-0009-7387-3367

https://orcid.org/0000-0002-8512-2976

https://orcid.org/0000-0003-0998-6585

(Warren & Brandeis, 1989), both from other people

and things.

In smart homes, domestic living spaces with peo-

ple and Internet-connected things (Bugeja et al.,

2021), IoT devices often monitor the surroundings

ubiquitously as a part of their functionality. This data

is central to realizing IoT capabilities such as making

smart homes personal, comfortable, safe, and energy-

efficient for its users. Just like the system harvesting

sunlight, converting it to electricity, and distributing

it to power an assortment of appliances enriching our

lives, data from smart homes follows a similar pat-

tern. However, unlike solar energy, parts of the data

ecosystem are fully digital and not observable in a

physical sense. Understanding this digital ecosystem

(DE) of users, IoT devices, IoT distributors, and other

data stakeholders (such as lawmakers and privacy ad-

vocates), as well as the users’ concerns about having

their private data enable the system, is a cumbersome

challenge. Moreover, the diversity of stakeholders in-

volved in delivering IoT services exacerbates the

Bagheri, S., Jacobsson, A. and Davidsson, P.

Smart Homes as Digital Ecosystems: Exploring Privacy in IoT Contexts.

DOI: 10.5220/0012458700003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 869-877

ISBN: 978-989-758-683-5; ISSN: 2184-4356

869

challenge of understanding the system. For example,

IoT users and IoT developers do not commonly have

the same level of system expertise and might therefore

both understand the system differently as well as ap-

proach privacy and its safeguarding differently. The

same could be said about IoT developers and law/pol-

icymakers as they answer to different stakeholder

groups; IoT developers are commonly employed by

private companies with economic interests while pub-

lic servants are responsible for society at large.

Due to the complex challenge of understanding

privacy in smart homes, the overarching aim of this

paper is to explore the analogy of a DE as a tool to

systematize privacy analyses in IoT contexts. Specif-

ically, the guiding question is: how can a smart home

be conceptualized as a DE to support the contextual

analysis of privacy-related concerns? Currently, no

uniform process to model smart homes for privacy

analysis has been proposed by the research commu-

nity nor has systematic processes to present privacy-

related research results been introduced. This gap

risks valuable insights to be lost due to the failure in

compiling and comparing such results. The contribu-

tion of this paper is an ontology and conceptual model

of a DE to support a systematic approach to analyzing

smart homes and their associated privacy concerns.

The next section reviews related word regarding

the DE analogy, different dimensions of privacy, and

models of smart homes. Subsequently, a method sec-

tion explains the research process. Lastly, the paper

discusses four scenarios of contextually defined pri-

vacy concerns and concludes with some directions for

future work to continue exploring the DE approach.

2 RELATED WORK

A DE can simply be defined as the digital counterpart

to natural ecosystems, while a natural ecosystem is

energy-centric, a DE is data-centric (Briscoe et al.,

2011). DEs have been described as socio-technical

systems with “an interdependent group of enterprises,

people and/or things that share standardized digital

platforms for a mutually beneficial purpose (such as

commercial gain, innovation or common interest)”

(Rzevski, 2019). The DE is made up of two constitu-

ent parts, its species and corresponding environment

(Dong et al., 2007), that interact and support each

other to sustain the ecosystem over time. The species

have been defined as being either biological, digital,

or economic (Dong et al., 2007) and can self-organize

to sustain their environment (Rzevski, 2019). Addi-

tionally, the decentralized nature of the relationships

between the species allows the DE to adapt and scale

its size and/or performance. Considering IoT systems

as a DE has been suggested before (Rzevski, 2019)

and according to existing DE ontologies (Dong et al.,

2007), IoT users could be considered as biological

species, economic species as the organizations or

companies with financial incentives offering IoT ser-

vices and products, and digital species as all the IoT-

related hardware, software, and applications. Exam-

ples of digital species could be operating systems,

user profiles, APIs, cloud services, as well as IoT

hardware, such as sensors, routers, and actuators.

Like a DE, the smart home can self-organize to sus-

tain itself over time, and scale towards increased

smartness and productivity for its species. An exter-

nality of this increased value is the concern for pri-

vacy as users’ data fuel the DE.

2.1 Privacy in Context

A common definition of privacy is “the claim of indi-

viduals, groups, or institutions to determine for them-

selves when, how, and to what extent information

about them is communicated to others” (Westin,

1968). Building upon this definition, privacy can also

be defined contextually to consider the prevailing

norms of the context (Nissenbaum, 2004). This un-

derstanding of privacy goes beyond solely consider-

ing data disclosures; a qualitative study looking at

smart home devices was able to show how the sense

of being watched or observed is at times decoupled

from whether data had been generated (Seymour et

al., 2020). The feeling of someone else being in the

room, such as a voice-controlled Internet-connected

assistant, paired with an inability to determine

whether disclosures are being made, creates, accord-

ing to Seymour et al. (2020), a phenomenological pri-

vacy concern based on a user’s experience. Mean-

while, purely technological efforts to optimize privacy

assurance in smart homes have been introduced and are

currently being evaluated (Mocrii et al., 2018). For ex-

ample, blockchain-based technology (Qashlan et al.,

2021) as well as edge computing (Mocrii et al., 2018)

have emerged as technologies in support of mitigating

data privacy. However, solely ensuring privacy with

technological means does not address phenomenologi-

cal concerns related to IoT usage as it leaves out users’

perceptions and experiences of privacy. To be rendered

productive, an approach to analyzing privacy in smart

homes might therefore need to include both technical

assurances of data privacy, in the sense of information

access and exchange, as well as ethical considerations

of the social consequences of IoT use that may impact

users’ privacy.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

870

2.2 Models of Smart Homes

Privacy requirements for IoT systems regard the con-

straints put on a system to ensure end-user satisfac-

tion, therefore, they need to be considered explicitly

(Alhirabi et al., 2021). The main problem lies in the

wide range of perspectives that can be taken to safe-

guard privacy (Alhirabi et al., 2021). Depending on

the stakeholder, constraints and priorities might differ

seen both to social and technical aspects of the sys-

tem. In the smart home context alone, IoT devices are

being used to offer healthcare, eldercare, and child-

care, to name a few, requiring an array of stakeholders

to collaborate effectively. The DE analogy has shown

promise in eliciting design requirements across stake-

holder groups (Koch, 2019) and the smart home has

previously been conceptualized as a DE for a variety

of purposes, for example, to optimize for energy man-

agement (Reinisch et al., 2010), security

(Anagnostopoulos et al., 2020), IoT forensics

(Grispos et al., 2021), device management (Indrawan

et al., 2007), and entertainment (Stanchev et al.,

2017). Pillai et al. (2012) developed a model for the

technical IoT infrastructure of a smart home and alt-

hough conceptualizing the smart home as a DE, their

model does not include considerations of any social

dimensions of privacy or the users’ experience. More-

over, models developed for privacy-related research

in smart homes vary in detail and perspective, and

lack a uniform approach, although most commonly

dividing the IoT environments into layers. For exam-

ple, Bugeja et al. (2021) propose three layers (similar

to Imtiaz et al. (2019)) when discussing privacy plac-

ing users in the center with hardware and network lay-

ers encompassing it. Systematic approaches to mod-

elling smart homes to explore both social and tech-

nical dimensions of user privacy are lacking and de-

serve further attention.

3 METHOD

The research documented in this paper follows the de-

sign science research methodology (DSRM) (Peffers

et al., 2006). The research process is detailed in Table

1. The aim is to explore the DE analogy and model

smart homes as such to support an analysis of pri-

vacy-related concerns. Accordingly, two artifacts are

proposed: a conceptual model of a DE and an ontol-

ogy. The research supporting the design of the arti-

facts is detailed in the appendix

. The design objectives

(DO1-3) were inferred from the problem statement and

following a demonstration of the two artifacts, a de-

scriptive evaluation (Hevner et al., 2008) was con-

ducted by considering four privacy-related scenarios in

a hypothetical smart home context. This evaluation

method is often deemed suitable when artifacts are

both new and unexplored (Hevner et al., 2008), which

this work can be considered as. DSRM emphasizes the

re-iterative process of designing artifacts (Peffers et al.,

2006), therefore, mentions of future research directions

are included.

Table 1: The applied DSRM Process (Peffers et al., 2020) with the corresponding sections in the paper.

DSRM Activity Adaptation for the paper Section

Identify problem

and motivate

Analyzing smart home users’ privacy should ideally be done in context. However, seen

to its socio-technical nature, a smart home can be modelled in many ways depending on

the stakeholder. A DE approach has shown to facilitate discussions across stakeholder

groups. Therefore, this paper considers how a smart home be modelled as a DE to sup-

ort contextual analyses of privacy.

Define objectives

of a solution

DO1: Is useful to a diverse set of stakeholders.

DO2: Reveals privacy concerns contextually.

DO3: Includes social and technical considerations of the smart home.

Design and

development

Based on previous work studying DEs, smart homes, and user privacy, the contribution

of this research is in the form of two artifacts: a DE ontology (mainly corresponding

with DO1

)

and a conce

tual model

(

mainl

corres

ondin

with DO2, DO3

)

3, Appendix

Demonstration The artifacts are applied to a hypothetical case of a smart home. Figure 2

Evaluation Four scenarios of smart home privacy concerns are analyzed. 4, 5

Communication This work seeks to continue exploring the DE approach by engaging with the wider re-

search communit

https://mah365-my.sharepoint.com/:w:/g/personal/sally_b

agheri_mau_se/ESewZt9MuOFGpwekk-snaRMB9ezTVe

zfE-CXi5myh-x4gQ, accessed 24/01/04.

Smart Homes as Digital Ecosystems: Exploring Privacy in IoT Contexts

871

3.1 Digital Ecosystem Ontology

Figure 1 depicts the DE ontology and how a DE is a

subclass of ecosystems along with its natural counter-

part (Briscoe et al., 2011). In turn, a DE has two con-

stituent parts: species and an environment (Dong et

al., 2007). To the three sub-classes of DE species

(Dong et al. (2007), a fourth species is added as pri-

vacy concerns have shown to differ depending on the

nature of the organization (Seymour et al., 2020).

Therefore, economic species that are directly in-

volved with offering IoT products and services are

distinguished from organizational species such as

governmental agencies without financial incentives.

The design of the ontology corresponds with DO1 by

proposing a uniform approach to modelling DEs

based on natural ecosystems, which most have some

elementary-level understanding of.

Figure 1: A concept ontology for ecosystems. Downward

pointing arrows represent the generic/specific relationship

of classes; upward pointing arrows represent part-of rela-

tionships (Dong et al., 2007). Species are color-coded to

separate them easily.

3.2 Conceptual Model

The conceptual model is divided into three layers

(Rzevski, 2019; Phillips & Ritala, 2019) to depict the

real or social world (structural layer), the digital or

virtual world (conceptual layer) and the knowledge

base of privacy and ethical concerns (temporal layer).

The model’s two top layers mainly correspond with

DO3 by considering the social structures of the IoT

context and its technical infrastructure respectively.

The third layer includes relevant privacy concerns

based on the details of the IoT context defined in the

two top layers (corresponding with DO2). In this

sense, the ontology is used to fill the conceptual

model (as demonstrated in Figure 2) to depict the spe-

cifics of the context, such as the number of users, IoT

devices, and relevant user concerns.

The structural layer defines the relationships be-

tween species by considering what is known about the

context. The purpose is to reveal how the IoT is being

used, for example, for leisure, comfort, health, secu-

rity, etc. as well as other social dynamics among the

species. Additionally, contractual relationships can

be included as some IoT services are subscription-

based and might create legal dependencies among

species. The purpose of the conceptual layer is to

model the flow of user data. Depending on modelling

needs and levels of expertise, this layer can take on

many forms catering for a diverse set of stakeholders.

For this initial iteration of the design process, the con-

ceptual layer is kept relatively simple. The temporal

layer could be considered a placeholder for the pri-

vacy concerns identified in the context. More re-

search is needed to understand how to systematically

document the complexity of preserving privacy in an

ever-changing system. For this iteration, Table 2

compiles conceivable change scenarios, categorized

according to the species of a DE defined in Figure 1.

The change scenarios are based on identified privacy

threats related to smart homes (Elvy, 2018; Grispos et

al., 2021; Haney & Furman, 2023; Imtiaz et al., 2019;

Marky et al., 2021). However, a plenitude of privacy

concerns could be considered. Therefore, the idea is

less to generate a comprehensive list and more to

demonstrate how such concerns can be modelled and

analyzed contextually. The selection of change sce-

narios discussed in the next section regards organiza-

tional and biological species.

Table 2: Selection of smart home scenarios.

Specie Example of change

Economic - Companies merging, therein,

changing the proprietors of data.

- A company starts to sell/re-purpose

user data to other companies.

Organizational - If a device happens to record criminal

activity.

- Increasing number of pre-installed IoT

devices in homes.

Biological - Bystanders entering the home.

- Changes in user relationships such as

occu

ants movin

in/out.

Digital - New IoT devices being installed.

- Updates to existing IoT device or ser-

vices changing the flow of data.

4 MODELLING SMART HOMES

AS DIGITAL ECOSYSTEMS

This section discusses a selection of smart home pri-

vacy concerns in a hypothetical smart home context.

The details of the context are as follows. Four typical

domestic IoT devices (inspired by industry

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

872

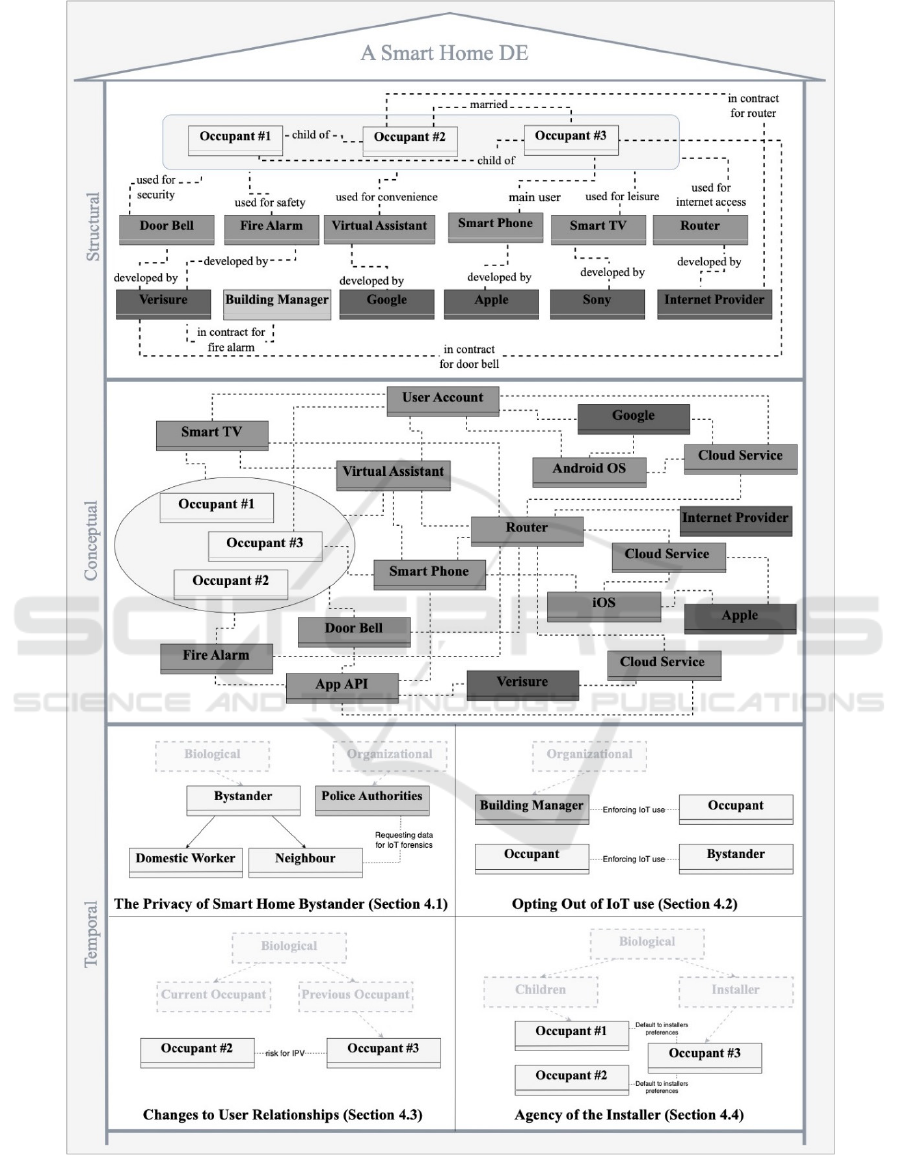

Figure 2: A smart home DE. The structural layer defines the species and their relationships (noted above the dotted lines); the

conceptual layer’s dotted lines illustrate the flow of data between the species; the temporal layer illustrates four privacy-

related scenarios. Based on the analyzes of each scenario (Section 4), potential sub-classes for future iterations of the DE

ontology (Section 5) are denoted in opaque lines. Species are color-coded according to the DE ontology (Figure 1).

Smart Homes as Digital Ecosystems: Exploring Privacy in IoT Contexts

873

websites listing popular home IoT

devices

) are in-

cluded: a virtual assistant, Smart TV, smart fire alarm,

and smart doorbell. The biological species include two

adult occupants and a child occupant. The full concep-

tual model is depicted in Figure 2 including four pri-

vacy concerns derived from Table 2. Although the con-

cerns are supported by previous research and reported

cases from the smart home domain, they do not exhaust

all the privacy concerns of the context. Instead, the dis-

cussion below reveals four potentially unethical smart

home scenarios in need of further scrutiny.

4.1 Smart Home Bystanders

As this is a domestic environment, it can be assumed

that additional people might occasionally enter the

space, for example, as guests. Protecting the privacy

of bystanders, defined as users who do not own or di-

rectly use the IoT device (Bernd et al., 2020) could

partially be considered a technical challenge; depend-

ing on the IoT device, data might not be categorized

according to users. For example, the virtual assistant

in this context (modelled in Figure 2) can differentiate

users’ voices while the doorbell has no equivalent ca-

pability. This could be considered a concern for the

occupants as privacy preferences within a household

may differ, for example, preferences for children’s

privacy may differ from adults. However, preserving

the privacy of smart home bystanders is of equal im-

portance and in need of ethical consideration. Dis-

putes have emerged in which one neighbor’s prerog-

ative to install a smart doorbell conflicted with an-

other’s right to privacy causing the first neighbor to

take legal action against the second as they attempted

to destroy the device in protest to its existence.

IoT

devices, such as smart doorbells, are intended to gen-

erate data from bystanders and could potentially cap-

ture illegal activities if it occurs around the house, on

the street, or on a neighbor’s property. When authori-

ties call upon IoT data to aid in criminal investigations

it is referred to as IoT forensics - the use of data from

IoT devices as evidence in court proceedings (Grispos

et al., 2021). If authorities request data from IoT de-

vices, it can create a trade-off between user privacy and

investigation success (Khanpara et al., 2023). More re-

search is needed to consider whether users are obliged

to hand over data for IoT forensics and whether it is

ethically defensible to subject bystanders, such as

neighbors, to non-consensual IoT use.

https://dgtlinfra.com/internet-of-things-iot-devices/

accessed 24/01/04.

4.2 Opting out of Smart Homes

According to the structural layer of the model in Fig-

ure 2, a building manager (organizational species) is

in contract with a digital species (fire alarm), not one

of the occupants. This can be seen as an example of

building managers installing IoT devices and retain-

ing the responsibility for their maintenance. It might

be assumed that over time, an increasing number of

homes will have IoT devices pre-installed, for exam-

ple, seen to their capabilities to optimize energy con-

sumption (Reinisch et al., 2010). Both building man-

agers and other stakeholder groups (for example,

property developers) could be increasingly involved

in the smart home DE potentially making it difficult

to live in a home without IoT devices. More attention

may need to be paid to include opt-out options or

other ways to ensure that a user is not forced to accept

IoT devices installed in their home.

Another example of the need for opt-out options

is domestic workers, such as cleaners or nannies, as

the smart home can at times also be a workplace. In

the case of nannies, Bernd et al. (2022) explain how

parents might use cameras as a means of control, in-

vading nannies’ privacy and even in some cases lead

to a reduction in the quality of care for the child. If a

domestic worker is surveilled remotely by the home-

owners it might be considered unethical if they are not

informed or unable to object to such data collection

(Bernd et al., 2020). The smart home DE in Figure 2

does not currently have a video-recording IoT device

– other than the doorbell which is located outdoors.

However, the temporal concern of introducing a new

IoT device (Table 2) is relevant to consider as such

could occur in the future. In turn, if such a device

were installed, domestic workers might need to be in-

cluded in the DE as biological species to consider

their privacy. Whether at work or in one’s own home,

opting out of smart home systems is a concern in need

of further ethical consideration.

4.3 Changes to User Relationships

Of the three occupants living in the smart home, only

one is legally in contract for the smart doorbell (see

occupant #3 in Figure 2). If that occupant were to

move from the home, it would require legal (and per-

haps ethical) considerations as to how the privacy of

the users still living in the home would be maintained.

Hypothetically, if that occupant were to move out of

https://www.dailymail.co.uk/news/article-10908487/Mo

ment-nightmare-neighbour-tried-destroy-disabled-mans-

doorbell-camera-claw-hammer.html accessed 24/01/04.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

874

the home, they could still have legal access to data

from within the smart home. An example demonstrat-

ing the risk of this concern is the case of how an es-

tranged spouse who moved from their home main-

tained remote access to the IoT devices

. They were

caught eavesdropping on conversations occurring in

a home they no longer lived in which points to a larger

ethical concern of smart homes: what ultimately be-

came a decisive factor in the case of the eavesdropper

were reports of spousal abuse. Technologically facil-

itated abuse is a growing research area with a sub-do-

main specifically looking at abuse within the home,

or what is referred to as IPV or intimate partner vio-

lence (Lopez-Neira et al., 2019). Although previous

literature has focused on economic species surveilling

users (Zuboff, 2015), IoT devices could potentially be

used by biological species to surveil each other, con-

tributing to an increased logic of surveillance

(Zuboff, 2015), i.e. how surveillance is increasingly

normalized as an unavoidable part of everyday life.

Ensuring ethical IoT usage among biological species

over time, especially when the relationships between

the species change, is a privacy risk of high societal

concern.

4.4 Agency of the Installer

Power dynamics among biological species add ten-

sions to privacy as primary users might restrict or

control the use and access to IoT devices (Bernd et

al., 2022). This can be understood as the agency of

the installer (Geeng & Roesner, 2019) which causes

all users to default to the settings determined by the

installer of the IoT device. In the present scenario,

only one occupant’s smartphone is connected to some

of the IoT devices and can therefore be assumed to be

the installer (see occupant #3 in Figure 2). The

skewed power dynamic refers to how the installer can

potentially abuse their ability to access IoT-generated

data thereby violating other users’ privacy. As dis-

cussed above, examples of this could include the dy-

namics among occupants (such as in cases of IPV) as

well as between occupants and bystanders (such as

nannies or neighbors). Additionally, parents surveil-

ling their children to ensure their safety (either re-

motely or from different parts of the home) could be

seen as another example of a privacy concern caused

by the agency of the installer. It is worth considering

the potential conflict between protecting a child’s

welfare and the child’s right to privacy; at what age is

it appropriate for the child to have control over their

https://www.bbc.com/future/article/20200511-how-smar

t-home-devices-are-being-used-for-domestic-abuse

accessed 24/01/04.

data and personal privacy, i.e. to opt out of IoT use?

Although the GDPR defines age limitation

, the

power dynamics between children and adults could

impact the exercising of such rights. Special attention

should therefore be paid to children in smart homes

to explore privacy concerns specific to their user

group.

5 DISCUSSION AND POINTERS

FOR FUTURE WORK

Although not an exhaustive list of concerns, four pri-

vacy-related scenarios have been analyzed contextu-

ally by conceptualizing a hypothetical smart home as

a DE. Corresponding to the activities defined in Table

1, a DE ontology and conceptual model have been de-

signed and applied to support the analyses of the

smart home concerns, each revealing notable privacy

tensions in need of more research and ethical consid-

eration. Firstly, it is currently dubious what kind of

legal responsibility economic species have regarding

the data that their IoT devices collect, generate, and

distribute. Within IoT forensics, it is not clear

whether biological species are required to hand over

data if called upon to support criminal investigations

(Grispos et al., 2021). This includes data from both

within the home and its surroundings which could vi-

olate bystanders’ right to privacy. Secondly, it is un-

clear to what extent economic species are required to

be proactive and preventative of criminal activity, for

example, in the detection of domestic abuse. In situa-

tions of IPV, one occupant’s right to privacy (perpe-

trator) could conflict with other occupants’ right to

safety (victim) which brings into question whether

economic species should be required to alert authori-

ties when there are suspicions of abuse. Although that

could be considered violating the occupant’s privacy,

it can also be seen as an ethical responsibility to draw

attention to cases of abuse in IPV situations. Thirdly,

opt-out options are essential to ensure the ethical

adoption of smart homes. Surveillance as an emerg-

ing logic might impose IoT use onto users such as by-

standers, children, or other smart home occupants.

Although there are many valuable applications, opt-

ing out of smart environments requires both technical

and social considerations of how such privacy prefer-

ences can be upheld. Lastly, ensuring children’s

safety could also motivate high levels of surveillance

from parents. A child’s right to privacy in smart

https://gdpr.eu/ accessed 24/01/04.

Smart Homes as Digital Ecosystems: Exploring Privacy in IoT Contexts

875

homes needs more research and further ethical con-

sideration as the power dynamics risk making it diffi-

cult to ensure such rights.

DSRM emphasizes the reiteration of the design

process. Future iterations can therefore consider how

the concept ontology could include additional sub-

classes of biological species such as children and by-

standers, to define privacy concerns specific to the

different user groups. Adding details to the ontology

increases its usefulness to different stakeholder

groups to support privacy analyzes. Moreover, devel-

oping templates for the layers of the conceptual

model could make the modelling process increasingly

systematic. For example, previous work on smart

home models (Pillai et al., 2012) could be considered

to develop device-specific system templates. Based

on the digital species defined in the structural layer,

templates might aid less tech-savvy stakeholders in

modelling the flow of data in the conceptual layer. An

alternative avenue for future work is to consider case

studies, an empirically strong evaluative method of

DSRM artifacts (Hevner et al., 2008). Specific cases,

for example, smart homes for health or medical care

are encouraged to consider potential changes to pri-

vacy preferences when IoT devices are used to facili-

tate care. Additionally, case studies about specific bi-

ological species, for example, children, domestic

workers, or bystanders could be conducted to inform

the ontology and its sub-classes in productive ways.

Continued evaluation in this sense could start build-

ing a collection of smart home contexts, conceptual-

ized as DEs, to facilitate an increased understanding

of privacy and how it changes based on the details of

the context.

6 CONCLUSION

Privacy is a central point of concern when dealing

with the ethics of smart home environments. As-

sessing privacy is complex, partly due to the diverse

set of stakeholders involved in delivering IoT services

and seen to the connotations of smart homes as a par-

ticularly private context. The main question for this

paper was to investigate how a smart home can be

conceptualized as a DE to support the contextual

analysis of privacy-related concerns. By following

the DSRM process, four privacy-related concerns of

a smart home context were discussed and yet, many

more remain in need of further consideration. The

ubiquity of smart technology and the high level of

user acceptance of IoT devices in the home might

give the impression of their longevity, however, there

is no preeminent understanding of how to address the

privacy concerns introduced by their use. Instead,

there is an array of perspectives adhering to different

stakeholder groups with different ways to mitigate the

unprecedented concern for users’ privacy. The contri-

bution of this paper is a DE ontology and conceptual

model to support the systematic analyzes of smart

home privacy. Although not exhaustive, by applying

the DE approach, four privacy-related scenarios have

been discussed. The concerns have been analyzed

contextually, anchored in a snapshot of a hypothetical

smart home constellation, including both technical

and social considerations of privacy. However, addi-

tional research is needed to empirically validate the

DE approach and its utility in supporting contextual-

ized privacy analyzes. By exploring it further, an ar-

senal of contextually defined user concerns could be

compiled to support the determination of similarities,

differences, and other nuances to privacy in a wide

range of IoT contexts, including but not limited to

smart homes.

REFERENCES

Alhirabi, N., et al. (2021). Security and privacy

requirements for the internet of things: A survey. ACM

Transactions on Internet of Things, 2(1), 1-37.

Anagnostopoulos, M., et al. (2020). Tracing your smart-

home devices conversations: A real world IoT traffic

data-set. Sensors, 20(22), 6600.

Bernd, J., et al. (2022). Balancing power dynamics in smart

homes: nannies' perspectives on how cameras reflect

and affect relationships. Eighteenth Symposium on

Usable Privacy and Security 687-706.

Bernd, J., et al. (2020). Bystanders’ Privacy: The

Perspectives of Nannies on Smart Home Surveillance.

10th USENIX Workshop on Free and Open

Communications on the Internet.

Briscoe, G., et al. (2011). Digital ecosystems: Ecosystem-

oriented architectures. Natural Computing, 10, 1143-

1194.

Bugeja, J., et al. (2021). PRASH: a framework for privacy

risk analysis of smart homes. Sensors, 21(19), 6399.

Dong, H., et al. (2007). Ontology-based digital ecosystem

conceptual representation. Third International

Conference on Autonomic and Autonomous Systems,

42-42. IEEE.

Elvy, S.-A. (2018). Commodifying consumer data in the era

of the internet of things. BCL Rev., 59, 423.

Geeng, C., & Roesner, F. (2019). Who's in control?

Interactions in multi-user smart homes. 2019 CHI

Conference on Human Factors in Computing Systems,

1-13.

Grispos, G., et al. (2021). A digital forensics investigation

of a smart scale iot ecosystem. IEEE 20th International

Conference on Trust, Security and Privacy in

Computing and Communications, 710-717.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

876

Haney, J.M., & Furman, S.M. (2023). User Perceptions and

Experiences with Smart Home Updates. IEEE

Symposium on Security and Privacy, 2867-2884. IEEE.

Hevner, A.R., et al. (2008). Design science in information

systems research. Management Information Systems

Quarterly, 28(1), 6.

Imtiaz, S., et al. (2019). On the case of privacy in the IoT

ecosystem: A survey. International conference on

internet of things and IEEE green computing and

communications and IEEE cyber, physical and social

computing and IEEE Smart data, 1015-1024. IEEE.

Indrawan, M., et al. (2007). Device Ecology: A micro

digital ecosystem. Inaugural IEEE-IES Digital

EcoSystems and Technologies Conference, 192-197.

Khanpara, P., et al. (2023). Toward the internet of things

forensics: A data analytics perspective. Security and

Privacy, 6(5), e306.

Koch, M. (2019). New RE Dimensions for Digital

Ecosystems-Initial Results from an Expert Interview

Study. 2019 IEEE 27th International Requirements

Engineering Conference (RE), 398-403. IEEE.

Lopez-Neira, I., et al. (2019). ‘Internet of Things’: How

abuse is getting smarter. Safe – The Domestic Abuse

Quarterly 63, 22-26.

Marky, K., et al. (2021). Roles matter! Understanding

differences in the privacy mental models of smart home

visitors and residents. 20th International Conference on

Mobile and Ubiquitous Multimedia, 108-122.

Mocrii, D., et al. (2018). IoT-based smart homes: A review

of system architecture, software, communications,

privacy and security. Internet of Things, 1, 81-98.

Nissenbaum, H. (2004). Privacy as contextual integrity.

Wash. L. Rev., 79, 119.

Peffers, K., et al. (2006). Design science research process:

a model for producing and presenting information

systems research. First International Conference on

Design Science Research in Information Systems and

Technology, 83-106.

Phillips, M.A., & Ritala, P. (2019). A complex adaptive

systems agenda for ecosystem research methodology.

Technological Forecasting and Social Change, 148,

119739.

Pillai, K., et al. (2012). Hierarchy model to develop and

simulate Digital Habitat Ecosystem Architecture. IEEE

Student Conference on Research and Development,

203-209. IEEE.

Qashlan, A., et al. (2021). Privacy-preserving mechanism

in smart home using blockchain. IEEE Access, 9,

103651-103669.

Reinisch, C., et al. (2010). ThinkHome: A smart home as

digital ecosystem. 4th IEEE International Conference

on Digital Ecosystems and Technologies, 256-261.

IEEE.

Rzevski, G. (2019). Intelligent multi-agent platform for

designing digital ecosystems. Industrial Applications of

Holonic and Multi-Agent Systems: 9th International

Conference, 29-40. Springer.

Seymour, W., et al. (2020). Strangers in the room:

unpacking perceptions of'smartness' and related ethical

concerns in the home. ACM Designing Interactive

Systems Conference, 841-854.

Stanchev, P.L., et al. (2017). Enhanced user experience and

behavioral patterns for digital cultural ecosystems. 9th

International Conference on Management of Digital

EcoSystems, 287-292.

Warren, S., & Brandeis, L. (1989). The right to privacy. In

Killing the Messenger: 100 Years of Media Criticism

(pp. 1-21). Columbia University Press.

Westin, A.F. (1968). Privacy and freedom. Washington and

Lee Law Review, 25(1), 166.

Zuboff, S. (2015). Big other: surveillance capitalism and

the prospects of an information civilization. Journal of

information technology, 30(1), 75-89.

Smart Homes as Digital Ecosystems: Exploring Privacy in IoT Contexts

877
