Reward Design for Deep Reinforcement Learning Towards Imparting

Commonsense Knowledge in Text-Based Scenario

Ryota Kubo

, Fumito Uwano

2 a

and Manabu Ohta

2 b

School of Engineering, Okayama University, 3-1-1 Tsushima-naka, Kita-ku, Okayama, Japan

Faculty of Environmental, Life, Natural Science and Technology, Okayama University, 3-1-1 Tsushima-naka, Kita-ku,

Okayama, Japan

Keywords:

Commonsense Knowledge, Reinforcement Learning, Deep Q-Network, Reward Design.

Abstract:

In text-based reinforcement learning, an agent learns from text to make appropriate choices, with a focus on

addressing challenges associated with imparting commonsense knowledge to the learning agent. The com-

monsense knowledge requires the agent to understand not only the context but also the meaning of textual

data. However, the methodology has not been established, that is, the effects on the agents, state-action space,

reward, and environment that constitute reinforcement learning are not revealed. This paper focused on the

reward for the commonsense knowledge to propose a new reward design method on the existing learning

framework called ScriptWorld. The experimental results let us discuss the inﬂuence of the reward on the

acquisition of commonsense knowledge by reinforcement learning.

1 INTRODUCTION

The emergence of ChatGPT

endows us with not

only knowledge from big data but also an intelligent

communication agent. Such a technique boosts re-

search on artiﬁcial intelligence technologies that use

text data as input. Text is so valuable that we can

learn a lot of complex things from text. However,

it is hard for an agent to learn from text-based data.

In particular, the text includes commonsense knowl-

edge that confuses the agent learning. The com-

monsense knowledge requires the agent to understand

not only the context but also the meaning of tex-

tual data. Generally, commonsense knowledge is the

general and widely applicable knowledge that forms

the basis for human beings to make everyday judg-

ments, such as “sufﬁcient light is necessary when

reading a book” and “turning on a light switch makes

a room brighter”. Although this knowledge is taken

for granted by humans, it is difﬁcult for the agents to

acquire this knowledge because it is not learned from

textbooks and is not obtained systematically. On the

other hand, the agent needs to acquire a large amount

of commonsense knowledge to achieve the same level

https://orcid.org/0000-0003-4139-2605

https://orcid.org/0000-0002-9005-2458

https://chat.openai.com

of decision-making ability as humans, and the acqui-

sition of commonsense knowledge by reinforcement

learning agents is an important issue.

Reinforcement learning (RL) performs in multi-

step decision-making where the agent attempts to

make a decision at its state. The state transitions to

the next state by following the decision, and this cycle

repeats until the learning process is terminated (Sut-

ton and Barto, 1998). RL aims to enable the agent

to reﬁne its policy which inﬂuences the immediate

and the future decision. ChatGPT utilizes RL tech-

niques by using the users’ prompt information as hu-

man feedback. This research focuses on the decision-

making for text-based RL rather than communication

between a human and ChatGPT, especially, how RL

learns knowledge from text data with commonsense

knowledge.

The agent learns from text data in the frame-

work of Interactive Fiction Games (IFG) (Hausknecht

et al., 2020). IFG is an interactive game using nat-

ural language, in which players take appropriate ac-

tions based on sentence input as states to achieve their

goals. Speciﬁcally, the states, actions and rewards are

constructed based on textual descriptions and RL is

conducted to learn the relationship between sentences

(state transitions) and the commands (actions) that are

connected to them. Especially, in IFG, the agents

need to acquire commonsense knowledge and achieve

Kubo, R., Uwano, F. and Ohta, M.

Reward Design for Deep Reinforcement Learning Towards Imparting Commonsense Knowledge in Text-Based Scenario.

DOI: 10.5220/0012456900003636

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2024) - Volume 3, pages 1213-1220

ISBN: 978-989-758-680-4; ISSN: 2184-433X

1213

a semantic understanding of the text. Recently, Joshi

et al. have pointed out that IFG are far from real-

world scenarios, and have proposed ScriptWorld as

a new environment to solve this problem (Joshi et al.,

2023). ScriptWorld enables reinforcement learn-

ing agents to learn commonsense knowledge by us-

ing real scenarios based on human life and thus en-

ables learning that assumes application to real-world

problems. The commonsense knowledge, which is

the goal of ScriptWorld, is the knowledge that helps

computer agents take appropriate actions based on se-

mantical similarity among actions in a scenario and

appears as a parameter of neural networks in deep

reinforcement learning. Repeating the learning pro-

cess and updating parameters enables the acquisition

of commonsense knowledge to choose actions based

on the real world. This knowledge leads to endowing

the agent with the ability for commonsense reasoning.

Although the above works focused on imparting

commonsense knowledge to a learning agent, com-

monsense knowledge was not deﬁned in machine

learning, yet. For instance, the agent learns from one

of the scenarios in ScriptWorld. Joshi et al. at-

tempt to transfer the learning outcome to another sce-

nario such that the agent uses commonsense knowl-

edge for the prior scenario to perform in the next sce-

nario. However, there is no mechanism to accomplish

such transfer in the learning agent (Joshi et al., 2023).

Therefore, we discuss commonsense knowledge to

classify it into some types and propose a new reward

design method to enable an agent to learn the com-

monsense knowledge for such transfer. Concretely,

we classify commonsense knowledge into two dis-

crete types: event-level commonsense knowledge and

scenario-level commonsense knowledge. In addition,

we propose a new method for a preliminary study

in terms of the reward design in ScriptWorld. In

the experiment, we can see the results of introducing

deep reinforcement learning into ScriptWorld, and

then the effect of feeding rewards into it. At the end,

we discuss the commonsense knowledge for learn-

ing agents and show the practical reward design tech-

niques.

This paper is organized as follows. Section 2 in-

troduces the mechanisms of RL and Deep Q-Network

(DQN) (Mnih et al., 2015) which is the deep RL

method adopted in the experiment. Section 3 shows

ScriptWorld in detail. Section 4 shows related

works. Then, Section 5 describes the proposal, that is,

the introduction method of DQN into ScriptWorld

and the brief method to impart rewards into it. The

experimental results and the discussion are summa-

rized in Section 6. Finally, this paper concludes in

Section 7.

2 BACKGROUND

2.1 Reinforcement Learning

Reinforcement Learning (RL) (Sutton and Barto,

1998) attempts to select an appropriate action for each

situation in the environment, and learns that selection

rule as policy by using a reward. The reward is a value

for a clue to evaluate the action comparing the cur-

rent situation with the goal. Speciﬁcally, the agent ob-

serves its state s from the environment, selects an ac-

tion a by the state value V (s) as the value of the state

s or by the state-action value Q(s, a) as the value of

the action a at the state s, and updates V (s) or Q(s, a)

by using the reward resulting from the action a at the

state s. Note that the iteration is called “step” in this

paper. The state value V (s) is calculated by the fol-

lowing equation as a recursive equation based on the

Bellman equation:

(s) =

∑

a∈A(s)

π(a|s)

∑

′

∈S

P(s

′

|s, a)(r(s, a, s

′

)

+ γV

′

)), (1)

where the next state is denoted by s

′

. The policy π is

a set of selection probabilities for all actions at each

state, and the selection probability for action a at state

s is denoted as follows:

π(a|s) = P(a

= a|s

= s). (2)

The state-action value in Q-learning is denoted as the

following equation (3):

(s, a) =

∑

′

∈S

P(s

′

|s, a)(r(s, a, s

′

)

∑

′

∈A(s

′

)

γπ(a

′

, a

′

)), (3)

where s, a, s

′

, and a

′

denote as the current state, the

executed action at the current state, the next state, and

the next executed action, respectively. The action a

′

belongs to the set A(s

′

) at the state s

′

. The discount

rate is denoted as γ.

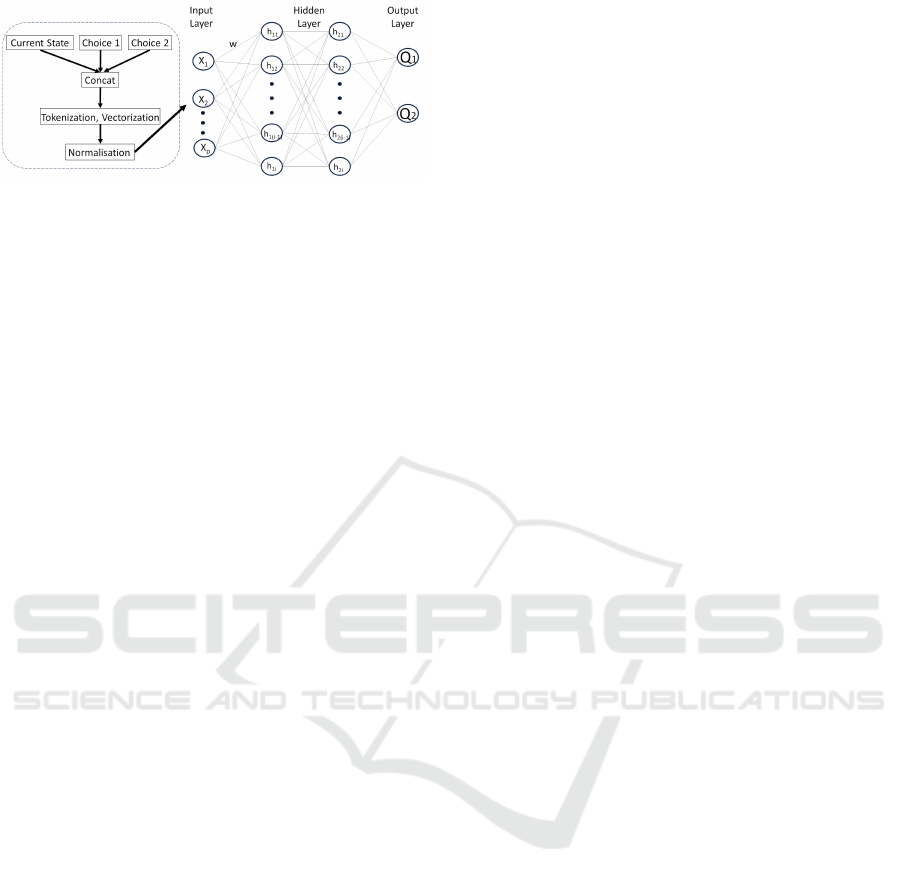

2.2 Deep Q-Network

Deep Q-Network (DQN) (Mnih et al., 2015) is a re-

inforcement learning method that introduces a neural

network to Q-learning. The neural network consists

of three different layers: an input layer, a hidden layer,

and an output layer, and a deep neural network with

n hidden layers is introduced in this paper. The goal

of this neural network is to output in the output layer

a Q-value. This represents the value of the action in

the input layer for the number of actions k in the input

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

1214

state. In the hidden layer, the outputs in each layer are

passed as inputs to the next layer, and as the number

of hidden layers n increases, more complex problems

can be dealt with. Learning is achieved by calculating

the Q-value for the selected next state, calculating the

loss function between the Q-value and the output of

the neural network, and updating the weights by per-

forming error backpropagation. The loss function is

the mean squared error (MSE), which is calculated as

follows:

MSE =

∑

i=1

( ¯y

− y

)

. (4)

where n, ¯y, and y denote the number of data, the pre-

dicted value, and the target value.

3 ScriptWorld

In this section, we introduce ScriptWorld (Joshi

et al., 2023) proposed as a framework for reinforce-

ment learning that gives commonsense knowledge.

3.1 Text Data Modeling and

Commonsense Knowledge

We use an existing script corpus (DeScript (Wanzare

et al., 2016)) to create the ScriptWorld environment.

DeScript provides ESDs (Event Sequence Descrip-

tions)



, E

, ..., E



, which are temporal event

descriptions for a given scenarioS

. ESDE

consists

of a short description of events that describe the be-

havior



)

, e

)

, ..., e

)



. In DeScript, events of

different ESDs are combined by semantic similarity

by humans. For example, in the Washing Dishes sce-

nario, the events “put dishes in the sink” (e

(

Wash

)

and “take dirty dishes to sink” (e

(

Wash

)

) are clustered

into a single process. ScriptWorld aims to enable

agents to acquire commonsense knowledge by creat-

ing a reinforcement learning environment by graphi-

cally representing DeScript models.

3.2 Creating a Graph

The ﬁrst step in creating the environment is to graph

the scenarios. First, semantically similar events in

different ESDs are clustered. Next, the clusters are

used as nodes, and the nodes are connected based

on the order of the events to create a directed graph.

If there is at least one event in node p that follows

the event in node q, an edge is created from p to q.

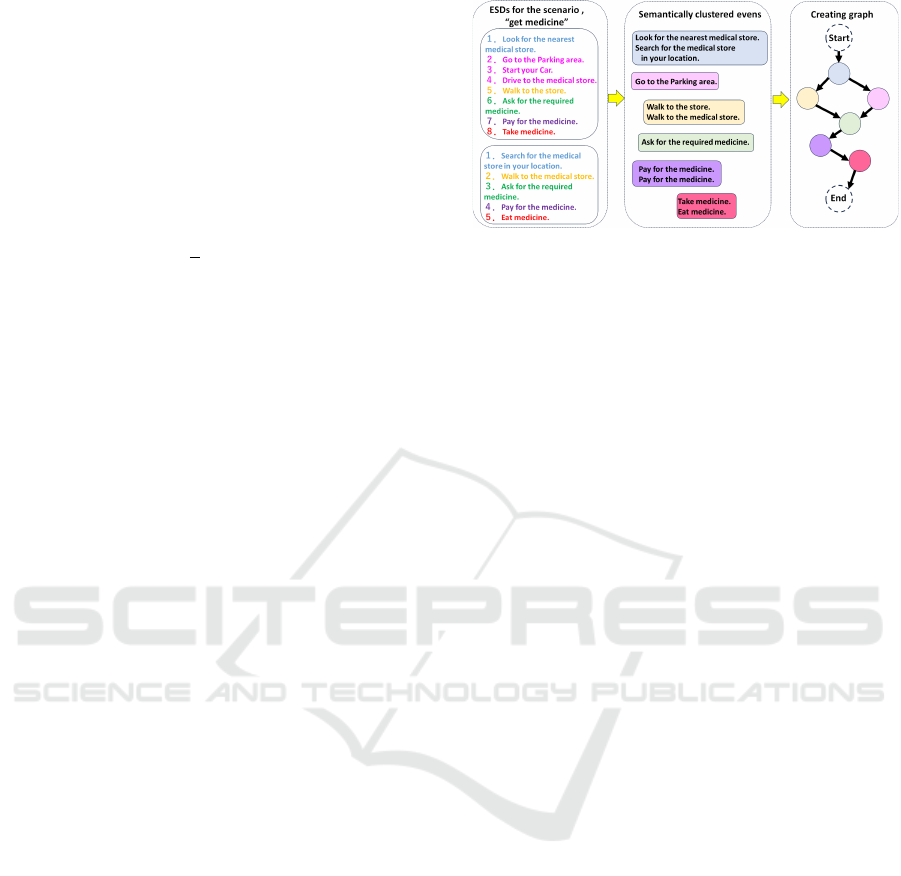

Figure 1: Process for creating an environmental graph from

ESDs for the scenario of “getting medicine.”

Figure 1 illustrates the speciﬁc ﬂow. ESD for the

“getting medicine” scenario consists of the following

eight events: 1) Look for the nearest medical store, 2)

Go to the Parking area, 3) Start your car, 4) Drive to

the medical store, 5) Walk to the store, 6) Ask for the

required medicine, 7) Pay for the medicine, 8) Take

medicine. There are several possible patterns of ESDs

when the number of events is small or when the word-

ing is different. Therefore, we cluster events that are

semantically similar between different ESDs (Figure

1 central). The three events, “pay for medicine,” “pay

the fee,” and “pay at the cash register,” are events in

different ESDs, but they are semantically similar and

can be grouped into the same cluster. Next, a graph

is created with the clustered events as nodes (Figure

1 right). After the nodes are created, the nodes of the

cluster containing successive events in ESD are con-

nected by edges. For example, since the events “going

to the parking lot” and “starting the car” are sequen-

tial in ESD, the node containing the event “going to

the parking lot” is connected to the node containing

the event “starting the car” by an edge.

3.3 Creating Environment

An environment is created by using the created graph.

Reinforcement learning agents observe nodes in the

graph as states and learn to make the correct choice

among the possible choices. In a single cluster, there

may be multiple actions with similar meanings, so one

of them is chosen as the correct choice. Reinforce-

ment learning also requires learning false choices, so

we use the temporal properties of the graph to cre-

ate false choices. As a graph contains the sequence

of actions to perform a speciﬁc subtask, all actions

in nodes that are far from the current node become

invalid for the current state. Therefore, we sample in-

valid actions according to different distances and give

them to the agents as choices. This allows the rela-

tionship of all alternatives to each scenario to be rep-

resented in the learning environment, facilitating un-

Reward Design for Deep Reinforcement Learning Towards Imparting Commonsense Knowledge in Text-Based Scenario

1215

derstanding of the order in which events are selected

to achieve the objective.

3.4 Setting Rewards

The agent gets a negative reward of −1 for choos-

ing the wrong choice. If the agent make an incorrect

choice for ﬁve consecutive times, it will receive an

additional reward of −5. No reward (reward: 0) is

earned when the correct choice is made. The agent

also receives a positive reward of 10 if the task is com-

pleted. The training is terminated when the total re-

ward is less than −5. When a wrong choice is made,

the agent returns to the previous state, and the agent

learns by choosing the choice again.

3.5 Handicaps

In ScriptWorld, the environment may be too com-

plex for agents to learn from scratch. Therefore, hand-

icaps are provided for each state to reduce the com-

plexity. Handicaps give a short sentence hint for the

next action in the current state. The title of the sce-

nario and a description of the events in the current

state are given to GPT2, which automatically gener-

ates hints by sampling from a large number of gener-

ated handicaps.

4 RELATED WORK

Reward design is a long-standing topic in RL. Ng

et al. proposed potential-based reward shaping as a

function (Ng et al., 1999). The reward shaping func-

tion guarantees to learn the optimal policy theoreti-

cally. Thus, there are many works by inheriting from

the potential-based reward shaping (Devlin and Ku-

denko, 2012; Mannion et al., 2018).

On the other hand, Russell proposed Inverse Rein-

forcement Learning (IRL) as a modiﬁcation to the re-

ward function for preserving the optimal policy (Rus-

sell, 1998). In particular, IRL is given expert data to

enable an agent to demonstrate the expert. For exam-

ple, IRL trains an agent to manipulate a drone using

human-manipulation data. Although the IRL is usu-

ally applied to robotics and auto-driving, the expert

data is not always effective for all circumstances. For

instance, Kuderer et al. applied IRL to learning from

an automobile driving data to estimate model param-

eters and proposed the auto-driving method following

each individual driving style (Kuderer et al., 2015).

Wu et al. revealed demands in auto-driving: (1) han-

dling the sequentiality, vehicle kinematics, and unsta-

bleness contained in automobile trajectory, and (2) in-

terpretability and generalization ability of the element

in the reward estimation in IRL (Wu et al., 2020).

However, IRL should perform the best in text-based

games like ScriptWorld where the expert data as the

scenario are completed.

As for commonsense knowledge, Brown et al.

showed T-REX as a reward function estimation

method enabling an agent to learn optimal policy us-

ing only sub-optimal expert data. In short, T-REX

can complement the reward function by inferring

the true reward function for the developer (Brown

et al., 2019). Therefore, T-REX can impart the

scenario-level commonsense knowledge to an agent

in ScriptWorld, and the IRL is familiar with the text-

based RL because it utilizes the expert data as real-

world data. We will introduce the IRL technique into

this work to learn both levels of commonsense knowl-

edge in the future.

5 PROPOSAL

5.1 Introducing Deep Reinforcement

Learning

The goal of ScriptWorld imparts commonsense

knowledge to the agent. However, Q-learning, or a

typical reinforcement learning method, cannot learn

commonsense knowledge. This is because the fact

that Q-learning does not have a generalization mech-

anism, since Q-values are computed for each set of

states and actions. Neural networks can be introduced

as a method to provide a generalization mechanism.

We believe that the introduction of a DQN with a neu-

ral network will lead to a generalization mechanism

because it will allow learning by adjusting parame-

ters. Figure 2 shows the neural network model used

in DQN and input data. In this diagram, the number

of actions k is 2 and the number of hidden layers is 2,

the number of units in the output layer is k. The input

to the neural network is the concatenation of the cur-

rent state with the data of the choices. Note that when

calculating the Q-value in the next state, no concate-

nation with choices is made. Without concatenation,

the output Q-value only represents the value of the

number of choices presented in the input state. The

concatenated data is tokenised and vectorised, then

normalised by dividing by 10000 and used as input

to the neural network.

Batch processing is carried out during the learning

process. For batch processing, variables representing

the current state, choice number, the reward, the next

state chosen from choices, and a variable whether the

episode has ended are stored in memory for each ac-

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

1216

Figure 2: Neural network model used in DQN and input

data

tion selection. An episode is deﬁned as the time from

the start to the goal or game over in the ScriptWorld

environment. Information is batched up to a batch

size of 10, or the state has reached its goal. Mem-

ory is cleared after each learning. As for learning, the

loss function is calculated for the output of the neural

network, and the weights w are updated by error back

propagation, which is repeated.

5.2 Reward Design

In ScriptWorld, the agent received positive rewards

only when a task was completed. This reward de-

sign allows for the evaluation of the entire scenario

but does not allow for the evaluation of partial event

groups within the scenario. There are common el-

ements in partial event groups that are shared with

other scenarios. For example, the event of “Paying

money” is common to both “buying a car” and “eating

out”. Learning elements shared with other scenarios

means that the knowledge acquired in one scenario

holds signiﬁcance in other scenarios as well, lead-

ing to the acquisition of commonsense knowledge.

Events that are common to other scenarios and con-

tribute to commonsense knowledge are thought to be

located within parts of a scenario rather than across

the entire scenario. Therefore, we propose a brief

method to set a reward in ScriptWorld. Speciﬁcally,

it changes the reward design so that the rewards can

be obtained even for events in the middle of graphs.

This time, the node with the highest number of

connected nodes in the ScriptWorld graph is set as

a sub-goal, so that the reward can be obtained there

as well, apart from at the goal. The most connected

nodes are considered to be the most important actions

in the scenario. The main action in a scenario with a

high level of importance has a large meaning in itself

and is likely to have a large meaning in other scenarios

as well, leading to commonsense knowledge.

6 EXPERIMENTS

6.1 Experiment 1: Deep Q-Network in

ScriptWorld

6.1.1 Experimental Setup 1

We analyze the behavior of DQN on ScriptWorld

and discuss the function of neural networks in the

acquisition of commonsense knowledge. The agent

was evaluated with percentage completion as a crite-

rion, an index that expresses the percentage of states

reached from the start to the goal.

In this experiment, the number of actions per state

was set to 2, the permissible number of mistakes in a

single trial was set to 5, the number of nodes to back-

track when a choice was incorrect was set to 1, the

seed value was set to 42, and the number of episodes

was set to 10, 000.

Keras was used to build a deep reinforcement

learning model in DQN, which consists of two hid-

den layers with 256 units each and an output layer

with units for the number of action options. ReLU

is used as the activation function, mean squared error

as the loss function, Adam as the optimisation algo-

rithm. SentencePiece is used to tokenize and vector-

ize strings for input to the neural network model. As

for the parameters for the DQN, we set the learning

rate α to 0.001 and the discount rate gamma γ to 0.95.

Then, ε-greedy selection was used for action selec-

tion, with the value of ε gradually decreasing, so that

random search gradually decreases. The initial value

of ε is set to 1.0, and 0.995 is multipled by ε each

time for training session. This process is repeated for

training session until ε becomes smaller than 0.001.

6.1.2 Result 1

Figure 3 shows the experimental result by compar-

ing the performances of DQN with Q-learning. The

vertical axis indicates the percentage completion, and

the horizontal axis indicates the number of episodes.

Note that the percentage completion of each result

is calculated as a moving average over a window

of 30 intervals. The scenario of this experiment is

”taking a bath”. The result shows that the percent-

age completion gradually increases as the number of

episodes increases, indicating successful learning for

DQN, while Q-learning fails to learn. Figure 4 shows

the difference in the performance when the number

of mistakes allowed in one trial life was set by 5 and

20. In this experiment, the results show that increas-

ing the life to 20 is more efﬁcient for learning, which

ends up with the percentage completion reaching 100.

Reward Design for Deep Reinforcement Learning Towards Imparting Commonsense Knowledge in Text-Based Scenario

1217

Figure 3: Result of MAPC introducing DQN for the sce-

nario “taking a bath” .

Figure 4: Results of MAPC for the different number of

times the agent can fail for the scenario “taking a bath”.

The result of the experiment in which the scenario

was changed to “baking a cake” is shown in Figure5.

The moving average interval is set to 100 to make the

comparison easier to understand. The result shows

that the agent successfully learned in the other sce-

narios as well.

6.1.3 Discussion 1

From the results, Q-learning estimates appropriate Q-

values for all associated patterns of states and ac-

tions, resulting in failure to learn in a situation where

there exist many patterns. On the other hand, the

introduction of DQN has enabled successful learn-

ing by allowing the neural network to abstract in-

put data. Thus, the ScriptWorld enables the neural

learning agent to acquire commonsense knowledge in

a way that subsumes the different inputs as the same.

This paper calls such knowledge as event-level com-

monsense knowledge. The event-level commonsense

knowledge is not used for transfer learning.

On the other hand, we discuss the inﬂuence of

the reward by using the Figure 4. In particular,

ScriptWorld has a positive reward only in the goal,

while it has negative rewards for the mistakes. Thus,

Figure 5: Results of MAPC for the scenario “taking a bath”

and “baking a cake”.

Table 1: Percentage of positive rewards and goals.

Life Positive Reward(%) Goal(%)

5 0.117 0.117

20 0.348 0.646

increasing the number of lives allowed the agent to

explore more, resulting in increasing the probability

where it reaches the goal and learns with positive re-

wards.

Table 1 shows the rates of episodes for resulting

in a positive accumulated reward and for resulting in

the ﬁnal goal. The table shows the increasing per-

centage of positive rewards as increasing the number

of mistakes the agent can make. This suggests that

the reward function of the ScriptWorld is so simple

that the agent cannot learn the relationship between

events associated with each other. For instance, when

the agent learns a policy from the scenario “riding

on a bus” to the scenario “going on a train” based

on commonsense knowledge, it should describe ac-

tions such as boarding the vehicle at the departure

and disembarking at the destination. Events occur-

ring before boarding the vehicle or after reaching the

destination should be excluded. However, the cur-

rent reward function imparts the knowledge of entire

events to the agent. In contrast, the results show that

the precise reward function can enable an agent to

utilize its learned commonsense knowledge for any

scenario. Such commonsense knowledge is differ-

ent from event-level commonsense knowledge and is

called scenario-level commonsense knowledge in this

paper. The reward design in this paper should enable

the agent to acquire both commonsense knowledge.

In addition, such reward function seems to contribute

to the learning efﬁciency in ScriptWorld.

For instance, the learning accuracy is different

with scenarios, which is inﬂuenced by the complexity

of the graph. The reward design might solve the prob-

lem. Table 2 shows the number of nodes in the graph

for the two scenarios and the percentage of episodes

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

1218

Table 2: The number of nodes.

Scenario Nodes Goal(%)

taking a bath 32 0.117

baking a cake 28 0.239

that reach the goal. The table shows that the “baking

a cake” scenario has more nodes and the percentage

of goals achieved is smaller. This suggests that as the

number of nodes increases, the number of possible

routes increases, the graph becomes more complex,

and it becomes more difﬁcult to reach the goal. There-

fore, the reward design promotes the agent to learn to

reach the goal if it adds rewards as sub-goals.

6.2 Experiment 2: Reward Design

6.2.1 Experimental Setup 2

In this section, we discuss the relationship between

rewards and commonsense knowledge acquisition by

reviewing the reward design to set sub-goals. The pa-

rameters are the same as in 6.1.1, and in the scenario

”taking a bath”, the node “wash/take shower”, which

has the most connected nodes, is set as a sub-goal, and

it is rewarded with 3.

If an agent makes a wrong choice and returns to

the previous node and reaches the sub-goal more than

once, the agent will receive the reward for the sub-

goal only once. In the “baking a cake” scenario, a

sub-goal is also set and tested. In this scenario, the

node “wait” is the most frequently connected, so this

node is set as a sub-goal, and agents get reward 3 for

passing the sub-goal.

6.2.2 Result 2

Figure 6 shows the results of the experiment with sub-

goals. The yellow line represents the percentage com-

pletion with sub-goals, while the blue line represents

it without sub-goals. The result is presented as the

moving averages of the percentage completion over

100 intervals. The ﬁndings suggest that the accuracy

of learning improves when a sub-goal is set. Further-

more, for another scenario, the experimental results

for the “baking a cake” scenario are illustrated in Fig-

ure 7. The results indicate that setting a sub-goal leads

to a decrease in learning accuracy.

6.2.3 Discussion 2

The results show the effectiveness of the brief sub-

goal method such that setting sub-goal at the appro-

priate state promoted the agent to learn for reaching

the goal. Compared to the case where positive re-

wards are only given at the goal, having positive re-

Figure 6: Results of MAPC w/ and w/o a subgoal for the

scenario “taking a bath”.

Figure 7: Results of MAPC w/ and w/o a subgoal for the

scenario “baking a cake”.

wards provided at intermediate nodes as well leads to

an increase in the proportion of learning due to posi-

tive rewards. It can be considered that the increase in

the total reward value is also attributed to the setting

of sub-goals.

In the “baking a cake” scenario, the results sug-

gests that setting sub-goals does not necessarily lead

to an improvement in learning accuracy. It is under-

stood that the number of connected nodes is insufﬁ-

cient as a condition for setting sub-goals. As a possi-

ble condition for setting sub-goals, the number of by-

pass routes could be considered. In the “taking a bath”

scenario, there is only one edge that is a bypass, mov-

ing from a node that is temporally before the sub-goal

to a node after the sub-goal without passing through

the sub-goal, whereas in the “baking a cake” scenario,

there are six edges that do not pass through the sub-

goal. Figure 8 shows the results of an experiment

with three different sub-goals in the “baking a cake”

scenario. The three sub-goals are chosen in order of

the number of nodes connected in the scenario. Ta-

ble 3 also shows the number of connected nodes at

each sub-goal and the number of bypass routes that

do not pass through the sub-goal. From Figure 8 and

Table 3, it can be seen that the “put-cake-oven” with

a small number of bypass routes has a higher learning

accuracy. This suggests that the number of bypasses

is important for setting sub-goals.

Reward Design for Deep Reinforcement Learning Towards Imparting Commonsense Knowledge in Text-Based Scenario

1219

Figure 8: MAPC with various sub-goals for “baking a

cake”.

Table 3: Various sub-goals.

Subgoal Connected nodes Bypass

put-cake-oven 9 2

wait 11 6

prepare-ingredients 9 4

7 CONCLUSION

This paper focused on the generalization and learning

mechanisms of deep reinforcement learning and ana-

lyzed the learned commonsense knowledge. In par-

ticular, we discussed the impact of neural networks

on the acquisition of commonsense knowledge and

the challenges of ScriptWorld in terms of reward de-

sign. The experiment showed that DQN outperforms

Q-learning in ScriptWorld, which indicates that the

neural network generalized the input as event-level

commonsense knowledge. In addition, we found that

the brief method to impart sub-goals sometimes im-

proved the learning accuracy, indicating that the re-

ward design was effective.

One of the future work is to establish the reward

design method for imparting scenario-level common-

sense knowledge. To acquire such commonsense

knowledge, it is necessary to focus not only on the

scenario but also on partial actions within the sce-

nario. In fact, it was found that setting sub-goals is

effective to some extent, but there are still issues to be

addressed regarding the placement of these sub-goals.

The method we are considering is to set a reward for

every node and change the value of the reward accord-

ing to the importance of each node. Another aspect of

this environment is that the success rate of reaching

the goal is low, and the data used for learning often

has a negative component. It could be devised in such

a way that data with a positive element would be heav-

ily reﬂected in the learning process. In addition, since

Handicap is available in ScriptWorld, we would like

to consider how to utilize it to further improve learn-

ing efﬁciency.

REFERENCES

Brown, D., Goo, W., Nagarajan, P., and Niekum, S. (2019).

Extrapolating beyond suboptimal demonstrations via

inverse reinforcement learning from observations. In

Proceedings of the 36th International Conference on

Machine Learning, ICML ’19, pages 783–792, Long

Beach, California, USA.

Devlin, S. and Kudenko, D. (2012). Dynamic potential-

based reward shaping. In Proceedings of the 11th

International Conference on Autonomous Agents and

Multiagent Systems - Volume 1, AAMAS ’12, page

433–440.

Hausknecht, M., Ammanabrolu, P., C

e, M.-A., and Yuan,

X. (2020). Interactive ﬁction games: A colossal ad-

venture. Proceedings of the AAAI Conference on Ar-

tiﬁcial Intelligence, 34(05):7903–7910.

Joshi, A., Ahmad, A., Pandey, U., and Modi, A. (2023).

Scriptworld: Text based environment for learning pro-

cedural knowledge. In Proceedings of the Thirty-

Second International Joint Conference on Artiﬁcial

Intelligence, IJCAI-23. Main Track.

Kuderer, M., Gulati, S., and Burgard, W. (2015). Learning

driving styles for autonomous vehicles from demon-

stration. In 2015 IEEE International Conference on

Robotics and Automation (ICRA), pages 2641–2646.

Mannion, P., Devlin, S., Duggan, J., and Howley, E. (2018).

Reward shaping for knowledge-based multi-objective

multi-agent reinforcement learning. The Knowledge

Engineering Review, 33:e23.

Mnih, V., Kavukcuoglu, K., Silver, D., Rusu, A. A., Ve-

ness, J., Bellemare, M. G., Graves, A., Riedmiller,

M., Fidjeland, A. K., Ostrovski, G., Petersen, S.,

Beattie, C., Sadik, A., Antonoglou, I., King, H., Ku-

maran, D., Wierstra, D., Legg, S., and Hassabis, D.

(2015). Human-level control through deep reinforce-

ment learning. Nature, 518(7540):529–533.

Ng, A. Y., Harada, D., and Russell, S. J. (1999). Pol-

icy invariance under reward transformations: Theory

and application to reward shaping. In Proceedings

of the Sixteenth International Conference on Machine

Learning, ICML ’99, page 278–287.

Russell, S. (1998). Learning agents for uncertain en-

vironments (extended abstract). In Proceedings of

the Eleventh Annual Conference on Computational

Learning Theory, COLT’ 98, page 101–103, New

York, NY, USA.

Sutton, R. S. and Barto, A. G. (1998). Introduction to Re-

inforcement Learning. MIT Press, Cambridge, MA,

USA, 1st edition.

Wanzare, L. D. A., Zarcone, A., Thater, S., and Pinkal, M.

(2016). A crowdsourced database of event sequence

descriptions for the acquisition of high-quality script

knowledge. In Proceedings of the Tenth International

Conference on Language Resources and Evaluation

(LREC’16), pages 3494–3501.

Wu, Z., Sun, L., Zhan, W., Yang, C., and Tomizuka, M.

(2020). Efﬁcient sampling-based maximum entropy

inverse reinforcement learning with application to au-

tonomous driving. IEEE Robotics and Automation

Letters, 5(4):5355–5362.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

1220
