EAPC: Emotion and Audio Prior Control Framework for the Emotional

and Temporal Talking Face Generation

Xuan-Nam Cao

1,2 a

, Quoc-Huy Trinh

1,2 b

, Quoc-Anh Do-Nguyen

1,2 c

, Van-Son Ho

1,2 d

Hoai-Thuong Dang

1,2 e

and Minh-Triet Tran

1,2 f

Faculty of Information Technology, University of Science, Ho Chi Minh City, Vietnam

Vietnam National University, Ho Chi Minh City, Vietnam

ﬁ

Keywords:

Landmark Generation, Talking Head, Dual-LSTM, Acoustic Features.

Abstract:

Generating realistic talking faces from audio input is a challenging task with broad applications in ﬁelds

such as ﬁlm production, gaming, and virtual reality. Previous approaches, employing a two-stage process of

converting audio to landmarks and then landmarks to a face, have shown promise in creating vivid videos.

However, they still face challenges in maintaining consistency due to misconnections between information

from the previous audio frame and the current audio frame, leading to the generation of unnatural landmarks.

To address this issue, we propose EAPC, a framework that incorporates features from previous audio frames

with the current audio feature and the current facial landmark. Additionally, we introduce the Dual-LSTM

module to enhance emotion control. By doing so, our framework improves the temporal aspects and emotional

information of the audio input, allowing our model to capture speech dynamics and produce more coherent

animations. Extensive experiments demonstrate that our method can generate consistent landmarks, resulting

in more realistic and synchronized faces, leading to the achievement of our competitive results with state-of-

the-art methods. The implementation of our method will be made publicly available upon publication.

1 INTRODUCTION

Generating a talking face from audio involves creat-

ing a realistic face based on the audio input and a ref-

erence face to be generated. This technique holds sig-

niﬁcant value with widespread applications in ﬁlm,

gaming, virtual reality, education, and communica-

tion. It contributes to enhanced immersion, story-

telling, and character development by precisely syn-

chronizing facial expressions with audio cues.

With the advancement of Deep Learning, previ-

ous works have demonstrated notable performance in

generating realistic faces. Recently MEAD (Wang

et al., 2020), and CREMA-D (Cao et al., 2014) have

been introduced a high-quality audio-visual dataset

and a pipeline for high-quality talking face genera-

https://orcid.org/0000-0002-3614-7982

https://orcid.org/0000-0002-7205-3211

https://orcid.org/0009-0006-7664-4613

https://orcid.org/0000-0002-8389-2176

https://orcid.org/0009-0009-2127-1364

https://orcid.org/0000-0003-3046-3041

tion. Since then, several methods have been proposed

to address this challenge, and these approaches can

be divided into two main categories. Firstly, sev-

eral approaches such as Speech2Vid (Chung et al.,

2017), Conditional Recurrent Adversarial Network

(Song et al., 2019), the method proposed by Mittal

et al.(Mittal and Wang, 2020), and Sinha et al. ap-

proach try to animate one or few frames of cropped.

The second group of approaches are video-based edit-

ing methods such as EVP (Ji et al., 2021), SSP-NeRF

(Liu et al., 2022), and EAMM (Ji et al., 2022) strive

to directly edit target video clips faces of. All of these

methods showcase their capability to explicitly con-

trol emotions in the upper face, yielding impressive

results in facial emotion generation, and enhancing

the quality of image generation.

Although previous methods achieve some promi-

nent results, they are focusing on the improvement of

the facial quality, and the integration of emotion, still

encounter certain challenges: (1) the inconsistency of

the frames during the long frames, which affects to the

temporal characteristic of the face animation, (2) the

lack of focusing on the informative parts of the face

520

Cao, X., Trinh, Q., Do-Nguyen, Q., Ho, V., Dang, H. and Tran, M.

EAPC: Emotion and Audio Prior Control Framework for the Emotional and Temporal Talking Face Generation.

DOI: 10.5220/0012455700003636

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2024) - Volume 2, pages 520-530

ISBN: 978-989-758-680-4; ISSN: 2184-433X

in previous methods can lead to the missing of facial

texture. These issues can collectively contribute to

the unnatural appearance of animated faces in appli-

cations.

To overcome previous challenges, we propose a

framework named Emotion and Audio Prior Con-

trol (EAPC), an image-based method, for the emo-

tional and temporal Talking Face Generation. This

framework can selectively focus on relevant facial

landmarks, considering contextual information from

both the current and previous frames. As a result,

this method can keep the consistency of the animated

faces and the temporal characteristic of the sequence,

thereby aiding in the generation of a natural animated

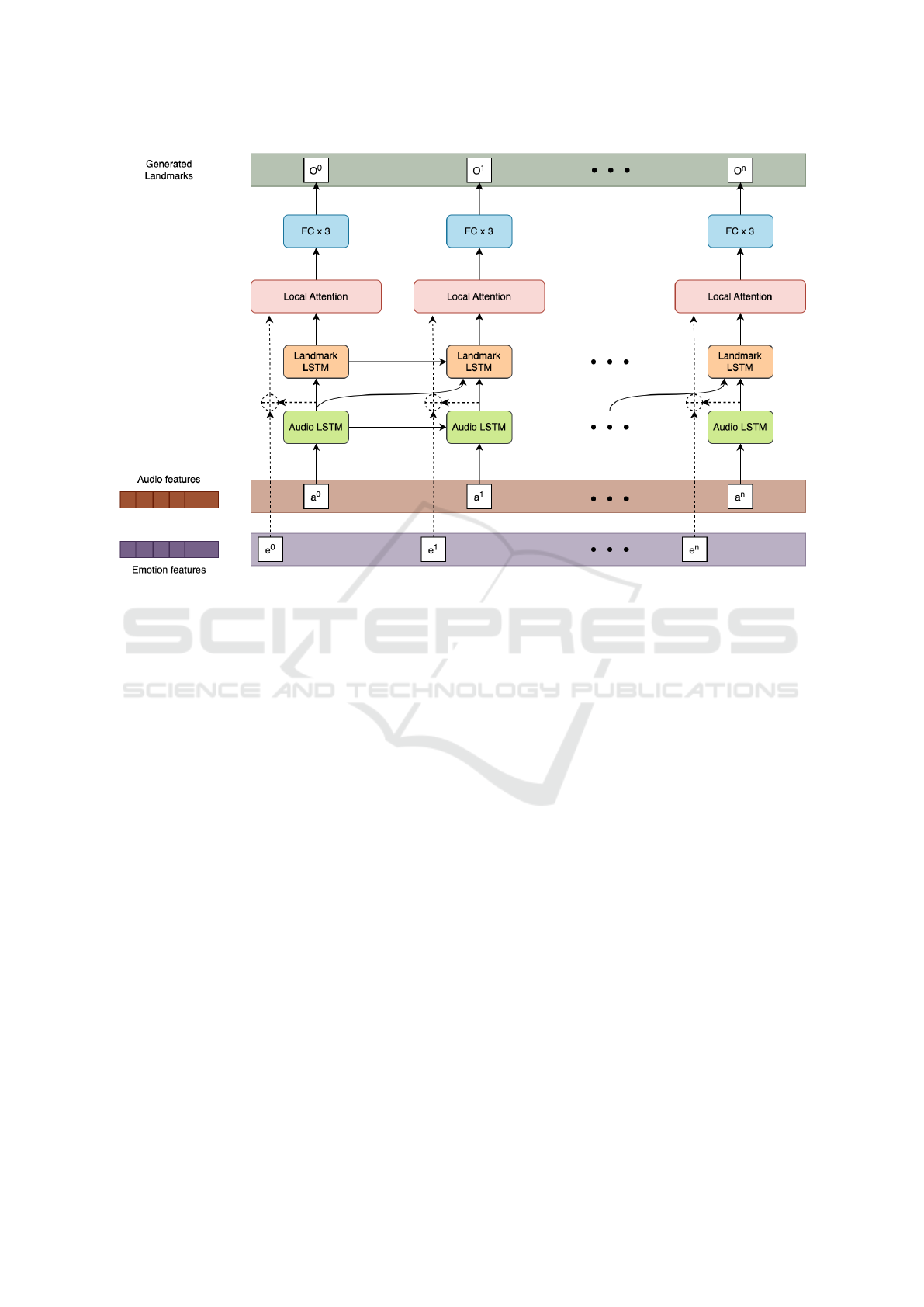

face. Furthermore, we also propose our Dual-LSTM

module, which enables our approach’s ability to se-

lect the informative landmark information correlated

with the emotion target, enhancing our framework’s

control over landmark generation based on the target

emotion.

In summary, there are two mains of our contribu-

tions:

• We propose Emotion and Audio Prior Control, the

framework that control the Talking face genera-

tion by using the emotion and prior audio frame

information for improving the talking face gener-

ation.

• We introduce the Dual-LSTM module, which fa-

cilitates the fusion of landmark and audio fea-

tures. This module also possesses the capability

to selectively choose informative landmarks based

on the control of the target emotion.

The remainder of this paper is organized as fol-

lows. Section 2 provides an overview of related work

in the ﬁeld of realistic facial animation generation.

Section 3 describes the proposed methodology, in-

cluding the details of the EAPC framework, and Dual-

LSTM module. Section 4 presents the experimen-

tal setup, datasets, and evaluation metrics used in our

study. The experimental results and analysis are pre-

sented in Section 5. Finally, Section 6 concludes the

paper and discusses potential future research direc-

tions.

2 RELATED WORK

2.1 Talking Face Generation

Talking Face Generation is the technique that aims to

generate animated faces via the audio of talk. In re-

cent years, there has been a growing interest in gen-

erating photo-realistic talking faces using deep learn-

ing techniques. There are two main categories of ap-

proaches: image-based methods and video editing-

based methods.

2.1.1 Image-Based Method

This method focuses on generating an animated face

based on reference facial images. One of the pioneer-

ing approaches in this category is Speech2Vid (Chung

et al., 2017), which utilizes a combination of audio

encoder and Identity Reference encoder to generate

lip-sync videos in an image-to-image translation man-

ner (Isola et al., 2017). Subsequently, both (Zhou

et al., 2019) and (Song et al., 2018) employ adversar-

ial learning with disentangled audio-visual represen-

tation to enhance the model’s learning through joint

embeddings. Following these efforts, (Chen et al.,

2019) introduces ATVGnet, a novel cascade network

structure that integrates emotion into video genera-

tion. They also explore the use of pixel-wise loss with

an attention mechanism to enhance the temporal as-

pects of the generated video. This marks the ﬁrst in-

stance where the temporal characteristics of the gen-

erated video are considered, paving the way for sub-

sequent research.

Since then, numerous methods have been pro-

posed to address the challenge of incorporating emo-

tion. A notable method is presented by (Vougioukas

et al., 2019), who employ three separate discrimina-

tors to enhance synthesis details, synchronization, and

realistic expressions. More recently, (Wang et al.,

2020) introduced the MEAD dataset along with a

pipeline for emotional talking face generation. How-

ever, this method demonstrates a lack of temporal co-

herence and tends to produce unnatural emotions in

the generated faces. This limitation has prompted

later methods to address the temporal aspect, such as

the pipeline for facial geometry-aware one-shot emo-

tional talking face generation from audio with inde-

pendent emotion control by (Sinha et al., 2022). An-

other method by (Eskimez et al., 2021) introduces an

architecture with an emotion discriminative loss that

classiﬁes rendered visual emotions, fusing audio and

reference images. However, this fusion architecture is

conditioned by the emotion category.

While these methods show improvement in emo-

tional talking face generation, they encounter chal-

lenges in preserving temporal characteristics when

dealing with audio and a single image to create a se-

quential output.

2.1.2 Video-Based Editing Methods

A video-based editing method involves using portraits

that encompass not only the facial areas but also the

EAPC: Emotion and Audio Prior Control Framework for the Emotional and Temporal Talking Face Generation

521

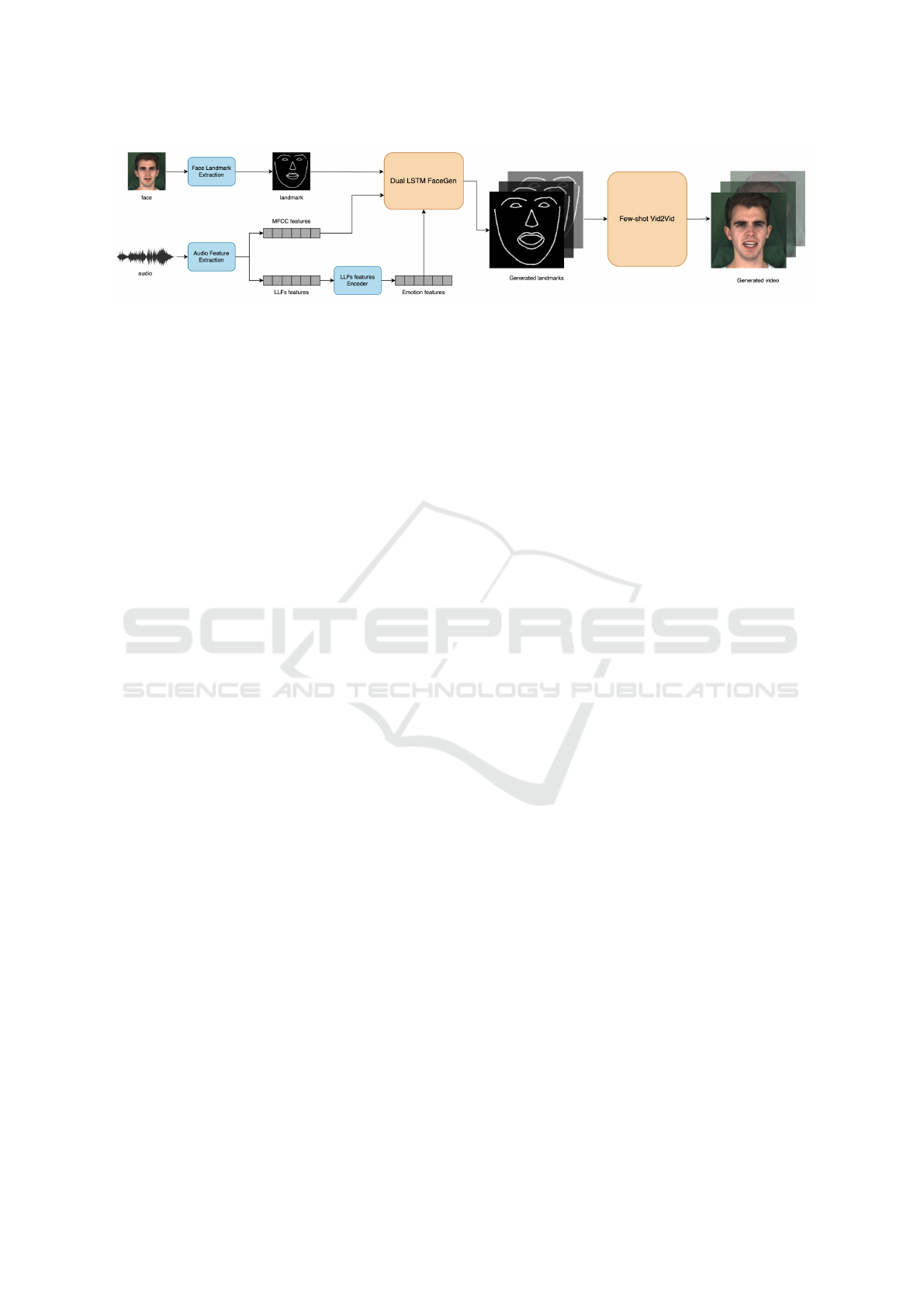

Figure 1: General visualization of EAPC framework.

neck and shoulder parts of a person, along with the

background. These methods face challenges in gen-

erating realistic faces due to the intricate relationship

between the face and other body parts. One notewor-

thy method in this category is presented by (Suwa-

janakorn et al., 2017), who synthesizes photorealis-

tic talking videos of Obama by training an audio-

to-landmark model using recurrent neural networks

(RNN). Additionally, both (Song et al., 2018) and

(Thies et al., 2020) regress facial expression param-

eters of 3DMM models and inpaint the mouth.

A more recent advancement in this ﬁeld is the

Emotional Video Portrait (EVP) method introduced

by (Ji et al., 2021). EVP is the ﬁrst to achieve emo-

tional control in talking face generation, including the

dynamic movement of the generated face. The evo-

lution of these methods demonstrates promising po-

tential for the utilization of emotional control in the

generation of talking faces.

In general, previous works have demonstrated

high-quality results, they still grapple with challenges

related to the temporal aspects of the video and the

incorporation of emotional information. In our work,

our method aims to address these issues, ultimately

enhancing the naturalness of the animated face. This

endeavor opens up a promising avenue for advance-

ments in this ﬁeld.

2.2 Attention Mechanism

The Attention Mechanism, a renowned concept intro-

duced by (Vaswani et al., 2017), has found applica-

tion in Transformer models for various tasks related

to sequence, sentence, and more recently, image gen-

eration. The fundamental idea behind this method re-

volves around considering different positions within

a single sequence to compute a comprehensive rep-

resentation of that sequence. By incorporating the

attention mechanism, a sequence can maintain long-

range dependencies, addressing a challenge faced by

previous methods such as RNN and LSTM. Addition-

ally, attention facilitates the identiﬁcation and empha-

sis of correlations within the sequence, enabling the

model to focus on selective features.

Recent works, exempliﬁed by (Wang et al., 2022),

(Wang et al., 2023b), and (Wang et al., 2023a), have

integrated the attention module as part of the Trans-

former architecture for talking face generation. Their

results showcase the effectiveness of attention in ef-

ﬁciently capturing information across long-range se-

quences and emphasizing crucial aspects of the face,

ultimately enhancing the smoothness of the output

video. Inspired by these ideas, our Dual-LSTM mod-

ule incorporates the attention mechanism for efﬁcient

feature selection, building upon the success demon-

strated by attention in similar applications.

3 EAPC FRAMEWORK

In this section, we present the EAPC framework. Our

method is divided into two stages, as illustrated in

Figure 1. In the ﬁrst stage, we introduce the re-

ﬁned audio-to-landmark generation concept, which is

based on the fusion of the reference face’s landmarks

with the current and previous audio frames. Addition-

ally, we propose the Dual-LSTM module for the audio

and landmark fusion. Moving to the second stage, we

leverage Few-shot Vid2Vid generation (Wang et al.,

2019) for landmark-to-video generation.

3.1 Overview

As illustrated in Figure 1, the input to the EAPC

framework consists of two pieces of information: the

reference face and the audio sequence. The audio

feature is initially extracted by the Audio extraction

modules, capturing both Mel Frequency Cepstral Co-

efﬁcients (MFCC) features and Low−Level Features

(LLFs). Subsequently, landmarks are extracted from

facial images using the Mediapipe framework (Lu-

garesi et al., 2019). Following this, emotional infor-

mation is derived from the audio through our designed

LLFs modules. Our proposed Dual-LSTM then in-

tegrates the landmark and audio features to gener-

ate a sequence of landmarks. To further modulate

the emotion of the generated landmark during speech,

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

522

our Dual-LSTM incorporates the emotion audio fea-

ture with the landmark using the local attention block.

In the second stage, we ﬁne-tune the Vid2Vid model

with the landmark output from the Dual-LSTM mod-

ule, facilitating the generation of a sequence of talk-

ing face frames. We emphasize the signiﬁcance of the

Audio-to-landmark stage, as it directly inﬂuences the

subsequent stage of generating the sequence of face

images.

3.2 Audio Features Extraction

In order to capture the content and emotion of the

audio input, we employ a process of audio feature

extraction. One of the primary features is Mel Fre-

quency Cepstral Coefﬁcients (MFCC), which pro-

vides a representation of the spectral characteristics of

the audio signal. Each frame of audio is transformed

into a matrix of size 28x12. In addition to MFCC,

we also extract a set of low-level features (LLFs) that

capturing the emotional variations present in the au-

dio signal. These LLFs include:

1. Root Mean Square Error (RMSE): RMSE mea-

sures the average magnitude of the audio signal. It

reﬂects the overall energy and loudness of the au-

dio.

2. Chroma: Chroma represents the distribution of

musical pitch classes in the audio. It captures

tonal information and can be useful for detecting

emotional cues related to musical harmony.

3. Spectral Centroid: Spectral Centroid represents

the center of mass of the power spectrum of the

audio signal. It provides information about the

brightness or timbre of the sound and can indicate

emotional variations related to the spectral char-

acteristics.

4. Spectral Bandwidth: Spectral Bandwidth mea-

sures the range of frequencies covered by the

power spectrum. It provides information about the

width or spread of the spectral content and can re-

ﬂect emotional variations related to the richness

or thinness of the sound.

5. Spectral Rolloff: Spectral Rolloff represents the

frequency below which a speciﬁed percentage of

the total spectral energy resides. It can indicate

emotional cues related to the high-frequency con-

tent or brightness of the sound.

6. Zero Crossing Rate (ZCR): ZCR measures the

rate at which the audio signal changes sign (from

positive to negative or vice versa). It provides in-

formation about the temporal characteristics and

can be related to emotional variations in the dy-

namics of the sound.

7. Spectral Flatness: Spectral Flatness measures

the ratio between the geometric mean and the

arithmetic mean of the power spectrum. It can in-

dicate emotional cues related to the noisiness or

tonality of the sound.

3.3 LLFs Encoder

To explicitly extract emotion from audio features, we

utilize a combination of three LSTM layers, referred

to as the LLFs encoder. The input to this encoder is

the low-level features (LLFs), denoted as X

ll f s

. These

features, forming a 25-dimensional vector, are then

straightforwardly passed through the LLFs Encoder

network to generate the emotional information output

emotion

) with eight elements representing the prob-

ability distribution of each emotion category. Equa-

tion 1 illustrates the process of this encoder.

emotion

= LLFs_encoder(X

ll f s

) (1)

By incorporating the X

ll f s

into the encoding pro-

cess, we can capture and represent the various low-

level emotional cues present in the input audio. These

LLFs, which encompass characteristics such as spec-

tral centroid, zero crossing rate, and spectral ﬂatness,

provide valuable information about the audio’s tonal-

ity, noisiness, and temporal dynamics.

3.4 Dual-LSTM Module

As mentioned earlier, landmarks play a crucial role

in generating realistic animated faces. Moreover, the

temporal characteristics and emotional information

are two vital aspects for creating lifelike talking faces.

This is precisely why we introduced the Dual-LSTM,

designed to address the challenges associated with in-

corporating both temporal dynamics and emotional

cues in the audio-to-landmark generation process.

Our module consists of multiple stages, corre-

sponding to the number of landmark frames. The

complete design of this module is illustrated in Fig-

ure 2. The input to this module includes the MFCC

feature (X

MFCC

) with a shape of N × 25 × 12 and

the emotion information with a shape of N × 25 × 8,

where 25 represents the number of frames. The output

of this module is the sequence of landmarks, denoted

as out

, with a shape of N × 25 × 68 × 2.

In each stage i, features (X

MFCC

) are initially ex-

tracted from each frame of the input audio using the

representation outlined in Equation 2. These features

are subsequently input into a 3-layer unidirectional

audio LSTM module to capture temporal dependen-

cies and extract meaningful audio information. The

EAPC: Emotion and Audio Prior Control Framework for the Emotional and Temporal Talking Face Generation

523

Figure 2: Design of the Dual-LSTM module.

resulting output contains encoded audio information

for each time step in the input sequence.

a f

= LST M

audio

MFCC

) (2)

The audio features are duplicated to create a con-

trollable version (X

a f new

) inﬂuenced by the emotion

feature through concatenation with emotional infor-

mation, as depicted by Equation 3.

a f new

= concatenate(X

a f

, X

emotion

) (3)

Subsequently, additional LSTM layers are em-

ployed to generate the landmark output. In this layer,

a skip connection is established between the current

frame and the previous frame, fostering the retention

of temporal characteristics. Furthermore, this connec-

tion addresses the issue of insufﬁcient long-range de-

pendency inherent in LSTM modules. The process is

represented by Equation 4, and Equation 5.

= LST M

a f

) + X

i−1

, (i > 0) (4)

= LST M

a f

), (i = 0) (5)

To regulate the output landmarks based on emo-

tion and focus on selective features, we employ the

local attention block. The inputs to this block are

the audio feature in the duplicated version X

a f new

and

the generated landmark X

, leading to the production

of the controlled landmark out put

. The subsequent

equations elucidate the workings of the local attention

mechanism:

att

= σ(X

a f new

· X

) · X

(6)

out put

= X

a f new

+ att

(7)

Which σ denotes softmax function

From Equations 6 and 7, the attention output is

computed through the dot product of audio features

and landmark features. Subsequently, the result un-

dergoes weighting via the softmax function before un-

dergoing another dot product with landmark features.

Additionally, to incorporate context control into the

attention feature, a skip connection is established be-

tween audio and landmark features. This skip con-

nection ensures the retention of audio information.

Following this process, the output features capture

the relevance and alignment among audio features,

low-level features, and generated landmarks. These

output features play a crucial role in guiding the re-

ﬁnement process and adjusting the landmarks accord-

ingly. This ensures synchronization with the audio

and accurate representation of the desired facial ex-

pressions.

Finally, a series of three fully connected layers

with sizes of 512, 256, and 136 (68x2) are designed

to generate accurate landmarks consisting of 68 two-

dimensional points.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

524

out put

= W

138

256

512

∗ (out put

))) (8)

In Equation 8, W

with k ∈ {136, 256, 512} de-

note the learnable weight of these layers, which are

responsible for generating the appropriate facial land-

marks in the facial animation process. These lay-

ers are crucial for generating the appropriate facial

landmarks during the facial animation process. Each

fully connected layer plays a role in extracting higher-

level representations from the input, gradually reduc-

ing the dimensions. Eventually, all the landmarks

from each stage i are reshaped and concatenated to

form the sequence of output landmarks with a shape

of N × 25 × 68 × 2, as depicted in Equation 9.

out put

= concatenate(φ(out put

), . . . , φ(out put

))

(9)

φ denotes the reshape function.

In general, by harnessing the connection between au-

dio features and facial landmarks, the model seeks

to enhance the temporal precision of landmark pre-

dictions and improve synchronization between audio

and visual cues. Moreover, the incorporation of Dual-

LSTM enables emotion to inﬂuence the landmarks,

aiding in the expression of emotions in crucial facial

regions. Consequently, this enhancement contributes

to the generation of smooth and natural animated se-

quences of talking face landmarks.

3.5 Video Generator

In this research, we employ the few-shot Vid2Vid

model (Wang et al., 2019) as a component in the pro-

cess of generating realistic facial animations from au-

dio input. The few-shot Vid2Vid model is a cutting-

edge approach that enables the synthesis of visually

coherent and synchronized facial animations by lever-

aging the power of deep learning techniques.

The few-shot Vid2Vid model operates by taking

the extracted emotion features and the driving audio

as input, and then performs a series of complex trans-

formations to generate highly expressive and lifelike

facial animations. It excels at capturing the intricate

details of facial movements and effectively synchro-

nizing them with the audio cues.

The input to this component includes the

landmark sequence from the Dual-LSTM module

(Out put

) and the reference input face image X

f ace

The output of this module is the talking face video

vid

). We refer to the Vid2Vid module as f

vid2vid

, and

Equation 10 represents the integration of this module

into our framework.

vid

= f

vid2vid

f ace

, Out put

) (10)

By incorporating this component, we leverage its

capability to generalize effectively to unseen or lim-

ited training data. It achieves this by utilizing few-

shot learning techniques, enabling the model to learn

from a small number of examples and generalize to

new instances with high ﬁdelity. This feature makes

it particularly useful in scenarios where only a limited

amount of training data is available.

Furthermore, the few-shot Vid2Vid model incor-

porates advanced techniques such as attention mecha-

nisms and adversarial training, which further enhance

the quality and realism of the generated facial anima-

tions. These techniques enable the model to focus on

important regions of the face and effectively capture

the dynamics of facial expressions.

3.6 Objective Function

Audio to Landmark: During the training process of

the audio to landmark generation, we utilize the Mean

Squared Error (MSE) loss and the landmark distance

loss to compute the error metrics in our model.

The MSE loss (shown in Equation 11) is calcu-

lated as the average squared difference between the

predicted landmarks Out put

and the ground truth

landmarks GT

mse

∑

i=1



Out put

− GT



(11)

where N represents the total number of training

samples, and i represents the index of landmark.

The landmark distance loss (shown in Equa-

tion 12) focuses on capturing the spatial relationships

and relative distances between the predicted land-

marks. It encourages the model to generate landmarks

that are consistent with the structural characteristics

of the face. The landmark distance loss is deﬁned as:

lmd

∑

i=1

∑

j=1



Out put

− Out put



(12)

Where K denotes the number of landmarks, i is

the index of the landmark, and j denotes the index of

landmark points.

The total loss of this stage is deﬁned in the Equa-

tion 13

total

= L

lmd

+ L

mse

(13)

By minimizing these loss functions during train-

ing, our model learns to reduce the discrepancies be-

tween the predicted landmarks and the ground truth

landmarks. These loss functions serve as important

guiding principles, allowing the model to effectively

EAPC: Emotion and Audio Prior Control Framework for the Emotional and Temporal Talking Face Generation

525

learn the intricate details and spatial relationships re-

quired for realistic facial animation generation.

Landmark to Video: For the landmark-to-video

stage, we employ a combination of GAN loss as men-

tioned in Vid2Vid (Wang et al., 2019). By optimiz-

ing this objective function, our model can learn the

weights necessary for generating a realistic face based

on the input landmarks.

4 EXPERIMENTS

4.1 Datasets

In the experiment, to evaluate the efﬁciency, and the

accuracy of EAPC, we use two datasets are MEAD

(Wang et al., 2020) and CREMA-D (Cao et al., 2014),

two public datasets for high quality talking face gen-

eration.

MEAD Dataset: (Wang et al., 2020) This dataset

consists of a total of 281,400 high quality clips from

60 actors, including the emotional label, with a res-

olution of 1920 × 1080, and it is used for bench-

mark the talking head problems in several previous

approaches.

CREMA-D Dataset: (Cao et al., 2014) This

dataset comprises approximately 7,442 clips from 91

actors, with a resolution of 1280 × 720. This is one of

the ﬁrst datasets used for emotional talking face gen-

eration and emotion recognition.

4.2 Evaluation Metric

To quantitatively evaluate the performance of differ-

ent methods, we conducted several metrics-based as-

sessments. Firstly, facial landmarks were extracted

from both the generated sequences and the ground

truth sequences, with alignment performed to com-

pensate for head motions. Landmark Distance (LD)

and Landmark Velocity Difference (LVD) metrics

(Chen et al., 2018), (Zhou et al., 2020) were employed

to evaluate the accuracy of facial motions. LD repre-

sents the average Euclidean distance between the gen-

erated and recorded landmarks, while LVD quantiﬁes

the average velocity differences of landmark motions

between the two sequences. Speciﬁcally, we focused

on evaluating the lip movements and facial expres-

sions separately by applying LD and LVD metrics to

the mouth (M-LD, M-LVD) and face areas (F-LD, F-

LVD).

Furthermore, to assess the image quality of the

generated frames, we compared the Structural Simi-

larity Index (SSIM) (Larkin, 2015), Peak Signal-to-

Noise Ratio (PSNR), and Fréchet Inception Distance

(FID) (Heusel et al., 2018) scores. These metrics pro-

vided insights into the visual ﬁdelity and realism of

the synthesized images.

4.3 Implementation Detail

The conﬁguration and parameters employed for

the training of the EAPC framework on both the

CREMA-D and MEAD datasets were speciﬁed as fol-

lows: In the case of the CREMA-D Dataset, the train-

ing phase involved 5,953 ﬁles, constituting 79,416

samples, while the testing phase comprised 1,489

ﬁles, encompassing 19,890 samples. Concerning the

MEAD Dataset, the training dataset comprised 533

ﬁles, comprising 10,650 samples, and the testing

dataset included 134 ﬁles, with 2,547 samples. All of

the experiments are done on the video with 25 frames

per second (FPS), and the Mediapipe framework (Lu-

garesi et al., 2019) is used to extract facial landmarks

from the video. The hyperparameters applied to both

datasets encompassed 500 epochs, a batch size of 32,

and a learning rate set at 1.0 × 10

−4

. The deliber-

ate selection of these conﬁgurations and parameters

was geared towards ensuring the effective training and

evaluation of the models within the context of their re-

spective datasets.

5 RESULT

5.1 Comparison Methods

We conduct a comparative analysis of the proposed

EAPC framework with cutting-edge approaches in the

domain of talking face generation. The evaluation

is performed on the MEAD dataset and CREMA-D

dataset, featuring benchmarks from leading method-

ologies such as Emotion-controllable generalized

talking face generation by Sinha et al. (Sinha et al.,

2022), Audio-driven emotional video portraits by Ji

et al. (Ji et al., 2021), Mead: A large-scale audio-

visual dataset for emotional talking-face generation

by Kaisiyuan et al. (Wang et al., 2020), Realistic

speech-driven facial animation with GANs by Vou-

gioukas et al. (Vougioukas et al., 2019), and Speech-

driven talking face generation from a single image

and an emotion condition by Eskimez et al. (Eskimez

et al., 2021).

5.2 Qualitative Result

Table 1 presents a comparison between our method

and state-of-the-art approaches. It is evident that

our method outperforms others in the MEAD dataset,

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

526

Table 1: Qualitative results landmark quality and texture quality for different methods on two datasets (MEAD and CREMA-

D).

Dataset Method Landmark quality Texture Quality

M-LD ↓ M-LVD ↓ F-LD ↓ F-LVD ↓ PSNR ↑ SSIM ↑ FID ↓

MEAD MEAD (Wang et al., 2020) 2.52 2.28 3.16 2.01 28.61 0.68 22.52

EVP (Ji et al., 2021) 2.45 1.78 3.01 1.56 29.53 0.71 7.99

(Sinha et al., 2022) 2.18 0.77 1.24 0.50 30.06 0.77 35.41

EAPC 2.01 1.25 1.85 1.24 32.03 0.79 22.67

CREMA-D (Vougioukas et al., 2019) 2.90 0.42 2.80 0.34 23.57 0.70 71.12

(Eskimez et al., 2021) 6.14 0.49 5.89 0.40 30.91 0.85 218.59

(Sinha et al., 2022) 2.41 0.69 1.35 0.46 31.07 0.90 68.45

EAPC 1.45 1.16 1.33 1.11 33.49 0.855 17.31

demonstrating higher results in the MLD, PSNR, and

SSIM metrics. Similarly, on the CREMA-D dataset,

our method surpasses competitors in the MLD, FLD,

PSNR, and FID metrics.

The analysis of the benchmark results in Table

1 reveals the superior performance of our proposed

method across various evaluation metrics. Speciﬁ-

cally, on the MEAD dataset, our method excels in

landmark distance measurements (MLD) for both the

mouth and facial regions, showcasing enhanced accu-

racy in capturing landmark locations. Moreover, our

approach attains a higher PSNR value, indicating su-

perior preservation of image details and reduced noise

distortion. The elevated SSIM score further empha-

sizes our method’s ability to accurately retain overall

texture patterns and structures.

Turning our attention to the evaluation of the

CREMA-D dataset, our method stands out in terms

of the PSNR and FID compared to other approaches.

The achievement of PSNR metrics shows the high

quality of face animated output of our method, com-

pared to the ground truth. The favorable FID score

suggests a closer match between the generated tex-

tures and the real textures in the CREMA-D dataset,

underscoring the effectiveness of our approach in pro-

ducing textures that closely resemble the ground truth.

These results show the realism of the generated face,

thus making the result more consistent and natural.

5.3 Qualitative Visualization

Landmark Generation Result: To evaluate the tem-

poral of the generated landmarks, we do the visual-

ization in the consecutive animated face, with sample

from the test dataset, present from left to right and

up to down. The landmarks are drawn with the yel-

low lines for the better view. The visualization can be

seen in the Figure 3.

Observations from Figure 3 indicate that, in some

instances, the predicted landmarks display continu-

ity, and natural head motion, reﬂecting the tempo-

ral coherence of the generated landmark sequence.

This result demonstrates the effectiveness of our in-

novative approach in maintaining the temporal con-

sistency of landmark sequence generation. The em-

ployed methodology proves to be efﬁcient in address-

ing and resolving this issue.

Furthermore, we present the faces generated by

our comprehensive framework alongside the ground

truth to visually evaluate the effectiveness of our

method in illustrating the impact of temporal land-

mark generation and the incorporation of emotional

information on the animated face result. Figure 4 pro-

vides a visual representation of our comparison.

Face Generation Result: We do the visualization

for the face generation, and make the visual compari-

son between our result and the groundtruth, which can

be seen in the Figure 4.

The visualization from Figure 4 clearly illustrates

that the combination of the temporal characteristics

from the generated landmark and the incorporation of

emotional information results in a generated face with

similar emotions. The output is consistent, maintain-

ing high quality comparable to the ground truth. This

observation highlights the effectiveness of our EAPC

framework in producing high-quality emotional talk-

ing face videos characterized by natural and accurate

lip movements, head movements, and expressions.

Consequently, our framework holds promise for vari-

ous applications.

5.4 Ablation Study

To evaluate the effectiveness of EAPC, we perform

2 studies: (1) the utilization of audio information

from the previous audio step i-1 to compare the per-

formance between the model variants that considered

and ignored the audio information from the previous

step, and (2) the inclusion of an attention mechanism

for comparing the model variants with and without

the attention mechanism which allows the model to

selectively attend to different parts of the input se-

EAPC: Emotion and Audio Prior Control Framework for the Emotional and Temporal Talking Face Generation

527

Figure 3: The visualization of the talking landmark sequence.

Figure 4: Comparison between our generated facial images and ground truth facial images.

quence, providing additional contextual information

for the prediction process.

5.4.1 Prior Audio Frame Impact

In this study, we conducted experiments to assess the

model’s performance with and without implement-

ing skip connections to the prior frame (we evaluate

without integrate emotional information with atten-

tion mechanism). The results, as presented in Table

2, offer a comparison between the methods that uti-

lize the previous audio frame and those that do not.

Table 2: Comparison of methods with and without utilizing

previous audio frame.

Method M-LD ↓ M-LVD ↓ F-LD ↓ F-LVD ↓

w/o Audio i-1 2.18 1.38 1.99 1.35

w Audio i-1 2.11 1.35 1.97 1.29

From Table 2, it is evident that utilizing the previ-

ous audio frame (w Audio i-1) signiﬁcantly enhances

the measurements for M-LD, M-LVD, F-LD, and F-

LVD, resulting in values of 2.11, 1.35, 1.97, and

1.29, respectively. These ﬁndings illustrate that the

inclusion of the previous audio frame contributes to

the temporal improvement in the landmark sequence,

consequently leading to enhanced performance in

these landmark evaluation metrics.

5.4.2 Impact of Attention in Emotion Control

In this study, we conducted experiments to assess the

effectiveness of the attention mechanism in support-

ing emotional control. The implementation includes

the incorporation of the previous frame. The overall

results are presented in Table 3.

Table 3: Comparison of methods with and without utilizing

attention mechanism.

Method M-LD ↓ M-LVD ↓ F-LD ↓ F-LVD ↓

w/o attention 2.11 1.35 1.97 1.29

w attention 2.01 1.25 1.85 1.24

The comparison results in Table 3 emphasize the

performance distinction between methods that utilize

the attention mechanism and those that do not. The

measurements reveal that incorporating the attention

mechanism for emotional control led to improved re-

sults of 2.01, 1.25, 1.85, and 1.24, respectively. These

ﬁndings suggest that the inclusion of the attention

mechanism effectively focuses on pertinent audio fea-

tures based on emotion, resulting in enhanced out-

comes for M-LD, M-LVD, F-LD, and F-LVD.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

528

6 CONCLUSION

In conclusion, this paper introduces EAPC, a frame-

work for generating realistic talking faces from audio

and reference image input. We also propose the Dual-

LSTM, which utilizes dual LSTM layers and incor-

porates skip connections from the prior audio frame

to the current audio frame, thereby enhancing the

temporal characteristics of our method. Additionally,

the Dual-LSTM module employs the attention mech-

anism to support emotion control, effectively gener-

ating emotionally animated facial landmark frames.

Qualitative results and our ablation study validate the

effectiveness of our method, leading to the achieve-

ment of competitive results with state-of-the-art. This

research opens up possibilities for more advanced and

natural facial animation generation techniques in var-

ious applications, including video production, virtual

avatars, and virtual reality experiences.

ACKNOWLEDGEMENTS

This research is funded by the University of Science,

VNU-HCM, Vietnam under grant number CNTT

2022-14.

REFERENCES

Cao, H., Cooper, D. G., Keutmann, M. K., Gur, R. C.,

Nenkova, A., and Verma, R. (2014). Crema-d: Crowd-

sourced emotional multimodal actors dataset. IEEE

Transactions on Affective Computing, 5(4):377–390.

Chen, L., Li, Z., Maddox, R. K., Duan, Z., and Xu, C.

(2018). Lip movements generation at a glance.

Chen, L., Maddox, R. K., Duan, Z., and Xu, C. (2019).

Hierarchical cross-modal talking face generation with

dynamic pixel-wise loss. In Proceedings of the

IEEE/CVF conference on computer vision and pattern

recognition, pages 7832–7841.

Chung, J. S., Jamaludin, A., and Zisserman, A. (2017). You

said that? arXiv preprint arXiv:1705.02966.

Eskimez, S. E., Zhang, Y., and Duan, Z. (2021). Speech

driven talking face generation from a single image and

an emotion condition.

Heusel, M., Ramsauer, H., Unterthiner, T., Nessler, B., and

Hochreiter, S. (2018). Gans trained by a two time-

scale update rule converge to a local nash equilibrium.

Isola, P., Zhu, J.-Y., Zhou, T., and Efros, A. A. (2017).

Image-to-image translation with conditional adversar-

ial networks. In Proceedings of the IEEE conference

on computer vision and pattern recognition, pages

1125–1134.

Ji, X., Zhou, H., Wang, K., Wu, Q., Wu, W., Xu, F., and

Cao, X. (2022). Eamm: One-shot emotional talking

face via audio-based emotion-aware motion model.

In ACM SIGGRAPH 2022 Conference Proceedings,

pages 1–10.

Ji, X., Zhou, H., Wang, K., Wu, W., Loy, C. C., Cao, X., and

Xu, F. (2021). Audio-driven emotional video portraits.

In Proceedings of the IEEE/CVF conference on com-

puter vision and pattern recognition, pages 14080–

14089.

Larkin, K. G. (2015). Structural similarity index ssimpli-

ﬁed: Is there really a simpler concept at the heart of

image quality measurement?

Liu, X., Xu, Y., Wu, Q., Zhou, H., Wu, W., and Zhou, B.

(2022). Semantic-aware implicit neural audio-driven

video portrait generation. In European Conference on

Computer Vision, pages 106–125. Springer.

Lugaresi, C., Tang, J., Nash, H., McClanahan, C., Uboweja,

E., Hays, M., Zhang, F., Chang, C.-L., Yong, M. G.,

Lee, J., et al. (2019). Mediapipe: A framework

for building perception pipelines. arXiv preprint

arXiv:1906.08172.

Mittal, G. and Wang, B. (2020). Animating face using dis-

entangled audio representations. In Proceedings of

the IEEE/CVF Winter Conference on Applications of

Computer Vision, pages 3290–3298.

Sinha, S., Biswas, S., Yadav, R., and Bhowmick, B. (2022).

Emotion-controllable generalized talking face genera-

tion.

Song, Y., Zhu, J., Li, D., Wang, A., and Qi, H. (2019). Talk-

ing face generation by conditional recurrent adversar-

ial network. In Proceedings of the Twenty-Eighth In-

ternational Joint Conference on Artiﬁcial Intelligence,

IJCAI-19, pages 919–925. International Joint Confer-

ences on Artiﬁcial Intelligence Organization.

Song, Y., Zhu, J., Li, D., Wang, X., and Qi, H. (2018). Talk-

ing face generation by conditional recurrent adversar-

ial network. arXiv preprint arXiv:1804.04786.

Suwajanakorn, S., Seitz, S. M., and Kemelmacher-

Shlizerman, I. (2017). Synthesizing obama: Learning

lip sync from audio. ACM Trans. Graph., 36(4).

Thies, J., Elgharib, M., Tewari, A., Theobalt, C., and

Nießner, M. (2020). Neural voice puppetry: Audio-

driven facial reenactment.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, Ł., and Polosukhin, I.

(2017). Attention is all you need. Advances in neural

information processing systems, 30.

Vougioukas, K., Petridis, S., and Pantic, M. (2019). Realis-

tic speech-driven facial animation with gans.

Wang, J., Qian, X., Zhang, M., Tan, R. T., and Li, H.

(2023a). Seeing what you said: Talking face gener-

ation guided by a lip reading expert. In Proceedings

of the IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 14653–14662.

Wang, J., Zhao, K., Zhang, S., Zhang, Y., Shen, Y.,

Zhao, D., and Zhou, J. (2023b). Lipformer: High-

ﬁdelity and generalizable talking face generation with

a pre-learned facial codebook. In Proceedings of the

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 13844–13853.

EAPC: Emotion and Audio Prior Control Framework for the Emotional and Temporal Talking Face Generation

529

Wang, K., Wu, Q., Song, L., Yang, Z., Wu, W., Qian, C.,

He, R., Qiao, Y., and Loy, C. C. (2020). Mead: A

large-scale audio-visual dataset for emotional talking-

face generation. In ECCV.

Wang, S., Li, L., Ding, Y., and Yu, X. (2022). One-shot talk-

ing face generation from single-speaker audio-visual

correlation learning. In Proceedings of the AAAI Con-

ference on Artiﬁcial Intelligence, volume 36, pages

2531–2539.

Wang, T.-C., Liu, M.-Y., Tao, A., Liu, G., Kautz, J., and

Catanzaro, B. (2019). Few-shot video-to-video syn-

thesis. In Conference on Neural Information Process-

ing Systems (NeurIPS).

Zhou, H., Liu, Y., Liu, Z., Luo, P., and Wang, X. (2019).

Talking face generation by adversarially disentangled

audio-visual representation. In AAAI Conference on

Artiﬁcial Intelligence (AAAI).

Zhou, Y., Han, X., Shechtman, E., Echevarria, J., Kaloger-

akis, E., and Li, D. (2020). Makelttalk. ACM Trans-

actions on Graphics, 39(6):1–15.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

530
