The Design and Implementation of a Semantic Web Framework for the

Event-Centric Digital Forensics Analysis

Pavel Chikul

1 a

, Hayretdin Bahs¸i

1,2 b

and Olaf Maennel

1 c

Department of Computer Systems, Tallinn University of Technology, Tallinn, Estonia

School of Informatics, Computing, and Cyber Systems, Northern Arizona University, U.S.A.

Keywords:

Digital Forensics, Event Reconstruction, Knowledge Extraction, Forensic Timeline, Forensic Ontology, IoT.

Abstract:

In the era of interconnected devices, digital crime scenes are characterized by their complexity and volumi-

nous data from a plethora of heterogeneous sources. Addressing these twin challenges of data volume and

heterogeneity is paramount for effective digital forensic investigations. This paper introduces a pioneering au-

tomated approach for the nuanced analysis of intricate cyber-physical crime environments within distributed

settings. Central to our method is an event-centric ontology, anchored on the globally recognized UCO/CASE

standard. Complementing this ontology is a robust software framework, designed to expedite data extraction

processes, and ensure seamless interfacing with the knowledge repository. We demonstrate the usage of the

framework on a public dataset, encapsulating a realistic crime scenario populated with diverse IoT devices.

1 INTRODUCTION

Digital forensics is a domain that continually faces

challenges arising from the increasing complexity

and volume of data across heterogeneous sources.

Traditionally, experts in this ﬁeld grapple with vast

amounts of data, using many extraction and analysis

tools to weave together insights. These challenges are

only compounded by a shortage of experts who pos-

sess the necessary skills to navigate this intricate land-

scape.

With their advanced sensing capabilities, Internet

of Things (IoT) systems gather, transmit, and process

a signiﬁcant amount of data related to various phys-

ical phenomena. Consequently, the data from these

systems can be invaluable not just for cybercrimes but

for conventional crime investigations as well. How-

ever, the inherent interconnectedness of IoT devices

and the vast volume of data they produce intensify tra-

ditional forensic challenges. Valuable forensic data is

often dispersed across multiple system components,

necessitating sophisticated correlation analyses of ar-

tifacts obtained from diverse sources.

Ontologies present a promising solution. They en-

capsulate expert knowledge in a semantic representa-

https://orcid.org/0000-0002-2846-9391

https://orcid.org/0000-0001-8882-4095

https://orcid.org/0000-0002-9621-0787

tion, comprising concepts and their interrelationships.

This representation facilitates human-machine inter-

action, enabling both semi- and fully automatic infer-

ence of new knowledge. When paired with machine-

assisted pre-processing, ontologies can assimilate raw

data from diverse sources, streamlining forensic in-

vestigations.

In an IoT environment, it is vital to consider and

correlate the pieces of evidence obtained from dif-

ferent devices and other system components such

as hubs, edge devices, mobile devices, conventional

computers, and cloud sources. There exists a line

of research regarding the event reconstruction based

on the time attributes (Debinski et al., 2019; Espos-

ito and Peterson, 2013; Hargreaves and Patterson,

2012), however, they usually concentrate on time in-

formation without using other semantic relations and

they do not provide an extensible and well-structured

framework when compared to ontologies.

Our contribution, through this paper, addresses

these gaps. We tackle the source heterogeneity

and data volume problems within IoT environments,

proposing a uniﬁed framework that facilitates auto-

matic data extraction from various sources and repre-

senting the extracted data in a standardized ontology

format, aligned with the UCO/CASE speciﬁcation to

ensure robust interoperability and ﬂexibility. Our sys-

tem comprises three integral steps:

1. Data Extraction. Efﬁciently gleaning data from

570

Chikul, P., Bah¸si, H. and Maennel, O.

The Design and Implementation of a Semantic Web Framework for the Event-Centr ic Digital Forensics Analysis.

DOI: 10.5220/0012437700003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 570-581

ISBN: 978-989-758-683-5; ISSN: 2184-4356

evidence sources.

2. Knowledge Aggregation. Accumulating and

preprocessing the collected data.

3. Interface Layer. Querying and visualizing the

acquired knowledge.

To demonstrate the usage of the proposed method,

we apply our system to the IoT forensic dataset from

the DFRWS 2018 challenge. Our results demonstrate

the efﬁcacy of our solution, emphasizing how seman-

tic relations between diverse IoT device evidence can

be leveraged for efﬁcient forensic analysis.

The structure of this paper is as follows: Section 2

reviews the literature regarding the application of on-

tologies to the digital forensic area. We then follow

with the methodology and discussion of the proposed

framework in Section 3, and the demonstration of the

application is presented in Section 4. Section 5 con-

cludes the study.

2 RELATED WORK

A typical process of a digital forensic investigation

follows the steps of identiﬁcation/seizure, acquisi-

tion/preservation, analysis, and presentation of evi-

dence data. The analysis step retrieves forensics ar-

tifacts from the preserved copies of evidence and tries

to validate or invalidate the hypothesis developed for

explaining the crime or incident details. Event infor-

mation, which represents an abstract single action of

a crime actor at a given time with a duration (e.g., ac-

cessing the webpage, editing a document, sending an

email), is deduced from the artifacts and incorporated

into a timeline analysis (Chabot et al., 2015a). Event

heterogeneity is deﬁned under three criteria, the vary-

ing formats of data source, assigned temporal value,

and its semantic property that changes depending on

the context (Chabot et al., 2015a). Thus, a forensic

approach that deals with heterogeneity is required to

address these three criteria coherently.

The event analysis can be conducted in varying

time horizons (Debinski et al., 2019), micro or nano

timelines cover shorter time periods (Carvey, 2015)

whereas the super timeline encompasses a wider pe-

riod (Esposito and Peterson, 2013). The events can

be created at different abstract levels. For instance, a

high-level event such as a USB connection is identi-

ﬁed via pre-determined rules and visualized in (Harg-

reaves and Patterson, 2012).

A literature review of the studies regarding the on-

tologies in the digital forensics domain is given in

(Sikos, 2020). Although standardization of ontolo-

gies is considered a future research direction (Javed

et al., 2022), various taxonomies and ontologies are

proposed for different purposes.

The categorization of the forensic techniques in

the form of taxonomies is provided for the identiﬁ-

cation, acquisition, and analysis steps of the digital

forensic investigation process (Ellison et al., 2019).

Technological and professional aspects are covered in

another taxonomy (Brinson et al., 2006). Forensic

disciplines and sub-disciplines are categorized with

the corresponding evidence resources in (Karie and

Venter, 2014). An ontology for the categorization

of digital forensics tools and exploration of their re-

lations with others is proposed in (Wimmer et al.,

2018). Although the tooling and forensic technique

aspects are not addressed in the present paper, our

ontology can be extended with the proposal of cited

studies to give more insight into the traceability of the

investigation.

The terms related to incident response in SCADA

systems are introduced in (Eden et al., 2015). Other

conceptualization studies in the form of proper on-

tology structure have addressed the investigation pro-

cess (Park et al., 2009). A more complete digital

forensic ontology extending CybOX (Barnum et al.,

2020), a language for representing the digital artifacts

in a wider domain including intrusion detection, cyber

threat intelligence, and incident handling, is proposed

in (Casey et al., 2015). It is important to note that the

ontologies addressing different aspects of the prob-

lem domain can be integrated with each other in the

form of a meta-model to handle the domain complex-

ity. The discussion regarding which meta-modeling

approach would be much more suitable for the digi-

tal forensics domain is given in (Ameerbakhsh et al.,

2021).

The contribution of all the papers given above re-

mains at a conceptual level rather than a complete

implementation of a reasoning system. On the other

side, despite being limited, there exist other studies

that propose semantic web implementations evolved

around their ontologies. A comprehensive ontology

that covers the technical and process aspects of digital

investigations is given in (Chabot et al., 2015b). This

study also proposes a semantic web framework that

performs event reconstruction and enhances knowl-

edge. The limitation of this study is that the ontology

and the semantic framework conduct the correlation

among the various data sources belonging to one ev-

idence source. Our study aims to accumulate knowl-

edge by correlating different devices in an IoT envi-

ronment.

A general ontology for digital investigation is pro-

posed in (Kahved

c and Kechadi, 2009). This study

details only the analysis of the Windows registry. The

The Design and Implementation of a Semantic Web Framework for the Event-Centric Digital Forensics Analysis

571

same ontology is utilized for analyzing ﬁles and their

metadata in (Kahved

c and Kechadi, 2010). An-

other framework implementation addressed the analy-

sis of ﬁles with NLP techniques (Amato et al., 2020a).

Investigation ontologies are formed for the analysis

of data obtained from online social networks (Elezaj

et al., 2019; Turnbull and Randhawa, 2015). A note-

worthy study applies ontology and knowledge rep-

resentation framework for malware detection (Ding

et al., 2019). This study uses the data collected from

sandboxes (i.e., the platforms that can be used for col-

lecting data about the behavior of malware) to popu-

late the framework. The ontological framework has

been applied for other similar problem domains such

as cyber security threat modeling (V

alja et al., 2020).

Of all these works the one that stands out is

the Cyber Investigation Analysis Standard Expres-

sion (CASE)(Casey et al., 2017; Casey et al., 2018).

It builds on top of and extends the UCO (Casey

et al., 2015) and provides a standardized ontology

form for managing cyber investigations. CASE de-

ﬁnes domain-centric components that are on a higher

level of abstraction than the UCO itself and can be

thought of as the next step in the evolution of cyber

ontologies. The major deﬁnitions that CASE provides

are investigative actions, different investigation Ac-

tion Lifecycles, and provenance records. These con-

cepts allow the investigative entities to describe the

course of investigation in a forensically sound man-

ner. The wide community support of this ontology

makes it a prominent candidate for our system devel-

opment.

From the current studies in the ﬁeld, it becomes

evident that operating on unstructured data like plain

text or CSV spreadsheets will become more tedious

with time due to growing volumes and complexity

of evidence source interconnections. Several works

(Wimmer et al., 2018; Casey et al., 2017; Chabot

et al., 2015b) note that traditional methods often lack

a formal structure, making it difﬁcult to organize and

represent the data in a meaningful way. This can lead

to difﬁculties in understanding and interpreting the in-

formation. Plain text and CSV ﬁles have limited ex-

pressiveness, which means they may not be able to

capture the full complexity and richness of the data.

This can result in a loss of important details and nu-

ances during the reconstruction and analysis process.

One other drawback of unstructured data is its lack

of interoperability making it difﬁcult to integrate data

from different sources or collaborate with other in-

vestigators. This can hinder the overall efﬁciency

and effectiveness of the investigation. On the other

hand, ”ontologies provide a formally explicit speciﬁ-

cation for the ontology as well as a rich and exten-

sive ecosystem of technology support for serializa-

tion, transformation, semantic mapping and semantic

querying” (Casey et al., 2017). Chabot et al. state

that ”unlike more rudimentary data formats, ontology

can represent relationships between entities in addi-

tion to the underlying logic of data. The explicit and

formal nature of ontology facilitates the design and

the use of interpretation and analysis tools” (Chabot

et al., 2015a).

Although various ontologies are proposed in the

digital forensics domain and the need for them is

identiﬁed by the studies, there are limited works that

implement a working semantic web-based solution

(Chabot et al., 2015b; Casey et al., 2015; Casey et al.,

2017; Chikul et al., 2021). Although the work by

Chabot et al. aims to deal with data source hetero-

geneity, its focus is on one evidence source (e.g., a

hard disk image) with the scope of correlating logs

originating from the various ﬁle system and OS com-

ponents (e.g., web history, event logs, or volatile

memory content). This study also offers a way of

standardizing the uniﬁed representation form for such

evidence.

In (Chikul et al., 2021), challenges related to

the heterogeneity of data sources and the reduc-

tion of data volume were partially addressed. The

system in focus, ForensicFlow, introduces an auto-

mated methodology for extracting artifacts from var-

ious sources, including both volatile and non-volatile

memory. This system also aids in the reconstruction

of event-artifact graphs. However, there are limita-

tions in its ontological representation, particularly in

terms of ﬂexibility. It falls short in accommodating

the diverse range of artifacts, artifact families, asso-

ciated actions, and the additional metadata that sur-

rounds them.

On the other hand, the works by Casey et al. pro-

vide a sophisticated standard ontology to describe

complex knowledge stores in virtually any cyber-

related domain but do not standardize the ways of au-

tomatic artifact extraction and analysis (Casey et al.,

2015; Casey et al., 2017).

3 METHODOLOGY AND DESIGN

In this section, we provide a detailed overview of the

system design and implementation speciﬁcs that ad-

dress the major challenges identiﬁed in Section 2. The

system we present in this paper consists of four major

blocks, namely the extraction layer, knowledge aggre-

gation, ontology, and the communication interface.

The schematics representing the high-level overview

of the system can be observed in Figure 1.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

572

Data Source 1

Data Source 2

Data Source N

Evidence Extractor 1

Evidence Extractor 2

Evidence Extractor N

Evidence

Objects

Evidence

Objects

Evidence

Objects

Evidence

Aggregator

and

Merger

UCO/CASE

Ontology

Consolidated Evidence

Objects Store

Post-

processing

(optional)

Graph

Visualization

SPARQL Query

Interface

Timeline

Viewer

Extraction Layer

Aggregation Layer

Interface Layer

Object

Serializer

Enhancement Layer

Figure 1: High Level System Overview.

3.1 Ontology Design

The core of the system is the ontology-based knowl-

edge store that deﬁnes generic entity classes and their

mutual connections. Considering the amount of pre-

vious work done in that domain, it was decided not

to design the ontology from scratch but rather adopt

an already existing solution. As mentioned in (Casey

et al., 2018) the approach we exercise is to ”inte-

grate rather than duplicate: build on existing stan-

dardized representations, rather than create a sepa-

rate one, to avoid redundancy and duplication of ef-

fort”. From the range of currently available solu-

tions, we concentrated on the Uniﬁed Cyber Ontol-

ogy (UCO) (Casey et al., 2015) and Cyber Investi-

gation Analysis Standard Expression (CASE) (Casey

et al., 2017) for storing the digital forensic entities

(evidence, data sources, provenance information, etc.)

and their relationships. As stated in (Casey et al.,

2017) ”UCO could be thought of as a collection

of building blocks and parts, e.g., big blocks, little

blocks, seats, tables, windows, wheels”. It is ﬂexi-

ble enough to represent cyber environments in various

domains such as incident handling, malware analy-

sis, and security operations. CASE on the other hand

takes these building blocks to build and operate in the

domain of cyber-investigation. Currently, UCO pro-

vides ﬁve base ontologies with four of them meant

for inter-domain foundation (uco:core, uco:action,

uco:observable, and uco:victim) and one domain-

speciﬁc (uco:investigation). In this work, we uti-

lize only two of them: uco:core and uco:observable,

since we concentrate on the observable traces ex-

traction and analysis. However, it is planned to ex-

pand the system to include more investigation-related

facts in the future. Two key components that are

strongly adopted in our system are core:Relationship

and core:ConﬁdenceFacet. These are used to create

the semantic linkage between the extracted observ-

ables and deﬁne the level of certainty for such links.

The serialization method was chosen in favor of

RDF/XML syntax which is different from the Turtle

format native to both UCO and CASE. This choice

was made in order to more easily automate the extrac-

tion and preprocessing of the data in Python language.

It is important to note here that since the ontology

is fully Resource Description Framework/Web Ontol-

ogy Language (RDF/OWL) speciﬁcation compliant,

the serialization format can be switched to any of the

supported ones (JSON-LD, XML, protocol buffers,

etc.).

3.2 Information Extraction

The extraction layer consists of an arbitrary number

of distinct extraction modules that operate on a single

source of evidentiary data. The data source can be a

database, a log ﬁle, or a binary memory dump. These

data sources are converted to a standardized evidence

representation to be later combined into the ontolog-

The Design and Implementation of a Semantic Web Framework for the Event-Centric Digital Forensics Analysis

573

ical form. To achieve a level of ﬂexibility that could

accommodate almost any type of data source and ex-

tract a wide range of entities in the cyber domain, a

Python-based framework was developed.

The base of the framework consists of a se-

lection of UCO/CASE class wrappers that are

relevant to the framework speciﬁcs, such as

observable:EventRecord, observable:Device,

identity: Person, and many others. The class hierar-

chy of the wrappers represents a 1-to-1 mapping of

the original UCO/CASE structure for consistency and

ease of maintenance. Every class wrapper is derived

from one base class named Rd f EntityBase that

populates two methods: print() that simply prints

out an object’s properties and to rd f () that must

return a serialized XML node with the object’s data.

It is worth mentioning that the Rd f EntityBase class

deﬁnes two functions that are used later on in the

aggregation stage: an equality function ( eq ()) and

a hash function ( hash ()). These functions deﬁne

the comparison between the instances of the classes

and can be overridden if needed by subclasses. We

kept the UCO Facet extension approach to maintain

the versatility of the original standard. UCO Facets

represent groupings of properties that characterize a

speciﬁc aspect of an object. An example of Facets can

be a ﬁle entity that can have some basic ﬁle properties

(name, path, size, etc.) described in an instance of

f acet: FileFacet and some content descriptive data

(entropy, hashes, magic number, etc.) stored in a

f acet:ContentDataFacet structure. Facets can be

optionally assigned to any object derived from the

base UCO core:UcoOb ject class. If any speciﬁc data

or object property is needed for some custom event a

new class can be derived from the base one and the

new custom ﬁeld should be added to the initializer.

After that, the only thing that is needed is to add a

serialization of the ﬁeld to the node populated by

the parent. An example implementation of a custom

Event Facet class that introduces a new string-based

data property named custom f ield is demonstrated

in Figure 2.

The Rd f ExportBase is a common base class for

all the extractor modules in the system. The instance

of the extractor class receives a data source location,

(a path to a database ﬁle, memory dump, etc.), and

optional parameters conﬁguration to ﬁlter the events

(e.g. a time frame). All the derived classes are to im-

plement a single method - extract(). This method is

responsible for the extraction of the events and related

artifacts, as well as the generation of the initial ob-

ject relationships. It returns a list of Rd f EntityBase-

derived objects that represent the ontology for the

scope of the processed data source. Each extractor

class CustomEventFacet(EventRecordFacet):

def __init__(self, application: Application,

computer_name: str = None,

cyber_action: CyberAction = None,

event_id: str = None,

event_text: str = None,

event_type: str = None,

created_time: datetime = None,

custom_field: str = None) -> None:

super().__init__(application, computer_name,

cyber_action, event_id, event_text,

event_type, created_time)

self.custom_field = custom_field

def to_rdf(self, root_node: et.Element)

-> et.Element:

node = super().to_rdf(root_node)

custom_node = et.SubElement(

node, "custom:field")

custom_node.set(

"rdf:datatype", "&xsd;string")

custom_node.text = self.custom_field

return node

Figure 2: Custom event facet class example.

can implement its own source-speciﬁc ﬁltering to re-

duce the volume of output entities. As an example

of such ﬁltering, we may consider dropping regular

health check events of a device that do not bring much

value in terms of better understanding a crime scene

but generate a lot of noise in the data. Additionally,

the data source passed to the extractor gets populated

into the ontology as well: it is added as a ﬁle ob-

ject record (ﬁle path, data size, MD5/SHA hashes,

etc.) that is linked as an evidence source to all ex-

tracted events. It is a matter of future work to add

deeper integration of cyber investigation entities from

CASE such as investigation: ProvenanceRecord,

investigation:Examiner, and others. There is one pre-

deﬁned extractor that is supplied with the framework:

KnownFactsExtractor. This module allows for the

population of any known facts about context events or

actors. This helps to enrich the timeline and supple-

ment the ontology with additional crime scene con-

text. Examples of such facts can be a list of suspects

and some non-cyber events that are known for sure.

For example, a call to the police is made (an event)

from a speciﬁc phone number (an observable). Ad-

ditionally, the framework provides a small library of

tools to perform typical operations with different data

stores like CSV, JSON, and SQLite databases mak-

ing the effort to build new extractors minimal and

ensuring the reusability of the code to match diverse

data sources. Full code with samples can be found at

https://github.com/link/follows/here.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

574

3.3 Knowledge Aggregation

The knowledge aggregation layer is represented by a

single module that handles all of the extractors and

is responsible for consolidated data composition and

initial knowledge preparation. This module ﬁrst ini-

tializes and conﬁgures all present extractors and then

calls their respective extract() methods to fetch indi-

vidual sub-ontologies for every data source and add

those to a uniﬁed data store. This data store then un-

dergoes the initial normalization step which is entity

merging. By utilizing the equality and hash functions

of the Rd f EntityBase class, the aggregator is able to

quickly identify multiple representations of the same

object. If a duplicate is found it gets deleted, how-

ever, its relationships are merged into the initial ob-

ject thus creating an inter-source linkage. An exam-

ple of such a merge can be an email address artifact

extracted from an email client and the same address

used as a username for the home automation sys-

tem. In this case, the home automation account and

the email communication will be automatically bound

by the email address artifact (see Figure 3). An-

other case where merging is applied is the same user

account extracted from two different data locations,

e.g. cloud source dump and a mobile phone app. In

this case, the artifacts and events bound to the user

may differ by source but the user record will be the

same so after merging the resulting ontology individ-

ual will have both contexts. The entity merging stage

is followed by the timeline creation. The aggregator

extracts all of the individuals that are derived from

the observable:EventRecord class and arranges them

chronologically. After extracting object relationships,

they are placed into the knowledge store which is then

passed on to the Object Serializer module for the ﬁnal

ontology instantiation in the RDF/XML format.

3.4 Post-Processing

There are unlimited possibilities for the post-

processing of the generated ontology in order to ﬁnd

additional correlations. We implemented an example

post-processor that goes over the application user ac-

counts that were not previously linked to any person

and by applying the string similarity algorithm de-

scribed in (Myers, 1986) try to match the real name

and a username by generating a similarity score. It is

important to note that in forensic investigations, while

such hints and deductions can guide inquiries, it’s es-

sential to remember that assumptions need to be vali-

dated with concrete evidence before reaching a deﬁni-

tive conclusion.

3.5 Knowledge Interfacing

To effectively assist the investigator in solving the

crime, we propose three approaches to crime inter-

pretation: graph visualization, timeline view, and a

set of SPARQL queries to fetch the desired facts and

their correlations conveniently. The ontology graph

view can help in quickly identifying the underlying

events and the context around them such as foren-

sic artifacts involved or the interacting actors (see ex-

ample in Figure 4). The visualization scope can be

shrunk to a certain point of interest, e.g. a speciﬁc

user and events surrounding it, or expanded instead

to see a wider picture. In the current state, for the

graph visualization, we utilize Protege’s OntoGraph

plug-in that is included in the standard installation

package. For the purpose of timeline generation, our

system provides a module capable of presenting the

events in chronological order accompanied by any

subset of the surrounding context. The user may se-

lect which ﬁelds should be included in the timeline

view (origin source, associated users, conﬁdence lev-

els, etc.). At present this information is output as a

CSV spreadsheet but a sophisticated GUI tool is be-

ing developed. Lastly, the SPARQL interface allows

for complex knowledge querying. SPARQL is a query

language similar to SQL but designed to extract data

from knowledge bases instead of relational databases.

Some examples of such queries can be found in Sec-

tion 4.3.

4 SYSTEM DEMONSTRATION

This section covers the demonstration of the proposed

method on a publicly available dataset to showcase

the advantages of automated artifact extraction and

interfacing with the ontology-based knowledge store.

4.1 The Dataset and the Scenario

In many scientiﬁc ﬁelds, the repeatability of the ex-

periments poses a serious challenge and digital foren-

sics is no different. The vast majority of the works

that we studied throughout this research were incor-

porating either private or irreproducible datasets. For

other researchers to validate the results and what is

more importantly to advance the research and build

on top of these results the method and the data must

be clearly deﬁned. The DFRWS community intro-

duced an IoT-oriented forensic challenge in 2018. In

the scope of this challenge, a comprehensive dataset

was introduced. Not only was it diverse by represent-

ing data extracted from different crime scene devices

The Design and Implementation of a Semantic Web Framework for the Event-Centric Digital Forensics Analysis

575

ail

(

some@mai

com

)

ail

Facet 1

Device 1

Event

Event 1

Event 3

Device 2

ail

(

some@mai

com

)

ail

Facet 2

Extractor 1

Extr

actor

ail

(

some@mai

com

)

ail

Facet 1

Device 1

Event

Event 1

Event 3

Device 2

Merged Ontology

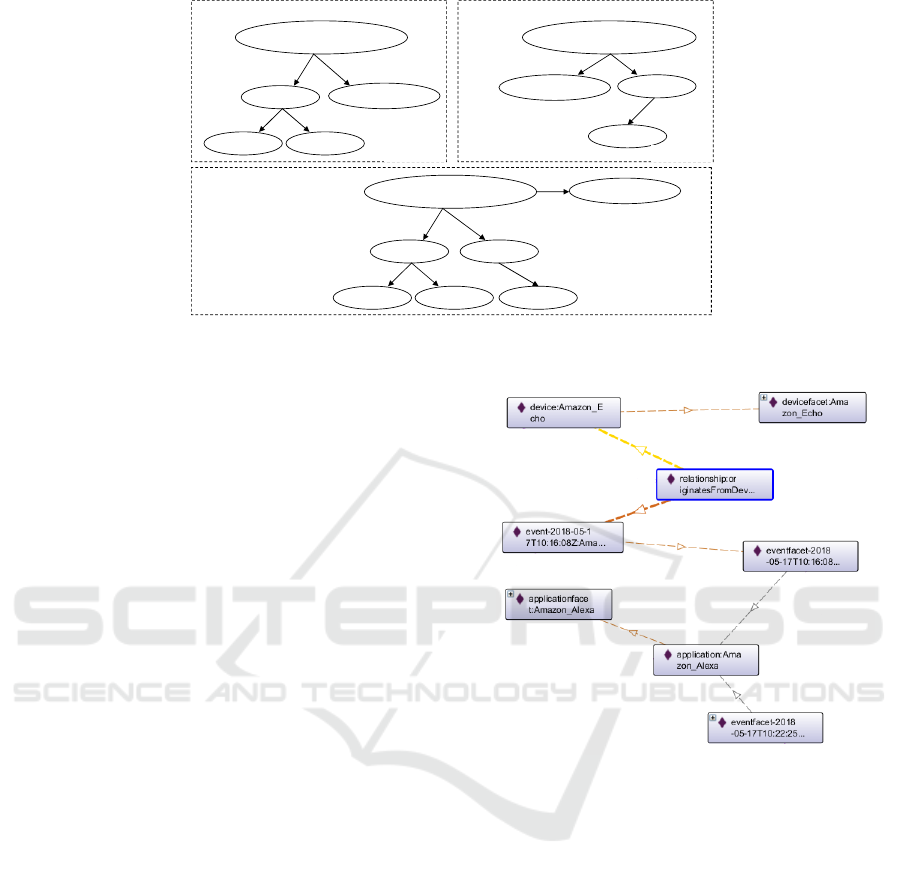

Figure 3: Entity Merging example.

but it came with a realistic scenario and a set of puz-

zles for the investigators to solve. The data presented

in the dataset includes different logs, cache ﬁles, de-

vice memory dumps, disk snapshots, network trafﬁc

interceptions, cloud-extracted data, and more. All

these facts made this dataset a perfect candidate for

the demonstration of our method.

The scenario of the challenge centers around a sit-

uation in a drug-producing laboratory. The incep-

tion of the case starts with the police being alerted

about an unsuccessful raid of the lab that ended up

in an arson attempt. The forensic team is dispatched

to ﬁnd the lab heavily equipped with different IoT

devices, such as cameras, different sensors, voice-

and remote-controlled hubs, and network infrastruc-

ture equipment. In addition, a forgotten cell phone

belonging to the lab owner Jessie Pinkman is found

at the scene. All identiﬁed devices were seized and

carefully analyzed in order to extract potential evi-

dence data sources. Police ofﬁcers interrogated two

of Pinkman’s known associates, D. Pandana and S.

Varga, who had access to the lab. Both of them deny

any involvement in the raid.

There are two key questions for the investigators

to answer: the time at which the lab was raided, if any

of Pinkman’s friends could have been involved, and if

yes with what conﬁdence we can say so.

4.2 Extraction of the Evidence

For demonstration purposes, considering the wide

range of evidentiary material at hand it was decided

to concentrate on the following points of interest: the

sensor data generated by the iSmartAlarm ecosystem

(door sensor, motion sensor, and the hub), the NEST

Protect system, and Amazon Echo voice control. The

reasoning behind such selection is very practical:

Figure 4: Instantiated ontology objects with a relationship

(cropped).

from the forensic report, the range of selected inter-

connected devices covers most of the crime scene, in-

cluding motion and smoke detection, as well as con-

trol points (hubs), and should provide an exhaustive

overview of the events that took place.

iSmartAlarm-related artifacts were found on the

phone of Jessie Pinkman inside a controller app’s

local database, an SQLite ﬁle. The database pro-

vides valuable information such as devices connected

to the hub (sensors), users having access to the sys-

tem, events generated by the sensors, and user events

executed on the hub itself. The evidence set re-

lated to Amazon Echo consists of JSON ﬁles, CSV

sheets, sound ﬁles with voice commands, and SQLite

database, representing different cloud-extracted arti-

facts. The main point of interest here is the database

that provides all the major information in a consol-

idated manner, including event logs and voice com-

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

576

mand transcriptions. As for the NEST Protect data

related to event tracking was found in the controller

app cache extracted from Pinkman’s phone. The data

is stored in JSON format. With this information at

hand, three extraction modules were created deriving

from the RdfExportBase class as described in Section

3.2: AlexaExtractor, IsaExtractor, and NestExtractor.

With the help of the framework’s built-in function-

ality, the extraction modules’ code did not exceed a

hundred lines. One common ﬁlter that is derived by

all extractors is the time frame that speciﬁes the start

and the end of the period that events should fall under.

In our case, we limited the time frame to the day of

the accident which is 17 May 2018.

The data extraction process resulted in 290 events

placed chronologically. However, after quick obser-

vation that some of the extracted events turned out

to be noise of little use. For example, for NEST de-

vices there are two device maintenance event types

that may be ﬁltered out: check-in which is an online

status check, and promise which is a NEST Nightly

Promise mode (a quick check that all systems are op-

erational). After applying a ﬁlter for those events the

total number of meaningful events dropped by 86%

effectively reducing to 41 (see Table 1).

One aspect discussed in Section 3.3 is the entity

merging and it can be demonstrated here in the exam-

ple of the email artifact jpinkman2018@gmail.com.

This email was identiﬁed by two different extractors:

the Amazon Echo extractor (as part of the Amazon

ID) and the NEST Protect extractor (as the device

registration email). Both these extractors assign dif-

ferent references to their copies of the artifacts that

they ﬁnd in their own limited scope. Later after being

merged together in the knowledge aggregation stage

these references will provide a deeper involvement

of the artifact in the full scene environment. In this

concrete case, the email in question becomes a link-

ing point between the two devices and their operating

accounts. Another instance of entity merging is the

full customer name extracted from Amazon ID (Jessie

Pinkman). This person observable is getting merged

with the suspect person observable provided by the

crime scene context from the KnownFactsExtractor.

The simpliﬁed view of the extracted ontology can be

viewed in Figure 5. Thin solid arrows represent ob-

ject relations deﬁned by CASE. Additionally, we cre-

ate our own instances of ObservableRelationship to

widen the semantic scope of the ontology (marked as

thick solid lines). One example of those is linkedE-

mail which identiﬁes the relation between an applica-

tion account and an email. ownedBy relation speciﬁes

ownership of some entity by a speciﬁc person. In the

schematic representation, dashed arrows are utilized

to symbolize potential relational linkages, as derived

from the post-processing phase, each accompanied by

a quantiﬁed conﬁdence metric. Speciﬁcally, in the in-

stance at hand, the prospective associations between

the iSmartAlarm users denoted as JPinkman and pan-

dadodu, have been provisionally attributed to Jessie

Pinkman and D. Pandana, respectively. As previously

noted in Section 3.4, it is imperative to approach these

inferred connections with an appropriate level of cir-

cumspection, acknowledging the inherent uncertainty

in such algorithmically generated linkages.

4.3 SPARQL Querying

The SPARQL query language is a powerful tool to in-

fer data from and manipulate RDF-based ontologies.

It can help in determining some simple correlations

as well as complex ones. An example of a moder-

ately simple query shown is in Figure 6 It retrieves all

the events associated with a person named ”Jessie”.

It includes the event ID, the time the event was cre-

ated, and the type of the event. The results are ordered

chronologically based on the time of each event. This

allows for a timeline view of events for the speciﬁed

person.

A more comprehensive and practically useful case

would be to retrieve all events for a person, including

links from person to accounts and emails, and to dis-

play a ﬂag indicating whether the relationship has a

conﬁdence facet (see Figure 7). It ﬁrst retrieves the

name of the person to check if it matches the con-

dition. Then it ﬁnds all relationships that originate

from this person, which can be either account or email

linkages. For each relationship, it checks if there is

an associated conﬁdence facet and sets the hasConf

ﬂag accordingly. It then retrieves all event records

linked through these relationships, including the event

ID, time, and type, and orders the results by event

time, providing a chronological view of events per

person, including the presence of a conﬁdence facet

in their relationships. This query is particularly use-

ful in scenarios where you need a comprehensive view

of events associated with individuals, including the

strength of the evidence (indicated by the presence of

a conﬁdence facet).

5 CONCLUSION AND FUTURE

WORK

In this work, we proposed a system for automated

extraction, ontological representation, and analysis

of complex distributed crime scenes. The standard-

based ontology provides semantic linkage of all the

The Design and Implementation of a Semantic Web Framework for the Event-Centric Digital Forensics Analysis

577

Table 1: Consolidated events timeline.

# Time Source Event Additional Info User

1 09:44:53 iSASensor Door Opened

2 09:45:22 iSAHub Disarm TheBoss

3 09:47:18 iSASensor Door Closed

4 09:47:50 iSAHub Arm JPinkman

5 10:09:52 iSASensor Door Opened

6 10:09:55 iSASensor Motion Detected

7 10:09:57 iSAHub Disarm TheBoss

8 10:16:08 AmazonEcho History (Dialog) alexa play led zeppelin Jessie Pinkman

9 10:16:09 AmazonEcho SalmonCard Link Spotify Jessie Pinkman

10 10:16:09 AmazonEcho History alexa play led zeppelin Jessie Pinkman

11 10:16:09 AmazonEcho History (Dialog) To play Spotify, link your

premium account ﬁrst using

the Alexa App.

Jessie Pinkman

12 10:16:20 AmazonEcho History Unknown Jessie Pinkman

13 10:16:20 AmazonEcho History (Dialog) Unknown Jessie Pinkman

14 10:22:08 AmazonEcho History (Dialog) alexa Jessie Pinkman

15 10:22:09 AmazonEcho History alexa Jessie Pinkman

16 10:22:12 AmazonEcho History (Dialog) tell i. smart alarm to arm

my system

Jessie Pinkman

17 10:22:13 AmazonEcho TextCard Mode Changed (iSmartA-

lArm)

Jessie Pinkman

18 10:22:13 AmazonEcho History tell i. smart alarm to arm

my system

Jessie Pinkman

19 10:22:13 AmazonEcho History (Dialog) Your Door is open, Are you

sure you want to arm your

system?

Jessie Pinkman

20 10:22:19 AmazonEcho History (Dialog) yes Jessie Pinkman

21 10:22:20 AmazonEcho TextCard Mode Changed (iSmartA-

lArm)

Jessie Pinkman

22 10:22:20 AmazonEcho History yes Jessie Pinkman

23 10:22:20 AmazonEcho History (Dialog) Your system will set to Arm

in 30 seconds.

Jessie Pinkman

24 10:22:22 iSAHub Arm JPinkman

25 10:22:25 AmazonEcho History - Jessie Pinkman

26 10:22:30 iSAHub Disarm TheBoss

27 10:34:15 iSASensor Door Closed TheBoss*

28 10:34:17 iSAHub Home TheBoss

29 10:34:31 iSAHub Disarm pandadodu

30 10:34:36 iSASensor Door Opened pandadodu*

31 10:35:54 NEST Smoke Heads Up Duration 16s pandadodu*

32 10:36:11 NEST Smoke Clear pandadodu*

33 10:37:52 iSAHub Disarm pandadodu

34 10:40:00 Known Event Police informed

35 10:45:00 Known Event Forensics arrive

36 11:39:50 iSASensor Door Closed

37 14:52:10 iSASensor Door Opened

38 14:57:06 iSASensor Door Closed

39 14:58:03 iSASensor Door Opened

40 14:58:15 iSASensor Door Closed

41 17:50:55 NEST Unknown (0204)

entities that comprise the digital crime scene envi-

ronment. The ontology is assisted by a Python-based

software development framework that allows for ev-

identiary data extraction from arbitrary data sources

and conversion of that data into a uniﬁed represen-

tation inside the ontology. The ﬁltering mechanisms

that are part of the system allow for a great informa-

tion volume reduction helping to overcome the inves-

tigation scope bloating with irrelevant facts.

For the demonstration, we applied the proposed

method against a publicly available dataset represent-

ing a crime scene in a distributed environment of In-

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

578

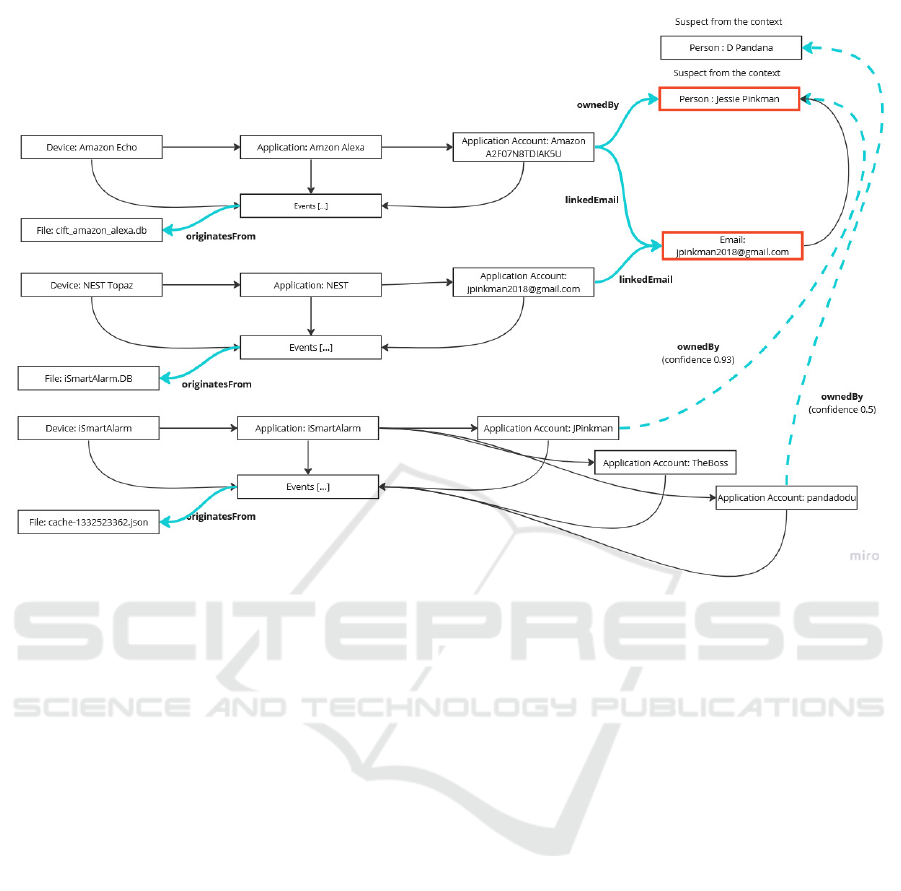

Figure 5: Simpliﬁed view of the extracted ontology.

SELECT ?evt ?evtTime ?evtType

WHERE {

?p rdf:type uco-identity:Person.

?p uco-identity:hasFacet ?nameFacet.

?nameFacet identity:givenName "Jessie".

?rel uco-observable:source ?p.

?evtRec uco-observable:hasFacet ?rel.

?evtRec rdf:type uco-observable:EventRecord.

?evtRec uco-observable:observableCreatedTime

?evtRec uco-observable:eventType ?evtType.

}

ORDER BY ASC(?evtTime)

Figure 6: An example of SPARQL query to retrieve events

related to NEST Protect and Amazon Echo.

ternet of Things devices to showcase how investiga-

tors can quickly and efﬁciently approach a very di-

verse evidence data set. One of the advantages here

is the ability to easily plug in any new data source to

enrich an already populated knowledge base about a

crime scene. The newly added data will be organi-

cally embedded into existing ones providing new cor-

relations or reﬁning the existing ones. The standard-

ized ontological representation allows the populated

knowledge to be easily integrated into any compati-

ble data store from a different domain.

As part of future work, we plan to integrate pattern

matching based on NLP techniques similar to those

SELECT ?pName ?evt ?evtTime ?evtType

(BOUND(?confFacet) AS ?hasConf)

WHERE {

# Person details

?p rdf:type uco-identity:Person.

?p uco-identity:hasFacet ?nameFacet.

?nameFacet identity:lastName ?pName.

FILTER(?pName = "Pinkman")

# Link person to accounts and emails

?rel uco-observable:source ?p.

OPTIONAL { ?rel core:hasFacet ?confFacet. }

{

?rel uco-observable:target ?acc.

?acc rdf:type uco-observable:ApplicationAccount.

} UNION {

?rel uco-observable:target ?email.

?email rdf:type uco-observable:EmailAddress.

}

# Fetch related events

?evtRec uco-observable:hasFacet ?rel.

?evtRec rdf:type uco-observable:EventRecord.

?evtRec uco-observable:observableCreatedTime ?evtTime.

?evtRec uco-observable:eventType ?evtType.

}

ORDER BY ASC(?evtTime)

Figure 7: A complex SPARQL query example.

The Design and Implementation of a Semantic Web Framework for the Event-Centric Digital Forensics Analysis

579

described in (Amato et al., 2020b) to enrich the fact

enhancement phase of post-processing with more data

correlation capabilities. To continuously support new

UCO/CASE releases, we will develop an automated

class generator from the JSON-LD ontology repre-

sentation. This will allow for hassle-free adoption of

any future iteration of the speciﬁcation.

Ontologies play a crucial role in the realm of ar-

tiﬁcial intelligence, especially in automating analysis

and facilitating the deduction of new knowledge. By

structuring data in a standardized, machine-readable

format, ontologies enable AI systems to interpret

complex relationships and extract insights that might

not be readily apparent. Our current project exempli-

ﬁes this, as we are actively engaged in processing the

provided ontology using advanced Large Language

Models (LLMs). This approach not only enhances the

depth and accuracy of analysis but also paves the way

for uncovering new patterns and connections within

the data, showcasing the powerful synergy between

ontology structures and AI capabilities.

REFERENCES

Amato, F., Castiglione, A., Cozzolino, G., and Narducci,

F. (2020a). A semantic-based methodology for digital

forensics analysis. Journal of Parallel and Distributed

Computing, 138:172–177.

Amato, F., Castiglione, A., Cozzolino, G., and Narducci,

F. (2020b). A semantic-based methodology for digital

forensics analysis. Journal of Parallel and Distributed

Computing, 138:172–177.

Ameerbakhsh, O., Ghabban, F. M., Alfadli, I. M., AbuAli,

A. N., Al-Dhaqm, A., and Al-Khasawneh, M. A.

(2021). Digital forensics domain and metamodeling

development approaches. In 2021 2nd International

Conference on Smart Computing and Electronic En-

terprise (ICSCEE), pages 67–71. IEEE.

Barnum, S., Martin, R., Worrell, B., and Kirillov, I. (2020).

Cyber observable expression (cybox™) archive web-

site.

Brinson, A., Robinson, A., and Rogers, M. (2006). A cyber

forensics ontology: Creating a new approach to study-

ing cyber forensics. digital investigation, 3:37–43.

Carvey, H. (2015). Micro- & mini-timelines. Windows In-

cident Response.

Casey, E., Back, G., and Barnum, S. (2015). Leveraging

cybox™ to standardize representation and exchange

of digital forensic information. Digital Investigation,

12:S102–S110.

Casey, E., Barnum, S., Grifﬁth, R., Snyder, J., van Beek,

H., and Nelson, A. (2017). Advancing coordinated

cyber-investigations and tool interoperability using a

community developed speciﬁcation language. Digital

Investigation, 22:14–45.

Casey, E., Barnum, S., Grifﬁth, R., Snyder, J., van Beek,

H., and Nelson, A. (2018). The Evolution of Express-

ing and Exchanging Cyber-Investigation Information

in a Standardized Form, pages 43–58. Springer Inter-

national Publishing, Cham.

Chabot, Y., Bertaux, A., Kechadi, T., and Nicolle, C.

(2015a). Event reconstruction: A state of the art.

Handbook of Research on Digital Crime, Cyberspace

Security, and Information Assurance, pages 231–245.

Chabot, Y., Bertaux, A., Nicolle, C., and Kechadi, T.

(2015b). An ontology-based approach for the recon-

struction and analysis of digital incidents timelines.

Digital Investigation, 15:83–100.

Chikul, P., Bahsi, H., and Maennel, O. (2021). An ontology

engineering case study for advanced digital forensic

analysis. In Attiogb

e, C. and Ben Yahia, S., editors,

Model and Data Engineering, pages 67–74, Cham.

Springer International Publishing.

Debinski, M., Breitinger, F., and Mohan, P. (2019). Time-

line2gui: A log2timeline csv parser and training sce-

narios. Digital Investigation, 28:34–43.

Ding, Y., Wu, R., and Zhang, X. (2019). Ontology-based

knowledge representation for malware individuals and

families. Computers & Security, 87:101574.

Eden, P., Blyth, A., Burnap, P., Cherdantseva, Y., Jones,

K., and Soulsby, H. (2015). A forensic taxonomy of

scada systems and approach to incident response. In

3rd International Symposium for ICS & SCADA Cyber

Security Research 2015 (ICS-CSR 2015) 3, pages 42–

51.

Elezaj, O., Yayilgan, S. Y., Kalemi, E., Wendelberg, L.,

Abomhara, M., and Ahmed, J. (2019). Towards de-

signing a knowledge graph-based framework for in-

vestigating and preventing crime on online social net-

works. In International Conference on e-Democracy,

pages 181–195. Springer.

Ellison, D., Ikuesan, R. A., and Venter, H. S. (2019). On-

tology for reactive techniques in digital forensics. In

2019 IEEE Conference on Application, Information

and Network Security (AINS), pages 83–88. IEEE.

Esposito, S. and Peterson, G. (2013). Creating super time-

lines in windows investigations. In IFIP Interna-

tional Conference on Digital Forensics, pages 135–

144. Springer.

Hargreaves, C. and Patterson, J. (2012). An automated time-

line reconstruction approach for digital forensic inves-

tigations. Digital Investigation, 9:S69–S79.

Javed, A. R., Ahmed, W., Alazab, M., Jalil, Z., Kifayat,

K., and Gadekallu, T. R. (2022). A comprehensive

survey on computer forensics: State-of-the-art, tools,

techniques, challenges, and future directions. IEEE

Access, 10:11065–11089.

Kahved

c, D. and Kechadi, T. (2009). Dialog: A frame-

work for modeling, analysis and reuse of digital foren-

sic knowledge. digital investigation, 6:S23–S33.

Kahved

c, D. and Kechadi, T. (2010). Semantic modelling

of digital forensic evidence. In International Con-

ference on Digital Forensics and Cyber Crime, pages

149–156. Springer.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

580

Karie, N. M. and Venter, H. S. (2014). Toward a general

ontology for digital forensic disciplines. Journal of

forensic sciences, 59(5):1231–1241.

Myers, E. W. (1986). An o(nd) difference algorithm and its

variations. Algorithmica, 1(2):251–266.

Park, H., Cho, S., and Kwon, H.-C. (2009). Cyber forensics

ontology for cyber criminal investigation. In Inter-

national Conference on Forensics in Telecommunica-

tions, Information, and Multimedia, pages 160–165.

Springer.

Sikos, L. F. (2020). Ai in digital forensics: Ontology engi-

neering for cybercrime investigations. Wiley Interdis-

ciplinary Reviews: Forensic Science, page e1394.

Turnbull, B. and Randhawa, S. (2015). Automated event

and social network extraction from digital evidence

sources with ontological mapping. Digital Investiga-

tion, 13:94–106.

alja, M., Heiding, F., Franke, U., and Lagerstr

om, R.

(2020). Automating threat modeling using an ontol-

ogy framework. Cybersecurity, 3(1):1–20.

Wimmer, H., Chen, L., and Narock, T. (2018). Ontologies

and the semantic web for digital investigation tool se-

lection. Journal of Digital Forensics, Security, and

Law, 13(3):21.

The Design and Implementation of a Semantic Web Framework for the Event-Centric Digital Forensics Analysis

581
