Visual Attention and Privacy Indicators in Android: Insights from Eye

Tracking

Michele Guerra

1 a

, Roberto Milanese

1,2 b

, Michele Deodato

3 c

, Vittorio Perozzi

and Fausto Fasano

1 d

Mosaic Research Center, University of Molise, Italy

Department of Control and Computer Engineering, Politecnico di Torino, Italy

Division of Science, New York University, Abu Dhabi, U.S.A.

Keywords:

Security and Privacy, Application Security, App Permission, Android, Android Permission Model.

Abstract:

In today’s digital landscape, where privacy preservation is of paramount importance, Android has implemented

new features to enhance transparency: the Privacy Indicators (PIs). Our study employs eye-tracking technol-

ogy to investigate how users perceive and interact with these indicators. As a visual alert system, PIs signal

when sensitive resources, like camera or microphone, are in use. However, the structure of Android’s permis-

sion model, susceptible to exploitation by malevolent or commercial apps, places an excessive responsibility

on PIs. They act as the ﬁnal alert for users against the misuse of permissions in unexpected contexts. We

conducted a controlled experiment with 29 participants who were exposed to various privacy scenarios while

their eye movements were tracked and recorded. Our ﬁndings reveal a signiﬁcant gap in PIs effectiveness,

particularly in high-engagement tasks, indicating a need for more eye-catching privacy notiﬁcations. These

ﬁndings suggest the need for redesigning some privacy interfaces to make them more effective. The study’s

insights contribute to the broader discussion on balancing functionality with user privacy and the methodology

of utilizing eye tracking in user experience research.

1 INTRODUCTION

Android, the undisputed leader in the mobile device

world, has become an integral part of our everyday

lives, with its ubiquitous operating system deeply en-

trenched into the fabric of our digital experiences.

The platform’s widespread adoption brings to the fore

critical questions about user privacy and the efﬁcacy

of mechanisms designed to protect it. Android’s per-

mission model, a framework established to regulate

app access to sensitive resources like cameras and

microphones, is central to this discussion. However,

users’ growing trust in applications increasingly chal-

lenges this system’s effectiveness, often leading to a

casual approach to granting permissions.

The inherent complexities of Android’s permis-

sion model and user behavior underscore the need

for robust privacy safeguards. This is where Privacy

https://orcid.org/0009-0005-9990-234X

https://orcid.org/0009-0009-8758-753X

https://orcid.org/0000-0002-2624-1430

https://orcid.org/0000-0003-3736-6383

Indicators (PIs) come into play. Implemented as vi-

sual cues within the operating system, PIs aim to alert

users when sensitive resources such as camera and

microphone are accessed (Figure 1). Yet, questions

linger about their actual impact and visibility in every-

day use, especially when permissions are exploited in

non-contextualized or malicious ways.

PIs became a part of the Android operating sys-

tem starting from Android 12. They are a critical up-

date in Android’s ongoing evolution to enhance user

awareness and control over privacy. This study seeks

to evaluate the practical impact of this signiﬁcant fea-

ture in real-world scenarios, providing insights into its

effectiveness and areas for potential improvement.

Our study seeks to illuminate this crucial aspect

by employing eye-tracking technology, a method tra-

ditionally reserved for ﬁelds such as marketing and

medical research, now repurposed to scrutinize user

interactions with PIs. This innovative approach al-

lows for an objective, real-time analysis of how users

notice and process PIs amidst various interactive tasks

on their smartphones.

In this context, we conducted a controlled experi-

320

Guerra, M., Milanese, R., Deodato, M., Perozzi, V. and Fasano, F.

Visual Attention and Privacy Indicators in Android: Insights from Eye Tracking.

DOI: 10.5220/0012437600003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 320-329

ISBN: 978-989-758-683-5; ISSN: 2184-4356

ment involving 29 participants to empirically investi-

gate user interaction with Privacy Indicators on An-

droid devices. These participants, drawn from di-

verse backgrounds, interacted with a series of tasks

designed to simulate real-world smartphone usage.

Through eye-tracking, our objective was to monitor

how and when these users noticed the Privacy Indica-

tors during different types of interactions, especially

in scenarios where resource use might not be antici-

pated.

Through a comprehensive experimental setup, we

aim to probe the depths of user attention and response

to PIs, assessing their prominence and effectiveness in

real-world scenarios. This investigation is particularly

timely given the increasing sophistication of apps in

seeking permissions under benign guises, only to ex-

ploit them for less scrupulous purposes, as explored

in the research by (Guerra et al., 2023).

Figure 1: An example of Privacy Indicator in action on An-

droid 12.

Our experiment revealed critical insights into user

engagement with PIs. The ﬁndings suggest that the

classic PIs in their current form are often unnoticed,

especially in high-engagement tasks, highlighting a

potential vulnerability in privacy protection. This un-

derscores the need for more intuitive and noticeable

privacy indicators that can effectively alert users to

resource access in real-time.

Our research endeavors to contribute signiﬁcantly

to the discourse on mobile privacy by bridging the

gap between technological capability and user behav-

ior. The insights gleaned from this study are expected

to inform the design of more intuitive and effective

privacy features, steering the mobile computing land-

scape toward a safer, more privacy-conscious future.

2 RELATED WORKS

2.1 Android Permission Model

Evolution and Privacy Concerns

In Android, access to sensitive user data (such as con-

tacts in the address book, received messages, or calen-

dar appointments) or critical system resources (such

as the camera, microphone, or biometric sensors) by

applications is regulated through the mechanism of

permissions(Wang et al., 2021).

The inception of Android’s permission model was

marked by a simplicity that, while facilitating early

user experience, left much to be desired in terms of

privacy safeguards. From unrestricted resource access

in Android 1.0, the model evolved through subsequent

releases. Android 3.0 introduced external storage pro-

tections, and Android 4.4 required permissions to be

declared at installation, with Android 5.0 adding new

permissions into the mix, albeit still at install-time

(Felt et al., 2012).

However, these iterations did not offer real-time

access management, presenting a dilemma: users

could either accept all permissions wholesale or aban-

don app installation (Peruma et al., 2018). The choice

led to an all-or-nothing decision that was insufﬁcient

for nuanced privacy management. It was observed

that the permissions system’s lack of contextualiza-

tion failed to communicate the risks effectively to the

users (Wijesekera et al., 2018).

With Android 6.0, Google reformed its permis-

sion model to allow for runtime requests, marking a

signiﬁcant pivot towards user-centric privacy controls

(Shen et al., 2021). This approach is intended to pro-

vide greater transparency by enabling users to grant

permissions based on immediate app usage. Thus,

in this Android version, the user can reject an ac-

cess request (in Android 11, the approval can even

be limited to a single usage) and revoke previously

approved permissions from the system settings. In

the runtime model, permissions are granted to the en-

tire application, rather than to speciﬁc features or us-

age contexts, leading to a prevalent misuse of non-

contextualized permissions by a majority of applica-

tions (Guerra. et al., 2023). This approach limits the

control over how, when, and why data access is made

(Scoccia et al., 2021). A customized, user-centered

permission model can contextualize the request for

permission use. This approach has been effectively

used to identify and prevent malicious applications

holding logic bombs(Fasano et al., 2023). An im-

provement to the permission model is made in An-

droid 12, which introduced Privacy Indicators and a

privacy dashboard to assist users in managing their

Visual Attention and Privacy Indicators in Android: Insights from Eye Tracking

321

data more effectively, aiming to rectify previous mod-

els’ limitations (Shen et al., 2021). In (Guerra et al.,

2023), authors conducted a controlled experiment to

assess PIs effectiveness. However, our research in-

troduces a novel methodology by incorporating eye

tracking to objectively measure user interaction with

Privacy Indicators (PIs). Unlike previous studies that

relied on user-reported detection of resource usage,

our approach captures real-time, visual engagement

data to determine whether users notice the PI when re-

sources like the camera or microphone are accessed.

This allows for a more granular analysis of user at-

tention and perception. By tracking eye movement,

we can discern not just whether users are aware of re-

source usage, but also the exact moments and context

in which these indicators are observed or overlooked,

providing richer insights into the design’s efﬁcacy.

2.2 Eye Tracking in Mobile Computing

Privacy

The application of eye-tracking technology in under-

standing user interaction with privacy and security

features on digital platforms is emerging as a crucial

research direction. Studies by Furman et al. (Fur-

man and Theofanos, 2014) and Egelman et al. (Egel-

man, 2013) have employed eye tracking to evaluate

how different information presentations affect user

decisions in authentication scenarios. These stud-

ies reveal that while additional information may in-

crease reading time, it doesn’t necessarily inﬂuence

decision-making processes such as using Facebook

Connect. The pioneering work by (Punde et al., 2017)

demonstrated the broad applications of eye track-

ing across various ﬁelds, providing a foundation for

its integration into privacy studies. Building upon

this, research by (Carter and Luke, 2020) utilized eye

tracking to probe the eye-mind connection, reveal-

ing the subconscious processes that guide visual at-

tention and, by extension, privacy-related behaviors

on digital platforms. Expertise in computer secu-

rity also plays a signiﬁcant role in user engagement

with security features. Arianezhad et al. (Arianezhad

et al., 2013), monitoring eye movements, found that

individuals with security knowledge spend more time

looking at security indicators. Similarly, Whalen et

al. (Whalen and Inkpen, 2005) demonstrated the ten-

dency for users to overlook security indicators with-

out explicit prompting, underscoring the potential for

inattentional blindness in digital security contexts. As

eye-tracking devices become more accessible and in-

tegrated into everyday technology, active eye-tracking

applications are being explored for security purposes.

Miyamoto et al. (Miyamoto et al., 2014) developed

EyeBit, an eye-tracking system that encourages users

to verify the URL before inputting sensitive data to

combat phishing. Installing input ﬁelds only after

conﬁrming the user’s gaze on the URL bar is an inno-

vative approach to instilling secure online behaviors.

Despite the established utility of eye tracking,

its application to privacy indicators (PIs) on mobile

devices remains underexplored. Conventional stud-

ies have simulated user interactions with app proto-

types and followed up with questionnaires to gauge

resource usage awareness post-interaction (Guerra

et al., 2023). Our research diverges from these

methodologies by employing real-time eye tracking

to capture immediate user responses to PIs. This di-

rect measurement of attention allocation offers a nu-

anced understanding of user engagement with PIs and

addresses the potential shortfalls of self-reported data.

The challenges of ensuring user attention to pri-

vacy prompts, as investigated by (Anderson et al.,

2016), highlight the importance of overcoming ha-

bituation. Our study aims to mitigate this through

the objective analysis provided by eye tracking, con-

trasting previous approaches that lacked this real-time

evaluative component. By doing so, we align with

the recommendations by (Shen et al., 2021) and (El-

bitar et al., 2021) for more personalized and contex-

tually appropriate privacy controls, aiming to present

a comprehensive overview of how users perceive and

process privacy notiﬁcations within their digital expe-

riences.

Our research contributes to this dynamic ﬁeld

by investigating the real-time detection of Privacy

Indicators using smartphone-embedded eye-tracking

technology. We assess not only the attention drawn by

these indicators but also their design and position rel-

ative to user gaze patterns during various interactive

tasks. By doing so, we address the gap in understand-

ing the immediate impact of PIs on user behavior and

awareness in mobile computing.

3 EMPIRICAL STUDY DESIGN

The primary aim of our study is to understand

user perception of Privacy Indicators (PIs) using

eye tracking, given their critical role as deﬁned by

Google in signaling live resource use. Speciﬁcally,

we focus on how users detect and react to PIs that

denote unauthorized access to sensitive resources

such as cameras or microphones by potentially

malicious applications. Additionally, the study

explores user responsiveness to two innovative PI

designs across various interactive contexts. As the

sole alert mechanism for sensitive resource usage,

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

322

these indicators present a unique opportunity to

measure their conspicuousness and the immediacy of

user awareness facilitated by them. The research was

driven by the following question:

RQ1: Do the app characteristics inﬂuence the

effectiveness of Privacy Indicators (PIs)?

A controlled experiment involving human sub-

jects was designed to address this RQ.

3.1 Context Selection

The context for our study was crafted to mirror real-

world usage where Privacy Indicators (PIs) play a piv-

otal role in alerting users to the live use of sensitive

device resources like cameras or microphones. Un-

like simulations of app environments, our experiment

utilizes a web application with integrates eye-tracking

technology to create a controlled setting that closely

replicated user interactions with actual device notiﬁ-

cations. The subjects comprised a group of 29 uni-

versity students, selected for their commonality with

the general Android user population. The web ap-

plication was designed as the interactive ’object’ of

the study, in an Android environment where classic

and alternative PIs were triggered unexpectedly. This

consisted of two main categories of tasks: low spatio-

temporal attention tasks (quizzes) and high spatio-

temporal attention tasks (games). Including these di-

verse tasks allowed us to evaluate the PIs effective-

ness across a spectrum of user engagement levels,

providing insights into how attention to PIs might

vary with user cognitive load. Unlike previous stud-

ies that simulated popular applications, we designed

a singular application tailored to the experiment’s re-

quirements, ensuring a consistent platform for all par-

ticipants. Before initiating the experimental tasks,

participants provided detailed information about their

personal devices, including vendor, model, and oper-

ating system, to ensure comprehensive data relevance

and to prepare the experimental setup adequately. We

excluded devices solely running Apple’s iOS to main-

tain focus on Android’s user interface, which could

inﬂuence the study’s outcomes due to cross-platform

differences. Within our application, we designed the

display of Classic privacy indicators, as presently in-

corporated in the latest Android versions, to trigger

without user anticipation. This setup allowed us to ex-

plore user perceptions in a setting that mimicked po-

tential malicious application behavior. To better un-

derstand if an implementation of more visible PIs can

affect the achieved results, we also introduced two in-

novative PI designs—edge and disk—each exhibited

twice to the user under various task conditions.

3.2 Experimental Procedure

We explored three distinct PIs (Figure 2), each with

unique visual characteristics meant to signal the user

about the real-time usage of sensitive resources. Here

we detail these indicators, which were the focal point

of our investigation, describing their design rationale

and expected impact on user experience and privacy

awareness:

• Classic PI: this is the current implementation of

PI in the latest versions of Android. This indicator

typically appears as a small icon at the top right

edge of the screen, generally within the status bar,

indicating the use of either the camera or micro-

phone. In our experiment, this PI was designed to

emulate this typical behavior closely. It appeared

as a predeﬁned icon – a simple camera or micro-

phone symbol – to signal the operation of these

resources. The icon was intended to be discreet

yet noticeable enough to inform the users without

causing signiﬁcant distraction from their primary

tasks on the device.

• Disk PI: this is conceptualized as a dynamic vi-

sual cue to enhance the visibility of the resource

usage notiﬁcation. It consists of an outer ring

that maintains a constant size while the inner cir-

cle size changes, creating a pulsating effect. The

color of the disk alternates between green and yel-

low, providing an additional visual signal of the

camera or microphone in use. This design in-

tended to make the classic indicator more visible

without radically altering its form or position, pre-

senting a potentially more eye-catching and thus

effective notiﬁcation method.

• Edge PI: this is an innovative alternative, inspired

by the edge lighting feature found in certain Sam-

sung devices. It is represented as a small, colored

slider that animates horizontally across the top

edge of the screen, from left to right, and fades out

as it moves along its path. The animation includes

a fading trail to draw the user’s attention subtly,

aiming to determine whether motion and transient

visual changes could more effectively alert users.

The choice to conﬁne the edge effect to the top of

the screen was a deliberate design constraint, con-

sidering the limitations of measuring visibility for

indicators that occupy the full screen on a mobile

device.

The experimental procedure of our study was a

structured investigation into how users perceive and

interact with Privacy Indicators (PIs) while engaging

Visual Attention and Privacy Indicators in Android: Insights from Eye Tracking

323

Figure 2: Comparative Display of Classic Privacy Indica-

tors and Proposed Alternatives.

in distinct tasks within a specialized web application

enriched with eye-tracking technology. This bespoke

platform was designed to record precise user reac-

tions to classic and alternative PIs under conditions

that closely mimic real-world application usage.

The study was conducted in a dedicated univer-

sity classroom designed to minimize distractions and

optimize eye-tracking accuracy. Speciﬁc measures,

such as intense uniform lighting and a monochromatic

backdrop, were taken to ensure high-quality data cap-

ture and minimize potential error sources. The partic-

ipants were instructed on maintaining a stable posture

and were briefed about the calibration process and

the tasks they would undertake during the experiment.

The indicators were displayed brieﬂy at the top of the

screen while users were engaged in the designed ac-

tivities, capturing their attention and response patterns

using eye-tracking metrics.

At the beginning, participants were familiarized

with the experimental protocol. The experimental

procedure was delineated as follows (Figure 4):

• Initiation: users start with reading the instruc-

tions and granting necessary permissions.

• Calibration: the task proceeds with the calibra-

tion interface, engaging with the system to train

the eye tracker.

• Task Engagement: users are perfor the assigned

tasks, during which PIs can be presented.

• Interaction Logging: all user interactions with

the tasks and PIs are logged alongside eye-

tracking data.

• Data Submission: upon completing each task,

data are submitted to the server.

After giving participants the instructions and en-

suring their consciousness about the experiment, they

started the calibration phase to adapt the eye-tracking

system to their individual visual and interactive pat-

terns. Each participant was asked to follow and touch

speciﬁc points on their screen, which were high-

lighted to attract focus (Figure 3). The calibration

phase was a recurring step in the experiment, serv-

ing as a gateway between tasks to ensure the contin-

ued accuracy of the eye-tracking data. The calibra-

tion process was meticulously designed to require a

minimum of 70% accuracy. This threshold was estab-

lished as an optimal balance between precision and

usability. Indeed, posing an higher threshold would

result in frequent recalibrations, disrupting the exper-

iment ﬂow, while lower values would compromise

data integrity. In case participants failed to achieve

70% accuracy, the system prompted a recalibration

until the required precision level was reached. After

the initial calibration phase, continuous drift correc-

tion is applied throughout task execution, reﬁning the

calibration with each interface touch to progressively

enhance the eye-tracking data accuracy.

Figure 3: Calibration process screen displaying markers for

eye-tracking accuracy improvement.

After the calibration phase, participants engaged

in a series of six tasks, alternating between quizzes

and games to challenge their attention and cognitive

load (Figure 5). These tasks were intended to ex-

plore the effectiveness of PI notiﬁcations within apps

that signiﬁcantly differ in terms of user engagements:

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

324

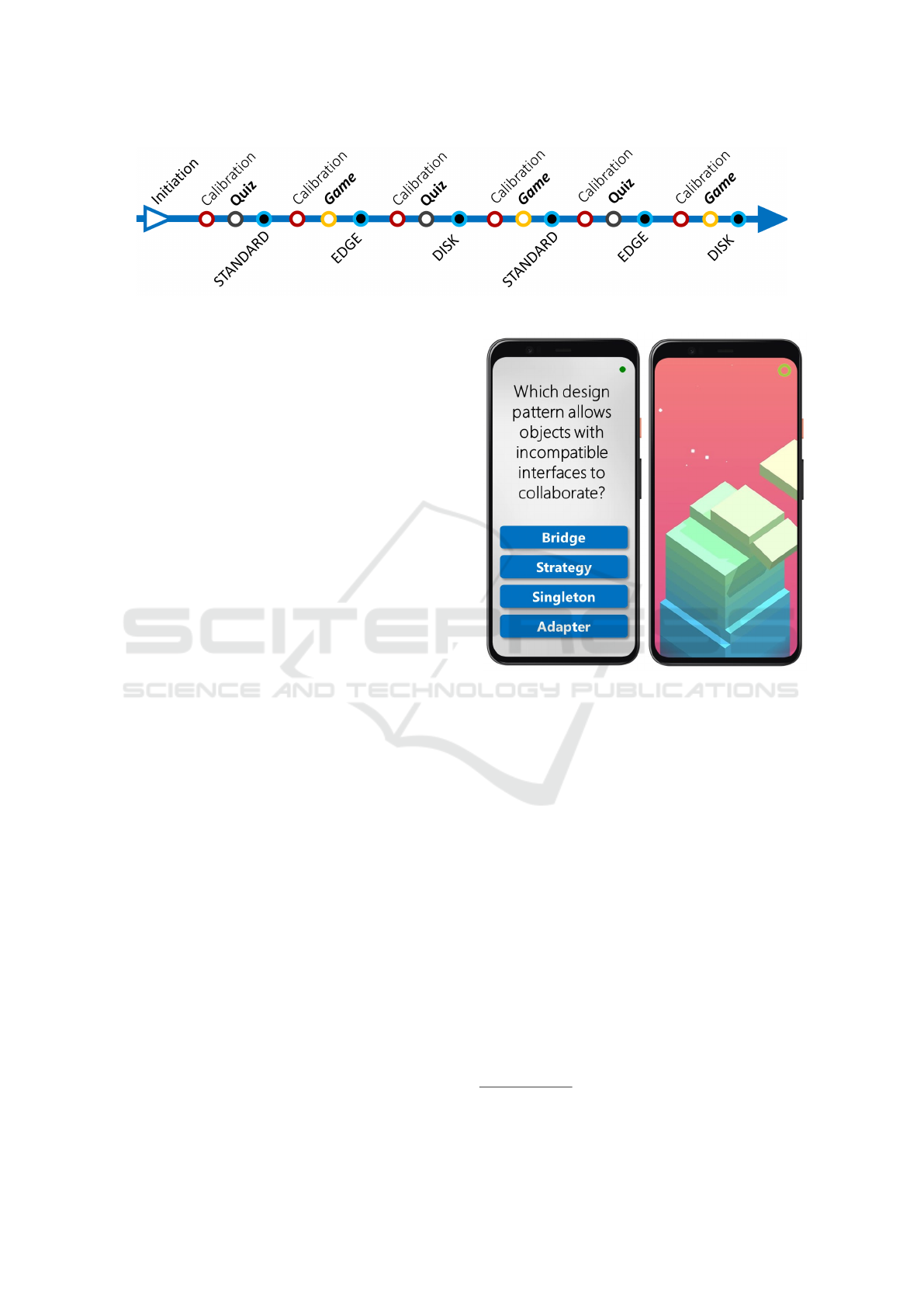

Figure 4: Sequential Diagram of the Controlled Experiment Process.

low spatio-temporal attention during quizzes and high

spatio-temporal attention during interactive gaming

scenarios. The sequence of tasks was carefully or-

chestrated as follows:

[Classic PI] Participants began with a quiz de-

signed to assess their focus on content and sub-

sequent noticeability of the Classic PI.

[Edge PI] The next task was an interactive game

intended to examine how the alternative Edge PI

performed in an environment requiring high user

interaction.

[Disk PI] Another quiz session followed, this

time using the Disk PI, to test its visibility in a

low spatio-temporal attention context.

[Classic PI] The sequence returned to a gaming

task with the Classic PI to evaluate consistency

across task types.

[Edge PI] A repeat of the quiz format provided

another data point for the Edge PI, reassessing its

effectiveness.

[Disk PI] Finally, the Disk PI was revisited during

a gaming task to complete the set of experimental

conditions.

To simulate a realistic usage scenario, PIs and

their alternatives were displayed for exactly eight sec-

onds, randomly materializing within a three seconds

interval following the onset of a corresponding task.

This randomness introduced an element of unpre-

dictability, mimicking real-world notiﬁcations that of-

ten occur without prior user expectation.

User actions and eye-tracking data throughout the

tasks were logged to a remote server in real-time. This

logging included timestamps of each PI display, gaze

ﬁxation, duration, and the user’s interactions with the

task at hand. Such data are collected and subsequently

analyzed to understand whether the PIs were noticed

and how the interaction context and cognitive load in-

ﬂuence their visibility and the user’s attention engage-

ment.

Figure 5: Two of the experiment tasks requiring low

spatio-temporal attention (Quiz) on the left and high spatio-

temporal attention (Game) on the right.

3.3 Pilot Study

Before running our experiment, we conducted a pilot

study with 8 participants in an ofﬂine setting. Such

a study was promoted from March 22, 2023, to April

13, 2023. We tested the previously described exper-

imental protocol, and we checked whether the tasks

were feasible, whether the instructions were sufﬁcient

and explicit, whether the web app worked on different

devices and their usability, and whether users experi-

enced problems or had doubts during execution. None

of the users reported problems in understanding and

completing the tasks.

3.4 Data Availability

The data supporting the ﬁndings of this study, derived

from observations collected as participants performed

the tasks, are publicly available

https://github.com/rmilanese99/privacy-indicators-e

ye-tracking/

Visual Attention and Privacy Indicators in Android: Insights from Eye Tracking

325

4 TECHNICAL

IMPLEMENTATION OF THE

USED SYSTEM

In this section, we describe the development of a

web application purpose-built for conducting an ex-

perimental evaluation of Privacy Indicators (PIs) and

two novel alternatives. The application leveraged the

Angular framework for front-end user interaction and

WebGazer.js for eye-tracking capabilities. The web

app served as a testbed to assess the current PI de-

sign’s effectiveness and gauge user response to newly

proposed PI designs under real-world conditions. An-

gular was chosen for its scalability and robustness,

ideal for creating a dynamic web application capa-

ble of supporting the complex functionalities required

by the experiment. The application was structured

to handle various tasks and conditions systematically,

guiding participants through the experiment’s ﬂow

while capturing their interaction data with high ﬁ-

delity. The web application’s design facilitated a re-

sponsive and intuitive user experience, essential for

maintaining participant engagement throughout the

experiment.

4.1 Integration of Eye-Tracking with

WebGazer.js

WebGazer.js (Papoutsaki et al., 2016) provides a ver-

satile eye-tracking solution adaptable to different ex-

perimental scenarios. The library was integrated

into the Angular application to enable real-time gaze

tracking using participants’ webcams, with speciﬁc

focus on the accuracy and responsiveness necessary

for tracking quick eye movements.

4.1.1 Calibration Process

The eye-tracking calibration process was a multi-step

procedure designed to adapt to the user’s unique phys-

iology and environmental conditions. Calibration ac-

curacy was enhanced through iterative user engage-

ment with on-screen elements, which reﬁned the pre-

dictive model of WebGazer.js in real-time. The web

application was designed to provide visual cues that

guide users through calibration without overwhelm-

ing or distracting from the core tasks. We used an

improved version of Webgazer.js that was calibrated

continuously throughout the session. This ongoing

calibration, known as drift correction, is dynamically

adjusted based on user interactions, speciﬁcally their

touch inputs. Authors in (Papoutsaki et al., 2018) pa-

per provided a foundational basis for understanding

how gaze behavior can be effectively tracked and ad-

justed in real-time, enhancing the accuracy and re-

liability of eye-tracking data, especially in dynamic

user interaction scenarios. This continuous calibra-

tion method is crucial for maintaining the precision

of gaze tracking throughout the session, ensuring that

the data collected reﬂects the actual user behavior and

interactions. This was achieved through minimalistic

design choices and using Angular’s dynamic render-

ing capabilities to update the interface based on the

progress of the calibration process.

4.2 Privacy Indicator Detection

Mechanism

The ’alert zone’ setup involved deﬁning the perime-

ter within the application view where user attention

was considered focused on the PI. This logic was en-

capsulated within the setPrivacyIndicator() function,

which dynamically adjusted the sensitivity based on

the screen’s real estate and the user’s distance from

the device. A dedicated Angular service was imple-

mented to handle the real-time streaming of gaze data

provided by WebGazer.js. The service utilized an

event-driven model to capture and process gaze coor-

dinates at pre-deﬁned intervals, ensuring the system’s

responsiveness and the accuracy of the collected data.

All gaze data associated with PI detection were times-

tamped and recorded within the user’s session without

storing any video feed. This approach was designed

to respect user privacy and comply with ethical stan-

dards for research involving human subjects.

5 ANALYSIS RESULTS

We analyzed the eye-tracking data collected during

the experiment to investigate the effectiveness of dif-

ferent PIs in attracting users’ focus during tasks re-

quiring different levels of attention. We introduced

two independent variables: the animation extent of

the PI (Classic, Edge, and Disk) and the level of con-

centration required for the task (Quiz and Game). The

dependent variable concerns the eye movement’s lo-

cation and speed as a proxy of attention and aware-

ness of the PI. Speciﬁcally, we determined the amount

of time spent looking at the PI by measuring the total

duration of ﬁxations within a 250 pixel radius around

it. We also deﬁned unintended or false ﬁxations as a

total cumulative ﬁxation duration of less than 150 ms

and excluded them from subsequent analyses. These

criteria were adopted to account for the noise and

variability introduced by our smartphone-based eye-

tracking approach. Out of 174 observations, 3 were

discarded based on these criteria, while a further 37

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

326

were excluded because the participant completed the

task too quickly to achieve the required level of atten-

tion, and often before the PI was displayed.

To answer our RQ, we conducted a two-way

mixed-effects ANOVA, which tests for the presence

of a statistically signiﬁcant effect of the independent

variables, singly or in interaction, on the dependent

variable. Given a signiﬁcant effect, we performed

post-hoc comparisons to understand which speciﬁc

type (or interaction of types) of task and/or PI suc-

cessfully affected PI awareness. Speciﬁcally, we

used Bonferroni-corrected unpaired t-tests for pair-

wise comparisons between different conditions. Im-

portantly, the advantage of this mixed model over al-

ternative solutions is that it takes into account the ef-

fect of between-participant variability. Furthermore,

the interaction between PI and task allows us to in-

vestigate whether a PI might have a speciﬁc effect

only on one particular task condition and not on the

other. To sum up, the null hypothesis (H

) is that

there is no association between the type of task and

PI and the awareness of the PI. Conversely, the al-

ternative hypothesis (H

) is that the presence of PI is

noticed differently according to its visual properties

and the characteristics of the attentional context. We

reject the null hypothesis if the p-value is lower than

or equal to 0.05.

In Table 1 and Figure 6 we report the average time

spent looking at the PI in the different conditions.

These data show a strong effect of task type on PI

awareness. Almost all participants didn’t ﬁxate on the

PI when the task required a strong attentional focus

on a different location of the screen (i.e., the Game

condition). This effect appears to be irrespective of

PI animation, although the Disk was marginally more

effective than the others. Since PIs were overlooked

in the Game condition, the effect of the different ani-

mations can be appreciated only in the Quiz condition.

Disk ﬁxations lasted longer than those of the Classic

PI. Interestingly, the Edge PI was almost not noticed

in this condition as well. We attribute this result to

the smaller size of the stimulus and its location to the

outer periphery of the screen, rather than to its anima-

tion type.

Table 1: Average time spent looking at the PI in the different

conditions.

Indicator

Classic Edge Disk

Quiz 965.81 ms 11.08 ms 2114.40 ms

Task

Game 0.0 ms 0.0 ms 224.50 ms

The statistical ﬁndings are presented in Table 2.

The ANOVA corroborated our observations, as we

identiﬁed signiﬁcant (p < 0.05) main effects of task

and PI type on the interaction. This outcome indi-

cates that our manipulations were effective in inﬂu-

encing PI awareness. Given the lack of ﬁxations in

the Game setting, post-doc comparisons focused on

the Quiz one. Unsurprisingly, all PIs had a signiﬁcant

effect, with the Disk being the most effective, and the

Edge being the least effective.

Overall, these results indicate that the PIs were no-

ticed almost exclusively in the Classic and Disk form

during the Quiz task. To further investigate the atten-

tional dynamics of these conditions, we measured the

time elapsed between the onset of the PI and the ﬁrst

ﬁxation within the PI area. These saccadic reaction

times were shorter for the Disk PI (mean = 1799; std

= 381) compared to the Classic one (mean = 2244; std

= 513), suggesting that our animation provides a mean

for a faster attentional capture. However, an unpaired

t-test revealed no signiﬁcant difference between the

reaction times to the two PIs.

Figure 6: Average ﬁxation durations on Privacy Indicators

(Classic, Edge, Disk) during low (Quiz) and high (Game)

spatio-temporal attention tasks, highlighting the differential

impact of task type on user’s attention to PIs.

Table 2: Statistical results.

Source Sum Sq. d.f. Mean Sq. F Prob>F

Type 30163156 2 15081578 9.939948 9.71E-05

Task 29526910 1 29526910 19.46056 2.16E-05

Type:Task 19506429 2 9753215 6.428137 0.002187

Error 1.79E-07 0 0

Total 2.84E+08 133

5.1 Discussion

In this section, we discuss the eye-tracking experi-

ment’s outcomes regarding the effectiveness of PIs in

different task contexts.

The data collected indicate that the cognitive load

required by a speciﬁc task notably impacts the likeli-

hood of the user detecting a PI. This was particularly

Visual Attention and Privacy Indicators in Android: Insights from Eye Tracking

327

evident in the Game setting, which is characterized

by a high degree of spatio-temporal focus, and where

both Android’s native PI, as well as alternative anima-

tions, were consistently overlooked. These ﬁndings

suggest inattentional blindness, where users caught

up in demanding tasks may fail to notice secondary

stimuli, such as the PIs in this study. Consequently,

a key design goal is to develop PIs that can success-

fully capture the user’s attention without interfering

with their activity.

There is also evidence that the characteristics of

each PI have a direct impact on its visibility, as our

analysis revealed that the Disk was marginally more

effective at capturing user attention than the other PIs

examined in this study. This suggests that speciﬁc vi-

sual features, such as variations in color or motion,

may be critical in increasing their detectability, and

conﬁrms the need for extensive research to determine

the optimal design parameters in different usage con-

texts.

The implications of our ﬁndings regarding the ef-

fectiveness of PIs have a signiﬁcant impact on the

privacy of Android users. The Classic PI, as imple-

mented, fails to capture the user’s attention consis-

tently during tasks requiring high levels of concen-

tration, so malicious apps could exploit this ﬂaw to

conceal privacy-damaging actions during periods of

intense user engagement. Therefore, there is an ur-

gent need to design PIs that are more noticeable and

can intelligently adapt to the current level of cogni-

tive load, ensuring that users are alerted to privacy

risks even when completely absorbed in their activity.

This aims to safeguard user privacy using instinctive

and non-disruptive methods, avoiding the danger of

desensitization that can occur with frequent alerts.

While the study provides novel insights into PI

effectiveness, it also presents limitations, including

the controlled environment of the experiment and the

speciﬁc demographic of the participants, which may

not fully reﬂect the diversity of real-world applica-

tion users. The experimental evaluation primarily in-

volved university students, who are generally young

and well-educated. This demographic, while reason-

able for initial testing, does not encompass all possi-

ble user groups, particularly those of different ages,

educational backgrounds, and digital literacy levels.

Recognizing this, the need to conduct ﬁeld studies be-

comes more evident, as such studies could provide a

more comprehensive understanding of the effective-

ness of privacy indicators across a broader and more

diverse population. This would help to reinforce these

ﬁndings in everyday contexts and ensure the applica-

bility of our proposals to a wider range of users.

6 CONCLUSIONS AND FUTURE

DIRECTIONS

Our study contributes signiﬁcantly to understanding

the effectiveness of Privacy Indicators (PIs) in mo-

bile applications. Our ﬁndings suggest that the cur-

rent implementation of the Classic PI in Android is

inadequate for consistently capturing user attention,

particularly in situations that demand high cognitive

engagement. This raises concerns about user privacy,

as these indicators are the primary alert mechanism

against unauthorized resource usage like camera or

microphone access by potentially malicious applica-

tions.

Exploring alternative PIs, such as Disk and Edge,

revealed that animation and visibility play crucial

roles in attracting user attention. The Disk PI, with

its dynamic animation, demonstrated a higher efﬁcacy

in catching the user’s gaze in low-attention scenar-

ios compared to the Classic and Edge PIs. However,

the effectiveness of these indicators in high-attention

tasks remains limited, indicating a need for more in-

novative approaches.

Future research should focus on developing more

effective PIs that can alert users even during high-

concentration tasks. Exploring dynamic and context-

sensitive PIs that adapt their visibility based on the

user’s current activity may prove beneﬁcial. Addi-

tionally, investigating user’s cognitive load and atten-

tion span in relation to PI visibility could offer deeper

insights into designing more effective privacy indica-

tors. Further studies could also explore the integration

of auditory or haptic feedback as supplementary or al-

ternative alert mechanisms.

An intriguing direction for these studies would be

to examine how privacy indicators directly linked to

speciﬁc in-app actions, such as submitting responses

in a quiz or completing a level in a game, might inﬂu-

ence users’ awareness and attitudes towards privacy.

Such investigations could deepen our understanding

of the interplay between privacy notiﬁcations and user

experience in mobile applications, enriching the on-

going dialogue on digital privacy. The ultimate goal

is to strike a balance between ensuring user privacy

and maintaining a non-intrusive user experience.

ACKNOWLEDGEMENTS

This work has been funded by the European Union

- NextGenerationEU under the Italian Ministry of

University and Research (MUR) National Innova-

tion Ecosystem grant ECS00000041 -VITALITY-

CUP E13C22001060006.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

328

This publication is part of the project PNRR-

NGEU which has received funding from the MUR –

DM 118/2023.

REFERENCES

Anderson, B. B., Jenkins, J. L., Vance, A., Kirwan, C. B.,

and Eargle, D. (2016). Your memory is working

against you: How eye tracking and memory explain

habituation to security warnings. Decision Support

Systems, 92:3–13.

Arianezhad, M., Camp, L. J., Kelley, T., and Stebila, D.

(2013). Comparative eye tracking of experts and

novices in web single sign-on. In Proceedings of the

Third ACM Conference on Data and Application Se-

curity and Privacy, CODASPY ’13, page 105–116,

New York, NY, USA. Association for Computing Ma-

chinery.

Carter, B. T. and Luke, S. G. (2020). Best practices in

eye tracking research. International Journal of Psy-

chophysiology, 155:49–62.

Egelman, S. (2013). My proﬁle is my password, verify

me! the privacy/convenience tradeoff of facebook

connect. In Proceedings of the SIGCHI Conference

on Human Factors in Computing Systems, CHI ’13,

page 2369–2378, New York, NY, USA. Association

for Computing Machinery.

Elbitar, Y., Schilling, M., Nguyen, T. T., Backes, M., and

Bugiel, S. (2021). Explanation beats context: The ef-

fect of timing & rationales on users’ runtime permis-

sion decisions. USENIX Security’21.

Fasano, F., Guerra, M., Milanese, R., and Oliveto, R.

(2023). A dynamic approach to defuse logic bombs in

android applications. In Data and Applications Secu-

rity and Privacy XXXVII: 37th Annual IFIP WG 11.3

Conference, DBSec 2023, Sophia-Antipolis, France,

July 19–21, 2023, Proceedings, page 358–365, Berlin,

Heidelberg. Springer-Verlag.

Felt, A. P., Ha, E., Egelman, S., Haney, A., Chin, E., and

Wagner, D. (2012). Android permissions: User atten-

tion, comprehension, and behavior. In Proceedings of

the eighth symposium on usable privacy and security,

pages 1–14.

Furman, S. and Theofanos, M. (2014). Preserving privacy

– more than reading a message. In Stephanidis, C.

and Antona, M., editors, Universal Access in Human-

Computer Interaction. Design for All and Accessibil-

ity Practice, pages 14–25, Cham. Springer Interna-

tional Publishing.

Guerra., M., Milanese., R., Oliveto., R., and Fasano., F.

(2023). Rpcdroid: Runtime identiﬁcation of permis-

sion usage contexts in android applications. In Pro-

ceedings of the 9th International Conference on Infor-

mation Systems Security and Privacy - ICISSP, pages

714–721. INSTICC, SciTePress.

Guerra, M., Scalabrino, S., Fasano, F., and Oliveto, R.

(2023). An empirical study on the effectiveness of pri-

vacy indicators. IEEE Transactions on Software En-

gineering, 49(10):4610–4623.

Miyamoto, D., Iimura, T., Blanc, G., Tazaki, H., and

Kadobayashi, Y. (2014). Eyebit: Eye-tracking ap-

proach for enforcing phishing prevention habits. In

2014 Third International Workshop on Building Anal-

ysis Datasets and Gathering Experience Returns for

Security (BADGERS), pages 56–65.

Papoutsaki, A., Gokaslan, A., Tompkin, J., He, Y., and

Huang, J. (2018). The eye of the typer: A benchmark

and analysis of gaze behavior during typing. In Pro-

ceedings of the 2018 ACM Symposium on Eye Track-

ing Research & Applications, ETRA ’18, New York,

NY, USA. Association for Computing Machinery.

Papoutsaki, A., Sangkloy, P., Laskey, J., Daskalova, N.,

Huang, J., and Hays, J. (2016). Webgazer: Scalable

webcam eye tracking using user interactions. In Pro-

ceedings of the 25th International Joint Conference

on Artiﬁcial Intelligence (IJCAI), pages 3839–3845.

AAAI.

Peruma, A., Palmerino, J., and Krutz, D. E. (2018). Investi-

gating user perception and comprehension of android

permission models. In Proceedings of the 5th Inter-

national Conference on Mobile Software Engineering

and Systems, pages 56–66.

Punde, P. A., Jadhav, M. E., and Manza, R. R. (2017).

A study of eye tracking technology and its applica-

tions. In 2017 1st International Conference on Intelli-

gent Systems and Information Management (ICISIM),

pages 86–90. IEEE.

Scoccia, G. L., Malavolta, I., Autili, M., Di Salle, A.,

and Inverardi, P. (2021). Enhancing trustability of

android applications via user-centric ﬂexible permis-

sions. IEEE Transactions on Software Engineering,

47(10):2032–2051.

Shen, B., Wei, L., Xiang, C., Wu, Y., Shen, M., Zhou, Y.,

and Jin, X. (2021). Can systems explain permissions

better? understanding users’ misperceptions under

smartphone runtime permission model. In USENIX

Security Symposium, pages 751–768.

Wang, Y., Wang, Y., Wang, S., Liu, Y., Xu, C., Cheung,

S.-C., Yu, H., and Zhu, Z. (2021). Runtime permis-

sion issues in android apps: Taxonomy, practices, and

ways forward. arXiv preprint arXiv:2106.13012.

Whalen, T. and Inkpen, K. (2005). Gathering evidence: use

of visual security cues in web browsers. In Proceed-

ings of Graphics Interface 2005, GI 2005, pages 137–

144, School of Computer Science, University of Wa-

terloo, Waterloo, Ontario, Canada. Canadian Human-

Computer Communications Society.

Wijesekera, P., Baokar, A., Tsai, L., Reardon, J., Egelman,

S., Wagner, D., and Beznosov, K. (2018). Dynami-

cally regulating mobile application permissions. IEEE

Security & Privacy, 16(1):64–71.

Visual Attention and Privacy Indicators in Android: Insights from Eye Tracking

329
