Using Extended Light Sources for Relighting from a Small Number of

Images

Toshiki Hirao, Ryo Kawahara

and Takahiro Okabe

Department of Artiﬁcial Intelligence, Kyushu Institute of Technology,

680-4 Kawazu, Iizuka, Fukuoka 820-8502, Japan

Keywords:

Relighting, Display-Camera System, Specular Reﬂection, Extended Light Sources, End-fo-End Optimization.

Abstract:

Relighting real scenes/objects is useful for applications such as augmented reality and mixed reality. In gen-

eral, relighting of glossy objects requires a large number of images, because specular reﬂection components

are sensitive to light source positions/directions, and then the linear interpolation with sparse light sources

does not work well. In this paper, we make use of not only point light sources but also extended light sources

for efﬁciently capturing specular reﬂection components and achieve relighting from a small number of images.

Speciﬁcally, we propose a CNN-based method that simultaneously learns the illumination module (illumina-

tion condition), i.e. the linear combinations of the point light sources and the extended light sources under

which a small number of input images are taken and the reconstruction module which recovers the images

under arbitrary point light sources from the captured images in an end-to-end manner. We conduct a number

of experiments using real images captured with a display-camera system, and conﬁrm the effectiveness of our

proposed method.

1 INTRODUCTION

Synthesizing photo-realistic images of a scene/an ob-

ject under arbitrary illumination environment is one

of the most important issues in the interdisciplinary

ﬁeld between computer vision and computer graphics.

An approach to synthesizing such images from the

real images of the scene/object taken under various

lighting conditions is called image-based rendering

or (image-based) relighting in particular. Relighting

real scenes/objects is useful for applications such as

augmented reality and mixed reality (Debevec, 1998;

Sato et al., 1999; Debevec et al., 2000). In this study,

we focus on relighting from the images captured with

a display (Schechner et al., 2003; Peers et al., 2009),

but our proposed method could be extended to relight-

ing with a light stage (Debevec et al., 2000; Wenger

et al., 2003; Hawkins et al., 2004; Wenger et al., 2005;

Einarsson et al., 2006; Fuchs et al., 2007; Ghosh et al.,

2011).

According to the superposition principle, an im-

age of an object taken under two light sources is a

linear combination (convex combination in a strict

sense) of the two images, each of which is captured

https://orcid.org/0000-0002-9819-3634

https://orcid.org/0000-0002-2183-7112

under one of the light sources. Therefore, we can

synthesize the image of an object under arbitrary illu-

mination environment by combining the real images

of the object taken in advance under various lighting

conditions, e.g. various light source positions on a

display.

In general, the reﬂected light on an object sur-

face consists of a diffuse reﬂection component and

a specular reﬂection component. It is known that

the image of a Lambertian object under a novel light

source direction is represented by the linear combi-

nation of the three images of the object taken under

non-coplanar light source directions (Shashua, 1997).

In other words, the diffuse reﬂection component ob-

served at a surface point under a novel light source is

given by interpolating those under three known light

sources. Therefore, we can achieve relighting of Lam-

bertian objects from a small number of images taken

under sparse light sources, e.g. sparse positions on a

display.

On the other hand, relighting of glossy objects is

still an open problem to be addressed. This is because

specular reﬂection components are sharp and sensi-

tive to light source positions/directions, and then the

linear interpolation with sparse light sources does not

work well. Therefore, it requires a large number of

Hirao, T., Kawahara, R. and Okabe, T.

Using Extended Light Sources for Relighting from a Small Number of Images.

DOI: 10.5220/0012421500003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 3: VISAPP, pages

607-615

ISBN: 978-989-758-679-8; ISSN: 2184-4321

607

images taken under dense light sources; the smoother

a surface is, the larger the number of required images

is. Unfortunately, the use of denser light source posi-

tions makes the required capture time longer.

Accordingly, in this paper, we make use of

not only point light sources but also extended light

sources

for efﬁciently capturing specular reﬂection

components and achieve relighting from a small num-

ber of images. Speciﬁcally, we propose a network that

simultaneously learns the illumination module (illu-

mination condition), i.e. the linear combinations of

the point light sources and the extended light sources

with various sizes under which a small number of in-

put images are taken and the reconstruction module

which recovers the images under arbitrary point light

sources from the captured images. In other words, we

optimize both the illumination module and the recon-

struction module in an end-to-end manner, and then

achieve relighting from a small number of images.

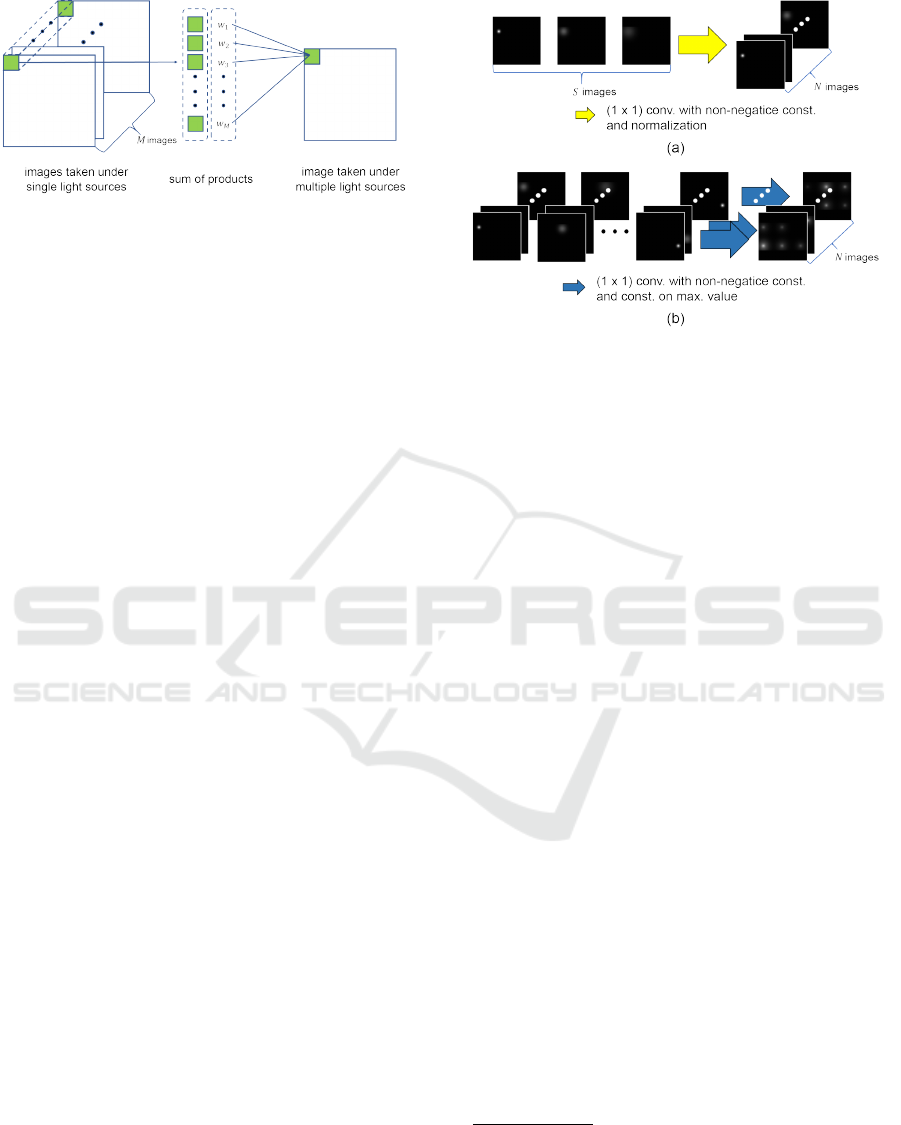

Especially, we focus on the fact that the illumi-

nation condition can be represented by (1 × 1) con-

volution kernels, and then simultaneously optimize

the illumination module and the reconstruction mod-

ule in the framework of convolutional neural network

(CNN). We conduct a number of experiments us-

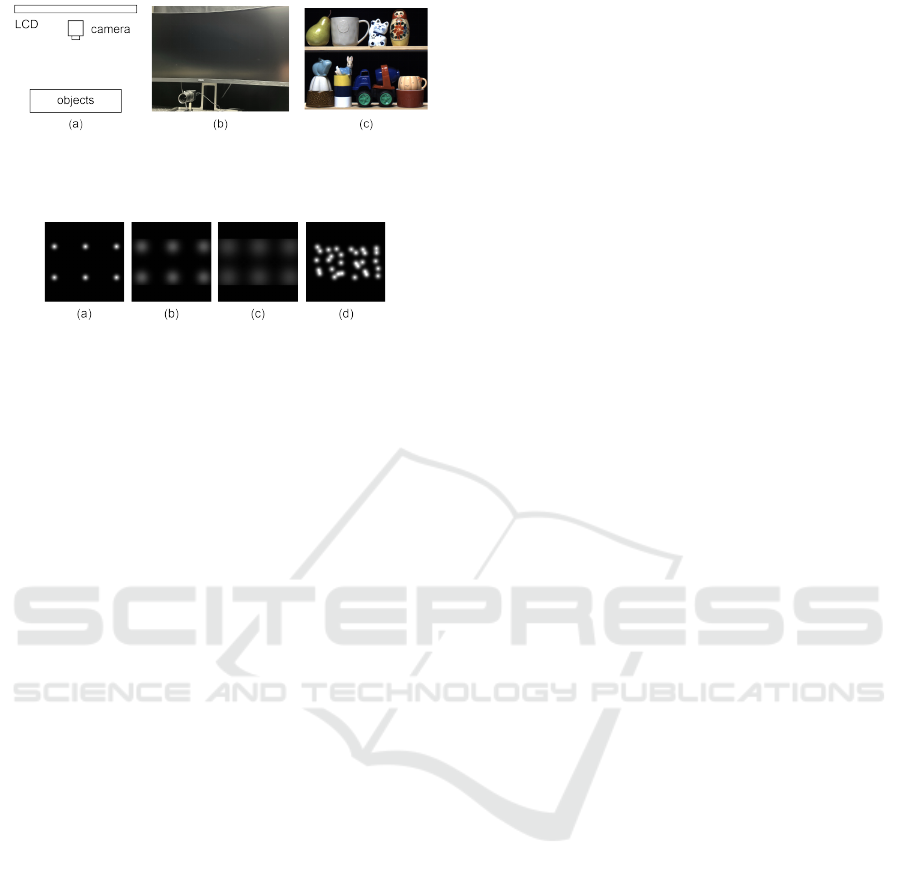

ing real images captured with a display-camera sys-

tem, and conﬁrm the effectiveness of our proposed

method.

The main contributions of this paper are threefold.

First, we propose a novel approach that exploits ex-

tended light sources for relighting from a small num-

ber of images. Second, we propose a data-driven

method using the framework of CNN that simultane-

ously learns the illumination module and the recon-

struction module in an end-to-end manner. Third, we

experimentally conﬁrm the effectiveness of our pro-

posed method, in particular the use of extended light

sources and the end-to-end optimization.

2 RELATED WORK

2.1 Physics-Based Relighting

Image-based rendering under arbitrary illumina-

tion environment is called (image-based) relighting.

Based on the superposition principle, Debevec et

al. (Debevec et al., 2000) propose relighting from the

2,048 real images captured by using a light stage, and

Note that extended light sources are used in the exist-

ing methods (Nayar et al., 1990; Sato et al., 2005), but their

purposes are different from ours; the former conducts shape

recovery of glossy objects and the latter conducts relighting

under low-frequency illumination environment.

then extend their method in speed (Hawkins et al.,

2004; Wenger et al., 2005), spectra (Wenger et al.,

2003), scale (Einarsson et al., 2006), and model ac-

quisition (Ghosh et al., 2011). Their methods work

well for human faces, but denser light sources are

required for relighting smoother surfaces in general.

Fuchs et al. (Fuchs et al., 2007) propose a method for

reconstructing the images of an object under dense

light sources from those under sparse light sources.

Their method interpolates the high-frequency compo-

nents such as specular reﬂection components under

sparse light source directions via optical ﬂow. Since it

implicitly assumes surfaces with smooth BRDFs and

normals, the applicability of their method is limited.

The number of required images for relighting can

be reduced by combining image-based rendering with

speciﬁc physics-based model. For diffuse reﬂection

components, Shashua (Shashua, 1997) shows that the

image of a Lambertian object under a novel light

source direction is represented by the linear combi-

nation of the three images of the object taken un-

der non-coplanar light source directions. For specu-

lar reﬂection components, Lin and Lee (Lin and Lee,

1999) shows that the specular reﬂection components

can be linearly interpolated in the log domain. How-

ever, their method implicitly assumes that the spec-

ular highlights observed under different light source

directions overlap each other, i.e. it is applicable to

rough surfaces or dense light source directions.

2.2 Learning-Based Relighting

Recently, learning-based methods are proposed for re-

lighting. For human faces, we can exploit the datasets

of the face images captured with light stages. Sun

et al. (Sun et al., 2019) and Zhou et al. (Zhou et al.,

2019) propose methods for face relighting from a sin-

gle portrait image. Meka et al. (Meka et al., 2019)

propose a network that predicts the full 4D reﬂectance

ﬁelds of a face from two images captured under spher-

ical gradient illumination, and achieve relighting of

non-static faces. Those existing methods work well

for face images, but it is not clear whether they are ap-

plicable to general classes of objects other than faces.

For general objects, Ren et al. (Ren et al., 2015)

propose a deep network that models light transport

as a non-linear function of light source position and

pixel coordinates, and achieve relighting from a rela-

tively small number of images. Xu et al. (Xu et al.,

2018) achieve image-based relighting from only ﬁve

directional light sources by jointly learning both the

optimal input light directions and the relighting func-

tion. Xu et al. (Xu et al., 2019) extend their method

to image-based rendering under arbitrary lighting and

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

608

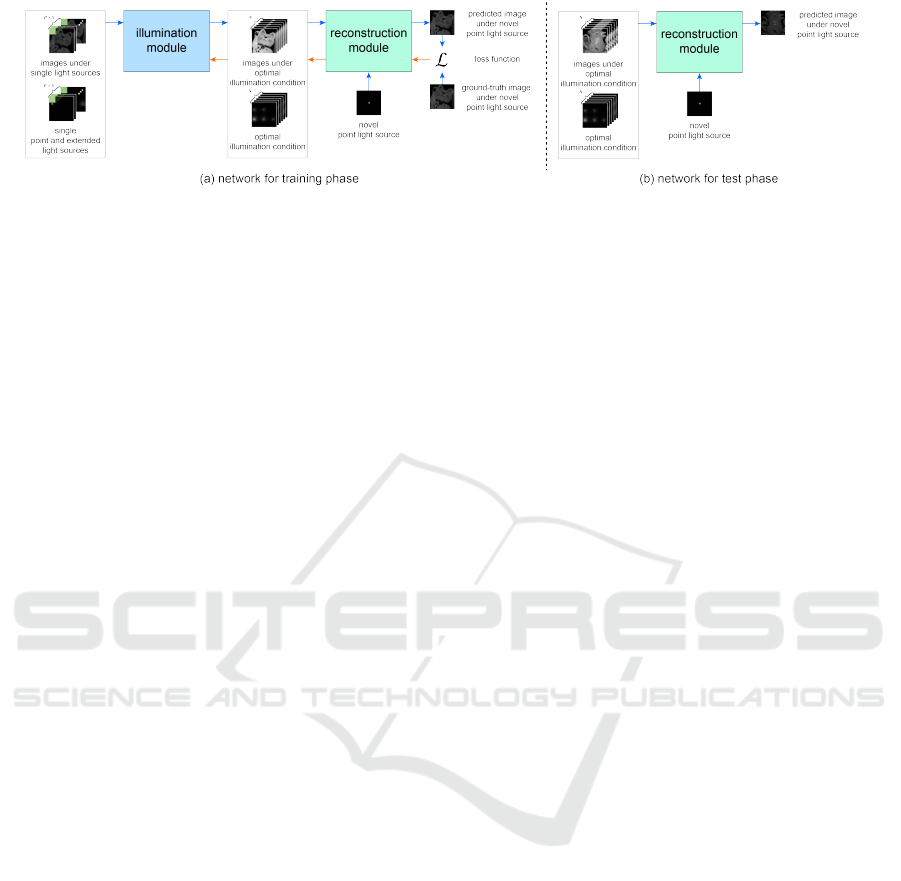

Figure 1: Our proposed network with the illumination module and the reconstruction module. The input of the illumination

module is point and extended light sources and the images taken under those light sources, and its output is the optimal

illumination condition and the images under the optimal illumination condition. The input to the reconstruction module is

the output from the illumination module and a novel point light source, and its output is the predicted image under the novel

point light source. (a) In the training phase, the illumination module and the reconstruction module are trained on the basis of

the loss function L in an end-to-end manner. (b) In the test phase, we actually capture the images under the trained optimal

illumination condition, and then recover the images under novel point light sources by using the trained reconstruction module.

viewing directions. Their method achieve relighting

from a small number of images, but there is still room

for improvement by using extended light sources. The

objective of our study is to investigate the effects of

extended light sources for image-based relighting.

2.3 Deep Optics/Sensing

Recently, a number of deep networks that optimize

not only application modules but also imaging mod-

ules in an end-to-end manner have been proposed.

This approach is called deep optics or deep sensing. A

seminal work by Chakrabarti (Chakrabarti, 2016) op-

timizes the color ﬁlter array as well as the demosaic-

ing algorithm in an end-to-end manner. Followed by

it, the idea of end-to-end optimization of the imaging

modules and the application modules is used for hy-

perspectral reconstruction (Nie et al., 2018), compres-

sive video sensing (Yoshida et al., 2018), light ﬁeld

acquisition (Inagaki et al., 2018), passive single-view

depth estimation (Wu et al., 2019), single-shot high-

dynamic-range imaging (Metzler et al., 2020; Sun

et al., 2020), seeing through obstructions (Shi et al.,

2022), privacy-preserving depth estimation (Tasneem

et al., 2022), hyperspectral imaging (Li et al., 2023),

and time-of-ﬂight imaging (Li et al., 2022).

Our study also belongs to deep optics/sensing. In

contrast to most existing methods that optimize the

properties of camera/sensor as well as the application

modules, our method optimizes the illumination con-

dition as well as the application module.

3 PROPOSED METHOD

3.1 Overview

Our proposed network consists of two modules: the

illumination module and the reconstruction module.

Figure 1 illustrates the outline of our network. The

input of the illumination module is a set of point light

sources and extended light sources with various sizes

and the images taken under those light sources. The

output of the illumination module is the optimal il-

lumination condition, i.e. the optimal linear combi-

nations of those light sources and the images under

the optimal illumination condition. The input to the

reconstruction module is the output from the illumi-

nation module and a novel point light source. The

output of the reconstruction module is the predicted

image under the novel point light source. Note that we

represent light sources by using not the positions (Xu

et al., 2018) (and sizes) but the 2D intensity maps,

because we consider the linear combinations of point

and extended light sources.

In the training phase, we train our proposed net-

work in an end-to-end manner by using the ground

truth of the images taken under novel point light

sources as shown in Figure 1 (a). Then, we obtain the

optimal illumination condition and the reconstruction

module that recovers the images under novel point

light sources from the images taken under the optimal

illumination condition.

In the test phase, we make use of the trained opti-

mal illumination condition and the trained reconstruc-

tion module as shown in Figure 1 (b). Speciﬁcally,

we actually capture the images of a scene/an object

under the optimal illumination condition, and then re-

cover the images under novel point light sources by

using the reconstruction module. The following sub-

sections explain the details of our network.

Using Extended Light Sources for Relighting from a Small Number of Images

609

Figure 2: The relationship between the superposition prin-

ciple and a (1 × 1) convolution kernel. The pixel value of

the image taken under multiple light source (right) is repre-

sented by the sum of the products between the pixel values

of the images taken under single light sources (left) and the

intensities of the light sources (the coefﬁcients of the linear

combination or the weights). Thus, we can consider the set

of the weights as the (1 × 1) convolution kernel.

3.2 Illumination Module

In general, a display can represent an enormous num-

ber of light sources, because its degree of freedom is

equal to the number of the display pixels. Here, in or-

der to limit the solution space of the illumination con-

dition, we consider point light sources and extended

light sources of Gaussian distributions with (S − 1)

standard deviations whose centers are at P positions

on a display, i.e. we consider P × S light sources in to-

tal. The objective of our illumination module is to op-

timize the N set of intensities of the PS light sources.

We call a set of intensities of the PS light sources

a display pattern. According to the superposition

principle, we can represent the image captured un-

der a display pattern, i.e. a linear combination of

PS light sources as the linear combination of the im-

ages each of which is captured when turning only one

of the PS light sources on. Here, the display pat-

tern and the image captured under the display pattern

share the same coefﬁcients of the linear combination

(m = 1, 2, 3, ..., M) where M = PS.

In order to optimize the illumination condition, we

focus on the fact that general display patterns can be

represented by (1 × 1) convolution kernels on the ba-

sis of the superposition principle. Speciﬁcally, since

a display pattern is a linear combination of PS light

sources, it is represented by the sum of the products

between the pixel values at each pixel of the intensity

maps of the PS light sources and the coefﬁcients of the

linear combination w

. It is the same for the image

captured under the display pattern. Thus, the weights

of the (1 × 1) convolution kernel correspond to the

coefﬁcients of the linear combination w

as shown in

Figure 2.

In our implementation, we represent a general dis-

play pattern in two steps. First, for each light source

position, we combine the S light sources with the

Figure 3: Our illumination module optimizes the illumina-

tion condition by representing it in two steps. (a) We com-

bine the S light sources with the same center position by

using a (1 × 1) convolution kernel, and obtain N combina-

tions for each light source position. (b) We combine those

N light source combinations for each position by using N

(1 × 1) convolution kernels, and obtain N combinations of

point and extended light sources.

same center position by using a (1 × 1) convolution

kernel as shown in Figure 3 (a), and then normalize

the intensities so that the maximal intensity is equal

to the maximal pixel value of the display, e.g. 255 for

an 8-bit display. Second, as shown in Figure 3 (b),

we combine those P light source combinations by us-

ing a (1× 1) convolution kernel and normalize it, and

then obtain a display pattern. Thus, our illumination

module consists of the two (1 × 1) convolution lay-

ers. Note that when we use N images (and display

patterns) for relighting, we use (P + 1)N convolution

kernels and then optimize (S + 1)PN weights in total.

Finally, we add two artiﬁcial noises to the images

under the optimal illumination condition: one obeys

Gaussian distribution

and the other obeys uniform

distribution. The latter is for taking the quantization

of a pixel value into consideration. Therefore, the im-

age under darker light sources is more contaminated

by the quantization errors of pixel values.

3.3 Reconstruction Module

Note that our substantive proposals are the illumina-

tion module and the end-to-end optimization of the

illumination module and the reconstruction module.

We use real images which inherently contain noises for

training, but random noises are almost canceled out by lin-

early combining the images. Therefore, we add artiﬁcial

noises to the linear combination of the real images in order

to simulate the noises in one-shot image taken under multi-

ple light sources.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

610

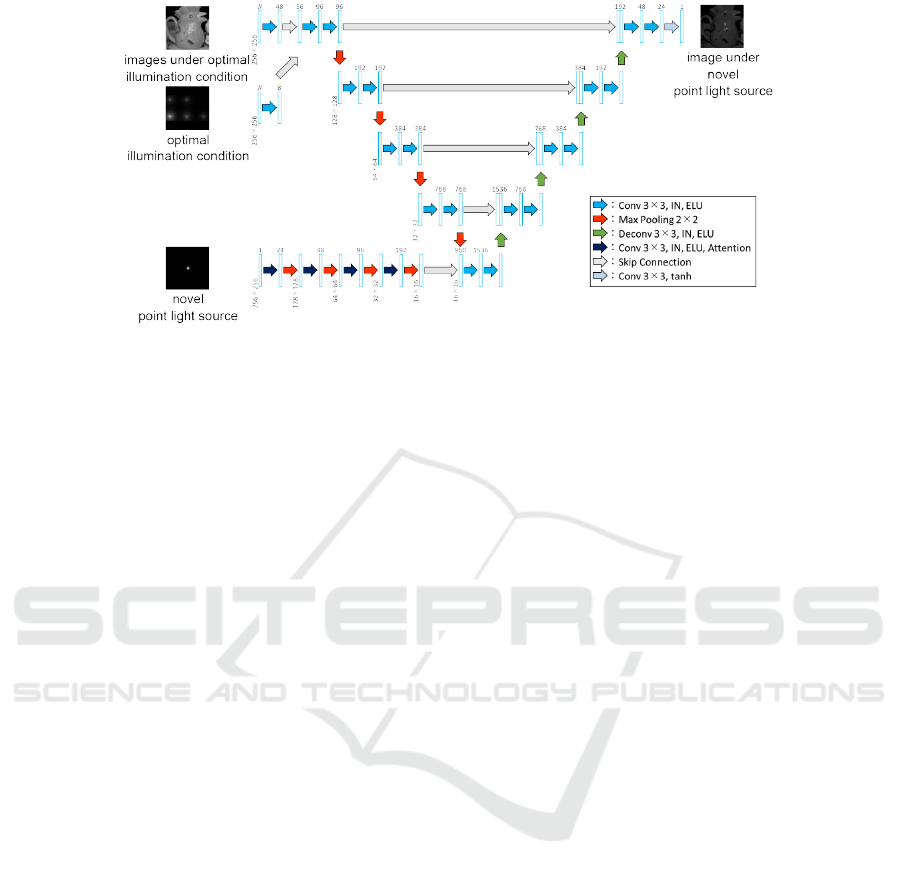

Figure 4: Our reconstruction module; the input to the encoder is the optimal illumination condition and the images under

the optimal illumination condition, and the output from the decoder is the image under the novel point light source. The

information of a novel point light source is fed at the bottleneck of the U-Net.

Then, we could use an arbitrary end-to-end network

for the reconstruction module.

Our current implementation is based on the well-

known U-Net architecture (Ronneberger et al., 2015),

i.e. an encoder-decoder structure with skip connec-

tions. It is widely used not only for image-to-image

translation (Isola et al., 2017; Liu et al., 2018; Ho

et al., 2020; Rombach et al., 2022) but also for deep

optics/sensing (Nie et al., 2018; Xu et al., 2018; Wu

et al., 2019; Metzler et al., 2020; Sun et al., 2020;

Shi et al., 2022). Since deep optics/sensing often

adds a kind of illumination module ahead of a con-

ventional application module, the skip connections,

which allows information to reach deeper layers and

can mitigate the problem of vanishing gradients, are

important. Note that the number of feature maps at

each layer is optimized by using Optuna (Akiba et al.,

2019).

Figure 4 illustrates our reconstruction module.

The input to the encoder is the optimal illumination

condition and the images under the optimal illumi-

nation condition. The sizes of both the illumina-

tion condition (2D intensity maps) and the images

are 256 × 256. We repeatedly use the convolution

with the kernel size of 3 × 3, the instance normaliza-

tion (Ulyanov et al., 2016), the activation function of

the ELU (Clevert et al., 2016), and the max pooling

with the size of 2 × 2.

The information of a novel point light source is

fed at the bottleneck of the U-Net as an intensity map

with 256 × 256 pixels. We repeatedly use the convo-

lution with the kernel size of 3 × 3, the instance nor-

malization, the ELU, and the max pooling with the

size of 2 × 2 also for the intensity map of the novel

point light source. In addition, we apply the attention

mechanism (Xu et al., 2015) for the feature map of

the novel point light source. Then, it is merged with

the encoded feature maps of the optimal illumination

condition and the corresponding images.

The output from the decoder is the image with

256 × 256 pixels under the novel point light source.

We repeatedly use the deconvolution with the kernel

size of 3× 3, the instance normalization, and the ELU.

In addition, the feature maps of each layer of the en-

coder are used thorough the skip connections. We use

the convolution with the kernel size of 3 × 3 and the

activation function of tanh at the last layer, and obtain

the image under the novel point light source.

3.4 Optimization

Thus, the illumination condition can be represented

as the weights of the convolution kernels, and then

we simultaneously learn them as well as the recon-

struction module via a CNN-based network in an end-

to-end manner. Our proposed network is trained by

minimizing the loss function L of the mean squared

errors between the predicted and the ground-truth im-

ages under novel point light sources.

4 EXPERIMENTS

4.1 Display-Camera System

As shown in Figure 5, we placed a set of objects on

a shelf in front of an LCD, and then captured the

images of those objects under varying illumination

conditions. We used the LCD as a programmable

light source; we realized point light sources and ex-

tended light sources with various sizes by display-

Using Extended Light Sources for Relighting from a Small Number of Images

611

Figure 5: Our display-camera system: (a) the conﬁguration

of a display, a camera, and objects, (b) the display and the

camera, and (c) the objects on a shelf.

Figure 6: The extended light sources of Gaussian distribu-

tions with the standard deviations of (a) 20, (b) 40, and (c)

90 pixels, and (d) point light sources with random positions

on the display.

ing the intensity patterns of those light sources on the

LCD. We used an LCD of 439P9H1 from Philips and

a monochrome camera of CMLN-13S2M-CS from

Point Grey. We conﬁrmed that the radiometric re-

sponse function of the camera is linear, but that of the

display is non-linear. The radiometric response func-

tion of the display was calibrated by using the set of

images captured by varying input pixel values of the

display.

4.2 Setup

We captured the images of 15 scenes in total; the

images of 9, 3, and 3 scenes were used for train-

ing, validation, and test respectively. In order to

efﬁciently train our proposed network from a rela-

tively small number of scenes, the image patches with

256 × 256 pixels were cropped from each captured

image. Therefore, the actual numbers of scenes are

considered to be 540, 180, and 108 for training, vali-

dation, and test respectively.

As shown in Figure 6, we consider the extended

light sources of Gaussian distributions with S = 3

standard deviations whose centers are at P = 6 po-

sitions on the display, i.e. we consider P × S = 18

light sources in total. We set the standard deviations

of the Gaussian distributions to 20, 40, and 90 pixels

for the display area with 950 × 1800 pixels. We can

realize a point light source by turning a single pixel

on the display on, but such light source is too dark to

illuminate scenes with sufﬁcient intensity. Then, we

consider the extended light source with the smallest

size as a point light source. In addition, we captured

30 ground-truth images per scene under point light

sources with random positions inside the P(= 6) po-

sitions on the display, and used them for the training

and validation. We captured 153 ground-truth images

per scene in a similar manner, and then used them for

the test.

We used the optimization algorithm of the

Adam (Kingma and Ba, 2016) for training. We set

the initial learning rate to a relatively large value of

1.0 × 10

−3

so that the problem of vanishing gradients

at the input and nearby layers is mitigated, and then

gradually decreased it. We used the loss function of

the MSE, and used the MSE and SSIM for validation.

The weights of the illumination module are initialized

with the uniform distribution from 0.4 to 0.6, and the

other weights are initialized by using the He normal

initialization (He et al., 2015). The mean and standard

deviation of the Gaussian noises described in Section

3.2 are 0 and 2 for 8-bit images respectively. It took

about 27 hours for training our proposed network with

2,700 iterations.

4.3 Results

To conﬁrm the effectiveness of our proposed method,

in particular the use of extended light sources as well

as the end-to-end optimization of the illumination

module and the reconstruction module, we compared

the following ﬁve

methods:

A Linear Interpolation with Point Light Sources:

the linear interpolation of the N

= P (= 6) images

taken under the P point light sources.

B Nonlinear interpolation with point light

sources: the nonlinear interpolation of the

= P (= 6) images taken under the P point light

sources. The nonlinear interpolation is trained by

using our reconstruction module.

C Our Method Without the Illumination Module:

our reconstruction module is used for random and

ﬁxed combinations of point and extended light

sources. N

images are used for reconstruction.

D Our Method: the end-to-end optimization with

the illumination module.

images are used for reconstruction.

E Reconstruction from All Point and Extended

Light Sources: our reconstruction module is

trained by using the N

= P × S (= 18) images

taken under each of the PS light sources for refer-

ence.

In summary, the numbers of captured images are as

follows: N

= N

= P = 6 by deﬁnition, N

= N

= 6

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

612

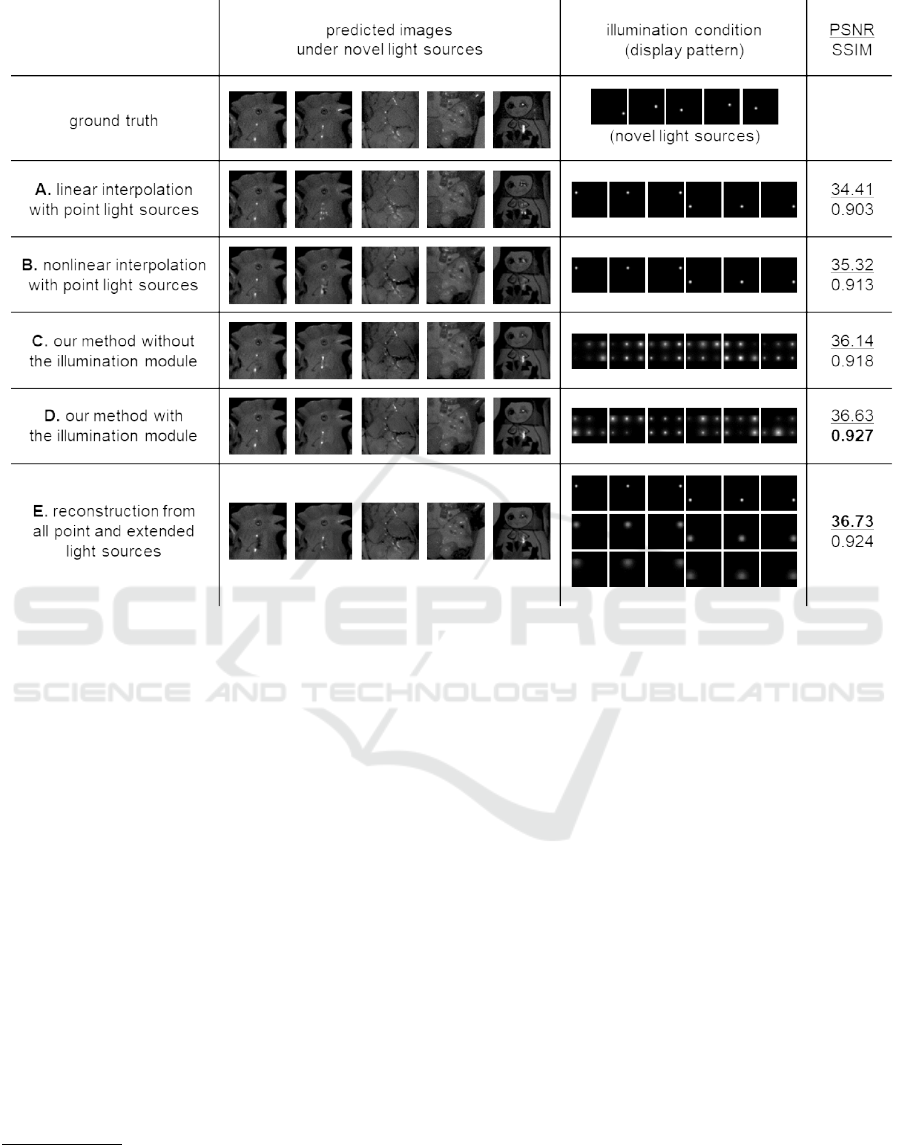

Figure 7: The qualitative and quantitative comparison: the predicted images under novel point light sources, the illumination

conditions, and the PSNRs and SSIMs from left to right, and the ground-truth images and the results of A through E from top

to bottom. We applied the gamma correction to those images only for display purpose.

for comparison with A and B, and N

= PS = 18

Figure 7 shows the qualitative and quantitative re-

sults of those methods: the reconstructed images un-

der novel point light sources, the illumination condi-

tions, and the PSNRs and SSIMs from left to right,

and the ground-truth images and the results of A

through E from top to bottom. The higher PSNR and

SSIM are, the better.

A vs. B: We can compare the performances of

the linear interpolation and the nonlinear interpolation

with point light sources. We can see qualitatively and

quantitatively that the nonlinear interpolation works

better than the linear interpolation. In particular, the

specular highlight reconstructed by the linear inter-

polation is just a linear combination of the original

specular highlights with the same positions, and then

multiple highlights are observed in the reconstructed

Note that our proposed method is related to light trans-

port acquisition such as multiplexed illumination (Schech-

ner et al., 2003) and compressive sensing (Peers et al.,

2009), but the number of required images are far smaller

than them.

image although a single highlight is observed in the

corresponding area of the ground-truth image.

(A, B) vs. (C, D): We can compare the perfor-

mances with/without extended light sources. We can

see that the methods using extended light sources (C,

D) perform better than the methods using only point

light sources (A, B) in terms of PSNR and SSIM.

C vs. D: We can compare the performances

with/without our illumination module. We can see

that the methods using the illumination module (D)

outperform the method without the illumination mod-

ule (C) in terms of PSNR and SSIM.

Therefore, we can conclude that the use of ex-

tended light sources is effective from the comparison

between (A, B) and (C, D) and that the end-to-end

optimization, in particular our illumination module is

effective from the comparison between C and D. In

addition, we can say that our reconstruction module

works well from the comparison between A and B.

Note that E works best simply because the number

of images is 3 times larger than the other methods,

but our method with 6 images works well similarly.

Using Extended Light Sources for Relighting from a Small Number of Images

613

It is interesting that the optimal illumination condi-

tions themselves show the effectiveness of extended

light sources. Speciﬁcally, our proposed method uses

the combinations of various point and extended light

sources.

5 CONCLUSION AND FUTURE

WORK

We achieved relighting from a small number of im-

ages by using not only point light sources but also ex-

tended light sources for efﬁciently capturing specular

reﬂection components. Speciﬁcally, we proposed a

CNN-based method that simultaneously learns the il-

lumination module and the reconstruction module in

an end-to-end manner. We conducted a number of ex-

periments using real images captured with a display-

camera system, and conﬁrmed the effectiveness of our

proposed method. The extension of our method for

other high-frequency components of images such as

cast shadows and caustics is one of the future direc-

tions of our study.

ACKNOWLEDGEMENTS

This work was partly supported by JSPS KAKENHI

Grant Numbers JP23H04357 and JP20H00612.

REFERENCES

Akiba, T., Sano, S., Yanase, T., Ohta, T., and M.Koyama

(2019). Optuna: A next-generation hyperparame-

ter optimization framework. In Proc. ACM SIGKDD

KDD2019, pages 2623–2631.

Chakrabarti, A. (2016). Learning sensor multiplexing de-

sign through back-propagation. pages 3089–3097.

Clevert, D., Unterthiner, T., and Hochreiter, S. (2016). Fast

and accurate deep network learning by exponential

linear units (ELUs). In Proc. ICLR2016.

Debevec, P. (1998). Rendering synthetic objects into real

scenes: bridging traditional and image-based graph-

ics with global illumination and high dynamic range

photography. In Proc. ACM SIGGRAPH1998, pages

189–198.

Debevec, P., Hawkins, T., Tchou, C., Duiker, H., Sarokin,

W., and Sagar, M. (2000). Acquiring the reﬂectance

ﬁeld of a human face. In Proc. SIGGRH2000, pages

145–156.

Einarsson, P., Chabert, C.-F., Jones, A., Ma, W.-C., Lam-

ond, B., Hawkins, T., Bolas, M., Sylwan, S., and De-

bevec, P. (2006). Relighting human locomotion with

ﬂowed reﬂectance ﬁelds. In Proc. EGSR2006, pages

183–194.

Fuchs, M., Lensch, H., Blanz, V., and Seidel, H. (2007). Su-

perresolution reﬂectance ﬁelds: Synthesizing images

for intermediate light directions. In Proc. EGSR2007,

volume 26, pages 447–456.

Ghosh, A., Fyffe, G., Tunwattanapong, B., Busch, J., Yu,

X., and Debevec, P. (2011). Multiview face capture

using polarized spherical gradient illumination. ACM

TOG, 30(6):1–10.

Hawkins, T., Wenger, A., Tchou, C., Gardner, A.,

oransson, F., and Debevec, P. (2004). Animatable

facial reﬂectance ﬁelds. In Proc. EGSR2004, pages

309–319.

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Delving deep

into rectiﬁers: Surpassing human-level performance

on imagenet classiﬁcation. In Proc. IEEE ICCV2015,

pages 1026–1034.

Ho, J., Jain, A., and Abbeel, P. (2020). Denoising diffusion

probabilistic models. Advances in Neural Information

Processing Systems, 33:6840–6851.

Inagaki, Y., Kobayashi, Y., Takahashi, K., Fujii, T., and

Nagahara, H. (2018). Learning to capture light

ﬁelds through a coded aperture camera. In Proc.

ECCV2018, pages 418–434.

Isola, P., Zhu, J.-Y., Zhou, T., and Efros, A. (2017). Image-

to-image translation with conditional adversarial net-

works. In Proc. IEEE CVPR2017, pages 5967–5976.

Kingma, D. and Ba, L. (2016). Adam: A method for

stochastic optimization. In Proc. ICLR2016.

Li, J., Yue, T., Zhao, S., and Hu, X. (2022). Fisher informa-

tion guidance for learned time-of-ﬂight imaging. In

Proc. IEEE/CVF CVPR2022, pages 16313–16322.

Li, K., Dai, D., and Van, G. L. (2023). Jointly learning

band selection and ﬁlter array design for hyperspec-

tral imaging. In Proc. IEEE WACV2023, pages 6384–

6394.

Lin, S. and Lee, S. (1999). A representation of specular

appearance. volume 2, pages 849–854.

Liu, G., Reda, F., Shih, K., Wang, T.-C., Tao, A., and Catan-

zaro, B. (2018). Image inpainting for irregular holes

using partial convolutions. In Proc. ECCV2018, pages

85–100.

Meka et al., A. (2019). Deep reﬂectance ﬁelds: high-

quality facial reﬂectance ﬁeld inference from color

gradient illumination. ACM TOG, 38(4):Article No.7.

Metzler, C., Ikoma, H., Peng, Y., and Wetzstein, G. (2020).

Deep optics for single-shot high-dynamic-range imag-

ing. In Proc. IEEE/CVF CVPR2020, pages 1375–

1385.

Nayar, S., Ikeuchi, K., and Kanade, T. (1990). Determining

shape and reﬂectance of hybrid surfaces by photomet-

ric sampling. IEEE Trans. Robotics and Automation,

6(4):418–431.

Nie, S., Gu, L., Zheng, Y., Lam, A., Ono, N., and Sato,

I. (2018). Deeply learned ﬁlter response functions

for hyperspectral reconstruction. In Proc. IEEE/CVF

CVPR2018, pages 4767–4776.

Peers, P., Mahajan, D., Lamond, B., Ghosh, A., Matusik,

W., Ramamoorthi, R., and Debevec, P. (2009). Com-

pressive light transport sensing. ACM TOG, 28(1):Ar-

ticle No.3.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

614

Ren, P., Dong, Y., Lin, S., Tong, X., and Guo, B. (2015).

Image based relighting using neural networks. ACM

TOG, 34(4):1–12.

Rombach, R., Blattmann, A., Lorenz, D., Esser, P., and

Ommer, B. (2022). High-resolution image synthe-

sis with latent diffusion models. In Proc. IEEE/CVF

CVPR2022, pages 10684–10695.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:

Convolutional networks for biomedical image seg-

mentation. In Proc. MICCAI2015, pages 234–241.

Sato, I., Okabe, T., Sato, Y., and Ikeuchi, K. (2005). Using

extended light sources for modeling object appearance

under varying illumination. In Proc. IEEE ICCV2005,

pages 325–332.

Sato, I., Sato, Y., and Ikeuchi, K. (1999). Acquiring a radi-

ance distribution to superimpose virtual objects onto a

real scene. IEEE TVCG, 5(1):1–12.

Schechner, Y., Nayar, S., and Belhumeur, P. (2003). A the-

ory of multiplexed illumination. In Proc. IEEE ICCV

2003, pages 808–815.

Shashua, A. (1997). On photometric issues in 3d visual

recognition from a single 2d image. IJCV, 21(1-2):99–

122.

Shi, Z., Bahat, Y., Baek, S.-H., Fu, Q., Amata, H., Li,

X., Chakravarthula, P., Heidrich, W., and Heide, F.

(2022). Seeing through obstructions with diffractive

cloaking. ACM TOG, 41(4):1–15.

Sun, Q., Tseng, E., Fu, Q., Heidrich, W., and Heide, F.

(2020). Learning rank-1 diffractive optics for single-

shot high dynamic range imaging. In Proc. IEEE/CVF

CVPR2020, pages 1386–1396.

Sun, T., Barron, J., Tsai, Y.-T., Xu, Z., Yu, X., Fyffe, G.,

Rhemann, C., Busch, J., Debevec, P., and Ramamoor-

thi, R. (2019). Single image portrait relighting. ACM

TOG, 38(4):1–12.

Tasneem, Z., Milione, G., Tsai, Y.-H., Yu, X., Veeraragha-

van, A., Chandraker, M., and Pittaluga, F. (2022).

Learning phase mask for privacy-preserving passive

depth estimation. In Proc. ECCV2022, pages 504–

521.

Ulyanov, D., Vedaldi, A., and Lempitsky, V. (2016). In-

stance normalization: The missing ingredient for fast

stylization. arXiv:1607.08022.

Wenger, A., Gardner, A., Tchou, C., Unger, J., Hawkins,

T., and Debevec, P. (2005). Performance relighting

and reﬂectance transformation with time-multiplexed

illumination. ACM TOG, 24(3):756–764.

Wenger, A., Hawkins, T., and Debevec, P. (2003). Optimiz-

ing color matching in a lighting reproduction system

for complex subject and illuminant spectra. In Proc.

EGWR2003, pages 249–259.

Wu, Y., Boominathan, V., Chen, H., Sankaranarayanan, A.,

and Veeraraghavan, A. (2019). Phasecam3d-learning

phase masks for passive single view depth estimation.

In Proc. IEEE ICCP2019, pages 1–12.

Xu, K., Ba, J., Kiros, R., Cho, K., Courville, A., Salakhudi-

nov, R., Zemel, R., and Bengio, Y. (2015). Show, at-

tend and tell: Neural image caption generation with

visual attention. In Proc. ICML2015, pages 2048–

2057.

Xu, Z., Bi, S., Sunkavalli, K., Hadap, S., Su, H., and Ra-

mamoorthi, R. (2019). Deep view synthesis from

sparse photometric images. ACM TOG, 38(4):1–13.

Xu, Z., Sunkavalli, K., Hadap, S., and Ramamoorthi, R.

(2018). Deep image-based relighting from optimal

sparse samples. ACM TOG, 37(4):1–13.

Yoshida, M., Torii, A., Okutomi, M., Endo, K., Sugiyama,

Y., Taniguchi, R., and Nagahara, H. (2018). Joint

optimization for compressive video sensing and re-

construction under hardware constraints. In Proc.

ECCV2018, pages 634–649.

Zhou, H., Hadap, S., Sunkavalli, K., and Jacobs, D. W.

(2019). Deep single-image portrait relighting. In Proc.

IEEE ICCV2019, pages 7194–7202.

Using Extended Light Sources for Relighting from a Small Number of Images

615
