Improvement of TransUNet Using Word Patches Created from Different

Dataset

Ayato Takama

, Satoshi Kamiya

and Kazuhiro Hotta

Meijo University, 1-501 Shiogamaguchi, Tempaku-ku, Nagoya 468-8502, Japan

Keywords:

Semantic Segmentation, TransUNet, Mix Transformer, Word Patches.

Abstract:

UNet is widely used in medical image segmentation, but it cannot extract global information sufﬁciently. On

the other hand, TransUNet achieves better accuracy than conventional UNet by combining a CNN, which is

good at local features, and a Transformer, which is good at global features. In general, TransUNet requires a

large amount of training data, but there are constraints on training images in the medical area. In addition, the

encoder of TransUNet uses a pre-trained model on ImageNet consisted of natural images, but the difference

between medical images and natural images is a problem. In this paper, we propose a method to learn Word

Patches from other medical datasets and effectively utilize them for training TransUNet. Experiments on the

ACDC dataset containing 4 classes of 3D MRI images and the Synapse multi-organ segmentation dataset

containing 9 classes of CT images show that the proposed method improved the accuracy even with small

training data, and we showed that the performance of TransUNet is greatly improved by using Word Patches

created from different medical datasets.

1 INTRODUCTION

UNet(Ronneberger et al., 2015) is the most com-

monly used model for medical image segmentation.

UNet based on CNN can extract local features, but it

cannot extract global information sufﬁciently. On the

other hand, TransUNet(Chen et al., 2021) combines a

CNN, which is good at extracting local features, and

a Transformer, which is good at extracting global fea-

tures, to enable segmentation while extracting more

global information than conventional UNets.

In general, Transformers(Vaswani et al., 2017)

have the problem of requiring a large number of train-

ing images. Since it is difﬁcult to prepare a large num-

ber of training samples in the medical ﬁeld, it is nec-

essary to achieve high accuracy with as few training

images as possible. The encoder in TransUNet uses

a pre-training model based on ImageNet, which con-

sists of natural images and has a large gap with medi-

cal images, and it may be unsuitable as a pre-training

model.

Transformer was originally proposed in the ﬁeld

of natural language processing. Unlike natural lan-

guage processing, the ﬁeld of image recognition does

https://orcid.org/0000-0001-7255-1328

https://orcid.org/0000-0002-7057-3280

https://orcid.org/0000-0002-5675-8713

not have the concept of a word. Therefore, we should

create words from medical images and incorporate

them into the Transformer to achieve the potential

ability of the Transformer.

In this paper, we create Word Patches from a

different medical dataset from training images, and

the Word Patches are incorporated into TransUNet as

cross attention as shown in Figure 1. The information

in different medical images that could not be obtained

in the pre-training can be used in TransUNet.

Since the similarities between Word Patches and

the patterns appearing in the training image of the

problem to be solved can be used for learning and

classiﬁcation, the accuracy of TransUNet is expected

to be improved even with a small number of training

images.

We conducted the experiments on the Au-

tomatic Cardiac Diagnosis Challenge (ACDC)

dataset(Sakaridis et al., 2021) containing 4 classes

of 3D MRI images and the Synapse multi-organ

segmentation dataset containing 9 classes of CT

images of the lower abdomen. The proposed method

was compared to the conventional TransUNet method

in the case where only 10% of the training images

were used. We incorporated word patches created

from various datasets into TransUNet, and conﬁrmed

that the proposed method improved the accuracy

378

Takama, A., Kamiya, S. and Hotta, K.

Improvement of TransUNet Using Word Patches Created from Different Dataset.

DOI: 10.5220/0012419900003654

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 13th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2024), pages 378-385

ISBN: 978-989-758-684-2; ISSN: 2184-4313

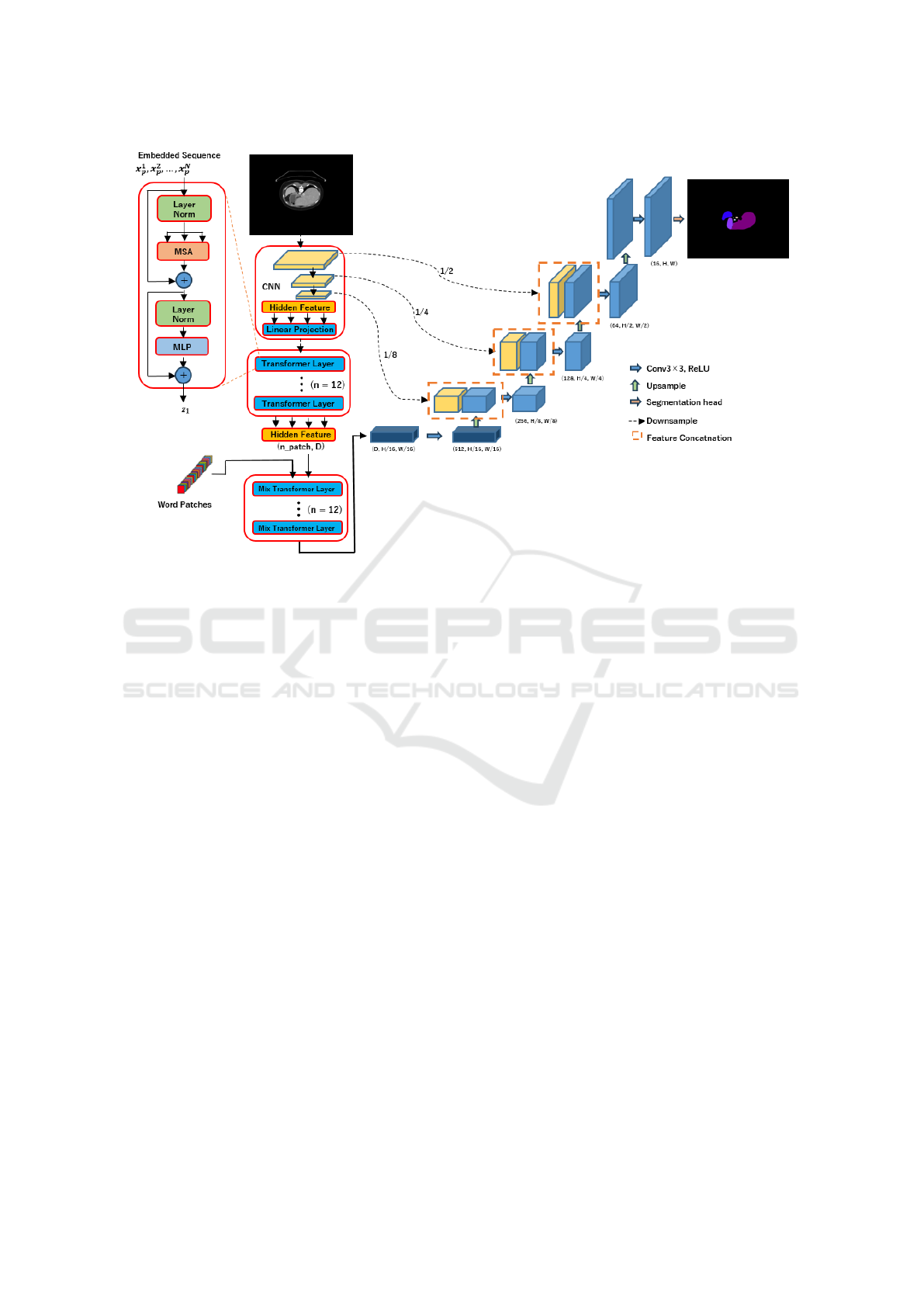

Figure 1: Architecture of the proposed Method.

compared with the original TransUNet with fewer

training images.

The paper is organized as follows. Section 2 de-

scribes related studies. Section 3 explains the pro-

posed method. Section 4 presents experimental re-

sults. Finally, Section 5 describes conclusion and fu-

ture works.

2 RELATED WORKS

In recent years, many methods for improving the

Vision Transformer (ViT)(Dosovitskiy et al., 2020)

have been studied after the sucess of ViT in image

classiﬁcation. For example, TrackFormer(Meinhardt

et al., 2022), MOTR(Zeng et al., 2022), and Trans-

MOT(Chu et al., 2021) for object tracking, and

DETR(Carion et al., 2020) for object detection, Seg-

Former(Xie et al., 2021), Swin Transformer(Liu et al.,

2021), MetaFormer(Yu et al., 2022), and TransUNet

are well-known for semantic segmentation.

Among them, TransUNet is an improvement of

UNet, the most well-known model for medical im-

age segmentation: the CNN-based UNet can extract

local features, but it does not sufﬁciently extract the

global information that is important for segmenta-

tion. Therefore, TransUNet combines a CNN, which

is good at extracting local features, and a Transformer,

which is good at extracting global information, mak-

ing it possible to perform segmentation while extract-

ing more global information than conventional UNets.

Figure 2 shows the architecture of TransUNet,

which is a model that incorporates ViT into the UNet

encoder. The encoder performs feature extraction us-

ing a CNN to extract local features. Then, the Trans-

former is used for feature extraction of global infor-

mation. At the decoder, up-sampling is performed as

in UNet. The ﬁnal output is the segmentation result.

The feature maps at encoder are connected to the cor-

responding layer of the decoder by a skip-connection.

In general, Transformer has the problem of requir-

ing a large number of images for training. Since it is

difﬁcult to prepare a large number of training sam-

ples in the medical ﬁeld, it is necessary to achieve

high accuracy with as few training images as possi-

ble. The encoder of TransUNet uses a pre-training

model based on ImageNet, which is a natural image

and has a large gap with medical images. Therefore,

there is a problem that it may not be appropriate as a

pre-trained model.

In recent years, there has been a lot of methods

(Guibas et al., 2021; Sethi et al., 2021; Tan et al.,

2021) that improve token mixing, but there has been

no method focusing on the words. We consider that

words are important because original Transformer

was proposed in natural language processing and used

words effectively. Thus, we create Word Patches from

some datasets and use them for classiﬁcation. If the

Improvement of TransUNet Using Word Patches Created from Different Dataset

379

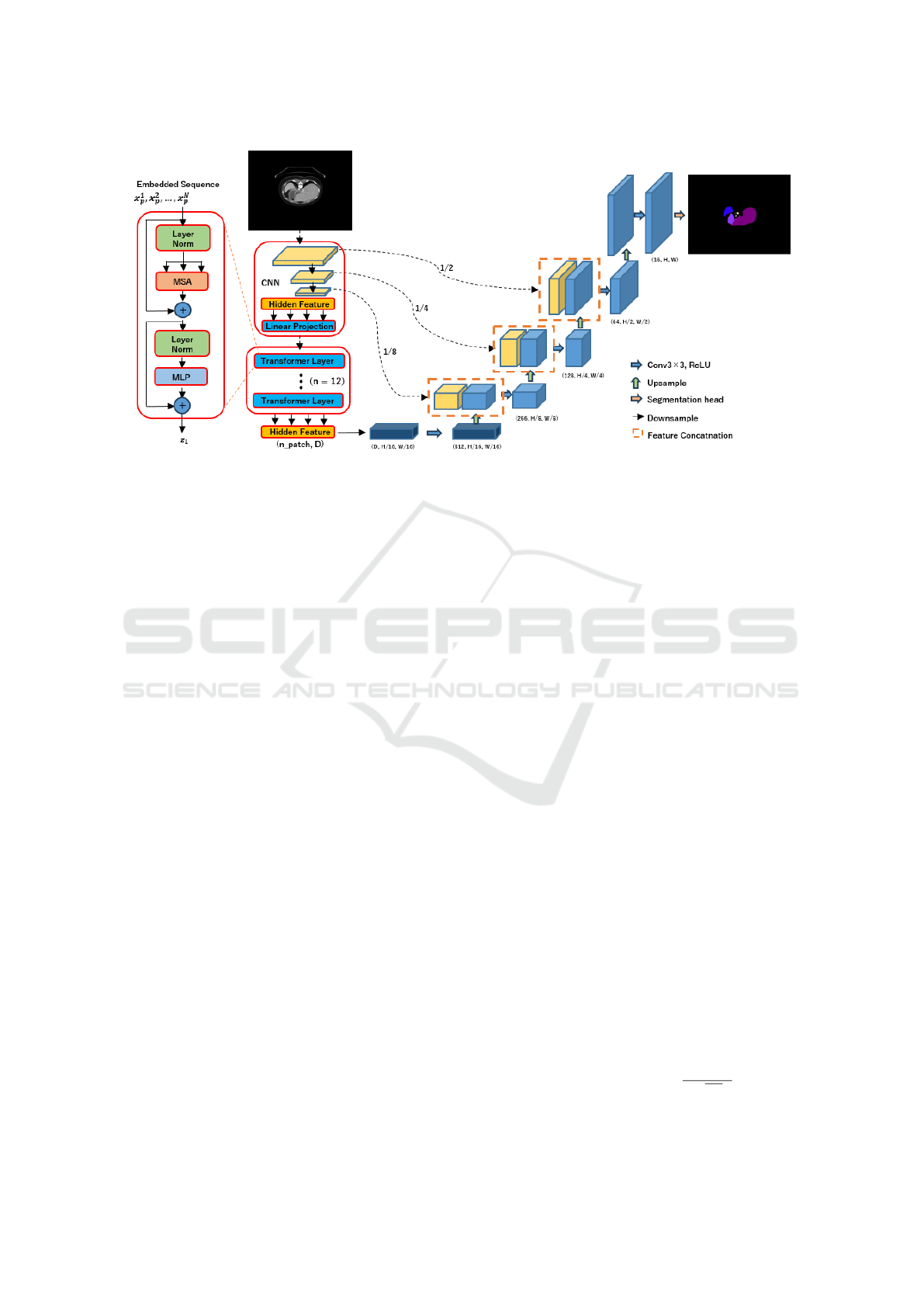

Figure 2: Architecture of TransUNet.

proposed Visual Word Patches are used effectively,

we would use the potential performance of the Trans-

former, and the accuracy would be improved.

PatchCore(Roth et al., 2021) is a method used for

anomaly detection. First, we extract features from

image patches of only normal images. After that, a

memory bank is created by the following sampling

method.

1. Randomly sample patch features from a dataset.

2. Select the feature vector that is farthest from the

rest of the feature vectors.

3. Among the distances to other feature vectors,

choose the shortest distance as the farthest feature

vector.

4. Repeat step (3) until the desired number of feature

vectors is reached.

By doing the above process, we can obtain patch fea-

tures that reﬂect the diversity within the dataset. As

a result, the number of patch features stored in the

memory bank can be reduced.

In this paper, we extract feature vectors from

the layer just before the ﬁnal layer of a pre-trained

ResNet. Word Patches are created from all training

images in the dataset by using the above sampling

method. We used the Word Patches in TransUNet to

use the information of the other medical image dataset

effectively.

3 PROPOSED METHOD

In the proposed method, we aim to improve the accu-

racy of TransUNet by introducing Word Patches cre-

ated by PatchCore’s sampling method into the origi-

nal TransUNet. By incorporating Word Patches into

TransUNet as cross attention, we consider that the in-

formation of medical images, that could not be ob-

tained by pre-training with ImageNet, can be used in

TransUNet.

For anomaly detection by PatchCore, feature

maps at the 2nd and 3rd blocks in ResNet are used.

However, since TransUNet’s encoder uses feature

maps at the layer just before the ﬁnal layer of ResNet,

we create Word Patches using the feature vectors from

the same layer of ResNet by the sampling method in

Patchcore.

Because TransUNet can learn and classify using

the similarities between training images and Word

Patches, we can use the information about what pat-

terns appear in each class and how similar they are

to each other. Thus, we expected to improve the

segmentation accuracy even with a small number of

training images.

Figure 1 illustrates the architecture of the pro-

posed method. Word Patches created from medical

images are mixed with the output of TransUNet’s

Transformer using Mix Transformer. Mix Trans-

former consists of Multi-Head Attention, Layer Nor-

malization, and MLP. In Multi-Head Attention, the

output of TransUNet’s encoder is used as Query,

while Word Patches are used as Key and Value.

Equation (1) shows the computation of the Mix

Transformer.

Z(Q, K, V ) = Concat(head

, ..., head

)

head

= so f tmax



)

√



= A

(1)

ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods

380

Table 1: Accuracy on ACDC dataset while changing the sampling percentage.

ACDC class Background Right ventricle Myocardium Left ventricle mIoU

baseline 98.94 71.81 57.96 83.26 77.99

ours

(ACDC 10%)

99.00 62.73 62.54 88.70 78.24

ours

(ACDC 50%)

98.79 59.57 65.75 88.20 78.08

ours

(ACDC 100%)

99.03 61.00 61.85 87.04 77.23

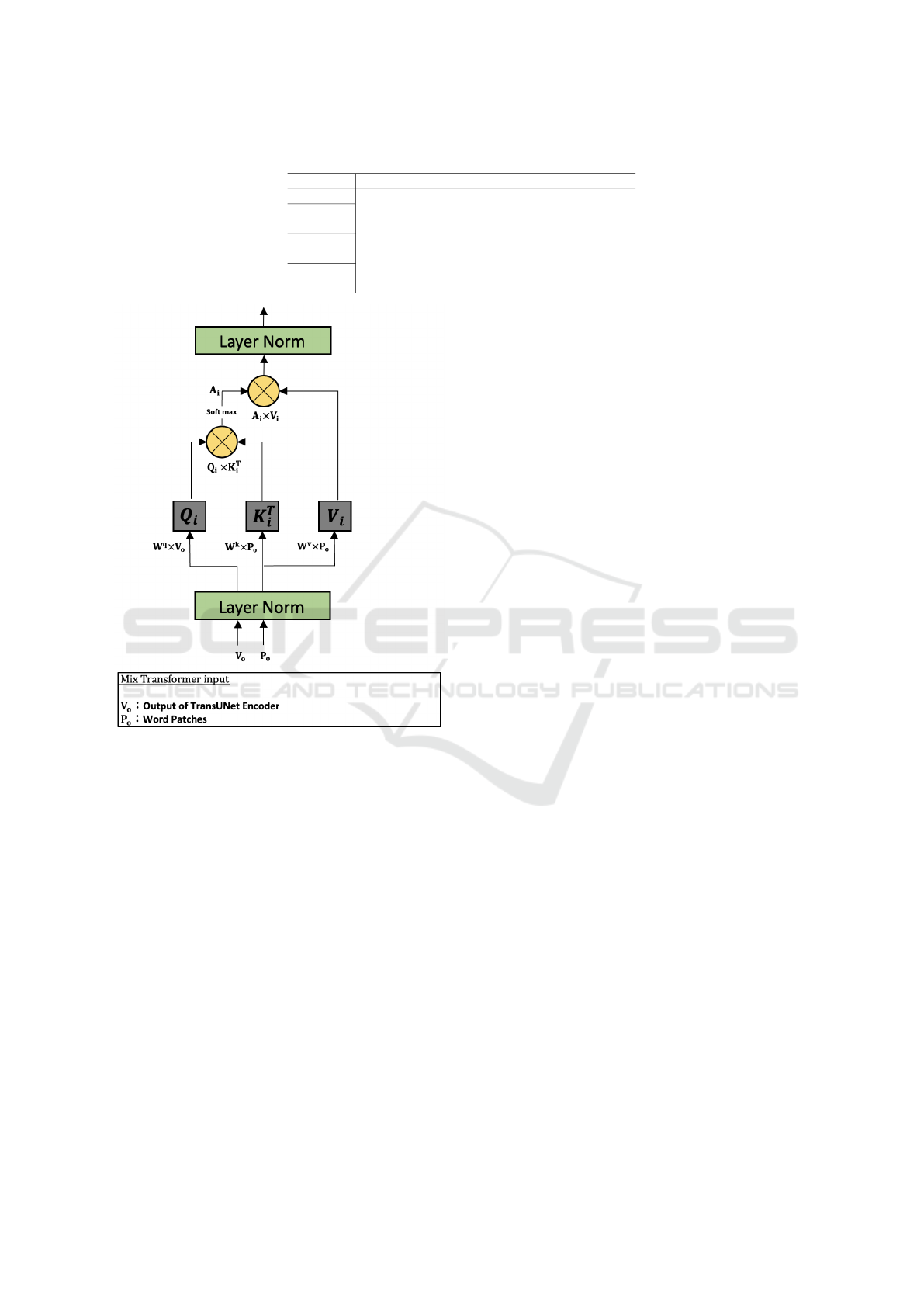

Figure 3: Mix Transformer.

where Z(Q, K, V ) is the output of Multi Head At-

tention in Mix Transformer, A

is the attention map.

Query, Key, Value are computed as

Q = W

K = W

V = W

(2)

where V

indicates the output of the conventional

TransUNet and P

indicates the Word Patches created

by medical images. W

, W

and W

are the 1×1 con-

volution.

By using Mix Transformer, we can leverage the

similariteis between the feature representations in

TransUNet and the Word Patches. We create an atten-

tion map from the similarity between the Query (Q)

from the output of TransUNet’s encoder and the Key

(K) from the Word Patches. This allows us to train

the model while considering the speciﬁc features for

medical images and their relationships.

Mix Transformer used in this experiment was not

pre-trained, and when Word Patches were added di-

rectly to the encoder output without using the Mix

Transformer, the accuracy decreased. This shows that

the Mix Transformer allows the similarity between

the Word Patches and target data to be taken into ac-

count, and this improves the segmentation accuracy.

4 EXPERIMENTS

4.1 Datasets and Parameters

The following experiment utilizes two datasets: the

Automatic Cardiac Diagnosis Challenge (ACDC)

dataset consisting of 3D MRI images, and the

Synapse multi-organ segmentation (SMO) dataset

containing CT images of the lower abdomen. The

ACDC dataset consists of 4 classes with 690 train-

ing images, 95 validation images, and 190 test im-

ages. On the other hand, the SMO dataset consists of

9 classes with 2474 training images, 613 validation

images, and 692 test images.

We also used the Drosophila dataset(Gerhard

et al., 2013) when we create Word Patches. The

dataset consists of 20 grayscale cell images of size

1024x1024 pixels. From this dataset, 12 random

crops of size 256×256 pixels are used. The cell im-

ages are more similar to medical images than the nat-

ural images in ImageNet used for pre-training, and we

would like to verify the effect of Word Patches using

these cell images on TransUNet.

Minibatch size was set to 16, the number of

epochs to 300, and Adam and cos scheduler were used

as optimization methods. In addition, mean Intersec-

tion over Union (mIoU) was used as an evaluation

measure. In experiments, 5-fold cross validation was

used.

4.2 Sampling Percentage

When we create Word Patches, the percentage of sam-

pling is a hyperparameter. The experimental results

on the ACDC dataset while changing the hyperpa-

rameter are shown in Table 1. In this experiment,

Improvement of TransUNet Using Word Patches Created from Different Dataset

381

Table 2: Evaluation result on ACDC dataset.

ACDC class Background Right ventricle Myocardium Left ventricle mIoU

baseline 98.94 71.81 57.96 83.26 77.99

ours

(Drosophila)

99.13 76.62 59.85 82.73 79.59

ours (ACDC) 99.00 62.73 62.54 88.70 78.24

ours (SMO) 99.20 72.17 61.58 87.05 80.00

Table 3: Evaluation result on SMO dataset.

SMO class Background Aorta Gallbladder Left kidney Right kidney Liver Pancreas Spleen Stomach mIoU

baseline 96.46 35.01 19.72 55.79 37.77 55.04 30.02 42.61 17.76 43.35

ours

(Drosophila)

97.31 38.66 12.39 45.38 44.16 67.99 16.79 52.37 24.98 44.45

ours (ACDC) 97.13 38.72 17.99 49.65 48.83 72.09 7.96 65.07 23.53 46.77

ours (SMO) 96.70 46.07 12.77 51.96 41.60 63.60 18.84 43.13 17.82 43.61

Word Patches were created from the ACDC dataset.

In the Table, the baseline refers to the conventional

TransUNet without using Word Patches, ”ours(ACDC

10%)” is the result when 10% of the original features

is selected by sampling, ”ours(ACDC 50%)” is the re-

sult when 50% of the original features is selected by

sampling, and ”ours(ACDC 100%)” is the result when

no sampling is done and all of the original features are

used.

When 50% was used, the accuracy did not im-

prove compared to the case that sampling percentage

is 10%. when 100% of original features was used as

Word Patches in TransUNet, the accuracy much de-

creased. This indicates that it is important to select

appropriate number of features as Word Patches. As a

result, the accuracy was improved the most when 10%

of all features were selected as Word Patches. If the

sampling percentage is high, similar Word Patches are

included. Therefore, 10% is effective, and the sam-

pling percentage was set to 10% in the following all

experiments.

4.3 Experimental Results

Table 2 shows the accuracy on the ACDC dataset

when Word Patches were created using the

Drosophila dataset, ACDC dataset, and SMO

dataset. The baseline refers to the conventional

TransUNet without using Word Patches, ”ours

(Drosophila)” indicates the accuracy when Word

Patches were created using the Drosophila dataset,

”ours (ACDC)” represents the accuracy when Word

Patches were created using the ACDC dataset, and

”ours (SMO)” indicates the accuracy when Word

Patches were created using the SMO dataset. In

addition, Table 3 shows the accuracy on the SMO

dataset. In this experiment, 10% of randomly se-

lected training images from each dataset were used

for training.

From Tables 2, we see that the accuracy was im-

proved by using Word Patches in comparison with

baseline. The accuracy is the worst when we use

Word Patches from the ACDC dataset which is used

for the test. On the other hand, surprisingly, when

we use Word Patches created from the SMO dataset

which is different from test dataset, the accuracy was

the best. Since the ACDC Word Patches are the same

as the training images, we consider that the accuracy

could not be improved that much. By incorporating

Word Patches in cross attention, it is possible to learn

and classify each pixel by utilizing the similarities be-

tween Word Patches and the patterns that appear in the

training images for segmentation. However, if Word

Patches are created using the same training images,

the advantage of Word Patches, which uses the re-

lationship between different images, cannot be used

sufﬁciently. Therefore, we believe that the highest ac-

curacy was achieved when we create Word Patches

from different dataset from training images.

Similarly, in Table 3, the accuracy is the worst

when we use Word Patches created from the SMO

dataset, while the Word Patches created from the

ACDC dataset achieved the best accuracy. This indi-

cates that the usage of Word Patches created from dif-

ferent dataset allows the model to learn features that

are not present in its own dataset, and this leads to

improve the accuracy. This result shows the effective-

ness of our proposed method.

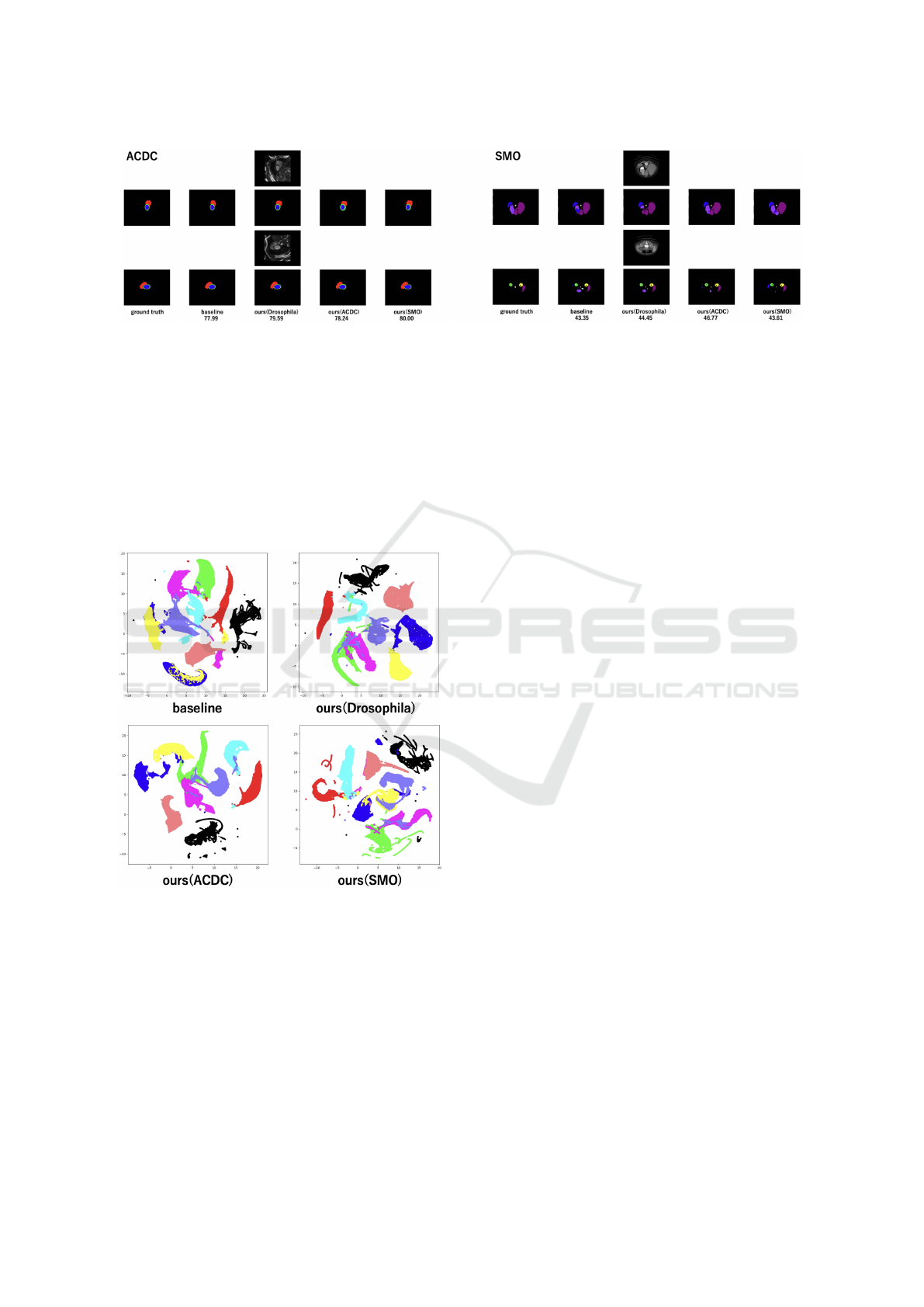

Figure 4 shows the segmentation results. The Fig-

ure on the left side shows the segmentation results on

the ACDC dataset, while the Figure on the right side

shows the segmentation results on the SMO dataset.

The grayscale images in the ﬁrst and third rows rep-

resent the test images. From left to right in the sec-

ond and fourth rows show the ground truth, the base-

line (TransUNet without Word Patches), and ”ours

(Drosophilia)” means that Word Patches are created

from Drosophilia dataset, and ”ours(ACDC)” means

ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods

382

Figure 4: Segmentation Results.

that Word Patches are created from ACDC dataset,

and ”ours(SMO)” means that Word Patches are cre-

ated from SMO dataset, respectively. The usage of

Word Patches gave better segmentation results com-

pared to the conventional TransUNet without Word

Patches. Additionally, we see that Word Patches cre-

ated from a different dataset lead to improve segmen-

tation quality. This demonstrates the effectiveness of

features from different dataset because we can use the

features which are not present in training dataset.

Figure 5: Class distribution per pixel in SMO dataset.

The distribution of classes per pixel in the before

layer of ﬁnal output layers for test images is shown

in Figure 5. We used dimensionality reduction by

UMAP(McInnes et al., 2018). It shows the distribu-

tion of 9 classes in the SMO dataset. Only 90,000

pixels (10,000 pixels of each class) are selected at ran-

dom because the amount of all pixels is too large. The

different classes are represented with different colors.

In the baseline, the blue and yellow classes on the

left and bottom are heavily overlapping. Some classes

in the center also overlap. In contrast, when we use

Word Patches, there is no signiﬁcant overlap between

the different classes. Thus, it can be seen that the clas-

siﬁcation is more successful when Word Patches is

used than the baseline without Word Patches. In addi-

tion, when Word Patches created from ACDC dataset

is used, the same classes are grouped together and the

different classes are separated from each other. On the

other hand, when SMO dataset was used for creating

Word Patches, different classes partially overlapped

with each other. This result shows that it is possible

to learn and segment each class while utilizing fea-

tures that are not present in the original dataset when

Word Patches is created from different dataset. This

enables successful classiﬁcation.

4.4 Experiments with Different Number

of Training Images

Table 4 shows the accuracy on the ACDC dataset

when only 10%, 30% and 50% of all training images

were used for training the model. In this experiment,

Word Patches were created using the Drosophila

dataset. Similarly, Table 5 shows the accuracy on the

SMO dataset. In both Tables, ”10%, 30% and 50%”

means that only 10%, 30% and 50% of all training

images are used for training the model. From Ta-

ble 4 and 5, we see that the usage of Word Patches

improved the accuracy in both cases. These results

demonstrate that Word Patches improved the accuracy

with a small number of training images. However,

the smallest improvement in accuracy was obtained

at 50% for both ACDC and SMO datasets. This in-

dicates that the introduction of Word Patches can im-

prove the accuracy by using information from other

data when the amount of training data is small and it

is difﬁcult to train with only original data.

4.5 Ablation Study

We conduct ablation study when we mix Word

Patches created from different dataset. The ex-

perimental results on the ACDC dataset are shown

Improvement of TransUNet Using Word Patches Created from Different Dataset

383

Table 4: Accuracy on ACDC dataset when we change the number of training images.

ACDC class Background Right ventricle Myocardium Left ventricle mIoU

baseline 10% 98.94 71.81 57.96 83.26 77.99

ours 10%

(Drosophila)

99.13 76.62 59.85 82.73 79.59

baseline 30% 99.30 71.23 69.85 85.62 81.50

ours 30%

(Drosophila)

99.31 77.70 66.88 89.27 83.29

baseline 50% 99.43 84.64 71.47 90.27 86.45

ours 50%

(Drosophila)

99.58 86.59 74.64 89.05 87.47

Table 5: Accuracy on SMO dataset when we change the number of training images.

SMO class Background Aorta Gallbladder Left kidney Right kidney Liver Pancreas Spleen Stomach mIoU

baseline 10% 96.46 35.01 19.72 55.79 37.77 55.04 30.02 42.61 17.76 43.35

ours 10%

(Drosophila)

97.31 38.66 12.39 45.38 44.16 67.99 16.79 52.37 24.98 44.45

baseline 30% 98.51 54.54 53.63 44.10 47.40 80.96 35.80 83.53 58.55 61.89

ours 30%

(Drosophila)

98.71 60.93 53.85 58.59 46.93 81.08 33.53 75.54 61.47 63.40

baseline 50% 98.77 76.90 56.52 80.08 76.92 80.98 43.14 64.48 69.96 71.97

ours 50%

(Drosophila)

99.15 64.62 55.63 67.94 64.00 86.38 44.34 85.27 70.86 72.02

Table 6: Accuracy on ACDC dataset when we mix different Word Patches.

ACDC class Background Right ventricle Myocardium Left ventricle mIoU

baseline 98.94 71.81 57.96 83.26 77.99

ours

(Drosophila)

99.13 76.62 59.85 82.73 79.59

ours(ACDC) 99.00 62.73 62.54 88.70 78.24

ours(SMO) 99.20 72.17 61.58 87.05 80.00

ours

(Dro ACDC)

99.12 60.91 62.55 90.23 78.20

ours

(Dro SMO)

99.18 78.84 63.06 85.61 81.67

ours

(ACDC SMO)

99.27 72.48 65.57 85.08 80.60

ours(all) 99.06 65.47 61.60 85.75 77.97

in Table 6. In the Table, ours(Dro ACDC) is the

result with a mixture of Drosophila and ACDC

Word Patches, ours(Dro SMO) is the result with

a mixture of Drosophila and SMO Word Patches,

ours(ACDC SMO) is the result with a mixture of

ACDC and SMO Word Patches, and ours(all) indi-

cates the result with a mixture of Word Patches of

Drosophila, ACDC and SMO datasets.

When some Word Patches were mixed, higher

accuracy was obtained than the Word Patches cre-

ated from only one dataset. When ACDC is the tar-

get, Word Patches including SMO dataset achieved

higher accuracy. However, when we mix the Word

Patches of ACDC, SMO, and Drosophila, the accu-

racy is higher than that of baseline, but lower than that

of the Word Patches created from each dataset. This is

because there is too much different information when

the attention is used in the Mix Transformer. When

the sampling percentage increased, the accuracy de-

creased as shown in Table 1. Therefore, the similari-

ties between the target image and many Word Patches

may not be good for training. These results indicate

that it is not enough to simply use Word Patches cre-

ated from a large number of datasets, but that it is

necessary to use Word Patches appropriate for the tar-

get.

5 CONCLUSION

We proposed a method to improve the TransUNet by

using Word Patches created from the other medical

datasets. Through experiments with a small number

of training images, we conﬁrmed that the segmenta-

tion accuracy was improved. In this paper, we have

selected a dataset to create Word Patches manually.

In the future, we would like to create Word Patches

dynamically according to the property of target data.

ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods

384

ACKNOWLEDGEMENTS

This research is partially supported by JSPS KAK-

ENHI Grant Number 21K11971.

REFERENCES

Carion, N., Massa, F., Synnaeve, G., Usunier, N., Kirillov,

A., and Zagoruyko, S. (2020). End-to-end object de-

tection with transformers. In European conference on

computer vision, pages 213–229. Springer.

Chen, J., Lu, Y., Yu, Q., Luo, X., Adeli, E., Wang, Y., Lu, L.,

Yuille, A. L., and Zhou, Y. (2021). Transunet: Trans-

formers make strong encoders for medical image seg-

mentation. arXiv preprint arXiv:2102.04306.

Chu, P., Wang, J., You, Q., Ling, H., and Liu, Z.

(2021). Transmot: Spatial-temporal graph trans-

former for multiple object tracking. arXiv preprint

arXiv:2104.00194.

Dosovitskiy, A., Beyer, L., Kolesnikov, A., Weissenborn,

D., Zhai, X., Unterthiner, T., Dehghani, M., Minderer,

M., Heigold, G., Gelly, S., et al. (2020). An image is

worth 16x16 words: Transformers for image recogni-

tion at scale. arXiv preprint arXiv:2010.11929.

Gerhard, S., Funke, J., Martel, J., Cardona, A., and Fet-

ter, R. (2013). Segmented anisotropic sstem dataset of

neural tissue. ﬁgshare, pages 0–0.

Guibas, J., Mardani, M., Li, Z., Tao, A., Anandkumar,

A., and Catanzaro, B. (2021). Efﬁcient token mixing

for transformers via adaptive fourier neural operators.

In International Conference on Learning Representa-

tions.

Liu, Z., Lin, Y., Cao, Y., Hu, H., Wei, Y., Zhang, Z., Lin,

S., and Guo, B. (2021). Swin transformer: Hierarchi-

cal vision transformer using shifted windows. In Pro-

ceedings of the IEEE/CVF International Conference

on Computer Vision, pages 10012–10022.

McInnes, L., Healy, J., and Melville, J. (2018). Umap: Uni-

form manifold approximation and projection for di-

mension reduction. arXiv preprint arXiv:1802.03426.

Meinhardt, T., Kirillov, A., Leal-Taixe, L., and Feichten-

hofer, C. (2022). Trackformer: Multi-object tracking

with transformers. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 8844–8854.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-

net: Convolutional networks for biomedical image

segmentation. In Medical Image Computing and

Computer-Assisted Intervention–MICCAI 2015: 18th

International Conference, Munich, Germany, October

5-9, 2015, Proceedings, Part III 18, pages 234–241.

Springer.

Roth, K., Pemula, L., Zepeda, J., Sch

olkopf, B., Brox, T.,

and Gehler, P. V. (2021). Towards total recall in indus-

trial anomaly detection. CoRR, abs/2106.08265.

Sakaridis, C., Dai, D., and Van Gool, L. (2021). Acdc: The

adverse conditions dataset with correspondences for

semantic driving scene understanding. In Proceedings

of the IEEE/CVF International Conference on Com-

puter Vision, pages 10765–10775.

Sethi, A. et al. (2021). Wavemix: Multi-resolution token

mixing for images.

Tan, C.-H., Chen, Q., Wang, W., Zhang, Q., Zheng, S., and

Ling, Z.-H. (2021). Ponet: Pooling network for efﬁ-

cient token mixing in long sequences. arXiv preprint

arXiv:2110.02442.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, Ł., and Polosukhin, I.

(2017). Attention is all you need. Advances in neural

information processing systems, 30.

Xie, E., Wang, W., Yu, Z., Anandkumar, A., Alvarez, J. M.,

and Luo, P. (2021). Segformer: Simple and efﬁcient

design for semantic segmentation with transformers.

Advances in Neural Information Processing Systems,

34:12077–12090.

Yu, W., Luo, M., Zhou, P., Si, C., Zhou, Y., Wang, X., Feng,

J., and Yan, S. (2022). Metaformer is actually what

you need for vision. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 10819–10829.

Zeng, F., Dong, B., Zhang, Y., Wang, T., Zhang, X., and

Wei, Y. (2022). Motr: End-to-end multiple-object

tracking with transformer. In European Conference

on Computer Vision, pages 659–675. Springer.

Improvement of TransUNet Using Word Patches Created from Different Dataset

385
