Jabuti CE: A Tool for Specifying Smart Contracts in the Domain of

Enterprise Application Integration

Mailson Teles-Borges

1 a

, Jose Bocanegra

2 b

, Eldair F. Dornelles

1 c

, Sandro Sawicki

1 d

Antonia M. Reina-Quintero

3 e

, Carlos Molina-Jimenez

4 f

, Fabricia Roos-Frantz

1 g

and Rafael Z. Frantz

1 h

Unijui University, Iju

ı, RS, Brazil

Universidad de los Andes, Bogot

a, Colombia

University of Seville, Seville, Spain

Department of Computer Science and Technology, University of Cambridge, U.K.

Keywords:

Blockchain, Domain-Speciﬁc Languages, Enterprise Application Integration, Jabuti DSL, Language Server

Protocol, Smart Contracts.

Abstract:

Some decentralised applications (such as blockchains) take advantage of the services that smart contracts

provide. Currently, each blockchain platform is tightly coupled to a particular contract language; for example,

Ethereum supports Serpent and Solidity, while Hyperledger prefers Go. To ease contract reuse, contracts

can be speciﬁed in platform-independent languages and automatically translated into the languages of the

target platforms. With this approach, the task is reduced to the speciﬁcation of the contract in the language

statements. This can be tedious and error-prone unless the language is accompanied by supportive tools.

This paper presents Jabuti CE, a model-driven tool that assists users of Jabuti DSL in specifying platform-

independent contracts for Enterprise Application Integration. We have implemented Jabuti CE as an extension

for Visual Studio Code.

1 INTRODUCTION

A smart contract is a software artefact designed to

verify and execute transactions. It is normally writ-

ten in a contract language such as Solidity and Go,

and is deployed on a blockchain (Khan et al., 2021).

Usually, software engineers write a contract manu-

ally in the run-time language; however, this approach

suffers from two serious drawbacks: ﬁrstly, the con-

tract is not reusable because platforms are tightly cou-

pled to a particular contract language, for example,

Ethereum supports Serpent and Solidity while Hyper-

ledger prefers Go; secondly, the contract is likely to

https://orcid.org/0000-0001-7674-854X

https://orcid.org/0000-0002-8342-7346

https://orcid.org/0000-0001-6585-3432

https://orcid.org/0000-0002-7960-0775

https://orcid.org/0000-0003-3698-6302

https://orcid.org/0000-0002-3617-8287

https://orcid.org/0000-0001-9514-6560

https://orcid.org/0000-0003-3740-7560

be buggy and vulnerable (Durieux et al., 2020) be-

cause current contract languages are not easy or intu-

itive to use; and they include too many language de-

tails (e.g., variables, pointers, data structures) that dis-

tract the programmer from the semantics of the con-

tract. To avoid these problems, the programmer can

use programming environments that include tools to

specify a contract in a platform-independent language

and to automatically translate it into the language of

the target platform. The implementation of these tools

requires a great deal of programming skills; therefore,

they are not widely available.

To cover this gap, the main contribution of this ar-

ticle is the Jabuti DSL Contract Editor (Jabuti CE)

We have implemented it as an extension of Visual Stu-

dio Code (VSCode) to assist Jabuti DSL programmers

at contract editing time. Jabuti DSL (Dornelles et al.,

2022) is a Domain Speciﬁc Language for writing

More details of the tool and the Appendix to this arti-

cle are available at https://github.com/gca-research-group/

jabuti-dsl-language-vscode

Teles-Borges, M., Bocanegra, J., Dornelles, E., Sawicki, S., Reina-Quintero, A., Molina-Jimenez, C., Roos-Frantz, F. and Frantz, R.

Jabuti CE: A Tool for Specifying Smart Contracts in the Domain of Enterprise Application Integration.

DOI: 10.5220/0012413300003645

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 12th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2024), pages 195-202

ISBN: 978-989-758-682-8; ISSN: 2184-4348

195

platform-independent contracts for enterprise appli-

cation integration (EAI). Among other features, Jabuti

CE can detect syntax errors and suggest solutions.

The paper is structured as follows: in Section 2

we present the core concepts; Section 3 describes the

tool development ﬂow; related work is discussed in

Section 4; ﬁnally, in Section 5 we present results and

outline ongoing and future work.

2 BACKGROUND

In this section, we will ﬁrst explain how the data ex-

change process works in the context of Enterprise

Application Integration, and then we will present the

Jabuti constructors.

2.1 Enterprise Application Integration

Enterprise Application Integration (EAI) is the branch

of software engineering that deals with the integra-

tion process that allows different applications to ex-

change information with each other (Soomro and

Awan, 2012). Communication between these applica-

tions and the integration process occurs through ports,

which are implementations of protocols such as smtp,

sftp, http, amqp, among others. These ports can be

unidirectional or bidirectional (Dornelles et al., 2022;

Parahyba et al., 2022). When the port is unidirec-

tional, messages ﬂow in a single direction. Unidi-

rectional ports can be classiﬁed into two categories:

Entry and Exit.

Entry. It is the data entry port in the integration pro-

cess and allows two operations:

• Push. Adds application data to the integration

process;

• Read. Reads data from the integration process

and adds it to the application.

Exit. It is the data exit port in the integration process

and allows two operations:

• Poll. Reads data provided by the integration

process;

• Write. Writes data in the integration process.

In bidirectional ports, the ﬂow of messages travels in

two opposite directions through two types of ports:

Solicitor and Responder. These ports have only two

types of operations request and response. Ports of

type Solicitor perform operations of type request al-

lowing the application to request data or services from

the integration process. Ports of type Responder per-

form operations of type response that return the re-

quested data.

2.2 Jabuti DSL

In the context of EAI, the rules of the communication

contract (or agreement) through the ports between the

application and the integration process can be repre-

sented using smart contracts. Smart contracts are self-

executing digital representations of traditional con-

tracts, deﬁning rights, obligations, prohibitions, and

penalties for the parties involved (Dornelles et al.,

2022).

Jabuti is a model-driven language for smart con-

tracts in the ﬁeld of EAI that helps to write platform–

independent contracts. These contracts can be trans-

lated automatically into general-purpose (e.g. Java,

C, Go) or cross-domain languages (e.g. Solidity) that

are speciﬁc to blockchains. Jabuti comprises the fol-

lowing concepts:

Contract. It is the main constructor and deﬁnes the

scope of the contract. It deﬁnes the two partic-

ipants, the start and end dates, and one or more

clauses, terms, and events.

Dates. Deﬁnes the validity period of the contract

with the start and end dates.

Party. Represents the two contracting parties,

namely, the integration process and the applica-

tion under integration.

Clause. Speciﬁes the responsible party (rolePlayer)

and the conditions (terms) for executing an op-

eration. Operactions can be push, read, poll,

write, request, and response. There are 3 types

of clauses:

• Right. The rolePlayer has the right to execute

the clause or not.

• Obligation. The execution of the clause is

mandatory.

• Prohibition. Speciﬁes clauses that prohibit con-

tract execution.

Terms. deﬁnes the service-level rules and business

rules that must be met by the contracting parties.

To help to understand our approach better, we present

a real scenario in which integration rules can be rep-

resented using Jabuti DSL. In the scenario an e-

commerce hires a payment service that will be re-

sponsible for processing payments for orders created

by consumers. The e-commerce will request a new

transaction from the payment service that receives

and will return a corresponding identiﬁer in response.

Then, the payment service will send notiﬁcations to

the e-commerce informing it of status changes that

have occurred.

Figure 1 illustrates this process and some rules

stipulated through a representation via BPMN. We

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

196

E-commerce

application

Sends payment

data

Integration Process

Are there more than

100 payment

requests?

Are there any payment

requests that exceed the

value of 100 thousand

monetary units?

Were there more

than 5 API requests

in the last minute?

Yes

No No

Yes

Payment Service

Process the

payment

Did the processing

take less than 2

seconds?

Responds with

transaction id

Yes

Figure 1: BPMN diagram of the integration process between e-commerce and payment service.

can observe the rules that establish the duties of each

party involved: the e-commerce application can ac-

cess the integration process a maximum of 5 times

per minute; each request may contain a maximum of

100 transactions; each transaction will have a maxi-

mum value of one hundred thousand monetary units;

the payments service will have up to 2 seconds to pro-

cess and return a response. Listing 1 shows these rules

written with Jabuti DSL.

Although Jabuti DSL has an optimised syntax for

writing smart contracts, using it without the support

of an editor or a tool that can validate the written

contract, provide suggestions, or differentiate the con-

structors present is a challenge.

3 TOOL OVERVIEW

In the implementation of Jabuti CE, we have opted

for extending VSCode, an emerging technology that

has some advanced features such as language sup-

port, user interface, extension ecosystem, and perfor-

mance. The implementation of Jabuti CE involves

the steps shown in Figure 2: (i) grammar speciﬁ-

cation; (ii) implementation of the editor’s function-

alities; (iii) development of plugin for communica-

tion with the editor; (iv) building and deployment of

the extension in the VSCode marketplace. We detail

these steps in the subsequent subsections.

3.1 Specifying the Grammar

For the selection of the library responsible for specify-

ing the grammar, we have taken into account three cri-

teria: low learning curve, maintainability, and avail-

ability of development support tools. A low learning

curve requires both the availability of documentation

and the structure of the grammar language (e.g. if

it is simple enough to be understood). Maintainabil-

ity means simple procedures to upgrade, identify, and

ﬁx bugs. Finally, the availability of development sup-

port tools implies the existence of plugins or editors to

write the grammar and tools to identify errors during

the development stage.

We have chosen the ANTLR library (Parr, 2023)

because it meets the above requirements. For in-

stance, it has plugins for the main editors or IDEs;

the generated code is human-readable; it is well doc-

umented and provides examples; in addition, it in-

cludes capabilities to convert the grammar into other

languages (e.g. Typescript, Java, C#, Php among oth-

ers).

In Listing 2 we provide an excerpt of the speciﬁ-

cation of the grammar of Jabuti DSL

. Lines 4 to 8

represent the token declaration (the smallest semantic

units of the language); Line 13 shows the rule dec-

laration for contract. Note that tokens are written in

The entire grammar of the language can

be seen at https://github.com/gca-research-group/

jabuti-dsl-language-vscode

Jabuti CE: A Tool for Specifying Smart Contracts in the Domain of Enterprise Application Integration

197

1 contract PaymentService {

2 dates {

3 beginDate = 2023-09-25 21:21:42

4 dueDate = 2023-09-26 21:21:42

5 }

7 parties {

8 application = "E-commerce"

9 process = "Payment Service"

10 }

12 variables {

13 payments = "$.data.length()"

14 value = "$.data.[*].value"

15 }

17 clauses {

18 right requestPayment {

19 rolePlayer = application

20 operation = request

22 terms {

23 MaxNumberOfOperation(5 per

,→ Minute),

24 MessageContent(payments <= 100)

,→ ,

25 MessageContent(value <= 100000)

26 }

27 }

29 obligation responsePayment {

30 rolePlayer = process

31 operation = response

33 terms {

34 Timeout(2)

35 }

36 }

37 }

38 }

Listing 1: Contract for the payment integration process

written in Jabuti DSL.

Specifying the grammar

Implementing the

functionalities

Developing the plugin

Building and deploying

the tool

Figure 2: Tool development ﬂow.

Pascal case and non-terminal symbols in Camel case.

The colon (:) at line 14 is a separator that separates

the rule name from its implementation. Lines 15-19

show the expression that represents the contract.

A contract starts with the keyword Contract fol-

lowed by its name, which is controlled by the vari-

ableName rule. A variable name must start with a let-

ter followed by zero or more letters and numbers. The

name of the contract is followed by the OpenBrace

token ({). The rules are then speciﬁed for variables,

dates, parties, and clauses. These rules are enclosed in

parentheses and separated by pipe (|) to indicate that

any of them can be inserted after OpenBrace in no

particular order. Finally, at line 19, the declaration

ends with the token CloseBrace (}) and a question

mark (?). The ’?’ symbol represents that the forego-

ing expression is optional; therefore, an empty Jabuti

DSL ﬁle will be taken as valid.

1 grammar JabutiGrammar;

3 // Tokens

4 Contract: ’contract’;

5 Dates: ’dates’;

6 BeginDate: ’beginDate’;

7 DueDate: ’dueDate’;

8 Parties: ’parties’;

10 ...

12 // Lexer

13 contract

14 :

15 (

16 Contract variableName OpenBrace

17 (variables|dates|parties|clauses)*

18 CloseBrace

19 )?

20 ;

22 clauses

23 :

24 Clauses

25 OpenBrace

26 (right|prohibition|obligation)+

27 CloseBrace

28 ;

29 ...

Listing 2: Excerpt of Jabuti DSL grammar.

3.2 Language Server Protocol

For the implementation of the editor’s functionalities

(code completion, error validation, outline deﬁnition,

among others), we have selected the Language Server

Protocol (LSP) (Microsoft, 2023), a client-server pro-

tocol developed by Microsoft in 2016. As IDEs sup-

port different languages, LSP emerged as a way to

separate and decouple the functionality of these edi-

tors, allowing the reuse of the implementation in dif-

ferent places.

We take advantage of three LSP features: versa-

tility, interoperability, and bidirectional communica-

tion (B

under, 2019). Firstly, versatility allows the

server to be implemented in any language. Sec-

ondly, interoperability allows a single implementa-

tion to serve several editors/IDEs as long as they sup-

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

198

port the protocol. Finally, bidirectional communica-

tion enables the editor/IDE to send information to the

server, and vice versa. From the LSP speciﬁcation, it

is worth highlighting the following features:

1. Code completion: identiﬁes the cursor position

and suggests what the next typed token would be.

2. Goto deﬁnition: when selecting a keyword, it al-

lows navigation to the origin of this keyword, al-

lowing the user to easily obtain its deﬁnition.

3. Symbol deﬁnition: enables the development of a

tree for quick access to method and variable deﬁ-

nitions in the editor.

4. Hover: add descriptive text to language keywords.

As a protocol, LSP only deﬁnes a speciﬁcation of how

communication between both the client and the server

should occur, but without providing an implementa-

tion. It can be done in any language that includes

the libraries needed. As Jabuti CE was developed

in TypeScript, we chose vscode-languageserver, a li-

brary provided by Microsoft (Microsoft, 2023) that

is also written in TypeScript. This library provides a

simpliﬁed API that facilitates server implementation

with methods such as onCompletion, onHover, on-

DocumentSymbol and onDeﬁnition. These methods

are abstractions that represent the features deﬁned in

the protocol.

3.3 Plugin

The communication between VSCode and the LSP

server requires the development of a plugin. This plu-

gin can be developed with Yeoman (Yeoman, 2023)

(a tool for scaffolding apps), which creates a minimal

tool structure. In addition to communication with the

server, Yeoman also adds some extra features to the

language, such as syntax highlighting.

For communication with the LSP server, we need

to deﬁne the connection parameters. As this server

is also written in TypeScript, it will be transpiled

into Javascript and packaged together with the ex-

tension. This structure means that we do not need a

physical server to host the application and we do not

need to develop monitoring systems for this server.

To deﬁne syntax highlighting, it is possible to use

TextMate (Macromates, 2023), an editor for macOS,

whose grammar is recognised by VSCode.

3.4 Deploy

To publish Jabuti CE on the VSCode marketplace,

three steps are required: transpilation, compression,

and publication.

The transpilation step is necessary because both

the extension and the LSP server are written in Type-

Script, and both need to be converted to JavaScript

code. Although this task can be performed through

TypeScript itself, this action is not recommended

since the size of the ﬁnal tool tends to be very large.

The Microsoft recommendation is to use a packaging

tool such as esbuild or webpack. We selected esbuild

as it requires fewer conﬁgurations. We detected that

when Jabuti CE was compiled with pure TypeScript,

the ﬁnal size of the tool was approximately 15MB. On

the contrary, esbuild produces a tool of approximately

800KB only.

Compression is the process of packing the gen-

erated ﬁles in the format used by VSCode, which is

’.vsix’. This can be done through the Visual Studio

Code Extension Manager (vsce), a command line in-

terface for compressing, managing, and publishing

extensions. With the compression process, the ex-

tension for Jabuti CE was even smaller, 300KB only.

Finally, the publication takes place manually by in-

stalling the generated .vsix ﬁle, or from the vsce cli, or

through the administrative panel available in Azure,

where the marketplace is hosted

3.5 Editor

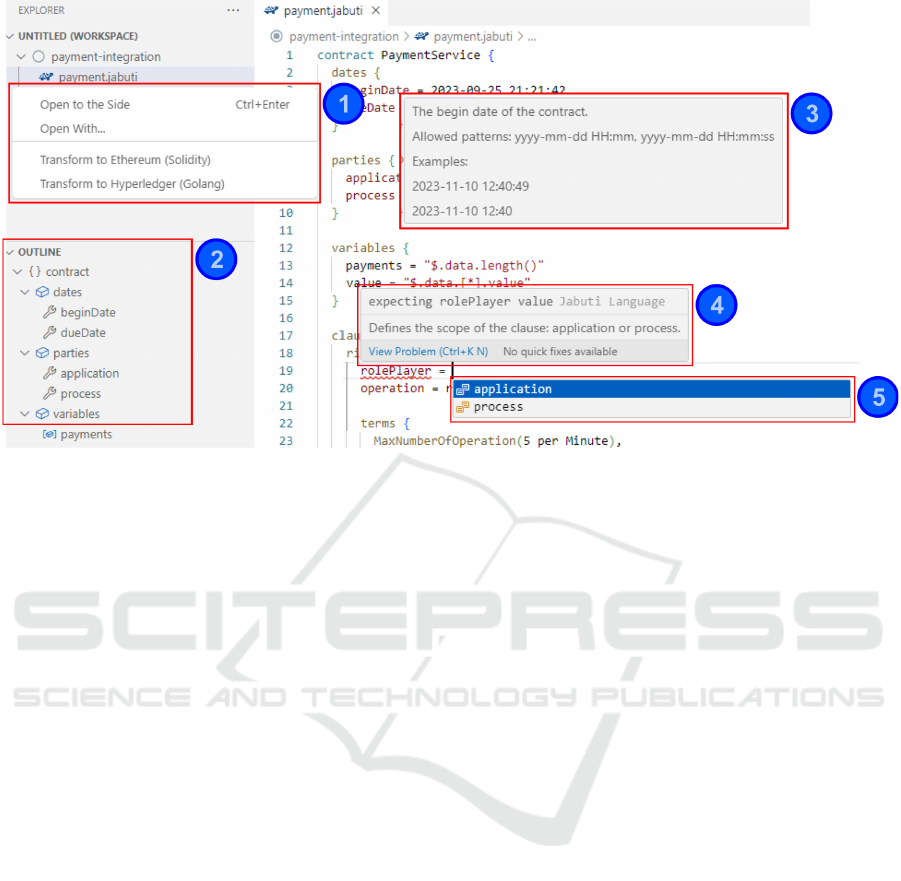

Figure 3 shows some of the features of the tool:

1. Label 1 shows the contextual menu that is ac-

cessed by right-clicking on the .jabuti ﬁle and in

it we can see the two options for transformation:

Transform to Ethereum (Solidity) and Transform

to Hyperledger (Golang).

2. Label 2 shows the left side menu called Outline

that has a tree with the attributes and functions

present in the contract under edition.

3. Label 3 highlights the description provided to

users when the mouse hovers over a keyword such

as contract, variable, or date. In addition to the

description, if the word represents a block or func-

tion, an implementation example is displayed, or

if the word represents an attribute, the possible

values are displayed.

4. Label 4 shows how the errors are displayed in the

editor. In this concrete example, we can see how

The published extension can be downloaded from

https://marketplace.visualstudio.com/items?itemName=

gca-unijui.jabuti-language

Jabuti CE: A Tool for Specifying Smart Contracts in the Domain of Enterprise Application Integration

199

Figure 3: Jabuti CE environment.

rolePlayer is underlined by a red line. Note also

that a hover over the error displays a message de-

scribing the possible cause.

5. Label 5 shows an example of the completion sug-

gestions that are activated when the user presses

the CTRL and Space keys simultaneously.

In addition to the features mentioned above, Jabuti CE

provides other ones:

1. When the user presses CTRL and space to start a

new contract in an empty ﬁle, two different sug-

gestions are given to complete the description of

the contract: one of them contains a simpliﬁed

version of a Jabuti DSL contract and the other

contains a more complete version.

2. If a semantic mistake is made, such as adding two

beginDate attributes, an error is displayed, under-

lining the additional attribute in red.

3.6 Transformation

Transformation involves the translation of the Jabuti

DSL code to the target language (e.g. Solidity,

Node.JS, Go, among others). Initially, we will pro-

vide the transformation option for both the Ethereum

blockchain through Solidity, as well as Hyperledger

with Golang. The ﬁrst step is to map the DSL data

structures to the target language: variables, dates, and

parties will be mapped to private attributes, clauses

will be mapped to methods, and the terms of these

clauses will be mapped to conditions in the respective

methods.

Next, we execute the following steps: (i) develop-

ment of the template for the target language as shown

in Listing 3; (ii) conversion of the selected contract

into an Abstract Syntax Tree (AST); (iii) and exe-

cution of the conversion method so that the AST is

submitted to the template, replacing the template vari-

ables with the AST values. This action occurs through

ejs (Ejs, 2023), a template engine for Javascript.

The implementation of the transformation is still

in progress; however, a ﬁrst version is already avail-

able in the extension. To access it, right-click the

.jabuti ﬁle and then click on one of the follow-

ing two options in the contextual menu: Transform

to Ethereum (Solidity) or Transform to Hyperledger

(Golang).

4 RELATED WORK

The works analyzed in this section present DSLs

or methods for representing smart contracts through

more abstract structures. They also provide some

means of transforming these structures into exe-

cutable languages on blockchains such as Solidity.

However, we can observe that there is no work that

meets the speciﬁcations aimed at EAI.

iContractML (Hamdaqa et al., 2020),

CML (Wohrer and Zdun, 2020) and SPESC (Chen

et al., 2021; He et al., 2018) are DSLs that provide

support for modelling and writing smart contracts

on multiple blockchain platforms in a high-level and

abstract syntax. iContractML and SPESC propose

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

200

1 export const SOLIDITY_TEMPLATE = ‘// SPDX-License-Identifier: MIT

2 pragma solidity ˆ0.8.0;

4 contract <%= contractName %> {

5 // Create the attributes

6 <% variables.forEach(variable => { %>

7 \n\tstring public <%= variable.name %>;

8 <%}) %>

10 constructor() {

11 // Initialize the attributes

12 <% variables.forEach((variable, index) => { %>

13 \n\t\t<%= variable.name %> = "<%= variable.value %>";

14 <% }) %>

15 }

17 // others implementations

18 }

19 ‘;

Listing 3: Excerpt of Solidity template.

a tool that handles both writing and transforming

for the target blockchain. On the other hand, CML

presents a speciﬁcation for writing and transforming

contracts.

Marlowe (Lamela Seijas et al., 2020) is a DSL for

specifying ﬁnancial contracts. Although its language

can be translated to different blockchains, the main

focus is on Cardano. The tool includes a web-based

editor with a rich development environment that al-

lows users to write contracts in Haskell (Haskell,

2023), Blockly (Blockly, 2023) and other languages.

Frantz and Nowostawski (2016) present a study

on the process of converting human-readable infor-

mation, rules, regulations, and laws into machine-

readable code structures. Their work is based on

ADICO (Attributes, Deontic, Aim, Conditions, Or

Else) (Crawford and Ostrom, 1995), a theoretical

model that allows understanding social institutions

and their dynamics by decomposing these concepts

into simple declarations of rules, for example: People

(A) must (D) vote (I) every four years (C), or else they

face a ﬁne (O). The authors also propose model-based

transformation templates written in Scala (Scala,

2023).

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we have highlighted the advantages

of using domain-speciﬁc languages for writing smart

contracts. A DSL allows to produce platform-

independent code and are accessible to profession-

als from the speciﬁc domain with only moderate pro-

gramming skills. We argue that productivity is in-

creased when the programmer is assisted by a pro-

gramming environment that includes a powerful edit-

ing tool. To support our arguments, we have im-

plemented Jabuti CE—an editing tool for specifying

smart contracts for EAI— and released it online to

expose it to public scrutiny. A quick examination will

reveal its salient features; notably, it helps the pro-

grammer to discover errors and suggest solutions. In

addition, it provides predeﬁned snippets, syntax high-

lighting, and code explanation.

Jabuti CE is an ongoing implementation. We

would like to further develop it as an end-to-end

tool capable of both writing and publishing smart

contracts in the EAI context. Next, we will eval-

uate Jabuti CE on writing and transpiling con-

tracts and their integration and execution on different

blockchains. We also plan to conduct an experiment

with users to evaluate the user experience.

The current implementation of Jabuti CE is based

on VSCode and, therefore, requires installation on the

user’s local computer. We are planning an imple-

mentation of a web version that would free the user

from this burden. We would also like to explore the

Monaco editor, the web-enabled editor used by VS-

Code.

ACKNOWLEDGEMENTS

This work was partially supported by the Coordina-

tion for the Brazilian Improvement of Higher Educa-

tion Personnel (CAPES) and the Brazilian National

Council for Scientiﬁc and Technological (CNPq)

under the following project grants 309315/2020-

4, 309425/2023-9 and 402915/2023-2 to Rafael Z.

Jabuti CE: A Tool for Specifying Smart Contracts in the Domain of Enterprise Application Integration

201

Frantz. Antonia M. Reina Quintero has been funded

by the following projects: AETHERUS (PID2020-

112540RB-C44), ALBA-US (TED2021-130355B-

C32) AEI/10.13039/501100011033/Uni

on Europea

NextGenerationEU/PRTR. Carlos Molina has been

funded by UKRI, grant G115169 (CAMB project).

Fabricia Roos-Frantz has been funded by the Re-

search Support Foundation of the State of Rio Grande

do Sul in Brazil (FAPERGS), under grant 19/2551-

0001782-0, and also by the Brazilian National Coun-

cil for Scientiﬁc and Technological (CNPq), under

grant 311011/2022-5.

REFERENCES

Blockly (2023). Blockly language. https://developers.

google.com/blockly. Accessed: June 20, 2023.

under, H. (2019). Decoupling language and editor-the

impact of the language server protocol on textual

domain-speciﬁc languages. In MODELSWARD, pages

129–140.

Chen, E., Qin, B., Zhu, Y., Song, W., Wang, S., Chu, C.-

C. W., and Yau, S. S. (2021). Spesc-translator: To-

wards automatically smart legal contract conversion

for blockchain-based auction services. IEEE Transac-

tions on Services Computing, 15(5):3061–3076.

Crawford, S. E. S. and Ostrom, E. (1995). A grammar

of institutions. American Political Science Review,

89(03):582–600.

Dornelles, E. F., Parahyba, F., Frantz, R. Z., Roos-Frantz, F.,

Reina-Quintero, A. M., Molina-Jim

enez, C., Bocane-

gra, J., and Sawicki, S. (2022). Advances in a DSL

to specify smart contracts for application integration

processes. In Proc. of XXV Ibero-American Conf. on

Software Engineering, pages 46–60. SBC.

Durieux, T., Ferreira, J. F., Abreu, R., and Cruz, P. (2020).

Empirical review of automated analysis tools on

47,587 ethereum smart contracts. In Proc. ACM/IEEE

42nd Int’l Conf. on Software.

Ejs (2023). Embed javascript templates. https://ejs.co/. Ac-

cessed: June 20, 2023.

Frantz, C. K. and Nowostawski, M. (2016). From in-

stitutions to code: Towards automated generation of

smart contracts. In 2016 IEEE 1st International Work-

shops on Foundations and Applications of Self* Sys-

tems (FAS* W), pages 210–215. IEEE.

Hamdaqa, M., Metz, L. A. P., and Qasse, I. (2020). Icon-

tractml: A domain-speciﬁc language for modeling and

deploying smart contracts onto multiple blockchain

platforms. In Proceedings of the 12th System Anal-

ysis and Modelling Conference, pages 34–43.

Haskell (2023). Haskell language. https://www.haskell.

org/. Accessed: June 20, 2023.

He, X., Qin, B., Zhu, Y., Chen, X., and Liu, Y. (2018).

Spesc: A speciﬁcation language for smart contracts.

In 42nd IEEE Annual computer software and appli-

cations conf. (COMPSAC), volume 1, pages 132–137.

IEEE.

Khan, S. N., Loukil, F., Ghedira-Guegan, C., Benkhelifa,

E., and Bani-Hani, A. (2021). Blockchain smart con-

tracts: Applications, challenges, and future trends.

Peer-to-peer Networking and Applications, 14:2901–

2925.

Lamela Seijas, P., Nemish, A., Smith, D., and Thompson,

S. (2020). Marlowe: implementing and analysing ﬁ-

nancial contracts on blockchain. In Financial Cryp-

tography and Data Security (FC’20). Int’l Workshops,

AsiaUSEC, CoDeFi, VOTING, and WTSC, Kota Kin-

abalu, Malaysia, Feb 14, Revised Selected Papers 24,

pages 496–511. Springer.

Macromates (2023). TextMate Manual - Snippets. Web-

page. Accessed: June 20, 2023.

Microsoft (2023). Language Server Protocol (LSP) Speci-

ﬁcation. Website. Accessed on June 15, 2023.

Microsoft (2023). Microsoft/vscode-languageserver-node.

GitHub Repository. Accessed: June 20, 2023.

Parahyba, F., Dornelles, E. F., Roos Frantz, F., Frantz, R. Z.,

Molina Jim

enez, C., Reina Quintero, A. M., Bocane-

gra, J., and Sawicki, S. (2022). On the need to use

smart contracts in enterprise application integration.

In CIbSE 2022: XXV Ibero-American Conference on

Software Engineering (2022), pp. 203-217. Sociedade

Brasileira de Computac¸

ao.

Parr, T. (2023). Antlr: Another tool for language recogni-

tion. Website. Accessed on June 15, 2023.

Scala (2023). Scala language. https://www.scala-lang.org/.

Accessed: June 20, 2023.

Soomro, T. R. and Awan, A. H. (2012). Challenges and

future of enterprise application integration. Interna-

tional Journal of Computer Applications, 42(7):42–

45.

Wohrer, M. and Zdun, U. (2020). From domain-speciﬁc

language to code: Smart contracts and the application

of design patterns. IEEE Software, 37(5):37–42.

Yeoman (2023). Yeoman. https://yeoman.io/. Accessed:

June 20, 2023.

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

202
