A Systematic Literature Review of Artiﬁcial Intelligence Applications for

Diagnosing Hand Tremor Disorders Through Video Analysis

Eduardo Furtado

and Ana Cristina Bicharra Garcia

Federal University of the State of Rio de Janeiro, Department of Applied Informatics, Rio de Janeiro, 22290-255, Brazil

Keywords:

Hand Tremors, Artiﬁcial Intelligence, Video Analysis, Machine Learning, Non-Invasive Diagnosis.

Abstract:

In neurodegenerative disorders, accurate diagnosis of hand tremors serves as a cornerstone for effective man-

agement and treatment plans. With the burgeoning advances in Artiﬁcial Intelligence and machine learning,

substantial promise exists for devising robust and reliable diagnostic methodologies. This paper presents a

systematic literature review analyzing 17 key studies that have employed machine-learning techniques to di-

agnose hand tremors. The scrutiny is multidimensional, elucidating the primary research objectives, patient

tasks during studies, distinct features utilized by the machine learning models, and various validation tech-

niques applied. The aim is to offer a synthesized research landscape, identifying recurring methodologies and

techniques. Moreover, we seek to underscore gaps and potential avenues for future investigations. Through

this systematic examination, we endeavor to contribute to the scholarly discourse, aiding the focused and

coherent advancement of machine learning-based diagnostic models within this critical healthcare domain.

1 INTRODUCTION

Tremor stands out as the most prevalent involuntary

movement disorder, represented by rhythmic oscilla-

tion of a body part, most commonly observed in the

hands (Jankovic, 1980). Numerous underlying causes

for involuntary tremors exist, such as Parkinson’s dis-

ease (PD) (Baumann, 2012), Essential Tremor (ET)

(Louis and Ferreira, 2010), Enhanced Physiologic

Tremor, and Orthostatic Tremor, each presenting with

its own distinctive frequency and potentially affecting

different body regions (Rana and Chou, 2015).

Parkinson’s disease, a prevalent neurodegenera-

tive disorder, is primarily diagnosed through patient

history and clinical examinations. Patients often ex-

perience movement challenges like tremors, stiffness

and slowness, accompanied by psychological issues

such as depression and anxiety. Clinical tests typi-

cally reveal bradykinesia (slowness of movement and

speed) and rigidity (Armstrong and Okun, 2020).

Predominantly, the clinical syndrome of tremor

is most pronounced in the upper limbs, impacting

at least 95% of all patients (Elble, 2013). It can

also manifest, albeit less commonly, in other body

parts including the head, face, trunk, lower limbs,

https://orcid.org/0009-0005-7994-9044

https://orcid.org/0000-0002-3797-5157

and voice (Elble, 2013). The signiﬁcant impact

of involuntary tremulous motion on an individual’s

life has been documented for centuries (Parkinson,

2002). Presently, with no known cure, the treatment

for tremors remains focused on managing symptoms

(Abboud et al., 2011) (Baumann, 2012).

In a period of rapid advances in medical science,

integrating artiﬁcial intelligence (AI) into medical di-

agnostics offers new possibilities. Diagnosing move-

ment disorders, especially Parkinson’s disease, has al-

ways been challenging due to the subtle and varied

symptoms and their progression. Traditional diag-

nostic methods, while critical, can sometimes lead to

delayed diagnoses, obstructing the timely start of the

best treatment for patients.

Thus, early diagnosis is crucial in managing these

disorders, ensuring that patients receive the right

treatment as soon as possible (Locatelli et al., 2020).

Existing studies indicate that AI can match the per-

formance of medical experts when given enough data

for model training (Shen et al., 2019). Additionally,

AI has proven useful in telemedicine, improving treat-

ment access and convenience for patients (Beck et al.,

2017).

Our motivation for this systematic literature re-

view lies in evaluating current applications of AI-

assisted diagnosis of tremor utilizing simple hand

videos. Given that hand tremors are prevalent in

Furtado, E. and Garcia, A.

A Systematic Literature Review of Artiﬁcial Intelligence Applications for Diagnosing Hand Tremor Disorders Through Video Analysis.

DOI: 10.5220/0012385400003636

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2024) - Volume 3, pages 707-717

ISBN: 978-989-758-680-4; ISSN: 2184-433X

707

numerous movement disorders, establishing a non-

intrusive and easily accessible means of identify-

ing and assessing them could signiﬁcantly stream-

line preliminary diagnostic processes. We seek to ex-

plore how current research employs AI, particularly

through non-complex video technology, to diagnose

and evaluate hand tremors, ensuring the feasibility

and accessibility of such approaches for potential use

in telemedicine settings and beyond. By examining

the depth of existing studies, we aim to contribute a

coherent understanding and critical assessment of the

current state of AI applications in this domain.

2 RESEARCH METHODOLOGY

Our systematic literature review aimed to ﬁnd studies

on AI-assisted diagnosis of hand tremor disorders us-

ing 2D video analysis. We searched six databases:

IEEE Xplore, PubMed, ACM Digital Library, Sci-

enceDirect, Springer, and IOS Press using the follow-

ing search string to capture relevant papers:

hand AND video AND (tremor OR bradyki-

nesia) AND (classiﬁcation OR diagnosis OR

detection OR identiﬁcation) AND (”machine

learning” OR ”artiﬁcial intelligence”)

Although this string produced many off-topic re-

sults, we chose a broad approach to ensure we did not

miss potentially relevant studies.

Five research questions were used to direct our

study of the literature on artiﬁcial intelligence-

assisted diagnosis of hand tremors.

1. Objective of Research: What is the primary aim of

each study (e.g., classifying the type or severity of

tremor)?

2. Video Tasks: What speciﬁc video tasks are ana-

lyzed in the studies, such as ﬁnger tapping or hand

pronation/supination?

3. Dataset Overview: What are the characteristics

of the datasets employed in terms of participant

numbers, tremor classes, data accessibility, and

any pre-processing techniques?

4. Feature Engineering: Which features are ex-

tracted from the videos for analysis, and how are

they processed or engineered?

5. Model Techniques and Metrics: What machine

learning techniques are utilized, what metrics are

used for evaluation, and how are the ﬁndings val-

idated?

The review includes studies from 2018 to 2023

that are written in English and concentrate on AI-

assisted diagnosis of tremor disorders through the use

of 2D videos of hands, speciﬁcally from widely used

devices like smartphones and webcams. This focus on

simple videos was chosen to highlight methodologies

that are not only feasible but also straightforward to

implement in various settings, including telemedicine

and other resource-limited environments.

In contrast, we excluded studies utilizing 3D video

technologies, accelerometers, and other sensors, or

those examining non-video data such as handwriting

images. We also excluded studies focusing on alterna-

tive diagnostic tests not related to viewing the hands,

such as gait analysis, speech evaluation, head tremor,

facial expressions and any combination of those with

hand tremor videos as well (e.g. used hand videos

with gait videos to provide the diagnostic, or used

hand videos with accelerometer data). Further, du-

plicates, book chapters, and papers published in low-

impact journals were also excluded from our corpus.

This rigorous selection approach was adopted to focus

on methodologies that are both low-cost and easy to

deploy, aligning with our research objective of acces-

sibility and practicality in diagnostic techniques, thus

focusing on solutions using simpler hardware.

The initial search yielded a wide array of papers.

We ﬁrst examined titles and abstracts to check for

clear relevance, and then read the full text of short-

listed papers to conﬁrm their applicability to our re-

search questions and objectives. Through this rigor-

ous selection process, 17 papers were identiﬁed as

fulﬁlling our criteria and were thus included in this

review. These selected studies, which vary in method-

ology, datasets, and research objectives, will be thor-

oughly reported and discussed in the following sec-

tion.

3 RESULTS

In this section, we present the ﬁndings of our system-

atic literature review. Our approach to providing the

results combines 4 tables which directly summarize

and address our research questions, providing a suc-

cinct overview of data from the reviewed papers. All

tables are annexed at the end of the paper for further

reference.

An in-depth analysis will explore notable patterns

and gaps, providing a thoughtful interpretation of the

current landscape of research in the ﬁeld. Figure 1 of-

fers a concise overview of our literature review out-

comes. It maps out the main objectives, datasets,

feature extraction methods, and modeling approaches

from the surveyed studies.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

708

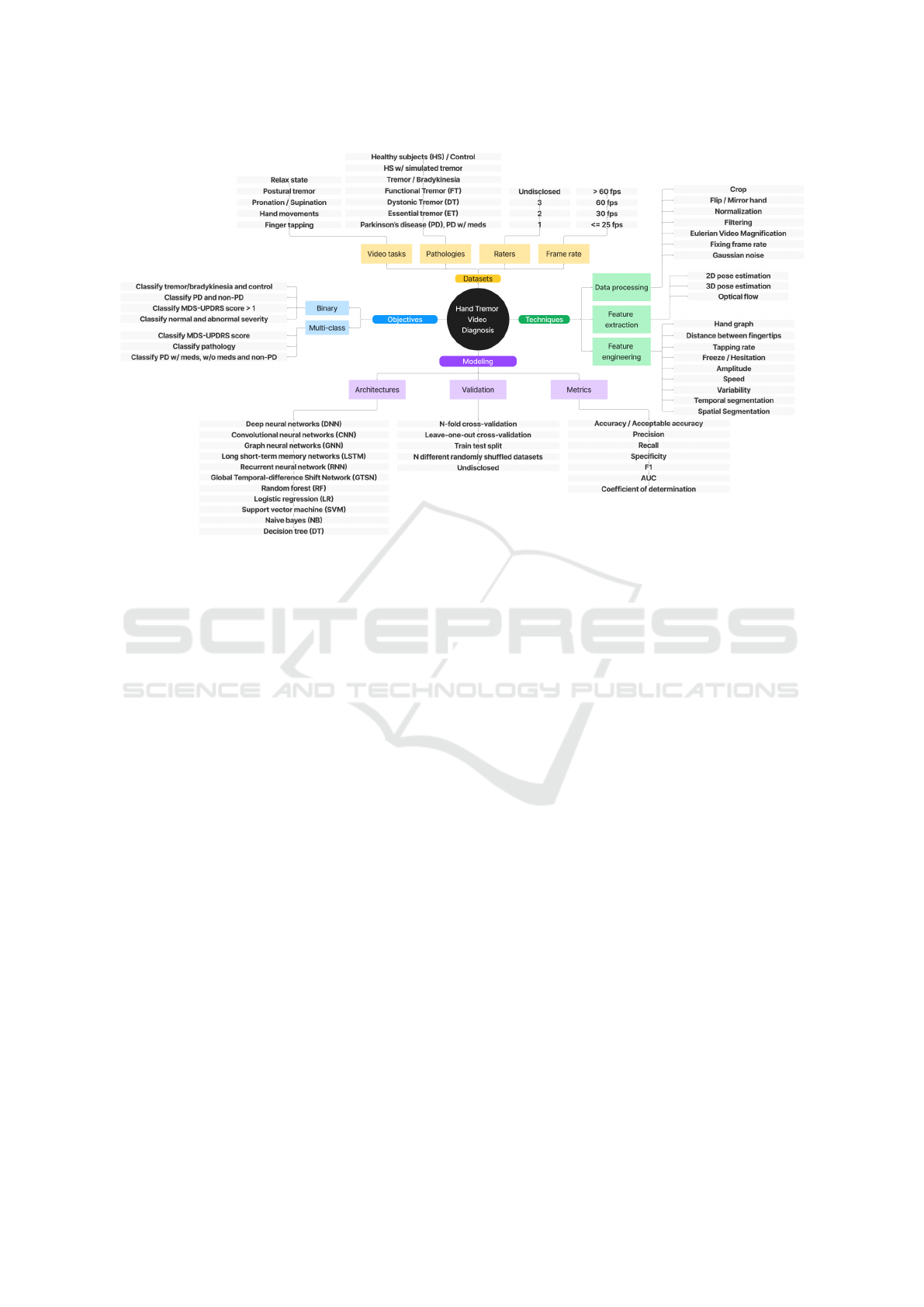

Figure 1: Overview of the literature review on AI-assisted for hand tremor diagnosis using videos.

3.1 Objectives

The majority of the selected studies, speciﬁcally (Guo

et al., 2022), (Li et al., 2022), (Li et al., 2021), (Yang

et al., 2022), (Chen et al., 2021), (Lu et al., 2021),

(Zhao and Li, 2022), (Vignoud et al., 2022), (Liu

et al., 2023), and (Liu et al., 2019), were dedicated to

utilizing AI to classify the MDS-UPDRS score. Some

researchers expanded their focus to other aspects of

tremor analysis, with (Lin et al., 2020) aiming to dis-

tinguish between Bradykinesia and Healthy Subjects

(HS), (Wang et al., 2021) seeking to classify Tremor

and Non-Tremor instances, and (Chang et al., 2019)

focusing on distinguishing between Normal and Ab-

normal tremor severity. A multifaceted approach was

taken by (Zhang et al., 2022), investigating classiﬁ-

cation of PD and non-PD in one scenario and cate-

gorizing between Parkinson’s Disease (PD), Essen-

tial Tremor (ET), Functional Tremor (FT), Dystonic

Tremor (DT), and HS in another. A similar dual-

objective methodology was utilized by (Ali et al.,

2020), targeting classiﬁcations among PD with med-

ication, PD without medication, and non-PD, while

(Wong et al., 2019) sought to both classify MDS-

UPDRS scores and differentiate between PD and non-

PD subjects.

3.2 Tasks

Various tasks involving hand movements were em-

ployed in the studies to facilitate the classiﬁcation

and analysis of different tremor types and severi-

ties. A popular task was ﬁnger tapping, where par-

ticipants touch the tip of their index with the tip of

their thumb, utilized by (Li et al., 2022), (Li et al.,

2021), (Yang et al., 2022), (Chang et al., 2019), (Chen

et al., 2021), (Lu et al., 2021), (Monje et al., 2021),

(Ali et al., 2020), (Wong et al., 2019), (Zhao and Li,

2022), (Vignoud et al., 2022), (Liu et al., 2019). An-

other frequently observed task was related to generic

hand movements, with participants opening and clos-

ing their hands, which was leveraged by studies con-

ducted by (Guo et al., 2022), (Lin et al., 2020), (Chen

et al., 2021), (Monje et al., 2021), (Ali et al., 2020),

(Zhao and Li, 2022), (Vignoud et al., 2022), and (Liu

et al., 2019). Certain studies opted for a mixture

of tasks to enrich their analysis and model’s predic-

tive capabilities. For instance, pronation/supination,

where participants extend their arms and turn their

palm up and down, was often combined with other

tasks (Chen et al., 2021), (Monje et al., 2021), (Ali

et al., 2020), (Vignoud et al., 2022), (Liu et al., 2019).

Additionally, (Chang et al., 2019) employed a re-

laxed state task and (Liu et al., 2023) utilized postu-

ral tremor as a distinctive task. Although other tasks

like postural stability and gait were utilized by (Yang

et al., 2022) and (Lu et al., 2021), and rest tremor

A Systematic Literature Review of Artiﬁcial Intelligence Applications for Diagnosing Hand Tremor Disorders Through Video Analysis

709

Table 1: Goals and Tasks used by selected papers.

Paper Objective Tasks

(Guo et al., 2022) Classify MDS-UPDRS score Hand movements

(Li et al., 2022) Classify MDS-UPDRS score Finger tapping

(Li et al., 2021) Classify MDS-UPDRS score Finger tapping

(Yang et al., 2022) Classify MDS-UPDRS score Finger tapping

(Lin et al., 2020) Classify Bradykinesia / HS Hand movements

(Wang et al., 2021) Classify Tremor / Non-Tremor Various tasks

(Chang et al., 2019) Classify Normal / Abnormal

tremor severity

Finger tapping, Relax state

(Chen et al., 2021) Classify MDS-UPDRS score Finger tapping, Hand movements

and Pronation/Supination

(Zhang et al., 2022) (1) Classify PD and non-PD; (2)

Classify PD, ET, FT, DT, HS

Various tasks

(Lu et al., 2021) Classify MDS-UPDRS score Finger tapping

(Monje et al., 2021) Classify PD / HS Finger tapping, Hand movements

and Pronation/Supination

(Ali et al., 2020) (1) Classify PD and non-PD; (2)

Classify PD meds, PD no meds,

non-PD

Finger tapping, Hand movements,

Pronation/Supination and Postu-

ral Tremor

(Wong et al., 2019) (1) Classify MDS-UPDRS <= 1

and MDS-UPDRS > 1; (2) Clas-

sify PD and non-PD

Finger tapping

(Zhao and Li, 2022) Classify MDS-UPDRS score Finger tapping and Hand move-

ments

(Vignoud et al., 2022) Classify MDS-UPDRS score Finger tapping, Hand movements

and Pronation/Supination

(Liu et al., 2023) Classify MDS-UPDRS score Postural tremor

(Liu et al., 2019) Classify MDS-UPDRS score Finger tapping, Hand movements

and Pronation/Supination

of other body parts by (Liu et al., 2023), these were

outside the primary focus of our review as we con-

centrated on tasks involving only on the results using

hands.

3.3 Datasets

The number of participants and raters in the datasets

of these studies brings out some interesting observa-

tions about the current state of hand tremor diagnosis

research:

Studies exhibit varied participant numbers and

statuses: (Guo et al., 2022), (Li et al., 2022), and (Li

et al., 2021) feature 120-174 PD participants without

disclosing rater numbers. (Yang et al., 2022) involves

a substantial PD participant count and three raters.

Datasets diverge in health status focus: (Lin et al.,

2020), (Chang et al., 2019), and (Lu et al., 2021)

explore Bradykinesia, HS, and PD participants, with

(Zhang et al., 2022) adding diverse conditions and a

broad video pool.

Mixed participant statuses appear in (Monje et al.,

2021), (Wong et al., 2019), and (Vignoud et al., 2022),

while (Ali et al., 2020) segregates PD participants by

medication status, also involving HS individuals.

(Zhao and Li, 2022) limits to a smaller HS cohort

but simulates varied tremor severities, lacking rater

detail. (Liu et al., 2023) and (Liu et al., 2019) as-

sure ground truth veriﬁcation with multiple raters and

a satisfactory PD participant count.

Rater variability impacts reliability across studies,

with (Yang et al., 2022), (Chen et al., 2021), and (Liu

et al., 2023) using three, and others like (Chang et al.,

2019), (Lu et al., 2021), (Guo et al., 2022), (Li et al.,

2022), (Wang et al., 2021), and (Zhang et al., 2022)

specifying one or none. This inconsistency may chal-

lenge the robustness and applicability of ﬁndings, es-

pecially in a medical context where labeling accuracy

is paramount.

In a sizable portion of the papers, like (Li et al.,

2022), (Yang et al., 2022), (Lin et al., 2020), (Wang

et al., 2021), (Chen et al., 2021), (Monje et al., 2021),

(Wong et al., 2019), (Zhao and Li, 2022), (Vignoud

et al., 2022), and (Liu et al., 2019), cropping is a com-

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

710

Table 2: Datasets Participants, Raters, Quality and Pre-process techniques used by selected papers.

Paper Participants Raters Quality Pre-Process

(Guo et al., 2022) 174 PD N/A 8 seconds (30 fps)

1280 x 720 or 1920 x

1080

N/A

(Li et al., 2022) 120 PD N/A 10 or more taps (30

fps) 1280 x 720

Crop, normalization

(Li et al., 2021) 157 PD N/A 150 frames (30 fps)

1280 x 720

Flip left hand and

Savitzky-Golay ﬁlter

(Yang et al., 2022) 368 PD (left

hand), 298 PD

(right hand)

3 5 seconds (25 fps)

1920 x 1080

Crop, low pass ﬁlter-

ing

(Lin et al., 2020) 94 Bradykinesia

+ 83 HS

1 10 to 15s (240 fps)

1280 x 720

Crop, mean ﬁlter

(Wang et al., 2021) 189 Tremor and

176 Non-tremor

(all videos)

N/A 3 seconds (30 fps)

1920 x 1080

Crop

(Chang et al., 2019) 106 PD 1 300 frames (30 fps)

1280 x 720

N/A

(Chen et al., 2021) 149 PD 3 N/A Crop, Fourier ﬁltering

(Zhang et al., 2022) 105 PD, 182

ET, 88 FT, 204

DT, 60 HS (all

videos)

N/A 100 frames N/A

(Lu et al., 2021) 34 PD 1 4 to 30s (30 fps) Normalization, Gaus-

sian noise

(Monje et al., 2021) 22 PD + 20 HS

+ (6 PD 6 HS for

val)

N/A 12 seconds (30 fps)

640 x 426

Crop (using Sin-

gle Shot MultiBox

Detector - SSD),

Normalization, But-

terworth ﬁlter

(Ali et al., 2020) 87 PD meds +

119 PD no meds

+ 139 HS

N/A Mean of 9.7s (15 fps)

256 x 256

Fixed frame rate at 15

fps

(Wong et al., 2019) 20 PD + 15 HS 2 10 seconds (60 fps)

1920 x 1080

Crop (CNN)

(Zhao and Li, 2022) 12 HS (simulat-

ing all severity

levels)

N/A 500 frames (30 fps)

640 x 480

Crop

(Vignoud et al., 2022) 36 PD + 11 HS 2 N/A (30 / 60 fps) 1280

x 720

Crop, Savitzky-Golay

ﬁlter

(Liu et al., 2023) 130 PD 3 7 to 14s (30 fps) 1920

x 1080

Eulerian Video Mag-

niﬁcation (EVM)

(Liu et al., 2019) 60 PD 2 N/A (25 fps) Crop, Savitzky-Golay

ﬁlter

mon pre-processing step. This suggests a widespread

necessity to focus on the region of interest and remove

irrelevant data or background noise, while (Monje

et al., 2021) used a different approach using a Single

Shot MultiBox Detector (SSD) to crop their region of

interest.

Also, normalization, used in (Li et al., 2022), (Lu

et al., 2021), and (Monje et al., 2021), allows partici-

pants to perform the tasks with their hands close or far

from the camera without compromising the model’s

input. Another notable trend is the utilization of var-

ious ﬁltering techniques. The Savitzky-Golay ﬁlter,

applied in (Li et al., 2021), (Vignoud et al., 2022),

and (Liu et al., 2019), or low pass and Fourier ﬁlter-

ing, employed in (Yang et al., 2022) and (Chen et al.,

2021) process the extract data from pose algorithms

A Systematic Literature Review of Artiﬁcial Intelligence Applications for Diagnosing Hand Tremor Disorders Through Video Analysis

711

Table 3: Features and Extraction methods used by selected papers.

Paper Features Extraction methods

(Guo et al., 2022) Hand graph with 21 keypoints 2D Pose Estimation (MMPose)

- 21 keypoints (+OpenPose for

ROI)

(Li et al., 2022) One-dimensional sequence data of tapping

distance

2D Pose Estimation (Mediapipe) -

2 keypoints index and thumb tips

(Li et al., 2021) Pose, Motion and Geometry features from

hand graph

2D Pose Estimation (OpenPose) -

21 keypoints

(Yang et al., 2022) Tapping rate, Tapping frozen times, Tapping

amplitude variation

2D Pose Estimation (MMPose) -

2 keypoints index and thumb tips

(Lin et al., 2020) Stability (to measure consistency of rhythm),

completeness (of actions spatially) and self-

similarity (stable periodic motion)

2D Pose estimation (HandSegNet

+ PoseNet) - 21 keypoints

(Wang et al., 2021) Change in distance of hand movement (DIST

features) and frequency of motion directional

changes (MDC features)

2D Pose Estimation (MediaPipe)

- 21 keypoints

(Chang et al., 2019) Distance between keypoints, velocity and ac-

celeration

2D Pose Estimation (OpenPose) -

9 keypoints

(Chen et al., 2021) Slowing, Amplitude, Amplitude decrement,

Hesitation/freeze, Interruption, Incompe-

tence of performing task

2D Pose Estimation (SHG -

Stacked Hourglass network +

OpenPose) - 21 keypoints and

(Zhang et al., 2022) Graph with 7 upper body keypoints 2D Pose Estimation (OpenPose) -

7 upper body keypoints

(Lu et al., 2021) Hand graph with 21 keypoints 2D Pose Estimation (OpenPose)

(Monje et al., 2021) Amplitude, Speed, Fatigue 2D Pose Estimation (OpenPose)

(Ali et al., 2020) Temporal Segmentation, Spatial Segmenta-

tion, Motion Magniﬁcation

CNN + Fast Fourier Transform

+ Deep Neural Network based

Magniﬁed Features

(Wong et al., 2019) Tapping frequency, Energy spectral density

(amplitude), Variability of peaks, Jitter, Peak-

to-peak variability

Optical Flow

(Zhao and Li, 2022) 128 dimensional feature vector every 10

frames

3D Pose Estimation (HandSegNet

+ PoseNet + PosePrior) - 21 key-

points

(Vignoud et al., 2022) Distance between the thumb and index, aver-

aged distance between each ﬁngertip and the

wrist point, azimuthal angle from spherical

coordinates of the tip of the thumb

Pose Estimations (2D: DeepLab-

Cut, 2D+3D: HandGraphCNN)

(Liu et al., 2023) Temporal features Temporal difference module for

Optical Flow (Pose estimation

only to crop body parts (Open-

Pose) - 21 keypoints)

(Liu et al., 2019) Finger Tapping: Euclidean distance be-

tween tips of thumb and index ﬁnger; Hand

Clasping: Average of Euclidean distances

between each ﬁngertip and palm; Hand

Pro/Supination: Difference between horizon-

tal coordinates of thumb and little ﬁnger

MobileNet (and ShufﬂeNet

tested)

to remove noise and generate a smoother signal.

A distinctive approach was the application of Eu-

lerian Video Magniﬁcation (EVM) in (Liu et al.,

2023) where they amplify subtle variations in the

video data, and are able to highlight minute motions

in patients’ tremors.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

712

Table 4: Model Techniques, Validation, Metrics and Performance reported by selected papers.

Paper Techniques Validation Metrics Performance

(Guo et al.,

2022)

Tree-structure-

guided graph convo-

lutional network

5-fold CV Accuracy, Acceptable

Accuracy, Precision,

Recall, F1 and AUC

Accuracy of 73.71% and

an acceptable accuracy of

99.20%

(Li et al.,

2022)

CNN 5-fold CV Accuracy, Precision,

Recall and F1

Accuracy of 79.7%

(Li et al.,

2021)

Skeleton-based

three-stream ﬁne-

grained CNN with

Markov chain fusion

4-fold CV Accuracy, Acceptable

Accuracy, Precision,

Recall, and F1

Accuracy of 72.4% and

an acceptable accuracy of

98.3%

(Yang et al.,

2022)

DNN Train Test

split

Precision, Recall and

F1-score of 88%, 84% on

left ﬁnger tapping, right

ﬁnger tapping

(Lin et al.,

2020)

Stacked RNN with

LSTM

10-fold CV Recall, Precision, Ac-

curacy and F1

F1-score of 77.78%

(Wang

et al., 2021)

CNN-LSTM, LSTM,

SVM

10-fold CV Accuracy, Recall, Pre-

cision and F1

Accuracy 80.6%

(Chang

et al., 2019)

DNN, SVM Leave-One-

Out CV

Accuracy Binary: Accuracy 78.01%

and 80.60% in right and

left hand; Multiclass:

72.20% and 71.10% for

right and left hand

(Chen et al.,

2021)

RF, LR, SVM,

GBDT

5-fold CV Accuracy Accuracy of 84.1%

(Zhang

et al., 2022)

Graph Neural Net-

work with Spatial At-

tention Mechanism

5-fold CV Accuracy, Sensitivity,

Speciﬁcity and F1

Binary: accuracy of 90.9%

and an F1-score of 90.6%;

Multiclass: accuracy

73.3% and F1-score 70.7%

(Lu et al.,

2021)

Temporal convolu-

tional neural network

(TCNN)

N/A F1, AUC, Precision,

Balanced Accuracy

Macro-average AUC of

0.69

(Monje

et al., 2021)

LR, NB, RF 4-fold CV AUC, Sensitivity,

Speciﬁcity

AUC 0.81

(Ali et al.,

2020)

SVM Leave-One-

Out CV

Accuracy Binary: accuracy 91.8%;

Multiclass: accuracy

73.5%

(Wong

et al., 2019)

NB, LR, SVM-L,

SVM-R

Leave-One-

Out CV

Accuracy, Sensitivity,

Speciﬁcity and AUC

Bradykinesia test accuracy

of 79% and Parkinson’s

test accuracy 63%

(Zhao and

Li, 2022)

Two-channel LSTM N/A Sensitivity, Speciﬁcity

and Accuracy

95.7% of the precision,

95.8% of the sensitivity

and 92.8% of the speci-

ﬁcity

(Vignoud

et al., 2022)

LR, DT 100 randomly

shufﬂed

datasets

Coefﬁcients of deter-

mination

Coefﬁcients of determina-

tion for the tapping of

0.609 and hand movements

of 0.701

(Liu et al.,

2023)

Global Temporal-

difference Shift

Network (GTSN)

5-fold CV F1, AUC, Precision,

Recall and Accuracy

Binary: 93.7%; Multi-

class: 84.9% accuracy

(Liu et al.,

2019)

RBF-SVM (L-SVM,

RF and KNN)

5-fold CV Precision, Recall, F1

and Accuracy

89.7% accuracy

A Systematic Literature Review of Artiﬁcial Intelligence Applications for Diagnosing Hand Tremor Disorders Through Video Analysis

713

3.4 Features

3.4.1 Feature Extraction

Looking through the approaches for feature extrac-

tion across these papers, there is a noticeable pattern

of reliance on pose estimation, particularly 2D Pose

Estimation, prevalent in various studies such as (Guo

et al., 2022), (Li et al., 2022), (Li et al., 2021), (Yang

et al., 2022), (Lin et al., 2020), (Wang et al., 2021),

(Chang et al., 2019), (Chen et al., 2021), (Zhang et al.,

2022), (Lu et al., 2021), and (Monje et al., 2021). The

extraction of keypoints, ranging from 2 (tip of index

ﬁnger and thumb) to 21 (all keypoints in the hand). A

similar approach is the usage of 3D Pose Estimation

by (Zhao and Li, 2022) and a mixed-method approach

involving both 2D and 3D Pose Estimation by (Vig-

noud et al., 2022).

Differing algorithms and networks like HandSeg-

Net + PoseNet used by (Lin et al., 2020), or SHG +

OpenPose applied by (Chen et al., 2021), are also pro-

posed methods for feature extraction.

In contrast to pose estimation, alternative method-

ologies include utilizing CNN, Fast Fourier Trans-

form and Deep Neural Network-based Magniﬁed

Features by (Ali et al., 2020), Optical Flow by (Wong

et al., 2019), or the temporal difference module for

Optical Flow employed by (Liu et al., 2023), show-

case varied approaches to understanding and captur-

ing movement data.

3.4.2 Engineered Features

Several studies highlight the tapping-related features.

For instance, (Li et al., 2022) focuses on the one-

dimensional sequence data of tapping distance, while

(Yang et al., 2022) considers tapping rate, frozen

times, and amplitude variation. (Wong et al., 2019)

explores a range of features like tapping frequency,

energy spectral density, and peak-to-peak variability.

Additionally, hand graphs and geometric relations

are also prominent. (Guo et al., 2022) and (Lu et al.,

2021) use hand graphs with 21 keypoints, exploring

hand anatomy and movement in a structured, geomet-

rical format. (Vignoud et al., 2022) utilizes the dis-

tance between the thumb and index, providing a spa-

tial perspective of hand movements, which is echoed

by (Chang et al., 2019) who also employs distance be-

tween keypoints as a feature. Similarly, (Wang et al.,

2021) considers changes in distance of hand move-

ment, and (Liu et al., 2019) uses Euclidean distance

between ﬁngertips in different contexts, pointing to-

wards a prevalent use of spatial and geometric fea-

tures.

Amplitude and motion characteristics are com-

mon too. For instance, (Monje et al., 2021) uses am-

plitude as a feature, and (Ali et al., 2020) considers

motion magniﬁcation.

Certain papers also introduce more task-speciﬁc

features. (Lin et al., 2020) introduces the concept of

stability, completeness, and self-similarity to gauge

the rhythmic and spatial consistency of actions. (Chen

et al., 2021) takes a more contextual approach, explor-

ing features like slowing, amplitude decrement, and

incompetence of performing a task. (Liu et al., 2023)

emphasizes temporal features, signifying an interest

in the time-related aspects of movements.

A few studies utilize more comprehensive and

multidimensional feature sets. For instance, (Li et al.,

2021) employs pose, motion, and geometry features

derived from hand graphs, pointing towards an inte-

grative approach that spans across spatial, temporal,

and kinematic domains. (Zhang et al., 2022) crafts

a graph with 7 upper body keypoints, indicating a

broader, body-inclusive approach to understand and

analyze motion.

3.5 Modeling

3.5.1 Techniques and Architectures

Graph Convolutional Networks (GCNs) are utilized

by (Guo et al., 2022) for their ability to capture hi-

erarchical relationships, and by (Zhang et al., 2022),

which uses a Graph Neural Network with a Spatial

Attention Mechanism to capture spatial dependen-

cies.

Convolutional Neural Networks (CNNs) are used

by (Li et al., 2022) to focus on spatial hierarchies

in data, while (Li et al., 2021) uses a three-stream

CNN with Markov chain fusion to capture various

data facets. (Yang et al., 2022) and (Chang et al.,

2019) opt for Deep Neural Networks (DNNs).

Recurrent Neural Networks (RNNs) are employed

by (Lin et al., 2020) with LSTM units for manag-

ing sequential data. (Zhao and Li, 2022) uses a two-

channel LSTM to handle multivariate sequential data.

(Wang et al., 2021) explores CNN-LSTM, LSTM,

and Support Vector Machine (SVM) models for their

classiﬁcation capabilities, with SVM also used by

(Chang et al., 2019) and (Ali et al., 2020).

(Chen et al., 2021) applies ensemble methods

(Random Forest and Gradient Boosting Decision

Tree) and logistic regression (LR), and SVM. (Monje

et al., 2021) utilizes LR, Na

ıve Bayes (NB), and

RF, blending probabilistic classiﬁers and ensemble

methods. (Wong et al., 2019) and (Vignoud et al.,

2022) used NB and LR to classify their dataset. (Liu

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

714

et al., 2019) tests various kernels in SVM, RF, and

K-Nearest Neighbors (KNN).

A different approach by (Lu et al., 2021) em-

ploys a Temporal Convolutional Neural Network

(TCNN) or OF DD-Net to manage temporal data.

(Liu et al., 2023) introduces the Global Temporal-

difference Shift Network (GTSN) to potentially ad-

dress temporal shifts in data.

3.5.2 Validation Approaches

5-Fold Cross-Validation is frequently used in re-

viewed literature, seen in (Guo et al., 2022), (Li et al.,

2022), (Chen et al., 2021), (Zhang et al., 2022), and

(Liu et al., 2023). 10-Fold Cross-Validation is utilized

by (Lin et al., 2020) and (Wang et al., 2021), provid-

ing detailed validation at a higher computational ex-

pense. (Li et al., 2021) and (Monje et al., 2021) opted

for 4-Fold Cross-Validation.

(Chang et al., 2019), (Ali et al., 2020), and (Wong

et al., 2019) employed Leave-One-Out Cross Valida-

tion (LOOCV), suitable for smaller datasets due to its

computational intensity.

(Vignoud et al., 2022) used 100 randomly shuf-

ﬂed datasets for validation. (Yang et al., 2022) im-

plemented a Train-Test Split without providing addi-

tional detail, while (Lu et al., 2021) and (Zhao and Li,

2022) did not specify their validation methodologies.

3.5.3 Metrics Selected

Accuracy is the most common chosen metric, used

singularly or as combined with other metrics, utilized

in (Guo et al., 2022), (Li et al., 2022), (Li et al., 2021),

(Wang et al., 2021), (Chang et al., 2019), (Chen et al.,

2021), (Zhang et al., 2022), (Ali et al., 2020), (Wong

et al., 2019), (Zhao and Li, 2022), and (Liu et al.,

2023).

Precision and Recall, often used with F1 Score,

are selected in studies like (Guo et al., 2022), (Li

et al., 2022), (Li et al., 2021), (Yang et al., 2022), (Lin

et al., 2020), (Wang et al., 2021), (Lu et al., 2021),

and (Liu et al., 2023). Sensitivity (also known as Re-

call or True Positive Rate) and Speciﬁcity (True Neg-

ative Rate) are utilized in (Zhang et al., 2022), (Monje

et al., 2021), (Wong et al., 2019), and (Zhao and Li,

2022).

F1 score is employed in (Guo et al., 2022), (Li

et al., 2022), (Li et al., 2021), (Yang et al., 2022),

(Lin et al., 2020), (Wang et al., 2021), (Zhang et al.,

2022), and (Liu et al., 2023), while AUC is used in

(Guo et al., 2022), (Lu et al., 2021), (Monje et al.,

2021), (Wong et al., 2019), and (Liu et al., 2023).

(Vignoud et al., 2022) is noted for using Coefﬁ-

cients of Determination with their predictions based

on statistical learning regression algorithms.

3.5.4 Reported Performance

(Guo et al., 2022) and (Li et al., 2021) report general

accuracies around 70% and notably high acceptable

accuracies near 100%. (Li et al., 2022) and (Wang

et al., 2021) yield stable performances with accura-

cies of 79.7% and 80.6% respectively. (Yang et al.,

2022) achieves an F1-score of 88%, contrasted by

(Lin et al., 2020)’s 77.78% F1-score. Challenges in

multiclass classiﬁcations with varying accuracies are

discussed by (Chang et al., 2019) and (Zhang et al.,

2022). (Lu et al., 2021) and (Monje et al., 2021) em-

phasize AUC metrics, while high accuracies and pre-

cision in speciﬁc tasks are noted by (Ali et al., 2020),

(Wong et al., 2019), and (Zhao and Li, 2022). (Vig-

noud et al., 2022) highlights the coefﬁcient of deter-

mination for model predictability. (Liu et al., 2023)

and (Liu et al., 2019) demonstrate strong accuracies

in both binary and multiclass contexts.

4 DISCUSSION

4.1 Data Availability

One noticeable aspect from the literature is that many

datasets used in these studies are not readily avail-

able to the public or other researchers. For instance,

the data used in (Guo et al., 2022), (Li et al., 2021),

(Lin et al., 2020), (Chang et al., 2019), (Chen et al.,

2021), (Lu et al., 2021), (Ali et al., 2020), (Wong

et al., 2019), (Zhao and Li, 2022), and (Vignoud et al.,

2022) are either stated that are not available, or it is

not mentioned at all.

While some datasets are available upon request,

others implements safeguards in order to protect par-

ticipants that can make it increasingly harder for re-

searchers outside the medical ﬁeld to have access.

One example is (Liu et al., 2023) which imposes spe-

ciﬁc conditions, including providing proof of relevant

medical studies and signing a contract.

It is also important to highlight that the TIM-

Tremor dataset, used in (Wang et al., 2021) and

(Zhang et al., 2022), has recently been removed from

the internet due to privacy concerns. This issue under-

scores the critical and delicate balance between open-

source data and maintaining the privacy of sensitive

health-related information. Even with anonymization,

healthcare datasets can sometimes be subject to po-

tential re-identiﬁcation risks or other ethical concerns,

requiring vigilant management and ethical considera-

tions.

A Systematic Literature Review of Artiﬁcial Intelligence Applications for Diagnosing Hand Tremor Disorders Through Video Analysis

715

In light of these challenges, data augmentation

can be a potential solution to mitigate the scarcity of

available videos in the datasets. Techniques such as

video rotation and mirroring can be employed to gen-

erate new data instances from existing videos. This

method, while not creating synthetic data, effectively

increases the dataset size, offering a practical ap-

proach to enhance research outcomes in cases where

data availability is limited.

4.2 Preprocessing Approaches

In the reviewed research, most studies tend to lean to-

wards minimal preprocessing of data, often limiting

themselves to basic techniques like cropping. This

is noteworthy since the context in which the data is

recorded – especially in diverse and uncontrolled clin-

ical environments – naturally presents various chal-

lenges, such as varied lighting and cluttered back-

grounds, which could signiﬁcantly impact the quality

and reliability of the data.

Only a handful of works, like that of (Liu et al.,

2023), employ more advanced preprocessing meth-

ods, for instance, using Eulerian Video Magniﬁcation

(EVM). This approach ampliﬁes subtle movements in

the video data, potentially unveiling detailed informa-

tion about hand tremors which might be missed with

more straightforward approaches.

Additionally, methodologies like optical ﬂow,

used by (Wong et al., 2019) and (Liu et al., 2023),

which prioritize the movement of the subject (hand

tremors) and ignore irrelevant static backgrounds, of-

fer another pathway to potentially enhance data qual-

ity. These strategies, concentrating on motion, di-

rectly target the core interest of the studies – the

tremor – thereby possibly providing a more accurate

representation of the condition.

In essence, despite the prevalent trend towards

simpler preprocessing, there is a case to be made for

the adoption of more sophisticated techniques. En-

hanced preprocessing could feasibly unearth more nu-

anced data and, by extension, lead to more accurate

and reliable machine-learning models in the diagno-

sis and analysis of hand tremors.

5 CONCLUSION

Exploring different ways to use machine learning to

diagnose hand tremors has given us a wide look at

many research methods and results. We’ve seen a

wide range of approaches from Graph Convolutional

Networks to Support Vector Machines being used,

along with various validation approaches, all aimed

at improving how accurately and reliably these tools

can help during diagnosis.

However, there’s a clear need for more shared

datasets. Without them, it’s hard to replicate stud-

ies or compare different approaches, so ﬁnding the

best diagnostic model becomes a tricky task. Mak-

ing datasets available for more researchers will help

improve, compare, and validate models in a straight-

forward way.

Another potential solution to increase the amount

of data available is for researchers to collect videos

from studies where the data is made available upon

request. By combining these videos of the same

task, it is possible to create a larger, more diverse

dataset. This approach could provide a valuable base-

line for future research. However, it’s crucial to ﬁrst

exam if publishing such a combined dataset is feasi-

ble, considering the various privacy concerns and con-

sent agreements associated with the original sources.

Compliance with privacy regulations and ethical stan-

dards is of utmost importance when dealing with

medical data. However, this strategy could signiﬁ-

cantly contribute to advancing the ﬁeld, if managed

correctly, allowing for more comprehensive and com-

parative studies in hand tremor diagnosis.

Looking ahead, future research should also con-

sider other forms of simpler and cheaper tests that do

not rely on video images, like analyzing drawings and

handwriting from participants. Combining advanced

models with simple, low-cost tests could make them

useful diagnostic tools, including in settings where re-

sources are limited. So, balancing technological ad-

vancements with practical diagnostic methods will be

key.

In summary, it’s important for future studies to

work together, to share and build upon available

datasets, and highlight the beneﬁts of combining ac-

cessible, yet high-performing technology with easy

and low-cost tests, to help develop useful tools to bet-

ter aid both practitioners and patients.

REFERENCES

Abboud, H., Ahmed, A., and Fernandez, H. H. (2011).

Essential tremor: Choosing the right management

plan for your patient. Cleveland Clinic Journal of

Medicine, 78(12):821–828.

Ali, M. R., Hernandez, J., Dorsey, E. R., Hoque, E., and

McDuff, D. (2020). Spatio-temporal attention and

magniﬁcation for classiﬁcation of parkinson’s disease

from videos collected via the internet. In 2020 15th

IEEE International Conference on Automatic Face

and Gesture Recognition (FG 2020). IEEE.

Armstrong, M. J. and Okun, M. S. (2020). Diagnosis and

treatment of parkinson disease. JAMA, 323(6):548.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

716

Baumann, C. R. (2012). Epidemiology, diagnosis and

differential diagnosis in parkinson’s disease tremor.

Parkinsonism & Related Disorders, 18:S90–S92.

Beck, C. A., Beran, D. B., Biglan, K. M., Boyd, C. M.,

Dorsey, E. R., Schmidt, P. N., Simone, R., Willis,

A. W., Galiﬁanakis, N. B., Katz, M., Tanner, C. M.,

Dodenhoff, K., Aldred, J., Carter, J., Fraser, A.,

Jimenez-Shahed, J., Hunter, C., Spindler, M., Re-

ichwein, S., Mari, Z., Dunlop, B., Morgan, J. C.,

McLane, D., Hickey, P., Gauger, L., Richard, I. H.,

Mejia, N. I., Bwala, G., Nance, M., Shih, L. C.,

Singer, C., Vargas-Parra, S., Zadikoff, C., Okon, N.,

Feigin, A., Ayan, J., Vaughan, C., Pahwa, R., Dhall,

R., Hassan, A., DeMello, S., Riggare, S. S., Wicks, P.,

Achey, M. A., Elson, M. J., Goldenthal, S., Keenan,

H. T., Korn, R., Schwarz, H., Sharma, S., Stevenson,

E. A., and Zhu, W. (2017). National randomized con-

trolled trial of virtual house calls for parkinson dis-

ease. Neurology, 89(11):1152–1161.

Chang, C.-M., Huang, Y.-L., Chen, J.-C., and Lee, C.-C.

(2019). Improving automatic tremor and movement

motor disorder severity assessment for parkinson’s

disease with deep joint training. In 2019 41st Annual

International Conference of the IEEE Engineering in

Medicine and Biology Society (EMBC). IEEE.

Chen, Y., Ma, H., Wang, J., Wu, J., Wu, X., and Xie, X.

(2021). PD-net: Quantitative motor function eval-

uation for parkinson’s disease via automated hand

gesture analysis. In Proceedings of the 27th ACM

SIGKDD Conference on Knowledge Discovery &

Data Mining. ACM.

Elble, R. J. (2013). What is essential tremor? Current

Neurology and Neuroscience Reports, 13(6).

Guo, R., Li, H., Zhang, C., and Qian, X. (2022). A tree-

structure-guided graph convolutional network with

contrastive learning for the assessment of parkin-

sonian hand movements. Medical Image Analysis,

81:102560.

Jankovic, J. (1980). Physiologic and pathologic tremors.

Annals of Internal Medicine, 93(3):460.

Li, H., Shao, X., Zhang, C., and Qian, X. (2021). Au-

tomated assessment of parkinsonian ﬁnger-tapping

tests through a vision-based ﬁne-grained classiﬁcation

model. Neurocomputing, 441:260–271.

Li, Z., Lu, K., Cai, M., Liu, X., Wang, Y., and Yang, J.

(2022). An automatic evaluation method for parkin-

son’s dyskinesia using ﬁnger tapping video for small

samples. Journal of Medical and Biological Engineer-

ing, 42(3):351–363.

Lin, B., Luo, W., Luo, Z., Wang, B., Deng, S., Yin, J., and

Zhou, M. (2020). Bradykinesia recognition in parkin-

son’s disease via single RGB video. ACM Transac-

tions on Knowledge Discovery from Data, 14(2):1–19.

Liu, W., Lin, X., Chen, X., Wang, Q., Wang, X., Yang,

B., Cai, N., Chen, R., Chen, G., and Lin, Y. (2023).

Vision-based estimation of MDS-UPDRS scores for

quantifying parkinson’s disease tremor severity. Med-

ical Image Analysis, 85:102754.

Liu, Y., Chen, J., Hu, C., Ma, Y., Ge, D., Miao, S., Xue,

Y., and Li, L. (2019). Vision-based method for au-

tomatic quantiﬁcation of parkinsonian bradykinesia.

IEEE Transactions on Neural Systems and Rehabili-

tation Engineering, 27(10):1952–1961.

Locatelli, P., Alimonti, D., Traversi, G., and Re, V.

(2020). Classiﬁcation of essential tremor and parkin-

son’s tremor based on a low-power wearable device.

Electronics, 9(10):1695.

Louis, E. D. and Ferreira, J. J. (2010). How common is the

most common adult movement disorder? update on

the worldwide prevalence of essential tremor. Move-

ment Disorders, 25(5):534–541.

Lu, M., Zhao, Q., Poston, K. L., Sullivan, E. V., Pfeffer-

baum, A., Shahid, M., Katz, M., Kouhsari, L. M.,

Schulman, K., Milstein, A., Niebles, J. C., Henderson,

V. W., Fei-Fei, L., Pohl, K. M., and Adeli, E. (2021).

Quantifying parkinson’s disease motor severity under

uncertainty using MDS-UPDRS videos. Medical Im-

age Analysis, 73:102179.

Monje, M. H. G., Dom

ınguez, S., Vera-Olmos, J., Antonini,

A., Mestre, T. A., Malpica, N., and S

anchez-Ferro,

(2021). Remote evaluation of parkinson’s disease us-

ing a conventional webcam and artiﬁcial intelligence.

Frontiers in Neurology, 12.

Parkinson, J. (2002). An essay on the shaking palsy.

The Journal of Neuropsychiatry and Clinical Neuro-

sciences, 14(2):223–236.

Rana, A. Q. and Chou, K. L. (2015). Essential Tremor in

Clinical Practice. Springer International Publishing.

Shen, J., Zhang, C. J. P., Jiang, B., Chen, J., Song, J., Liu,

Z., He, Z., Wong, S. Y., Fang, P.-H., and Ming, W.-

K. (2019). Artiﬁcial intelligence versus clinicians in

disease diagnosis: Systematic review. JMIR Medical

Informatics, 7(3):e10010.

Vignoud, G., Desjardins, C., Salardaine, Q., Mongin, M.,

Garcin, B., Venance, L., and Degos, B. (2022). Video-

based automated assessment of movement parameters

consistent with MDS-UPDRS III in parkinson’s dis-

ease. Journal of Parkinson’s Disease, 12(7):2211–

2222.

Wang, X., Garg, S., Tran, S. N., Bai, Q., and Alty, J.

(2021). Hand tremor detection in videos with cluttered

background using neural network based approaches.

Health Information Science and Systems, 9(1).

Wong, D. C., Relton, S. D., Fang, H., Qhawaji, R., Gra-

ham, C. D., Alty, J., and Williams, S. (2019). Su-

pervised classiﬁcation of bradykinesia for parkinson’s

disease diagnosis from smartphone videos. In 2019

IEEE 32nd International Symposium on Computer-

Based Medical Systems (CBMS). IEEE.

Yang, N., Liu, D.-F., Liu, T., Han, T., Zhang, P., Xu, X.,

Lou, S., Liu, H.-G., Yang, A.-C., Dong, C., Vai, M. I.,

Pun, S. H., and Zhang, J.-G. (2022). Automatic de-

tection pipeline for accessing the motor severity of

parkinson’s disease in ﬁnger tapping and postural sta-

bility. IEEE Access, 10:66961–66973.

Zhang, H., Ho, E. S. L., Zhang, X., and Shum, H. P. H.

(2022). Pose-based tremor classiﬁcation for parkin-

son’s disease diagnosis from video. In Lecture Notes

in Computer Science, pages 489–499. Springer Nature

Switzerland.

Zhao, A. and Li, J. (2022). Two-channel lstm for sever-

ity rating of parkinson’s disease using 3d trajectory

of hand motion. Multimedia Tools and Applications,

81(23):33851–33866.

A Systematic Literature Review of Artiﬁcial Intelligence Applications for Diagnosing Hand Tremor Disorders Through Video Analysis

717
