Dynamically Choosing the Number of Heads in Multi-Head Attention

Fernando Fradique Duarte

, Nuno Lau

, Artur Pereira

and Luís Paulo Reis

Institute of Electronics and Informatics Engineering of Aveiro, University of Aveiro, Aveiro, Portugal

Department of Electronics, Telecommunications and Informatics, University of Aveiro, Aveiro, Portugal

Faculty of Engineering, Department of Informatics Engineering, University of Porto, Porto, Portugal

Keywords: Deep Reinforcement Learning, Multi-Head Attention, Advantage Actor-Critic.

Abstract: Deep Learning agents are known to be very sensitive to their parameterization values. Attention-based Deep

Reinforcement Learning agents further complicate this issue due to the additional parameterization associated

to the computation of their attention function. One example of this concerns the number of attention heads to

use when dealing with multi-head attention-based agents. Usually, these hyperparameters are set manually,

which may be neither optimal nor efficient. This work addresses the issue of choosing the appropriate number

of attention heads dynamically, by endowing the agent with a policy 

trained with policy gradient. At each

timestep of agent-environment interaction, 

is responsible for choosing the most suitable number of

attention heads according to the contextual memory of the agent. This dynamic parameterization is compared

to a static parameterization in terms of performance. The role of 

is further assessed by providing additional

analysis concerning the distribution of the number of attention heads throughout the training procedure and

the course of the game. The Atari 2600 videogame benchmark was used to perform and validate all the

experiments.

1 INTRODUCTION

With the advent of Deep Learning (DL), careful

engineering and domain expertise began to be

replaced by representation learning methods,

whereby the representations (or features) are learned

from the data by the learning procedure as opposed to

being derived by domain experts (LeCun et al.,

2015;Bengio et al., 2021). Some examples of this

work include (Sermanet et al., 2012;Srivastava et al.,

2015;Xu et al., 2015) in vision, (Vaswani et al.,

2017;Graves et al., 2013;Bahdanau et al., 2015) in

Natural Language Processing (NLP), (Humphrey et

al., 2012) in signal processing and (Mnih et al.,

2015;Zambaldi et al., 2019;Mott et al., 2019;Ha &

Schmidhuber, 2018;Sorokin et al., 2015;Silver et al.,

2016) in Deep Reinforcement Learning (DRL).

However, DL models may be hard to train if not

properly parameterized. This often involves setting

https://orcid.org/0000-0002-9503-9084

https://orcid.org/0000-0003-0513-158X

https://orcid.org/0000-0002-7099-1247

https://orcid.org/0000-0002-4709-1718

suitable values to a myriad of hyperparameters, which

may not be trivial (Bengio, 2012).

Attention-based DRL agents, the focus of this

work, further complicate this issue due to the

additional parameterization associated to the

computation of their attention function. The number

of attention heads to use when dealing with multi-

head attention-based agents such as the ones proposed

in (Mott et al., 2019) and (Zambaldi et al., 2019) is an

example of this. The values for these hyperparameters

are usually set manually and their values remain fixed

throughout the learning process. This may be

undesirable for various reasons.

First, deriving a static value implies some kind of

hyperparameter search, which may be costly (or even

unfeasible) both in terms of computational time and

resources. Furthermore, this cost cannot be amortized

most of the time since the value derived is task

specific and a new value must be derived each time.

Second, the complexity of the task may vary

throughout the learning process. As an example, in

358

Duarte, F., Lau, N., Pereira, A. and Reis, L.

Dynamically Choosing the Number of Heads in Multi-Head Attention.

DOI: 10.5220/0012384500003636

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2024) - Volume 2, pages 358-367

ISBN: 978-989-758-680-4; ISSN: 2184-433X

most videogames the complexity of the task increases

throughout the course of the game. In these cases,

using non-adjustable values for these

hyperparameters may be neither optimal (e.g., too

many attention heads when the game is easy and too

few when the game is hard) nor efficient (e.g., too

many attention heads when in easier situations). In

either case this may hinder the learning process.

This work addresses the issue of choosing the

appropriate number of attention heads dynamically.

More specifically, at each time step of agent-

environment interaction, a policy 

, trained with

policy gradient, chooses the number of attention

heads that should be used to derive the attention

function, according to the contextual memory of the

agent. This dynamic attention-based agent, enhanced

with policy 

, is compared to a similar agent

parameterized statically with 4 attention heads in

terms of performance. The role of 

on the behavior

of the agent is further assessed by providing

additional analysis concerning the distribution of the

number of attention heads throughout the training

procedure and the course of the game. All the

experiments were performed and validated on the

Atari 2600 videogame benchmark.

It should be noted that this work does not present

an efficient implementation to leverage the potential

computational gains (in terms of time and resources)

derived from using a dynamic approach. The focus is

mainly on assessing the effects of such an approach

on the learning process and the performance of the

agent. The remainder of the paper is structured as

follows. Section 2 presents the problem formulation,

including a brief overview of the technical

background and a motivational example. Section 3

discusses the experimental setup, which includes the

presentation of the methods proposed and the training

setup. Section 4 presents the experiments carried out

and discusses the results obtained. Finally, section 5

presents the conclusions.

2 PROBLEM FORMULATION

This section starts by presenting a high-level view of

the technical background. Next, a motivational

example is discussed. Finally, the problem

formulation is presented. This includes the rationale

and the main research goals underlying this work.

2.1 Multi-Head Attention

Attention-based agents have achieved a lot of success

in many areas of Artificial Intelligence (AI), such as

NLP (Vaswani et al., 2017;Bahdanau et al., 2015) and

DRL (Zambaldi et al., 2019;Mott et al., 2019;Sorokin

et al., 2015). While many different variants of

attention have been proposed in the literature, this

work focuses on the attention formulation proposed

in (Vaswani et al., 2017) and more specifically the

scaled dot-product variant, computed as in Equation

(1), where Q, K and V represent the queries, keys and

values matrices, respectively and d

denotes the

dimension of the queries and keys vectors.

Attention(Q, K, V) = softmax(

ொ௄

೅

ඥ

ௗ

ೖ

(1)

At a very high-level, an attention function can be

described as mapping a query and a set of key-value

pairs to an output, computed as a weighted sum of the

values, where each weight is derived by a compatibility

function between the query and the corresponding key.

The queries, keys and values vectors composing the Q,

K and V matrices can be derived from many different

sources. In DRL for example, these vectors may be

derived from the feature maps output by a

Convolutional Neural Network (CNN) as in (Zambaldi

et al., 2019;Sorokin et al., 2015) or from the hidden

state of a Recurrent Neural Network (RNN), either a

Long Short-Term Memory (LSTM) (Hochreiter &

Schmidhuber, 1997) or a Convolutional LSTM (Shi et

al., 2015) or both as in (Mott et al., 2019). Usually,

several attention functions, also denoted as attention

heads, are derived in parallel (to increase the

expressive power of the model) and then aggregated

together, resulting in multi-head attention.

2.2 Motivational Example

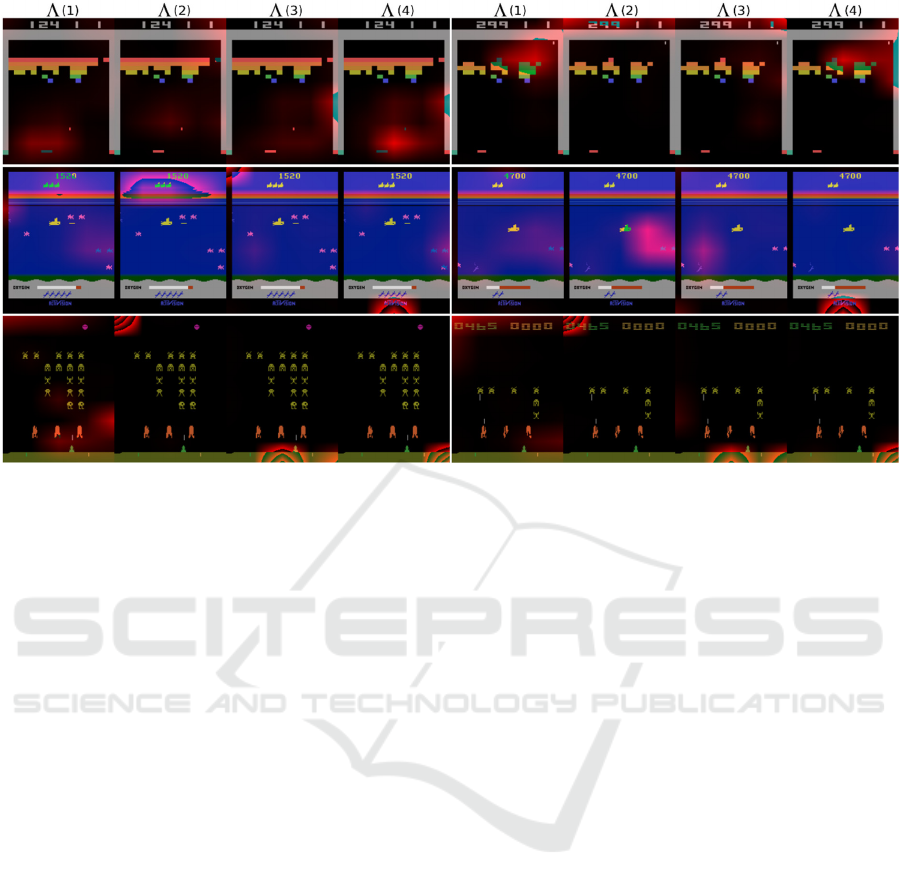

Figure 1 depicts the attention maps 

, i = {1,2,3,4}

computed by TDA (4H), an implementation of Soft

Top-Down Attention (Mott et al., 2019) with 4

attention heads set statically.

As can be seen, the attention maps derived exhibit

some interesting behaviors. One such behavior

concerns redundancy and/or possibly

complementarity between the attention maps. As

examples of this, in Breakout 

and 

(left column)

and 

(right column) and in Seaquest 

and



(right column), all exhibit some level of

redundancy/complementarity between them.

The other behavior observed is a change of focus

throughout the course of the game. As an example of

this, in Breakout 

is mainly focused on the ball (left

column), but as soon as the agent starts applying the

flanking strategy to destroy the bricks from above, 

changes its focus mostly to the top area near the score

(left column).

Dynamically Choosing the Number of Heads in Multi-Head Attention

359

Figure 1: Attention maps (the red blobs) for the TDA (4H) agent for the Atari games Breakout (top row), Seaquest (middle

row) and SpaceInvaders (bottom row).

As another example, in Seaquest 

is mostly

focused on the top-left corner of the screen (left

column), but as the game progresses, shifts its focus

to the middle-left edge of the screen (right column).

Finally, some attention maps remain focused on the

same location throughout the entire course of the

game, 

in Seaquest is an example of this, while

others focus on apparently unimportant locations (

in SpaceInvaders).

2.3 Dynamically Choosing the Number

of Attention Heads

While some of the observations discussed in the

previous section may be partially due to lack of

training or the underlying architecture of the agents,

it seems to be the case that statically setting the

number of attention heads to a non-adjustable value

is not the optimal solution. The redundancies

observed and the focus on unimportant locations may

be indications of this. Furthermore, choosing this

value may not always be trivial. In the case of Atari,

for example, training an agent may take anywhere

from several hours to several days, making

hyperparameter search an expensive exercise.

Dynamically choosing this value, avoids this issue

and may present additional advantages, including: a

faster learning process, better finetuned to the

specificities of the task, a more efficient training

procedure (resource and timewise) and more

performant agents, better optimized to the nuances

that may occur throughout the course of the task.

Motivated by this, the present work proposes the

following research goals:

 G1. Some tasks were designed to be

progressively harder (e.g., Atari games). In this

case it is reasonable to assume that initially the

agent would need to compute less attention

maps, thus easing the learning process.

Moreover, the attention maps derived could

potentially be more focused and present less

redundancy, with new maps being derived only

when a new aspect of the task must be attended

to. These assumptions are assessed by

analyzing the distribution of the number of

attention heads throughout the learning process

and the course of the task. The quality and the

behavior of the attention maps derived are also

assessed via visual inspection;

 G2. The Atari videogame benchmark offers a

suite of games featuring different challenges.

Intuitively, harder games may need more

attention heads when compared to easier

games. Tailoring the number of attention heads

according to the characteristics of the game and

throughout its course, according to its

interaction history, may potentially improve

the performance of the agent. The discussion of

the results provides a performance comparison

between the agents enhanced with policy



and a baseline agent parameterized statically.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

360

It should be noted that the implementation used

does not leverage the potential computational gains

(time and resource-wise) derived from using a

dynamic approach. Although such an implementation

is currently being worked on, it is slow to train and

needs further finetuning. Therefore, this work focuses

on assessing the effects of the proposed approach on

the learning process and the performance of the

agents.

3 EXPERIMENTAL SETUP

This section presents the agents implemented and

tested. The training setup is presented at the end of

the section and includes the testing and training

protocols used and the parameterization of the agents.

3.1 Baseline Agent

The baseline agent, TDA (4H), consists of an

implementation of (Mott et al., 2019).

Architecturally, the agent is composed of 4 main

modules, namely: vision encoder, query network,

memory module and the policy. More specifically,

the vision encoder consists of 4 convolutional layers

configured with (1, 32, 64, 64) input and (32, 64, 64,

256) output channels, kernel sizes (8, 4, 4, 4), strides

(4, 2, 2, 1) and no padding, respectively. Each layer is

followed by batch normalization (Ioffe & Szegedy,

2015) and a ReLU nonlinearity. The Convolutional

LSTM rnn

down

sitting on top of this CNN was

configured with 64 input/output channels, kernel size

3 and stride 1 with padding 1.

The query network is composed of 3 linear layers

with sizes (256, 128, 1280), respectively, each

followed by layer normalization (Ba et al., 2016) and

a ReLU. The attention function computation is

similar to (Mott et al., 2019). The LSTM rnn

top

comprising the memory module was configured with

size 256. Finally, the policy module  consists of a

linear layer of size 128, followed by layer

normalization and a ReLU. This layer feeds two other

linear layers: the actor, which chooses the action a

take at each timestep and the critic, which computes

the value of each state V(o

). Figure 2 presents a more

pictorial depiction of this. The agent was statically

parameterized with 4 attention heads.

3.2 Dynamic Multi-Head Attention

Agent

The dynamic multi-head attention agent (DTDA) is

enhanced with policy 

, responsible for choosing the

number of attention heads n

= 

to use at each

timestep t. 

is implemented similarly to the policy

module and shares its input. In practice and for

simplicity, the agent computes a fixed maximum

number of attention heads, and the excess heads are

zeroed out, i.e., q

= ans

= 

= 0 for i > 

, where 0

denotes a vector of zeros. The remaining architecture

is similar to Figure 2.

3.3 Training Setup

All agents were trained for a minimum of 16,800,000

frames, similarly to (Machado et al., 2018), using the

Advantage Actor-Critic (A2C) algorithm (Mnih et al.,

2016). Adam (Kingma & Ba, 2015) was used as the

optimizer, the learning rate was set to 1e-4 and the

loss was computed using Generalized Advantage

Estimation with λ=1.0 (Schulman et al., 2016). The

input image is converted to grayscale and cropped to

206 by 158 pixels with no rescaling and the internal

state of the memory module is never reset during

training.

The training results were computed at every

240,000

frame over a window of size w=50 and

correspond to the return scores (averaged over all the

agents) obtained during training in the last w

episodes. Each trained agent played 100 games to

derive the test returns per episode. The results include

the overall median and the average return and

standard deviation obtained by the best agent. Two

agents were used to perform each experiment using

the Atari 2600 videogame platform, available via the

OpenAI Gym toolkit (Brockman et al., 2016). The

one-way ANOVA and the Kruskal-Wallis H-test

were used as the statistical significance tests

(α=0.05). H0 considers that all the agents have the

same return mean results. Table 1 presents the

remaining parameterization.

Table 1: Hyperparameters. Values annotated with * denote

a scaling factor. γ denotes the discounting factor.

Entro

Critic Reward cli

1e-2* 0.5* [-1, 1] .99

Dynamically Choosing the Number of Heads in Multi-Head Attention

361

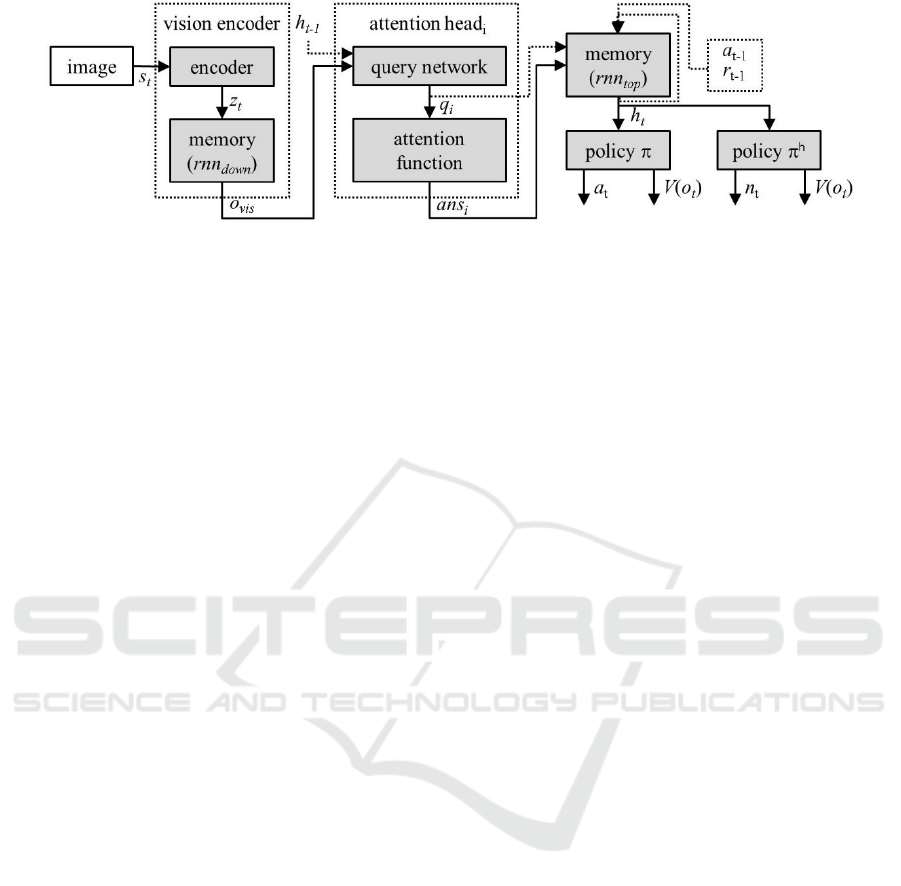

Figure 2: Overall architecture. h

t-1

, a

t-1

and r

t-1

denote the previous state of rnn

top

, the previous action performed, and the

previous reward obtained, respectively. The number of attention heads is i = {1,2,3,4} for the static agent and i = {1,2,…,n

}

for the dynamic agent. q

denotes the i

query and ans

denotes the output from the i

attention head.

4 EXPERIMENTAL RESULTS

This section first presents the performance results

obtained by the agents. Next, 

is further assessed by

providing additional analysis concerning the

distribution of the number of attention heads

throughout the training procedure and the course of

the game. An analysis of the attention maps derived

is also presented, followed by the discussion of the

results obtained.

4.1 Performance Results

The agents tested were: TDA (4H), the baseline agent

statically parameterized with 4 attention heads and

DTDA (4H) and DTDA (8H), the dynamically

parameterized agents with a maximum of 4 and 8

attention heads, respectively. Figure 3 presents the

training and test results obtained.

Concerning the training results, dynamically

choosing the number of attention heads does not seem

to provide a significant improvement to the learning

process. In terms of the test results, the performance

of the agents is similar for Breakout and

SpaceInvaders, whereas for Seaquest DTDA (8H)

performed the best. DTDA (4H) on the other hand,

suffered from some instability during training which

resulted in 2 agents of very different quality with

mean average return 47,469 and 24,144, respectively.

4.2 Distribution of the Number of

Attention Heads

The distribution of the number of attention heads

throughout the training process is depicted in Figure

4. As depicted, the distribution does not seem to

converge to any stable configuration. As training

progresses different values of n

gain or lose

prominence. For example, in Breakout (left), n

= 3

seems to be losing preference consistently, but at the

end of training begins to gain some preference again.

A similar observation can be made for n

= 5 in

SpaceInvaders (middle) and n

= 2 and n

= 5 in

Seaquest (right). This instability may be due to lack

of training. The distribution of the number of

attention heads throughout the course of the game is

depicted in Figure 5. As can be seen, the strategies

derived by the agents are very different, even when

using the same model (trained with different

initialization seeds).

While most of the strategies derived use several

different values of n

throughout the course of the

game, some of these strategies approach a static

parameterization. DTDA (4H) in SpaceInvaders with

= 3 and n

= 4 is an example of this. Also, some of

these strategies seem to agree (to some extent) with

the intuition that the values of n

should increase as

the game becomes harder. For example, one of the

DTDA (8H) agents in Seaquest favors n

= 2 initially

and later switches to n

= 3. Contrary to this, the other

DTDA (8H) agent for Seaquest favors n

= 5 initially

and as the game progresses switches to n

= 2. Also,

one of the DTDA (4H) agents for Seaquest favors n

3 initially and later switches to n

= 1.

In the case of Breakout and SpaceInvaders

assessing the degree of difficulty of the game is

harder and such analysis is not as straightforward. For

example, in SpaceInvaders as the game progresses,

the enemies get closer to the agent, making the game

more challenging, but on the other hand there may be

less enemies to attend to. The strategies derived are

also sometimes contradictory, concerning the

difficulty of the game. For example, most of the

strategies derived for Breakout and Seaquest favor

values of n

 4, although Seaquest may be considered

more challenging than Breakout.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

362

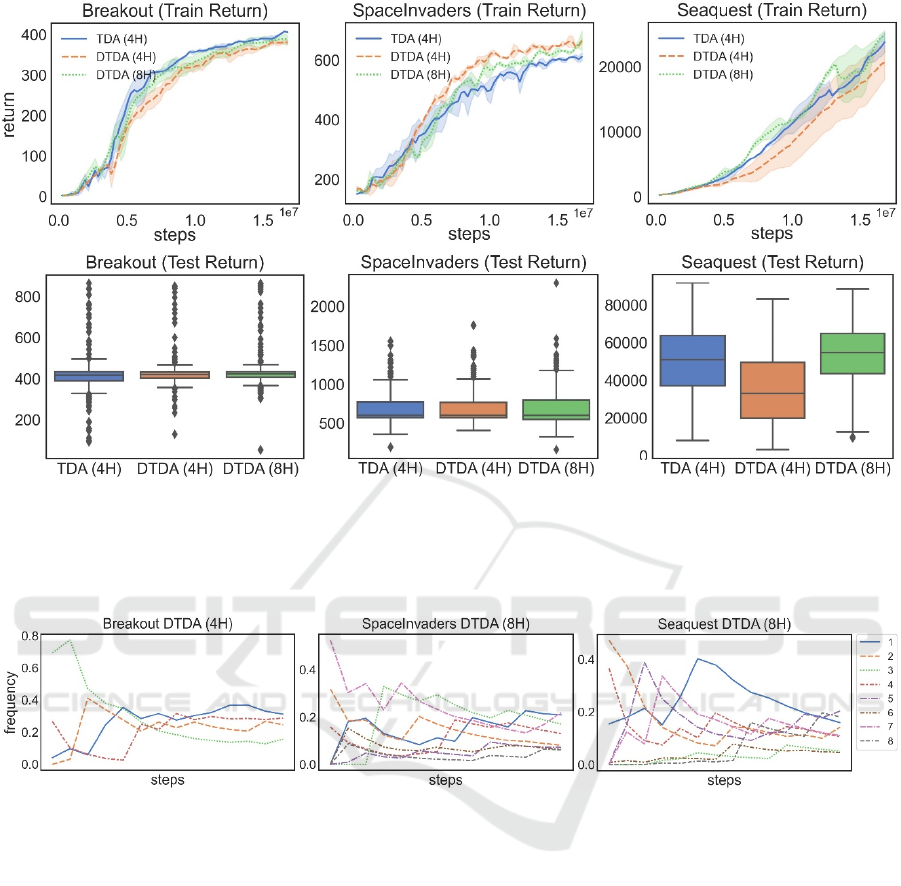

Figure 3: Test return: (Breakout) TDA (4H) 417 with best (429/124), DTDA (4H) 420 with best (457/112) and DTDA (8H)

423 with best (444/123), (SpaceInvaders) TDA (4H) 600 with best (706/225), DTDA (4H) 600 with best (692/234) and

DTDA (8H) 600 with best (758/309), (Seaquest) TDA (4H) 50,850 with best (51,459/17,817), DTDA (4H) 32,885 with best

(47,469/16,499) and DTDA (8H) 54,735 with best (57,971/14,456). The results for Breakout and SpaceInvaders are not

statistically significant (p-value 0.10 and 0.87, respectively).

Figure 4: Distribution of the number of attention heads throughout the training process. The results were computed at every

1,200,000 frames and averaged over 10 games.

4.3 Visualization of the Attention Maps

Figure 6 depicts the visualizations of the attention

maps derived by the DTDA (4H) agents. In

SpaceInvaders, both strategies produced attention

maps with varying degrees of

redundancy/complementarity. This is most prevalent

in the 3 heads strategy (top row, left column). The

other strategy (last 2 rows, left column) also suffers

from this issue but was able to produce some

specialized attention maps. 

focuses mainly on the

agent, whereas 

focuses mostly on the enemy ships

(also mildly on the agent). These (redundancy and or

complementarity) issues prevail in Seaquest. In this

case both strategies were able to produce specialized

attention maps.

In the n

= {1, 2, 4} strategy (top row, right column), 

focuses almost exclusively on a delimited rectangular-like

area in the middle of the screen, whereas 

focuses mostly

on the borders of the screen. In the n

= {1, 3} strategy

(middle row, right column), 

focuses mostly on the

oxygen meter (and the top left corner). Examples of

situations where the n

= {1, 3} strategy uses a single

attention head, are depicted on the last row, right column.

As can be seen these attention maps are more generalist and

focus on several elements simultaneously.

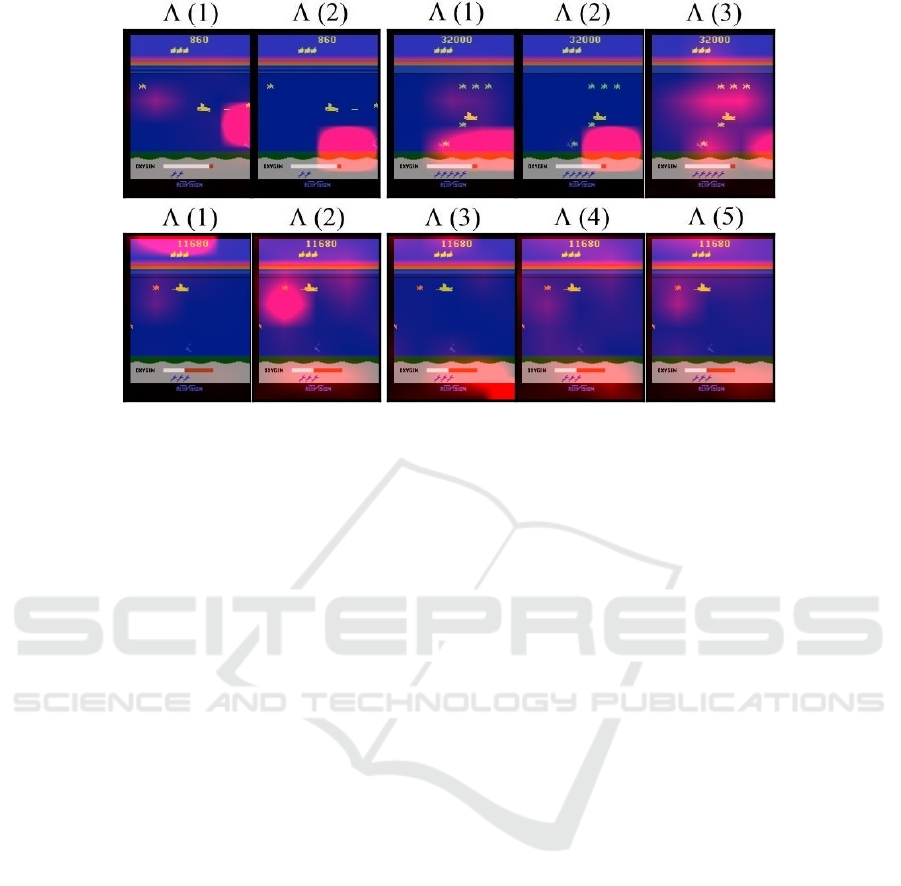

Figure 7 depicts the visualizations of the attention maps

derived by the DTDA (8H) agents. The n

= {2, 3, 4}

strategy (top row) presents an interesting behavior. When

the game seems to be easier, the agent relies mostly on 

and 

(left column). 

is more generalist and provides the

surfacing cue to the agent (right column), whereas 

focuses on a very specific rectangular-like area near the

bottom right corner of the screen.

Dynamically Choosing the Number of Heads in Multi-Head Attention

363

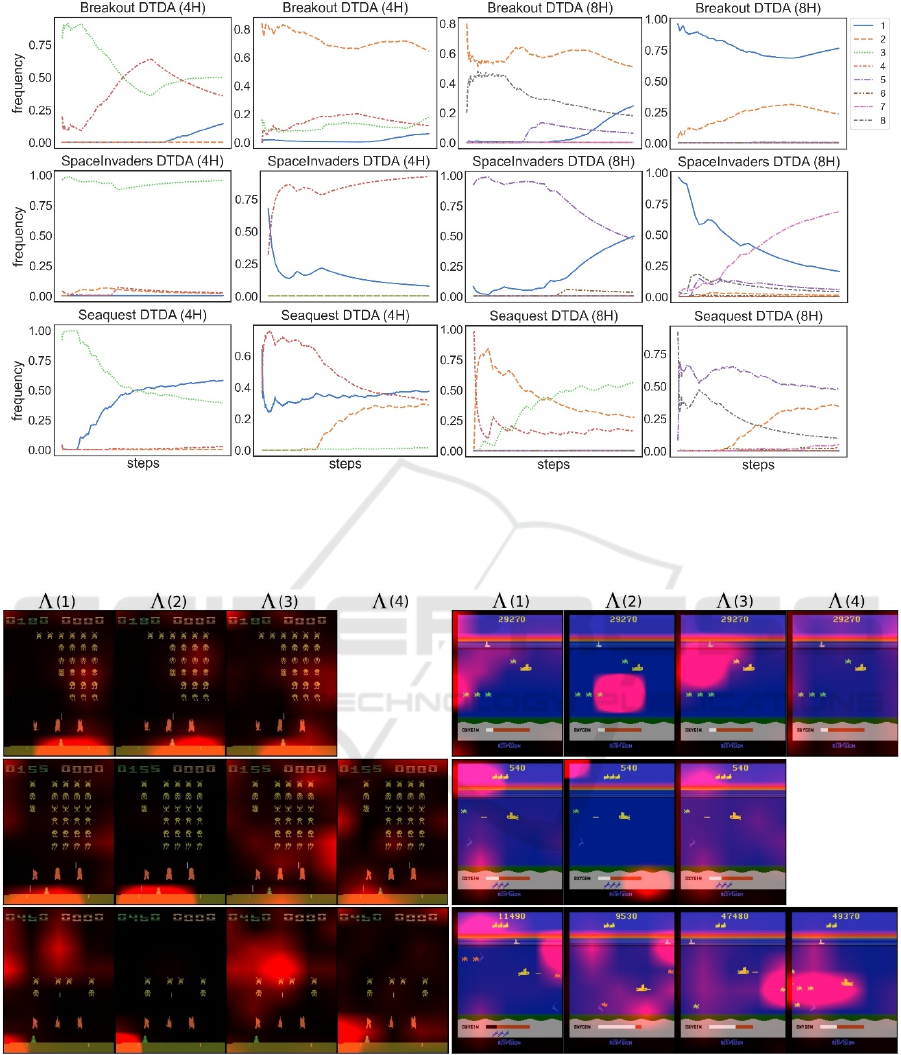

Figure 5: Distribution of the number of attention heads throughout the course of the game. The results were computed at

every 240,000 frames over a single game. Best strategies derived for the number of heads n

: (Breakout) DTDA (4H)

approaching a static parameterization with n

= 2, (SpaceInvaders) DTDA (8H) with n

= 1 initially, gradually favoring n

= 7,

(Seaquest) DTDA (8H) with n

= 2 initially, gradually favoring n

= 3.

Figure 6: (left) Attention maps derived by DTDA (4H) for SpaceInvaders. (right) Attention maps derived by DTDA (4H) for

Seaquest.

As the game progresses the agent starts computing 

more often. 

seems to provide mostly redundancy and

complementarity to 

(middle column). 

is rarely

computed and focuses on the top left corner of the screen

(not shown). The other strategy n

= {2, 5, 8} (bottom row)

is not as interesting and is harder to interpret given the high

degree of redundancy and complementarity between the

various attention maps.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

364

Figure 7: Attention maps derived by the DTDA (8H) agents for Seaquest.

4.4 Discussion

Overall, 

did not improve (or eased) the learning process.

On one hand, 

is another module that must be optimized,

which in turn may pose more difficulties to the learning

process. On the other hand, dynamically changing the value

of n

may also introduce some instability, since the

optimization process must switch between different

‘operating modes’ introduced by the number of attention

heads being used at each timestep. At a high-level, 

can

be thought of as a kind of tradeoff between parameterization

complexity and optimization load. It is a question of

whether easing the parameterization burden by introducing

more parameters to optimize provides a real benefit in

practice.

Nevertheless, as shown by the test results, 

was

able to improve the performance of the agent in some

cases, such as in Seaquest, while at the same time

obtaining similar performance results to those

obtained by a statically parameterized agent, without

the need to perform hyperparameter search.

Ultimately, the benefits of the approach proposed can

become even more noticeable if an efficient

implementation can take advantage of its potential

computational gains. However, such an

implementation was not presented in this work.

Finally, both the strategies derived for n

as well

as the quality of the resulting attention maps seem to

be very dependent on the optimization process. As

shown by the results, different agents as well as

agents sharing the same model, discovered different

strategies to exploit the number of attention heads,

with varying performance results. In some cases,

different strategies obtained very similar results,

while in other cases the strategies performed very

differently.

This work proposed a simple policy 

which does

not consider the number or the quality of the attention

maps nor the redundancy or relationships between

them. A more sophisticated implementation may take

these aspects into account to derive better results.

Finally, such an implementation may also tackle the

possible tradeoff between using less attention heads,

therefore obtaining attention maps that are more

generalist, or using more attention heads in an attempt

to obtain attention maps that are more focused and

specialized but that may also present more

redundancy and or complementarity between them.

5 CONCLUSIONS

This work proposed a dynamic approach to choose

the number of attention heads to use at each timestep

of agent-environment interaction, based solely on the

contextual memory of the agent and without the need

to perform hyperparameter search. When compared

to a statically parameterized agent, the approach

proposed was able to improve the performance of the

agent in Seaquest while obtaining similar results in

Breakout and SpaceInvaders. These initial results are

very promising and can be leveraged to derive better

implementations more suited to tackling the

limitations discussed. Furthermore, the benefits of

this approach can become more noticeable if an

efficient implementation can take advantage of its

potential computational gains.

Dynamically Choosing the Number of Heads in Multi-Head Attention

365

ACKNOWLEDGEMENTS

This research was funded by Fundação para a Ciência

e a Tecnologia, grant number SFRH/BD/145723

/2019 - UID/CEC/00127/2019.

REFERENCES

Ba, L. J., Kiros, J. R., & Hinton, G. E. (2016). Layer

Normalization. CoRR, abs/1607.06450.

Bahdanau, D., Cho, K., & Bengio, Y. (2015). Neural

Machine Translation by Jointly Learning to Align and

Translate. In 3rd International Conference on Learning

Representations, ICLR 2015.

Bengio, Y. (2012). Practical recommendations for gradient-

based training of deep architectures. CoRR,

abs/1206.5533.

Bengio, Y., LeCun, Y., & Hinton, G. E. (2021). Deep

learning for AI. Commun. ACM, 64(7), 58–65.

Brockman, G., Cheung, V., Pettersson, L., Schneider, J.,

Schulman, J., Tang, J., & Zaremba, W. (2016). OpenAI

Gym. CoRR, abs/1606.01540.

Graves, A., Mohamed, A., & Hinton, G. E. (2013). Speech

recognition with deep recurrent neural networks. In

IEEE International Conference on Acoustics, Speech

and Signal Processing, ICASSP 2013.

Ha, D., & Schmidhuber, J. (2018). World Models. CoRR,

abs/1803.10122.

Hochreiter, S., & Schmidhuber, J. (1997). Long Short-Term

Memory. Neural Computation, 9(8), 1735–1780.

Humphrey, E. J., Bello, J. P., & LeCun, Y. (2012). Moving

Beyond Feature Design: Deep Architectures and

Automatic Feature Learning in Music Informatics. In

Proceedings of the 13th International Society for Music

Information Retrieval Conference, ISMIR 2012. (pp.

403–408).

Ioffe, S., & Szegedy, C. (2015). Batch Normalization:

Accelerating Deep Network Training by Reducing

Internal Covariate Shift. In Proceedings of the 32nd

International Conference on Machine Learning, ICML

2015. (Vol. 37, pp. 448–456). JMLR.org.

Kingma, D. P., & Ba, J. (2015). Adam: A Method for

Stochastic Optimization. In 3rd International

Conference on Learning Representations, ICLR 2015.

LeCun, Y., Bengio, Y., & Hinton, G. E. (2015). Deep

learning. Nat., 521(7553), 436–444.

Machado, M. C., Bellemare, M. G., Talvitie, E., Veness, J.,

Hausknecht, M. J., & Bowling, M. (2018). Revisiting

the Arcade Learning Environment: Evaluation

Protocols and Open Problems for General Agents. J.

Artif. Intell. Res., 61, 523–562.

Mnih, V., Badia, A. P., Mirza, M., Graves, A., Lillicrap, T.

P., Harley, T., Silver, D., & Kavukcuoglu, K. (2016).

Asynchronous Methods for Deep Reinforcement

Learning. In Proceedings of the 33nd International

Conference on Machine Learning, ICML 2016. (Vol.

48, pp. 1928–1937). JMLR.org.

Mnih, V., Kavukcuoglu, K., Silver, D., Rusu, A. A.,

Veness, J., Bellemare, M. G., Graves, A., Riedmiller,

M. A., Fidjeland, A., Ostrovski, G., Petersen, S.,

Beattie, C., Sadik, A., Antonoglou, I., King, H.,

Kumaran, D., Wierstra, D., Legg, S., & Hassabis, D.

(2015). Human-level control through deep

reinforcement learning. Nat.

, 518(7540), 529–533.

Mott, A., Zoran, D., Chrzanowski, M., Wierstra, D., &

Rezende, D. J. (2019). Towards Interpretable

Reinforcement Learning Using Attention Augmented

Agents. In Advances in Neural Information Processing

Systems 32: Annual Conference on Neural Information

Processing Systems, NeurIPS 2019. (pp. 12329–

12338).

Schulman, J., Moritz, P., Levine, S., Jordan, M. I., &

Abbeel, P. (2016). High-Dimensional Continuous

Control Using Generalized Advantage Estimation. In

4th International Conference on Learning

Representations, ICLR 2016,

Sermanet, P., Chintala, S., & LeCun, Y. (2012).

Convolutional neural networks applied to house

numbers digit classification. In Proceedings of the 21st

International Conference on Pattern Recognition,

ICPR 2012. (pp. 3288–3291).

Shi, X., Chen, Z., Wang, H., Yeung, D.-Y., Wong, W.-K.,

& Woo, W. (2015). Convolutional LSTM Network: A

Machine Learning Approach for Precipitation

Nowcasting. In Advances in Neural Information

Processing Systems 28: Annual Conference on Neural

Information Processing Systems 2015. (pp. 802–810).

Silver, D., Huang, A., Maddison, C. J., Guez, A., Sifre, L.,

van den Driessche, G., Schrittwieser, J., Antonoglou, I.,

Panneershelvam, V., Lanctot, M., Dieleman, S., Grewe,

D., Nham, J., Kalchbrenner, N., Sutskever, I., Lillicrap,

T. P., Leach, M., Kavukcuoglu, K., Graepel, T., &

Hassabis, D. (2016). Mastering the game of Go with

deep neural networks and tree search. Nat., 529(7587),

484–489.

Sorokin, I., Seleznev, A., Pavlov, M., Fedorov, A., &

Ignateva, A. (2015). Deep Attention Recurrent Q-

Network. CoRR, abs/1512.01693.

Srivastava, N., Mansimov, E., & Salakhutdinov, R. (2015).

Unsupervised Learning of Video Representations using

LSTMs. In Proceedings of the 32nd International

Conference on Machine Learning, ICML 2015. (Vol.

37, pp. 843–852). JMLR.org.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., & Polosukhin, I. (2017).

Attention is All you Need. In Advances in Neural

Information Processing Systems 30: Annual

Conference on Neural Information Processing Systems

2017. (pp. 5998–6008).

Xu, K., Ba, J., Kiros, R., Cho, K., Courville, A. C.,

Salakhutdinov, R., Zemel, R. S., & Bengio, Y. (2015).

Show, Attend and Tell: Neural Image Caption

Generation with Visual Attention. In Proceedings of the

32nd International Conference on Machine Learning,

ICML 2015. (Vol. 37, pp. 2048–2057). JMLR.org.

Zambaldi, V. F., Raposo, D., Santoro, A., Bapst, V., Li, Y.,

Babuschkin, I., Tuyls, K., Reichert, D. P., Lillicrap, T.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

366

P., Lockhart, E., Shanahan, M., Langston, V., Pascanu,

R., Botvinick, M. M., Vinyals, O., & Battaglia, P. W.

(2019). Deep reinforcement learning with relational

inductive biases. In 7th International Conference on

Learning Representations, ICLR 2019.

Dynamically Choosing the Number of Heads in Multi-Head Attention

367
