An Empirical Study of Ransomware Vulnerabilities Descriptions

Claudia Lanza

, Abdelkader Lahmadi

and Fabian Osmond

University of Calabria, Italy

Universit

e de Lorraine, CNRS, Inria, LORIA, 54000 Nancy, France

Cybi SAS, 54600 Villers-L

es-Nancy, France

Keywords:

Threat Analysis, Ransomware, Vulnerabilities, Security Knowledge Management.

Abstract:

Cyber threat awareness requires the building of an accurate knowledge and analysis of the vulnerabilities used

by the attackers and their respective attack toolkits. Ransomware are today one of the most signiﬁcant threats

faced by information systems and their number continues to grow. They are a type of malware targeting the

information system by locking its equipment and users data and claiming a ransom for its release. They have

been becoming more and more sophisticated and mainly relying on software vulnerabilities to access and lock

the system data. In this paper we have carried out an empirical analysis of the Common Vulnerabilities Enu-

meration (CVE) exploited by known ransomware using a semantic annotation technique in order to create the

condition from which to start to build a knowledge base of ransomware behaving processes. The main focus

of this paper is towards the way vulnerabilities are commonly exploited by ransomware, their sharing ratio and

the deﬁnition of their common causes and impacts. We have built a database, by scrapping multiple publicly

available security reports, which associates each known ransomware to its used vulnerability contained in the

CVE. We have applied a semantic annotation methodology which encompasses a semantic analysis of the

CVE dataset through a pattern recognition process. This latter has enabled the extraction for each CVE of its

key features, i.e., the cause, the performed exploit action and effect, as well as its impact. In the resulting col-

lected and extracted knowledge we show a twofold analysis, statistical and semantic, of the CVE descriptions

and their extracted features.

1 INTRODUCTION

Ransomware are considered as a major threat faced by

information systems and their users (Oz et al., 2022).

They are a subset of malware targeting these systems

to lock or deny access to their data while requesting a

ransom payment to release them. The number of ran-

somware continues to grow, the MS-ISAC in USA ob-

served a 74% increase in year-over-year reported inci-

dents from Q1-Q2 2022 to Q1-Q2 2023 (Multi-State

Information Sharing and Analysis Center, 2023). Be-

sides, a total of 449 million dollar has been at least

extorted in 2023 by ransomware groups according to

the ﬁrm Chainalysis (Chainalysis, 2023). The attack

phases of a ransomware usually rely on phishing and

malvertising as initial access vector, followed by ex-

ploiting service vulnerabilities for deployment, priv-

Authors equally contributed to this work, however

Claudia Lanza speciﬁcally dealt with section , 3.2, 4.2 and

5, Abdelkader Lahmadi with section 1, 2, 3.3 and 4.1., and

Fabian Osmond with section 3.1

ilege escalation and lateral movements until the step

of data exﬁltration and ransom payment request. This

operational model is studied by a large body of works

in the literature while focusing on a speciﬁc or a sub-

set of known ransomware (Oz et al., 2022). These ex-

isting studies are mainly carried on the binary code

of ransomware by using static or dynamic analysis

to discover their tactics, techniques and procedures

(Maigida et al., 2019; Chen and Bridges, 2017).

However, no study exists in the literature that cov-

ers a comprehensive analysis of the CVEs exploited

by ransomware to clearly identify a better understand-

ing of these key characteristics in their infection and

propagation operations. We believe that this missing

study is important to build proactive defense solutions

and provide guidelines for ﬁxing vulnerabilities that

may be exploited by a ransomware.

This paper aims to study the vulnerabilities ex-

ploited by known ransomware using their respective

textual descriptions provided in the CVE standard

published by the MITRE organism. This study pro-

146

Lanza, C., Lahmadi, A. and Osmond, F.

An Empirical Study of Ransomware Vulnerabilities Descriptions.

DOI: 10.5220/0012378700003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 146-153

ISBN: 978-989-758-683-5; ISSN: 2184-4356

vides a better understanding of these vulnerabilities

regarding their CVSS scoring, their distribution over

years and how they are shared by ransomware. Be-

sides, we made a semantic analysis of these descrip-

tions regarding their key features including causes,

actions, effects and impacts. We deﬁned these key

features to be extracted from each CVE description

using a semantic pattern-based conﬁguration.

To the best of our knowledge this is the ﬁrst pa-

per that makes an analysis of vulnerabilities used by

ransomware. The main contributions of our paper are

summarized as follows: (i) known ransomware vul-

nerabilities (CVE) dataset construction from which

we have compiled a corpus containing their vulner-

abilities descriptions; (ii) proposal of a semantic anal-

ysis methodology for extracting from each vulnerabil-

ity description its key features by using a semantic an-

notation process; (iii) statistical and semantic analysis

of these CVEs to provide a more accurate knowledge

on their usage and sharing between ransomware. The

purpose is to identify the major causes and impacts

ransomware generate while exploiting certain vulner-

abilities included in CVE.

The remainder of this paper is structured as fol-

lows. We begin with the related works in Section

2. Successively, we present and detail our analysis

methodology of the collected CVE exploited by ran-

somware in Section 3. The results of the analysis are

provided in Section 4. Finally, we draw conclusions

in Section 5.

2 RELATED WORKS

In this section we provide some representative works

related to ransomware analysis and their associated

methods. A large body of studies exists in the litera-

ture addressing ransomware analysis by using mainly

static and dynamic techniques (Oz et al., 2022; Bea-

man et al., 2021) to understand their components and

behaviours. The static analysis techniques rely on

available data collected from ransomware samples to

identify their patterns (Hsiao and Kao, 2018). The

dynamic analysis techniques rely on the execution

of ransomware in sandboxes or controlled environ-

ments to identify their processes action (Monika et al.,

2016; Or-Meir et al., 2019). Both techniques are

used to build ransomware detection signatures from

the identiﬁed behaviours including the accessed ﬁles,

sequences bytes, the running processes, the contacted

servers, etc. The two techniques can be also used

jointly to better characterize the behaviour of a ran-

somware and build more accurate detection signatures

(Pranshu Bajpai, 2020). However, these techniques

and their numerous existing studies are focusing on

the analysis of the behaviour of a ransomware using

collected samples. They have not studied a global be-

haviour of ransomware by analysing their exploited

vulnerabilities, as we address in this work.

There are few studies which analysed the be-

haviour of ransomware using threat models of attack

phases (Tatam et al., 2021; Dargahi et al., 2019) to

classify them. In (Tatam et al., 2021) the authors iden-

tiﬁed four main threat modelling approaches includ-

ing asset-centric, system-centric, threat-centric and

data-centric approaches to analyse the security vul-

nerabilities and risks of a host, an application and a

network service. They identiﬁed different techniques

that can be used for building such models including

graphical and formal approaches, such as, ATT@CK,

Kill Chain, CAPEC, etc. In (Dargahi et al., 2019)

the authors propose to rely on the Cyber Kill Chain

(CKC) model to align ransomware features. Their

goal is to provide a ﬁne-grained information about

each attack step carried out by a ransomware regard-

ing this model. In their study they mainly identi-

ﬁed some common features of known ransomware

and they mapped them on the attack techniques for

each step in the Kill Chain. Although, their approach

provides a better analysis and a taxonomy of ran-

somware compared to existing works, they have not

studied features related to the exploited vulnerabili-

ties. In (Bajpai and Enbody, 2023) the authors pro-

pose a more adapted Kill Chain for ransomware to

better represent ransomware activity. For instance,

they show that Installation and C2 phases are not a

necessary part of ransomware activity. They relied on

an extensive review of state-of-the-art incident report

and their own experience to develop the analysis and

response framework. In (Mirza et al., 2021) the au-

thors also propose to rely on the Kill Chain model to

analyse ransomware. They mainly analysed four ran-

somware strains which are Petya, Mamba, Cerber and

WannaCry to extract from them common and unique

features for their early stage detection. They primar-

ily show that the unique features are mainly the vul-

nerabilities that they exploit and the common features

are related to the propagation and covert steps within

a single machine or over the network. Our work is

in line with this methodology by making a more thor-

ough and in-depth analysis of exploited vulnerabili-

ties by ransomware to verify those that are common

and unique for each of them.

Only few works have studied the vulnerabilities

in terms of CVE standard exploited by malware. In

(Acar et al., 2019) the authors partially analysed the

CVE exploited by a subset of 158 malware samples.

They mainly relied on CVE labels associated to mal-

An Empirical Study of Ransomware Vulnerabilities Descriptions

147

ware from Microsoft and Kaspersky sources. They

observed that 158 samples use at least one vulnera-

bility with CVE and noted some discrepancy between

the labels from the two sources. In their work they

found that attackers tend to rely on recent exploits

and new CVEs and many malware appear only few

days after the release of some CVE. Several other

works have also studied the ransomware individually

by analysing their respective exploited CVE (Kerns

et al., 2022; Lim et al., 2023; Aljaidi et al., 2022).

In (Lim et al., 2023) the authors analysed the

available CVE records and they made statistical anal-

ysis of them regarding their existing metrics (CVSS,

access, complexity, affected products) and types.

During their study they highlighted the CVE related to

ransomware and found that most of them have a high

CVSS score and the most common types are those of

Execute Code. Their conclusions are close to our ﬁnd-

ings in this work, but we show more complete results

regarding the types of CVE used by ransomware and

how they are shared between them.

3 METHODOLOGY

In this section we detail our methodology regarding

the construction of the vulnerabilities corpus by col-

lecting their usage by ransomware through the consul-

tation of multiple security reports. Subsequently, we

present the key features extraction process from the

textual descriptions included in the CVEs by using a

semantic annotation process.

3.1 Corpus Construction

At ﬁrst we have created a dataset containing a list

of known ransomware and their associated exploited

CVEs. The dataset has been built manually by tak-

ing into account the reliability of the sources (Za-

grebelsky, 1984), in our speciﬁc case those spread-

ing information about the ransomware activities. In

detail, the corpus has been compiled by check-

ing security reports and news publicly available on

the main cybersecurity portals, as the Community

Emergency Response Team (CERT)

, The Euro-

pean Union Agency for Cybersecurity (ENISA)

or the Agence nationale de la s

ecurit

e des syst

emes

d’informationANSSI (ANSSI)

. The different secu-

rity and cyber threat intelligence related information

sources we consulted are represented in Table 1.

https://community.fema.gov/PreparednessCommunity

/s/welcome-to-cert?language=en US

https://www.enisa.europa.eu/

https://www.ssi.gouv.fr/

CVEs associated to each ransomware by using

multiple sources have been validated by domain ex-

perts in the ﬁeld of cybersecurity in order to verify the

reliability of the mapped data. Our dataset contains a

total number of 161 ransomware which have been

detected in a time-span going from 2007 to 2023.

Using this dataset, with the purpose of manu-

ally creating a training set as ﬁrst step to support the

next machine learning operations, we selected a sub-

set of 95 representative ransomware according to the

sampling presented in Table 2 and built from that

a text corpus of their respective CVEs. We used

this corpus for manually annotating the CVEs de-

scriptions mapped with given ransomware and extract

from them key features of each vulnerability regard-

ing the causes, impacts, exploit actions and effects.

3.2 Semantic Annotation

The annotation takes its ground from the typical de-

velopment observed during a cyber threat, in our spe-

ciﬁc case a ransomware. In detail, it usually takes

advantage from a vulnerability, it has a certain like-

lihood to be exploited and a condition by which is

propagated in a given platform, it bears a given im-

pact and behaves in a way - action - that leads to some

effects. This ransomware-attack-behaviour chain has

been formalized using the annotation tool Prodigy

an active learning system that works by using SpaCy

language libraries to perform the syntactic tagging

tasks. Indeed, through Prodigy users can attribute to

each of the properties detected in source corpora a

speciﬁc tag. The perspective has targeted to creation

of a group of patterns meant to be generalized over

a large set of data to infer knowledge about the ran-

somware information once having to deal with new

upcoming vulnerabilities.

Patterns represent the morphosyntactic construc-

tion through which a sentence is texturally analysed in

its parts. Training a model though patterns allows to

formalize a set of rules to be applied on a source doc-

umentation and automatically systematize the knowl-

edge domain towards the use of the data within a se-

mantic framework. (Condamines, 2008) deals with

the recurrent lexicon characterizing the level of lin-

guistic variation within given specialized frameworks.

Indeed, the retrieval process regarding the isolation of

some ﬁxed expressions, i.e., patterns, according to the

author, results a simpler task when addressing ﬁelds

of knowledge marked by a highly technical way of

sharing textual information. The speciﬁcity proper to

sector-oriented documentation enhances the identiﬁ-

cation of recurrent semantic structures because of the

https://prodi.gy/

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

148

Table 1: Information sources used for building our source corpus.

Type Information sources

Cyber Security organisation reports reports from CERT, ENISA, ANSSI, CISA, etc.

Cyber security forums KrebsOnSecurity, BleepingComputer, etc.

Specialized cyber security web sites Threatpost, DarkReading, Hackread, TheHackerNews

Cyber security bulletins Security alert reports by software and hardware providers

Reports from cyber security companies Symantec, MacAfee, Kaspersky Lab, et CrowdStrike

Community forums on cyber security Reddit: /r/netsec, /r/ransomware

Table 2: The selected sample corpus of ransomware.

Year Number of

Ransomware

Number of CVEs Ransomware status

2007 1 2 oldest

2010 13 383 oldest

2012 6 97 oldest

2015 9 120 old

2017 18 105 old

2019 28 62 old

2021 25 98 current

2023 5 9 new

lexical ﬁxity. The pattern-based conﬁguration to be

applied onto specialized corpora can support the de-

velopment of an entangled network of semantic rela-

tionships (Roesiger et al., 2016) which, in turn, can

facilitate the automatic creation of knowledge organi-

zation systems, such as ontologies or thesauri (Lanza,

2022). (Auger and Barri

ere, 2008) offer an extended

overview of some of the main existing works pub-

lished on this subject addressing the patterns as sup-

porting structures which interrelate two entities linked

together by a semantic relation, as well as (Fortunee,

2021) presenting a set of tools and techniques em-

ployed in the literature for annotation tasks. (Meyer,

2001) states that these semantic recurrent chains are

constituted by a “linguistic and paralinguistic ele-

ments that follow a certain syntactic order, and that

permit to extract some conclusions about the mean-

ing they express.” (2001:237).

The tags (see Figure 1) for our specialized corpus

made of CVEs descriptions have been established as

follows:

• Cause: usually associated to the vulnerability that

allows an attack, e.g, “buffer overﬂow”, “use after

free”, “integer overﬂow” or “mishandles negative

offsets during decoding”;

• Impact: how the attack, e.g., “code execution”,

“denial of service” or “obtain privilege rights” is

impacting certain infrastructures;

• Action: the expression of the attack, how it has

been executed, e.g., “crafted web site”, “crafted

tiff image”, or “sending a handcrafted message”;

• Effect: the consequences of the attack, e.g.,

“overrides a valueof function” or “triggers access

to a deleted object”.

In particular, our methodology is based on the as-

sumption that the sentences under analysis with the

Figure 1: Named entities annotated in CVEs’ descriptions.

annotation tool have to follow a ﬁxed schema. This

latter represents the pattern conﬁguration for the

cause, impact, action and effect tags in order to train

a model to be run over a larger number of CVEs’

descriptions and automatically detect the information

needed for the knowledge organization system devel-

opment. The ﬁxed schema has implied certain trigger

morphosyntactic units which have represented the key

elements to isolate and recognize the desired informa-

tion meant to be formalized in the next tags. In this

way the data, within the CVEs’ descriptions, which

were not compliant with the chain rules have been

discarded. The chain contains both the main tags in-

cluded in the training set and the patterns to identify

them to train the model. Its structure is depicted in

Figure 2.

In the case of this research activity’s above-

mentioned tags the patterns have followed this con-

struction:

• CausePattern: e.g., LEMMA (buffer) +

LEMMA (overﬂow) | ADJ (unspeciﬁed) +

LEMMA (vulnerability) | VERB (inﬁnitive: due)

+ PREP (to) + NOUN;

• ImpactPattern: e.g., PREP (to) + V (execute |

perform) + ADJ (arbitrary) NOUN (code);

• ActionPatter: e.g., LEMMA (via) + PREP (a)

+ NOUN | + VERB (gerund: involving) + ADJ

(crafted) + NOUN (JavaScript) + NOUN;

• EffectPattern: e.g., PRON (that| which) + V

(lead | leverage)+ PREP (to) + NOUN

An Empirical Study of Ransomware Vulnerabilities Descriptions

149

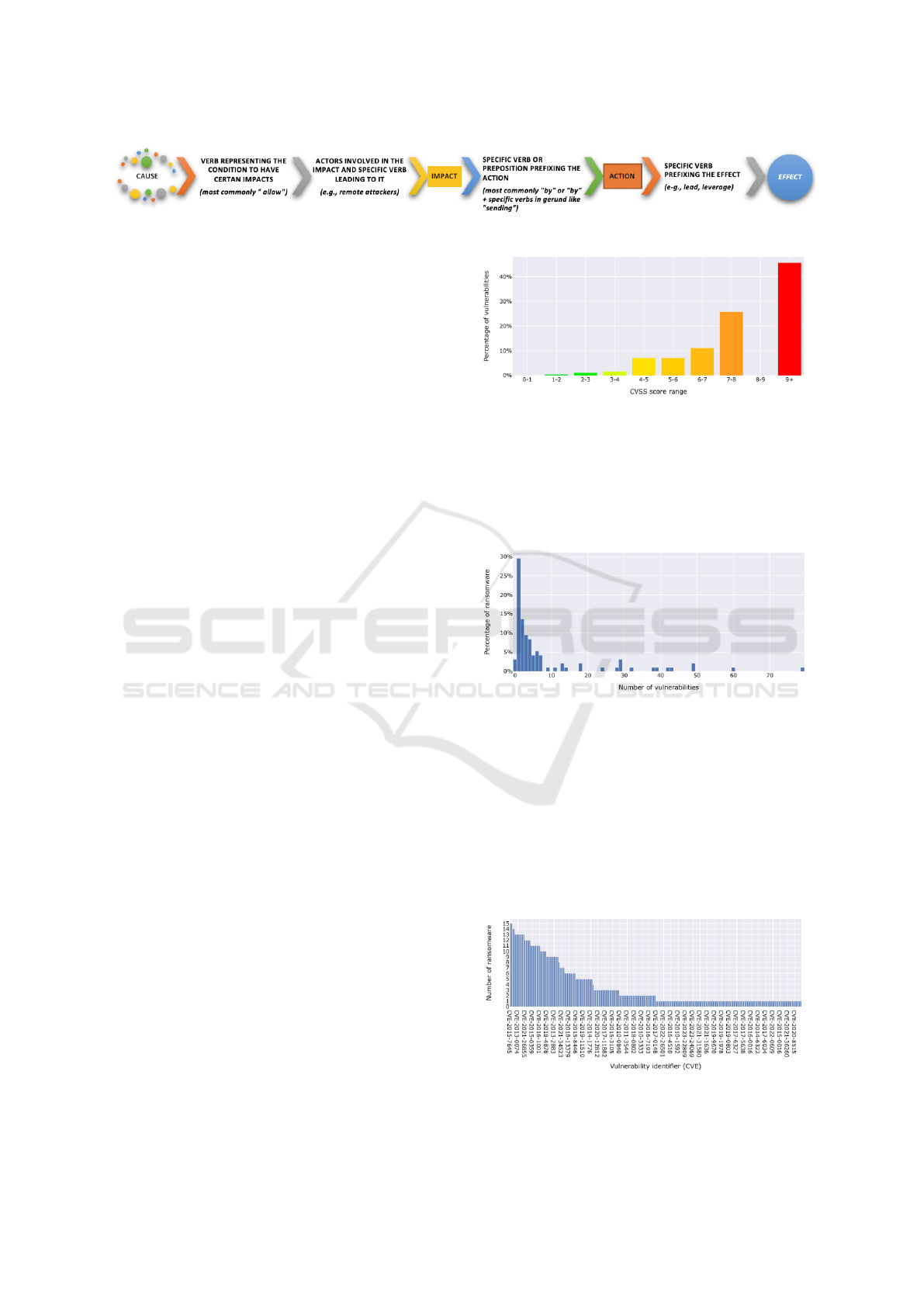

Figure 2: Patterns schema.

3.3 Normalization

Once having extracted a set of annotation labels of

different features, we applied a normalization pro-

cess to replace labels with their respective semantic

equivalent expressions. For instance, extracted fea-

tures, such as arbitrary code execution and code exe-

cution result semantically equivalent. In this process

we used a transformer based neural network to com-

pute similarities between each pairs of extracted fea-

tures.

4 RESULTS

We analysed the set of ransomware-vulnerabilities to

identify their semantic links with respect to the ex-

tracted labels. We also performed a statistical analy-

sis of these vulnerabilities regarding their usage and

sharing between ransomware.

4.1 Statistical Analysis

We ﬁrstly analysed the distribution of the severity of

the exploited vulnerabilities by ransomware regarding

their Common Vulnerability Scoring System (CVSS)

score. The objective of this analysis is to study the

scoring levels of these vulnerabilities to better under-

stand whether ransomware are only relying on high

score CVSS vulnerabilities. Figure 3 depicts for each

CVSS score range the percentage of vulnerabilities.

We mainly have observed that about 45% of vulner-

abilities have a CVSS score greater or equal than 9

with half of them with a score equal to 10. About

28% of vulnerabilities have a score less than 7. These

low score vulnerabilities are usually not ﬁxed or have

low ﬁx priority. Hence, our study conﬁrms that CVSS

score is a inefﬁcient prioritization approach for ﬁxing

vulnerabilities since ransomware may exploit those

with low scores.

Secondly, we have analysed the distribution of

the number of vulnerabilities exploited by each ran-

somware. As depicted in Figure 4, we have observed

that about 30% of ransomware are using a single vul-

nerability. The majority of ransomware, nearly 79%

of them, are exploiting less than 10 vulnerabilities.

Only a single ransomware, i.e., CK, is exploiting a

high number of vulnerabilities of 79. The reason

Figure 3: Distribution of ransomware exploited vulnerabil-

ities by CVSS score range.

is that CK is an exploit kit used by multiple ran-

somware. Other ransomware, such as, CRY, CHINA

LEAK, TESLACRYPT, RUSSIA LEAK are also ex-

ploiting high number of vulnerabilities of 60, 49 and

32 respectively.

Figure 4: Distribution of the number of vulnerabilities ex-

ploited by ransomware.

We have analysed then the number of ransomware

exploiting each vulnerability (CVE) to identify the

most exploited vulnerabilities. Figure 5 shows the

distribution of CVEs by the number of their respec-

tive ransomware. We have observed that the most ex-

ploited vulnerabilities are CVE-2015-7645 and CVE-

2015-5119 associated with 15 ransomware. These

two vulnerabilities affect Adobe Flash Player and al-

low attacker to remotely execute arbitrary code.

Figure 5: Distribution of CVEs by the number of ran-

somware exploiting each of them.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

150

The count of the vulnerabilities by their respective

number of ransomware exploiting them is depicted

in Figure 6. We have observed that around 120 vul-

nerabilities, which represents about 50% of the total

number of vulnerabilities, are exploited, each of them

by a single ransomware. Only the aforementioned 2

vulnerabilities are exploited by a high number of ran-

somware, 15. We have found that the majority of ran-

somware are using their own speciﬁc vulnerabilities

and few vulnerabilities are exploited by many ran-

somware.

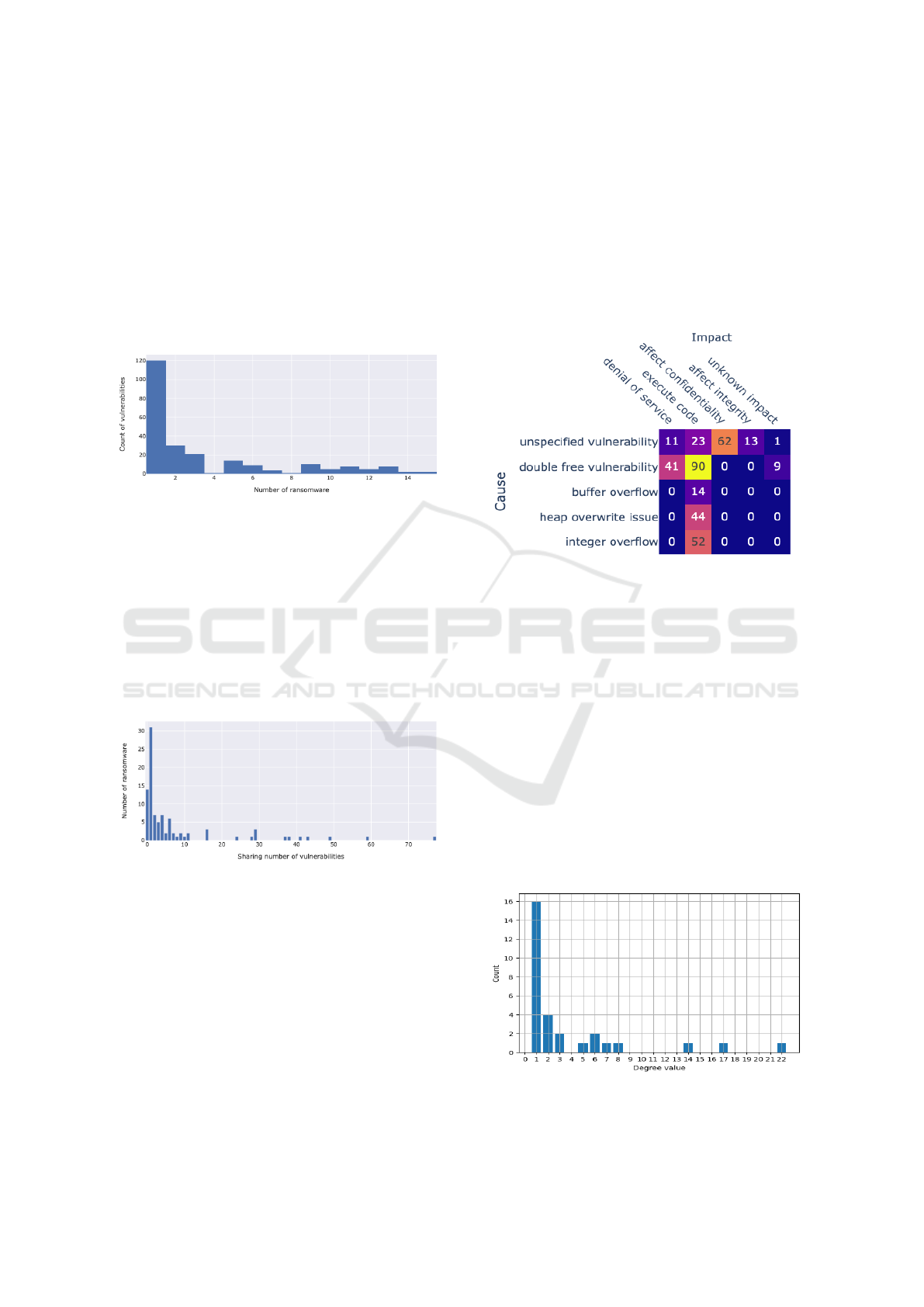

Figure 6: Count of vulnerabilities by their respective num-

ber of ransomware.

Figure 7 depicts the sharing ratio of vulnerabilities

by their respective number of ransomware. This ratio

is computed using the count of vulnerabilities shared

between the ransomware. For instance, the CK ran-

somware is sharing 77 vulnerabilities with the others.

We have observed that 14 ransomware have a sharing

ratio of 0, i.e., they don’t share any others’ vulnerabil-

ity. 31 ransomware are sharing a single vulnerability

with the others.

Figure 7: Sharing ratio of ransomware vulnerabilities.

4.2 Semantic Analysis

From a semantic point of view the annotation process

over the ransomware behaving chains show interest-

ing results in terms of common retrieved causes, im-

pacts, actions and effects between certain vulnerabil-

ities and ransomware.

In a ﬁrst analysis step, we have built the co-

occurence matrix between extracted causes and im-

pacts for exploited CVEs. Figure 8 shows a partial

view of this matrix with the highest co-occurence val-

ues. We have mainly observed that the impact la-

bel execute code has a high co-occurence with double

free, buffer overﬂow, heap overﬂow and integer ove-

ﬂow labels, which are known to be the major causes of

arbitrary code execution. Also, the label unspeciﬁed

vulnerability has high occurrence values with the im-

pact labels denial of service, execute code, affect con-

ﬁdentiality. However, in such descriptions the vulner-

ability causes remain unknown or not publicly avail-

able to avoid exploitation when disclosing the associ-

ated CVEs.

Figure 8: Co-occurence matrix of extracted cause and im-

pact features.

By exploiting the semantic annotations executed

through Prodigy we carried out the analysis by build-

ing a semantic graph with Gephi (Bastian et al.,

2009). The study of the semantic relations relied

on the node degrees of the cause and impact labels,

hereby reported as the ones expressing the highest

sharing ratio between ransomware and CVE, respec-

tively depicted in Figures 9 and 10. We have observed

that both of them have globally low degree distribu-

tion with 16 cause nodes and 23 impact nodes with

a degree value of 1. Only double free - cause has a

node degree of 22 and affect conﬁdentiality - impact

has a node degree of 15. Therefore, we can deduce

that both of them are the common semantic labels of

the analysed ransomware CVEs.

Figure 9: Distribution of the cause node degrees in the se-

mantic graph.

An Empirical Study of Ransomware Vulnerabilities Descriptions

151

Table 3: Communities detected and the associated ransomware.

Community (%) Ransomware

1 23,48 % CRY, REVETON, TESLACRYPT,LOCKY, CERBER...

2 16,29 % MICROSOFT-WORD-INTRUDER, DOTKACHEF, MAZE, ANCALOG...

3 15,91 % IRAN LEAK, LAPSUS$, NEBULA, DARKSIDE, NIGHT SKY...

4 12,88 % CK, PETYA, WHITEHOLE BLACKBYTE, SUNCRYPT...

5 10,61 % RUSSIA LEAK, SODINOKIBI, WANNACRY, BLACK KINGDOM, SEKHMET...

6 9,47 % NORTH KOREA LEAK, HOLYGHOST, DOPPELPAYMER, CHEERSCRYPT, AKO...

7 4,92 % ALPHV, CHAOS, AVOSLOCKER, ASN.1, and HELLOKITTY

8 2,27% UEFI

Figure 10: Distribution of the impact node degrees in the

semantic graph.

We have also applied the community detection al-

gorithm available in Gephi over the semantic graph to

identify the number of communities. The communi-

ties detected have been 14 (see Figure 11), in Table 3

we report the ﬁrst most consistent ones with the main

(i.e., with the highest weighted degree score) corre-

sponding aggregation of ransomware.

The information retrieval of the most common

causes, impacts, actions and effects associated to ran-

somware exploiting certain vulnerabilities are out-

lined in a excerpt of semantic annotation mapped

data, namely the connections semantically detected in

NEBULA (see Figure 12) ransomware with the estab-

lished main tags of our annotation process.

Figure 11: Ransomware communities detected from the se-

mantic graph and the associated size.

Figure 12: Connections detected in the annotated texts be-

tween the NEBULA ransomware and the impacts, causes

and actions.

5 CONCLUSION

In this paper we provided a comprehensive analy-

sis of vulnerabilities deﬁned in the CVE standard

and exploited by known ransomware by using our

own dataset collected from different publicly avail-

able sources. We mainly provided statistical and se-

mantic analysis of these CVEs to show their associ-

ation to the main attack patterns executed by given

ransomware in a predeﬁned time-span. We have

observed that ransomware do not only exploit high

CVSS score CVEs, but also many of them rely on

low score vulnerabilities. Besides, the sharing ratio

of CVEs between ransomware is not high and many

of them they are using unique CVEs. For future

works we plan to extend our dataset with tactics, tech-

niques and procedures (TTP) features for each CVE

exploited by a ransomare to better characterize and

classify them.

ACKNOWLEDGEMENTS

This study has been realized thanks to the co-

ﬁnancing by European Union - FSE REACT-EU,

PON Ricerca e Innovazione 2014-2020.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

152

REFERENCES

Acar, A., Lu, L., Uluagac, A. S., and Kirda, E. (2019). An

analysis of malware trends in enterprise networks. In

Information Security, pages 360–380.

Aljaidi, M., Alsarhan, A., Samara, G., Alazaidah, R., Al-

matarneh, S., Khalid, M., and Al-Gumaei, Y. A.

(2022). Nhs wannacry ransomware attack: Techni-

cal explanation of the vulnerability, exploitation, and

countermeasures. In EICEEAI, pages 1–6.

Auger, A. and Barri

ere, C. (2008). Pattern-based ap-

proaches to semantic relation extraction: A state-of-

the-art. Terminology, 14:1–19.

Bajpai, P. and Enbody, R. (2023). Know thy ransomware

response: A detailed framework for devising effective

ransomware response strategies. Digital Threats, 4(4).

Bastian, M., Heymann, S., and Jacomy, M. (2009). Gephi:

An open source software for exploring and manipulat-

ing networks.

Beaman, C., Barkworth, A., Akande, T. D., Hakak, S.,

and Khan, M. K. (2021). Ransomware: Recent ad-

vances, analysis, challenges and future research direc-

tions. Comput. Secur., 111(C).

Chainalysis (2023). Update: Crime down 65% overall, but

ransomware headed for huge year thanks to return of

big game hunting. https://www.chainalysis.com/blog

/crypto-crime-midyear-2023-update-ransomware-s

cams/. Accessed: 2023-10-22.

Chen, Q. and Bridges, R. A. (2017). Automated behavioral

analysis of malware: A case study of wannacry ran-

somware. In 16th IEEE ICMLA, pages 454–460.

Condamines, A. (2008). Taking genre into account when

analyzing conceptual relation patterns. Corpora, 3.

Dargahi, T., Dehghantanha, A., Bahrami, P. N., Conti, M.,

Bianchi, G., and Benedetto, L. (2019). A cyber-

kill-chain based taxonomy of crypto-ransomware fea-

tures. Journal of Computer Virology and Hacking

Techniques, 15(4):277–305.

Fortunee, M. (2021). Comparative Study Of Annotation

Tools And Techniques. PhD thesis, Afribary.

Hsiao, S.-C. and Kao, D.-Y. (2018). The static analysis of

wannacry ransomware. In 20th ICACT, pages 153–

158.

Kerns, Q., Payne, B., and Abegaz, T. (2022). Double-

extortion ransomware: A technical analysis of maze

ransomware. In Proceedings of FTC, pages 82–94.

Lanza, C. (2022). Semantic Control for the Cybersecurity

Domain: Investigation on the Representativeness of

a Domain-Speciﬁc Terminology Referring to Lexical

Variation. CRC Press.

Lim, J., Lau, Y. L., Ming Chan, L. K., Tristan Paul Goo,

J. M., Zhang, H., Zhang, Z., and Guo, H. (2023). Cve

records of known exploited vulnerabilities. In 8th IC-

CCS, pages 738–743.

Maigida, A. M., Abdulhamid, S. M., Olalere, M., Alhas-

san, J. K., Chiroma, H., and Dada, E. G. (2019). Sys-

tematic literature review and metadata analysis of ran-

somware attacks and detection mechanisms. Journal

of Reliable Intelligent Environments, 5(2):67–89.

Meyer, I. (2001). Extracting knowledge-rich contexts

for terminography: A conceptual and methodologi-

cal framework. In Recent Advances in Computational

Terminology, pages 279–302. John Benjamins.

Mirza, Q. K. A., Brown, M., Halling, O., Shand, L., and

Alam, A. (2021). Ransomware analysis using cyber

kill chain. In 8th FiCloud, pages 58–65.

Monika, Zavarsky, P., and Lindskog, D. (2016). Experimen-

tal analysis of ransomware on windows and android

platforms: Evolution and characterization. Procedia

Computer Science, 94:465–472.

Multi-State Information Sharing and Analysis Center

(2023). Renew your ransomware defense with cisa’s.

https://www.cisecurity.org/insights/blog/renew-you

r-ransomware-defense-with-cisas-updated-guidance.

Accessed: 2023-10-22.

Or-Meir, O., Nissim, N., Elovici, Y., and Rokach, L. (2019).

Dynamic malware analysis in the modern era—a state

of the art survey. ACM Comput. Surv., 52(5).

Oz, H., Aris, A., Levi, A., and Uluagac, A. S. (2022). A

survey on ransomware: Evolution, taxonomy, and de-

fense solutions. ACM Comput. Surv., 54(11s).

Pranshu Bajpai, R. E. (2020). Dissecting .net ransomware:

key generation, encryption and operation. Network

Security, 2020(2):8–14.

Roesiger, I., Bettinger, J., Sch

afer, J., Dorna, M., and Heid,

U. (2016). Acquisition of semantic relations between

terms: how far can we get with standard NLP tools?

In 5th Computerm, pages 41–51, Osaka, Japan.

Tatam, M., Shanmugam, B., Azam, S., and Kannoorpatti,

K. (2021). A review of threat modelling approaches

for apt-style attacks. Heliyon, 7(1):e05969.

Zagrebelsky, G. (1984). Il sistema costituzionale delle fonti

del diritto. UTET, Turin.

An Empirical Study of Ransomware Vulnerabilities Descriptions

153
