A Framework for E2E Audit Trails in System Architectures of

Different Enterprise Classes

Luca Patzelt

, Georg Neugebauer

, Meik Döll

, Sacha Hack

, Tim Höner

and Marko Schuba

Department of Electrical Engineering and Computer Science, FH Aachen University of Applied Sciences,

Eupener Str. 70, 52066 Aachen, Germany

SOPTIM AG, Im Süsterfeld 5-7, 52072 Aachen, Germany

Keywords: Auditing, Auditing Framework, Audit Trail, End-to-End Audit Trail, E2E Audit Trail, Pseudonymisation.

Abstract: In today's world, there are more and more IT systems that are interconnected to provide services to a wide

variety of business classes. Since their services are usually inevitably linked to financial and political interests,

the number of attacks aimed at disrupting or profiting from these and the associated systems in various ways

is constantly increasing. In this paper we design and implement a framework for the comprehensive auditing

of IT systems in system architectures of different enterprise classes. For our solution, we evaluate formal

requirements regarding audit trails, provide concepts for the pseudonymisation of audit data, develop software

components for E2E audit trails and finally present a secure system architecture based on Kubernetes and

Istio in conjunction with the storage components ArangoDB and HashiCorp Vault to achieve an efficient

framework for creating E2E audit trails.

1 INTRODUCTION

The constant desire of companies to automate and

optimise work processes through the introduction of

IT systems and software processes is creating an

increasingly digital world. As a result of these digital

and partly complex processes in companies, the risk

of cyber-attacks on the IT infrastructure and systems

continues to rise.

The complete logging and tracking of events in IT

systems, also called auditing, is a related and

recurring demand of companies. The aim of these

audits is to make both malicious activities by hostile

actors such as unintentional changes by legitimate

and authorised actors transparent and to support

subsequent actions.

In doing so, events should not only be considered

on one system, but linked across many different

systems. On the one hand, this would ease the tracing

of events and their origins, and on the other hand, it

would enable the possibility to detect attacks that

might remain undetected by simple audit trails. The

audit trail required for this is therefore defined as an

"E2E audit trail".

Due to the many ways in which IT systems can be

linked together, as well as the different requirements of

companies, it makes sense to look at them in terms of

auditing by company class. Here, the focus is primarily

on the three company classes "universities", "KRITIS

service providers" and "SaaS service providers".

The accumulation and processing of audit data

across various systems as an E2E audit trail therefore

has great potential to improve the security of an IT

infrastructure and the systems it contains. In this

paper we present an implementation of a framework

for E2E audit trails that enables a company to

establish such a process in its own system architecture

using the developed framework.

For our solution, we evaluate formal requirements

regarding audit trails (Section 2), provide concepts

for the pseudonymisation of audit data (Section 3),

discuss attack scenarios and suitable rule sets (Section

4), develop software components for E2E audit trails

within a secure system architecture (Section 5),

present an evaluation with an example of E2E

violation graphs (Section 6) and finally conclude our

paper in Section 7.

2 AUDIT TRAILS

The term "audit trail" is a combination of the two

750

Patzelt, L., Neugebauer, G., Döll, M., Hack, S., Höner, T. and Schuba, M.

A Framework for E2E Audit Trails in System Architectures of Different Enterprise Classes.

DOI: 10.5220/0012367000003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 750-757

ISBN: 978-989-758-683-5; ISSN: 2184-4356

words audit (from the Latin audire: to hear - in this

case an examination of processes, activities or results)

and the English word trail, and thus describes a

process which enables the tracking and named

examination of "actual or attempted actions

monitored and documented or recorded electronically

or manually or on paper during a certain period of

time" (Dr. Siller et. al, 2018).

Primarily, events and the associated meta-

information are stored in the form of audit entries as

a continuous record, often called a "log". These logs

are then usually stored centrally in a system to allow

easy tracking of results in this system. The focus is

generally on documenting changes and deletions, as

these are particularly critical events regarding IT

security attacks.

2.1 E2E Audit Trails

An "E2E audit trail" can document or track an event

across several systems and thus allows the detection

of possible anomalies between individual audit trails.

For this purpose, regular audit trails as well as other

(independent) audit messages and master data from

different systems are collected to create logical links

between them and thus correlate previously

independent results with each other.

The primary goal is to log an event from the first

instance in which a suspected malicious actor triggers

an action, e.g., an interaction with a client application

on a local end device, to the last instance, e.g., the

modification or deletion of a value or entry in a data

record of a database. At best, the complete chain of

events or all interactions between all IT systems

involved (from the user device to the database) is

recorded so that it can be analysed without gaps. This

makes it possible to detect a malicious act, e.g., by a

hostile actor, even if each individual event appears

inconspicuous by itself. Figure 1 below shows an

application example.

3 PSEUDONYMISATION

The core task of an E2E audit trail, or audit trails in

general, deals centrally with the logging or, more

generally, the processing of data. Since this often

involves sensitive or personal data, this project is

often subject to local and overarching regulations.

An essential factor in the processing of sensitive

or personal data, specifically here in Europe, is

compliance with the European Data Protection

Regulation, also known as the "GDPR". In relation to

audit trails, the anonymisation and pseudonymisation

of the data to be processed, with the aim of protecting

the personal rights of the persons concerned, is an

important part of the initial data processing. The audit

information is collected, processed and stored.

Figure 1: Difference E2E-/Audit Trail.

The fundamental difference between

"anonymisation" and "pseudonymisation" is that

personal data is irreversibly changed or removed in

anonymisation so that a person can no longer be

directly or indirectly identified. In contrast, in the

case of pseudonymisation, data are changed in such a

way that they can no longer be directly attributed to a

person and additional information is required to

assign them to a person again.

Since the possibility of linking independent

events via common identifiers is indispensable for the

evaluation of E2E audit trails, the following focuses

primarily on the pseudonymisation of audit

information, since anonymisation would make

subsequent reidentification (e.g., in the case of a

concrete security incident) impossible and thus defeat

the purpose of an audit trail.

To support the implementation of GDPR-

compliant pseudonymisation, the European Union

Agency for Cyber Security (ENISA) publishes

reports on, among others, "Techniques, Use Cases

and Best Practices" (ENISA Best Practices, 2019

ENISA Advanced Techniques, 2022) in data

pseudonymisation which we use as a guideline for

data pseudonymisation within our framework.

3.1 Hierarchical Pseudonymisation

Procedure

Regarding E2E audit trails, we have a challenging

situation with respect to pseudonymisation, as on the

one hand there is a great risk of re-identification due

to speculation, but on the other hand the ability to link

A Framework for E2E Audit Trails in System Architectures of Different Enterprise Classes

751

audit entries and identify real persons or entities in

case of concrete suspicion must be maintained.

Since these requirements cannot be met by any of

the three mutually exclusive pseudonymisation

guidelines (see ENISA references) alone, a

hierarchical or multi-level pseudonymisation

procedure is recommended for the implementation of

E2E audit trails, in which the identifiers are not purely

"deterministic", "document-randomised" or "fully

randomised", but with a combination of a

"deterministic" and a "fully randomised"

pseudonymisation. The concept of a multi-stage

pseudonymisation procedure is not new and was

described, among other things, in a white paper

revised in 2019 by Rolf Schwartmann and Steffen

Weiß, together with the Federal Ministry of the

Interior, for Construction and Home Affairs, in 2018

(Schwartmann et al., 2019).

The aim of the implementation of such a multi-

level pseudonymisation procedure developed here, is

that the data records are both persisted logically

separated from each other by many different

pseudonyms per identifier and can be linked to each

other via additional protected knowledge. When

designing such a procedure, it should also be noted

that none of the entities need to be completely

depseudonymised during processing. This should

only be necessary in cases of concrete suspicion, in

which, for example, the interest of uncovering a

concrete crime outweighs the personal rights of the

person concerned.

Finally, it is advisable to implement the

pseudonymisation procedure in such a way that it

allows distributed calculation or pseudonymisation

across several instances. This ensures that the

required computational resources can be scaled

across cluster-based environments used within our

framework.

Regarding the tooling to be used, a multi-stage

pseudonymisation procedure will be implemented

using our storage concept defined in Section 5.2.

Through its use, a complete logical separation

between an identifier and a subpseudonym is carried

out primarily with the help of the master pseudonym.

In short, the subpseudonym is chosen with the help of

a cryptographically secure pseudo-random generator,

so that any kind of cryptanalysis with the aim of

obtaining information about the identifier from the

subpseudonym is useless. By choosing the smallest

possible change interval of the subpseudonym and its

resulting constant rotation, the amount of information

per subpseudonym can be reduced to a minimum

(Schwartmann et al.). This simultaneously reduces

the ability of an attacker to carry out a speculative

attack or the use of insider and background

information to depseudonymise pseudonyms within

our system.

As protection against brute force and dictionary

attacks or the dictionary search, the use of secure key-

dependent cryptographic hash functions or key

derivation functions is recommended.

Finally, it is very important that secure data stores

are used for the persistence of the ID master mapping,

the master subsets and the audit record entries.

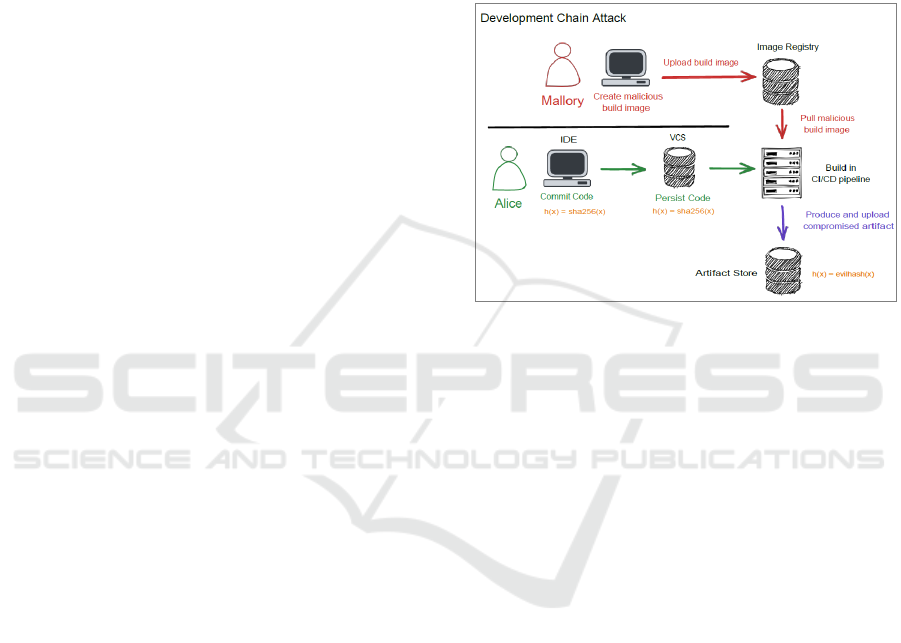

4 RULE SETS FOR ATTACK

SCENARIOS

With the aim of an E2E audit trail to detect attacks as

quickly as possible, or to reconstruct the sequence of

events, the first step is to analyse which attack

scenarios are common and where they are likely to

leave traces. Rule modules can be created for the

creation of rule sets, which can later be combined by

an E2E audit trail.

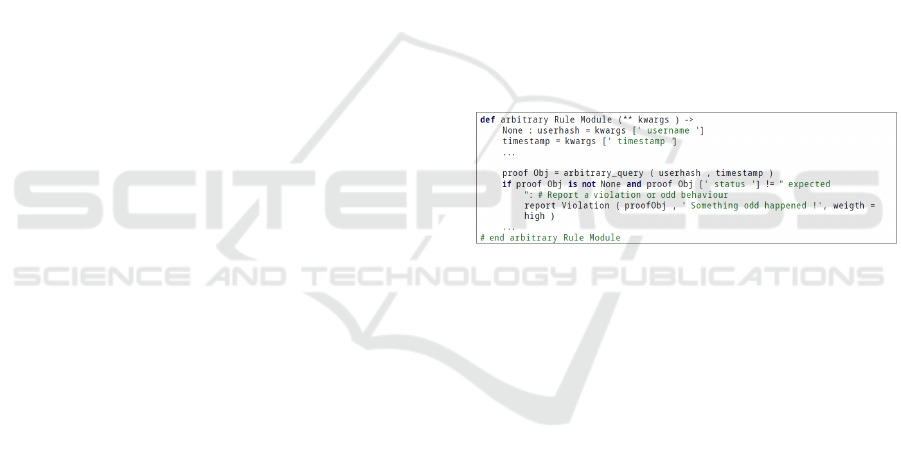

Figure 2: Arbitrary rule module.

A rule module, as shown in Figure 2, primarily

consists of an entry method (here

"arbitraryRuleModule") that takes as parameters any

data needed for the decisions to be made in the

module. Within this method, further required data

may be retrieved with the help of data bank queries

(here "arbitrary_query") to incorporate them into the

decision-making process. If a rule violation is

detected, this can be "reported" (here with

"reportViolation"), whereby a relationship between

the current entry and an evidence object, in

combination with a remark and a risk assessment, is

marked for persistence in the data storage. After all

entries have been processed, all flagged relationships

are saved as part of a transaction.

4.1 Attack Scenarios

In the following, a series of attack scenarios are listed,

as they could be encountered in all three company

classes. In addition, possible rules or pseudo code for

their use are named, with which this attack can be

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

752

recognised and, if necessary, further steps of an

attacker can be identified and thus probably

prevented.

Misuse of Authorisations by Internal Employees

According to KPMG, the role of employees in

relation to IT security in a company should not be

neglected: "The perception of misuse of a privileged

account by an internal employee ranks fifth among

cybersecurity vectors at 23% (Mihaela, L. C., 2020).

With the help of suitable auditing procedures, it is

possible to identify future security risks at an early

stage and prevent further misuse. Although the use of

an E2E audit trail does not bring any great added

value compared to a regular audit trail, it does make

it possible to cover the not directly recognisable case

of several employees joining forces intentionally or

unintentionally and carrying out undesirable actions

in a system together with their authorisations.

Development Chain Attack

A development chain attack, or DCA, is like a supply

chain attack which is characterised by the fact that an

attacker does not attempt to directly attack or

manipulate a resource, but instead directs his attack at

the "supply chain" of the resource. Here, a sub-

resource, such as an embedded dependency or a

useful resource used in the development of the

resource, such as a server, images, programmes, etc.,

are changed. This leads to the resource now using or

interacting with the manipulated sub-resource and the

attacker can thus change the behaviour of the actual

resource without having to change it directly. An

example of an attack on the development chain is

shown in Figure 3.

Here Alice is developing a very important

application that uses the hash function h(x). To ensure

that the functionality is preserved, she compares the

source code of her development environment with

that of the version management and checks the

artefact against several known inputs and outputs

after the build process.

Mallory then injects a malicious build image into

the build process, altering the internal implementation

of the hash function and allowing, for example, the

easy creation of collisions. Mallory was, of course,

clever enough to make her changes in such a way that

they could not be detected by the tests Alice

performed.

The delivery of the application to a customer, e.g.,

an operator of critical infrastructure, without a deep

check at bytecode level, now leads to the fact that the

process in which the application is used has been

compromised without this being apparent.

To detect such an attack, an E2E audit trail can now

audit every component involved in the development

and build process and show whether and when it was

changed by which person. If it is now determined that

changes have been made that were not foreseen, a

possible compromise can be uncovered and, if

necessary, a new, this time clean, build process can

be started. A set of rules for this would have to be

adapted to the components used so that it includes and

verifies all components.

Figure 3: Development chain attack, "Trusting Trust".

5 SECURE SYSTEM

ARCHITECTURE FOR E2E

AUDIT TRAILS, DESIGN AND

IMPLEMENTATION

For a secure implementation of a framework for E2E

audit trails, the first step is the secure design of a

system architecture for such a framework. Therefore,

we highlight the required sub-aspects to design such

a secure system architecture.

5.1 Requirements for a Secure System

Architecture

We start with three major requirements based on the

three enterprise classes described in the introduction.

Multi-client capability is one of the resulting

requirements, which is particularly obligatory for

KRITIS and SaaS service providers and is especially

recommended for shared infrastructures, such as at

universities, and any resulting shared auditing

systems.

On-Premises is a requirement that arises from the

need to run the software on one's own servers or the

hardware used for it in the local infrastructure. One of

A Framework for E2E Audit Trails in System Architectures of Different Enterprise Classes

753

the main reasons for this requirement is the

processing and pseudonymised storage of sensitive

and personal data that is required for later evaluation.

Transparency does not stem directly from a

requirement of a specific business clas, but from the

general need to process sensitive and personal data

within the European Union "lawfully, fairly and in a

manner comprehensible to the data subject"

(DSGVO, 2016).

5.2 Data Storage Concept

One of the main problems in implementing a

framework for E2E audit trails is the choice of the

correct or suitable storage infrastructure regarding the

storage of the collected and pseudonymised audit

entries as well as the associated pseudonym

mappings.

When looking at the expected results of an E2E

audit trail, it is noticeable that they can be represented

as a graph. Each audit entry represents a node of a

graph and the relationship between two audit entries

can therefore be represented as an edge. With this

knowledge it is obvious that a graph-oriented

database, which is based on the functionality of a

document-oriented database, has a very high potential

for storing this kind of data. For this reason, we use

the "ArangoDB" (ArangoDB, 2023) since it is well-

suited for our data storage concept as a graph

database, relatively widespread, and ships with a fully

functional basic version which is available free of

charge and enables cluster operation, which makes it

promising for a scalable implementation.

Secure Key Value Store

In addition to the storage of pure audit record entries,

the persistence of pseudonym mappings plays an

extremely important role, as sensitive and personal

data is processed or stored here in the case of the

mapping between the original value and the master

pseudonym. Therefore, secure storage and protection

is of great importance here in particular.

One of the many software solutions for storing

key-value pairs, which is a REST-based secret data

store, is "Vault" by the company HashiCorp

(HashiCorp). The decision in favour of a secret data

store can be justified from the point of view of

security. Due to its classification as a secret data store,

Vault is designed for a very high security standard

and, in addition to a range of different authentication

methods, also offers the possibility of assigning

clients their own key-value stores and creating

dedicated access policies for them. In addition, Vault

has so-called "audit devices", which can optionally

save each request to the REST interface in a file or

send it to a syslog server or a TCP, UDP or UNIX

socket. This makes it possible to seamlessly trace

every access to the data stored there and ensure that

unauthorised access to sensitive and personal data

cannot be completely ruled out but can at least be

detected with a very high degree of certainty.

As a summary, with the decision to use

ArangoDB as the storage solution for the large

number of audit record entries, as well as the

mappings between the master and subpseudonyms,

and the choice of Vault as the key value storage for

the sensitive mappings between the original values

and the respective associated master pseudonym, a

secure data storage concept is defined.

5.3 Cluster-Based System Architecture

Due to the great heterogeneity of the source systems

and the data they contain, dynamically expandable

and scalable infrastructures and processing units are

needed that can be modularly adapted to the required

systems. As already mentioned in the previous

sections, a virtualised cluster environment is

recommended for the implementation of a secure

system architecture, which allows the most diverse

components to be logically separated from each other

with the help of ACL-like constructs.

Figure 4: Structure of our E2E framework.

One software component that can meet these

requirements is the free and world-leading container

orchestration software "Kubernetes" ("K8s")

(Kubernetes, 2023), which in combination with a so-

called "service mesh", in this case "Istio" (Istio,

2023), enables the construction of a secure cluster

infrastructure. This is specially designed for the

provisioning and administration of containers, i.e.,

applications whose executable files, resources and

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

754

dependencies are accumulated in a memory image

and can be executed very efficiently on a compatible

operating system.

The "service mesh", in this case various Istio

components, establishes a policy-based management

for all managed applications in the cluster and thus

enables the monitoring of all network processes as

well as the management of data traffic between the

applications and their protection. Figure 4 shows a

possible structure of such a data centre and cluster

architecture.

Figure 5 shows how different components that are

required for the processes of an E2E audit trail can be

combined. With the help of Istio, full encryption via

mTLS is possible within the cluster.

Figure 5: Kubernetes cluster with Istio.

Istio also provides various types of guidelines that

make it possible to isolate the components in the

illustration, visible by the arrows, from each other and

to control the data flow between them in a fine-

grained way. The most important types of guidelines

and configurations are:

Gateway Configuration

A gateway is a virtual definition of a load balancer,

which acts at the network edge of the service mesh.

The gateways describe how incoming and outgoing

HTTP/TCP connections are to be handled.

Virtual Service Configuration

The configuration serves as a virtual switch

component between gateways and services (SVC)

and between services themselves and is applied to the

proxies of the individual pods. It primarily specifies

how to route between two components.

Destination Rules

Following the routing decision by the upstream

"Virtual Service Configuration", this rule now

determines how the traffic to the destination is to be

handled in more detail. The topic of load distribution

and its procedures, e.g., round robin, plays an

important role here.

Authorisation Policies

The core competence of this guideline lies in making

authorisation decisions. Primarily, the following W-

questions are asked: "Who" may interact "when" with

"whom" under "which" conditions "how"?

Peer Authentication Policies

Finally, it is essential to define this policy at least per

namespace, a logical grouping of resources, if not for

each group of pods to be defined, as it specifies how

or whether which traffic from which port is to be

secured.

Summary

Figure 5 therefore shows a secure system architecture

that can be used in all three corporate classes

presented in Section 2. The guidelines can be adapted

exactly to the respective requirements.

Regarding the major requirements defined in this

section, all three can be fulfilled. The requirement of

multi-client capability results from the data storage

and the stateless functioning of the other components,

apart from the cache of the mappings between the

original values and the respective associated master

pseudonym in the cryptographic APIs. Due to the

cluster-based structure of the system architecture,

operation in the cloud as well as on-premises is

possible, which also fulfils this requirement. Finally,

there is the demand for transparency, which shows

through clear guidelines based on Istio at which

points data may flow from one point to another.

6 EVALUATIONS

In the following, we show the evaluation based on

E2E result graphs computed by our framework using

the computation workers described before. By

combining several rule modules and their database

queries a computation worker can relate audit data to

each other (e.g., "A violates B" or "C uses D") via a

processor. The set of these relationships (edges)

together with the entries of the audit data (vertices)

Figure 6: Violation graph for software delivery.

A Framework for E2E Audit Trails in System Architectures of Different Enterprise Classes

755

form a graph. Using attributes of the edges (e.g.,

identifier, colour, weighting, etc.), statements can

now be made about a complex interrelated process.

The ViolationProcessor of our framework

provides so-called "violation graphs", as shown in

Figure 6, which have directed edges from a source

entity to an evidence entity that proves the rule

violation. An example of an evidence entity could be

an entry in an attendance log showing that an

employee was not logged in at the time of an event

(source entity). However, it should always be noted

that a rule violation does not directly equate to a

danger, an attack or an intentional rule violation,

since, for example, forgetting to log in can lead to

false positives regarding an actual risk. Using key

performance indicators, an aggregated risk

assessment can additionally be given via this graph,

which could be an indicator for the urgency of an

investigation.

In the case of the graph in Figure 6, exemplary

violations are shown using a release event in a source

code administration. The first thing to notice is that

the last event in the attendance record (CRC hash:

8f2642b5) is a logoff. This means that the person was

not logged in at that time (01.02.2023 18:36:01).

Secondly, a holiday entry is found that covers exactly

this time period (28.01-02.02.2023). Finally, the

device used (CRC hash: 32f20be4) is compared with

the data of the inventory management (CRC hash:

da07bbd9), whereby it can be determined that the

person used a device that is known but not assigned

to him (CRC hashes of his devices: (9f0c3cf0,

eb5a056f)). The colours of the arrows, in combination

with the "scores", indicate the risk assessment

regarding this relationship.

Risk Score: For our framework, we used a weighted

sum function because it is cubed for large values and

increases faster than for small ones, but the sum

remains comparable for the set of values in the sample

data. Based on the set of relationships and

corresponding values in the resulting graphs, it may

make sense to evaluate the use of another function.

As a second type of result graph, the E2E

processor of our framework provides "E2EGraphs",

as can be seen in Figure 7, which show all

relationships of all entities, not only those that violate

rules. This type of graph is therefore particularly

suitable for the end-to-end tracking of events and

makes it possible to quickly and intuitively get an

overview of all the components involved in an event

and their relationships to each other. Through

different colours and weights of the edges of the

graphs, the observer can now directly recognise

which relationships in this graph are positive, neutral

or negative. At the same time, the thickness of an

edge, i.e., it’s the weighting or the risk value, the user

can get a feeling for how critical a certain relationship

is. This can be seen particularly well in Figure 7,

which shows three large red arrows with a high risk

value, two medium-thick yellow arrows with a

medium risk value, and three thin green arrows with

a non-existent risk value.

Figure 7: E2E graph for software delivery.

Based on key indicators, or threshold values of the

key indicators, for the graph types, an evaluation

process can now be carried out, which can constantly

trigger notifications and external actions. The key

figures can also be generated directly from the data

storage by database queries, so that this should also

be possible for many graphs in an acceptable time.

Graphs without weights, i.e., events without

relationships, are filtered out, as no key performance

indicators need to be calculated for them. Finally, the

risk score is calculated by first cubing and dividing all

weights. This query then returns the event identifier,

the highest risk value and the risk score by summing

up the pre-calculated individual values of the

corresponding graph. Downstream actions could

include the creation of a support ticket, the temporary

blocking of a user or their traffic, and the complete

isolation of a system.

7 CONCLUSIONS

In this paper, we presented the design and

implementation of our framework for E2E audit trails

in system architectures of different enterprise classes.

Using our framework as an example, it was possible

to show how audit log data from different systems can

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

756

be imported, processed and prepared in the form of

directed and weighted graphs by combining different

components. These graphs now form the basis for

detecting attacks on IT systems with the help of end-

to-end tracking. Due to the very modular structure of

the framework and the associated plug-ins and rule

modules, it can be adapted to the different

requirements of the enterprise classes and associated

system architectures (see Section 2). By classifying

all source systems to be connected, requirement

profiles can be defined for a group of systems, which

then enable the systems to be connected via a

common or unified ingest process. User-defined rule

modules for different types and patterns of attacks, as

described in Section 3, then enable a meaningful

linking of the data and a fine-grained tracking of rule

violations. The use of intelligent systems or

knowledge databases can have a supporting effect

here.

The entire process uses a multi-level or

hierarchical pseudonymisation procedure (see

Section 3) that protects the personal data of clients,

employees, students or other persons from whom data

is collected. Based on the policies of the enterprise

classes, the data store allows, for example, the simple

deletion of data of a client that is older than x days.

As the graphs are based directly on this data, they can

be deleted together with the data without the risk of a

hanging reference.

By using realistic data formats in the design of the

sample data used, related to the expected formats of

real data and log data of industry-standard Software

based on information and requirements from industry

cooperation’s, it has already been shown that the

result graphs have a high potential to detect real and

sophisticated attacks within industry.

REFERENCES

ArangoDB (2023), ArangoDB Inc. Graphenda

tenbanksoftware. Version 3.9.7. URL: https://

github.com/arangodb/arangodb/tree/3.9.7, visited on

23/10/2023

DSGVO (2016) - VERORDNUNG (EU) 2016/679 DES

EUROPÄISCHEN PARLAMENTS UND DES

RATES (2016) - vom 27.4.2016 (Amtsblatt L 119 vom

4.5.2016, S. 1, ber. Amtsblatt L 314 vom 22.11.2016,

S. 72, Amtsblatt L 127 vom 23.5.2018, S. 2). URL:

https://eur-lex.europa.eu/legal-content/DE/TXT/PDF/?

uri=CELEX:32016R0679

ENISA Best Practices (2019), European Union Agency for

Cybersecurity u. a. Pseudonymisation techniques and

best practices: recommendations on shaping technology

according to data protection and privacy provisions.

Hrsg. von I Agrafiotis, A Bourka und P Drogkaris.

Publications Office, 2019. DOI: 10.2824/247711.

ENISA Advanced Techniques (2022), European Union

Agency for Cybersecurity u. a. Data pseudonymisation

: advanced techniques and use cases : technical analysis

of cybersecurity measures in data protection and

privacy. Hrsg. von P Drogkaris und A Bourka.

European Union Agency for Cybersecurity, 2022. DOI:

10.2824/860099.

HashiCorp (2023), HashiCorp. Vault. Geheimnisda

tenspeicher. Version 1.12.2. URL: https://github.com/

hashicorp/vault/tree/v1.12.2, visited on 23/10/2023

Istio (2023), Cloud Native Computing Foundation. Istio.

Kubernetes Service-Mesh. Version 1.16.1. URL:

https://istio.io/latest/news/releases/1.16.x/announcing-

1.16.1/, visited on 23/10/2023

Kubernetes (2023), Cloud Native Computing Foundation.

Container-Orchestrierungssoftware. Version 1.24.6.

URL: https://github.com/kubernetes/kubernetes/tree/

v1.24.6 visited on 23/10/2023

Mihaela, L. C. (2020) „Current security threats in the

national and international context“. In: Journal of

Accounting and Management Information Systems

19.4 (2 2020), S. 351–378. ISSN: 1583-4387. DOI:

10.24818/jamis.2020.02007.

Ping C., Lieven D. and Christophe H. (2014). „A Study on

Advanced Persistent Threats“. In: Communications and

Multimedia Security. Hrsg. von Bart De Decker und

André Zúquete. Berlin, Heidelberg: Springer Berlin

Heidelberg, 2014, S. 63–72. ISBN: 978-3-662-44885-

4. DOI: 10.1007/978-3-662-44885-4_5.

Schwartmann R. and Weiß S. (2019), Anforderungen an

den datenschutzkonformen Einsatz von

Pseudonymisierungslösungen. Version 1.01. 2019.

URL: https://www.gdd.de/downloads/anforderungen-

an-datenschutzkonforme-pseudonymisierung visited

on 23/10/2023

Dr. Siller Betriebsberatung and Training Prof. (FH) Mag.

Dr. Helmut Siller MSc. (2018), „Audit Trail“. In:

Gabler Wirtschaftslexikon 53401.276494 (2018). URL:

https://wirtschaftslexikon.gabler.de/definition/audit-

trail-53401/version-276494, visited on 23/10/2023

Weir G. et. al (2017) „Cloud accounting systems, the audit

trail, forensics and the EU GDPR: how hard can it be?“

In: British Accounting & Finance Association (BAFA)

Annual Conference 2017.63134/

Wheeler D. A. (2005), „Countering trusting trust through

diverse double-compiling“. In: 21st Annual Computer

Security Applications Conference (ACSAC’05). 2005,

13 pp.–48. DOI: 10.1109/CSAC.2005.17.

A Framework for E2E Audit Trails in System Architectures of Different Enterprise Classes

757
