Incorporating Temporal Information into 3D Hand Pose Estimation

Using Scene Flow

Niklas Hermes

1,2

, Alexander Bigalke

and Mattias P. Heinrich

Institute of Medical Informatics, L

ubeck University, Germany

Gestigon GmbH, L

ubeck, Germany

Keywords:

Deep Learning, Hand Pose Estimation, 3D Point Clouds, Tracking, Temporal Information, Scene Flow.

Abstract:

In this paper we present a novel approach that uses 3D point cloud sequences to integrate temporal informa-

tion and spatial constraints into existing 3D hand pose estimation methods in order to establish an improved

prediction of 3D hand poses. We utilize scene ﬂow to match correspondences between two point sets and

present a method that optimizes and harnesses existing scene ﬂow networks for the application of 3D hand

pose estimation. For increased generalizability, we propose a module that learns to recognize spatial hand

pose associations to transform existing poses into a low-dimensional pose space. In a comprehensive evalu-

ation on the public dataset NYU, we show the beneﬁts of our individual modules and provide insights into

the generalization capabilities and the behaviour of our method with noisy data. Furthermore, we demonstrate

that our method reduces the error of existing state-of-the-art 3D hand pose estimation methods by up to 7.6%.

With a speed of over 40 fps our method is real-time capable and can be integrated into existing 3D hand pose

estimation methods with little computational overhead.

1 INTRODUCTION

3D human hand pose estimation is becoming increas-

ingly important especially in the ﬁelds of virtual or

augmented reality, as it enables an intuitive way for

a human-machine interaction and provides a realis-

tic user experience (Buckingham, 2021). In this way,

interaction possibilities such as the use of gesture lan-

guage (Nielsen et al., 2004) or object manipulation

(Buchmann et al., 2004) can be brought into appli-

cations. The use of 3D point clouds has the general

advantage of being more independent from the cam-

era setup, for example the data of multiple depth sen-

sors can be fused in a dense 3D point cloud (Hu et al.,

2021) and thus be used.

Earlier approaches attached gloves or additional

sensors to the user’s hand to obtain precise data for

estimating the hand pose (Wang and Popovi

c, 2009;

Ma et al., 2011) with the disadvantage that this also

entails a restriction in the movement of a user. This

led to the development of purely image-based meth-

ods for hand pose estimation, which advanced sig-

niﬁcantly with the progress of deep learning (Chatzis

et al., 2020). A successful but error prone approach is

to predict the pose of a hand at an individual point in

time (Zhang et al., 2020; Rezaei et al., 2023). While

performant, the largest remaining challenge for these

methods is to deal with frequently occurring self-

occlusions (Barsoum, 2016), which make it difﬁcult

to determine the hand pose precisely and negatively

inﬂuence human-machine interaction.

The integration of temporal information is one

way to remedy this problem, as it enables to propa-

gate information from previous frames in which the

presently occluded parts were visible. Different ap-

proaches to determine temporal correspondences in a

scene already exist and are currently being actively

researched. Scene ﬂow methods analyze the motion

of a scene given by a sequence of 3D point clouds

and enable a more comprehensive understanding of

the dynamics in the scene (Gu et al., 2019; Mittal

et al., 2020). While these methods can accurately esti-

mate point-wise correspondences, it remains unclear

and has not been investigated yet how 3D pose esti-

mation can beneﬁt from scene ﬂow.

We strongly believe that incorporating temporal

information to pose estimation methods in the form of

scene ﬂow is a key to overcome the occlusion prob-

lem and achieve accurate pose predictions. Therefore

we propose, to our knowledge, the ﬁrst network that

simultaneously estimates skeleton scene ﬂow and 3D

hand poses. Given the frame-wise predictions of an

286

Hermes, N., Bigalke, A. and Heinrich, M.

Incorporating Temporal Information into 3D Hand Pose Estimation Using Scene Flow.

DOI: 10.5220/0012361400003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 4: VISAPP, pages

286-294

ISBN: 978-989-758-679-8; ISSN: 2184-4321

arbitrary pose estimator, the key idea is to analyze

the motion of the bone structure between consecu-

tive points in time with a scene ﬂow module to im-

prove the pose predictions of the estimator. Particu-

larly noteworthy is the independence of our method

in the choice of networks used to determine the scene

ﬂow and to estimate the initial hand pose. Thus, it is

agnostic to a speciﬁc implementation choice, makes

use of pretrained models and can continue to bene-

ﬁt from the future development of both ﬁelds by ex-

changing them against newer networks.

In the following, we brieﬂy summarize the main

contributions of this work.

• Proposal of a new network that combines the in-

formation in a 3D point cloud sequence to im-

prove existing per-frame pose predictions. Once

trained, the network can be used out of the box to

improve new per-frame pose prediction methods.

• Proposal of a new module that learns spatial

pose relations and transfers poses into a lower-

dimensional space to increase the generalization

capabilities of a network.

• Introduction of a method that optimizes existing

scene ﬂow prediction networks to track pose key-

points based on the ﬂow.

• Exclusive evaluation on a publicly available hand

dataset to demonstrate the accuracy of our method

and to obtain new insights in 3D hand pose esti-

mation.

Besides the convincing qualitative results of our

method, we demonstrate its generalization capabili-

ties in a comprehensive evaluation and show that we

achieve signiﬁcant improvements for 3D hand pose

estimation.

2 RELATED WORK

In this section we brieﬂy summarize previous work

in the area of incorporating temporal information into

pose estimation, which is most related to this work.

3D Pose from Single Frames. Besides the methods

that employ depth maps (Moon et al., 2018; Xiong

et al., 2019), there are also some existing methods

that use 3D point clouds to estimate the hand pose

frame-by-frame. Some approaches use PointNet (Qi

et al., 2016) layers in a hierarchical structure to cap-

ture local and global features to regress the hand pose

(Ge et al., 2018b; Ge et al., 2018a). Another method

(Hermes et al., 2022) extends the hand point cloud by

support points to then extract features through graph

CNNs (Wang et al., 2018) to determine the hand pose.

A further approach to extract features in point clouds

are Residual Permutation Equivariant Layers (Li and

Lee, 2019). In their work, point-wise poses are pre-

dicted and then the ﬁnal pose is determined by voting.

3D Hand Tracking. An existing 3D hand tracking

approach (Chen et al., 2022) regresses the hand po-

sition for a current hand point cloud by updating the

previous pose estimate. The previous pose is used to

determine a global hand pose based on which a trans-

formation of all point clouds in a canonical space is

performed. This, in turn, is used to extract features

and thus determine the current pose. Since this is a

tracking method, the main idea is to transform an al-

ready found previous pose to the currently available

data in the best possible way, which is different from

our goal to create an improved pose estimate based on

previous data.

Optical Flow-Based Pose Estimation. Other exist-

ing methods use the information extracted by optical

ﬂow to achieve an improved pose estimate (Alldieck

et al., 2017; Liu et al., 2021). The computation of op-

tical ﬂow is a well-established technique to estimate

the motion of pixels between consecutive frames in

an image sequence. By analyzing the displacement of

pixels, valuable information about the movement and

velocity of objects within the scene can be obtained.

An option is to use graph geodesic distances to es-

tablish correspondences between the 3D positions of

human joints (Schwarz et al., 2012). This spatial in-

formation is combined with the temporal information

that is extracted from intensity images using optical

ﬂow in order to reﬁne the detected landmarks and thus

to create a pose estimate by ﬁtting a skeleton body

model. A two-way improvement of pose and opti-

cal ﬂow estimation represents another method (Arko

et al., 2022). First, the pose is used to ﬁne-tune the

optical ﬂow estimation to better ﬁt the human pose.

With this optimized ﬂow an improvement of the pose

can be achieved in return. Since optical ﬂow can only

be estimated on 2D grid data, the application of these

methodologies to 3D point clouds is not directly pos-

sible.

Scene Flow Estimation. One way to analyze the mo-

tion and dynamics of a scene given by 3D point clouds

is to estimate the scene ﬂow. Scene ﬂow methods

(Liu et al., 2019; Li et al., 2021; Wang et al., 2021)

predict the correspondences of the points of two 3D

point clouds captured at two successive points in time.

However, it has never been used in 3D hand pose es-

timation and it is uncertain until now how the pose

estimation can beneﬁt from this information.

Incorporating Temporal Information into 3D Hand Pose Estimation Using Scene Flow

287

Figure 1: Overview of the presented network. The previous estimate P

i−1

is extend by bone points and fed into a Spatial

Reﬁnement module (SR) with the previous cloud. The result is fed into a Temporal Reﬁnement module (TR) together with

both the current and previous point clouds C

and C

i−1

. After a consecutive spatial reﬁnement, the ﬁnal pose estimate is

generated in a weighting module.

3 METHOD

Pose tracking deals with the detection of speciﬁc key-

points, given a sequence of temporally consecutive vi-

sual data. In the 3D case, we assume the consecutive

acquisition of the object to be tracked at N ∈ N time

points t = {t

, ...,t

} which leads to a sequence of

point clouds C = {C

, ...,C

} with C

∈ R

×3

. Fur-

thermore, we deﬁne t

as the current point in time,

thus the times t

with i < N have already passed. The

objective is to ﬁnd the 3D positions of the keypoints

∈ R

×3

at the current time t

, using the informa-

tion of the whole sequence:

= ϕ(C ). (1)

As we want to improve the estimation of an exist-

ing pose estimator, we further assume that an already

trained network ρ is available, which computes a pre-

diction of the keypoints, given a single point cloud

ρ(C

) = P

with P ∈ R

×3

. Our network τ(C

N−1

)

processes two consecutive frames at a time, allowing

the entire sequence to be processed by executing the

model sequentially.

Figure 1 shows a general overview of our model.

First, the previous pose estimate P

i−1

is extended by

points that are supposed to represent the bone struc-

ture by constructing a connection graph and deﬁn-

ing equidistant points on the connections. The pose

data is then converted into a more plausible shape in

the Spatial Reﬁnement (SR) module. The constrained

pose is transferred to the current point in time with ad-

ditional input of the current data within the Temporal

Reﬁnement (TR) module. After penalizing unrealistic

poses again in another SR module, the pose to be out-

put is determined by conﬁdence-based weighting of

the improved pose and the existing estimate. Concep-

tually, our network thus consists mainly of two mod-

ules, which are intended to establish spatial as well

as temporal correspondences to improve a given pose

estimate. Both modules will therefore be described in

more detail hereafter.

3.1 Spatial Correlation Regression

Many of the existing hand pose estimation methods

learn to determine keypoints without directly con-

straining the correlation between anatomically impor-

tant points. To address this issue, we present a Spatial

Reﬁnement (SR) module which estimates an anatom-

ically reasonable pose, given any point cloud C

with

an existing prediction P

. Conceptually, the module is

based on the principle of Principal Component Anal-

ysis (PCA), extended by a conﬁdence measure in or-

der to keep already good predictions. An overview

is shown in Fig. 2. The upper branch of the visual-

ization shows the generation of the anatomically rea-

sonable pose estimate. First, the local features of the

point cloud are extracted at the speciﬁc keypoints. As

in PointNet++ (Qi et al., 2017), the neighborhood in

the point cloud is determined for each keypoint and

the features of the local regions are extracted using

successive PointNet (Qi et al., 2016) convolutions.

In a next step, all keypoints are themselves deﬁned

as neighborhoods for each individual keypoint and

translated into new features through further succes-

sive convolutions. This ensures to also capture global

features of the predicted pose. A subsequent abstrac-

tion layer outputs a single feature vector of the pose

which is used within multiple linear layers to estimate

weights for a given set of principal components. Mul-

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

288

Figure 2: Overview of the Spatial Reﬁnement module. 1.)

Given a point cloud C

and 2.) the corresponding keypoint

predictions P

, 3.) cloud features are generated using each

keypoints closest neighbors in the point cloud. 4.) The re-

sulting features are extended by a new dimension that con-

tains all other keypoint features, resulting in keypoint-to-

keypoint features after multiple convolutions. In a last step

these features are converted into weights which are mul-

tiplied with the principal components to output a suitable

pose Ψ. This pose is linearly interpolated with the existing

prediction using the weights from the Keypoint Conﬁdence

module.

tiplying these weights with a set of the most important

principal components results in an anatomically plau-

sible pose estimate Ψ. By using only a subset of the

principal components the resulting pose is transferred

into a lower-dimensional pose space to avoid unnatu-

ral hand pose outliers.

The lower branch of the visualization shows the

generation of conﬁdence values for the existing pre-

diction. As in the upper branch, the nearest neigh-

bors in the point cloud are determined for each key-

point in order to extract local features through subse-

quent convolutions. The local features are clamped

into conﬁdence values between 0.01 and 1 by a lin-

ear layer. At this point, we prevent conﬁdence val-

ues of 0 to avoid getting stuck in local extrema. The

conﬁdence values are used for linear interpolation be-

tween the initially predicted keypoints P

and the re-

ﬁned pose Ψ, resulting in a ﬁnal pose estimate Φ.

By transferring the existing pose into a lower di-

mensional space learned by PCA, a restriction of the

possible keypoint positions explicitly accompanies it.

In the deﬁnition of the loss function to be optimized,

we further restrict the space of possible poses and re-

quire that the bone structure of the resulting pose is

anatomically correct and that the 3D positions of the

keypoints match the ground truth.

Let

P ∈ R

×3

be the ground truth

3D positions of the keypoints and further

B = {(h, j) | h, j ∈ 1, ...,N

with h ̸= j} a set of

index tuples for spanning a bone vector with

− P

. Then we deﬁne

bones

(P,

P) =

|B|

∑

i=1

∥(P

− P

) − (

−

)∥

(2)

as a bone loss function which enforces that the bone

vectors of the resulting pose correspond to the ground

truth without taking into account the correct position

in space. We further deﬁne

position

(P,

P) =

∑

i=1

∥P

−

∥

(3)

as position loss function that ensures that the 3D posi-

tions of a given prediction P are correct. This results

in the following loss function to be minimised for the

network:

spatial

(Ψ, Φ,

P) = αL

bones

(Ψ,

P) + βL

position

(Ψ,

(4)

+ βL

position

(Φ,

P),

with the hyperparameters α, β ∈ R, that weigh the

bone loss against the spatially constrained pose esti-

mate Ψ and the interpolated resulting pose Φ.

3.2 Temporal Correlation Regression

One of the biggest difﬁculties with pose estimation

is the occlusion of important parts of the object.

This issue is particularly prominent in the determina-

tion of hand poses and constitutes a major challenge.

We present the Temporal Reﬁnement (TR) module to

tackle this problem. If an important part of the ob-

ject is occluded at the current time t

, then we as-

sume that the part was visible at a previous point in

time. The aim of this module is to transfer the in-

formation from previous frames to the current time in

order to compensate for the missing information of

the hidden structure and to ensure a more precise de-

termination of the pose. An overview of the module is

visualized in Fig. 3. Given two successively captured

point clouds C

i−1

and C

, as well as their correspond-

ing pose predictions P

i−1

and P

, the module outputs

an improved pose estimate Θ that contains the tempo-

ral information of both points in time. This is based

on a scene ﬂow network, which determines the corre-

spondences between the previous pose and the current

prediction, subject to a small error. To better represent

the skeletal structure of the object, we extend the pre-

vious pose P

i−1

by points that lie on the bone vectors.

Subsequently, the additional points are combined with

the point cloud and the scene ﬂow is determined. The

scene ﬂow can then be used to compute a new pose

estimate by adding P

i−1

and the corresponding ﬂow

Incorporating Temporal Information into 3D Hand Pose Estimation Using Scene Flow

289

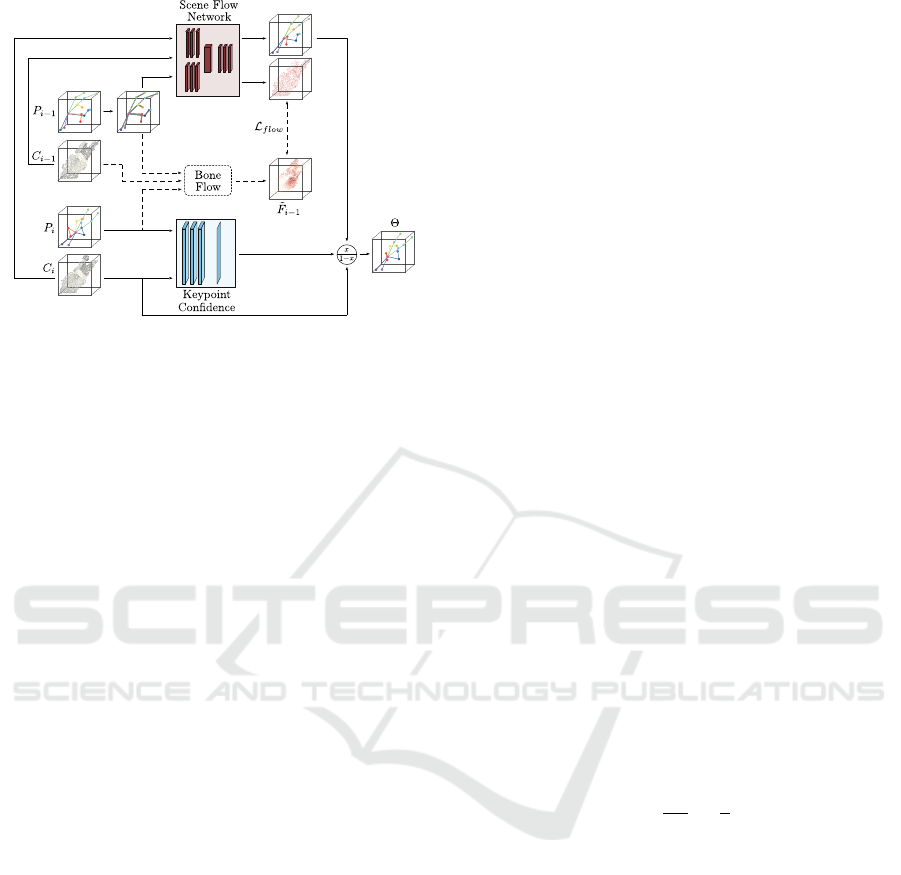

Figure 3: Structure of the Temporal Reﬁnement module that

receives two successively captured point clouds C

i−1

and C

as input and the corresponding pose predictions P

i−1

and P

The predictions of the earlier captured cloud are extended

by points that lie on bone vectors and fed into the scene ﬂow

network, together with both clouds. The scene ﬂow net-

work in turn outputs the ﬂow of the earlier point cloud and

a new pose estimate which is the addition of the ﬂow and

the prediction P

i−1

. The ﬁnal pose estimate Θ is received

by linear interpolation between the new pose estimate and

prediction P

, using the conﬁdence values of the Keypoint

Conﬁdence module. During training, a reﬁned bone ﬂow

i−1

is computed that integrates the movement of the bones

of the object to be tracked. This process is visualized with

dashed lines.

subset. To prevent existing correct estimates from be-

ing discarded, we use estimated conﬁdence values as

in the Spatial Reﬁnement module to linearly interpo-

late between the existing prediction P

and the new

pose estimate and receive a temporal reﬁned pose es-

timate Θ.

Bone ﬂow. A crucial part of the module is that

the scene ﬂow network is optimized to recognize the

movement of the skeleton in particular. We there-

fore propose a bone ﬂow reﬁnement process during

the training, which is visualized by the dashed lines.

An existing method already optimizes optical ﬂow us-

ing 2D body pose predictions and computing a pixel-

wise ﬂow of a stick-man, which is integrated into the

ground truth optical ﬂow (Arko et al., 2022). Since

we do not use camera data throughout the method and

thus no projected 2D predictions are available, the

method is not readily applicable. We therefore pro-

pose to extend the same methodology for 3D poses.

We assume that the predictions P

can be used to

construct a bone-like graph consisting of bone vec-

tors. For each of these vectors we specify an anatomi-

cally suitable third keypoint to construct a coordinate

system using the cross product. For two predictions

i−1

and P

we obtain the sets of bone vectors B

i−1

and B

as well as the corresponding coordinate sys-

tems. Let the point cloud C

i−1

and the corresponding

ground truth scene ﬂow

i−1

be given. The following

process produces a bone-motion speciﬁc ﬂow

i−1

1. For each point of the cloud C

i−1

ﬁnd the closest

bone vector in B

i−1

2. Translate each point to the current point in time i

by transferring it into the coordinate system that

belongs to the closest bone vector. Afterwards

transfer it back to world coordinate system but

using the coordinate system of the corresponding

bone vector from B

3. Compute the bone ﬂow as vectors from the points

towards their translated positions.

4. Linearly interpolate between the bone ﬂow and

the ground truth ﬂow

i−1

, where the distances of

the points to the closest bone vectors are used to

compute weights for interpolation.

To accommodate this revised ﬂow in training, a suit-

able loss function must be selected. The requirements

for a loss function to be optimized during training are

that the ﬂow network outputs the improved ﬂow, as

well as that the 3D positions of the keypoints of the

resulting pose Θ are correctly determined. We there-

fore deﬁne the loss as:

temporal

(Θ, F,

F) = L

position

(Θ,

) + λL

f low

(F,

F),

(5)

with the adjusting scalar λ ∈ R, the network’s pose es-

timate Θ, the estimated ﬂow F, the ground truth key-

point positions

and the reﬁned bone ﬂow

F. We

further deﬁne the ﬂow loss as:

f low

(F,

F) =

|F|

∑

i=1

∥F

−

∥

(6)

The data terms Eq. (4) and Eq. (5) of the presented

modules lead to a convex optimization model to be

minimized during training.

4 EVALUATION

In this section, we provide a comprehensive analysis

of our method by conducting a quantitative evalua-

tion.

Dataset. To the best of our knowledge, the most

widely used datasets for evaluating per-frame 3D

hand pose estimation methods are NYU (Tompson

et al., 2014), MSRA (Sun et al., 2015), and ICVL

(Tang et al., 2014). Since the MSRA dataset is less

informative due to some erroneous annotations (Ge

et al., 2018b) and a saturation of average joint errors

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

290

in the ICVL dataset (Wan et al., 2018), this evaluation

is limited to the NYU dataset. Moreover, the NYU

dataset contains more complex movements, making it

the most challenging of the three datasets (Chen et al.,

2018). It provides depth data of hands and ground

truth 3D positions of 42 keypoints of the hand. How-

ever, we stick to the common practice for hand pose

estimation methods and use only 14 keypoints (Wan

et al., 2018; Ge et al., 2018b; Hermes et al., 2022).

For training, 72K frames in 34 sequences are avail-

able and the evaluation is carried out on 8K frames

in 14 sequences. It should also be mentioned that we

do not use the depth data at any time, but only point

clouds with 1024 points extracted from it.

Implementation Details. For training of the modules

we constantly use the adjusting scalars α = β = λ = 1,

as well as an Adam (Kingma and Ba, 2014) opti-

mizer with an initial learning rate of 0.001. The Spa-

tial Reﬁnement module was always trained indepen-

dently with initial learning rate 0.0001. Both mod-

ules were trained using a batch size of 16 for a total

of 40 epochs. During the tests we focus on a single

network for the calculation of the scene ﬂow, in or-

der to be able to exclude the factor of different quality

grades in the scene ﬂow determination. Therefore we

follow an existing work (Hermes et al., 2023) and se-

lect a pre-trained FLOT (Puy et al., 2020) network to

determine the scene ﬂow, due to its ability to handle

deformations well. Furthermore, we refer to their ap-

proach and use the 42 keypoint positions to calculate

a ground truth scene ﬂow. All trainings and evalua-

tions were run on a PC with a GeForce® GTX 1080

Ti GPU.

Metrics. As a measure of error, we consistently use

the widely used Average End Point Error (EPE) to

ensure comparability with previous work.

4.1 Impact of Scene Flow Reﬁnement

In a ﬁrst ablation study we investigate the inﬂuence

of the proposed bone ﬂow reﬁnement process. We

performed the following experiments on the NYU

dataset, using only a subset of the training set. As

per-frame pose prediction we used the results of the

support points-based method (Hermes et al., 2022),

that achieves an EPE of 9.44 mm.

Two successive point clouds with their corre-

sponding pose predictions were used as input to im-

prove the 3D keypoint positions of the temporally

more recent acquisition. Table 1 provides an overview

of the results. The trained FLOT network was used

as baseline to determine the scene ﬂow of the con-

catenation of the point cloud and the predictions of

the previous frame. The addition of the previous pose

Table 1: Results of various experiments with the presented

bone ﬂow reﬁnement process. Training and testing was per-

formed on the NYU dataset using the support points-based

hand pose predictions. The trained scene ﬂow network was

chosen as baseline without further optimization.

Method EPE [mm]

per-frame 9.48

common ﬂow 9.92

↑4.6%

reﬁned ﬂow 9.65

↑1.8%

reﬁned ﬂow + distance weights 9.32

↓1.7%

reﬁned ﬂow + learned weights 9.07

↓4.3%

with the scene ﬂow results in the new hand pose. This

methodology achieves an EPE of 9.92 mm and thus

even degrades the per-frame prediction by 4.6%.

Optimizing the scene ﬂow network with the bone

ﬂow reﬁnement process improves the baseline results

by 0.27 mm, but still results in higher errors as the

per-frame predictions.

Assuming speciﬁc keypoints are estimated well,

only the improved keypoints should inﬂuence the re-

sulting pose. A weighted averaging between existing

and improved pose addresses this issue. One poten-

tial weighting method is based on the Euclidean dis-

tance of the keypoints to the point cloud, serving as

a measure of occlusion. This methodology achieves

an error of 9.32 mm and thus improves the per-frame

prediction by a small amount. Finally, we learned the

weights during training rather than determining them

algorithmically, yielding the lowest error and improv-

ing the existing per-frame prediction by 4.3%.

The experiments have thus shown that the pre-

sented bone ﬂow reﬁnement process improves the

usual scene ﬂow for tracking a pose. Furthermore,

they show that scene ﬂow is well suited for tracking

certain keypoints, especially occluded keypoints with

missing information. If enough information is avail-

able for the position of a keypoint, per-frame pose

prediction is superior.

4.2 Hand Pose Estimation on NYU

Dataset

This experiment shows the different contributions of

the presented modules of our network. We refer to

per-frame predictions of different methods for a quan-

titative evaluation and analyze the behavior of our net-

work in the presence of noisy pose estimates as inputs.

Furthermore, we check the behavior of our proposed

method when only little training data is available.

The different modules as well as the whole net-

work were trained using the predictions determined

by the support points-based network. Evaluation was

additionally performed on the pose predictions of P2P

Incorporating Temporal Information into 3D Hand Pose Estimation Using Scene Flow

291

Table 2: EPE [mm] evaluation on the NYU dataset. The

training is based on the predictions from the support points-

based method, while evaluation was performed with the in-

formation of ﬁve frames using the predictions of various

hand pose estimation methods. The best results are high-

lighted.

Support P2P V2V

Per-frame 9.48 9.05 8.42

Ours-spatial 9.38

↓1.1%

9.05

↓0%

8.44

↑0.2%

Ours-temporal 8.76

↓7.6%

8.65

↓4.4%

8.24

↓2.1%

Ours-full 8.81

↓7.1%

8.61

↓4.9%

8.07

↓4.2%

(Ge et al., 2018b) and V2V (Moon et al., 2018), both

of which yield state of the art per-frame results. The

EPE is listed in Tab. 2, based on consecutive execu-

tion of our network to process the information of ﬁve

frames.

An individual analysis of the SR module shows

that limiting to a spatial consideration does not sig-

niﬁcantly improve the pose estimation. Bringing in

temporal information has a greater impact and im-

proves the per-frame predictions of the three consid-

ered methods. The combination of temporal informa-

tion and spatial correlations (Ours-full) continues to

improve the results for P2P slightly and noticeably

for V2V, but marginally worsens the results of the

support-based prediction. Since the estimated poses

of P2P and V2V were not part of the training, we in-

fer from the results that the SR module noticeably im-

proves the already good generalization ability of the

TR module. Additionally, it can be assumed that the

network adapted slightly too much to the predictions

in the training data during the training.

With p-values far below 0.05, a paired t-test

proves that the difference between the EPE means of

the per-frame predictions and the results of our net-

work is statistically signiﬁcant. Furthermore, a run-

time of over 40 fps is achieved for the processing

of two point clouds, including the time for the scene

ﬂow network, which demonstrates high computation-

ally efﬁciency and real-time capability.

Evaluation on Corrupted Input Poses. In real sce-

narios, external inﬂuences can always cause noise in

the pose detection. Since the incoming pose pre-

dictions are an important ingredient for our method,

we perform an evaluation with corrupted incoming

poses to investigate the behavior of our method with

noisy data. For this purpose, we applied Gaussian

noise with varying variance to the pose predictions

of the method based on support points. We used the

same network as in the previous experiment for fur-

ther evaluations, which was trained with non-noisy

pose predictions as input. The results of the evalu-

ation are shown in Fig. 4.

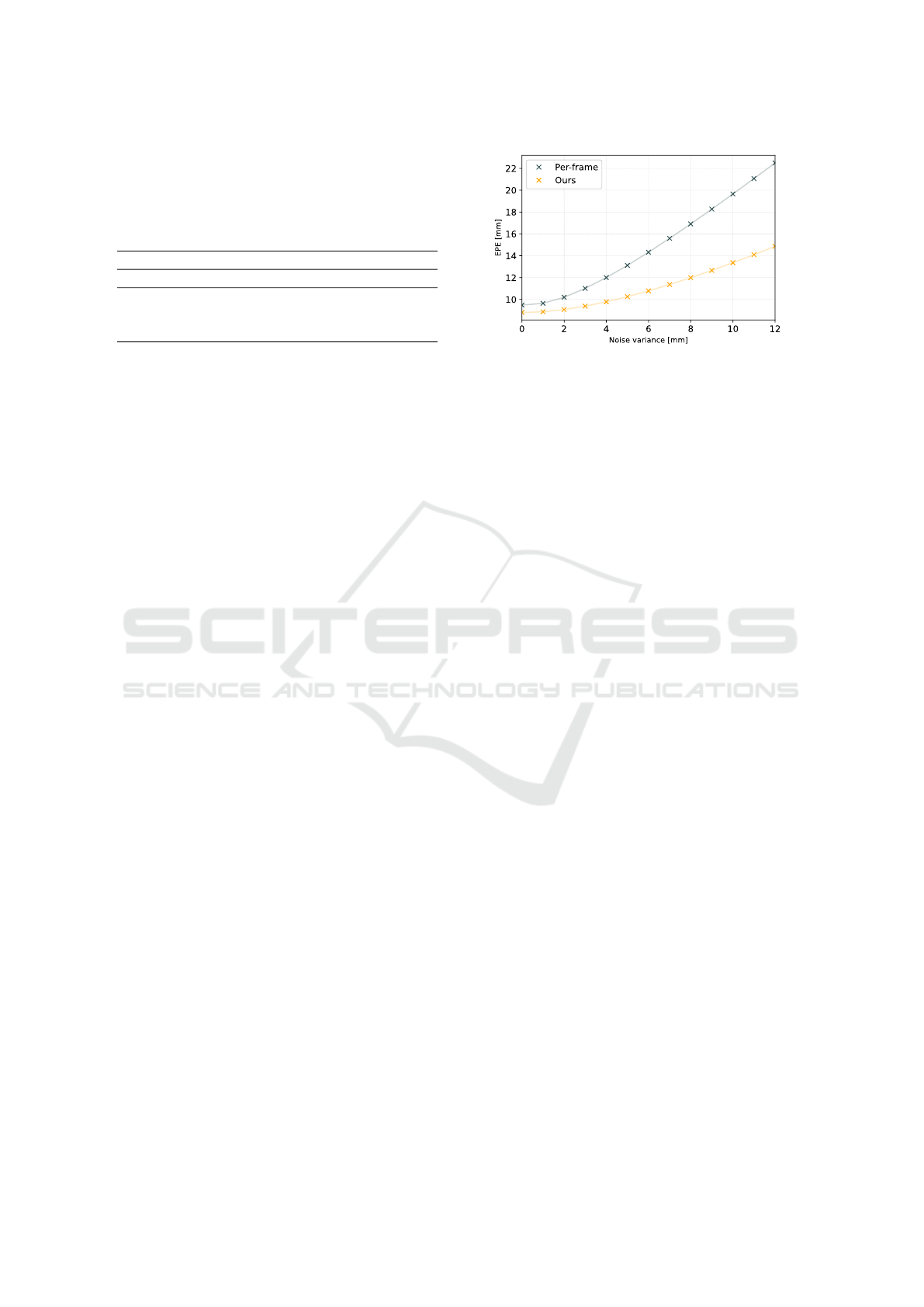

Figure 4: Error evolution of our method on ingoing pose

predictions corrupted with Gaussian noise of increasing

variance. The upper curve shows the EPE of the per-frame

predictions under the effect of the noise and the lower curve

shows the results of our network with the noisy pose pre-

dictions as input.

The upper curve shows the evolution of the EPE

of the noisy per-frame predictions as the variance of

the noise increases, and thus serves as a baseline for

this experiment. The lower curve shows the EPE of

our method, based on the respective noisy pose pre-

dictions as input. Both error curves increase linearly

with the increase of the variance of the noise, but the

slope of the curve of our method is signiﬁcantly lower

and thus achieves a smaller increase of the EPE as the

baseline. These results show that our proposed net-

work can counteract the error of noisy poses.

4.3 Comparison with HandTrackNet

The already existing HandTrackNet method (Chen

et al., 2022) tracks hand poses using 3D point clouds.

Given the previous hand keypoint positions and the

current 3D hand point cloud, both inputs are trans-

formed into a canonical space, whereas the transfor-

mation is calculated using an initial hand pose and

the current 3D positions of the palm keypoints. Sub-

sequently, features are extracted on the basis of which

the previous pose is placed in the current hand point

cloud. The aim of this process is to transfer a previ-

ous pose into a current 3D hand point cloud in the best

possible way, whereas our method improves an exist-

ing pose estimate based on previous data. As these

objectives differ from each other, a direct comparison

is not readily possible. Nevertheless, we explore the

differences in these two approaches in a joint evalua-

tion.

For the evaluation, the already pre-trained Hand-

TrackNet was used and tested on the NYU (Tompson

et al., 2014) dataset. Since the procedure requires the

position of 6 palm keypoints, we extended the 14 key-

points by the 6 required palm keypoints that are also

part of the ground truth in the NYU dataset. The er-

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

292

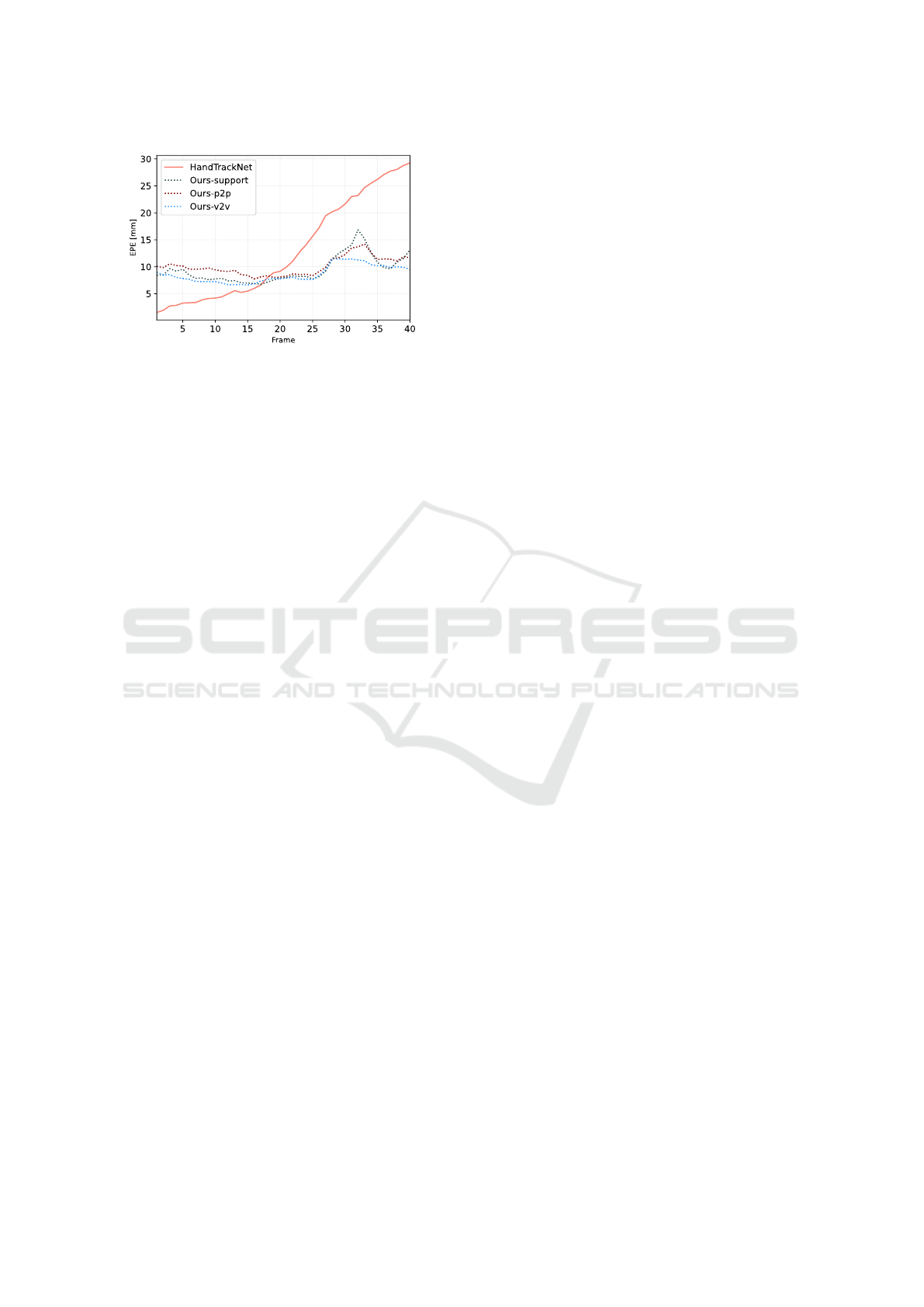

Figure 5: EPE average over the six exemplary sequences

of 40 frames. The pre-trained HandTrackNet was initial-

ized with the ground truth pose. Our trained network was

evaluated with the pose estimations predicted by the support

point-based method, P2P and V2V.

ror calculation was carried out on the 14 keypoints as

before.

As a ﬁrst experiment, similar to the evaluation

setup in Sec. 4.2 we had HandTrackNet estimate the

hand poses based on ﬁve previous frames, using the

pose predictions of the support points-based method

as initial pose. This resulted in an EPE of 9.67 mm

which is worse than the per-frame predictions with

an error of 9.48 mm. Since the method only tracks

a pose and does not improve it, this result was to be

expected, because the initial pose was already faulty

and the tracking accumulated the errors.

In a second experiment, we initialized the Hand-

TrackNet on six exemplary sequences of 40 frames

each with a ground truth pose and tracked them con-

tinuously. On the same sequences, we evaluated our

from Sec. 4.2 trained network, using the different

pose estimators. The averaged EPE of the six eval-

uated sequences is depicted in Fig. 5, illustrating that

while HandTrackNet initially exhibits lower error due

to initialization with ground truth data, its errors ac-

cumulate over time, leading to a continuous increase

of the EPE. In contrast, our method can quickly re-

cover even after erroneous frames since new keypoint

predictions are consistently incorporated into the pro-

cess.

5 CONCLUSION

We propose a method for incorporating temporal in-

formation into hand pose estimation from a sequence

of 3D point clouds. To the best of our knowledge, we

are the ﬁrst to utilize scene ﬂow for an improved pose

estimation. In this context, we introduce a process

that optimizes arbitrary scene ﬂow networks for the

application of pose estimation by focusing on the mo-

tion of the bone structure. This procedure is supple-

mented by a module that recognizes the spatial pose

correlations and transfers existing poses into a lower-

dimensional pose space in order to avoid unnatural

outliers and to improve the generalization capability.

In a comprehensive evaluation we demonstrate that

the proposed method signiﬁcantly improves existing

frame-by-frame methods for 3D hand pose estima-

tion. We further show that the network is able to re-

duce the negative inﬂuence of noisy pose predictions.

As a future perspective, we are convinced that the in-

formation gained through scene ﬂow will provide an

even greater advantage when directly integrated into

the pose estimation model.

REFERENCES

Alldieck, T., Kassubeck, M., Wandt, B., Rosenhahn, B., and

Magnor, M. (2017). Optical ﬂow-based 3d human

motion estimation from monocular video. In Roth,

V. and Vetter, T., editors, Pattern Recognition, pages

347–360, Cham. Springer International Publishing.

Arko, A. R., Little, J. J., and Yi, K. M. (2022). Bootstrap-

ping human optical ﬂow and pose.

Barsoum, E. (2016). Articulated hand pose estimation re-

view. CoRR, abs/1604.06195.

Buchmann, V., Violich, S., Billinghurst, M., and Cockburn,

A. (2004). Fingartips: Gesture based direct manipu-

lation in augmented reality. In Proceedings of the 2nd

International Conference on Computer Graphics and

Interactive Techniques in Australasia and South East

Asia, GRAPHITE ’04, page 212–221, New York, NY,

USA. Association for Computing Machinery.

Buckingham, G. (2021). Hand tracking for immersive vir-

tual reality: opportunities and challenges. Frontiers in

Virtual Reality, 2:728461.

Chatzis, T., Stergioulas, A., Konstantinidis, D., Dim-

itropoulos, K., and Daras, P. (2020). A comprehensive

study on deep learning-based 3d hand pose estimation

methods. Applied Sciences, 10(19):6850.

Chen, J., Yan, M., Zhang, J., Xu, Y., Li, X., Weng, Y., Yi, L.,

Song, S., and Wang, H. (2022). Tracking and recon-

structing hand object interactions from point cloud se-

quences in the wild. arXiv preprint arXiv:2209.12009.

Chen, X., Wang, G., Zhang, C., Kim, T.-K., and Ji, X.

(2018). Shpr-net: Deep semantic hand pose regression

from point clouds. IEEE Access, 6:43425–43439.

Ge, L., Cai, Y., Weng, J., and Yuan, J. (2018a). Hand point-

net: 3d hand pose estimation using point sets. In Pro-

ceedings of the IEEE Conference on Computer Vision

and Pattern Recognition (CVPR).

Ge, L., Ren, Z., and Yuan, J. (2018b). Point-to-point regres-

sion pointnet for 3d hand pose estimation. In Proceed-

ings of the European Conference on Computer Vision

(ECCV).

Gu, X., Wang, Y., Wu, C., Lee, Y. J., and Wang, P.

(2019). Hplﬂownet: Hierarchical permutohedral lat-

Incorporating Temporal Information into 3D Hand Pose Estimation Using Scene Flow

293

tice ﬂownet for scene ﬂow estimation on large-scale

point clouds. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition

(CVPR).

Hermes, N., Bigalke, A., and Heinrich, M. P. (2023). Point

cloud-based scene ﬂow estimation on realistically de-

formable objects: A benchmark of deep learning-

based methods. Journal of Visual Communication and

Image Representation, page 103893.

Hermes, N., Hansen, L., Bigalke, A., and Heinrich, M. P.

(2022). Support point sets for improving contactless

interaction in geometric learning for hand pose esti-

mation. pages 89–94.

Hu, T., Lin, G., Han, Z., and Zwicker, M. (2021). Learn-

ing to generate dense point clouds with textures on

multiple categories. In 2021 IEEE Winter Conference

on Applications of Computer Vision (WACV), pages

2169–2178, Los Alamitos, CA, USA. IEEE Computer

Society.

Kingma, D. P. and Ba, J. (2014). Adam: A method for

stochastic optimization.

Li, R., Lin, G., He, T., Liu, F., and Shen, C. (2021). Hcrf-

ﬂow: Scene ﬂow from point clouds with continuous

high-order crfs and position-aware ﬂow embedding.

In 2021 IEEE/CVF Conference on Computer Vision

and Pattern Recognition (CVPR), pages 364–373, Los

Alamitos, CA, USA. IEEE Computer Society.

Li, S. and Lee, D. (2019). Point-to-pose voting based hand

pose estimation using residual permutation equivari-

ant layer. In Proceedings of the IEEE/CVF conference

on computer vision and pattern recognition, pages

11927–11936.

Liu, X., Qi, C. R., and Guibas, L. J. (2019). Flownet3d:

Learning scene ﬂow in 3d point clouds. In Proceed-

ings of the IEEE/CVF Conference on Computer Vision

and Pattern Recognition (CVPR).

Liu, X., Yu, S.-y., Flierman, N. A., Loyola, S., Kamermans,

M., Hoogland, T. M., and De Zeeuw, C. I. (2021). Op-

tiﬂex: Multi-frame animal pose estimation combining

deep learning with optical ﬂow. Frontiers in Cellular

Neuroscience, 15.

Ma, Y., Mao, Z.-H., Jia, W., Li, C., Yang, J., and Sun,

M. (2011). Magnetic hand tracking for human-

computer interface. IEEE Transactions on Magnetics,

47(5):970–973.

Mittal, H., Okorn, B., and Held, D. (2020). Just go with the

ﬂow: Self-supervised scene ﬂow estimation. In Pro-

ceedings of the IEEE/CVF Conference on Computer

Vision and Pattern Recognition (CVPR).

Moon, G., Chang, J., and Lee, K. M. (2018). V2v-

posenet: Voxel-to-voxel prediction network for accu-

rate 3d hand and human pose estimation from a single

depth map. In The IEEE Conference on Computer Vi-

sion and Pattern Recognition (CVPR).

Nielsen, M., St

orring, M., Moeslund, T. B., and Granum, E.

(2004). A procedure for developing intuitive and er-

gonomic gesture interfaces for hci. In Camurri, A.

and Volpe, G., editors, Gesture-Based Communica-

tion in Human-Computer Interaction, pages 409–420,

Berlin, Heidelberg. Springer Berlin Heidelberg.

Puy, G., Boulch, A., and Marlet, R. (2020). FLOT: Scene

Flow on Point Clouds Guided by Optimal Transport.

In European Conference on Computer Vision.

Qi, C. R., Su, H., Mo, K., and Guibas, L. J. (2016). Pointnet:

Deep learning on point sets for 3d classiﬁcation and

segmentation. arXiv preprint arXiv:1612.00593.

Qi, C. R., Yi, L., Su, H., and Guibas, L. J. (2017). Point-

net++: Deep hierarchical feature learning on point sets

in a metric space. arXiv preprint arXiv:1706.02413.

Rezaei, M., Rastgoo, R., and Athitsos, V. (2023). Trihorn-

net: A model for accurate depth-based 3d hand pose

estimation. Expert Systems with Applications, page

119922.

Schwarz, L. A., Mkhitaryan, A., Mateus, D., and Navab,

N. (2012). Human skeleton tracking from depth data

using geodesic distances and optical ﬂow. Image and

Vision Computing, 30(3):217–226. Best of Automatic

Face and Gesture Recognition 2011.

Sun, X., Wei, Y., Liang, S., Tang, X., and Sun, J. (2015).

Cascaded hand pose regression. In 2015 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 824–832.

Tang, D., Chang, H. J., Tejani, A., and Kim, T.-K. (2014).

Latent regression forest: Structured estimation of 3d

articulated hand posture. In 2014 IEEE Conference

on Computer Vision and Pattern Recognition, pages

3786–3793.

Tompson, J., Stein, M., Lecun, Y., and Perlin, K. (2014).

Real-time continuous pose recovery of human hands

using convolutional networks. ACM Transactions on

Graphics, 33.

Wan, C., Probst, T., Gool, L. V., and Yao, A. (2018).

Dense 3d regression for hand pose estimation. In 2018

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 5147–5156.

Wang, H., Pang, J., Lodhi, M. A., Tian, Y., and Tian, D.

(2021). Festa: Flow estimation via spatial-temporal

attention for scene point clouds. In Proceedings of

the IEEE/CVF Conference on Computer Vision and

Pattern Recognition (CVPR), pages 14173–14182.

Wang, R. Y. and Popovi

c, J. (2009). Real-time hand-

tracking with a color glove. ACM Trans. Graph.,

28(3).

Wang, Y., Sun, Y., Liu, Z., Sarma, S. E., Bronstein, M. M.,

and Solomon, J. M. (2018). Dynamic graph CNN for

learning on point clouds. CoRR, abs/1801.07829.

Xiong, F., Zhang, B., Xiao, Y., Cao, Z., Yu, T., Zhou Tianyi,

J., and Yuan, J. (2019). A2j: Anchor-to-joint regres-

sion network for 3d articulated pose estimation from a

single depth image. In Proceedings of the IEEE Con-

ference on International Conference on Computer Vi-

sion (ICCV).

Zhang, Z., Xie, S., Chen, M., and Zhu, H. (2020). Han-

daugment: A simple data augmentation method for

depth-based 3d hand pose estimation. arXiv, pages

arXiv–2001.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

294
