Coding by Design: GPT-4 Empowers Agile Model Driven

Development

Ahmed R. Sadik

, Sebastian Brulin

and Markus Olhofer

Honda Research Institute Europe, Carl-Legien-Strasse 30, Offenbach am Main, Germany

Keywords: GPT-4, Auto-Generated Code, AI-Empowered, Model Driven Development, Ontology-Constrained Class

Diagram, Object Constraint Language, Cyclomatic Complexity.

Abstract: Generating code from a natural language using Large Language Models (LLMs) such as ChatGPT, seems

groundbreaking. Yet, with more extensive use, it's evident that this approach has its own limitations. The

inherent ambiguity of natural language proposes challenges to auto-generate synergistically structured

artifacts that can be deployed. Model Driven Development (MDD) is therefore being highlighted in this

research as a proper approach to overcome these challenges. Accordingly, we introduced an Agile Model-

Driven Development (AMDD) approach that enhances code auto-generation using OpenAI's GPT-4. Our

work emphasizes "Agility" as a significant contribution to the current MDD approach, particularly when the

model undergoes changes or needs deployment in a different programming language. Thus, we presented a

case-study showcasing a multi-agent simulation system of an Unmanned Vehicle Fleet (UVF). In the first and

second layer of our proposed approach, we modelled the structural and behavioural aspects of the case-study

using Unified Modeling Language (UML). In the next layer, we introduced two sets of meta-modelling

constraints that minimize the model ambiguity. Object Constraints Language (OCL) is applied to fine-tune

the code constructions details, while FIPA ontology is used to shape the communication semantics. Ultimately,

GPT-4 is used to auto-generate code from the model in both Java and Python. The Java code is deployed

within the JADE framework, while the Python code is deployed in PADE framework. Concluding our

research, we engaged in a comprehensive evaluation of the generated code. From a behavioural standpoint,

the auto-generated code not only aligned with the expected UML sequence diagram, but also added new

behaviours that improved the interaction among the classes. Structurally, we compared the complexity of code

derived from UML diagrams constrained solely by OCL to that influenced by both OCL and FIPA-ontology.

Results showed that ontology-constrained model produced inherently more intricate code, however it remains

manageable. Thus, other constraints can still be added to the model without passing the complexity high risk

threshold.

1 INTRODUCTION

In the era of Large Language Models (LLMs), Model-

Driven Development (MDD) is gaining momentum

as a promising way to enhance software engineering

(Sadik, Ceravola, et al., 2023). Therefore, our study

presents an Agile Model Driven Development

(AMDD) approach that utilizes LLMs to auto-

generate complete, deployment-ready software

artifacts. This method streamlines MDD, avoiding the

need to constantly update code generators with each

https://orcid.org/0000-0001-8291-2211

https://orcid.org/0000-0002-9710-6877

https://orcid.org/0000-0002-3062-3829

model change. The resulting software is not just

intricate but also designed to fulfill specific

requirements and functionalities. MDD uses formal

language models such as Unified Modeling Language

(UML) to generate code. This automation aligns

design with implementation, reducing errors and

accelerating market deployment. UML primarily

focus on structural aspects, often overlooking

domain-specific rules and constraints (Sarkisian et

al., 2022). Yet, the Object Constraint Language

(OCL) and domain-specific ontology languages like

FIPA-ontology address this gap. They ensure model

Sadik, A., Brulin, S. and Olhofer, M.

Coding by Design: GPT-4 Empowers Agile Model Driven Development.

DOI: 10.5220/0012356100003645

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 12th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2024), pages 149-156

ISBN: 978-989-758-682-8; ISSN: 2184-4348

149

integrity and consistency by defining detailed

constraints and shared knowledge understanding.

Integrating class diagrams with OCL and ontologies

could revolutionize code generation, producing

software that reflects both foundational design and

domain expertise (Kapferer & Zimmermann, 2020).

Evaluating auto-generated code is crucial for

assessing its quality. Traditional qualitative criteria

like testability and reliability are often subjective. Our

research adopts more objective, quantifiable metrics,

focusing on structural integrity. We use cyclomatic

complexity to evaluate structural soundness and

conduct comparative analyses to ensure the code

behaves as expected across different languages and

aligns with the model's intended behaviour (Ahmad

et al., 2023). This paper outlines our study, starting

with a detailed problem statement in Section 2 about

challenges in the current MDD approach. Section 3

details our four-layered AMDD approach, and

Section 4 applies it to model a UVF and Mission

Control Center (MCC). Using UML diagrams, OCL,

and FIPA ontology, leading to auto-generated Java

and Python code for simulations. Section 5 evaluates

the model and generated code through assessing its

structural complexity and testing its deployment

behaviour. Finally, Section 6 concludes with

findings, implications, and future research directions.

2 PROBLEM STATEMENT

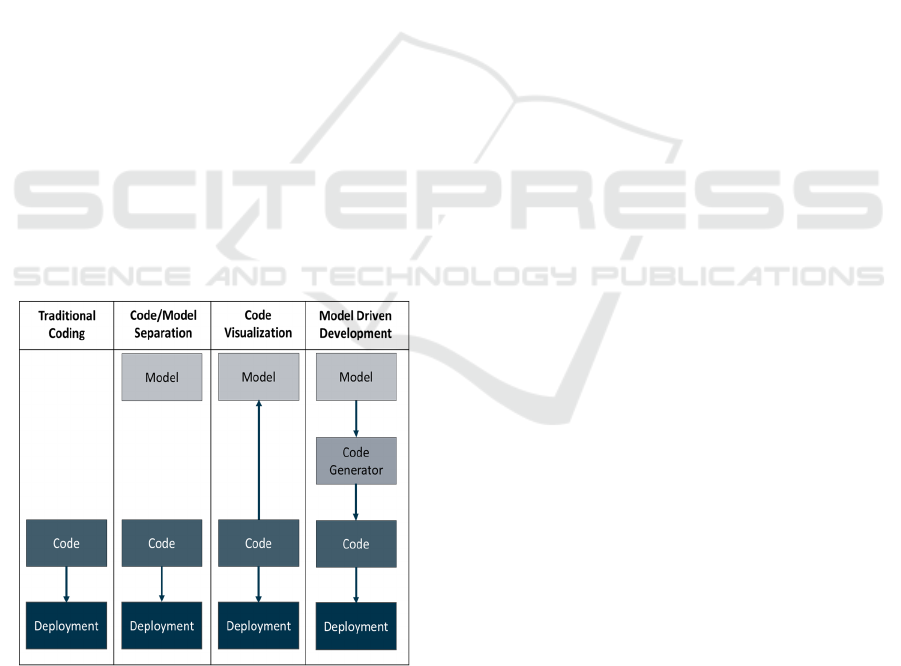

Figure 1: Traditional coding vs MDD.

Natural language, with its inherent ambiguity,

presents significant challenges in both human and

machine comprehension. This is particularly evident

when using LLMs such as ChatGPT to auto-generate

software artifacts. The uncertain and open-ended

nature of natural language prompts often leads to the

production of flawed code, a problem that becomes

more critical with the increased complexity and

multidimensionality of the software being developed.

Yet, MDD aims to address these challenges by

offering a higher level of software abstraction. In

MDD, high-level models are the core artifacts,

serving as the blueprint from which final applications

are generated (Sadik & Goerick, 2021).

The difference between traditional coding and

MDD code generation can be understood through

Figure 1. Traditional coding directly translates

software functionalities into code, suitable for smaller

and straightforward features. Debugging, testing, and

maintenance are conducted at the code level. In

contrast, MDD uses models to abstractly understand

the system, separate from the coding process. In

traditional model-and-code separation approaches,

models are often discarded post-coding due to the

high maintenance cost. In code visualization, models

are created after software development to understand

program functionalities or integrating elements into

models. However, these models are typically not used

for implementation, debugging, or testing. MDD

differs significantly in that models are the primary

development artifacts, replacing source code (Kelly

& Tolvanen, 2008). Tools like Eclipse Papyrus,

MagicDraw, Enterprise Architect, and IBM Rational

Rhapsody facilitate this process by generating target

code from these models, thus hiding underlying

complexities (David et al., 2023).

However, while MDD promises efficiency and

precision, it also introduces challenges. For instance,

changes in deployment language or significant model

updates necessitate extensive modifications to the

code generators, affecting the agility of the

development process. The task of creating and

maintaining the code generators is resource-intensive

and complicated by the need to tailor them to each

programming language. This is where the potential of

LLMs like ChatGPT as universal code generators

becomes intriguing (Chen et al., 2021). Our study

points to a significant issue that MDD, despite its

structured approach, hasn't fully harnessed LLM

capabilities in code auto-generation. This gap results

in a misalignment, making the current MDD

approach less suited for agile software development

environments, where quick adaptability and

flexibility are key. Thus, while MDD overcomes

some limitations of natural language, it still faces

challenges in fully integrating with advanced AI

capabilities for efficient and agile software

development.

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

150

3 PROPOSED APPROACH

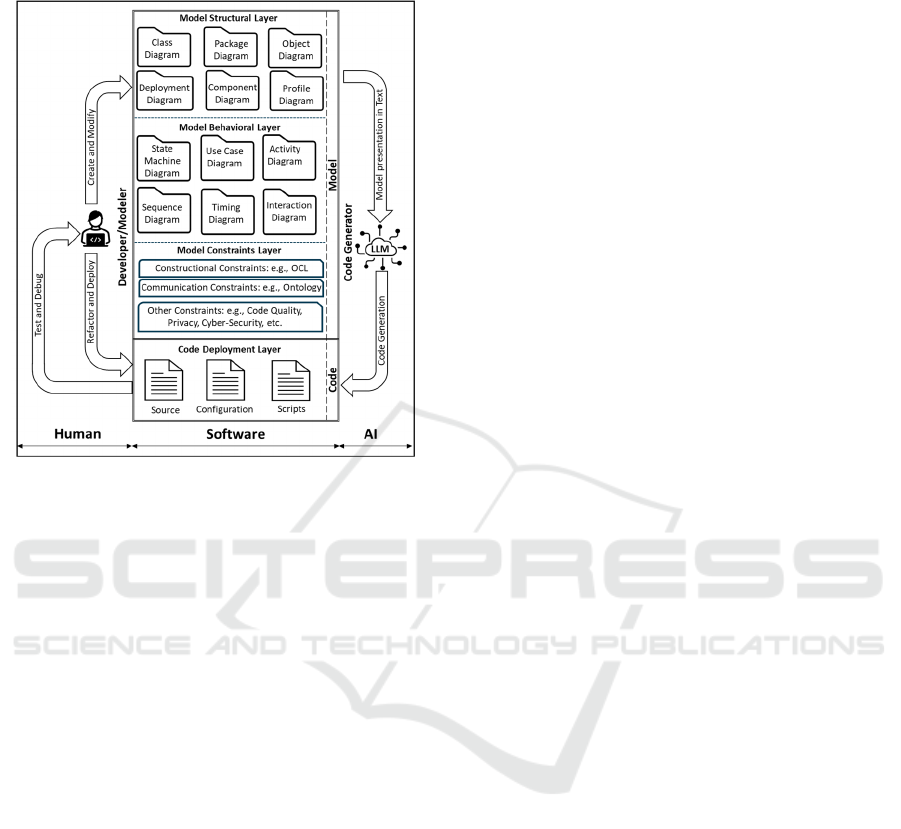

Figure 2: Proposed AMDD approach.

Addressing the challenge outlined in our problem

statement, our AMDD approach requires ChatGPT to

thoroughly understand the model and its associated

views. Recognizing ChatGPT's text-based processing

capabilities, we utilized PlantUML to convert visual

UML diagrams into a text format that can be easily

integrated into ChatGPT prompts. In this

methodology, illustrated in Figure 2, the modeler first

establishes different model layers, including

structural, behavioural, and constraints. The

structural layer encompasses diagrams that display

the static aspects of the model, like class diagrams

detailing object relationships and hierarchies,

package diagrams grouping objects to highlight

dependencies, and component diagrams breaking

down system functionality. Deployment diagrams

depict the physical layout, object diagrams provide

runtime snapshots, and profile diagrams adapt UML

models to specific platforms. The behavioural layer,

through sequence, activity, interaction, timing, use-

case, and state diagrams, models system operations,

interactions, and the lifecycle of entities, offering a

comprehensive view of how the system functions and

interacts with users and other systems.

Although, the structural and behavioural diagrams

provide a holistic architectural view, they lack the

rules that regulate the model semantics. Accordingly,

in this research we propose the constraints layer to

fine-tune the model architecture, by explicitly

including its meta-values that cannot be expressed by

UML notations. OCL is used to restrict the code

construction details of the structural and behavioural

layers, by specifying invariants on classes and

stereotypes, describing pre- and post-conditions on

method and states, and limiting the parameters’

values. Furthermore, communication constraints can

be defined using the proper formal method such as an

ontology language to express the communication

semantics, that is necessary to share knowledge

among the software artifacts.

Ultimately, in the deployment layer, ChatGPT,

based on the GPT-4 is employed to generate code.

The choice of GPT-4 over GPT-3.5 is due to its

superior reasoning capabilities, a vital feature for our

approach. The LLM must comprehend the model

semantics encapsulated in the constraints layer to

integrate them into the generated code. Furthermore,

post auto-generation of code using ChatGPT, it is

crucial for the modeler to deploy the generated code

and verify its operationality. However, it's essential to

acknowledge that ChatGPT's code generation

capabilities are continually evolving and may not be

flawless (Dong et al., 2023). Thus, the possibility of

encountering bugs during the code deployment is

anticipated. It becomes imperative for the modeler to

address these bugs, possibly with assistance from

ChatGPT, and iteratively run the code until it

successfully accomplishes its intended purpose.

4 CASE-STUDY MODEL

The chosen use-case involves a UVF, comprising

various types of UVs that undertake specific missions

and are coordinated by an MCC involving a human

operator (Sadik, Bolder, et al., 2023). This case-study

is intentionally distributed, enabling it to be modelled

and simulated as a MAS (Brulin & Olhofer, 2023).

The MAS often encompasses a high complexity level,

as each entity is represented as an agent and must

communicate and share information with other

entities (i.e., agents) to achieve a common goal (i.e.,

the fleet mission). To avoid overwhelming the reader

with the intricacies of the MAS, in the following

sections, only the essential model that facilitates an

understanding of the MAS operation concept views

(Sadik & Urban, 2018).

4.1 Model Structural Layer

In the model structure layer, the class diagram is

pivotal, representing every entity in the case-study as

an agent class, as illustrated in Figure 3. The operator

agent models the human operator with actions like

Coding by Design: GPT-4 Empowers Agile Model Driven Development

151

sending mission briefs and receiving performance

data. The MCC agent, with attributes like MCC-ID,

coordinates the mission and monitors the fleet. The

UVF-Manager agent handles fleet management,

including task delegation and performance tracking.

The Unmanned Vehicle (UV) agent serves as a

generic class for UVs, with specific subclasses like

UAV, UGV, and USV for different vehicle types.

This class diagram elucidates the complex internal

dynamics of each agent, their attributes, operations,

and interrelations, including various types of

relationships such as composition, aggregation, and

inheritance, and establishes the cardinality between

agents.

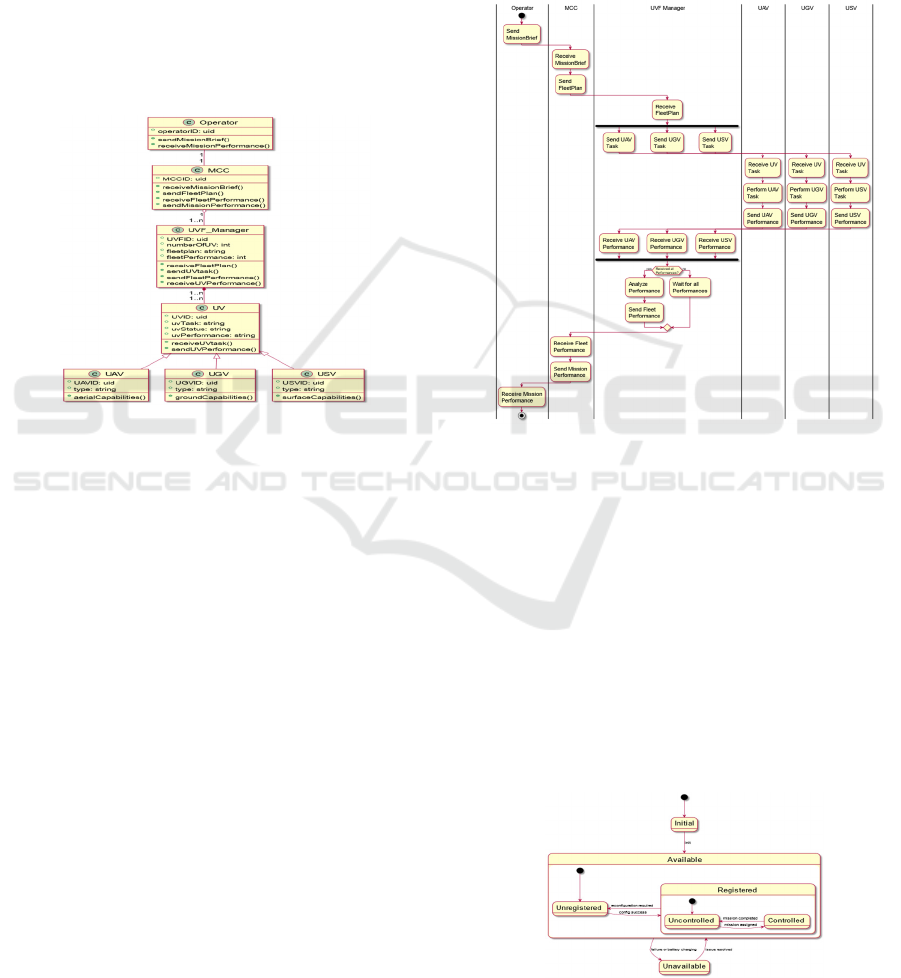

Figure 3: Case-study class diagram.

4.2 Model Behavioural Layer

To maintain brevity and keep the article focused, the

article will only explain two views which are the

activity and state diagrams, as they are the most

important behavioral views to understand the case-

study model. The activity diagram refines and

complements the class diagram by meticulously

detailing aspects such as synchronization, parallel

execution, and conditional flows, which are

indispensable for effectively achieving the mission

goals. In contrast, the state diagram offers a

microscopic perspective, unveiling the life cycle of

the agents’ class within the model and illuminating

how they coordinate and respond to realize the

overarching mission objectives.

The activity diagram in Figure elaborates the

interplay of information and task flows within the

agents. It illustrates the orchestration of processes and

the sequence in which tasks are allocated, carried out,

and assessed, providing an understanding of the MAS

temporal and logical dynamics. Thus, the interaction

begins when the operator agent sends the mission-

brief to the MCC agent. The latter transforms the brief

into a plan and conveys it to the UVF-manager,

which, in turn, assigns the tasks to the available UVs.

Subsequently, the UVF-manager agent awaits the

completion of tasks by each UV and collates their

performance, which is instrumental in assessing the

overall UVF performance. This consolidated

performance is relayed to the MCC, translated into

mission-performance, and communicated back to the

operator agent.

Figure 4: Case-study activity diagram.

Furthermore, the state diagram offers an in-depth

view of the internal behaviour of each agent,

revealing the transitions and actions triggered by

various events. The operator, MCC, and UVF-

manager are depicted with a simple two-state diagram

indicating 'busy' or 'free' states. However, the UV

requires a more complex state machine to evaluate

task performance. Figure outlines the UV states:

'Available' (registered or unregistered), 'Unavailable'

(out of service), 'Unregistered' (available but not yet

registered), 'Registered' (controlled or uncontrolled),

'Uncontrolled' (registered without a mission), and

'Controlled' (registered with an assigned mission).

Figure 5: UV agent state diagram.

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

152

4.3 Model Constraints Layer

The constraints layer in the proposed AMDD

approach acts as a meta-model that encapsulates all

aspects of the technical requirements that cannot be

formalized in the structural and behavioral layers. In

the following sections we will discuss in detail the

different types of meta-model constraints that have

been considered within the case-study modeling.

4.3.1 Construction Constraints

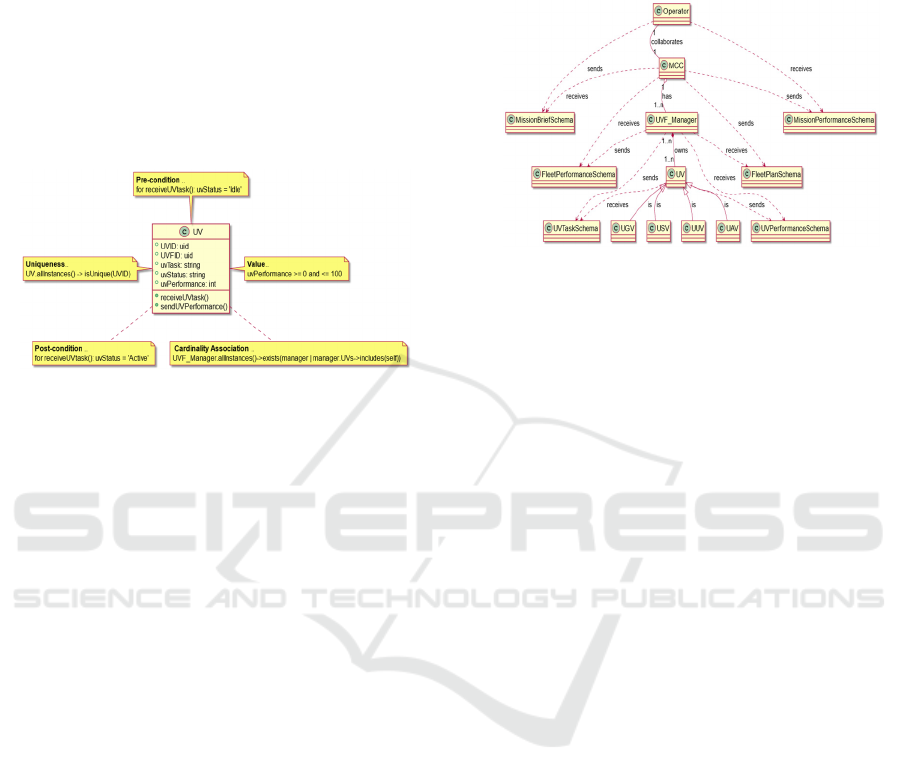

Figure 6: UV agent construction constraints in OCL.

The OCL is a declarative language that complements

UML by defining rules applicable to classes within a

model. Its integration as construction constraints in

UML diagrams is crucial for enhancing model

refinement and clarity. OCL effectively addresses

ambiguities in model construction, ensuring

precision, particularly beneficial when generating

deployed code directly from model views. This

precision guarantees a more accurate and seamless

transition from model to code. In our study, we

demonstrate the application of OCL by imposing five

types of constraints on all agent classes, as shown in

Figure

for the UV agent class. These constraints

include 'Uniqueness' for distinct agent identifiers,

'Cardinality' for managing agent associations (e.g., a

UVF-manager linked to multiple UVs), 'Value' for

restricting class values within certain ranges (like UV

performance between 0 and 100), 'Pre-condition' to

ensure agents are in the right state for transitions

(such as a UV accepting tasks only when idle), and

'Post-condition' for mandatory state changes after

transitions, like changing a UV's status to 'Active'

after receiving a task.

4.3.2 Communication Constraints

OCL excels in setting constraints for UML model

classes but falls short in managing inter-class

communication, a critical aspect in Multi-Agent

System (MAS). Addressing this, Java Agent

DEvelopment (JADE) and Python Agent

DEvelopment (PADE) utilize the FIPA-ontology

communication language. FIPA-ontology enriches

MAS with comprehensive interaction protocols for

complex agent communication, an area where OCL is

limited, as highlighted in our case study.

Figure 7: Case-study FIPA-ontology model.

In our MAS communication model, as depicted in

Figure , FIPA-ontology defines a series of fixed

schemas. The first set, the message communication

schemas, encompasses various aspects of mission and

agent management. This includes the Mission-Brief

schema with details like mission-ID and status, Fleet-

Plan outlining fleet specifics, UV-Task for individual

task assignments, and UV-Performance for

performance metrics. Additionally, it covers Fleet-

Performance and Mission-Performance, each

capturing specific performance-related metrics. The

second set of schemas in FIPA-ontology are the

predicates. These define the relationships between

agent classes, encompassing aspects like inheritance

(e.g., UAV as a type of UV), composition (e.g., MCC

having a UVF-manager), aggregation (e.g., UVF-

manager owning multiple UVs), and collaboration

(e.g., operator working with MCC). Lastly, the third

set in our model involves actions, which are

operations that agents can perform, particularly on

message schemas. This includes actions like sending

and receiving data, exemplified by an operator agent

sending a mission brief to the MCC or the MCC

receiving it from the operator.

5 CODE EVALUATION

In the final step of our AMDD approach, we used

GPT-4 to transform models into code, resulting in an

average of four bugs per agent class, mostly due to

missing library imports. Despite these issues, the

corrected code was deployable. Our study prioritized

evaluating the completeness of the auto-generated

code over its correctness. We conducted two

experiments: the first analyzed the behavior of the

Coding by Design: GPT-4 Empowers Agile Model Driven Development

153

auto-generated code, and the second assessed its

structure and complexity. This approach allowed us

to thoroughly understand the code generation

capabilities and limitations of GPT-4 within the

AMDD framework.

5.1 Experiment 1: Behavioural

Dynamic Analysis

The first experiment orchestrated the generation of

two distinct deployments. The first is written in Java

to run on JADE platform, while the second is written

in Python to run in PADE. The goal of the experiment

is to compare the code behaviour that run on JADE

against the code that is running on PADE, to ensure

the consistency of the system dynamic regardless of

the execution language. Accordingly, the agent

interaction behavior on JADE and PADE framework

is observed. We found that the agents' behavior as

captured by JADE Sniffer tool aligns with the plotted

sequence diagram from PADE agent interaction, as

shown in Figure.

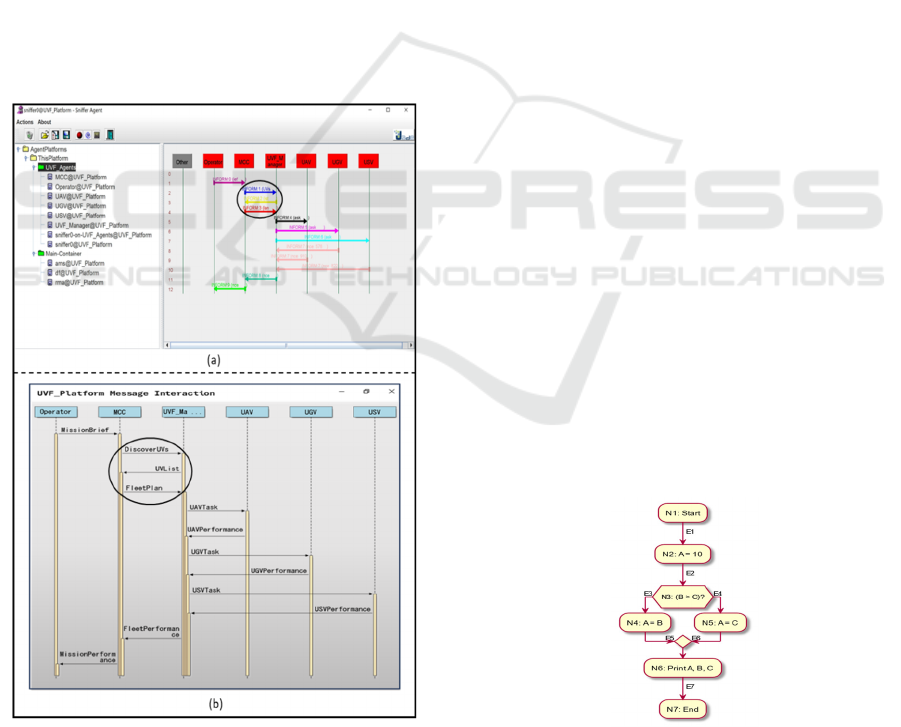

Figure 8: JADE vs PADE Sequence diagram.

In both sequence diagrams in Figure, the

interaction starts when the operator transmitting a

mission-brief to the MCC. By receiving this message,

the MCC asks the UVF-manager to identify available

UVs. Upon obtaining a list of accessible UVs, the

MCC devises a fleet-plan and conveys it to the UVF-

manager. After this, the UVF-manager dispatches

specific tasks to the available UVs. Each UV, upon

task completion, relays performance data to the UVF-

manager. Thus, the UVF-manager formulates a

comprehensive fleet-performance metric, which is

relayed back to the MCC. The MCC, in turn,

evaluates this metric in congruence with the mission

objectives, compiling a definitive mission-

performance report. This report, the culmination of

the entire operation, is ultimately returned to the

operator.

Two important remarks have been noticed from

comparing these two sequence diagrams in Figure

with the original case-study activity diagram in

Figure. First, we noticed that ChatGPT has enhanced

the interaction by adding new behaviours to MCC

agent and UVF-manager agent. This new behaviour

can be seen when the MCC is sending DiscoverUVs

message to the UVF-Manger agent and waiting the

UVList before forming a FleetPlan, as logically the

MCC needed to know what the available UVs

resources are before planning them based on the

mission-brief. This new interaction behaviour was not

explicitly mentioned in the case-study activity

diagram. The second remark is that the timing of

interaction between the MCC and the UVs differ in

JADE and PADE, most probably due to the difference

in the state machine of each UV instance. This is a

good indication that these UV state machine can

emulate the operation of the agents.

5.2 Experiment 2: Structural

Complexity Assessment

Figure 9: Code control-flow graph example.

In our second experiment, we focused on examining

the structure and complexity of auto-generated code

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

154

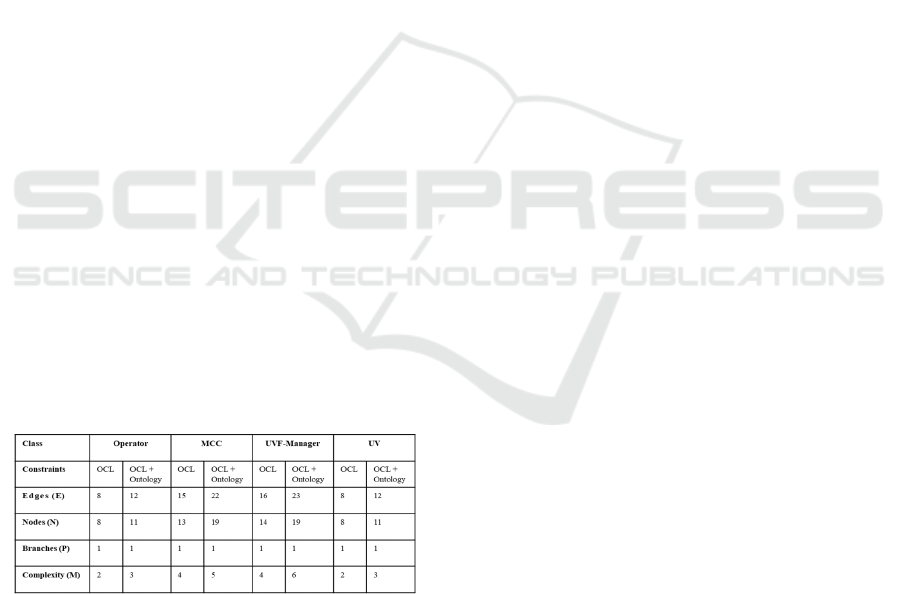

by employing the cyclomatic complexity metric. This

metric is pivotal in quantifying code complexity, as it

counts the number of linearly independent paths

through the source code. The calculation is based on

the code's control-flow graph, similar to the one

illustrated in Figure. The cyclomatic complexity (M)

can be calculated from the formula:

M = E - N + 2P (1)

Where E represents the number of edges in the

flow graph, N is the number of nodes, and P indicates

the number of separate branches in the graph. For

example, in the graph shown in Figure 9, the

calculated M equals 3. This value of M is crucial for

assessing various aspects of the software, including

the difficulty of testing, maintenance, understanding,

refactoring, performance, reliability, and

documentation. Based on M's value, risks are

categorized as follows: M between 1 and 10 indicates

low risk, M between 11 and 20 suggests moderate

risk, M between 21 and 50 points to high risk and may

necessitate reviewing or subdividing the code into

smaller modules, and M exceeding 50 signals severe

risk, requiring significant refactoring.

As in our AMDD approach, we emphasized the

effect of adding the formal constraints on generating

a deployed code, our interest in this experiment is to

understand the influence of the constraints layer on

the auto-generated code. Therefore, in the experiment

we auto-generated two distinct deployments, that

differ in the level of constraints involved in their

models. The first model implements only the OCL

constraints, while the second model add the FIPA-

ontology to the model.

Table 1: Cyclomatic Complexity of the auto-generated

code.

After generating the two distinct deployments, we

transformed the agent classes into control flow

diagrams to calculate their M, as shown in Table.

Comparing the M values of the auto-generated code

is evidence that the complexity is slightly increasing

by adding FIPA-ontology constraints. However, the

complexity of all the classes in both deployments is

still locating under the low-risk category. This means

that the auto-generated structure is adequate and does

not need any further refactoring. Furthermore, the

highest M value equals to 6 belongs to the UVF-

manger in the second deployment, where both OCL

and FIPA-ontology constraints are considered. This

means that there is still a large risk margin that allows

to add further constraints in our model, without

passing the low-risk threshold.

6 DISCUSSION, CONCLUSION,

AND FUTURE WORK

Our research addresses the challenges of auto-

generating deployable code from natural language

using LLMs like ChatGPT, mainly due to language

ambiguity. We used formal modelling languages such

as UML to improve ChatGPT's interpretation,

revealing a gap in agility within the MDD process. By

integrating "constraints" into UML models, we added

semantic depth for more accurate code generation,

enhancing software structure and communication. In

a case study, we applied our AMDD approach to

model a multi-agent UVF system. We used class,

activity, and state diagrams for agents' layout and

behaviour, employing OCL for structure and FIPA-

ontology for communication. This model was the

basis for auto-generating Java and Python code using

GPT-4, chosen for its improved reasoning

capabilities. The success of our approach depended

on GPT-4 understanding of the model's constraints.

In the first evaluation experiment, we examined

the behaviour of auto-generated code within

simulation environments: Java's JADE and Python's

PADE frameworks. Both deployments effectively

captured the intended agent interactions, though there

were minor sequence variations between them.

Remarkably, GPT-4 not only adhered to the specified

agent logic but also enriched it by introducing two

new behaviours in the MCC agent's communication

sequence. This addition highlighted the power of

communication constraints in guiding GPT-4 and its

enhanced comprehension of agent interactions. While

these improvements were impressive, they

underscored a need for meticulous code review.

Despite GPT-4's advancements, ensuring that the

generated code remains consistent with design

intentions is crucial to prevent unexpected

behaviours.

In the second experiment, we examined the

structure of the auto-generated code, specifically by

assessing its cyclomatic complexity. In this

experiment, we created two separate deployments.

The first deployment code resulted from a model that

Coding by Design: GPT-4 Empowers Agile Model Driven Development

155

involves only OCL constraints, while the second

deployment code resulted from a model that involves

both OCL and FIPA-Ontology constraints. Our

analysis revealed the intriguing finding that

integrating FIPA-ontology constraints didn't

dramatically augment the complexity of the auto-

generated code. This suggests that these constraints

provide meaningful semantics without unduly

complicating the resultant codebase. Furthermore, the

analysis also hinted at a notable latitude in our

approach. There appears to be a reasonable buffer

allowing for the inclusion of additional constraints to

the model in future iterations without triggering an

immediate need for a code refactor. This is indicative

of the robustness and scalability inherent in our

AMDD approach.

Our findings indicate that formal modelling

languages can mitigate natural language ambiguities

in code generation. Meta-modelling constraints refine

this process and provide structural complexity

insights, signalling a transformative approach to agile

MDD practices. Future research will focus on

assessing code correctness, introducing privacy and

cybersecurity constraints, and comparing our

methodology with existing MDD frameworks to

enhance industry adoption.

REFERENCES

Ahmad, A., Waseem, M., Liang, P., Fehmideh, M., Aktar,

M. S., & Mikkonen, T. (2023). Towards Human-Bot

Collaborative Software Architecting with ChatGPT

(arXiv:2302.14600).

Brulin, S., & Olhofer, M. (2023). Bi-level Network Design

for UAM Vertiport Allocation Using Activity- Based

Transport Simulations.

Chen, M., Tworek, J., Jun, H., Yuan, Q., Pinto, H. P. de O.,

Kaplan, J., Edwards, H., Burda, Y., Joseph, N.,

Brockman, G., Ray, A., Puri, R., Krueger, G., Petrov,

M., Khlaaf, H., Sastry, G., Mishkin, P., Chan, B., Gray,

S., … Zaremba, W. (2021). Evaluating Large Language

Models Trained on Code (arXiv:2107.03374).

David, I., Latifaj, M., Pietron, J., Zhang, W., Ciccozzi, F.,

Malavolta, I., Raschke, A., Steghöfer, J.-P., & Hebig,

R. (2023). Blended modeling in commercial and open-

source model-driven software engineering tools: A

systematic study. Software and Systems Modeling,

22(1), 415–447. https://doi.org/10.1007/s10270-022-

01010-3

Dong, Y., Jiang, X., Jin, Z., & Li, G. (2023). Self-

collaboration Code Generation via ChatGPT

Kapferer, S., & Zimmermann, O. (2020). Domain-specific

Language and Tools for Strategic Domain-driven

Design, Context Mapping and Bounded Context

Modeling: Proceedings of the 8th International

Conference on Model-Driven Engineering and

Software Development, 299–306.

Kelly, S., & Tolvanen, J.-P. (2008). Domain-Specific

Modeling: Enabling Full Code Generation. John Wiley

& Sons.

Sadik, A. R., Bolder, B., & Subasic, P. (2023). A self-

adaptive system of systems architecture to enable its ad-

hoc scalability: Unmanned Vehicle Fleet - Mission

Control Center Case study. Proceedings of the 2023 7th

International Conference on Intelligent Systems,

Metaheuristics & Swarm Intelligence, 111–118.

Sadik, A. R., Ceravola, A., Joublin, F., & Patra, J. (2023).

Analysis of ChatGPT on Source Code

(arXiv:2306.00597).

Sadik, A. R., & Goerick, C. (2021). Multi-Robot System

Architecture Design in SysML and BPMN. Advances

in Science, Technology and Engineering Systems

Journal, 6(4). https://doi.org/10.25046/aj060421

Sadik, A. R., & Urban, B. (2018). CPROSA-Holarchy: An

Enhanced PROSA Model to Enable Worker–Cobot

Agile Manufacturing. International Journal of

Mechanical Engineering and Robotics Research, 7(3).

Sarkisian, A., Vasylkiv, Y., & Gomez, R. (2022). System

Architecture Supporting Crowdsourcing of Contents

for Robot Storytelling Application.

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

156
