Information Retrieval Chatbot on Military Policies and Standards

Charith Gunasekara

1 a

, Alaa Sharafeldin

, Matthew Triff

, Zareen Kabir

and Rohan Ben Joseph

Department of National Defence, Government of Canada, Ottawa, ON, Canada

Department of Engineering Physics, McMaster University, Hamilton, ON, Canada

Department of Computing Science, Simon Fraser University, Burnaby, BC, Canada

Keywords:

Natural Language Processing, Information Processing, Chatbots.

Abstract:

In the Canadian Armed Forces (CAF), navigating through extensive policies and standards can be a challeng-

ing task. To address the need for streamlined access to these vital documents, this paper explores the usage of

artiﬁcial intelligence (AI) and natural language processing (NLP) to create a question-answering chatbot. This

chatbot is speciﬁcally tailored to pinpoint and retrieve speciﬁc passages from policy documents in response to

user queries. Our approach involved ﬁrst developing a comprehensive and systematic data collection technique

for parsing the multi-formatted policy and standard documents. Following this, we implemented an advanced

NLP-based information retrieval system to provide the most relevant answers to users’ questions. Preliminary

user evaluations showcased a promising accuracy rate of 88.46%. Even though this chatbot is designed to op-

erate on military policy documents, it can be extended for similar use cases to automate information retrieval

from long documents.

1 INTRODUCTION

Individuals across various professions often face the

difﬁcult task of navigating through long and dense

legal and procedural documents. The sheer volume

and complexity of these documents make them chal-

lenging to understand and apply effectively. Parsing

through these documents can take signiﬁcant amounts

of time and may require help from an expert to clearly

understand. Automating the parsing of these docu-

ments could signiﬁcantly reduce the burden on indi-

viduals, eliminating the need for them to sift through

the content themselves.

This challenge has led many organizations to uti-

lize question-answering systems for information re-

trieval based on user queries (Bayan Abu Shawar,

2007). Many of these question-answering systems

come in the form of “chatbots” to help support a bet-

ter user experience and allow for a smoother con-

versation rhythm. This approach allows for a more

streamlined information retrieval process and allows

the user to experience a more manageable and less

time-consuming process.

Some of the earliest methodologies used for chat-

bots were rule-based chatbots such as Artiﬁcial Lin-

guistic Internet Computer Entity (ALICE) and Eliz-

https://orcid.org/0000-0002-7213-883X

abeth which were chatbots that utilized pattern-

matching techniques to answer questions(Shawar and

Atwell, 2002). This pattern-matching relied on the us-

age of syntactic and semantic structures. Further ad-

vancements for these chatbots were done through the

usage of AIML (Artiﬁcial Intelligence Markup Lan-

guage) which used special markers and tags to have

a robust dialogue identiﬁcation and pattern recogni-

tion infrastructure (Marietto, 2013). These additions

helped a more natural dialogue ﬂow between users

and chatbots.

Scripting languages have also played a crucial role

in many rule-based chatbots. The usage of scripting

languages such as RiveScript (Gupta et al., 2015) and

ChatScript (Ramesh et al., 2017) has supported dy-

namic user inputs which had been a key limitation in

many rule-based chatbots. These created key struc-

tures to be able to better understand emphasis, conver-

sational redirects and contextual awareness. Although

pattern-matching methodologies are easy to imple-

ment, they have key limitations which make them dif-

ﬁcult to work with. These algorithms require pre-

written patterns for many different user queries which

creates a lot of work for developers. Additionally,

they have been known to be difﬁcult and inefﬁcient

in managing large-scale data-sets(Adamopoulou and

Moussiades, 2020).

714

Gunasekara, C., Sharafeldin, A., Triff, M., Kabir, Z. and Ben Joseph, R.

Information Retrieval Chatbot on Military Policies and Standards.

DOI: 10.5220/0012351200003654

Paper copyright by his Majesty the King in Right of Canada as represented by the Minister of National Defence

In Proceedings of the 13th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2024), pages 714-722

ISBN: 978-989-758-684-2; ISSN: 2184-4313

Key innovation in this ﬁeld was a necessity and

diverged into many different areas. One such no-

table development was the creation of the QnA Maker

by Microsoft which was a cloud-based natural lan-

guage processing (NLP) service that uses a knowl-

edge base (KB) comprised of both structured and

semi-structured data (Agrawal et al., 2020). This tool

provided new innovation for parsing semi-structured

data such as FAQ pages and product manuals which

wasn’t possible with previous chatbots models. A

similar style of chatbot was created by Google called

Dialogﬂow which was also able to parse through

structured and semi-structured content(Peyton and

Unnikrishnan, 2023). However, a key disadvan-

tage with this type of chatbot framework is that they

require manual training through the usage of spe-

ciﬁc question-answer pairs, which is difﬁcult to scale

for organization with large and complex knowledge

bases.

While the aforementioned innovations have sig-

niﬁcantly improved user interaction and conversa-

tion ﬂow in chatbots, the ﬁeld has witnessed sub-

stantial advancements with the integration of seman-

tic search methodologies (Kim and Kim, 2022). Se-

mantic search has been a key addition in question-

answering systems as they allow chatbots to better un-

derstand user queries and provide a more natural and

relevant response by recognizing the user’s intent and

the contextual meaning of terms as they appear in the

searchable database. It goes beyond pattern match-

ing, by understanding the context and the intention

behind the question, offering more accurate and rel-

evant results. The addition of semantic search could

help to signiﬁcantly improve simpler pattern-match-

based chatbots to better understand user inputs.

Another fundamental component in the construc-

tion of effective question-answering systems is the in-

tegration of information retrieval (IR) systems. These

systems enable chatbots to quickly and efﬁciently sift

through vast amounts of data to identify relevant re-

sponses. One such IR technique is used in Best

Matching 25 (BM25) , a bag-of-words ranking func-

tion (Amati, 2009). BM25, known for its efﬁcacy

in retrieving key documents based on term frequency

and inverse document frequency, offers a speedy pre-

liminary ﬁltering mechanism. While BM25 has been

instrumental in many information retrieval tasks, its

primary design is not speciﬁcally tailored for answer-

ing questions but rather for ranking documents in or-

der of relevance to a given query. BM25, rooted in the

probabilistic information retrieval model, functions

as a bag-of-words mechanism, emphasizing term fre-

quency and inverse document frequency. This makes

it swift and efﬁcient, commonly used in traditional

search engines. However, it inherently lacks a deep

contextual understanding, sometimes missing contex-

tually relevant documents without exact term matches

and struggles with synonyms or paraphrasing. On

the other hand, and Bi-directional Encoder Repre-

sentations from Transformers (BERT) (Devlin et al.,

2019) a deep learning model, excels in grasping con-

text by analyzing text bidirectionally, taking into ac-

count both word order and semantics. This depth al-

lows BERT to perform exceptionally in diverse NLP

tasks, from sentiment analysis to question-answering.

However, this sophistication comes at the cost of

computational intensity, which can hinder its use in

real-time applications or resource-restrained environ-

ments. BM25 and BERT based models represent a

distinct paradigms in information retrieval and nat-

ural language processing. Ultimately, choosing be-

tween BM25 and BERT hinges on the task’s speciﬁc

needs, available computational resources, and desired

contextual depth.

Further advancements, like the introduction of

clarifying questions and the development of a

Multitask-based Semantic Search Neural Network

(MSSNN) have also marked a signiﬁcant progress in

chatbot capabilities. These advancements, explored

by (Aliannejadi et al., 2019) and (Shi et al., 2022) re-

spectively, showcase progressive strides in improving

the chatbot’s capability to understand and respond to

complex user queries more naturally and relevantly.

A key example of the usage of this type of sys-

tem is in policy documents. Documents such as

those in regards to privacy policies for companies

and institutions are very complex documents that are

long and messy. Experiments such as (Ravichander

et al., 2019) conducted by Carnegie Mellon Univer-

sity, Penn State University and Fordham Law School,

have shown that question-answering techniques can

be used for users to get answers about a policy docu-

ment. In their experiment, they used various models

including BERT to benchmark the PrivacyQA data-

set. Given the complexity of these policies, the abil-

ity to ask questions about a policy document would

be incredibly beneﬁcial. The results in (Ravichander

et al., 2019) achieved a precision of 44% vs. the 69%

of a human question-answering baseline.

In light of recent technological advancements,

there remains an evident gap in ensuring domain-

speciﬁc and contextually rich understandings, es-

pecially within specialized sectors like the military

forces. Notably, the military forces houses detailed

policy documents loaded with essential directives that

personnel must diligently adhere to. Yet, the sheer

volume and complexity of these documents pose

a challenge to extracting relevant information efﬁ-

Information Retrieval Chatbot on Military Policies and Standards

715

ciently. Presently, queries regarding these policy and

standards documents are routed through various com-

mittees, a mechanism that, although reliable, is inher-

ently time-consuming. This is primarily because ad-

dressing these queries constitutes a secondary respon-

sibility for committee members, leading to potential

delays in response times.

This research endeavours to bridge the afore-

mentioned gap by tailoring advanced information re-

trieval and reranking algorithms speciﬁcally for mil-

itary policies and standards documentation within

the Canadian Armed Forces (CAF). Harnessing the

power of the BERT architecture and its variants, our

approach promises an elevated calibre of Natural Lan-

guage Understanding (NLU) over CAF policy docu-

ments. The main objective of our study is to archi-

tect a scalable system proﬁcient in interpreting user

queries articulated in natural language and adeptly

pinpointing the segment within a long policy docu-

ment that most likely addresses the user’s inquiry.

2 METHODOLOGY

2.1 Data

2.1.1 Policies and Standards Data

The data-set utilized in this project was the Canadian

National Defence Policies and Standards, referenced

at (Canada, 2023). This data-set is made up of data

stored in individual web pages with inconsistent for-

mats making them challenging to access and parse.

The policies in this web pages are formatted hierar-

chically with bullet points that can have sub-points

with additional information on the parent point. Ad-

ditionally the policies could also be contained in ta-

bles which provides an additional layer of challenge

as deviates from the typical format.

2.1.2 Data Collection

A systematic method for parsing this data is a neces-

sity for creating a suitable data-set which can be used

for the model. This is also an essential step to have

an up-to-date data-set which can be updated in real-

time. A set of Python scripts were used to extract the

data when executed. The scripts were designed to ac-

commodate the unique formats of the following pol-

icy documents: Canadian Forces General Messages

(CANFORGENS), Canadian Forces Dress Instruc-

tions, Canadian Forces Leave Policy Manual, The

Canadian Forces Manual of Drill and Ceremonial,

and The Heritage Structure of the Canadian Forces,

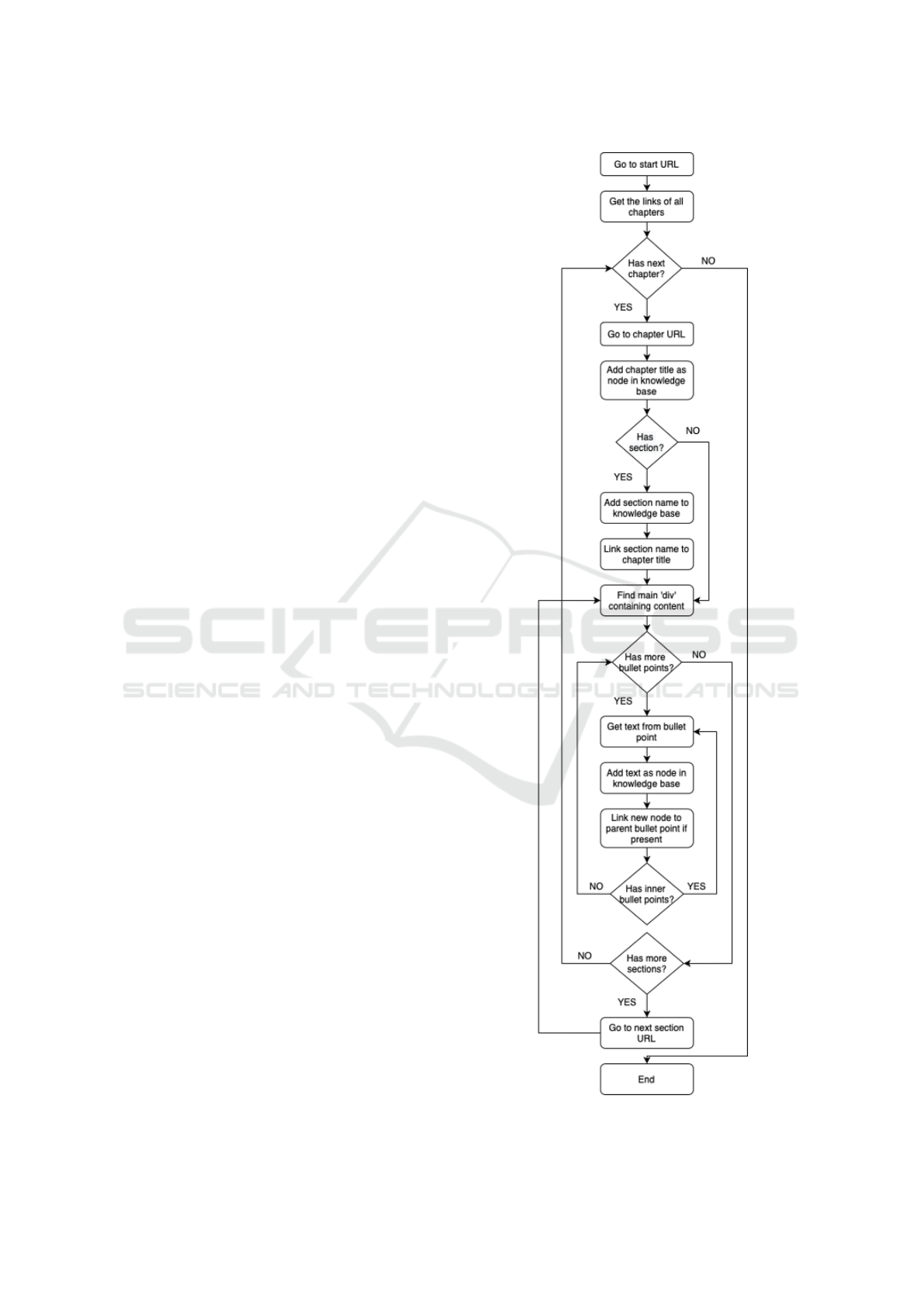

Figure 1: Block diagram of the data collection algorithm.

ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods

716

with each document being scraped in both ofﬁcial lan-

guages, English and French.

The policies and manuals consist of text, images,

and images with text. The images with text provide

useful information and details that must not be left

out of the parsed data. To parse through these var-

ious structures, the scripts utilized the web-scraping

package BeautifulSoup (Zheng et al., 2015) for text

and Pytesseract (Saoji et al., 2021) for the text em-

bedded images. A recursive algorithm was developed

to parse through each sub-point in the list of bullet-

points until the algorithm reached the leaf points at

which point it halted. The text was then stored along

with the Hyper-Text Markup Language (HTML) tags

to used in the Information Retrieval system. Figure 1

provides a block diagram of the data collection algo-

rithm.

2.1.3 Data Structure

To enable efﬁcient querying and referencing of the

policy documents and their respective formats, an ap-

propriate data structure was required. Considering the

nested bullet point formatting of the original docu-

ments a tree structure was found to be the best rep-

resentation. We build the knowledge base using this

structure, mirroring the hierarchical nature of the pol-

icy documents. The key components of the knowl-

edge base are nodes and edges

Nodes. Represents an individual bullet points

from the policy documents, and stores all relevant in-

formation about the text.

Edges. Symbolize the connections between

nodes, indicating sub-points and their associated par-

ent points. Every edge has parent and child speciﬁca-

tions to identify the node level in the tree.

Each document is assigned a unique identiﬁer (ID)

to identify between different manuals or policies and

account for language variations. This ID system en-

sures that we can query the database based on policy

type and language preference.

Along with the policy information, storing all in-

teractions between the chatbot and users was essential

to reﬁne the chatbot further and improve the passage

retrieval models. To store these dialogues, we utilized

sessions and utterances.

Session. Represents the entirety of an interaction

between a user and the chatbot.

Utterance. Denotes individual messages within

the broader dialogue context.

A comprehensive representation of this data struc-

ture is provided in Figure 2. See Table 1 in the

Appendix for a detailed explanation of the database,

components and functionalities.

kg nodes

search_text

html

vector_idx

type

url

raw_text

document_id(FK)

scraped_at(FK)

other_language_id (FK)

document page

versions

document_id (PK, FK)

scraped_at (PK)

url (PK)

hash

documents

document_id (PK, FK)

name

0...n

document versions

document_id (PK, FK)

scraped_at (PK)

language

root_url

0...n

0...1

Figure 2: Database structure of knowledge base and dia-

logue management.

2.2 Answering Algorithms

Ensuring the accuracy and reliability of responses is

pivotal in the deployment of question-answering sys-

tems, particularly within a context as nuanced and

critical as the military. A retrieval-based chatbot sys-

tem has been strategically developed to minimize user

confusion and maximize trustworthiness. Such a sys-

tem derives answers to user inquiries directly from a

carefully curated knowledge corpus, thereby preserv-

ing the integrity and reliability of the information pro-

vided. The methodology centers around establishing

a passage retrieval mechanism engineered to retrieve

the most relevant passage from a policy document in

response to a user query.

Central to our experiments is using BERT for

encoding text into vectors, subsequently leveraging

this technique to extract the most relevant passage

in response to a given query. BERT, a language

representation model, utilizes a Transformer model

(Vaswani et al., 2017), departing from the commonly

employed recurrent neural network in language mod-

elling. Transformer models, exclusively based on at-

tention mechanisms, enhance learning speed and re-

duce language model complexity. Notably, BERT

trains bidirectionally, encoding each word within an

embedding context-aware from both sides, consid-

ering preceding and following text. In BERT’s ar-

chitecture, the Transformer (Vaswani et al., 2017)

model encoder is used. While the original Trans-

former, proposed by Google, presented an encoder-

decoder architecture for sequence-to-sequence mod-

elling, BERT has been adapted purely as a text en-

coder for varied tasks, such as classiﬁcation and ques-

tion answering. Employing multiple encoder blocks,

BERT utilizes six blocks, each composed of a multi-

head attention component and a rudimentary feed-

forward network.

The multi-head attention mechanism employs sev-

eral “heads” of dot-product attention, concatenating

Information Retrieval Chatbot on Military Policies and Standards

717

resultant vectors. Three vectors, key, value, and

query, are established by multiplying input vectors by

three weight matrices. The dot product between the

query and the key vectors is computed, the values nor-

malized using the softmax function, and subsequently

multiplied with the value vector. This process enables

the model to retain enhanced information regarding

dependencies between tokens in the text.

The following discussion outlines the retrieval and

rank algorithm that has been implemented, along with

an exploration of the models that power it.

2.2.1 Retrieval Algorithm

Considering the large number of possible passages

that could potentially contain answers to a question,

an algorithm capable of encoding passages into a

vector, which functions proﬁciently in a question-

answering setting, is needed. We have opted for

the msmarco-distilbert-base-v3 model (Reimers and

Gurevych, 2019), an encoder model pre-trained on the

MSMARCO Passage Ranking data-set (Bajaj et al.,

2016). MSMARCO, a vast information retrieval cor-

pus conceived for semantic search applications, is

derived from authentic user search engine queries

(Nguyen et al., 2016). Although the full corpus

encompasses 8.8 million passages, this model was

trained on 500k examples (Nguyen et al., 2016). Uti-

lizing this model as our encoder, we encode each pas-

sage derived from English policy documents, using

our scrappers, and store it into a large matrix for sub-

sequent retrieval.

Passage Emb.

Passage Aggregator

Encoded Passage

Passage Encoder

Candidate Passage

Score

Question Emb.

Question Aggregator

Encoded Question

Question Encoder

Question

Figure 3: Bi-encoder architecture overview.

In the bi-encoder model, displayed in Figure 3, the

encoder embeds both the question and the candidate

passage independently. Initially, the encoder frag-

ments the text into tokens, then employs a transformer

model to encode all tokens (Devlin et al., 2019) , with

a special token appended, into a set of vectors. A re-

duction function is subsequently utilized to convert

the set of vectors into a singular vector. In our appli-

cation, the vector of the special token represents the

entirety of the text (Humeau et al., 2019). Following

the encoding of the passages, we utilize the semantic

search function from the sentence transformers pack-

age in Python (Reimers and Gurevych, 2019), ﬁlter-

ing passages based on cosine similarity against the

question vector.

2.2.2 Re-Ranking Algorithm

Passage Emb.

Aggregator

Encoded Passage

Candidate Passage

Score

Question Emb.

Encoded Question

Question

Encoder

Figure 4: Cross-encoder architecture overview.

Upon extraction of the top k most relevant passages, a

method for re-ranking was requisite to ensure that the

passages presented were optimally arranged to sat-

isfy the user’s query. To accomplish this, a cross-

encoder as shown in Figure 4 was employed. Di-

vergent from bi-encoders, which assess the question

and resultant passages independently, a cross-encoder

embeds the question and passage text collectively,

computing a score based on their relevance (Thakur

et al., 2020) (Vig and Ramea, 2018). Although cross-

encoders excel at identifying the most relevant pas-

sage, their computational intensity renders them sub-

optimal for processing extensive texts, thus justifying

our initial employment of the bi-encoder. The abil-

ity of the cross-encoder to embed both the question

and candidate passage collectively enables a richer in-

teraction between the question and passage, permit-

ting each token in the passage to engage with tokens

in the input, thereby facilitating a sophisticated self-

attention process. Consequently, the cross-encoder

realizes a more reﬁned attention and distance calcu-

lation between the question and passage compared to

its bi-encoder counterpart. Please note that our two-

step approach for retrieval and reranking semantic

search steps differs from the Poly-encoder approach

proposed by (Humeau et al., 2019), which is a one-

step solution. The one-step poly-encoder solution by

(Humeau et al., 2019) is an attempt to compose the ac-

curacy of the cross-encoder layer to speed up the pro-

cessing time by allowing real-time processing, which

is not helpful in our use case because a couple of sec-

onds delay in a two-step approach is justiﬁed with in-

creased accuracy.

Prior to initiating this process, it is critical to con-

catenate the question and passage, introducing a spe-

ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods

718

cial token between them as exhibited in (Humeau

et al., 2019). Our implementation utilized the cross-

encoder/ms-marco-TinyBERT-L-4 model from (Hug-

ging Face, 2021), facilitated by the sentence trans-

former package (Reimers and Gurevych, 2019). This

model, trained on the MSMARCO Passage Re-

ranking Task, is expressly designed for information

re-ranking. Following the ranking of all passages,

those with the highest scores and answer relevance

from the cross-encoder are returned to the user.

2.2.3 Language Detection

In order to detect the language of the questions

asked, we employ an open-source language detection

model papluca/xlm-roberta-base-language-detection

from (Ou and Li, 2020). This model uses a

multi-class text classiﬁcation algorithm and is a

ﬁne-tuned version of xlm-roberta-base on the Lan-

guage Identiﬁcation data-set, where XLM-RoBERTa

is a multilingual version of RoBERTa (Liu et al.,

2019). XLM-RoBERTa is pre-trained on 2.5TB

of ﬁltered CommonCrawl data containing 100 lan-

guages, while the ﬁne-tuned version papluca/xlm-

roberta-base-language-detection was trained on 70k

passages and currently supports 20 languages (Ou and

Li, 2020). The Language Identiﬁcation data-set is a

collection of 90k samples consisting of text passages

and their corresponding language label (Ou and Li,

2020). The current version of the chatbot only works

in English; therefore, the retrieval mechanism is ac-

tivated if the language is detected as English. Fu-

ture work on this project involves adding in the ability

for the model to work in the French language as well

therefore this is a crucial feature in the chatbot to de-

tect the language of the questions.

2.3 User Interface (UI) Development

A web application was built as shown in Figure 5

where users could interface with the chatbot and we

could utilize that data to iteratively improve on our

application. We used React as a front-end frame-

work for the User Interface (UI) development. For

the back-end of the application, we used Flask as it

is a lightweight basic Application Programming In-

terface (API) framework that suited the needs of the

application.

Integrating the chatbot through Microsoft Teams

was also am important addition to have further user

involvement, as it is a common form of communica-

tion throughout the organization. Therefore, we de-

veloped a gateway to communicate with the chatbot

through Teams using the Microsoft Bot Framework

(Biswas, 2018).

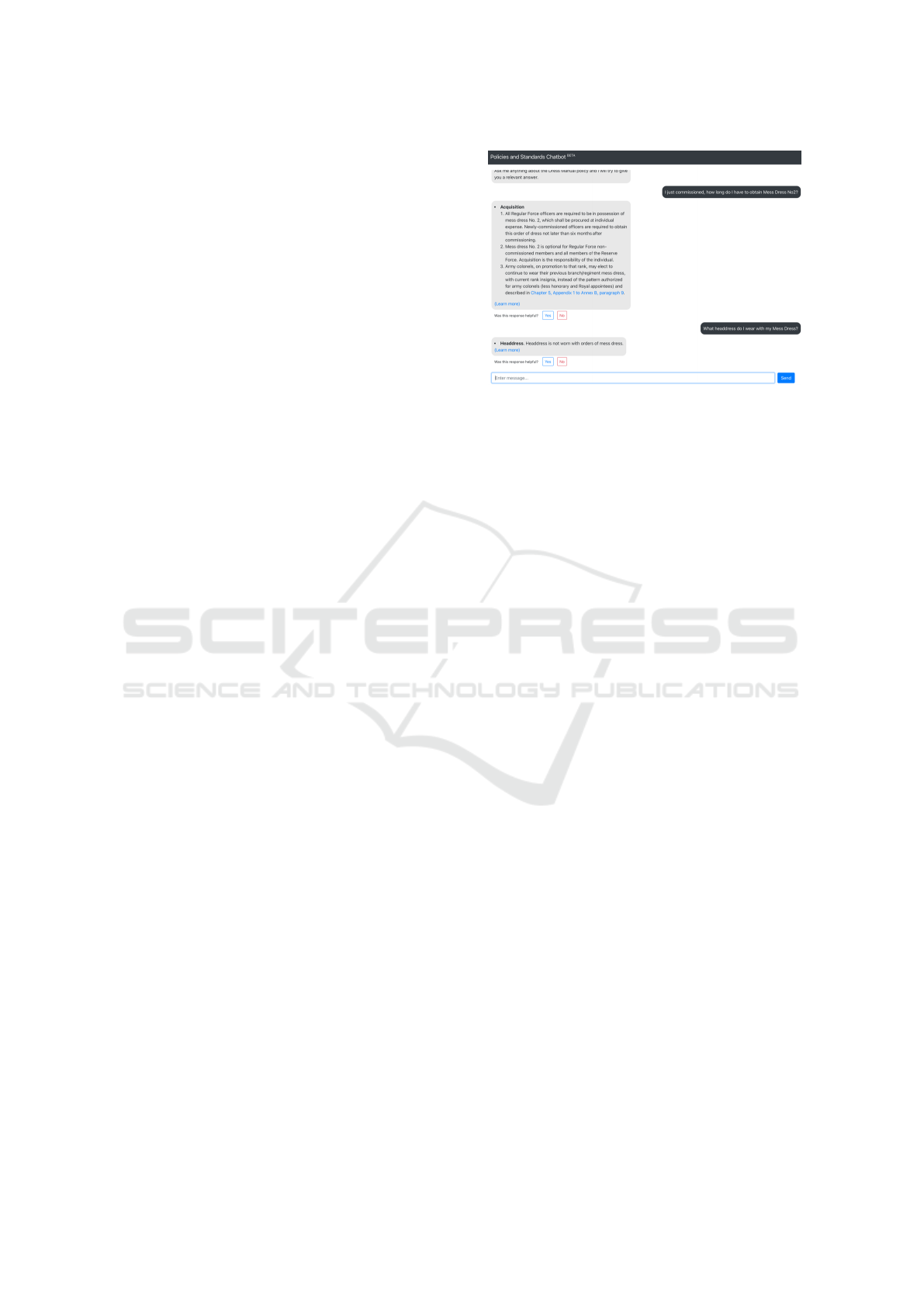

Figure 5: Web UI built with React.

2.4 Deployment

In order to deploy the application, it has been split

into three components. A front-end web application,

a back-end API server, and a database. To facilitate

easy and scalable deployment of the tool, both the

front-end and back-end have been separated into their

own Docker containers. Containers provide the ben-

eﬁt of isolating application components from under-

lying system dependencies and requirements. This

allows applications to be repeatably deployed with-

out dealing with signiﬁcant and complex setup proce-

dures on the servers from which they are run.

The chatbot comprises two main components: a

back-end API server and a front-end web application.

The back-end, as described in Section 2.2, is compu-

tationally intensive, processing user questions to de-

termine the most appropriate answer. The front-end

web application consists of the interface described in

Section 2.3. The front-end is relatively lightweight

and does not require signiﬁcant computational power

to run. A SQLite database is used within the back-end

container to store the policy corpus, as well as previ-

ous questions and feedback from users.

Given that the chatbot relies solely on publicly

accessible policy information, it is well-suited for

deployment in a cloud environment. The most

straightforward deployment of the system could use

an Infrastructure-as-a-Service (IaaS) offering from a

cloud provider. A cloud virtual machine (VM) with

Docker installed could run both the front-end and

back-end containers (the back-end container also in-

cludes the SQLite database).

Access to this VM could then be granted to users

who would access the chatbot through the web inter-

face to submit questions.. Figure 6a shows a system

diagram for this deployment model.

However, the simple deployment approach is in-

adequate for a system that is deployed to the en-

Information Retrieval Chatbot on Military Policies and Standards

719

Front-end Web

Interface Container

Back-end

API Server

Container

SQLite

Database

Virtual Machine (IaaS)

a) Simple Deployment

Model

Hosted Container Services (PaaS)

Front-end Web

Interface Container

Microsoft Teams

Load Balancer

Back-end

API Server

Container

Back-end

API Server

Container

Back-end

API Server

Container

Back-end

API Server

Container

SQL

Data-

base

b) Scalable Deployment Model

Figure 6: A comparison of both simple and scalable deploy-

ment models.

tire DND/CAF organization particularly when faced

with a substantial volume of concurrent requests. In-

stead, the following changes should be implemented

in the future. Recognizing that the back-end API

server is the most resource-intensive component and

likely to become a system bottleneck, additional

Docker containers can be leveraged to deploy multi-

ple instances of the back-end. To facilitate this, the

SQLite database would be substituted with a dedi-

cated, hosted SQL database, which all back-end con-

tainers would connect to. Additionally, a load bal-

ancer component would be introduced to assign in-

coming sessions to speciﬁc back-end instances, en-

suring an equitable distribution of requests. When a

new session is opened with the chatbot, the load bal-

ancer will assign that session to a speciﬁc instance of

the back-end and ensure that no instance has more re-

quests than it can handle.

Finally, the front-end web interface should not be

the only way for users to connect with the system. Mi-

crosoft Teams can be integrated as alternative front-

end in addition to the web interface. All of these

components can be deployed using a Platform-as-a-

Service (PaaS) offering from a cloud provider. Such

PaaS solutions eliminate the need for administrators

to manage individual VMs, reducing the overall re-

sources required for system maintenance. Figure 6(b)

illustrates the system conﬁguration for this more scal-

able deployment model.

3 PERFORMANCE EVALUATION

To assess the performance of our chatbot, we com-

piled a test bank comprising questions and corre-

sponding passages containing the most accurate an-

swers to the best of our knowledge.

In order to create a robust knowledge base of ques-

tions, we conducted early demonstrations of our ap-

plication during the testing phase. These demonstra-

tions served the dual purpose of introducing our ap-

plication to users at the earliest possible stage and

obtaining real-world queries from them. These user

interactions yielded a substantial pool of questions,

which in turn facilitated an initial assessment of the

chatbot’s performance.

Once we obtained a sufﬁcient number of question-

answer pairs, we proceeded to develop a script ca-

pable of evaluating the chatbot’s performance. The

evaluation script systematically traverses each ques-

tion within the test bank, comparing the chatbot’s re-

sponses with the expected answers from the test bank.

The number of accurately answered questions was tal-

lied, and to quantify our evaluation using a metric, we

computed the ratio of correctly answered questions to

the total number of questions in the test bank, yielding

a percentage indicative of the chatbot’s success rate.

Our evaluation suggests that our model excels

at answering fundamental questions but faces chal-

lenges when questions necessitate additional contex-

tual information. The chatbot gave 23 out of 26 ques-

tions the correct answers, and three questions received

incorrect answers. Hence, the chatbot’s accuracy, as

assessed using the current test bank, can be calculated

as follows.

Accuracy =

23 × 100 + 3 × 0

× 100%

= 88.46%

(1)

4 FUTURE WORK

While our initial results are intriguing, there is still

room for improvement.

ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods

720

We are currently training our model to process

queries in French. For the French text, a pre-

trained French encoder model such as camembert-

large model from (Martin et al., 2019) would be suit-

able. However, our early tests show that it does

not perform as well as the English encoder model

for information retrieval tasks; therefore, further ﬁne-

tuning is required.

Currently, the question answering algorithm is

retrieval-based, meaning that all the responses it gives

are directly from a policy. While this ensure that chat-

bot does not hallucinate, some of the responses it re-

turns can be long since they come from a policy docu-

ment where the length of text is not an issue. In order

to solve this, we could use a large language model to

perform text summarization on the response from the

chatbot. Text summarization is an NLP task where a

model attempts to shorten the input text as much as

possible while maintaining all the vital information.

In doing so, the responses from the chatbot will be

much shorter and easier for the users to read.

We also intend to ﬁne-tune both the bi-encoder

and cross-encoder models from the BERT encoder

to strengthen the chatbot’s performance. Recogniz-

ing the potential of specialization, we aspire to train

the models to more policy and military-speciﬁc lan-

guage and contexts. Central to this enhancement strat-

egy will be user feedback, which we plan to har-

ness for both stages of ﬁne-tuning. Initially, we’ll

ﬁne tune the bi-encoder model using techniques from

(Wolf et al., 2020), with the data collected from user

feedback. Subsequently, the cross-encoder model

will also be ﬁne-tuned for optimal answer re-ranking

(Thakur et al., 2020).

5 CONCLUSIONS

In conclusion, recognizing the complexity of long

military policy documents, we introduced an NLP-

based scalable and automated system to extract infor-

mation from web documents texts. We developed a

chatbot that leverages two BERT based encoder mod-

els: the bi-encoder for initial retrieval of the most rel-

evant answers and the cross-encoder for re-ranking

based on relevance. This chatbot is housed within a

user-friendly web application crafted with Flask and

React, eliminating the need for separate installations.

While our evaluations highlight the chatbot’s capa-

bility to address fundamental questions with approx-

imately 88.46% accuracy on military policy topics,

there are areas to enhance. Speciﬁcally, more precise

responses could be elicited when users pose vague

questions. The areas for future improvements have

also been identiﬁed, including ﬁne-tuning retrieval

models based on user feedback and using large lan-

guage models with semantic search to generate more

accurate responses.

REFERENCES

Adamopoulou, E. and Moussiades, L. (2020). Chat-

bots: History, technology, and applications. Machine

Learning with Applications, 2:100006.

Agrawal, P., Menon, T., Kam, A., Naim, M., Chouragade,

C., Singh, G., Kulkarni, R., Suri, A., Katakam, S.,

Pratik, V., Bansal, P., Kaur, S., Duggal, A., Chalabi,

A., Choudhari, P., Satti, S. R., Nayak, N., and Rajput,

N. (2020). Qnamaker: Data to bot in 2 minutes. In

Companion Proceedings of the Web Conference 2020,

WWW ’20, pages 131–134, New York, NY, USA. As-

sociation for Computing Machinery.

Aliannejadi, M., Zamani, H., Crestani, F., and Croft,

W. B. (2019). Asking clarifying questions in open-

domain information-seeking conversations. CoRR,

abs/1907.06554.

Amati, G. (2009). BM25, pages 257–260. Springer US,

Boston, MA.

Bajaj, P., Campos, D., Craswell, N., Deng, L., Gao, J., Liu,

X., Majumder, R., McNamara, A., Mitra, B., Nguyen,

T., et al. (2016). Ms marco: A human generated ma-

chine reading comprehension dataset. arXiv preprint

arXiv:1611.09268.

Bayan Abu Shawar, E. A. (2007). Chatbots: Are they re-

ally useful? Journal for Language Technology and

Computational Linguistics, 22(1):29–49.

Biswas, M. (2018). Microsoft bot framework. Beginning

AI Bot Frameworks: Getting Started with Bot Devel-

opment, pages 25–66.

Canada (2023). Policies, standards, orders, directives and

regulations from the Department of National Defence

and the Canadian Armed Forces. https://www.canada

.ca/en/department-national-defence/corporate/policie

s-standards.html. [Online; accessed 05-July-2023].

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2019). Bert: Pre-training of deep bidirectional trans-

formers for language understanding.

Gupta, S., Borkar, D., de Mello, C. S. B., and Patil, S. S.

(2015). An e-commerce website based chatbot.

Hugging Face (2021). cross-encoder/ms-marco-tinybert-l-

4. https://huggingface.co/cross-encoder/ms-marco-T

inyBERT-L-4. [Online; accessed 05-October-2023].

Humeau, S., Shuster, K., Lachaux, M., and Weston,

J. (2019). Real-time inference in multi-sentence

tasks with deep pretrained transformers. CoRR,

abs/1905.01969.

Kim, M. and Kim, D. (2022). A suggestion on the lda-based

topic modeling technique based on elasticsearch for

indexing academic research results. Applied Sciences,

12(6):3118.

Liu, Y., Ott, M., Goyal, N., Du, J., Joshi, M., Chen, D.,

Levy, O., Lewis, M., Zettlemoyer, L., and Stoyanov,

V. (2019). Roberta: A robustly optimized bert pre-

training approach. arXiv preprint arXiv:1907.11692.

Information Retrieval Chatbot on Military Policies and Standards

721

Marietto, M. D. G. B., d. A. R. V. B. G. D. O. B. W. T.

P. E. F. R. D. S. . d. S. V. L. (2013). Artiﬁcial in-

telligence markup language: A brief tutorial. CoRR,

abs/1307.3091.

Martin, L., M

uller, B., Su

arez, P. J. O., Dupont, Y., Romary,

L., de la Clergerie,

E. V., Seddah, D., and Sagot, B.

(2019). Camembert: a tasty french language model.

CoRR, abs/1911.03894.

Nguyen, T., Rosenberg, M., Song, X., Gao, J., Tiwary, S.,

Majumder, R., and Deng, L. (2016). MS MARCO:

A human generated machine reading comprehension

dataset. CoRR, abs/1611.09268.

Ou, X. and Li, H. (2020). Ynu@ dravidian-codemix-

ﬁre2020: Xlm-roberta for multi-language sentiment

analysis. In FIRE (Working Notes), pages 560–565.

Peyton, K. and Unnikrishnan, S. (2023). A comparison

of chatbot platforms with the state-of-the-art sentence

bert for answering online student faqs. Results in En-

gineering, 17:100856.

Ramesh, K., Ravishankaran, S., Joshi, A., and Chan-

drasekaran, K. (2017). A survey of design techniques

for conversational agents. In Kaushik, S., Gupta, D.,

Kharb, L., and Chahal, D., editors, Information, Com-

munication and Computing Technology, pages 336–

350, Singapore. Springer Singapore.

Ravichander, A., Black, A. W., Wilson, S., Norton, T., and

Sadeh, N. (2019). Question answering for privacy

policies: Combining computational and legal perspec-

tives. In Proceedings of the 2019 Conference on

Empirical Methods in Natural Language Processing

and the 9th International Joint Conference on Nat-

ural Language Processing (EMNLP-IJCNLP), pages

4947–4958, Hong Kong, China. Association for Com-

putational Linguistics.

Reimers, N. and Gurevych, I. (2019). Sentence-bert: Sen-

tence embeddings using siamese bert-networks. In

Proceedings of the 2019 Conference on Empirical

Methods in Natural Language Processing. Associa-

tion for Computational Linguistics.

Saoji, S., Eqbal, A., and Vidyapeeth, B. (2021). Text recog-

nition and detection from images using pytesseract. J

Interdiscip Cycle Res, 13:1674–1679.

Shawar, B. and Atwell, E. (2002). A comparison between

Alice and Elizabeth chatbot systems. University of

Leeds, School of Computing research report 2002.19.

Leeds. Reproduced with permission from the copy-

right holders.

Shi, L., Zhang, K., and Rong, W. (2022). Query-response

interactions by multi-tasks in semantic search for

chatbot candidate retrieval.

Thakur, N., Reimers, N., Daxenberger, J., and Gurevych,

I. (2020). Augmented SBERT: data augmentation

method for improving bi-encoders for pairwise sen-

tence scoring tasks. CoRR, abs/2010.08240.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J.,

Jones, L., Gomez, A. N., Kaiser, L., and Polo-

sukhin, I. (2017). Attention is all you need. CoRR,

abs/1706.03762.

Vig, J. and Ramea, K. (2018). Comparison of transfer-

learning approaches for response selection in multi-

turn conversations.

Wolf, T., Debut, L., Sanh, V., Chaumond, J., Delangue,

C., Moi, A., Cistac, P., Rault, T., Louf, R., Funtow-

icz, M., Davison, J., Shleifer, S., von Platen, P., Ma,

C., Jernite, Y., Plu, J., Xu, C., Saux, T. L., Gugger,

S., Drame, M., Lhoest, Q., and Rush, A. M. (2020).

Transformers: State-of-the-art natural language pro-

cessing.

Zheng, C., He, G., and Peng, Z. (2015). A study of web

information extraction technology based on beautiful

soup. J. Comput., 10(6):381–387.

APPENDIX

Table 1: Description of database structures.

Table Name Field Description

kg nodes id Unique identiﬁcation number of text

search text Scraped text (with acronyms replaced) to be retrieved when queried

html Scraped text with HTML tags

type Text type (section or body)

url URL of the policy that the text was retrieved from

raw text Scraped text (with acronyms)

document id Unique identiﬁcation number of the URL

scraped at Time text was scraped

other language id ID of the same text in another language

document page versions document id Unique identiﬁcation number of the URL

scraped at Time the webpage was scraped

url URL of the page scraped

hash Hashes of individual pages

document versions document id Unique identiﬁcation number of the URL

scraped at Time the policy was scraped

root url URL of the main page scraped

documents document id Unique identiﬁcation number of the URL

name Name of the policy

language Language of policy (English or French)

other language id document id of the same policy in another language

ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods

722
