Automating IoT Security Standard Testing by Common Security Tools

Rauli Kaksonen

1 a

, Kimmo Halunen

1, 2 b

, Marko Laakso

and Juha R

oning

1 c

University of Oulu, Oulu, Finland

National Defence University of Finland, Department of Military Technology, Finland

ﬁ

Keywords:

IoT, Security Standard, Testing, Automation, Security Tools, ETSI EN 303 645, ETSI TS 103 701.

Abstract:

Cybersecurity standards play a vital role in safeguarding the Internet of Things (IoT). Currently, standard

compliance is assessed through manual reviews by security experts, a process which cost and delay is often

too high. This research delves into the potential of automating IoT security standard testing, focusing on the

ETSI TS 103 701 test speciﬁcation for the ETSI EN 303 645 standard. From the test speciﬁcation, 56 tests

are relevant for the network attack threat model and considered for automation. Results from the research

are promising: basic network security tools can automate 52% of these tests, and advanced tools can push

that number up to 70%. For full test coverage, custom tooling is required. The approach is validated by

creating automation for a real-world IoT product. Test automation is an investment, but the results indicate

it can streamline security standard veriﬁcation, especially for product updates and variants. Data from other

testing activities can be used to reduce the effort. Automating the security standard testing would enable the

certiﬁcation of a large number of IoT products for their lifetime.

1 INTRODUCTION

Cybersecurity standards play a vital role in safeguard-

ing the Internet of Things (IoT). Effective and inde-

pendent assessment of security standard compliance

is essential to build trust to the systems we depend

on. The need to improve the cybersecurity of IoT de-

vices has been widely recognized. The lack of secu-

rity in IoT will undermine the users’ trust and hamper

the adoption of new products. (Matheu et al., 2020;

Traﬁcom, 2023)

The current security assessment techniques are

complex and must be performed by cybersecurity ex-

perts. Major challenges are the high cost, delays

to product launch, re-certiﬁcation as products have

to be updated, and overall scalability to cover the

huge number of products in the market (Matheu et al.,

2020). A potential solution would be to replace man-

ual work with automated tool-based veriﬁcation.

Different products have different security needs

and thus the rigor of security certiﬁcation evaluation

should vary (ECSO, 2017). An entry-level security

certiﬁcation may be sector-agnostic and performed as

self-certiﬁcation. Third-party certiﬁcation is required

https://orcid.org/0000-0001-8692-763X

https://orcid.org/0000-0003-1169-5920

https://orcid.org/0000-0001-9993-8602

for higher-level assurance. An entry-level assessment

may only consider the interface of the product, i.e. a

black-box assessment. A high-level certiﬁcation may

require inspection of design information, source code,

etc. Security assessment can examine the product,

the vendor and its processes, or both. The product-

based approach allows assessment by customers or

third parties without visiting vendor premises. When

a new product version is released, a re-certiﬁcation is

required. To avoid full re-certiﬁcation, only the mod-

iﬁed parts of the product may be assessed or the ven-

dor is given the freedom to perform updates without

invalidating the certiﬁcate (ECSO, 2017).

1.1 Certiﬁcation and Standards

Many different IoT security standards, guidelines,

and best practices exist (Cirne et al., 2022; Kakso-

nen et al., 2022; Khurshid et al., 2022; Matheu et al.,

2020). The requirements are usually generic in nature

and veriﬁcation requires the creation of test cases and

review actions. This may bring inconsistencies and

variation to the evaluations done by different evalua-

tors and for different products.

However, there are some relevant standards which

have a test speciﬁcation. ETSI EN 303 645 is a rec-

ognized consumer IoT security standard with accom-

Kaksonen, R., Halunen, K., Laakso, M. and Röning, J.

Automating IoT Security Standard Testing by Common Security Tools.

DOI: 10.5220/0012345900003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 42-53

ISBN: 978-989-758-683-5; ISSN: 2184-4356

panying test speciﬁcation ETSI TS 103 701 (ETSI,

2020; ETSI, 2021). ETSI EN 303 645 is used as

the basis for Finnish, Singaporean, and German cy-

bersecurity labels (BSI, 2023a; CSA, 2023; Traﬁ-

com, 2023). ETSI EN 303 645 can be considered

sector-agnostic which requirements are applicable for

most consumer IoT products. The Common Criteria

for Information Technology Security Evaluation (CC)

is a third-party certiﬁcation scheme standardized as

ISO/IEC 15408 (CC, 2022). CC is sector-agnostic,

but its large set of optional requirements can be mixed

and matched to suit different needs. Requirements

can be also tailored using operations. The CC pro-

tection proﬁles are predeﬁned collections of require-

ments for speciﬁc product sectors. However, the cost

and complexity of CC certiﬁcation seriously hinder

its adoption for IoT (Matheu et al., 2020).

There are also national and industry-speciﬁc certi-

ﬁcation schemes. The Federal Ofﬁce for Information

Security (BSI) of Germany has published security re-

quirement guideline TR-03148 and a test speciﬁca-

tion speciﬁc for consumer broadband routers (BSI,

2023c; BSI, 2023b). ioXt is an industry-driven se-

curity certiﬁcation scheme by the ioXt Alliance (ioXt

Alliance, 2023), which speciﬁes requirements and test

cases. It supports both self-certiﬁcation and third-

party certiﬁcation by base and sector-speciﬁc require-

ments.

1.2 Common Security Tools

There exists a large pool of open source security tools

to probe various aspects of IT security (Kaksonen

et al., 2021). The most popular tool categories are

network scanning, packet capture and injection, web

security, and disassembly.

The use of tools is not usually dictated in secu-

rity standards, but it is up to the evaluator to select

the tools, if any. ETSI TS 103 701 especially dis-

cussed this: ”Due to the heterogeneity of consumer

IoT devices ... test groups in the present document

are formulated in a generic manner. Thus, the present

document does not describe speciﬁc tools or detailed

step-by-step instructions” (ETSI, 2021, p. 10). The

continuous emergence of new attacks and vulnerabili-

ties would call for automated monitoring, testing, and

mitigation tools (Cirne et al., 2022).

1.3 Related Studies

Model-based testing (MBT) is an often suggested se-

curity testing automation approach for IoT systems

(Lonetti et al., 2023; Matheu et al., 2020; Matheu

Garc

ıa et al., 2024). MBT facilitates automated test

case generation. For example, Matheu-Garcia et al.

present a risk-based MBT approach for automated

IoT cybersecurity certiﬁcation (Matheu-Garc

ıa et al.,

2019). However, the downside is that the generation

of comprehensive security test cases requires a very

detailed model. It is indicative, that MBT research pa-

pers tend to concentrate on testing of speciﬁc product

components, such as the implementation of a commu-

nication protocol (Lonetti et al., 2023; Matheu-Garc

ıa

et al., 2019).

Manufacturer Usage Description (MUD) is orig-

inally intended for IoT devices to signal the kind

of network access they require to function properly

(Rekhter and Li, 2019). So far, MUD has not been

embraced by the industry and use has not caught up.

However, the research community has noted it and

many extensions have been proposed to make it more

comprehensive for MBT and other uses (Lonetti et al.,

2023; Matheu Garc

ıa et al., 2024).

Penetration testing is an expert analysis method,

where the expert analyzes the system to ﬁnd vulner-

abilities (Johari et al., 2020). The tester assumes the

role of an attacker. Fuzzing is a popular and effective

security testing method and it can be performed even

over the network (Takanen et al., 2018).

The amount of research focusing on the use of

common tools for IoT security testing is limited. Kak-

sonen et al. use common security tools to test se-

curity requirements derived from different security

speciﬁcations (Kaksonen et al., 2023a). Lally and

Sgandurra provide a mapping from vulnerabilities

identiﬁed in the OWASP IoT project into testing in-

structions, methodologies, and tools to use (OWASP,

2018; Lally and Sgandurra, 2018). Rollo lists some

tools and techniques applicable to high and medium-

level security certiﬁcation (Rollo, 2017). Dupont

et al. presented tool-based automation of risk as-

sessment in an agile iterative development process

(Dupont et al., 2023). Tools are run on each iter-

ation for continuous and automatic risk assessment.

Tools also are used to automate penetration testing

(Abu Waraga et al., 2020; Akhilesh et al., 2022; Si-

boni et al., 2019). Fuzzing is by nature a tool-based

approach (Takanen et al., 2018). Usually, the com-

mon tools have a supporting role in research, e.g. for

capturing protocol trafﬁc (Matheu et al., 2020).

The use of proprietary functionality, even for com-

mon tasks like authentication, makes it difﬁcult to au-

tomate IoT security assessment. This is described by

Waraga et al. as ”Assessing the security of IoT devices

is difﬁcult due to the wide variety and functionality of

IoT devices” (Abu Waraga et al., 2020, p. 15). The

same issue is raised by Matheu et al. (Matheu et al.,

2020).

Automating IoT Security Standard Testing by Common Security Tools

None of the aforementioned publications pro-

pose implementing security standard testing using the

common security tools.

1.4 Research Objectives

The focus of our research is the use of common se-

curity tools for IoT security standard testing. As full

automation is unlikely to be feasible, we ﬁrst identify

the tests for which automation is a priority. Then, we

study which types of common tools are applicable and

what is achievable coverage for the test automation.

The structure of the remainder of this article is as

follows. In Section 2, we examine the security test

speciﬁcation ETSI TS 103 701 to understand which

tests should be automated, which common tools are

applicable, and what is achievable automation cover-

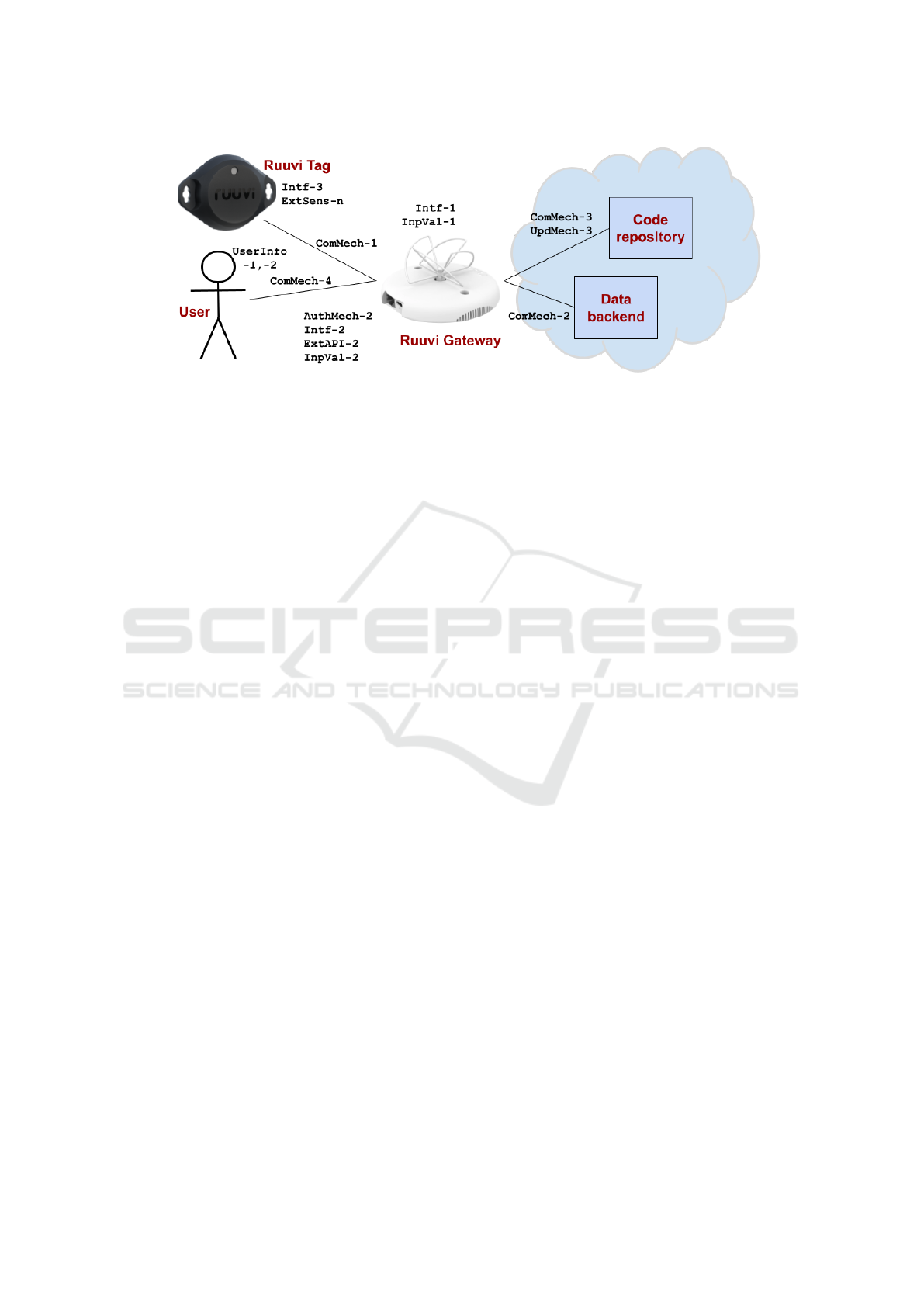

age. In Section 3, we create a proof-of-concept test-

ing framework and present test automation for a real-

world IoT product. Finally, we provide discussion

and conclusions.

2 STANDARD TESTING

AUTOMATION

In this section, we go through a security standard ver-

iﬁcation and consider automating it. The threat model

used in this research is an attack over a network, either

from the Internet or from the local network. We ex-

clude non-network-based interfaces from the security

analysis. As the most common vulnerabilities in IoT

are related to HyperText Transport Protocol (HTTP)

servers and other network-exposed services, we think

this is a reasonable starting point for IoT security test-

ing (Kaksonen et al., 2023b; OWASP, 2018).

Verdicts of automated tests are assigned without

manual work by the evaluator. As someone needs

to create the automation, this does not mean auto-

matic certiﬁcation. However, automation may per-

form repetitive tasks, such as running the same checks

for many interfaces or services. Automation also sup-

ports continuous standard compliance checks during

iterative product development. Especially useful au-

tomation should be in re-certiﬁcation after product

updates or certifying product variants.

2.1 Test Speciﬁcation ETSI TS 103 701

In our analysis, we use ETSI TS 103 701 which is a

test speciﬁcation for security standard ETSI EN 303

645 (ETSI, 2020; ETSI, 2021). The standard is well

recognized and the use of an existing speciﬁcation

prevents us from biasing tests to match the available

tools. The standard covers customer IoT device secu-

rity and device interactions with associated services,

such as backend services or mobile applications. The

associated services themselves are out of scope. ETSI

TS 103 701 speciﬁes the following veriﬁcation pro-

cess steps (ETSI, 2021):

1. Identiﬁcation of the device under test (DUT)

2. Deﬁning the pro-forma implementation confor-

mance statement (ICS)

3. Providing the required implementation extra in-

formation (IXIT)

4. Veriﬁcation of the ICS

5. Security assessment and test verdict assignment

6. Assignment of the overall verdict

Steps 1-3 are performed by the vendor and 4-6 by the

test laboratory. ICS speciﬁes the standard require-

ments implemented by DUTs and vendor processes.

Pro-forma ICS is the proposal from the vendor, which

the security assessment then accepts or rejects. IXIT

provides extra information required in the security as-

sessment, e.g. network topology, services, software

components, and so on. The test laboratory then veri-

ﬁes the requirements and assigns the verdicts.

The ETSI EN 303 645 is made up of 67 secu-

rity provisions, i.e. requirements. Provisions can be

mandatory, optional, or recommended. ETSI TS 103

701 deﬁnes groups of test cases to test the confor-

mance for the provisions. There are conceptual and

functional test cases. A conceptual test checks the

conformity of ICS to requirements and a functional

test probes the DUT or other artifacts. Many of the

tests are difﬁcult to verify automatically without ex-

pert judgment. For example, consider the following

provision (ETSI, 2020, p. 19).

Provision 5.5-1. The consumer IoT device

shall use best practice cryptography to com-

municate securely.

The provision can be tested by the following test cases

and test units (ETSI, 2021, p. 52-54):

• Test case 5.5-1-1 (conceptual).

a) Appropriate security guarantees are speciﬁed

b) The security guarantees are achieved by the

used communication mechanism

c) The communication mechanism uses best prac-

tice cryptography

d) There are no known vulnerabilities for the com-

munication mechanism

• Test case 5.5-1-2 (functional).

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

a) The implementation is using the speciﬁed com-

munication mechanism

The test units 5.5-1-1 a) and b) require expert opin-

ion about the appropriateness and sufﬁciency of the

product design. The verdict assignment is based on

the intended usage of the product and IXIT. The test

units 5.5-1-1 c) and d) are more mechanical compari-

son to best practices and known vulnerabilities. They

are subject to change as the best practices and at-

tacks evolve. The test unit 5.5-1-2 a) checks that the

product implementation is indeed using the speciﬁed

mechanisms.

Table 1: ETSI TS 103 701 test categories and test unit

counts (C is conceptual, F is functional).

Test units C F

All, T

226 124 102

IXIT and ICS review, T

106 106 -

Cross-references, T

14 8 6

Product security tests, T

106 10 96

- Security perimeter tests, T

56 10 46

- Product UI tests, T

50 - 50

Table 2: ETSI TS 103 701 test targets referenced in the

product tests T

Test target Test target description

AuthMech Authentication mechanisms

UserInfo User documentation and other info

UpdMech Software update mechanisms

ReplSup Isolation and hardware replacement

SecParam Stored security parameters

ComMech Communication mechanisms

NetSecImpl Implementations of network and secu-

rity functions

SoftServ Implementations of service authoriza-

tion and access control

Intf Network, physical, and logical inter-

faces of the DUT

SecBoot Secure boot mechanisms

ExtSens External sensing capabilities

ResMech Resilience mechanisms for outages

TelData Telemetry data

DelFunc User data deletion functionalities

UserDec User decisions

UserIntf User interfaces

ExtAPI Externally accessible APIs

InpVal Data input validation methods

There are a total of 226 test units. Table 1 shows

the test unit categories, the symbol denoting the cat-

egory, and the number of test units in it divided into

conceptual and functional tests. The symbol refers

to both conceptual and functional test units. All test

units are denoted with T

and |T

| = 226. IXIT and

ICS review T

tests are for reading and validating the

IXIT and ICS. The speciﬁcation contains some cross-

reference tests T

which refer to other test units. We

ignore them to avoid double counting. The product

security tests T

exercise or probe the product or its

components or source code, e.g. the aforementioned

5.5-1-1 c) and d) and 5.5-1-2 a).

The threat model is an attack through a network,

and the relevant tests target the network interfaces and

the protection layers behind them. We call these se-

curity perimeter tests T

. The other product tests are

different User interface (UI) tests T

. The focus of

this research is the 56 T

tests. This does not mean

that T

is not important, as e.g. a bad UI may lead

users to make decisions bad for the system security.

ETSI TS 103 701 IXIT is made up of 29 differ-

ent types of information. For example, all commu-

nication mechanisms are listed under ”11-ComMech:

Communication Mechanisms” with identiﬁer, de-

scription, security guarantees, cryptographic details,

and resilience mechanisms speciﬁed for each mecha-

nism (ETSI, 2021, p. 101). The speciﬁcation does not

provide any generic term for these, we use the term

test target. The test targets are used in the test speci-

ﬁcations to point the focus of the test, e.g. the afore-

mentioned 5.5-1 test units refer to ComMech. Table 2

lists the test targets used in T

2.2 Automation of ETSI TS 103 701

We examined the automation potential of ETSI TS

103 701 tests by studying the test unit descriptions,

test targets, and features of the available security tools

(ETSI, 2021).

The choice of proper tools is mostly affected by

the test target. For example, a network tool can probe

network interfaces and communication, while a static

analysis tool can probe software. Table 3 lists the test

targets from T

, T

, and T

with the tool types that

can be used to automate the tests. The test and tool

types are listed in rows and the test targets in columns.

When a test type applies to a test target, the number

of relevant test units is given in the table cell. The

Share column gives the proportion relative to T

tests,

e.g. T

tests are 53% of T

and tests by basic tools are

27% of T

The tools are divided into basic, advanced, and

custom tools. The basic tools are network-based and

should be easy to deploy in most cases. Network

scan tools are used to ﬁnd network hosts and services.

There are also search engines for hosts and services

on the Internet. Network capture tools record network

trafﬁc for analysis. Protocol-speciﬁc tools can check

the correctness and use of the best practices on a pro-

tocol basis, such as HTTP, Trasport Layer Security

(TLS), or Secure SHell (SSH). An important group

Automating IoT Security Standard Testing by Common Security Tools

Table 3: ETSI TS 103 701 product test targets mapped to the product security tests T

, security perimeter tests T

, types of

tests and test tools, and UI tests T

. Shares given as the percentage of T

Test target

AuthMech

UserInfo

UpdMech

ReplSup

SecParam

ComMech

NetSecImpl

SoftServ

Intf

SecBoot

ExtSens

ResMech

TelData

DelFunc

UserDec

UserIntf

ExtAPI

InpVal

Product security tests T

11 18 11 10 3 4 3 3 9 3 3 5 4 11 5 1 1 1 100%

Security perimeter tests T

8 3 8 5 3 4 3 3 7 2 1 5 2 1 1 53%

Basic tools 27%

Network scan and capture 2 1 1 7 1 1

Protocol-speciﬁc 3 3 3 1

Web page availability 3 2 1

Advanced tools 9%

MITM 1

Input validation 1

Password brute-forcing 1

Code analysis 3

Network/power switch 1 3

Custom tools 16%

Access control 2

Functional 2 2 2 2

Unauthorized update 3

Internal properties 3 1

UI tests T

47%

Document review 11 3 1 2 1

UI usage 3 4 3 1 1 11 5

Physical inspection 1 2 1

are the various Web security tools. Web page avail-

ability tool, which can be a simple script, checks that

a document is available on the Internet. Together the

basic tools cover 52% of T

and 27% of T

The advanced tools require more work to be de-

ployed, as they must be conﬁgured for the purpose

and can be intrusive and not suitable for all envi-

ronments. Man in the middle (MITM) tools try to

break encryption by inﬁltrating the network connec-

tions. Input validation tools try to ﬁnd ﬂaws in

the parsing of external input. This is often done

by fuzzing. Password brute-forcing tools check that

password-guessing attempts over the network are

throttled. Code analysis refers to various tools in-

specting source code and other development arti-

facts. Software composition analysis (SCA) tools

are used to identify the used software components

and libraries. SCA tools may also check if the soft-

ware contains known vulnerabilities. Network/power

switches are devices which allow programmatically

switch network connections or power on and off.

They can be used to simulate outages to test DUT be-

havior in error situations. Together the advanced and

basic tools cover 70% of T

and 37% of T

The custom tools must be speciﬁcally created on

a per-product basis. These tools often require to drive

DUT into speciﬁc states and coordination with the

backend. Access control testing veriﬁes that access

to critical resources is appropriately granted or de-

nied depending on the provided credentials. Func-

tional tests check that a DUT performs an intended

functionality. Unauthorized update testing tools in-

ject modiﬁed update packages to check for the proper

response. Internal tools check DUT internal compo-

nents, such as secure storage of critical parameters. If

custom tools can be implemented for all tests, the ag-

gregate T

tool coverage would be 100% and T

cov-

erage 53%.

The remaining 47% of T

are UI tests. Document

review ensures that the required aspects are clearly

presented in the user documentation. UI usage refers

to the actual use of the DUT user interface. Physical

inspection is required to check the physical proper-

ties of the DUT casing. It has been assumed that UI

tests must be performed manually, but with additional

effort they could be automated, as well. A change de-

tection tool can check if a document has been updated

since a review. UI automation tools can be used to

drive UI which can be controlled programmatically,

e.g. web UI. With change detection tools, the product

test T

automation coverage can be raised to 70% and

by adding UI automation up to 96%.

The problem with test coverage is that without UI

automation, a user must actively exercise the prod-

uct to go through its different states and functions.

This may be alleviated if the security testing takes ad-

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

vantage of actions performed in other testing. Net-

work captures may be taken while the product is used

for other purposes. Non-intrusive tests, e.g. network

scans, may be performed in parallel with other uses of

the product. Code auditing may take place for normal

quality control, but its results can be reused as evi-

dence of security tests. Security testing done by only

observing the DUT is called passive security testing

(Mallouli et al., 2008).

2.3 Mapping Tool Capabilities and Tests

Security tools are unlikely to be speciﬁcally designed

for security standard testing and the standard tests

may not be designed to be automated. Thus, the tool

capabilities and test verdict assignments are not nec-

essarily well aligned and must be mapped.

Mapping the two can be fairly straightforward,

e.g. consider the aforementioned test units 5.5-1-2 a)

and 5.5-1-1 c) and d) (ETSI, 2021, p. 52-54). An up-

to-date protocol-speciﬁc tool can check that the pro-

tocol is used, best practice cryptography is applied,

and no known vulnerabilities are present.

More mapping logic is required e.g. for the seven

Intf network interface tests. The tests aim to check

that the interfaces match IXIT, no undocumented in-

terfaces exist, interfaces are enabled or disabled as

stated, and no extra information is disclosed. For

them, the matching tool type is Network scan and

capture, but these tools produce lists of observed net-

work nodes, services, ports, connections, etc., not ver-

dicts. The automation must compare the tool output

to the network interface deﬁnition Intf and assign test

pass or fail verdicts as appropriate.

Automating some test units requires interpretation

of the test purposes. For example, there are eight Up-

dMech update mechanism perimeter test units. The

test unit 5.3-2-2 states that the test lab must a) ”devise

functional attacks to misuse the update mechanism”

and then b) ”attempt to misuse each update mecha-

nism on the base of the devised adverse actions and

assess whether the design of the mechanism (...) ef-

fectively prevents the misuse” (ETSI, 2021, p. 34).

Automating the test unit a) is likely to require the cre-

ation of a custom test tool for misuse attempts of the

update mechanism. The tool should be capable of in-

serting a malicious update package and checking that

the update mechanism rejects it. However, common

security tools can be used to check the secure delivery

of the update packages over the network using stan-

dard protocols. Thus, an entry-level b) test is possible

with basic tools, e.g. by TLS protocol tool.

The update mechanism test 5.3-6-2 a) is a check

if updates are enabled by default, which is checked

by observing an update attempt from trafﬁc capture.

The tests 5.3-7-1 c) and d) are about proper encryp-

tion for update protection, which are checked using

protocol-speciﬁc tools. The tests 5.3-9-1 c) and d) are

for integrity and authenticity veriﬁcation of the up-

date, which requires the custom tool. Finally, test 5.3-

10-1 c) aims to verify that there are no undocumented

update channels via network interfaces. It is consid-

ered a pass, if there is no unknown network trafﬁc

from a DUT. An undocumented update channel inside

other expected trafﬁc would not be detected.

It is noteworthy, that an unexpected connection

in network capture will make many test cases fail,

such as several Intf interface tests and the UdpMech

test 5.3-10-1 c). Thus, there are test failures which

are false positives and true positives, but determining

which is which requires an expert analysis. However,

this is only required if an impact assessment of the

failure is required.

3 CASE STUDY

We implemented a proof-of-concept framework for

studying the automation of ETSI TS 103 701 tests.

Then we applied the framework in a case study of

real-world IoT product testing of Ruuvi Tags and

Gateway (Ruuvi Innovations Ltd, 2023). The man-

ufacturer was updated on our activities.

Figure 1: The proof-of-concept framework overview. Tool

results are read by tool adapters and mapped into annota-

tions on the test targets. Test case verdict logic reads anno-

tations to assign test verdicts.

3.1 Tool Data Collection and Verdict

Assignment

We designed and implemented a proof-of-concept

framework which digests output from different secu-

rity tools, maps the output into test targets, and as-

signs test verdicts. The framework is passive, the test

tools must be invoked separately. Running the tools is

outside of the scope of this research.

Automating IoT Security Standard Testing by Common Security Tools

Figure 2: Ruuvi system overview with test targets relevant to the case study.

The functional overview of the framework is given

in Figure 1. The output from the tools is read and

converted to normalized format by the tool adapters.

Then, the system model is used to ﬁnd out the relevant

test target by an address or other location information.

For example, a host service may be identiﬁed by IP

address, protocol, and port. The system model must

contain the network nodes, services, network connec-

tions, protocols, software components, etc. The ac-

quisition of the system model is beyond this paper,

it can be created for this purpose or a model can be

reused (Kaksonen et al., 2023b; Lonetti et al., 2023).

Once the test target is resolved, it is anno-

tated based on the tool results. Annotation in-

dicates the checks performed by the tool. The

annotations a tool adapter may assign is depen-

dent on the tool’s capabilities. For example,

a TLS test tool adapter may assign the annota-

tions protocol-tls= true, tls-best-practices=

true, and tls-no-known-vulns= true. The tool

can identify TLS services or connections, check if

they follow TLS best practices, and whether known

vulnerabilities are detected. Table 4 lists the tool ca-

pabilities used in the case study. Finally, verdict logic

contains rules to assign verdicts to tests based on the

annotations in the respective test targets. For exam-

ple, the above annotations may be read by the logic

for the aforementioned 5.5-1-1 c) and d) and 5.5-1-2

a).

The proof-of-concept framework is available as

open source software. It is hosted in GitHub

https://github.com/ouspg/tcsfw.git.

3.2 Ruuvi Tags and Gateway IoT

As a case study, we use the proof-of-concept frame-

work for security testing of Ruuvi Gateway and Tags

IoT devices (Ruuvi Innovations Ltd, 2023). Figure 2

shows the overview of the Ruuvi system relevant to

the case study, including the relevant test targets.

The system is made up of Ruuvi Bluetooth Low-

Energy (BLE) Tags, which broadcast sensor data

ExtSens, such as temperature and humidity, over the

communication mechanism ComMech-1. The Gate-

way collects the data and uploads it to a cloud ser-

vice using TLS over ComMech-2. The Gateway

gets automatic updates UpdMech-3 over the connec-

tion ComMech-3. The Gateway is set up and con-

trolled by the User using a browser over an HTTP

connection ComMech-4. The user is authenticated

by a factory-generated password using the mecha-

nism AuthMech-2. The user is provided with the vul-

nerability disclosure policy UserInfo-1 and published

support period UserInfo-2, available on the Internet.

The Gateway has HTTP API ExtAPI-2. The Gate-

way has a BLE interface Intf-1 and Ethernet/WiFi

interface Intf-2. The Tags have BLE interface Intf-

3. The Gateway validates input from the BLE broad-

casts InpVal-1 and HTTP InpVal-2. The Gateway

provides additional connectivity options, but they are

not enabled by default and are not included in this

presentation.

We target automating the security perimeter tests

. The test targets DelFunc, UserDec, and UserIntf

only have tests in T

, thus they are excluded. Also,

ReplSup was excluded, as it is not relevant for Ruuvi

which components can be updated. This leaves 14 test

targets to test, of which we implemented automation

for seven. The security perimeter tests relevant to the

14 test targets T

′

contains 51 test units.

The Ruuvi product has Finnish Cybersecurity La-

bel, thus it should fulﬁll selected requirements from

ETSI EN 303 645 (Ruuvi Innovations Ltd, 2022).

However, the acceptance process does not use ETSI

TS 103 701 and ICS and IXIT have not been created.

The information we use in the case study is collected

from the statement of compliance and by inspecting

the product and its documentation (Ruuvi Innovations

Ltd, 2022; Ruuvi Innovations Ltd, 2023).

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

Table 4: Case study tool capabilities, the test targets (and the

number of test units) they apply to, and the used tools. The

capabilities with tool references a) to f) are automated and

marked by green color. Red capabilities are not automated.

Tool capabilities Test targets

(test units)

Only the deﬁned connections are

present

ComMech(1),

U pdMech(2)

Only the deﬁned network nodes are

present

Int f (4)

Only the deﬁned services are

present

AuthMech(2),

ExtAPI(1), Int f (3)

Document is available on the Inter-

net

ExtSens(1),

ReplSup(2),

UserIn f o(3)

DUT basic functions work ReplSup(2),

ResMech(2)

Code review has been performed NetSecImpl(2)

Bad input is rejected (fuzzing) InpVal(1)

MITM attacks are detected

ComMech(1),

U pdMech(1)

Malicious update is rejected U pdMech(3)

Boot with modiﬁed ﬁrmware fails SecBoot(1)

Critical parameter modiﬁcation SecParam(1)

Default password is strong AuthMech(2)

TLS protocol is used

ComMech(3),

TLS best practices are followed

U pdMech(3)

No TLS vulnerabilities are found

Only the deﬁned SW is used (SCA) NetSecImpl(1)

Data storage is secure SecParam(2)

Telemetry data is properly used TelData(2)

Web best practices are used

InpVal(1)

Network or power disconnect ReplSup(1),

ResMech(3)

Deﬁned auth. protocol is used AuthMech(1),

So ftServ(1)

Auth. best practices are followed AuthMech(1)

Auth. brute-forcing is prevented AuthMech(1)

No auth. vulnerabilities are found AuthMech(1)

Access is granted/rejected properly So f tServ(2)

Used tools: a) Tcpdump, Hcidump, b) Nmap, Cen-

sys, Tcpdump, Hcidump, c) Python script, d) Mitm-

proxy, e) Testssl.sh, f) ZAP

Common security tools are used to implement the

test automation. Table 4 lists the tool capabilities, the

test targets (with test unit counts), and the names of

the used tools. The capabilities with a tool references

a) to f) are automated. For example, the capability

”Only the deﬁned connections are present” is applied

to one communication mechanism CommMech test

unit and two update mechanism UpdMech test units.

This capability is provided using tools Tcpdump and

Hcidump.

The used tools and their descriptions and home

pages are listed in Table 6. The local networks are

scanned with the Nmap tool. The remote backend in-

formation is fetched from the Censys Internet search

engine. IP network trafﬁc is captured by Tcpdump

and BLE trafﬁc by Hcidump tool. TLS services are

checked using Testssl.sh. TLS session man-in-the-

middle attacks are attempted using MITMProxy. The

availability of web-based documentation is checked

by a Python script. Web services are scanned by ZED

attack proxy (ZAP). The collection of network traf-

ﬁc requires the product to be used to trigger the vari-

ous product functions. The following actions are per-

formed.

1. The Ruuvi Tags and Gateway are powered up.

2. The user connects to special setup WiFi of the

Gateway, conﬁgures the system, and disconnects.

3. The Gateway is connected to the Data backend

and Code repository for data upload and updates.

For data collection, we use a Raspberry Pi 3 as WiFi

gateway between the Gateway, User browser, and In-

ternet (Raspberry Pi Ltd, 2023). The setup allows to

record and control all trafﬁc between DUTs and the

Internet. The tools are run manually, either from a

normal computer or from the Raspberry Pi, and the

tool output is collected for analysis. The resulting net-

work trafﬁc is captured and stored with other tool out-

puts. The data is analyzed by the framework to assign

verdicts for T

′

test units.

Table 5: Ruuvi case study test targets, covered test units

/ all units, and test target explanations T

′

. The green and

red color marks the targets covered and not covered by the

tools, respectively.

Test targets Test Explanation

units

AuthMech 2 / 8 HTTP server at Gateway

UserInfo 3 / 3 Two Internet-provided documents

UpdMech 5 / 8 Gateway updates by TLS

SecParam - / 3

ComMech 4 / 4 BLE, HTTP, 2 x TLS

NetSecImpl - / 3

SoftServ - / 3

Intf 7 / 7 Gateway and Tag interfaces

SecBoot - / 2

ExtSens 1 / 1 Tag sensors

ResMech - / 5

TelData - / 2

ExtAPI 1 / 1 Gateway HTTP API

InpVal - / 1 Gateway HTTP and BLE

Tests T

′

45% Covered 23 / 51 test units

3.3 The Achieved Coverage

Table 5 summarizes the achieved coverage. From the

51 Ruuvi security perimeter tests T

′

, 23 are automated

for 45% coverage.

Automating IoT Security Standard Testing by Common Security Tools

Table 6: The used security tools, short tool descriptions, and tool home pages.

Name Description Home page

Apktool Android APK analysis tool https://ibotpeaches.github.io/Apktool/

Black Duck SCA service (commercial) https://protecode-sc.com/

Censys Internet search service https://search.censys.io

Hcidump Bluetooth Low Energy recorder https://www.bluez.org

Nmap Network scanner https://nmap.org

Ssh-audit SSH test tool https://github.com/jtesta/ssh-audit

Testssl.sh TLS test tool https://testssl.sh

Tcpdump Trafﬁc recorder https://www.tcpdump.org

ZAP Web security scanner https://www.zaproxy.org/

More automation could be implemented to in-

crease the coverage. Adding authentication protocol

and brute-force tests, static code analysis, and input

validation test would raise the T

′

coverage to 63%.

With custom tools for testing access control, unau-

thorized update handling, security boot, and teleme-

try, the coverage would be 80%.

Adding automation tests for network and power

interruptions, e.g. using controllable power and net-

work switches, would add 10 %-points.

ETSI TS 103 701 includes a review of the vendor

processes for monitoring vulnerabilities and issuing

security updates, but no tests to look for vulnerabil-

ities in the product software. The scope is limited

to IoT devices, the mobile applications and backend

servers are excluded. We implemented the following

security testing automation beyond these limitations:

• Veriﬁcation of the backend service security pos-

ture by Censys, Testssl.sh, and Ssh-audit tools.

• Using a SCA tool to extract the software bill

of materials (SBOM) for veriﬁcation and known

vulnerability checking using Black Duck service

(commercial).

• Inspecting communication content between User

browser and other services by HAR data collected

by Web browser (Odvarko, Jan, 2007).

• Unpacking Ruuvi Mobile Application by Apktool

tool to check the application permissions.

• Parsing of release history of software components

in Code Repository by Github API to resolve the

update frequency (GitHub Inc., 2023).

The used tools and their descriptions are in Table 6.

4 DISCUSSION

We analyzed the ETSI TS 103 701 security test spec-

iﬁcation to study the proportion of the tests which

could be automated with common security tools

(ETSI, 2021). Of the 226 test units in the speciﬁca-

tion, 106 are product tests and 120 are inspections of

the conformance documentation. Of the product tests,

53% are security perimeter tests relevant to the threat

model of network-based attacks and 47% are differ-

ent types of UI tests. Basic network security tools

allow the automation of 52% of the security perime-

ter tests and 70% coverage is reachable by the use of

advanced tools. With custom tools, the perimeter au-

tomation coverage can rise towards 100%. The UI

tests are made up of user documentation reviews, ac-

tual UI tests, and physical inspection. These could

also be covered by automation, if suitable tools are

available or can be created.

Secondly, we created a proof-of-concept frame-

work, which assigns test verdicts based on output

from common security tools and performed a case

study with Ruuvi real-world IoT product. In the

case study, 45% of the security perimeter test verdict

assignments were automated using network-based

tools. This could feasibly rise to 90% by introducing

more advanced and custom tools.

The proof-of-concept framework we created is it-

self passive, it reads output from different tools. Se-

curity testing effort may be decreased by mixing the

invocation of the security tools with other testing ac-

tivities. For example, trafﬁc captures can be recorded

whenever the system is exercised. This lessens the

cost of security testing and increases the chances that

security is assessed. The downside is that the test cov-

erage is decreased if not all product functionality is

exercised. However, some security tests appear better

than no security tests. When higher coverage is re-

quired, dedicated security testing must be performed.

Automated security tests enable security veriﬁ-

cation without security experts and security self-

certiﬁcation. Tests that failed during the veriﬁcation

must be resolved. A failure may indicate a security

vulnerability, a security-neutral change in a DUT, or

a ﬂaw in the automation. As many tests are based

on the same result data set, a single root cause may

manifest itself as many test case failures, e.g. an un-

expected network connection may cause many differ-

ent interface tests to fail. The proportion of ﬂaws by

bugs in the test automation is hard to estimate but in

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

a study of unit tests in Java code 31-53% of failures

were attributed to tests rather than being a real bug

(Hao et al., 2013). Discovered vulnerabilities must

be ﬁxed by the vendor, but ﬁxing the tests may re-

quire the original author of the automation to be avail-

able. The resolution of test failures in automated self-

certiﬁcation requires a new process, warranting a fu-

ture research topic.

4.1 Efﬁciency and Coverage

The creation of automation for security tests is addi-

tional work. The exact effort is hard to estimate, as

it depends on the product and extend of test automa-

tion. Impact of the required work can be managed by

starting from testing of basic network features and ex-

tending towards full certiﬁcation automation. Regular

testing by the automation helps to avoid regression in

security.

The impact on cost and delay is compensated

when several test targets, product versions, or con-

ﬁgurations must be tested. The use of security tools

reduces the effort to create the tests. Work can be re-

duced by reusing tests between projects. The reuse

can be by the vendor or the testing laboratory, or

by having a library of test cases for a standard. A

solid beneﬁt from automation should come from re-

certiﬁcation of the product after updates, which may

be self-certiﬁcation if the coverage of the automatic

test cases is sufﬁcient. The certiﬁcation of product

variants should receive similar beneﬁts.

Automated security tests should be at least as

thorough as the manual tests would be. Ideally, the

automation increases coverage by performing more

checks than a manual tester can accomplish. Further,

a protocol-speciﬁc security tool may be able to per-

form more extensive veriﬁcation than a test created

for one product only. An up-to-date tool tests the

product against the latest best practices and known

vulnerabilities. However, the use of a generic tool

may leave some aspects of a security requirement

untested, unless the test is customized or accompa-

nied by manual veriﬁcation. In the general case,

the efﬁciency and coverage of automation in security

standard testing remains an open question.

The use of open source and other tools for secu-

rity standard testing raises the question of how much

trust we can place on them. This should be com-

pared to the level of trust we are placing in the evalu-

ators performing the assessment work. A maintained

and commonly used tool, e.g. Nmap, can likely be

trusted to give accurate information. Results from a

tool without a good reputation should be more care-

fully reviewed. It would be best to have at least two

tools for a testing capability in case one of them be-

comes unmaintained and is no longer updated. As

there should be a regular assessment of the quality

of work of the evaluators, there should be regular re-

views about the quality of used tools. To promote the

quality of open source tools used in commercial cer-

tiﬁcations, the projects behind them should be sup-

ported.

4.2 Improving Security Testing

Automation Coverage

Although we automated a signiﬁcant portion of the

relevant tests, there is room for improvement. To raise

the coverage, we propose several improvements:

• IoT products should use more standard compo-

nents and protocols that have common tools avail-

able for testing. For example, authentication may

be difﬁcult to test due to nonstandard implemen-

tation.

• Security requirements should be made more

testable and automation-friendly. For example,

a description of the attack surface should be re-

quired, as it can be veriﬁed by tools.

• New tools should be created to ﬁll the gaps be-

tween requirements and automated testing.

There are IoT frameworks which provide common

functionality for IoT products (Ammar et al., 2018;

CSA, 2022). In the best case, this could increase

the testability of IoT, if the frameworks are accom-

panied by tools to verify the proper use of the frame-

work security features. This could cover authentica-

tion, updates, data encryption, and other framework

functions.

Most existing IoT security standards share a com-

mon set of requirement categories, but there is a lot of

variation in the requirement details (Kaksonen et al.,

2022). The majority of the requirements are present

only in one or a few speciﬁcations. This makes it hard

to comply with many speciﬁcations. If those require-

ments can be checked by automation, then automation

mitigates the problem, but if they all call for custom

tools, then they hinder automation.

All security standards and test speciﬁcations

should be available in machine-readable format. For

example, the Common Criteria is available as XML

documents (CC, 2022). This provides a good start-

ing point for automation, as the information does not

need to be extracted from PDF documents or such.

The authors of this paper have found the extraction of

machine-readable data from speciﬁcation documenta-

tion especially cumbersome and error-prone.

Automating IoT Security Standard Testing by Common Security Tools

4.3 Comparison to Related Studies

The existing research of IoT security testing automa-

tion emphasizes MBT to generate the tests (Lonetti

et al., 2023). We employ common security tools,

which enables us to simplify the overall system

model, as custom test cases get replaced by the ca-

pabilities of the tools. This approach allows us to

present a more comprehensive automation of security

standards, while the existing research predominantly

offers only partial experiments. Test tools are used by

some existing research (Lally and Sgandurra, 2018;

Kaksonen et al., 2023a; Abu Waraga et al., 2020).

Compared to them, we map the tool capabilities to

security standard tests.

We agree that it is difﬁcult to test the IoT sys-

tems due to their heterogeneity (Abu Waraga et al.,

2020; Matheu et al., 2020). We also agree that the use

of standard IoT technologies would support increas-

ing test automation for IoT security testing (Lonetti

et al., 2023). However, we see that this could happen

through new security tools which can test standard

implementations, rather than using standard models

for test case generation. A share of the future research

should be directed towards improving the testability

of the IoT, e.g. by standard components, protocols,

and frameworks, rather than trying to test whatever

constructions the IoT vendors come up with.

4.4 Threats to Validity

We base our research on ETSI EN 303 645 secu-

rity standard and ETSI TS 103 701 test speciﬁca-

tion. All ﬁndings may not apply to other standards.

When using security standards that don’t specify test

cases, their design is additional work. As the ETSI

EN 303 645 emphasizes generic network security re-

quirements, there are many well-known high-quality

tools to use to implement the automation. The cre-

ation of automated tests may be far more challenging

for sector-speciﬁc standards which focus on processes

and design security, or emphasize the security of in-

ternal components. Future research on automation of

other security standards would provide more insight

into this question.

Even with well-speciﬁed tests, there is ambiguity

on the exact evidence required to assign a verdict.

This may increase or decrease the coverage of au-

tomation, depending on the chosen interpretation. We

chose to automate the tests from the established speci-

ﬁcation ETSI TS 103 701 to avoid biasing tests which

are easy to automate. From these tests, we suggest the

use of a tool when it can signiﬁcantly cover the intent

of the test. In the future, if the tool developers and

standard requirement authors get more aligned, it will

be easier to see which tests can be automated by tools

and which cannot be.

5 CONCLUSIONS

This paper appears to be the ﬁrst attempt to automate

IoT security standard testing using common security

tools. We achieved high automation coverage in the

security perimeter tests relevant to the threat model

of network attacks. We created a proof-of-concept

framework for automated security testing and pro-

vided a real-world case study. Our research shows

that automation could help to solve some of the ma-

jor problems in IoT certiﬁcation, the lack of expert

personnel and the cost and delays associated with the

certiﬁcation of multiple product versions and conﬁg-

urations.

ACKNOWLEDGMENTS

This work is supported by Finnish Scientiﬁc Advisory

Board for Defence (MATINE/2500M-0152).

REFERENCES

Abu Waraga, O., Bettayeb, M., Nasir, Q., and Abu Talib, M.

(2020). Design and implementation of automated IoT

security testbed. Computers & Security, 88:101648.

Akhilesh, R., Bills, O., Chilamkurti, N., and Moham-

mad Jabed, M. C. (2022). Automated Penetration

Testing Framework for Smart-Home-Based IoT De-

vices. Future Internet, 14(10):276.

Ammar, M., Russello, G., and Crispo, B. (2018). Inter-

net of Things: A survey on the security of IoT frame-

works. Journal of Information Security and Applica-

tions, 38:8–27.

BSI (2023a). Baseline Requirements for consumer IoT

devices. Federal Ofﬁce for Information Security,

https://www.bsi.bund.de/dok/ciot-standard.

BSI (2023b). BSI TR-03148-P: Test Speciﬁcation Con-

formance Tests for Secure Broadband Routers. Test

speciﬁcation, Federal Ofﬁce for Information Security,

Germany.

BSI (2023c). BSI TR-03148: Secure Broadband Router.

Requirements, Federal Ofﬁce for Information Secu-

rity, Germany.

CC (2022). Common Criteria for Information Technol-

ogy Security Evaluation, Parts 1-5, 2022, Revision 1.

Standard.

Cirne, A., Sousa, P. R., Resende, J. S., and Antunes,

L. (2022). IoT security certiﬁcations: Challenges

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

and potential approaches. Computers & Security,

116:102669.

CSA (2022). Matter security and privacy fundamentals,

v. 1.0. Technical report, Connectivity Standards Al-

liance.

CSA (2023). Cybersecurity Labelling Scheme. Cyber Se-

curity Agency of Singapore, https://csa.gov.sg/.

Dupont, S., Yautsiukhin, A., Ginis, G., Iadarola, G., Fag-

nano, S., Martinelli, F., Ponsard, C., Legay, A.,

and Massonet, P. (2023). Product Incremental Se-

curity Risk Assessment Using DevSecOps Practices.

In Computer Security. ESORICS 2022 International

Workshops, pages 666–685, Cham. Springer Interna-

tional Publishing.

ECSO (2017). European Cyber Security Certiﬁcation, A

Meta-Scheme Approach v1.0. WG1 – Standardisa-

tion, certiﬁcation, labelling and supply chain manage-

ment, ESCO.

ETSI (2020). Cyber Security for Consumer Internet of

Things: Baseline Requirements v2.1.1. ETSI EN 303

645, ETSI.

ETSI (2021). Cyber Security for Consumer Internet of

Things: Conformance Assessment of Baseline Re-

quirements v1.1.1. ETSI TS 103 701, ETSI.

GitHub Inc. (2023). GitHub REST API documentation.

https://docs.github.com/en/rest.

Hao, D., Lan, T., Zhang, H., Guo, C., and Zhang, L. (2013).

Is this a bug or an obsolete test? In Castagna, G., ed-

itor, ECOOP 2013 – Object-Oriented Programming,

pages 602–628, Berlin, Heidelberg. Springer Berlin

Heidelberg.

ioXt Alliance (2023). ioXT Internet of secure things.

https://www.ioxtalliance.org/.

Johari, R., Kaur, I., Tripathi, R., and Gupta, K. (2020). Pen-

etration Testing in IoT Network. In 2020 5th Interna-

tional Conference on Computing, Communication and

Security (ICCCS), pages 1–7.

Kaksonen, R., Halunen, K., Laakso, M., and R

oning, J.

(2023a). Transparent security method for automat-

ing IoT security assessments. In Information Security

Practice and Experience, pages 138–153, Singapore.

Springer Nature Singapore.

Kaksonen, R., Halunen, K., and R

oning, J. (2022). Com-

mon Cybersecurity Requirements in IoT Standards,

Best Practices, and Guidelines. In Proceedings of the

7th International Conference on Internet of Things,

Big Data and Security - Volume 1: IoTBDS,, pages

149–156. INSTICC, SciTePress.

Kaksonen, R., Halunen, K., and R

oning, J. (2023b). Vul-

nerabilities in IoT Devices, Backends, Applications,

and Components. In ICISSP - 9th International Con-

ference on Information Systems Security and Privacy.

INSTICC, SciTePress.

Kaksonen, R., J

arvenp

a, T., Pajukangas, J., Mahalean, M.,

and R

oning, J. (2021). 100 Popular Open-Source

Infosec Tools. In 36th IFIP International Confer-

ence on ICT Systems Security and Privacy Protection

(SEC), volume AICT-625 of ICT Systems Security and

Privacy Protection, pages 181–195. Springer Interna-

tional Publishing.

Khurshid, A., Alsaaidi, R., Aslam, M., and Raza, S. (2022).

EU Cybersecurity Act and IoT Certiﬁcation: Land-

scape, Perspective and a Proposed Template Scheme.

IEEE Access, 10:129932–129948.

Lally, G. and Sgandurra, D. (2018). Towards a Framework

for Testing the Security of IoT Devices Consistently.

In Saracino, A. and Mori, P., editors, Emerging Tech-

nologies for Authorization and Authentication, pages

88–102, Cham. Springer International Publishing.

Lonetti, F., Bertolino, A., and Di Giandomenico, F. (2023).

Model-based security testing in IoT systems: A

Rapid Review. Information and Software Technology,

164:107326.

Mallouli, W., Bessayah, F., Cavalli, A., and Benameur, A.

(2008). Security Rules Speciﬁcation and Analysis

Based on Passive Testing. pages 2078–2083.

Matheu, S. N., Hern

andez-Ramos, J. L., Skarmeta, A. F.,

and Baldini, G. (2020). A Survey of Cybersecurity

Certiﬁcation for the Internet of Things. ACM Comput.

Surv., 53(6).

Matheu-Garc

ıa, S. N., Hern

andez-Ramos, J. L., Skarmeta,

A. F., and Baldini, G. (2019). Risk-based automated

assessment and testing for the cybersecurity certiﬁca-

tion and labelling of IoT devices. Computer Standards

& Interfaces, 62:64–83.

Matheu Garc

ıa, S. N., S

anchez-Cabrera, A., Schiavone, E.,

and Skarmeta, A. (2024). Integrating the manufac-

turer usage description standard in the modelling of

cyber–physical systems. Computer Standards & In-

terfaces, 87:103777.

Odvarko, Jan (2007). HTTP Archive

1.2 Speciﬁcation. Software is hard,

http://www.softwareishard.com/blog/har-12-spec/.

OWASP (2018). OWASP Top 10 Internet of

Things. https://wiki.owasp.org/index.php/

OWASP Internet of Things Project.

Raspberry Pi Ltd (2023). Raspberry PI.

https://www.raspberrypi.com/.

Rekhter, Y. and Li, T. (2019). RFC 8520: Manufacturer

Usage Description Speciﬁcation. RFC, RFC Editor.

Rollo, J. (2017). D1.2 List of tools and techniques applica-

ble for high and medium assurance for efﬁcient assur-

ance. Report DS-01-731456 / D1.2 / V1.0, Project:

Compositional security certiﬁcation for medium to

high-assurance COTS-based systems in environments

with emerging threats.

Ruuvi Innovations Ltd (2022). Statement of compliance for

the Cybersecurity Label, 2022-06-06.

Ruuvi Innovations Ltd (2023). Ruuvi home page.

https://ruuvi.com.

Siboni, S., Sachidananda, V., Meidan, Y., Bohadana, M.,

Mathov, Y., Bhairav, S., Shabtai, A., and Elovici, Y.

(2019). Security Testbed for Internet-of-Things De-

vices. IEEE Transactions on Reliability, 68(1):23–44.

Takanen, A., Demott, J., Miller, C., and Kettunen, A.

(2018). Fuzzing for Software Security Testing and

Quality Assurance, Second Edition.

Traﬁcom (2023). Finnish Cybersecurity Label. Finnish

Transport and Communications Agency Traﬁcom,

https://tietoturvamerkki.ﬁ/en/.

Automating IoT Security Standard Testing by Common Security Tools
