System Architects Are not Alone Anymore: Automatic System Modeling

with AI

Ludovic Apvrille and Bastien Sultan

LTCI, T

ecom Paris, IP Paris, 450 route des Chappes, Sophia-Antipolis, France

Keywords:

Modeling, Veriﬁcation, Artiﬁcial Intelligence, LLM, Analysis, Design.

Abstract:

System development cycles typically follow a V-cycle, where modelers ﬁrst analyze a system speciﬁcation

before proposing its design. When utilizing SysML, this process predominantly involves transforming natural

language (the system speciﬁcation) into various structural and behavioral views employing SysML diagrams.

With their proﬁciency in interpreting natural text and generating results in predetermined formats, Large Lan-

guage Models (LLMs) could assist such development cycles. This paper introduces a framework where LLMs

can be leveraged to automatically construct both structural and behavioral SysML diagrams from system

speciﬁcations. Through multiple examples, the paper underscores the potential utility of LLMs in this context,

highlighting the necessity for feeding these models with a well-deﬁned knowledge base and an automated

feedback loop for better outcomes.

1 INTRODUCTION

Artiﬁcial Intelligence (AI), speciﬁcally Large Lan-

guage Models (LLMs) like OpenAI’s GPT, surely

have tremendous potential to revolutionize the realm

of system design. The complex nature of design-

ing efﬁcient systems requires a deep understanding of

the interplay between various components. However,

the intricate details, coupled with the need for op-

timal performance, often pose signiﬁcant challenges

for designers. In this context, AI can play a pivotal

role. LLMs, trained on extensive datasets, can gen-

erate valuable insights and recommendations, aiding

designers in creating highly effective systems. By

leveraging these AI models, designers can navigate

the complexity of system design more effortlessly and

make informed decisions that lead to enhanced sys-

tems.

In particular, with their ability to understand nat-

ural text, Large Language Models (LLMs) can often

get the essence of system speciﬁcation and output a

view of them according to some aspects (e.g., require-

ments, design) in a selected format, for instance in

SysML.

The research presented in this paper investigates

how customized utilization of large language mod-

els (LLMs), like ChatGPT, can effectively aid sys-

tem architects in developing preliminary designs. In

this context, ’design’ refers to the process of identify-

ing system components, establishing interconnections

between these components, and discerning each com-

ponent’s behavior. As the paper demonstrates, simply

querying these LLM-based AI engines to extract com-

ponents, interconnections, and behaviors from a sys-

tem speciﬁcation, or from existing diagrams, is not

sufﬁcient. Instead, we need to enhance the AI en-

gine’s context and implement a feedback loop. This

loop helps identify errors in the AI’s responses and

subsequently reﬁne the questioning strategy to pro-

voke more accurate answers.

The paper ﬁrst explains in Section 2 the context

of the work: SysML, TTool, LLMs and ChatGPT.

Then, Section 3 overviews the general framework of

our contribution. Building on this, Section 4 shows

how our framework can be successfully applied to au-

tomatically design systems with SysML blocks and

state machines from system speciﬁcations. Follow-

ing, Section 5 evaluates our contribution in the scope

of several case studies. Finally Section 6 compares

our approach with the state-of-the art, before conclud-

ing in Section 7.

Apvrille, L. and Sultan, B.

System Architects Are not Alone Anymore: Automatic System Modeling with AI.

DOI: 10.5220/0012320100003645

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 12th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2024), pages 27-38

ISBN: 978-989-758-682-8; ISSN: 2184-4348

2 CONTEXT

2.1 System Development with SysML

The SysML speciﬁcation outlines the structure of a

language, yet it doesn’t provide a method detailing

its application. Notwithstanding, numerous published

methods exist that advise on how to leverage SysML

efﬁciently for system development. One common

approach involves initially capturing system require-

ments from the system speciﬁcation. Subsequently,

this speciﬁcation undergoes analysis using a variety

of diagrams, such as use case diagrams, sequence di-

agrams, and activity diagrams.

Use case diagrams primarily aim to encapsulate

the central functions of the system and their inter-

actions with the surrounding environment (actors).

Moreover, sequence diagrams and activity diagrams

concentrate on analyzing the behavior of the system

to be designed. Eventually, a design typically uses

blocks to decompose the system into its constituent

components, and relies on state machines for the be-

havior of block.

The contribution of the paper enables TTool to

identify all the diagrams mentioned above. However,

the paper’s focus is speciﬁcally centered on the design

phase.

2.2 TTool

TTool

is a free and open-source toolkit for the edi-

tion of UML and SysML diagrams, as well as their

subsequent veriﬁcation. The veriﬁcation aspect cov-

ers safety, cyber-security, and performance evalua-

tion. This process is achieved via the utilization of

internal tools, such as model-checkers and simulators,

as well as external tools, including ProVerif, which is

used for security evaluation.

Our choice to rely on TTool stems from its ex-

cellent extensibility and its operability through a

command-line interface. These attributes simplify the

connection evaluation to an AI engine.

2.3 LLM

Large Language Models (LLMs), such as OpenAI’s

GPT (OpenAI, 2023), draw upon techniques from

deep learning and neural networks. They are a new

shift in the ﬁeld of natural language processing with

better understanding and generation capabilities. But

their utility goes beyond merely processing natural

text because they can understand both the syntax

https://ttool.telecom-paris.fr

and semantics of many different languages (including

computer code) and they can generate their answer in

various formats of data, including models and code.

A key feature developed in the next section is the

capacity of ChatGPT to incorporate custom knowl-

edge as input (also known as ”user-deﬁned contextual

embeddings”). This empowers users to tailor vari-

ous aspects such as the application domain, as well

as the format, constraints, and other aspects of the re-

sponses. As shown, this feature forms the foundation

for the contribution presented in our work.

Another signiﬁcant advantage of ChatGPT lies in

its API design. With just a simple HTTP request, one

can interact with the ChatGPT AI engine. For ex-

ample, the ’curl’ command-line utility can be used

to make queries to ChatGPT directly from a termi-

nal. However, this isn’t limited to terminal usage.

Any programming language capable of issuing HTTP

requests can interact with the ChatGPT AI engine.

Thus, a standard query encompasses several key ele-

ments: the target URL, authorization (which requires

an API key obtained from OpenAI), the speciﬁc lan-

guage model you intend to use (in this case: “gpt-3.5-

turbo”), and the user’s question presented in a JSON

format (for instance, “Hello!”).

$ curl https://api.openai.com/v1/chat/

completions -H "Content -Type:

application/json"

-H "Authorization: Bearer OPENAI_API_KEY"

-d ’{ "model": "gpt-3.5-turbo",

"messages": [{"role": "user",

"content": "Hello!"}] }’

The answer to the HTTP request is in JSON for-

mat, with an id of the chat, the answer given by the

assistant (“Hello! How can I assist you today?”) and

ﬁnally the tokens used by the query and by the answer.

The billing is based on both kinds of tokens.

{ "id": "chatcmpl

-7YzJ6Gmh0VjbWl3plUxqwzDrtDnnk",

"object": "chat.completion",

"created": 1688573172,

"model": "gpt-3.5-turbo-16k-0613",

"choices": [ { "index": 0, "message":

{ "role": "assistant",

"content": "Hello! How can I assist you

today?" }, "finish_reason": "stop" } ], \

"usage": { "prompt_tokens": 8,

"completion_tokens": 9,

"total_tokens": 17 } }

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

3 CONTRIBUTION OVERVIEW

The principal contribution of this paper is a generic

framework designed to support system architects

throughout the product development cycle. The forth-

coming section initially presents an overview of this

framework, subsequently providing a thorough explo-

ration of its primary elements.

3.1 Our Framework: TTool-AI

An overview of our framework, called TTool-AI, is

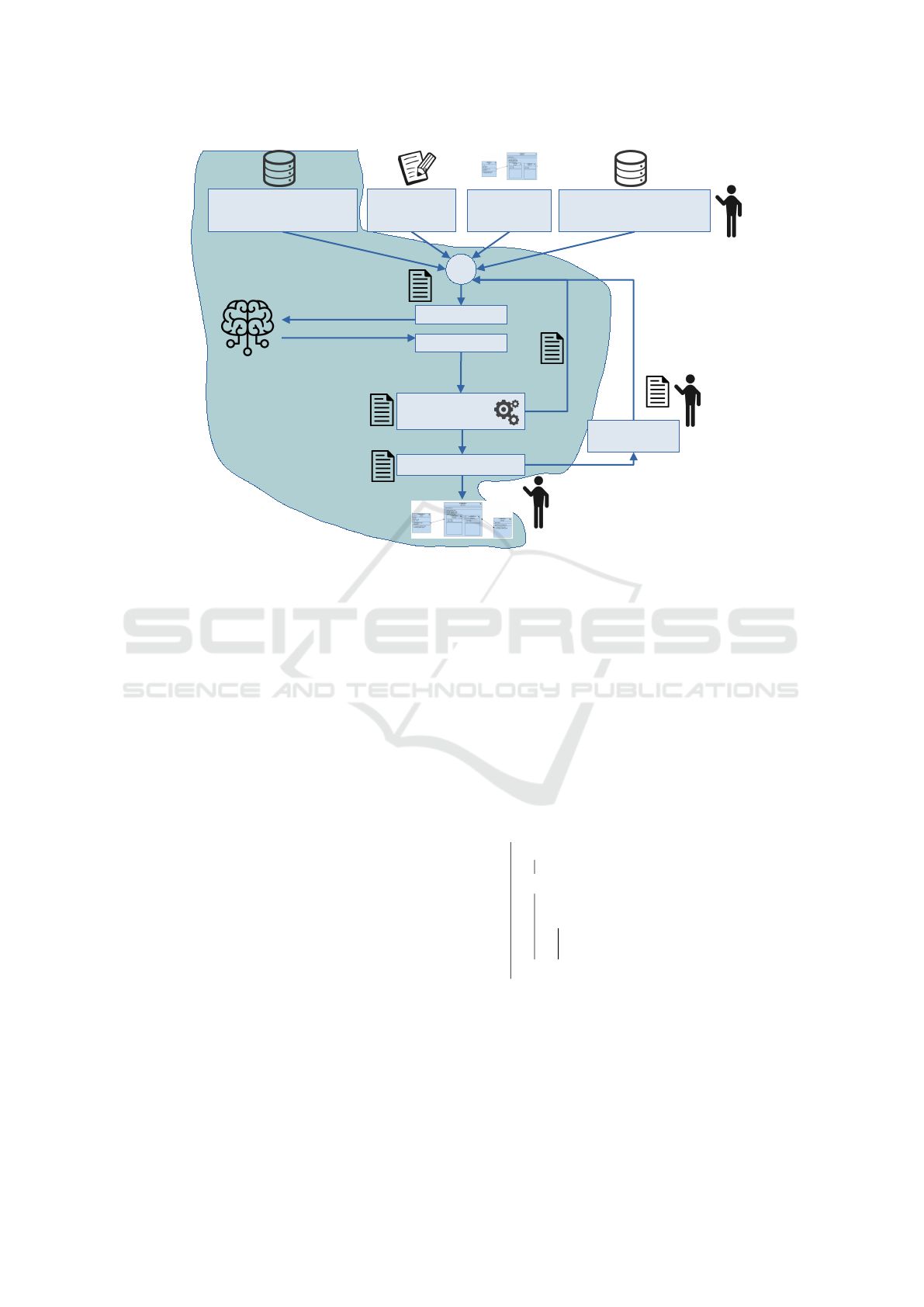

given in Figure 1.

Since the main idea is to automate the creation

of SysML diagrams from a system speciﬁcation, the

elements of the top of Figure 1 highlight the neces-

sary inputs: a system speciﬁcation, and a question

type (e.g., “identify the requirements from the follow-

ing system speciﬁcation”). The latter is crucial for

guiding the AI in determining the speciﬁc type of dia-

gram expected in the output. Depending on the choice

of AI engine, certain proprietary system engineering

knowledge might be required. This knowledge en-

compasses the format of diagrams (for instance, the

output is expected in SysML V2 textual format), their

semantics (e.g., a transition between states in a state

machine is executable only if its guard condition eval-

uates to true), constraints (for instance, two blocks

cannot share the same name), and overarching prin-

ciples (e.g., too many or too few requirements). No-

tably, pre-existing modeled diagrams could also serve

as input to the AI, aiding it in enhancing the resul-

tant diagram and maintaining coherence between the

expected new diagram and the pre-existing ones.

Upon consolidating the aforementioned informa-

tion, the resulting combination is anticipated to be in-

put into an AI engine, such as ChatGPT. The engine

then generates an appropriate response in the form of

a textual output adhering to the speciﬁed format (e.g.,

JSON, XML, SysML V2 textual format, etc.).

Given the inherent randomness of Large Language

Model AI engines in answer selection, coupled with

their existing limitations regarding answer relevance,

our framework incorporates an automated feedback

loop. The key objective of this feature is to scrutinize

the AI’s response in order to assess its quality. If this

quality is determined as too low, the feedback loop

is triggered, introducing a revised input text to guide

the AI towards a more precise and effective answer.

This provision for iterative improvement enhances the

robustness and reliability of our framework.

Upon generating a satisfactory response, or after

reaching a predeﬁned limit of automated feedback it-

erations, the framework offers the designer the op-

portunity to seek additional reﬁnements from the AI

engine. Once the designer is pleased with the qual-

ity of the AI-generated output, he/she can instruct the

system to render the resultant diagram automatically

in TTool, demonstrating the seamless integration with

SysML diagramming tools.

The section now delves into each main stage of

TTool-AI.

3.2 Knowledge

As explained before, the idea of knowledge is to cus-

tomize answers provided by the AI engine. The fol-

lowing example emphasizes on the interest of knowl-

edge. Let us consider the following JSON message

sent to ChatGPT:

"messages": [{"role": "user", "content":

"Is Nice sunny today?"}]

A typical answer provided by ChatGPT would be:

"I m sorry, as an AI language model,

I dont have access to current weather

conditions. However, Nice is located

in the French Riviera, which has a

generally sunny and Mediterranean

climate..."

Let us now inject some knowledge, adding a new user

role as well as the answer expected to be provided by

the AI engine. For this, we use the assistant role:

{"messages":[{"role":"user","content":

"Today, in Nice,

the sun shines with no clouds."},

{"role":"assistant","content":"ok"},

{"role":"user","content":

"Is Nice sunny today?"}]

"Yes, you mentioned earlier that the

sun is shining with no clouds in Nice.

So, it is indeed sunny today in Nice.

Enjoy the beautiful weather!"

The same approach can be used for system analysis

design. First, we can specify a general domain for

answers using the system role:

"messages":[{"role":"system",

"content":"You are a helpful

assistant for system engineering."},

However, this is far from sufﬁcient: the AI engine re-

mains uninformed about the speciﬁc diagram we ex-

pect, its required format, and the constraints associ-

ated with this diagram. Essentially, our strategy in-

volves deﬁning the expected diagram and its format

ﬁrst, followed by stipulating the constraints that the

diagram must meet. The subsequent section provides

System Architects Are not Alone Anymore: Automatic System Modeling with AI

Automated

analysis

AI Engine

query

response

Question

Answer

Knowledge

on system

engineering

Diagram

(SysML v2)

Code

Question type:

(Requirement

identification, etc.)

System

specification

Validated response

User

interaction

TTool-AI

apply

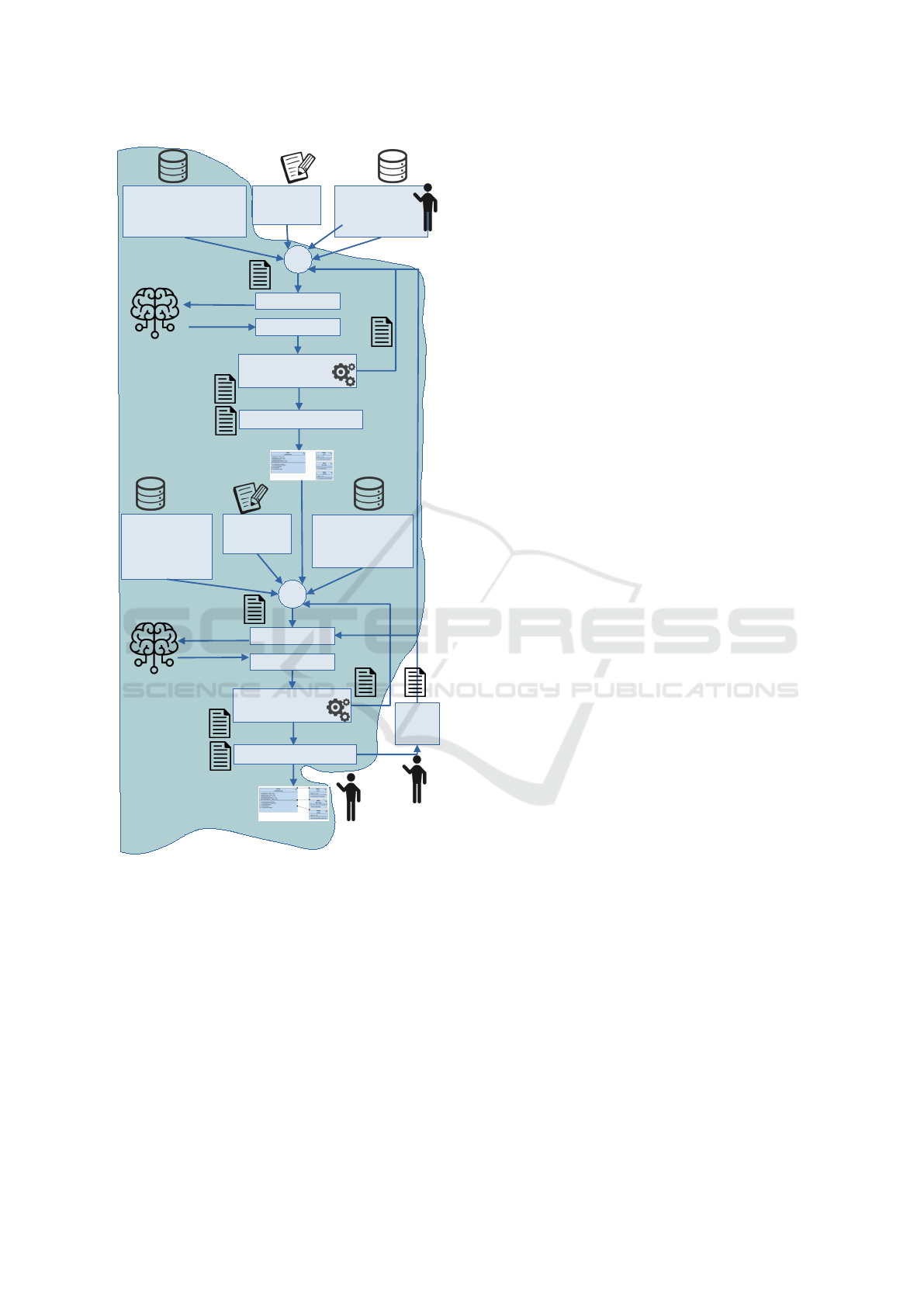

Figure 1: Overview of our framework.

tangible examples for both block and state machine

diagrams. Yet, in a generic form, the knowledge typi-

cally looks like this:

"messages":[{"role":"system", "content":

"You are a helpful assistant for system

engineering."},

{"role":"user",

"content":"When you are asked to

identify ..., use the following JSON

format: {element: [{ "name": "Name of

element""}] ...

Also, respect the following contraints:

- 1. do not use ...

- 2. do prefer to list ...

etc.

Splitting the knowledge in different JSON messages

may help if the knowledge becomes too large.

3.3 Automated Feedback Loop

The automated feedback loops checks two points:

1. The answer respects the expected output format

(e.g., JSON).

2. All constraints provided in the knowledge are sat-

isﬁed.

Algorithm 1 outlines the operation of the automated

analysis. Essentially, it constructs the subsequent

question q to pose to the AI engine by formulating

a sub-question for each identiﬁed error in the cur-

rent answer. If q remains empty after executing Al-

gorithm 1, the feedback loop ends, allowing the user

to take control of the response. Otherwise, the prior

question and answer are incorporated into the knowl-

edge base, and the new question q is submitted to the

AI engine.

Data: Answer a provided by AI engine

Result: String q (question)

q =

n = numberO f ErrorsIn(a)

if n! = 0 then

if f ormat(a) = invalid then

append(q, “Invalid format at line ...”)

foreach constraint do

if (error = constraint(a, c))! = null

then

append(q, “constraint c is not

satiﬁed: ” + error)

end

Algorithm 1: Feedback loop.

3.4 User Is also in the Loop

The user becomes involved in the process once all er-

rors in the preceding response have been rectiﬁed, or

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

when the feedback loop limit has been met.

In the ﬁrst scenario, the user must review any addi-

tional constraints that are not mathematically express-

ible, such as informal quality parameters of the an-

swer. For example, the block names might not align

with the user’s expectations. To address these issues,

the user can take on the role of the feedback loop

by posing new queries to the AI engine, with each

prior question and answer continuously added to the

knowledge base.

The second scenario poses more of a challenge,

for instance, if the AI engine consistently provides

responses in an incorrect format or does not satisfy

the constraints. The user has the choice to either pro-

vide its own knowledge to better guide the AI engine

to produce the correct response, or to make manual

corrections to all these errors, or ﬁnally to amend the

initial system speciﬁcation or diagrams to typically

impose additional constraints.

Once the user is satisﬁed with the generated re-

sponse, TTool-AIcan draw the corresponding diagram

from the AI answer’s JSON representation.

4 SYSTEM DESIGN

This section shows how TTool-AI, presented in pre-

vious section, can be used to design a system from

its speciﬁcation. By system design, we mean a set of

interconnected SysML blocks, with blocks’ behavior

described with state machine diagrams.

4.1 Case Study

We ﬁrst introduce a simple case study—a coffee

machine—that will be used all along this section to il-

lustrate the creation of a SysML design from a system

speciﬁcation. The evaluation of our approach with

more case studies is done in the next section.

The speciﬁcation of this case study is: This cof-

fee machine dispenses a beverage only after two coins

have been deposited. If there’s a substantial delay be-

tween the insertion of the ﬁrst and second coins, the

machine returns the initial coin. Likewise, if a bever-

age isn’t selected promptly after the deposit of the two

coins, both coins are automatically ejected. If either

of the beverage buttons (tea or coffee) is pressed be-

fore the coins are ejected, the machine begins to pre-

pare the selected drink. Notably, it takes 10 seconds

to brew a coffee and 8 seconds to make a tea. Once

the beverage has been collected, the machine is ready

to accept new coins for the next order..

4.2 Structural Aspects

The structural representation involves outlining the

blocks, encompassing their attributes, methods, ports,

and interfaces (as seen in SysML Block Deﬁnition

Diagrams), and demonstrating how these blocks can

be instantiated and interconnected (as depicted in

SysML Internal Block Diagrams).

Given the considerable amount of knowledge re-

quired to describe these two diagrams and their con-

straints, we’ve divided it into two subprocesses: one

for identifying blocks, block instances, and block at-

tributes, and another for recognizing signals (i.e., in-

terfaces), ports, and connections between ports. This

division required us to modify the framework de-

picted in Figure 1. We now need to introduce an initial

set of knowledge, engage in a feedback loop focusing

solely on this initial knowledge, and then introduce

the second set of knowledge once the automated feed-

back loop is complete, as illustrated in Figure 2. The

upcoming section delves further into this approach us-

ing the running example.

4.2.1 Knowledge and Question for Question #1

Our methodology for identifying blocks is predicated

on the speciﬁcation of the enforced JSON format and

constraints concerning blocks. The user is only re-

sponsible for supplying the system speciﬁcation (in

our case study: the one of the coffee machine) and

for selecting the question type (here, identify system

blocks).

The knowledge injected for Question #1 is deﬁned

as follows:

When you are asked to identify SysML

blocks, return them as a JSON

specification formatted as follows:

{blocks: [{"name": "Name of

block", "attributes": ["name":

"name of attribute", "type": "int or

bool" ...} ...]}

The typical constraints added to the knowledge are:

# Respect: each attribute must be of type

"int" or "bool" only

# Respect: Any identifier (block,

attribute, etc.) must no contain any

space. Use "_" instead.

...

Finally, Question #1 which is asked by TTool-AIto the

AI engine is, with the system speciﬁcation concate-

nated at the end of it:

From the following system specification,

using the specified JSON format, identify

System Architects Are not Alone Anymore: Automatic System Modeling with AI

Automated

Analysis # 1

AI Engine

query

response

Question #1

Answer #1

Knowledge on system

Engineering, and on

blocks, attributes

and methods

Question:

identify blocks,

attributes

and methods

System

specification

Validated response #1

apply

Knowledge on

system

engineering,

and on blocks,

signals, ports

Question: identify

signals,

connection

between ports

System

specification

Automated

Analysis # 2

AI Engine

query

Question #2

Answer #2

Validated response #2

User

Inter-

action

TTool-AI

response

Figure 2: Application of our framework to the identiﬁcation

of blocks and their connections.

the typical system blocks and their

attributes. Do respect the JSON format,

and provide only JSON (no explanation

before or after).

4.2.2 Knowledge and Question for Question #2

In the process of identifying signals and establish-

ing connections between blocks, the JSON format re-

mains to be used for the output is quite straightfor-

ward. However, it is crucial to respect many syntactic

and semantical constraints. For example, only signals

with corresponding attributes can be linked. Further-

more, in a connection, one signal must be classiﬁed

as an output, while the other is an input signal. Since

our diagram is a closed system, a signal must be con-

nected exactly to one other signal, among other con-

siderations.

...

#Respect: Two signals with the same name

are assumed to be connected: this is the

only way to connect signals.

#Respect: Two connected signals must have

the same list of attributes, even if they

are defined in two different blocks.

One of them must be output, the other one

must be input.

#Respect: all input signals must have

exactly one corresponding output signal,

i.e., an output signal with the same name

...

A noteworthy aspect depicted in Figure 2 is that

the input for Question #2 is the result derived from

Question #1. To accomplish this, we ask to update

the JSON of Answer #1 with signals and connections.

Given that the general framework in our system au-

tomatically incorporates the previous round’s answer

into the knowledge between two questions, we merely

need to require the update of the preceding JSON

speciﬁcation. Finally, Question #2 can be sketched

as follows:

From the previous JSON and system

specification, update this JSON with

the signals you have to identify. If

necessary, you can add new blocks and

new attributes. Connect the signals

accordingly to constraints to be

respected.

4.2.3 Example

Let us apply all this to our running example. We set

the maximum number of successive feedback loop it-

erations to 20. We do not specify how many blocks

we expect. In this toy example, no feedback was nec-

essary, i.e., the two questions were answered correctly

with regards to the expected output format (JSON)

and with respect to the constraints (e.g., connection

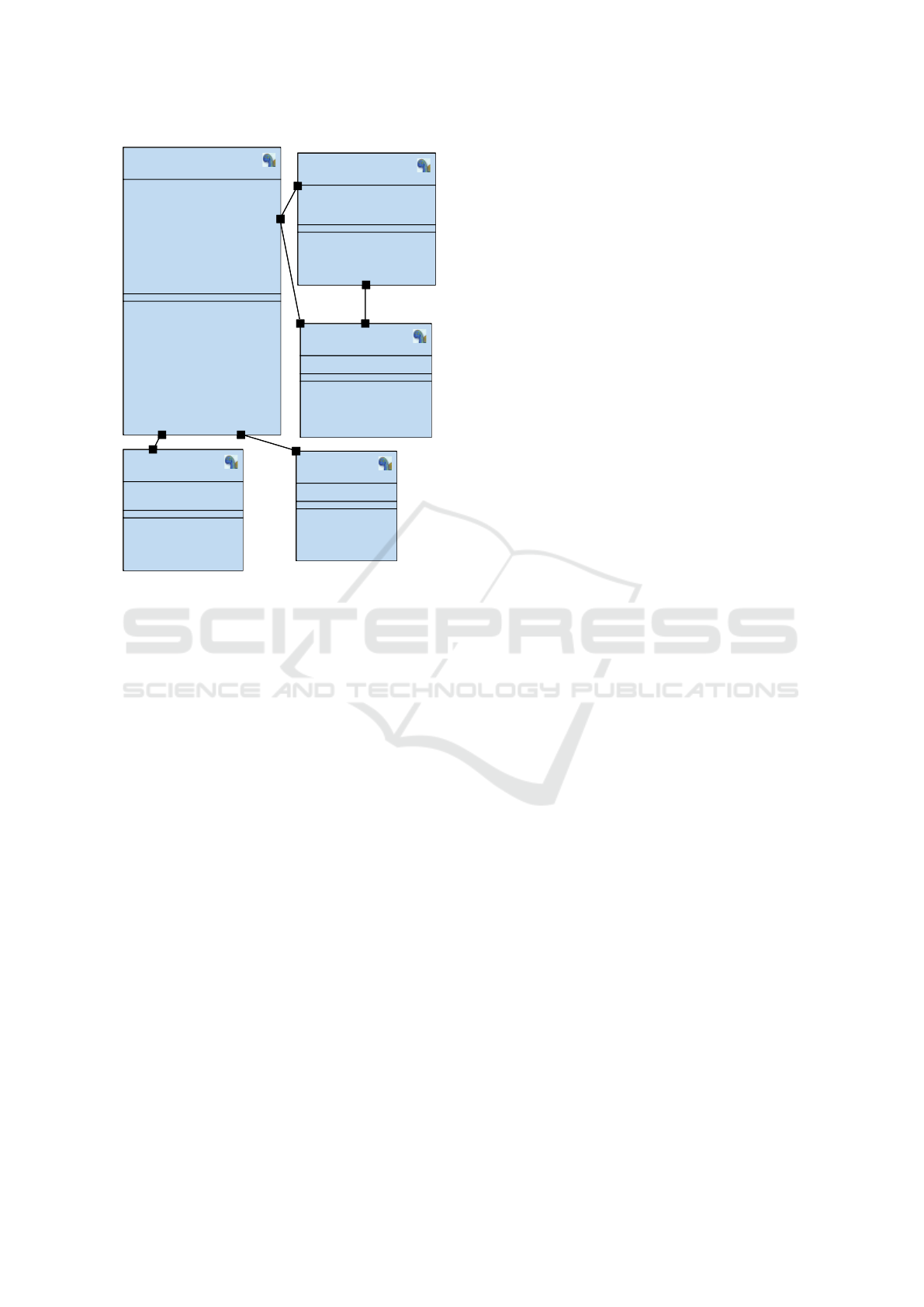

between signals). The obtained diagram is given in

Figure 3. Blocks, attributes, signals and connections

are correctly deﬁned, as a (good) engineer would do.

The choice to use 5 blocks for this system is the one

of ChatGPT: our solution features four blocks.

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

block

CoinReturn

~ in collectBeverage()

~ out acceptCoins()

block

Brewer

- brewing = false : bool;

- brewingTime = 0 : int;

~ in brewCoffee()

~ in brewTea()

~ out beverageReady()

block

BeverageButton

- buttonPressed = false : bool;

- coffeeSelected = false : bool;

- teaSelected = false : bool;

~ in coinAccepted()

~ out coffeeSelected()

~ out teaSelected()

block

CoinSensor

- coinInserted = false : bool;

~ in coinInserted(int coin)

~ out coinReturn(int coin)

~ out coinAccepted()

~ in coinEjected()

block

CoffeeMachine

- coinsDeposited = 0 : int;

- firstCoinInserted = false : bool;

- secondCoinInserted = false : bool;

- beverageSelected = false : bool;

- beveragePreparing = false : bool;

- beverageReady = false : bool;

- acceptCoins = false : bool;

- true = false : bool;

- coffeeSelected = false : bool;

- teaSelected = false : bool;

~ out coinInserted(int coin)

~ in coinReturn(int coin)

~ out coinEjected()

~ in coffeeSelected()

~ in teaSelected()

~ out brewCoffee()

~ out brewTea()

~ in beverageReady()

~ out collectBeverage()

~ in acceptCoins()

block

CoinReturn

~ in collectBeverage()

~ out acceptCoins()

block

Brewer

- brewing = false : bool;

- brewingTime = 0 : int;

~ in brewCoffee()

~ in brewTea()

~ out beverageReady()

block

BeverageButton

- buttonPressed = false : bool;

- coffeeSelected = false : bool;

- teaSelected = false : bool;

~ in coinAccepted()

~ out coffeeSelected()

~ out teaSelected()

block

CoinSensor

- coinInserted = false : bool;

~ in coinInserted(int coin)

~ out coinReturn(int coin)

~ out coinAccepted()

~ in coinEjected()

block

CoffeeMachine

- coinsDeposited = 0 : int;

- firstCoinInserted = false : bool;

- secondCoinInserted = false : bool;

- beverageSelected = false : bool;

- beveragePreparing = false : bool;

- beverageReady = false : bool;

- acceptCoins = false : bool;

- true = false : bool;

- coffeeSelected = false : bool;

- teaSelected = false : bool;

~ out coinInserted(int coin)

~ in coinReturn(int coin)

~ out coinEjected()

~ in coffeeSelected()

~ in teaSelected()

~ out brewCoffee()

~ out brewTea()

~ in beverageReady()

~ out collectBeverage()

~ in acceptCoins()

Figure 3: Block diagram obtained for the running example.

4.3 Behavioral Aspects

4.3.1 Identiﬁcation of State Machines

Unlike the identiﬁcation of blocks that needs two suc-

cessive questions, the identiﬁcation of the behavior

can be done with only one question, thus following

the generic framework of Figure 1. But contrary to

previous questions, the user must ﬁrst select an in-

ternal block diagram that the question takes as in-

put. Also, the system speciﬁcation must preferably

be provided since a deﬁnition of blocks is generally

not enough to deduce the correct behaviour of blocks.

Finally, the complexity for the AI mostly lies in the

fact that the semantics of state machines, while being

quite easy to understand for humans, is quite complex

to explain as a knowledge. So, this is frequent that the

feedback loops must operate several times, sometimes

many times, before a syntactically and semantically

correct state machine can be obtained.

Finally, typical constraints that we specify are:

...

# Respect: in actions, use only attributes

and signals already defined in the

corresponding block

# Respect: at least one state must be

called "Start", which is the start state

# Respect: if a guard, an action, or an

after is empty, use an empty string "",

do not use "null\"

# Respect: an action contains either a

variable affectation, e.g. "x = x + 1"

or a signal send/receive

...

The question TTool-AIasks for each block of the de-

sign is the following:

From the system specification, and from

the definition of blocks and their

connections, identify the state machine

of block: ...

4.3.2 Example

We now proceed to apply the process of identifying

state machines to the blocks shown in Figure 3. We’ve

set a limit of 10 iterations for the feedback loop for

each state machine. Because the block diagram has

ﬁve blocks, we have ﬁve states machines to identify,

thereby necessitating an execution of the identiﬁca-

tion question for each block (this is automated).

The resulting state machine diagram for the Cof-

feeMachine block is depicted in Figure 4. We didn’t

make any alterations to the states or transitions gen-

erated by the AI engine, and we haven’t incorporated

any user feedback. However, even after 10 iterations,

there is still useless guard (with ”true”), and one sig-

nal is used with the incorrect number of attributes.

These two issues could easily be handled by hand.

Figure 5 presents a screenshot of the AI window

in TTool. Notably, the selected question (”Identify

state machines”) is visible at the top. The left text

area displays the user input (here, the speciﬁcation),

while the AI’s response can be seen in the right text

area, highlighted in red. Furthermore, the feedback

loop of TTool reports errors in blue in the right text

area: the screenshot reports 4 errors to the AI engine.

5 IMPLEMENTATION AND

EVALUATION

5.1 TTool-AI: Implementation

Integrating the TTool-AI process from Figure 1 into

TTool presents two primary challenges. Firstly, we

must select the most pertinent knowledge to automat-

ically transmit before user interactions, tailoring GPT-

3.5 to suit our particular requirements. Secondly, we

need to handle GPT’s responses in a way that (i) al-

lows easy corrections of any JSON content within the

automated feedback loop, and (ii) ensures a smooth

integration into TTool.

System Architects Are not Alone Anymore: Automatic System Modeling with AI

Start

CoinsDeposited

coinInserted()

FirstCoinInserted

coinInserted()

SecondCoinInserted

BeverageSelected

brewCoffee()

BeveragePreparing

BeverageReady

collectBeverage()

coinEjected()

CoinsEjected

coinEjected()

brewTea()

coinEjected()

beverageReady=true

coinsDeposited=coinsDeposited+1

acceptCoins

beverageSelected=true

true

after (5, 5)

acceptCoins

true

after (5, 5)

true

after (5, 5)

coinsDeposited=0

true

after (5, 5)

coinsDeposited=0

true

after (5, 5)

true

after (5, 5)

coinsDeposited=coinsDeposited+1

coinsDeposited=0

teaSelected

coffeeSelected

beverageSelected=true

CoinsDeposited

FirstCoinInserted

SecondCoinInserted

BeverageSelected

BeveragePreparing

BeverageReady

CoinsEjected

coinEjected()

coinsDeposited=coinsDeposited+1

acceptCoins

true

after (5, 5)

true

after (5, 5)

true

after (5, 5)

true

after (5, 5)

coinsDeposited=coinsDeposited+1

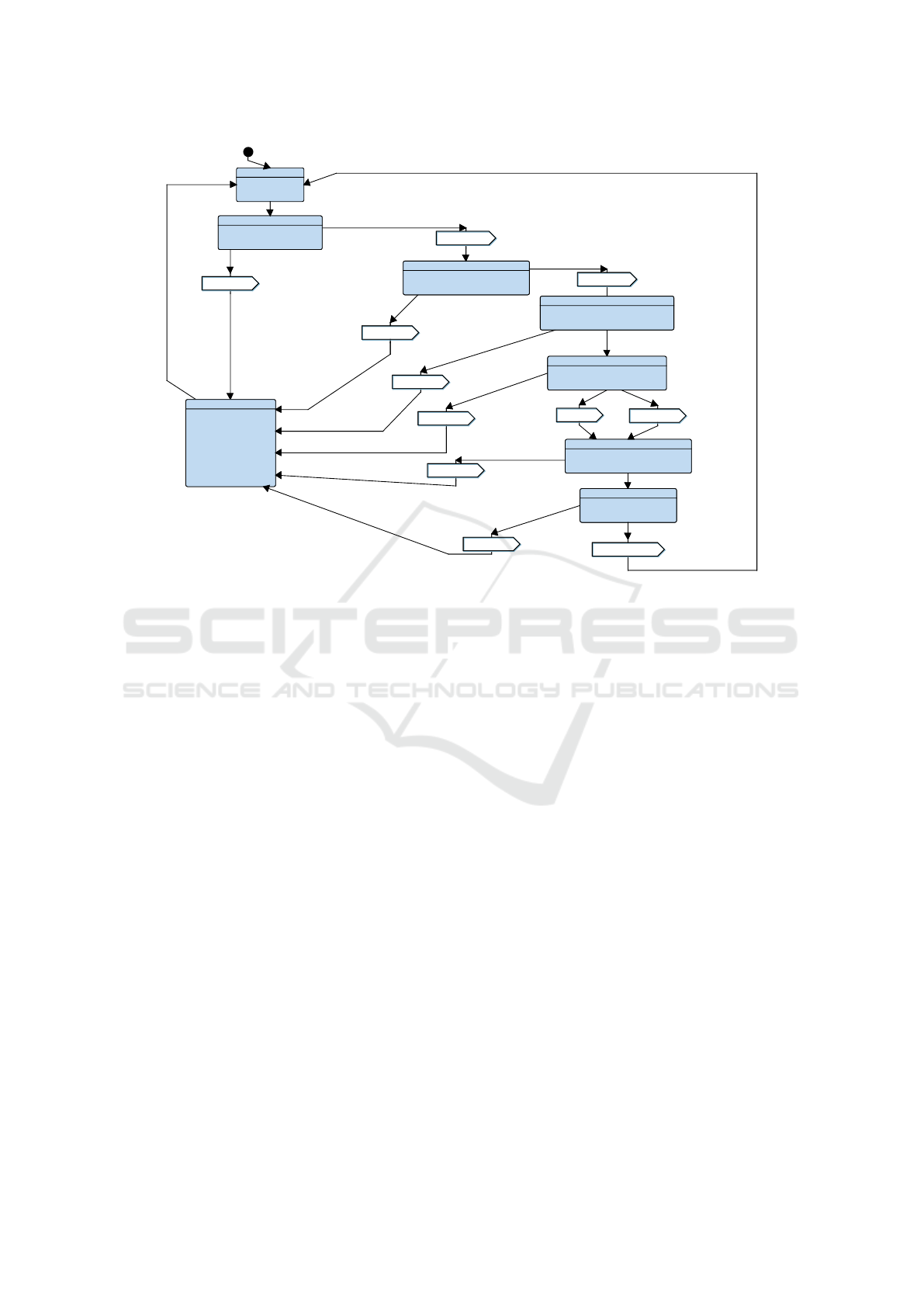

Figure 4: State machine diagram of block CoffeeMachine obtained for the running example. Signal sending and receiving

actions are depicted using a custom operator for a better emphasis on data exchange.

5.1.1 Designing the Most Effective Preliminary

Knowledge

Preliminary remark: our implementation leverages

the capability of OpenAI’s API to inject knowl-

edge in GPT chats as a couple {input, expected an-

swer}. Thus in this section a knowledge instance

always refers to a couple of Strings that is sent by

TTool-AI prior to the speciﬁcation injection. In other

terms, these knowledge instances solely encompasses

knowledge on system engineering (and on blocks, at-

tributes and methods) depicted in Figures 1 and 2.

Regarding knowledge injection, GPT-3.5 has two

constraints. Firstly, the context within a chat is re-

stricted to a ﬁxed number of tokens (16,000 in GPT-

3.5 turbo, equivalent to approximately 12,000 words).

This context encompasses the entire conversational

history, including questions and answers exchanged

in the chat. Consequently, the knowledge injection is

subject to these limitations. In addition, the ﬁnancial

cost of sending data to GPT through its API is propor-

tional to the number of tokens handled by the LLM.

Secondly, during our interactions with GPT, we ob-

served that it often fails to effectively process lengthy

knowledge instances, often facing challenges in as-

similating all the information contained within such

instances. Therefore, the knowledge instances shall

be as concise as possible.

The knowledge instances we inject thus share the

following characteristics:

1. They are limited to 200 words each. If neces-

sary, we divide the injected knowledge into sev-

eral knowledge instances to ensure GPT can pro-

cess them without losing information.

2. As shown in the examples in Section 4, they con-

sist solely of the following elements: (i) the ex-

pected JSON format and (ii) a set of constraints

elucidating the main syntactic features of SysML

proﬁles utilized in TTool.

It’s worth noting that whenever an incorrect model

is provided in a response, TTool-AI resets the chat

history and reintroduces only the relevant knowledge

instances to solve the errors. This helps maintain a

concise context and prevents potential future errors,

ensuring that GPT doesn’t capitalize on the wrong

model.

5.1.2 Handling Gpt’s Responses

The process of handling GPT’s responses primarily

involves two key stages: ﬁrstly, a syntax analysis of

the JSON content they contain, and secondly, either

generating a new SysML model or modifying an ex-

isting one based on the generated JSON.

In practical terms, when TTool-AI receives a re-

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

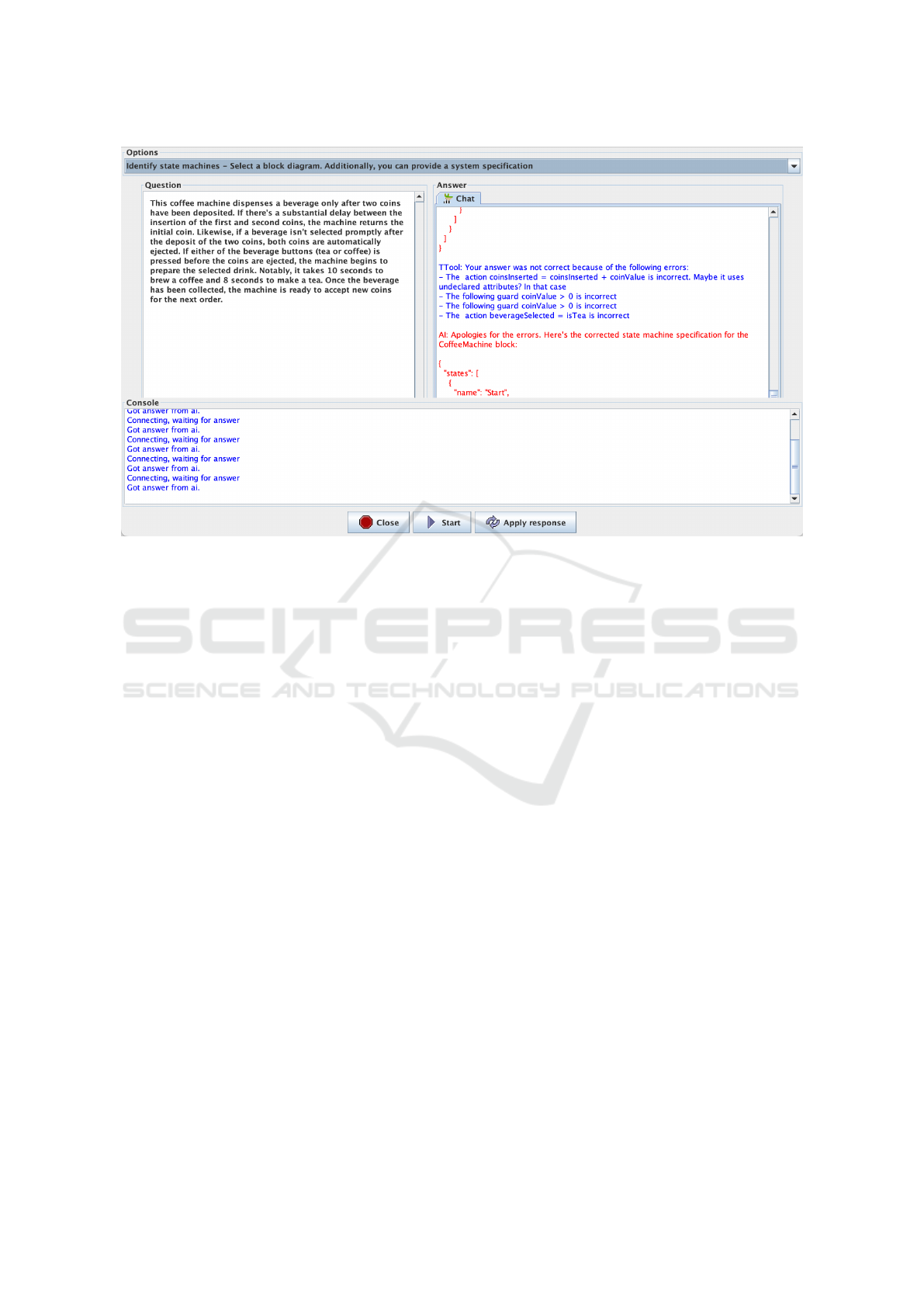

Figure 5: Screen capture of TTool when identifying state machines.

sponse from GPT, it initially attempts to extract a

JSON structure from the response. If this extrac-

tion process fails, as detailed in Algorithm 1, TTool-

AI logs any parsing errors that occurred and appends

them to the feedback question to be sent. If the JSON

is successfully extracted, TTool-AI proceeds to con-

struct a SysML model from it. In this stage, if any

syntax errors are detected, TTool-AI includes them in

the feedback question to be sent. The feedback ques-

tion is subsequently sent to GPT and this syntax anal-

ysis loop continues until one of the following condi-

tions is met: (1) TTool-AI receives a correct response

(i.e., without JSON or syntax errors), or (2) n con-

secutive feedback questions have been sent (default

in TTool: n = 20 or 10). This n prevents excessively

lengthy feedback loops. It’s worth noting that this au-

tomated feedback loop has allowed us to streamline

the set of syntactic constraints included in the knowl-

edge instances, since GPT is generally capable of rec-

tifying its responses effectively through the iterative

feedback questions.

Once the loop has terminated, if the user chooses

to apply the response as depicted in Figures 1 and 2,

then the SysML model built from GPT’s response is

drawn.

5.2 Testing Environment

Tests were conducted using the most recent version

of TTool (nightly build, October 2023) paired with

the ChatGPT 3.5 turbo model. All tested systems are

available in a public, anonymous GitHub repository

at https://github.com/zebradile/ttool-ai. Within this

repository, the directories named platooning, space-

basedsystem, and AutomatedBraking contain both the

system speciﬁcations (in desc ﬁles) and the models

generated by TTool-AI (in .xml ﬁles). These system

speciﬁcations were sourced from use-case speciﬁca-

tions of European projects. A README ﬁle at the

repository’s root offers instructions for replicating the

results. Additionally, a result.ods ﬁle details compu-

tation times, grading out of 100, and an overview of

the results which is also visualized in Table 1.

These system speciﬁcations were provided to ap-

proximately 15 master-level students after 21 hours of

instruction. These students were allotted 1.5 hours to

design and draw the state machines. They had the

opportunity to practice with at least three different

speciﬁcations prior to the assessment. It’s noteworthy

to mention that the grading criteria remained consis-

tent for both TTool-AI and the students. These cri-

teria adhere to the principles of software engineering

quality criteria. They encompass, among others, the

adequacy of the diagrams to the speciﬁcation (does

the proposed architecture meet the speciﬁcation? Is

the behavior of the state machines, observed through

the TTool simulator, in line with this speciﬁcation?),

the quantity of exchanges between blocks, diagrams

readability, number of blocks and states and the con-

sistency of their naming, and the absence of attributes

System Architects Are not Alone Anymore: Automatic System Modeling with AI

declared in blocks but not utilized in state-machine

diagrams. They also include the syntactic correctness

of the models (i.e., the number of errors and warnings

detected by TTool’s syntax checker).

5.3 Results and Discussion

A summary of the results can be found in Table 1. In

the table, BD stands for Block Diagram and SMD for

State Machine Diagram. In general, TTool-AIslightly

outperforms the students, both in block diagrams and

state machine diagrams. Analogous to the students’

performance, TTool-AI excels more at discerning the

system’s structure than identifying its behavior in the

context of state machines. The grading consistency

for TTool-AI is also notable: it has a standard devia-

tion of 15 points, whereas students exhibit a deviation

near 30 points.

Delving into detailed results (as shown in re-

sults.ods), it’s evident that TTool-AIadeptly man-

ages both the platooning and space-based systems.

However, with the automated braking system, which

boasts a more lengthy, intricate, and ambiguously-

written speciﬁcation, students have a slight edge over

TTool-AI for state machines (but not for block dia-

grams).

Does this mean that engineers are being over-

shadowed? Fortunately, the answer is no. TTool-

AIexcels as a tool, laying out a system’s structure

and producing initial state machine diagrams swiftly

and with commendable accuracy. Its efﬁciency does

wane when confronted with intricate systems, iron-

ically where its efﬁciency would be most desired.

However, it’s essential to note that for this assess-

ment, the human interaction aspect in TTool-AIwas

disabled. We believe that if students had paired their

efforts with TTool-AI within the 1.5-hour timeframe,

they would’ve likely achieved superior grades. Sim-

ilarly, we anticipate engineers to beneﬁt immensely:

harnessing TTool-AIfor initial, time-intensive archi-

tecture and state machine designs, and subsequently

reﬁning these preliminary drafts, whether manually or

in tandem with the AI.

6 RELATED WORK

The automatic generation of (formal) models from

system speciﬁcations has been a persistent research

challenge. As elucidated in the comprehensive liter-

ature review contained in (Landh

außer et al., 2014),

this area of study has been active since the late 1990s.

However, the process of model generation often re-

quires imposing constraints on the syntax of input re-

quirements or necessitates manual preprocessing, as

exempliﬁed in the work by Gelhausen et al. (Gel-

hausen and Tichy, 2007). Recent advancements, such

as the ARSENAL framework (Ghosh et al., 2016),

have introduced model generation approaches that

minimize restrictions on the input language. Nonethe-

less, even with these powerful tools, certain natural

language expressions can still pose challenges, elud-

ing their automated transformation into formal mod-

els. We are of the opinion that the recent advance-

ments in the practical applicability of generative AI

models, such as GPT, present an opportunity for han-

dling system speciﬁcations written in totally-free nat-

ural language. Leveraging these AI models, as em-

phasized in the preceding sections, helps reducing the

research effort on language processing but directs it

toward tailoring the model to suit the requirements of

the modeling process.

More broadly, the subject of modeling assistants

is not a recent development in research and engineer-

ing. In a comprehensive survey conducted by Savary-

Leblanc et al. (Savary-Leblanc et al., 2023), which en-

compassed papers published between 2010 and 2022,

the authors identiﬁed 11 notable papers introducing

tools aimed at aiding engineers in the process of

model design. Among these papers, four speciﬁcally

concentrated on UML models, with one of them ad-

dressing SysML models, introducing a tool that offers

support for the design of use-case diagrams (Aquino

et al., 2020). Furthermore, recent research has ex-

plored the development of AI-based Model-Based

Systems Engineering (MBSE) assistants within the

context of the growing trend of AI-based methods and

tools. In this context, Chami et al. (Chami et al.,

2019) introduced a framework grounded in natural

language processing (NLP) that autonomously gener-

ates SysML use-case and block diagrams from tex-

tual requirements inputs. Furthermore, Schr

ader et

al. (Schr

ader et al., 2022) introduced three AI-based

MBSE assistants, each serving distinct purposes: a

workshop assistant capable of converting hand-drawn

sketches into formal SysML models, a knowledge-

based assistant offering design suggestions based on

training data derived from a set of models, and a chat-

bot designed to process natural language queries re-

lated to modeling and provide responses in a natural

language format.

However, with the emergence of the use of GPT

3.5 in 2022, chatbots, particularly those harness-

ing the capabilities of large-language models (LLM),

have demonstrated their potential beyond their tradi-

tional role of handling basic question-and-response

interactions. Due to their versatility, LLMs have been

adapted to address a large variety of challenges and

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

Table 1: Evaluation results: time to produce block and state machine diagrams, and related grade.

Time BD (s) Grade BD (/100) Time SMD (s) Grade SMD (/100)

Average 40 81 178 63

Std dev. 10 16 97 15

(a) TTool + AI

Time BD (s) Grade BD (/100) Time SMD (s) Grade SMD (/100)

Average 2700 70 2700 58

Std dev. — 26 — 32

(b) Students

MBSE assistance is no exception. Indeed, these chat-

bots can now generate responses formatted to cater

speciﬁcally to the requirements of model designers,

such as producing UML diagrams with a remark-

ably low rate of syntax errors (C

amara et al., 2023).

In this study, the authors assessed ChatGPT’s model

generation capabilities by tasking it with producing

UML class diagrams based on speciﬁcations provided

in natural language. An examination of the algo-

rithm’s responses to 40 distinct modeling exercises

led the authors to the observation that ChatGPT fre-

quently succeeded in generating syntactically correct

models. However, it was noted that the semantic ac-

curacy of these models (particularly concerning the

relationships between classes) was not consistently

achieved. Given these imperfections, achieving an ac-

curate model necessitates a series of iterative inquiries

to reﬁne and enhance the output. Consequently, the

authors concluded that the effort required by the user

is still important. We believe that our contribution

plays a role in tackling this issue, thanks to the au-

tomated feedback loop our process involves, which

results in signiﬁcant time savings. In a more archi-

tecture process-oriented study, Ahmad et al. (Ahmad

et al., 2023) present a comprehensive report detailing

their use of ChatGPT for software architecture tasks,

which include generating requirements, UML mod-

els, and evaluating the proposed architecture. Their

experiment highlights the utility of ChatGPT as an

assistant for software architects, but also raises sev-

eral concerns about its responses, including response

variability and ethics/intellectual property issues. In

both cases, human analysis and, if necessary, itera-

tive questioning are essential to converge towards a

correct system architecture. At an earlier stage in the

design cycle, LLM have also been evaluated on the

generation of goal-models (Chen et al., 2023; Naka-

gawa and Honiden, 2023), yielding promising results

when used judiciously (e.g., through the incorpora-

tion of feedback and/or running multiple prompts).

To the best of our knowledge, our contribution is

the ﬁrst to report the direct integration of ChatGPT

into an MBSE toolkit, incorporating automatic dia-

gram generation from the LLM’s responses and au-

tomating the feedback loop.

7 CONCLUSION

This paper introduces a novel environment designed

to aid engineers in their modeling endeavors. To

achieve this, we have integrated a tool, TTool, with

a chatbot, ChatGPT. Two primary contributions stand

out: the knowledge we embed within the AI system

and the feedback loop that reﬁnes and steers the AI

toward a more accurate model. Our evaluation, with

various systems, underscores the signiﬁcance of our

approach.

However, applying this to full-scale problems re-

mains a challenge. The constraints on the AI’s knowl-

edge capacity, paired with the degradation in model

quality when overloading it with information, need

addressing. Traditional methods such as hierarchical

modeling, incremental modeling, and reﬁnement pro-

cesses offer potential solutions. We expect to make

further contributions in this realm in the upcoming

months.

REFERENCES

Ahmad, A., Waseem, M., Liang, P., Fahmideh, M., Aktar,

M. S., and Mikkonen, T. (2023). Towards human-bot

collaborative software architecting with chatgpt. In

Proceedings of the 27th International Conference on

Evaluation and Assessment in Software Engineering,

pages 279–285.

Aquino, E. R., De Saqui-Sannes, P., and Vingerhoeds, R. A.

(2020). A methodological assistant for use case dia-

grams. In 8th MODELSWARD: International Confer-

ence on Model-Driven Engineering and Software De-

velopment, pages 1–11.

amara, J., Troya, J., Burgue

no, L., and Vallecillo, A.

(2023). On the assessment of generative ai in model-

ing tasks: an experience report with chatgpt and uml.

Software and Systems Modeling, pages 1–13.

Chami, M., Zoghbi, C., and Bruel, J.-M. (2019). A ﬁrst

System Architects Are not Alone Anymore: Automatic System Modeling with AI

step towards ai for mbse: Generating a part of sysml

models from text using ai. A First Step towards AI.

Chen, B., Chen, K., Hassani, S., Yang, Y., Amyot, D.,

Lessard, L., Mussbacher, G., Sabetzadeh, M., and

Varr

o, D. (2023). On the use of gpt-4 for creating

goal models: An exploratory study. In 2023 IEEE

31st International Requirements Engineering Confer-

ence Workshops (REW), pages 262–271. IEEE.

Gelhausen, T. and Tichy, W. F. (2007). Thematic role based

generation of uml models from real world require-

ments. In International Conference on Semantic Com-

puting (ICSC 2007), pages 282–289.

Ghosh, S., Elenius, D., Li, W., Lincoln, P., Shankar, N.,

and Steiner, W. (2016). Arsenal: automatic require-

ments speciﬁcation extraction from natural language.

In NASA Formal Methods: 8th International Sympo-

sium, NFM 2016, Minneapolis, MN, USA, June 7-9,

2016, Proceedings 8, pages 41–46. Springer.

Landh

außer, M., K

orner, S. J., and Tichy, W. F. (2014).

From requirements to uml models and back: how au-

tomatic processing of text can support requirements

engineering. Software Quality Journal, 22:121–149.

Nakagawa, H. and Honiden, S. (2023). Mape-k loop-based

goal model generation using generative ai. In 2023

IEEE 31st International Requirements Engineering

Conference Workshops (REW), pages 247–251. IEEE.

OpenAI (2023). GPT4 Technical Report. Technical report.

Savary-Leblanc, M., Burgue

no, L., Cabot, J., Le Pallec, X.,

and G

erard, S. (2023). Software assistants in software

engineering: A systematic mapping study. Software:

Practice and Experience, 53(3):856–892.

Schr

ader, E., Bernijazov, R., Foullois, M., Hillebrand, M.,

Kaiser, L., and Dumitrescu, R. (2022). Examples of

ai-based assistance systems in context of model-based

systems engineering. In 2022 IEEE International

Symposium on Systems Engineering (ISSE), pages 1–

8. IEEE.

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering
